# Single-Qubit Driving Fields and Mathieu Functions

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Analytically Solvable Driving Fields

## 3. Dynamics in a Precessing Field with Oscillating Amplitude

#### 3.1. The Dynamics of Driving Fields and the Theory of Mathieu Functions

#### 3.1.1. Driving Fields in the Region $\mathcal{A}$

#### 3.1.2. Driving Fields in the Region ${\mathcal{A}}^{C}$

## 4. Evolution Loops, Cyclic Evolution and Phases

#### Dynamical and Geometric Phases

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Rabi, I. Space quantization in a gyrating magnetic field. Phys. Rev.
**1937**, 51, 652. [Google Scholar] [CrossRef] - Zener, C. Non-adiabatic crossing of energy levels. Proc. R. Soc. A
**1932**, 137, 696–702. [Google Scholar] [CrossRef] - Schwinger, J. On non-adiabatic processes in inhomogeneous fields. Phys. Rev.
**1937**, 51, 648. [Google Scholar] [CrossRef] - Nielsen, M.A.; Chuang, I.L. Quantum Computation and Quantum Information; Cambridge University Press: Cambridge, UK, 2000. [Google Scholar]
- Zeng, J.; Barnes, E. Fastest pulses that implement dynamically corrected single-qubit phase gates. Phys. Rev. A
**2018**, 98, 012301. [Google Scholar] [CrossRef] [Green Version] - Motzoi, F.; Wilhelm, F.K. Improving frequency selection of driven pulses using derivative-based transition suppression. Phys. Rev. A
**2013**, 88, 062318. [Google Scholar] [CrossRef] - Stefanatos, D.; Paspalakis, E. Resonant shortcuts for adiabatic rapid passage with only z-field control. Phys. Rev. A
**2019**, 100, 012111. [Google Scholar] [CrossRef] - Fernández, D.J.; Rosas-Ortiz, O. Inverse techniques and evolution of spin-1/2. Phys. Lett. A
**1997**, 236, 275. [Google Scholar] [CrossRef] - Barnes, E.; Das Sarma, S. Analytically solvable driven time-dependent two-level quantum systems. Phys. Rev. Lett.
**2012**, 109, 060401. [Google Scholar] [CrossRef] - Vitanov, N.V. Complete population inversion by a phase jump: An exactly soluble model. New J. Phys.
**2007**, 9, 58. [Google Scholar] [CrossRef] - Messina, A.; Nakazato, H. Analytically solvable Hamiltonians for quantum two-level systems and their dynamics. J. Phys. A Math. Theor.
**2014**, 47, 445302. [Google Scholar] [CrossRef] - Enríquez, M.; Cruz, S.C.y. Exactly Solvable One-Qubit Driving Fields Generated via Nonlinear Equations. Symmetry
**2018**, 10, 567. [Google Scholar] [CrossRef] - Wei, J.; Norman, E. Lie algebraic solution of linear differential equations. J. Math. Phys.
**1963**, 4, 575–581. [Google Scholar] [CrossRef] - Enríquez, M.; Cruz, S.C.y. Disentangling the time-evolution operator of a single qubit. J. Phys. Conf. Ser.
**2017**, 839, 012015. [Google Scholar] [CrossRef] - Datolli, G.; Solimeno, S.; Torre, A. Algebraic time-ordering technics and harmonic oscillator with time-dependent frequency. Phys. Rev. A
**1986**, 34, 2646. [Google Scholar] [CrossRef] [PubMed] - Datolli, G.; Torre, A. SU(2) and SU(1,1) time-ordering theorems and Bloch-type equations. J. Math. Phys.
**1987**, 28, 618. [Google Scholar] [CrossRef] - Datolli, G.; Richetta, M.; Torre, A. Evolution of SU(2) and SU(1,1) states: A further mathematical analysis. J. Math. Phys.
**1988**, 29, 2586. [Google Scholar] [CrossRef] - Mathieu, É. Le mouvement vibratoire d’une membrane de forme elliptique. J. Math. Pures Appl.
**1868**, 13, 137–203. [Google Scholar] - McLachlan, N.W. Theory and Application of Mathieu Functions; Oxford University Press: London, UK, 1951. [Google Scholar]
- Li, S.; Wang, B.S. Field expressions and patterns in elliptical waveguides. IEEE Trans. Microw. Theory Tech.
**2000**, 48, 864–867. [Google Scholar] - Gutiérrez-Vega, J.C.; Iturbe-Castillo, M.D.; Chávez-Cerda, S. Alternative formulation for invariant optical fields: Mathieu beams. Opt. Lett.
**2000**, 25, 1493–1495. [Google Scholar] [CrossRef] - Carver, T.R. Mathieu’s functions and electrons in a periodic lattice. Am. J. Phys.
**1971**, 39, 1225–1231. [Google Scholar] [CrossRef] - Sinha, A.; Roychoudhury, R. Spectral singularity in confined $\mathcal{P}$$\mathcal{T}$ symmetric optical potential. J. Math. Phys.
**2013**, 54, 112106. [Google Scholar] [CrossRef] - Bruno-Alfonso, A.; Latgé, A. Aharonov-Bohm oscillations in a quantum ring: Eccentricity and electric-field effects. Phys. Rev. B
**2005**, 71, 125312. [Google Scholar] [CrossRef] [Green Version] - Mielnik, B. Evolution loops. J. Math. Phys.
**1986**, 27, 2290–2306. [Google Scholar] [CrossRef] - Delgado, F.; Mielnik, B. Are there Floquet quanta? Phys. Lett. A
**1998**, 249, 369–375. [Google Scholar] [CrossRef] [Green Version] - Pinney, E. The nonlinear differential equation y′′ + p(x)y + cy
^{−3}= 0. Proc. Am. Math. Soc.**1950**, 1, 581. [Google Scholar] [CrossRef] - Ermakov, V.P. Second order differential equations. Conditions to complete integrability. Kiev Univ. Izvestia Ser. III
**1880**, 9, 125. (In Russian) [Google Scholar] [CrossRef] - Klimov, A.B.; Chumakov, S.M. A Group-Theoretical Approach to Quantum Optics; Wiley-VCH: Weinheim, Germany, 2009. [Google Scholar]
- Gutiérrez-Vega, J.C.; Rodríguez-Dagnino, R.M.; Meneses-Nava, M.A.; Chávez-Cerda, S. Mathieu functions, a visual approach. Am. J. Phys.
**2003**, 71, 233–242. [Google Scholar] [CrossRef] [Green Version] - Haroche, S.; Raimond, J.M. Exploring the Quantum: Atoms, Cavities, and Photons; Oxford University Press: Oxford, UK, 2006. [Google Scholar]
- Anandan, J. The geometric phase. Nature
**1992**, 360, 307–313. [Google Scholar] [CrossRef] - Cohen, E.; Larocque, H.; Bouchard, F.; Nejadsattari, F.; Gefen, Y.; Karimi, E. Geometric phase from Aharonov-Bohm to Pancharatnam-Berry and beyond. Nat. Rev. Phys.
**2019**, 1, 437–449. [Google Scholar] [CrossRef] - Zanardi, P.; Rasetti, M. Holonomic quantum computation. Phys. Lett. A
**1999**, 264, 94–99. [Google Scholar] [CrossRef] [Green Version] - Jones, J.A.; Vedral, V.; Ekert, A.; Castagnoli, G. Geometric quantum computation using nuclear magnetic resonance. Nature
**2000**, 403, 869–871. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Aharonov, Y.; Anandan, J. Phase change during a cyclic quantum evolution. Phys. Rev. Lett.
**1987**, 58, 1593–1596. [Google Scholar] [CrossRef] [PubMed] - Menda, I.; Buric, N.; Popovic, D.B.; Prvanovic, S.; Radonjic, M. Geometric Phase for Analytically Solvable Driven Time-Dependent Two-Level Quantum Systems. Acta Phys. Polonica
**2014**, 126, 670–672. [Google Scholar] [CrossRef] - Chruściński, D.; Jamiołkowski, A. Geometric Phases in Classical and Quantum Mechanics; Birkhäuser: Boston, MA, USA, 2004. [Google Scholar]

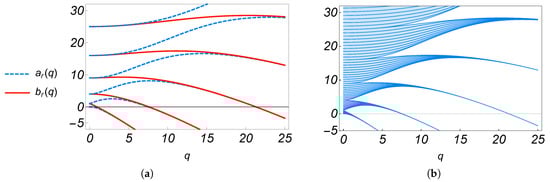

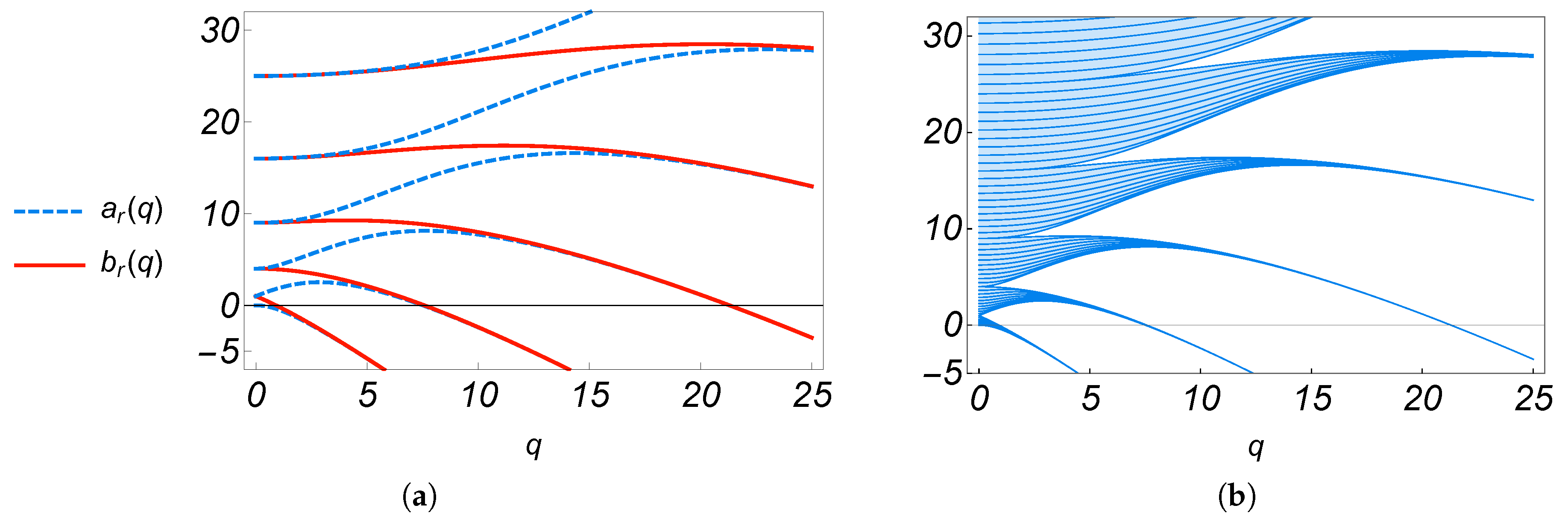

**Figure 1.**(

**a**) The characteristic values ${a}_{r}\left(q\right)$ (blue-dashed curves) for $r=0,1,2,3,4,5$, and ${b}_{r}$ (red curves) for $r=1,2,3,4,5$, as functions of q, for several values of $r\in \mathbb{N}$. Note that ${a}_{r}\left(0\right)={b}_{r}\left(0\right)={r}^{2}$. (

**b**) The shaded region is produced by all the characteristic curves with non-integer characteristic values r, case in which ${a}_{r}={b}_{r}$.

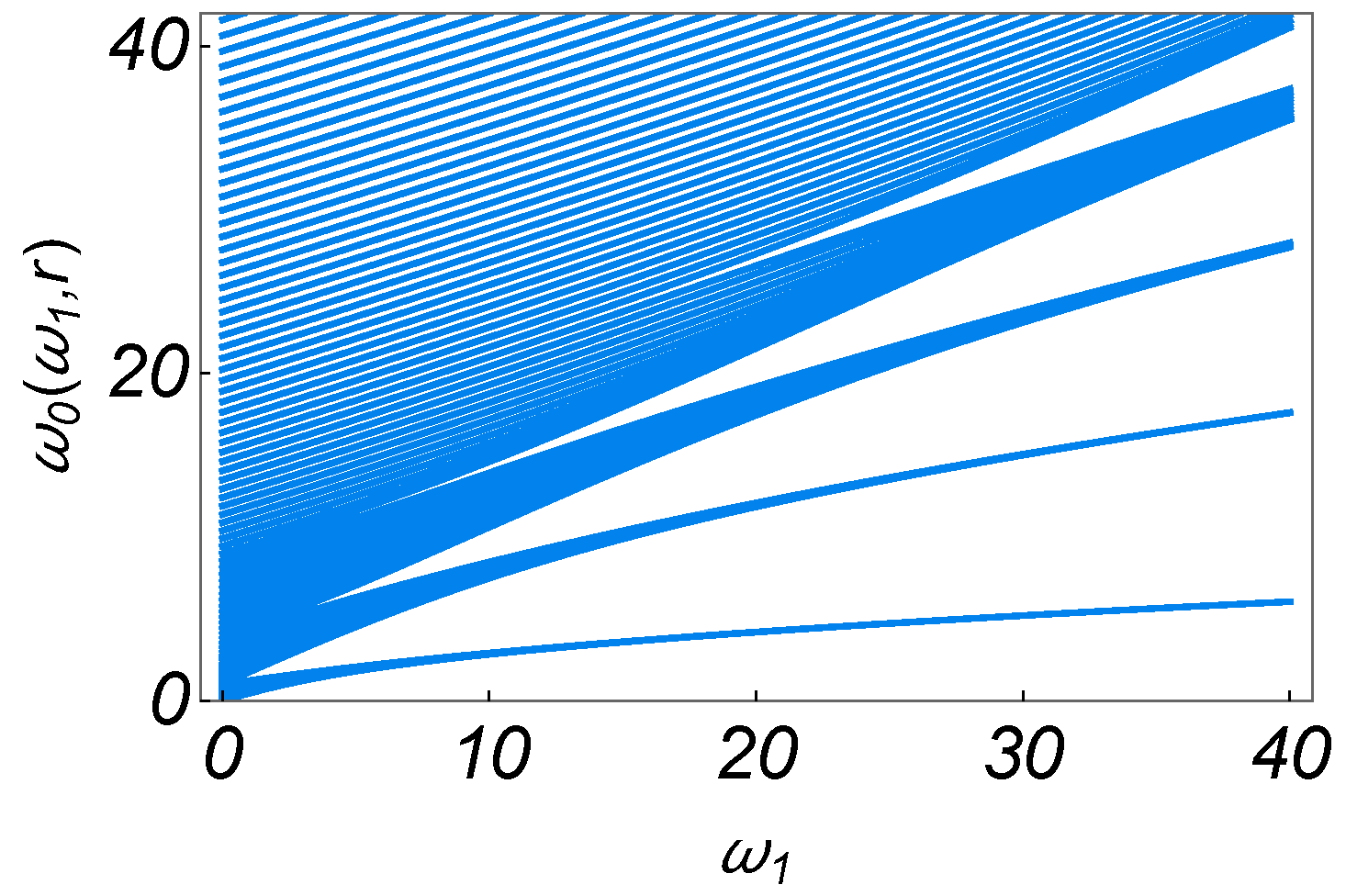

**Figure 2.**The characteristic frequency ${\omega}_{0}({\omega}_{1},r)={a}_{r}\left({\omega}_{1}\right)+{\omega}_{1}/2$ as functions of ${\omega}_{1}$, for several rational values of r.

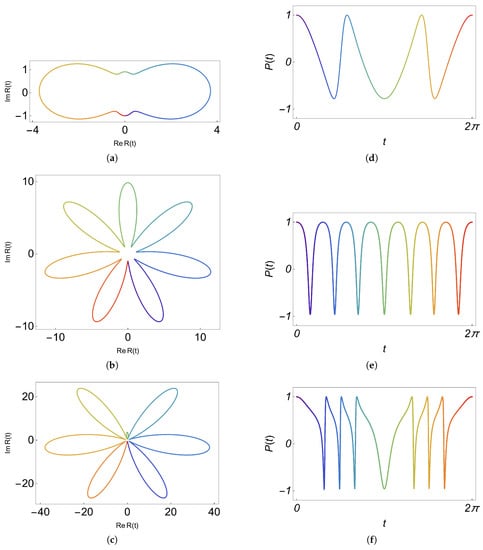

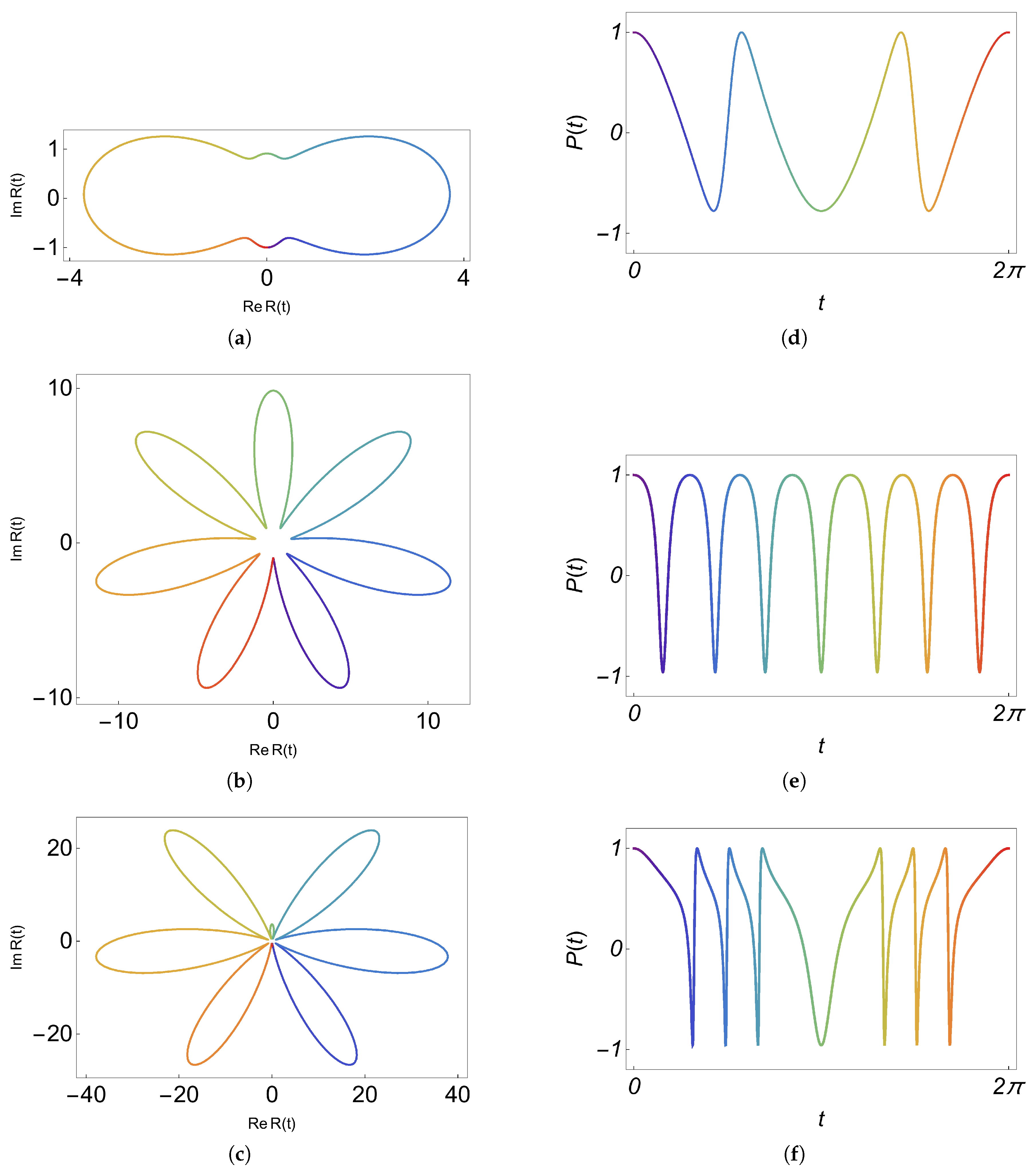

**Figure 3.**The driving field (23) in the complex plane for $g=1$, $\Delta =1$, (

**a**) $r=1.5$, ${\omega}_{1}=4$, ${\omega}_{0}=4.53718$, $\delta =0.7071$, (

**b**) $r=3.5$, ${\omega}_{1}=4$, ${\omega}_{0}=14.2946$, $\delta =0.28867$, (

**c**) $r=3.5$, ${\omega}_{1}=40$, ${\omega}_{0}=36.2607$, $\delta =0.28867$. In (

**d**–

**f**), the corresponding population inversion is shown. All of the previous values of ${\omega}_{0}$ correspond to characteristic values of the Mathieu functions (16) with rational values of r, that is, $({\omega}_{1},{\omega}_{0})\in \mathcal{A}$. Time flows from blue to red matching the scale between the types of plots.

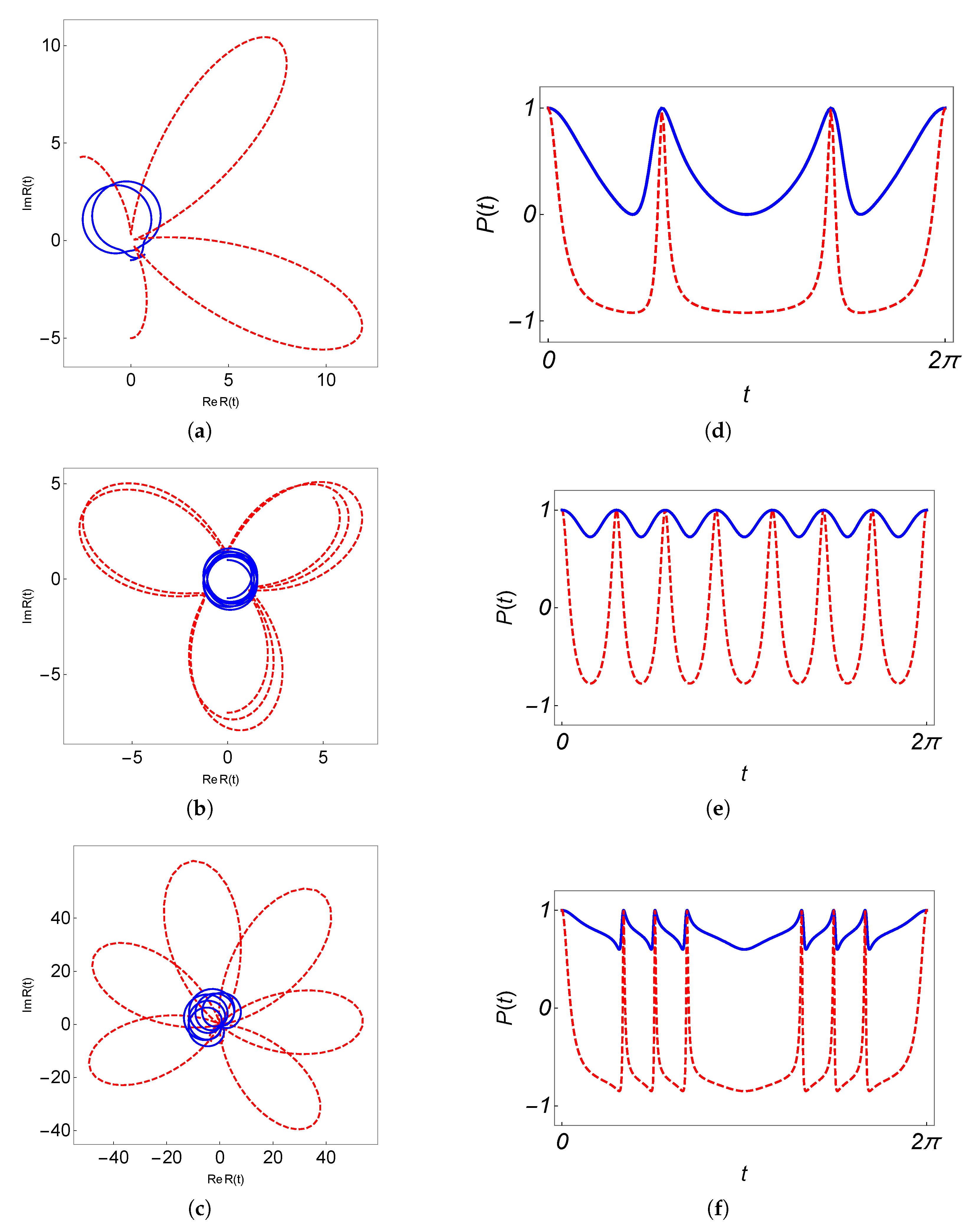

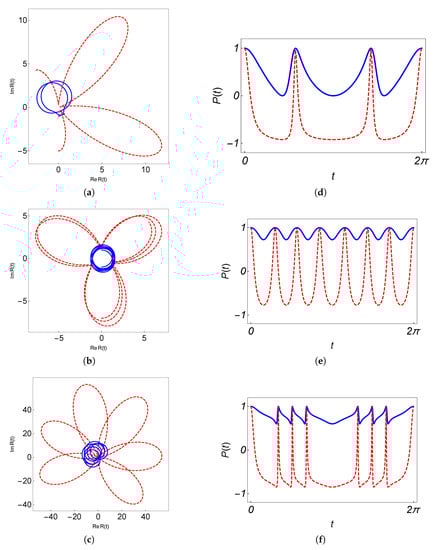

**Figure 4.**The driving fields (23) in the complex plane (left column) and the associated population inversion (right column) for the cases of Figure 3, except for the values of g and $\delta $, which has been increased as follows: (

**a**,

**d**) $g=1$, $\delta =2$ (blue), and $g=5$, $\delta =2$ (red dashed), (

**b**,

**e**) $g=1$, $\delta =5$ (blue), and $g=7$, $\delta =5$ (red dashed), (

**c**,

**f**) $g=1$, $\delta =4$ (blue), and $g=7$, $\delta =4$ (red dashed). The driving field precesses counterclockwise.

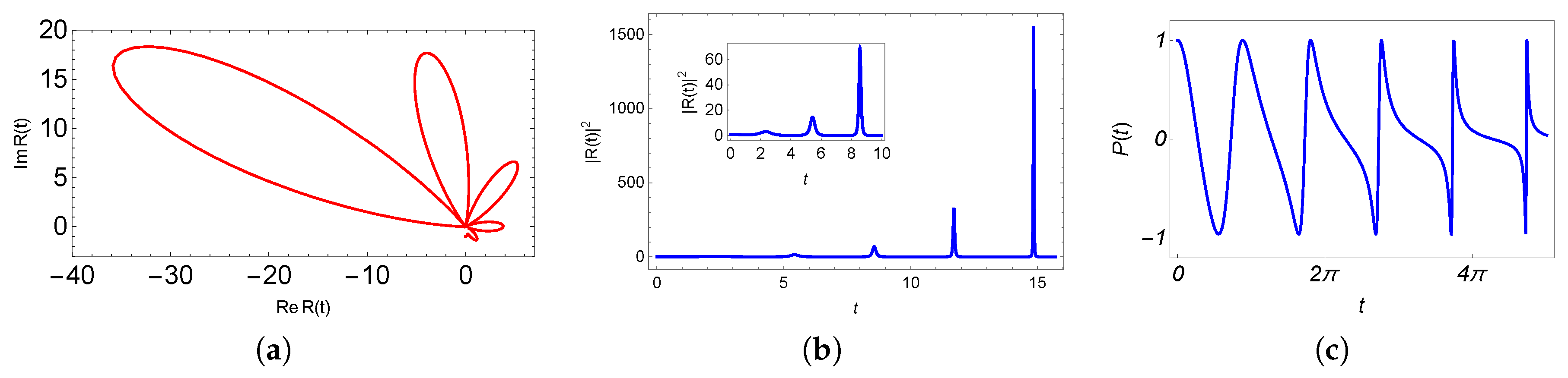

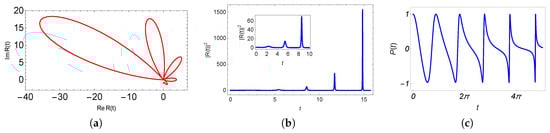

**Figure 5.**(

**a**) The driving field (23) in the complex plane. (

**b**) Its square modulus as a function of time. The inset is a zooming of the plot for $t\in [0,10]$ to show the correspondent local maxima, and (

**c**) the associated population inversion with ${\omega}_{1}=1$, ${\omega}_{0}=1.5$, $g=1$, $\delta =0.2887$, where $({\omega}_{0},{\omega}_{1})\notin \mathcal{A}$. The driving field precesses counterclockwise.

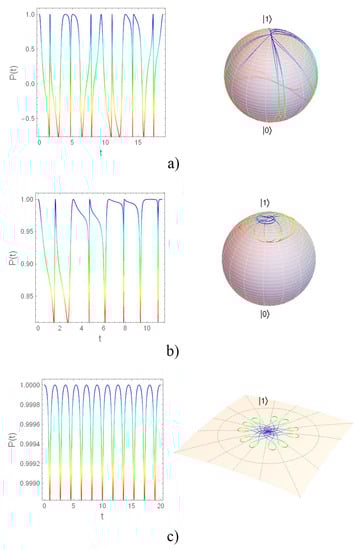

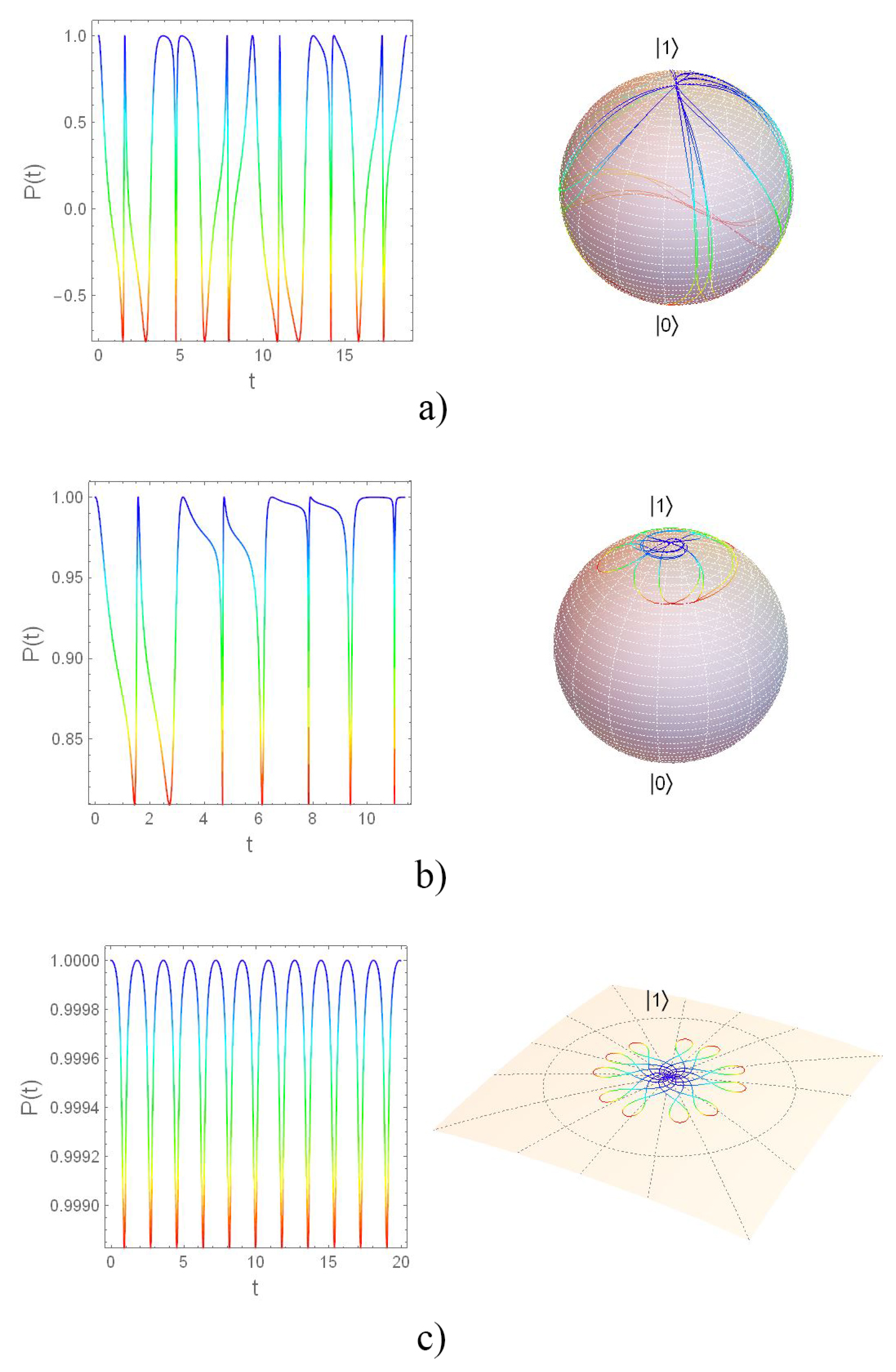

**Figure 6.**Population inversion together with the dynamics represented on Bloch spheres for several prescriptions generating evolution loops. In any case, the color depicts the value of $P\left(t\right)$ in agreement with the left plot. (
