# Study on Stiffness-Oriented Cable Tension Distribution for a Symmetrical Cable-Driven Mechanism

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

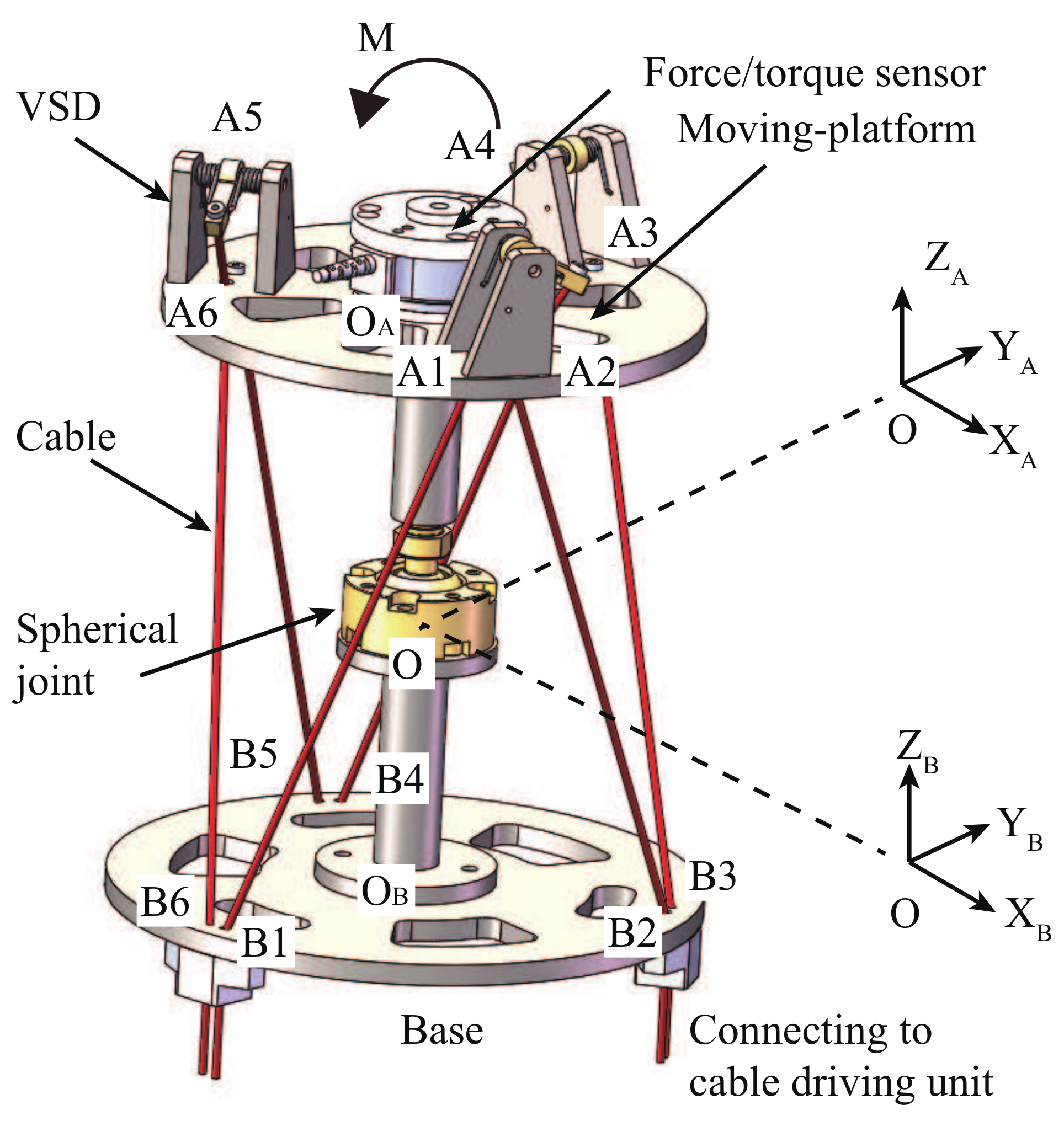

## 2. Design of the 6-CSJM with VSDs

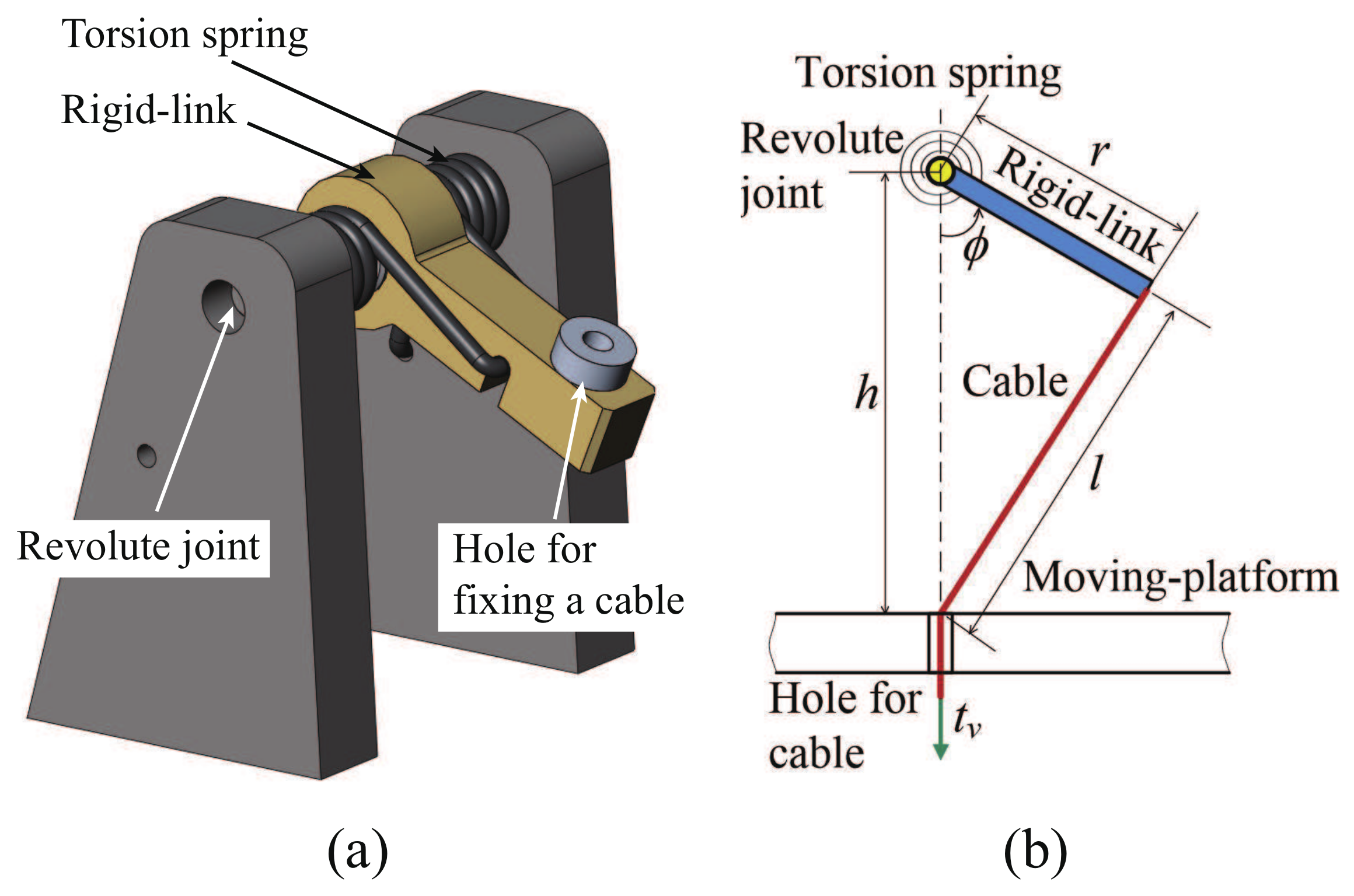

## 3. Stiffness Model of the VSD

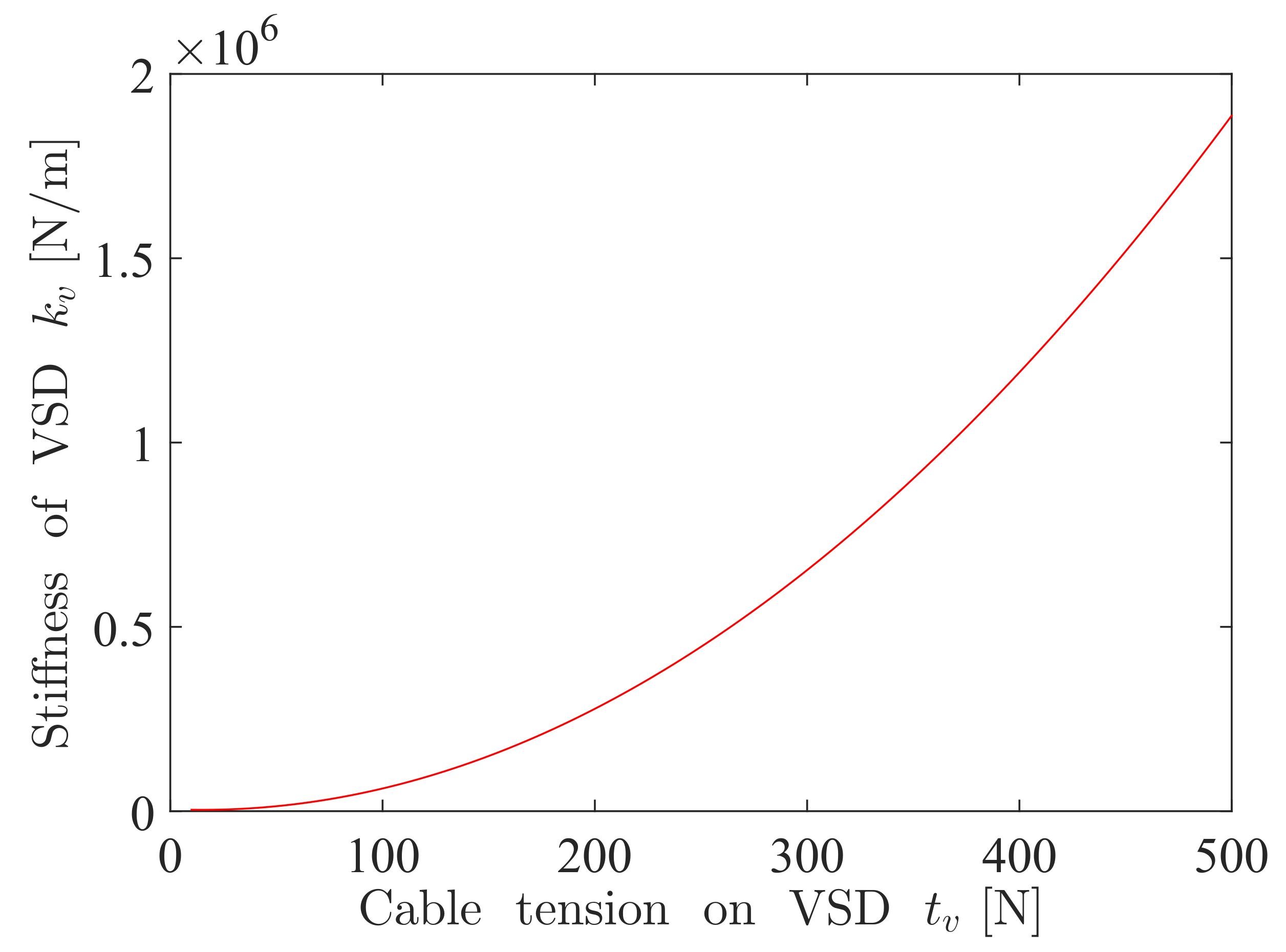

## 4. Stiffness Model of the 6-CSJM

#### 4.1. Kinematic Analysis of the 6-CSJM

#### 4.2. The Stiffness Model of the 6-CSJM

## 5. Stiffness-Oriented Cable Tension Distribution Method

#### 5.1. Formulation of the Optimization Model

#### 5.2. Elimination of Equality Constraint

#### 5.3. Optimization Procedures via Complex Method

- (i)
- Formation of the initial Complex: An initial Complex with six vertices ${\mathit{T}}_{s}^{\left(1\right)}$, ${\mathit{T}}_{s}^{\left(2\right)}$, ⋯, ${\mathit{T}}_{s}^{\left(6\right)}$ is setup in the feasible region randomly.
- (ii)
- Generation of a new complex: The values of the cost function at the vertices are computed. The worst point ${\mathit{T}}_{s}^{\left(W\right)}$, where the cost function obtains the largest value, will be replaced by the mapping point ${\mathit{T}}_{s}^{\left(M\right)}$. In this way, a new Complex is generated. Here, the mapping point ${\mathit{T}}_{s}^{\left(M\right)}$ is computed by$${\mathit{T}}_{s}^{\left(M\right)}={\mathit{T}}_{s}^{\left(C\right)}+\alpha ({\mathit{T}}_{s}^{\left(C\right)}-{\mathit{T}}_{s}^{\left(W\right)}),$$
- (iii)
- Condition of loop stopping: If the error tolerance, $\u03f5\le {\u03f5}_{min}={10}^{-7}$, the iterative procedure will terminate, and we go to (iv). Otherwise, we go back to (i). Here, $\u03f5$ is defined as$$\u03f5=\sqrt{\frac{1}{6}\sum _{j=1}^{6}{[g({\mathit{T}}_{s}^{\left(j\right)})-g({\mathit{T}}_{s}^{\left(B\right)})]}^{2}}.$$
- (iv)
- Finalization of optimal solution: The best point ${\mathit{T}}_{s}^{\left(B\right)}$ is selected as the optimal solution ${\mathit{T}}_{\mathrm{opt}}$. From here, the optimal cable tension distribution is obtained for the desired feasible stiffness.
- (v)
- Validation of stiffness model: The actual stiffness ${\mathit{K}}_{\mathrm{act}}$ is computed by substituting the optimal cable tensions ${\mathit{T}}_{\mathrm{opt}}$ into the stiffness model (21). The error $\eta $ is defined to evaluate the difference between ${\mathit{K}}_{\mathrm{des}}$ and ${\mathit{K}}_{\mathrm{act}}$,$$\eta =\frac{\left|\right|{\mathit{K}}_{\mathrm{des}}-{\mathit{K}}_{\mathrm{act}}{\left|\right|}_{F}}{\left|\right|{\mathit{K}}_{\mathrm{des}}{\left|\right|}_{F}},$$

## 6. Simulation

#### 6.1. Simulation Cases

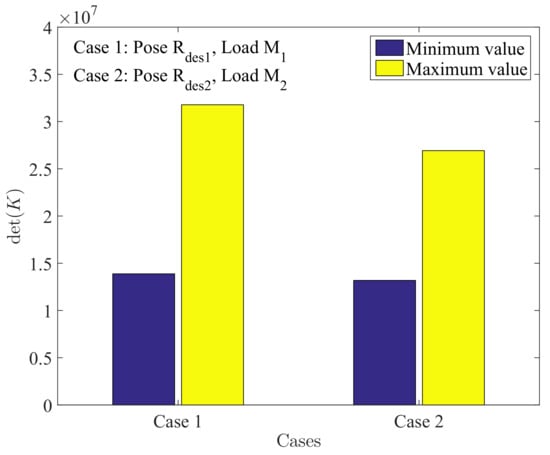

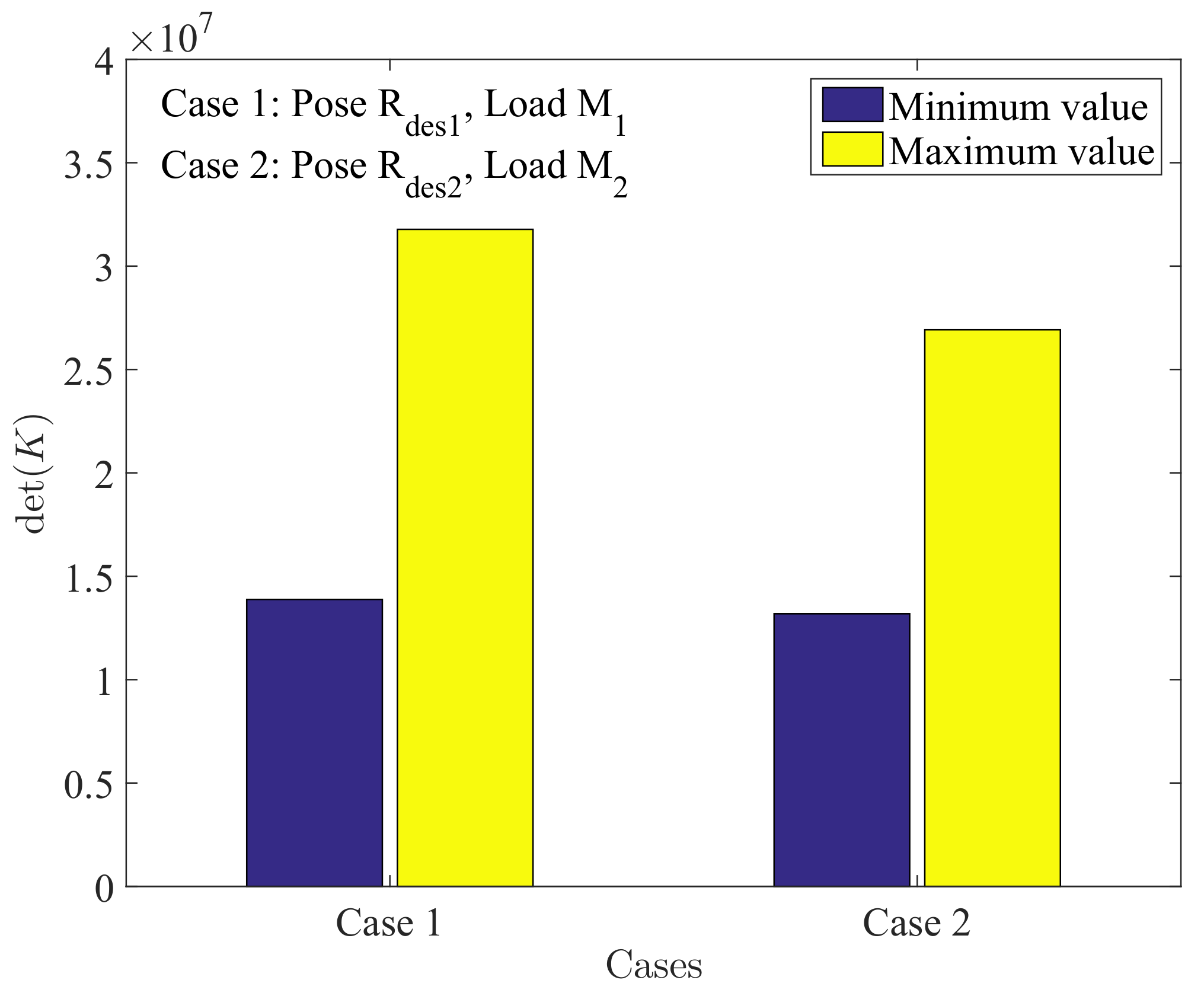

#### 6.2. Discussion

## 7. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Dong, X.; Axinte, D.; Palmer, D.; Cobos, S.; Raffles, M.; Rabani, A.; Kell, J. Development of a slender continuum robotic system for on-wing inspection/repair of gas turbine engines. Robot. Comput. Integr. Manuf.
**2017**, 44, 218–229. [Google Scholar] [CrossRef] [Green Version] - Wang, M.; Palmer, D.; Dong, X.; Alatorre, D.; Axinte, D.; Norton, A. Design and Development of a Slender Dual-Structure Continuum Robot for In-Situ Aeroengine Repair. In Proceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Madrid, Spain, 1–5 October 2018; pp. 5648–5653. [Google Scholar]
- Axinte, D.; Dong, X.; Palmer, D.; Rushworth, A.; Guzman, S.C.; Olarra, A.; Arizaga, I.; Gomez-Acedo, E.; Txoperena, K.; Pfeiffer, K.; et al. MiRoR-Miniaturized Robotic Systems for HolisticIn-SituRepair and Maintenance Works in Restrained and Hazardous Environments. IEEE/ASME Trans. Mechatron.
**2018**, 23, 978–981. [Google Scholar] [CrossRef] - Wang, H.; Wang, C.; Chen, W.; Liang, X.; Liu, Y. Three-dimensional dynamics for cable-driven soft manipulator. IEEE/ASME Trans. Mechatron.
**2017**, 22, 18–28. [Google Scholar] [CrossRef] - Xu, F.; Wang, H.; Au, K.W.S.; Chen, W.; Miao, Y. Underwater dynamic modeling for a cable-driven soft robot arm. IEEE/ASME Trans. Mechatron.
**2018**, 23, 2726–2738. [Google Scholar] [CrossRef] - Cui, Z.; Tang, X.; Hou, S.; Sun, H. Research on controllable stiffness of redundant cable-driven parallel robots. IEEE/ASME Trans. Mechatron.
**2018**, 23, 2390–2401. [Google Scholar] [CrossRef] - Campeau-Lecours, A.; Foucault, S.; Laliberte, T.; Mayer-St-Onge, B.; Gosselin, C. A cable-suspended intelligent crane assist device for the intuitive manipulation of large payloads. IEEE/ASME Trans. Mechatron.
**2016**, 21, 2073–2084. [Google Scholar] [CrossRef] - Dion-Gauvin, P.; Gosselin, C. Dynamic point-to-point trajectory planning of a three-DOF cable-suspended mechanism using the hypocycloid curve. IEEE/ASME Trans. Mechatron.
**2018**, 23, 1964–1972. [Google Scholar] [CrossRef] - Wang, H.; Kinugawa, J.; Kosuge, K. Exact kinematic modeling and identification of reconfigurable cable-driven robots with dual-pulley cable guiding mechanisms. IEEE/ASME Trans. Mechatron.
**2019**, 24, 774–784. [Google Scholar] [CrossRef] - Kuan, J.; Pasch, K.A.; Herr, H.M. A high-performance cable-drive module for the development of wearable devices. IEEE/ASME Trans. Mechatron.
**2018**, 23, 1238–1248. [Google Scholar] [CrossRef] - Thompson, N.; Sinha, A.; Krishnan, G. Characterizing Architectures of Soft Pneumatic Actuators for a Cable-Driven Shoulder Exoskeleton. In Proceedings of the IEEE International Conference on Robotics and Automation (ICRA), Montreal, QC, Canada, 20–24 May 2019; pp. 570–576. [Google Scholar]
- Choi, H.; Kang, B.B.; Jung, B.; Cho, K. Exo Wrist: A Soft Tendon Driven Wrist Wearable Robot with Active Anchor for Dart Throwing Motion in Hemiplegic Patients. IEEE Robot. Autom. Lett.
**2019**. [Google Scholar] [CrossRef] - Hidayah, R.; Chamarthy, S.; Shah, A.; Fitzgerald-Maguire, M.; Agrawal, S.K. Walking With Augmented Reality: A Preliminary Assessment of Visual Feedback with a Cable-Driven Active Leg Exoskeleton (C-ALEX). IEEE Robot. Autom. Lett.
**2019**, 4, 3948–3954. [Google Scholar] [CrossRef] - Chen, Q.; Zi, B.; Sun, Z.; Li, Y.; Xu, Q. Design and Development of a New Cable-Driven Parallel Robot for Waist Rehabilitation. IEEE/ASME Trans. Mechatron.
**2019**, 24, 1497–1507. [Google Scholar] [CrossRef] - Borgstrom, P.H.; Jordan, B.L.; Sukhatme, G.S.; Batalin, M.A.; Kaiser, W.J. Rapid Computation of Optimally Safe Tension Distributions for Parallel Cable-Driven Robots. IEEE Trans. Robot.
**2009**, 25, 1271–1281. [Google Scholar] [CrossRef] [Green Version] - Nakamura, T.; Tanaka, D.; Maeda, H. Joint Stiffness and Position Control of an Artificial Muscle Manipulator for Instantaneous Loads Using a Mechanical Equilibrium Model. Adv. Robot.
**2011**, 25, 387–406. [Google Scholar] [CrossRef] - Kajikawa, S.; Ito, T.; Hase, H. Stiffness control of variable stiffness joint using electromyography signals. In Proceedings of the IEEE International Conference on Robotics and Automation (ICRA), Karlsruhe, Germany, 6 May 2013; pp. 4928–4933. [Google Scholar]
- Lim, W.B.; Yeo, S.H.; Yang, G.; Chen, I.M. Design and analysis of a cable-driven manipulator with variable stiffness. In Proceedings of the IEEE International Conference on Robotics and Automation (ICRA), Karlsruhe, Germany, 6 May 2013; pp. 4519–4524. [Google Scholar]
- Cui, X.; Chen, W.; Jin, X.; Agrawal, S.K. Design of a 7-DOF cable-driven arm exoskeleton (CAREX-7) and a controller for dexterous motion training or assistance. IEEE/ASME Trans. Mechatron.
**2017**, 22, 161–172. [Google Scholar] [CrossRef] - Lim, W.B.; Yeo, S.H.; Yang, G.; Mustafa, S.K. Kinematic analysis and design optimization of a cable-driven universal joint module. In Proceedings of the IEEE/ASME International Conference on Advanced Intelligent Mechatronics, Sinagopore, 14–17 July 2009; pp. 1933–1938. [Google Scholar]
- Mustafa, S.K.; Song, H.Y.; Cong, B.P.; Yang, G.; Wei, L. A biologically-inspired anthropocentric shoulder joint rehabilitator: workspace analysis and optimization. In Proceedings of the IEEE International Conference on Mechatronics and Automation, Niagara Falls, ON, Canada, 29 July–1 August 2005; pp. 1045–1050. [Google Scholar]
- Abbasnejad, G.; Eden, J.; Lau, D. Generalized Ray-Based Lattice Generation and Graph Representation of Wrench-Closure Workspace for Arbitrary Cable-Driven Robots. IEEE Trans. Robot.
**2019**, 35, 147–161. [Google Scholar] [CrossRef] - Porto, R.A.; Nageotte, F.; Zanne, P.; Mathelin, M.D. Position control of medical cable-driven flexible instruments by combining machine learning and kinematic analysis. In Proceedings of the International Conference on Robotics and Automation (ICRA), Montreal, QC, Canada, 20–24 May 2019; pp. 7913–7919. [Google Scholar]
- Behzadipour, S.; Khajepour, A. Stiffness of cable-based parallel manipulators with application to stability analysis. J. Mech. Des.
**2006**, 128, 303–310. [Google Scholar] [CrossRef] - Azadi, M.; Behzadipour, S.; Faulkner, G. Antagonistic variable stiffness elements. Mech. Mach. Theory
**2009**, 44, 1746–1758. [Google Scholar] [CrossRef] - Cui, Z.; Tang, X.; Hou, S.; Sun, H.; Wang, D. Calculation and Analysis of Constant Stiffness Space for Redundant Cable-Driven Parallel Robots. IEEE Access
**2019**, 7, 75407–75419. [Google Scholar] [CrossRef] - Gosselin, C. On the Determination of the Force Distribution in Overconstrained Cable-driven Parallel Mechanisms. Meccanica
**2011**, 46, 3–15. [Google Scholar] [CrossRef] - Cong, B.P.; Song, H.Y.; Yang, G.; Chen, I.M. Workspace analysis of fully restrained cable-driven manipulators. Robot. Auton. Syst.
**2009**, 57, 901–912. [Google Scholar] - Oh, S.R.; Agrawal, S.K. Cable Suspended Planar Robots with Redundant Cables: Controllers with Positive Tensions. IEEE Trans. Robot.
**2005**, 21, 457–465. [Google Scholar] - You, X.; Bing, L.; Chen, W.; Yu, S. Tension distribution algorithm of a 7-DOF cable-driven robotic arm based on dynamic minimum pre-tightening force. In Proceedings of the IEEE International Conference on Robotics and Biomimetics (ROBIO), Phucket, Thailand, 7–11 December 2011; pp. 715–720. [Google Scholar]
- Cote, A.F.; Cardou, P.; Gosselin, C. A tension distribution algorithm for cable-driven parallel robots operating beyond their wrench-feasible workspace. In Proceedings of the International Conference on Control, Automation and Systems, Jeju, Korea, 18–21 October 2017; pp. 68–73. [Google Scholar]
- Hassan, M.; Khajepour, A. Optimization of Actuator Forces in Cable-Based Parallel Manipulators Using Convex Analysis. IEEE Trans. Robot.
**2008**, 24, 736–740. [Google Scholar] [CrossRef] - Fang, S.; Franitza, D.; Torlo, M.; Bekes, F.; Hiller, M. Motion Control of a Tendon-BasedParallel Manipulator Using Optimal Tension Distribution. IEEE/ASME Trans. Mechatron.
**2004**, 9, 561–568. [Google Scholar] [CrossRef] - Bruckmann, T.; Pott, A.; Hiller, M. Calculating force distributions for redundantly actuated tendon-based Stewart platforms. In Advances in Robot Kinematics; Springer: Berlin, Germany, 2006; pp. 403–412. [Google Scholar]
- Mikelsons, L.; Bruckmann, T.; Hiller, M.; Schramm, D. A real-time capable force calculation algorithm for redundant tendon-based parallel manipulators. In Proceedings of the IEEE International Conference on Robotics and Automation, Pasadena, CA, USA, 19–23 May 2008; pp. 3869–3874. [Google Scholar]
- Lim, W.B.; Song, H.Y.; Yang, G. Optimization of Tension Distribution for Cable-Driven Manipulators Using Tension-Level Index. IEEE/ASME Trans. Mechatron.
**2014**, 19, 676–683. [Google Scholar] [CrossRef] - Yang, K.; Yang, G.; Wang, J.; Zheng, T.; Wei, Y. Design analysis of a 3-DOF cable-driven variable-stiffness joint module. In Proceedings of the IEEE International Conference on Robotics and Biomimetics (ROBIO), Qingdao, China, 3–7 December 2016; pp. 529–534. [Google Scholar]
- Box, M.J. A New Method of Constrained Optimization and a Comparison With Other Methods. Comput. J.
**1965**, 8, 42–52. [Google Scholar] [CrossRef] - Yang, G.; Lin, W.; Kurbanhusen, M.S.; Bang, P.C.; Yeo, S.H. Kinematic design of a 7-DOF cable-driven humanoid arm: A solution-in-nature approach. In Proceedings of the EEE/ASME International Conference on Advanced Intelligent Mechatronics (AIM), Monterey, CA, USA, 24–28 July 2005; pp. 444–449. [Google Scholar]

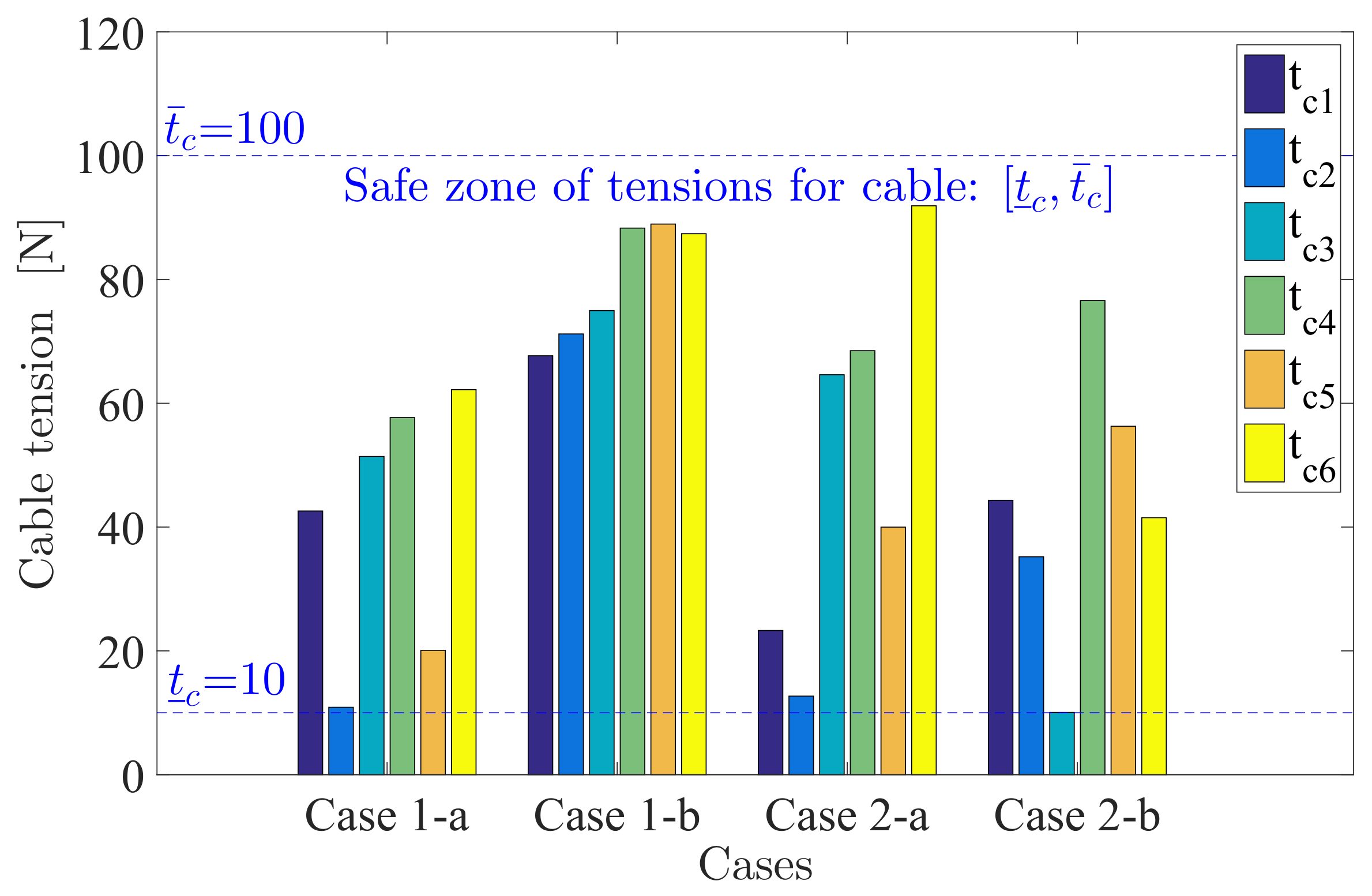

**Figure 5.**Optimal cable tensions for the four sub-cases, with the safe tension zones of cables $[{\underline{t}}_{c},{\overline{t}}_{c}]$.
