# High-Fidelity Hyperentangled Cluster States of Two-Photon Systems and Their Applications

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Model and Hamiltonian

## 3. Generation of Photonic Hyperentangled Cluster States

## 4. Applications

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Ren, X.F.; Guo, G.P.; Li, J.; Guo, G.C. Entanglement of the Hermite–Gaussian modes states of photons. Phys. Lett. A
**2005**, 341, 81–86. [Google Scholar] [CrossRef] - Guo, G.P.; Ren, X.F.; Huang, Y.F.; Li, C.F.; Ou, Z.Y.; Guo, G.C. Observation of two-photon coherence in plasmon-assisted transmission. Phys. Lett. A
**2007**, 361, 218–222. [Google Scholar] [CrossRef] - Barbieri, M.; Vallone, G.; Mataloni, P.; Martini, F.D. Complete and deterministic discrimination of polarization Bell states assisted by momentum entanglement. Phys. Rev. A
**2007**, 75, 042317. [Google Scholar] [CrossRef] - Barreiro, J.T.; Wei, T.C.; Kwiat, P.G. Beating the channel capacity limit for linear photonic superdense coding. Nat. Phys.
**2008**, 4, 282. [Google Scholar] [CrossRef] - Vallone, G.; Donati, G.; Ceccarelli, R.; Mataloni, P. Six-qubit two-photon hyperentangled cluster states: Characterization and application to quantum computation. Phys. Rev. A
**2010**, 81, 052301. [Google Scholar] [CrossRef] - Bin, G.; Yu-Gai, H.; Xia, F.; Chen, Y.L. Bidirectional quantum secure direct communication network protocol with hyperentanglement. Commun. Theor. Phys.
**2011**, 56, 659. [Google Scholar] - Zhao, R.T.; Guo, Q.; Chen, L.; Wang, H.F.; Zhang, S. Quantum superdense coding based on hyperentanglement. Chin. Phys. B
**2012**, 21, 080303. [Google Scholar] [CrossRef] - Ren, B.C.; Deng, F.G. Hyperentanglement purification and concentration assisted by diamond NV centers inside photonic crystal cavities. Laser. Phys. Lett.
**2013**, 10, 115201. [Google Scholar] [CrossRef] [Green Version] - Hong, C.H.; Heo, J.; Lim, J.I.; Hyung, J.Y. Quantum secure direct communication network with hyperentanglement. Chin. Phys. B
**2014**, 23, 090309. [Google Scholar] [CrossRef] - Perumangatt, C.; Rahim, A.A.; Salla, G.R.; Paul, G.; Singh, R.P. Three-particle hyper-entanglement: Teleportation and quantum key distribution. Quantum Inf. Process.
**2015**, 14, 3813–3826. [Google Scholar] [CrossRef] - Liu, Q.; Zhang, M. Generation and complete nondestructive analysis of hyperentanglement assisted by nitrogen-vacancy centers in resonators. Phys. Rev. A
**2015**, 91, 062321. [Google Scholar] [CrossRef] - Li, X.H.; Ghose, S. Self-assisted complete maximally hyperentangled state analysis via the cross-Kerr nonlinearity. Phys. Rev. A
**2016**, 93, 022302. [Google Scholar] [CrossRef] [Green Version] - Deng, F.G.; Ren, B.C.; Li, X.H. Quantum hyperentanglement and its applications in quantum information processing. Sci. Bull.
**2017**, 62, 46–68. [Google Scholar] [CrossRef] [Green Version] - Jelezko, F.; Gaebel, T.; Popa, I.; Gruber, A.; Wrachtrup, J. Observation of coherent oscillations in a single electron spin. Phys. Rev. Lett.
**2004**, 92, 076401. [Google Scholar] [CrossRef] [PubMed] - Yuan, T.; Zhou, F.; Chen, S.; Xiang, S.; Song, K.; Zhao, Y. Multipurpose Quantum Simulator Based on a Hybrid Solid-State Quantum Device. Symmetry
**2019**, 11, 467. [Google Scholar] [CrossRef] - Zhao, Y.; Chen, X.; Shi, Z.; Zhou, F.; Xiang, S.; Song, K. Implementation of one-way quantum computing with a hybrid solid-state quantum system. Chin. J. Electron.
**2017**, 26, 27–34. [Google Scholar] [CrossRef] - Chen, S.; Xiang, S.; Song, K.; Zhao, Y. Influence from cavity decay on entanglement evolution of three superconducting charge qubits coupled to a cavity. Chin. J. Electron.
**2014**, 23, 157–162. [Google Scholar] - Zhao, Y.; Fang, X.M.; Zhou, F.; Song, K.H. Preparation of N-qubit GHZ state with a hybrid quantum system based on nitrogen-vacancy centers. Chin. Phys. Lett.
**2013**, 30, 050304. [Google Scholar] [CrossRef] - Kennedy, T.A.; Colton, J.S.; Butler, J.E.; Linares, R.C.; Doering, P.J. Long coherence times at 300 K for nitrogen-vacancy center spins in diamond grown by chemical vapor deposition. Appl. Phys. Lett.
**2013**, 83, 4190–4192. [Google Scholar] [CrossRef] - Zhou, F.; Zhao, Y.; Zhou, W.; Tang, D.S. Temperature-Dependent Raman Scattering of Large Size Hexagonal Bi
_{2}Se_{3}Single-Crystal Nanoplates. Appl. Sci.**2018**, 8, 1794. [Google Scholar] [CrossRef] - Zhou, F.; Zhao, Y.; Zhou, W.; Tang, D.S. Temperature dependent Raman of BiTe nanotubes. AIP Adv.
**2018**, 8, 125330. [Google Scholar] [CrossRef] [Green Version] - Zhao, Y.F.X.M.; Zhou, F.; Song, K.H. Scheme for realizing quantum-information storage and retrieval from quantum memory based on nitrogen-vacancy centers. Phys. Rev. A
**2012**, 86, 052325. [Google Scholar] [CrossRef] - Zhao, Y.; Mi, X.W.; Xiang, S.; Zhou, F.; Song, K. Entanglement Dynamics of Three Superconducting Charge Qubits Coupled to a Cavity. Commun. Theor. Phys.
**2011**, 55, 775. [Google Scholar] [CrossRef] - Twamley, J.; Barrett, S.D. Superconducting cavity bus for single nitrogen-vacancy defect centers in diamond. Phys. Rev. B
**2010**, 81, 241202. [Google Scholar] [CrossRef] - Marcos, D.; Wubs, M.; Taylor, J.M.; Lukin, M.D.; Sϕrensen, A.S. Coupling nitrogen-vacancy centers in diamond to superconducting flux qubits. Phys. Rev. Lett.
**2010**, 105, 210501. [Google Scholar] [CrossRef] [PubMed] - Yang, W.L.; Yin, Z.Q.; Xu, Z.Y.; Feng, M.; Oh, C.H. Quantum dynamics and quantum state transfer between separated nitrogen-vacancy centers embedded in photonic crystal cavities. Phys. Rev. A
**2011**, 84, 043849. [Google Scholar] [CrossRef] - Yang, W.L.; Xu, Z.Y.; Feng, M.; Du, J.F. Entanglement of separate nitrogen-vacancy centers coupled to a whispering-gallery mode cavity. New J. Phys.
**2010**, 12, 113039. [Google Scholar] [CrossRef] - Chen, Q.; Yang, W.; Feng, M.; Du, J.F. Entangling separate nitrogen-vacancy centers in a scalable fashion via coupling to microtoroidal resonators. Phys. Rev. A
**2011**, 83, 054305. [Google Scholar] [CrossRef] - Wei, H.R.; Deng, F.G. Compact quantum gates on electron-spin qubits assisted by diamond nitrogen-vacancy centers inside cavities. Phys. Rev. A
**2013**, 88, 042323. [Google Scholar] [CrossRef] - Vallone, G.; Ceccarelli, R.; Martini, D.F.; Mataloni, P. Hyperentanglement of two photons in three degrees of freedom. Phys. Rev. A
**2009**, 79, 030301. [Google Scholar] [CrossRef] [Green Version] - Yan, X.; Yu, Y.F.; Zhang, Z.M. Generation of hyperentangled four-photon cluster state via cross-Kerr nonlinearity. Chin. Phys. B
**2014**, 23, 060306. [Google Scholar] [CrossRef] - Wei, H.R.; Deng, F.G.; Long, G.L. Hyper-parallel Toffoli gate on three-photon system with two degrees of freedom assisted by single-sided optical microcavities. Opt. Express
**2016**, 24, 18619–18630. [Google Scholar] [CrossRef] [PubMed] - Ciampini, M.A.; Orieux, A.; Paesani, S.; Ramponi, R.; Osellame, R.; Mataloni, P. Path-polarization hyperentangled and cluster states of photons on a chip. Light Sci. Appl.
**2016**, 5, e16064. [Google Scholar] [CrossRef] [PubMed] - Togan, E.; Chu, Y.; Trifonov, A.S. Quantum entanglement between an optical photon and a solid-state spin qubit. Nature
**2010**, 466, 730. [Google Scholar] [CrossRef] [PubMed] - Walls, D.F.; Milburn, G.J.; Garrison, J.C. Quantum Optics. Phys. Today
**1995**, 48, 55–56. [Google Scholar] [CrossRef] - An, J.H.; Feng, M.; Oh, C.H. Quantum-information processing with a single photon by an input-output process with respect to low-Q cavities. Phys. Rev. A
**2009**, 79, 032303. [Google Scholar] [CrossRef] - Park, Y.S.; Cook, A.K.; Wang, H. Cavity QED with diamond nanocrystals and silica microspheres. Nano Lett.
**2006**, 6, 2075–2079. [Google Scholar] [CrossRef] [PubMed] - Barclay, P.E.; Fu, K.M.C.; Santori, C.; Faraon, A.; Beausoleil, R.G. Hybrid nanocavity resonant enhancement of color center emission in diamond. Phys. Rev. X
**2011**, 1, 011007. [Google Scholar] [CrossRef] - Neumann, P.; Kolesov, R.; Naydenov, B.; Steiner, M.; Jacques, V.; Balasubramanian, G.; Markham, M.L.; Twitchen, D.J. Quantum register based on coupled electron spins in a room-temperature solid. Nat. Phys.
**2010**, 6, 249. [Google Scholar] [CrossRef] - Ji, Y.Q.; Jin, Z.; Zhu, A.D.; Wang, H.F.; Zhang, S. Complete hyperentangled state analysis and generation of multi-particle entanglement based on charge detection. Chin. Phys. B
**2014**, 23, 050306. [Google Scholar] [CrossRef]

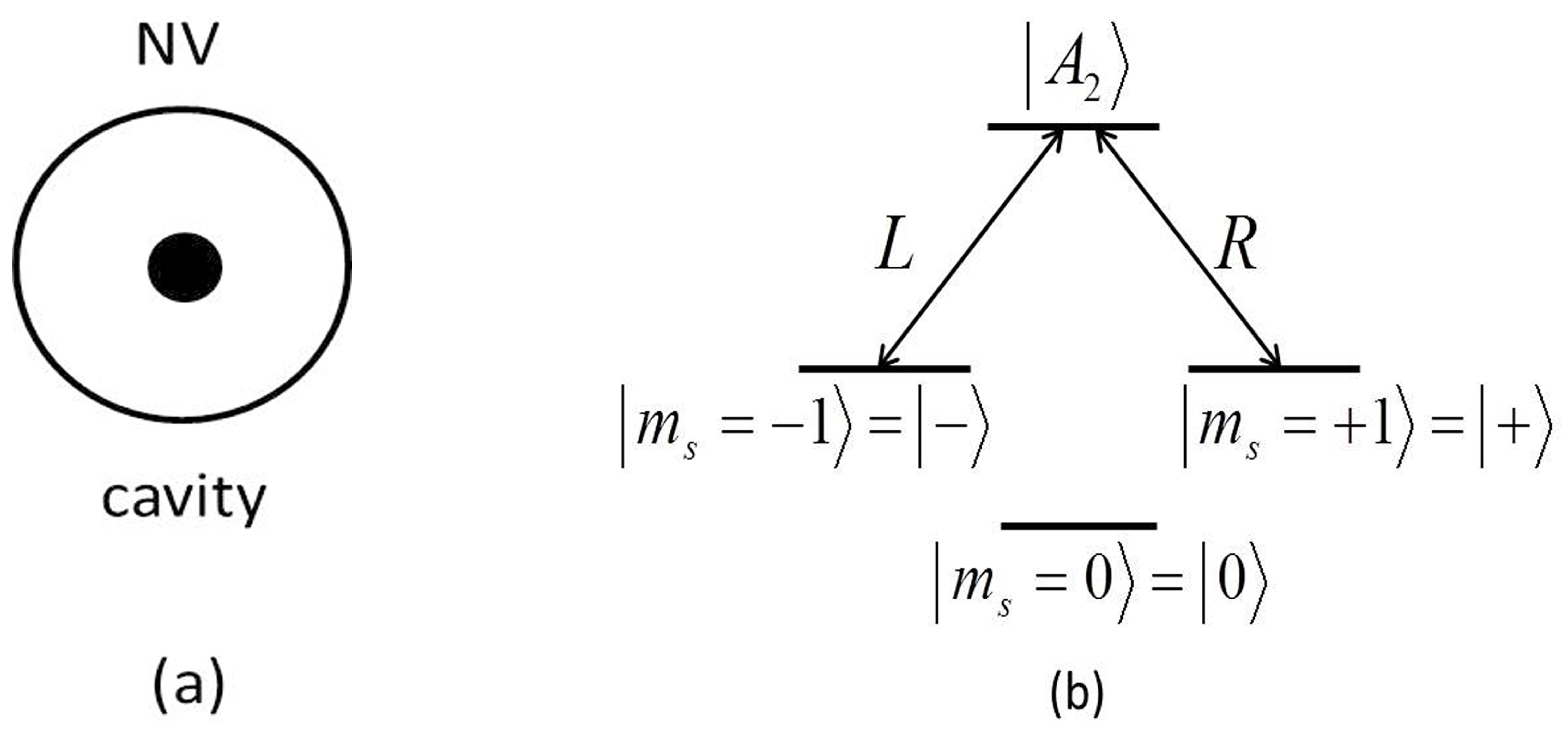

**Figure 1.**(

**a**) Schematic diagram of a diamond nitrogen-vacancy (NV) center coupling to a MTR. (

**b**) The possible electron energy-level configuration of an NV center inside an MTR. The transition $|-\rangle \to |{A}_{2}\rangle $ is driven by a left circularly polarized photon (denoted by $|L\rangle $), and $|+\rangle \to |{A}_{2}\rangle $ is driven by a right circularly polarized photon (denoted by $|R\rangle $).

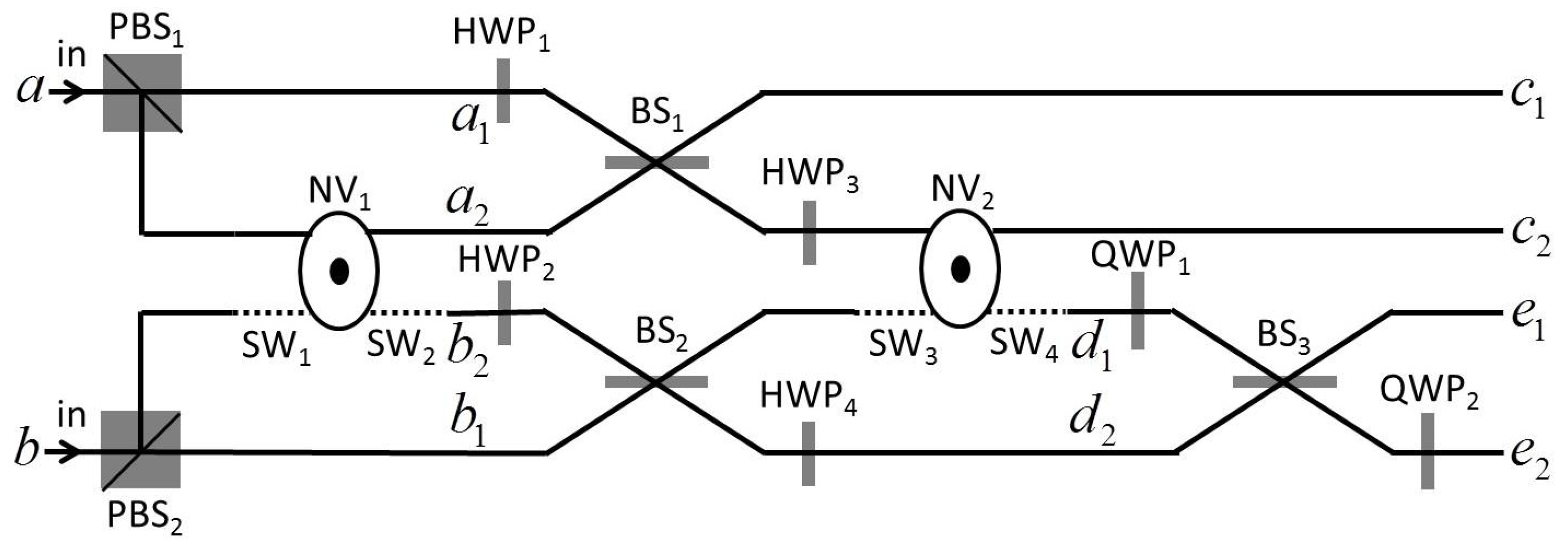

**Figure 2.**Schematic diagram showing the two-photon polarization-spatial hyperentangled cluster states. The polarizing beam splitter $PB{S}_{i}(i=1,2)$ is used to transmit the right circularly polarized photon $|R\rangle $ and reflect the left circularly polarized photon $|L\rangle $, respectively. $S{W}_{i}(i=1,2,3,4)$ represents the optical switch and $B{S}_{i}(i=1,2,3)$ represents the $50.50$ beam splitter. The $HW{P}_{i}(i=1,2,3,4)$ represents the half-wave plate which is used to perform a bit-flip operation $X=|R\rangle \langle L|+|L\rangle \langle R|$ on the photon in the polarization degrees of freedom (DOF). $QW{P}_{i}(i=1,2)$ represents the quarter-wave plate which is used to realize a Hadamard operation $|R\rangle \to \frac{1}{\sqrt{2}}(|R\rangle +|L\rangle )$ and $|L\rangle \to \frac{1}{\sqrt{2}}(|R\rangle -|L\rangle )$ on the photon in the polarization DOF. ${k}_{1}$ and ${k}_{2}$$(k=a,b,c,d,e)$ represent different spatial modes.

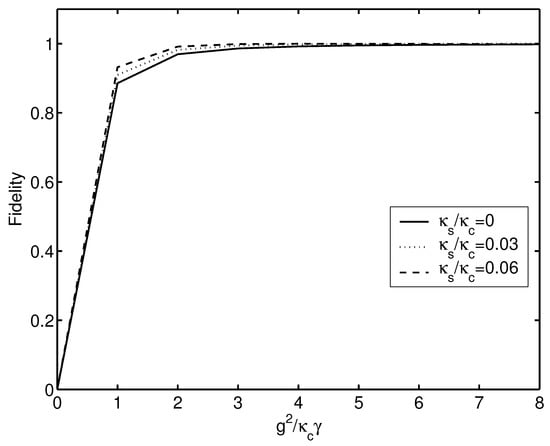

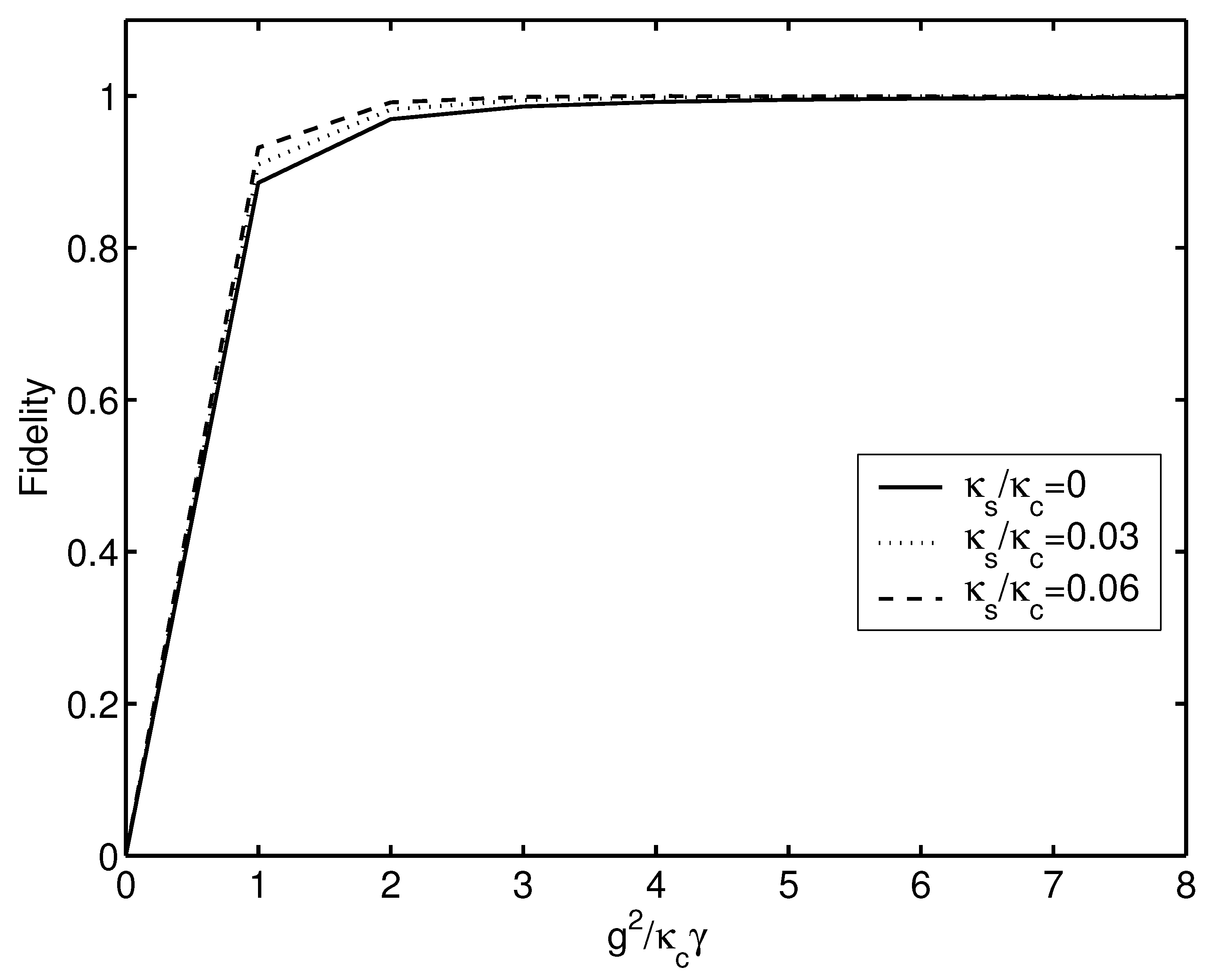

**Figure 3.**The fidelities of the sixteen hyperentangled cluster states vs the parameter ${g}^{2}/{\kappa}_{c}\gamma $ for the different leakage rates ${\kappa}_{s}/{\kappa}_{c}=0$, ${\kappa}_{s}/{\kappa}_{c}=0.03$, and ${\kappa}_{s}/{\kappa}_{c}=0.06$, respectively.

**Table 1.**The relation between the outcomes of the two NV centers and four symmetry hyperentangled cluster states.

${\mathit{NV}}_{1}$ | ${\mathit{NV}}_{2}$ | Four Symmetry Hyperentangled Cluster States |
---|---|---|

$|{\varphi}^{+}{\rangle}_{1}$ | $|{\varphi}^{-}{\rangle}_{2}$ | $|{\Phi}_{1}{\rangle}_{p}{|{\Phi}_{2}\rangle}_{s}$ |

$|{\varphi}^{+}{\rangle}_{1}$ | $|{\varphi}^{+}{\rangle}_{2}$ | $|{\Phi}_{1}{\rangle}_{p}{|{\Phi}_{1}\rangle}_{s}$ |

$|{\varphi}^{-}{\rangle}_{1}$ | $|{\varphi}^{-}{\rangle}_{2}$ | $|{\Phi}_{2}{\rangle}_{p}{|{\Phi}_{2}\rangle}_{s}$ |

$|{\varphi}^{-}{\rangle}_{1}$ | $|{\varphi}^{+}{\rangle}_{2}$ | $|{\Phi}_{2}{\rangle}_{p}{|{\Phi}_{1}\rangle}_{s}$ |
