Optical Transparency and Local Electronic Structure of Yb-Doped Y₂O₃ Ceramics with Tetravalent Additives

Abstract

The results of optical transmission and X-ray core-level spectra measurements of Yb:Y₂O₃ ceramics with different tetravalent sintering additives (ZrO₂, CeO₂ and HfO₂) fabricated from nanopowders (produced by the laser ablation method) and then annealed at 1400 ℃ in air for 2 h are presented. It is found that the transmission values for ZrO₂- and HfO₂-doped ceramics at the lasing wavelengths are higher than those of CeO₂-doped samples. The X-ray photoelectron spectra (XPS) O 1s spectra show that the relative intensity of oxygen defect peak detected for 3Yb:Y₂O₃ + 5CeO₂ ceramics decreases substantially and consistently compared to that of 5Yb:Y₂O₃ + 5HfO₂ and 3Yb:Y₂O₃ + 5ZrO₂ samples. This can be attributed to a more complete filling of oxygen vacancies due to annealing-induced oxygen diffusion into the highly defective sintered ceramics. The measurements of XPS Ce 3d spectra showed that the insufficiently complete filling of the oxygen vacancies in the 3Yb:Y₂O₃ + 5CeO₂ compound is due to the appreciable presence of trivalent cerium ions.

1. Introduction

In recent decades the transparent Y₂O₃ ceramic has attracted interest due to its unique combination of properties, such as broad transparency range (0.2–8 µm), high thermal conductivity (approximately 13.6 W/mK), high solubility of trivalent rare-earth ions and a relatively low cut-off phonon energy (380 cm⁻¹) [1,2]. The transparent Y₂O₃ ceramic can be considered as a good alternative to single-crystal materials with a high melting point (2430 °C), and the phase transition point is approximately 2280 °C [3]. At the same time, its high melting point causes the addition of several special additives to the initial yttrium oxide, such as ThO₂, CeO₂, HfO_2, and ZrO₂, which should reduce the sintering temperature [4,5]. It was found that in the process of vacuum sintering, Y₂O₃ ceramics with tetravalent additives lose their transparency due to the darkening of color [6], which can significantly limit the potential applications. It is believed that this is due to oxygen atoms that escape from the doped Y₂O₃ lattice and form oxygen vacancy defects [7], which give rise to the formation of F and F⁺ centers in the wide band gap. It is known that such oxygen vacancies in sintered ceramics can be easily removed by post-annealing in an oxygen atmosphere or in air [8,9,10]. At the same time, the question of the influence of such processing not only on the optical properties of ceramics but also on the valence state of impurity ions remains open. In particular, in our previous paper we studied the influence of time of annealing in air (from 1 to 10 h at 1400 °C) on optical properties and X-ray photoelectron spectra (XPS) of Y₂O₃ ceramics doped with 5 mol% CeO₂ [11]. It was shown that measurements of XPS spectra make it possible to estimate the contribution of defects related to oxygen and optical transparency, as well as the effect of different calcination modes on the state of Ce ions. However, the effect of various technological additives on the final laser ceramics containing rare-earth ions may not be the same. In the present paper, the annealing conditions were fixed (1400 °C, 2 h) whereas the type of tetravalent additives was varied (ZrO₂, CeO₂ and HfO₂) and the optical transparency and local atomic electronic structure were studied in Yb:Y₂O₃ ceramics.

2. Materials and Methods

As initial materials, commercial high-purity powders Y₂O₃, Yb₂O₃ (>99.99% TREO, Lanhit, Moscow, Russia), ZrO₂, HfO₂ and CeO₂ (>99%, Lanhit, Moscow, Russia) were used. For the preparation of 3 and 5 at.% Yb-doped samples, pure Y₂O₃ was dry-mixed with different tetravalent additives (5 mol% ZrO₂, HfO₂ or CeO₂) for 24 h in a rotary mixer with an inclined axis of rotation. Then, in order to produce laser targets, these mixtures were compacted at a pressure of 10 MPa and pre-sintered at 1300 ℃ for 5 h in air. No charge compensation admixture was used. Finally, the obtained targets were ablated by radiation from a pulse-periodical CO₂ laser LAERT (λ = 10.6 µm) for producing nanopowders [12]. The synthesized nanoparticles with different chemical compositions were annealed in air at 1100 ℃ for 3 h in order to convert them from a metastable monoclinic phase into the main cubic phase. The annealed nanopowders were uniaxially pressed at 200 MPa into disks with a 15-mm diameter. At the next step, removing the organic components was carried out by calcining at 800 ℃ for 3 h, then the green disks were sintered at 1780 ℃ for 20 h under a 10⁻³-Pa vacuum. The ceramic samples were then annealed at 1400 ℃ for 2 h. Samples were mirror-polished on both surfaces.

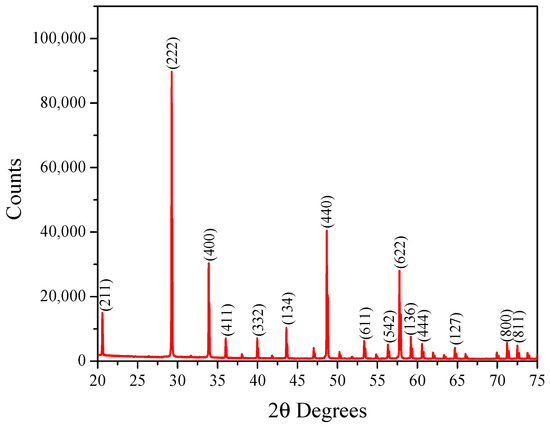

The structure of samples was characterized by X-ray diffraction (XRD) using a D8 Discover apparatus. A typical XRD pattern (3Yb:Y₂O₃ + 5ZrO₂) is shown in Figure 1. Samples were well crystallized and coincided with a cubic Y₂O₃ phase. It was found that the addition of tetravalent additives had a small effect on the crystal structure. For example, in the case of HfO₂ and ZrO₂, the lattice parameter decreased slightly with the content of additives (from 1.0613 nm to 1.0605 nm).

The transmission spectra of the ceramics were measured at room temperature with a Shimadzu UV-1700 spectrophotometer (Shimadzu Corp., Kyoto, Japan) operating at a 200–1100 nm wavelength range.

High-resolution core-level X-ray photoelectron spectra were obtained using a PHI 5000 VersaProbe spectrometer (ULVAC Physical Electronics, Chanhassen, MN, USA). This spectrometer was based on a classic X-ray optic scheme with a quartz monochromator and a hemispherical energy analyzer (binding energy range are from 0 to 1500 eV). The device was equipped with electrostatic focusing and magnetic screening and the energy resolution was about 0.5 eV. Pumping of the analytical chamber was carried out using an ion pump providing residual pressure better than 10⁻⁷ Pa. The XPS spectra were recorded using monochromatic Al Kα X-ray emission (1486.6 eV); the spot size was 200 µm. In order to avoid surface contamination (due to polishing), all samples were freshly cleaved before XPS measurements. The device was equipped with electrostatic focusing and magnetic screening and the energy resolution was about 0.5 eV. Finally, the spectra were processed using ULVAC-PHI MultiPak Software 9.8. The XPS background was calculated according to the Shirley method.

3. Results and Discussion

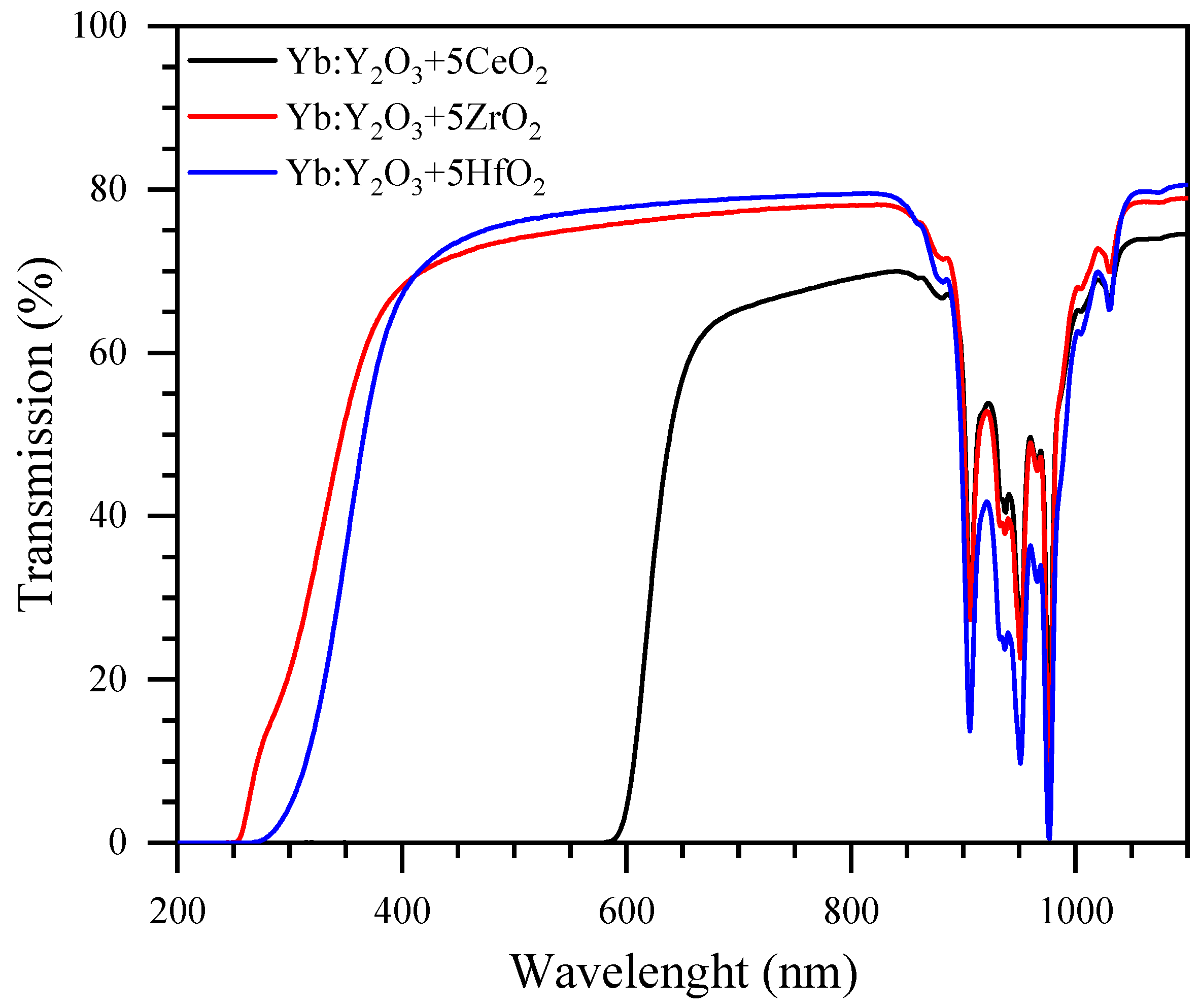

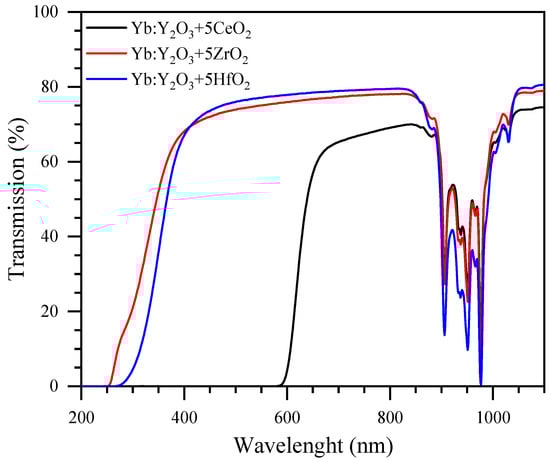

Optical transmission spectra of Yb:Y₂O₃ ceramics with different tetravalent additives are shown in Figure 2. It was found that at lasing wavelengths (1030–1080 nm), the ceramics doped with ZrO₂ and HfO₂ had higher transmission values than those for the ceramics doped with CeO₂. However, the spectral characteristics of the absorption edge were different for samples under study. The “orange peel” effect appeared less visible to the naked eye for ZrO₂-doped sample than for HfO₂ and CeO₂-doped samples. Thus, we can conclude that samples doped with ZrO₂ are better suited for the fabrication of highly transparent yttria ceramics.

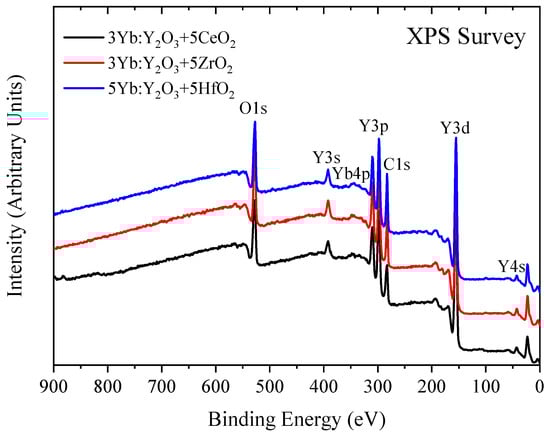

The XPS survey spectra (Figure 3) did not show the presence of any uncontrolled impurities, which evidences the high quality of the samples under investigation. The surface composition determined from these spectra is presented in

Table 1. Surface composition (in at.%).

Sample	C	O	Y	Yb	Hf	Zr	Ce	O/Y
3Yb:Y2O3 + 5CeO2	39.1	38.9	20.6	1.6	–	–	0.2	1.88
5Yb:Y2O3 + 5HfO2	44.9	35.1	18.1	1.3	0.6	–	–	1.93
3Yb:Y2O3 + 5ZrO2	42.4	37.0	18.8	1.4	–	0.4	–	1.96

. One can see from this table that the O/Y ratio for 3Yb:Y₂O₃ + 5CeO₂ (1.88) was less than that of 5Yb:Y₂O₃ + 5HfO₂ (1.93) and 3Yb:Y₂O₃ + 5ZrO₂ (1.96).

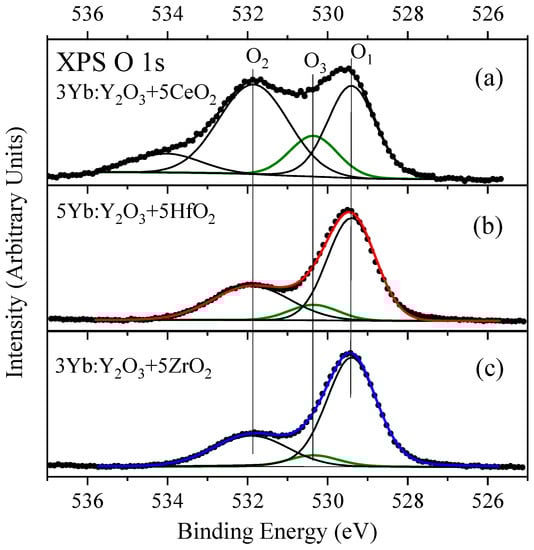

The measurements of high-energy resolved XPS O 1s spectra (Figure 4) show the contributions of O1—lattice oxygen (529.4 eV), O2—absorbed oxygen (531.8 eV) and O3—oxygen defects (530.4 eV) [13,14]. One can see from the deconvoluted spectra that the contribution of defect oxygen was consequently decreased from 3Yb:Y₂O₃ + 5CeO₂ (Figure 4a) to 5Yb:Y₂O₃ + 5HfO₂ (Figure 4b) and to 3Yb:Y₂O₃ + 5ZrO₂ (Figure 4c). The decrease in the defect oxygen content (О3) is remarkably correlated with an increase in the optical transmission in this series of compounds (see Figure 2), as well as with an increase in the O/Y ratio measured from the survey spectra (Table 1). In this connection, it is of interest to study the core-level spectra of additives and to determine, with their help, the corresponding cation oxidation states.

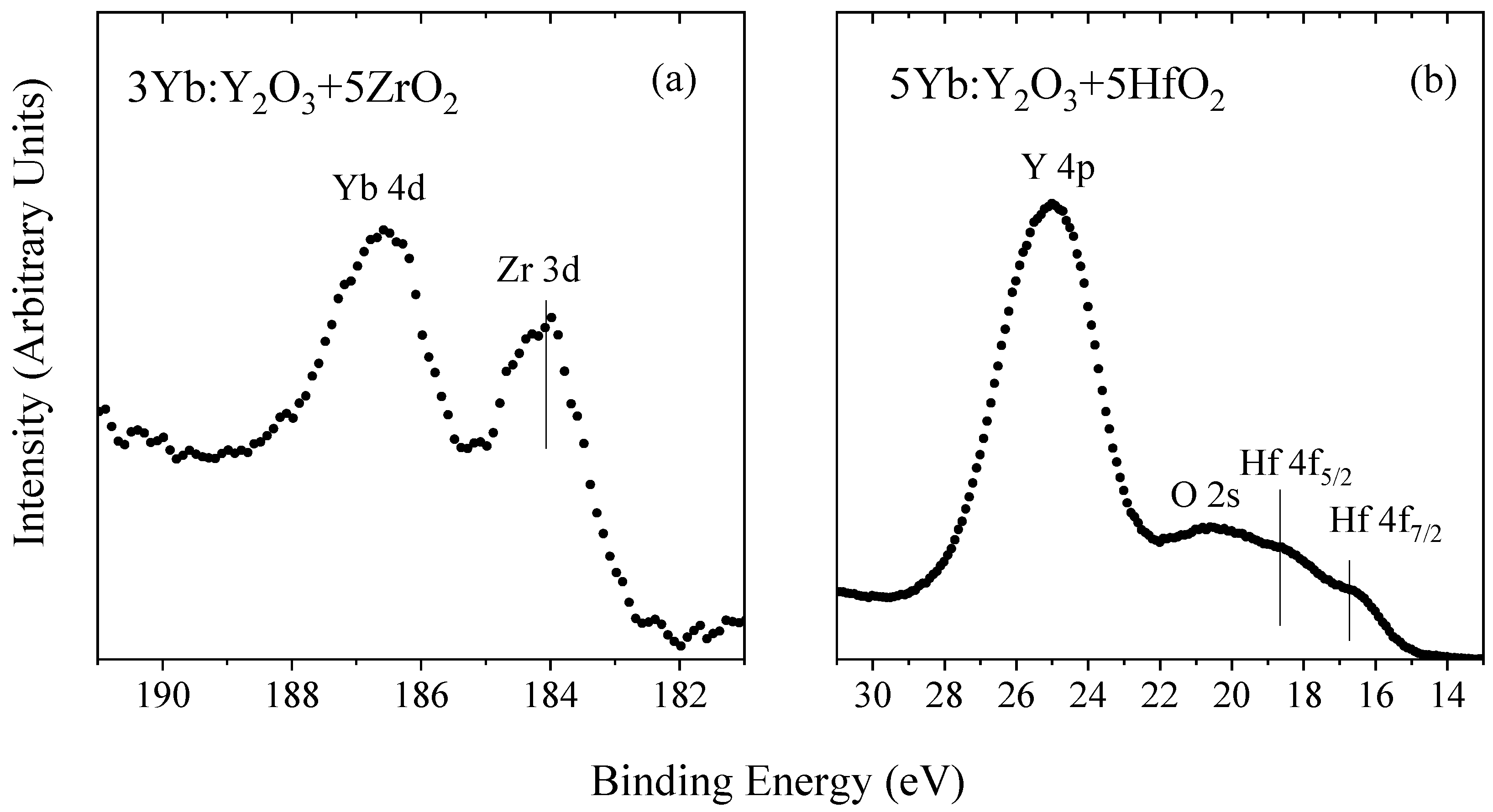

The high-energy resolved XPS Zr 3d and Hf 4f spectra of 3Yb:Y₂O₃ + 5ZrO₂ and 5Yb:Y₂O₃ + 5HfO₂ are given in Figure 5. Unfortunately, the XPS Zr 3d spectra overlap strongly with the Yb 4d spectra (Figure 5a), and the XPS Hf 4f spectra with the XPS O 2s spectra, which makes it impossible to determine the contributions of trivalent ions whose small inputs could be expected from a finite amount of defective oxygen in 3Yb:Y₂O₃ + 5ZrO₂ and 5Yb:Y₂O₃ + 5HfO₂ (Figure 4b,c). The binding energy of the XPS Zr 3d spectrum (184.0 eV) for 3Yb:Y₂O₃ + 5ZrO₂ (Figure 5a) was close to that of tetravalent zirconium [15]. The corresponding energy of XPS Hf 4f7/2 spectrum of 5Yb:Y₂O₃ + 5HfO₂ was found to be the same as that for HfO₂ (16.7 eV) [13].

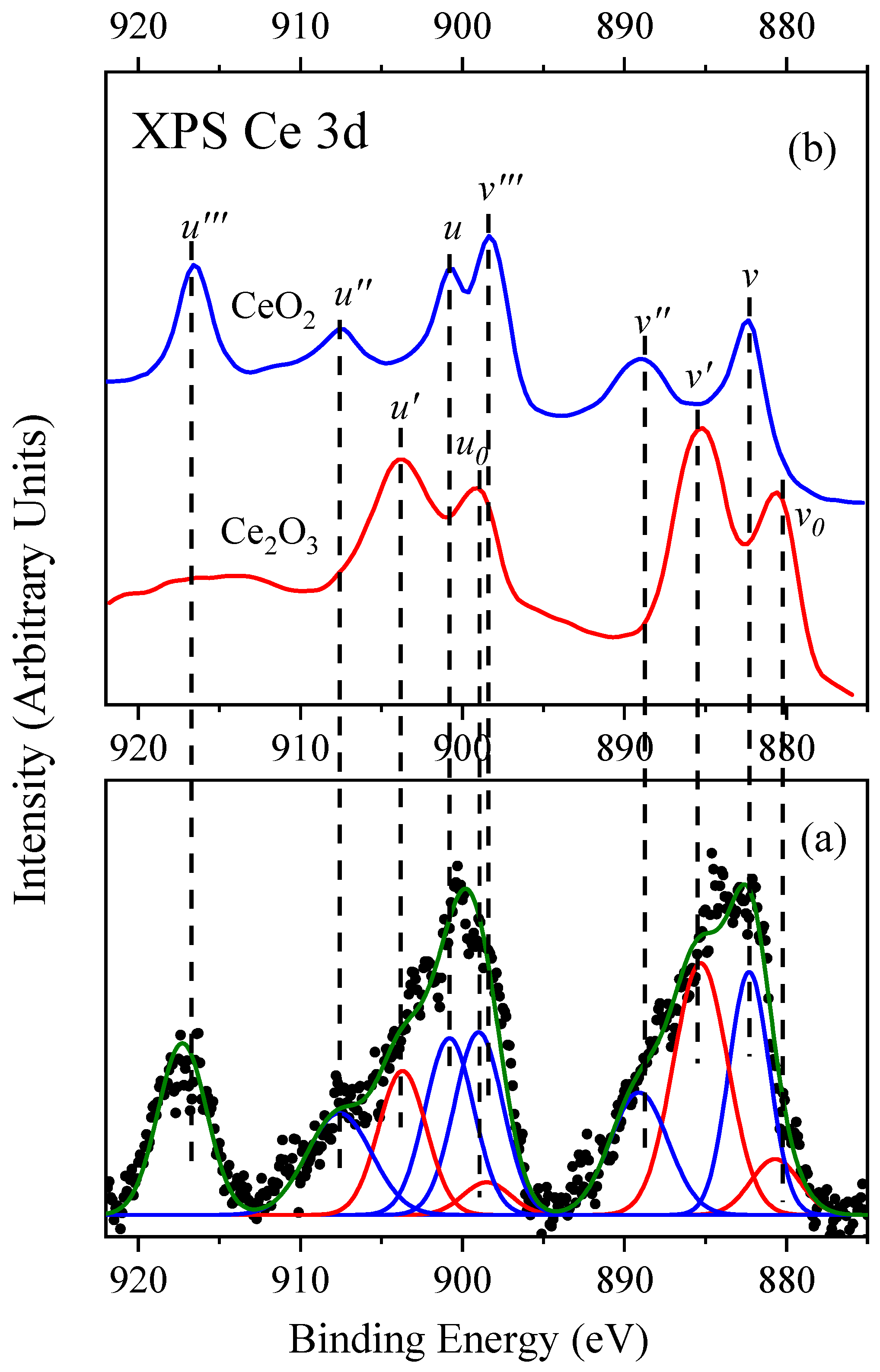

The XPS Ce 3d spectra of 3Yb:Y₂O₃ + 5CeO₂ ceramics are given in Figure 6. For comparison, the spectra of reference samples CeO₂ and Ce₂O₃ [16] are shown in the same figure. Let us consider the structure of Сe 3d spectra of reference compounds Ce₂O₃ and CeO₂. When the 3d core level is ionized, the final state is a spin-orbit doublet of 3d_5/2 (with lower binding energy) and 3d_3/2 (with higher binding energy). The structure of each of the terms of the spin-doublet is determined by the electric potential of the X-ray 3d-hole interacting with the excited states, which are attracted by the system for its relaxation after 3d-ionization. For Ce³⁺ and Ce⁴⁺ ions the initial states are different (f¹ and f⁰ states, respectively), so the final states also differ. In Ce³⁺, each of the spin-doublet terms consists of two lines: v⁰ and v′ in 3d_5/2; u⁰ and u′ in 3d_3/2. Lines v₀ and u₀ correspond to the relaxed final state containing the f² configuration, and v and u to unrelaxed states with the f¹ configuration coinciding with the unexcited (initial) one. For Ce⁴⁺, v and u lines correspond to the relaxed final state containing the f² configuration, v″ and u″ to the partially relaxed state with the f¹ configuration and v‴ and u‴ to the unrelaxed state with the f⁰ configuration coinciding with the initial state [17].

According to [18], a quantitative analysis of the concentration of Ce³⁺ ions based on measured XPS Ce 3d-spectra can be performed using the formula:

$$\left[{\mathrm{Ce}}^{3+}\right]=\frac{\left(A_{v_0}+A_{v^{\prime }}+A_{u_0}+A_{u^{\prime }}\right)}{\left(A_{v_0}+A_{v^{\prime }}+A_{u_0}+A_{u^{\prime }}+A_v+A_{v^{″}}+A_{v^{‴}}+A_u+A_{u^{″}}+A_{u^{‴}}\right)}$$

(1)

where A_i is the integrated area of peak “i”.

Using the results of the deconvolution of XPS Ce 3d spectra given in Figure 6, we performed an analysis according to which the fraction of Ce³⁺ in annealed 3Yb:Y₂O₃ + 5CeO₂ ceramics was 34%. It is worth noting that, contrary to our previous work [11], this study reveals a much smaller amount of cerium ions in the 3+ valence state. We believe that the presence in the ceramics of Yb³⁺ ions, which can bind a part of the defective oxygen atoms, allows some of the Ce ions to pass into the 4+ valence state.

The process of obtaining optically transparent yttria-based polycrystalline ceramics is quite complex and involves multiple stages. At the first stage, sufficiently pure and dense (pore-free) ceramics must be obtained, which is usually achieved by sintering in vacuum (to reduce the sintering temperature, the tetravalent additives to Y₂O₃ are used). However, after sintering in vacuum, the final product shows a black color or a so-called discoloration. This discoloration is associated with the formation of oxygen vacancies in ceramics induced by reducing conditions in a vacuum, leading to the formation of F and F+ centers in a wide band gap [19]. On the one hand, the post-annealing of sintered ceramics in air or an oxygen atmosphere decreases the number of oxygen vacancies. On the other hand, it is difficult to completely eliminate the oxygen vacancies perfectly, preventing the development of pores during the post-annealing, and the optical characteristics are inevitably deteriorated. In this situation, the control over the formation of oxygen vacancies and changes in their content, depending on the conditions of synthesis, becomes of particular importance. It was shown in [20] that this control can be performed indirectly by measuring the paramagnetic resonance spectra, which show the presence of trivalent hafnium and zirconium ions in Yb:Y₂O₃ + 6HfO₂ and Yb:Y₂O₃ + 6ZrO₂. In the present paper, it is shown that the relative content of defective oxygen can be determined directly by measuring X-ray photoelectron O 1s spectra, which allows for choosing the most optimal annealing conditions to obtain the maximum optical transparency of ceramics.

4. Conclusions

It was found that the optical transparency of Yb:Y₂O₃ ceramics depends on the type of sintering additive. The composition of Yb:Y₂O₃ + 5ZrO₂ demonstrates the best transparency from the point of view of its use as laser ceramics. This effect is confirmed by measurements of XPS spectra. It was shown that the peak of oxygen defects in the O 1s spectrum decreases in the series CeO₂ → HfO₂ → ZrO₂, which was also confirmed by the Y/O concentration ratio. In addition, it was shown that the Zr and Hf ions are in the 4+ state, while in the 3Yb:Y₂O₃ + 5CeO₂ ceramics both Ce⁴⁺ ions and Ce³⁺ ions are present. In conclusion, we assume that the correlation of all the indicated spectra suggests that measurements of the O 1s spectra can serve as an indicator for choosing the optimal synthesis modes for the most optically transparent laser ceramics.
