# Harmonic Principles of Elemental Crystals—From Atomic Interaction to Fundamental Symmetry

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Symmetry in Crystal Structures—The Past and the Present

## 2. Atomistic Crystal Growth Process

## 3. Pair Potentials and Structural Stability

#### 3.1. Stability of Structural Motifs

#### 3.2. Stability of Unary Structures

## 4. Methods

## 5. Conclusions

“It is the harmony of the diverse parts, their symmetry, their happy balance [...] that permits us to see clearly and to comprehend at once both the ensemble and the details”[39].

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Tatarkiewicz, W. Geschichte der Ästhetik (German Edition); Schwabe: Basel, Switzerland, 1979. [Google Scholar]
- Baeumer, D. Victor Goldschmidts Harmonielehre der Kristalle (Bd. 36 der Orpheus-Schriftenreihe zu Grundfragen der Musik) (German Edition); Verlag für Systematische Musikwissenschaft: Bonn, Germany, 1984. [Google Scholar]
- Olmsted, J.; Williams, G.M. Chemistry: The Molecular Science, 2nd ed.; Jones & Bartlett Learning: Burlington, MA, USA, 1997. [Google Scholar]
- Zschornak, M. Defect-Induced Local Electronic Structure Modifications within the System SrO-SrTiO
_{3}-TiO_{2}: Symmetry and Disorder. Ph.D. Thesis, TU Bergakademie Freiberg, Freiberg, Germany, 2014. [Google Scholar] - Stakhov, A.; Aranson, S. The Mathematics of Harmony and Hilbert’s Fourth Problem: The Way to the Harmonic Hyperbolic and Spherical Worlds of Nature; LAP LAMBERT Academic Publishing: Saarbrücken, Germany, 2014. [Google Scholar]
- Kepler, J. Johannes Kepler Gesammelte Werke; C.H. Beck: München, Germany, 1937. [Google Scholar]
- Darvas, G.; Koblyakov, A.; Petoukhov, S.; Stepanyan, I. Symmetries in molecular-genetic systems and musical harmony. Symmetry Cult. Sci.
**2012**, 23, 343. [Google Scholar] - Goldschmidt, V. Ueber Harmonie und Complication; Springer: Berlin/Heidelberg, Germany, 1901. [Google Scholar]
- Berdesinski, W. Victor Goldschmidt 1853–1933. In Semper Apertus Sechshundert Jahre Ruprecht-Karls-Universität Heidelberg 1386–1986; Springer: Berlin/Heidelberg, Germany, 1985; pp. 1060–1069. [Google Scholar]
- Klein, F. Lectures on the Icosahedron; Kegan Paul, Trench, Trubner and Company Limited: London, UK, 1913. [Google Scholar]
- Van Smaalen, S. Incommensurate Crystallography; Oxford University Press: Oxford, UK, 2007; Volume 21. [Google Scholar]
- Brock, C.P. International Tables for Crystallography, 5th ed.; (IUCr Series. International Tables of Crystallography); Wiley: New York, NY, USA, 2017. [Google Scholar]
- Jena, P.; Castleman, A.W. Clusters: A bridge across the disciplines of physics and chemistry. Proc. Natl. Acad. Sci. USA
**2006**, 103, 10560–10569. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Frank, F.C.; Kasper, J.S. Complex alloy structures regarded as sphere packings. I. Definitions and basic principles. Acta Crystallogr.
**1958**, 11, 184–190. [Google Scholar] [CrossRef] [Green Version] - Anderson, M.W.; Gebbie-Rayet, J.T.; Hill, A.R.; Farida, N.; Attfield, M.P.; Cubillas, P.; Blatov, V.A.; Proserpio, D.M.; Akporiaye, D.; Arstad, B.; et al. Predicting crystal growth via a unified kinetic three-dimensional partition model. Nature
**2017**, 544, 456–459. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Madelung, E. Das elektrische Feld in Systemen von regelmäßig angeordneten Punktladungen. Phys. Z
**1918**, 19, 524–532. [Google Scholar] - Chen, E.R.; Engel, M.; Glotzer, S.C. Dense crystalline dimer packings of regular tetrahedra. Discret. Comput. Geom.
**2010**, 44, 253–280. [Google Scholar] [CrossRef] - Catlow, C.R.A. Computer Modeling in Inorganic Crystallography; Academic Press: New York, NY, USA, 1997. [Google Scholar]
- Häkkinen, H.; Yoon, B.; Landman, U.; Li, X.; Zhai, H.J.; Wang, L.S. On the Electronic and Atomic Structures of Small ${\mathrm{Au}}_{\stackrel{-}{N}}$ (N = 4–14) Clusters: A Photoelectron Spectroscopy and Density-Functional Study. J. Phys. Chem. A
**2003**, 107, 6168–6175. [Google Scholar] [CrossRef] - Boustani, I. Systematic ab initio investigation of bare boron clusters: Determination of the geometry and electronic structures of B
_{n}(n = 2–14). Phys. Rev. B**1997**, 55, 16426. [Google Scholar] [CrossRef] - Morse, P.M. Diatomic molecules according to the wave mechanics. II. Vibrational levels. Phys. Rev.
**1929**, 34, 57. [Google Scholar] [CrossRef] - Cheng, L.; Yang, J. Modified Morse potential for unification of the pair interactions. J. Chem. Phys.
**2007**, 127, 124104. [Google Scholar] [CrossRef] [PubMed] - Jones, J.E. On the determination of molecular fields. II. From the equation of state of a gas. Proc. R. Soc. Lond. A
**1924**, 106, 463–477. [Google Scholar] [CrossRef] - Wales, D.; Doye, J.; Dullweber, A.; Hodges, M.; Naumkin, F.; Calvo, F.; Hernández-Rojas, J.; Middleton, T. The Cambridge Cluster Database. 2001. Available online: http://www-wales.ch.cam.ac.uk/CCD.html (accessed on 12 September 2017).
- Ruhnow, M. Model of the transformation of several basis structures into intermetallic crystal structure types. Cryst. Res. Technol.
**2011**, 46, 635–645. [Google Scholar] [CrossRef] - Ruhnow, M. Duality in simple single atomic type crystal structures. Cryst. Res. Technol.
**2012**, 47, 369–376. [Google Scholar] [CrossRef] - Szwacki, N.G.; Szwacka, T. Basic Elements of Crystallography; CRC Press: Boca Raton, FL, USA, 2016. [Google Scholar]
- Stinton, G.; MacLeod, S.; Cynn, H.; Errandonea, D.; Evans, W.; Proctor, J.; Meng, Y.; McMahon, M. Equation of state and high-pressure/high-temperature phase diagram of magnesium. Phys. Rev. B
**2014**, 90, 134105. [Google Scholar] [CrossRef] - Cazorla, C.; MacLeod, S.; Errandonea, D.; Munro, K.; McMahon, M.; Popescu, C. Thallium under extreme compression. J. Phys. Condens. Matter
**2016**, 28, 445401. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Errandonea, D.; Boehler, R.; Ross, M. Melting of the alkaline-earth metals to 80 GPa. Phys. Rev. B
**2001**, 65, 012108. [Google Scholar] [CrossRef] - Paufler, P. Assessing free lattice and structure parameters from the atomic level. Cryst. Res. Technol.
**2015**, 50, 957–960. [Google Scholar] [CrossRef] - Shevchenko, V.Y.; Krivovichev, S.V. Are periodicity and symmetry the properties of a discrete space? (On one paradox of cellular automata). Struct. Chem.
**2017**, 28, 45–50. [Google Scholar] [CrossRef] - Ciccotti, G.; Ferrario, M.; Schuette, C. Molecular Dynamics Simulation. Entropy
**2014**, 16, 233. [Google Scholar] [CrossRef] [Green Version] - Adams, S.; Rao, R.P. High power lithium ion battery materials by computational design. Phys. Status Solidi (A)
**2011**, 208, 1746–1753. [Google Scholar] [CrossRef] [Green Version] - Belsky, A.; Hellenbrandt, M.; Karen, V.L.; Luksch, P. New developments in the Inorganic Crystal Structure Database (ICSD): Accessibility in support of materials research and design. Acta Crystallogr. Sect. B Struct. Sci.
**2002**, 58, 364–369. [Google Scholar] [CrossRef] - Zschornak, M.; Gemming, S.; Gutmann, E.; Weißbach, T.; Stöcker, H.; Leisegang, T.; Riedl, T.; Tränkner, M.; Gemming, T.; Meyer, D. Surface modeling and chemical solution deposition of SrO(SrTiO
_{3})_{n}Ruddlesden–Popper phases. Acta Mater.**2010**, 58, 4650–4659. [Google Scholar] [CrossRef] - Zschornak, M.; Richter, C.; Nentwich, M.; Stöcker, H.; Gemming, S.; Meyer, D.C. Probing a crystal’s short-range structure and local orbitals by Resonant X-ray Diffraction methods. Cryst. Res. Technol.
**2014**, 49, 43. [Google Scholar] [CrossRef] - Richter, C.; Zschornak, M.; Novikov, D.; Mehner, E.; Nentwich, M.; Hanzig, J.; Gorfman, S.; Meyer, D.C. Picometer polar atomic displacements in strontium titanate determined by resonant X-ray diffraction. Nat. Commun.
**2018**, 9, 178. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Poincaré, H. Science et Méthode. edn; Flammarion: Paris, France, 1908. [Google Scholar]

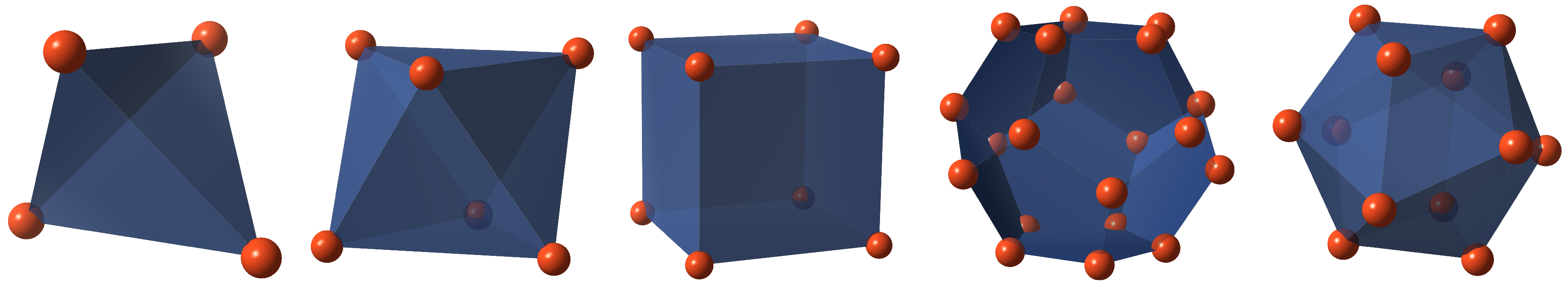

**Figure 1.**Platonic Solids with increasing symmetry, i.e., number of symmetry elements: the self-dual tetrahedron, the octahedron with the dual cube, as well as the dodecahedron with the dual icosahedron.

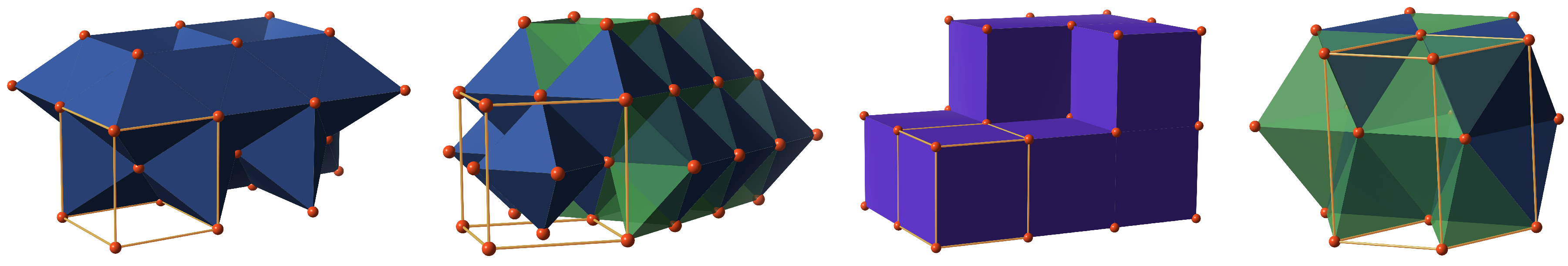

**Figure 2.**Common structural symmetries of unary phases: body-centered cubic (bcc), face-centered cubic (fcc), simple cubic (sc), and hexagonal close-packed (hcp). Space-filling is realized with distorted octahedra (solid blue) for bcc, a combination of octahedra and tetrahedra (opaque green) for fcc and hcp, and cubes (solid violet) for sc.

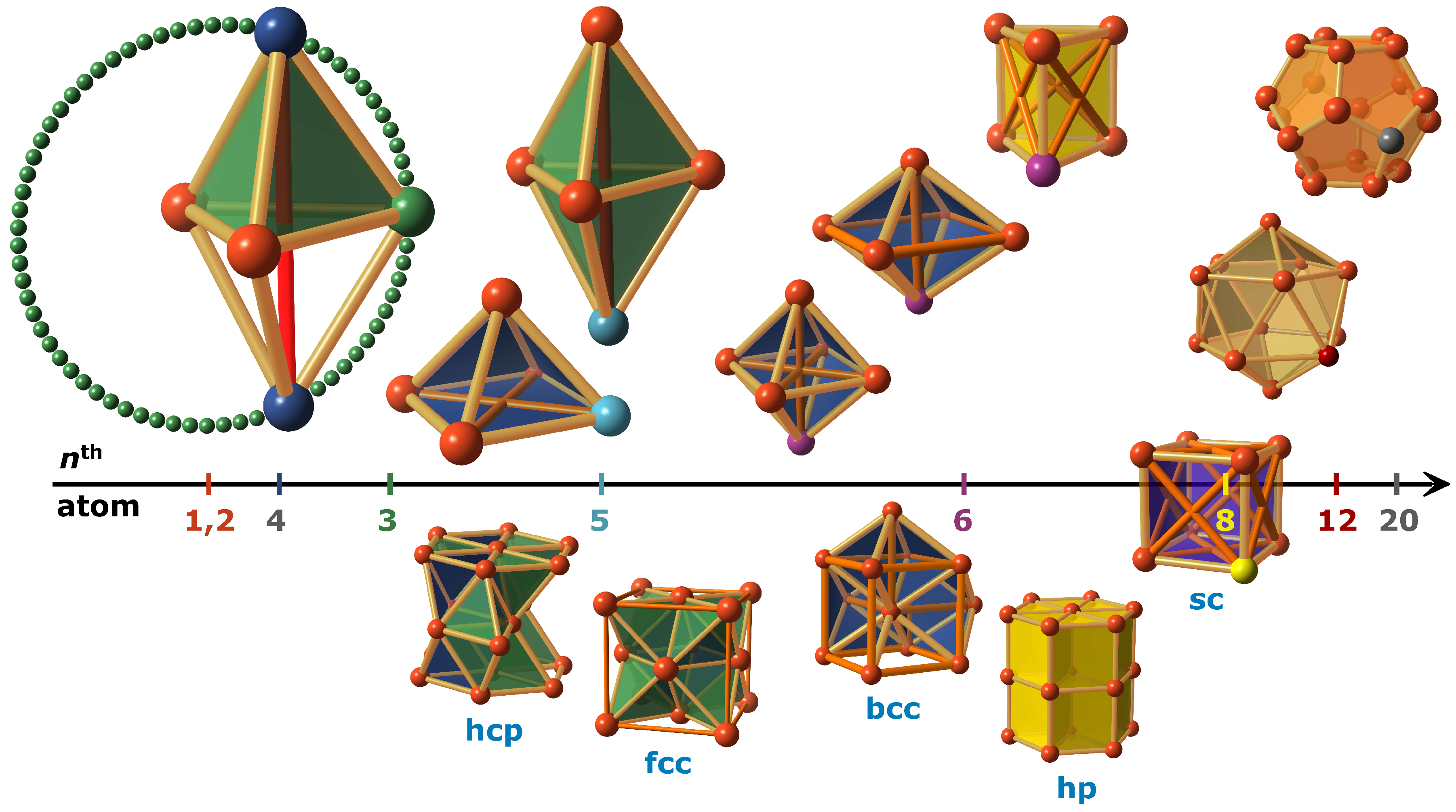

**Figure 3.**Atomistic crystal growth process for the first few atoms with structural motifs (upper) and derived crystal symmetries (lower part). Due to their high symmetry, the platonic solids present, with respect to total energy, the most stable cluster motifs with a maximum number of pair potential equilibrium distances (beige sticks), and a minimum of energetically less stable distances (orange, red sticks). After the first atomic pair (orange), the third atom (green) and the forth atom (dark blue) may satisfy equilibrium distances without restrictions forming the tetrahedron motif (opaque green). Limitations of 3D space arise for the fifth atom (light blue), which selects the pyramid or the ditetrahedron according to the specific pair potential. Likewise, the sixth atom (violet) may favor the regular octahedron (blue), its bcc variant, or the prism (opaque yellow). Further structural transformations may occur to the cube (opaque violet) at the 8th atom (yellow), the icosahedron (beige) at the 12th atom (dark red) and the dodecahedron (orange) at the 20th atom (gray). For the last two, the high volume favors centered motifs as well (not shown here). The high symmetric crystal symmetries for unary phases: hcp, fcc, bcc, hp, and sc evolve directly or as combination of the presented motifs.

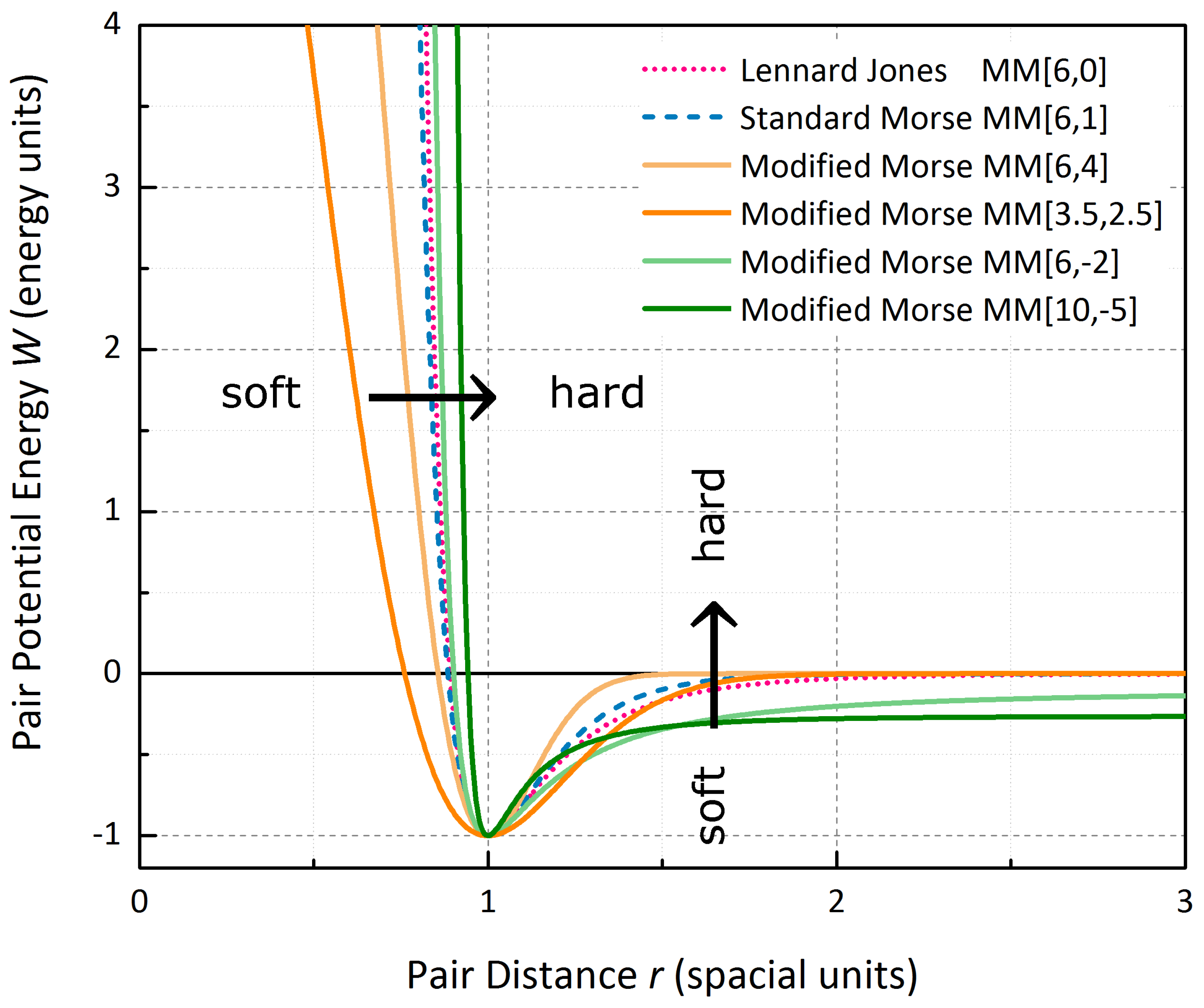

**Figure 4.**Short-range and long-range flexibility of the Modified Morse type potential for four sets of parameters in comparison to the Standard Morse Potential and the Lennard-Jones Potential.

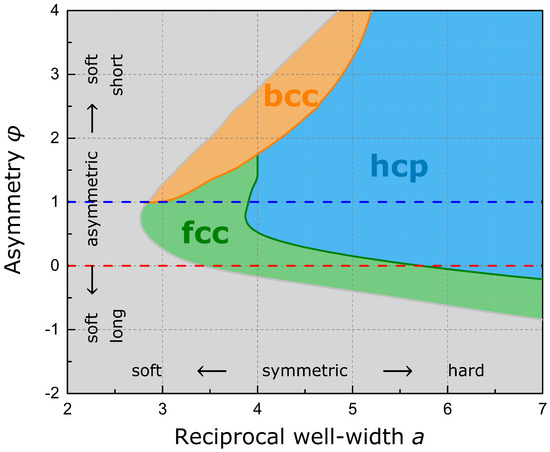

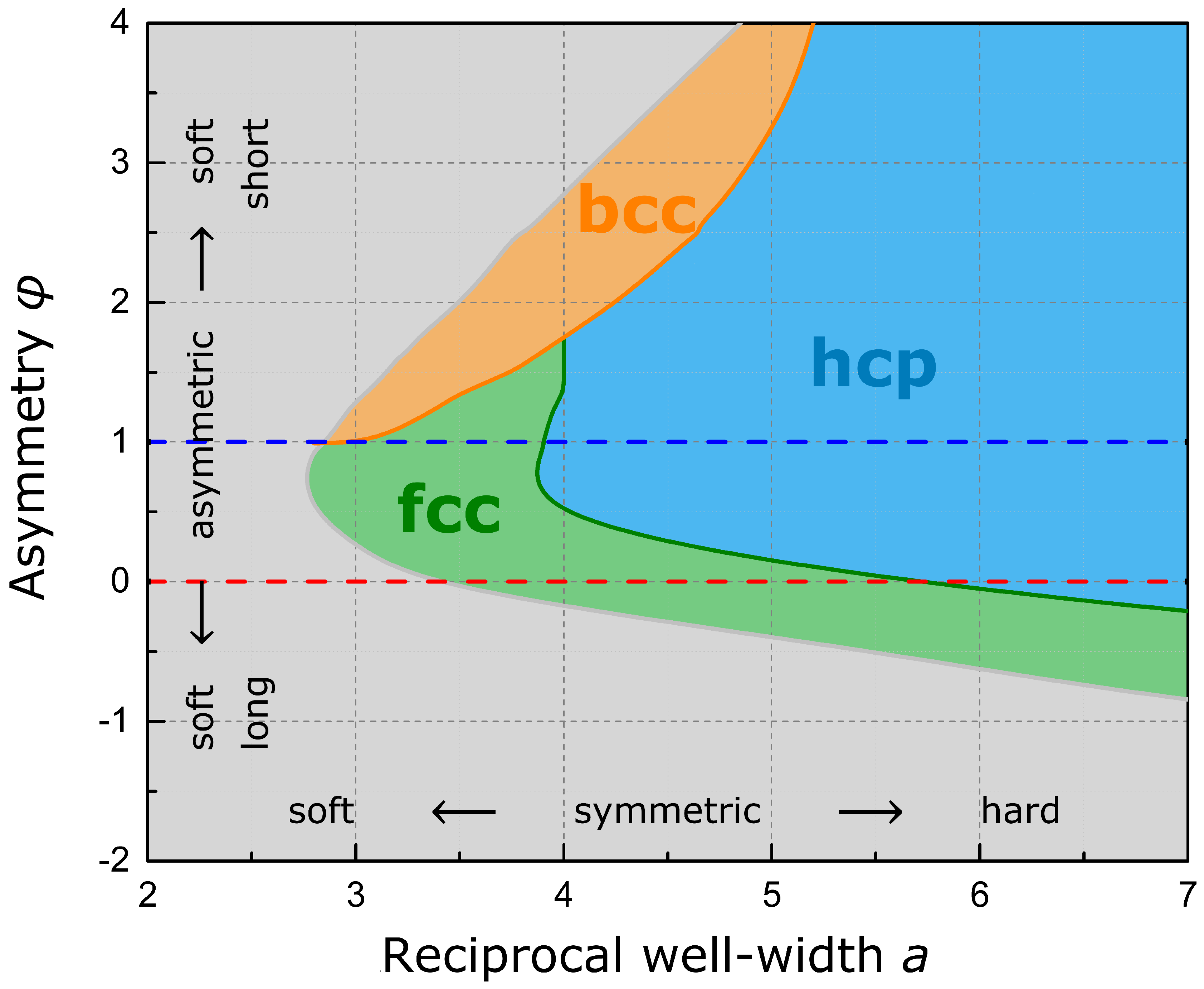

**Figure 5.**Phase diagram depicting the equilibrium lattice symmetries in dependence on the Modified Morse Potential $MM[a,\phi ]$ (uncalculated region in gray). The Standard Morse Potential (blue line) and the Lennard-Jones Potential (point $MM[6,0]$ on red line) lack the flexibility in independent short- and long-range interaction to represent the stable bcc region and to describe the large parameter space for phase transformations (orange and green boundaries).

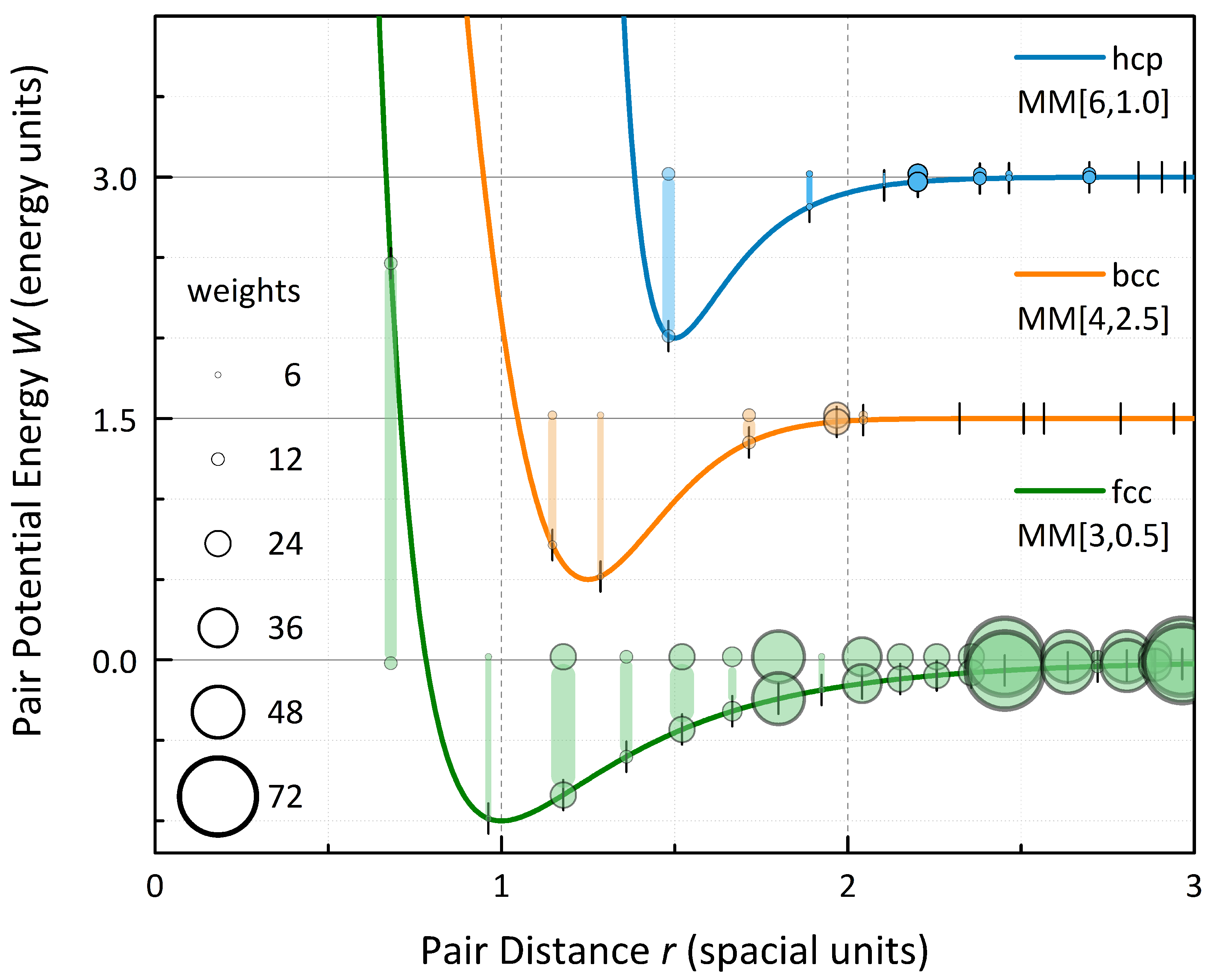

**Figure 6.**Equilibrium relaxation states of hcp, bcc, and fcc lattices for exemplary pair potentials, namely the Standard Morse $MM[6,1]$, a broad-well potential $MM[4,2.5]$ and an extremely long-range potential $MM[3,0.5]$. The weights of the shell (ball size) within the total energy sum are given up to a contribution of ${10}^{-3}$ energy units per atom. For $MM[3,0.5]$, the significant influence of higher coordination shells forces the first shell to contract even to anti-binding distances.

**Table 1.**Total energies ${E}_{\mathrm{tot}}$ and relaxation $\Delta {R}_{\mathrm{min}}$ for optimized cluster motifs of high structural symmetry in dependence on chosen pair potentials. The order of stability of the motifs (most to least stable: dark to light green, yellow, orange) changes in dependence on soft- and long-range interaction, in addition to the significance of relaxation.

Motifs | N atom | Standard Morse MM[6,1] | Lennard Jones MM[6,0] | Modified Morse MM[3.5,2.5] | Modified Morse MM[10,−5] | ||||
---|---|---|---|---|---|---|---|---|---|

ΔR_{min}/% | E_{tot}/atom | ΔR_{min}/% | E_{tot}/atom | ΔR_{min}/% | E_{tot}/atom | ΔR_{min}/% | E_{tot}/atom | ||

Ditetrahedron | 5 | −0.07 | −1.809 | −0.09 | −1.821 | −0.37 | −1.814 | −0.01 | −1.861 |

Pyramid | 5 | −0.45 | −1.665 | −0.45 | −1.695 | −2.21 | −1.717 | −0.07 | −1.743 |

Octahedron | 6 | −0.45 | −2.081 | −0.45 | −2.119 | −2.21 | −2.146 | −0.07 | −2.179 |

Octahedron-bcc | 6 | −1.13 | −1.475 | −1.14 | −1.546 | −6.03 | −1.615 | −0.18 | −1.724 |

Prism | 6 | −1.18 | −1.668 | −1.15 | −1.742 | −6.30 | −1.839 | −0.18 | −1.858 |

Cube | 8 | −1.87 | −1.772 | −1.86 | −1.910 | −11.13 | −2.133 | −0.29 | −2.184 |

Icosahedron | 12 | −0.68 | −2.630 | −0.91 | −2.800 | −5.00 | −2.749 | −0.13 | −3.410 |

Icosahedron+C | 13 | −3.53 | −3.265 | −3.62 | −3.419 | −6.12 | −3.383 | −2.31 | −3.872 |

Dodecahedron | 20 | −1.34 | −1.658 | −1.79 | −1.875 | −16.62 | −1.963 | −0.26 | −3.755 |

Dodecahedron+C | 21 | −2.57 | −1.771 | −2.83 | −2.053 | −22.94 | −2.703 | −0.44 | −3.924 |

**Table 2.**Total energies ${E}_{\mathrm{tot}}$ and relaxation $\Delta {R}_{\mathrm{min}}$ for optimized structures of high symmetry in dependence on chosen pair potentials. Again, the order of stability of the structures (most to least stable: dark to light green, yellow, orange) changes in dependence on soft- and long-range interaction, in addition to the significance of relaxation.

Structure | Standard Morse MM[6,1] | Lennard Jones MM[6,0] | Modified Morse MM[4,2.5] | Modified Morse MM[3,0.5] | ||||
---|---|---|---|---|---|---|---|---|

ΔR_{min}/% | E_{tot}/atom | ΔR_{min}/% | E_{tot}/atom | ΔR_{min}/% | E_{tot}/atom | ΔR_{min}/% | E_{tot}/atom | |

sc | −4.12 | −8.613 | −4.87 | −11.364 | −22.37 | −12.588 | −36.99 | −55.871 |

bcc | −4.00 | −13.225 | −4.75 | −16.451 | −10.29 | −14.534 | −33.82 | −64.299 |

fcc | −1.75 | −13.784 | −2.87 | −17.196 | −7.42 | −14.404 | −31.97 | −64.518 |

hcp | −1.75 | −13.787 | −2.84 | −17.197 | −7.39 | −14.406 | −31.94 | −64.451 |

hp | −3.17 | −10.523 | −3.17 | −13.495 | −16.15 | −13.010 | −34.94 | −59.250 |

diamond | −0.94 | −6.391 | −2.35 | −7.960 | −2.54 | −6.276 | −33.10 | −31.726 |
