An Enhanced Approach for the Multiple Vehicle Routing Problem with Heterogeneous Vehicles and a Soft Time Window

Abstract

The vehicle routing problem (VRP) is a challenging combinatorial optimization problem. This research focuses on the problem under which a manufacturer needs to outsource materials from other suppliers and to ship the materials back to the company. Heterogeneous vehicles are available to ship the materials, and each vehicle has a limited loading capacity and a limited travelling distance. The purpose of this research is to study a multiple vehicle routing problem (MVRP) with soft time window and heterogeneous vehicles. Two models, using mixed integer programming (MIP) and genetic algorithm (GA), are developed to solve the problem. The MIP model is first constructed to minimize the total transportation cost, which includes the assignment cost, travelling cost, and the tardiness cost, for the manufacturer. The optimal solution can present multiple vehicle routing and the loading size of each vehicle in each period. The GA is next applied to solve the problem so that a near-optimal solution can be obtained when the problem is too difficult to be solved using the MIP. A case of a food manufacturing company is used to examine the practicality of the proposed MIP model and the GA model. The results show that the MIP model can obtain the optimal solution under a short computational time when the scale of the problem is small. When the problem becomes non-deterministic polynomial hard (NP-hard), the MIP model cannot find the optimal solution. On the other hand, the GA model can obtain a near-optimal solution within a reasonable amount of computational time. This paper is related to several important topics of the Symmetry journal in the areas of mathematics and computer science theory and methods. In the area of mathematics, the theories of linear and non-linear algebraic structures and information technology are adopted. In the area of computer science, theory and methods, and metaheuristics are applied.

1. Introduction

In today’s competitive business environment, firms need to optimize their supply chains, and thus supply chain management is very important for firms’ sustainability. Logistics is one of the main areas in supply chain management. It is often related to production and inventory decisions, and the delivery cost usually accounts for a major part of the total logistic costs [1,2]. The vehicle routing problem (VRP) is a core issue in logistics, and it refers to a class of combinatorial optimization problems in which customers are to be served by a number of vehicles [3]. VRP was first introduced by Dantzig and Ramser [4], and the main objectives of the problem are to minimize the total travelling cost, time, or distance with a fleet of vehicles, starting and ending their routes at the depot while satisfying the various demands of customers [4]. Since the introduction, different types of VRP have been tackled to incorporate real-world issues [5]. A comprehensive overview of the problem, variants, practical issues, formulations, and solution methods can be found in Toth and Vigo [6], Laporte [7], Pillac et al. [8], and Toth and Vigo [9]. A VRP that reflects the complexity of today’s business environment is basically an NP-hard problem [10]. Many VRP are solved by heuristics these days to obtain a near-optimal solution.

The VRP with time windows is an evolution of the traditional VRP, and a time window is the time frame within which a particular service or task, such as loading or unloading a vehicle, must be completed for the customer [11]. The VRP with soft time windows usually allows for early or late window service; however, a penalty may be present. Thus, in this research, models for solving the multiple vehicle routing problem (MVRP) with heterogeneous vehicles and a soft time window are constructed.

A mixed integer programming (MIP) model is first developed to solve small-scale MVRP. The objective is to minimize the total transportation cost, which includes the fixed cost for assigning vehicles, the travelling costs among the suppliers, and the tardiness cost when a vehicle arrives late to a supplier. The multiple vehicle routing and loading size of each vehicle in each period can be determined as a result. However, optimally solving the MVRP may not be an easy task when the problem becomes large.

Metaheuristics have been recognized to be able to solve complex problems that may be too difficult or time-consuming to solve by conventional techniques. Genetic algorithm (GA) a popular metaheuristics, has been acknowledged as a powerful tool with an iterative procedure to heuristically search the optimal solution of the problem [12,13,14,15,16]. In addition, it can generate solutions that are very close to the optimal ones, with less computational time compared to other enumerative tools. Since the problem studied becomes NP-hard in large instances, an efficient GA is presented to solve such problems. To the best of the authors’ knowledge, the proposed model is the first model that has been devised to study the problem that considers different assignment costs and different travelling costs for different type of vehicles and different tardiness costs charged by different suppliers.

The rest of this paper is presented as follows. In Section 2, previous research on related studies is reviewed. A MIP model and a GA model for solving the VRP with soft time window and heterogeneous vehicles are constructed in Section 3. In Section 4, cases studies of a food manufacturing company are performed to examine the MIP and the GA models. Conclusion remarks are made in the last section.

2. Literature Review

Some recent works of VRP, especially the adoption of metaheuristics, are reviewed here. Lee et al. [17] considered a MVRP with multiple suppliers, a single depot, a fleet of identical capacity trucks, and allowing for split pick-ups. A deterministic dynamic program (DP) was proposed first, and an exact algorithm based on the shortest path search was formulated next, for simple and easy implementation. Adelzadeh et al. [3] proposed a mathematical model, and devised a heuristic solving procedure for multi-depot VRP with a fuzzy time window and heterogeneous vehicles that have different capacities, velocities, and costs. The fuzzy concept was applied to the service levels of the time windows, and a multi-objective model was developed. A three-stage algorithm was first used to decompose the problem into some common VRPs, and a heuristic approach was developed to obtain an initial solution. A simulated annealing (SA) algorithm was proposed to improve the solutions. Duan et al. [18] studied the stochastic time-dependent VRP and proposed two mathematical models, i.e., a robust optimal schedule time model and a minimum expected schedule time model, to ensure that all deliveries were met within the time windows. Since the robust optimal schedule time model does not need the probability distributions of the travel times, it could be transformed into a time-dependent VRP. Ant colony optimization algorithm was next applied, to improve both the initial solution and the transition probability, and as a result, to speed up the convergence. Zare-Reisabadi and Mirmohammadi [2] studied the site-dependent VRP with soft time window, in which a fleet of vehicles must deliver goods to customers, preferably in their time windows. An integer linear programming model was proposed first. Since the problem was NP-hard, two metaheuristics algorithms were presented to obtain near-optimal solutions: an ant colony system with local searches, and a tabu search algorithm. Khaligh and MirHassani [19] studied a VRP under endogenous uncertainty. The problem considered a single vehicle with a limited capacity need to serve customers whose demands are uncertain and that follow a known discrete probability distribution. The actual demand of a customer is known when the vehicle arrives to the customer, and the vehicle may need to return to the depot for replenishment in order to satisfy all of the demands of the customers. A multistage stochastic programming (SP) model, which could reduce the number of nonanticipativity constraints, was proposed, to find a policy to satisfy customer demand and to minimize the total expected cost. Liu et al. [20] studied a capacitated VRP, under which the order available time was determined by the precedent order picking and packing stage in the warehouse. A tabu search algorithm was proposed to minimize the sum of vehicle completion times, and a Lagrangian relaxation algorithm was used to generate the lower bounds of the problems. Hernandez et al. [21] considered the periodic VRP and the periodic VRP with time windows. A tactical routing plan for a time slot schedule, based on demand and service time estimates, is devised to minimize the expected cost. Two heuristics were proposed to solve the problem. The first one was a three-phase approach, i.e., solving a periodic VRP, repair, and final improvement, so that a VRP with time windows was solved for each period of the planning horizon. The second one could directly solve the entire problem at once. Khodabandeh et al. [22] studied the VRP with time windows and a limited duration, in which each customer is visited once by one vehicle within a specific time window under the capacity constraint. The objectives were to minimize the travel time and the total number of vehicles used. A network reduction technique, by modifying the cluster-first, route-second approach by Fisher and Jaikumar [23], was used to obtain an initial feasible solution. A simulated annealing (SA) approach was used to improve the solution. Mancini [24] studied the VRP with time-dependent travel times, in which travel times are subject to complex variations such as speed variation, due to congestion phenomena. The goal of the model was to obtain the best routes and the best starting time for each route, and to minimize the total travel time. A two-phase heuristic approach was presented. First, a multistart random constructive heuristic was applied, to obtain promising solutions. Second, a set partitioning-based formulation was used to obtain the final solution. Yassen et al. [25] studied the use of the harmony search algorithm in solving VRP with time windows. An adaptive harmony search algorithm that incorporated an adaptive selection mechanism was developed, to adaptively select a suitable local search algorithm, and five local search algorithms were examined. Soysal and Çimen [26] studied the green time-dependent capacitated VRP, in which the travel speed depended on the location and the time of the day, and the fuel consumption and transportation emissions were considered. A dynamic programming model was first formulated and then used to solve small instances. A simulation-based restricted dynamic programming, which incorporated a weighted random sampling, and a restricted dynamic programming heuristic and simulation, was developed to solve large sized problems. Abdoli et al. [5] studied the green VRP to reduce greenhouse gas emissions while considering the necessity of alternative fuel vehicles to refuel at alternative fueling stations when travelling long distances. A mixed integer programming model was presented, to show that the utilization of alternative fuel vehicles could reduce greenhouse gas emissions significantly. A simulated annealing algorithm was next developed to solve large instances with good solution quality and short computation times. Mousavi and Vahdani [27] studied multiple vehicle location-routing problems with time windows and uncertain input data in cross-docking distribution networks. A two-phase deterministic mixed-integer linear programming (MILP) model was first presented to locate cross-docks and to schedule vehicle routing with multiple cross-docks. Next, a two-phase MILP model was presented by applying an optimization theory. Finally, a metaheuristic algorithm was proposed for solving the problems. Govindan et al. [28] studied a two-echelon multiple-vehicle location-routing problem with time windows for a sustainable supply chain network of perishable food to meet both economical and environmental objectives. A multi-objective hybrid approach, which integrated multi-objective particle swarm optimization and adapted a multi-objective variable neighborhood search, was proposed. The results were found to outperform some genetic algorithm (GA)-based methods. Madankumar and Rajendran [29] studied the green VRP with pickup and delivery, and used the semiconductor supply chain as an example. Three MILP models were constructed. The first model was to minimize the total routing cost and to obtain the routes and schedules for the alternative fuel vehicles while satisfying a set of requests. The second model extended the first model and considered different fuel prices at different refueling stations. The third model considered the basic pickup and delivery problem without the consideration of the green supply chain, and it was compared with the first two models. Dalmeijer and Spliet [30] studied the time window assignment VRP, in which time windows for delivery are assigned to clients before the demand volume of clients is known. To deal with demand uncertainty, the problem assumes that the demand scenarios and their probabilities of occurrence are known. A flow formulation was presented, and a branch-and-cut algorithm was proposed, to obtain solutions quickly, and to solve large instances. Xu et al. [31] studied a dynamic VRP and proposed an enhanced ant colony optimization model, which incorporated improved K-means and crossover operation into the traditional ant colony optimization. The improved K-means aimed to divide the region with the most reasonable distance, and the crossover operation tried to extend the search space and tried to avoid falling into a local search prematurely.

GA has been applied in solving VRP. Some works are reviewed here. Baker and Ayechew [32] stated that unlike other heuristics, which has had considerable progress in solving VRP, GA had not made a great impact. The authors developed a conceptually straightforward GA to solve the basic VRP, and a hybrid heuristic, which incorporated a neighborhood search into the GA. A comparison with other heuristics showed that the GA was competitive in terms of computing time and solution quality. Ombuki et al. [11] studied the VRP with hard time windows, and treated it as a multi-objective problem with two objectives: the number of vehicles and the total distance traveled. A multi-objective GA approach using the Pareto ranking technique was developed so that the weighted sum, which might cause solution bias, did not need to be applied. Alvarenga et al. [33] studied the VRP with time windows and proposed a two-phase approach that incorporated GA and a set partitioning formulation. The objective was to minimize the travel distance, and the authors stated that the approach outperformed past heuristic methods in terms of the minimal travel distance. Vidal et al. [34] studied three variants of VRP, the multi-depot VRP, the periodic VRP, and the multi-depot periodic VRP, under an environment of capacitated vehicles and constrained route duration. Based on the GA, the authors proposed a hybrid genetic search with an adaptive diversity control metaheuristic. Vidal et al. [35] further proposed a hybrid genetic search with advanced diversity control to tackle four types of VRP: VRP with time windows, periodic VRP with time windows, multi-depot VRP with time windows, and site-dependent VRP with time windows. Some evaluation techniques were introduced to the GA to evaluate and prune neighborhoods, and to decompose large instances efficiently. Xiao and Konak [36] studied the green vehicle routing and the scheduling problem, in which a fleet of heterogeneous vehicles travel within a time-varying traffic environment to minimize the total CO₂ emissions. An MIP was first proposed for small-sized problems, and an exact dynamic programming algorithm was presented next for large-sized problems. A hybrid GA, combined with the exact dynamic programming algorithm, was then developed as an efficient solution approach.

3. Proposed Model

In this section, a model for the MVRP that considers a soft time window and heterogeneous vehicles is proposed by the MIP and the GA.

3.1. Assumptions

Some assumptions are made in the problem as follows:

• The decision model considers multiple periods, multiple suppliers, and multiple vehicles.
• The depot is both the shipping point and the final destination of each vehicle.
• The distance between each two suppliers is fixed and known.
• The travelling time between each two suppliers is fixed and known.
• Different types of vehicles have different unit travelling costs.
• The unloading time in each supplier is fixed and known.
• The assigning cost for each vehicle is fixed and known. Different assigning costs occur for different types of vehicles.
• Each vehicle has a limited loading capacity. Different types of vehicles have different loading capacities.
• Each vehicle has a limited travelling distance in a period. Different types of vehicles have different travelling distance limits.
• Each supplier has a soft time window. When a vehicle arrives to a supplier after the latest soft time, a tardiness cost will be charged by the supplier based on the tardiness time.
• Multiple vehicles can be used in a period. A supplier can only be visited by at most a vehicle in a period.
• No shortage of outsourced materials is allowed.

3.2. Construction of the MIP Model

In this study, the total transportation cost includes the fixed cost for assigning vehicles, the travelling costs among the suppliers, and the tardiness cost when a vehicle arrives a supplier late. It is as follows:

$$Assigning cost={\displaystyle {\sum }_{t=1}^T}{\displaystyle {\sum }_{v=1}^V}{\displaystyle {\sum }_{j=0}^I}{\tau }_v\times X_{t,0,j,v}$$

(1)

$$Travelling cost={\displaystyle {\sum }_{t=1}^T}{\displaystyle {\sum }_{i=0}^I}{\displaystyle {\sum }_{j=0}^I}{\displaystyle {\sum }_{v=1}^V}{\pi }_{i,j}\times {\rho }_v\times X_{t,i,j,v}$$

(2)

$$Tardiness cost={\displaystyle {\sum }_{t=1}^T}{\displaystyle {\sum }_{i=0}^I}{\displaystyle {\sum }_{v=1}^V}{p}_i\times L_{t,i,v}$$

(3)

where ${\tau }_v$ is the fixed cost for assigning vehicle v, $X_{t,0,j,v}$ is a binary variable, which indicates whether vehicle v departs from the depot (i = 0) to supplier j in period t, ${\pi }_{i,j}$ is the travelling distance from supplier i to supplier j, ${\rho }_v$ is the travelling cost per unit of distance, $X_{t,i,j,v}$ is a binary variable, which indicates whether vehicle v travels from supplier i to supplier j in period t, ${\rho }_i$ is the tardiness cost per unit of time, and $L_{t,i,v}$ is the tardiness time of vehicle v when arriving at supplier i in period t.

An MIP model is presented to solve the transportation problem, which considers the vehicle assigning cost, travelling cost, and tardiness cost. The objective is to minimize the total transportation cost in the system.

Minimize

$$\begin{gathered} TC={\displaystyle {\sum }_{t=1}^T}{\displaystyle {\sum }_{v=1}^V}{\displaystyle {\sum }_{j=0}^I}{\tau }_v\times X_{t,0,j,v}+{\displaystyle {\sum }_{t=1}^T}{\displaystyle {\sum }_{i=0}^I}{\displaystyle {\sum }_{j=0}^I}{\displaystyle {\sum }_{v=1}^V}{\pi }_{i,j}\times {\rho }_v\times X_{t,i,j,v}+ \\ {\displaystyle {\sum }_{t=1}^T}{\displaystyle {\sum }_{i=0}^I}{\displaystyle {\sum }_{v=1}^V}{p}_i\times L_{t,i,v} \end{gathered}$$

(4)

Subject to:

$${\displaystyle {\sum }_{j=1}^I}{\displaystyle {\sum }_{v=1}^V}{X}_{t,0,j,v}\le Vfor t\in T$$

(5)

$${\displaystyle {\sum }_{i=1}^I}{\displaystyle {\sum }_{v=1}^V}{X}_{t,i,0,v}\le Vfor t\in T$$

(6)

$${\displaystyle {\sum }_{j=1}^I}{\displaystyle {\sum }_{v=1}^V}{X}_{t,i,j,v}=1for t\in T,i\in I\backslash \left\{0\right\},i\ne j$$

(7)

$${\displaystyle {\sum }_{i=1}^I}{\displaystyle {\sum }_{v=1}^V}{X}_{t,i,j,v}=1for t\in T,j\in I\backslash \left\{0\right\},i\ne j$$

(8)

$${\displaystyle {\sum }_{i=0}^I}{X}_{t,i,j,v}-{\displaystyle {\sum }_{i=0}^I}{X}_{t,j,i,v}=0for t\in T,v\in V,j\in I,i\ne j$$

(9)

$${\displaystyle {\sum }_{i=0}^I}(d_{t,i}\times {\displaystyle {\sum }_{j=0}^I}{X}_{t,i,j,v})\le q_{v}for t\in T,v\in V,i\in I,i\ne j$$

(10)

$${\displaystyle {\sum }_{i=0}^I}{\displaystyle {\sum }_{j=0}^I}({\pi }_{i,j}\times X_{t,i,j,v})\le r_{v}for t\in T,v\in V,i\in I,i\ne j$$

(11)

$${\displaystyle S_{t,i,v}^{}}+u_i+w_{i,j}-{\displaystyle S_{t,j,v}^{}}\le \left(1-X_{t,i,j,v}\right)Mfor t\in T,v\in V,i\in I,i\ne j$$

(12)

$$L_{t,i,v}\ge Max(0,{\displaystyle S_{t,i,v}^{}}-l_i) for t\in T,v\in V,i\in I,i\ne j$$

(13)

$${\sum }_{i,j\in \mathrm{S}}{X}_{t,i,j,v}\le \left|E\right|-1, E\subseteq \mathrm{I}, 2\le \left|E\right|\le I-1for t\in T,v\in V,i\in I,i\ne j$$

(14)

$$X_{t,i,j,v}\in \left\{0,1\right\}for t\in T,v\in V,i\in I,j\in I,i\ne j$$

(15)

Objective function (4) is to minimize the total transportation cost in the system. Constraint (5) ensures that at most, V vehicle(s) depart from the depot (node 0) in period t. Constraint (6) ensures that at most, V vehicle(s) return to the depot (node 0) in period t. Constraint (7) assures that exactly one vehicle leaves from supplier i in period t, and that i $\ne 0$ and i $\ne j$. Constraint (8) assures that exactly one vehicle enters to supplier j in period t, and that j $\ne 0$ and i $\ne j$. Constraint (9) states that if vehicle v visits supplier j in period t, it must also depart from supplier j in period t. Constraint (10) makes sure that the total loading size of vehicle v in period t must be less than or equal to the maximum loading size for that vehicle. Constraint (11) ensures that the total travelling distance of vehicle v in period t must be less than or equal to the maximum travelling distance for that vehicle. Constraint (12) assures that if vehicle v visits supplier j after supplier i in period t, the service start time for supplier j cannot begin earlier than the service start time for supplier i, plus the unload time at supplier i and the travelling time from supplier i to supplier j. Constraint (13) computes the tardiness time of vehicle v when visiting supplier i in period t. Constraint (14) is standard sub-tour elimination constraints. Constraint (15) states that $X_{t,i,j,v}$ is a binary variable, 1 indicating that vehicle v travels from supplier i to supplier j in period t, and 0 indicating that no travel is incurred.

3.3. Genetic Algorithm Model

In this research, the GA is adopted to solve the MVRP with a soft time window and heterogeneous vehicles, so that near-optimal solutions can be obtained in a short computational time for large-scale problems. The procedures are as follows [16,37,38]:

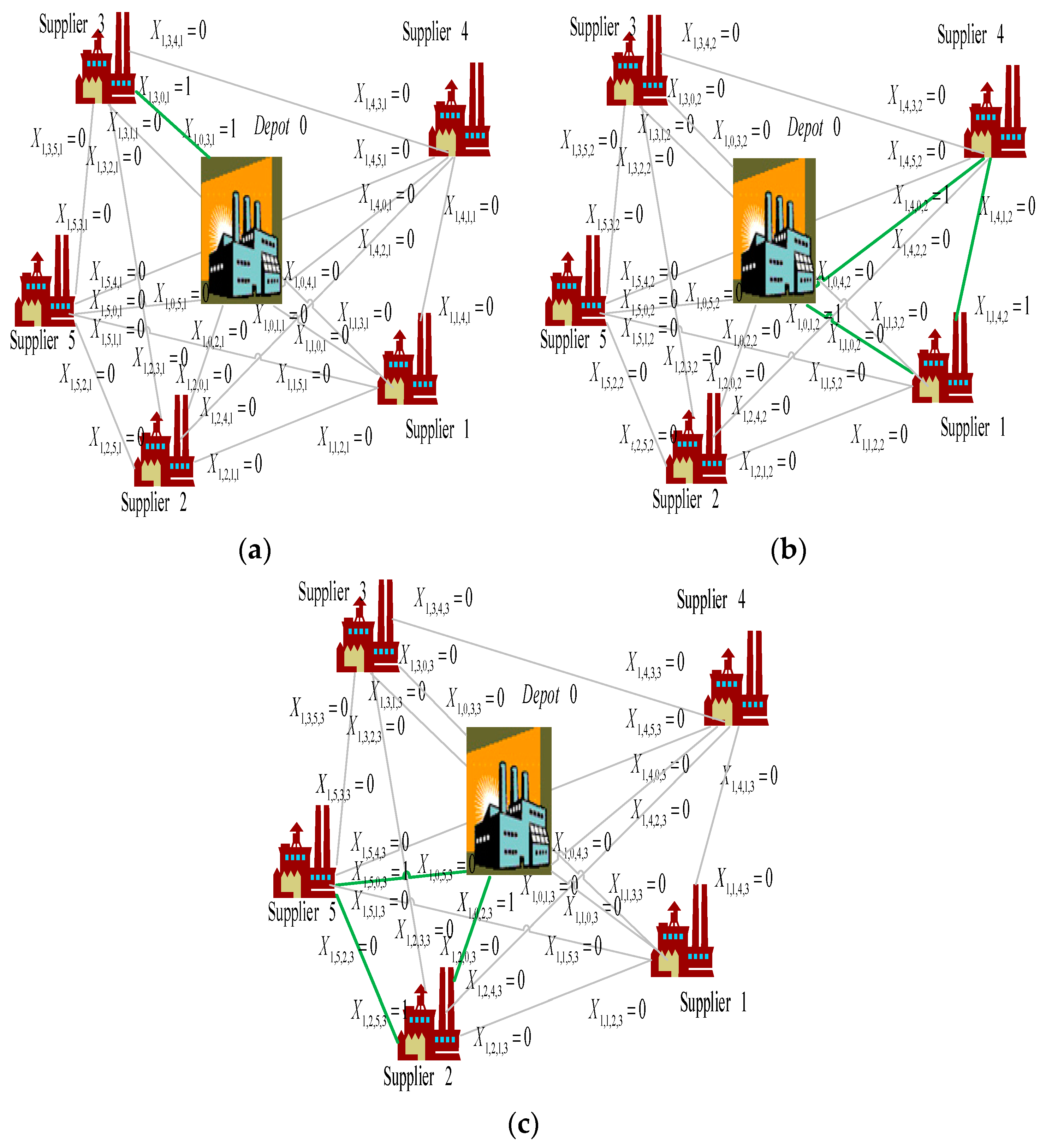

Step 1. Code Scheme

In the travelling salesman problem, there are basically five different vector schemes to represent a tour among cities: a path representation, an adjacency representation, an ordinal representation, a position listing representation, and an adjacency listing representation [39]. Due to its simplicity, the path representation has been frequently adopted in the GA to solve the travelling salesman problem.

The constraints used in the GA in this study are as follows:

$$\begin{array}{ll}{\displaystyle Q_{t,v}^{}}=& d_{t,1}\times (X_{t,1,0,v}+X_{t,1,2,v}+\dots +X_{t,1,I,v})+d_{t,2}\times (X_{t,2,0,v}+X_{t,2,1,v}+\dots +X_{t,2,I,v})+\dots \\ & d_{t,i}\times (X_{t,i,0,v}+X_{t,i,1,v}+\dots +X_{t,i,I,v})\dots +d_{t,I}\times (X_{t,I,0,v}+X_{t,I,1,v}+\dots +X_{t,I,I-1,v})\end{array},for t\in T,v\in V$$

(16)

$$\begin{array}{ll}{\displaystyle R_{t,v}^{}}=& {\pi }_{0,1}\times X_{t,0,1,v}+{\pi }_{0,2}\times X_{t,2,0,v}+\dots +{\pi }_{0,I}\times X_{t,0,I,v}\\ & {\pi }_{1,0}\times X_{t,1,0,v}+{\pi }_{1,2}\times X_{t,2,0,v}+\dots +{\pi }_{1,I}\times X_{t,1,I,v}\\ & \dots \dots \\ & {\pi }_{\mathrm{i},0}\times X_{t,i,0,v}+{\pi }_{i,1}\times X_{t,i,1,v}+\dots +{\pi }_{i,j}\times X_{t,i,j,v}\\ & \dots \dots \\ & {\pi }_{I,0}\times X_{t,I,0,v}+{\pi }_{I,1}\times X_{t,I,1,v}+\dots +{\pi }_{I,I-1}\times X_{t,I,I-1,v}\end{array}for t\in T,v\in V$$

(17)

$${\displaystyle S_{t,j,v}^{}}={\displaystyle S_{t,i,v}^{}}+\left(u_i+w_{i,j}\right)\times X_{t,i,j,v}for t\in T,v\in V,i\in I,i\ne j$$

(18)

X_t,i,j,v is a binary number, Q_t,v, R_t,v and S_t,j,v are integer numbers.

Constraint (16) ensures sure that the total loading size of vehicle v in period t must be less than or equal to the maximum loading size for that vehicle. Constraint (17) assures that the total travelling distance of vehicle v in period t must be less than or equal to the maximum travelling distance for that vehicle. Constraint (18) makes sure that if vehicle v visits supplier j after supplier i in period t, the service start time for supplier j cannot begin earlier than the service start time for supplier i plus the unload time at supplier i and the travelling time from supplier i to supplier j.

Step 2. Initial Population of Chromosomes

The initial population is generated randomly.

Step 3. Fitness Function

The fitness function is to minimize TC, where TC is the sum of the vehicle assignment cost, travelling cost, and tardiness cost. Min TC is the minimum cost among all the chromosomes across the population.

Step 4. Crossover Operation

The standard two-cut-point crossover operator is adopted.

Step 5. Mutation Operator

A mutation operator is applied to change a randomly selected gene in the genetic code (0–1, 1–0).

Step 6. Selection of Subsequent Population

Individuals are sorted by their fitness values, and those with higher fitness values are more likely to be selected for the mating pool.

Step 7. Elitism Selection

In the GA applications, the concept of elitism, or the “best-so-far” technique, is widely adopted so that elitist carries the best chromosome from the parent generation to the subsequent generation [40].

Step 8. Termination

Repeat the crossover, selection and replacement process until the objective function is optimized or the stop criterion is met.

4. Case Study

The case study is based on a manufacturer in the food industry. Assume that there are one manufacturer, several suppliers, and several vehicles. The objective is to minimize the total transportation cost, which includes the assignment cost, the travelling cost, and the tardiness cost. The software packages LINGO 10 (LINGO System Inc., Chicago, IL, USA) [41] and MATLAB 2015 (The MathWorks, Inc., Natick, MA, USA) [42] are used to solve the problem by the MIP and the GA, respectively.

4.1. Case Information

In this research, three cases are considered. There are multiple vehicles that need to be assigned to multiple suppliers in multiple periods. Three types of vehicles are available, large (L), medium (M), and small (S). The travelling distance limit, loading capacity, and assigning cost of each type of vehicles are different. The planning horizon covers multiple periods. The relevant information of the three cases is as follows.

Table 1. Vehicle assignment and travelling cost.

Vehicle	1	2	3	4	5
Vehicle type	S	M	M	L	L
Assigning cost (${\tau }_v$)	$200	$300	$300	$400	$400
Unit travelling cost (${\rho }_v$)	$0.9	$1	$1	$1.1	$1.1

shows the fixed cost for assigning a vehicle in a period, and the travelling cost per distance unit.

Table 2. Limits of vehicles.

Vehicle	1	2	3	4	5
Loading ($h_v$)	40	50	50	60	60
Travelling distance ($l_v$)	300	550	550	660	660

Unit of measure for $h_v$: unit; $l_v$: km.

shows the loading and travelling distance limits of each vehicle.

Table 3. Data of suppliers.

Supplier	i = 1	2	3	4	5	6	7	8	9	10	11	12
ui	11	10	12	21	10	13	15	12	8	16	13	11
pi	$1.1	$2.1	$3.2	$2.2	$2.3	$3	$5.2	$4.4	$2.6	$3.7	$2.5	$1.4
li	120	260	310	160	295	340	358	415	320	340	375	455

Unit of measure for u_i: min; p_i: $/min; l_i: min.

shows the data of various suppliers: u_i, $p_i$, and $l_i$. $u_i$ is the unload time (in minutes) required at supplier i, $p_i$ is the tardiness cost per minute charged by supplier i when a vehicle arrives after the latest soft time, and $l_i$ is the latest soft time (in minutes) to start the service at supplier i.

Table 4. Travelling distance matrix among suppliers.

πij	j = 0	1	2	3	4	5	6	7	8	9	10	11	12
i = 0	0	150	100	120	210	100	135	150	127	85	175	120	115
1	150	0	160	310	120	195	140	158	215	227	40	175	255
2	100	160	0	150	145	65	55	250	245	190	147	40	173
3	120	310	150	0	285	95	200	256	178	82	265	124	35
4	210	120	145	285	0	205	70	270	310	290	32	169	309
5	100	195	65	95	205	0	115	270	235	160	207	61	125
6	135	140	55	200	70	115	0	260	275	225	100	80	225
7	150	158	250	256	270	270	260	0	111	195	215	283	254
8	127	215	245	178	310	235	275	111	0	80	305	265	143
9	85	227	190	82	290	160	225	195	80	0	290	198	55
10	175	40	147	265	32	207	100	215	305	290	0	180	289
11	120	175	40	124	169	61	80	283	265	198	180	0	168
12	115	255	173	35	309	125	225	254	143	55	289	168	0

Unit of measure: km.

shows the travelling distance from one supplier (or depot) to the other.

Table 5. Travelling time matrix among suppliers.

wij	j = 0	1	2	3	4	5	6	7	8	9	10	11	12
i = 0	0	90	60	72	126	60	81	90	76	51	105	72	69
1	90	0	96	186	72	117	84	95	129	136	24	105	153
2	60	96	0	90	87	39	33	150	147	114	88	24	104
3	72	186	90	0	171	57	120	154	107	49	159	74	21
4	126	72	87	171	0	123	42	162	186	174	19	101	185
5	60	117	39	57	123	0	69	162	141	96	124	37	75
6	81	84	33	120	42	69	0	156	165	135	60	48	135
7	90	95	150	154	162	162	156	0	67	117	129	170	152
8	76	129	147	107	186	141	165	67	0	48	183	159	86
9	51	136	114	49	174	96	135	117	48	0	174	119	33
10	105	24	88	159	19	124	60	129	183	174	0	108	173
11	72	105	24	74	101	37	48	170	159	119	108	0	101
12	69	153	104	21	185	75	135	152	86	33	173	101	0

Unit of measure: min.

shows the travelling time required from one supplier (or depot) to the other.

Table 6. Problem configuration.

Case	Period Number	Supplier Number	Vehicle Number	Transportation Network	Variable Number for MIP	Constraint Number for MIP
I	5	5	3	6 × 6	931	1171
II	7	9	4	10 × 10	3903	3977
III	9	12	5	13 × 13	9758	9919

lists the problem configurations for the three cases, including the number of periods, number of suppliers, number of vehicles, size of the transportation network, number of variables for the MIP, and number of constraints for the MIP. In the first case, there are five periods, the number of suppliers is five, the number of vehicles is three, the transportation network is 6 × 6, and the numbers of variables and constraints for the MIP model are 931 and 1171, respectively. In the second case, there are seven periods, the number of suppliers is nine, the number of vehicles is four, the transportation network is 10 × 10, and the numbers of variables and constraints for the MIP model are 3903 and 3977, respectively. In the third case, there are nine periods, the number of suppliers is 12, the number of vehicles is five, the transportation network is 13 × 13, and the numbers of variables and constraints for the MIP model are 9758 and 9919, respectively.

4.2. Case Results and Analysis

Case I

In case I, there are five suppliers. There are three vehicles, one small vehicle and two medium vehicles. Vehicle 1 is a small truck, while Vehicles 2 and 3 are medium trucks. The planning horizon contains five periods.

Table 7. Demand from suppliers for Case I.

	Supplier	1	2	3	4	5
Period
1		21	22	40	13	26
2		26	24	23	24	30
3		28	20	31	9	17
4		30	26	24	8	26
5		22	12	32	28	23

shows the demand from each supplier in each period.

The MIP model is solved by LINGO 10, and the results are as follows. The transportation route and loading sizes of each vehicle in each period are shown in

Table 8. Vehicle routing and loading sizes under the MIP for Case I.

Period	Vehicle	Vehicle Routing and Loading Size
1	1	Depot → Supplier 3 (40) → Depot
	2	Depot → Supplier 1 (21) → Supplier 4 (13) → Depot
	3	Depot → Supplier 2 (22) → Supplier 5 (26) → Depot
2	1	Depot → Supplier 5 (30) → Depot
	2	Depot → Supplier 3 (23) → Supplier 2 (24) → Depot
	3	Depot → Supplier 1 (26) → Supplier 4 (24) → Depot
3	1	Depot → Supplier 3 (31) → Depot
	2	Depot → Supplier 2 (20) → Supplier 5 (17) → Depot
	3	Depot → Supplier 1 (28) → Supplier 4 (9) → Depot
4	1	Depot → Supplier 2 (26) → Depot
	2	Depot → Supplier 3 (24) → Supplier 5 (26) → Depot
	3	Depot → Supplier 1 (30) → Supplier 4 (8) → Depot
5	1	Depot → Supplier 3 (32) → Depot
	2	Depot → Supplier 2 (12) → Supplier 5 (23) → Depot
	3	Depot → Supplier 1 (22) → Supplier 4 (28) → Depot

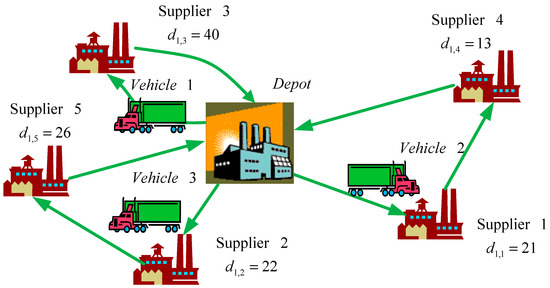

. Because of the travelling distance and the loading size limits of each vehicle, three vehicles are required in each period. For example, Vehicle 1 travels from the depot to Supplier 3 and ships 40 units of materials back to the depot in period 1. Vehicle 2 travels from the depot to Supplier 1 to pick up 21 units of materials, to Supplier 4 to pick up 13 units of materials, and then back to the depot. Vehicle 3 travels from the depot to Supplier 2 to pick up 22 units, to Supplier 5 to pick up 26 units, and then back to the depot. The vehicle routing in Period 1 is depicted in Figure 1.

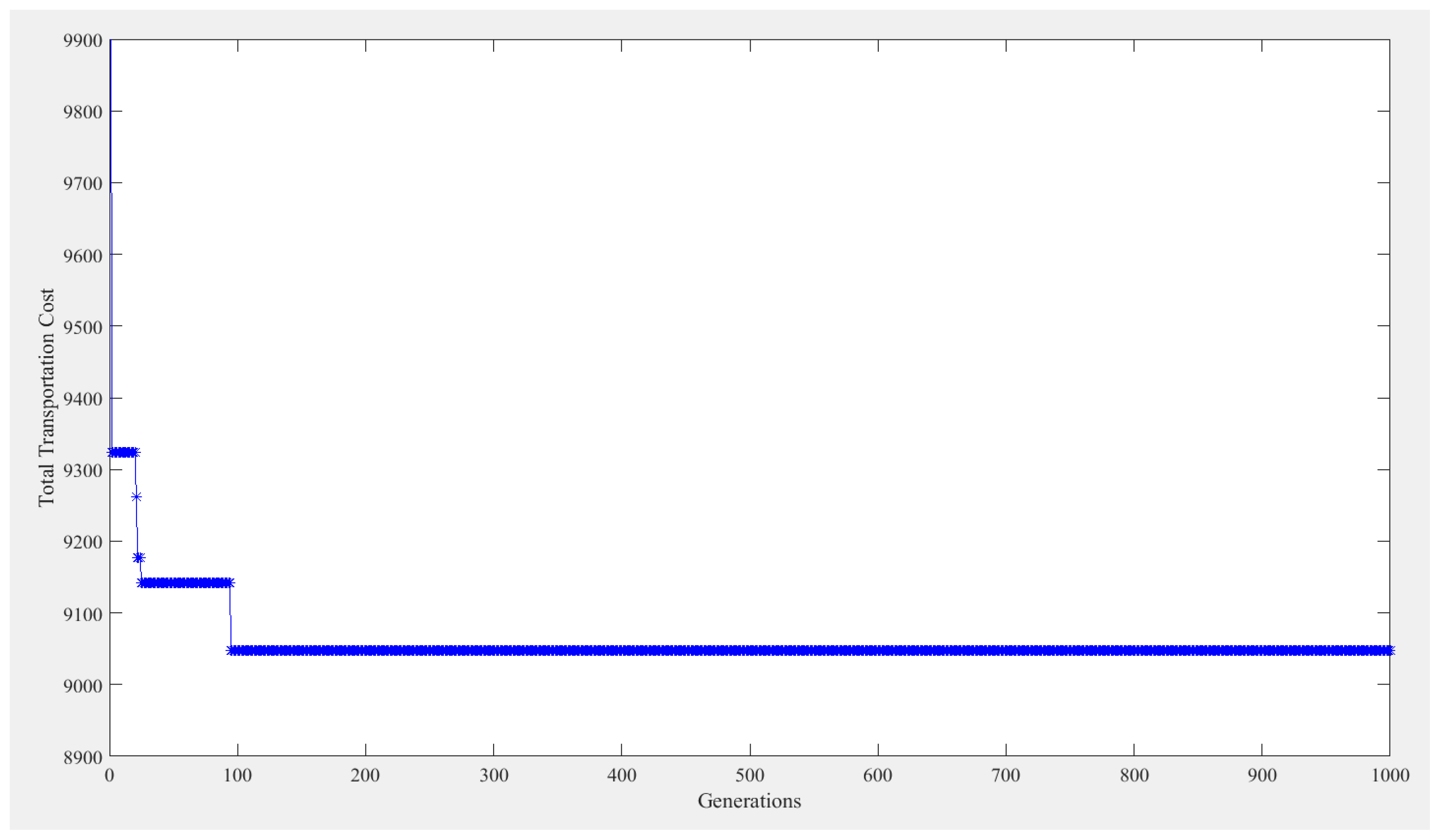

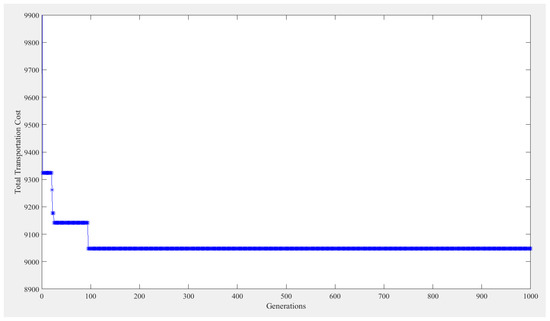

The GA model is next solved by MATLAB (2015). A two-cut-point crossover is adopted, and an inversion mutation operator is applied, to avoid a solution being trapped in a local optimum and to approach the global optimum. The initial population size is set as 50. The crossover rate is set as 0.85, that is, around 85% pairs of individuals are involved in the reproduction. The mutation rate is 0.15, indicating that each gene of a newly created solution is mutated, with a probability of 0.15. The algorithm is set to terminate at the 1000th generation. In case I, the best generation occurs at the 94th generation, as shown in Figure 2. The chromosome is coded as a string of $i$ integer digits, and the $i\mathrm{th}$ gene is a binary number. When vehicle v travels from supplier node i to supplier node j in period t, the value for X_t,i,j,v equals one; otherwise, the value equals zero. In Period 1, the result from the GA shows X_1,0,3,1 = 1 and X_1,3,0,1 = 1 for Chromosome 1, X_1,0,1,2 = 1, X_1,1,4,2 = 1 and X_1,4,0,2 = 1 for Chromosome 2, and X_1,0,2,3 = 1, X_1,2,5,3 = 1 and X_1,5,0,3 = 1 for Chromosome 3. The routing can also be observed in Figure 3. For example, in Period 1, Vehicle 1 travels from the depot to supplier 3 (X_1,0,3,1 = 1), and then back to the depot (X_1,3,0,1 = 1).

The results of Case I, generated by the MIP model and by the GA model are the same, as shown in

Table 9. Relevant costs for Case I.

Cost	Assigning Cost	Travelling Cost	Tardiness Cost	Total Transportation Cost
MIP	4000	4888	143	9031
GA	4000	4888	143	9031
Error = 0.00%

. The assigning cost is $4000, the travelling cost is $4888, the tardiness cost is $143, and the total transportation cost is $9031. The computational times using the MIP and the GA are 0.5 s and 105 s, respectively. Thus, the MIP is effective in this case study.

Case II

In Case II, there are nine suppliers and four vehicles, including one small vehicle, two medium vehicles and one large vehicle. Vehicle 1 is a small truck, Vehicles 2 and 3 are medium trucks, and Vehicle 4 is a large truck. The planning horizon contains seven periods. The demand information from nine suppliers is as shown in

Table 10. Demand from suppliers for Case II.

	Supplier	1	2	3	4	5	6	7	8	9
Period
1		22	19	20	13	21	23	22	24	23
2		26	24	30	17	25	16	24	21	20
3		24	26	19	26	17	28	20	9	21
4		30	15	24	11	24	30	16	24	18
5		22	20	25	28	23	22	13	21	19
6		21	17	19	21	23	21	16	9	28
7		22	13	30	28	13	22	12	21	24

.

The transportation route and loading sizes of each vehicle in each period under the MIP are shown in

Table 11. Vehicle routing and loading sizes under the MIP for Case II.

Period	Vehicle	Vehicle Routing and Loading Size
1	1	Depot → Supplier 2 (19) → Supplier 5 (21) → Depot
	2	Depot → Supplier 1 (22) → Supplier 7 (22) → Depot
	3	Depot → Supplier 3 (20) → Supplier 8 (24) → Depot
	4	Depot → Supplier 6 (23) →Supplier 4 (13) →Supplier 9 (23) → Depot
2	1	Depot → Supplier 3 (30) → Supplier 9 (10) → Depot
	2	Depot → Supplier 1 (26) → Supplier 7 (24) → Depot
	3	Depot → Supplier 5 (25) → Supplier 8 (21) → Depot
	4	Depot → Supplier 4 (17) → Supplier 6 (16) → Supplier 2 (24) → Depot
3	1	Depot → Supplier 3 (19) → Supplier 9 (21) → Depot
	2	Depot → Supplier 1 (24) → Supplier 4 (26) → Depot
	3	Depot → Supplier 2 (16) → Supplier 6 (28) → Depot
	4	Depot → Supplier 5 (17) → Supplier 8 (19) → Supplier 7 (20) → Depot
4	1	Depot → Supplier 2 (15) → Supplier 5 (24) → Depot
	2	Depot → Supplier 1 (30) → Supplier 7 (16) → Depot
	3	Depot → Supplier 3 (24) → Supplier 8 (24) → Depot
	4	Depot → Supplier 6 (30) → Supplier 4 (11) → Supplier 9 (18) → Depot
5	1	Depot → Supplier 8 (21) → Supplier 9 (19) → Depot
	2	Depot → Supplier 3 (25) → Supplier 5 (23) → Depot
	3	Depot → Supplier 4 (28) → Supplier 6 (22) → Depot
	4	Depot → Supplier 2 (20) → Supplier 1 (22) → Supplier 7 (13) → Depot
6	1	Depot → Supplier 2 (17) → Supplier 6 (21)→ Depot
	2	Depot → Supplier 1 (21) → Supplier 4 (21) → Depot
	3	Depot → Supplier 3 (19) → Supplier 5 (23)→ Depot
	4	Depot → Supplier 7 (16) → Supplier 8 (9) → Supplier 9 (28) → Depot
7	1	Depot → Supplier 3 (30) → Depot
	2	Depot → Supplier 1 (22) → Supplier 4 (28) → Depot
	3	Depot → Supplier 5 (13) → Supplier 2 (13) → Supplier 6 (22) → Depot
	4	Depot → Supplier 7 (22) → Supplier 8 (21) → Supplier 9 (12) → Depot

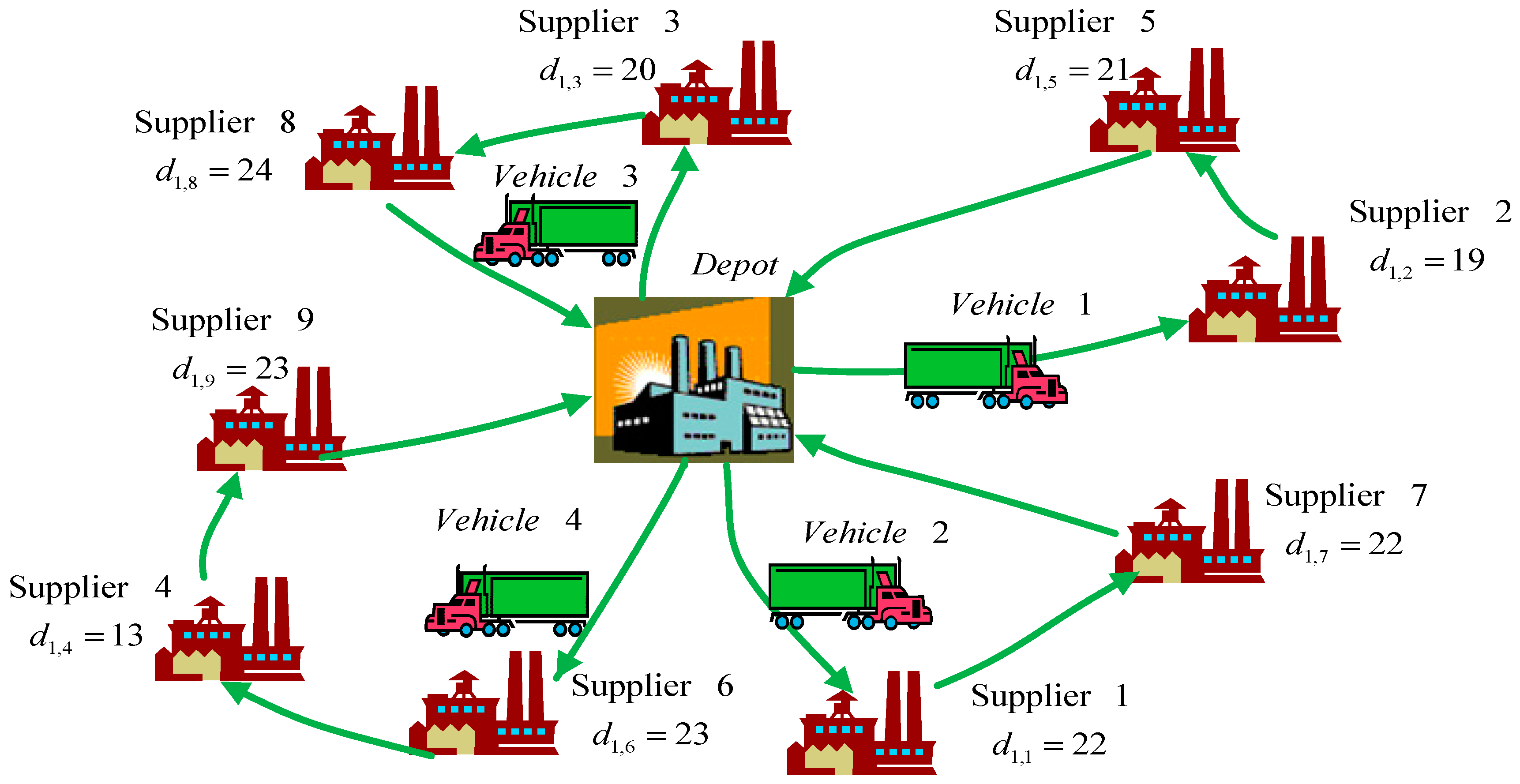

. Three vehicles are required in each period. For example, Vehicle 1 travels from the depot to Supplier 2 and picks up 19 units of materials, to Supplier 5 and picks up 21 units of materials, and back to the depot in Period 1. Vehicle 2 travels from the depot to Supplier 1 to pick up 22 units of materials, to Supplier 7 to pick up 22 units of materials, and then back to the depot. The vehicle routing in Period 1 under the MIP is depicted in Figure 4.

Table 12. Vehicle routing and loading sizes under the GA for Case II.

Period	Vehicle	Vehicle Routing and Loading Size
1	1	Depot → Supplier 2 (19) → Supplier 5 (21)→ Depot
	2	Depot → Supplier 3 (20) → Supplier 6 (23) → Depot
	3	Depot → Supplier 7 (22) → Supplier 8 (24)→ Depot
	4	Depot → Supplier 4 (13) → Supplier 1 (22) → Supplier 9 (23) → Depot
2	1	Depot → Supplier 3 (30) → Supplier 9 (10)→ Depot
	2	Depot → Supplier 1 (26) → Supplier 7 (24) → Depot
	3	Depot → Supplier 5 (25) → Supplier 8 (21) → Depot
	4	Depot → Supplier 4 (17) → Supplier 2 (24) → Supplier 6 (16) → Depot
3	1	Depot → Supplier 3 (19) → Supplier 9 (21) → Depot
	2	Depot → Supplier 1 (24) → Supplier 4 (26) → Depot
	3	Depot → Supplier 2 (16) → Supplier 6 (28) → Depot
	4	Depot → Supplier 5 (17) → Supplier 8 (19) → Supplier 7 (20) → Depot
4	1	Depot → Supplier 2 (15) → Supplier 5 (24) → Depot
	2	Depot → Supplier 3 (24) → Supplier 8 (24) → Depot
	3	Depot → Supplier 6 (30) → Supplier 7 (16) → Depot
	4	Depot → Supplier 4 (11) → Supplier 1 (30) → Supplier 9 (18) → Depot
5	1	Depot → Supplier 8 (21) → Supplier 9 (19) → Depot
	2	Depot → Supplier 1 (22) → Supplier 4 (28) → Depot
	3	Depot → Supplier 3 (25) → Supplier 5 (23) → Depot
	4	Depot → Supplier 6 (22) → Supplier 2 (12) → Supplier 7 (13) → Depot
6	1	Depot → Supplier 2 (17) → Supplier 6 (21) → Depot
	2	Depot → Supplier 1 (21) → Supplier 4 (21) → Depot
	3	Depot → Supplier 3 (19) → Supplier 5 (23) → Depot
	4	Depot → Supplier 7 (16) → Supplier 8 (9) →Supplier 9 (28) → Depot
7	1	Depot → Supplier 8 (21) → Supplier 9 (12) → Depot
	2	Depot → Supplier 3 (30) → Supplier 5 (13) → Depot
	3	Depot → Supplier 4 (28) → Supplier 6 (22) → Depot
	4	Depot → Supplier 2 (13) → Supplier 1 (22) → Supplier 7 (22) → Depot

shows the transportation route and loading sizes of each vehicle in each period under the GA. Four vehicles are required in each period. For example, Vehicle 1 travels from the depot to Supplier 2 and picks up 19 units of materials, to Supplier 5 and picks up 21 units of materials, and back to the depot in Period 1. Vehicle 2 travels from the depot to Supplier 3 to pick up 20 units of materials, to Supplier 6 to pick up 23 units of materials, and then back to the depot. Figure 5 depicts the vehicle routing in Period 1 under the GA.

Table 13. Relevant costs for Case II.

Cost	Assigning Cost	Travelling Cost	Tardiness Cost	Total Transportation Cost
MIP	8400	11,521.5	193.6	20,115.1
GA	8400	12,013.1	505.4	20,918.5
Error = 3.99%

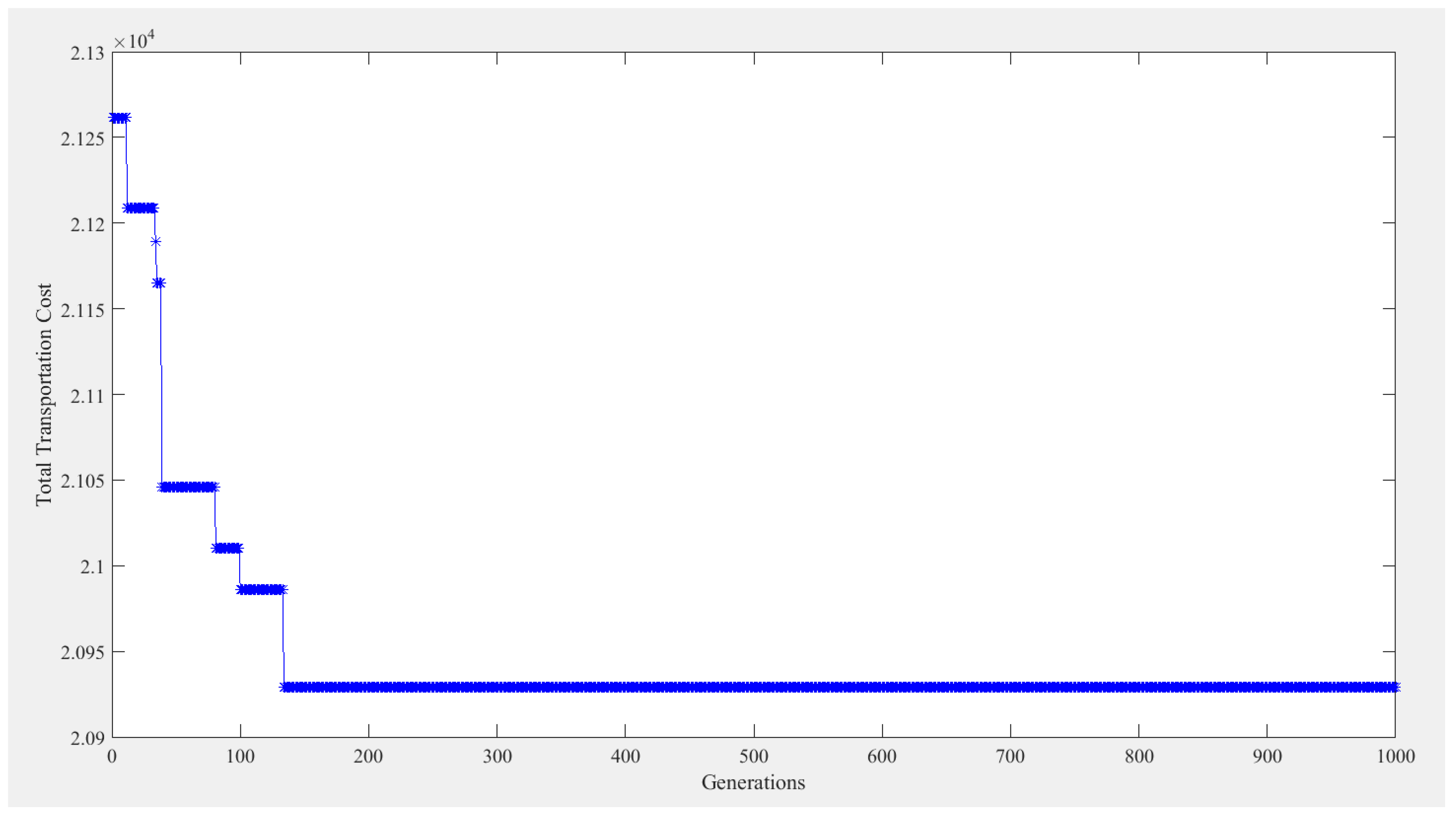

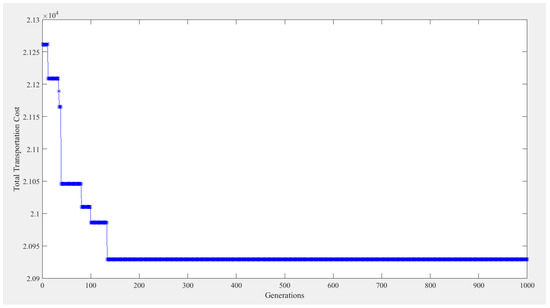

shows that the results from the MIP and the GA. Under the MIP, the assigning cost is $8400, the travelling cost is $11,521.5, the tardiness cost is $193.6, and the total transportation cost is $20,115.1. Under the GA, the assigning cost, travelling cost, tardiness cost, and the total transportation cost are $8400, $12,013.1, $505.4, and $20,918.5, respectively. The total transportation cost under the GA is $803.4 higher than that under the MIP, with a difference of 3.99%. The computational time is 19 s under the MIP. Figure 6 shows the execution results from the GA. The size of the initial population is 100. The crossover rate and the mutation rate are 0.85 and 0.15, respectively. The algorithm is set to terminate at the 1000th generation. In the end, the computational time is 95 s, and the optimal solution is generated at the 133rd generation.

Case III

There are 15 factories in Case III. There are three kinds of vehicles, with one small vehicle, two medium vehicles, and two large vehicles. Vehicle 1 is a small truck, vehicle 2 and 3 are medium trucks, and vehicle 4 and 5 are large trucks. The planning horizon contains nine periods. The demand information from 12 suppliers is as shown in

Table 14. Demand from suppliers for Case III.

	Supplier	1	2	3	4	5	6	7	8	9	10	11	12
Period
1		22	19	20	13	21	23	22	24	13	26	24	24
2		26	14	20	17	25	26	24	21	20	23	12	19
3		24	16	9	26	17	28	20	9	31	22	25	24
4		30	16	12	11	24	30	16	24	18	15	21	23
5		22	12	15	28	23	22	13	25	25	23	22	17
6		21	17	19	21	23	21	16	9	28	11	18	16
7		22	13	30	28	13	22	12	21	20	22	27	11
8		21	17	19	21	23	21	16	9	31	21	18	16
9		22	13	20	28	13	22	12	11	29	22	27	11

.

Because of the increase in the parameters and the decision variables, the problem becomes more complicated to be solved by the MIP. In fact, the problem in Case III is NP-hard. Therefore, only the GA is adopted to solve the problem. The results are shown in

Table 15. Vehicle routing and loading sizes under the GA for Case III.

Period	Vehicle	Vehicle Routing and Loading Size
1	1	Depot → Supplier 2 (19) → Supplier 5 (21) → Depot
	2	Depot → Supplier 6 (23) → Supplier 11 (24) → Depot
	3	Depot → Supplier 7 (22) → Supplier 8 (24) → Depot
	4	Depot → Supplier 10 (26) → Supplier 4 (13) → Supplier 3 (20) → Depot
	5	Depot → Supplier 1 (22) → Supplier 12 (24) → Supplier 9 (13) → Depot
2	1	Depot → Supplier 3 (20) → Supplier 12 (19) → Depot
	2	Depot → Supplier 8 (21) → Supplier 9 (20) → Depot
	3	Depot → Supplier 1 (26) → Supplier 7 (24) → Depot
	4	Depot → Supplier 4 (17) → Supplier 6 (26) → Supplier 2 (14) → Depot
	5	Depot → Supplier 5 (25) → Supplier 11 (12) → Supplier 10 (23) → Depot
3	1	Depot → Supplier 3 (9) → Supplier 9 (31) → Depot
	2	Depot → Supplier 1 (24) → Supplier 4 (26) → Depot
	3	Depot → Supplier 7 (20) → Supplier 12 (24) → Depot
	4	Depot → Supplier 2 (16) → Supplier 11 (25) → Supplier 5 (17) → Depot
	5	Depot → Supplier 6 (28) → Supplier 10 (22) → Supplier 8 (9) → Depot
4	1	Depot → Supplier 2 (16) → Supplier 11 (21) → Depot
	2	Depot → Supplier 1 (30) → Supplier 10 (15) → Depot
	3	Depot → Supplier 4 (11) → Supplier 6 (30) → Depot
	4	Depot → Supplier 5 (24) → Supplier 3 (12) → Supplier 12 (23) → Depot
	5	Depot → Supplier 9 (18) → Supplier 8 (24) → Supplier 7 (16) → Depot
5	1	Depot → Supplier 3 (15) → Supplier 12 (17) → Depot
	2	Depot → Supplier 8 (25) → Supplier 9 (25) → Depot
	3	Depot → Supplier 4 (28) → Supplier 6 (22) → Depot
	4	Depot → Supplier 2 (12) → Supplier 11 (22) → Supplier 5 (23) → Depot
	5	Depot → Supplier 10 (23) → Supplier 1 (22) → Supplier 7 (13) → Depot
6	1	Depot → Supplier 2 (17) → Supplier 5 (23) → Depot
	2	Depot → Supplier 3 (19) → Supplier 12 (16) → Depot
	3	Depot → Supplier 1 (21) → Supplier 10 (11) → Depot
	4	Depot → Supplier 4 (21) → Supplier 6 (21) → Supplier 11 (18) → Depot
	5	Depot → Supplier 7 (16) → Supplier 8 (9) → Supplier 9 (28) → Depot
7	1	Depot → Supplier 8 (11) → Supplier 9 (20) → Depot
	2	Depot → Supplier 3 (30) → Supplier 12 (11) → Depot
	3	Depot → Supplier 4 (28) → Supplier 6 (22) → Depot
	4	Depot → Supplier 10 (22) → Supplier 1 (22) → Supplier 7 (12) → Depot
	5	Depot → Supplier 2 (13) → Supplier 11 (27) → Supplier 5 (13) → Depot
8	1	Depot → Supplier 2 (17) → Supplier 5 (23) → Depot
	2	Depot → Supplier 3 (19) → Supplier 12 (16) → Depot
	3	Depot → Supplier 8 (9) → Supplier 9 (31) → Depot
	4	Depot → Supplier 4 (21) → Supplier 6 (21) → Supplier 11 (18) → Depot
	5	Depot → Supplier 10 (21) → Supplier 1 (21) → Supplier 7 (16)→ Depot
9	1	Depot → Supplier 3 (20) → Supplier 12 (11) → Depot
	2	Depot → Supplier 8 (21) → Supplier 9 (29) → Depot
	3	Depot → Supplier 4 (28) → Supplier 6 (22) → Depot
	4	Depot → Supplier 2 (13) → Supplier 11 (27) → Supplier 5 (13) → Depot
	5	Depot → Supplier 10 (22) → Supplier 1 (22) → Supplier 7 (12) → Depot

and

Table 16. Relevant costs for case III.

Cost	Assigning Cost	Travelling Cost	Tardiness Cost	Total Transportation Cost
GA	14,400	17,220	332.6	31,952.6

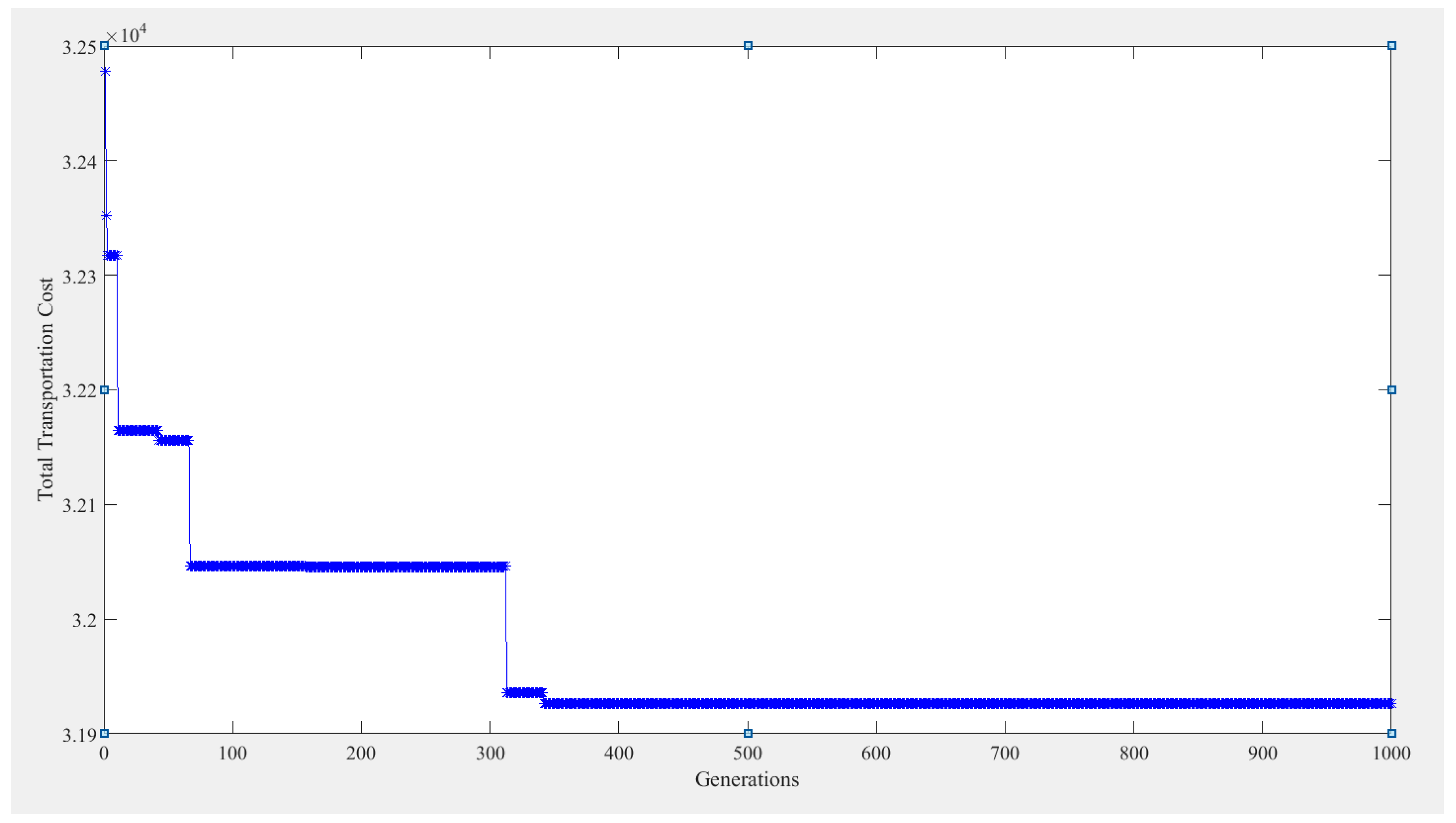

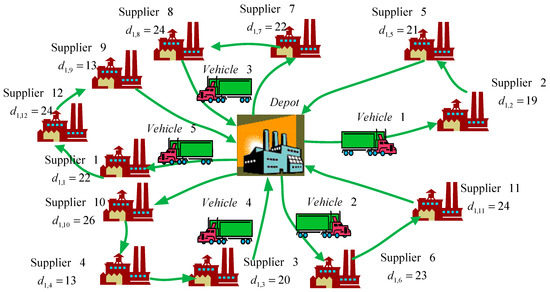

. Table 15 shows the transportation route and loading sizes of each vehicle in each period under the GA, and all five vehicles are required in each period. Table 16 shows that the relevant costs results from the GA. The assigning cost is $14,400, the travelling cost is $17,200, the tardiness cost is $332.6, and the total transportation cost is $31,952.6. Figure 7 depicts the vehicle routing in Period 1 under the GA. Figure 8 shows the execution results from the GA. The size of the initial population is 150, the crossover rate is 0.85, and the mutation rate is 0.15. The algorithm is set to terminate at the 1000th generation. The computational time is 203 s, and the optimal solution is generated at the 312nd generation.

5. Conclusions

Vehicle routing problem (VRP) has been studied abundantly to determine the optimal set of routes for a fleet of vehicles to travel so that certain objectives can be achieved, such as reducing the total cost for a firm. To the authors’ knowledge, this is the first instance of research that constructs a multiple vehicle routing problem (MVRP) model with a soft time window and heterogeneous vehicles. The contributions of this research are as follows. First, the MIP is used to construct a general formulation of the MVRP model. The model comprises the costs, including assigning cost, travelling cost, and tardiness cost for each planning period, and the goal aims to minimize the total transportation cost. Second, to tackle complex instances efficiently, a genetic algorithm (GA) model is proposed. Third, to examine the proposed MIP and GA models, two small-scale cases are studied, and both models can generate the optimal solutions. Fourth, a complicated case is used to examine the GA model. While the MIP model cannot solve the problem or it may require a very long time to perform the calculations if a case becomes too complicated, the proposed GA model can obtain near-optimal solutions in a short computational time. Therefore, the GA model can be effective in searching for near-optimal solutions. The proposed models, especially the GA model, can be valuable techniques for managers in real business settings. For example, based on the outcomes of the models, managers can determine the optimal or near optimal method for assigning the routings of multiple vehicles in each period, and for allocating loading sizes for each vehicle in each period, while aiming to minimize the total transportation cost.

In the future, a more comprehensive case for MVRP in manufacturing can be researched. Some assumptions are made in this research, such as fixed demand, fixed lead time, and one kind of product. A model that considers the probability demand, fuzzy lead time, fuzzy-demand joint replenishment, safety stock, and different priorities of orders can be constructed. In addition, the ordering cost for each purchase may be variable. Furthermore, a fuzzy multi-objective problem can be studied, and both a fuzzy multi-objective programming model and a GA model can be proposed to tackle the problem. Other metaheuristics techniques, such as artificial immune system, particle swarm optimization, ant colony system and revised aforementioned metaheuristics, may also be adopted. The methods can be compared and contrasted to examine which method is more appropriate for solving the MVRP.
