A Reweighted Symmetric Smoothed Function Approximating L_{0}-Norm Regularized Sparse Reconstruction Method

^{*}

## Abstract

**:**

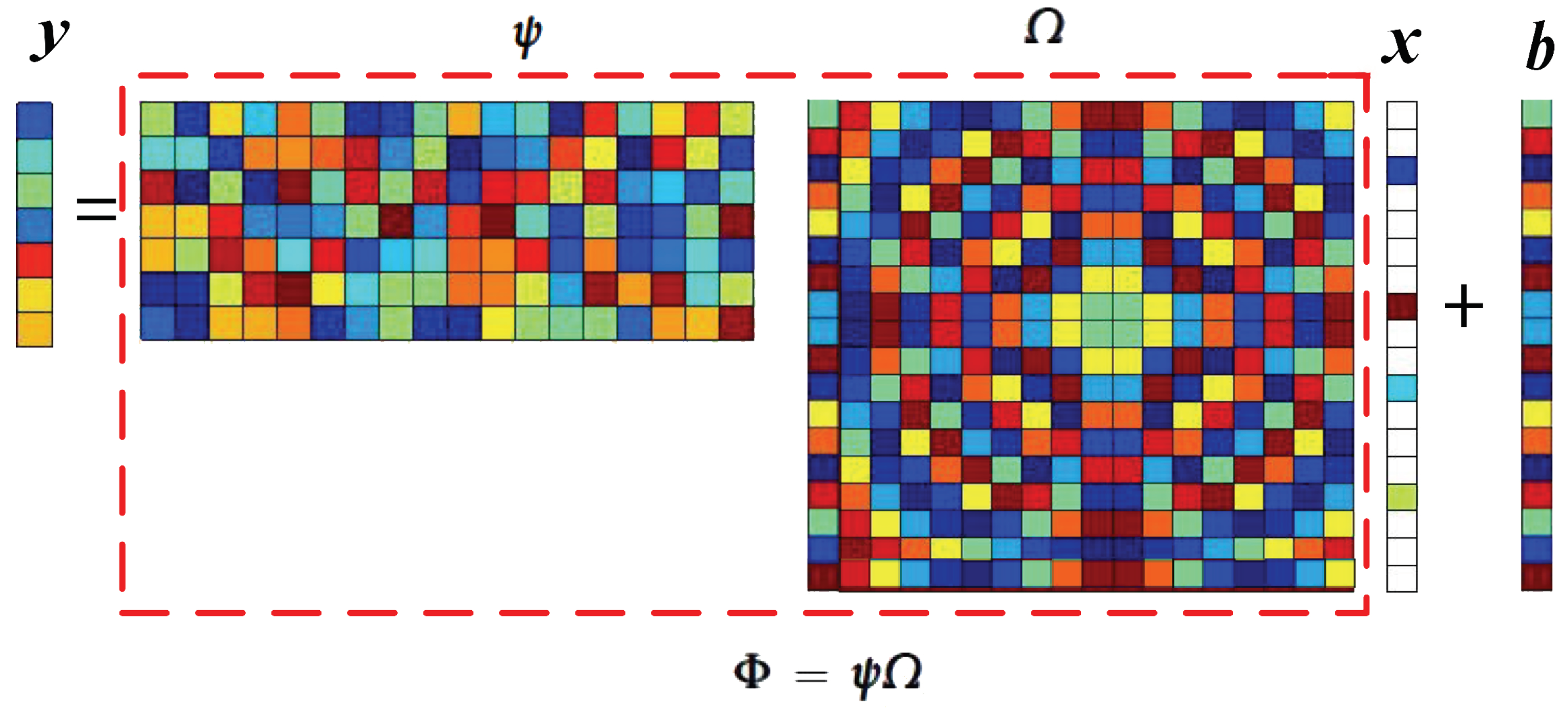

## 1. Introduction

- Greedy algorithms with sparsity as a prior condition;
- Relaxation method.

- (1)
- For ${L}_{p}$-RLS, the value of p cannot be too small because, the smaller p is, the less smooth ${\left|\right|\mathit{x}\left|\right|}_{p,\u03f5}^{p}$ is, which makes the optimization effect worse [25], so ${\left|\right|\mathit{x}\left|\right|}_{p,\u03f5}^{p}$ cannot closely approach the ${L}_{0}$ norm, and reconstruction accuracy cannot be further improved;
- (2)
- For ${L}_{2}$-SL0, although the algorithm can more closely approach the ${L}_{0}$-norm, the convergence of the adopted optimization method is not good, resulting in limited reconstruction accuracy.

## 2. RRCTSL0 Algorithm

#### 2.1. New Smoothed ${L}_{0}$-Norm Function Model

**Property**

**1.**

**Proof.**

#### 2.2. New Reweighted Function Design

- It has a proper range that can give each signal component a proper reweighted value, and, when the signal component is close to zero, the reweighted value is not too large.
- It does not need the adjustment of parameters like $\zeta $, and the denominator does not equal to zero.

#### 2.3. New Proposed RRCTSL0 Algorithm and Its Steps

#### 2.4. Selection of Parameters $\lambda $ and $\sigma $

## 3. Numerical Simulation and Analysis

#### 3.1. Convergence-Performance Comparison of the Algorithms

#### 3.2. Accuracy Performance Comparison of the Algorithms

#### 3.3. Applications of the Proposed RRCTSL0 Algorithm

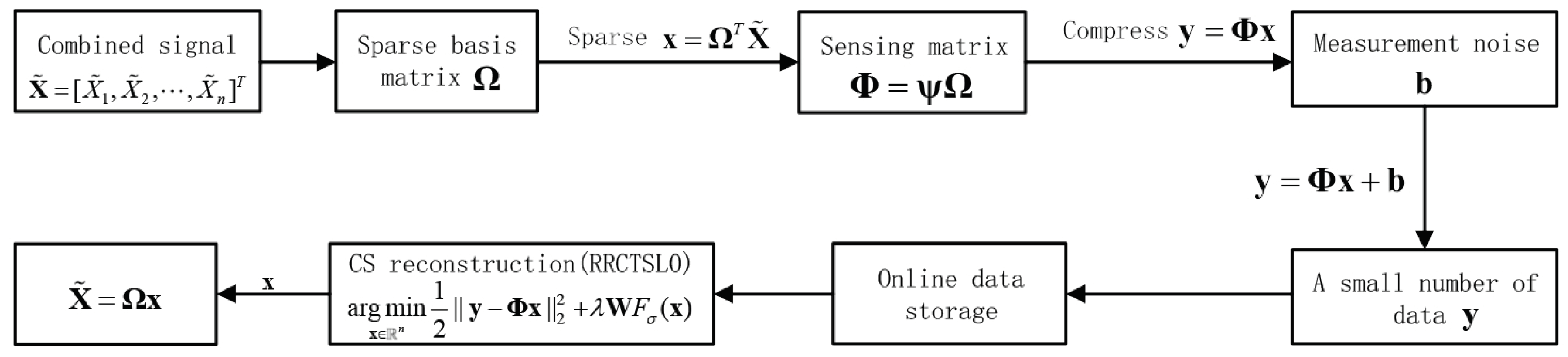

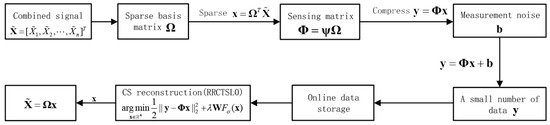

#### 3.3.1. Real Sparse Signal Recovery

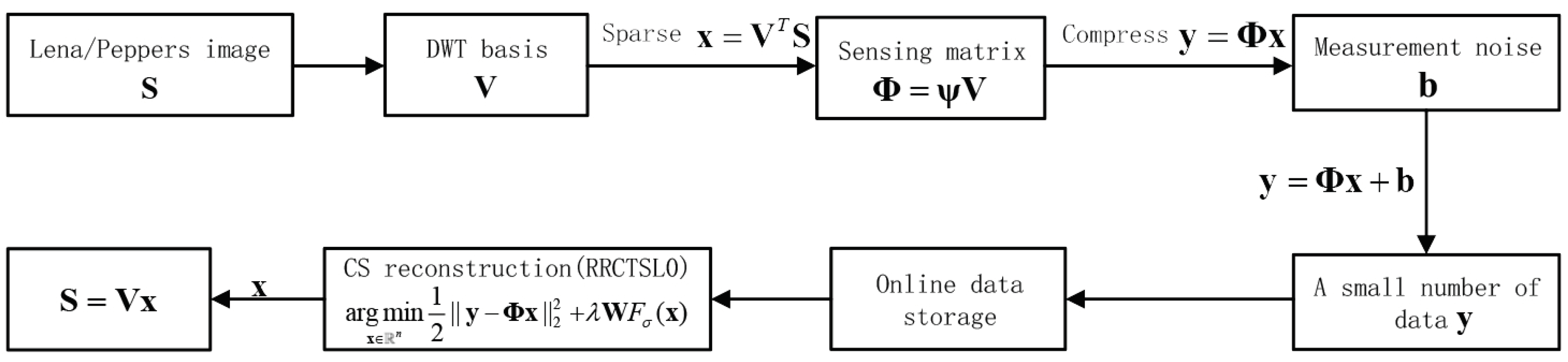

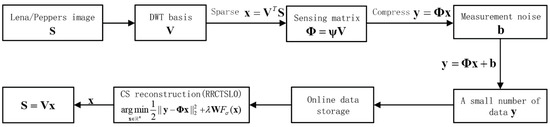

#### 3.3.2. Real-Image Recovery

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Donoho, D.L. Compressed sensing. IEEE Trans. Inf. Theory
**2006**, 52, 1289–1306. [Google Scholar] [CrossRef] - Cand’es, E.J.; Wakin, M.B. An introduction to compressive sampling. IEEE Signal Process. Mag.
**2008**, 2, 21–30. [Google Scholar] [CrossRef] - Badeńska, A.; Błaszczyk, L. Compressed sensing for real measurements of quaternion signals. J. Frankl. Inst.
**2017**, 354, 5753–5769. [Google Scholar] [CrossRef] [Green Version] - Routray, S.; Ray, A.K.; Mishra, C. MRI Denoising Using Sparse Based Curvelet Transform with Variance Stabilizing Transformation Framework. Indones. J. Electr. Eng. Comput. Sci.
**2017**, 7, 116–122. [Google Scholar] - Luan, S.; Zhang, B.; Zhou, S.; Chen, C.; Han, J.; Yang, W. Gabor convolutional networks. IEEE Trans. Image Process.
**2018**, 27, 4357–4366. [Google Scholar] [CrossRef] [PubMed] - Huang, S.; Tran, T.D. Sparse Signal Recovery via Generalized Entropy Functions Minimization. arxiv, 2017; arXiv:1703.10556. [Google Scholar]
- Tropp, J.A.; Gilbert, A.C. Signal recovery from random measurements via orthogonal matching pursuit. IEEE Trans. Inf. Theory
**2007**, 12, 4655–4666. [Google Scholar] [CrossRef] - Wen, J.; Zhou, Z.; Wang, J.; Tang, X.; Mo, Q. A sharp condition for exact support recovery with orthogonal matching pursuit. IEEE Trans. Signal Process.
**2017**, 6, 1370–1382. [Google Scholar] [CrossRef] - Jian, W.; Seokbeop, K.; Byonghyo, S. Generalized orthogonal matching pursuit. IEEE Trans. Signal Process.
**2012**, 12, 6202–6216. [Google Scholar] [CrossRef] - Wang, J.; Kwon, S.; Li, P.; Shim, B. Recovery of sparse signals via generalized orthogonal matching pursuit: A new analysis. IEEE Trans. Signal Process.
**2016**, 4, 1076–1089. [Google Scholar] [CrossRef] - Needell, D.; Tropp, J.A. CoSaMP: Iterative signal recovery from incomplete and inaccurate samples. Commun. ACM
**2010**, 12, 93–100. [Google Scholar] [CrossRef] - Dai, W.; Milenkovic, O. Subspace pursuit for compressive sensing signal reconstruction. IEEE Trans. Inf. Theory
**2009**, 5, 2230–2249. [Google Scholar] [CrossRef] - Liu, J.; Zhang, C.; Pan, C. Priori-information hold subspace pursuit: A compressive sensing-based channel estimation for layer modulated tds-ofdm. IEEE Trans. Broadcast.
**2018**, 99, 1–9. [Google Scholar] [CrossRef] - Ekanadham, C.; Tranchina, D.; Simoncelli, E.P. Recovery of Sparse Translation-Invariant Signals with Continuous Basis Pursuit. IEEE Trans. Signal Process.
**2011**, 10, 4735–4744. [Google Scholar] [CrossRef] [PubMed] - Goldstein, T.; Studer, C. Phasemax: Convex phase retrieval via basis pursuit. IEEE Trans. Inf. Theory
**2018**, 4, 2675–2689. [Google Scholar] [CrossRef] - Khan, S.U.; Qureshi, I.M.; Haider, H.; Zaman, F.; Shoaib, B. Diagnosis of faulty sensors in phased array radar using compressed sensing and hybrid IRLS–SSF algorithm. Wirel. Pers. Commun.
**2016**, 91, 1–20. [Google Scholar] [CrossRef] - Zhao, R.; Lai, X.; Hong, X.; Lin, Z. A matrix-based IRLS algorithm for the least L
_{p}-norm design of 2-d fir filters. Multidimens. Syst. Signal Process.**2017**, 2, 1–15. [Google Scholar] - Ewald, K.; Schneider, U. Uniformly valid confidence sets based on the lasso. Statistics
**2018**, 12, 1358–1387. [Google Scholar] [CrossRef] - Wright, S.J.; Nowak, R.D.; Figueiredo, M.A.T. Sparse reconstruction by separable approximation. IEEE Trans. Signal Process.
**2009**, 7, 2479–2493. [Google Scholar] [CrossRef] - Qiao, B.; Zhang, X.; Wang, C.; Zhang, H.; Chen, X. Sparse regularization for force identification using dictionaries. J. Sound Vib.
**2016**, 368, 71–86. [Google Scholar] [CrossRef] - Ye, X.; Zhu, W.; Zhang, A.; Meng, Q. Sparse channel estimation in MIMO-OFDM systems based on an improved sparse reconstruction by separable approximation algorithm. J. Inf. Comput. Sci.
**2013**, 10, 609–619. [Google Scholar] - Quan, X.; Zhang, B.; Wang, Z.; Gao, C.; Yirong, W.U. An efficient data compression technique based on BPDN for scattered fields from complex targets. Sci. China (Inf. Sci.)
**2017**, 60, 109302. [Google Scholar] [CrossRef] - Li, Z.X.; Li, Z.C. Accelerated 3D blind separation of convolved mixtures based on the fast iterative shrinkage thresholding algorithm for adaptive multiple subtraction. Geophysics
**2018**, 83, V99–V113. [Google Scholar] [CrossRef] - Kim, D.; Fessler, J.A. Another look at the fast iterative shrinkage/thresholding algorithm (FISTA). Siam J. Optim.
**2018**, 28, 223–250. [Google Scholar] [CrossRef] [PubMed] - Pant, J.K.; Lu, W.S.; Antoniou, A. New Improved Algorithms for Compressive Sensing Based on ℓ
_{p}Norm. IEEE Trans. Circuits Syst. II Express Briefs**2014**, 61, 198–202. [Google Scholar] [CrossRef] - Ye, X.; Zhu, W.P.; Zhang, A.; Yan, J. Sparse channel estimation of MIMO-OFDM systems with unconstrained smoothed L
_{0}-norm-regularized least squares compressed sensing. Eurasip J. Wirel. Commun. Netw.**2013**, 2013, 282. [Google Scholar] [CrossRef] - Mohimani, H.; Babaie-Zadeh, M.; Jutten, C. A Fast Approach for Overcomplete Sparse Decomposition Based on Smoothed ℓ
^{0}Norm. IEEE Trans. Signal Process.**2009**, 57, 289–301. [Google Scholar] [CrossRef] - Malek-Mohammadi, M.; Koochakzadeh, A.; Babaie-Zadeh, M.; Jansson, M.; Rojas, C.R. Successive concave sparsity approximation for compressed sensing. IEEE Trans. Signal Process.
**2016**, 64, 5657–5671. [Google Scholar] [CrossRef] - Guo, Q.; Ruan, G.; Liao, Y. A time-frequency domain underdetermined blind source separation algorithm for mimo radar signals. Symmetry
**2017**, 9, 104. [Google Scholar] [CrossRef] - Candès, E.J.; Wakin, M.B.; Boyd, S.P. Enhancing sparsity by reweighted L
_{1}minimization. J. Fourier Anal. Appl.**2008**, 14, 877–905. [Google Scholar] [CrossRef] - Shi, Z. A Weighted Block Dictionary Learning Algorithm for Classification. Math. Probl. Eng.
**2016**, 2016, 1–15. [Google Scholar] [CrossRef] - Fang, X.F.; Zhang, J.S.; Li, Y.Q. Sparse Signal Reconstruction Based on Multiparameter Approximation Function with Smoothed Norm. Math. Probl. Eng.
**2014**, 6, 1–9. [Google Scholar] - Wang, J.H.; Huang, Z.T.; Zhou, Y.Y.; Wang, F.H. Robust sparse recovery based on approximate l0 norm. Acta Electron. Sin.
**2012**, 40, 1185–1189. [Google Scholar] - Xiao, J.; Del-Blanco, C.R.; Cuevas, C.; García, N. Fast image decoding for block compressed sensing based encoding by using a modified smooth l0-norm. In Proceedings of the International Conference on Consumer Electronics, Berlin, Germany, 5–7 September 2016; pp. 242–244. [Google Scholar]
- Ye, X.; Zhu, W.P. Sparse channel estimation of pulse-shaping multiple-input–multiple-output orthogonal frequency division multiplexing systems with an approximate gradient L
_{2}-SL0 reconstruction algorithm. Iet Commun.**2014**, 8, 1124–1131. [Google Scholar] [CrossRef] - Tian, H.; Li, D. Sparse flight array SAR downward-looking 3-d imaging based on compressed sensing. IEEE Geosci. Remote Sens. Lett.
**2016**, 13, 1395–1399. [Google Scholar] [CrossRef] - Li, H.; Li, C.; Zhang, C.; Liu, Z.; Liu, C. Hyperspectral image classification with spatial filtering and ℓ
_{2,1}norm. Sensors**2017**, 17, 314. [Google Scholar] [CrossRef] - Lazarus, C.; Weiss, P.; Vignaud, A.; Ciuciu, P. An empirical study of the maximum degree of undersampling in compressed sensing for T2*-weighted MRI. Magn. Reson. Imaging
**2018**, 53, 112–122. [Google Scholar] [CrossRef] [PubMed] - Tseng, Y.H.; Chen, Y.H.; Lu, C.W. Adaptive integration of the compressed algorithm of CS and NPC for the ECG signal compressed algorithm in VLSI implementation. Sensors
**2017**, 17, 2288. [Google Scholar] [CrossRef] [PubMed] - Zhou, J.T.; Zhao, H.; Peng, X.; Fang, M.; Qin, Z.; Goh, R.S.M. Transfer hashing: From shallow to deep. IEEE Trans. Neural Netw. Learn. Syst.
**2018**, 99, 1–11. [Google Scholar] [CrossRef] [PubMed]

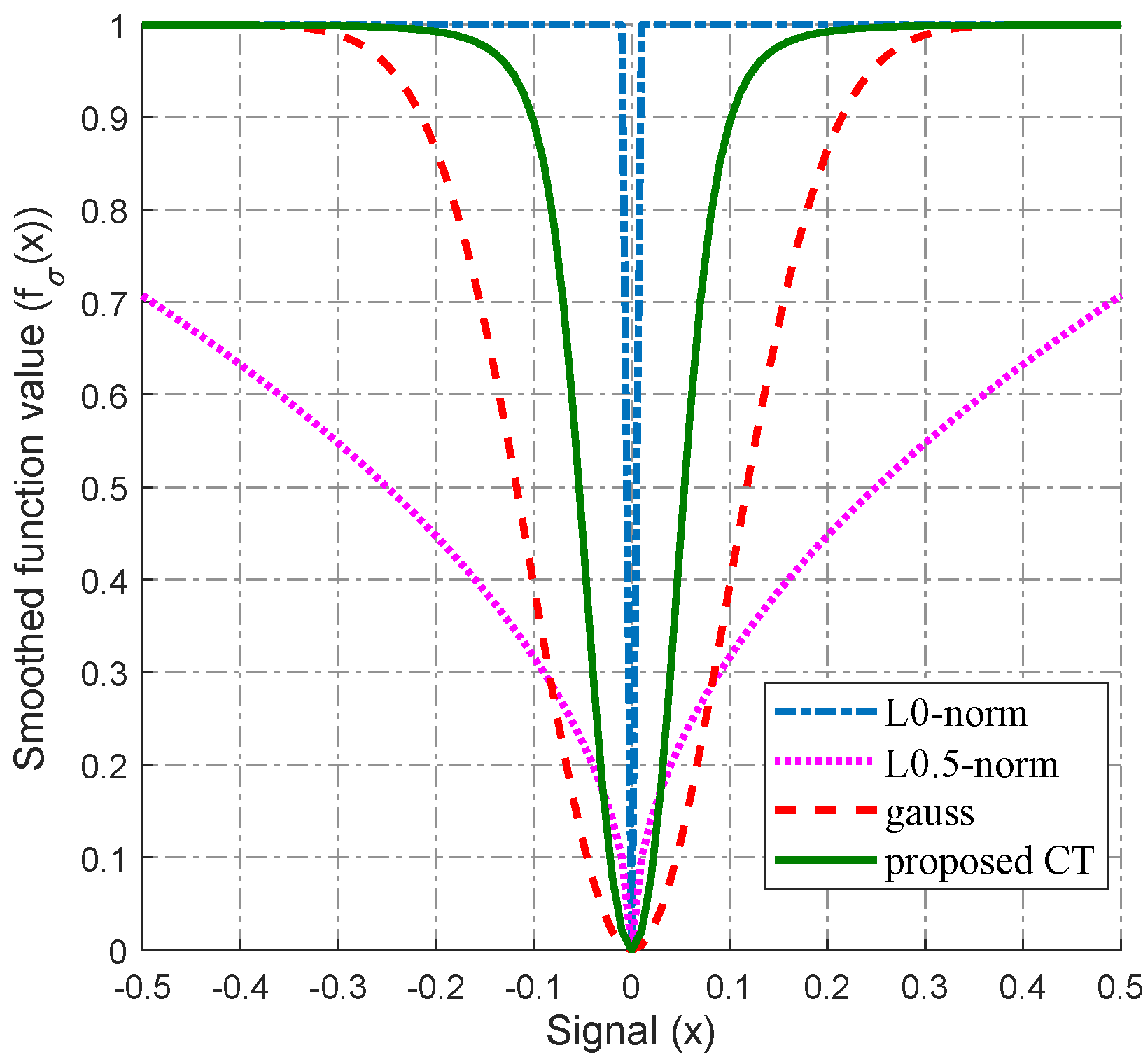

**Figure 2.**Different delta-approximating (DA) functions are plotted in this figure for $\sigma =0.1$, $a=2$, displaying the ${L}_{0}$-norm and ${L}_{0.5}$-norm of 2D.

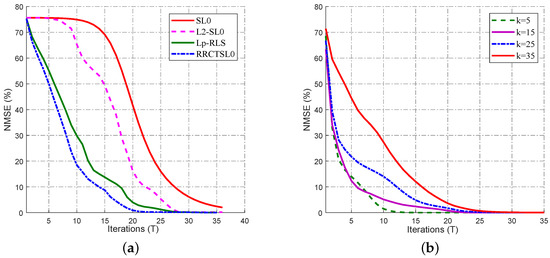

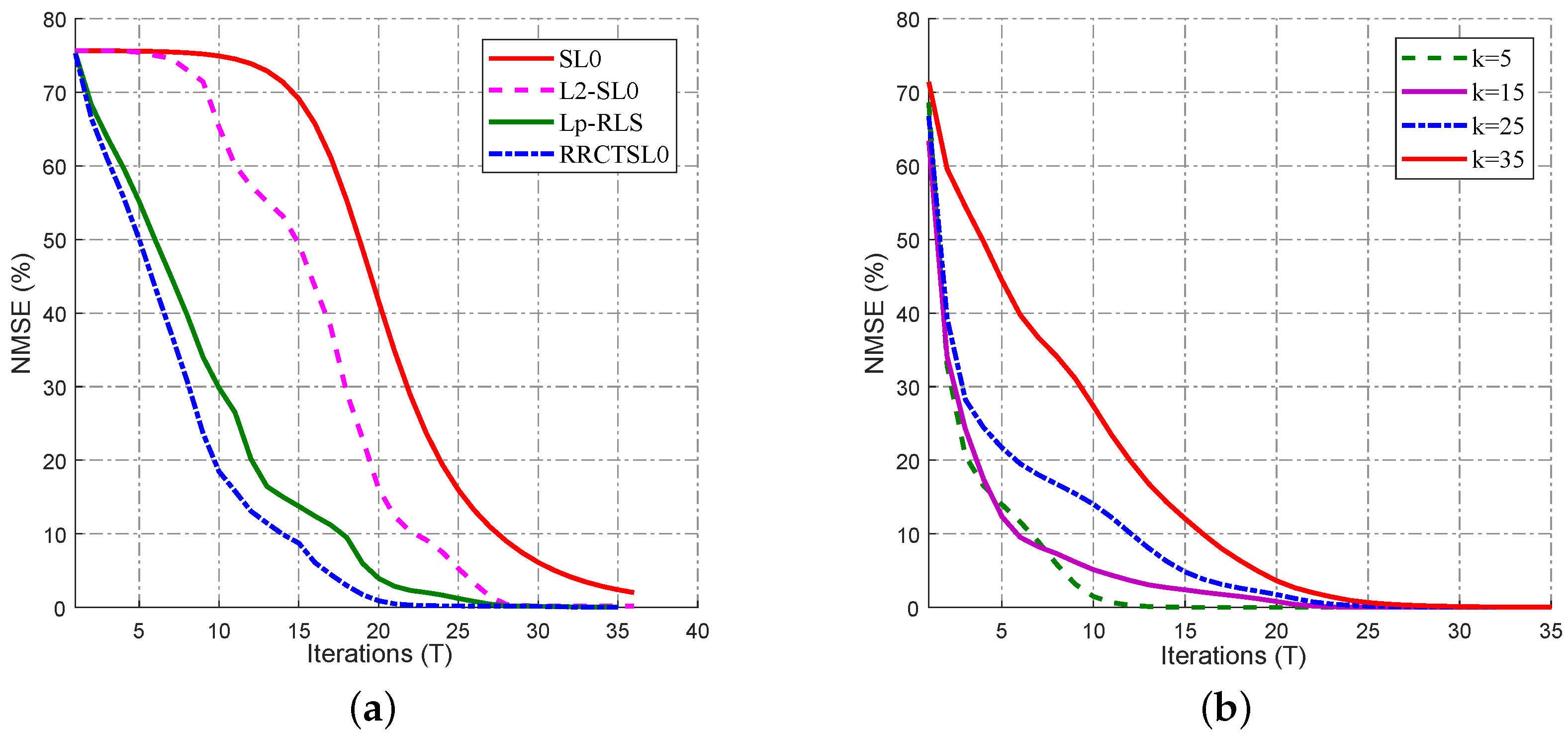

**Figure 3.**Normalized mean square error (NMSE) of recovery signal changes with iterations. (

**a**) Comparison between SL0, ${L}_{2}$-SL0, ${L}_{p}$-RLS algorithms and the proposed RRCTSL0 algorithm; (

**b**) effect of the RRCTSL0 algorithm under sparsity $k=[5,15,25,35]$.

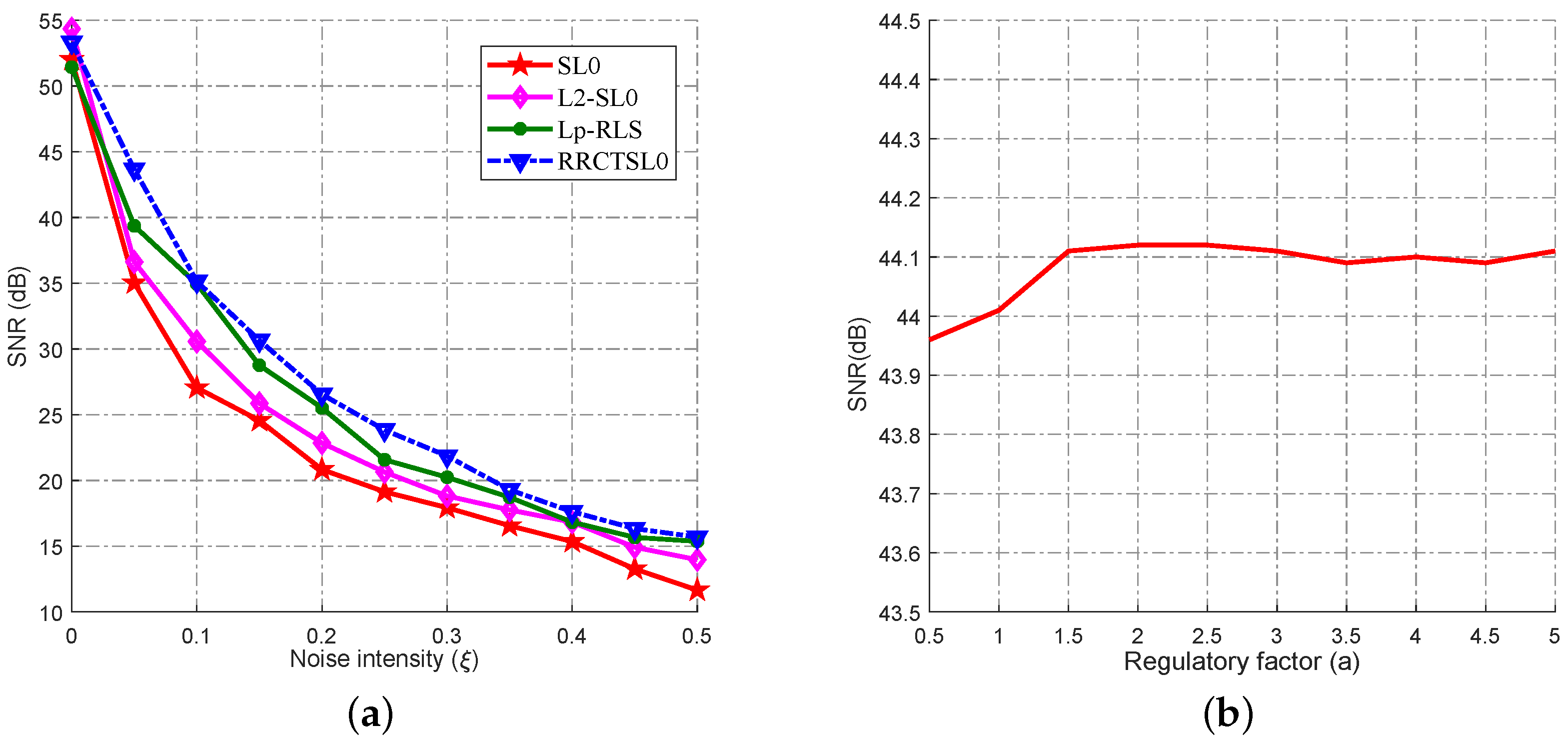

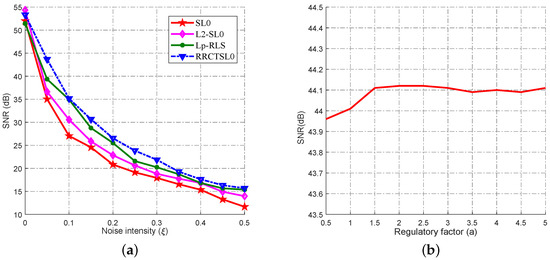

**Figure 4.**Signal-to-noise ratio (SNR) analysis. (

**a**) Signal SNR for the SL0, ${L}_{2}$-SL0, ${L}_{p}$-RLS algorithms and the proposed RRCTSL0 algorithm with noise intensity $\xi $ from 0 to 0.5 (the interval is 0.05) during 100 runs; (

**b**) SNR for proposed RRCTSL0 algorithm with $a=[0.5,1,1.5,2,2.5,3,3.5,4,4.5,5]$ while $\xi =0.05$.

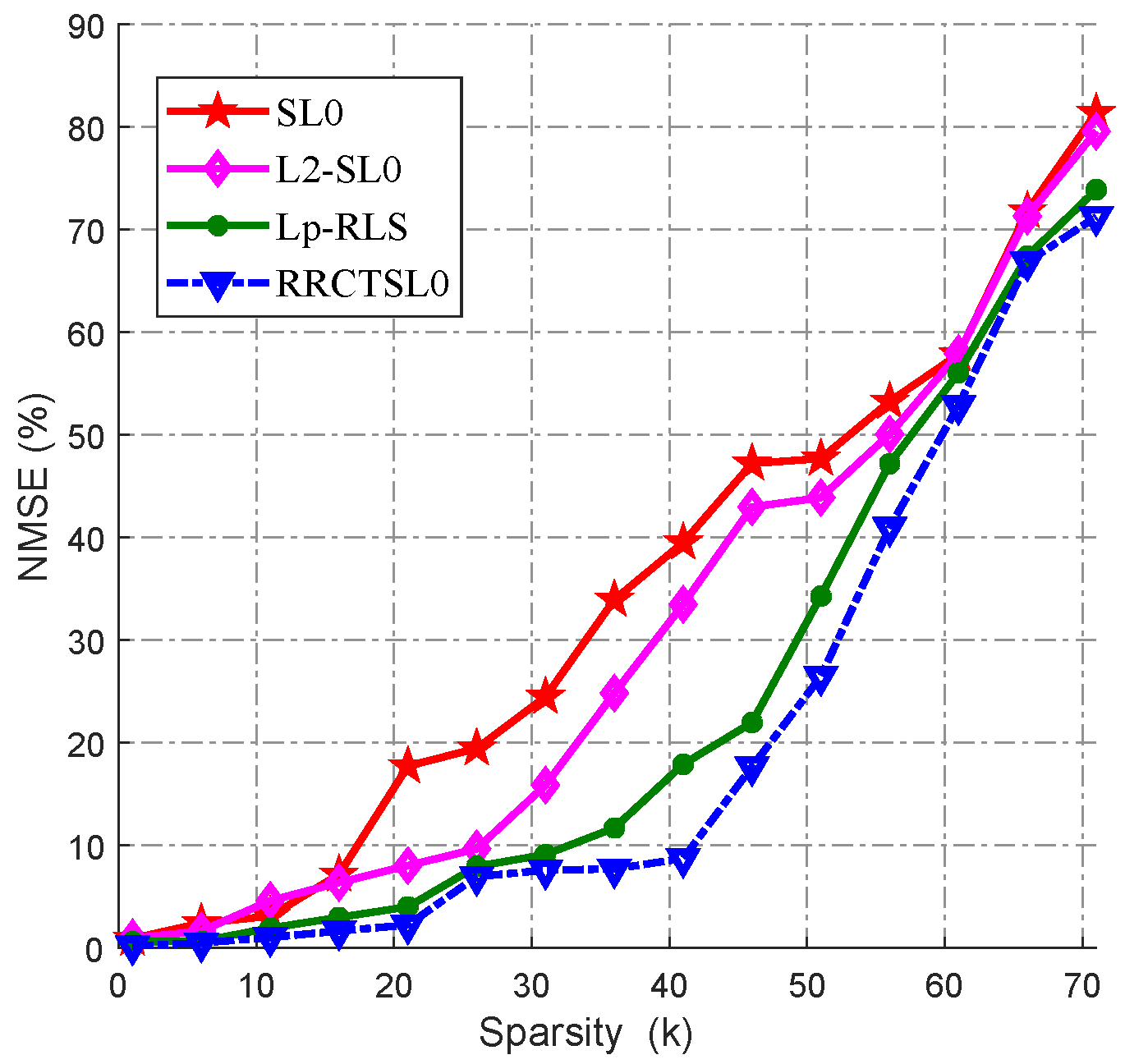

**Figure 5.**Signal NMSE analysis for the SL0, ${L}_{2}$-SL0, ${L}_{p}$-RLS algorithms and the proposed RRCTSL0 algorithm with sparsity k from 1 to 71 at an interval of 5, during 100 runs in the noise case $\xi =0.1$.

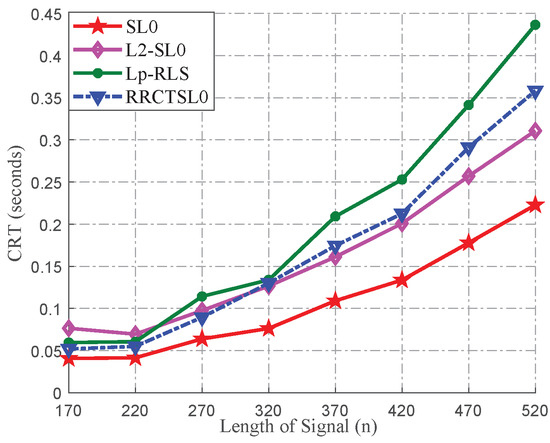

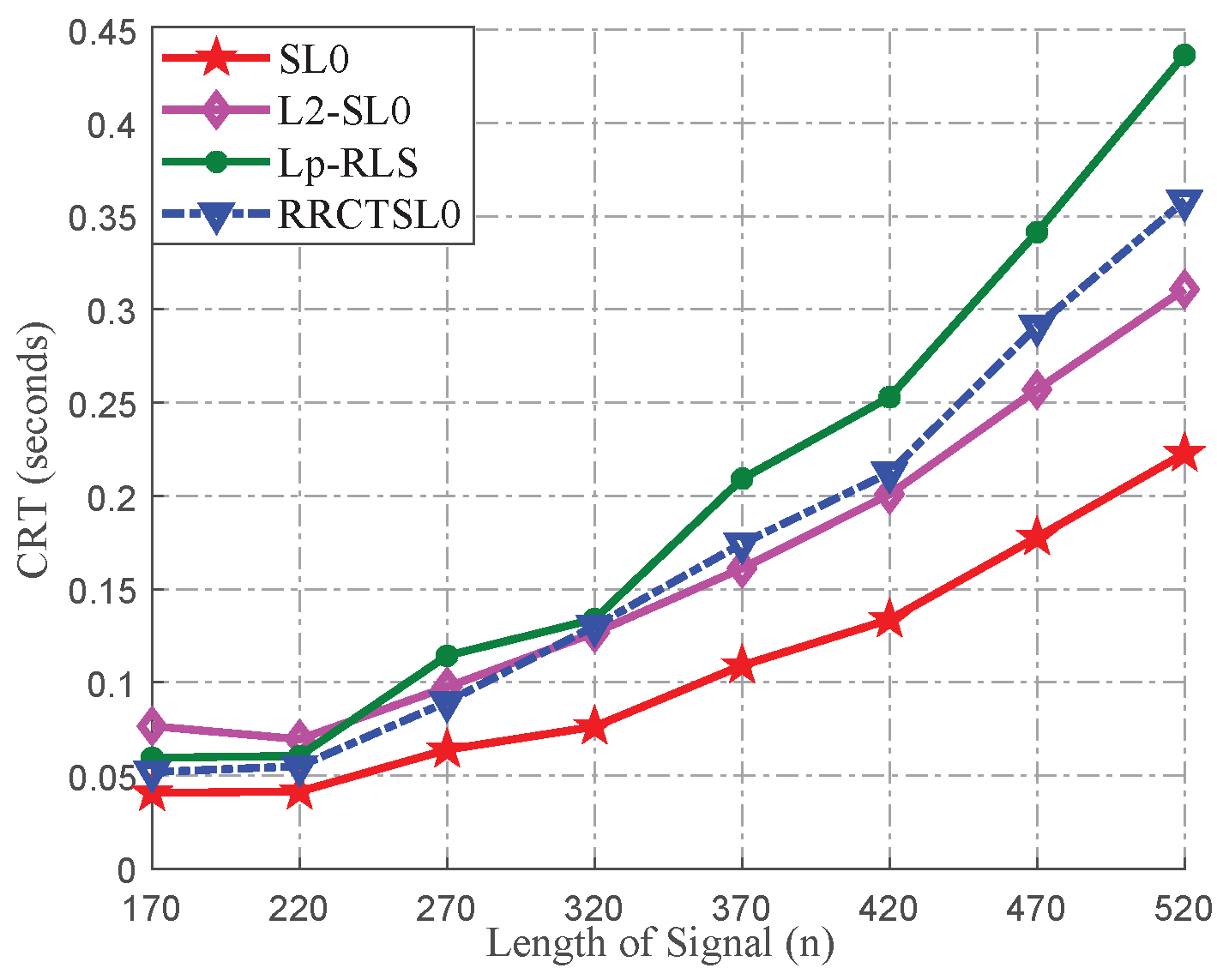

**Figure 6.**Signal CPU running time (CRT) analysis for the SL0, ${L}_{2}$-SL0, ${L}_{p}$-RLS algorithms and the proposed RRCTSL0 algorithm with the length of signal n equaling [170, 220, 270, 320, 370, 420, 470, 520], during 100 runs in noise case $\xi =0.1$.

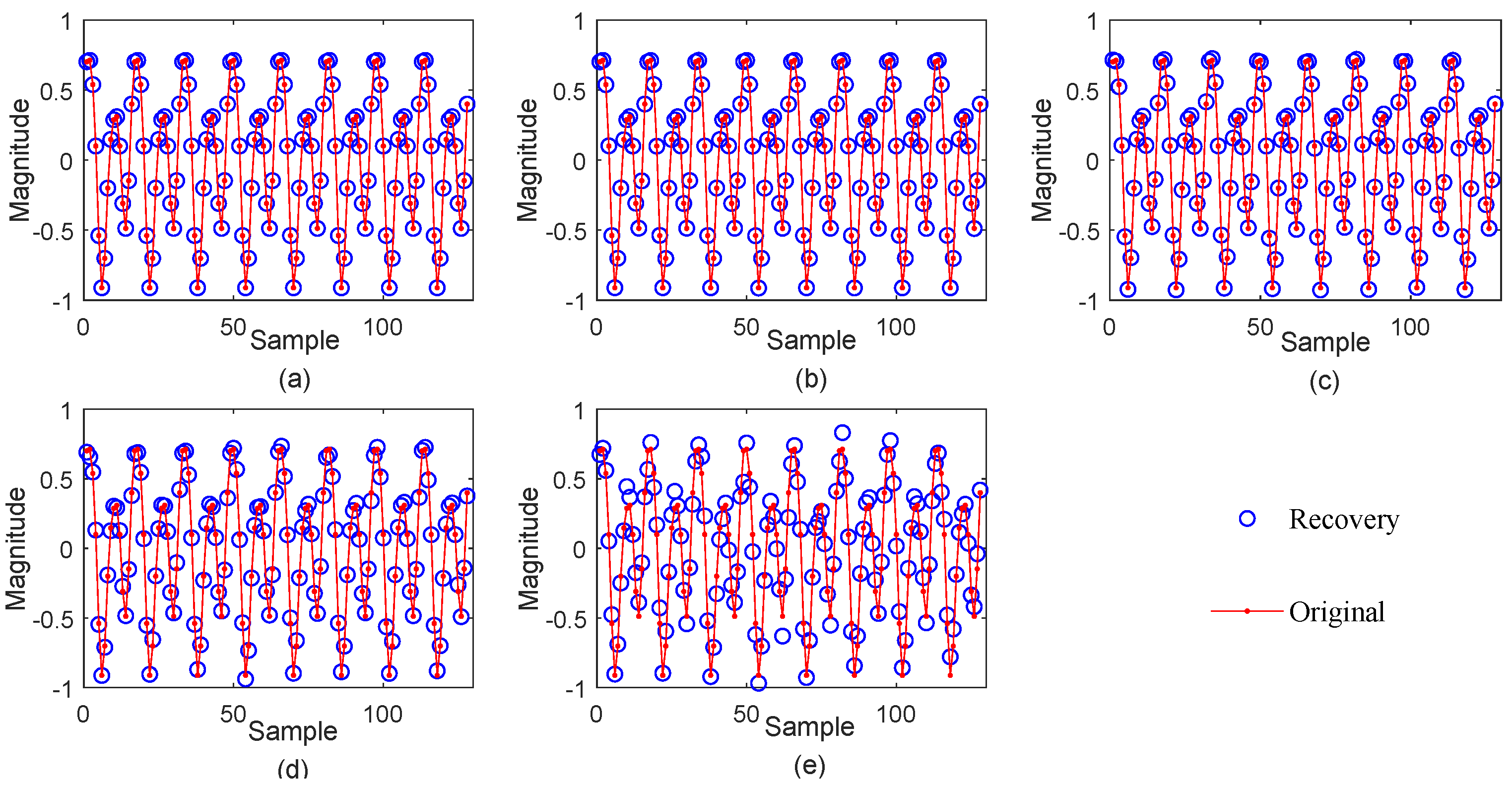

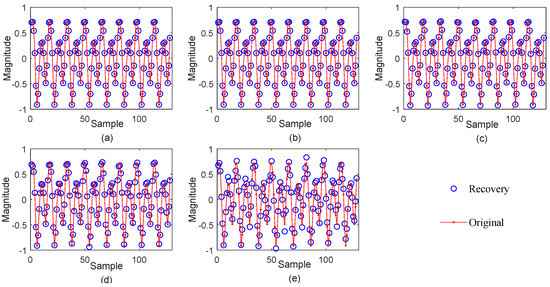

**Figure 8.**Signal-recovery effect by proposed RRCTSL0 algorithm when noise is incrementing according to sequence $\xi $ = [0, 0.05, 0.1, 0.2, 0.5]. (

**a**) $\xi $ = 0; (

**b**) $\xi $ = 0.05; (

**c**) $\xi $ = 0.1; (

**d**) $\xi $ = 0.2; (

**e**) $\xi $ = 0.5.

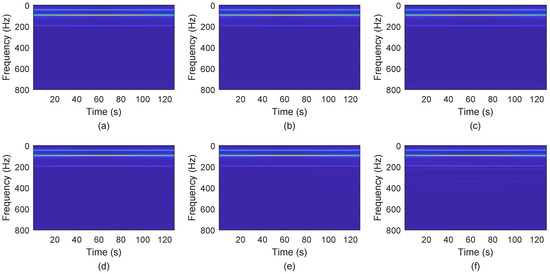

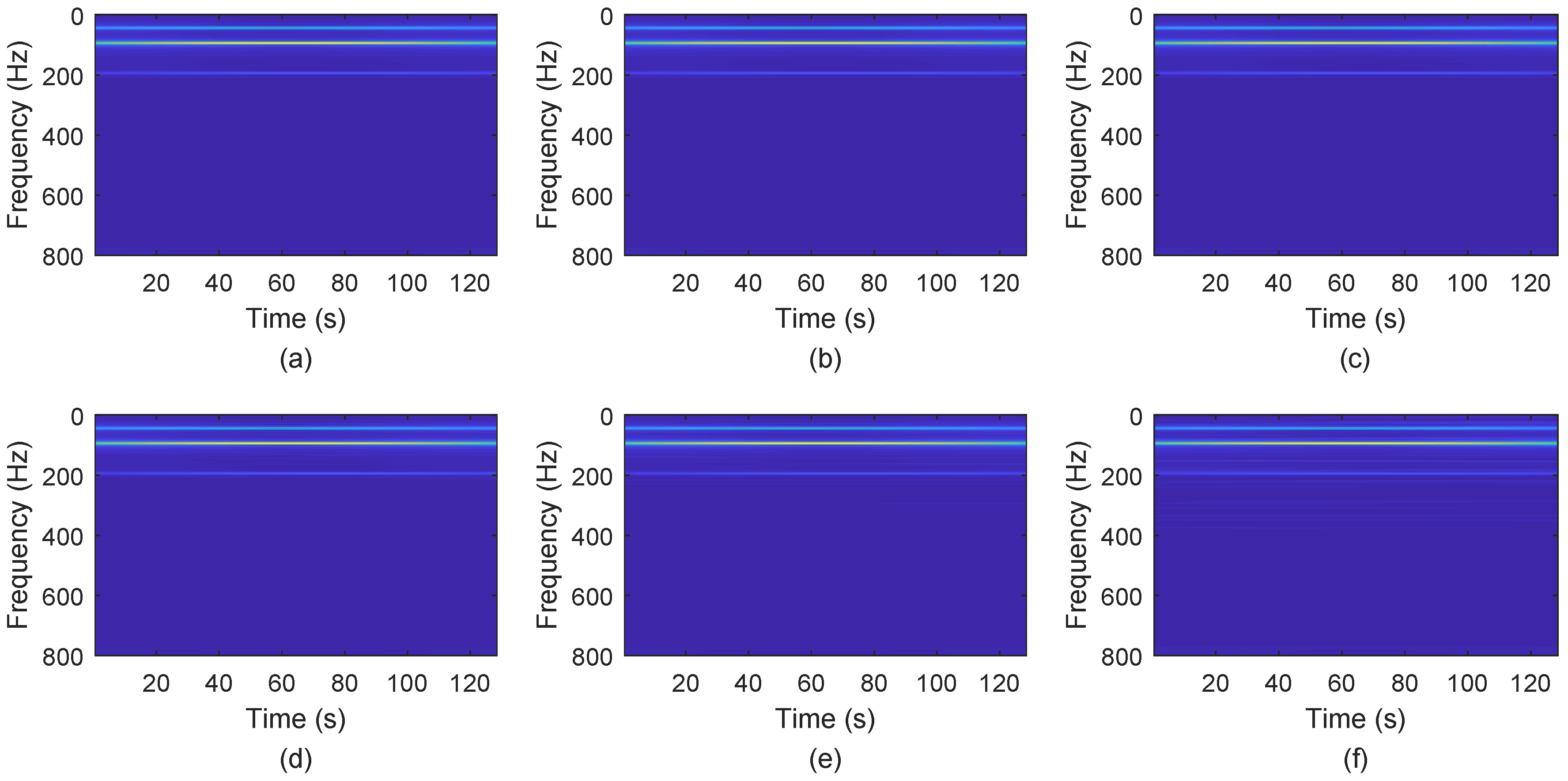

**Figure 9.**Reconstruction time-frequency characteristics of the proposed RRCTSL0 algorithm when noise is incrementing according to sequence $\xi $ = [0, 0.05, 0.1, 0.2, 0.5]. (

**a**) Time-frequency characteristic of the original signal; (

**b**) $\xi $ = 0; (

**c**) $\xi $ = 0.05; (

**d**) $\xi $ = 0.1; (

**e**) $\xi $ = 0.2; (

**f**) $\xi $ = 0.5.

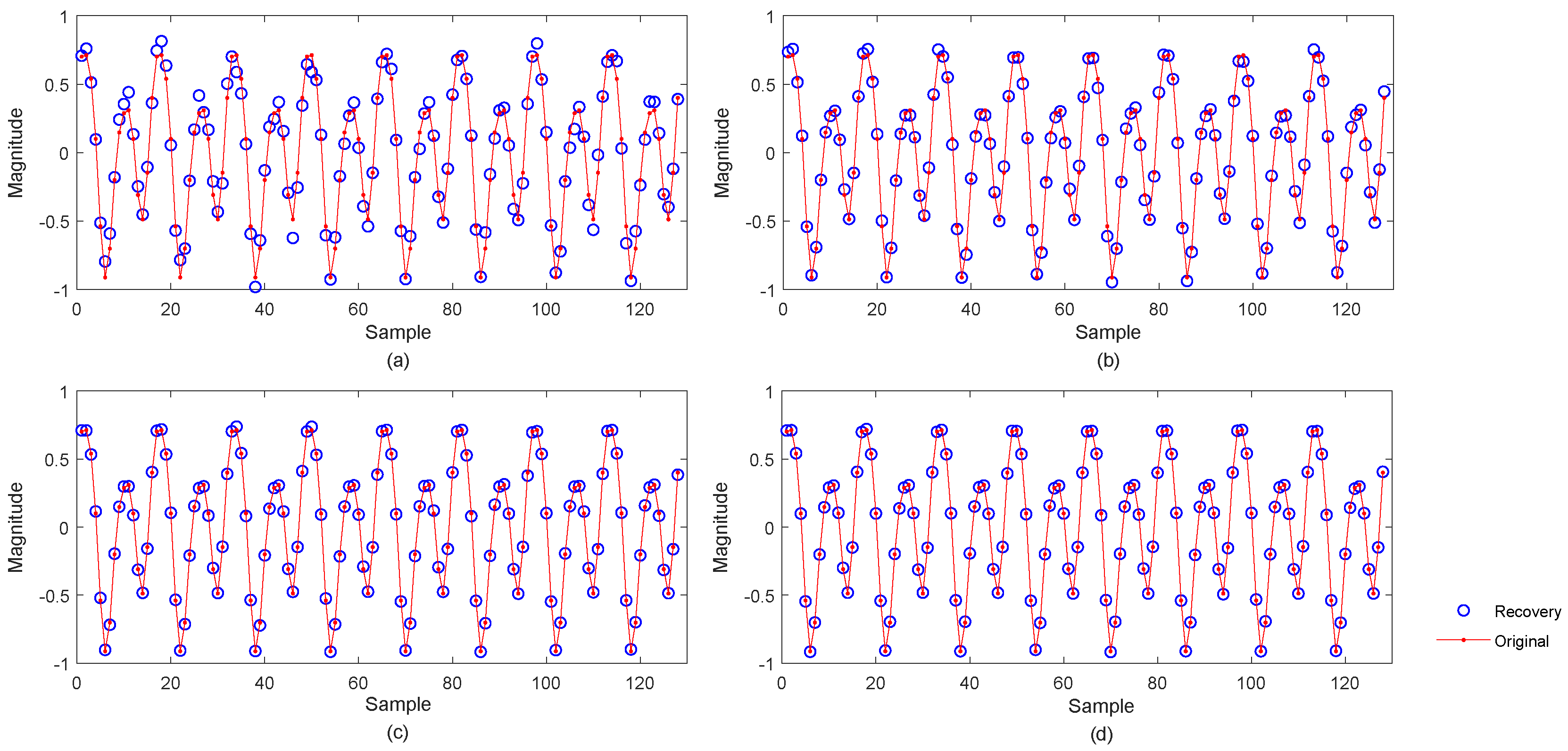

**Figure 10.**Signal recovery effect by different algorithms when $\xi =0.1$. (

**a**) Signal recovery by the SL0 algorithm; (

**b**) signal recovery by the ${L}_{2}$-SL0 algorithm; (

**c**) signal recovery by the ${L}_{p}$-RLS algorithm; (

**d**) signal recovery by the RRCTSL0 algorithm.

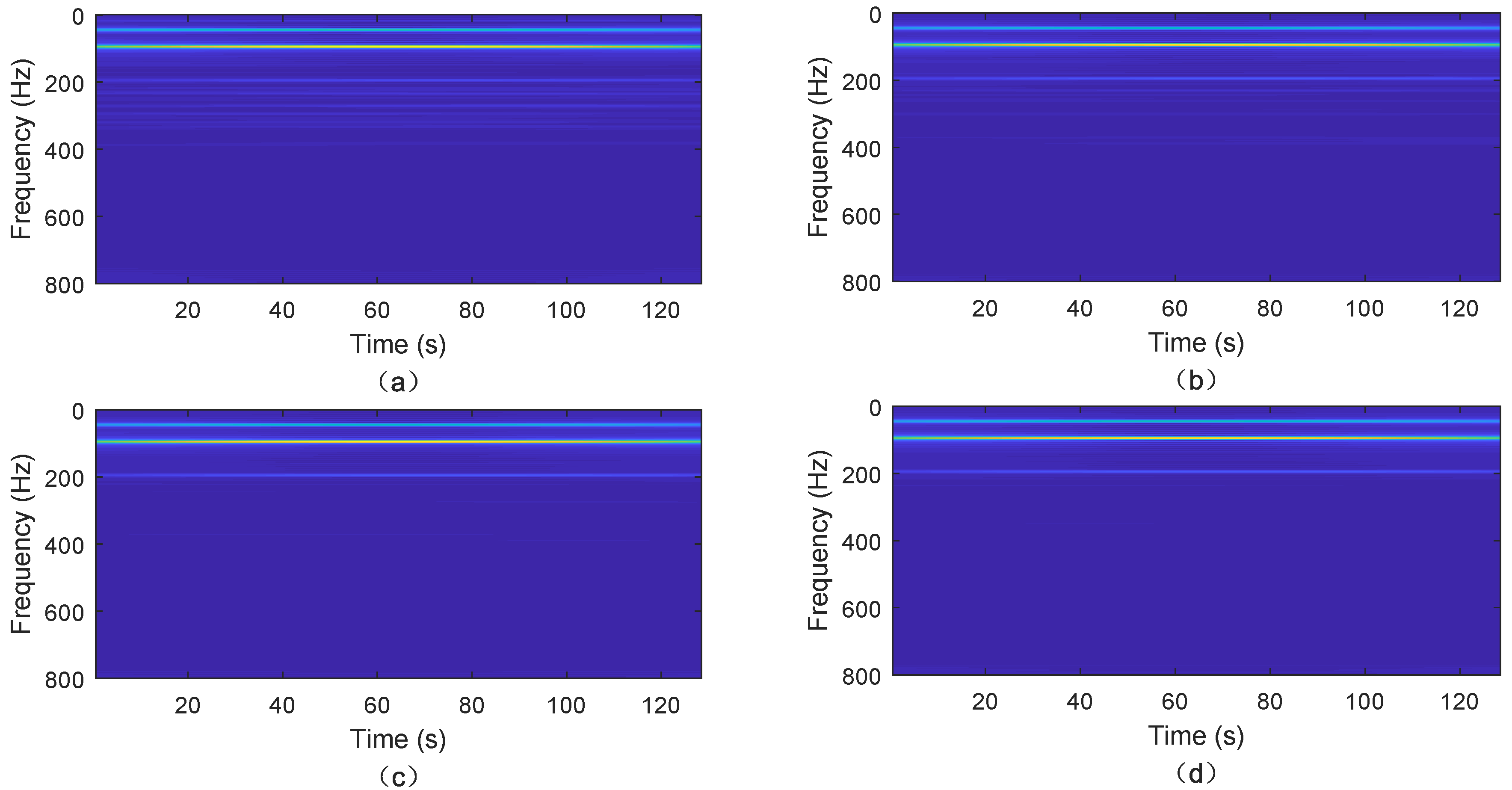

**Figure 11.**Reconstruction time-frequency characteristics of different algorithms when $\xi =0.1$. (

**a**) SL0; (

**b**) ${L}_{2}$-SL0; (

**c**) ${L}_{p}$-RLS; (

**d**) RRCTSL0.

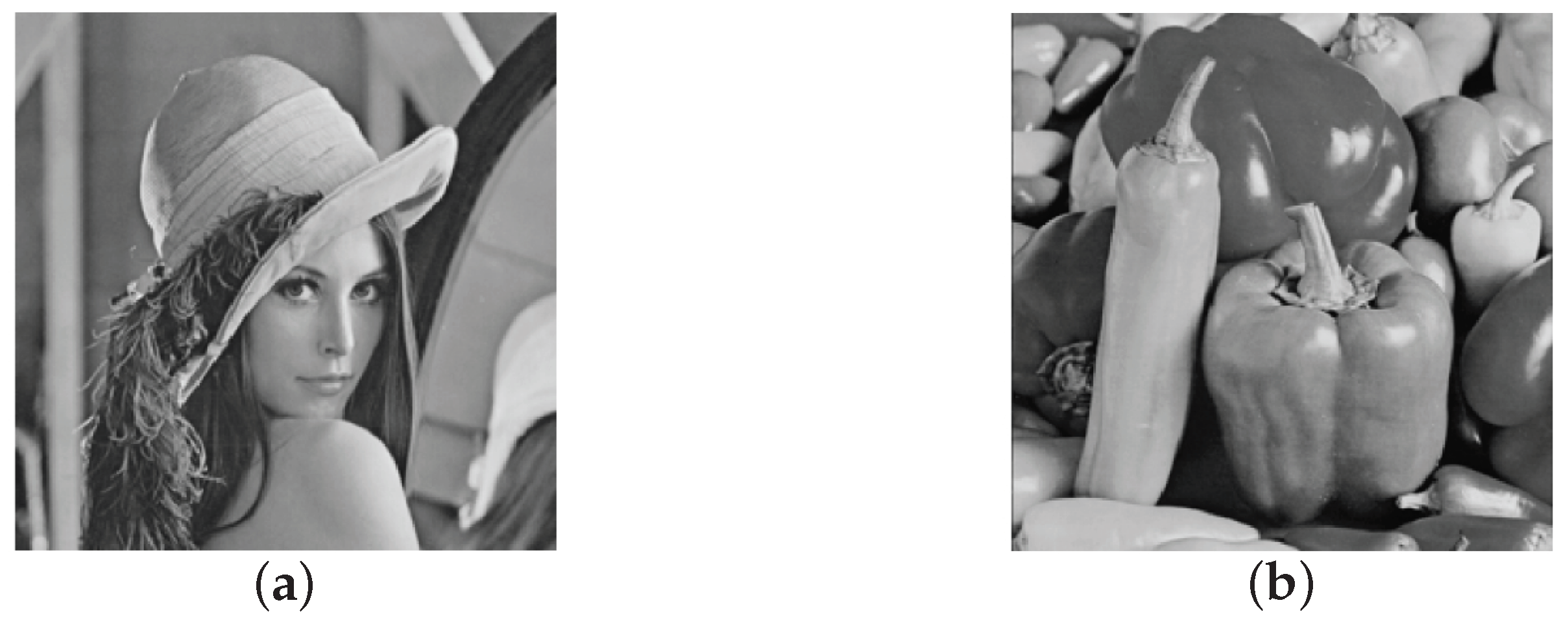

**Figure 12.**Real images used in the recovery experiments: (

**a**) Lena ($256\times 256$); (

**b**) Peppers ($256\times 256$).

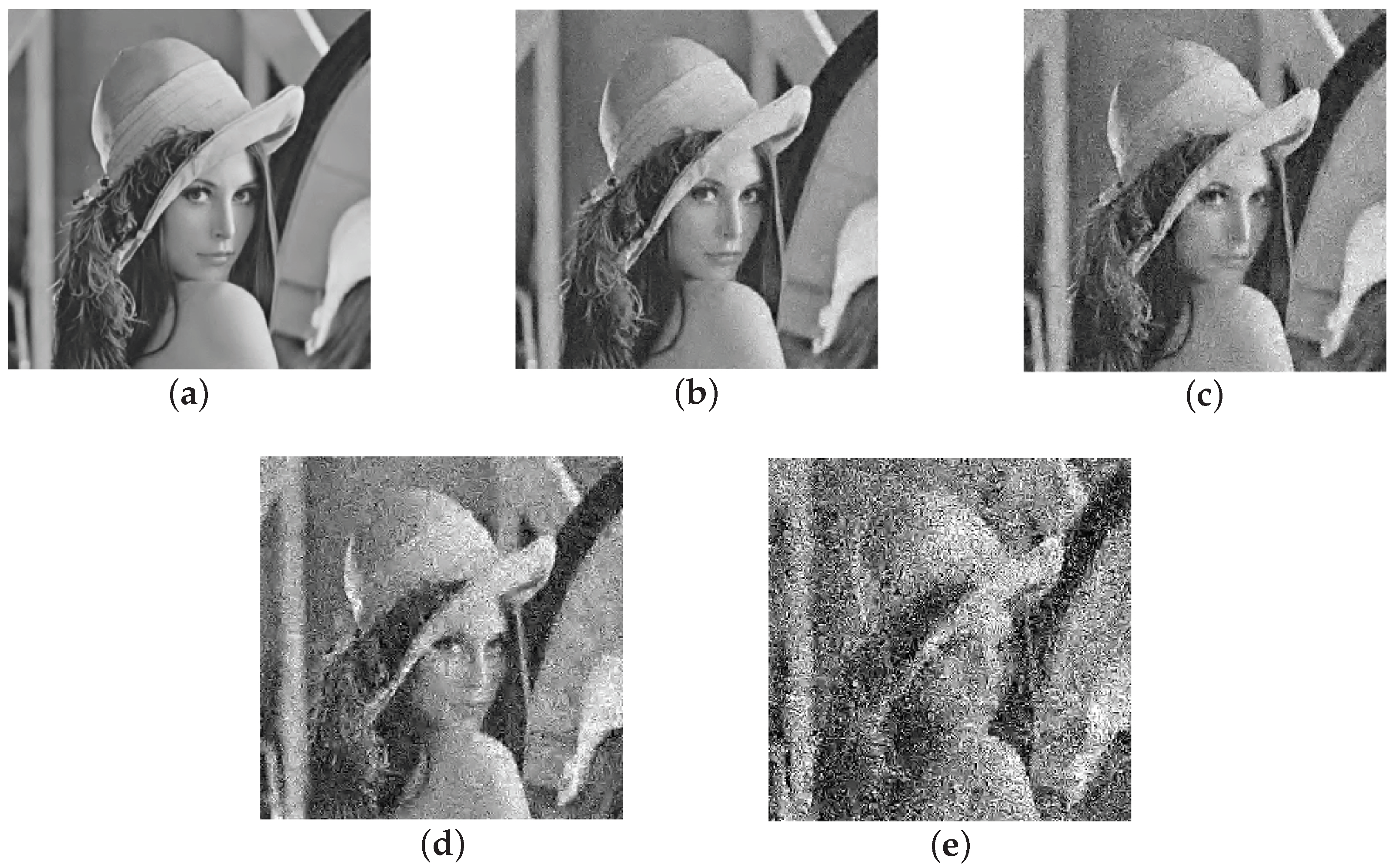

**Figure 14.**Lena image-recovery effect by the proposed RRCTSL0 algorithm when noise was incrementing according to sequence $\xi $ = [0, 0.05, 0.1, 0.2, 0.5]. (

**a**) $\xi $ = 0; (

**b**) $\xi $ = 0.05; (

**c**) $\xi $ = 0.1; (

**d**) $\xi $ = 0.2; (

**e**) $\xi $ = 0.5.

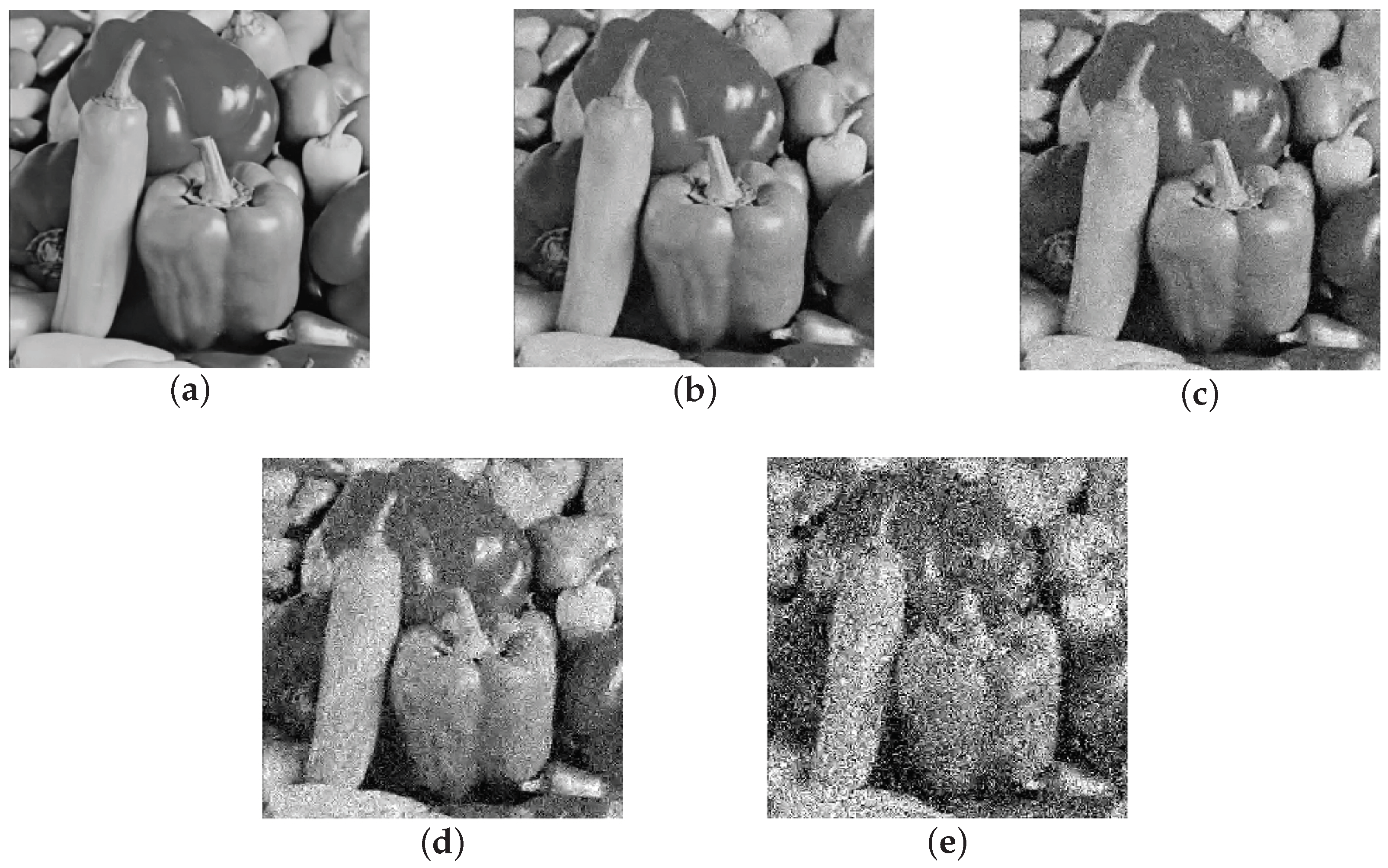

**Figure 15.**Peppers image-recovery effect by the proposed RRCTSL0 algorithm when noise was incrementing according to sequence $\xi $ = [0, 0.05, 0.1, 0.2, 0.5]. (

**a**) $\xi $ = 0; (

**b**) $\xi $ = 0.05; (

**c**) $\xi $ = 0.1; (

**d**) $\xi $ = 0.2; (

**e**) $\xi $ = 0.5.

**Table 1.**Regularized Reweighted Composite Trigonometric Smoothed ${L}_{0}$-Norm Minimization (RRCTSL0) Algorithm Using the CG Method.

Initialization: $\mathbf{\Phi},\phantom{\rule{4pt}{0ex}}\mathit{x},\phantom{\rule{4pt}{0ex}}\mathit{y},\phantom{\rule{4pt}{0ex}}\mathit{\nu},\phantom{\rule{4pt}{0ex}}\mathit{\varsigma},\phantom{\rule{4pt}{0ex}}\mathit{\tau},\phantom{\rule{4pt}{0ex}}{\mathit{\sigma}}_{\mathit{T}},\phantom{\rule{4pt}{0ex}}\mathit{T},\phantom{\rule{4pt}{0ex}}\mathit{\lambda},\phantom{\rule{4pt}{0ex}}\mathit{a}$, and ${\mathit{x}}^{\ast}=\mathit{x}$ |
---|

Step 1: Set $t=0,\phantom{\rule{4pt}{0ex}}{\sigma}_{1}$; |

Step 2: Compute $\mathit{W}$ using (7), ${\sigma}_{t}$ for $t=2,3,\phantom{\rule{4pt}{0ex}}\dots ,\phantom{\rule{4pt}{0ex}}T-1$ using Equation (15); |

Step 3: For $t=1,2,\dots ,T$ |

(1) Set $\sigma ={\sigma}_{t},\phantom{\rule{4pt}{0ex}}\Gamma =0,\phantom{\rule{4pt}{0ex}}{\mathit{x}}_{\left(\Gamma \right)}={\mathit{x}}^{\ast}$ |

(2) Compute Residual $Res=\left|\right|{\varrho}_{\left(\Gamma \right)}{\mathit{d}}_{\left(\Gamma \right)}{\left|\right|}_{2}^{2}$, and iterative termination threshold $err$ |

(3) While $Res>err$ |

(a) Compute ${\mathit{x}}_{(\Gamma +1)}$ using Equations (16)–(23), $\mathit{W}$ using Equation (7) |

(b) Set $\Gamma =\Gamma +1$ |

(c) Compute $Res=\left|\right|{\varrho}_{\left(\Gamma \right)}{\mathit{d}}_{\left(\Gamma \right)}{\left|\right|}_{2}^{2}$ |

(4) Set ${\mathit{x}}^{\ast}={\mathit{x}}_{\left(\Gamma \right)}$ |

Step 4: Output $\mathit{x}={\mathit{x}}^{\ast}$ |

**Table 2.**Peak SNR (PSNR) and Structural Similarity Index (SSIM) of the recovered Lena image by the SL0, ${L}_{2}$-SL0, and ${L}_{p}$-RLS algorithms and the proposed RRCTSL0 algorithm with $\xi =0.01$.

CR | PSNR (dB) | SSIM (%) | ||||||
---|---|---|---|---|---|---|---|---|

SL0 | ${\mathit{L}}_{2}$-SL0 | ${\mathit{L}}_{\mathit{p}}$-RLS | RRCTSL0 | SL0 | ${\mathit{L}}_{2}$-SL0 | ${\mathit{L}}_{\mathit{p}}$-RLS | RRCTSL0 | |

0.4 | 29.075 | 29.255 | 32.369 | 34.825 | 98.24 | 98.28 | 99.16 | 99.53 |

0.5 | 30.379 | 30.688 | 34.664 | 36.669 | 98.70 | 98.77 | 99.51 | 99.69 |

0.6 | 33.140 | 30.232 | 36.699 | 36.789 | 99.31 | 98.64 | 99.69 | 99.70 |

**Table 3.**PSNR and SSIM of the recovered Peppers image by the SL0, ${L}_{2}$-SL0, and ${L}_{p}$-RLS algorithms and the proposed RRCTSL0 algorithm with $\xi =0.01$.

CR | PSNR (dB) | SSIM (%) | ||||||
---|---|---|---|---|---|---|---|---|

SL0 | L2-SL0 | ${\mathit{L}}_{\mathit{q}}$-RLS | RRCTSL0 | SL0 | L2-SL0 | ${\mathit{L}}_{\mathit{q}}$-RLS | RRCTSL0 | |

0.4 | 21.811 | 26.343 | 33.887 | 34.673 | 93.13 | 97.33 | 99.53 | 99.61 |

0.5 | 28.405 | 29.769 | 34.588 | 35.046 | 98.35 | 98.80 | 99.60 | 99.64 |

0.6 | 32.276 | 33.188 | 34.872 | 35.160 | 99.33 | 99.45 | 99.63 | 99.65 |

**Table 4.**PSNR and SSIM of the recovery image by the proposed RRCTSL0 algorithm when noise was incrementing according to sequence $\xi =[0,0.05,0.1,0.2,0.5]$.

$\mathit{\xi}$ | Photo | PSNR (dB) | SSIM (%) |
---|---|---|---|

0 | Lena | 38.492 | 99.80 |

Peppers | 39.367 | 99.87 | |

0.05 | Lena | 29.203 | 98.28 |

Peppers | 28.826 | 97.53 | |

0.1 | Lena | 24.272 | 94.78 |

Peppers | 24.305 | 95.64 | |

0.2 | Lena | 18.727 | 83.43 |

Peppers | 19.782 | 86.07 | |

0.5 | Lena | 12.489 | 49.50 |

Peppers | 13.416 | 55.34 |
