# Image Enhancement for Inspection of Cable Images Based on Retinex Theory and Fuzzy Enhancement Method in Wavelet Domain

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Inspection Image Acquisition and Spectrum Analysis

#### 2.1. Inspection Image Acquisition

#### 2.2. Spectrum Analysis

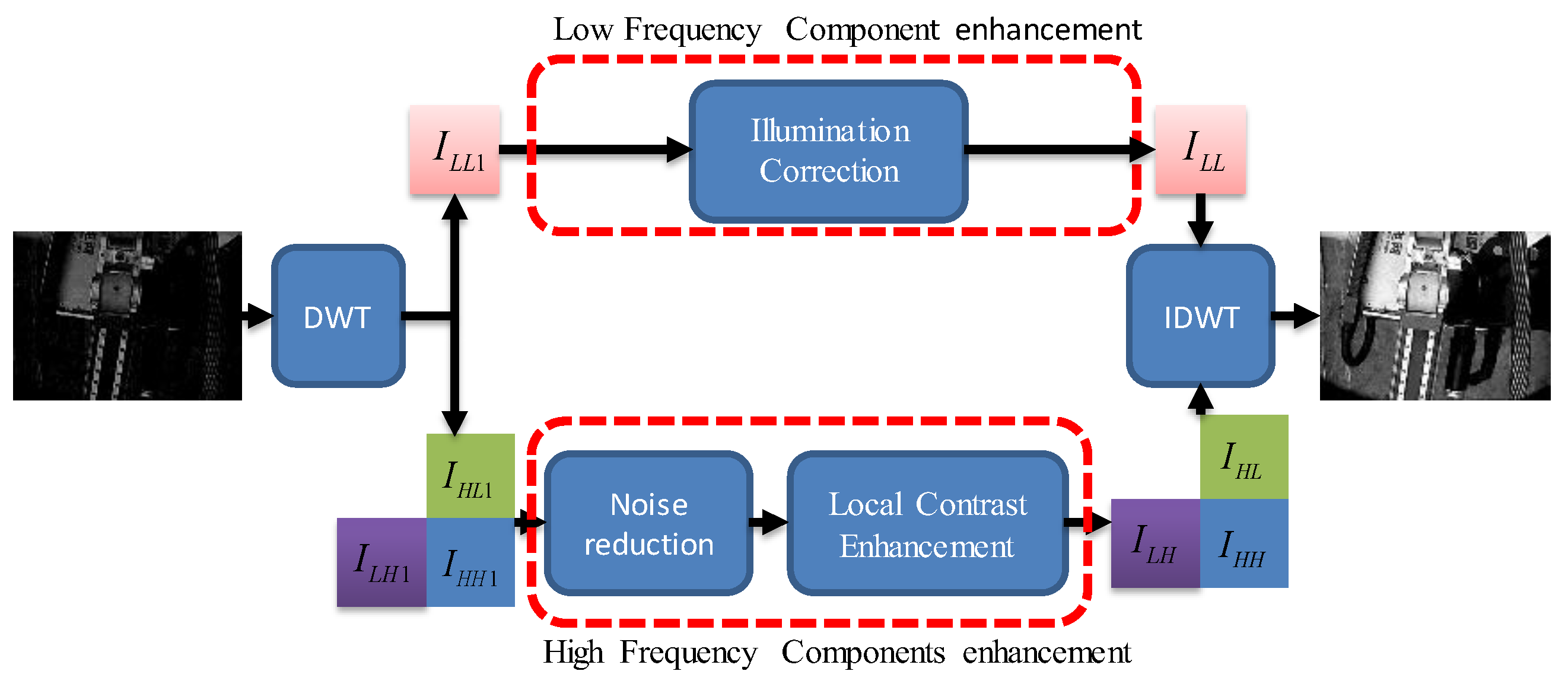

## 3. Inspection Image Enhancement Principal

#### 3.1. Discrete Wavelet Transformation (DWT)

#### 3.2. Low Frequency Component Enhancement Based on Improved MSR

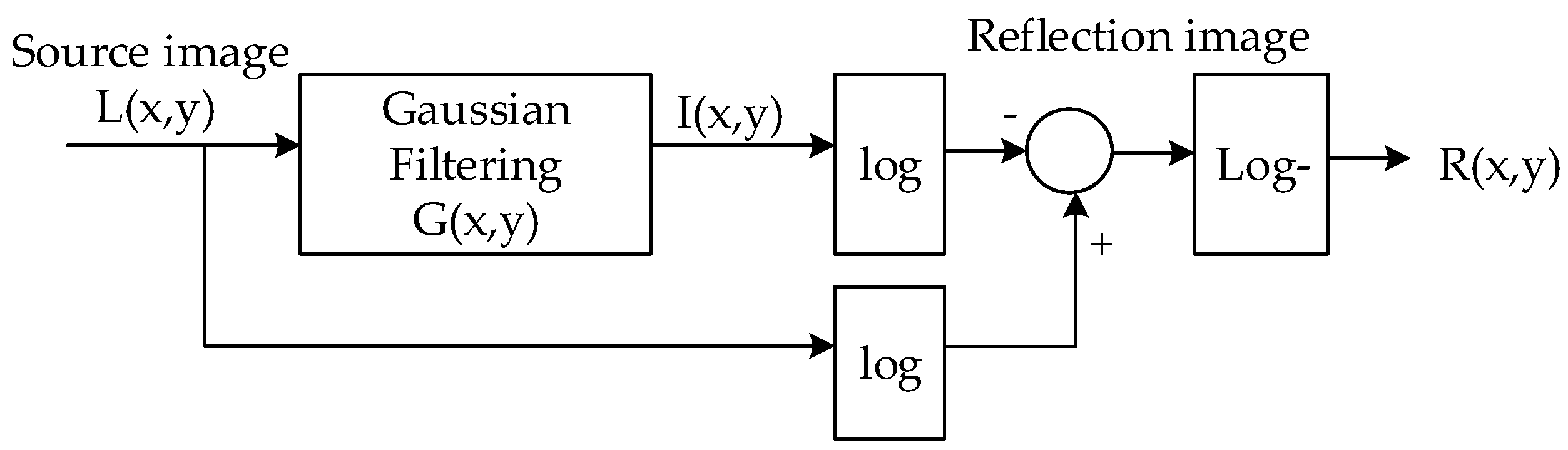

#### 3.2.1. Basic Principal of Image Enhancement Based on Retinex Model

_{k}is the kth scale surrounding function and W

_{k}is the corresponding weight factor. The excellent enhancement performance can be achieved by adopting MSR with three different scales (K = 3) according to work of Xue, Gao et al. [29,30].

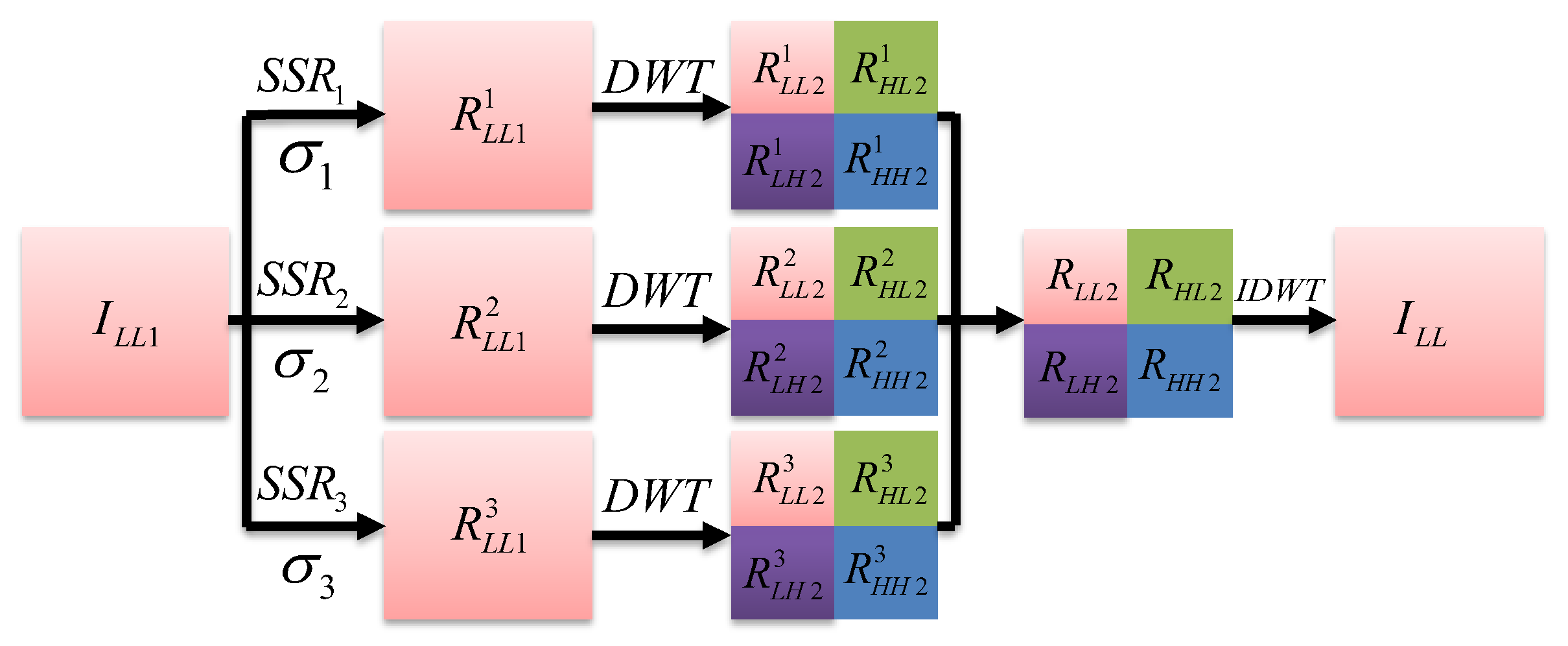

#### 3.2.2. Implementation of the Low Frequency Component Enhancement Algorithm Based on Improved MSR

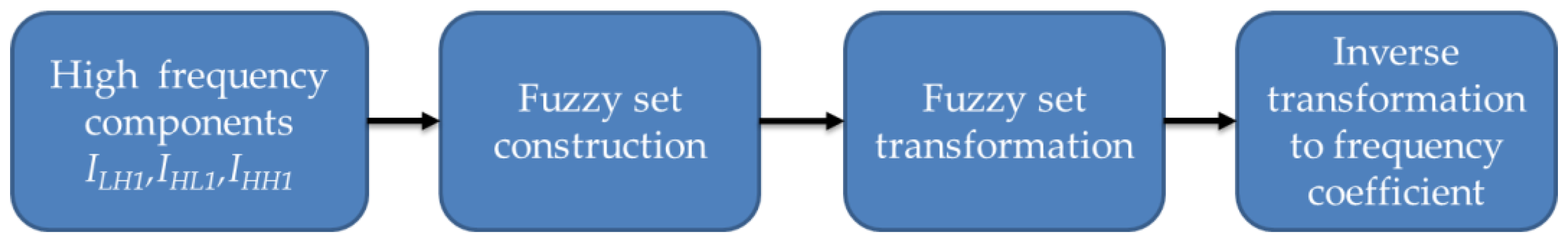

#### 3.3. High Frequency Components Enhancement Based on Fuzzy Enhancement

#### 3.3.1. Noise Reduction

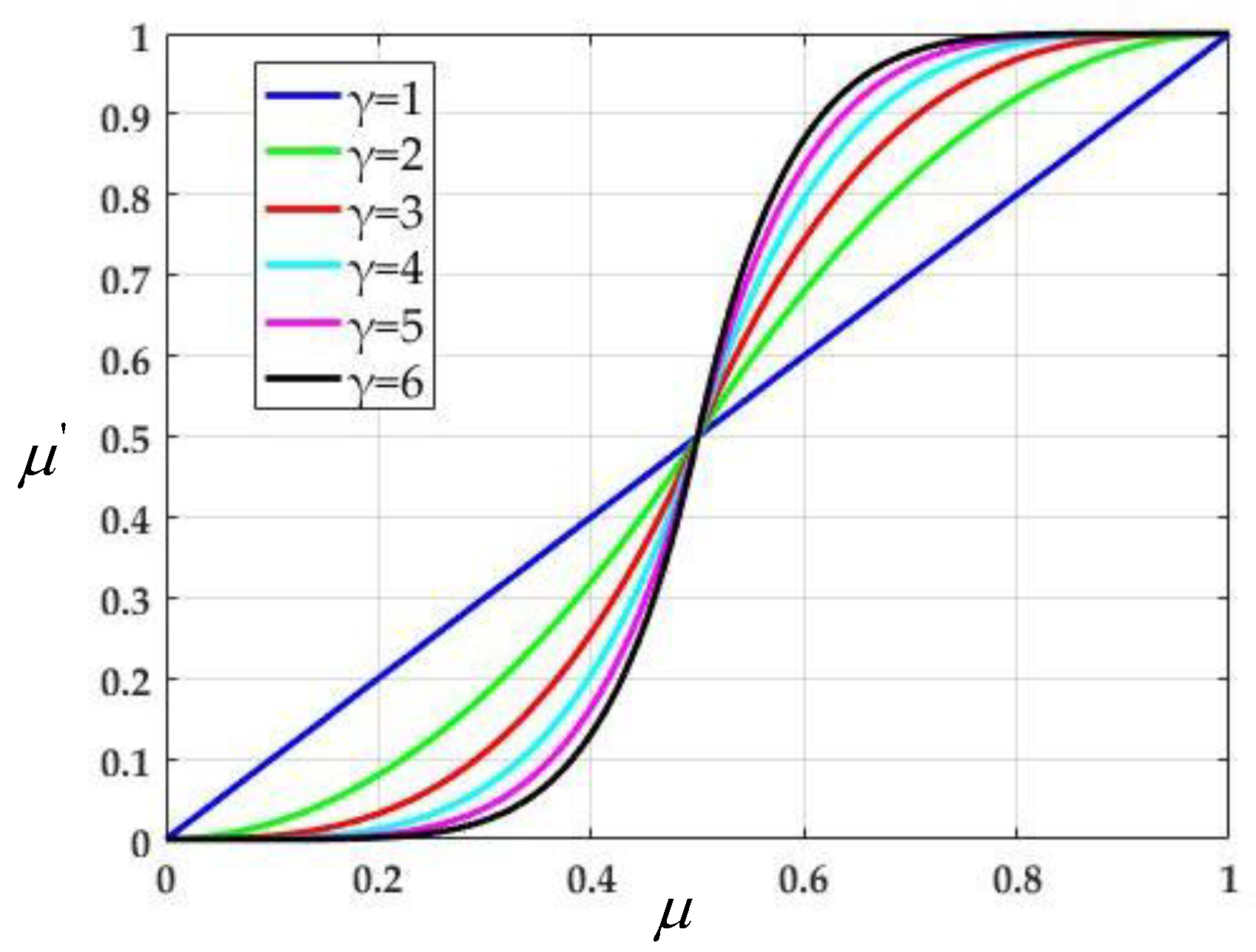

#### 3.3.2. Implementation of Local Contrast Enhancement in the High Frequency Components Based on Fuzzy Enhancement

## 4. Experimental Results and Analysis

#### 4.1. Parameters Selection

#### 4.1.1. The Parameters for Improved MSR

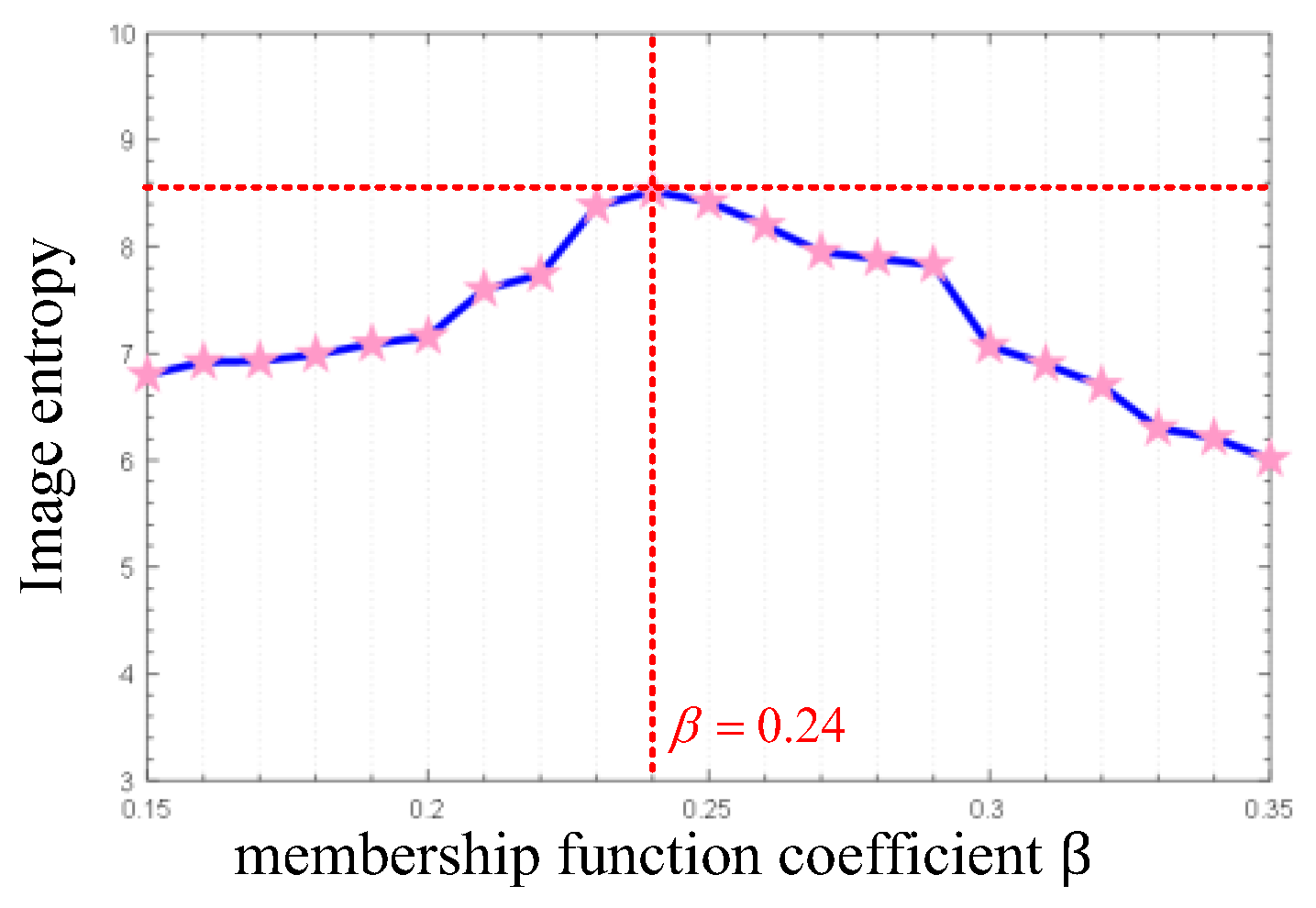

#### 4.1.2. The Parameters for Fuzzy Enhancement

#### 4.2. Validation of the Effectiveness of the Proposed Method

#### 4.2.1. Visual Analysis

#### 4.2.2. Image Quality Analysis

_{Befor}and Q

_{After}represent the pre-enhancement and post-enhancement image quality scores under the same image quality assessment method, respectively. The results are shown in the following figures.

#### 4.3. Comparison with Other Methods

#### 4.3.1. Visual Comparison

#### 4.3.2. Quantitative Comparison

- (a)
- Average intensity value represents the overall brightness of the image:$$\mu =\frac{1}{M\times N}{\displaystyle \sum _{x=1}^{M}{\displaystyle \sum _{y=1}^{N}f\left(x,y\right)}}$$
- (b)
- Standard deviation represents the overall contrast of the given image. Higher standard deviation value means more contrast information in the image:$$\sigma =\sqrt{\frac{1}{M\times N}{\displaystyle \sum _{x=1}^{M}{{\displaystyle \sum _{y=1}^{N}\left[f\left(x,y\right)-\mu \right]}}^{2}}}\text{}$$
- (c)
- Mean square error (MSE) and peak signal ratio (PSNR) represent the de-noising performance of the method:$$\begin{array}{l}\mathrm{MSE}=\frac{1}{M\times N}{\displaystyle \sum _{i=0}^{M-1}{\displaystyle \sum _{j=0}^{N-1}{\left(I\left(i,j\right)-K\left(i,j\right)\right)}^{2}}},\\ \mathrm{PSNR}=10\times {\mathrm{log}}_{10}\left({\mathrm{MAX}}_{I}^{2}/\mathrm{MSE}\right)\end{array}$$
- (d)
- Image entropy is an important factor that represents the richness of the information of an image. Higher entropy value means more details in the image, and the entropy of the enhanced image should be larger than that of given image:$$E=-{\displaystyle \sum _{i}^{K}{P}_{i}\times {\mathrm{log}}_{2}{P}_{i}}$$
- (e)
- Average gradient represents the local contrast of the details by considering the intensity difference of pixels. The larger the average gradient value is, the higher the local contrast among the details in the image will be:$$\mathrm{AG}=\frac{1}{\left(M-1\right)\left(N-1\right)}{\displaystyle \sum _{x=1}^{M-1}{\displaystyle \sum _{y=1}^{N-1}\sqrt{\frac{{\left[f\left(x+1,y\right)-f\left(x,y\right)\right]}^{2}+{\left[f\left(x,y+1\right)-f\left(x,y\right)\right]}^{2}}{2}}}}$$

## 5. Conclusions

## Author Contributions

## Acknowledgments

## Conflicts of Interest

## References

- Wei, W.; Gongping, G.; Yucheng, B. Hand-eye-vision based control for an inspection robot’s autonomous line grasping. J. Cent. South Univ.
**2014**, 21, 2216–2227. [Google Scholar] - Richard, P.L.; Pouliot, N.; Montambault, S. Introduction of a LIDAR-based obstacle detection system on the LineScout power line robot. J. Endourol.
**2014**, 28, 330–334. [Google Scholar] - Song, Y.; Wang, H.; Zhang, J. A vision-based broken strand detection method for a power-line maintenance robot. IEEE Trans. Power Deliv.
**2014**, 29, 2154–2161. [Google Scholar] [CrossRef] - Qin, X.; Wu, G.; Ye, X.; Huang, L.; Lei, J. A Novel Method to Reconstruct Overhead High-Voltage Power Lines Using Cable Inspection Robot LiDAR Data. Remote Sens.
**2017**, 9, 753. [Google Scholar] [CrossRef] - Xuhui, Y.; Gongping, W.; Fei, F.; XiangYang, P.; Ke, W. Overhead ground wire detection by fusion global and local features and supervised learning method for a cable inspection robot. Sens. Rev.
**2018**, 38, 376–386. [Google Scholar] - Wenming, C.; Yaonan, W. Research on obstacle recognition based on vision for deicing robot on high voltage transmission line. Chin. J. Sci.
**2011**, 32, 2049–2056. [Google Scholar] - Maini, R.; Aggarwal, H. A Comprehensive Review of Image Enhancement Techniques. arXiv, 2010; arXiv:1003.4053. [Google Scholar]
- Kim, Y.T. Contrast enhancement using brightness preserving bi-histogram equalization. IEEE Trans. Consum. Electron.
**2002**, 43, 1–8. [Google Scholar] [CrossRef] - Wang, Y.; Chen, Q.; Zhang, B. Image enhancement based on equal area dualistic sub-image histogram equalization method. IEEE Trans. Consum. Electron.
**1999**, 45, 68–75. [Google Scholar] [CrossRef] - Wang, W.; He, C.; Tang, L.; Ren, Z. Total variation based variational model for the uneven illumination correction. Neurocomputing
**2018**, 281, 106–120. [Google Scholar] [CrossRef] - Zuiderveld, K. Contrast Limited Adaptive Histogram Equalization; Academic Press Professional, Inc.: San Diego, CA, USA, 1994. [Google Scholar]
- Fu, R.G.; Feng, S.; Shen, T.Y.; Luo, H.; Wei, Y.F.; Yang, Q. A low-Light-Level Video Recursive Filtering Technology Based on the Three Dimensional Coefficients; Optics and Photonics for Information Processing Xi; International Society for Optics and Photonics: Bellingham, WA, USA, 2017. [Google Scholar]
- Land, E.H.; McCann, J.J. Lightness and Retinex Theory. J. Opt. Soc. Am.
**1971**, 61, 1–11. [Google Scholar] [CrossRef] [PubMed] - Si, L.; Wang, Z.; Xu, R.; Tan, C.; Liu, X.; Xu, J. Image Enhancement for Surveillance Video of Coal Mining Face Based on Single-Scale Retinex Algorithm Combined with Bilateral Filtering. Symmetry
**2017**, 9, 93. [Google Scholar] [CrossRef] - Xie, S.J.; Lu, Y.; Yoon, S.; Yang, J.; Park, D.S. Intensity Variation Normalization for Finger Vein Recognition Using Guided Filter Based Singe Scale Retinex. Sensors
**2015**, 15, 17089–17105. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Xiao, J.; Peng, H.; Zhang, Y.; Tu, C.; Li, Q. Fast image enhancement based on color space fusion. Color Res. Appl.
**2016**, 41, 22–31. [Google Scholar] [CrossRef] - Tao, F.; Yang, X.; Wu, W.; Liu, K.; Zhou, Z.; Liu, Y. Retinex-based image enhancement framework by using region covariance filter. Soft Comput.
**2018**, 22, 1399–1420. [Google Scholar] [CrossRef] - Fan, C.N.; Zhang, F.Y. Homomorphic filtering based illumination normalization method for face recognition. Pattern Recognit. Lett.
**2011**, 32, 1468–1479. [Google Scholar] [CrossRef] - Faraji, M.R.; Qi, X. Face recognition under varying illumination based on adaptive homomorphic eight local directional patterns. IET Comput. Vis.
**2014**, 9, 390–399. [Google Scholar] [CrossRef] - Łoza, A.; Bull, D.R.; Hill, P.R.; Achim, M.A. Automatic contrast enhancement of low-light images based on local statistics of wavelet coefficients. Digit. Signal Process.
**2013**, 23, 1856–1866. [Google Scholar] [CrossRef] - Shen, X.; Li, Q.; Tian, Y.; Shen, L. An Uneven Illumination Correction Algorithm for Optical Remote Sensing Images Covered with Thin Clouds. Remote Sens.
**2015**, 7, 11848–11862. [Google Scholar] [CrossRef] [Green Version] - Kim, S.E.; Jeon, J.J.; Eom, I.K. Image contrast enhancement using entropy scaling in wavelet domain. Signal Process.
**2016**, 127, 1–11. [Google Scholar] [CrossRef] - Kaur, A.; Singh, C. Contrast enhancement for cephalometric images using wavelet-based modified adaptive histogram equalization. Appl. Soft Comput.
**2017**, 51, 180–191. [Google Scholar] [CrossRef] - Jung, C.; Yang, Q.; Sun, T.; Fu, Q.; Song, H. Low light image enhancement with dual-tree complex wavelet transform. J. Vis. Commun. Image Represent.
**2017**, 42, 28–36. [Google Scholar] [CrossRef] - Wang, C.L.; Tang, Y.C.; Zou, X.J.; SiTu, W.M.; Feng, W.X. A robust fruit image segmentation algorithm against varying illumination for vision system of fruit harvesting robot. Optik
**2017**, 131, 626–631. [Google Scholar] [CrossRef] - Tu, G.J.; Karstoft, H.; Pedersen, L.J.; Jørgensen, E. Illumination and Reflectance Estimation with its Application in Foreground Detection. Sensors
**2015**, 15, 21407–21426. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Mallat, S.G. A Theory for Multiresolution Signal Decomposition: The Wavelet Representation. IEEE Comput. Soc.
**1989**, 11, 674–693. [Google Scholar] [CrossRef] - Zhao, X.; Lin, Y.; Ou, B.; Yang, J. A wavelet-based image preprocessing method for illumination insensitive face recognition. J. Inf. Sci. Eng.
**2015**, 31, 182–189. [Google Scholar] - Xue, G.; Xue, P.; Liu, Q. A Method to Improve the Retinex Image Enhancement Algorithm Based on Wavelet Theory. Int. Symp. Comput. Intell. Des.
**2010**, 1, 182–185. [Google Scholar] - Gao, T. Face recognition based on multi-scale Retinex in discrete wavelet transform model under difficult lighting condition. Video Eng.
**2012**, 36, 122–125. [Google Scholar] - Fu, F.; Liu, F. Wavelet-Based Retinex Algorithm for Unmanned Aerial Vehicle Image Defogging. Int. Symp. Comput. Intell. Des.
**2016**, 1, 426–430. [Google Scholar] - Du, Y.; Tong, M.; Zhou, L.; Dong, H. Edge detection based on Retinex theory and wavelet multiscale product for mine images. Appl. Opt.
**2016**, 55, 9625–9637. [Google Scholar] [CrossRef] [PubMed] - Pal, S.K.; King, R.A. Image Enhancement Using Smoothing with Fuzzy Sets. Int. Symp. Comput. Intell. Des.
**1981**, 11, 494–501. [Google Scholar] - Bichao, Z.; Yiquan, W. Infrared Image Enhancement Method Based on Stationary Wavelet Transformation and Retinex. Acta Opt. Sin.
**2010**, 30, 2788–2793. [Google Scholar] [CrossRef] - Rahman, Z.U.; Jobson, D.J.; Woodell, G.A. Multi-scale retinex for color image enhancement. Int. Conf. Image Process.
**2002**, 1003, 1003–1006. [Google Scholar] - Rahman, Z.U.; Jobson, D.J.; Woodell, G.A. Retinex processing for automatic image enhancement. Hum. Vis. Electron. Imaging
**2004**, 7, 100–110. [Google Scholar] - Jobson, D.J.; Rahman, Z.; Woodell, G.A. A multiscale retinex for bridging the gap between color images and the human observation of scenes. IEEE Trans. Image Process.
**2002**, 6, 965–976. [Google Scholar] [CrossRef] [PubMed] - Wang, W.; Liu, W.; Lang, F.; Zhang, G.; Gao, T.; Cao, T.; Wang, F.; Liu, S. Froth Image Acquisition and Enhancement on Optical Correction and Retinex Compensation. Minerals
**2018**, 8, 103. [Google Scholar] [CrossRef] - Mittal, A.; Soundararajan, R.; Bovik, A.C. Making a “Completely Blind” Image Quality Analyzer. IEEE Signal Process. Lett.
**2013**, 20, 209–212. [Google Scholar] [CrossRef] - Mittal, A.; Moorthy, A.K.; Bovik, A.C. No-Reference Image Quality Assessment in the Spatial Domain. IEEE Trans. Image Process.
**2012**, 21, 4695–4708. [Google Scholar] [CrossRef] [PubMed] [Green Version]

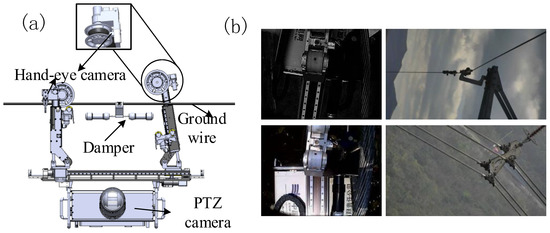

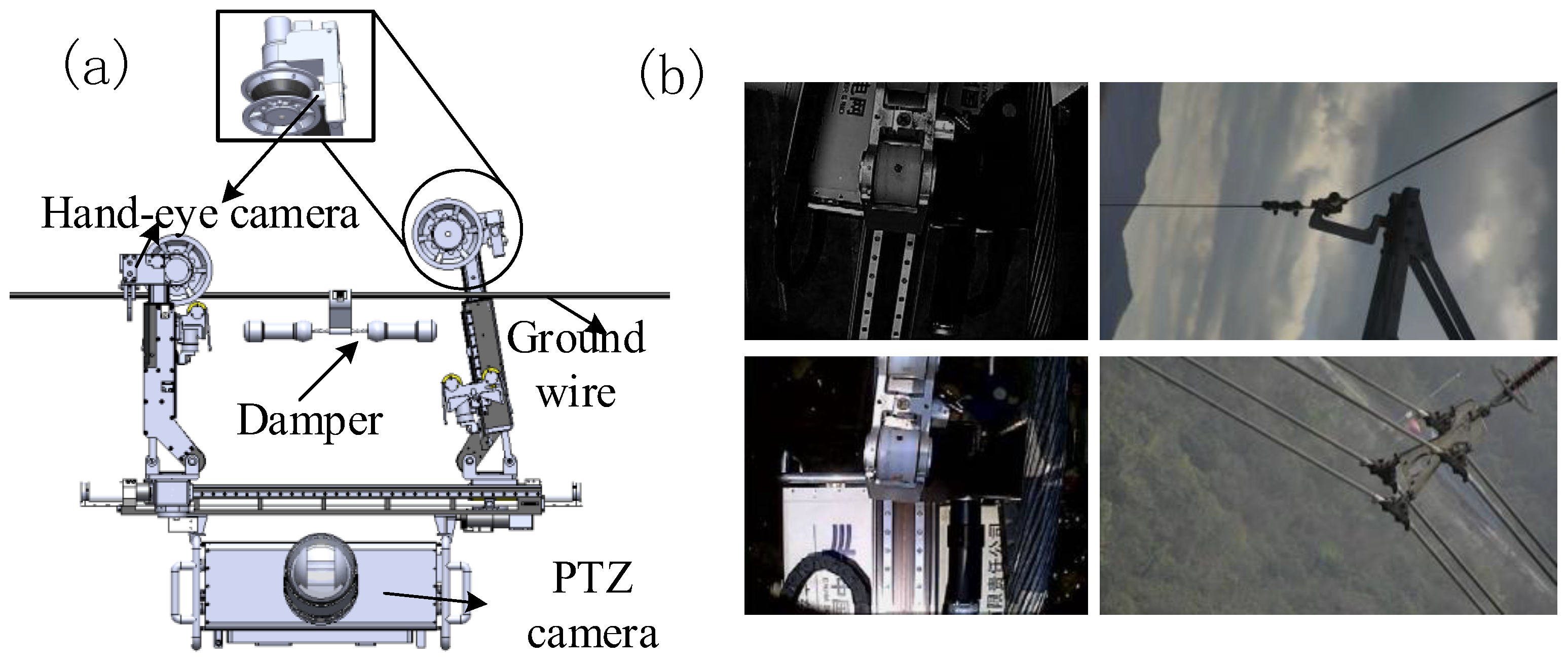

**Figure 1.**The cameras and the captured inspection image under uneven illumination. (

**a**) Cameras installation; (

**b**) Inspection image under uneven illumination.

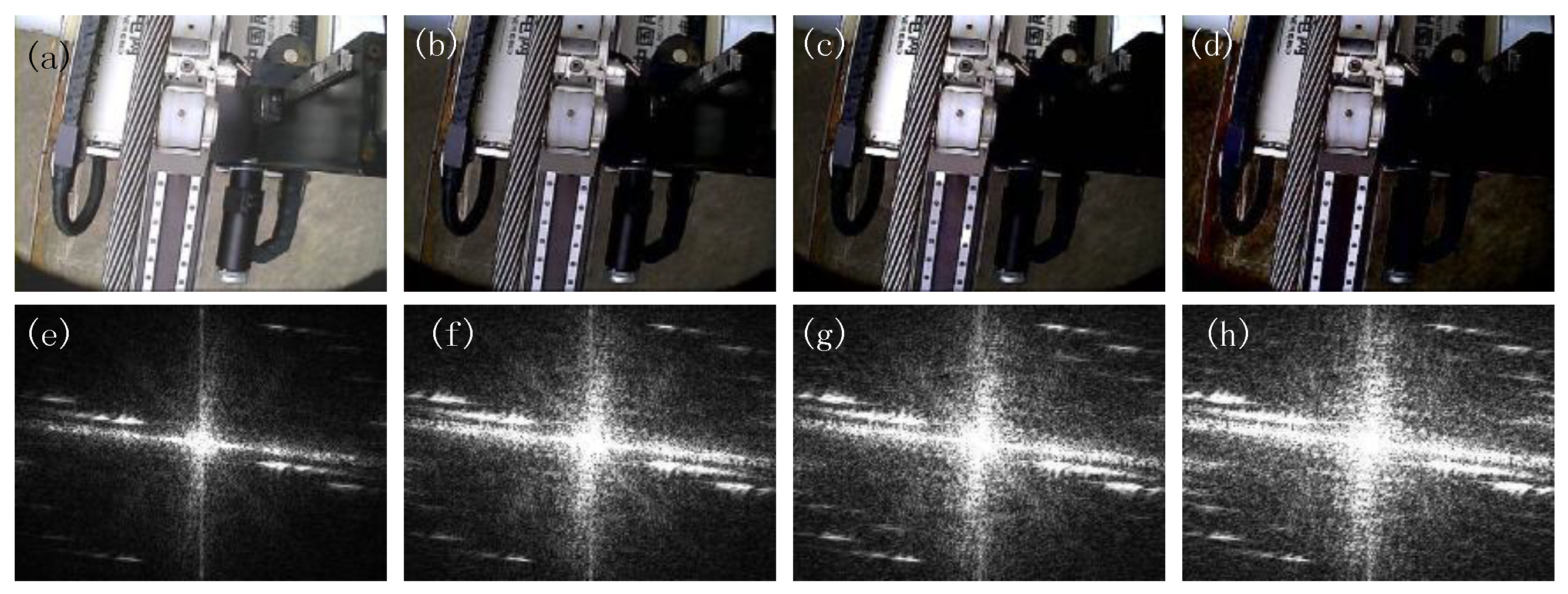

**Figure 2.**(

**a**–

**d**) Sample inspection images under different illumination heterogeneity in the same scene; and (

**e**–

**h**) corresponding spectrum maps to images in (

**a**–

**d**).

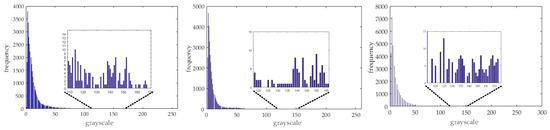

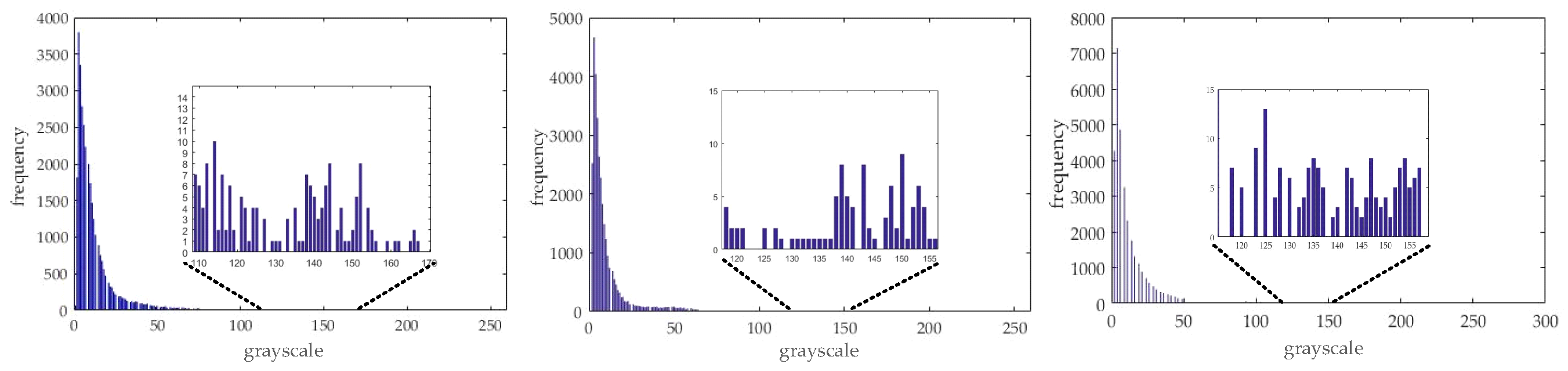

**Figure 6.**Gray-scale histogram of: (

**a**) horizontal; (

**b**) vertical; and (

**c**) diagonal wavelet components in high frequency.

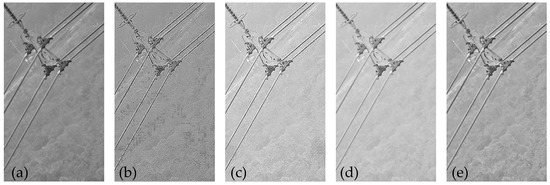

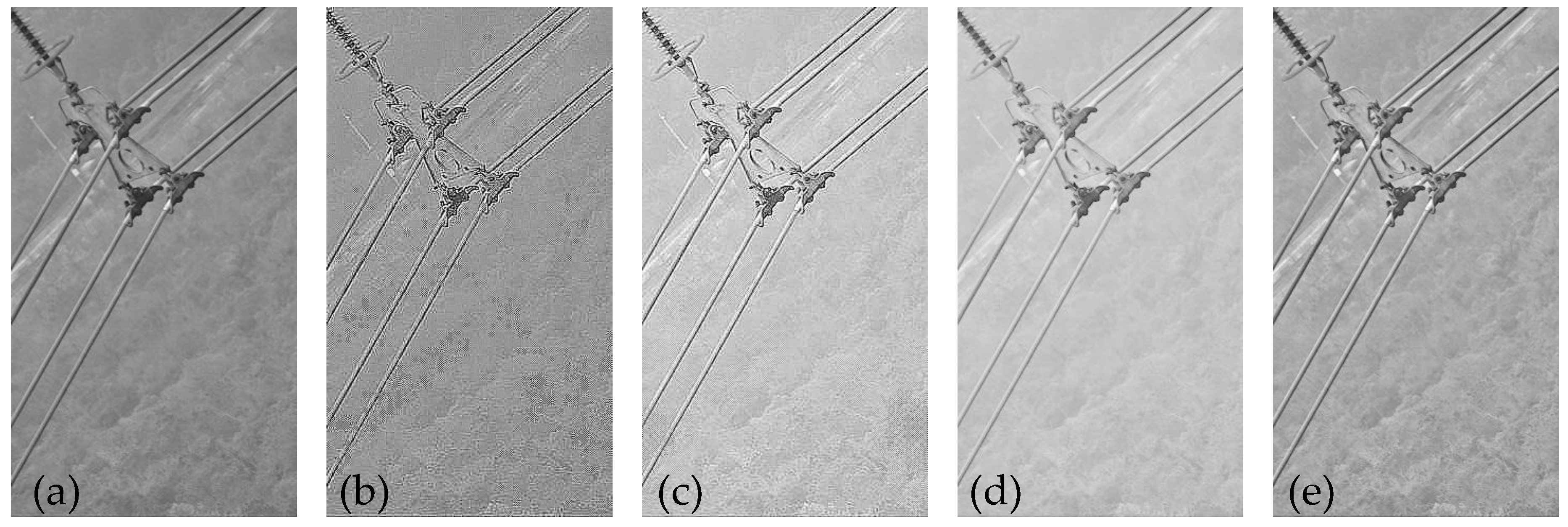

**Figure 8.**(

**a**) The original inputl (

**b**) narrow surround σ = 25l (

**c**) medium surround σ = 80; (

**d**) wide surround σ = 100; and (

**e**) MSR output with W

_{k}= 1/3, k = 1, 2, 3. The narrow-surround acts as a high-pass filter to obtain the edge details, but some brightness information is lost. The wide-surround captures the right brightness information, but some detailed information is lost. The MSR is the average of the three renditions.

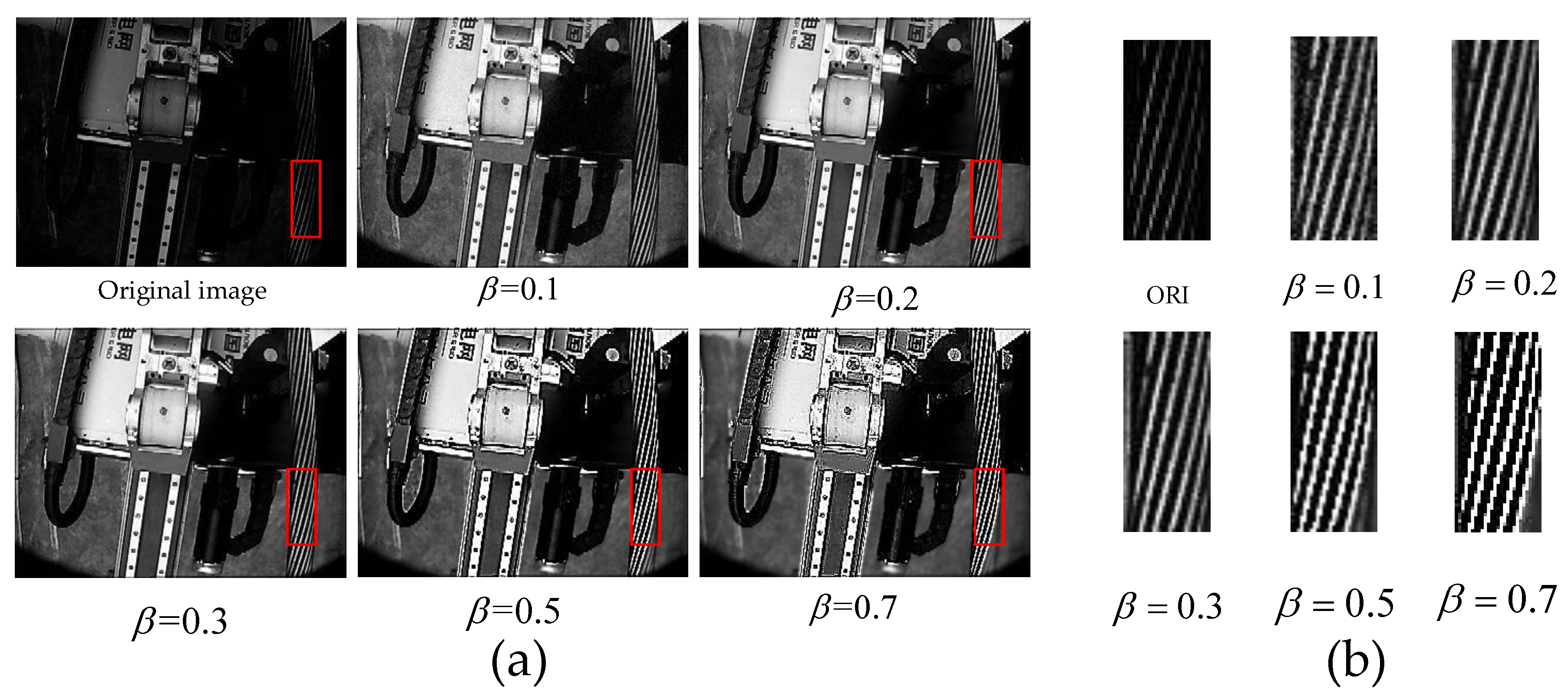

**Figure 10.**The local contrast enhancement effects under different β: (

**a**) the original image and the output image of proposed method with different parameters; and (

**b**) the enlarged images corresponding to the regions with red box in (

**a**).

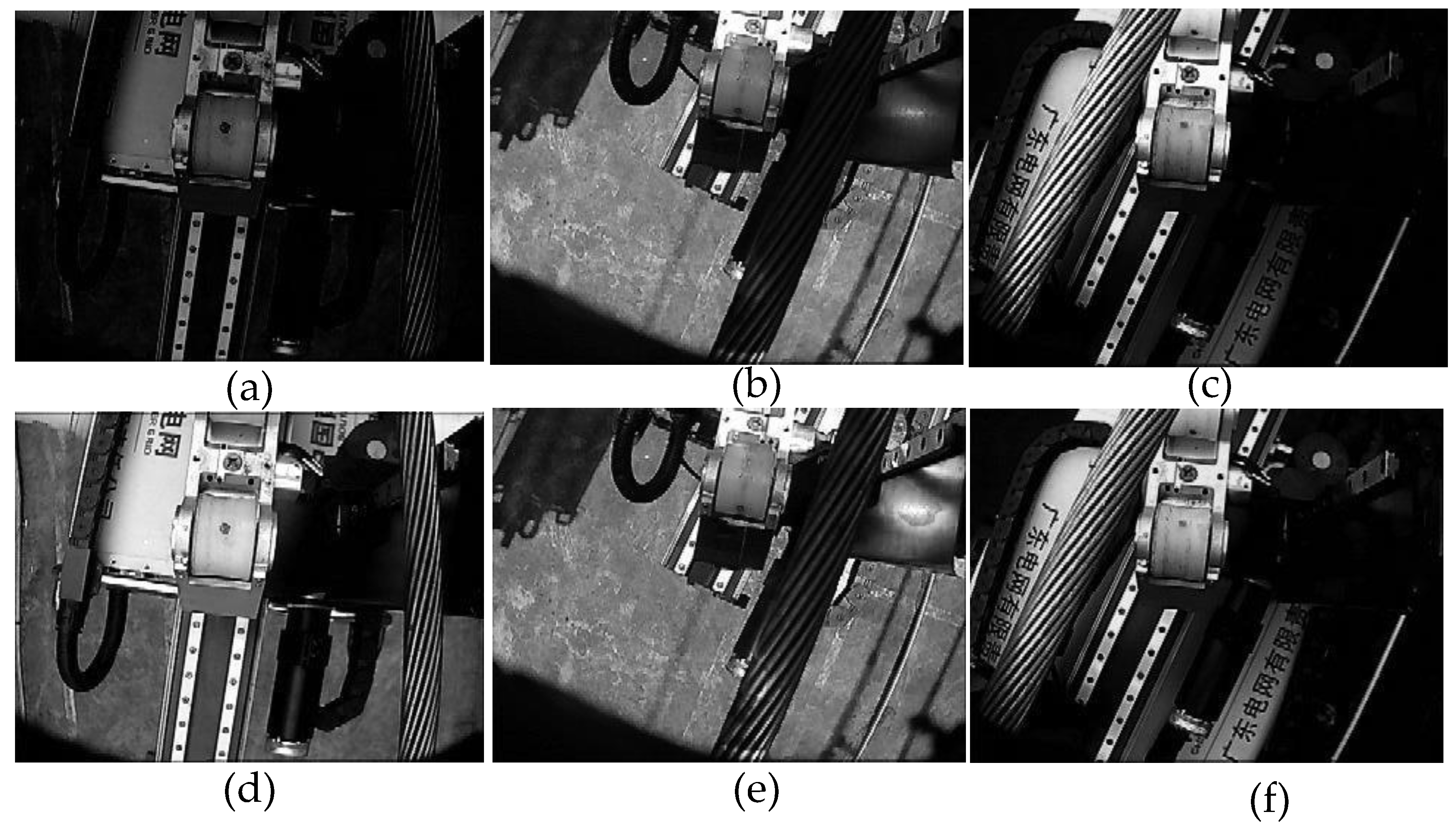

**Figure 12.**Overhead ground wire (OGW) images under different illumination condition and its corresponding enhancement results: (

**a**) low light; (

**b**) uneven light and OGW is in the dark area; (

**c**) uneven light and OGW is in the bright area; and (

**d**–

**f**) the enhancement results corresponding to (

**a**–

**c**).

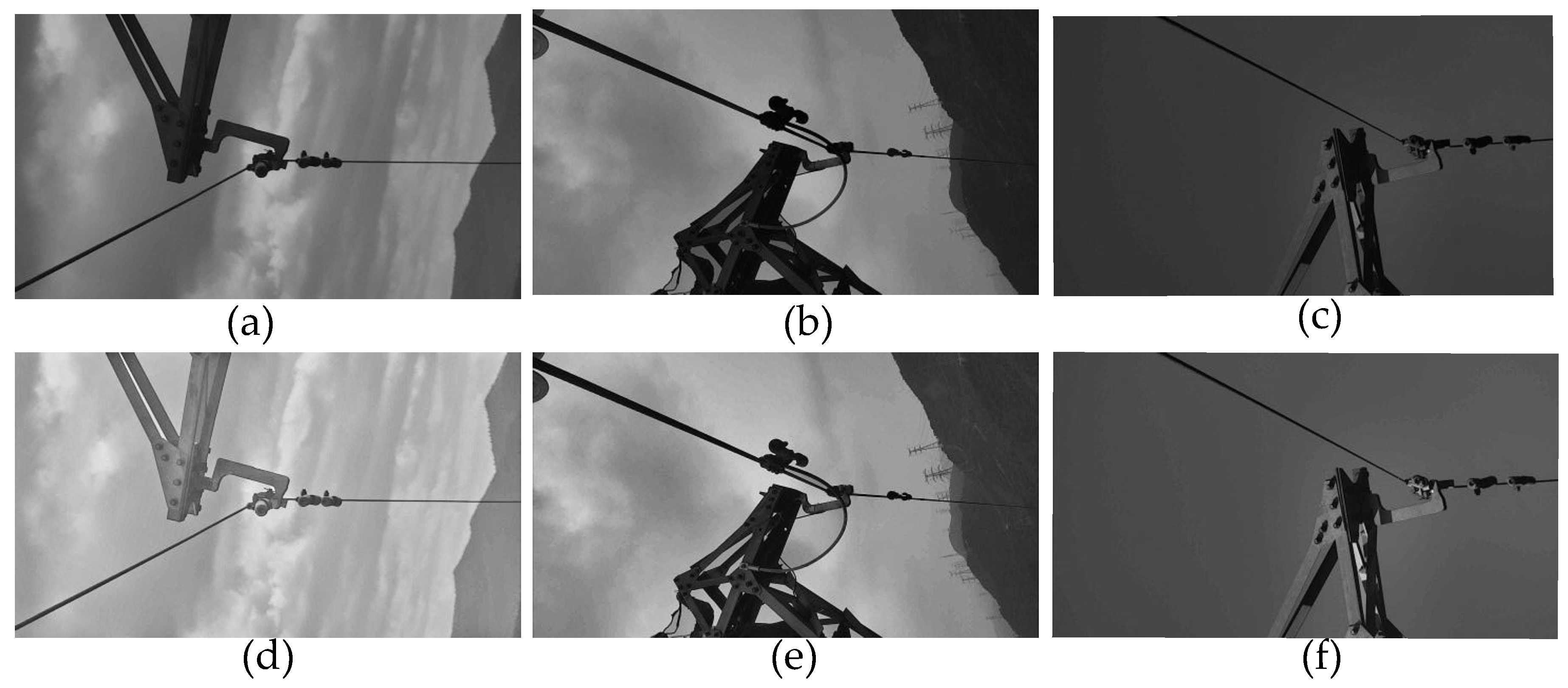

**Figure 13.**Tower head and suspension clamp image under different lighting condition and its corresponding enhancement result: (

**a**) uneven illumination caused by backlighting; (

**b**) backlighting; (

**c**) uniform light; and (

**d**–

**f**) enhancement results corresponding to (

**a**–

**c**).

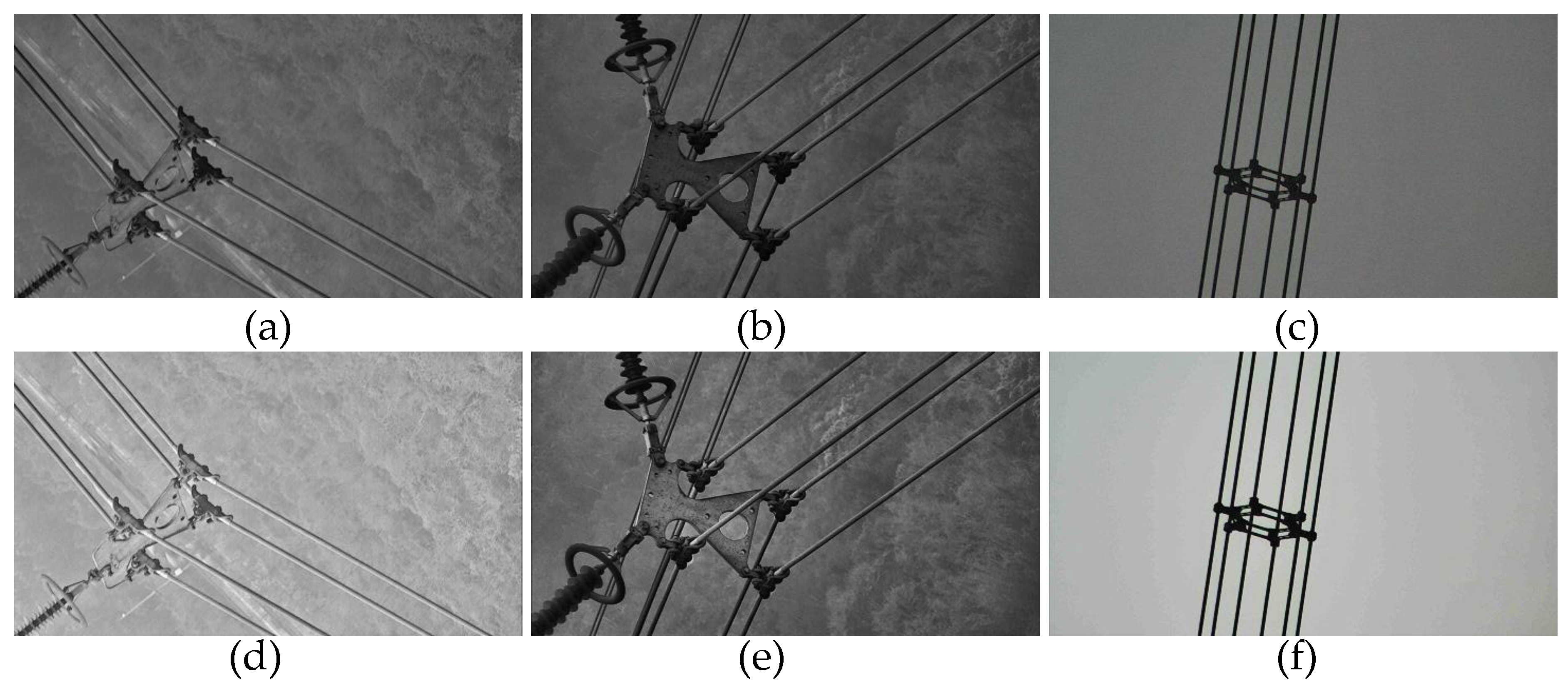

**Figure 14.**Spacer images and enhancement results: (

**a**–

**c**) three spacer images under cloudy condition; and (

**d**–

**f**) enhancement results corresponding to (

**a**–

**c**).

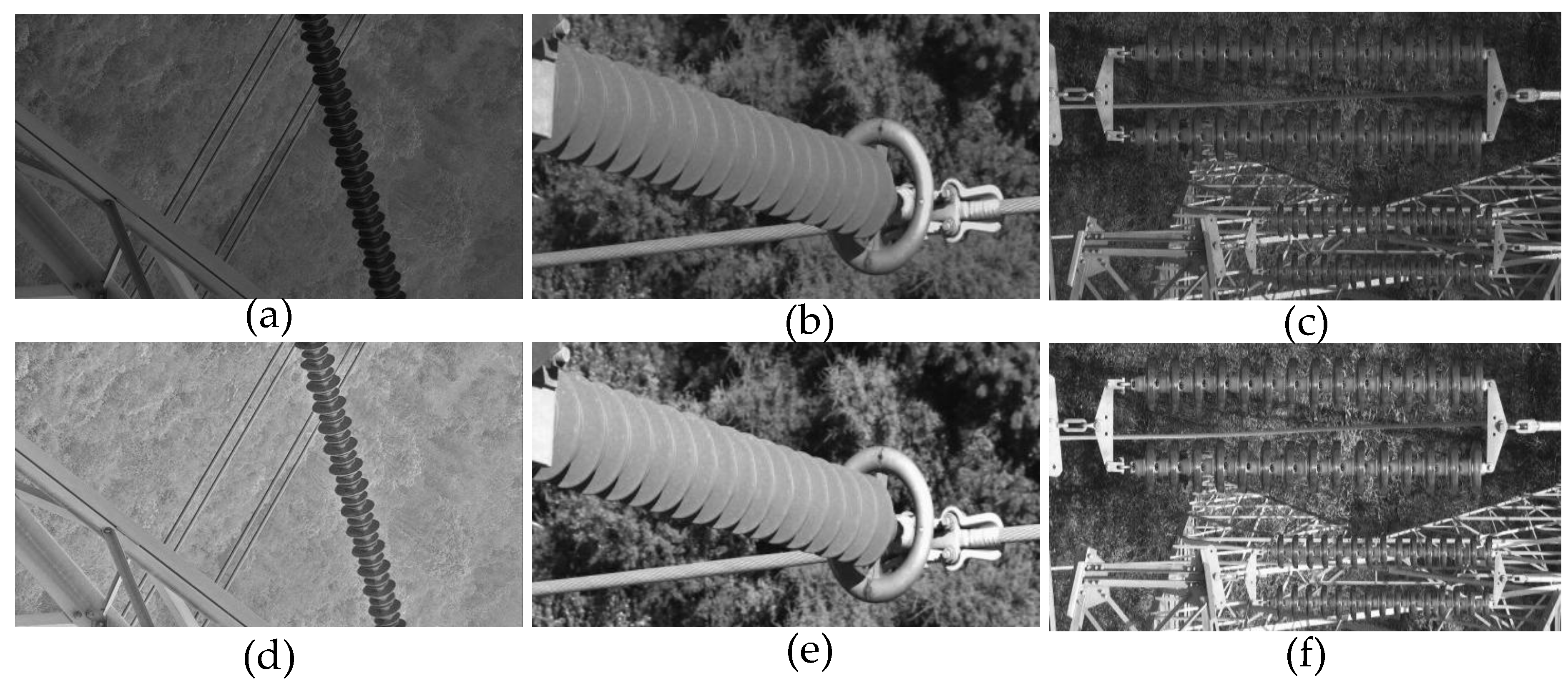

**Figure 15.**Insulator images under different lighting condition and its corresponding enhancement results: (

**a**) cloudy condition; (

**b**) high light condition; and (

**c**) low contrast with noise. (

**d**–

**f**) enhancement results corresponding to (

**a**–

**c**)

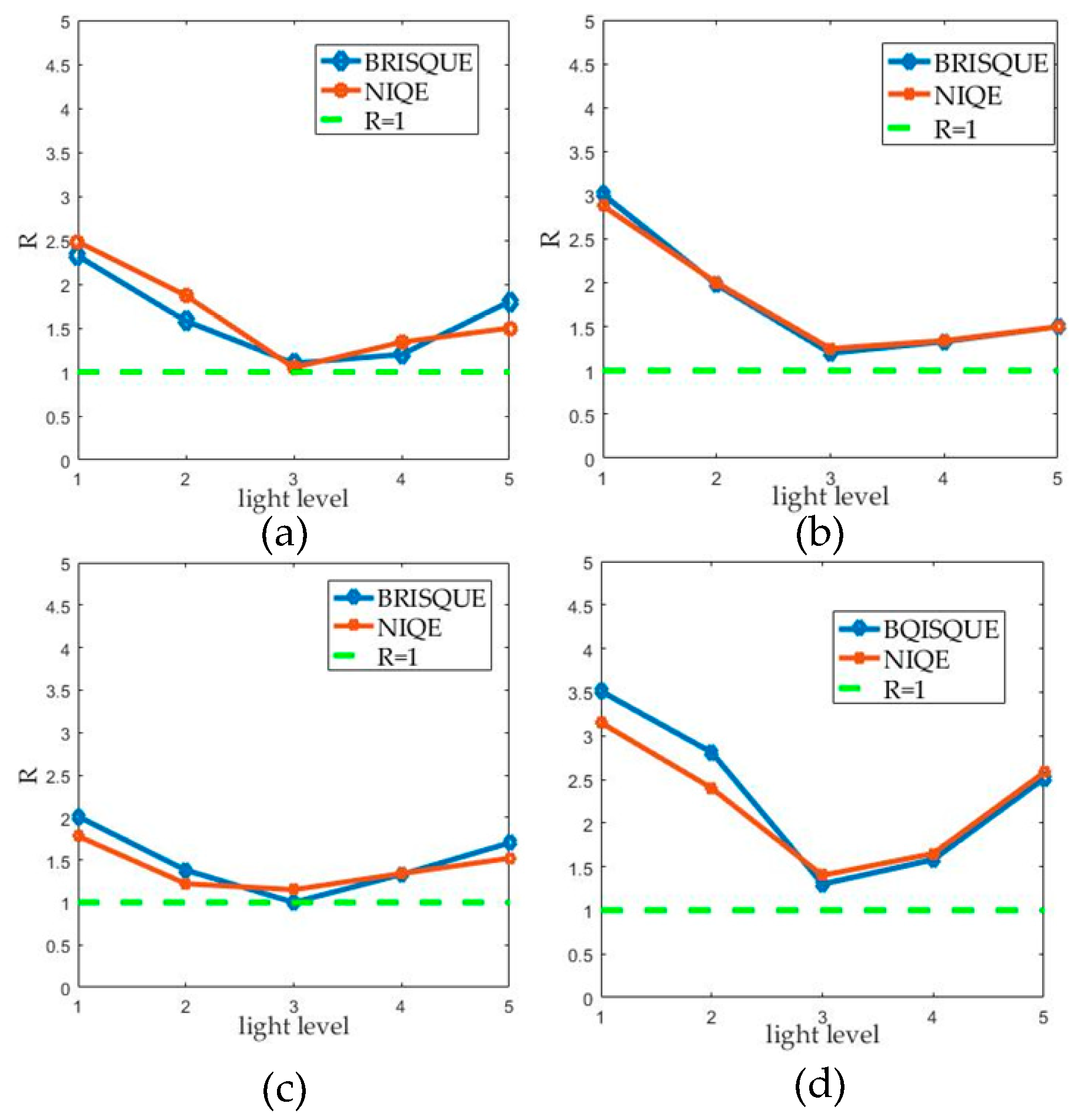

**Figure 16.**Image quality assessment based on two methods: (

**a**) OGW; (

**b**) tower head; (

**c**) spacer; and (

**d**) insulator.

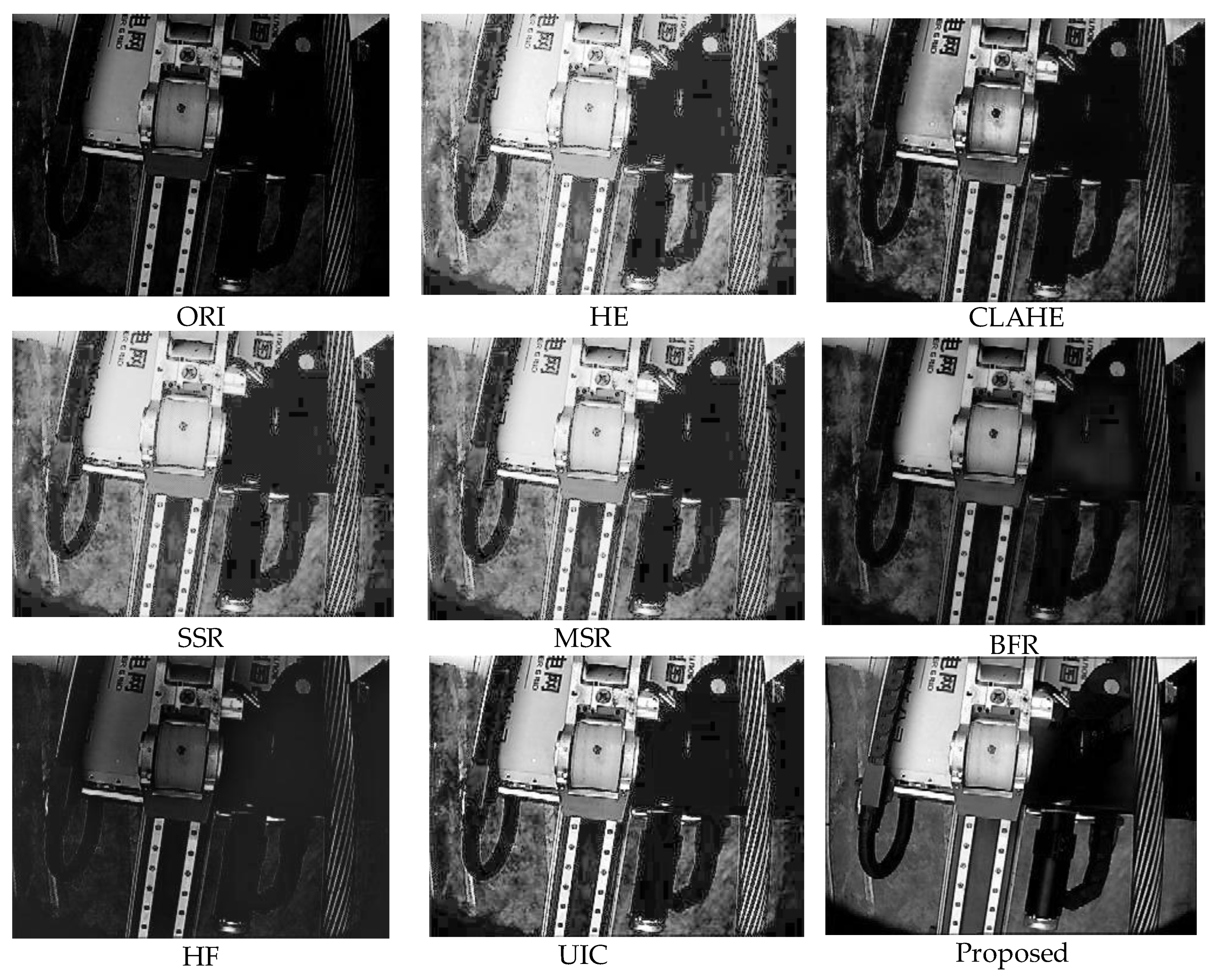

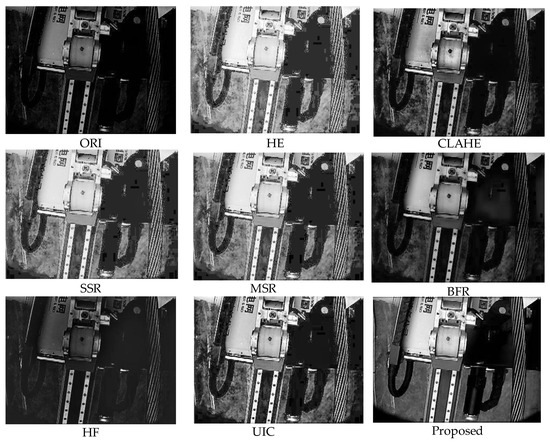

**Figure 17.**The OGW and its enhancement results corresponding to the proposed method and seven other methods.

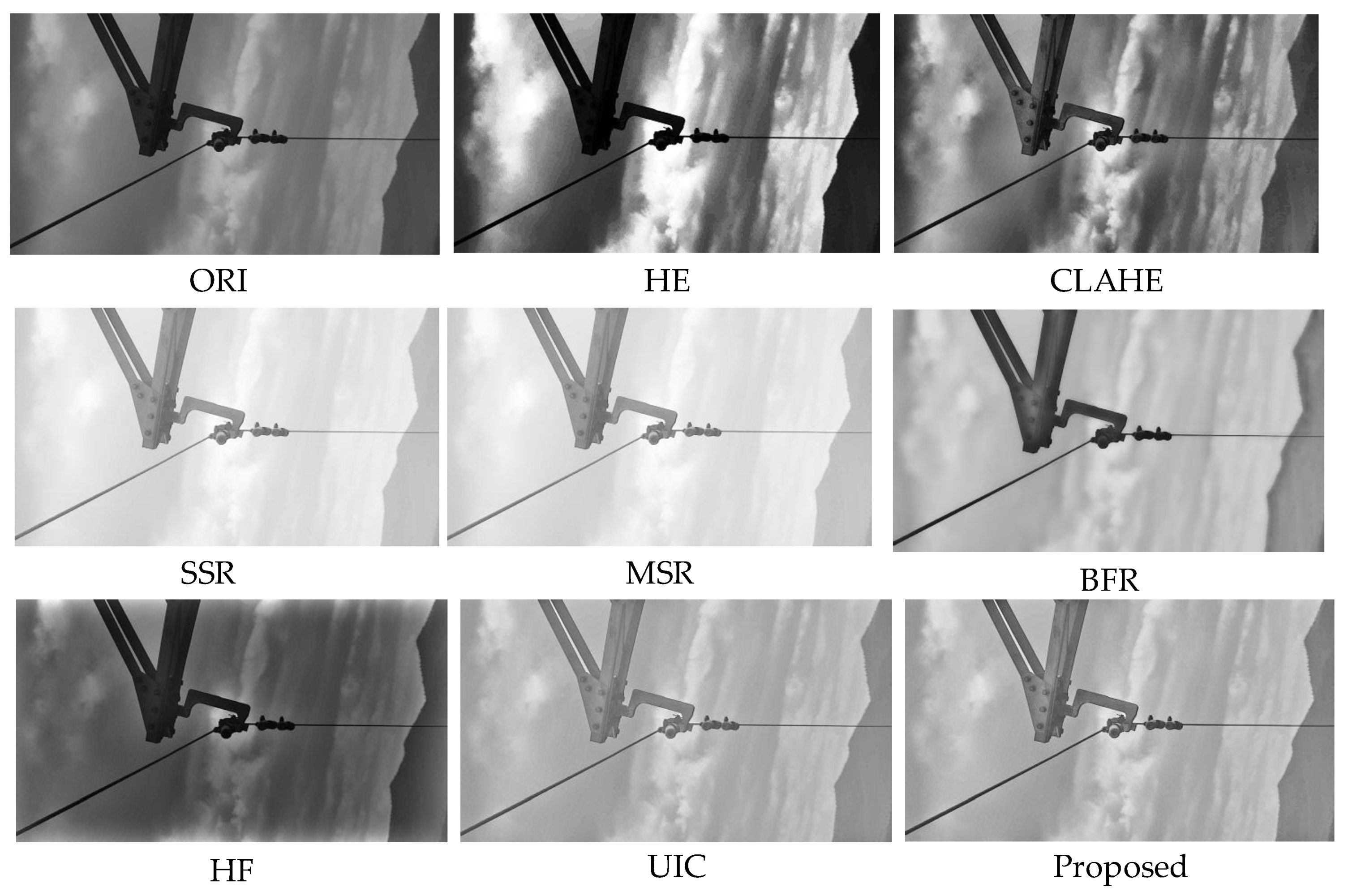

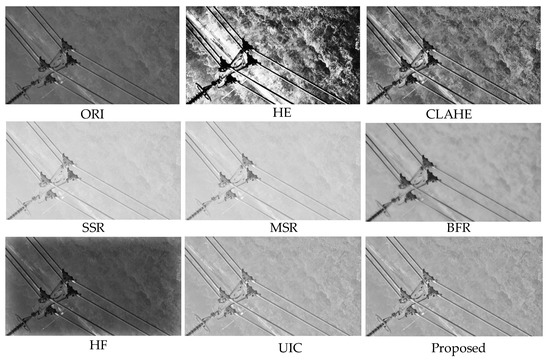

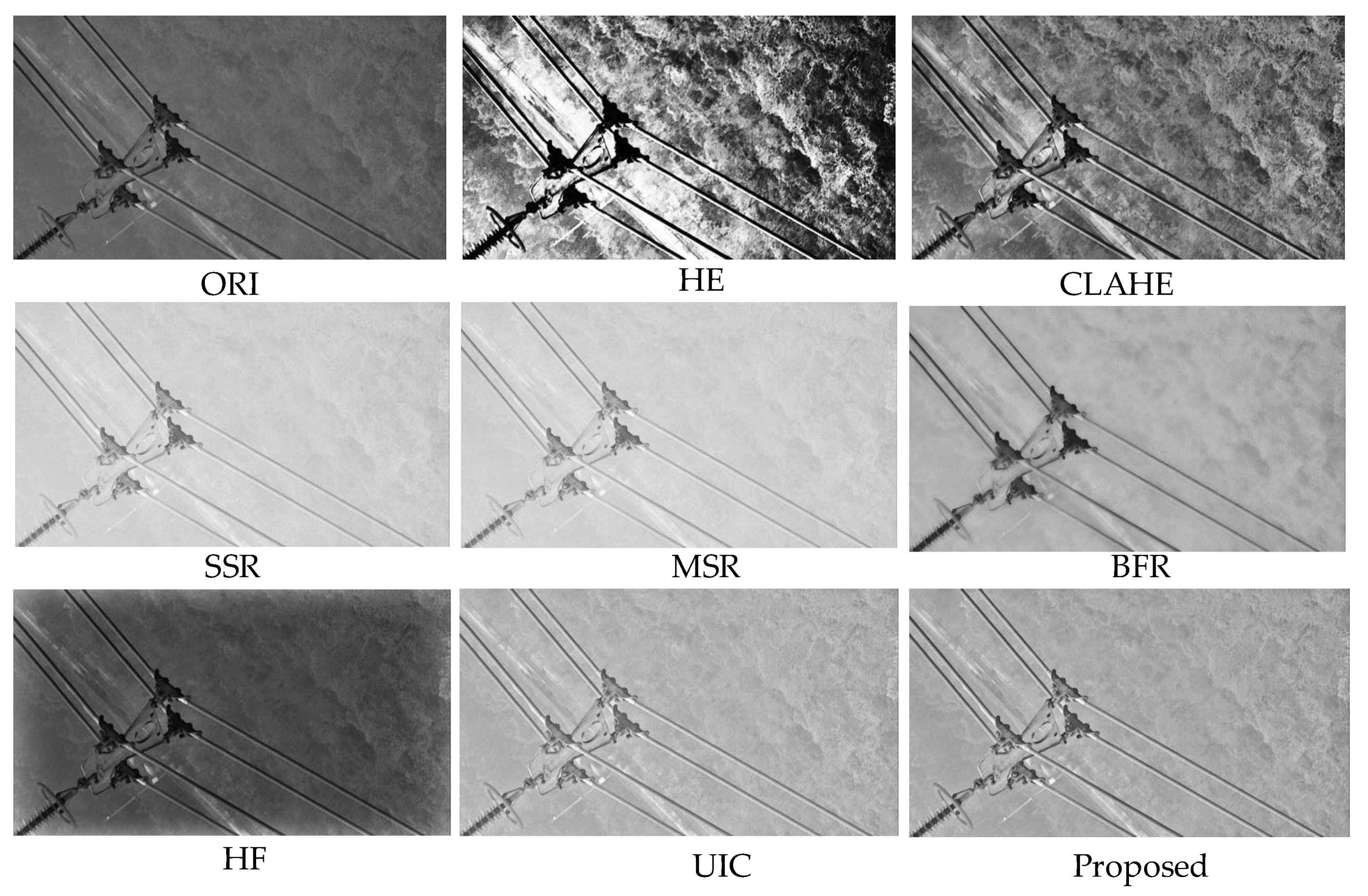

**Figure 18.**Tower head image and its enhancement results corresponding to the proposed method and seven other methods.

**Figure 19.**Spacer image and its enhancement results corresponding to the proposed method and seven other methods.

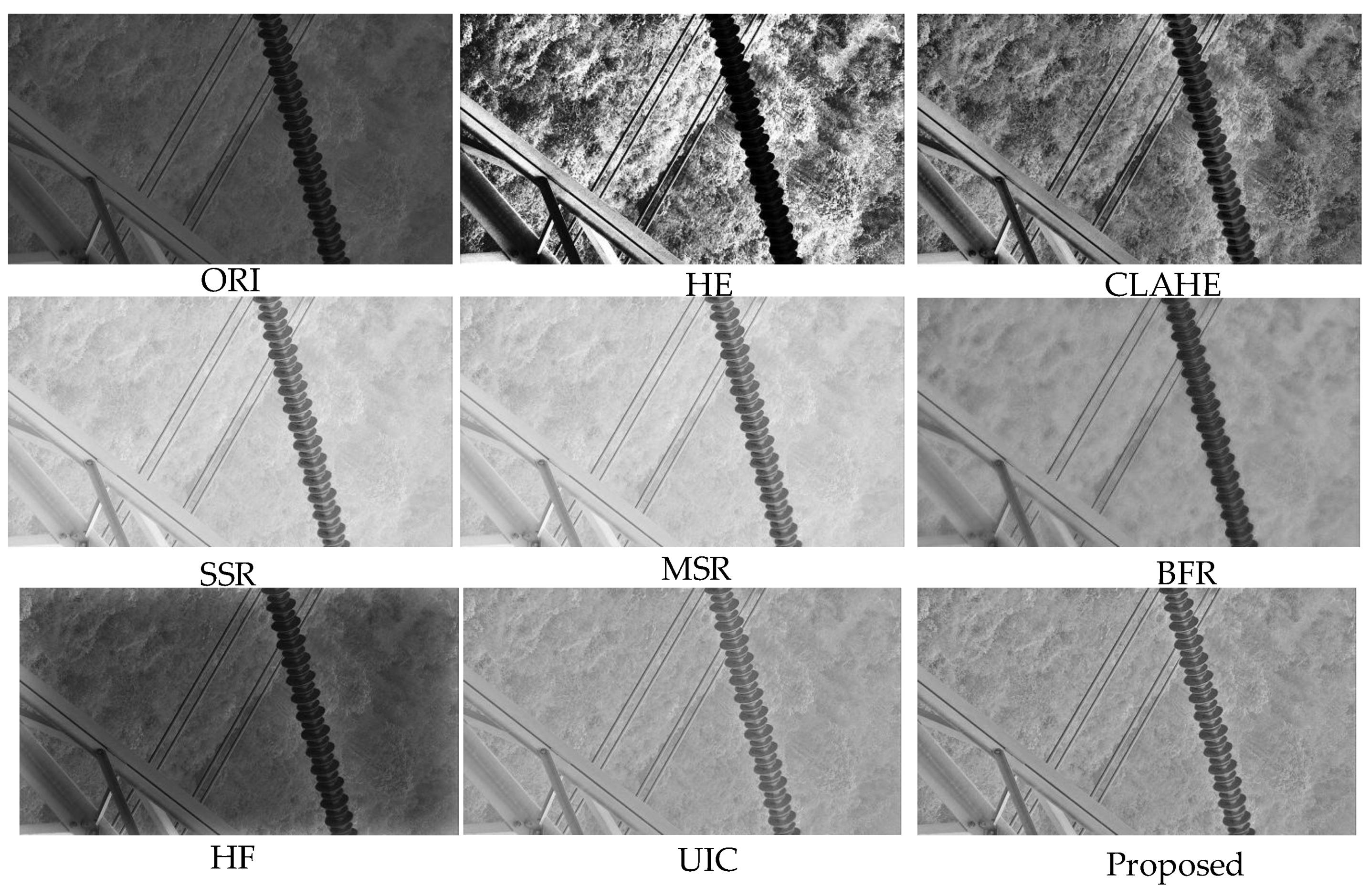

**Figure 20.**The insulator image and its enhancement results corresponding to the proposed method and seven other methods.

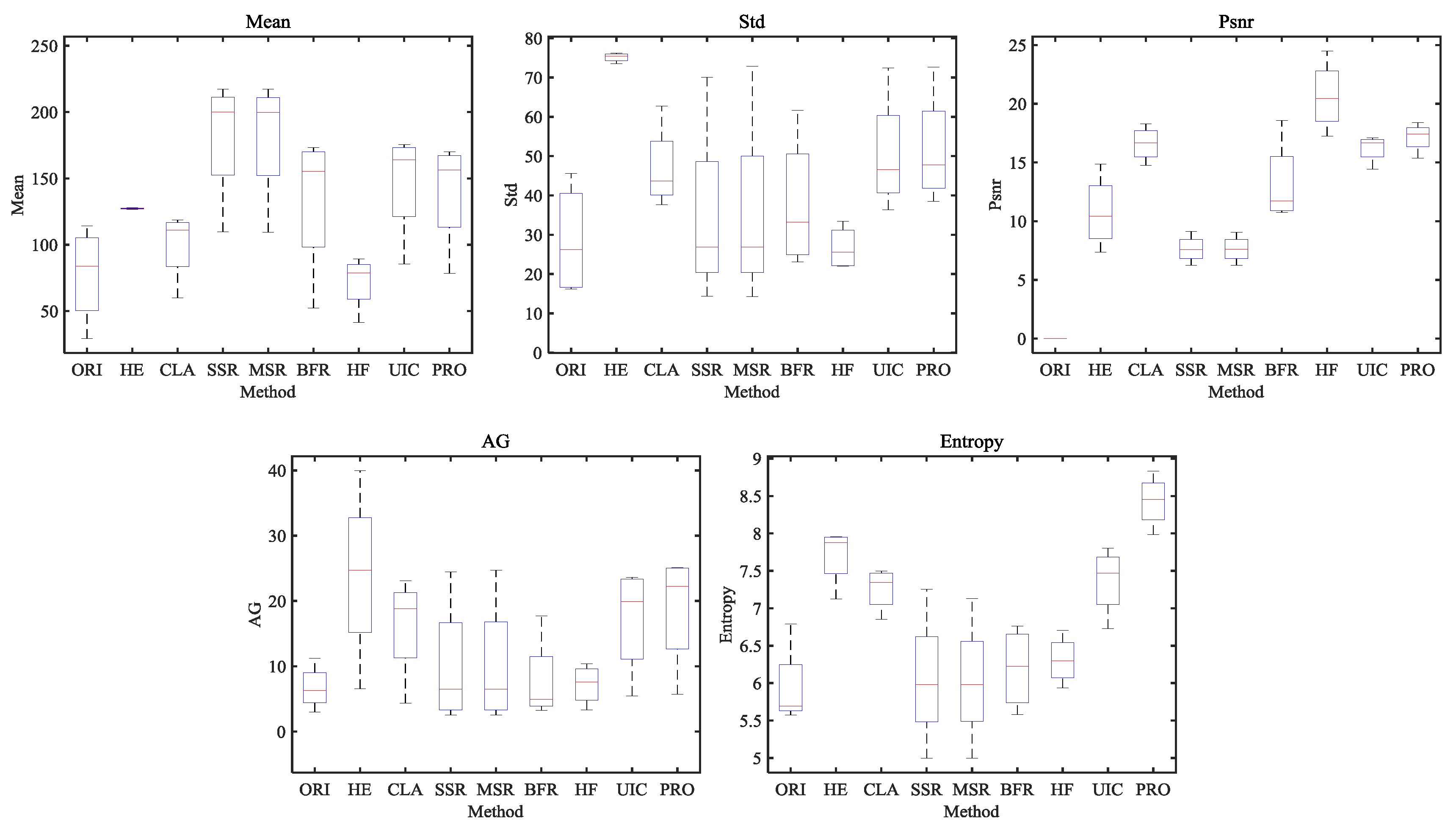

**Figure 21.**Box plots on the evaluation results in Table 1.

**Table 1.**Performance comparison between the proposed method and seven other methods (the best and the next best results are marked in bold for clarity).

Images | Metrics | Original | HE | CLAHE | SSR | MSR | BFR | HF | UIC | Proposed |
---|---|---|---|---|---|---|---|---|---|---|

A | μ | 29.1978 | 127.9185 | 59.9373 | 109.7300 | 109.2672 | 52.2943 | 41.2363 | 85.3292 | 78.5231 |

σ | 45.6244 | 73.4726 | 62.7341 | 70.0999 | 72.858 | 61.6117 | 33.4113 | 72.4624 | 72.6589 | |

PSNR | 0 | 7.3783 | 16.1613 | 9.1124 | 9.0593 | 18.5812 | 19.7599 | 16.5293 | 17.3363 | |

E | 5.5765 | 7.1255 | 6.8520 | 7.2563 | 7.1274 | 6.7632 | 5.9347 | 7.3687 | 8.52 | |

AG | 11.2459 | 25.6000 | 19.4770 | 24.4279 | 24.7139 | 17.71889 | 10.3822 | 23.5873 | 24.9759 | |

B | μ | 114.2131 | 127.2792 | 118.5694 | 217.3490 | 217.3276 | 173.2557 | 89.3493 | 170.9758 | 170.0026 |

σ | 35.5155 | 75.0662 | 44.8043 | 27.2032 | 27.2031 | 39.5885 | 28.8699 | 48.2586 | 50.2931 | |

PSNR | 0 | 14.8789 | 17.1565 | 7.8022 | 7.8040 | 12.4479 | 17.2273 | 16.7657 | 17.5285 | |

E | 6.79104 | 7.8054 | 7.4964 | 5.9883 | 5.98528 | 6.5478 | 6.7040 | 7.5647 | 7.9810 | |

AG | 3.0168 | 6.5515 | 4.3512 | 2.5193 | 2.5117 | 3.2190 | 3.2947 | 5.4863 | 5.6898 | |

C | μ | 95.9608 | 126.6853 | 114.8822 | 204.8801 | 204.6748 | 166.8592 | 81.0755 | 175.3968 | 164.3482 |

σ | 16.9639 | 76.2246 | 37.6639 | 14.3400 | 14.3057 | 23.0463 | 21.9640 | 36.3856 | 38.5258 | |

PSNR | 0 | 11.1655 | 18.2749 | 7.3770 | 7.3933 | 10.9895 | 21.1130 | 17.1076 | 18.3802 | |

E | 5.6879 | 7.9420 | 7.2475 | 4.9972 | 4.9958 | 5.5791 | 6.21321 | 6.7278 | 8.8295 | |

AG | 5.7872 | 23.8295 | 18.1844 | 4.1298 | 4.1102 | 4.5419 | 6.3697 | 16.7515 | 19.5665 | |

D | μ | 71.4139 | 127.0236 | 107.1109 | 194.9818 | 195.0240 | 143.9296 | 76.5124 | 157.2113 | 148.1063 |

σ | 16.2501 | 75.7446 | 42.4883 | 26.4332 | 26.4856 | 26.7658 | 22.2173 | 44.8245 | 45.2240 | |

PSNR | 0 | 9.6807 | 14.7705 | 6.2544 | 6.2511 | 10.7697 | 24.4966 | 14.4342 | 15.3605 | |

E | 5.7003 | 7.9541 | 7.4366 | 5.9742 | 5.9773 | 5.8995 | 6.3785 | 7.8035 | 8.3831 | |

AG | 6.7750 | 39.9595 | 23.0930 | 8.8554 | 8.8670 | 5.2698 | 8.7855 | 23.0940 | 25.1184 |

Algorithm | HE | CLAHE | SSR | MSR | BFR | HF | UIC | Proposed |
---|---|---|---|---|---|---|---|---|

Time 1 (s) | 0.015 | 0.052 | 0.032 | 0.092 | 0.061 | 0.122 | 0.150 | 0.132 |

Time 2 (s) | 0.120 | 0.424 | 0.220 | 0.842 | 0.660 | 1.241 | 1.526 | 1.250 |
