Article

Recommendations for Landslide Early Warning Systems in Informal Settlements Based on a Case Study in Medellín, Colombia

1
Chair of Engineering Geology, Technical University of Munich, 80333 Munich, Germany
2
AlpGeorisk, 86609 Donauwörth, Germany
3
Geological Society of Colombia, Antioquia Chapter, 50016 Medellín, Colombia
4
Chair of Landscape Architecture and Design, Institute of Landscape Architecture, Leibniz University Hannover, 30167 Hannover, Germany
*
Author to whom correspondence should be addressed.
Land 2023, 12(7), 1451; https://doi.org/10.3390/land12071451
Submission received: 20 June 2023 / Revised: 13 July 2023 / Accepted: 14 July 2023 / Published: 20 July 2023
(This article belongs to the Special Issue New Perspectives for the Monitoring and Early Detection of Geohazards)

Abstract

:
Fatalities from landslides are rising worldwide, especially in cities in mountainous regions, which often expand into the steep slopes surrounding them. For residents, often those living in poor neighborhoods and informal settlements, integrated landslide early warning systems (LEWS) can be a viable solution, if they are affordable and easily replicable. We developed a LEWS in Medellín, Colombia, which can be applied in such semi-urban situations. All the components of the LEWS, from hazard and risk assessment, to the monitoring system and the reaction capacity, were developed with and supported by all local stakeholders, including local authorities, agencies, NGO’s, and especially the local community, in order to build trust. It was well integrated into the social structure of the neighborhood, while still delivering precise and dense deformation and trigger measurements. A prototype was built and installed in a neighborhood in Medellín in 2022, comprising a dense network of line and point measurements and gateways. The first data from the measurement system are now available and allow us to define initial thresholds, while more data are being collected to allow for automatic early warning in the future. All the newly developed knowledge, from sensor hardware and software to installation manuals, has been compiled on a wiki-page, to facilitate replication by people in other parts of the world. According to our experience of the installation, we give recommendations for the implementation of LEWSs in similar areas, which can hopefully stimulate a lively exchange between researchers and other stakeholders who want to use, modify, and replicate our system.

1. Introduction

1.1. Landslide Impact and Losses in Colombia and the Aburrá Valley

Worldwide, a rise in the amount of deadly landslides has been observed in the last 50 years, especially in the period between 1995 and 2014 [1,2]. Rainfall therein was a major factor, especially in combination with densely populated areas. Such endangered populated areas are often located on very steep slopes of informal settlements [3,4,5,6]. In these informal settlements, the vulnerability to landslides is naturally higher than in other urban areas, both physically (low construction standard of houses) and socially (response capability, hazard education and awareness) [7,8]. Thus, in areas with low income and high inequality, landslides are a greater impeding factor [9]. This divide in landslide risk between rich and poor is expected to increase in the subsequent decades, due to climate change and other factors, such as increased urbanization in mountainous environments, population growth, and deforestation [2,10]. With changing precipitation characteristics, inhabited areas will be more at risk than in the past [11], while other hazards such as wildfires can act as a promoting factor for future landslides [12].
In South America (e.g., Colombia), high relief, dense population, and high seasonal precipitation are major factors promoting fatal landslides [5]. Thus, fatalities mostly occur in populated mountainous regions, where mortality rates are significantly higher in less developed countries. Cases of deadly landslides have been rising in the last 20 years in Colombia and were triggered mostly by rainfall and anthropogenic factors [13]. The most fatal landslides, on the other hand, were triggered by volcanic activity and earthquakes [9]. The department of Antioquia, which is located in the northwest of Colombia, has the highest total number of landslide events and the second highest total fatalities in Colombia [13,14]. The area of Medellín and the Aburrá Valley are landslide hot spots, especially when looking only at anthropogenic triggers—one half of the landslides that were triggered by human activity in Colombia took place in the Medellín area [9]. Additionally, the third biggest landslide in Colombia, called Villatina landslide, occurred in Medellín in 1987 and caused 500 fatalities [15,16]. It was caused by human activity (water mismanagement) and located in an area that is very similar and close to the area that is taken as a case study here (see Section 1.3).

1.2. Local and Multisectoral Landslide Early Warning Systems

In areas with a high landslide hazard and dense urbanization, where structural mitigation methods are not feasible, the only remaining option—resettlement—is usually not possible, because of the significant economic costs and other complex reasons [17,18]. In addition, the community members usually have no interest in relocating, even if they are aware of the landslide risk they are exposed to [19]. Low-cost mitigation measures can and should be applied, but they can only reduce the risk to a limited extent, without being too costly. For these reasons, landslide early warning systems (LEWS) can be an effective measure to close this gap for some years, until other measures can be applied [20]. It is important to note that, in areas such as the case study of this project, LEWS should be seen as a mid-term, not a long-term, solution.
Examples of such systems have been proposed before, but they have tended to be limited to remote sensing or environmental monitoring [21,22,23,24]. Other studies have shown that combining community measurement and warning systems with low-cost technical measurement systems can be effective [25,26,27,28,29,30], especially when communities are involved in all parts of the risk management cycle [31]. Owing to its complex nature, urban landslide risk can only be reduced by interdisciplinary approaches, including, e.g., geologists, engineers, social scientists, and landscape architects [32,33]. A LEWS resulting from this approach can be called an integrated LEWS (Figure 1).
Notwithstanding the monitoring and forecasting effort, which has to be adapted to the local circumstances, the other components of risk management, risk analysis, alert dissemination, and reaction capacity also have to be addressed. For all of the parts of the system to work together effectively, it is especially important to increase the communication between the actors, to improve the risk education of the local population and to incorporate them into the process of developing and sustaining the warning system [31,34,35]. Considering this, the social aspect of the LEWS is as important as the technical system, especially since local communities are the most involved party and often the first responders after an event [36,37]. Nevertheless, their involvement in early warning systems is often overlooked [38].

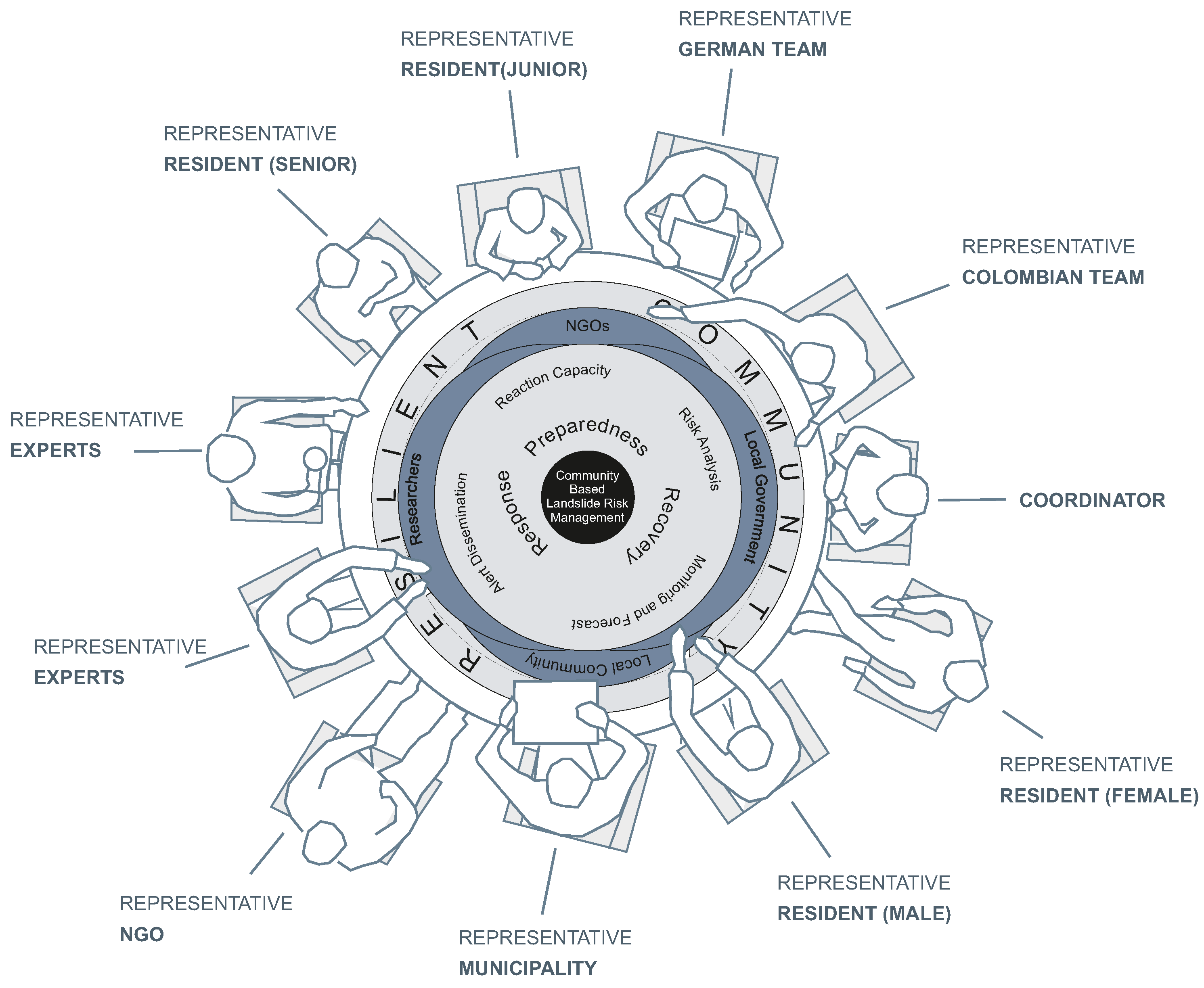

Figure 1. Example of a typical monthly stakeholder meeting for an integrated LEWS. The involvement of all stakeholders is deeply interlinked with the risk cycle and the four elements of the LEWS (risk analysis, monitoring and forecast, alert dissemination, and reaction capacity). Adapted from Sharma [38] and Werthmann [39].
Figure 1. Example of a typical monthly stakeholder meeting for an integrated LEWS. The involvement of all stakeholders is deeply interlinked with the risk cycle and the four elements of the LEWS (risk analysis, monitoring and forecast, alert dissemination, and reaction capacity). Adapted from Sharma [38] and Werthmann [39].
Land 12 01451 g001

1.3. Project Overview and Goals of the Inform@Risk Project

To tackle the challenges posed by landslide risk in informal settlements, the Inform@Risk project was established. It is a consortium of German universities, research institutes, and small companies, together with Colombian universities, agencies, NGOs, and local communities. The project aims at a: (1) socially and (2) spatially integrated, (3) multi-scalar and (4) multi-sectoral LEWS, which at the same time provides (5) accurate measurements using (6) low-cost equipment, and whose technology and guidelines are (7) replicable and transferable to other similar areas [40,41,42]. To achieve this, the LEWS has been developed as a living lab, in which the stakeholders collaborate by sharing ideas and knowledge, thus contributing to and improving the system [43].
An informal settlement with a high landslide hazard was selected in Medellín, Colombia, to design and test such a system. The study area is located in the upper part of the neighborhood of Bello Oriente in the north-east of the city in Comuna 3. It has an area of about 36.78 ha with approx. 4600 inhabitants living in 1285 buildings, 49% of which, around 2270 inhabitants, are located in a high hazard area [40]. The site is located at the city border and is currently expanding into the as yet uninhabited rural parts upslope to the east.
In Medellín, landslides are a prominent hazard, since the city is surrounded by mountains and therefore has a very steep topography east and west of its center (up to 30° in the east [41,44]). The elevation difference between the valley floor and the surrounding highland is about 1000 m [45]. The steep hills in the east of Medellín mostly comprise dunite rock, an ultramafic rock mainly composed olivine and pyroxene, which weathers easily and deeply due to primary and secondary serpentinization and subsequent chemical weathering into clay minerals and iron oxides and hydroxides [46,47]. Therefore, these slopes are generally more susceptible to landslides [45,47]. This is especially striking when looking at the most devastating landslides in Aburrá Valley of the last 100 years that caused around 800 deaths: most of them were located on the eastern slopes, where dunite rock outcrops are present [44]. The area is mostly threatened by small- to medium-size shallow landslides, which occur in the weathered layers above the dunite rock. The second most likely hazard is mudflows.
Based on the goals of the Inform@Risk project mentioned above, we designed a monitoring system that can be applied to slopes in inhabited areas with high landslide hazard, where however the exact location of a future landslide cannot be determined [42,48]. To be able to reliably detect critical landslides, the system needs to cover the complete high-hazard area with sufficient spatial and temporal resolution. This is dependent on the expected size landslide and, of course, is an aspect which also affects the economic cost. In order to achieve an efficient system, hazard- and risk-based variation of the density and type of sensors is essential.
The technical concepts and details of the monitoring system have previously published [42,48]. In this contribution, we report the installation and integration of this technical system into the public space and into the dynamics of the local community of the study site in Bello Oriente, Medellín. This pilot study, in which a large monitoring system was put in place in collaboration with the local authorities, based on the previously mentioned technical and social concepts, then allowed us to propose recommendations for future LEWSs in informal settlements. These recommendations are displayed as a framework with a modular design, which allows for future additions and improvements. To facilitate this, a freely available wiki website with details about the implemented technical and social parts was created.

2. Methodology of the Inform@Risk LEWS

In the following section, we give a short outline of the methodology of our LEWS, regarding hazard and risk assessment, monitoring, community integration, and socio-spatial integration.

2.1. Hazard- and Risk Assessment

Before installing any measurement system, a detailed hazard and risk analysis has to be carried out [35]. The goal of a risk assessment is a risk map, which combines the landslide hazard, including events with different processes and sizes, with the local vulnerability and elements at risk. To assess the hazard, a detailed investigation, including on-site geological, geomorphological and process mapping, as well as direct and indirect geological studies, such as drillings, geophysical methods, and numerical modeling, should be performed. Which of these methods are applied in a specific scenario needs to be decided after a preliminary (preferably on-site) analysis [41].
For assessing the hazard from geological findings, we decided to use an approach that combines the locally used hazard analysis defined in the POT 2014 (Plan de Ordenamiento Territorial de Medellin [49]) with Swiss methods for analyzing and assessing natural hazards. The latter are based on detailed geological investigation and delineation of hazard scenarios for different processes and return periods [50]. This was subsequently blended with maps of the elements at risk; especially a detailed map of population density and a building usage classification (e.g., residential, commercial, and public buildings, such as as schools, meeting places, etc.) to arrive at a semi-quantitative risk map [51]. Due to the low quality of most buildings, their vulnerability was not differentiated throughout the area [40].

2.2. Combination of Measurement Systems for a Low-Cost System: CSM and Inform@Risk Geosensor Network

A measurement system was designed based on the requirements of the project (Section 1.3). The system has been described in detail before [42,48].
The monitoring system is based on deformation measurement lines and a newly developed low-cost wireless geosensor network. While the former allows detecting and locating shear and extensional deformation along measurement lines up to about 300 m in length, the latter provides punctual deformation (e.g., based on an inclination sensor or jointmeter) and other measurements relevant to landslide monitoring; e.g., the triggering factors of ground water level and rainfall. A schematic layout of such a system can be seen in Figure 1 in Gamperl et al. [48].
The deformation measurement lines consist of a combination of CSM (continuous shear monitor, Thuro et al. [52]) and a series of wire extensometers. These were installed horizontally into trenches, which followed streets and pathways across the slope or vertically into geological exploration drillings. If an event occurs and the lateral or basal rupture surface of the landslide passes through one of the measurement lines, the failure location and amount of shear and extensional deformation can be assessed. Ideally, if the sensor lines run across and through (in depth, in boreholes) the landslide, an accurate depiction of the size, depth, and activity of the landslide can be derived.
The newly developed open source geosensor network utilizes IoT (Internet of Things) technologies, e.g., LoRa® (Long Range) data communication and micro-electromechanical-system (MEMS) sensors to provide a flexible versatile platform for additional relevant measurements of the surface and shallow subsurface. The wireless measurement nodes act as dataloggers with an integrated inclination, barometric pressure, and temperature sensor, and have been designed so that they can be attached directly to walls or other infrastructure and monitor their tilting [48]. The measurement node can also be installed on top of a shallow subsurface probe, in which, depending on the ground conditions, groundwater level and inclination measurements can be performed to a depth of up to 5 m below the surface. These sensors are versatile and relatively cheap, so that, in high hazard areas, a higher quantity can be installed, making the detection of initial movements more likely.
All data were retrieved by multiple, and—in the case of the wireless geosensor network—redundant, central stations and were transmitted to an offsite data server. As the LoRa® data transmission provides ranges up to 15 km, depending on the topography, often only a few central stations are needed to cover large areas.

2.3. Community Integration into All Parts of the LEWS

In integrated LEWSs, the local at-risk community is one of the main actors [31,53]. This is also the case in the Inform@Risk LEWS. For this reason, multiple participatory activities needed to be developed, to address the components of risk knowledge and analysis, monitoring and forecasting, alert dissemination, and response capacity. These activities included workshops with the community regarding all four components and excursions (walking tours) with technical professionals and community members. In addition, including the community in hands-on activities, such as mapping and installation of measurement systems, can be a way of raising awareness and creating a connection to the system [40].

2.4. Socio-Spatial Integration of a LEWS

Commonly, the mechanical-electronical parts of a LEWS are located in remote areas that are not accessible for people at risk. In the case of an informal settlement such as Bello Oriente, where people live in high-hazard areas for landslides, the sensors are located inside the neighborhood’s public space, near to and on peoples’ houses. A key factor for a successfully integrated LEWS is the acceptance and support of the residents at risk [31,54]. At the same time, it is necessary to protect the monitoring system from external influences. Therefore, an approach for how to spatially and socially integrate the monitoring system into the public open space and how to protect the mechanical-electronical parts was conceived.

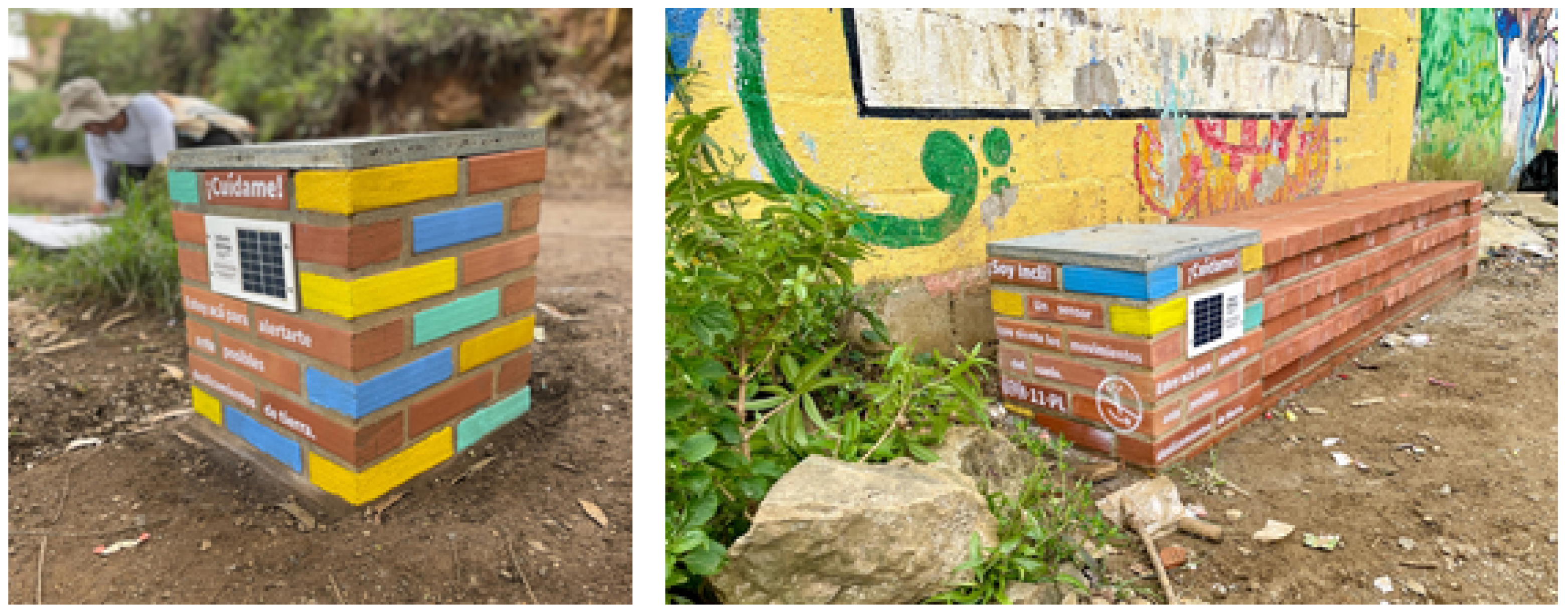

Sensor protectors, built as benches and seats for daily use, can function as a natural reminder of the landslide risk. In combination with informative elements, such as short inscriptions and explanatory signs, these small meeting spaces seek to increase acceptance and decrease vandalism. The type and material of the public space elements should be site-specific and jointly developed with the residents at risk and experts, including, e.g., landscape architects, urban planners, and architects.

3. Installation and First Results of the System in Medellín

3.1. Planning of the Sensor Map Based on Risk Assessment

The risk assessment resulted in three maps with 30-, 100-, and 300-year return frequencies (see [40]). The results were used to plan the sensor density and locations, as well as the evacuation routes, including safe meeting points. In areas with high risk, a higher density of sensors was planned, while in areas with lower risk, the density was reduced significantly. This resulted in a preliminary sensor map for the area, which was then checked and optimized with photographic analyses and on-site visits, taking, e.g., the infrastructure (sensors should only be installed on stable infrastructure, where deformation reflects ground movements, and should be installed in places with good sunlight reception for the solar panel) and the social conditions (house inhabited or not and prospects of future constructions nearby that might affect the sensor) into account (Figure 2). The inhabitants of houses in question were asked if they agreed to have a sensor on their house. For subsurface sensors, which are located mostly in remote locations, the plot owners or the inhabitants were asked. The overall acceptance of both subsurface and infrastructure sensors was very high, and only a small number of sensors had to be moved to a different location, either because a land owner did not give permission or new construction works were carried out on the house or surroundings that affected the exposure of the solar panel of the sensor. For the gateways and large benches, the municipal planning department was involved in the site selection, so that the project would not interfere in future development plans for the neighborhood.

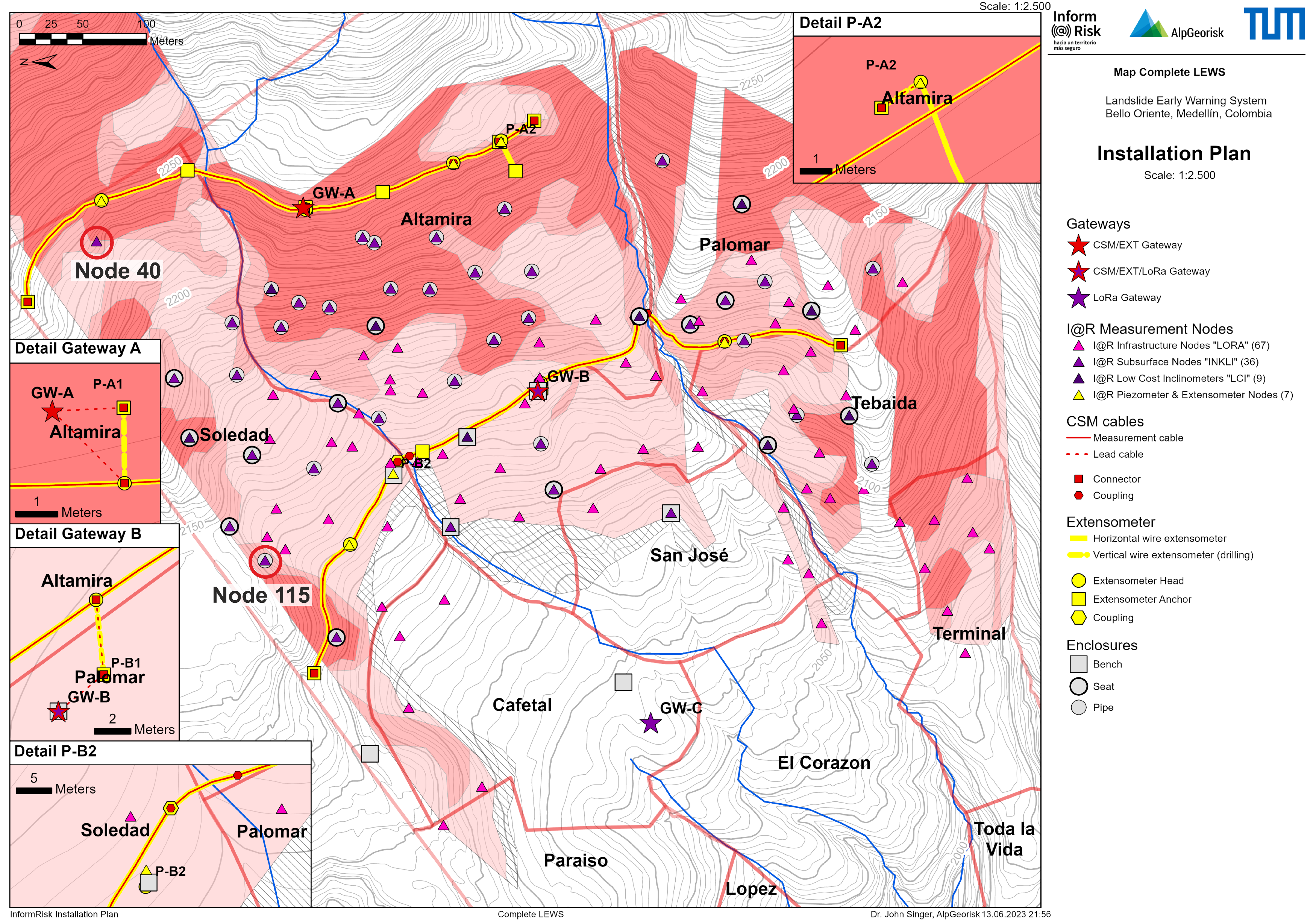

Figure 2. Final installation plan for the monitoring system in Bello Oriente. Overall, 111 measurement nodes, over 1 km of horizontal measurement lines, and three gateways were installed on site. Locations of nodes 40 and 115, displayed in Figure 3, are indicated by the red circles.
Figure 2. Final installation plan for the monitoring system in Bello Oriente. Overall, 111 measurement nodes, over 1 km of horizontal measurement lines, and three gateways were installed on site. Locations of nodes 40 and 115, displayed in Figure 3, are indicated by the red circles.
Land 12 01451 g002

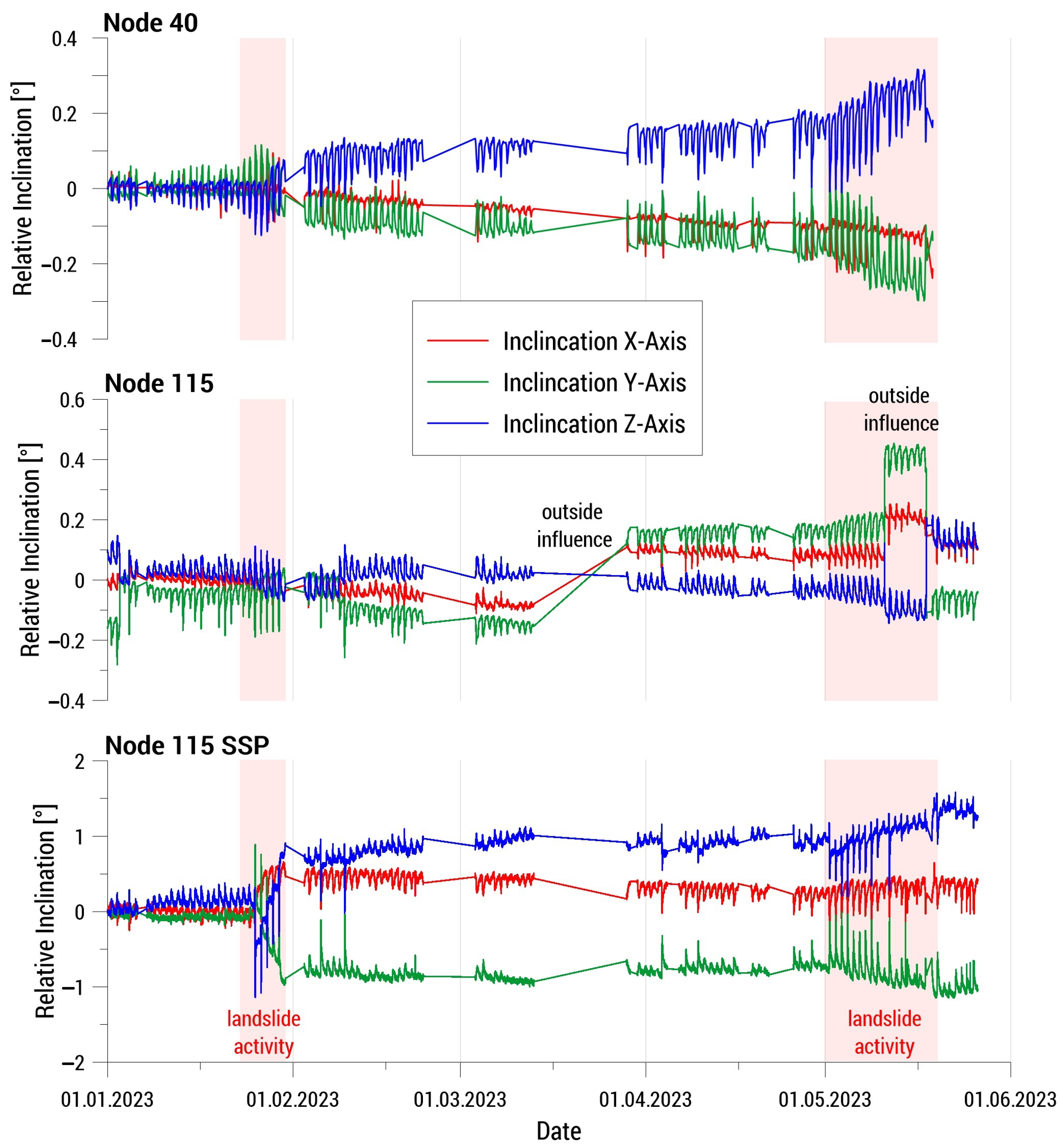

Figure 3. Change in inclination of an infrastructure node (node 40, surface inclinometer only, top) and a subsurface node (node 115) equipped with a surface inclinometer (middle) and a subsurface inclinometer (SSP, bottom) at 1.5 m depth from 1 January to 17 May 2023. See Figure 2 for the sensor locations. (X-axis: downhill).
Figure 3. Change in inclination of an infrastructure node (node 40, surface inclinometer only, top) and a subsurface node (node 115) equipped with a surface inclinometer (middle) and a subsurface inclinometer (SSP, bottom) at 1.5 m depth from 1 January to 17 May 2023. See Figure 2 for the sensor locations. (X-axis: downhill).
Land 12 01451 g003

3.2. Installation of the Sensor System and First Sensor Data

The sensor system was developed in several steps, both in the laboratory and in the field. In these iterations, both the capabilities of the system and the ease of use and replicability were improved. Following the sensor system development and a test installation in southern Germany [48], the installation at the test site in Colombia was implemented in the period between March and August 2022. During the installation, the sensors and the process of installation were further improved, due to onsite experiences.
In total, 111 measurement nodes, over 1 km of horizontal measurement lines, and three gateways were installed at the test site Bello Oriente in Medellin, Colombia. Figure 2 shows the final installation plan with the point and line measurements and the gateways. Additionally, four boreholes of 30 to 50 m depth, which were drilled for the geological investigations, were instrumented with piezometers, extensometers, and a CSM system. Some pictures of the sensors in the field are shown in Figure 4.
For the installation, a local construction company was hired to perform the earthwork and installation of the horizontal cable lines. The company was asked to hire workers from the local community, in order to strengthen the ties between the LEWS and the community and also to help the locals economically. The installation of the point sensors was performed by researchers and students with the help of the locals. This process took 20 to 45 min for an infrastructure sensor (excluding social work) and two to four hours for a subsurface sensor (usually with no social work involved, because of a remote location).
Since the gateways were installed (August 2022), sensor data have been collected from the system. All data acquired in the geosensor network and the other measurement systems currently installed in Bello Oriente are immediately transferred to an off-site central server, where they are processed and analyzed in near real time. Then the data are stored, analyzed, and visualized using the AlpGeorisk ONLINE data management service developed and operated by AlpGeorisk. The data stored and visualized on this web platform can also be accessed utilizing an open-source smartphone app, which was developed as part of the project by the Deggendorf Institute of Technology (see Werthmann et al. [40]).
So far, around 50,000 datapoints have been collected per day from the Inform@Risk sensor nodes. The CSM system, on the other hand, which is 1 km long and creates a datapoint for every 2 mm of cable (spatial resolution) and produces 0.5 million datapoints per measurement cycle (usually every 30 min). All data are processed to identify failed sensors and exclude false data (empty values or those outside the expected range). Most sensors were activated in the fall of 2022, so that, at the time of writing, about 1/2 year to 1 year of data exist for most sensors. Based on this data, preliminary thresholds have been set, which will be continuously refined as more measurements are made. For the inclination sensors of the Inform@Risk measurement nodes, for example, the following simple thresholds were set: notification >0.5°/month; pre-warning: 0.5°/week; warning 0.5°/day; alarm: 2°/h.
An exemplary dataset is visualized in Figure 3. This example proves the sensitivity (<0.05°) of the MEMS inclination sensor used in the Inform@Risk measurement node. It also illustrates some of the issues the data analysis procedure has to tackle in order to produce reliable (automatic) warnings: the separation of daily, temperature-induced fluctuations from multi-day trends, the recognition of outside influences, and the interpretation of a change in inclination as an indicator of critical landslide activity.
Both nodes displayed in Figure 3 were installed within, or in the direct vicinity of, known recently active small landslides (mid to end 2022). Each inclinometer measures in three orthogonal orientations and is capable of reliably detecting inclination changes above 0.05°. The data clearly show a daily, temperature-dependent fluctuation, which varied in magnitude depending on the type of installation and monitored object (building, retaining wall, steel pipe of subsurface probe, etc.). To date, only very small movements have been detected. However, phases of increased activity could still be identified (light red vertical bars), where all three sensors show slight trends in the data over several days. While the change in inclination in the areas marked as “landslide activity” was not high enough to trigger warning thresholds, some movement, which can be attributed to the previous landslides, was observed and the active phases correlate to periods of comparably high rainfall. Sudden changes in the inclination of a single node, especially if installed at the surface, can be attributed to outside influences.

3.3. Integration of the Community into All Parts of the LEWS in Bello Oriente

To address the community integration of the LEWS, the methods described in Section 2.3 were deployed. In total, over 40 workshops, together with other participatory activities, with over 1000 participants were held in Bello Oriente (see also Werthmann et al. [40]). The workshops and other activities, such as the construction of manual sensors, community walks, and emergency drills, were developed in order to strengthen the different components of the LEWS. Additionally, regular monthly meetings were held with representatives of all Colombian partners, in order to discuss the planned activities (Figure 5).
To explain how the risk analysis of the system works, several workshops were held with the local community and civil society organizations (Figure 6 upper left). In these, the results of the geological analysis were shown, historical landslide events were discussed and risk factors of the area were identified, in order to reduce them (e.g., leaks in water pipes, incorrect construction techniques, etc.). Additionally, walking tours of the neighborhood were conducted with the participation of technical professionals and members of the community, to identify risk factors, thus allowing for an exchange of knowledge.
Regarding monitoring and forecasting (Figure 6 upper right), some manual monitoring elements were implemented with the community, and automatic sensors were explained in detail. These manual elements usually work in the manner of self-built crack-meters, where deformation is measured manually and marked directly on the instrument. There was also intensive work on identifying the visual signs of a landslide (e.g., cracks, tilted trees, water poles, etc.), since community monitoring is one of the most important elements within the system. Another strategy was to identify, together with the community, what we called “godparents” of the sensors. These are people who live near a sensor and volunteer to take care of it. This mainly involves a regular visual control of the sensor and giving notice if there is an apparent alteration to the sensor or it’s protection element.
Multiple alert dissemination channels were implemented with the community (Figure 6 lower left), in order to increase redundancy regarding this part. The channels comprised the use of WhatsApp groups, door-to-door alert notices between nearby neighbors, push messages through the Inform@Risk app, messages played through a large sound system installed in the upper part of the area, and a siren system.
To address the response capacity (Figure 6 lower right), evacuation routes and five meeting points located in stable areas, as defined by the hazard assessment, were identified and marked. Multiple exercises were carried out, to define the actions to be taken at the different qualitative alert levels, defined with the community. These exercises included theoretical risk scenarios and the development of two evacuation drills, designed and developed together with the risk management authority and local civil society organizations.
Since the LEWS was developed in an informal settlement, it was relevant to identify the power relationships among the different actors, including those with governmental, legal, and illegal roles. This implied constant and open communication, in order to gain and maintain trust among the different actors. One of the key actors in the community training and the social power management were the local civil society organizations of the area [55]. Some of the civil society organizations that supported the development of the LEWS had been working with the community for several years, so they had a deep understanding of the social structures and needs.

3.4. Socio-Spatial Integration of LEWS

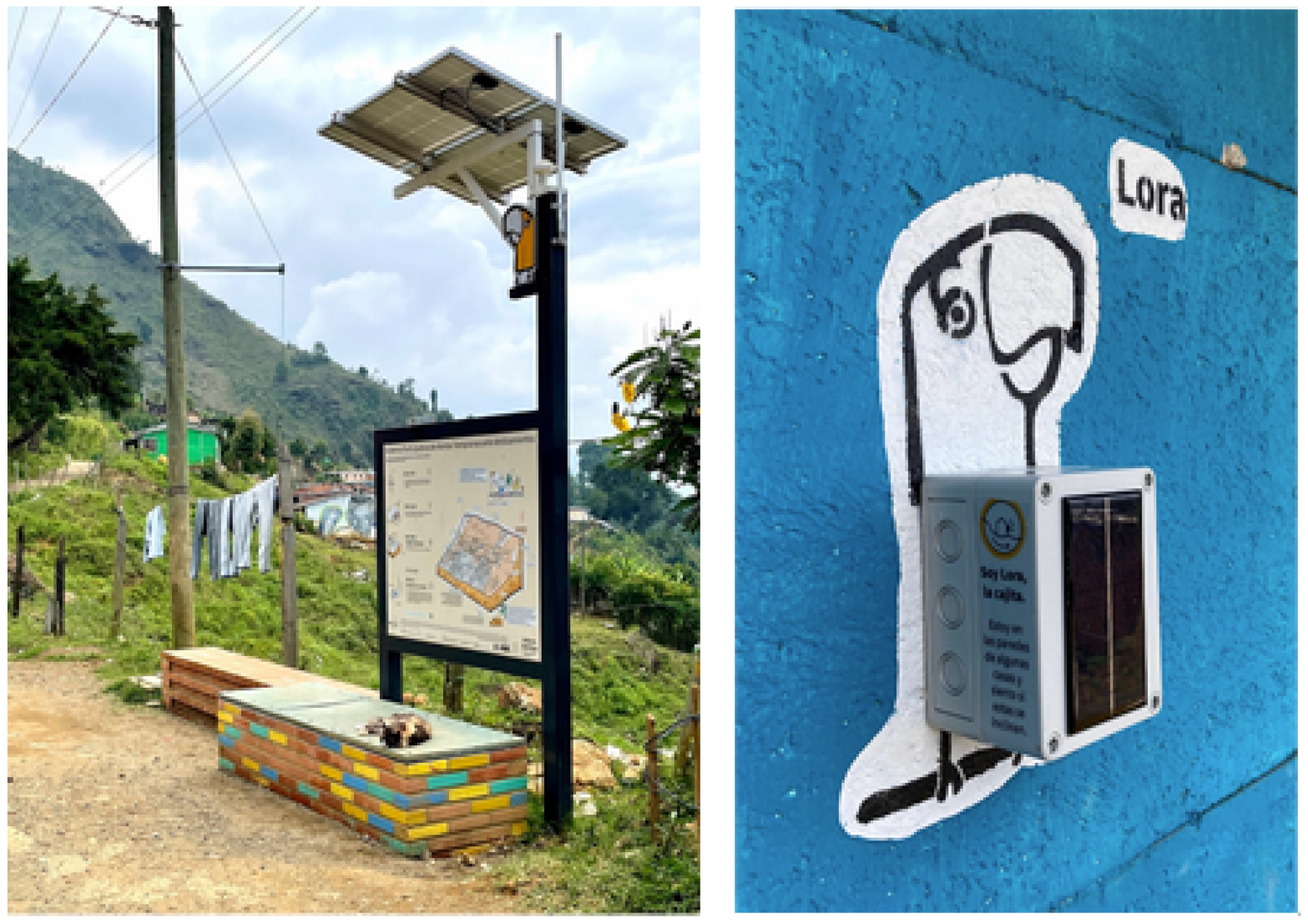

Based on the guidelines mentioned in Section 2.4, an integrated concept for public space interventions was developed. The main material chosen for constructing the benches and seats in Bello Oriente was red brick, as it is resistant to tropical weather conditions and is a well-known constructing material in the neighborhood. As one project goal was to build a low-cost system, not all sensors were protected with a bench construction, in order to save costs. Sensors located on steep slopes in remote areas were protected with a low-cost enclosure, a simple plastic pipe (Figure 4). Sensors near pathways and streets, where people walk by, had a medium size set up, in our case a small brick seat (Figure 7, left). Together with residents, the places for building benches and seats were chosen at socially and spatially suitable places, where people could meet and benefit from them. As a special part of the monitoring system, Gateway B (Figure 8) was designed as an informative meeting space. A large bench was paired with a steel construction holding the antennas, the solar panel, and a sign showing more detailed information about landslide risk and the LEWS (Figure 8, left). To add environmental elements and also to increase residents’ responsibility and awareness for these places, micro gardens and trees were planted next to the benches. To protect the horizontal CSM lines from external disturbances, such as future construction activities, simple point markers every 3 to 5 m display their location (Figure 9).

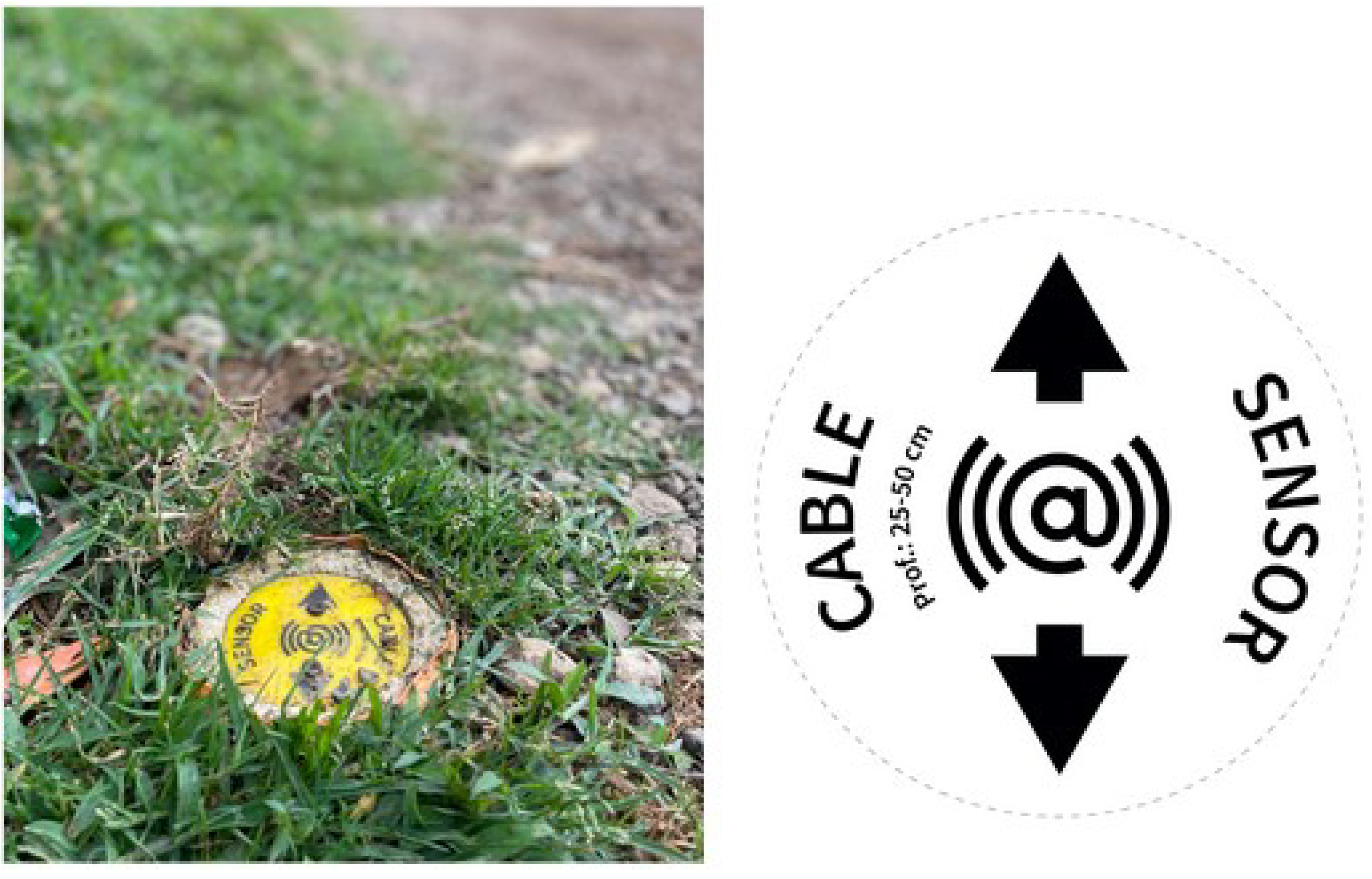

For all sensor types, an overall communication strategy was developed. Easy-to-understand characterizations explain the landslide risk and how the slope is monitored. As an example, the short form “LoRa®” means “parrot” in Spanish. Through simple wall paintings of “Lora the parrot” paired with the technical LoRa® box, the infrastructure nodes are visibly spread in the upper part of the neighborhood and serve as an important recognition feature for the integrated LEWS (Figure 8, right).

3.5. The Inform@Risk Wiki

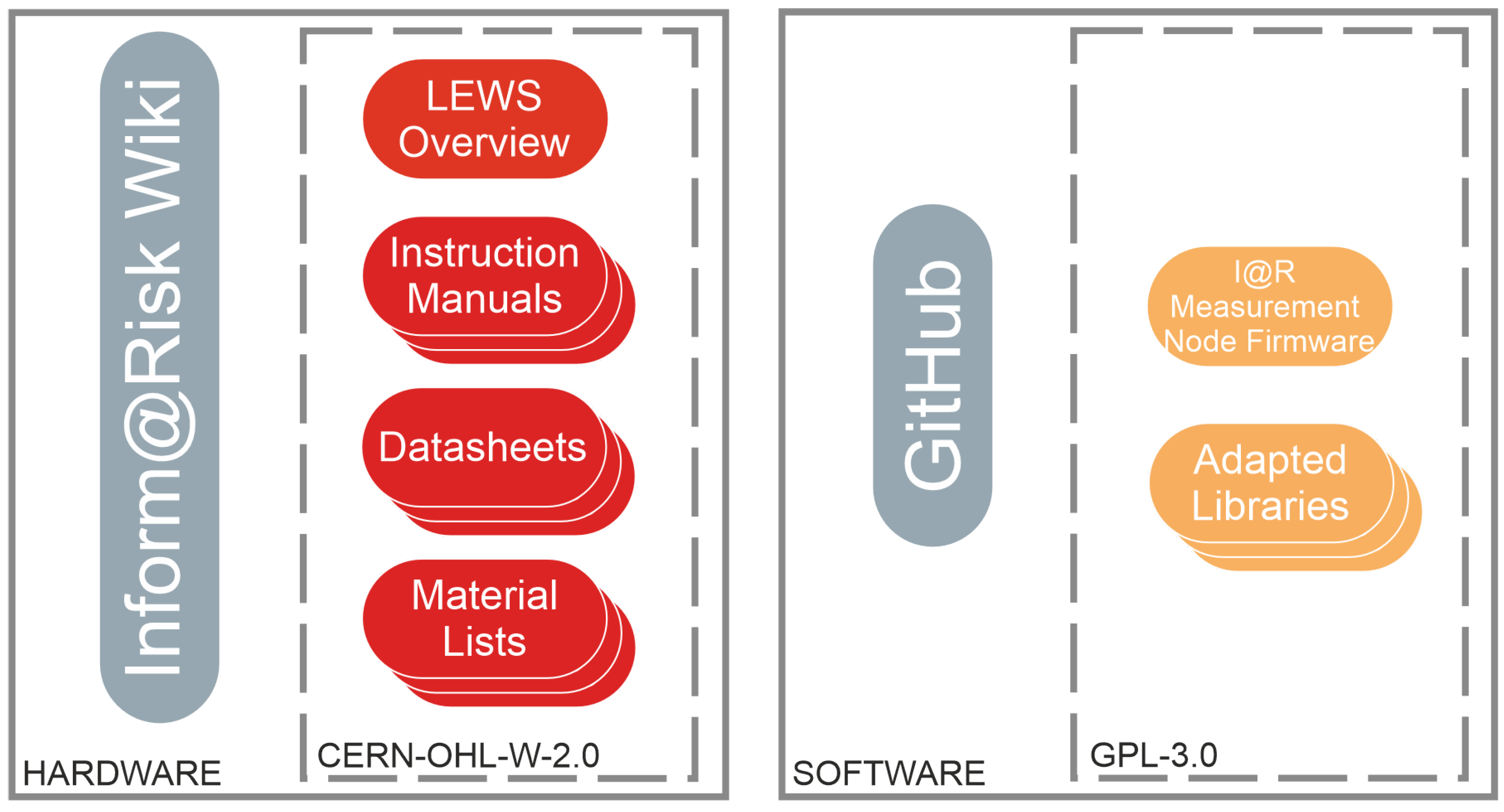

In order to make the monitoring part of the proposed LEWS as easily replicable as possible, we have compiled all necessary information on a wiki page under: www.informatrisk.com (accessed on 10 June 2023) (Figure 10). For the technical parts of the measurement system described in the last section, we created material lists, installation/construction manuals, as well as datasheets, where necessary. The necessary steps to construct the sensors and install them in the field are explained in detail using pictures from example installations, as well as graphical descriptions. All newly developed parts of the monitoring system are published open source (Figure 11).
To provide flexibility, as well as easy replicability, the sensor designs rely on 3-D printed parts. The 3-D designs are also available on the wiki and can be accessed and modified easily using open-source or free software, such as Blender or Ultimaker Cura. For example, the 3-D printed parts of the subsurface nodes in small drillings were designed for a casing diameter of 1.25”, but could easily be adapted to, e.g., casings of 1.5” or 2” diameter. These general descriptions should allow anyone with basic knowledge of electronics and 3-D printing to replicate the sensors.
The basic measurement node, on which all sensors rely, consists of a printed circuit board (PCB) with about 100 components, the design of which is also available on the website, including the circuit schematics as a PDF and fritzing files. This should allow easy future modification, if for example additional or updated sensors need to be added. Nonetheless, the design can be taken and used as is.
The provided firmware for the nodes can be used for both the infrastructure nodes and subsurface measurements. The documentation for the firmware is hosted on a GitHub page, while the installation of the software on one’s personal computer is described in an instruction manual, which is hosted on the project wiki website. The necessary software to install the firmware on the nodes comprises the Arduino development environment (IDE, Arduino [56]) and various Arduino libraries, most of which can be downloaded directly in the IDE, while some of them were written specifically or adapted for the measurement nodes. The latter can also be downloaded from the project wiki website. To make the code as easily accessible as possible, it is distributed via GitHub: https://github.com/moritzgamperl/informrisk-lora-node/ (accessed on 10 June 2023). In this way, changes can easily be made by other contributors. The firmware was written in a way such that it can mirror the flexibility of the nodes themselves: additional sensors can be turned on or off, and the node can be used without any attached sensors (even without an inclination sensor) as something similar to a “smart home” sensor that measures temperature and barometric pressure. On the other hand, both analog (12 or 24 bit ADC) and digital (I2C, SPI, and serial (TTL) ports) sensors can easily be attached. For example, we used the node not only for its intended functions but also to control and monitor gateways (serial communication) and measure their voltage and current consumption, to measure extensometers (linear potentiometer measurement) and piezometers (4–20 mA current loop measurement) in drillings of up to 50 m depth, and to control a siren system on site (relay).
Descriptions on how to perform low-cost extensometer measurements are also given in an additional document hosted in the wiki. The measurements themselves must be performed using a commercial wire potentiometer, but the wire suspension and guiding can be carried out using simple 3-D printed parts and some easily available basic construction parts. The laying of the wire itself in a horizontal measurement line is also delineated. The measurements can be made using the Inform@Risk measurement nodes, utilizing the required firmware provided on the GitHub page. The CSM system that was installed for the Inform@Risk project, on the other hand, is more difficult to replicate because of the sophisticated software needed, the large amount of data produced, and the high effort required for cable and measurement instrument installation in trenches and shafts.
General descriptions are also given on how to install and operate a LoRa® gateway. In general, any commercially available LoRa® gateway could be used. However, as continuous interruption-free operation is essential, many things need to be considered when installing the gateways, including signal reception, power supply and storage, data storage, internet connection, redundancy and remote control of the main components and system protection. Consequently, gateways usually have a highly individualized design, adapted to the specific installation site. Furthermore, it is advisable to socially integrate these essential systems into the public space, as we believe this will greatly increase the reliability of the system (see Section 3.4). Therefore, it is difficult to give specific guidelines on this part of the system. However, the general system considerations and a general overview of which devices are needed and how they can be installed and operated can be given on the wiki. The same is true for maintenance, which should ideally also be performed by local risk agencies [57].

4. Recommendations for LEWS Based on the Experiences of the Inform@Risk Project

In the international norm ISO 22327, general guidelines are given for community-based early warning systems [58]. The Inform@Risk LEWS follows these guidelines and has developed specific implementations for the different system elements, adapted to the local needs of our project area in Bello Oriente, Medellín, Colombia. From these experiences, we have developed recommendations for the implementation of LEWS for informal settlements with a community-centered approach (the difference with a community-based early warning system being that there is a greater focus on the monitoring system), which are considered to supplement the general guidelines of ISO 22327.

4.1. Risk Assessment

Often detailed data for area-wide risk assessments is not available, so in the first stage of setting up a LEWS, detailed geological, geotechnical, and social surveys usually need to be performed. Which methodology to use and what level of quality and detail can be achieved depends on many factors, including the type and quality of existing data; local experience/know-how; the usual risk management practice in the region; and the available money, time, and personnel. Nevertheless, the generation of the following elements is considered essential as a data basis for building a LEWS:
  • A geological map and report, describing the distribution and characteristics of all lithological units and geological structural elements;
  • A phenomenological map or landslide inventory, showing all geological and morphological traces, as well as historic information concerning past and current landslide activity;
  • A landslide hazard map and report, which—based on the above surveys—rates all recognized and relevant landslide processes, concerning their probability and magnitude (landslide hazard);
  • A socioeconomic study detailing the exposed elements, including the number and type of elements at risk, namely the number of inhabitants, buildings, roads, vehicles, and livestock;
  • A building inventory listing the construction type and usage of the buildings on site;
  • A socioeconomic vulnerability analysis;
  • An assessment of the current state of landslide risk perception and disaster preparedness of the community.
Before starting these surveys, we strongly recommend getting into contact with community leaders and any existing organizations (aid organizations, NGOs, etc.) already working in the community and involving them in the planning of the activities.
The community should be informed about the activities (community meetings, leaflets, public walks, etc.) and should be asked to support the efforts, e.g., by accompanying the geological and social surveys or by giving information about their experiences of past landslide events. These activities should be placed within the overall strategy concerning the dissemination and communication of knowledge.

4.2. Monitoring and Early Warning

Landslide monitoring and early warning systems always need to be designed by a landslide expert and specifically for the landslide processes and geological and topographic conditions present in the project area. The Inform@Risk sensor system, for example, was designed for situations where the failure location of future landslides within a large high risk area cannot be predicted and, thus, a priori sensor placement is impossible. This typically is the case for small to medium sized rainfall-induced landslides in soil. The following recommendations, consequently, are limited to this scenario.
The placement of the deformation sensors in the project area is defined based on the results of the hazard and risk analysis. The goal is to achieve an area-wide coverage of the high-risk area by distributing the sensor nodes (I@R geosensor network) and sensor cables (CSM/EXT) throughout the affected area. The average distance between two sensors should, on average, be less than the diameter of the expected typical landslide (e.g., within a 10-year repeat period). However, to keep the system efficient, the sensor density should be varied based on the risk. Thus, in places where the population density is the highest or buildings of special relevance are present (e.g., schools), more sensors are placed, while in less-populated areas, the number of sensors per area can be decreased. It is essential to also consider the run out of potential landslides originating in high-hazard slopes (which might be classified as low risk due to a lack of exposed objects) above the populated areas. While the overall number and distribution of sensors is determined statistically, the exact placement of each individual sensor on site must be optimized considering the following:
  • High probability the sensor will be able to detect the initial movements of a landslide (e.g., attach inclination sensor objects that are shallow in the affected soil);
  • Protection from vandalism and other outside influences (e.g., outside the reach of children and animals);
  • If applicable, minimize shadowing of solar panels by neighboring objects throughout the day;
  • If applicable, ensure that a wireless link to the central station can be established.
There may also be social factors (such as unwillingness of an inhabitant to place a sensor on their house) that influence the sensor placement to a significant degree. If this is the case, the social angle has to be weighed against the other factors, to find the best overall solution. In many cases, the social component will outweigh the technical issues. The monitoring component should not be limited to sensors and automatic instruments. It is highly relevant to help the community at-risk to develop visual and hearing monitoring capacities. By constantly looking for changes in the slope and weather, as well as looking for potential mass movement signs (e.g., leaking pipes, incorrect constructions), risk awareness increases and the monitoring with automatic instruments is complemented.
The topic of dissemination of alerts, in particular, concerns both technical and social issues. In the Inform@Risk project, an app was used in combination with a WhatsApp group. While an app can provide much more information than “traditional” dissemination methods, in our project, it did not prove easy to distribute information [40]. Thus, dissemination methods such as sirens should always be used and combined with other communication pathways such as door-to-door communication or smartphone apps, as redundancy. A sense of responsibility for the sensor system can be achieved by introducing, e.g., sensor godparenthood and maintenance of sensors by the community themselves.

4.3. Dissemination and Communication of Knowledge

As landslide risk is often only one of many problems for the affected communities (and by far not the most pressing problem), it is commonly difficult to raise awareness about landslide risk. While children can be addressed at school, by organizing workshops and preparing age-appropriate information materials, it can be difficult to reach the adult population. For example, community meetings on the topic are often poorly attended (few attendants), even if strong advertising efforts have been made (flyers, house-to-house information walks, etc.). Making the work on the LEWS and its structural components visible and recognizable in public places can, however, help raise awareness. The intention is that community members repeatedly encounter elements of the LEWS in their daily life and thus will be constantly reminded of the presence of the LEWS and its purpose. To facilitate this, the Infom@Risk project implemented the following strategies:
  • Development of a unique, noticeable design for all elements related to the LEWS. This included an information and education campaign (information signs, murals, leaflets, presentations, workshop invitations, giveaways, etc.), the technical components of the LEWS itself (sensor enclosures), and also the clothing of people related to the project in all phases of the work;
  • Placement of information signs at the entrance of the community and in highly frequented areas;
  • Placement of information signs near all noticeable working and construction activities, e.g., geological drillings, geophysical surveys, and construction work for the installation of the sensor system;
  • Improving public spaces by adding benches and seats, which also act as sensor enclosures and information signs;
  • For each warning level, there should be clear messages that describe the expected actions. These messages should use simple language and include specific details on what to do, where to go, etc. The warning levels with the messages should be widely distributed to the at-risk communities;
  • Get into contact with local civil society organizations, so they can include training activities related to the LEWS (risk knowledge, monitoring techniques, reaction capacity, etc.) in their agendas.

4.4. Organizational Framework of the Inform@Risk LEWS

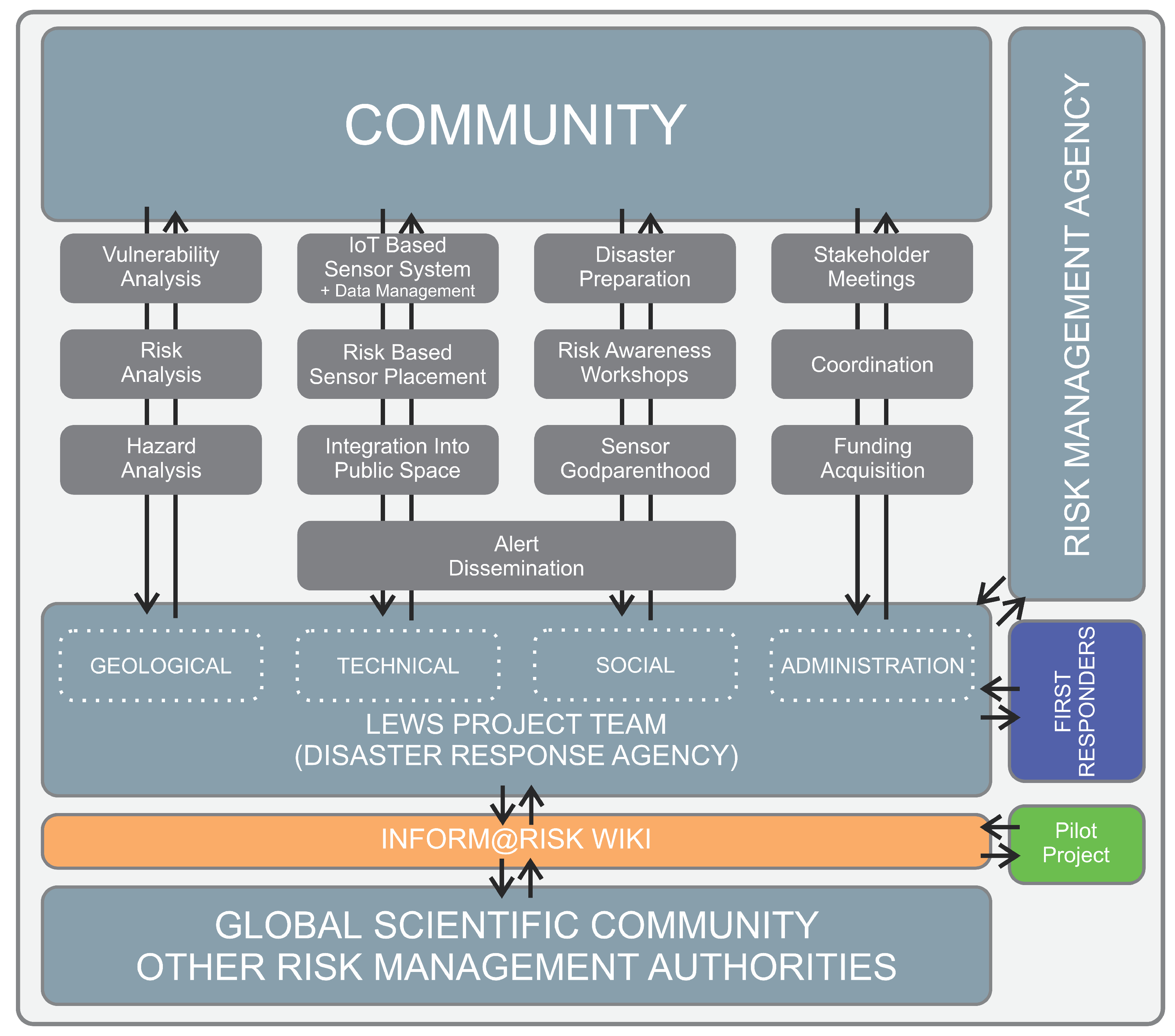

The framework of the Inform@Risk LEWS is given in Figure 12. We developed it based on our experience in Bello Oriente and also used some components of ISO 22327 [58]. It is modular, so that it can be adapted to specific cases. For example, if a system is to be implemented in an area with rockfall hazard, the here-described technical components for monitoring shallow landslides can simply be exchanged for components that monitor rockfall. The framework is based on the experiences documented in our pilot project in Medellín, Colombia.
The two main parts of the LEWS are the local community (top) and the LEWS team (similar to the “disaster preparedness team” in the ISO, but with a stronger focus on monitoring). Together with local risk management authorities (which can also be a regional agency), civil societies, and first responders, various tasks in the four categories geohazards, technology, social, and administration are defined. Most of the sections are interlinked and dependent on each other.
The social dimension is present in all components, but there should be a focus on the topics of disaster preparation/response capability and risk awareness, which can be achieved through the methods described above. The main focus of administration should be to distribute information between the different stakeholders and to organize regular meetings between them. In addition, coordination of tasks should be central to administration. If necessary, this part of the project should also take care of finding funding for the specific project.
The new Inform@Risk wiki page, as described above, hopefully can be a tool for further development of the framework and for exchange between researchers and risk managers dealing with similar situations. Therefore, we designed it as an interface between our pilot project, the global scientific community, and users. The information currently on the wiki regarding the pilot project in Medellín, therefore, is meant to be a starting point for further improvements and amendments.

5. Discussion

We proposed and tested a LEWS that was specifically designed for informal settlements and socially and spatially integrated into the settlements. The first test installation in Medellín, Colombia showed that such a system might be technically feasible for authorities/decision makers, but substantial efforts have to be made with regard to the social aspects—an element of the LEWS where no shortcuts can be made. Positive relations between the authorities, civil society organizations, and the community are essential.
The design of the sensors, accompanied by the illustrative elements used in this project, allowed a better understanding and identification of the instruments by the at-risk community. The interventions that were carried out to improve public spaces (i.e., benches and seats), which incorporated sensors inside them, led to a positive acceptance in general terms. People use the benches and seats to meet friends and family or watch their children play, showing that a LEWS supported by public space design can contribute to social interactions in a neighborhood. The combination of benches or seats with informative elements such as short inscriptions and additional signs worked best in our case. The meeting spaces became important means of communication, since they promoted discussions about the LEWS and landslide risk in general. Strategies such as “sensor godparenthood”, inhabitants sponsoring and caring for sensors in the vicinity of their homes, can promote the adoption of the LEWS and guarantee that the system will be maintained over time. On the other hand, this requires continuous social and technical support by the local authorities, to maintain the integrity of the sensor system. Additionally, such areas constantly grow and construction activities can progress very quickly. Thus, it is important to consider materials and designs that do not serve as inputs for the construction of a home, because this increases the likelihood that the protective structures will be vandalized.
However, in individual terms, a few people felt that the location of some of these benches would become spaces for drug use and territorial focus points for the local gangs. It is therefore essential that, when replicating similar projects, joint planning is carried out with the community, in terms of locating infrastructure for the improvement of public space and to increase the knowledge transfer among the different actors and residents (e.g., through supplemental information campaigns).
At the time of writing, no technical instrument has been stolen or tampered with, which we consider a major achievement. We attribute this to the constant social process that has lasted almost four years, where the voices of all actors have been heard and considered.
In an effort to enable the replicability of the low-cost instrumental monitoring system, as well as the overall LEWS, a large quantity of information, in the form of documents, files, and manuals, has been made public on the Inform@Risk wiki page. The use of this wiki page allows anyone, anywhere to interact with us and voice criticisms or propose changes to the system. We hope that this can be the start of a truly participative approach to landslide early warning for communities that are suffering the most from these hazards.

5.1. Efficiency of Sensor System

Detailed investigations of the data produced by the system and their analysis and interpretation are outside of scope of this publication and will be published in the future. However, initial data already show that the low-cost sensors can produce data that are sufficiently precise to reflect initial movements in the subsurface, if placed in the right locations and with the proper methods. Further analysis of the data over the subsequent years will yield continuously improved thresholds, which in turn will increase the confidence in warnings. Especially for point measurements (LoRa nodes), automatic warnings (received by experts) are essential, because the amount of data from these sensors is too large to be monitored by experts every day. Data fusion methods have to be applied that both combine the sensor data of the same information in different areas (complementary sensor fusion) and of different sources, to increase reliability (redundant sensor fusion). Cooperative sensor fusion, on the other hand, combines information from different sources, in order to gain additional, more complex information (e.g., comparing trigger data from rain gauges with deformation data from inclinometers). These methods can help to exclude false positive warnings and increase early warning times. The expected warning times range from several hours to days from the initial failure initiation to the collapse of a slope. This still has to be proven by field data, once more substantial deformation data have been collected. The expected warning times are, in any case, much higher than the transmission intervals of the sensor system, so the necessary times can be achieved by the system.
A building density of about 250 people per ha or more might render the proposed monitoring system ineffective. In such areas, focusing on social work is expected to be a more efficient approach, as trained inhabitants will be able to identify signals of early landslide movements (cracks, tilting, jammed doors) more easily, as opposed to a technical system which, in these areas, might comparably produce many false readings, due to intentional or unintentional tampering. A technical monitoring system, on the other hand, is ideal in sparsely inhabited steep slopes above settlements with a small population.
The economic costs of this system or similar systems in the Medellín region were investigated in Sapena et al. [57]. These costs, however, should only be invested if the limitations are clear: as the system is aimed at slopes with a generally high landslide hazard, but an unknown exact future landslide area, it can only detect the initial movement of landslides in areas with monitoring systems installed. If initial movements occur in areas deemed very unlikely during the hazard analysis, which are subsequently only monitored sparsely, the system might not detect these movements. In the same way, the system can only provide a certain density of point sensors (about one sensor every 20 m on average) without becoming economically infeasible. This means that smaller landslides can generally not be detected with certainty. If the risk management authority operates such a system in multiple areas of one metropolitan area, the effort required for operation can be greatly diminished, since gateways and other infrastructure can be shared if circumstances (e.g., distance and line of sight) permit. The same is true for the data management system, which is easily scalable.

5.2. Challenges of an Integrated LEWS

Informal settlements, present in many cities of the world, are often built in landslide-prone areas without building code. Where they are located in high hazard areas, resettlement is often not an option, due to high costs. An integrated LEWS can help to decrease the risk for these communities in the short- to mid-term. The system can only be developed by collaborating with local authorities, agencies, civil society organizations, and inhabitants, and it has to be tailored for them. Considering this, we have provided recommendations for the technical and social aspects, which are both adapted to the conditions on site. The latter is one of the most challenging parts, as conditions in informal settlements can vary a lot [59].
The Living Lab Model has already proven to be an appropriate approach for this [43]. Local people have to be involved during all steps of the development and implementation process (e.g., from the site investigation works); in this way, a sustainable increase in landslide hazard awareness can be achieved and the training for LEWS alarms can be started early.

Author Contributions

Conceptualization, J.S. and M.G.; methodology, J.S., L.S. and M.G.; software, M.G. and J.S.; validation, M.G., L.S. and J.S.; investigation, J.S., L.S., J.C., D.C.-H., C.G.-L. and M.G.; resources, J.S., L.S. and M.G.; writing—original draft preparation, M.G., C.G.-L. and L.S.; writing—review and editing, J.S., K.T., J.C., L.S., C.G.-L. and M.G.; visualization, M.G., L.S. and C.G.-L.; supervision, J.S. and K.T.; project administration, J.S., C.G.-L. and K.T.; funding acquisition, J.S. and K.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the German Federal Ministry of Education and Research, grant number 03G0883A-F. We thank Fretzdorff and Putbrese from Project Management Jülich for their support and guidance.

Data Availability Statement

Not applicable.

Acknowledgments

We want to thank the community of Bello Oriente for their essential support over the last four years. We also thank our Colombian partners, especially DAGRD Medellín. German partners: Leibniz Universität Hannover (Coordinator), Technische Hochschule Deggendorf, Technische Universität München, Deutsches Zentrum für Luft- und Raumfahrt e.V., AlpGeorisk, Sachverständigenbüro für Luftbildauswertung und Umweltfragen; Colombian partners: EAFIT University—URBAM, Alcaldía de Medellín, Área Metropolitana del Valle de Aburrá, Sistema de Alerta Temprana del Valle de Aburrá, Sociedad Colombiana de Geología, Colectivo Tejearañas, Corporación Convivamos, Fundación Palomá, Red Barrial Bello Oriente.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study, in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

References

  1. Cendrero, A.; Forte, L.M.; Remondo, J.; Cuesta-Albertos, J.A. Anthropocene Geomorphic Change. Climate or Human Activities? Earth’s Future 2020, 8, e2019EF001305. [Google Scholar] [CrossRef] [Green Version]
  2. Haque, U.; da Silva, P.F.; Devoli, G.; Pilz, J.; Zhao, B.; Khaloua, A.; Wilopo, W.; Andersen, P.; Lu, P.; Lee, J.; et al. The human cost of global warming: Deadly landslides and their triggers (1995–2014). Sci. Total Environ. 2019, 682, 673–684. [Google Scholar] [CrossRef] [PubMed]
  3. Ozturk, U.; Bozzolan, E.; Holcombe, E.A.; Shukla, R.; Pianosi, F.; Wagener, T. How climate change and unplanned urban sprawl bring more landslides. Nature 2022, 608, 262–265. [Google Scholar] [CrossRef] [PubMed]
  4. Alexander, D. Vulnerability to Landslides. In Landslide Hazard and Risk; Glade, T., Anderson, M., Crozier, M.J., Eds.; John Wiley & Sons, Ltd.: Chichester, UK, 2005; pp. 175–198. [Google Scholar] [CrossRef]
  5. Sepúlveda, S.A.; Petley, D.N. Regional trends and controlling factors of fatal landslides in Latin America and the Caribbean. Nat. Hazards Earth Syst. Sci. 2015, 15, 1821–1833. [Google Scholar] [CrossRef] [Green Version]
  6. Santi, P.M.; Hewitt, K.; VanDine, D.F.; Barillas Cruz, E. Debris-flow impact, vulnerability, and response. Nat. Hazards 2011, 56, 371–402. [Google Scholar] [CrossRef]
  7. Pollock, W.; Wartman, J. Human Vulnerability to Landslides. GeoHealth 2020, 4, e2020GH000287. [Google Scholar] [CrossRef]
  8. Kennedy, I.T.R.; Petley, D.N.; Murray, V. Landslides. In Koenig and Schultz’s Disaster Medicine, 2nd ed.; Koenig, K.L., Schultz, C.H., Eds.; Cambridge University Press: Cambridge, UK, 2016; pp. 716–723. [Google Scholar] [CrossRef]
  9. Aristizábal, E.; Sánchez, O. Spatial and temporal patterns and the socioeconomic impacts of landslides in the tropical and mountainous Colombian Andes. Disasters 2020, 44, 596–618. [Google Scholar] [CrossRef]
  10. Gariano, S.L.; Guzzetti, F. Landslides in a changing climate. Earth Sci. Rev. 2016, 162, 227–252. [Google Scholar] [CrossRef] [Green Version]
  11. Johnston, E.C.; Davenport, F.V.; Wang, L.; Caers, J.K.; Muthukrishnan, S.; Burke, M.; Diffenbaugh, N.S. Quantifying the Effect of Precipitation on Landslide Hazard in Urbanized and Non-Urbanized Areas. Geophys. Res. Lett. 2021, 48, e2021GL094038. [Google Scholar] [CrossRef]
  12. Rengers, F.K.; McGuire, L.A.; Oakley, N.S.; Kean, J.W.; Staley, D.M.; Tang, H. Landslides after wildfire: Initiation, magnitude, and mobility. Landslides 2020, 17, 2631–2641. [Google Scholar] [CrossRef]
  13. Garcia-Delgado, H.; Petley, D.N.; Bermúdez, M.A.; Sepúlveda, S.A. Fatal landslides in Colombia (from historical times to 2020) and their socio-economic impacts. Landslides 2022, 19, 1689–1716. [Google Scholar] [CrossRef]
  14. Gomez-Zapata, J.; Parrado, C.; Frimberger, T.; Barragán-Ochoa, F.; Brill, F.; Büche, K.; Krautblatter, M.; Langbein, M.; Pittore, M.; Rosero-Velásquez, H.; et al. Community Perception and Communication of Volcanic Risk from the Cotopaxi Volcano in Latacunga, Ecuador. Sustainability 2021, 13, 1714. [Google Scholar] [CrossRef]
  15. Garcia-Londoño, C. El Deslizamiento de Villatina. In Desastres de Origen Natural en Colombia 1979–2004; Hermelin, M., Ed.; Universidad EAFIT: Medellin, Columbia, 2005; pp. 55–64. [Google Scholar]
  16. Coupé, F.; Arboleda G., E.; Garcia, L.C. Villa tina: Algunas reflexiones 20 años después de la tragedia. Gestión Ambiente 2007, 10, 31–52. [Google Scholar]
  17. Dorner, W.; Ramirez Camargo, L.; Hofmann, P. Can Geoinformation Help to Better Protect Informal Settlements?—A Concept for the City of Medellin. ISPRS Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2019, XLII-3/W8, 115–120. [Google Scholar] [CrossRef] [Green Version]
  18. Smith, H.; Coupé, F.; Garcia-Ferrari, S.; Rivera, H.; Castro Mera, W.E. Toward negotiated mitigation of landslide risks in informal settlements: Reflections from a pilot experience in Medell&iacute;n, Colombia. Ecol. Soc. 2020, 25, art19. [Google Scholar] [CrossRef]
  19. Nathan, F. Risk perception, risk management and vulnerability to landslides in the hill slopes in the city of La Paz, Bolivia. A preliminary statement. Disasters 2008, 32, 337–357. [Google Scholar] [CrossRef] [PubMed]
  20. Eberhardt, E.; Watson, A.D.; Löw, S. Improving the Interpretation of Slope Monitoring and Early Warning Data Through Better Understanding of Complex Deep-Seated Landslide Failure Mechanisms; Taylor & Francis: Abingdon, UK, 2008; p. 51. [Google Scholar]
  21. Mateos, R.M.; López-Vinielles, J.; Bru, G.; Sarro, R.; Béjar-Pizarro, M.; Herrera, G. Landslides in Urban Environments. In Treatise on Geomorphology; Elsevier: Amsterdam, The Netherlands, 2022; pp. 415–432. [Google Scholar] [CrossRef]
  22. Hart, J.K.; Martinez, K. Environmental Sensor Networks: A revolution in the earth system science? Earth Sci. Rev. 2006, 78, 177–191. [Google Scholar] [CrossRef] [Green Version]
  23. Segoni, S.; Leoni, L.; Benedetti, A.I.; Catani, F.; Righini, G.; Falorni, G.; Gabellani, S.; Rudari, R.; Silvestro, F.; Rebora, N. Towards a definition of a real-time forecasting network for rainfall induced shallow landslides. Nat. Hazards Earth Syst. Sci. 2009, 9, 2119–2133. [Google Scholar] [CrossRef] [Green Version]
  24. Sirangelo, B.; Versace, P. A real time forecasting model for landslides triggered by rainfall. Meccanica 1996, 31, 73–85. [Google Scholar] [CrossRef]
  25. Bandara, R.M.S.; Bhasin, R.K.; Kjekstad, O.; Arambepola, N.M.S.I. Examples of Cost Effective Practices for Landslide Monitoring for Early Warning in Developing Countries of Asia. In Landslide Science and Practice; Margottini, C., Canuti, P., Sassa, K., Eds.; Springer: Berlin/Heidelberg, Germany, 2013; pp. 581–588. [Google Scholar] [CrossRef]
  26. Fathani, T.F.; Karnawati, D.; Wilopo, W. An Adaptive and Sustained Landslide Monitoring and Early Warning System. In Landslide Science for a Safer Geoenvironment; Sassa, K., Canuti, P., Yin, Y., Eds.; Springer International Publishing: Cham, Switzerland, 2014; pp. 563–567. [Google Scholar] [CrossRef]
  27. Michoud, C.; Bazin, S.; Blikra, L.H.; Derron, M.H.; Jaboyedoff, M. Experiences from site-specific landslide early warning systems. Nat. Hazards Earth Syst. Sci. 2013, 13, 2659–2673. [Google Scholar] [CrossRef] [Green Version]
  28. Allasia, P.; Godone, D.; Giordan, D.; Guenzi, D.; Lollino, G. Advances on Measuring Deep-Seated Ground Deformations Using Robotized Inclinometer System. Sensors 2020, 20, 3769. [Google Scholar] [CrossRef] [PubMed]
  29. Jeng, C.J.; Yo, Y.Y.; Zhong, K.L. Interpretation of slope displacement obtained from inclinometers and simulation of calibration tests. Nat. Hazards 2017, 87, 623–657. [Google Scholar] [CrossRef]
  30. Fosalau, C.; Zet, C.; Petrisor, D. Multiaxis inclinometer for in depth measurement of landslide movements. Sens. Rev. 2015, 35. [Google Scholar] [CrossRef]
  31. Baudoin, M.A.; Henly-Shepard, S.; Fernando, N.; Sitati, A.; Zommers, Z. From Top-Down to “Community-Centric” Approaches to Early Warning Systems: Exploring Pathways to Improve Disaster Risk Reduction Through Community Participation. Int. J. Disaster Risk Sci. 2016, 7, 163–174. [Google Scholar] [CrossRef] [Green Version]
  32. Alexander, D. Urban landslides. Prog. Phys. Geogr. Earth Environ. 1989, 13, 157–189. [Google Scholar] [CrossRef]
  33. Thapa, P.S.; Adhikari, B.R. Development of community-based landslide early warning system in the earthquake-affected areas of Nepal Himalaya. J. Mt. Sci. 2019, 16, 2701–2713. [Google Scholar] [CrossRef]
  34. Garcia, C.; Fearnley, C.J. Evaluating critical links in early warning systems for natural hazards. Environ. Hazards 2012, 11, 123–137. [Google Scholar] [CrossRef]
  35. Fathani, T.F.; Karnawati, D.; Wilopo, W. Promoting a Global Standard for Community-Based Landslide Early Warning Systems (WCoE 2014–2017, IPL-158, IPL-165). In Advancing Culture of Living with Landslides; Sassa, K., Mikoš, M., Yin, Y., Eds.; Springer International Publishing: Cham, Switzerland, 2017; pp. 355–361. [Google Scholar] [CrossRef]
  36. Karnawati, D.; Fathani, T.F.; Wilopo, W.; Setianto, A.; Andayani, B. Promoting the hybrid socio-technical approach for effective disaster risk reduction in developing countries. Disaster Manag. 2011, 119, 175–182. [Google Scholar] [CrossRef] [Green Version]
  37. Giordan, D.; Wrzesniak, A.; Allasia, P. The Importance of a Dedicated Monitoring Solution and Communication Strategy for an Effective Management of Complex Active Landslides in Urbanized Areas. Sustainability 2019, 11, 946. [Google Scholar] [CrossRef] [Green Version]
  38. Sharma, R. Community Based Flood Risk Management: Local Knowledge and Actor’s Involvement Approach from Lower Karnali River Basin of Nepal. J. Geosci. Environ. Prot. 2021, 9, 35–65. [Google Scholar] [CrossRef]
  39. Werthmann, C. Stärkung der Resilienz informeller Siedlungen gegen Hangbewegungen durch die Vernetzung von Frühwarnsystemen, Web-Technologien und Landschaftsplanung in partizipativen Prozessen—Fallstudie Medellín, Kolumbien; Funding Proposal; Leibniz Universität Hannover: Hannover, Germany, 2018. [Google Scholar]
  40. Werthmann, C.; Sapena, M.; Kühnl, M.; Singer, J.; Garcia, C.; Menschik, B.; Schäfer, H.; Schröck, S.; Seiler, L.; Thuro, K.; et al. Inform@Risk. The Development of a Prototype for an Integrated Landslide Early Warning System in an Informal Settlement: The Case of Bello Oriente in Medellin, Colombia. Nat. Hazards Earth Syst. Sci. Discuss. 2023; 42, in review. [Google Scholar] [CrossRef]
  41. Thuro, K.; Singer, J.; Menschik, B.; Breuninger, T.; Gamperl, M. Development of a Landslide Early Warning System in informal settlements in Medellín, Colombia. Geomech. Tunn. 2020, 13, 103–115. [Google Scholar] [CrossRef]
  42. Singer, J.; Thuro, K.; Gamperl, M.; Breuninger, T.; Menschik, B. Technical Concepts for an Early Warning System for Rainfall Induced Landslides in Informal Settlements. In Understanding and Reducing Landslide Disaster Risk: Volume 3 Monitoring and Early Warning; Casagli, N., Tofani, V., Sassa, K., Bobrowsky, P.T., Takara, K., Eds.; Springer International Publishing: Cham, Switzerland, 2021; pp. 209–215. [Google Scholar] [CrossRef]
  43. Hossain, M.; Leminen, S.; Westerlund, M. A systematic review of living lab literature. J. Clean. Prod. 2019, 213, 976–988. [Google Scholar] [CrossRef]
  44. Werthmann, C.; Echeverri, A.; Elvira Vélez, A. Rehabitar La Ladera: Shifting Ground; Research Report; Universidad EAFIT: Medellin, Colombia, 2012. [Google Scholar]
  45. Ojeda, J.; Donnelly, L. Landslides in Colombia and their impact on towns and cities. In Proceedings of the 10th IAEG Congress, Nottingham, UK, 6–10 September 2006; p. 112. [Google Scholar]
  46. Aristizábal, E.; Yokota, S. Evolucion geomorfologica del valle de Aburra Y Sus Implicaciones En la Ocurrencia de Movimientos en Masa. Boletín de Ciencias de la Tierra 2008, 24, 5–18. [Google Scholar]
  47. Breuninger, T.; Menschik, B.; Demharter, A.; Gamperl, M.; Thuro, K. Investigation of Critical Geotechnical, Petrological and Mineralogical Parameters for Landslides in Deeply Weathered Dunite Rock (Medellín, Colombia). Int. J. Environ. Res. Public Health 2021, 18, 11141. [Google Scholar] [CrossRef]
  48. Gamperl, M.; Singer, J.; Thuro, K. Internet of Things Geosensor Network for Cost-Effective Landslide Early Warning Systems. Sensors 2021, 21, 2609. [Google Scholar] [CrossRef]
  49. Alcaldía de Medellín. Acuerdo 48 de 2014, Plan de Ordenamiento Territorial de Medellin. 2014. Available online: https://issuu.com/habitantesevillamedellin/docs/acuerdo_48_pot-19-12-2014_-_capitul (accessed on 10 June 2023).
  50. Heinimann, H.R.; Hollenstein, K.; Kienholz, H.; Krummenacher, B.; Mani, P. Umwelt-Materialien Nr. 85-Methiden zur Analyse und Bewertung von Naturgefahren; Technical Report; Swiss Landscape Concept, Swiss Agency for the Environment, Forests and Landscape: Bern, Switzerland, 1998. [Google Scholar]
  51. Kühnl, M.; Sapena, M.; Wurm, M.; Geiß, C.; Taubenböck, H. Multitemporal landslide exposure and vulnerability assessment in Medellín, Colombia. Nat. Hazards 2022. [Google Scholar] [CrossRef]
  52. Thuro, K.; Singer, J.; Festl, J.; Wunderlich, T.; Wasmeier, P.; Reith, C.; Heunecke, O.; Glabsch, J.; Schuhbäck, S. New landslide monitoring techniques—Developments and experiences of the alpEWAS project. J. Appl. Geod. 2010, 4, 69–90. [Google Scholar] [CrossRef] [Green Version]
  53. Gumiran, B.A.; Moncada, F.M.; Gasmen, H.J.; Boyles-Panting, N.R.; Solidum, R.U. Participatory capacities and vulnerabilities assessment: Towards the realisation of community-based early warning system for deep-seated landslides. Jamba J. Disaster Risk Stud. 2019, 11, 1–11. [Google Scholar] [CrossRef]
  54. Marchezini, V.; Horita, F.E.A.; Matsuo, P.M.; Trajber, R.; Trejo-Rangel, M.A.; Olivato, D. A Review of Studies on Participatory Early Warning Systems (P-EWS): Pathways to Support Citizen Science Initiatives. Front. Earth Sci. 2018, 6, 184. [Google Scholar] [CrossRef] [Green Version]
  55. Lassa, J.A. Roles of Non-Government Organizations in Disaster Risk Reduction. Oxf. Res. Encycl. Nat. Hazard Sci. 2018. [Google Scholar] [CrossRef] [Green Version]
  56. Arduino. Software | Arduino. 2023. Available online: https://blog.arduino.cc/2023/04/21/arduino-ide-2-1-is-now-available/ (accessed on 10 June 2023).
  57. Sapena, M.; Gamperl, M.; Kühnl, M.; Singer, J.; Garcia-Londoño, C.; Taubenbock, H. Cost estimation for the instrumentalization of Early Warning Systems in landslide prone areas. Nat. Hazards Earth Syst. Sci. 2023; in preparation. [Google Scholar]
  58. ISO 22327. Security and Resilience—Emergency Management—Guidelines for Implementation of a Community-Based Landslide Early Warning System. ISO International Organization for Standardization: Geneva, Switzerland, 2009.
  59. Perlman, J.E. Favela Four Decades of Living on the Edge in Rio de Janeiro; Oxford University Press: New York, NY, USA, 2010; OCLC: 1303480415. [Google Scholar]
Figure 4. Photos of the installation of the measurement system in Bello Oriente in 2022. (Left): Installation of a subsurface probe with a measurement node on top. (Right): low-cost sensor enclosure in a remote location.
Figure 4. Photos of the installation of the measurement system in Bello Oriente in 2022. (Left): Installation of a subsurface probe with a measurement node on top. (Right): low-cost sensor enclosure in a remote location.
Land 12 01451 g004
Figure 5. Picture of one of the meetings, with various stakeholders of the project. Picture: C. Garcia.
Figure 5. Picture of one of the meetings, with various stakeholders of the project. Picture: C. Garcia.
Land 12 01451 g005
Figure 6. Photos of the participation of the community in the four components of the LEWS. Pictures: C. Garcia.
Figure 6. Photos of the participation of the community in the four components of the LEWS. Pictures: C. Garcia.
Land 12 01451 g006
Figure 7. Sensor protections as small seats or benches made out of bricks, supplemented by short inscriptions and bright colors.
Figure 7. Sensor protections as small seats or benches made out of bricks, supplemented by short inscriptions and bright colors.
Land 12 01451 g007
Figure 8. (Left): Gateway B functions as a small public space, with a large bench and an information sign. (Right): LoRa® infrastructure node combined with a wall painting: “Lora the parrot” embodies the sensor.
Figure 8. (Left): Gateway B functions as a small public space, with a large bench and an information sign. (Right): LoRa® infrastructure node combined with a wall painting: “Lora the parrot” embodies the sensor.
Land 12 01451 g008
Figure 9. Point markers indicate the location of the horizontal CSM lines.
Figure 9. Point markers indicate the location of the horizontal CSM lines.
Land 12 01451 g009
Figure 10. Inform@Risk wiki page, accessible under www.informatrisk.com (accessed on 10 June 2023). The wiki is a central place for all information about the LEWS. Currently, the wiki is available in three languages, english, german, and spanish (further content and languages can be added by users).
Figure 10. Inform@Risk wiki page, accessible under www.informatrisk.com (accessed on 10 June 2023). The wiki is a central place for all information about the LEWS. Currently, the wiki is available in three languages, english, german, and spanish (further content and languages can be added by users).
Land 12 01451 g010
Figure 11. Overview of the open-source information about the monitoring system provided on the wiki- and GitHub pages. The licenses, CERN-OHL-W-2.0 for hardware and GPL-3.0 for software, allow open distribution, modification, and publication of all materials, as long as reference to the source is given.
Figure 11. Overview of the open-source information about the monitoring system provided on the wiki- and GitHub pages. The licenses, CERN-OHL-W-2.0 for hardware and GPL-3.0 for software, allow open distribution, modification, and publication of all materials, as long as reference to the source is given.
Land 12 01451 g011
Figure 12. The Inform@Risk framework for integrated LEWS.
Figure 12. The Inform@Risk framework for integrated LEWS.
Land 12 01451 g012
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gamperl, M.; Singer, J.; Garcia-Londoño, C.; Seiler, L.; Castañeda, J.; Cerón-Hernandez, D.; Thuro, K. Recommendations for Landslide Early Warning Systems in Informal Settlements Based on a Case Study in Medellín, Colombia. Land 2023, 12, 1451. https://doi.org/10.3390/land12071451

AMA Style

Gamperl M, Singer J, Garcia-Londoño C, Seiler L, Castañeda J, Cerón-Hernandez D, Thuro K. Recommendations for Landslide Early Warning Systems in Informal Settlements Based on a Case Study in Medellín, Colombia. Land. 2023; 12(7):1451. https://doi.org/10.3390/land12071451

Chicago/Turabian Style

Gamperl, Moritz, John Singer, Carolina Garcia-Londoño, Lisa Seiler, Julián Castañeda, David Cerón-Hernandez, and Kurosch Thuro. 2023. "Recommendations for Landslide Early Warning Systems in Informal Settlements Based on a Case Study in Medellín, Colombia" Land 12, no. 7: 1451. https://doi.org/10.3390/land12071451

APA Style

Gamperl, M., Singer, J., Garcia-Londoño, C., Seiler, L., Castañeda, J., Cerón-Hernandez, D., & Thuro, K. (2023). Recommendations for Landslide Early Warning Systems in Informal Settlements Based on a Case Study in Medellín, Colombia. Land, 12(7), 1451. https://doi.org/10.3390/land12071451

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
