The Residual Spaces of Developmental Urbanism as Opportunity for Green Cities and Improvement of Human Wellbeing

School of Architecture, University of the Basque Country, Plaza Oñati, 2, 20018 Donostia-San Sebastian, Spain
*
Author to whom correspondence should be addressed.
Land 2023, 12(4), 764; https://doi.org/10.3390/land12040764
Submission received: 19 February 2023 / Revised: 18 March 2023 / Accepted: 24 March 2023 / Published: 28 March 2023

Abstract

:
City densification and greening are two priority urban-policy objectives, for the coming years, aimed at making cities more resilient to climate change, slowing the spread of urbanization and improving the quality of life in cities. These are sometimes contradictory objectives that require fine and deep analysis to create approaches and methods that combine them. The most recent research has presented so-called small urban green spaces (SUGSs) as a viable alternative to achieve this double objective. This was the starting point of this research, which used GIS digital analysis and microscale fieldwork to study the possibilities of greening an excessively dense and low-quality urban space in the city of Pamplona (Spain). The results thereof showed that the urban structure of this neighbourhood contains a large number of small spaces with no specific use or function—residual, surface and vertical spaces—and that are simply undefined remnants between buildings and streets, or party walls that were never built. Only these surface spaces occupy a total area that is twice the size of the existing green spaces. Based on these results, this work explores the possibility of increasing the green areas of the neighbourhood through new SUGSs and the creation of a green corridor that increases environmental and social connectivity and the quality of life in the studied space.

1. Introduction

Forecasts of the expected increase in urbanization and urban population in the coming decades, as well as the pressure this puts on the planet, have given new political momentum to the quality of life in and sustainability of cities (Douglas, Lennon and Scott, 2017). Compact and renaturalised cities with high population densities, a mix of uses and well-functioning public transport (transit-oriented development) and promotion of cycling and walking [1] are seen as counterbalances to the continued increase in urbanization and urban sprawl [2,3,4,5].
However, the balance between urban density, quality of urban space, quality of life and health is not a settled issue. This is the case because, among other reasons, creation of dense cities and densification of existing urban fabrics reduce the space available for green areas, which are, in turn, considered the key to the quality of life in cities, their sustainability and the health of the urban population [6,7,8].
Indeed, in a review article published in 2015, Haaland and Konijnendijk stated that there is growing evidence of loss of urban green space due to urban densification processes on a global scale. From 2015 to the present, this trend of decreasing urban green space has been noted by many other scholars [9,10,11]. Densification and greening, which seem to be necessary conditions for urban spaces’ sustainability and quality, are contradictory goals. Some authors see this as one of the paradoxes of sustainable development principles [2,7,12,13,14]. While densification is essential for environmental and landscape protection, urban green spaces are important in combating climate change as well as mitigating its effects, improving air quality, reducing surface runoff, mitigating heat island effect, creating habitats for wildlife and generally enhancing biodiversity [14,15,16,17].
Although the advantages and benefits of urban green spaces are increasingly well-known, the amount of greenery that urban dwellers need is still a matter of scientific debate [8,15]. This is a handicap for planners and managers of urban green spaces [16], considering that knowing the relationship between population size and quality and quantity of green space is vital in terms of sustainability, health and resilience of urban areas [8,14]. This is a particularly complex issue because it is not only the total amount of green space per unit area that counts but also the quality of that green space [8,18,19,20], its accessibility [8,21] and its distribution throughout the urban fabric [22]. Purely quantitative standards without consideration of access to green spaces are not meaningful when applied at the urban scale, where information on green surfaces per inhabitant can mask deficiencies on other scales [1,23].
The problem of green spaces is more pressing in compact cities and in cities undergoing densification processes. This is an accepted and well-known fact that has received its own responses and proposals from distinct scholarly communities. Within the ecosystem services research framework, there is an emphasis on the need for careful planning and a solid knowledge base on how essential ecosystem services can be provided within the limited area of green space in a compact city [1]. From the theoretical frameworks of green infrastructure (GI) and landscape ecology—demanded by many authors as a framework for urban green-space planning—the keys are connectivity and networked planning [1]. In any case, solving the problem of the compact-city and sustainability paradox and the consequent need to manage the trade-offs between compact and green cities requires integrative approaches capable of encompassing a holistic understanding of the relationships between built and green components and their underlying social, economic and ecological drivers [2]. It also requires a union of knowledge from disparate expertise and disciplines, bridging of the gaps between research and application and between science and practice [19] (p. 312) and exploration of new forms of interaction between government bodies, citizens and other nonstate actors (e.g., universities and institutes of research) [24]. The separation of knowledge and research on urban green issues into disconnected silos has been a recurrent issue in urban green research. Escobedo et al. (2019) spoke of the conceptual segregation of a group of ideas, similar in spirit and letter, that is not conducive to desirable and integrative transdisciplinary research. The title of the article by Escobedo et al. mentions four of the most prominent research approaches (urban forests, ecosystem services, green infrastructure and nature-based solutions), asking whether these are related approaches or evolving metaphors. Jim (2004) defined the situation very well when he pointed out that the necessary knowledge to affect fine greenery in compact cities exists disparately in a cluster of cognate fields, which need to be knitted together into an implementable package [19] (p. 318).
This research explores the possibilities of renaturalising a particularly dense urban area within the framework of the theoretical background mentioned above: careful planning based on analysis of the relationship between open spaces and built spaces, aided with a thorough analysis of the urban fabric and bringing together knowledge and methods from different fields (architecture, ecology and geography). In addition to this, this work intends to pay special attention to green surfaces that are integrated into the urban fabric, in line with a new approach (or challenge) to aspirations/ideal conditions with respect to green surfaces in residential spaces. The objective is to focus on greening that is capable of improving provisions of green spaces and green elements within disadvantaged urban fabrics so that they become elements that are part of the daily landscape of residents and do not require travel to enjoy them and their benefits. This objective is based on a proposal recently made by Cecil Konijnendijk (2022). This urban forester proposed as a goal that each citizen, in addition to living no farther than 300 m from a park or green space, should live in a location that allows them to see from their home at least three trees of acceptable size and in the built-up area of which there is 30 percent tree-canopy cover (the “3–30–300 rule”) [25]. This is an issue that is also supported with evidence and proposals concerning equity (or lack thereof) in distribution of green areas in different neighbourhoods or districts of European cities [26].
In this work, we also looked for alternatives to create a network aimed at increasing quality of life through green spaces and the ecosystem services they provide; placing connectivity between green elements as a condition for a new network aimed at providing a means of ecological and social connection within the study area; exploring the possibilities of using and creating small green spaces, from a conception that neither can nor seeks to prioritise the quantity but rather the quality of green spaces, their connectivity and their contribution to the improvement of the most damaged urban spaces. In short, the aim was to carry out research to help identify the potential and possibilities for renaturation of compact and complex urban spaces through the creation of a green connectivity network.

2. The Small-Scale Urban Green Spaces

The difficulty of greening compact cities and the possible options to achieving it have nurtured a particularly and increasingly interesting research line. We are referring to research on small-scale urban green spaces (identified with various names), which is based on growing evidence of the benefits of urban green spaces (hereafter referred to as UGSs), regardless of their size, and on the need to find alternatives for greening compact cities.
Research on small-scale urban green spaces has defined them as small in size, low in cost, easily accessible, flexible in form and location [27] and located in residual spaces within dense urban areas [28,29,30,31,32,33].
Small green spaces are given different names in the scientific literature. Zhang and Han (2021) collected some of these names in a review article in which they also showed that there is no common definition that reflects a state of consensus in relation to their nature, size and characteristics. Zhang and Han (2021) reviewed the scientific literature in English using the concepts of pocket park, minipark, vest pocket park, green space, small urban park and small green space, all of which refer to small green areas within urban spaces. On the other hand, a literature review of existing papers allowed us to detect other concepts: “small green areas”, “Small scale green infrastructure” and “small-scale urban nature parks”. To refer to all of them together, we will henceforth use one of the terms commonly used in the scientific literature: small urban green spaces (SUGSs).
According to the results of the review article by Zhang and Han (2021) and our own review for this research, the size of SUGSs is perhaps the aspect that introduces the greatest variability in research and, therefore, in the scope and applicability of the results. Evidence of the benefits of SUGSs, which has emerged from empirical research on the services they provide and from research on the uses and preferences of users in different parts of the world, has been obtained on the basis of green spaces of different categories and sizes. The inventories that underpin research on UGSs and SUGSs were conducted according to pre-established ad hoc criteria that included or excluded certain types of green spaces, based on their composition, location or size. This reflects, as Zhang and Han pointed out, a problem in lack of agreement on the definition of SUGSs and has the consequence of undermining generalisability of results and, as mentioned above, their applicability in practice.
The relationship between the sizes of green spaces and the benefits they provide (environmental, social, health, etc.) is a relevant issue. When planning SUGSs in cities or compact spaces with a shortage of available land, it is important to decide to what extent the minimum size of spaces that can be greened matters, which in reality amounts to asking whether or not there is a minimum size required for a green area to have an effect on health and wellbeing [21]. Ekkel and de Vries (2017) [21] concluded that with regard to stress reduction and attention restoration, there seems to be no minimum size [21]. They mentioned, in fact, three previous research studies whose results strongly suggested that having even small green areas nearby contributes to the mental health of people. Ha et al. (2022) [22] also compiled studies that have shown that small green spaces provide short but frequent contact with nature, which, in turn, promotes social interaction and cohesion among the population. However, beyond the positive effects of green spaces—whatever their size—on stress and mental health, there is not enough scientific knowledge to know at the design stage of SUGSs how effective they will be in terms of ecology, health and wellbeing. On one hand, the variability in the characteristics of the sizes and compositions of the SUGSs being investigated makes extrapolation of results on the benefits of SUGSs risky. On the other hand, as Ortega-Alvarez and MacGregor-Fors (2009) [34] (p. 194) pointed out, although some urban ecology patterns were consistent among studies, efforts to achieve urban-planning and management recommendations are not consistent among countries. They added that, as each city is a unique system, its management and planning activities should be continuously evaluated to measure their effectiveness.
The expression most commonly used in research on SUGSs is pocket park. The origin of this expression dates back to the period immediately after the Second World War, in the context of the process of reconstruction of cities ruined during the war. Included in this process was designing of small parks as recreational spaces on sites that were devastated by earlier bombings [35]. In such a context, the objectives of mini-parks are primarily recreational and to be places for socialisation. More recently, however, small green spaces are being analysed as providers of other ecosystem services beyond the recreational, and today, we have already found research on the idea of creating pocket parks to make a sustainable neighbourhood in a highly dense city [36,37] and particularly for generating wellbeing spaces within cities and neighbourhoods. Lu et al. (2022) [38] considered that exposure to small public urban green spaces (SPUGSs) has been demonstrated to have mental benefits for older adults. Francisco Armato (2017) [39] considered that small parks are more than places to sit or play. They should be seen as scenes to observe from a distance or as spaces to walk around. They are, in short, small spaces that provide interest, variety and attractiveness to neighbourhoods. In addition to social functions, Liu and Wang (2021) [36] emphasised the potential of pocket gardens to facilitate accessibility to open spaces/green spaces for a larger population, especially in disadvantaged neighbourhoods. They also compiled references on the use of pocket parks as evacuation sites in Japan in case of earthquakes or as spaces for protecting land from flooding. Hamdy and Plaku (2021) [29] considered urban micro-green spaces as a potential first step towards both sustainable urban regeneration and equal access to public spaces in dense cities. Those authors hypothesised that pocket parks can be a response to the economic crisis, food production pressure, run-down communities and the lack of development land for communal spaces. Liu and Wang (2022) [36] stated that it is widely believed that quality pocket parks (well-maintained, safe and accessible) could serve similar functions as large urban parks, even though their effects may be limited or highly dependent on surrounding conditions because of their small size.
There is also abundant evidence available on the relationship between small green spaces and the population’s perception of comfort or the spaces’ value in increasing resilience of urban spaces. Delgado and Cariñaños (2020) [40] compiled studies, conducted in compact Mediterranean cities, proving that the contribution of every green space—irrespectively of its size—would become even more critical for citizen welfare and for a city’s adaptive capacity in terms of thermal regulation, air quality improvement, water retention and energy performance. Rosso, Pioppi and Pisello (2022) [32] studied the role of pocket parks in mitigating intraurban microclimates during the hot season, using a dual methodology. On one hand, they measured the environmental parameters of temperature, relative humidity, wind direction and speed and solar radiation through means of an experimental monitoring station, and on the other hand, they conducted a survey campaign asking pocket park users about their perceptions of comfort. The results showed that measured objectives and subjective perception did not coincide, as the users’ perception of the overall comfort of the park was higher than that derived from the recorded data. The perceived comfort in pocket parks was higher than on streets showing that microclimate physical variables are not sufficient to describe the global and holistic perception of comfort inside the park. According to those authors, this gap between physical objectives and subjective comfort demonstrates a significant role that could be exploited even further in dense urban areas to mitigate heat stress in a special way that would provide overall restorative experiences for pedestrians, local citizens and tourists, even if the physical microclimate was not able to be massively improved. In view of the benefits, the authors of this work considered that pocket parks could also be a particularly effective strategy in providing local green spaces in urban areas where large urban parks are not present, as they able to provide a perceived restorative experience for a much wider number of citizens, allowing movement towards the objective of more just and equitable cities. The results and proposals of Rosso, Pioppi and Pisello (2022) [32] are in line with those obtained in a good number of investigations in which it has been demonstrated, through different methods and approaches, that SUGSs play important roles in the wellbeing and quality of life of citizens (Jia et al., 2016), particularly for their properties as environments for psychological restorative experiences. For Nordh et al. (2009) [30], the possibility for restoration is not only a matter of a pocket park’s size but also a matter of its design and the components used to create it. SUGSs provide environments for psychological restoration experiences [41,42] because of their size and the possibility of distributing them throughout the urban space so they can promote everyday outdoor experiences, better accessibility [31,42,43], social interactions and cohesion among neighbourhood residents, as green spaces are attractive places that tend to bring people together [21,22].

From SUGSs as Residual and Isolated Spaces to Green Network Elements

Over the last few decades, there has been an essential shift in planning and development of ecosystems and landscape management [17], which has had an important echo in approaches to UGSs and, by extension, to SUGSs. This shift has come hand-in-hand with refurbishment of the theoretical–conceptual framework developed in parallel (also as an effect) to increasing evidence of the global socioenvironmental crisis. In this context, ecosystem services and the connection between ecosystems through connectivity networks—ecological networks and green infrastructure—based on the principles of landscape ecology have come to the fore, together with recognition of the mutual beneficial relationships between green spaces and public health and wellbeing. Green infrastructure has become particularly important to the extent that, especially in urban regions, GI is being placed at the same level as other essential urban infrastructure [17]. Although the concept of green infrastructure has received numerous definitions [44] and there is no definitive agreement on it, it is accepted that one of its essential features is connectivity between the different elements that compose it, forming a network of components that work together to maintain a network of sites supporting ecological and social processes [17].
From the perspective of GI and connectivity, SUGSs, understood no longer as individual green elements but as a network of small, connected green spaces, take on a new dimension. SUGSs are no longer isolated fragments but become parts of a whole, i.e., nodes (parts) of a green network (the whole) [31]. This idea is the basis of the so-called “Pocket Park System” [45], conceived as networks of pocket parks connected to each other and to other parks through means of woonerfs and green streets. Krzysztofik and Galoch (2022) [46], who proposed a network of connected pocket parks for the city of Lodz in Poland, highlighted the benefits of connectivity. Connection between nodes allows for preservation of migration paths for animals and plants, which contributes to maintenance of biodiversity in the city. In addition to ecological benefits, there are social and psychological benefits. Well-connected SUGS networks generate increased social interactions and provide people with more opportunities to access biodiverse environments and thus enhance their overall satisfaction with their neighbourhoods [22]. Furthermore, Du and Zhang (2020) [7] considered SUGSs to be excellent alternatives when there is tension between the economic and social benefits of green spaces such that the provision of numerous small green areas that are affordable and accessible throughout the city would be a more appropriate policy agenda than a few vast parks.

3. Study Area

The study area was located in the city of Pamplona (Spain) (Figure 1). Pamplona is a medium-sized city (203,418 inhabitants), the capital of Navarre and one of the 17 autonomous communities that form the territorial structure of the Spanish state. It is located in the northeast of the Iberian Peninsula, in the centre of a large valley and on the right bank of the Arga River. Pamplona is known as a green city due to its numerous parks and gardens, as demonstrated by the fact that in 2018, the Spanish Association of Public Parks and Gardens rated Pamplona as one of the Spanish cities with the highest proportions of trees and green areas. According to data from the aforementioned study [47], 14.5% of the municipal surface is covered in green areas so that the urban green surface per inhabitant in some neighbourhoods is higher than 20 m2 [23]. What seems to be a very positive situation is not so positive when the internal distribution of green areas is analysed, due to the fact that there are inequalities and strong imbalances between the different neighbourhoods of the city and, above all, areas that are, frankly, disadvantaged, which has generated differences in quality of life [23].
The study area focused specifically on a sector of the La Milagrosa neighbourhood (Figure 2) in one of the most densely populated and compact areas of the city. The study area corresponded to the historical area of the district of La Milagrosa, i.e., the part built up to the end of the 1970s, and covered an area of 43.7 ha and a population of 14,696 inhabitants. These are a delimitation and a surface that do not take into account the entire surface of the neighbourhood but only the total surface of the areas that form a continuously built environment. This is due to the fact that the study area focused on areas of built-up space and left out green surfaces larger than 1 ha and located on the margins of the neighbourhood—outside the dense and oppressive central space—which conceal its realappearance.
The neighbourhood of La Milagrosa is, in general, the most disadvantaged in terms of greenery. It is located on the southern slope of the city, in spatial continuity with the orthogonal expansion of the early 20th century. It is a working-class neighbourhood of the so-called “first periphery of the centre” [48], which began its construction in the early 1960s due to the processes of expansion of economic activity and modernisation of industry that began at that time. These processes produced large demographic growth in the cities and, consequently, a pressing residential demand. Within a few years, the urban landscape was transformed in response to a need for massive construction to accommodate large-scale rural migration, and neighbourhoods were built in areas that had hitherto been traditionally agricultural. The urban prevailed over the rural [48].
This is how the Milagrosa arose, adapted to the slope where the city ended at that time to the south and built on pre-existing rural plots, following the chaotic layout of the roads of that first semi-rural enclave while respecting its existing layout as far as possible [49]. The road structure is markedly organicist, excessively adapted to the topography and/or existing roads and creating junctions with roads that were left unresolved and have angles that would be very difficult to resolve [50].
It was built “urgently” on the basis of a spatial and volumetric arrangement that was marked by the new airs that the Modern Movement began, in which building architecture is the exclusive protagonist and the rationalist residential block dominates. Building was the priority; towers and detached blocks were arranged according to orography, sunlight and access [51] or, inevitably, road space, and, in addition, connections between the different areas of partial development were missing, leaving interstitial spaces without intention or purpose [50].
In the case of La Milagrosa, the result of this developmental urbanism is a dense [52] and compact neighbourhood, which has hardly changed since its beginnings and therefore maintains its narrow, irregular, constricted and unconnected streets. Although the notion of a compact and dense city, with a high degree of functional mix, has become a disciplinary paradigm linked to urban environmental sustainability strategies [53], paradoxically, it is precisely in these crowded neighbourhoods where we found an enormous lack of free space and, consequently, of green space. A compact city restricts the quantity and quality of vegetation, and if it is deprived of green space, that city will become the antithesis of a green city [19]. It is cars, moreover, that have taken over most of this scarce public space (in La Milagrosa, cars occupy 75% of the surface area) [54], both in terms of roads and parking. The resulting public spaces are of poor urban quality, leaving minimal space for pedestrians and, of course, for green space. The city was built according to developmental urbanism, which, although it solved the problem of mass housing in terms of housing quality, was a generalised failure from the points of view of urban quality and lack of concern for public spaces [55].
This disorganised configuration of residential estates generated abundant empty and residual spaces that were precisely the starting point for this research, the aim of which was to explore the possibilities they offer for increasing urban greenery, as well as to be able to analyse and understand the possibilities of intervention and transformation of these obsolete neighbourhoods from two different points of view, conservation and renovation, in order to give them a new life for the formation of a new city [56].

4. Materials and Methods

Although there are numerous approaches and proposals aimed at guiding technicians and experts in identifying elements for elaboration of green-space networks, there is no apparent consensus in the scientific literature on the methodology to map and implement GI [43,57,58]. There are also sophisticated technical methods to assess and identify functionality provided by green areas [40,43], the diversity of which is a reflection of the different definitions of GI in the scientific literature and which have led to highly variable assessment methods and results [57]. On the other hand, the lack of integrated approaches that address ecological and environmental benefits alongside human wellbeing is frequently criticised by scholars [59]. This problem is particularly critical in urban spaces with regard to IGU planning. In relation to the Mediterranean area, Delgado and Cariñaños (2020) [40] concluded that the current picture is defined by a lack of standardised and manageable frameworks, for all involved stakeholders, aimed at promoting IGU identification. However, perhaps one of the methodological gaps with the greatest repercussions is the one recently confirmed by Brzoska and Spage (2020) [60], based on a systematic literature review that analysed, among other aspects, the scales of study in research on green infrastructure and urban ecosystem services. In summary, the authors found that there is still a gap in assessment methods on local urban scales. According to them, the majority of work still focuses on larger spatial structures, mostly applying generalizing methods that provide results with a poor fit to reality. They concluded that there is a need for spatially comprehensive research on urban green spaces, including settlements and built-up areas, and thus the small green spaces and structures they contain so that they can be taken into account in designing ecological and sustainable cities. As Boehnke et al. (2022) [10] pointed out, in many cities, there are large areas that lack urban forests or large green spaces. Instead, these areas are characterised by small-scale mosaics and private greenery, consisting of roadside trees or greenery, individual trees, hedges, flower beds, gardens or lawns. All these types of element and space can only be inventoried and mapped through means of local mapping procedures that reach a level of detail that is not usual, e.g., mapping via remote sensing. Finally, in addition to the problems outlined above, there is a lack of research attention to the study of possibilities of designing and implementing green infrastructure according to the particularities of urban morphology, especially when renaturation of cities has become a priority objective to increase their resilience and their adaptation to climate change.
This research used a qualitative method that combined identification and mapping (inventory) of green spaces in the study area and in situ analysis of the morphology and the urban space in order to characterise and typify the residual spaces in the urban fabric that could host SUGSs. This research aimed to reflect on the way in which the errors of an inadequate urbanisation model can be converted into opportunities for restoration and inclusion in the network of urban green spaces.
A manageable protocol for identifying and categorising small urban green areas was created on a detailed scale to establish practical alternatives and solutions, to maximise opportunities for vegetation [19] and to enable renaturation of compact areas so that they could provide a reasonable quantity and quality of vegetation to improve the hostile environment and thus people’s quality of life. The Milagrosa neighbourhood was taken as a case study, as a representative of a small-sized, dense and compact neighbourhood.
The methodological proposal was developed in three consecutive phases (Figure 3):
In the first phase, a detailed inventory was made of all urban spaces with some type of vegetation (herbaceous, shrub or tree) in direct contact with the ground, regardless of the size of the space or its ownership. The digital cartography of gardens owned by the City Council of Pamplona has been used as an initial source of information; this was completed with the cartography produced by NASUVINSA for the study Green Infrastructure Pamplona Area and Surroundings, which was provided by the company. Finally, the information was completed with digitalisation using ArcMap software based on exhaustive field work and the municipal 2020 orthophoto scale 1/500.
The existing green spaces were classified on the basis of the possibilities of interaction they offer, active or passive, depending on whether they are accessible for carrying out some type of activity (active) or whether, being inaccessible, they fulfil functions fundamentally of contemplation (passive) and will be essential for future connectivity objectives. Within the active spaces, a distinction was made between those that allow people to stay or meet socially and those that accompany urban routes, fundamentally providing aesthetic and visual values.
In the second phase, a detailed analysis was carried out, using orthophotography, of the urban fabric in order to identify the residual spaces generated in developmental urbanism, which prioritised building and left urban space as a mere result, creating interstitial spaces without intention or purpose. Although urban residual spaces have always existed, as they are inherent to city transformation processes, there is no clear concept of them and there are numerous expressions used to mention them [31]. For the purposes of this paper, we will use, as a concept of residual spaces, the generic description proposed by Lauria and Vesella [31]: they are places considered devoid of or lacking specific qualities that offer city dwellers multifunctional opportunities that they are not usually provided—walking, resting, meeting up, chatting, playing, etc.—considering, in addition, that they contain some potential opportunity, “marketable” to a greater or lesser degree, and that it would be a mistake to consider them useless or unusable places (2021:29). On the issue at hand, as Jim (2004) [19] pointed out, even the smallest gardens could create interesting ecological diversities and attract both wildlife and human visitors. It is the residual planted sites that Jim (2004) [19] referred to, as pieces often omitted in formal but piecemeal greening projects, that could be systematically enlisted into the green network. After the mapping and analysis of the residual spaces, each of them was visited to collect complementary information and obtain photographs that would serve as the basis for renaturation designs.
In the third phase, the distribution, characteristics and possibilities of naturation of the identified residual spaces were analysed in order to assess the possibilities of creating a small green network on a neighbourhood scale through linking/connecting the different types of spaces. The greater or lesser abundance of residual spaces was combined with information on urban fabric for selection of the most suitable network segments. Once the network was selected, the aim was, as Lauria and Vessella (2020) [61] pointed out, to design and carry out a set of microscale actions with a positive effect wider than their range of action, mainly due to their conception as a network of SUGSs that provides connectivity and can become a strategy for urban regeneration [29]. This proposal is based on the consideration of SUGSs as a sort of ally for urban sustainability in the sense that they allow for creation of dense urban spaces while offering communal, socialising spaces as an alternative to large parks [62]. At the base, the complementarity and relational continuity between urban hubs, typical of the network model of pocket-park systems [59], was also an objective in this case.

5. Results

The results of the inventory and characterisation of green spaces and residual spaces in the neighbourhood of La Milagrosa are presented below.
The following are, in this order, (a) the green spaces that currently exist, which later served as a starting point and matrix for the design of our small green network, and (b) the residual spaces that could be converted into green spaces that could provide different services to the neighbourhood of La Milagrosa and, in particular, improve the quality of the urban space and generate a green corridor that would link the neighbourhood with the rest of the city, ensuring its environmental and also social connectivity.
Each of the photographs has an alphanumeric identification code that allows it to be located on the accompanying maps.

5.1. Existing Green Spaces

The analysis carried out revealed that there are very few green spaces in La Milagrosa (they occupy 5% of the total surface of the area studied), and they are mainly distributed along the periphery of the neighbourhood (Figure 4). Most of them are located on the southeastern boundary, which is precisely where the neighbourhood originally ended. The continuation of the neighbourhood to the south allowed the collapsed area to be opened up, thus creating small green spaces. Green spaces are also more abundant along the north–south axis (Avenida de Zaragoza) and in the eastern area (in the appendix of Santa María la Real, the southeastern end of the neighbourhood). Trees are concentrated along these avenues, and trees in the interior of the area are few and, in many cases, isolated.
The inventory identified a total of 67 green spaces (22,110.7 m2), ranging in size from 10.59 m2 for the smallest space to 1733.4 m2 for the largest space (Table 1).
These spaces constitute a heterogenous set of surfaces in terms not only of their size but also of the type of vegetation cover and the functions and services they provide or could provide once they are connected to a network and/or some improvement interventions are implemented. Of the 67 spaces identified, 47 belong to the category that we defined as active green spaces, i.e., places with which the population can come into contact. Although they account for 70% of the green spaces in the total surface area, they only occupy 52% of the total green space.
Within the active spaces, two types can also be distinguished based on their use and form: those for staying and those for transit, called “linear” by Delgado-Capel and Cariñanos [40].

5.1.1. Green Spaces for Staying

These are small, accessible public gardens or small squares with parts of their surfaces covered with green elements (Figure 5). They cover a total area of 9656.7 m2 (Table 1), with very varied size, located in the interstices of the urban fabric.
Some of these spaces are used as meeting places or for walking with pets. As can be seen in Figure 6, most of them are covered with herbaceous vegetation and most of them have trees that provide shade to the park itself or to surrounding buildings.

5.1.2. Green Transit Spaces

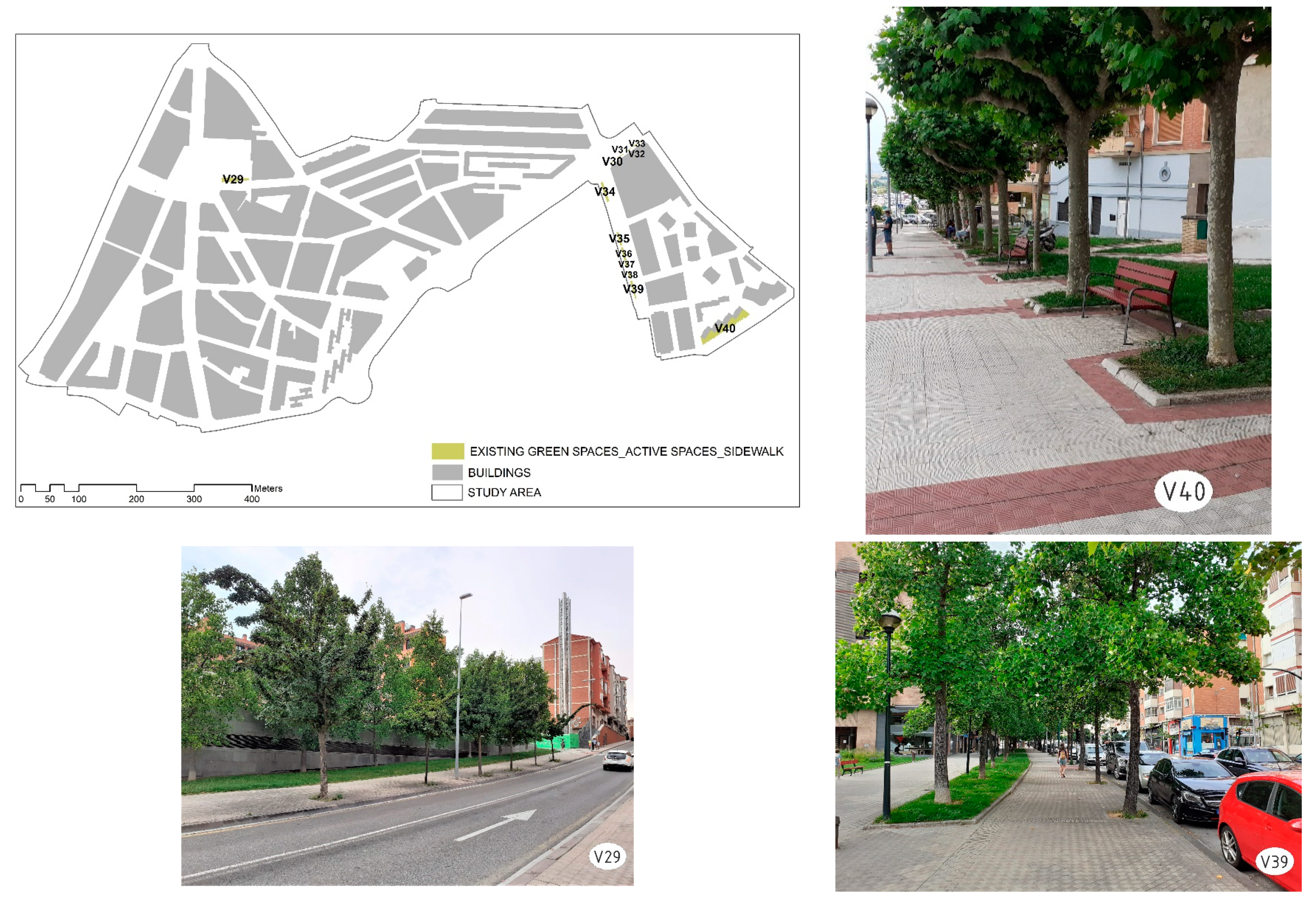

These are small, linear gardens along the street, generally narrow and elongated in shape (Figure 7). A total of 12 spaces were identified, in this case also covered with herbaceous vegetation and mostly wooded. Their current functions are primarily visual, aesthetic and restorative; those that also contain trees help to mitigate the urban heat island and create comfortable spaces in a city that reaches temperatures above 30 °C in summer. These spaces can also be important for the creation of the green network because of their contribution to the connectivity of the space.

5.1.3. Passive Spaces

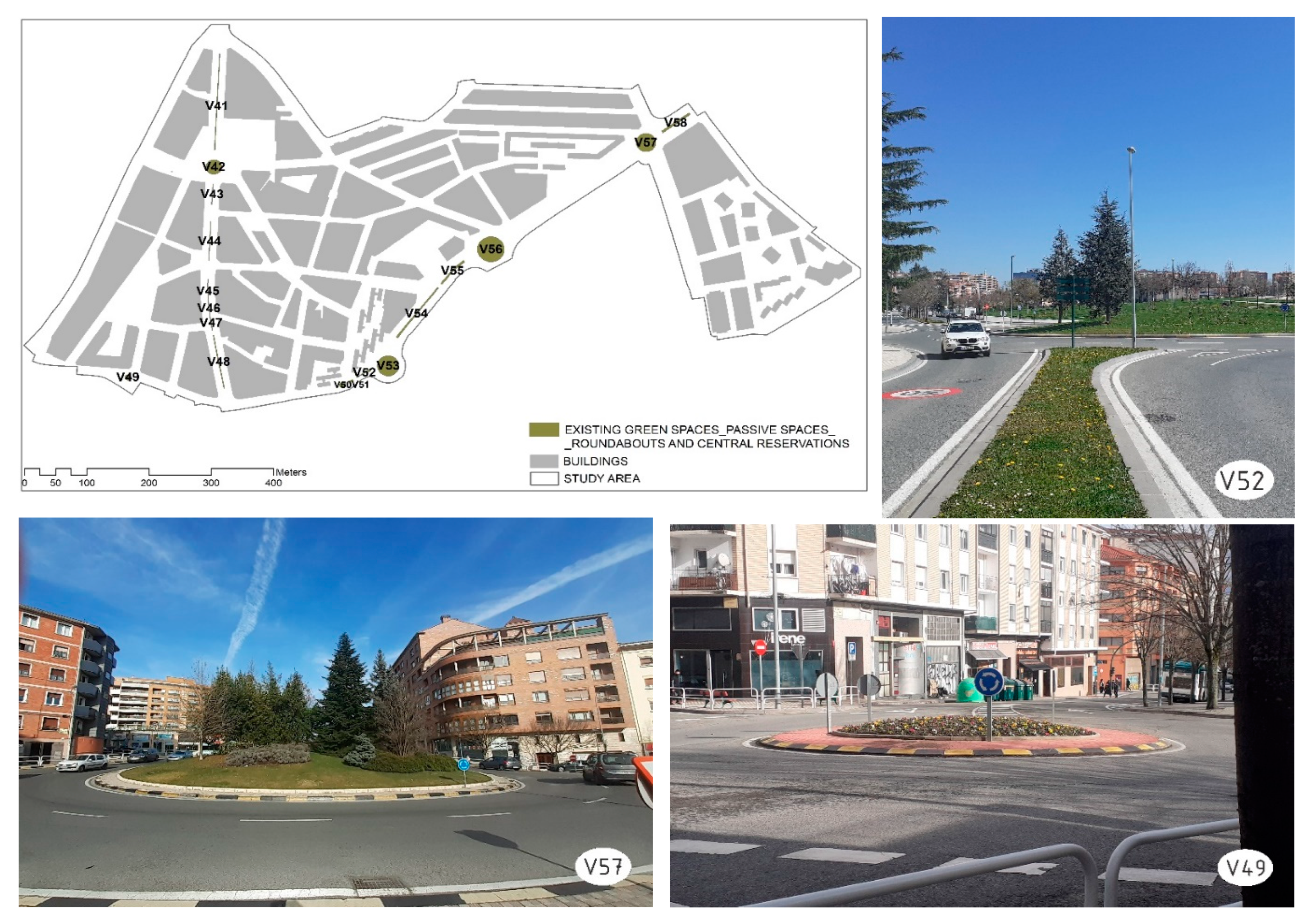

Passive spaces (inaccessible or with no function other than visual, aesthetic and restorative) are smaller in number (27 out of 67), but in surface area, they occupy almost half of the green areas in the neighbourhood (Figure 7 and Figure 8). Within the passive spaces, we could distinguish, on one hand, all the small areas that were generated in the neighbourhood’s roads and planted with vegetation: roundabouts and central reservations (Figure 8).
On the other hand, there is a group of small gardens in courtyards and private plots that occupies a surface area of 5479.9 m2 (Figure 9).
As with the rest of the existing green spaces, these are mainly located on the edges of the study area, highlighting once again the harshness and low quality of the entire central area of the neighbourhood.
Trees are primordial and structural elements of urban space. They are also visual and symbolic elements and, above all, play important roles in mitigation of the heat island, cooling of air through evaporation, infiltration of water into the soil for public health, environmental justice, water quality and environmental pollution [23,62,63].
The district of La Milagrosa is home to a total of 1031 trees, which are arranged in a more homogneoous distribution than the rest of the green space (Figure 10).

5.1.4. Trees

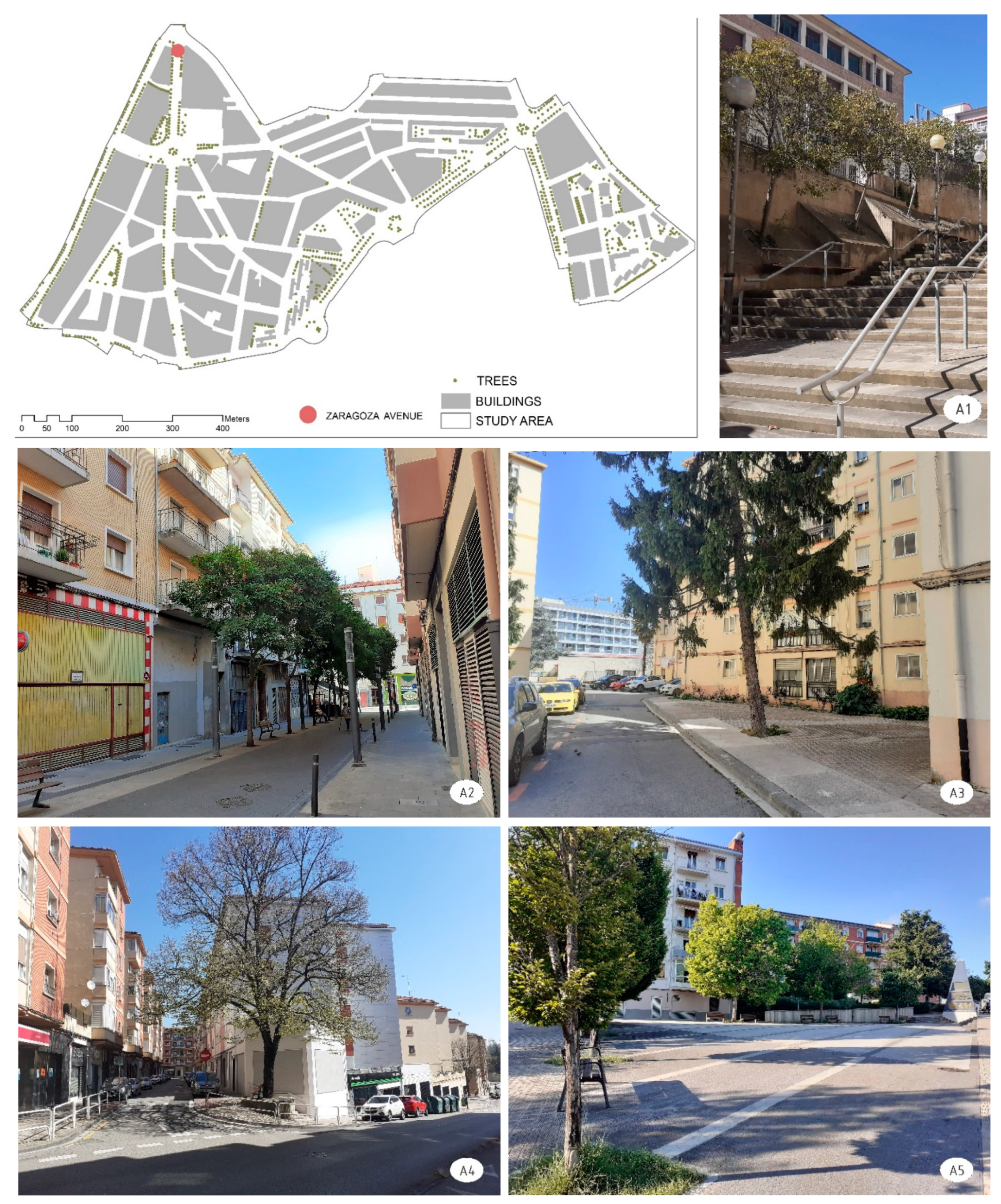

Trees are primordial and structural elements of the urban space. They are also visual and symbolic elements and, above all, play an important role in the mitigation of the heat island, the cooling of the air through evaporation, in the infiltration of water into the soil in public health, environmental justice, water quality and environmental pollution [23,63,64].
The district of La Milagrosa is home to a total of 1031 trees, which are arranged in a more homogneous distribution than the rest of the green space (Figure 10). Trees are located in gardens, squares and linear formation along streets, and there are also a large number of them in isolated locations, in some cases creating very symbolic corners and providing an aesthetic-visual respite for an entire area (VID A5 in Figure 10). The quality of the space they create varies greatly. In some cases and places, they are leafy trees, the branches of which create a continuous canopy, of undoubted value for biodiversity, heat island mitigation and creation of comfortable spaces for walking and staying in the summer season; in other cases, although the map shows an abundance of trees that may evoke an image of naturalised streets, in reality, they are small trees, very separate, with a decorative type of effect. See the trees on Avenida de Zaragoza in Figure 11 (Location of Avenida de Zaragoza in map of Figure 10).

5.2. Residual Spaces

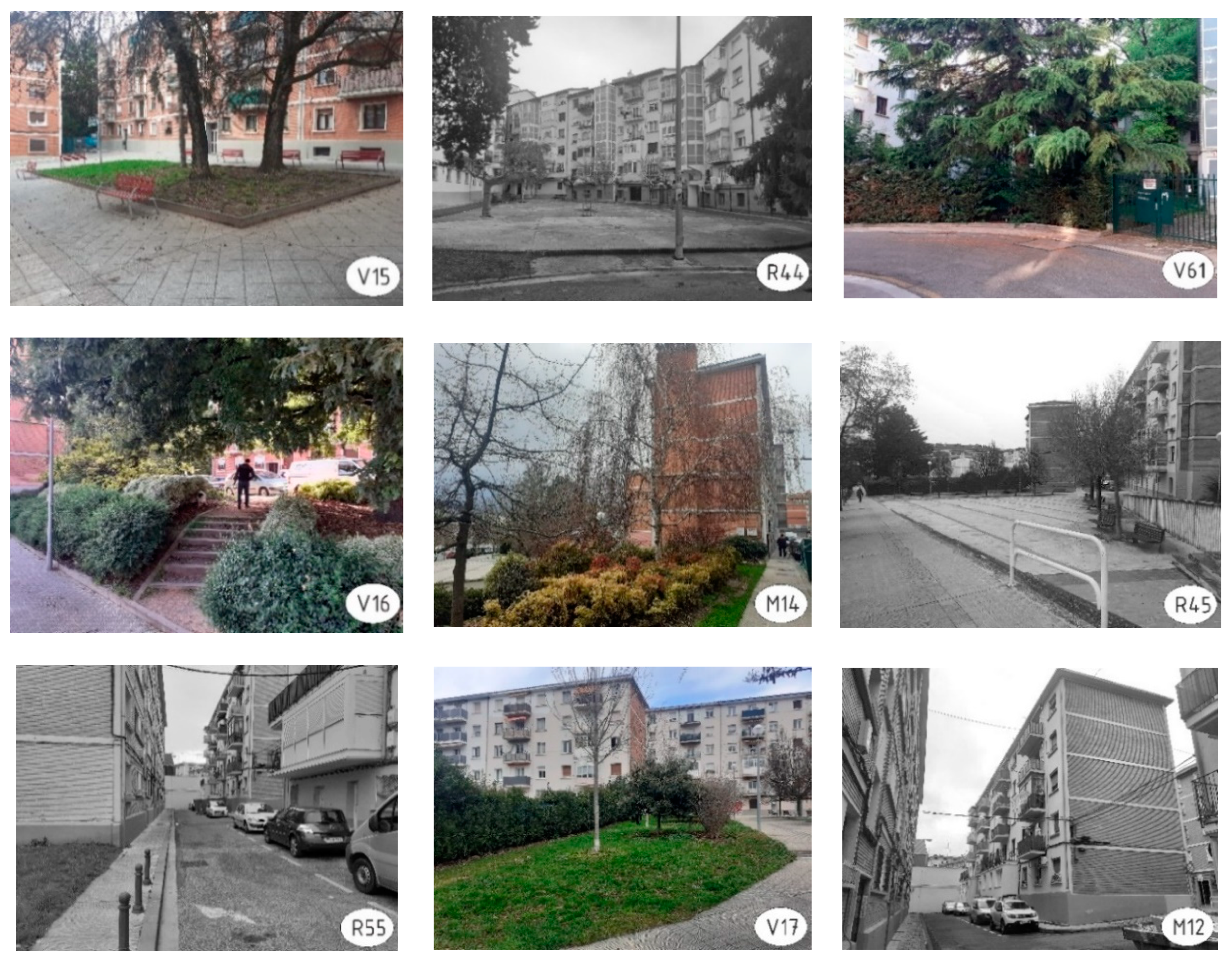

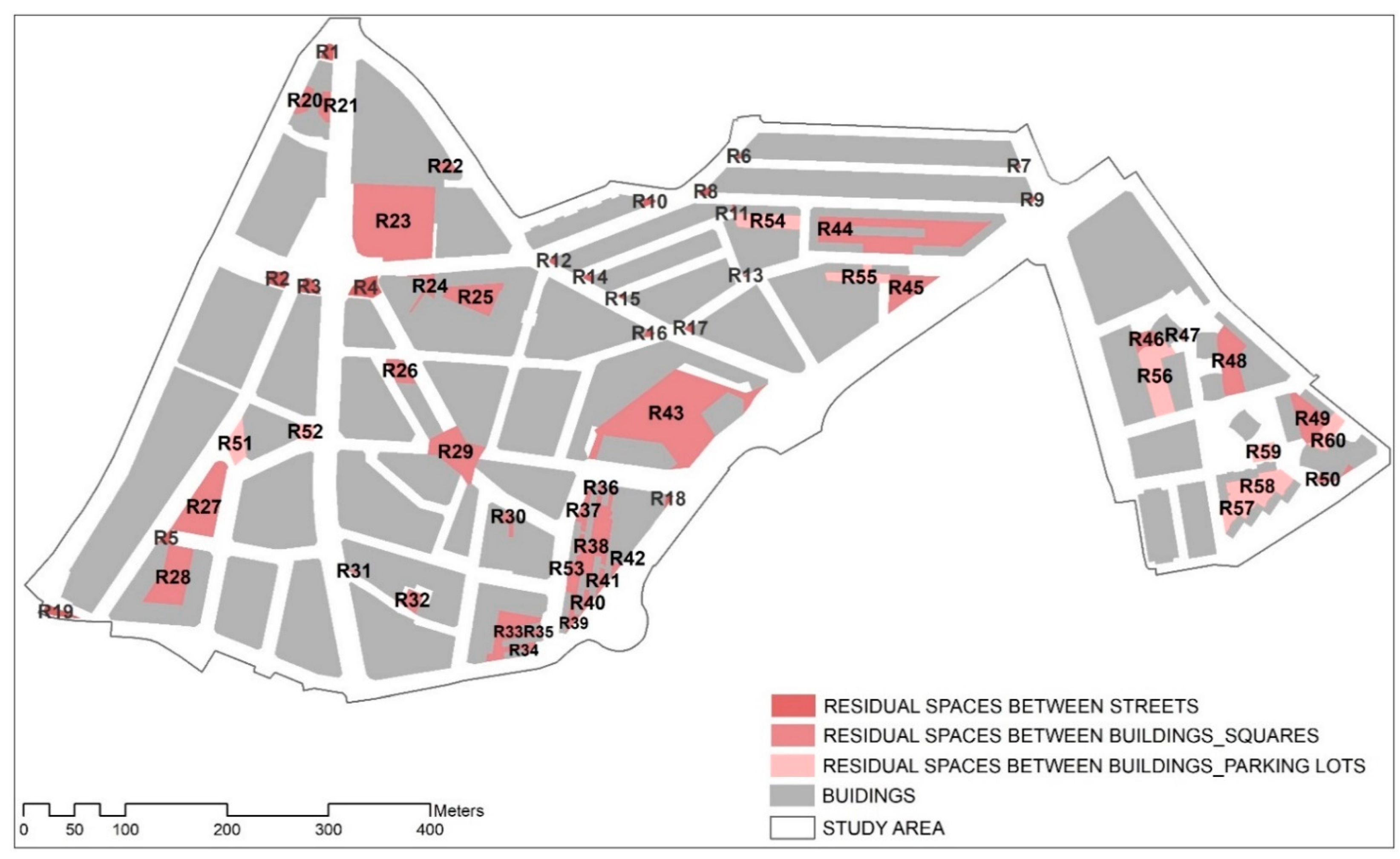

Exhaustive fieldwork uncovered a large number of residual spaces scattered throughout the study area. With vertical elements excluded, surface residual spaces account for 41.4 ha, i.e., an area roughly equivalent to that of the current green spaces. Due to the developmental conformation of the neighbourhood, from the outset, it was suspected that there might be spaces, nooks and crannies: vacant, abandoned places with no specific use or function. However, as the area was analysed, we found a greater number of residual spaces than expected. We counted up to 98 residual spaces dotted all over the surface at ground level (Figure 12) and also in vertical walls or party walls (Figure 13). Most of them, 60 of them, are found at ground level, covering a significant area, 41,374.2 m2 (Table 2), which is 10% of the total study area and almost double the area occupied by existing green spaces, but there is also a significant number of those considered as vertical residual spaces (Figure 13) (38 in total) whose greening can provide important services in the field of biodiversity or even in thermal efficiency of buildings.

5.2.1. Residual Spaces between Streets

The spaces between the streets are points of junction for roads that were left unresolved, with angles that would be very difficult to resolve [50], which arose due to the configuration of the road structure of La Milagrosa, which is markedly organicist and excessively adapted to the topography and/or the existing roads. They are meetings, corners, angles between narrow and irregular roads, spaces that bridge changes in elevation and spaces that, in many cases, include a tree inside (Figure 14). A total of 19 spaces between streets were identified, and although the surface area they cover is not large (1906.3 m2) (Table 2), due to their large number and their location (mostly in the central northern part of the area studied, where the streets are longer and narrower), they represent relief, especially visually, within this compact/stifling grid.

5.2.2. Residual Spaces between Buildings

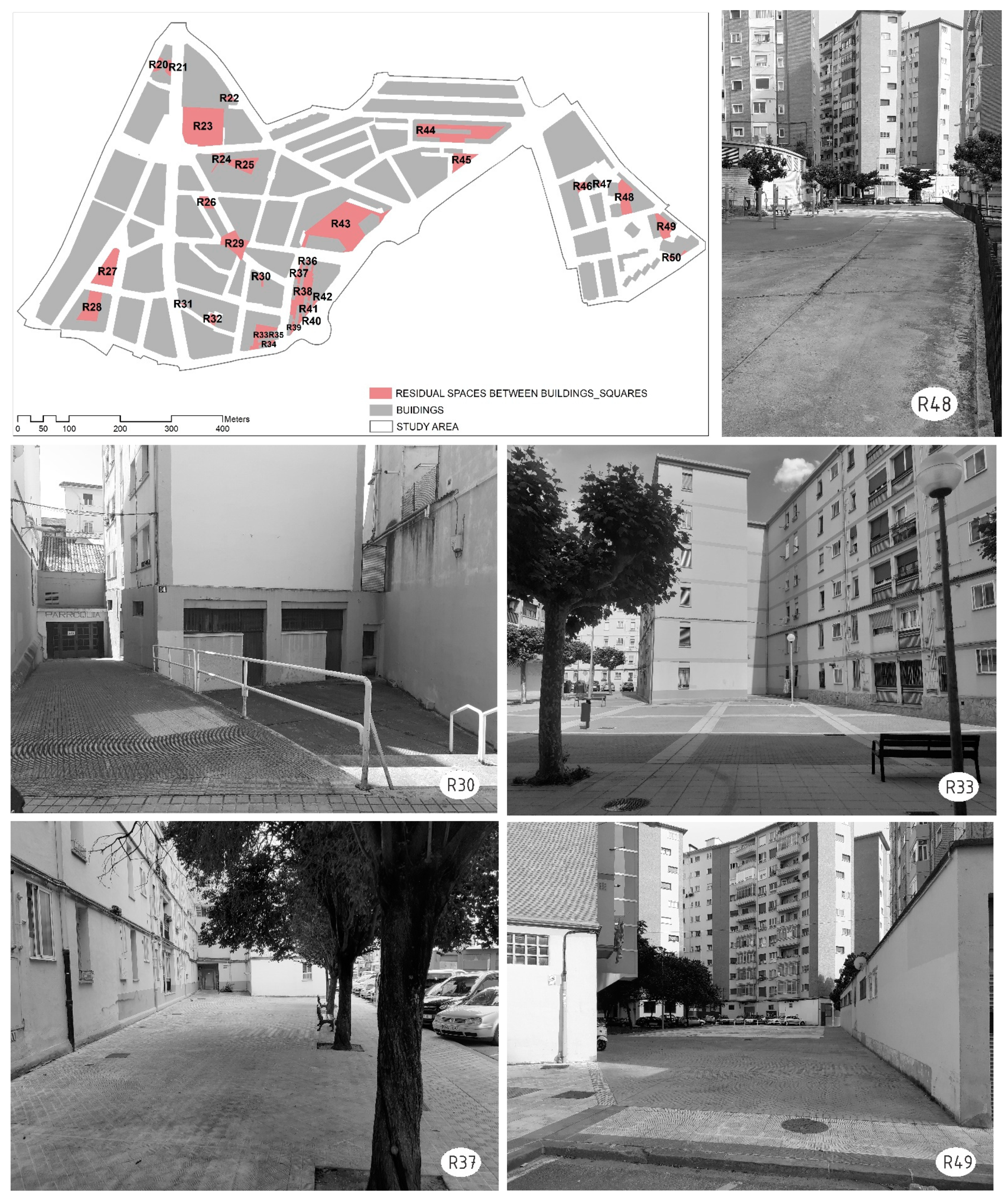

The spaces between buildings also arose due to urban planning that gave priority to building over public space, these empty spaces being simply the result of building floor plans and typologies (Figure 15).
The different building typologies developed in La Milagrosa are open and scattered blocks, some in linear form and others in L, T or H shapes, incapable of giving life and a defined use to the residual spaces that arose between blocks [56]. With groups of massive buildings (known as “polygons”), the very notion of urban layout seemed to disappear [56], and this was a general failure from the point of view of urban quality [55].
These spaces are larger than those between streets, which are more punctual, and cover a total surface area of 39,467.9 m2 (Table 2). These spaces are currently used as squares (Figure 16) or even car parks (Figure 17), although they were not originally intended for that purpose; they were simply undefined remainders between buildings,. The majority, 32,476.2 m2, are those destined to be squares, while the car parks occupy 6991.7 m2) (Table 2).
Although they are used as squares or parking areas, due to their characteristics, they are inhospitable, unpleasant and hard places because of both their scale (too big in many cases, losing the human scale) and their grey pavement, which makes them little-used places. The photographs in Figure 16 and Figure 17 show a lack of human presence: something that is common in these spaces.

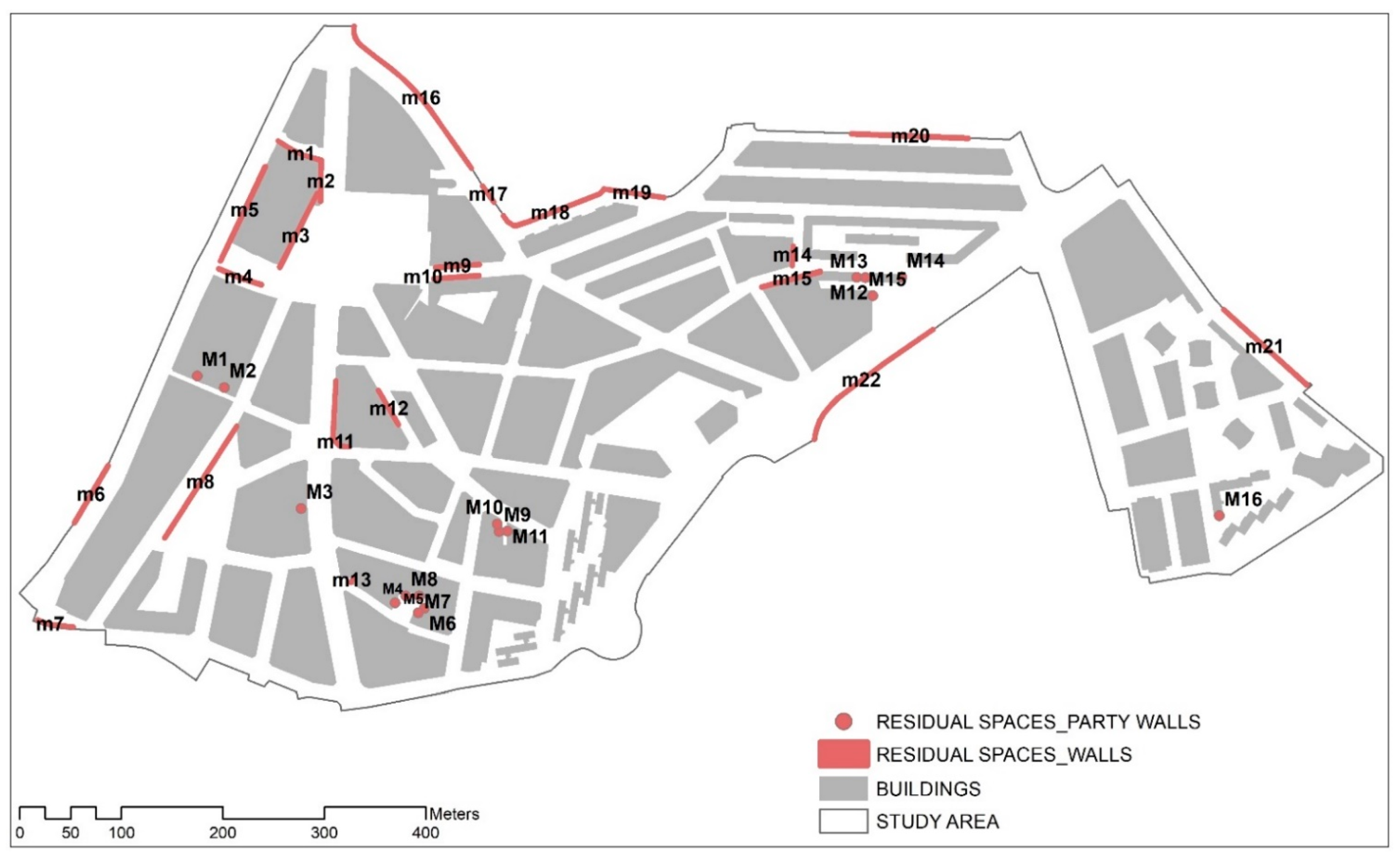

5.2.3. Residual Vertical Spaces: Walls and Party Walls

Vertical residual spaces are defined as surfaces of the muted façades of buildings (party walls: M) and linear enclosures of private plots (walls: m) (Figure 18).
We consider these spaces to be residual spaces because, on one hand, party walls are surfaces that were conceived to be separating walls between buildings. However, due to the disorganised construction of the neighbourhood and the lack of continuity in some areas, the party walls were left uncovered. There are countless party walls throughout the neighbourhood, but for this study, only those that are in contact with public space were taken into account. A total of 16 party walls (M1–M16) were counted (Table 2).
On the other hand, we also inventoried and classified as residual spaces the walls that enclose private courtyards and have blind/mute façades facing streets. In this case, we found 22 walls (m1–m22) (Table 2) of different lengths and heights. These are elements to be taken into consideration for possible greening and, above all, for the creation of a green corridor.

6. Discussion

The results of this research confirmed that in compact urban spaces, the possibility of introducing and expanding green areas is indeed limited, and it can be complex or even impossible to reach standards. A previous study [23] already showed that the study area of La Milagrosa has a ratio of 2 m2 of green space per inhabitant compared to the average for the city of Pamplona, which is 12.9 m2. This is a calculation of green areas that was made while taking into account all the small spaces that are covered in some type of vegetation. It therefore incorporates spaces that have been detected in microscale analysis and are not common in the inventories of urban green spaces [10,60]. Nevertheless, this figure falls far short of the 9 m2 recommended by the World Health Organisation [65]. Undoubtedly, the almost 560 m2 of UGS per inhabitant of the city of Ljubljana, Slovenia (awarded the 2016 European Green Capital), is excellent from the points of view of urban ecology, health and quality of life. However, as we have pointed out on other occasions [23], given the delicate balance between densification and greening, we agree more with the approaches of those who advocate not so much for the quantity of green spaces as for their quality [1,8,15,19,20].
Microscale analysis of residual areas in the study area, looking for opportunity spaces to increase green spaces, detected a surface area, which could be greened, that is twice the size of the existing green spaces. If the greening procedures for residual areas were implemented, the ratio of green spaces could be increased to 4.3 m2 per inhabitant. However, beyond the figures and ratios, we consider it important that if this greening were to be carried out, (a) a green corridor could be created, running through the neighbourhood of La Milagrosa, and (b) a set of green squares, which would also serve as meeting, socialization and psychological restoration spaces, could be generated. In any case, the results proved that there is potential space for increasing green areas and, above all, for creating corridors that allow environmental and social connectivity within the neighbourhood itself and between it and the rest of the city. These corridors could provide the neighbourhood with pleasant, healthy routes and encounters with a natural environment.
The creation of such a green corridor is a solution, but it is also a complex task. Creating the green corridor would require a strong political will on the part of the city council, where the departments in charge of urban planning and those in charge of parks and green spaces do not communicate well with each other. However, it would also require contact with the resident population in a participatory and educational formative process that would make it possible to get to know the residents’ ideas about their neighbourhood and its ecology while trying to make the population aware of the advantages and opportunities of improving their quality of life through green spaces and green corridors. Research is now moving forward along these lines, preparing a participatory process for which the proposal of green spaces and corridors has been created, as shown in Figure 19 and Figure 20. Figure 19 shows the layout of a fragment of the ecological corridor, identified as 1. As an example and a visualisation of the corridor components and spaces, Figure 20 shows the sequence of images corresponding to the spaces (existing green spaces + residual spaces) that would be greened and/or landscaped to form a connected network of SUGSs.
Another issue that we consider important is the fact that the analysis carried out provided information and arguments to fuel debate and reflection on the possibilities and limitations of greening of compact urban areas. It also showed that there are urban areas in which, far from needing densification, there is a need to reduce the built-up area. In these compact spaces, it could be positive to reduce density, opening up space via possibly removing some built-up areas. This has been attempted in La Milagrosa, where the city council proposed the demolition of several residential buildings (190 dwellings). The municipal proposal was met with strong rejection and opposition from the population, which led the city council to reject the proposal.

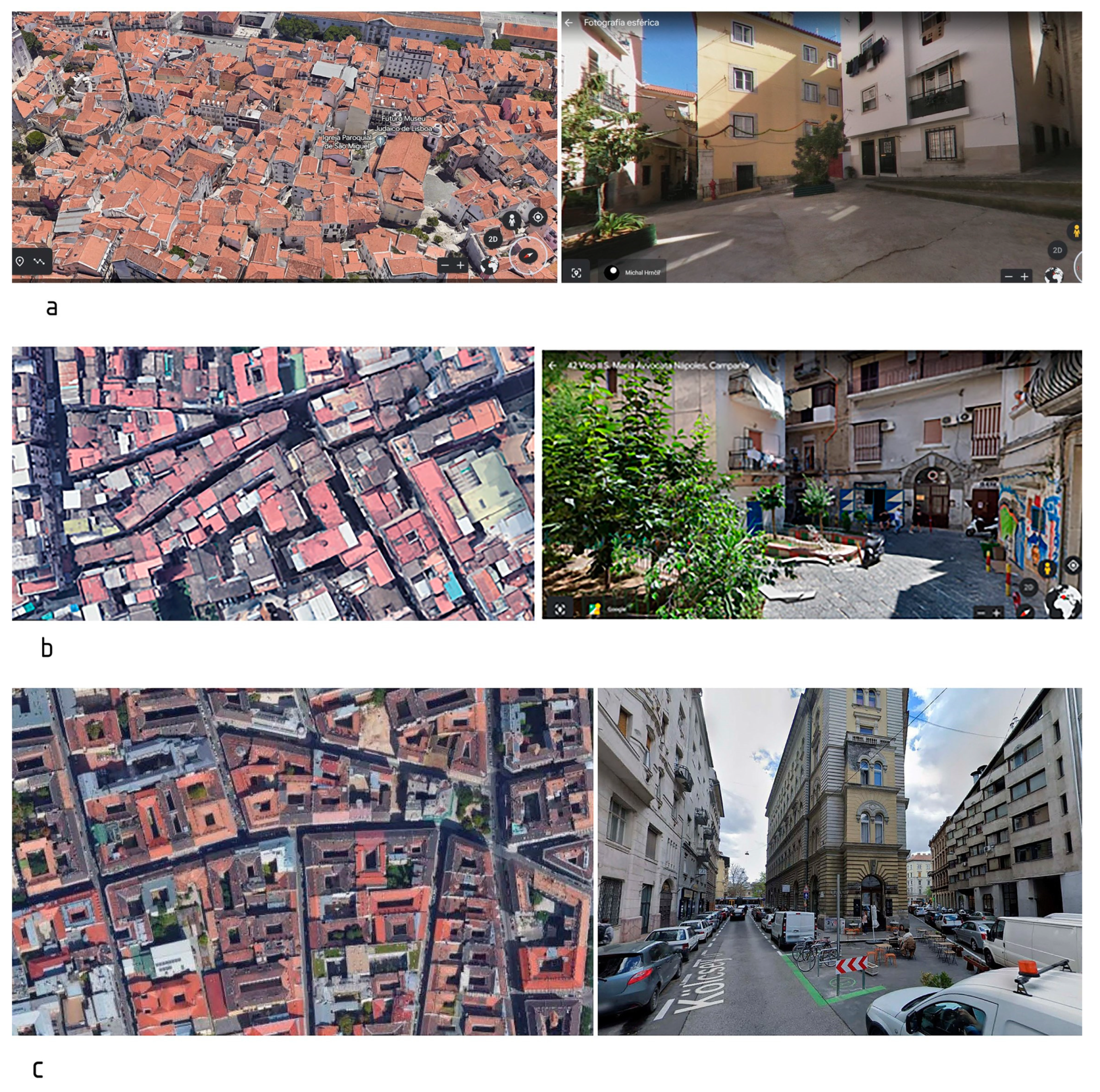

Finally, we considered that the type of analysis carried out in La Milagrosa could be a starting point for advancing approaches to the possibilities of residual spaces in greening and creation of urban green infrastructure. The organizational structures of the buildings of La Milagrosa and the scarcity of green spaces it presents, both fruits of the aforementioned developmentalist urbanism, are frequent in the neighbourhoods of many European cities that have welcomed the migratory waves produced by different causes at different times in their history: rural migration that allowed urban industrialization in some cases and migration from other countries in other cases. In most cases, these are neighbourhoods inhabited by the working classes and, in general, by the low-income population. Neighbourhoods of this type are present in most of the world’s cities, even in those that have green spaces that allow them to boast or show off, such as in the city of Pamplona. Intraurban inequalities in distribution of green spaces and the relationship between socioeconomic level and quantity and quality of urban greenery are well-documented in research on the subject. In Europe, the European Environment Agency published in 2022 [26] a report in which it echoed the inequity common in many European cities regarding availability and access to green areas from different residential areas. The report included studies carried out, for example, in the cities of Debrecen and Bucharest (Hungary), Warsaw (Poland), Berlin (Germany), Turin (Italy), Helsinki (Finland), Bucharest, Lisbon and Porto (Portugal), showing the most unfavourable conditions of green spaces—or simply their scarcity—in neighbourhoods inhabited by the lower social classes. During the last few years, fortunately, some of these neighbourhoods have undergone profound reform and improvement processes, to the point of becoming highly desirable and even gentrified residential areas. The neighbourhoods of Arroios and Alfama (former fishermen’s quarter) in Lisbon, Punavuori in Helsinki or District 8 in Budapest are examples of this process. Nevertheless, there is still much room for improvement in most of these cities in terms of increasing green spaces. This was the conclusion of a study published in 2021 by the Institute for Global Health (ISGlobal) (Barcelona, Spain) [66], in which they detected overmortality linked to high density and scarcity of green spaces in different European cities. A virtual visit using the Google Maps Street View tool allowed us to discover, in these neighbourhoods, residual spaces very similar to those located in La Milagrosa (Figure 21).

Author Contributions

Conceptualization, I.L.; methodology, I.L. and A.L.; software, A.L. and I.L.; investigation, I.L. and A.L.; data curation, A.L.; writing—original draft preparation, I.L.; writing—review and editing, I.L. and A.L.; project administration, I.L.; funding acquisition, I.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the EKOPOL research group, funded in 2022 by the Department of Universities and Research of the Basque Government with the project “Iraunkortasunerako bideak”-”Ecosocial Transition for Sustainability” IT1567-22. This research was funded by the Ministry of Science and Innovation, Agencia Estatal de Investigación MCIN, Proyectos de Generación de Conocimiento 2021-PID2021-128356NB-I00-, Research Project: Proposal for institutional and community design for integrated territorial planning in the transition to a sustainable economy.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author, upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Haaland, C.; Konijnendijk, C.C. Challenges and strategies for urban green-space planning in cities undergoing densification: A review. Urban For. Urban Green. 2015, 14, 760–771. [Google Scholar] [CrossRef]
  2. Artmann, M.; Inostroza, L.; Fan, P. Urban sprawl, compact urban development and green cities. How much do we know, how much do we agree? Ecol. Indic. 2019, 96, 3–9. [Google Scholar] [CrossRef]
  3. Hansen, R.; Olafsson, A.S.; van der Jagt, A.P.N.; Rall, E.; Pauleit, S. Planning multifunctional green infrastructure for compact cities: What is the state of practice? Ecol. Indic. 2019, 96 Pt 2, 96–110. [Google Scholar] [CrossRef]
  4. Lennon, M. Green space and the compact city: Planning issues for a ‘new normal’. Cities Health 2021, 5 (Suppl. 1), S212–S215. [Google Scholar] [CrossRef]
  5. Popa, A.M.; Onose, D.A.; Sandric, I.C.; Dosiadis, E.A.; Petropoulos, G.P.; Gavrilidis, A.A.; Faka, A. Using GEOBIA and Vegetation Indices to Assess Small Urban Green Areas in Two Climatic Regions. Remote Sens. 2022, 14, 4888. [Google Scholar] [CrossRef]
  6. Douglas, O.; Lennon, M.; Scott, M. Green space benefits for health and well-being: A life-course approach for urban planning, design and management. Cities 2017, 66, 53–62. [Google Scholar] [CrossRef] [Green Version]
  7. Du, M.; Zhang, X. Urban greening: A new paradox of economic or social sustainability? Land Use Policy 2020, 92, 104487. [Google Scholar] [CrossRef]
  8. Russo, A.; Cirella, G.T. Modern compact cities: How much greenery do we need? Int. J. Environ. Res. Public Health 2018, 15, 2180. [Google Scholar] [CrossRef] [Green Version]
  9. Jia, Z.; Tang, S.; Luoa, W.; Lib, S.; Zhoua, M. Small scale green infrastructure design to meet different urban hydrological criteria. J. Environ. Manag. 2016, 171, 92–100. [Google Scholar] [CrossRef]
  10. Boehnke, D.; Krehl, A.; Mörmann, K.; Volk, R.; Lützkendorf, T.; Naber, E.; Becker, R.; Norra, S. Mapping Urban Green and Its Ecosystem Services at Microscale—A Methodological Approach for Climate Adaptation and Biodiversity. Sustainability 2022, 14, 9029. [Google Scholar] [CrossRef]
  11. Fatiah, A.A.; Ponrahono, Z.; Zakariya, K. Quality of designs and features of Small Urban Green Spaces in Petaling Jaya Town. Plan. Malays. 2021, 19, 138–149. [Google Scholar]
  12. Artmann, M.; Bastian, O.; Grunewald, K. Using the Concepts of Green Infrastructure and Ecosystem Services to Specify Leitbilder for Compact and Green Cities—The Example of the Landscape Plan of Dresden (Germany). Sustainability 2017, 9, 198. [Google Scholar] [CrossRef] [Green Version]
  13. Haase, D.; Sigrun Kabisch, S.; Haasec, A.; Andersson, E.; Banzhafc, E.; Baró, F.; Brenck, M.; Fischer, L.K.; Frantzeskaki, N.; Kabisch, N.; et al. Greening cities—To be socially inclusive? About the alleged paradox of society and ecology in cities. Habitat Int. 2017, 64, 41–48. [Google Scholar] [CrossRef]
  14. Szulczewska, B.; Giedych, R.; Borowskib, J.; Kuchcik, M.; Sikorskib, P.; Mazurkiewicz, A.; Stanczyk, T. How much green is needed for a vital neighborhood? In search for empirical evidence. Land Use Policy 2014, 38, 330–345. [Google Scholar] [CrossRef]
  15. Badiu, D.L.; Ioja, C.I.; Patroescu, M.; Breusteb, J.; Artman, M.; RazvanNita, M.; Gradinaru, S.R.; Hossu, C.A.; Onose, D.A. Is urban green space per capita a valuable target to achieve cities’ sustainability goals? Romania as a case study. Ecol. Indic. 2016, 70, 53–66. [Google Scholar] [CrossRef]
  16. Gupta, K.; Kumar, P.; Pathan, S.K.; Sharma, K.P. Urban Neighborhood Green Index—A measure of green spaces in urban areas. Landsc. Urban Plan. 2012, 105, 325–335. [Google Scholar] [CrossRef]
  17. Lafortezza, R.; Davies, C.; Sanesi, G.; Konijnendijk, C.C. Green Infrastructure as a tool to support spatial planning in European urban regions. iForest 2013, 6, 102–108. [Google Scholar] [CrossRef] [Green Version]
  18. Akpinar, A. How is Quality of Urban Green Spaces Associated with Physical Activity and Health? Urban For. Urban Green. 2016, 16, 76–83. [Google Scholar] [CrossRef]
  19. Jim, C.Y. Green-space preservation and allocation for sustainable greening of compact cities. Cities 2004, 21, 311–320. [Google Scholar] [CrossRef]
  20. Zhang, Y.; Van den Berg, A.E.; Van Dijk, T.; Weitkamp, G. Quality over quantity: Contribution of urban green space to neighborhood satisfaction. Int. J. Environ. Res. Public Health 2017, 14, 535. [Google Scholar] [CrossRef]
  21. Ekkel, E.D.; de Vries, S. Nearby green space and human health: Evaluating accessibility metrics. Landsc. Urban Plan. 2017, 157, 214–220. [Google Scholar] [CrossRef]
  22. Ha, J.; Kim, H.J.; With, K.A. Urban green space alone is not enough: A landscape analysis linking the spatial distribution of urban green space to mental health in the city of Chicago. Landsc. Urban Plan. 2022, 218, 104309. [Google Scholar] [CrossRef]
  23. Latasa, I.; Laurenz, A.; Sádaba, J. Urban Green Infrastructure as a Strategy to Address Urban Energy Efficiency and Sustainability. A Case Study of Milagrosa. Sustainability 2022, 14, 28. [Google Scholar] [CrossRef]
  24. Lähde, E.; Di Marino, M. Multidisciplinary collaboration and understanding of green infrastructure Results from the cities of Tampere, Vantaa and Jyväskylä (Finland). Urban For. Urban Green. 2019, 40, 63–72. [Google Scholar] [CrossRef]
  25. Konijnendijk, C.C. Evidence-based guidelines for greener, healthier, more resilient neighbourhoods: Introducing the 3–30–300 rule. J. For. Res. 2022. [Google Scholar] [CrossRef]
  26. EEA. Who Benefits from Nature in Cities? Social Inequalities in Access to Urban Greenand Blue Spaces across Europe. European Environmental Agency. 2022. Available online: https://www.eea.europa.eu/downloads/803a2dd9755941439d2f70d5fa1d2e19/1645443187/who-benefits-from-nature-in.pdf (accessed on 7 December 2022).
  27. Zhang, H.; Han, M. Pocket parks in English and Chinese literature: A review. Urban For. Urban Green. 2021, 61, 127080. [Google Scholar] [CrossRef]
  28. Bruce, A. Pocket Park Design. Solutions for the Regeneration of Public Space in High-Density Cities; Images Publishing: Mulgrave, Australia, 2017. [Google Scholar]
  29. Hamdy, M.; Plaku, R. Pocket Parks: Urban Living Rooms for Urban Regeneration. Civ. Eng. Archit. 2021, 9, 747–759. [Google Scholar] [CrossRef]
  30. Nordh, H.; Hartig, T.; Hagerhall, C.M.; Fry, G. Components of small urban parks that predict the possibility for restoration. Urban For. Urban Green. 2009, 8, 225–235. [Google Scholar] [CrossRef]
  31. Lauria, A.; Vessella, L. Small Forgotten Places in the Hearth of Cities: On the Residuality of Public Spaces in Historical Contexts: Florence as a Case Study; Firenze University Press: Firenze, Italy, 2021. [Google Scholar]
  32. Rosso, F.; Pioppi, B.; Pisello, A.L. Pocket parks for human-centered urban climate change resilience: Microclimate field tests and multi-domain comfort analysis through portable sensing techniques and citizens’ science. Energy Build. 2022, 260, 11918. [Google Scholar] [CrossRef]
  33. Surma, M. Green Infrastructure Planning as a part of Sustainable Urban Development—Case studies of Copenhagen and Wroclaw. Landsc. Archit. Art. 2013, 3, 22–32. [Google Scholar]
  34. Ortega-Álvarez, R.; MacGregor-Fors, I. Living in the big city: Effects of urban land-use on bird community structure, diversity, and composition. Landsc. Urban Plan. 2009, 90, 189–195. [Google Scholar] [CrossRef]
  35. Labuz, R. Pocket Park—A New Type of Green Public Space in Kraków (Poland). IOP Conf. Ser. Mater. Sci. Eng. C 2019, 471, 112018. [Google Scholar] [CrossRef]
  36. Liu, S.; Wang, X. Reexamine the value of urban pocket parks under the impact of the COVID-19. Urban For. Urban Green. 2021, 64, 127294. [Google Scholar] [CrossRef]
  37. Monty, K.M. Pocket park: A new idea for creating qualified social green open space in an extremely dense area of Dhaka, Bangladesh. Archit. Mod. Inf. Technol. AMIT 2022, 4, 292–305. [Google Scholar] [CrossRef]
  38. Lu, S.; Oh, W.; Ooka, R.; Wang, L. Effects of Environmental Features in Small Public Urban Green Spaces on Older Adults’ Mental Restoration: Evidence from Tokyo. Int. J. Environ. Health Res. 2022, 19, 5477. [Google Scholar] [CrossRef]
  39. Armato, F. Pocket Park: Product Urban design. Des. J. 2017, 20 (Suppl. 1), S1869–S1878. [Google Scholar] [CrossRef] [Green Version]
  40. Delgado Capel, M.; Cariñanos, P. Towards a Standard Framework to Identify Green Infrastructure Key Elements in Dense Mediterranean Cities. Forests 2020, 11, 1246. [Google Scholar] [CrossRef]
  41. de Vries, S.; Verheij, R.A.; Groenewegen, P.P.; Spreeuwenberg, P. Natural environments- healthy environments? An exploratory analysis of the relationship between greenspace and health. Environ. Plan. A 2003, 35, 1717–1731. Available online: https://journals.sagepub.com/doi/10.1068/a35111 (accessed on 20 October 2022). [CrossRef] [Green Version]
  42. Peschardt, K.K.; Schipperijn, J.; Stigsdotter, U.K. Use of Small Public Urban Green Spaces (SPUG). Urban For. Urban Green. 2012, 11, 235–244. [Google Scholar] [CrossRef]
  43. Gavrilidis, A.A.; Popa, A.M.; Onose, D.A.; Gradinaru, S.N. Planning small for winning big: Small urban green space distribution patterns in an expanding city. Urban For. Urban Green. 2022, 78, 127787. [Google Scholar] [CrossRef]
  44. Latasa Zaballos, I. La infraestructura verde: Una herramienta, una estrategia y un largo camino a recorrer. In Cuadernos de Ordenación del Territorio; 2021; pp. 3–16. Available online: https://www.researchgate.net/publication/349350878_LA_INFRAESTRUCTURA_VERDE_UNA_HERRAMIENTA_UNA_ESTRATEGIA_Y_UN_LARGO_CAMINO_A_RECORRER (accessed on 18 February 2023).
  45. Seymour, W.N. Small Urban Spaces: The Philosophy, Design, Sociology and Politics of Vest-Pocket Parks and Other Small Urban Open Spaces; University Press: New York, NY, USA, 1969. [Google Scholar]
  46. Krzysztofik, S.; Galoch, A. Pocket parks in Łódź as an element of improving urban resilence in the city centre. Build. Sci. 2022, 52, 52–55. [Google Scholar] [CrossRef]
  47. ASEJA Asociación Española de Parques y Jardines Públicos. Análisis de la Conservación de la Infraestructura Verde en España 2015; ASEJA Asociación de Empresas de Gestión de Infraestructura Verde: Madrid, Spain, 2017. [Google Scholar]
  48. Calderón, B.; García Cuesta, J.L. La estructura de las ciudades españolas: Un complejo entramado de relaciones entre permanencias y cambios, formas y usos. BAGE 2018, 77, 283–314. [Google Scholar] [CrossRef]
  49. Blein, G. Informe Sobre los Problemas Urbanísticos de la Ciudad de Pamplona. Ordenación Urbana Pamplona 1945. Informes Sobre la Ordenación Urbanística de Pamplona en sus Barrios. Ayuntamiento de Pamplona: Pamplona, Spain, 1945. [Google Scholar]
  50. Ordeig Corsini, J.M.; Rives Navarro, L. Pamplona Metrópoli 1930…Modernidad y Futuro. Crónica Urbanística de la Comarca de Pamplona; P. Burguera: Pamplona, Spain, 2005. [Google Scholar]
  51. Valera-Alonso, M.; Etxepare-Iguiñiz, L. Medio siglo largo del Polígono Dirigido de Ocharcoaga (1959–1964). Luces y sombras de un barrio desarrollista. CyTET 2020, 52, 205. [Google Scholar] [CrossRef]
  52. Capel, H. Capitalismo y Morfología Urbana en España; Batló: Barcelona, Spain, 1975. [Google Scholar]
  53. Navarro Vera, J.R.; Ortuño Padilla, A. Aproximación a la génesis de la contribución de la densidad en la noción de “ciudad compacta”. Eure 2011, 37, 23–41. [Google Scholar] [CrossRef] [Green Version]
  54. Ayuntamiento de Pamplona/Iruñea. Anteproyecto PEAU Milagrosa; Ayuntamiento de Pamplona/Iruñea: Pamplona, Spain, 2019. [Google Scholar]
  55. Monclús, J.; Díez, C.; García, S. Los Polígonos de Vivienda como Legado Urbanístico: Formas Urbanas y Espacios Abiertos Intermedios; Departamento de Urbanística y Ordenación del Territorio, Universidad de Sevilla: Sevilla, Spain, 2017. [Google Scholar]
  56. Valera-Alonso, M. Ocharcoaga. El Polígono de las Flores Amarillas. Ph.D. Thesis, University of the Basque Country, San Sebastian, Spain, September 2017. [Google Scholar]
  57. Honeck, E.; Sanguet, A.; Schlaepfer, M.A. Methods for identifying green infrastructure. SN Appl. Sci. 2020, 2, 1916. [Google Scholar] [CrossRef]
  58. Wang, J.; Banzhaf, E. Towards a better understanding of Green Infrastructure: A critical review. Ecol. Indic. 2018, 85, 758–772. [Google Scholar] [CrossRef]
  59. Basnou, C.; Baró, F.; Langemeyer, J.; Castell, C.; Dalmases, C.; Pino, J. Advancing the green infrastructure approach in the Province of Barcelona: Integrating biodiversity, ecosystem functions and services into landscape planning. Urban For. Urban Green 2020, 55, 126797. [Google Scholar] [CrossRef]
  60. Brzoska, P.; Spage, A. From City- to Site-Dimension: Assessing the Urban Ecosystem Services of Different Types of Green Infrastructure. Land 2020, 9, 150. [Google Scholar] [CrossRef]
  61. Laurìa, A.; Vessella, L.; Romagnoli, M. The Pocket Park System as a Regeneration Strategy for the Historic City. In Heritage 2020, Proceedings of the 7th International Conference on Heritage and Sustainable Development, Coimbra, Portugal, 8–10 July 2020; Amoêda, R., Lira, S., Pinheiro, C., Eds.; Green Lines Institute for Sustainable Development: Barcelos, Portugal, 2020; pp. 103–111. [Google Scholar]
  62. Gibson, H.; Canfield, J. Pocket parks as community building blocks: A focus on Stapleton, CO. Community Dev. J. 2016, 47, 732–745. [Google Scholar] [CrossRef]
  63. Locke, D.H.; Morgan Grove, J.; Galvin, M.; Jarlath, P.M. Applications of Urban Tree Canopy Assessment and Prioritization Tools: Supporting Collaborative Decision Making to Achieve Urban Sustainability Goals. CATE 2013, 6, 7. Available online: http://digitalcommons.lmu.edu/cate/vol6/iss1/7 (accessed on 28 February 2022).
  64. White, M.R.; Langenheim, N. A spatio-temporal decision support system for designing with street trees. IJEPR 2019, 7, 533–560. [Google Scholar] [CrossRef]
  65. World Health Organization (WHO). Health Indicators of Sustainable Cities in the Context of the Rio+20 UN Conference on Sustainable Development; WHO: Geneva, Switzerland, 2012. [Google Scholar]
  66. Pereira Barboza, E.; Cirach, M.; Khomenko, S.; Iungman, T.; Mueller, N.; Barrera-Gómez, J.; Rojas-Rueda, D.; Kondo, M.; Nieuwenhuijsen, M. Green space and mortality in European cities: A health impact assessment study. Lancet Planet Health 2021, 5, e718–e730. [Google Scholar] [CrossRef] [PubMed]

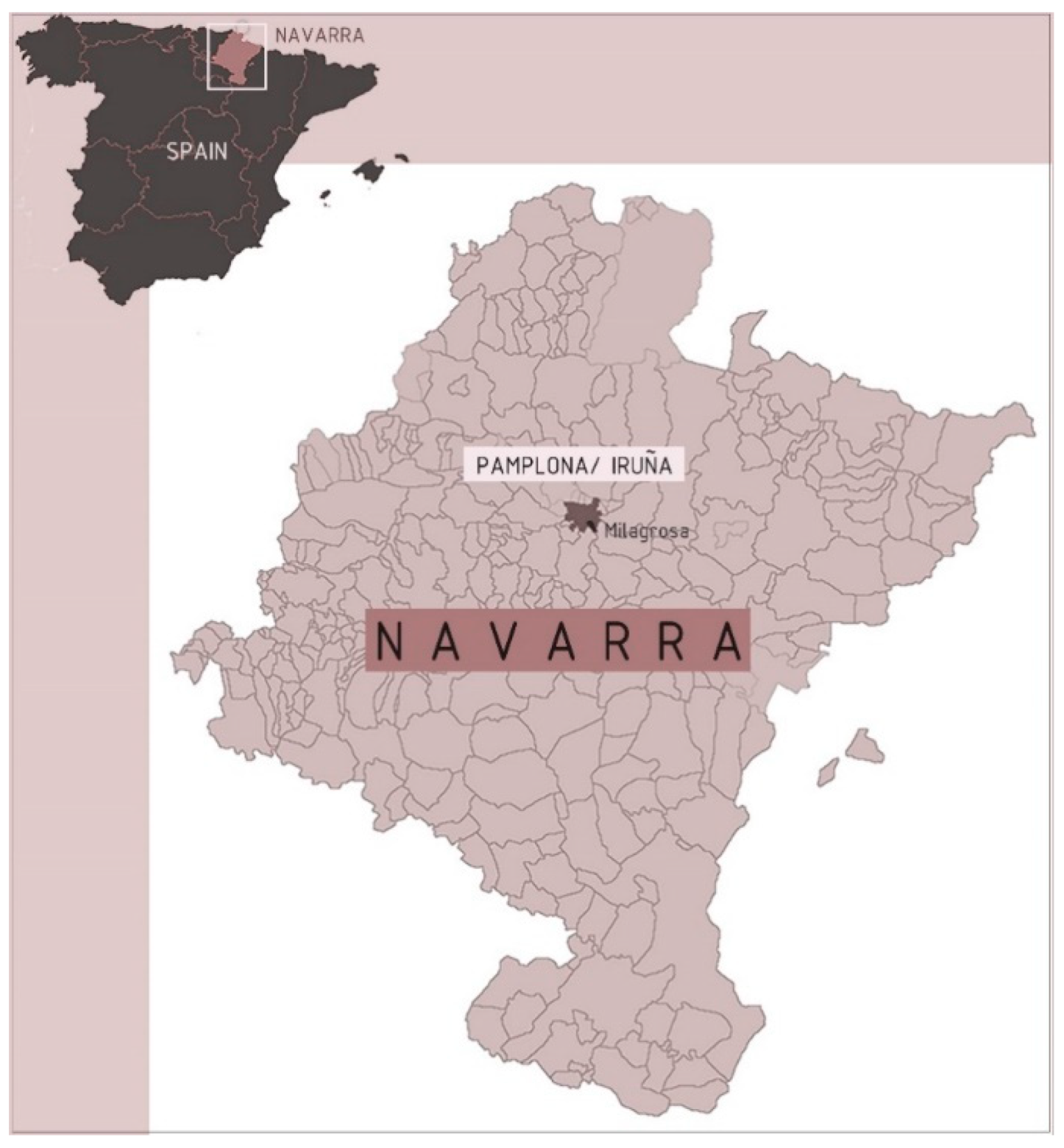

Figure 1. Location map.
Figure 1. Location map.
Land 12 00764 g001
Figure 2. Location of the study area, in the neighbourhood of La Milagrosa in the city of Pamplona.
Figure 2. Location of the study area, in the neighbourhood of La Milagrosa in the city of Pamplona.
Land 12 00764 g002

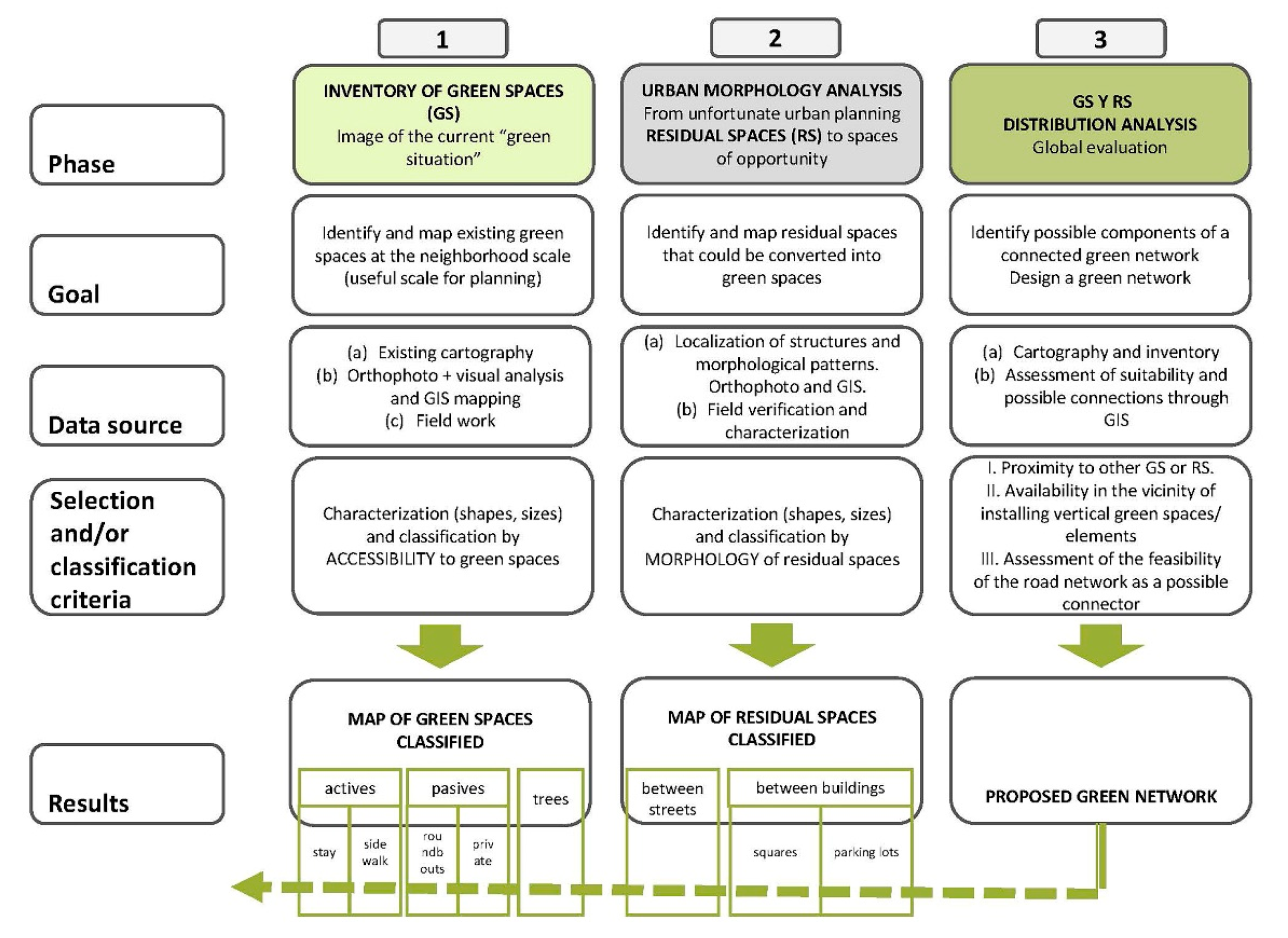

Figure 3. Methodological summary.
Figure 3. Methodological summary.
Land 12 00764 g003

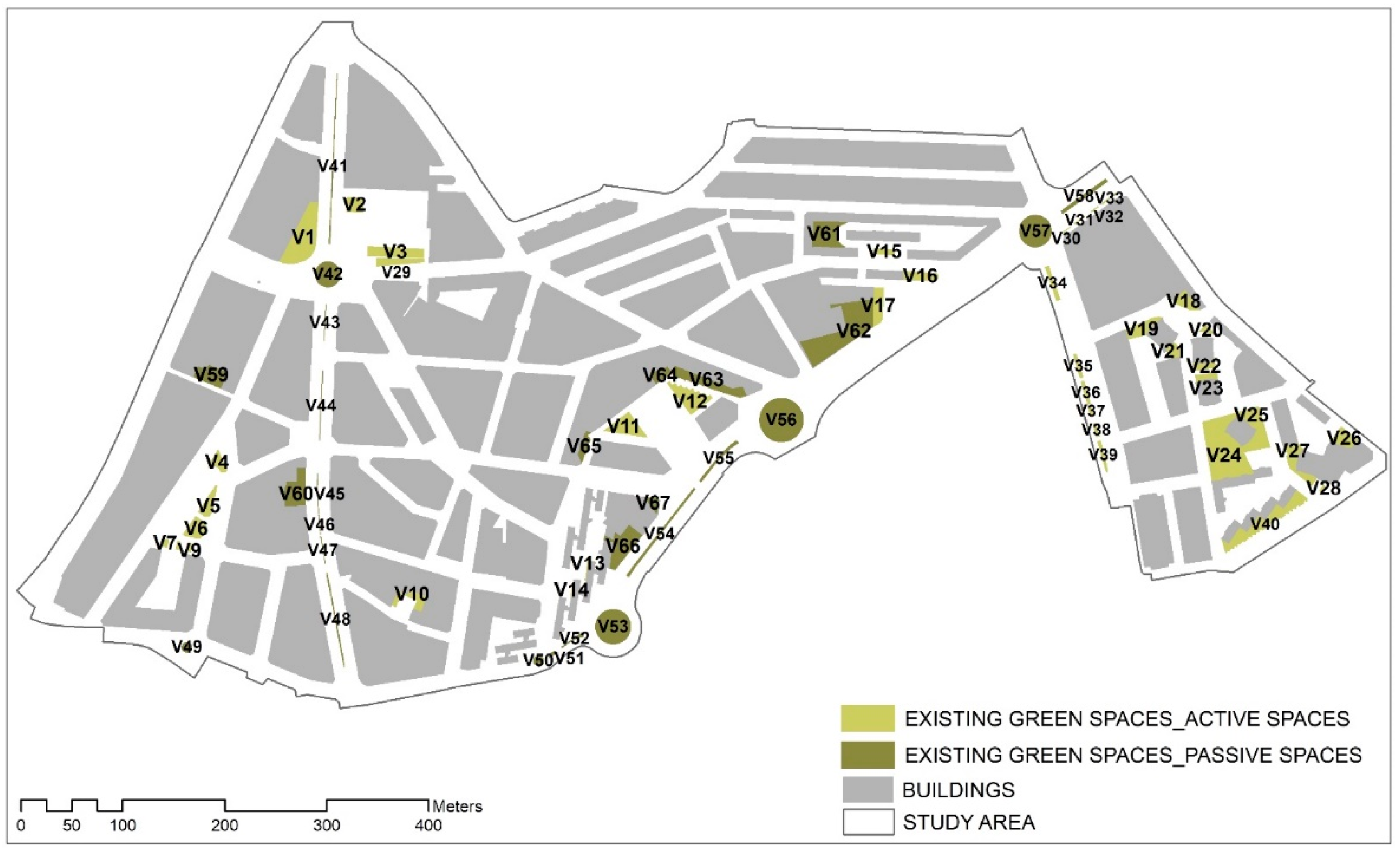

Figure 4. Existing green spaces in the neighbourhood of La Milagrosa.
Figure 4. Existing green spaces in the neighbourhood of La Milagrosa.
Land 12 00764 g004

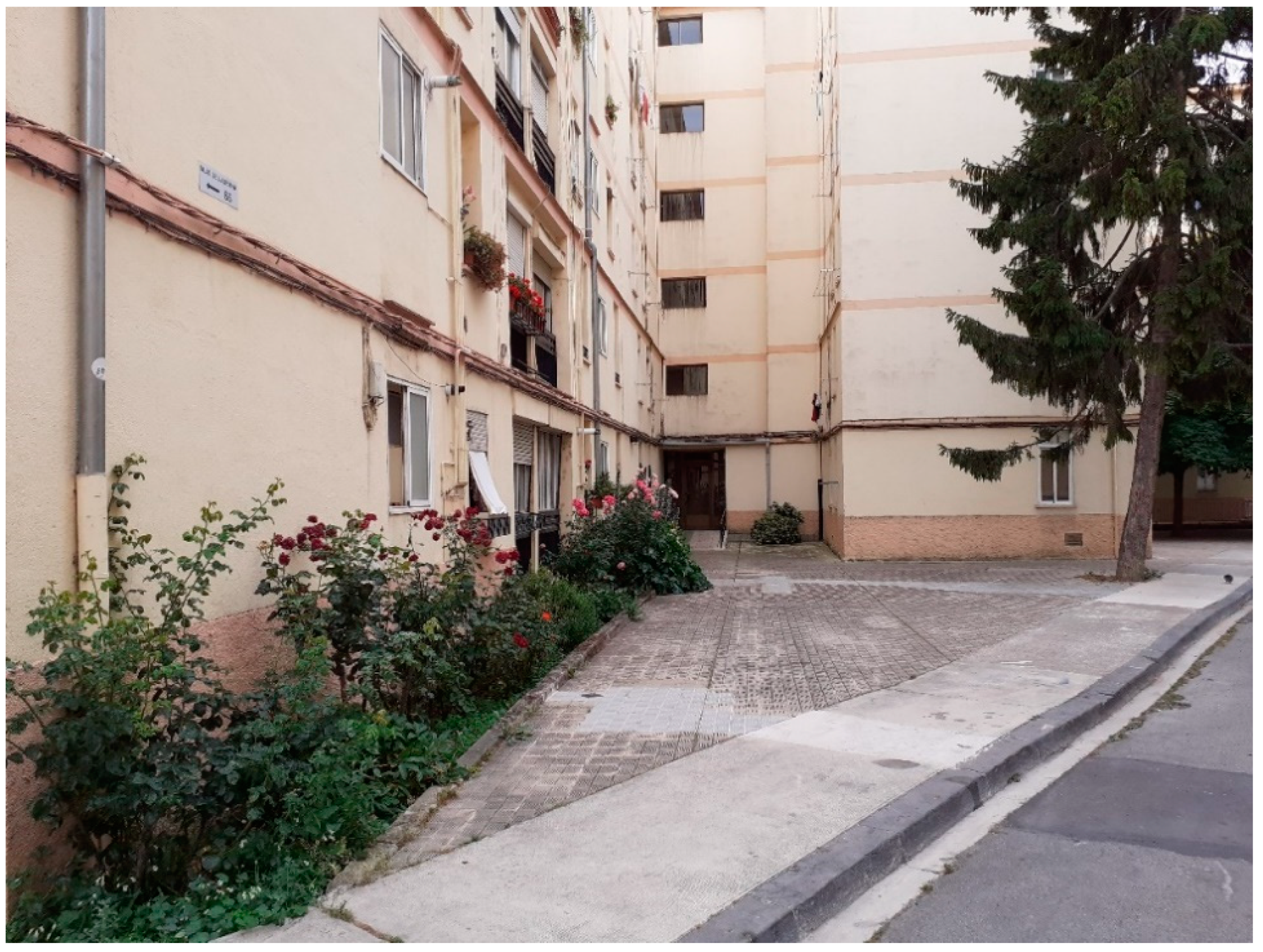

Figure 5. The existing green space with the smallest surface area: 10.59 m2. Square partially covered with green elements (V14 in Figure 4).
Figure 5. The existing green space with the smallest surface area: 10.59 m2. Square partially covered with green elements (V14 in Figure 4).
Land 12 00764 g005
Figure 6. Existing green spaces: spaces for staying.
Figure 6. Existing green spaces: spaces for staying.
Land 12 00764 g006
Figure 7. Green transit spaces.
Figure 7. Green transit spaces.
Land 12 00764 g007
Figure 8. Existing passive green spaces: roundabouts and central reservations.
Figure 8. Existing passive green spaces: roundabouts and central reservations.
Land 12 00764 g008
Figure 9. Existing passive green spaces: small gardens in private courtyards.
Figure 9. Existing passive green spaces: small gardens in private courtyards.
Land 12 00764 g009
Figure 10. Existing green spaces: trees.
Figure 10. Existing green spaces: trees.
Land 12 00764 g010

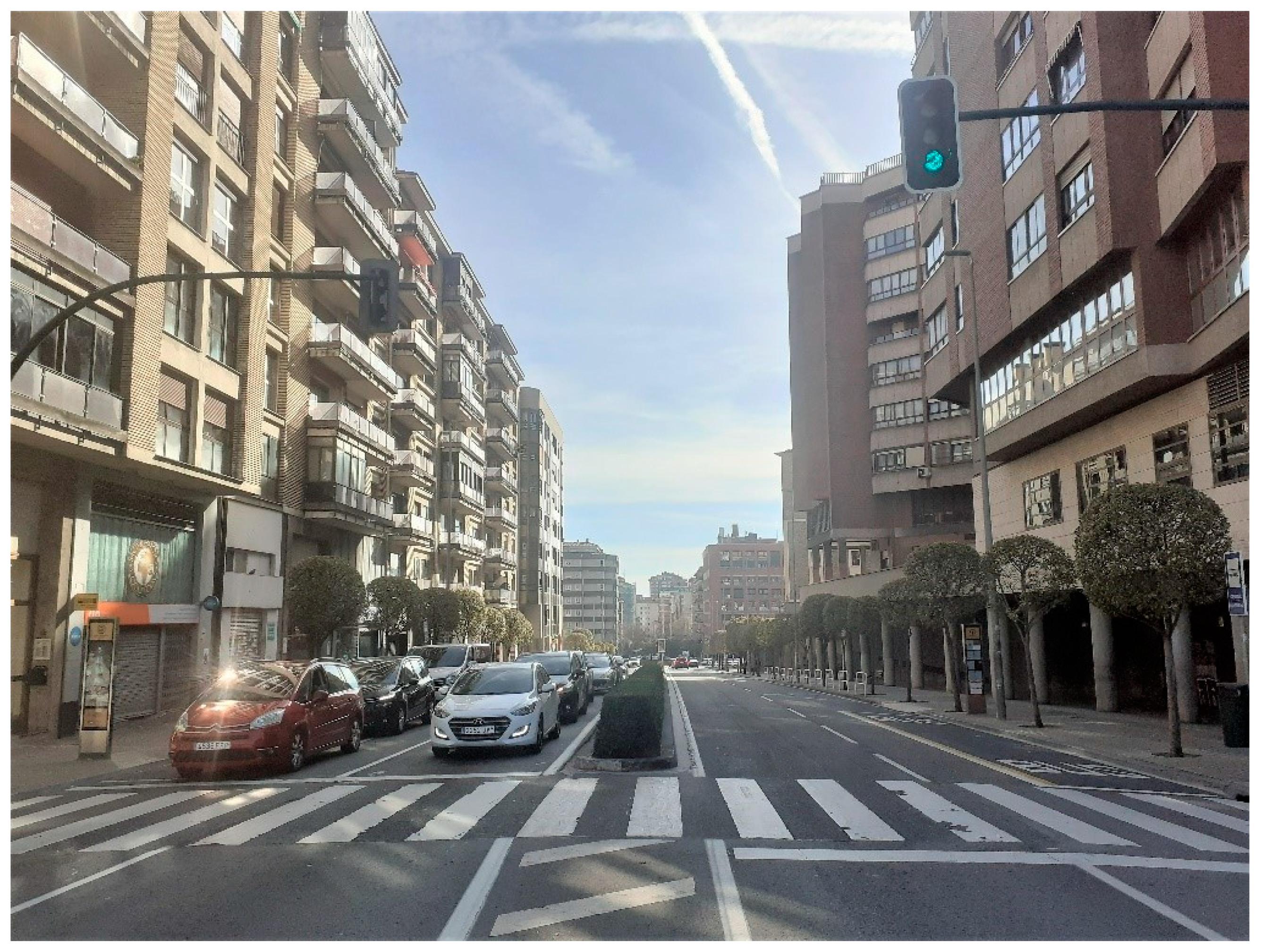

Figure 11. Zaragoza Avenue.
Figure 11. Zaragoza Avenue.
Land 12 00764 g011
Figure 12. Map of residual surface spaces in La Milagrosa.
Figure 12. Map of residual surface spaces in La Milagrosa.
Land 12 00764 g012
Figure 13. Map of vertical residual spaces of La Milagrosa: walls and party walls.
Figure 13. Map of vertical residual spaces of La Milagrosa: walls and party walls.
Land 12 00764 g013
Figure 14. Residual spaces between streets.
Figure 14. Residual spaces between streets.
Land 12 00764 g014
Figure 15. Residual spaces between buildings, resulting of different building typologies.
Figure 15. Residual spaces between buildings, resulting of different building typologies.
Land 12 00764 g015
Figure 16. Residual spaces between buildings: squares.
Figure 16. Residual spaces between buildings: squares.
Land 12 00764 g016
Figure 17. Residual spaces between buildings: car parks.
Figure 17. Residual spaces between buildings: car parks.
Land 12 00764 g017
Figure 18. Residual spaces: walls and party walls.
Figure 18. Residual spaces: walls and party walls.
Land 12 00764 g018
Figure 19. Proposal for a green corridor in La Milagrosa.
Figure 19. Proposal for a green corridor in La Milagrosa.
Land 12 00764 g019
Figure 20. Sequence of images corresponding to the spaces of corridor 1.
Figure 20. Sequence of images corresponding to the spaces of corridor 1.
Land 12 00764 g020aLand 12 00764 g020b
Figure 21. Residual spaces inserted in the urban fabrics of the European cities of (a) Lisbon (Alfama district), (b) Naples (Pendino district) and (c) Bucharest (District VIII).
Figure 21. Residual spaces inserted in the urban fabrics of the European cities of (a) Lisbon (Alfama district), (b) Naples (Pendino district) and (c) Bucharest (District VIII).
Land 12 00764 g021
Table 1. Existing green spaces.
Table 1. Existing green spaces.
ClassificationIDSurface m2ClassificationIDSurface m2
Spaces for StayingV11245.70SidewalkV3685.8
V2245.3V3728.7
V3528.4V3849.0
V4185.4V39100.4
V5259.3V40946.1
V6325.5TOTAL 1794.8
V744.8RoundaboutsV41195.3
V834.6V42511.3
V942.7V4332.3
V10283.1V4463.1
V11502.4V4533.3
V12600V4614.7
V1327V4725.2
V1410.6V48138.2
V15123V4980.7
V16277.7V5090.1
V17351.1V5130.8
V18265.1V5252.4
V19350.3V53965.5
V2063.9V54279.1
V21144.3V55162.7
V22148.9V561494.6
V23129.6V57803.6
V241733.40V58206.4
V25968.1TOTAL 5179.3
V26308.8In Private CourtyardsV59451.0
V27424V60605.4
V2833.7V61670.8
TOTAL 9656.7V621924.7
SidewalkV29277.5V63632.7
V3012.5V64172.0
V3117.3V65184.9
V3211.5V66715.9
V3329.1V67122.5
V34145.5TOTAL 5479.9
V3591.4
Table 2. Residual surface spaces in La Milagrosa.
Table 2. Residual surface spaces in La Milagrosa.
Residual Spaces
ClassificationIDSurface m2ClassificationIDSurface m2
Spaces between StreetsR1162.5Spaces between Buildings, SquaresR32314.5
R2265R331095.30
R3219R34127.5
R4470.3R3542.7
R593.9R3637.7
R614.5R37293.3
R710.7R381891.60
R873.9R39158.3
R924R40145.4
R1065.4R41160
R1125.7R4272.1
R1244.5R436741.40
R136.7R443704.20
R1443.5R45980.1
R1532.2R46346
R1650.6R4732.4
R1751.6R481297.20
R1854.5R49975.8
R19197.8R50163.7
TOTAL 1906.3TOTAL 32,476.2
Spaces between Buildings, SquaresR20285.3Spaces between Buildings, Parking LotsR51527.5
R21284.8R52275.30
R22173.6R53342.1
R235712.50R54842.9
R24283.8R55602.2
R251163.30R561550.5
R26449.3R57592.60
R272071.10R581323.6
R281680.40R59404.1
R291583.60R60530.9
R30175.10TOTAL 6991.7
R3134.20
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Latasa, I.; Laurenz, A. The Residual Spaces of Developmental Urbanism as Opportunity for Green Cities and Improvement of Human Wellbeing. Land 2023, 12, 764. https://doi.org/10.3390/land12040764

AMA Style

Latasa I, Laurenz A. The Residual Spaces of Developmental Urbanism as Opportunity for Green Cities and Improvement of Human Wellbeing. Land. 2023; 12(4):764. https://doi.org/10.3390/land12040764

Chicago/Turabian Style

Latasa, Itxaro, and Angela Laurenz. 2023. "The Residual Spaces of Developmental Urbanism as Opportunity for Green Cities and Improvement of Human Wellbeing" Land 12, no. 4: 764. https://doi.org/10.3390/land12040764

APA Style

Latasa, I., & Laurenz, A. (2023). The Residual Spaces of Developmental Urbanism as Opportunity for Green Cities and Improvement of Human Wellbeing. Land, 12(4), 764. https://doi.org/10.3390/land12040764

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
