Study on Mercury Distribution and Speciation in Urban Road Runoff in Nanjing City, China

by
Rajendra Prasad Singh
1,2,*,
Jiaguo Wu
1,2,
Alagarasan Jagadeesh Kumar
1,2 and
Dafang Fu
1,*
1
School of Civil Engineering, Southeast University, Sipai Lou 2#, Nanjing 210096, China
2
Southeast University-Monash University Joint Research Centre for Water Sensitive Cities, Nanjing 210096, China
*
Authors to whom correspondence should be addressed.
Water 2017, 9(10), 779; https://doi.org/10.3390/w9100779
Submission received: 7 September 2017 / Revised: 22 September 2017 / Accepted: 2 October 2017 / Published: 12 October 2017
(This article belongs to the Special Issue Sponge Cities: Emerging Approaches, Challenges and Opportunities)

Abstract

:
The current study was aimed to investigate the mercury pollution in urban road runoff. A total of 34 rainfall events were monitored on 5 independent road catchments from 2015 to 2016 in Nanjing city, China. Events mean concentrations of mercury and the impact factors of mercury pollution in urban road runoff were also carried out in the current study. Results revealed that the concentration of various mercury species was very high. Total mercury, dissolved mercury and particulate mercury were found to be in the range of 0.173–8.254 μg/L, 0.069–6.823 μg/L, and 0.086–2.485 μg/L, respectively. The order of total mercury concentration among the five catchments was as follows: Longpan road > Xinjiekou > Jiulonghu > Zhujiang road > Maqun area. Results revealed the existence of different dominant species of mercury in different urban areas. Particularly, mercury in urban road runoff mainly existed in particulate form in Maqun area, and the concentrations of inactive mercury (0.250–2.821 μg/L) were far more than that of volatile mercury (0.023–0.215 μg/L) and active mercury (0.026–0.359 μg/L). The order of impact factors of rainfall characteristics on Hg pollution in runoff was dry periods > runoff time > duration of rainfall > storm intensity > rainfall. Analysis based on the first flush effect showed that the first flush phenomenon of mercury was not significant.

1. Introduction:

Mercury (Hg) is a global pollutant which is accumulated in the long term through natural and anthropogenic activities in the environment in organic or inorganic form [1,2,3]. As a kind of non-biological metabolism of toxic heavy metals, Hg in low concentrations is still seriously harmful to the natural environment and human health [4]. There are two categories of the main sources of Hg, natural sources and anthropogenic sources. Natural sources mainly include volcanic, forest fire, soil and water Hg release [5], whereas anthropogenic sources include traffic activities, ore smelting, garbage incineration and fossil fuel combustion, etc. [6]. Along with the advancement of urbanization, industrialization and human activities intensifying, Hg pollution prevention is essential to reduce more serious pollution of mercury in the urban environment.
With acceleration of the urbanization process, polluted runoff as one of the major causes of water quality impairment in urban area has attracted more and more attention. In recent decades, researchers have investigated various contaminants in road runoff such as suspended solids, nutrients and common heavy metals like Cu, Zn, Pb and Cr [7,8,9,10,11], but there are few studies about Hg pollution in urban road runoff [12]. Mercury has drawn global attention due to its ability to contaminate entire water bodies from remote non-point source trace level inputs that bio-accumulate through the food chain [13]. It is reported that rivers flowing through urban areas have higher Hg concentrations compared to the rural areas [14,15], probably caused by pollution from expressway runoff. Hg in urban runoff mainly comes from direct anthropogenic activities such as mining, or indirectly through dry and wet deposition such as atmospheric deposition, vehicle sources, and the road surface wear. There are a variety of different forms of Hg in the environment which can be classified as particulate Hg (PHg) and dissolved Hg (DHg), according to their solubility. Furthermore, Hg can also be classified as organic mercury and inorganic mercury [12,16], in which the methyl Hg (MeHg) is best known due to its high toxicity and bioavailability. Because of the different hazards of various Hg species, investigation of each species in urban road runoff is highly significant to assess the pollution level of runoff and to determine the treatment process of Hg pollution.
In order to have a relatively accurate assessment of Hg pollution in urban road runoff in Nanjing city, the current study aimed to investigate the event mean concentrations (EMCs) of different Hg species during various rainfall events. The impact factors of the Hg pollution and the first flush in urban road runoff were also analyzed. Furthermore, the current study also aimed to assess the level of Hg pollution in urban road runoff, and meanwhile, to provide basic data and theoretical support for the treatment of Hg pollution and the reuse of stormwater.

2. Methods

2.1. Site Description

Nanjing is located in the middle and lower reaches of the Yangtze River Delta region in East China (Figure 1), with an average temperature of 15.3 °C. Annual average rainfall in Nanjing is 1106.05 mm, with most of the rainfall events occurring in summer time. Five urban road catchments divided according to the surrounding land use in Nanjing were selected for monitoring during the period of April 2015–May 2016 (Table 1).
The land use type in surroundings of the study area is mainly transportation. Maqun area of Nanjing city circle expressway is one of the main expressways into the city center situated on the east of Nanjing. Longpan road area has a vehicle flow rate of 39,200 vehicles/day, which was selected to represent the traffic load. Zhujiang road area is the largest distribution center for electronic products in East China. Xinjiekou area is a commercial area located in the center of Nanjing. It is a high-density population area. Jiulonghu area has Southeast University Jiulong lake campus, as well as a thermal power plant also located very close.

2.2. Rainfall Characteristics

A total of 34 effective rainfall events were monitored from April 2015 to May 2016. Rainfall runoff events data are presented in Table 2.
Samples of each rainfall event were manually collected from running water flowing out of the rainwater collection pipe (made of polyvinyl chloride material) below the pavement, for the purpose of investigating the level of Hg pollution in urban road runoff. 1 L polyethylene bottles were used to collect the runoff samples. In the first 30 min of the runoff formation, samples were collected at 5–10 min intervals. Samples were collected at 10–15 min intervals during 30 to 60 min. Following that, samples were collected at 30–60 min intervals to the end of the rainfall event. Samples were collected with precautions and immediately sent to the laboratory. Prior to analysis, a portion of each sample was extracted and filtered with a 0.45 μm filter membrane for dissolved mercury analysis. Then all of the samples except samples for total suspended solid (TSS) analysis were pretreated by adding HCl to adjust pH to less than 1 and then 0.5g K2CrO4 to keep the orange color of water, followed by shaking. All of the samples were kept at 0–4 °C temperature to minimize the loss of Hg. JS22 Siphon-hyetometer (Tianjin Meteorological Instrument Industry, China) can record the attributes of rainfall such as volume and intensity, which was placed at 1.5 m above the ground to collect the rainfall data.

2.3. Hg Analysis

Parameters such as total suspended solid (TSS), total Hg (THg), dissolved Hg (DHg), particulate Hg (PHg), volatile Hg (Hg0, also often referred to as dissolved gaseous mercury), active Hg (which can be considered to mainly correspond to Hg2+ [17]), and inactive Hg (Hgre, which is also referred to as residual Hg) were analyzed in the current study.
Total Hg and DHg were determined by Hydra II A Mercury Vapourmeter (Teledyne Leeman Labs, Hudson, NH, USA), while Hg at various valence states was detected by Hydra ІІ C Mercury Vapourmeter (Teledyne Leeman Labs, Hudson, NH, USA). Experimental methods for analyzing various Hg forms are presented in Table 3.

2.4. Events Mean Concentrations (EMCs)

Event mean concentration is a generally accepted index to assess the pollution levels in road runoff, which was represented by the ratio of total pollution loads and the total volume of runoff (USEPA) [20]. The formulation of EMCs is as follows:
EMC = C ¯ = M V = C ( t ) Q ( t ) d t Q ( t ) d t t = 1 t = T C ( t ) Q ( t ) t = 1 t = T Q ( t )
  • M: total mass of the contaminant;
  • V: total volume of runoff;
  • C(t): concentrations of the contaminant at different times;
  • Q(t): flow of runoff;
  • t: runoff time.
The total runoff volume was not monitored in the current work due to the limitation of equipment, which was alternated by rainfalls. Similarly, the flow of runoff for a certain period was alternated by the product of rainfall intensity in that period and catchment area, for which the total mass of contaminant can be calculated. The beginning of rainfall and the formation time of runoff was monitored to reduce errors. In addition, the evaporation and infiltration of runoff during the rainfall were limited, which could be neglected.

2.5. Measurement of First Flush

First flush (FF) is the phenomenon in which the concentration of pollutants is substantially higher in stormwater runoff in the initial period of of a storm event compared to those obtained during the later stages [21,22,23,24]. The phenomenon is described as the relationship of dimensionless cumulative pollutant mass and dimensionless cumulative runoff volume which is calculated by the following formulas.
m ( t ) = m ( t ) M = 0 t c ( t ) q ( t ) d t 0 t r c ( t ) q ( t ) d t
v ( t ) = v ( t ) V = 0 t q ( t ) d t 0 t r q ( t ) d t
  • M: total mass of the contaminant;
  • V: total volume of runoff;
  • m(t): Cumulative mass of the contaminant at time t;
  • v(t): Cumulative volume of runoff at time t;
  • c(t): concentrations of the contaminant at different times;
  • q(t): flow of runoff;
  • t: runoff time;
  • tr: runoff total duration.
There are differences in the determination of the first flush phenomenon in different studies. Earlier findings indicated that a first flush occurs at time t if the 𝑚′(𝑡) exceeds the 𝑣′ (𝑡) at all instances during the storm events [25]. Bertrand-Karajewski et al. believed that first flush phenomenon occurs when at least 80% of the pollution load is transferred in the first 30% of the runoff volume [26]. When we define FFn as the quotient of 𝑚′(𝑡) and 𝑣′ (𝑡), the previous two standards are equivalent to FFn > 1 and FF30 ≥ 2.7.
FF n = m ( t ) v ( t )
where n: the proportion of the runoff volume that has been generated to the total runoff volume.
In the current study, FF30 was calculated to determine if the first flush phenomenon exists in the various Hg species in urban road runoff.

3. Results and Discussion

3.1. EMCs of Various Hg Species

Event mean concentrations of Hg in stormwater runoff events in 5 sampling point are presented in Table 4. The data revealed that the concentrations of Hg in different forms varied greatly over 34 rainfall events, ranging from 0.173 to 8.254 μg/L for THg, from 0.069 to 6.823 μg/L for DHg, and from 0.086 to 2.485 μg/L for PHg, respectively. The EMCs of THg in 22 stormwater runoff events and also the average value of all rainfall events far exceeded 1.0 μg/L. The relationship of THg mean concentration among five regions was as follows: Longpan road (4.243 μg/L) > Xinjiekou (2.332 μg/L) > Jiulonghu (1.686 μg/L) > Zhujiang road (1.185 μg/L) > Maqun (1.120 μg/L). This phenomenon indicated that Hg concentration in urban road runoff is independent of the traffic flow. The high concentrations of Hg in urban road runoff, therefore, would cause severe pollution once entering water bodies.
Table 5 shows the relevant studies carried out by other researchers around the world. Data revealed that Hg pollution in urban road runoff in Nanjing has a higher level than other cities. Hg in urban road runoff mainly comes from the wet and dry deposition processes which include the discharge of automobile, the wear degree of the road materials, and some other human activities. It is hypothesized that land uses and weather conditions caused the differences.
Various forms of Hg can be reflected by the proportion of PHg and DHg (Table 4). In Maqun area, the average EMCs of PHg was 0.796 μg/L, which is much higher than the concentration of DHg. The DHg/PHg ratio of runoff in the 11 rainfall events was less than 1 (Table 3), illustrating that Hg concentrations were predominantly in particulate form. The partition coefficient Kd was calculated to explain the distribution for Hg between dissolved and particulate phases (Kd = [ng of Hg (kg of sediment)−1]/[μg of Hg (L of rain water)−1]) [27,28]. The log Kd values ranged from 3.77 to 4.51, showing that the Hg is associated with the particulate phase. While the DHg/PHg ratio of runoff in Xinjiekou fluctuated at 1, which shows that two Hg forms existed at an equal level. Therefore, it can be concluded that Hg in the urban road runoff of Longpan road, Zhujiang road and Jiulonghu areas was mainly in the dissolved state.
An earlier study by Eckleya and Branfireuna [12] has reported that PHg accounted for 84% of total Hg. Dissolved Hg can be easily absorbed by aquatic organisms, followed by accumulation in the human body through the food chain; while PHg would be adsorbed by sediments over a long time, and transfer to DHg in suitable conditions. The current study revealed different results because the samples analyzed were all collected from urban road runoff, where the biological absorption and accumulation are not obvious. This is the reason for the occurrence of different dominant Hg species in different regions.

3.2. EMCs of Hg in Different Valence States

It is well known that the toxicity of Hg in different states of Hg is different. In addition to methyl mercury (MeHg), highly active divalent mercury is one of the most toxic pollutants. Investigation of different Hg species in urban road runoff is highly significant to assess the Hg pollution level. The concentrations of Hg in different valence states (Hg0, Hg2+, and Hgre) in urban road runoff in Maqun area were monitored for 6 rainfall events, and the results are provided in Figure 2.
The concentrations of EMCs of Hg0, Hg2+, and Hgre changed greatly, with 0.023–0.215 μg/L, 0.026-0.359 μg/L, and 0.250–2.821 μg/L, respectively (Figure 2a). The average concentration of Hgre was 1.080 μg/L, which was much higher than of the concentrations of Hg0 (0.090 μg/L) and Hg2+ (0.150 μg/L). Wang et al. [16] investigated the EMCs of Hg in different species in a farmland near Beijing and found the EMCs of Hg0, Hg2+ and Hgre were 0.011 μg/L, 0.0429 μg/L and 0.0536 μg/L, respectively, which were all lower than the results of the current study, indicating that Hg pollution of urban road runoff was much more serious, and also demonstrating different occurrence regularity in different regions.
Figure 2 shows the event mean concentrations (EMCs) (Figure 2a) and proportions (Figure 2b) of different Hg species in urban road runoff. The average percentage of Hgre was 81.66%, which is more than 10 times of Hg0 (7.51%). Hgre is relatively stable and has the least hazard compared to other species. The proportion of Hg2+ was 10.85%, which is relatively activated and transforms easily to MeHg.
Earlier findings of a study carried out in Beijing by Liu et al. revealed that the concentration of Hgre (0.171 μg·L−1) was much higher than the concentrations of Hg0 (0.039 μg·L−1) and Hg2+ (0.066 μg·L−1) [31], which is similar to the current study. Whereas, Zhang et al. reported that the concentration of Hgre was at the same level with Hg2+, both of which were about 4 to 5 times higher than the concentration of Hg0 in Shanghai [29]. Therefore, it is assumed that the presence of Hg species in urban road runoff greatly depends on the sources of Hg in the environment.

3.3. Relationship between EMCs of Hg and TSS

Pearson correlation coefficient data of various Hg species and TSS is presented in Table 6. Results revealed that all of the Hg species are positively correlated with TSS (p < 0.01) except Hg0 (p < 0.05 levels) in the current study and the Pearson correlation coefficients ranged from 0.768 to 0.954. For Hg in different occurrence forms in urban road runoff, the Pearson correlation coefficient of PHg was highest, which can also illustrate that Hg mainly existed in particulate form in Maqun area. It was reported that there was a significant TSS/THg relationship (r2 = 0.67, p < 0.01) in Toronto near Lake Ontario [12], which is similar with the current study (r2 = 0.657, Figure 3a). The Pearson correlation coefficient of Hgre was highest for Hg in various valence states. Furthermore, the concentrations of Hgre and TSS have liner correlation (r2 = 0.9105, Figure 3b), illustrating that most of Hgre adsorbed on particles in urban road runoff [32].

3.4. Influence of Rainfall Characteristics

Cluster analysis is a general method to reveal the relationship among multiple variables and adopted to reveal the different characteristics of rainfalls effect to EMCs of Hg species [33]. The similarity between different variables in tree diagrams of cluster analysis was depicted by Mini tab to represent the impact levels. The length and the correlation are inversely proportional; therefore it can be taken to assess the influence levels of characteristics of rainfall to Hg pollution in urban road runoff.
Nanjing city expressway was chosen to find out that some impact factors, including road materials, land use types, vehicle flow rate, atmospheric sedimentation, and the methods of road cleaning were relatively stable. Dry periods, runoff time, rainfall, rainfall duration, and rainfall intensity (including max. rainfall intensity and average rainfall intensity) were considered as the main influence factors. The cluster analysis of these factors and Hg in different occurrences is shown in Figure 4. The influence factors of rainfall characteristics on different Hg species were found to be similar. Results revealed a notable correlation between dry periods and concentration of all forms of Hg, indicating that Hg pollution in road runoff mainly comes from the accumulation of particle contaminants in dry periods. Results are consistent with an earlier study which reported that pollutants accumulate on urban surfaces mainly from dry atmospheric deposition as well as from vehicle sources during dry periods [34]. The order for impact factors on Hg deposition is as follows: dry periods > runoff time > rainfall duration > rainfall intensity > rainfall.

3.5. First Flush Effect (FF30)

The FF30 of various forms of Hg in urban road runoff at 4 different sites are presented in Table 7. Findings revealed that in over 23 rainfall events, the FF30 of Hg in different occurrence forms ranges from 0.132 to 0.570 for THg, from 0.036 to 0.793 for DHg, and from 0.177 to 0.907 for PHg, respectively. All of the FF30 values were lower than 2.7, means that none of the rainfall events were fulfilling the criteria of 80% of pollution load in the first 30% of the volume. These results are consistent if the relatively weak standard (FFn > 1) is adopted. Therefore, there is no first flush of Hg but there is a significant dilution effect in the urban road runoff.

4. Conclusions

Results from this study revealed that the Hg concentrations of different forms in urban road runoff varied greatly and ranged from 0.173 to 8.254 μg/L for THg, 0.069 to 6.823 μg/L for DHg, and 0.086 to 2.485 μg/L for PHg. Results also showed the existence of different dominant forms of Hg in different studied regions. The range of EMCs of Hg in different valence states was 0.023–0.215 μg/L for Hg0, 0.026–0.359 μg/L for Hg2+, and 0.250–2.821 μg/L for Hgre. The concentration of Hgre was higher than the concentration of Hg0 and Hg2+. Different Hg species in runoff were positively correlated with TSS, indicating that Hg mainly existed as particle type in Maqun area, and most of the Hg can be removed by precipitation. The order of impact factors on Hg pollution was as follows: dry periods > runoff time > duration of rainfall > storm intensity > rainfall. Current results are highly significant for understanding the Hg concentrations in urban road runoff. Outcomes of the current study will also be helpful in carrying out further research aiming to investigate the fate and transformation behavior of Hg during various treatment processes.

Acknowledgments

This research was supported by the National Natural Science foundation of China NSFC Grants No. 51550110231, 51650410657).

Author Contributions

Dafang Fu and Rajendra Prasad Singh conceived and designed the experiments; Jiaguo Wu performed the experiments and analyzed the data with Rajendra Prasad Singh; Alagarasan Jagadeesh Kumar contributed reagents/materials/analysis tools; and Rajendra Prasad Singh wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, P.; Feng, X.B.; Qiu, G.L.; Shang, L.H.; Li, Z.G. Mercury pollution in Asia: A review of the contaminated sites. J. Hazard. Mater. 2009, 168, 591–601. [Google Scholar] [CrossRef] [PubMed]
  2. Falandysz, J.; Zhang, J.; Wang, Y.Z.; Krasińska, G.; Kojta, A.; Saba, M.; Shen, T.; Li, T.; Liu, H.G. Evaluation of the mercury contamination in mushrooms of genus Leccinum from two different regions of the world: Accumulation, distribution and probable dietary intake. Sci. Total Environ. 2015, 537, 470–478. [Google Scholar] [CrossRef] [PubMed]
  3. Fricke, I; Götz, R.; Schleyer, R.; Püttmann, W. Analysis of sources and sinks of mercury in the urban water cycle of Frankfurt am Main, Germany. Water 2015, 7, 6097–6116. [Google Scholar] [CrossRef]
  4. Liu, Y.R.; Lu, X.; Zhao, L.; An, J.; He, J.Z.; Pierce, E.M.; Johs, A.; Gu, B.H. Effects of cellular sorption on mercury bioavailability and methyl mercury production by desulfovibriodesulfuricans ND132. Environ. Sci. Technol. 2016, 50, 13335–13341. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, L.; Wu, Z.; Cheng, I.; Wright, L.P.; Olson, M.L.; Gay, D.A.; Risch, M.R.; Brooks, S.; Castro, M.S.; Conley, G.D.; et al. The Estimated six-year mercury dry deposition across North America. Environ. Sci. Technol. 2016, 50, 12864–12873. [Google Scholar] [CrossRef] [PubMed]
  6. Chung, S.; Chon, H.T. Assessment of the level of mercury contamination from some anthropogenic sources in Ulaanbaatar, Mongolia. J. Geochem. Explor. 2014, 147(Part B), 237–244. [Google Scholar] [CrossRef]
  7. Gill, L.W.; Ring, P.; Higgins, N.M.P.; Johnston, P.M. Accumulation of heavy metals in a constructed wetland treating road runoff. Ecol. Eng. 2014, 70, 133–139. [Google Scholar] [CrossRef]
  8. Sörme, L.; Lagerkvist, R. Sources of heavy metals in urban wastewater in Stockholm. Sci. Total Environ. 2002, 298, 131–145. [Google Scholar] [CrossRef]
  9. Li, H.; Shi, J.; Shen, G. Characteristics of metals pollution in expressway stormwater runoff. Environ. Sci. 2009, 30, 1621–1625. (In Chinese) [Google Scholar]
  10. Han, J.C.; Gao, X.L.; Liu, Y.; Wang, H.W.; Chen, Y. Distributions and transport of typical contaminants in different urban stormwater runoff under the effect of drainage systems. Desalin. Water Treat. 2014, 52, 1455–1461. [Google Scholar] [CrossRef]
  11. Borne, K.E.; Fassman-Beck, E.A.; Tanner, C.C. Floating treatment wetland influences on the fate of metals in road runoff retention ponds. Water Res. 2014, 48, 430–442. [Google Scholar] [CrossRef] [PubMed]
  12. Eckley, C.S.; Brianfireun, B. Mercury mobilization in urban road runoff. Sci. Total Environ. 2008, 403, 164–177. [Google Scholar] [CrossRef] [PubMed]
  13. Ratcliffe, H.E.; Swanson, G.M.; Fischer, L.J. Human exposure to mercury: A critical assessment of the evidence of adverse health effects. J. Toxicol. Environ. Health 1996, 49, 221–230. [Google Scholar] [CrossRef] [PubMed]
  14. Mason, R.P.; Sullivan, K.A. Mercury and methyl mercury transport through an urban watershed. Water Res. 1998, 32, 321–330. [Google Scholar] [CrossRef]
  15. Lawson, N.M.; Mason, R.P.; Laporte, J.M. The fate and transport of mercury, methyl mercury, and other trace metals in Chesapeake Bay tributaries. Water Res. 2001, 35, 501–515. [Google Scholar] [CrossRef]
  16. Wang, W.; Liu, J.; Peng, A. Mercury origin in surface runoff caused by precipitation. Agro-Environ. Prot. 2001, 20, 297–301. (In Chinese) [Google Scholar]
  17. Tomiyasu, T.; Minato, T.; Ruiz, W.L.G.; Kodamatani, H.; Kono, Y.; Hidaka, M.; Oki, K.; Kanzaki, R.; Taniguchi, Y.; Matsuyama, A. Influence of submarine fumaroles on the seasonal changes in mercury species in the waters of Kagoshima Bay, Japan. Mar. Chem. 2015, 177, 763–771. [Google Scholar] [CrossRef]
  18. Rimondi, V.; Costagliola, P.; Gray, J.E.; Lattanzi, P.; Nannucci, M.; Paolieri, M.; Salvadori, A. Mass loads of dissolved and particulate mercury and other trace elements in the Mt. Amiata mining district, Southern Tuscany (Italy). Environ. Sci. Pol. Res. 2014, 21, 5575–5585. [Google Scholar] [CrossRef] [PubMed]
  19. Zhao, L.; Guo, Y.; Meng, B.; Yao, H.; Feng, X. Effects of damming on the distribution and methylation of mercury in Wujiang River, Southwest China. Chemosphere 2017, 185, 780–788. [Google Scholar] [CrossRef] [PubMed]
  20. US Environment Protection Agency (USEPA). Results of the Nationwide Urban Runoff Program; US Environment Protection Agency: Washington, DC, USA, 1993. [Google Scholar]
  21. Gupta, K.; Saul, A.J. Specific relationships for the first flush load in combined sewer flows. Water Res. 1996, 30, 1244–1252. [Google Scholar] [CrossRef]
  22. Schriewer, A.; Horn, H; Helmreich, B. Time focused measurements of roof runoff quality. Corros. Sci. 2008, 50, 384–391. [Google Scholar] [CrossRef]
  23. Gikas, G.D.; Tsihrintzis, V.A. Assessment of water quality of first-flush roof runoff and harvested rainwater. J. Hydrol. 2012, 466, 115–126. [Google Scholar] [CrossRef]
  24. Ma, Z.B.; Ni, H.G.; Zeng, H.; Wei, J.B. Function formula for first flush analysis in mixed watersheds: A comparison of power and polynomial methods. J. Hydrol. 2011, 402, 333–339. [Google Scholar] [CrossRef]
  25. Lee, J.H.; Bang, K.W.; Ketchum, L.H.; Choe, J.S.; Yu, M.J. First flush analysis of urban storm runoff. Sci. Total Environ. 2002, 293, 163–175. [Google Scholar] [CrossRef]
  26. Bertrand-Krajewski, J.L.; Chebbo, G.; Saget, A. Distribution of pollutant mass vs volume in stormwater discharges and the first flush phenomenon. Water Res. 1998, 32, 2341–2356. [Google Scholar] [CrossRef]
  27. Nevado, J.J.B.; Rodríguez, R.C.; Moreno, M.J. Mercury speciation in the Valdeazogues River–La Serena Reservoir system: Influence of Almadén (Spain) historic mining activities. Sci. Total Environ. 2009, 407, 2372–2382. [Google Scholar] [CrossRef] [PubMed]
  28. Benoit, J.M.; Gilmour, C.C.; Mason, R.P.; Heyes, A. Sulfide controls on mercury speciation and bioavailability to methylating bacteria in sediment pore waters. Environ. Sci. Technol. 1999, 33, 951–957. [Google Scholar] [CrossRef]
  29. Zhang, J.; Bi, C.; Chen, Z. Assessment on the effect of surface dust on mercury and arsenic in rainfall-runoff in the Shanghai urban district. J. East China Norm. Univ. (Nat. Sci.) 2011, 1, 195–202. (In Chinese) [Google Scholar]
  30. Li, Q.; Li, T.; Zhao, Q. Characteristics of heavy metal pollution in road rainfall-runoff of Tianjin city. Ecol. Environ. Sci. 2011, 20, 143–148. (In Chinese) [Google Scholar]
  31. Liu, J.; Wang, W.; Peng, A. Mercury Species in Precipitation. Chin. J. Environ. Sci. 2000, 21, 43–47. (In Chinese) [Google Scholar]
  32. Paraquetti, H.H.M.; Ayres, G.A.; de Almeida, M.D.; Molisani, M.M.; Lacerda, L.D. Mercury distribution, speciation and flux in the Sepetiba Bay tributaries, SE Brazil. Water Res. 2004, 38, 1439–1448. [Google Scholar] [CrossRef] [PubMed]
  33. León-Borges, J.A.; Lizardi-Jiménez, M.A. Hydrocarbon pollution in underwater sinkholes of the Mexican Caribbean caused by tourism and asphalt: Historical data series and cluster analysis. Tour. Manag. 2017, 63, 179–186. [Google Scholar] [CrossRef]
  34. Charlesworth, S.; Everett, M.; McCarthy, R. A comparative study of heavy metal concentration and distribution in deposited street dusts in a large and a small urban area: Birmingham and Coventry, West Midlands, UK. Environ. Int. 2003, 29, 563–573. [Google Scholar] [CrossRef]
Figure 1. Sampling sites.
Figure 1. Sampling sites.
Water 09 00779 g001
Figure 2. Distribution of Hg in different valence states: (a) Concentrations of Hg0, Hg2+ and Hgre, and (b) proportions of Hg0, Hg2+ and Hgre.
Figure 2. Distribution of Hg in different valence states: (a) Concentrations of Hg0, Hg2+ and Hgre, and (b) proportions of Hg0, Hg2+ and Hgre.
Water 09 00779 g002

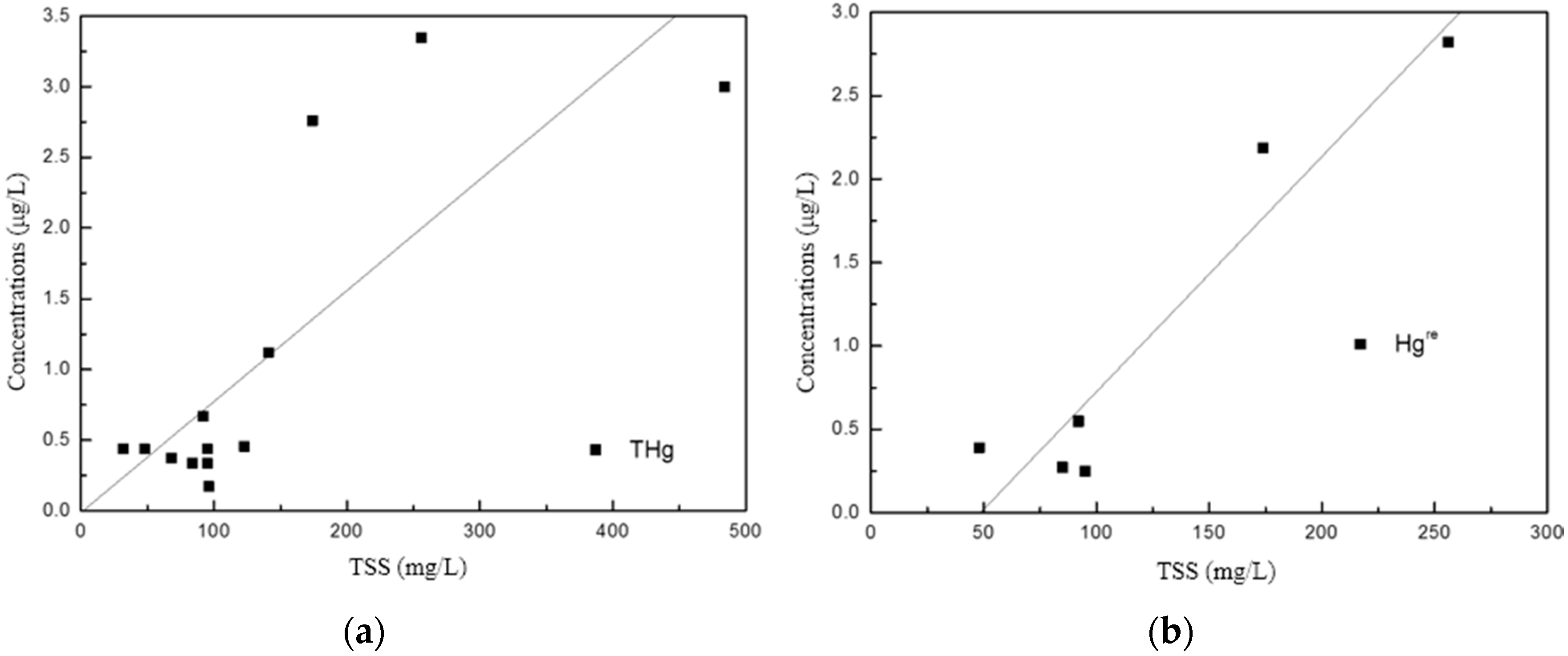

Figure 3. Correlation between TSS and Hg: (a) total Hg vs. TSS; and (b) residual Hg vs. TSS.
Figure 3. Correlation between TSS and Hg: (a) total Hg vs. TSS; and (b) residual Hg vs. TSS.
Water 09 00779 g003
Figure 4. Cluster analysis of different Hg species and characteristics of rainfalls.
Figure 4. Cluster analysis of different Hg species and characteristics of rainfalls.
Water 09 00779 g004
Table 1. Characteristics of studied catchments.
Table 1. Characteristics of studied catchments.
Catchment IdentificationArea (m2)Surrounding Land UseRoad MaterialVehicle Flow Rate (/Day)
Maqun1100TransportsPitch 38,400
Longpan road1200TransportsPitch 39,200
Zhujiang road1300ElectronicPitch, cement30,000
Xinjiekou1500CommercialPitch, terrazzo47,800
Jiulonghu900University campus, thermal power plantPitch2000
Table 2. Rainfall characteristics in study areas.
Table 2. Rainfall characteristics in study areas.
SiteDateRainfall (mm)Duration of Rainfall (min)Runoff Time (min)Max Storm Intensity (mm/min)Average Storm Intensity (mm/min)Min Storm Intensity (mm/min)Dry Periods (h)
Maqun12 June 20151.96185370.02380.01060.006032.0
20 June 20157.15450650.03500.01590.0017180.5
24 June 20151.27100850.02670.01270.001183.8
29 June 201522.01385150.29080.05720.001747.6
14 July 20156.134382130.01890.01400.0012240.5
19 July 20154.40450260.05000.00980.002698.3
8 August 201514.30288380.34970.04970.0031120.7
21 August 20159.4015880.40000.05950.001923.0
25 August 20152.35138420.04000.00130.012459.0
2 May 20164.80267210.08000.04000.018872.4
7 May 20160.91121520.02000.00750.003188.3
Longpan road21 April 201512.00480580.25000.09210.0042192.0
29 April 201558.0090303.70000.64430.007384.1
7 May 2015100.00180472.00000.58840.0023156.0
14 May 201523.50204290.20000.19660.003827.2
18 May 201518.00210640.39000.12100.008382.3
2 May 20164.80267210.08000.04000.018872.4
7 May 20160.91121520.02000.00750.003188.3
Zhujiang road29 April 201558.0090303.70000.64430.007384.1
7 May 2015100.00180472.00000.58840.0023156.0
14 May 201523.50204290.20000.19660.003827.2
18 May 201518.00210640.39000.12100.008382.3
2 May 20164.80267210.08000.04000.018872.4
7 May 20160.91121520.02000.00750.003188.3
Xinjiekou 7 May 2015100.00180472.00000.58840.0023156.0
14 May 201523.50204290.20000.19660.003827.2
18 May 201518.00210640.39000.12100.008382.3
2 May 20164.80267210.08000.04000.018872.4
7 May 20160.91121520.02000.00750.003188.3
Jiulonghu 7 May 2015100.00180472.00000.58840.0023156.0
14 May 201523.50204290.20000.19660.003827.2
18 May 201518.00210640.39000.12100.008382.3
2 May 20164.80267210.08000.04000.018872.4
7 May 20160.91121520.02000.00750.003188.3
Table 3. Analytical methods of different Hg species.
Table 3. Analytical methods of different Hg species.
HgMethods
THg50 μL stormwater, taken by pipette, was placed in a nickel boat, and Hydra II A mercury analyzer was utilized to measure the absolute values of Hg concentrations directly.
DHgStormwater samples were filtered through a 0.45 μm filter membrane, and 50 μL sample was analyzed by the method of THg.
PHgPHg = THg-DHg [18,19]
Hg0Concentrated sulfuric acid by sub-boiling distillation was used to acidify 100 mL stormwater; then, N2 was used to blow the samples at a rate of 350 to 400 mL/min for 30 min, and Hg0 was captured onto the gold tube. Finally, samples were analyzed by Hydra IIC mercury analyzer.
Hg2+Stormwater samples, which have been measured for Hg0, continue to be used to analysis Hg2+. Hg2+ in water samples was reduced to Hg0 by 5 mL of 20% SnCl2. N2 was used to blow the samples at a rate of 350 to 400 mL/min for 30 min, and Hg0 as a redox product was captured onto the gold tube. Finally, samples were analyzed by Hydra IIC mercury analyzer.
HgreHgre = THg-Hg0-Hg2+
Table 4. Event mean concentrations (EMCs) of Hg pollution in urban storm water runoff.
Table 4. Event mean concentrations (EMCs) of Hg pollution in urban storm water runoff.
SiteDateHg (μg/L)DHg/PHglog KdTSS (mg/L)
THgDHgPHg
Maqun12 June 20150.3350.0850.2500.344.4995
20 June 20152.7600.7861.9740.404.16174
24 June 20150.4370.1750.2620.674.4948
29 June 20150.3370.1020.2350.434.4484
14 July 20153.3470.8622.4850.354.05256
19 July 20150.6670.2360.4310.554.3092
8 August 20153.0010.7782.2230.353.77484
21 August 20150.4390.2150.2240.964.5132
25 August 20150.1730.0690.1040.664.2096
2 May 20160.3730.1270.2460.524.4568
7 May 20160.4550.1360.3190.434.28123
Mean1.1200.2340.7960.5154.38141
Median0.4390.1360.2620.434.3195
Range0.173~3.3470.069~0.8620.104~2.4850.34~0.963.77~4.5132~484
Longpan road21 April 20154.3113.3001.0113.26
29 April 20158.2546.8231.4314.77
7 May 20155.2414.8720.36913.20
14 May 20152.8920.4912.4010.20
18 May 20150.5190.2670.2521.06
2 May 20163.2562.4310.8252.95
7 May 20165.2303.7671.4632.57
Mean4.2433.1511.0924.00
Median4.3113.3001.0112.95
Range0.519~8.2540.267~6.8230.252~2.4010.20~13.20
Zhujiang road29 April 20150.8130.3180.4950.64
7 May 20151.3320.9530.3792.51
14 May 20151.8820.7451.1370.66
18 May 20150.7110.4980.2142.33
2 May 20161.3450.9170.4282.14
7 May 20161.0250.7820.2433.22
Mean1.1850.7020.4831.92
Median1.1790.6220.3552.24
Range0.711~1.8820.318~0.9530.214~1.1370.64~3.22
Xinjiekou7 May 20153.8622.1711.6911.28
14 May 20151.8920.8731.0190.86
18 May 20151.2430.5310.7120.75
2 May 20162.6591.5281.1311.35
7 May 20162.0051.2290.7761.58
Mean2.3321.3511.4321.16
Median2.0050.5311.6911.28
Range1.243~3.8620.531~2.1710.712~1.6910.75~1.58
Jiulonghu7 May 20152.0271.4640.5632.60
14 May 20150.9860.6630.3232.05
18 May 20152.0451.0960.9491.15
2 May 20161.9621.5930.3694.32
7 May 20161.4100.9720.4382.22
Mean1.6861.0740.6122.47
Median1.9621.0960.6232.22
Range0.986~2.0450.663~1.5930.323~0.9491.15~4.32
Table 5. EMCs of Hg pollution in different regions (average values).
Table 5. EMCs of Hg pollution in different regions (average values).
SitesLand Using TypeEMCs (μg/L)Reference
THg
near Ontario lake in CanadaUrban0.015[12]
Beijing, ChinaUrban0.1075[16]
Shanghai, ChinaUrban0.510[29]
Tianjin, ChinaCity road AUrban0.520 (0.412–2.76)[30]
City road BUrban0.730 (0.174–1.223)
Industrial districtIndustry0.660 (0.104–1.182)
Nanjing, ChinaUrban2.036 (0.173–8.254)Current study
Table 6. Pearson correlation coefficients of different Hg species and total suspended solid (TSS).
Table 6. Pearson correlation coefficients of different Hg species and total suspended solid (TSS).
HgTSSSignificance Level
THg0.8070.01
DHg0.7680.01
PHg0.8190.01
Hg°0.8500.05
Hg2+0.9230.01
Hgre0.9540.01
Table 7. First Flush effect (FF30) of THg, DHg and PHg in different rainfall events.
Table 7. First Flush effect (FF30) of THg, DHg and PHg in different rainfall events.
SiteDateFF30 of Hg
THgDHgPHg
Longpan road21 April 20150.4790.4850.508
29 April 20150.4710.4890.384
7 May 20150.3780.3370.907
14 May 20150.2760.6360.195
18 May 20150.5350.2330.372
2 May 20160.5230.6380.583
7 May 20160.4920.4480.473
Zhujiang road29 April 20150.1320.7930.217
7 May 20150.1790.2050.181
14 May 20150.4960.1020.332
18 May 20150.3190.2840.177
2 May 20160.2550.6390.291
7 May 20160.3640.5840.195
Xinjiekou7 May 20150.2870.3050.287
14 May 20150.4830.4020.483
18 May 20150.3730.3560.386
2 May 20160.4040.3990.329
7 May 20160.3780.4280.372
Jiulonghu7 May 20150.5700.1600.355
14 May 20150.4500.0360.692
18 May 20150.4070.2820.482
2 May 20160.5290.1830.622
7 May 20160.3580.1570.475
Range0.132~0.5700.036~0.7930.177~0.907

Share and Cite

MDPI and ACS Style

Singh, R.P.; Wu, J.; Kumar, A.J.; Fu, D. Study on Mercury Distribution and Speciation in Urban Road Runoff in Nanjing City, China. Water 2017, 9, 779. https://doi.org/10.3390/w9100779

AMA Style

Singh RP, Wu J, Kumar AJ, Fu D. Study on Mercury Distribution and Speciation in Urban Road Runoff in Nanjing City, China. Water. 2017; 9(10):779. https://doi.org/10.3390/w9100779

Chicago/Turabian Style

Singh, Rajendra Prasad, Jiaguo Wu, Alagarasan Jagadeesh Kumar, and Dafang Fu. 2017. "Study on Mercury Distribution and Speciation in Urban Road Runoff in Nanjing City, China" Water 9, no. 10: 779. https://doi.org/10.3390/w9100779

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
