Eutrophication and climate change are the two major global stressors of freshwater lakes in recent decades. Eutrophication has been widely recognised as a serious problem due to the resulting notorious toxic algae blooms and low water clarity [1
]. Consequently, various restoration measures have been implemented in different parts of the world, especially after the 1970s and 1980s [3
]. At the same time, climate change has also been widely acknowledged as an important factor affecting freshwater ecosystems [6
], especially due to the trends observed in lake physical characteristics [7
]. Most importantly, climate warming is proposed to mimic and worsen the effects of eutrophication [8
]. Therefore, understanding the extent and coherence of long-term ecosystem response to the changes in climate and eutrophication/re-oligotrophication is fundamental for lake conservation, restoration and management [11
Effects of eutrophication have been widely documented in lakes. The most pronounced effects are increased phytoplankton biomass and associated degradation of water quality, as well as decreased diversity in lake plankton and changes in plankton community structure [12
]. Reduction in nutrient concentrations produced by lake restoration efforts has also created marked responses in plankton biomass and community composition [5
Long-term climate changes can also induce biotic and abiotic responses of lake ecosystems. For example, in the last decades, trends towards warmer lake water [17
], changes in thermocline depth and delay in turnover [21
] as well as alterations in lake-catchment interactions [22
] have been documented. Furthermore, changes in plankton richness [23
], phenology [24
], community composition [27
] and trophic interactions [29
] have been recorded as a reaction to long-term warming.
Some studies have shown that nutrient changes have a stronger influence on lake plankton than long-term climatic alterations [31
]. However, the response of plankton communities to nutrient reduction has sometimes been found to be weak or inconsistent in phytoplankton [27
] and zooplankton [13
]. Therefore, a joint effect of changes in nutrient concentrations and climate is more likely [16
]. Overall, the scarcity of long-term, multiple-lake data sets has limited our understanding of the combined effects of a changing climate and nutrient concentrations on the diversity of plankton and functioning of lake ecosystems [23
Lake biotic and abiotic characteristics may have coherent temporal changes (i.e., synchrony) in several lakes sharing the same landscape indicating the driving role of large scale factors like climate or catchment-scale anthropogenic effects. Few studies have examined synchrony in temporal environmental and ecological changes among lakes [7
]. Climatic effects, especially in the form of energy fluxes (i.e., temperature, irradiance), are uniform across large spatial scales and can induce synchronous changes in physical characteristics of lake water as well as, albeit weaker, in chemical and biological parameters [7
]. Factors affecting the exchange of matter, especially mediated through the landscape, have been recognised to weaken the synchrony in biotic and abiotic lake variables across large spatial scales due to catchment-specific variations [39
]. However, changes in matter exchange, mostly of anthropogenic origin, like acidification [43
], eutrophication and re-oligotrophication [23
], can also induce synchrony in lakes, even at large scales.
We analysed long-term trends in phyto- and zooplankton as well as lake water physico-chemistry and climate in 17 Danish lakes between 1989 and 2008. Many of the study lakes were recovering from previous eutrophication during the monitoring period [44
]. We first tested if temporal changes in lake environmental and ecological characteristics were synchronous between lakes using mean pair-wise Pearson correlations across time series of each variable. Second, we assessed if variables demonstrated significant long-term trends during the study period using Kendall tests. In parallel, we also examined plankton community composition using Non-Metric Multidimensional Scaling (NMDS) and tested for directional temporal changes in plankton community composition during the study period. To better elucidate the effects of re-oligotrophication and to disentangle the role of climatic trends, we divided the lakes into three groups according to changes in their annual average TP concentrations, reflecting the strength of re-oligotrophication: lakes with a strong decline (S), lakes with weak changes (W) and lakes with no change (N). The analyses were performed for all lakes together and for each group separately as well as for the whole year (excluding winter) and each season separately (spring: months 3–5, summer: months 6–8 and autumn: months 9–11). We expected that strong re-oligotrophication indicated by a strong TP decrease would induce long-term trends and strong synchrony in the S lakes. Consistent trends in all lakes, especially in the N and W lakes, would indicate influence of other large-scale factors such as climatic effects.
2. Materials and Methods
Seventeen lakes were monitored (Figure A1
) between 1989 and 2008 as part of the Danish monitoring programme on the aquatic environment [45
]. Winter samples (December–February) were excluded due to varying sampling intensity across years. The remaining samples had an average sampling interval of 14 days (Table A1
). Phytoplankton was collected from mid-lake depth-integrated samples covering the photic zone. Depth-integrated zooplankton samples were collected at three stations placed randomly in areas representing 80% of maximum depth and subsequently pooled. Phyto- and zooplankton were counted and their biomass was estimated based on size and shape. Details on plankton sampling, identification and counting can be found in Özkan, et al. [46
]. All taxa were aggregated to genus level due to varying intensity of species-level identification between different plankton groups and potential differences in the identification skills of the taxonomists. We screened the plankton data for potential inconsistencies and made corrections with an inclusive approach [46
Plankton biomass was calculated for the whole sample as well as for the main groups, i.e., Chlorophyta-CHL, Cyanobacteria-CYA, Bacillariophyceae-DIA, Cryptophyta-CRY, Chrysophyta-CHR and Euglenophyta-EUG for phytoplankton and Cladocera-CLA, Copepoda-COP and Rotifera-ROT for zooplankton. Additionally, the proportional biomass for all groups was calculated to estimate their contribution to total biomass (dominance). The proportional biomass excluding the three most dominant groups (CHL, CYA and DIA) was also calculated to examine the changes in the rare groups together. Genera richness, rarefied richness (based on biovolume for phytoplankton and on counting for zooplankton) and Pielou’s evenness [47
] were calculated as surrogates of plankton diversity. Richness of the main groups of plankton was also calculated.
Samples for the analysis of lake water chemistry were collected simultaneously with the zooplankton samples and analysed for total phosphorus (TP), phosphate (PO4
), total nitrogen (TN), nitrate+nitrite (NO3-2
), ammonia (NH4
), silicate (SiO2
), chlorophyll-a (Chl-a), suspended solids (SS), pH and alkalinity [45
]. Temperature in the water column was recorded at one-metre intervals at the deepest point of the lake. Water column stratification was calculated from temperature profiles as Schmidt stability index [49
]. Matlab codes from Lake Analyser software [50
] were adapted in R environment for the Schmidt stability index calculations. Calculations were made only when temperature was recorded at least to the mid-depth of the lake, and the temperature profile was forced to be monotonic from bottom to top before calculations. When a lake variable was missing for a sample, it was replaced by the most relevant available data: first, the mean of observations in a seven-day temporal window; second (if a substitute sample was not available at the first step), the mean of observations in a 15-day window or, third, linear interpolation of neighbouring samples if they were less than 30 days apart (Table A1
Mean air temperature, wind speed, solar irradiance (from daily averages interpolated to 20 km grids) and precipitation (from daily averages interpolated to 10 km grids and corrected for wind and altitude depending on the month of the year) were compiled from the Danish Meteorological Institute. Main characteristics of the lakes are given in Table 1

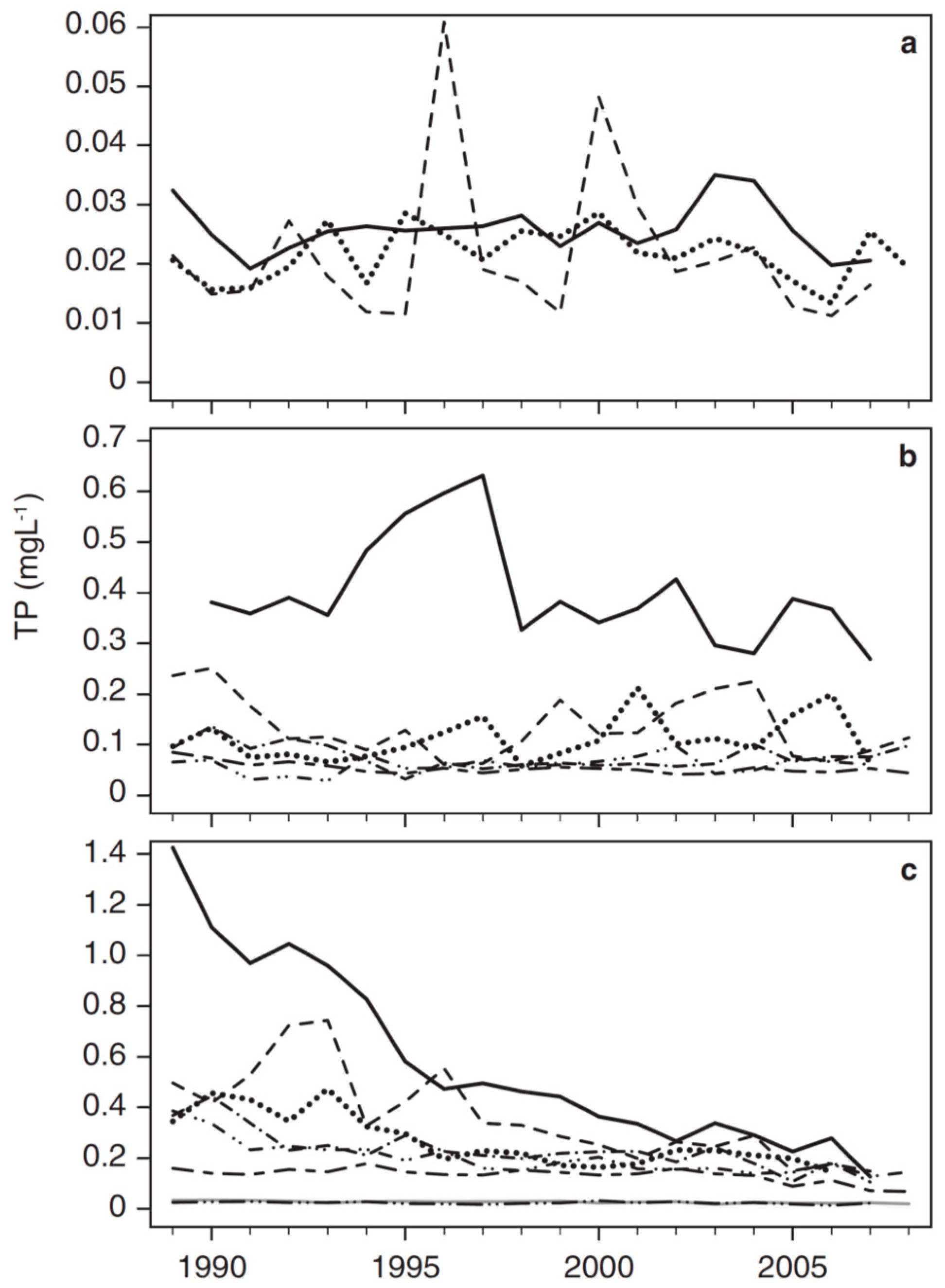

Many of the study lakes have been subject to re-oligotrophication during the monitoring period following earlier eutrophication. We expected that the strength of the nutrient decline is the prominent determinant of the trends in plankton. Therefore, we classified the lakes into three groups according to trends in TP concentration, reflecting the strength of re-oligotrophication (Figure 1
): strong decline, weak decline and no decline lakes. The trends were assessed using Mann-Kendall rank correlation [51
]. Comparison of the analyses across these lake groups enabled us to better understand the effect of re-oligotrophication and to disentangle the role of climatic trends. Six lakes experienced a significant and substantial decrease in TP with overall high TP concentrations (Tau > 0.2, annual mean TP 0.59–0.14 mg·L−1
) and were grouped as S (strong TP decrease) lakes. Six lakes had significant but weak changes at moderate-high TP concentrations (Tau < ±0.2, annual mean TP 0.40–0.05 mg·L−1
) and were grouped as W lakes (weak TP decrease). Three lakes with low TP concentrations (annual mean TP < 0.03 mg·L−1
) exhibited no trend in TP and were grouped as N (no TP decrease) lakes. The statistical analyses of synchrony in temporal changes, long-term temporal trends and community changes were performed and reported for all lakes and each group separately. Two lakes also experienced a significant decrease in TP with Tau > 0.2; however, the change occurred across a short TP gradient with overall low concentrations (annual mean TP 0.03–0.02 mg·L−1
). Therefore, these two lakes were not assigned to any group, but included in the analyses when the lakes were analysed or reported together.
We assessed if temporal changes in climatic, lake physico-chemical and plankton variables occurred synchronously across lakes, reflecting common large-scale driving factors (for example climate). Annual and seasonal means were calculated for each climatic, physico-chemical and plankton variable in each lake. This provided an annual time series for each variable in each lake. Each time series was standardised to zero mean and unit standard deviation prior to the analyses. The synchrony of a variable was calculated as mean pair-wise Pearson correlation coefficient (r) for all pairs of time series of that variable across lakes [7

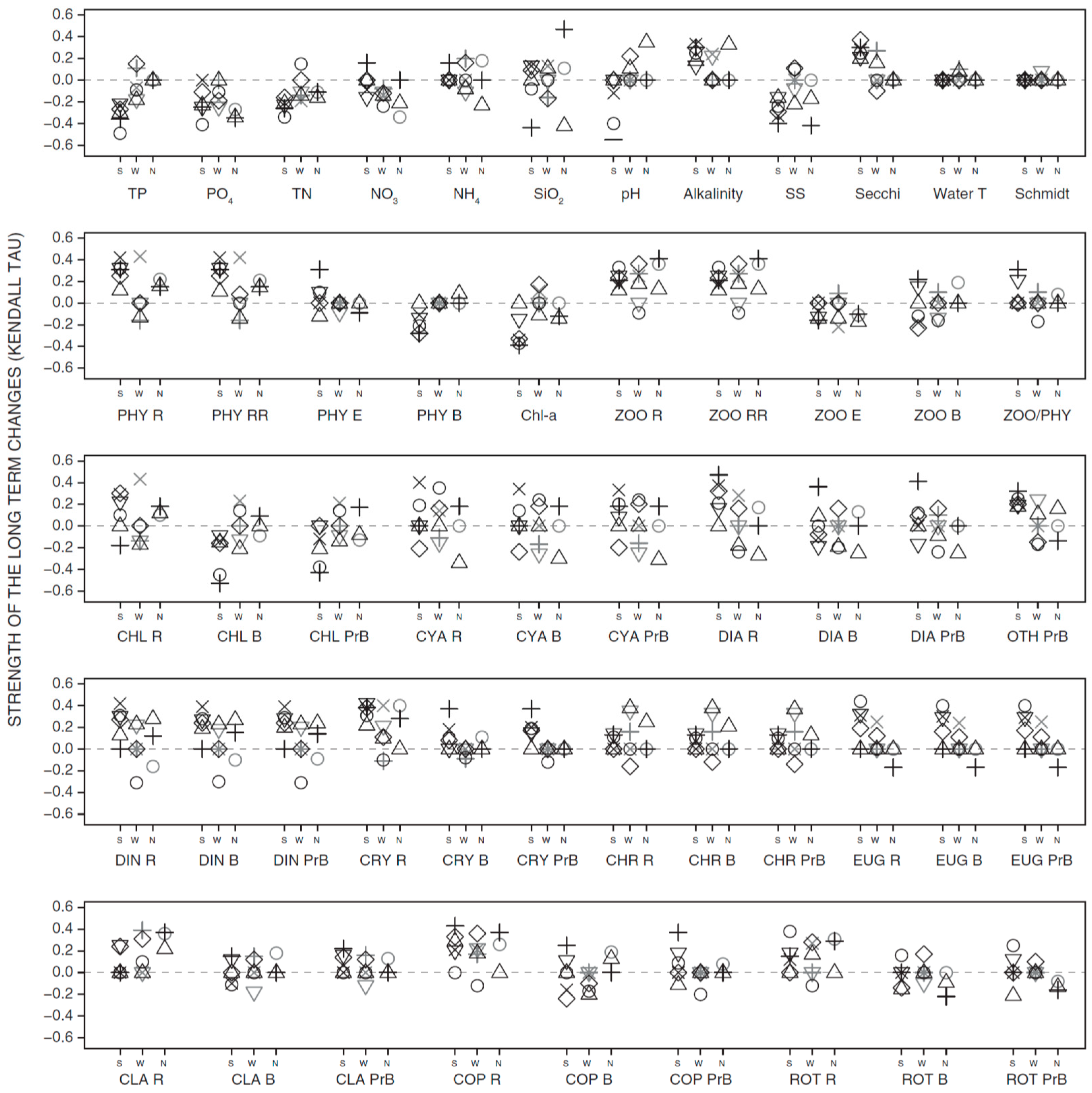

We quantified the strength and significance of long-term changes in each variable in each lake by testing for monotonic trends in each variable over the two decades using Mann-Kendall rank correlation [51
]. The Kendall correlation coefficient (Tau) was taken as zero when the test was insignificant. We expected a monotonic fit to be adequate as two main drivers of these ecosystems, nutrient levels and climate, had monotonic changes during the study period. The majority of the lakes had experienced nutrient reduction due to restoration [52

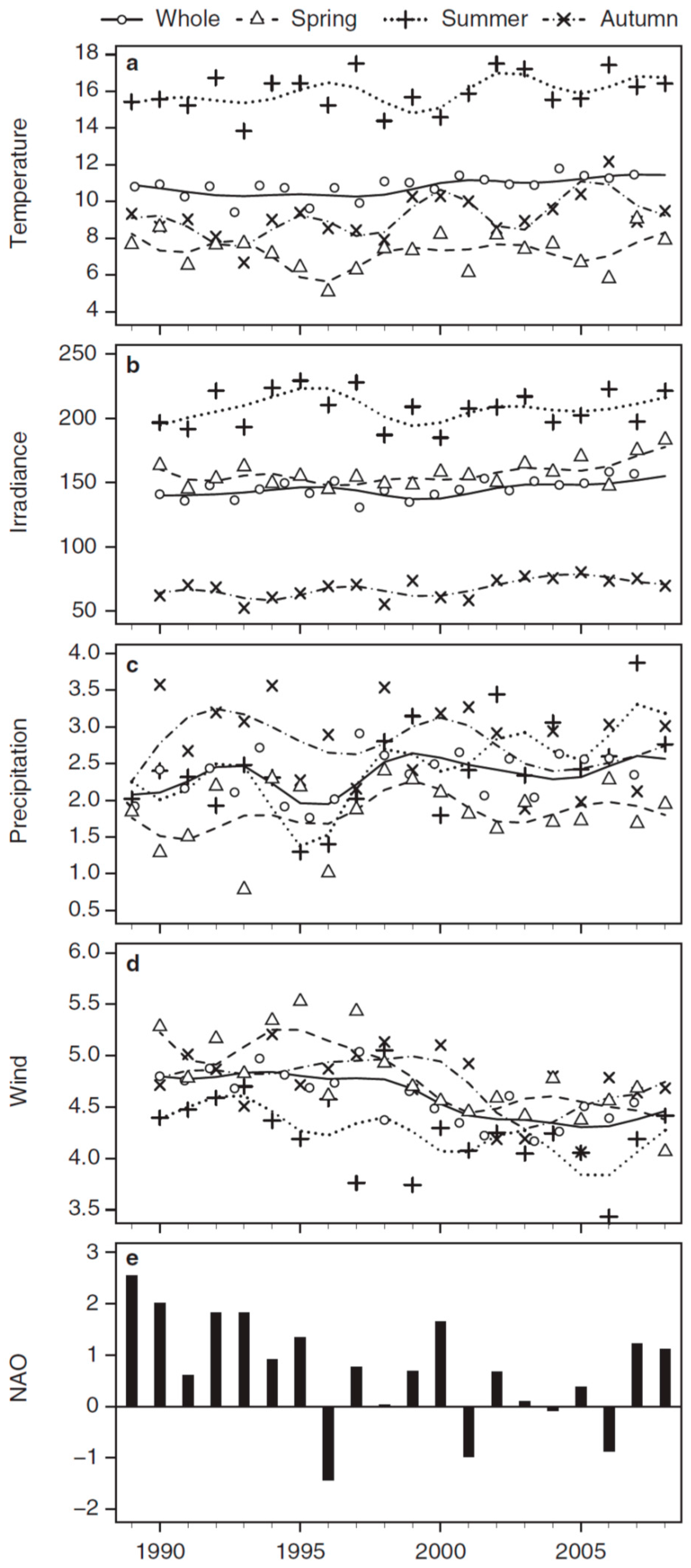

], and no shift was observed in the decreasing trend in the NAO index (Figure 2
) during the study period.

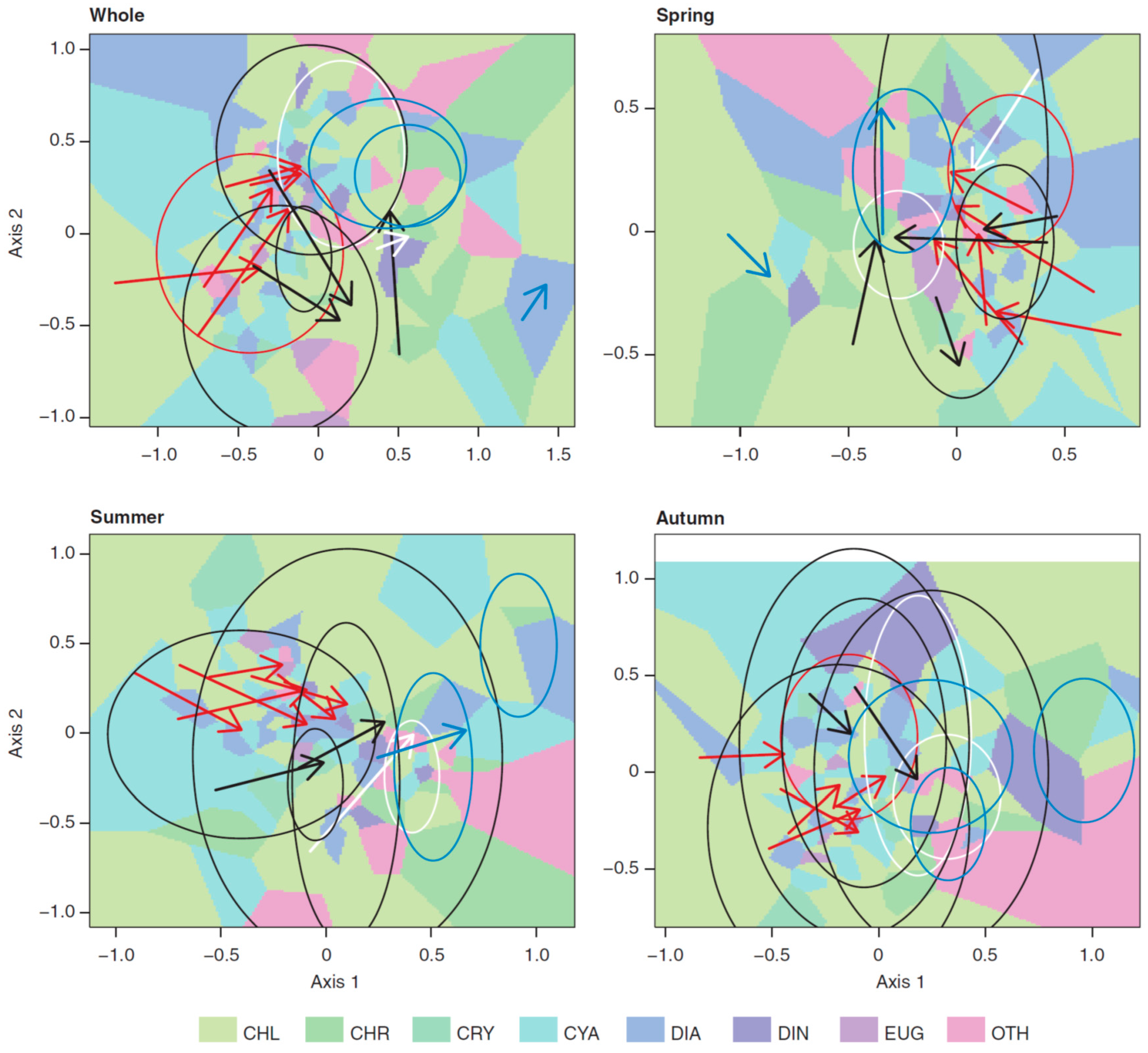

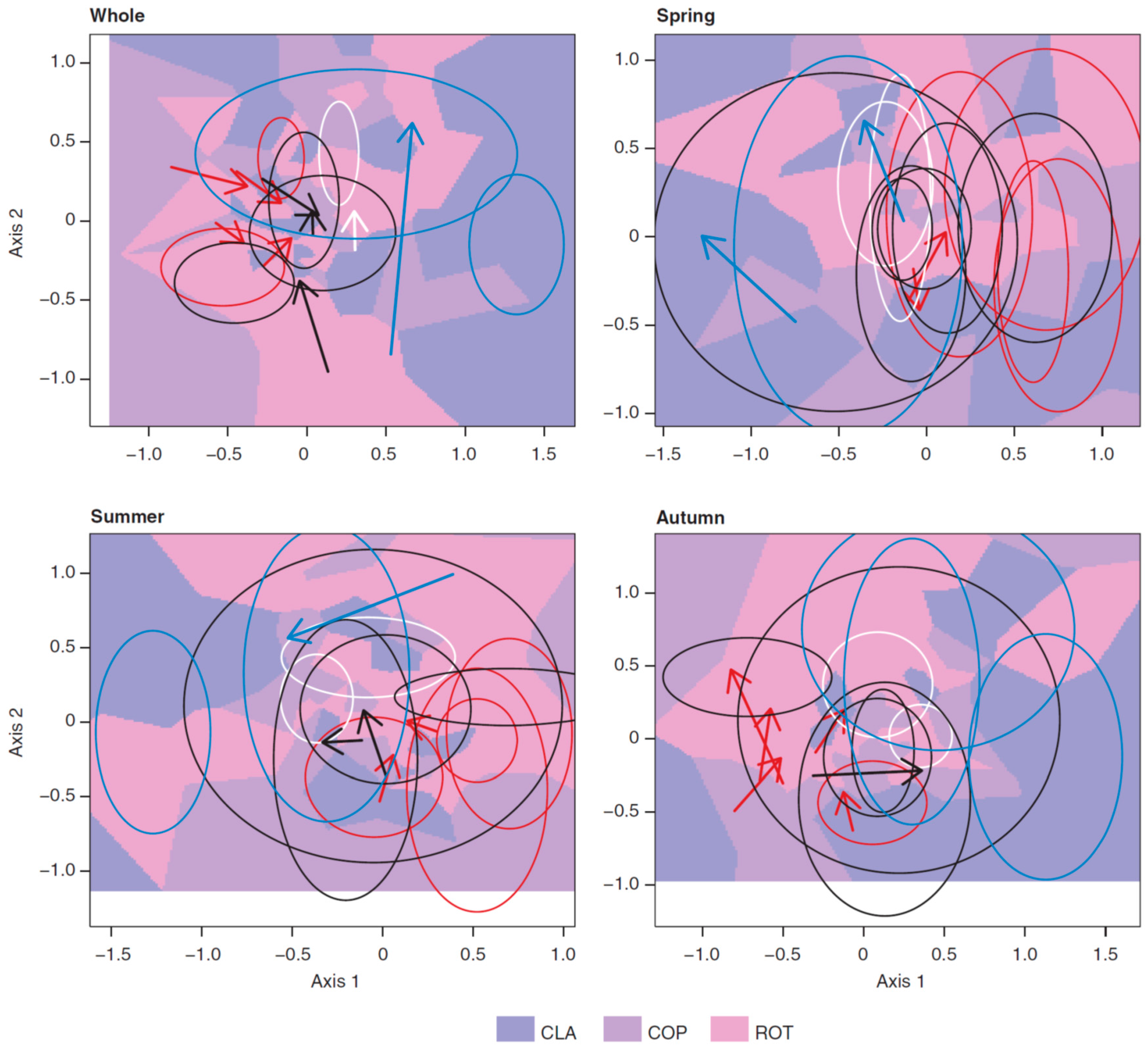

We examined how phyto- and zooplankton community composition changed in the study lakes during the study period using NMDS ordinations [54
]. In each lake, the plankton community is defined annually as pooled plankton communities. The pooling is performed as summed taxa biomass. All plankton lake-years were ordinated together separately for phyto- and zooplankton. These ordinations were examined to understand if there are any directional changes in a lake and if these changes are similar across lakes, depicting the roles of nutrient reduction and climate change. The analyses were also undertaken for seasonally pooled plankton communities. The number of plankton samples in a lake for the whole year and each season varied during the study period. To assemble a balanced dataset for ordinations, 14, 3, 4 and 3 plankton samples were pooled as annual, and seasonal (spring, summer and autumn, respectively) plankton communities for each lake and year. Lake years without sufficient samples were omitted from the analyses and a random selection was made for lake years with an excess number of samples.
Ordinations were performed for two axes (as the plankton community space is to be represented in two dimensions in the analyses) based on Bray-Curtis distances between pair-wise plankton communities. The stress values were sub-optimal (0.27 and 0.24 for phytoplankton and zooplankton ordinations, respectively) as we tried to ordinate in two dimensions. Most of the models did not converge and we therefore used the best solution after 1000 trials. However, the conclusions were identical for several different trials (visually checked).
Each lake was analysed to see if the plankton communities showed significant directional changes in the ordination space. The axis scores were modelled against years using multivariate linear modelling, and significance was tested using the ANOVA function. If a significant change emerged in a lake, the direction of change was plotted with a vector. End points of the vector corresponds to the predicted axis scores for the start and end years in that lake. If there is no significant change in a lake, an ellipse centred on mean axis scores of sites is plotted with radiuses corresponding to the maximum distance of sites from the mean for each axis.
All analyses were performed for all lakes combined and separately for each group of lakes as well as for time-series for the whole year (excluding winter) and separately for each season. Seasons were defined as months 3–5, 6–8 and 9–11 for spring, summer and autumn, respectively. Statistical analyses were made using R [55
] with the vegan package [56
] for NMDS ordination, the Kendall package [57
] for monotonic trend analyses in time series and the mgcv package [53
] for Generalized Additive Model smoothers.
Analyses of two-decade time series of 17 Danish lakes revealed synchronous temporal changes in biotic and abiotic lake characteristics and several significant long-term trends in lake plankton, which were most consistently associated with a widespread decline in nutrient concentrations. The temporal trends indicated that the restoration measures implemented in the Danish lakes have led to improved water quality and recovery of plankton communities in most of the study lakes, potentially creating a widespread increase in plankton richness.

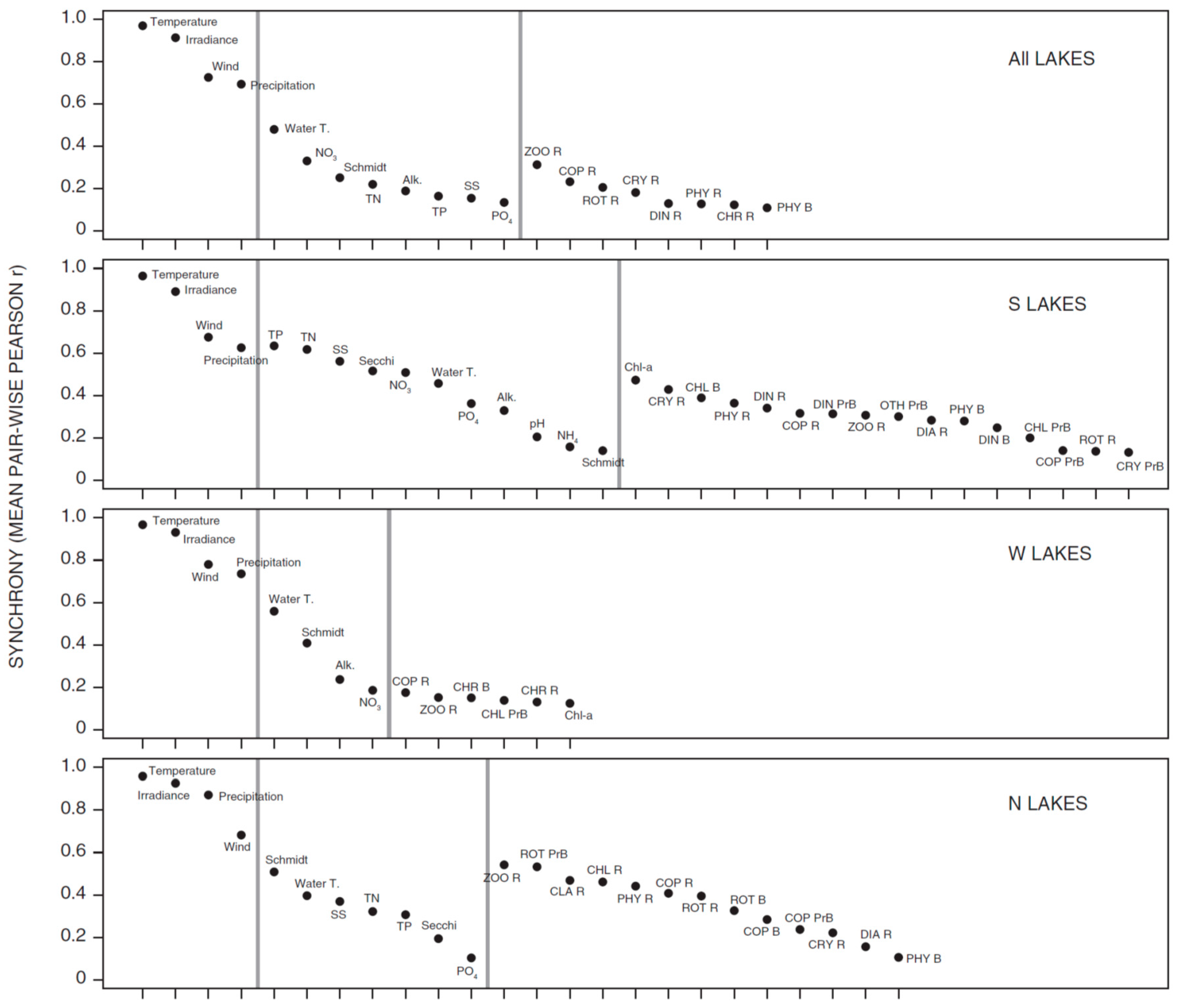

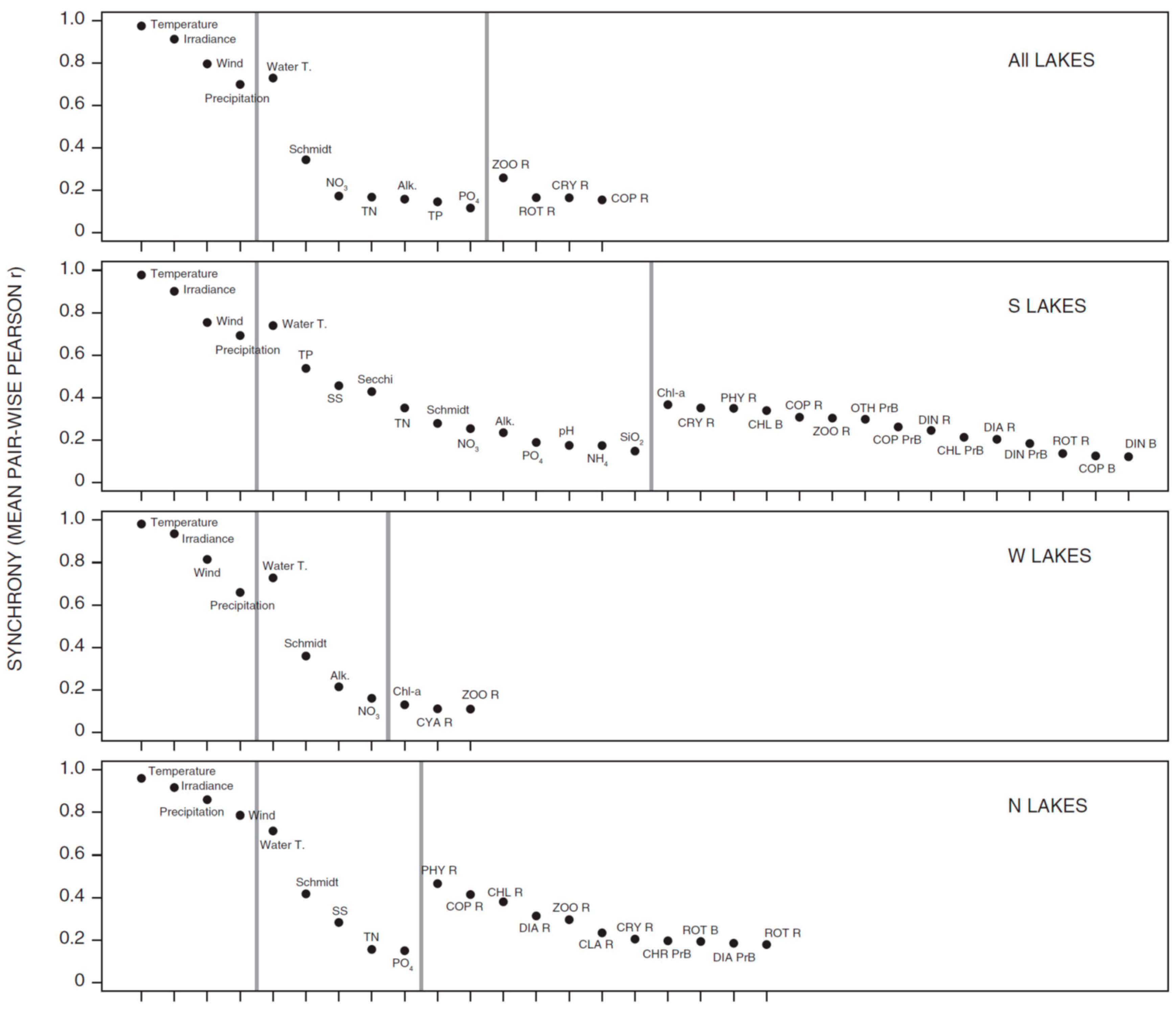

The temporal trends in the studied variables showed the strongest synchrony for climatic variables and for the lake characteristics most influenced by these such as surface water temperature and water column stability. The strong synchrony in climate variables across Danish lakes was to be expected due to the lack of altitudinal differences and the spatial scale of the study (<300 km). Wind speed and precipitation had weaker synchrony (c.
0.7) and more variability among lakes than temperature and solar irradiance (c.
0.9), reflecting that wind and precipitation are more affected by local factors [7
]. The synchrony in air temperature induced a corresponding synchrony in surface water temperature and water column stratification, these having a direct link to climate and thus a stronger synchrony than lake chemistry [7
]. The positive albeit weak long-term trend in air temperature and negative trend in wind speed did not translate into a long-term trend in surface water temperature and stratification in the whole-year time series, and no clear effect of annual changes in climate on lake chemistry was identified. Only in summer, when the positive long-term trend in temperature was strongest, did a corresponding significant positive trend in surface water temperature occur. This suggests that either the climatic changes were not strong enough to induce a trend in lake water, except for summer, or that the effect of these variables was confounded by catchment-specific factors. An analysis of 125 freshwater and marine phytoplankton time series demonstrated that climate-driven phytoplankton biomass cycles were heavily obscured by other drivers of population variability, indicating the difficulty of detecting climate-driven trends in plankton communities [58
]. However, a long-term warming trend has been documented for both North American [17
] and European [19
] deep lakes in investigations covering a longer time period than in our study. Deep dimictic lakes with stable summer stratification are known to better reflect long-term climatic trends, whereas frequently circulating polymictic lakes are least influenced [59
]. Therefore, the lack of a strong link between the long-term trends in climate and lake physico-chemistry may reflect that most of the lakes in the present study were polymictic shallow lakes and that only a weak change in annual mean air temperature occurred in the period covered by our study. However, analyses at seasonal and short-term scales may also demonstrate stronger climatic control, for instance, through extreme weather events [60
], changes in the duration, frequency and depth of stratification [61
] and the spring phenology of plankton [24
]. For example, in analyses of 20 Danish lakes some of which are included in the present study found a decrease in the depth of the thermocline with a delay in autumn turnover in response to climate change [21
The annual means of water chemistry variables were also synchronous across lakes, though with a three-fold decrease in strength in comparison with climate variables. Weaker synchrony in lake chemistry than in climate reflects a confounding influence of catchment-scale local factors or internal dynamics [7
]. A more widespread and stronger synchrony in water chemistry and water clarity in the S lakes indicated that the strong nutrient reduction in these lakes played an overriding role in the temporal trends. This suggests that the steep environmental gradients had a stronger effect in lake ecosystems than the climatic changes in the two-decades the study period. Furthermore, long-term decreasing trends in PO4
, TN and NO3-2
in most of the lakes (80%, 90% and 75%, respectively) accompanied by a moderate synchrony in NO3-2
, TN, TP and PO4
, reflected marked nutrient reduction in all studied Danish lakes, not only in S lakes [5
]. The significant decrease in nutrients is consistent with the fact that the Danish landscape is largely used for agricultural activities (c.
]), and a recent reduction in fertilizer use and changes in agricultural activities have resulted in decreased nutrient loads from lake catchments [64
]. The analysis of long-term trends in N:P ratio (Figure A9
) showed that N:P ratio increased in three S and two W lakes reflecting the decrease in TP concentrations. Whereas, N:P ratio decreased in all N lakes and two W lakes probably indicating that the reduced N input from the lake catchments resulted in a decrease in N:P ratio in the absence strong decline in P concentrations. However, reduced phosphorus concentrations in lakes have been proposed to lead to a decrease in N removal efficiency [66
]. An analysis of long-term time series for 12 deep lakes showed a marked increase in N concentrations following a sharp decrease in P concentrations, despite stable or decreasing N inputs [66
]. In the present study, however, both N and P concentrations exhibited a widespread long-term decrease. The co-decrease in N and P was most likely due to successful management of both point and non-point nutrient sources in Danish catchments [64
] rather than internal dynamics subsequently resulting in potential N accumulation [66
]. Furthermore, the majority of the lakes in the present study were shallow and small with short residence times, which might have facilitated stronger N removal [5
Previous studies suggest that lake biotic variables are less synchronous than abiotic variables [7
]. Here plankton displayed a weaker annual synchrony than climate. However, the strength of the synchrony in plankton was at a similar level as that of lake chemistry, probably indicating primary control of the temporal changes in lake plankton by lake chemistry. The strong re-oligotrophication in the S lakes resulted in high levels of synchrony in lake water chemistry and plankton. The re-oligotrophication in S lakes also resulted in strong and consistent long-term water quality improvements with a decrease in phytoplankton biomass and a shift from Chlorophyta dominance towards more heterogeneous and richer phytoplankton communities. The weaker synchrony and less consistent long-term trends in the W and N lakes indicate that confounding catchment-scale processes or internal lake dynamics weaken the synchrony in temporal changes in lake chemistry and plankton when loading reduction is not substantial [7
]. Overall, the variation across lake groups indicated that the synchrony and long-term trends in lake plankton were predominantly controlled by the strength of re-oligotrophication. Analyses conducted in the earlier phase of the monitoring programme revealed that 10 lakes, experiencing nutrient reduction prior to 1999, responded immediately in the form of decreasing Chl-a concentrations [52
]. A decrease in phytoplankton biomass and a shift towards a phytoplankton community more associated with oligotrophic conditions in response to nutrient reduction have been widely documented [5
]. However, a weak or inconsistent response of phytoplankton biomass and community composition to nutrient reduction has also been observed [27
]. Although a strong decline in TP and phytoplankton biomass is expected to lead to a corresponding decline in zooplankton biomass [13
], no such response was observed in the S lakes, which corroborates previous observations [35
]. Earlier analyses of Danish lakes in recovery from eutrophication have also revealed a weak or insignificant response of zooplankton biomass to re-oligotrophication, suggesting changes also in top-down effects [52
]. Furthermore, a paleolimnological study conducted in Switzerland in three deep lakes covering the past 70–150 years of climate change found that the response of zooplankton to climate change was largely regulated by local changes in nutrient inputs and fisheries [72
]. Specifically, the analyses showed that climate had a very limited effect on the cladoceran community in Lake Annecy, the most nutrient limited lake, whereas Lakes Geneva and Bourget with higher nutrient concentrations were more sensitive to climate warming in the past 70–150 years [72

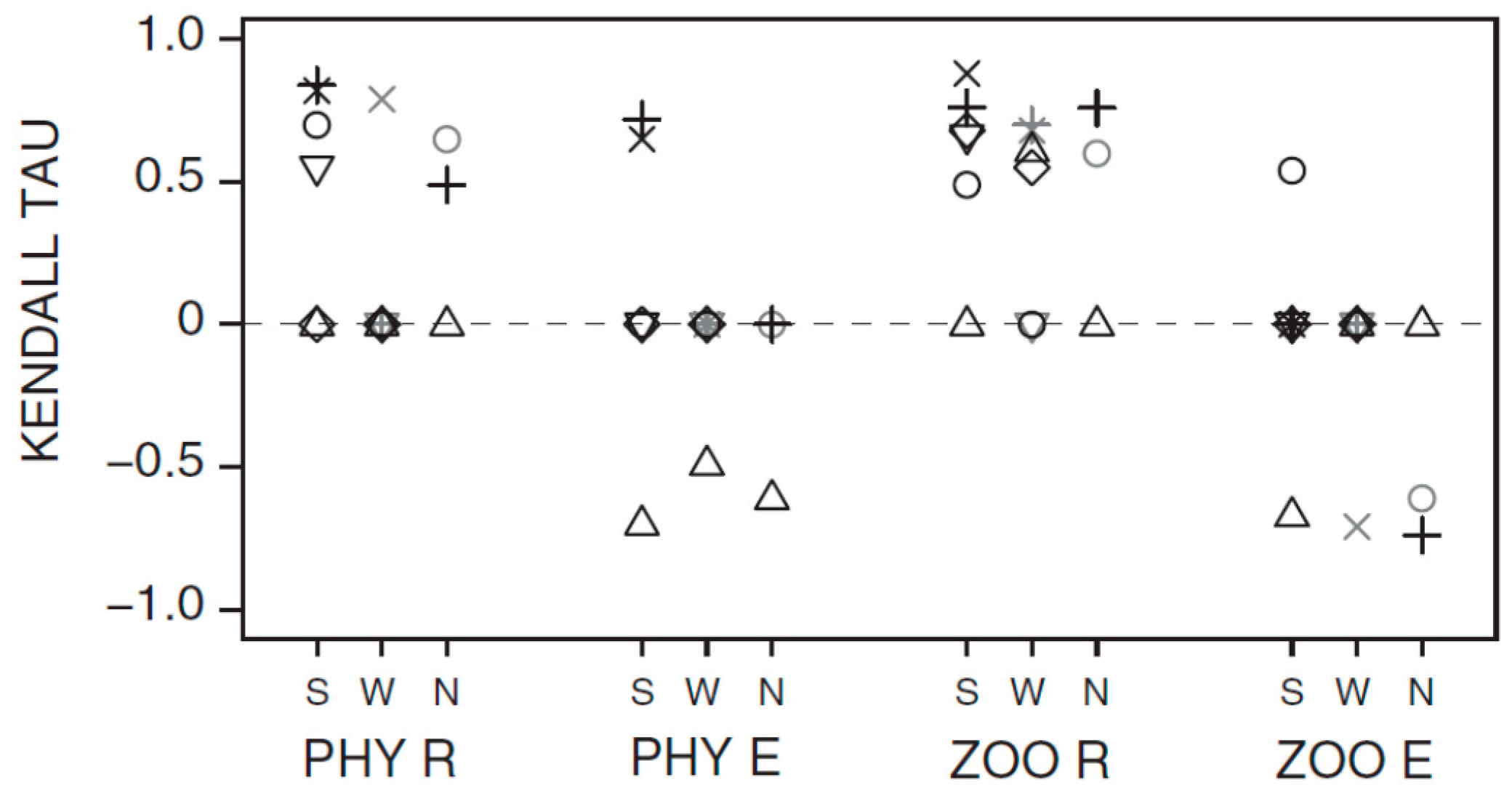

Notably, the richness of phyto- and zooplankton, as well as that of many of their main groups, exhibited synchrony and increasing long-term trends in all lakes. Furthermore, the richness of annually-pooled phyto- and zooplankton communities increased across years for most of the lakes. The widespread and synchronous increase in plankton richness coincided with the synchronous negative trends in PO4, TN and NO3-2 revealed in most of the lakes as well as the positive trends in temperature and precipitation, and the negative trend for wind speed. As the trends in climate and nutrients co-occurred and were mostly monotonic without a shift during the study period, it was not possible to perform a conclusive hypothesis test to elucidate which of these trends was responsible for the widespread increase in plankton. However, the overall patterns in long-term temporal trends and synchrony in the lake chemistry and plankton variables provided more consistent support for the dominant role of nutrient reduction in driving the plankton richness increase.
The widespread nutrient reduction [73
] in most of the lakes included in the Danish monitoring programme may potentially have a positive effect on plankton richness. N and P have been recognised as co-limiting factors of plankton abundance in shallow lake ecosystems [74
] and they are thus significantly related to the diversity of phytoplankton [77
] and submerged macrophytes [76
]. Therefore, the observed nutrient reduction in the study lakes might have increased phytoplankton richness by releasing the competitive pressure [78
]; this, in turn, may have enhanced the zooplankton richness by allowing niche partitioning [46
]. Analyses of 30 years’ data on Lake Zurich also demonstrated a strong association of phytoplankton and zooplankton richness, pointing at the role of food web interactions in sustaining diversity across trophic levels [23
]. Chl-a declined and Secchi depth increased in several lakes (most pronounced in the S lakes) with a widespread long-term decrease in SS. This was probably indicative of water quality improvements, which might have promoted submerged macrophyte growth. The potential recovery of submerged macrophytes may also contributed to the increase in planktonic diversity [82
Changes in the identification efficiency of taxonomists over time may potentially confound the suggested increase in plankton richness, especially in long-term datasets [33
]. Yet, the increasing trend for most of the plankton groups included in the present study was consistent, including Cladocera for genus level identification presents no difficulty. Climatic trends, especially changes in temperature and wind may also affect plankton richness [23
], phytoplankton phenology [24
] and community composition [27
]. The effects of extreme climate events on plankton ecology have also been recorded [23
]. However, the direct effect of air temperature on surface water temperature was limited and only significant in summer. Also, no trend in stratification and no clear and consistent effect of climatic trends on plankton were found in the present study. In addition, previous studies have shown that nutrient changes may have a stronger influence on lake plankton than long-term climatic trends [31
]. Nonetheless, a joint effect of nutrient reduction and climate in driving an increase in both the taxonomic and the functional richness of phytoplankton is perhaps more likely [16
]. Overall, although a conclusive test was not possible, the widespread nutrient reduction in Danish lakes were most consistently associated with the trends in plankton, and thus it might have been the dominant factor behind the temporal increase in plankton richness.
The pattern in synchrony and long-term trends varied when the analyses were conducted separately for each season. Synchrony in water chemistry as well as long-term nutrient reduction, Secchi depth improvement and phytoplankton biomass decrease were strongest in spring, while the increase in plankton richness was strongest in summer in all the lakes. In the S lakes, synchrony was consistent across seasons, reflecting the overriding effect of strong re-oligotrophication. The negative trends in TP and PO4
in the S lakes were slightly weaker in summer, which has also been observed in previous analyses of Danish [87
], British and German lakes [13
] and may be attributed to internal P loading from the sediment in summer [87
]. Nevertheless, the long-term increase in Secchi depth and the decrease in SS and Chl-a were strongest in summer in the S lakes, indicating significant water clarity improvements in summer despite the fact that the strongest decrease in phytoplankton biomass occurred in spring. However, eight Danish lakes (five included in the present study) showed no significant decline in phytoplankton biomass in either summer or autumn between 1989 and 2001. This probably reflects that the internal loading was stronger in the earlier period of nutrient reduction in the study lakes [70
Overall, the widespread nutrient reduction in Danish lakes during the study period led to moderate synchrony of the temporal changes in lake chemistry and plankton, including a notable long-term increase in plankton richness in 17 lakes. The synchrony was strongest and the trends most consistent in lakes recovering from eutrophication, demonstrating the prominent role of re-oligotrophication in driving the increases in plankton diversity and changes in plankton composition. The analyses of plankton composition suggested that lake restoration efforts resulted in recovery of the plankton community composition. The potential effect of climate on synchrony and long-term trends in lake chemistry and plankton was modest, even in summer when the climate signal was strongest, probably being confounded by the more dominant effects of nutrient reduction. The present study indicates that anthropogenic changes in the agricultural landscape may act as a large-scale forcing mechanism and induce synchrony in ecosystems.
