Simulation of Water Level Fluctuations in a Hydraulic System Using a Coupled Liquid-Gas Model
Abstract
:1. Introduction
2. Governing Equations and Numerical Methods
2.1. 1D Water Hammer Equations
2.2. 1D Governing Equations for Gas Flow
2.3. Solution of the Governing Equations

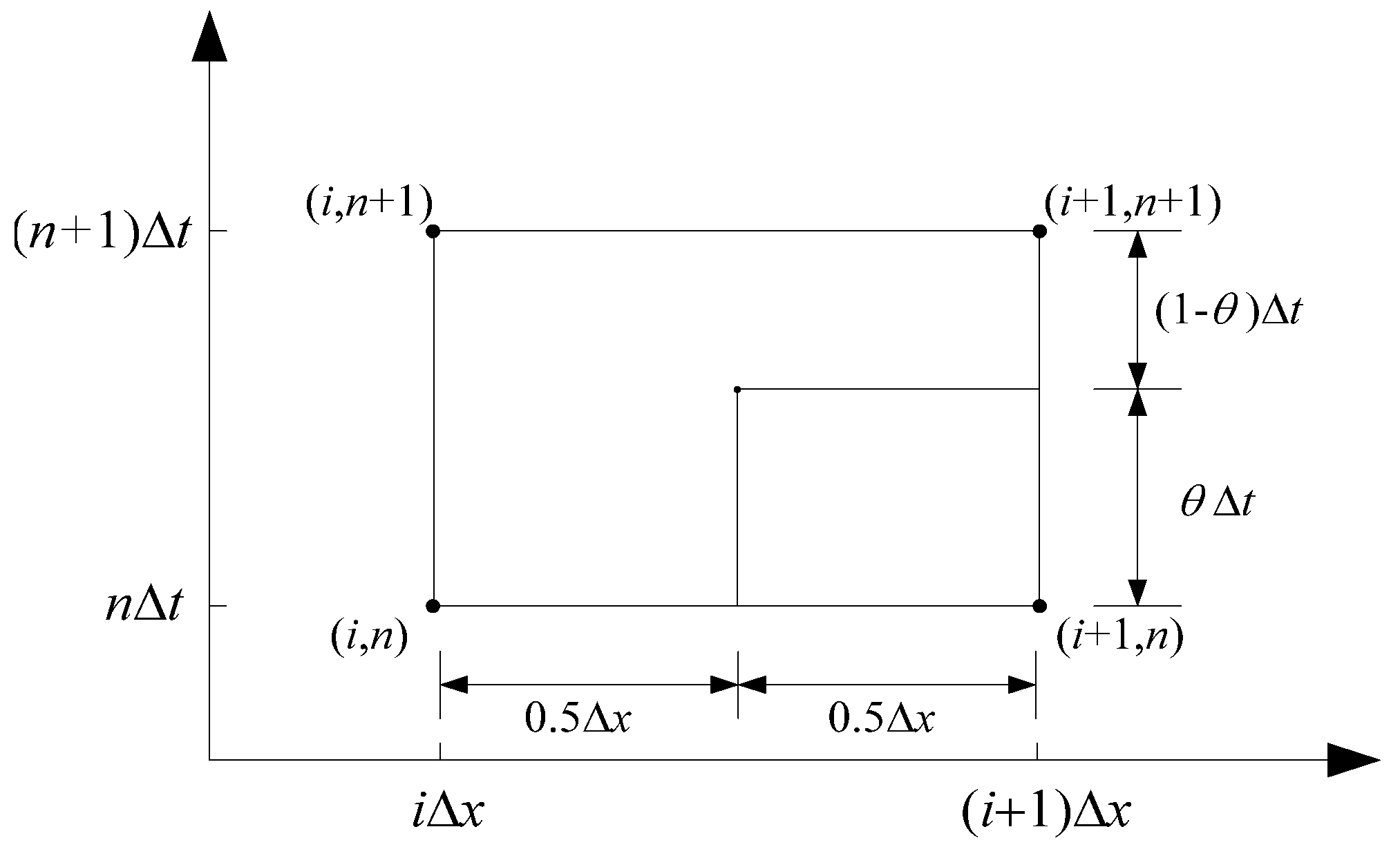

2.3.1. Finite Difference Scheme
2.3.2. Solution Method
3. Verification of the Scheme
3.1. Verification of the Liquid Phase

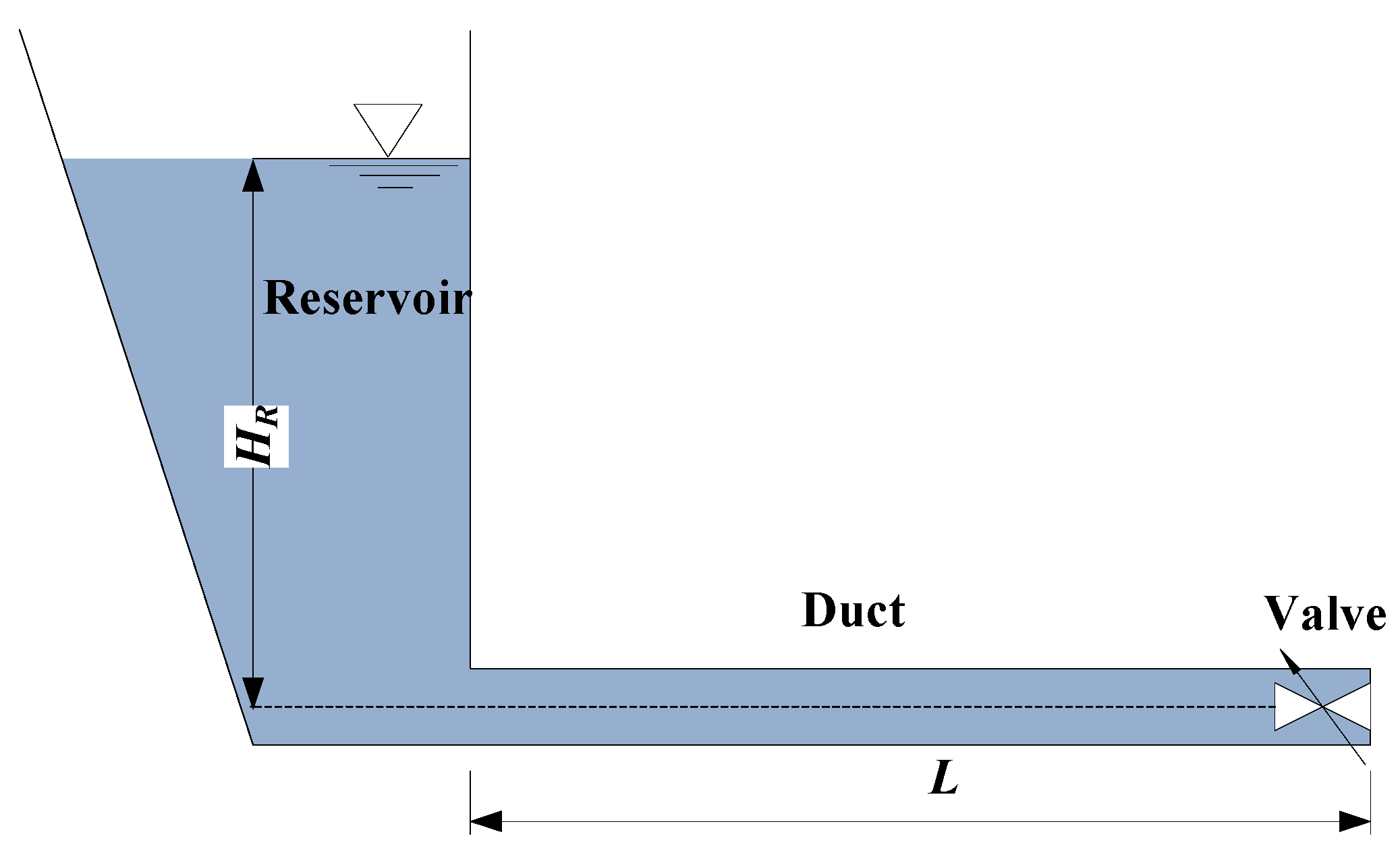

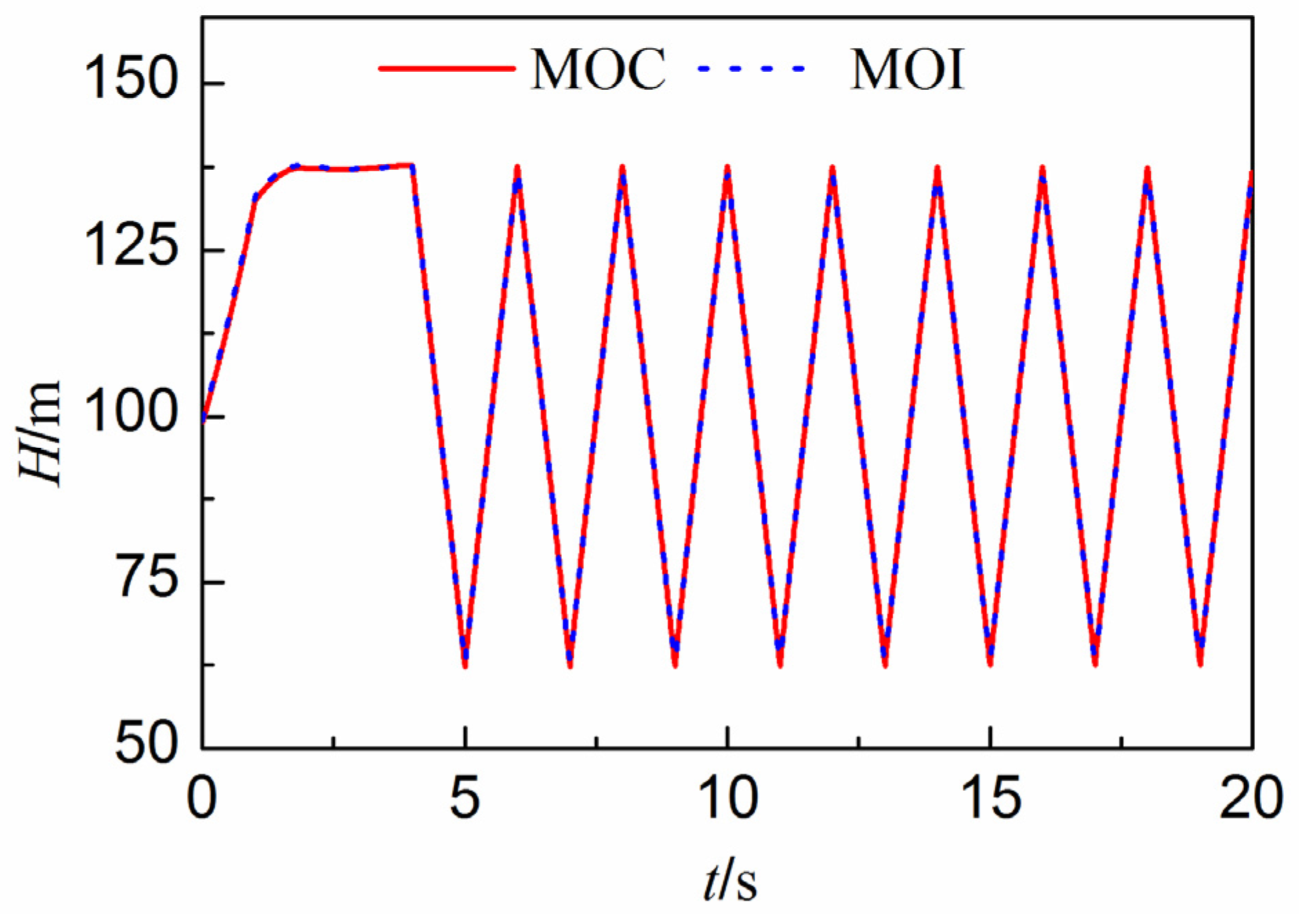

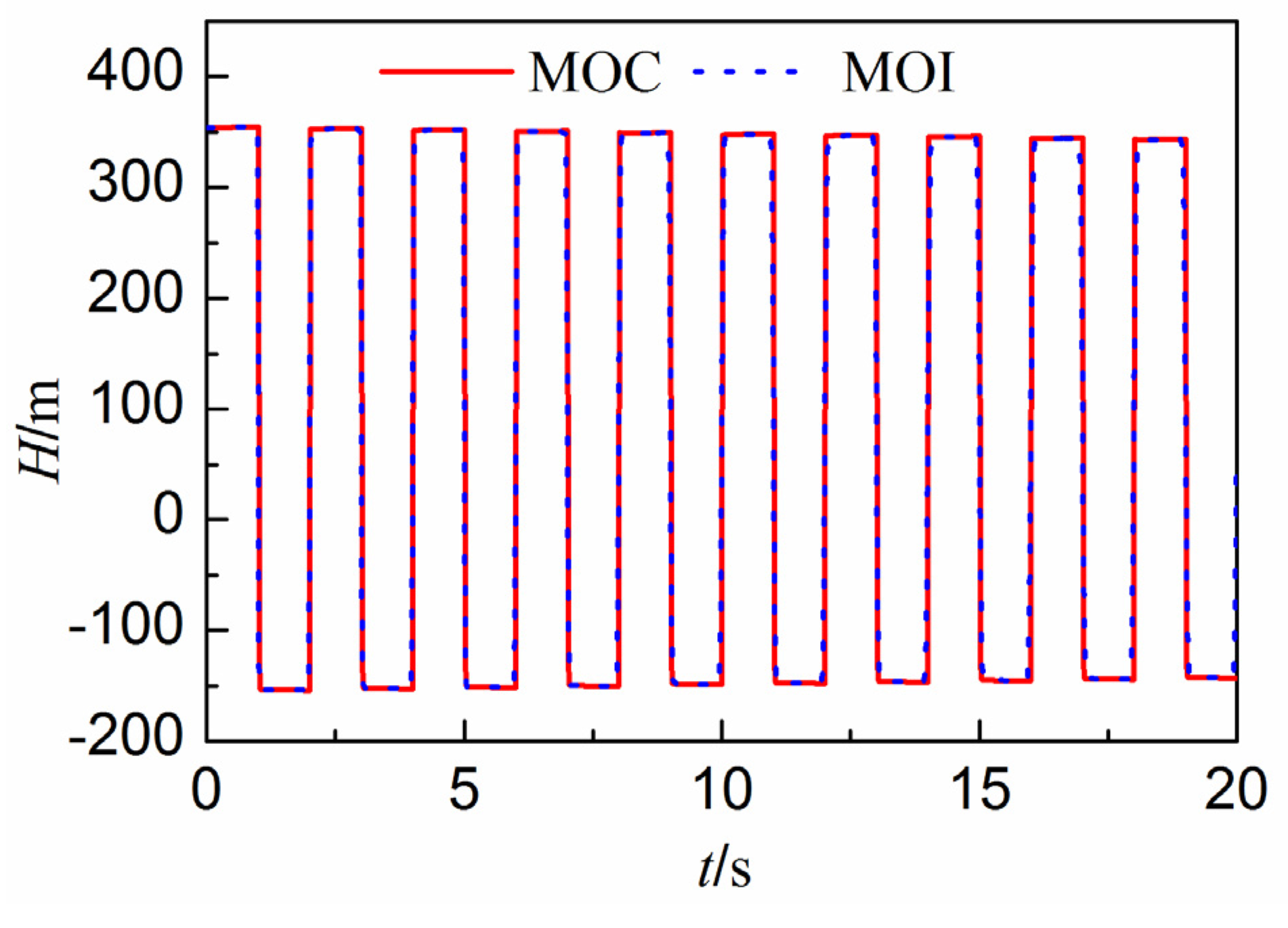

- Case 1: Infinite reservoir with a steady head of 100 m, with the valve closed suddenly;
- Case 2: Infinite reservoir with a steady head of 100 m, with the valve closed linearly over 4 s;

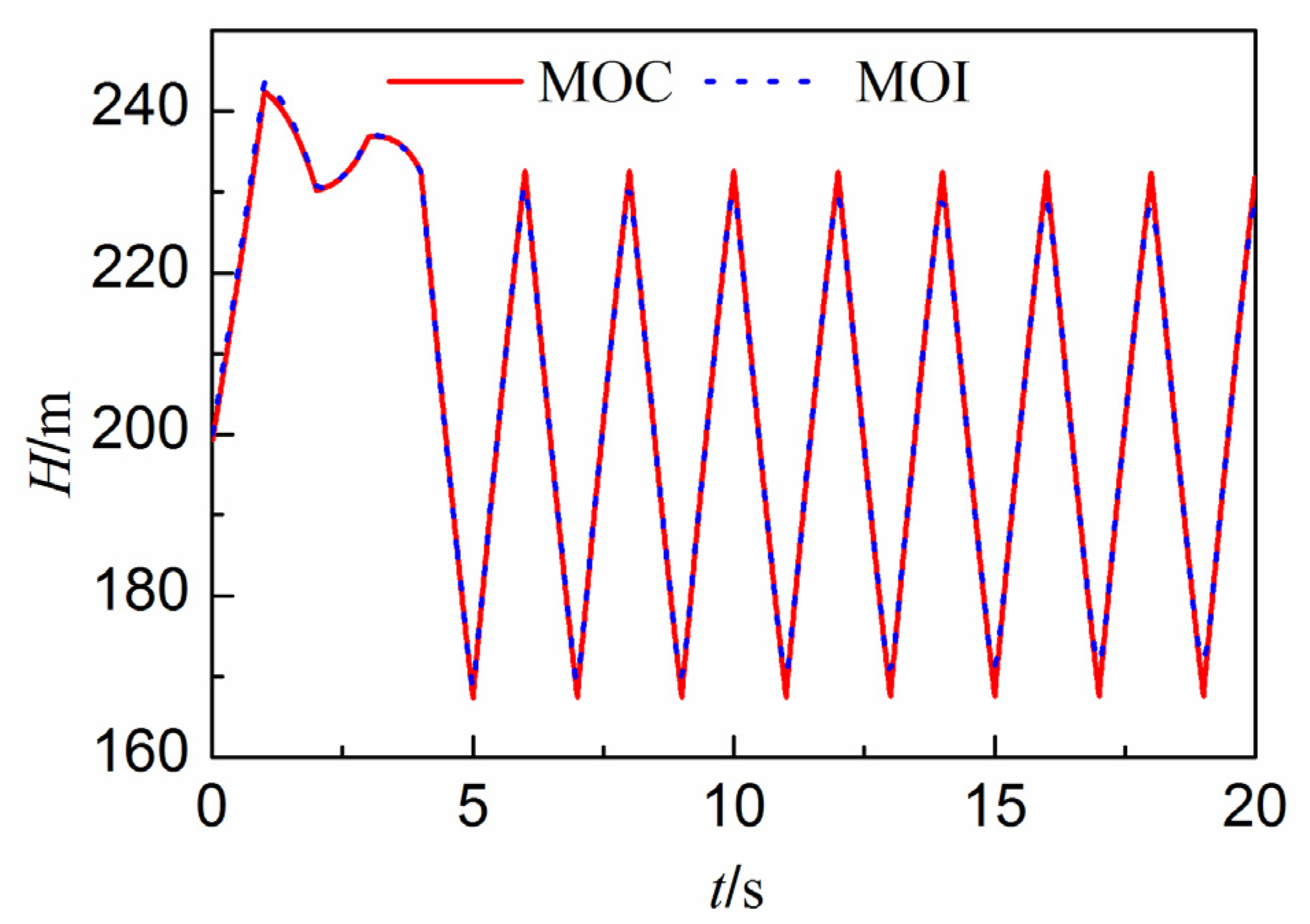

- Case 3: Infinite reservoir with a steady head of 200 m, with the valve closed linearly over 4 s.
3.2. Verification of the Gas Phase

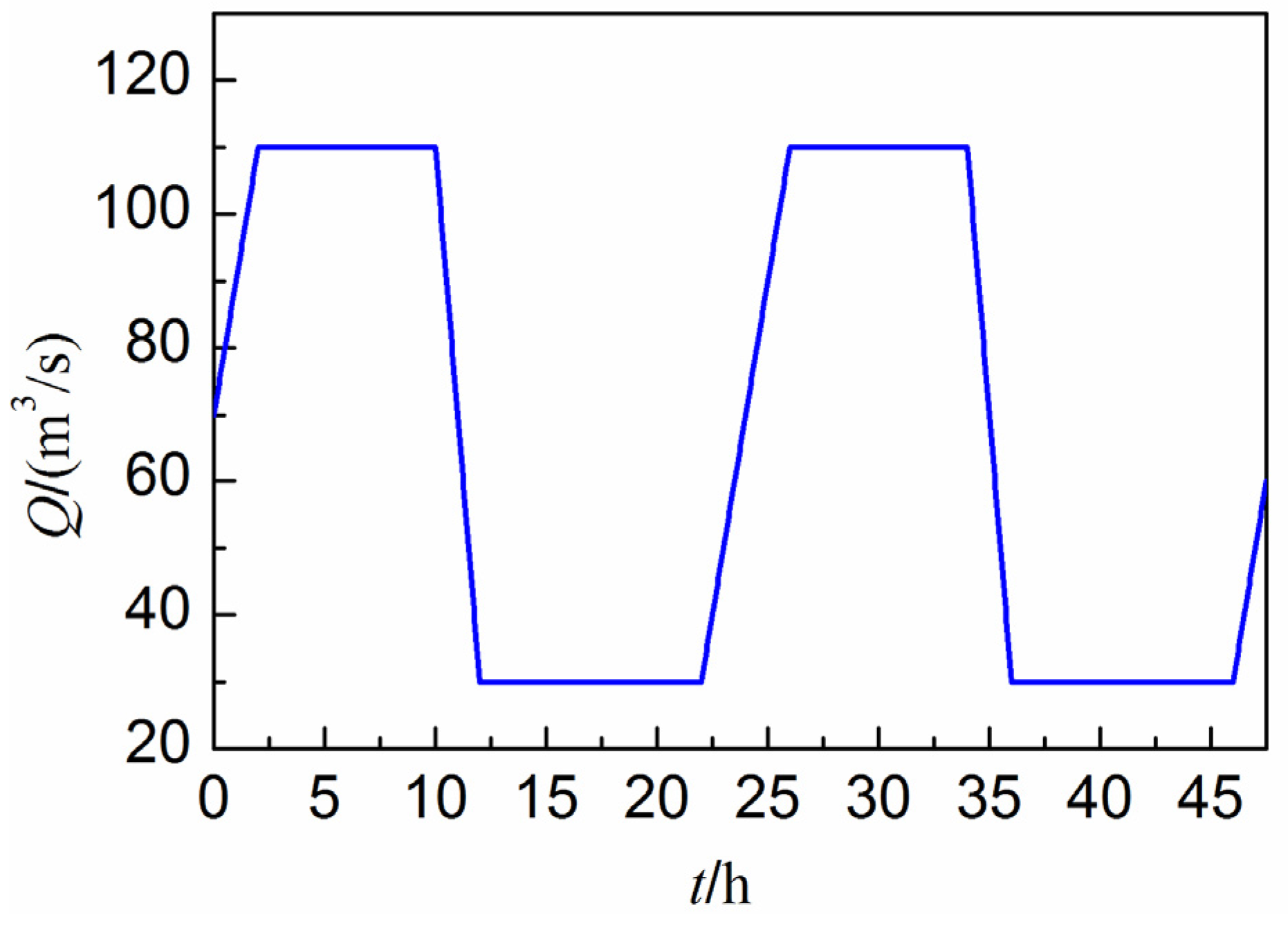

3.2.1. A Single Straight Gas Pipe

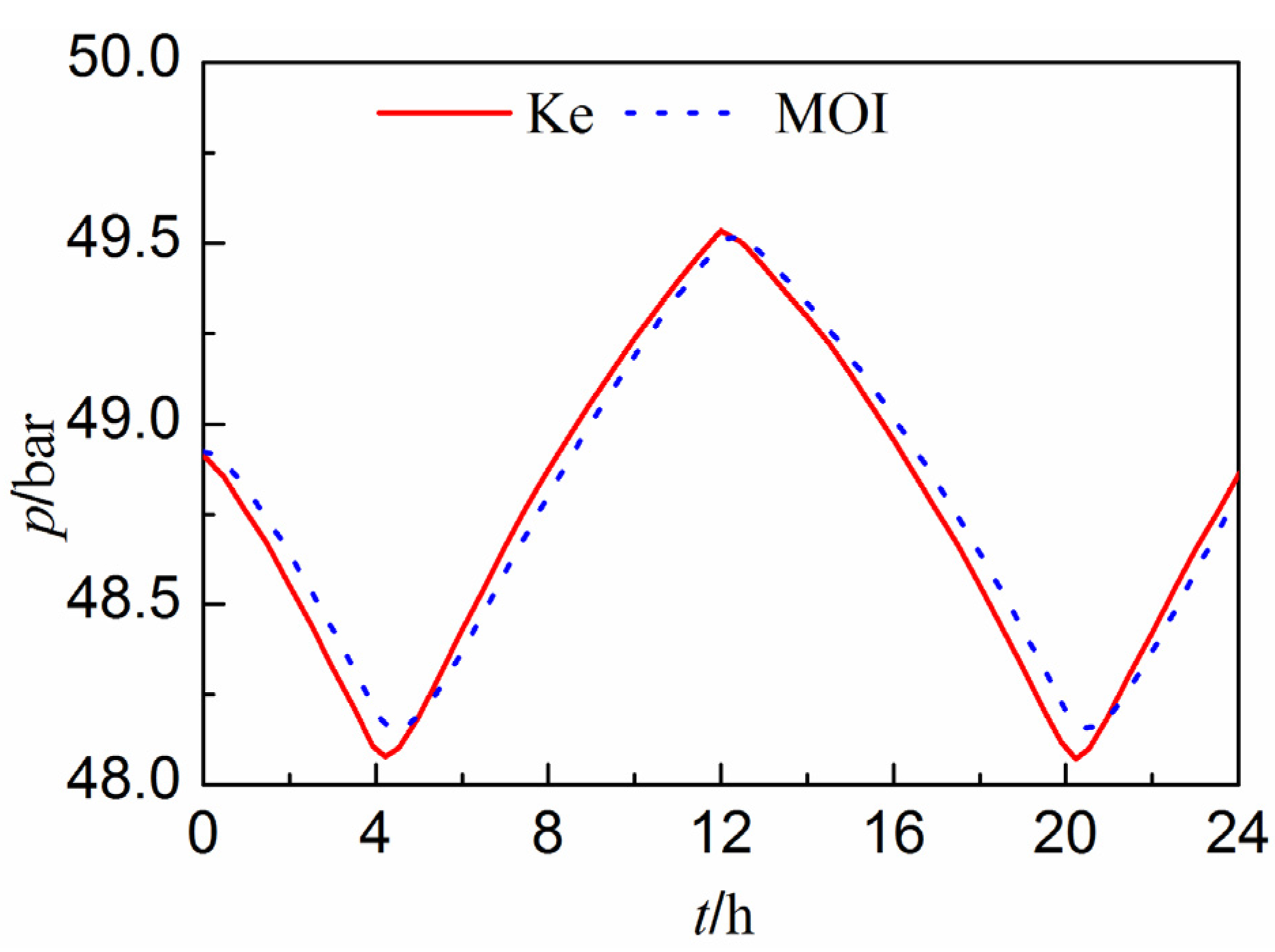

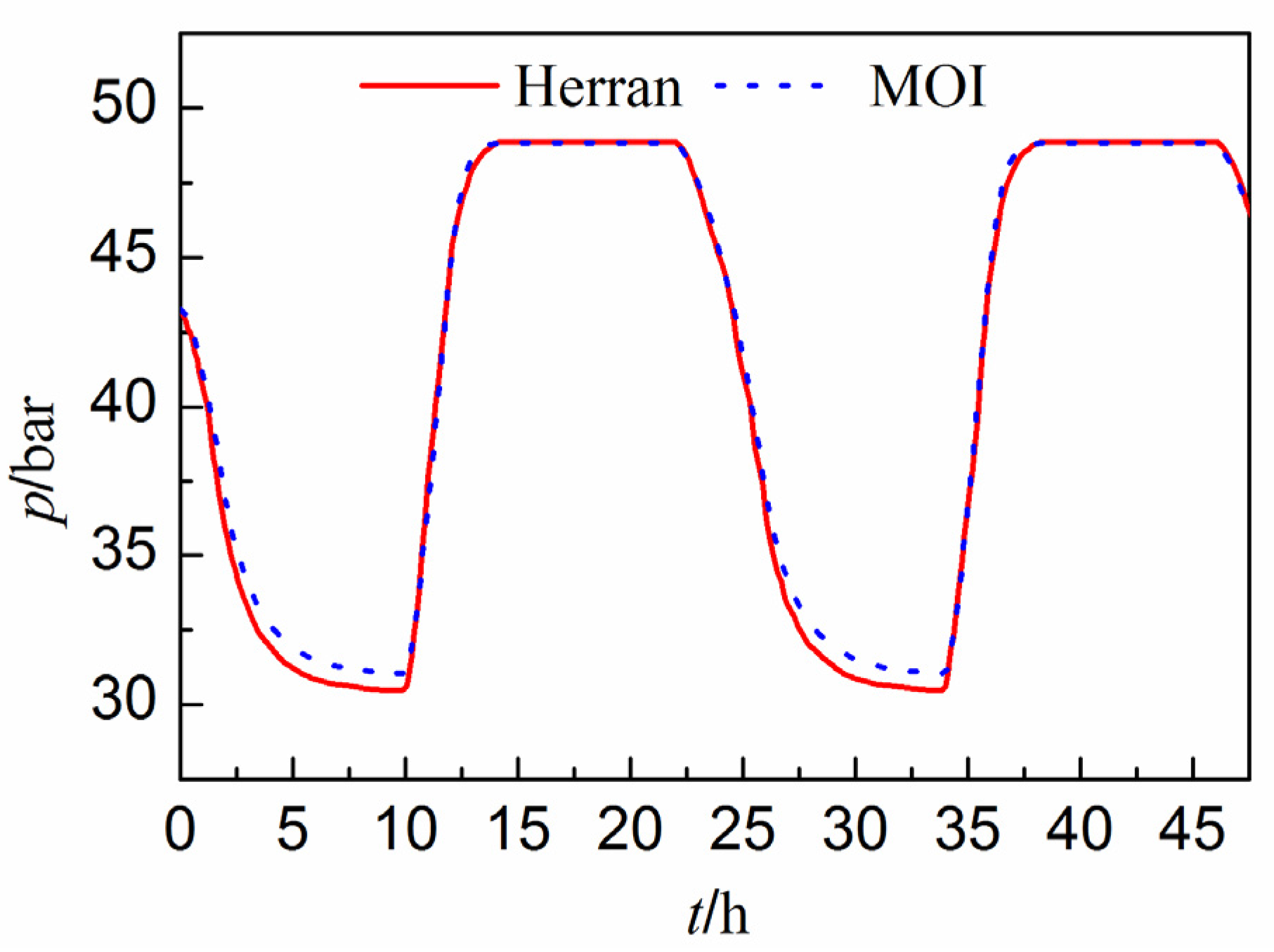

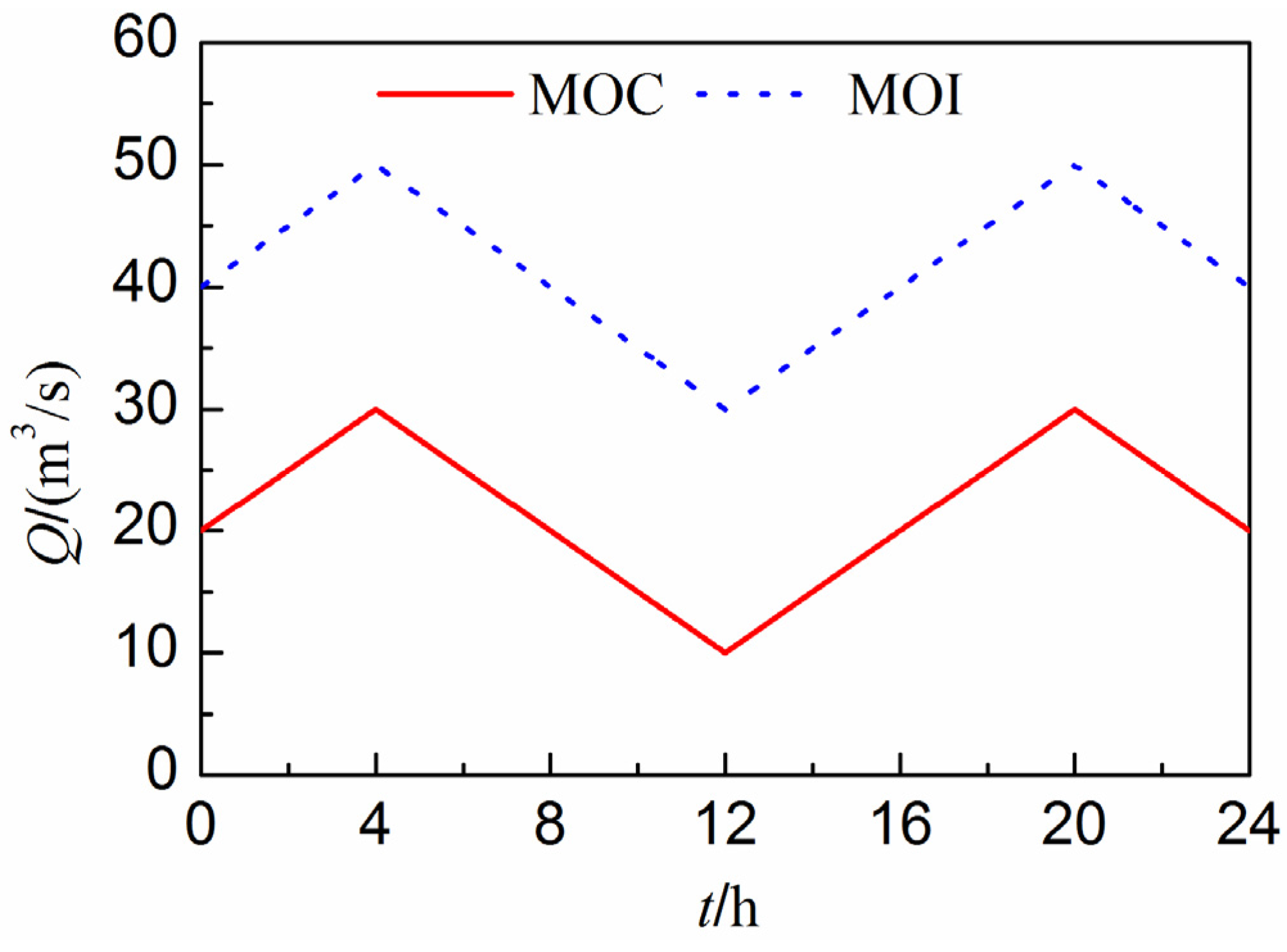

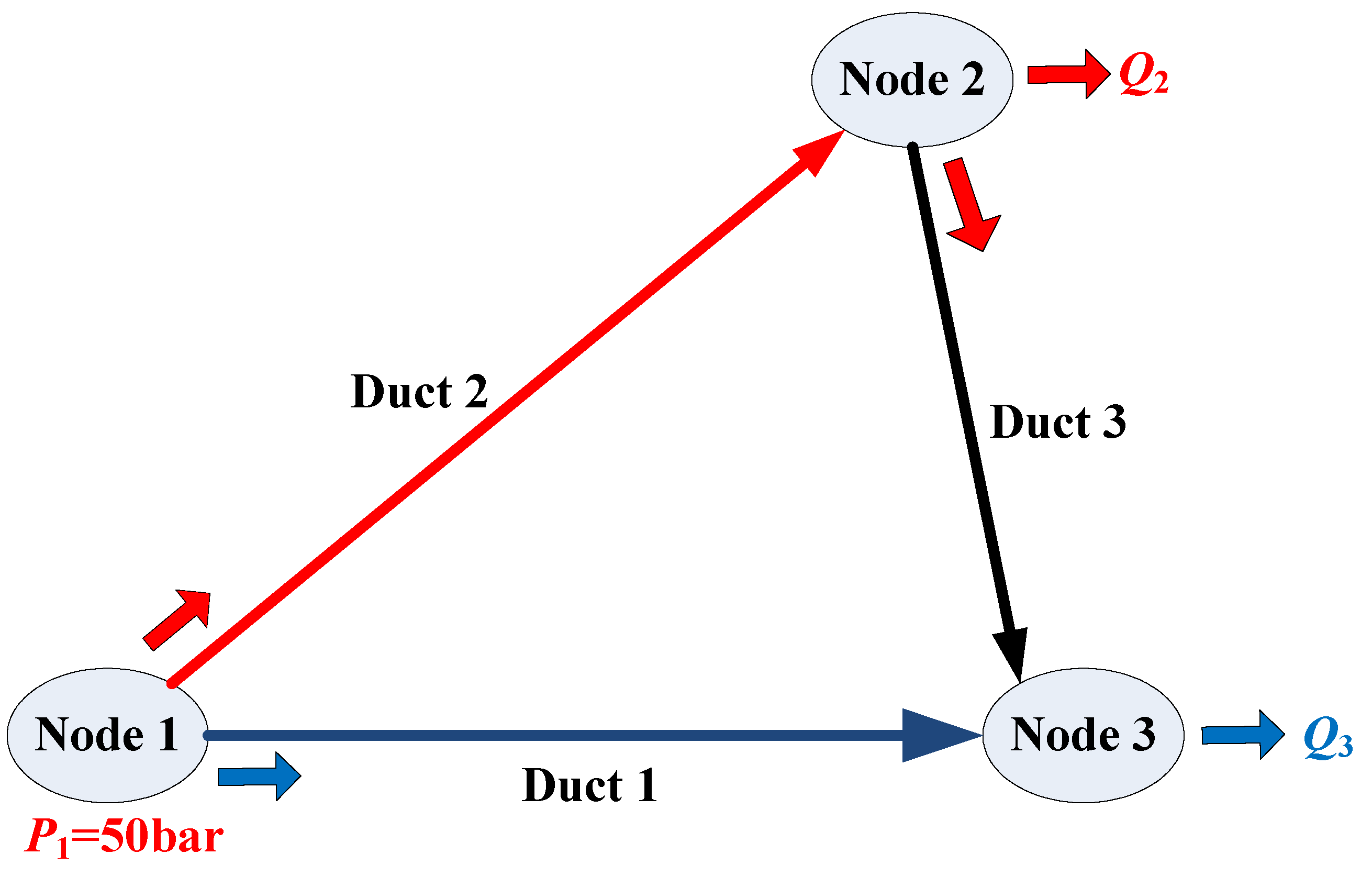

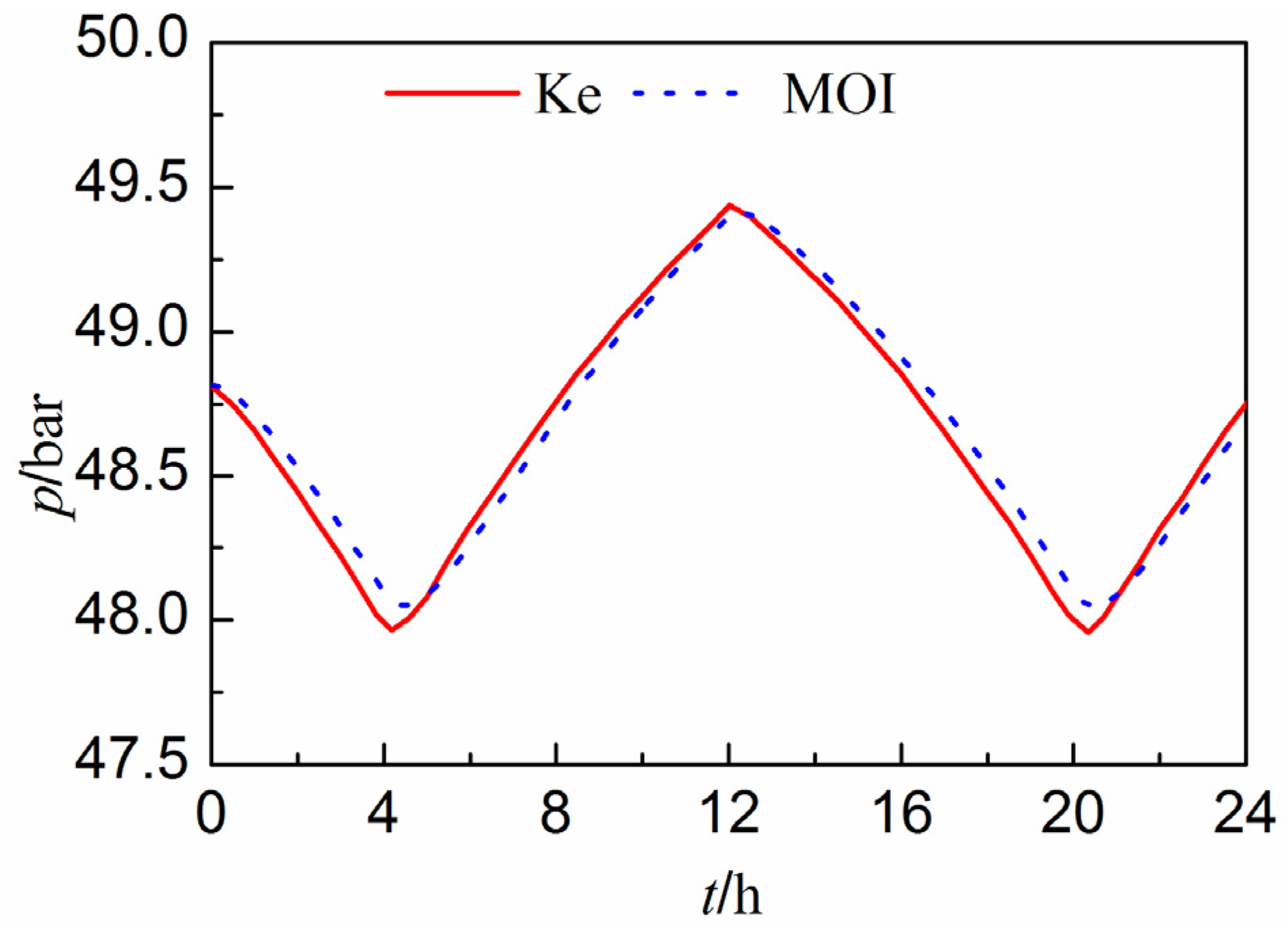

3.2.2. A Gas Pipeline Network
4. Simulation of Water Level Fluctuations
4.1. Neglecting the Influence of the Gas Phase

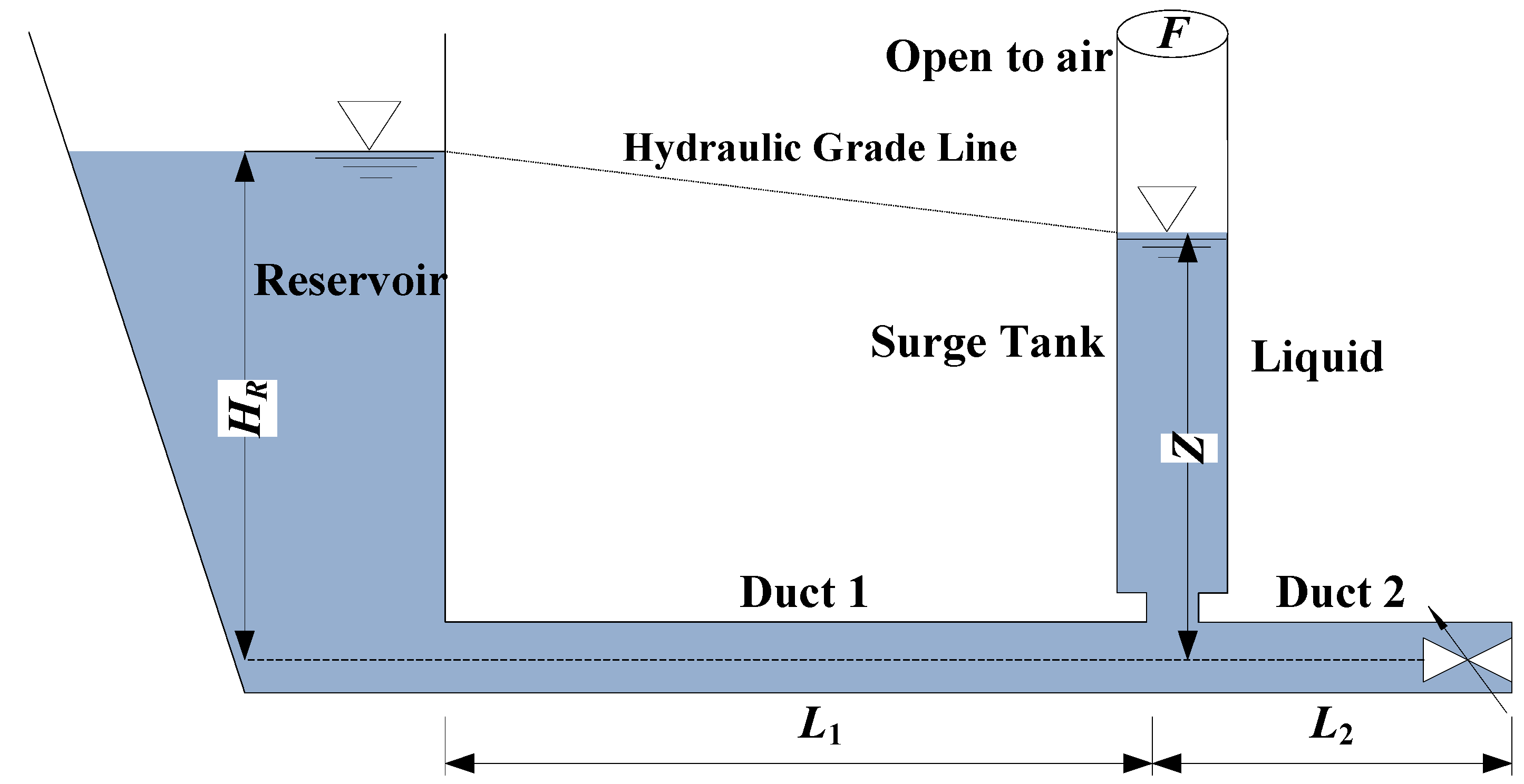

4.1.1. Water Level Fluctuations in an Open Surge Tank

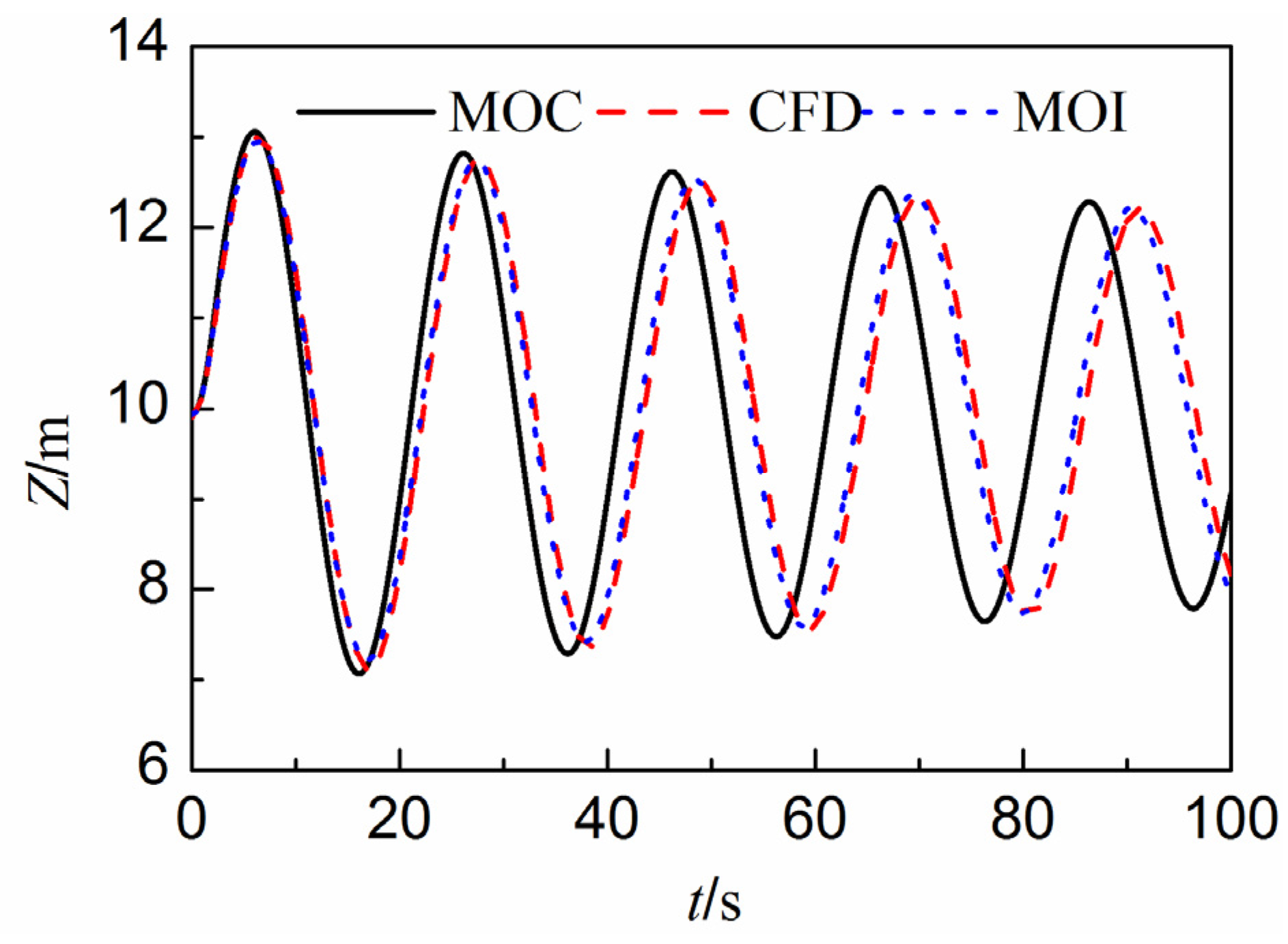

- Case 1: The water level of the reservoir is 10 m, and the valve discharge reduces to zero linearly;

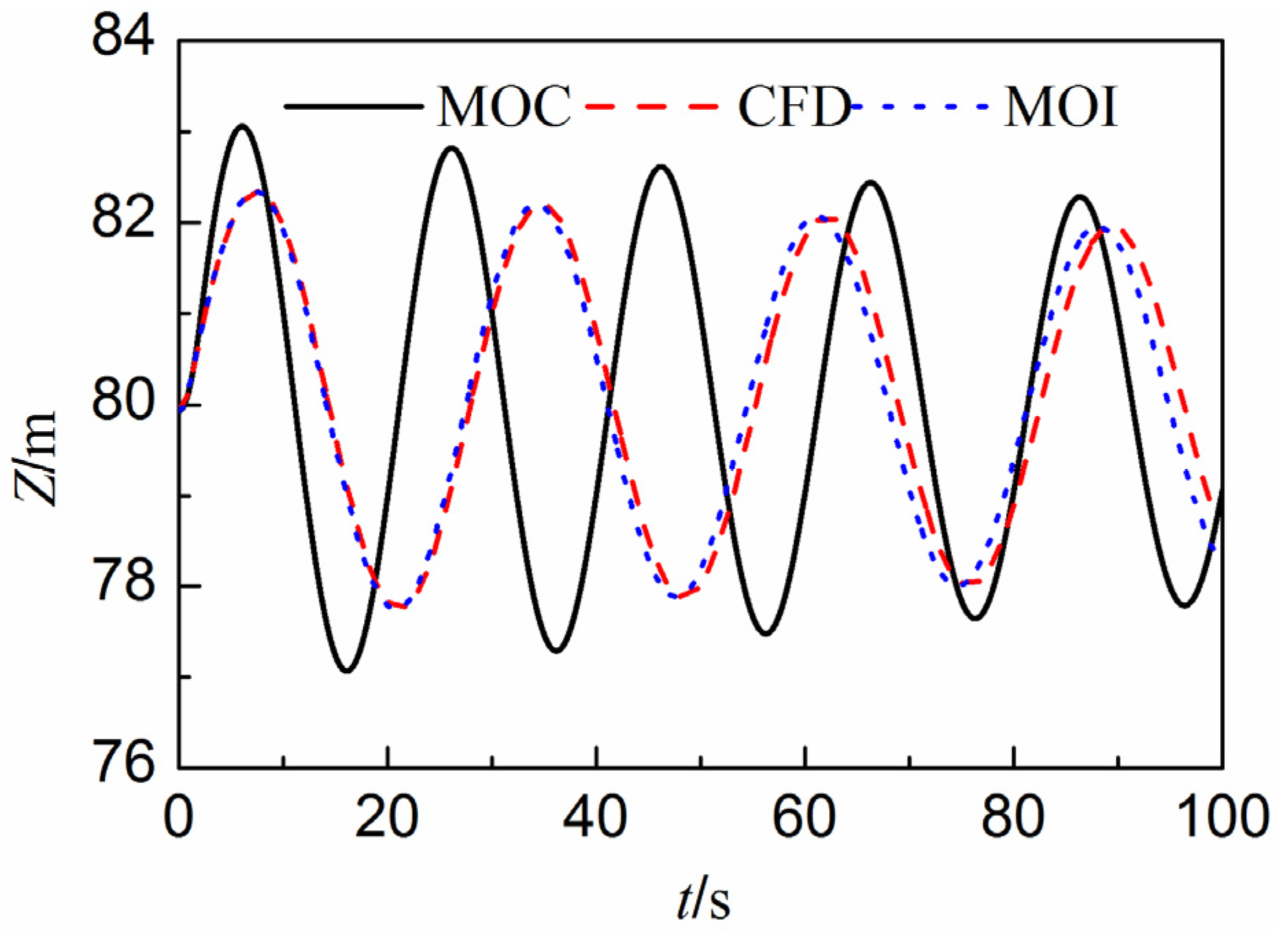

- Case 2: The water level of the reservoir is 80 m, and the valve discharge reduces to zero linearly.

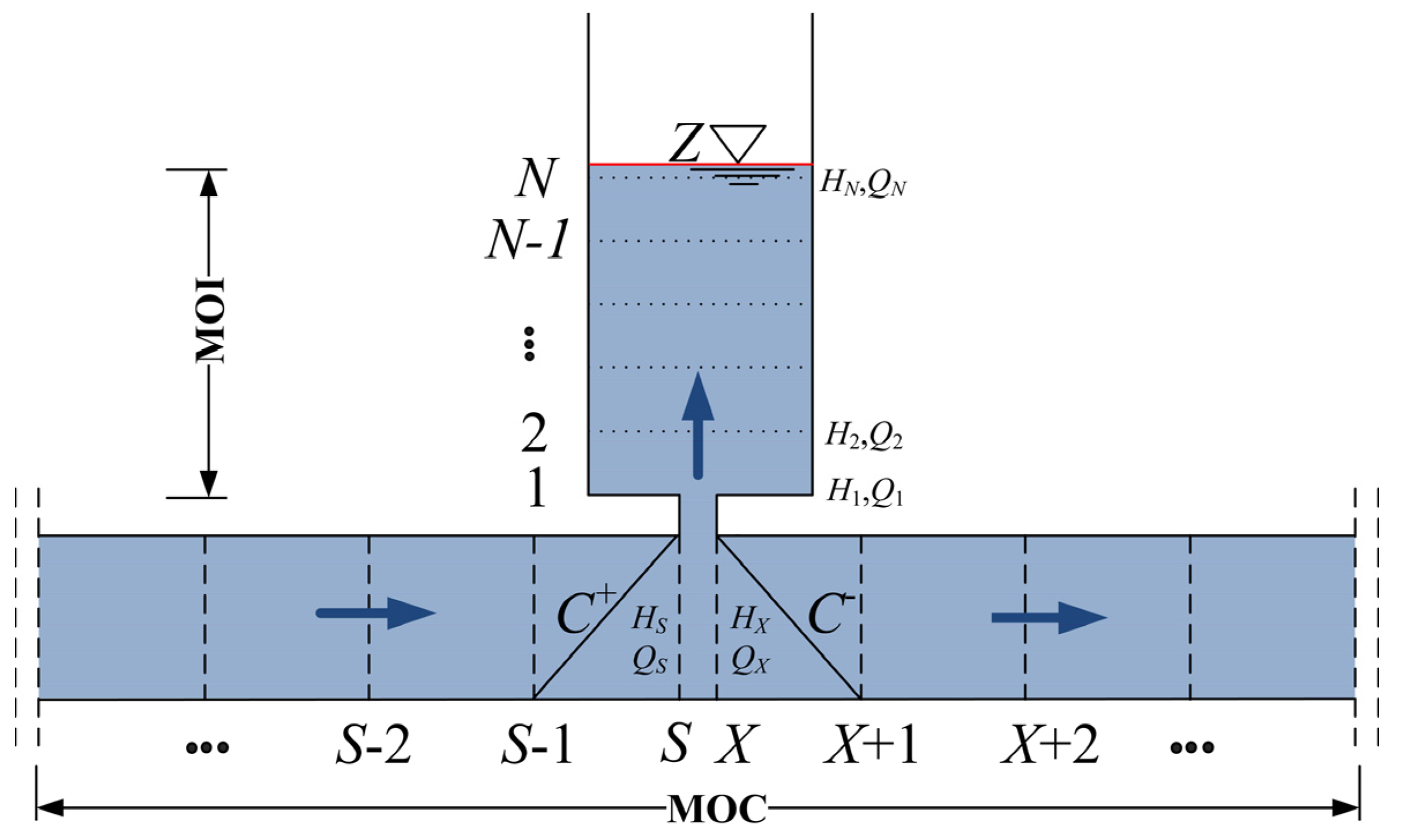

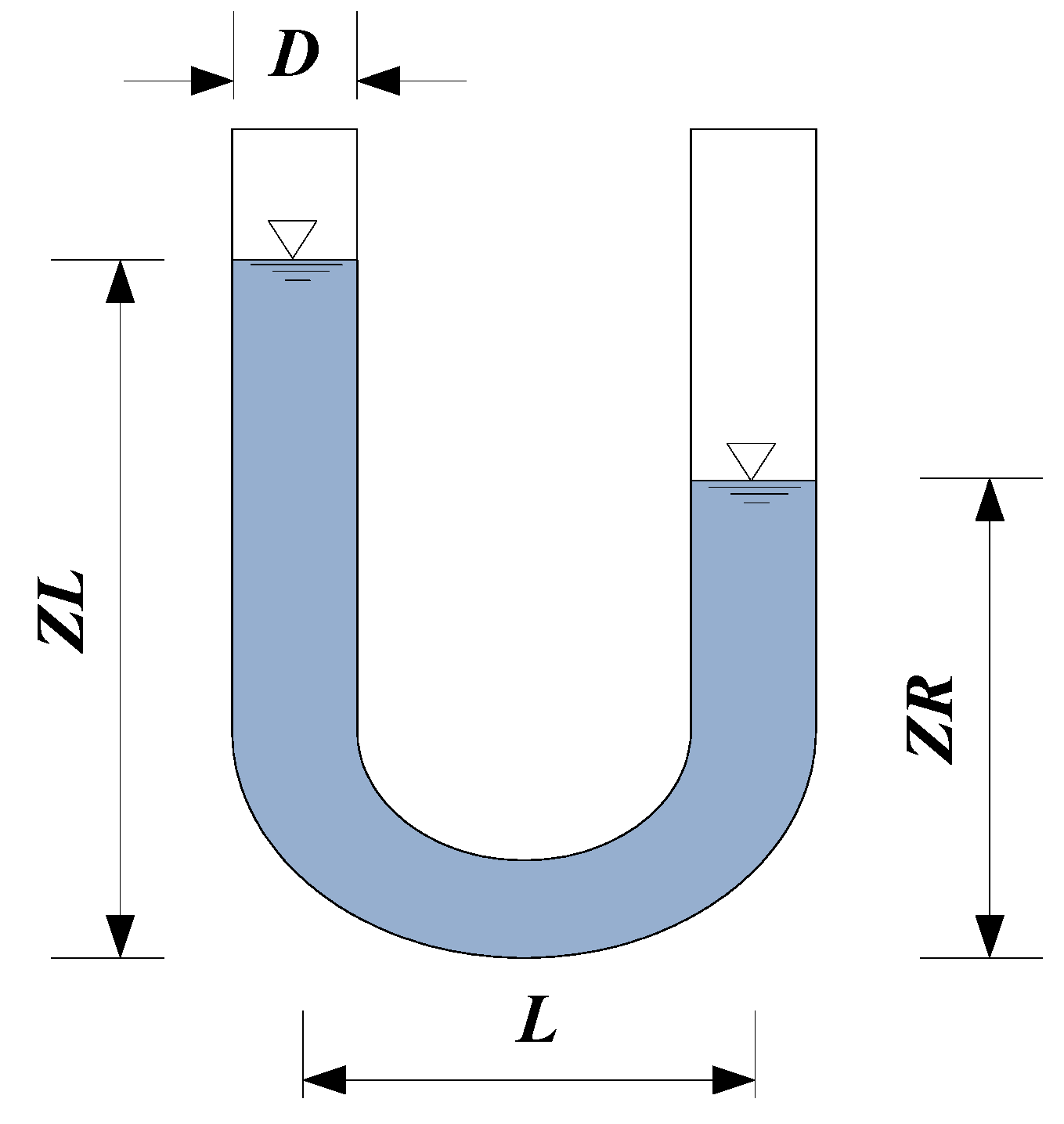

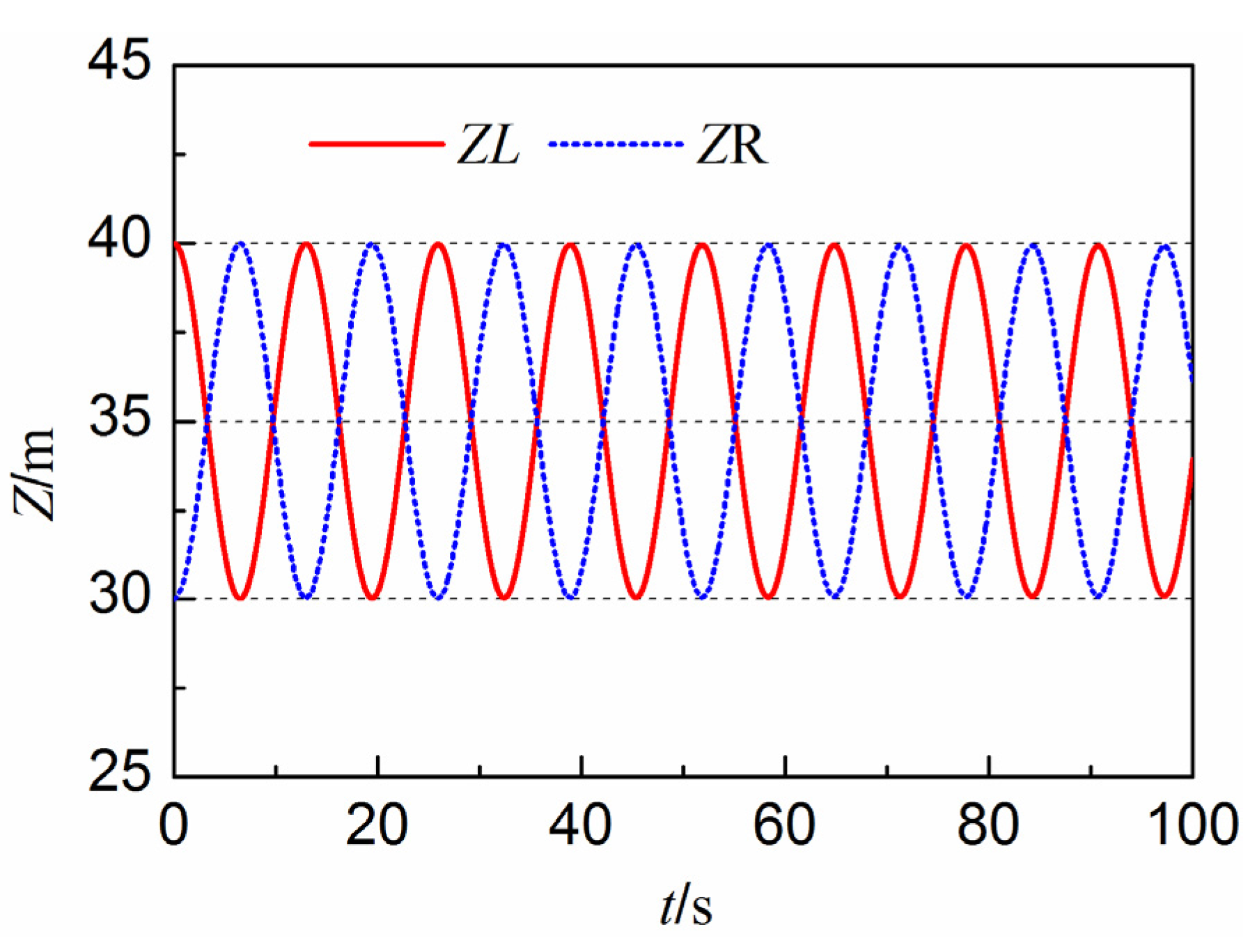

4.1.2. Water Level Fluctuations in a U-tube

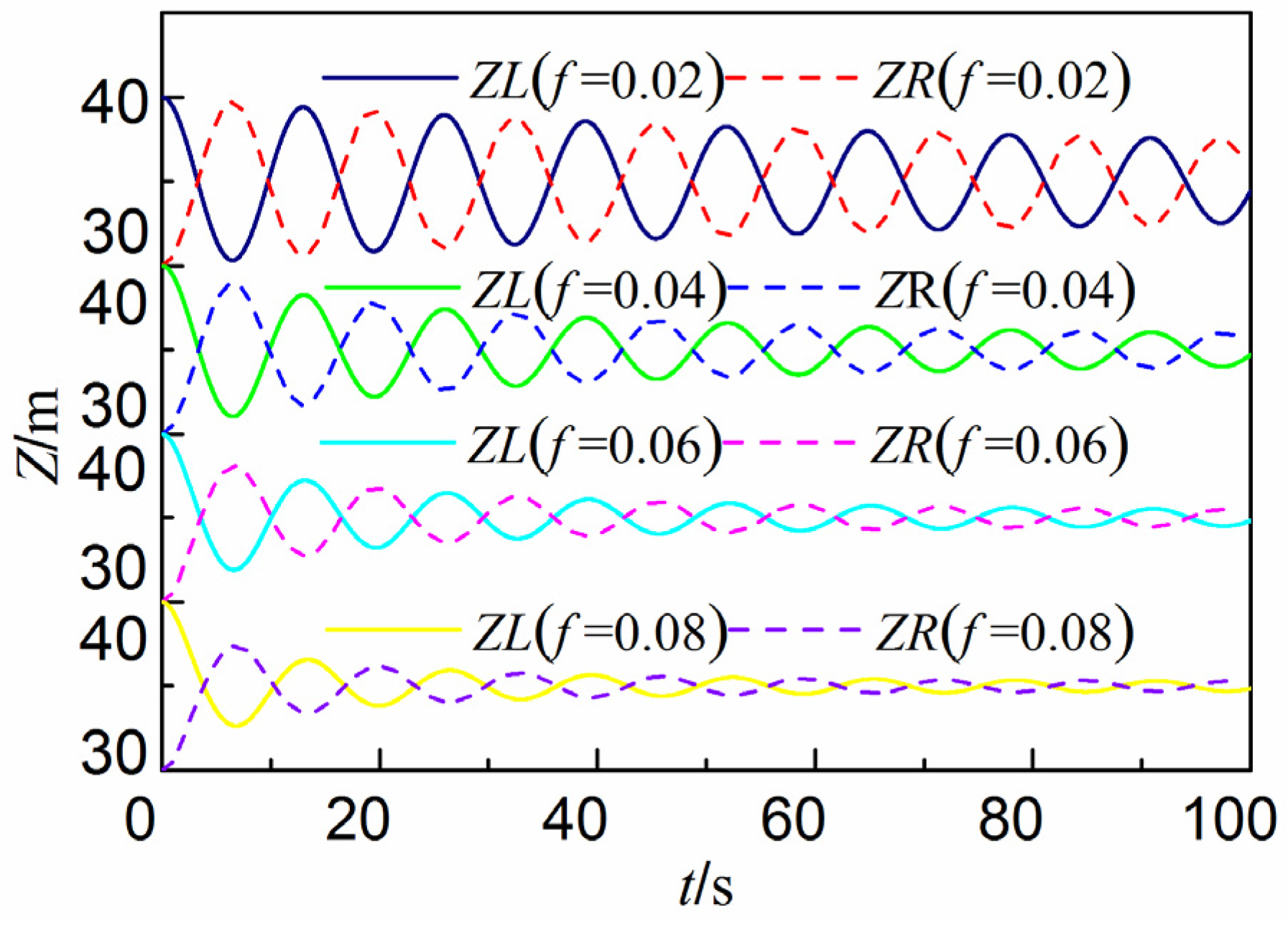

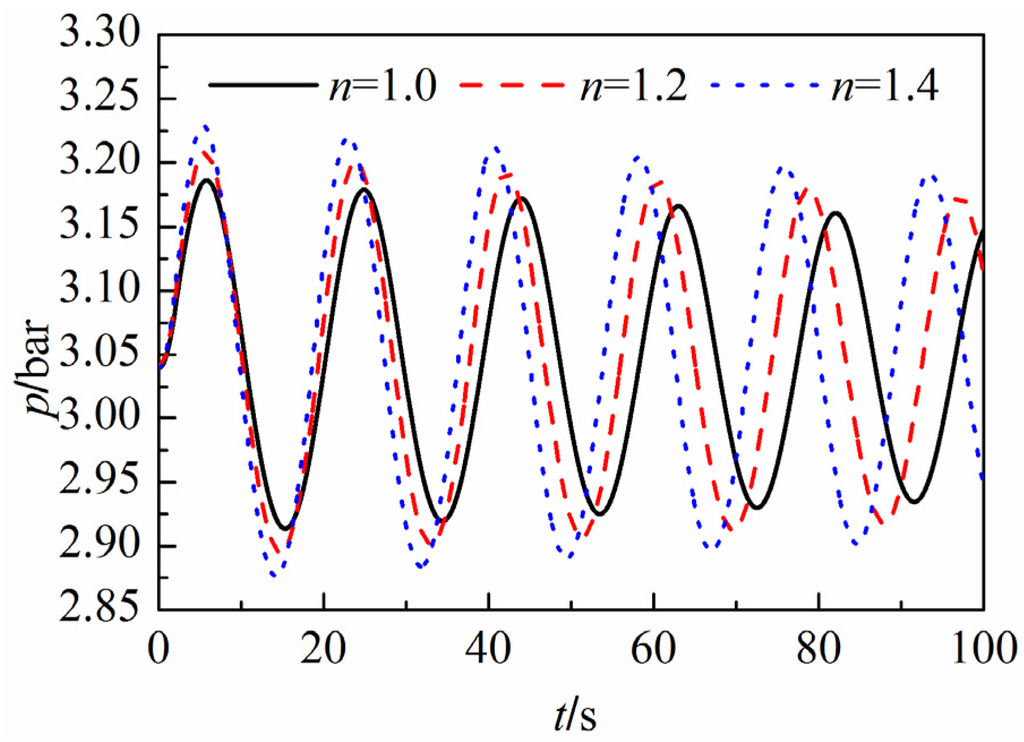

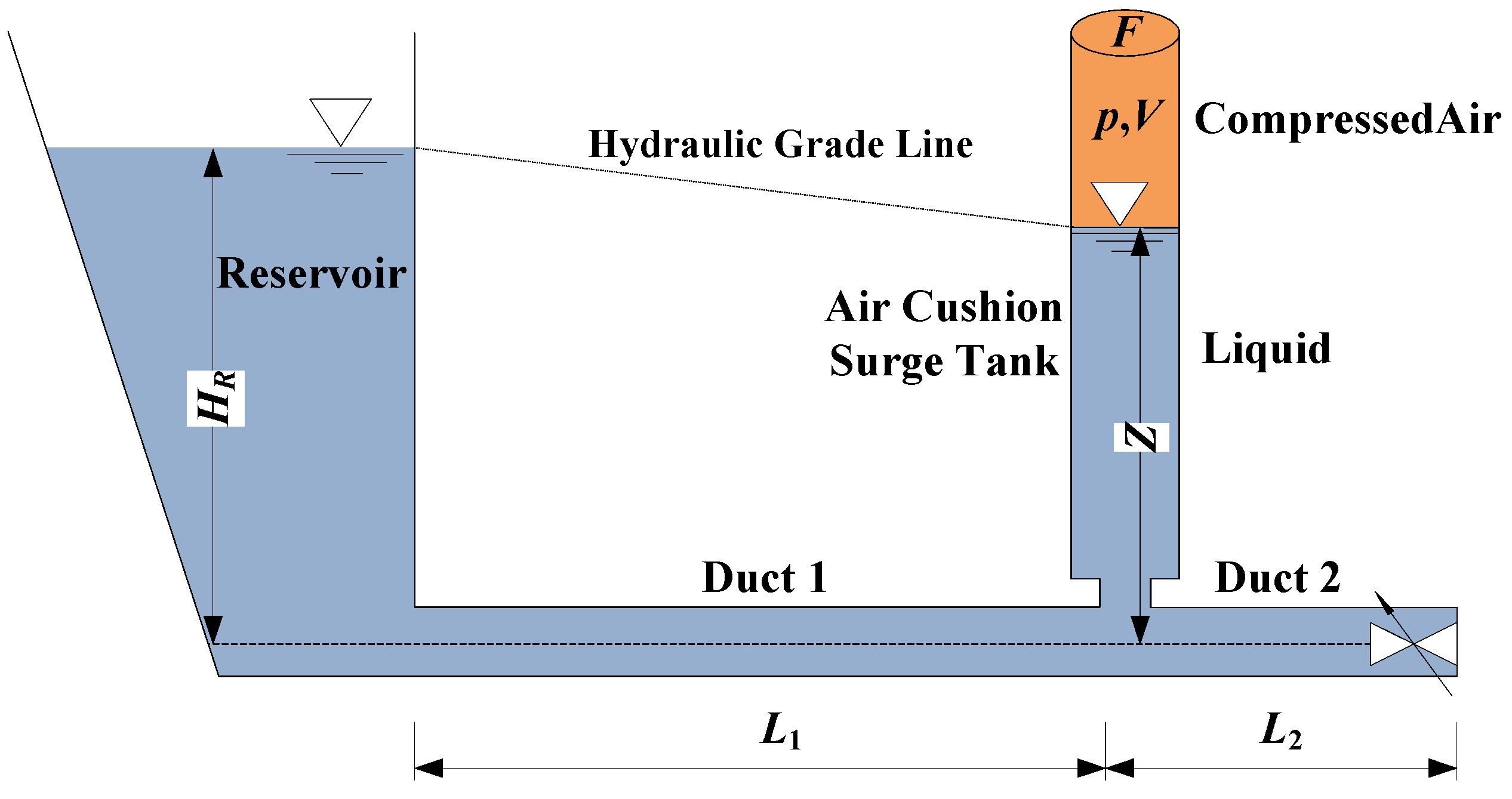

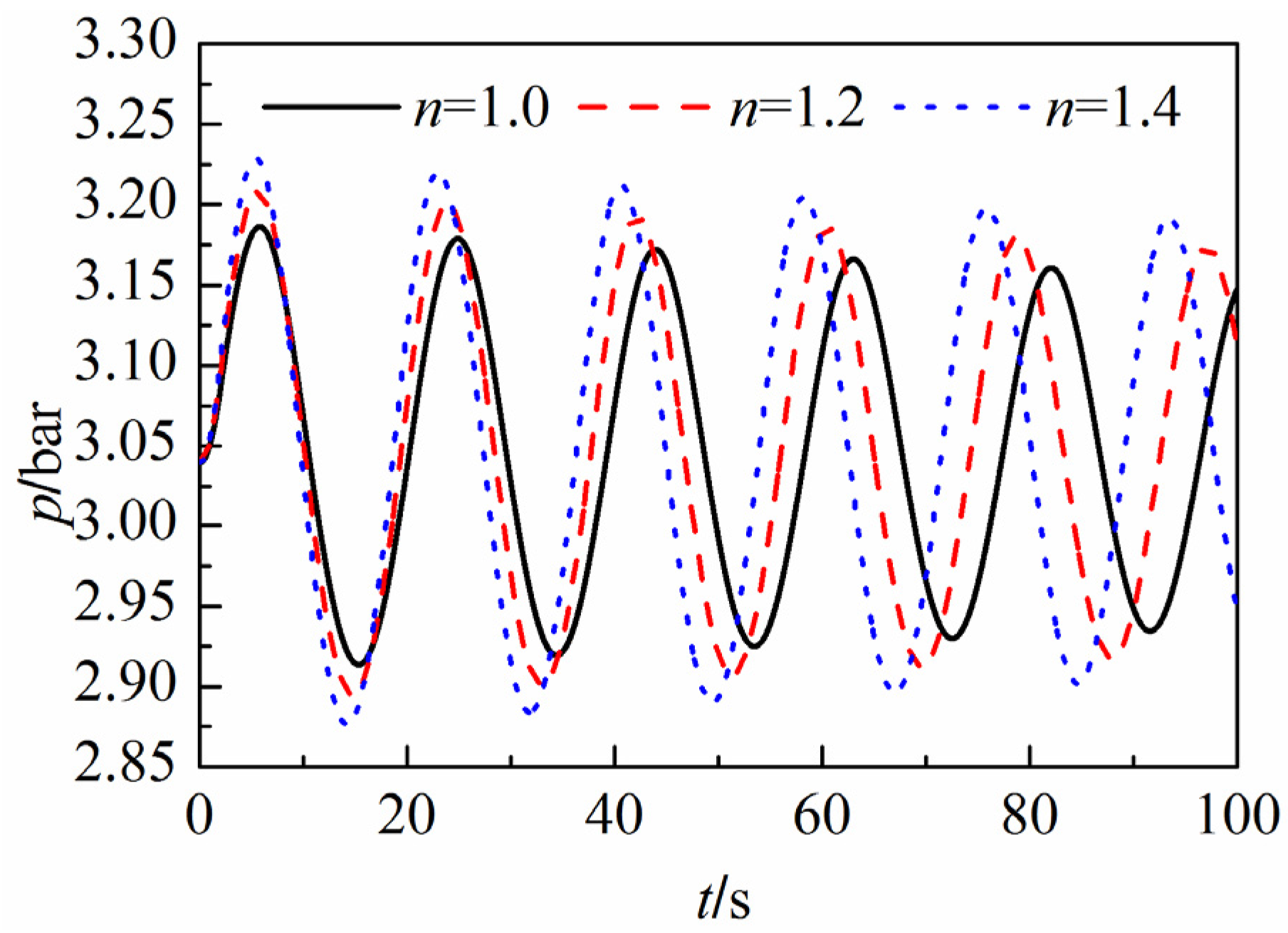

4.2. Gas Phase Limited in a Chamber
4.3. Gas Phase Flow in Ducts

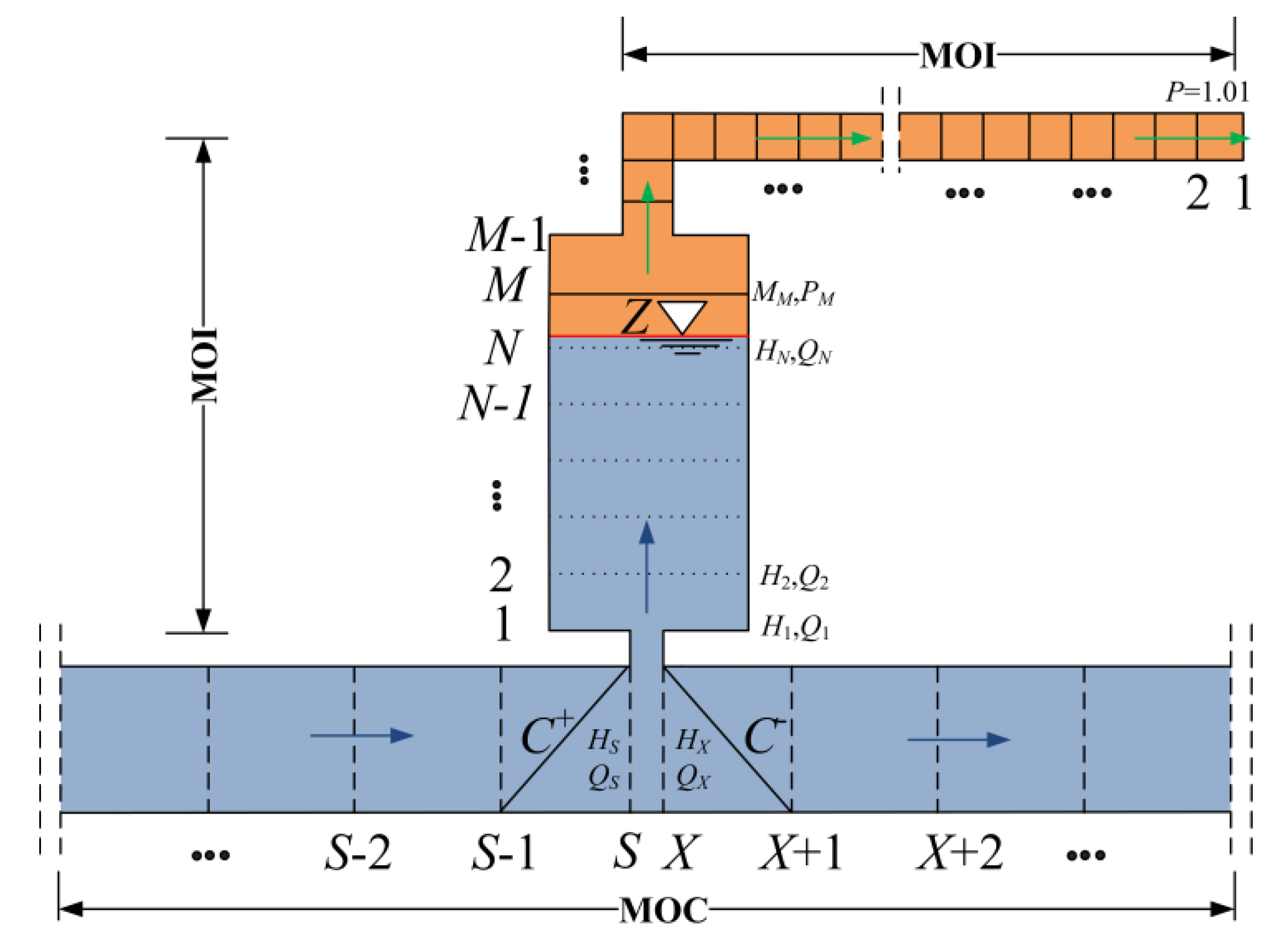

4.3.1. Synchronous Coupling of Liquid and Gas Phases (Model A)
4.3.2. Neglecting the Effect of the Gas Phase on the Liquid Phase (Model B)
4.3.3. Asynchronous Coupling of Liquid and Gas Phases (Model C)
- When the duct diameter is large (e.g., D = 3.0 m), the gas pressure variation in the surge tank is not significant enough to affect the liquid phase. Therefore, traces of gas pressure, water level in the surge, and the gas flow velocity agree for all three models.

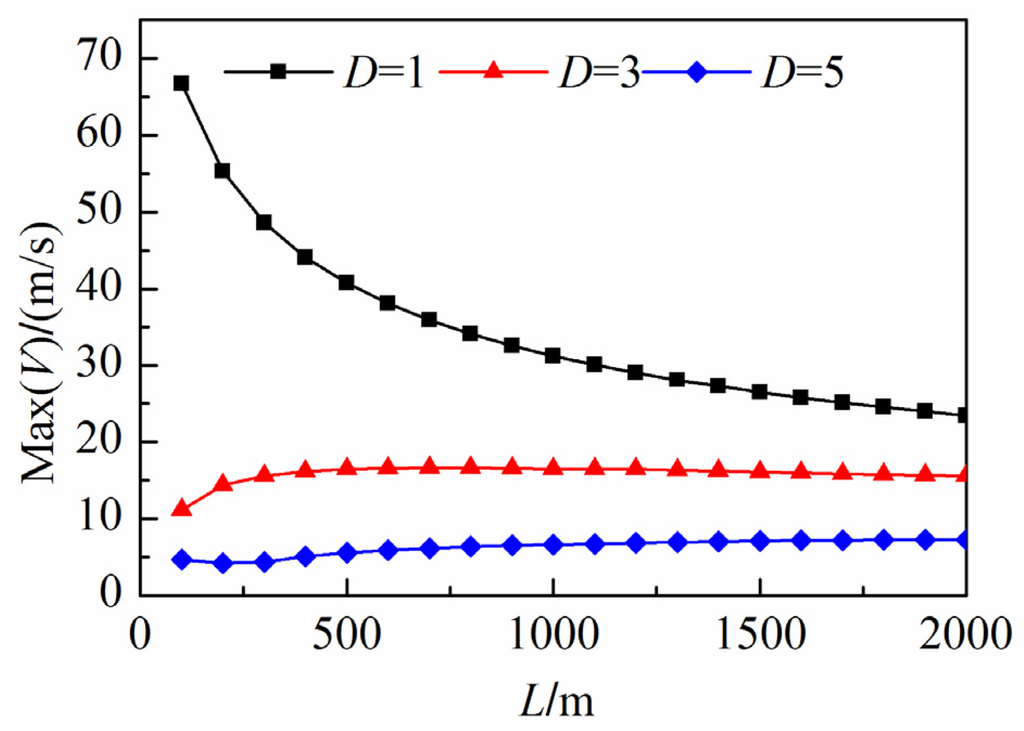

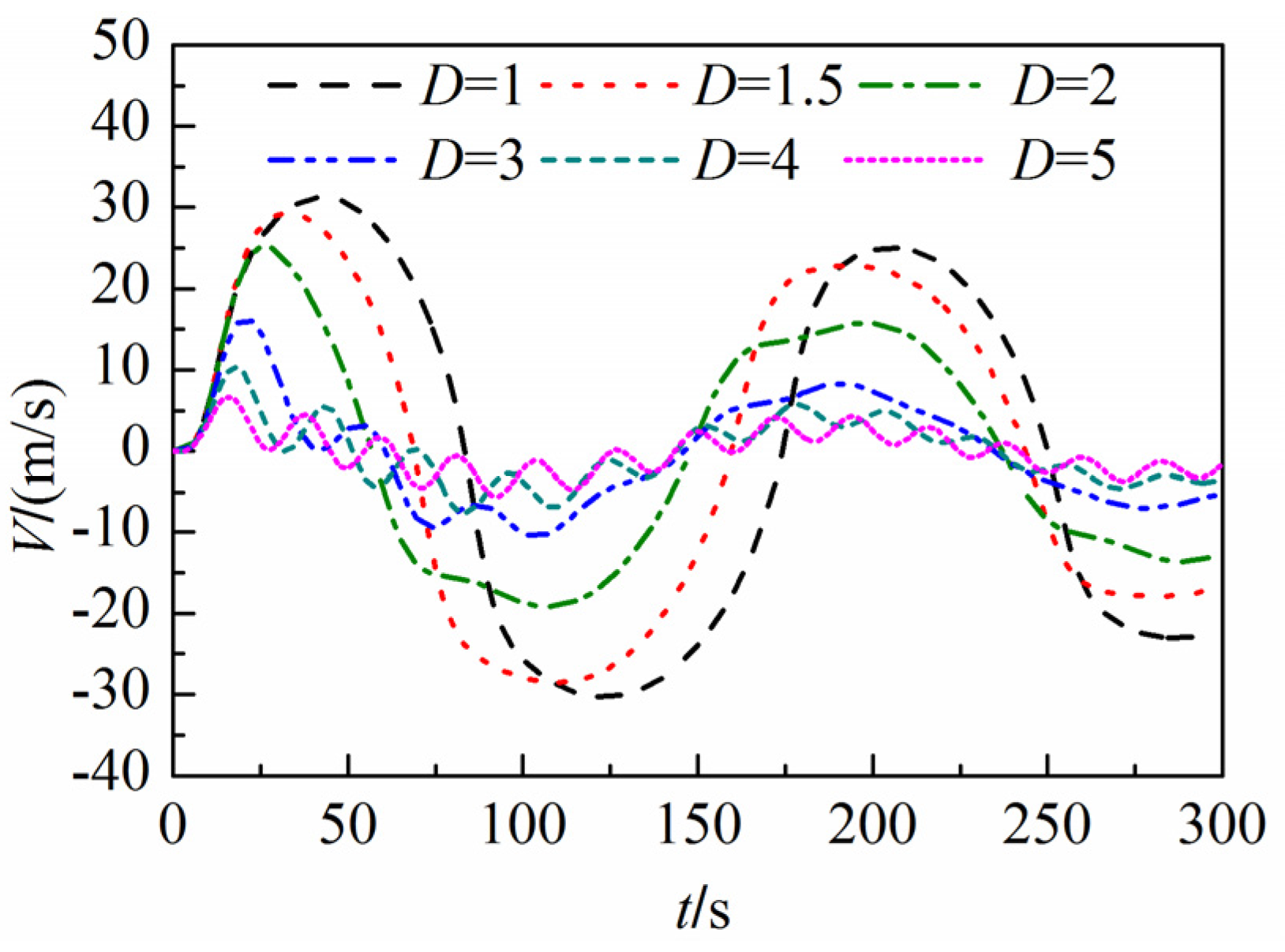

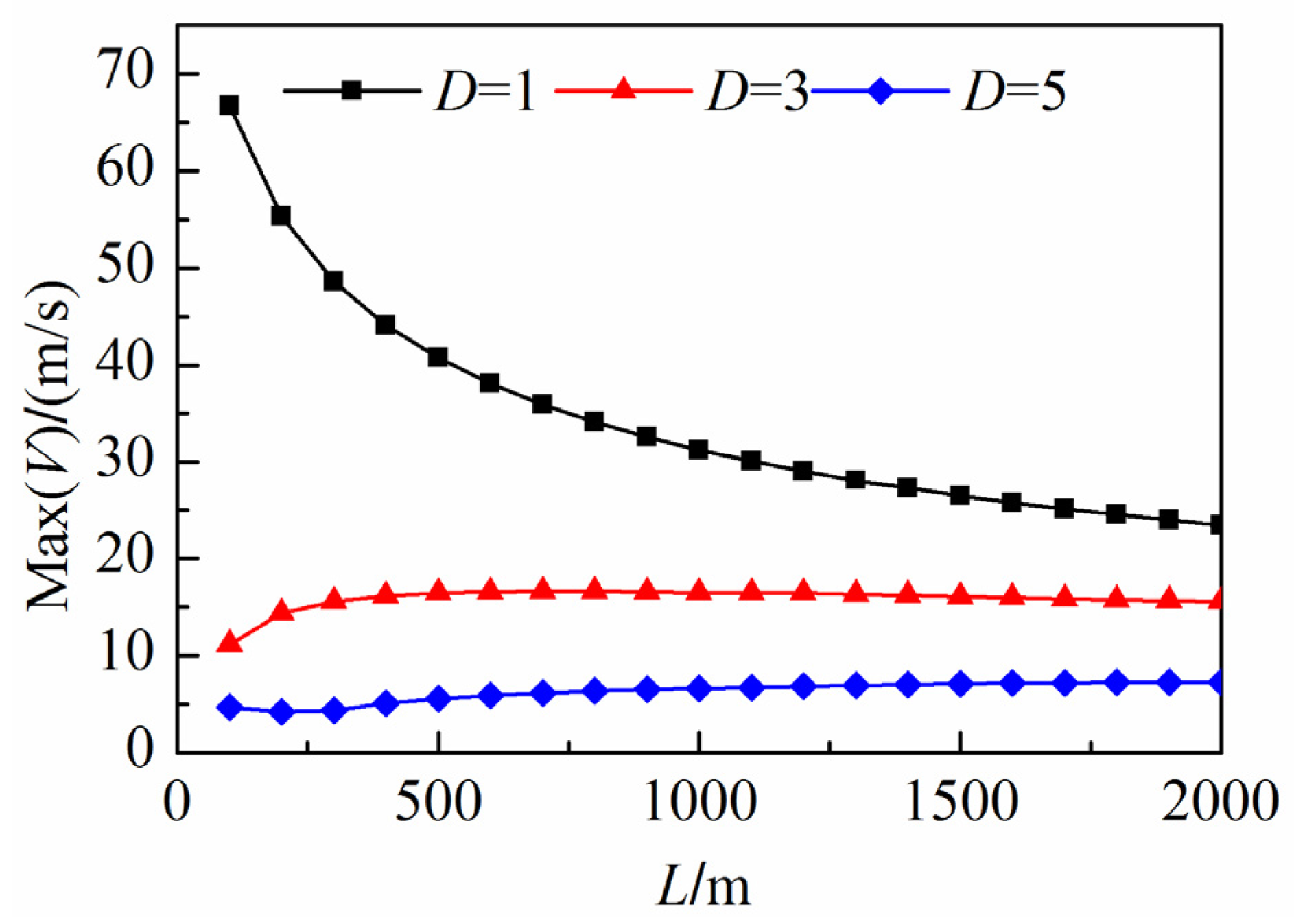

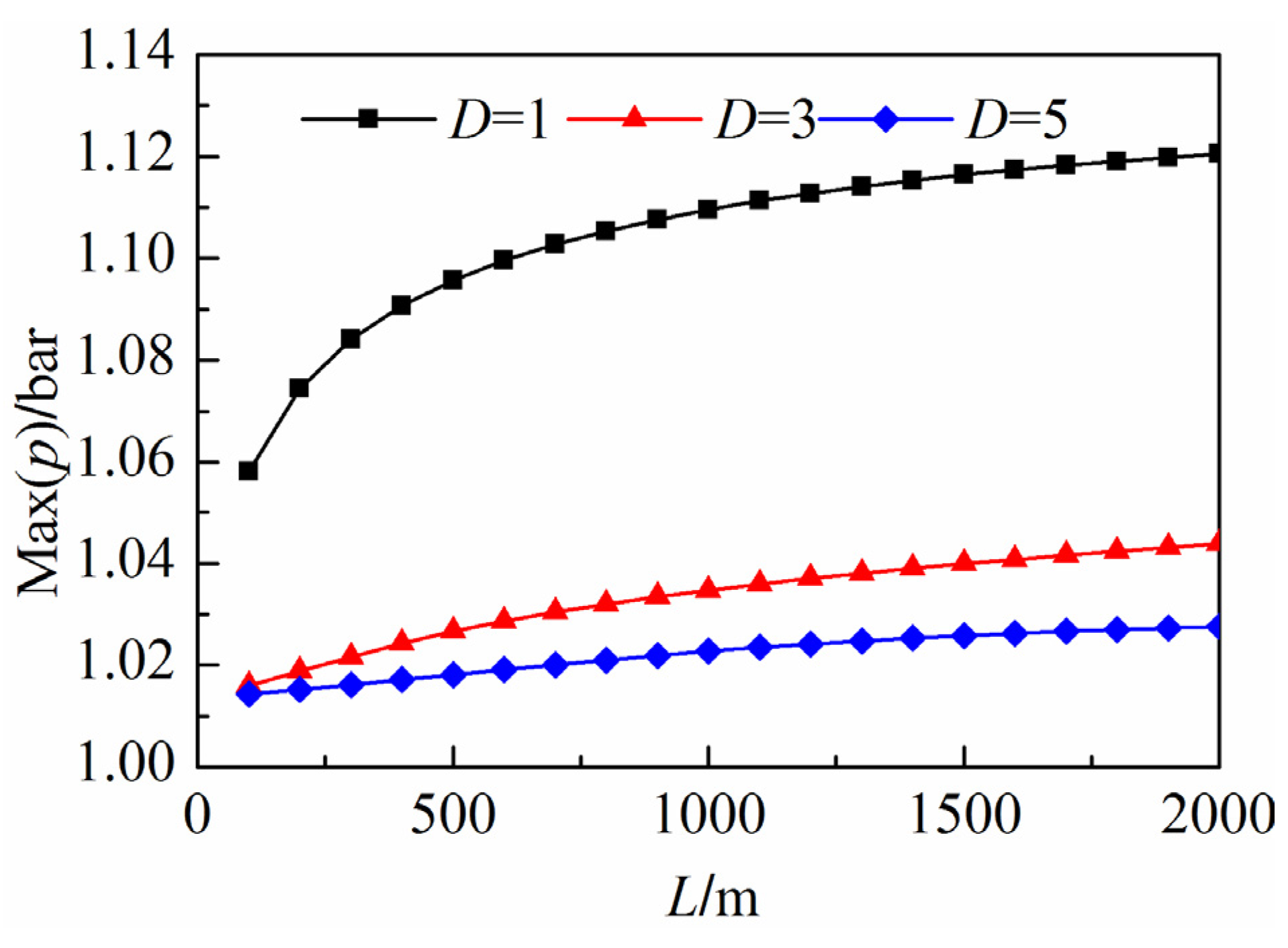

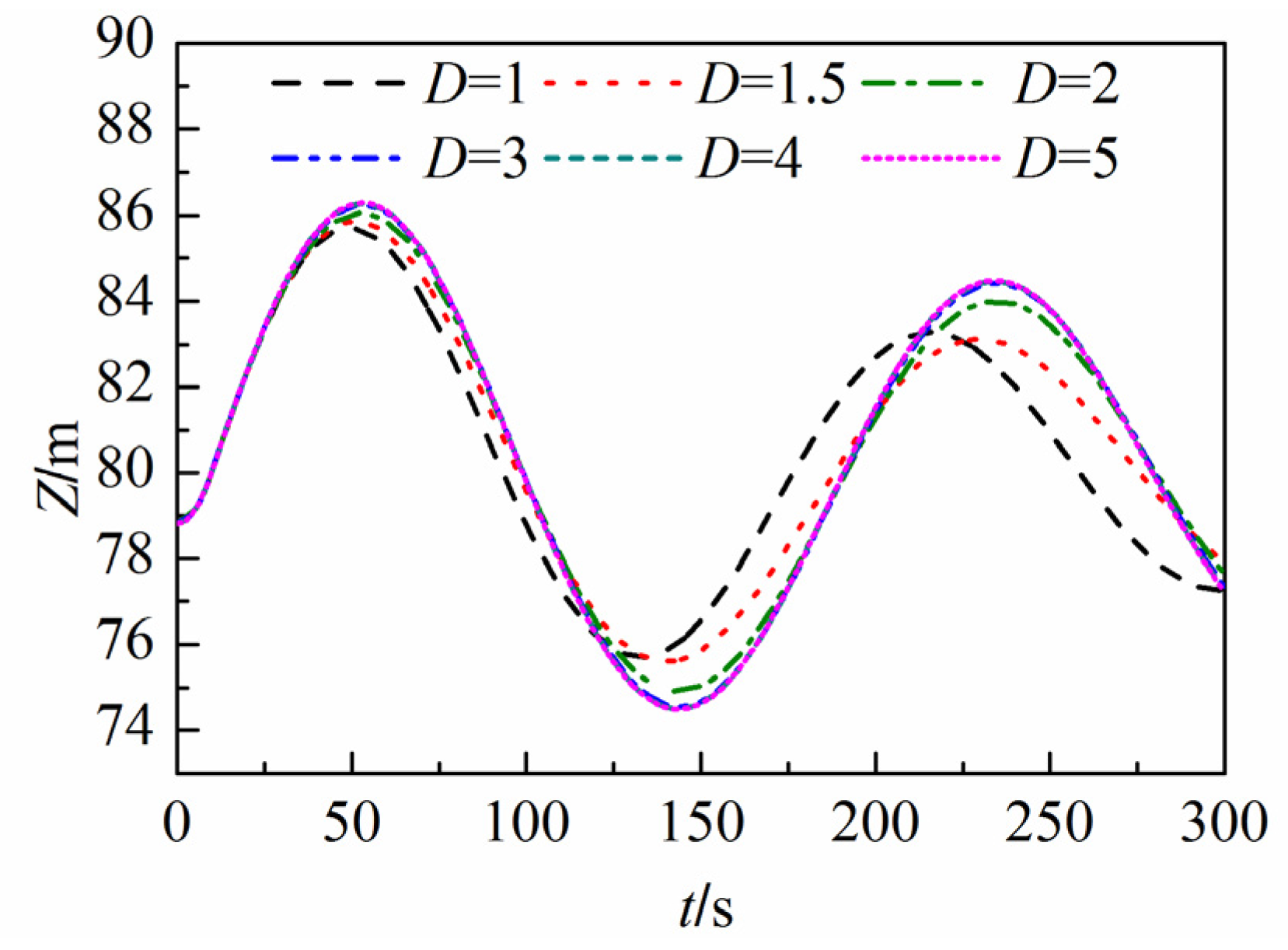

- When the duct diameter is small enough (e.g., D = 1.0 m) such that the gas pressure varies greatly compared to the initial state, the gas behavior during the transient process has a significant influence on the water level fluctuations. However, the water level results calculated by Model B, which neglect the effect of the gas phase on the liquid phase, are unaffected by the variation of the gas duct diameter, so the simulations are not accurate under this circumstance. The peak wind speed at the duct outlet and the maximum gas pressure in the surge obtained by Model B are larger than the results obtained by Models A and C.

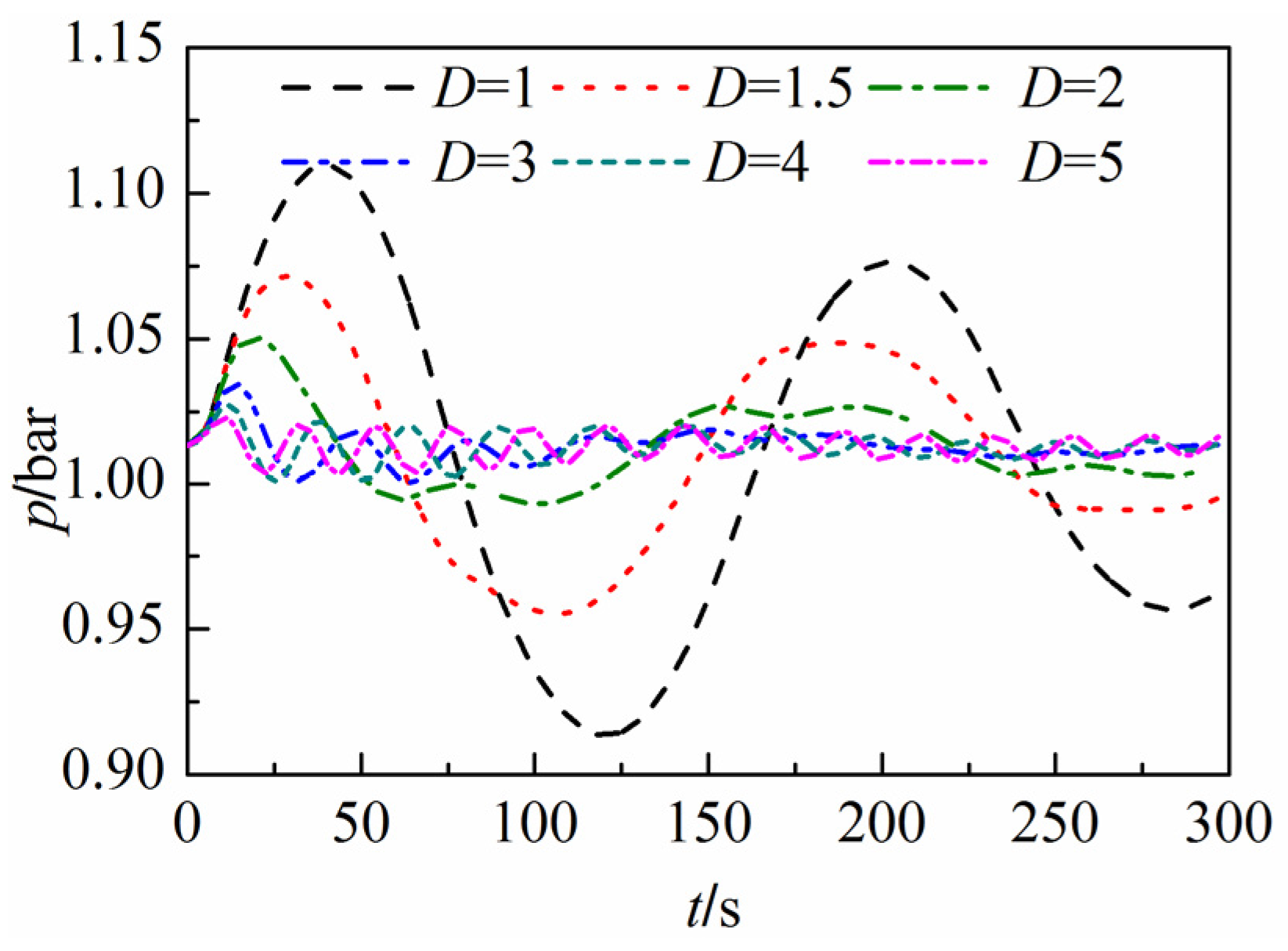

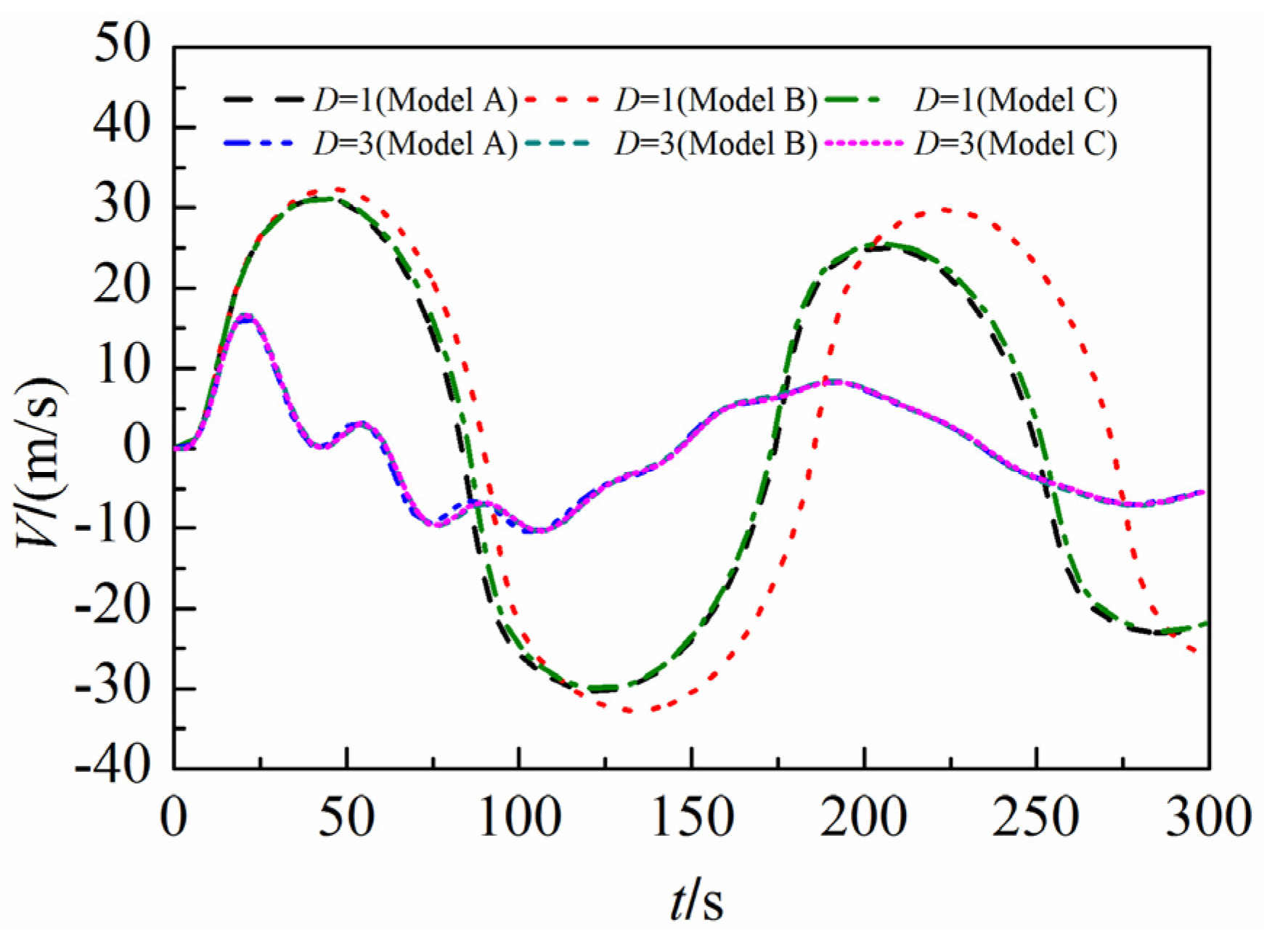

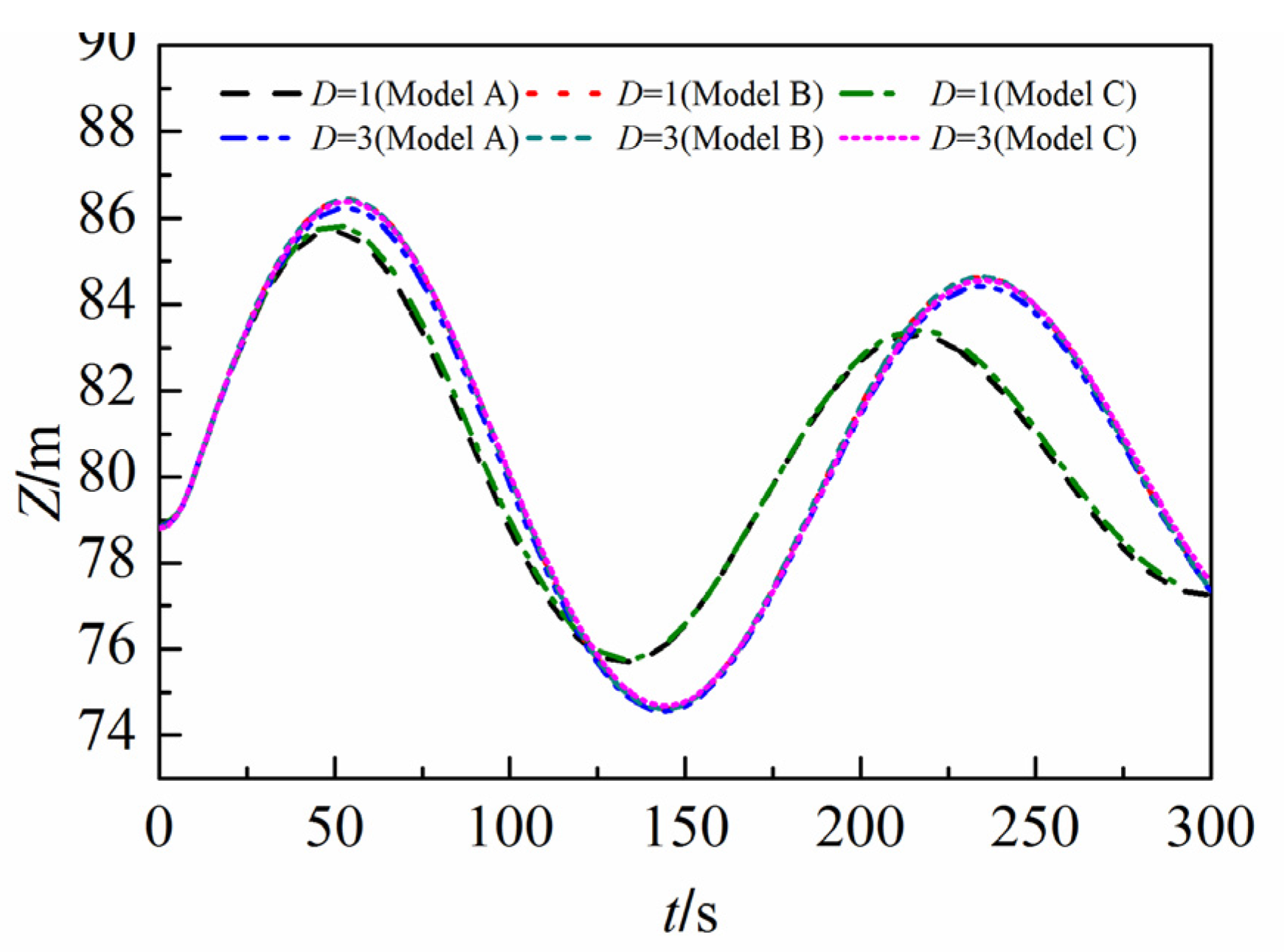

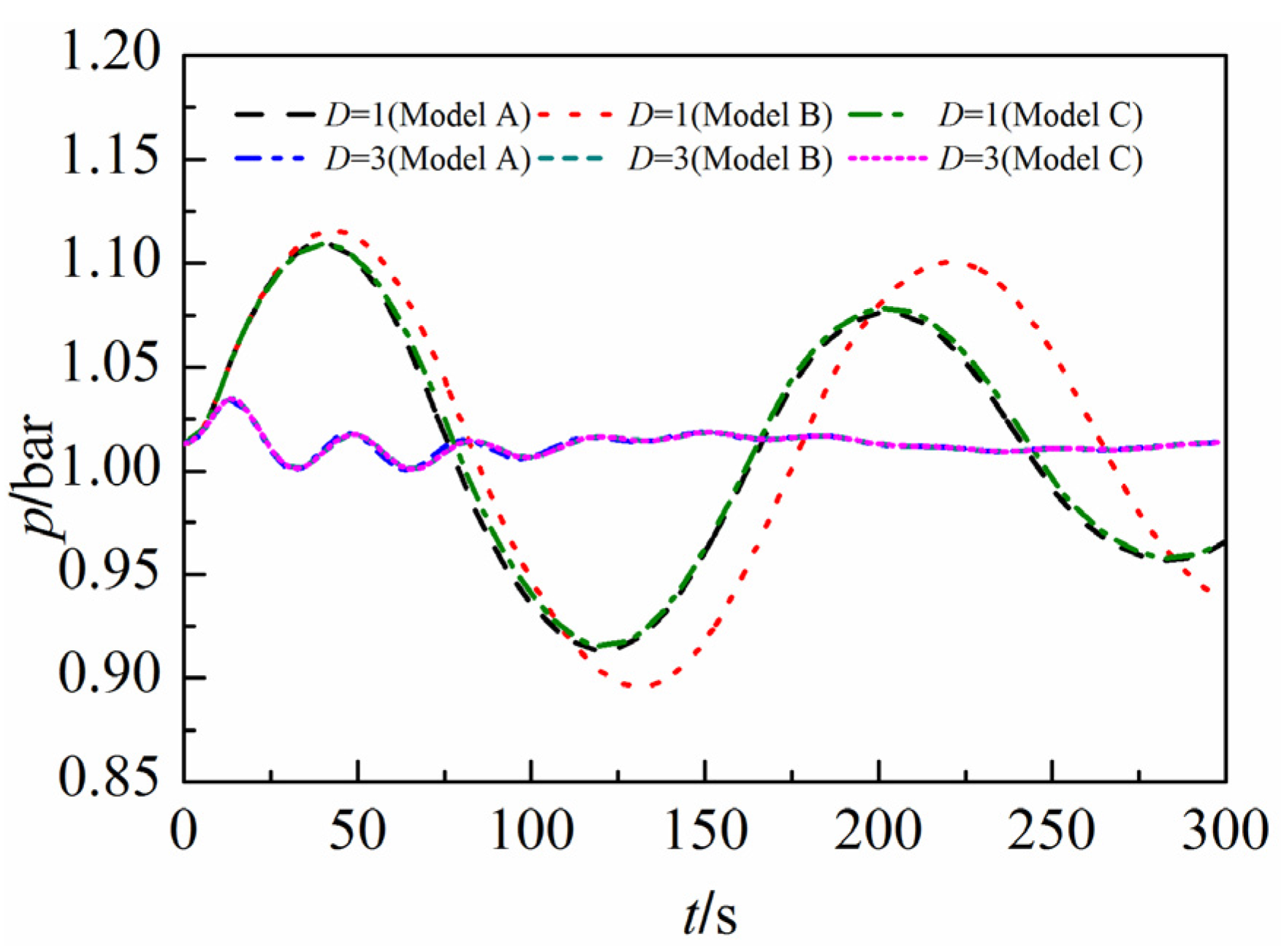

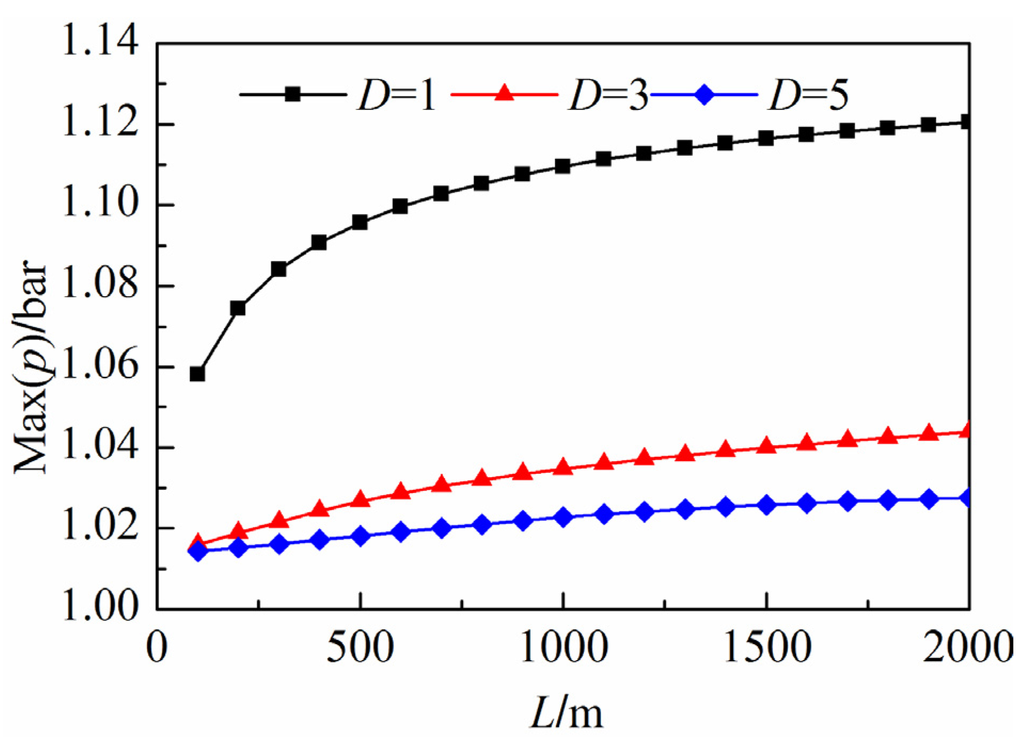

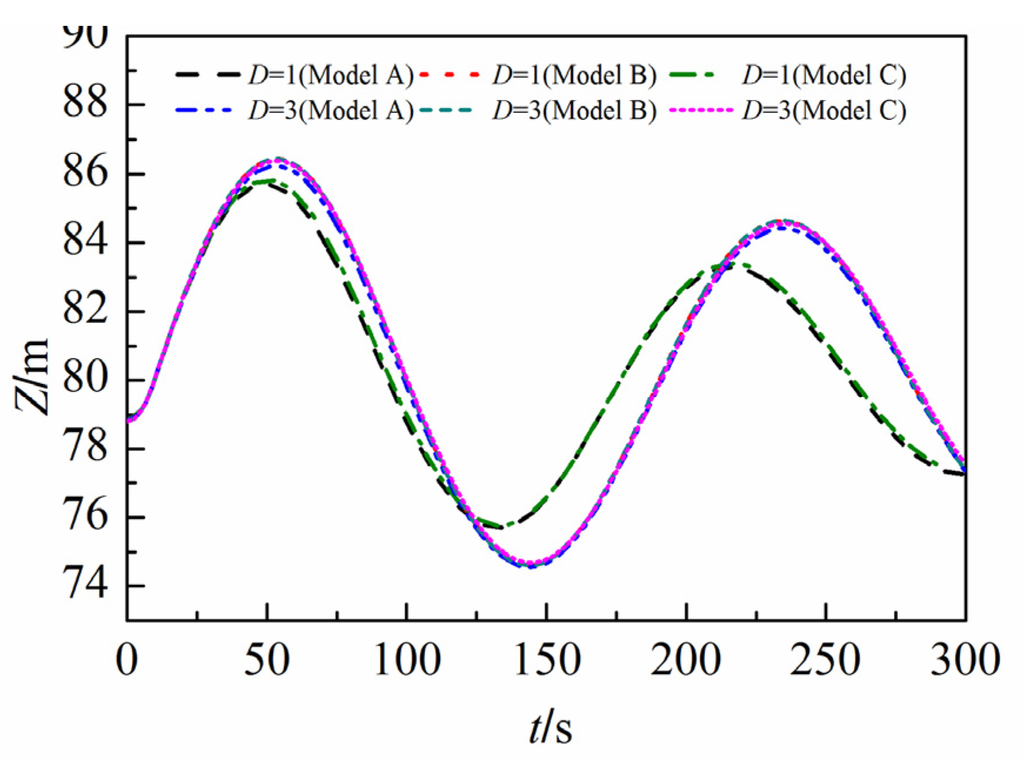

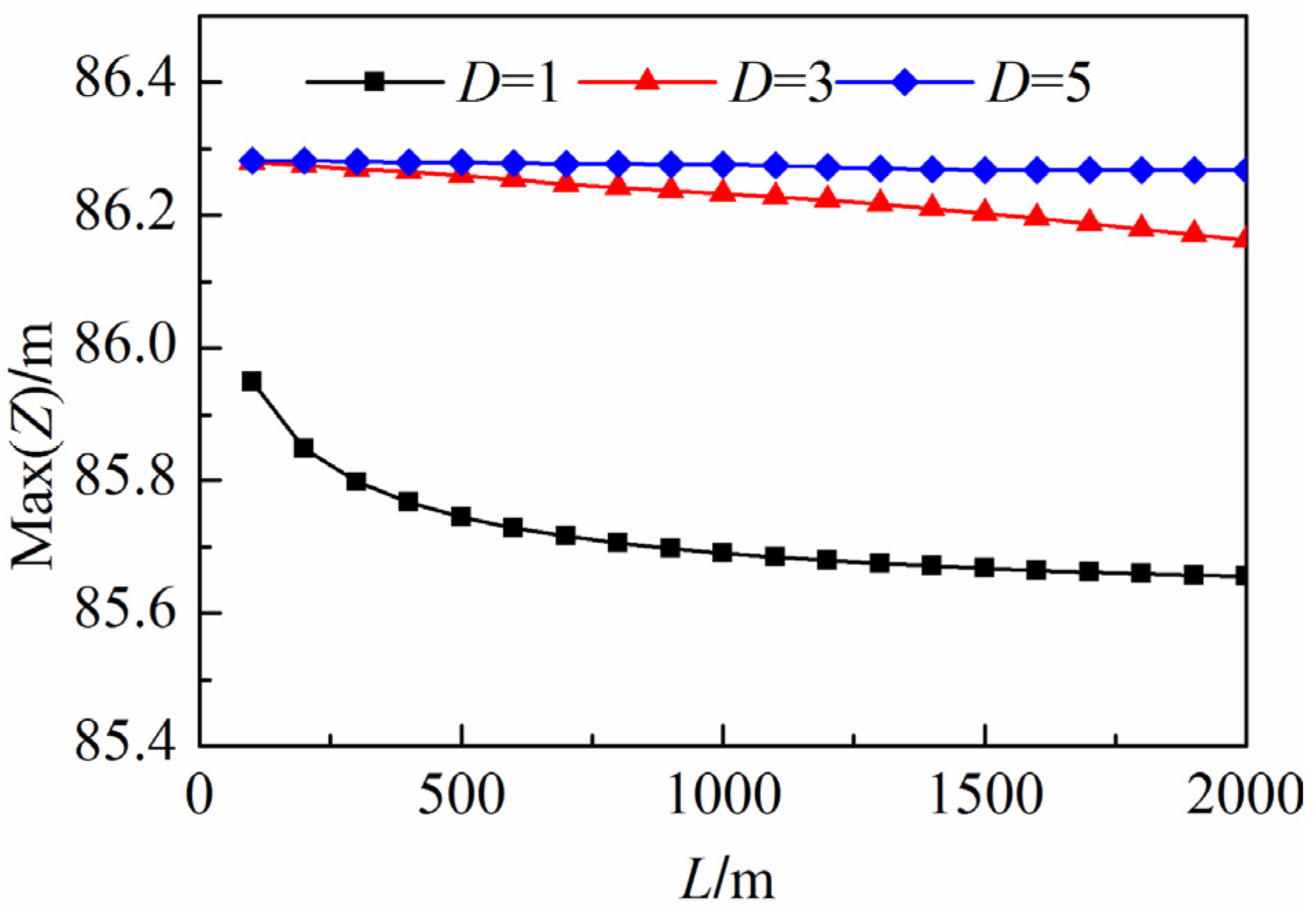

- Independent of the change in the gas duct diameter, the water level, the pressure, and the wind speed are very similar for Models A and C. This illustrates that the asynchronous coupling model captures the interaction between the liquid and gas phases as accurate as the synchronous coupling model.
5. An Engineering Application

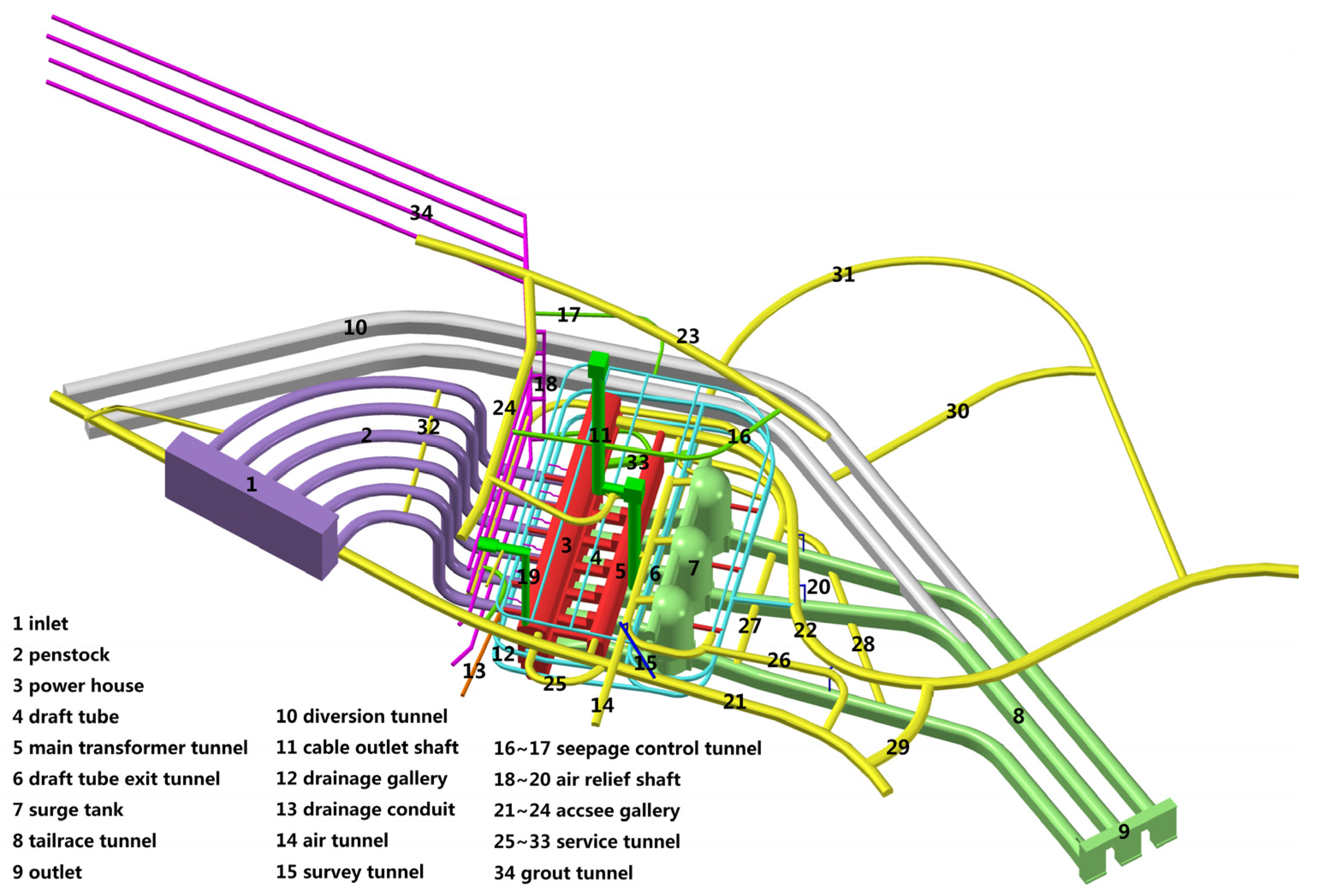

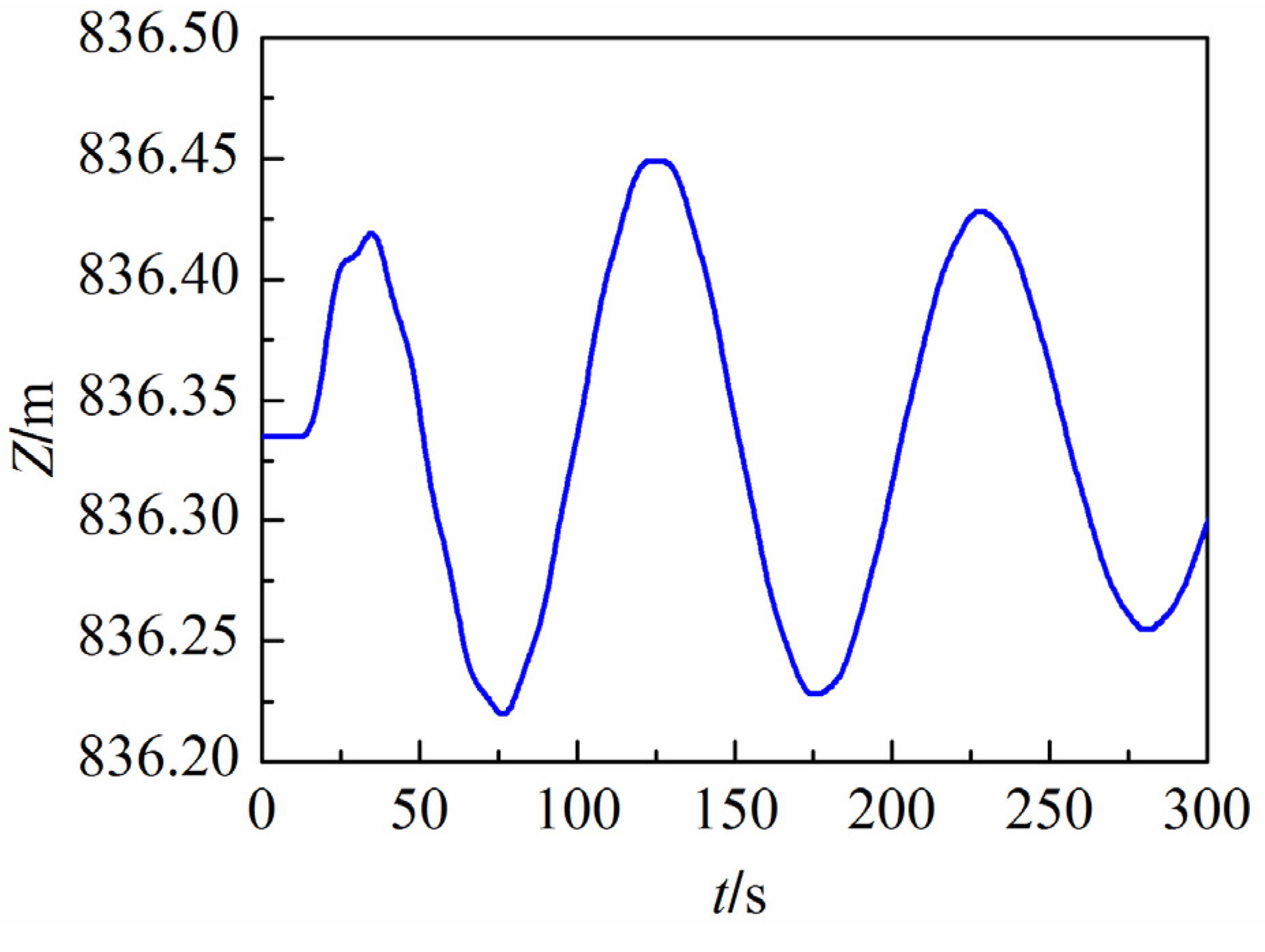

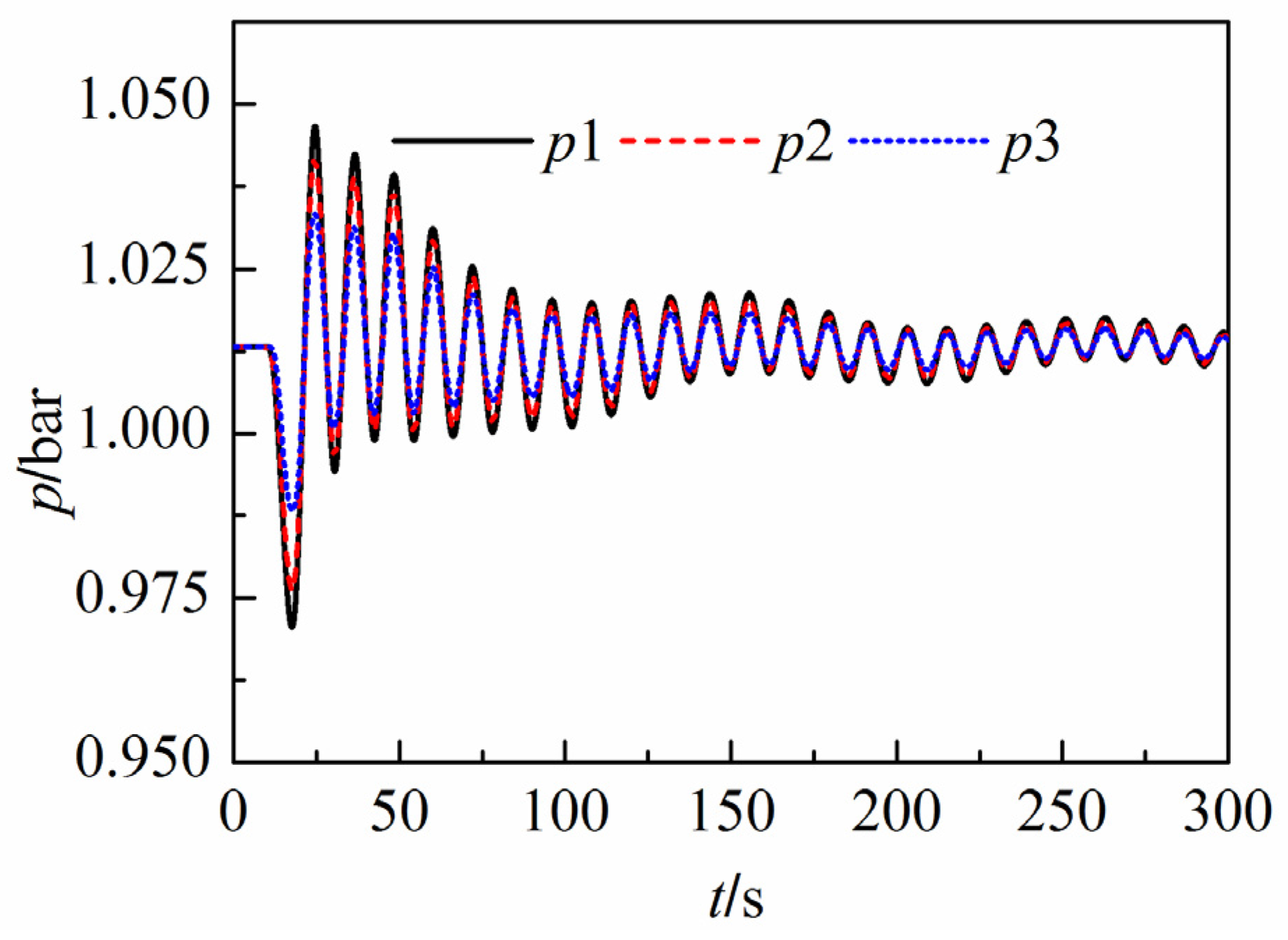

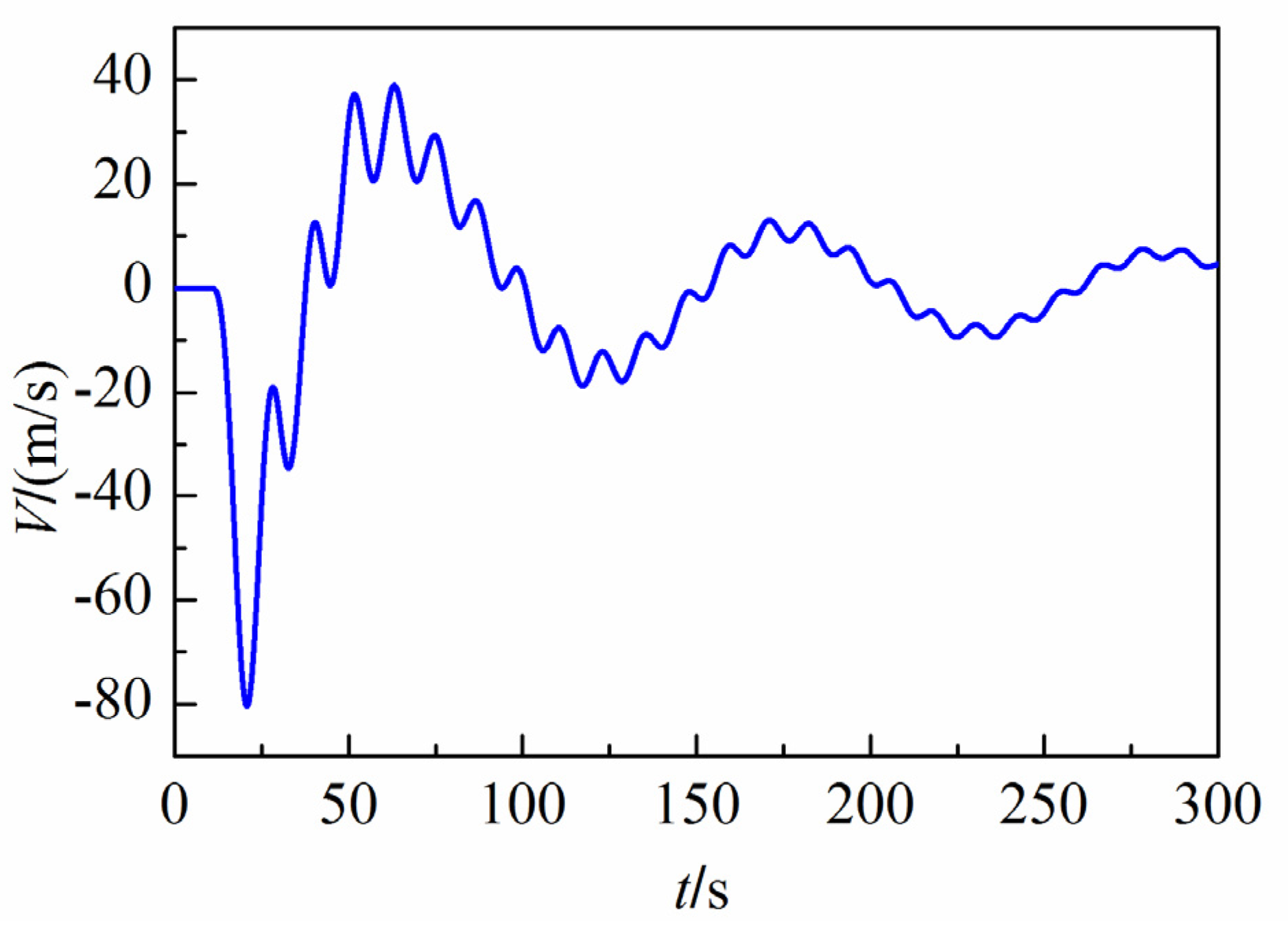

5.1. Case 1: Six Turbines Load Reject Simultaneously

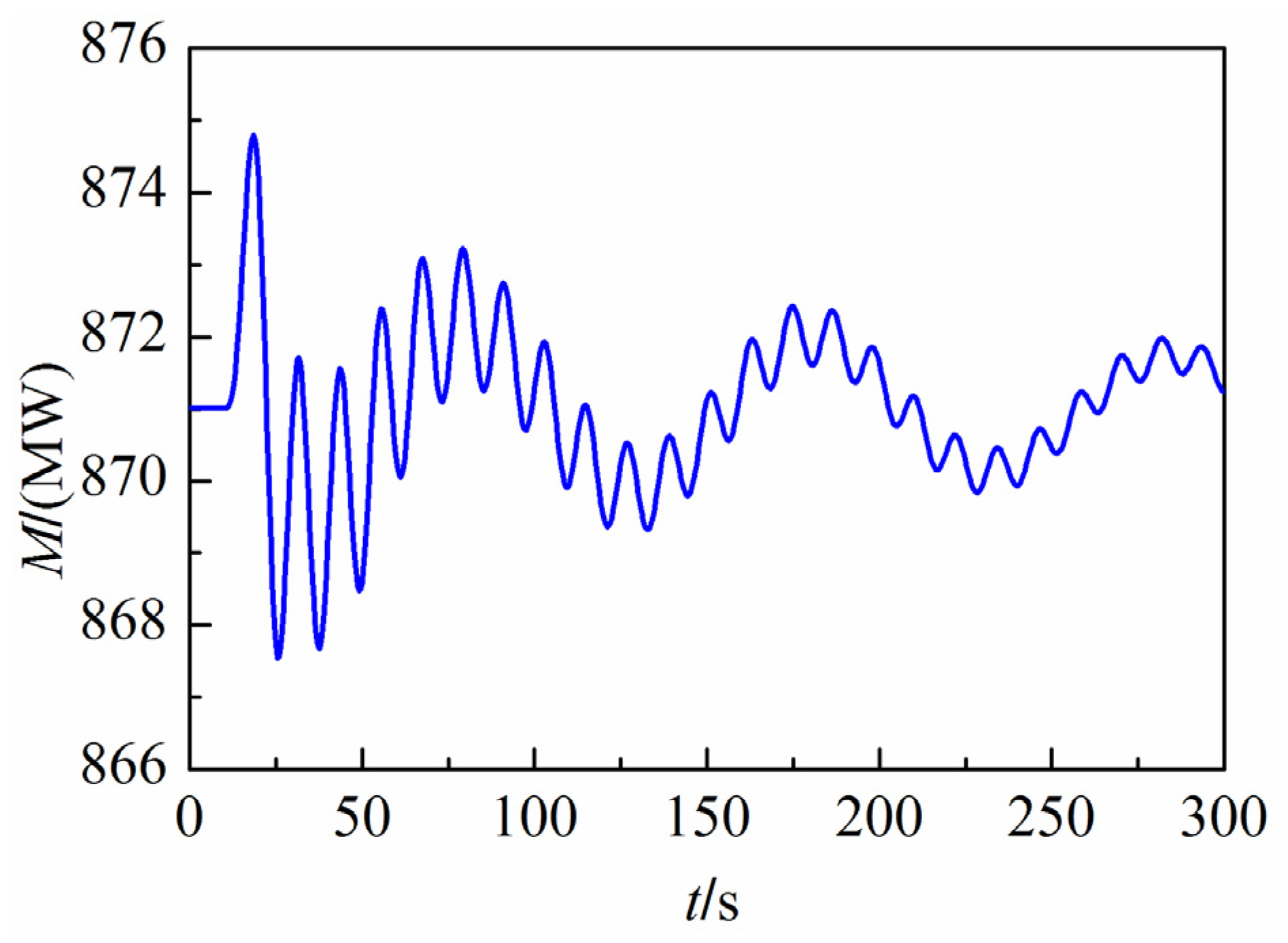

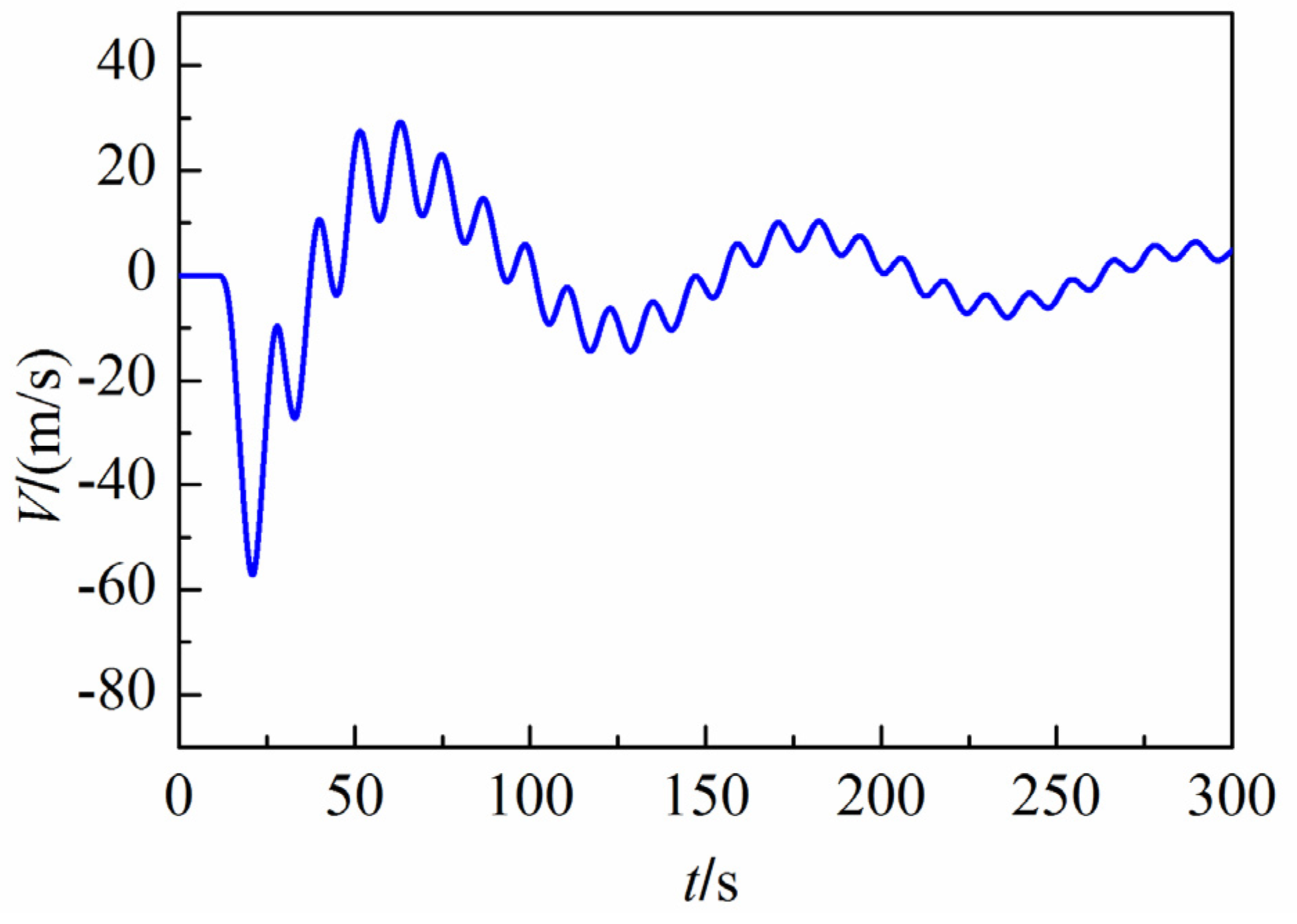

5.2. Case 2: Four Turbines Load Reject and Two Turbines Operate Properly
6. Discussion
7. Conclusions
- Some classic water hammer examples and transient gas flow behavior in pipes and the networks of pipes are solved using the Preissmann method. The reliability and accuracy of the method are verified by comparison with other approaches.
- A dynamic mesh method is applied to the water hammer equations and is used to solve the water level fluctuation in an open surge tank and a U-tube. The model considers the effect of inertial forces and friction in the tank, which is shown to be more precise and physically reasonable compared to other simplified models.

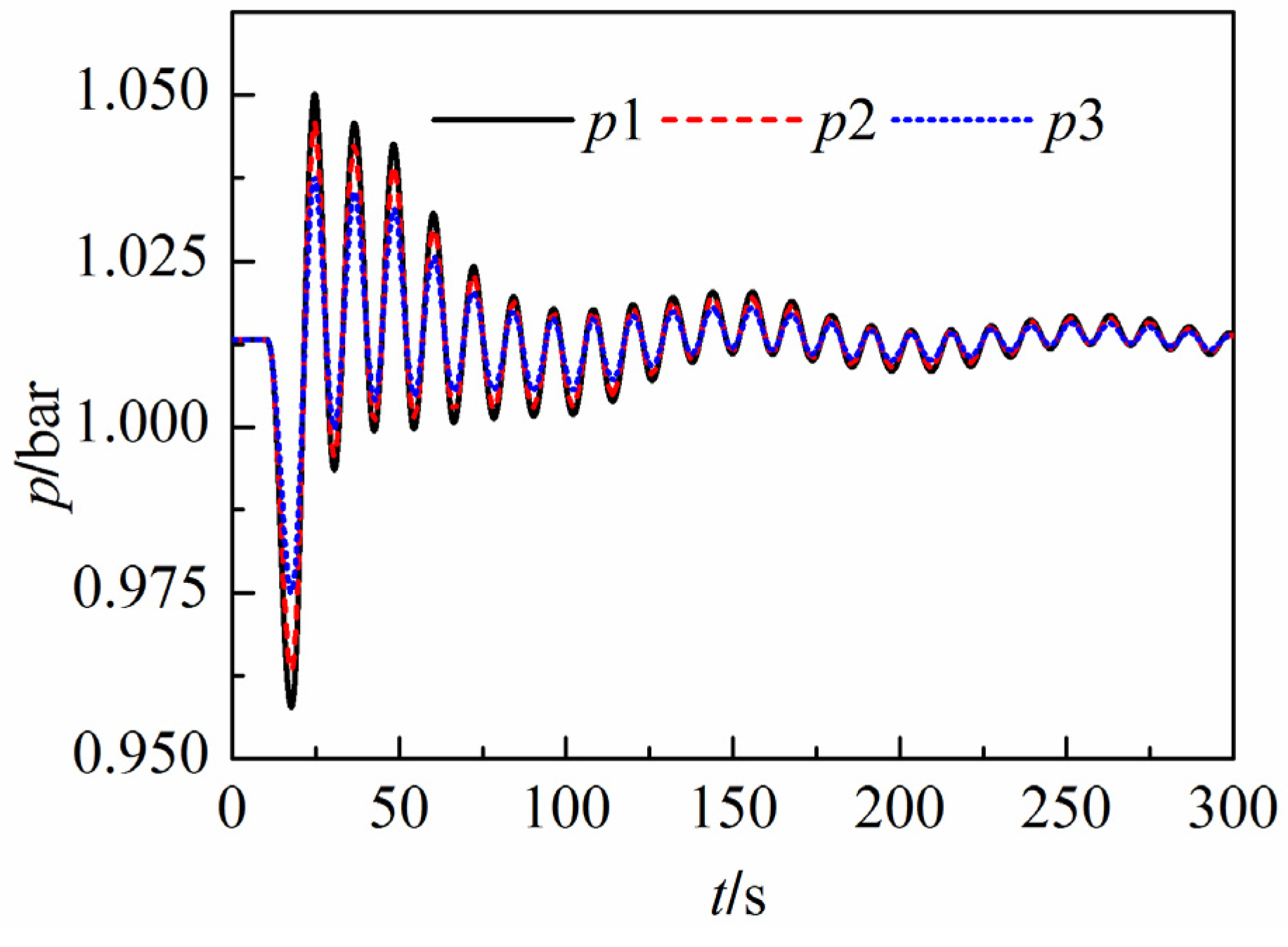

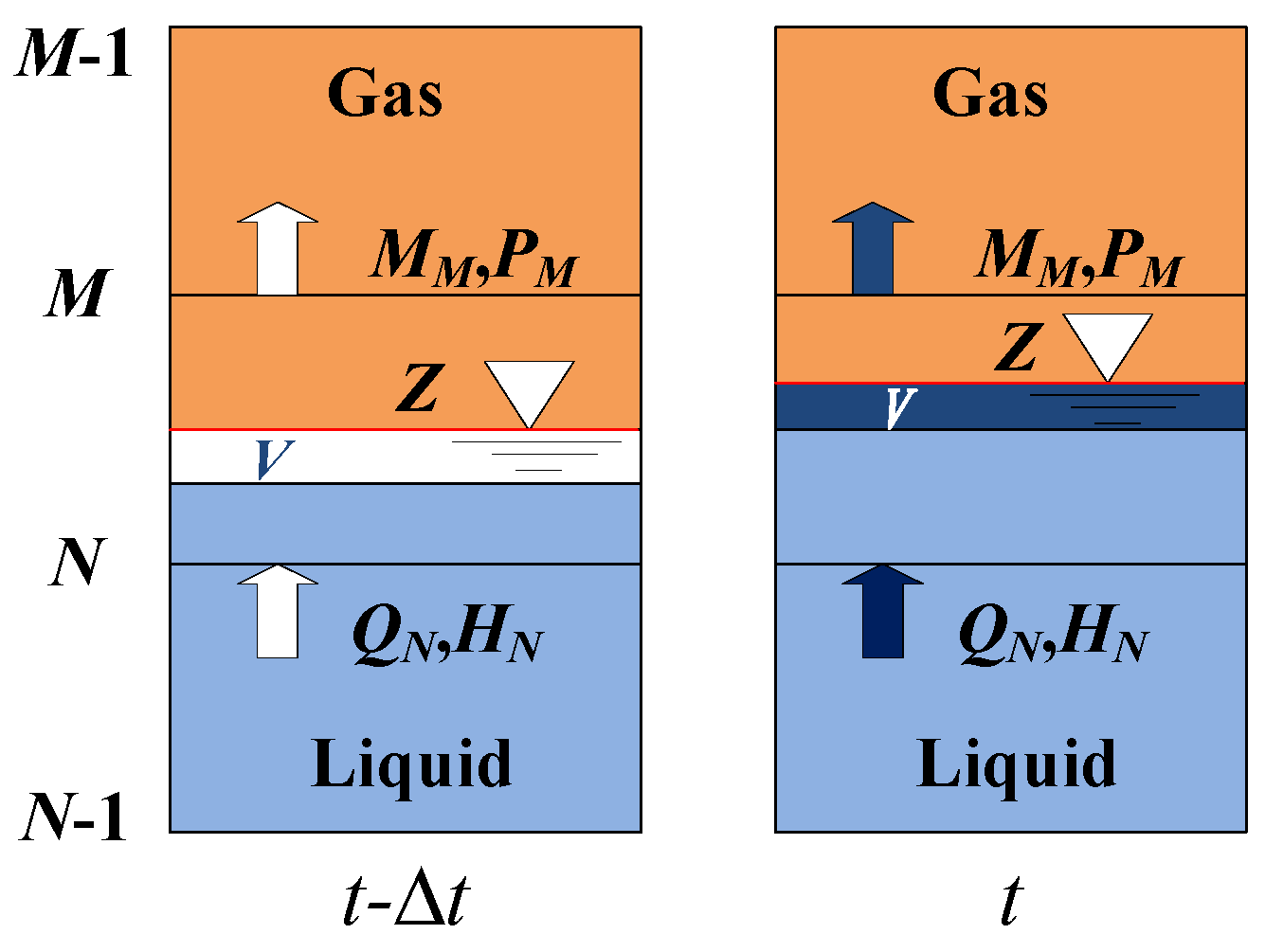

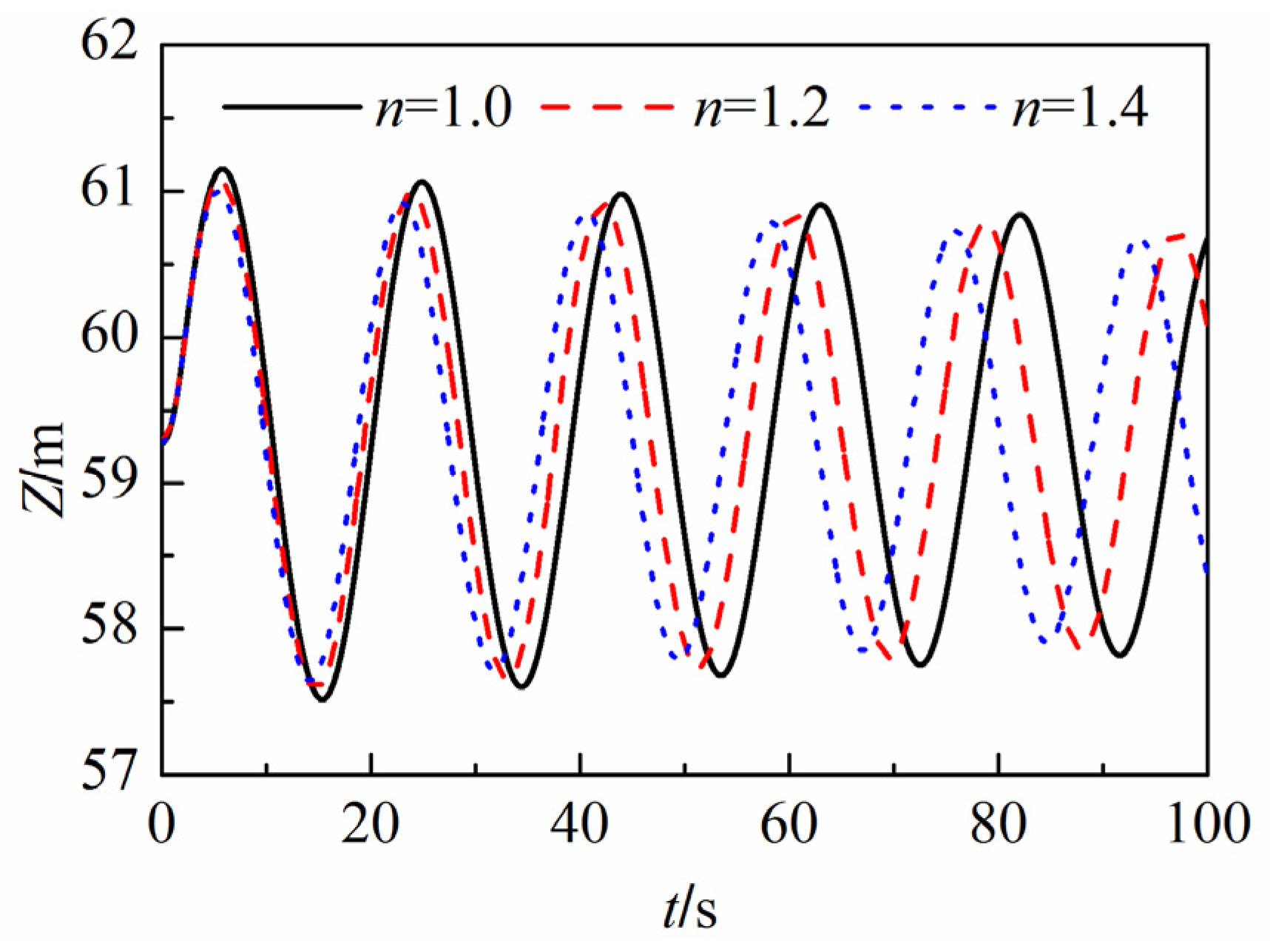

- A model for coupling the water hammer equations and the ideal gas state equations is presented to solve for the water level fluctuation in an air cushion surge tank. The effect of the polytropic exponent for the gas phase is studied.
- Transient flows of liquids and gases in pipelines are solved using the proposed method, and a model for coupling the liquid and gas phases is given to study the interaction between the water level fluctuations and the gas behavior in the duct. Two simplified models are presented and it is shown that an asynchronous coupled model operates as well as the synchronous coupled model.

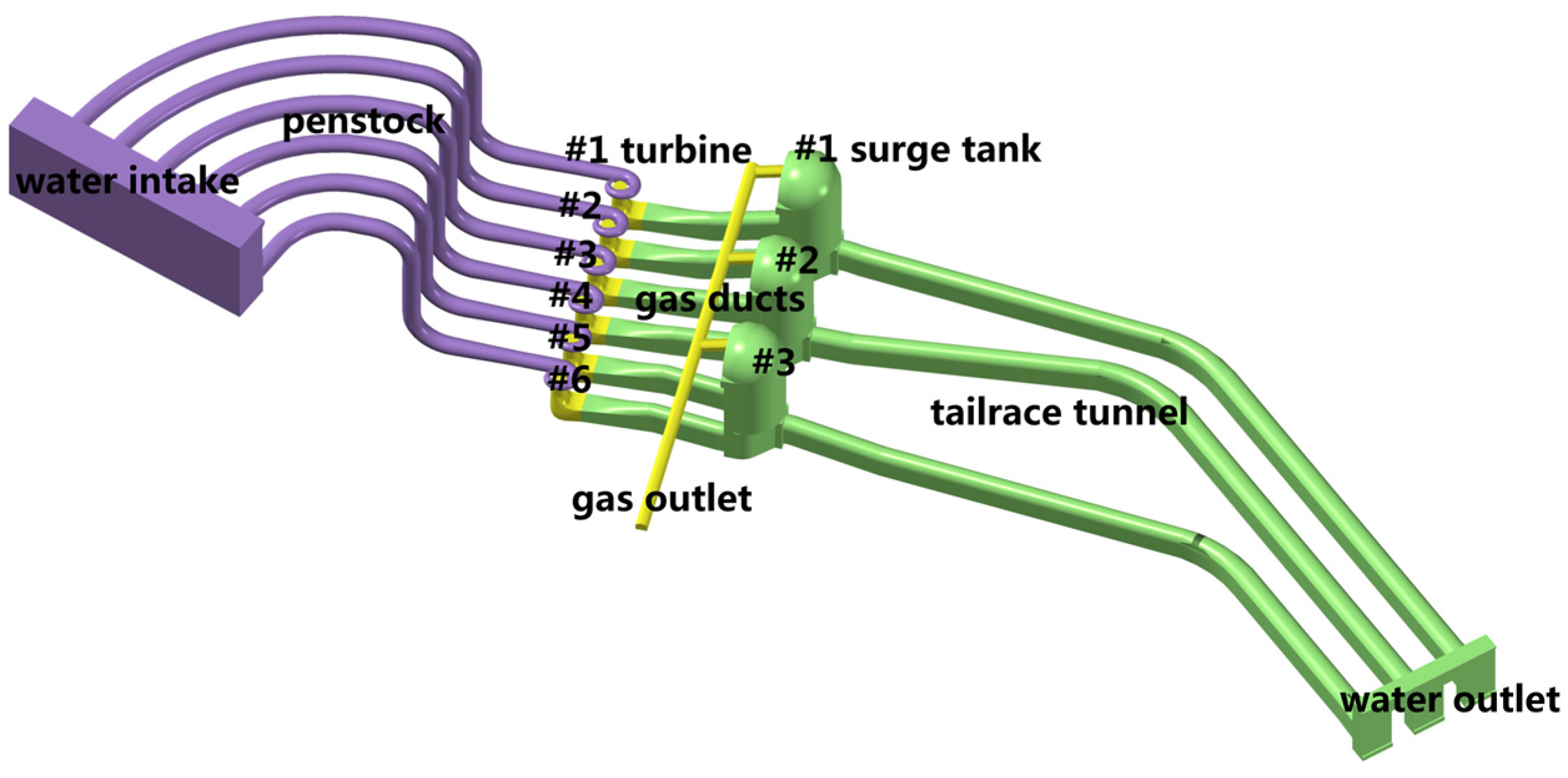

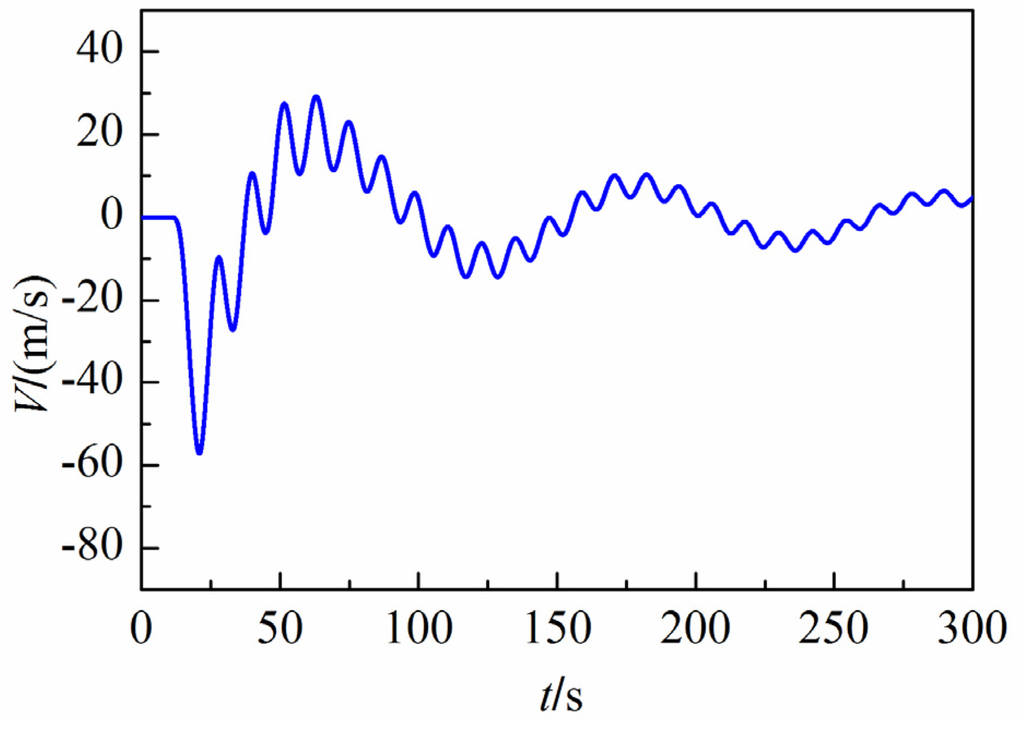

- The proposed methods are used for the calculation of transient processes in a hydropower station. Peak wind speed in the air channel, and hydraulic disturbances caused by the gas phase, are studied in an engineering project.
