Photoelectrochemical Degradation of Pharmaceutical Active Compounds in Multicomponent Solutions with an Sb-Doped SnO₂ Ceramic Anode Coated with BiPO₄

Abstract

A ceramic anode made of Sb-doped SnO₂ and coated with a photoactive BiPO₄ layer was tested for the (photo)electrochemical oxidation of three commonly used pharmaceuticals: atenolol, ibuprofen, and norfloxacin. Light-pulsed chronoamperometry showed that the photoanode responded immediately to illumination. The application of light and current enhanced degradation for all compounds when treated separately. Ibuprofen and norfloxacin exhibited higher degradation than mineralization, which demonstrates their persistent nature. Electric current was essential to achieve efficient degradation and mineralization, demonstrating the effectiveness of the electrochemical approach. For multicomponent mixtures, applying light resulted in higher mineralization compared to dark conditions at low operation currents (0.2 A). At higher currents (0.4–0.8 A), the contribution of light was partially masked by the enhanced electrochemical production of hydroxyl radicals. The analysis of individual compounds within the mixture revealed significant improvements in degradation under light exposure. Overall, these results demonstrate the potential of the Sb-doped SnO₂ ceramic photoanode as a cost-effective and promising alternative to commercial materials for treating pharmaceutical contaminants.

1. Introduction

Pharmaceutical active compounds, including antibiotics, analgesics, β-blockers, and hormones, have emerged as significant types of micropollutants due to their persistent and potentially harmful effects on aquatic ecosystems [1]. These substances enter water bodies through pharmaceutical, urban, and hospital effluents. Moreover, studies show that up to 90% of some antibiotics are excreted without being metabolized [2,3], further contributing to their persistence in aquatic environments. Once released, pharmaceuticals become progressively diluted as they enter wastewater networks. By the time they arrive at wastewater treatment plants, their concentrations are often too low for conventional treatment technologies to effectively remove them.

Despite advances in wastewater treatment, the elimination of these compounds remains challenging due to their low concentrations, chemical recalcitrance, and the absence of specialized degrading microorganisms [4]. As a result, pharmaceuticals can often persist in the treated effluents or accumulate in sewage sludge, posing long-term environmental risks [5]. Although technologies such as adsorption and reverse osmosis are commonly studied for removing pharmaceuticals from aqueous media, they often entail secondary pollution and incomplete removal. In response to this problem, the Directive (EU) 2024/3019 establishes for the first time in the European Union, a target removal efficiency of some pollutants, including pharmaceuticals, through advanced (quaternary) wastewater treatment processes [6].

To address these limitations, advanced oxidation processes (AOPs) have gained attention as a promising alternative. These processes rely on the generation of highly reactive species, such as hydroxyl radicals (•OH), which degrade a wide range of organic pollutants and can achieve their complete mineralization [7]. Among AOPs, photoelectrochemical oxidation has emerged as a particularly effective technique for pollutant degradation, leveraging the synergistic action of electrochemical oxidation and the light-induced activation of a photocatalyst supported on a conductive surface [8]. This dual mechanism enhances the generation of reactive oxygen species, leading to a more efficient breakdown of persistent contaminants. As a result, photoelectrochemical oxidation has been applied for the remediation of pharmaceutical-containing wastewater [9,10,11,12]. Conductive surfaces, such as fluorine-doped tin dioxide, are often used as supports to immobilize the photocatalyst [13,14]. Recently, research has shifted towards more sustainable and cost-effective alternatives, such as antimony-doped tin dioxide ceramic supports. These materials combine a unique structure that provides great electrical conductivity. Furthermore, these conductive supports can be made with a large active surface area, high porosity, chemical stability, and have low fabrication costs [15,16,17]. Mora-Gómez et al. [18] compared the performance of a commercial boron-doped diamond anode (BDD) with that of the ceramic anode. The study reported up to 92% mineralization of norfloxacin for the BDD anode and 63% when using the ceramic anode. In another study, the influence of reactor configuration on atenolol removal was also assessed for both anodes. Higher mineralization degrees were observed in a divided-cell configuration for both materials, achieving up to 43.9% atenolol mineralization with the ceramic anode [19].

Alongside the conductive support, the choice of the photocatalyst plays a crucial role in determining the overall performance of the photoanode. In this context, Medina-Casas et al. [20] conducted a study comparing two photocatalysts, CdFe₂O₄ and ZnFe₂O₄, deposited on a Sb-doped SnO₂ ceramic support for norfloxacin mineralization. The study showed enhanced norfloxacin degradation in the presence of light and for higher current intensities, achieving a 90% degradation rate at an operation intensity of 0.8 A with the CdFe₂O₄ photocatalyst.

Bismuth-based materials, such as BiPO₄, used in this study, stand out for their low cost, non-toxicity, and high oxidizing ability under ultraviolet and visible light [21]. In our previous work, the influence of light exposure, operation current and illuminated area on norfloxacin abatement using a BiPO₄ photocatalyst deposited over a Sb-doped SnO₂ conductive support was explored [22]. The results showed enhanced mineralization of norfloxacin in the photoelectrochemical process, with the illuminated area playing a key role. Similarly, in a research conducted by Domingo-Torner et al., the same ceramic support coated with another bismuth-based photocatalyst (BiFeO₃) was used for norfloxacin mineralization [23]. Using this material, 56% norfloxacin mineralization was achieved. Notably, the photoelectrochemical process exhibited approximately 15% lower energy consumption than its electrochemical counterpart.

In the present study, an Sb-doped SnO₂ anode coated with the photoactive BiPO₄ layer is employed in the electrochemical (EC) and photoelectrochemical (PEC) oxidation of three commonly consumed pharmaceuticals: atenolol, ibuprofen, and norfloxacin. The pharmaceuticals are treated both individually and in a mixture. This study enables a comparison with previous studies, where the same pharmaceutical mixture but different anode materials, such as BDD [24], were used, while expanding on previous findings that demonstrate the potential of this material in pharmaceutical removal. The performance of the photoanode is assessed using parameters such as the pharmaceutical degradation, mineralization, specific energy consumption, and mineralization current efficiency.

2. Materials and Methods

2.1. Chemicals and Reagents

Three widely consumed pharmaceuticals were selected for the present study: atenolol (ATL, beta-blocker), ibuprofen (IBU, non-steroidal anti-inflammatory drug), and norfloxacin (NOR, broad-spectrum antimicrobial). All pharmaceuticals were of analytical grade and purchased from Sigma-Aldrich (Darmstadt, Germany). The chemical properties of the pharmaceuticals can be found in Table S1.

Analytical-grade sodium sulfate (Na₂SO₄) (99% purity), obtained from Panreac, was used as the supporting electrolyte. For ion chromatography measurements, solutions of sodium hydrogen carbonate and anhydrous sodium carbonate, purchased from Sigma-Aldrich with a purity higher than 99%, were used as the anionic eluent. A mixture of 17 mmol·L⁻¹ nitric acid and dipicolinic acid was employed as the cationic eluent.

Analytical-grade acetonitrile from Merck (Darmstadt, Germany) and Optima^TM LC/MS grade formic acid from Fischer (Zurich, Switzerland) were used in the High-Performance Liquid Chromatography coupled with mass spectrometry (HPLC-MS) analysis. All solutions were prepared using Type 1 Mili-Q ultrapure water with a resistivity of 18.2 MΩ·cm at 25 °C and a Total Organic Carbon (TOC) value of ≤5 ppb.

2.2. Photoanode Material and Treated Solutions

The photoanode was an Sb-doped SnO₂ ceramic support coated with a photoactive layer of BiPO₄ with an active area of 11.55 cm². The anode synthesis and its characterization were described in a previous work. The ceramic matrix was prepared from SnO₂ and Sb₂O₃ using polyvinyl alcohol as a binder. The photocatalyst, which was synthesized by mixing and subsequent thermal treatment of ammonium dihydrogen phosphate and bismuth oxide, was deposited onto the ceramic matrix by dip-coating and was subjected to a final thermal treatment. As reported in a previous work, the photocatalyst is predominantly a mixture of the high- and low-temperature monoclinic phases of BiPO₄, with a small proportion of the hexagonal phase [22].

Photolytic, electrochemical, and photoelectrochemical treatments were applied to individual pharmaceutical solutions to evaluate the photoanode performance and compare degradation and mineralization efficiencies of each compound under different conditions. The model solution of the first group of experiments consisted of 100 mg·L⁻¹ of ATL, IBU, or NOR, each prepared with 2 g·L⁻¹ of Na₂SO₄ as the supporting electrolyte. Subsequently, the selected pollutants were mixed to evaluate the performance of the material when treating multiple compounds simultaneously, mirroring conditions commonly encountered in real effluents. In the second group of experiments, a synthetic mixture containing 20 mg·L⁻¹ of each pharmaceutical was used, using 2.8 g·L⁻¹ of the supporting electrolyte. These conditions were established to enable a more direct comparison with results from previous studies conducted by the research group [24].

2.3. Photoelectrochemical Characterization

The preliminary photoelectrochemical characterization of the electrode was conducted by means of using light-pulsed chronoamperometry to assess the photoactivity of the material. A conventional three-electrode configuration was used for the experiments. The working electrode was the photoanode under study (active area: 0.3 cm²), a Pt foil (Crison) (area: 1 cm²) served as the counter electrode, and a 3 M KCl Ag/AgCl electrode (Metrohm, Herisau, Switzerland) was used as the reference. The electrodes were placed in a 200 mL quartz reactor containing 14.2 g·L⁻¹ Na₂SO₄ as the electrolyte. The light source was the Lightningcure LC8 L9566-03A device from Hamamatsu, equipped with a 200 W Xenon lamp, an IR filter with transmittance wavelengths between 350 and 600 nm, and a single light beam. Measurements were performed with a PalmSens4 (Palmens BV, Houten, The Netherlands) potentiostat controlled by PSTrace 5.9. Before the measurements, the photoanode was pretreated at 1 V vs. Ag/AgCl for 4 h. Three bias potential values (measured versus open-circuit potential) were tested: 0.1, 0.5, and 1 V. During chronoamperometric experiments, the photoanode was first polarized for 1 h in the dark at the corresponding overpotential until reaching current stabilization. Light pulses at two percentages of the total light power (100% and 50%) were then applied, alternating 150 s of illumination with 150 s in the dark. The measured intensity values were normalized by subtracting the baseline intensity recorded in the absence of light. Additionally, similar light-pulsed chronoamperometry tests were conducted replacing the polychromatic light source with a switchable Light Emitting Diode (LED) light source (Redox.me, Redoxme AB, Norrköping, Sweden), which has ten different high-power LEDs distributed over a rotating disc. The response of the photoanode was investigated under three different wavelengths: 371, 402 and 424 nm, which are comprised within the range of the polychromatic light source.

2.4. Photoelectrochemical Oxidation

Photoelectrochemical oxidation experiments were conducted in galvanostatic mode at 0.2, 0.4 and 0.8 A (17.32, 34.63, 69.25 mA·cm⁻²) in the absence and presence of light for both the individual pharmaceuticals and the synthetic mixture. The experimental setup is depicted in Figure S1. The reactor, the light source (with a double light beam to increase the illuminated area) and the reference electrode were the same as the ones used in the photoelectrochemical characterization experiments (Section 2.3). The current was supplied using a PeakTech P1585 (PeakTech Prüf, Ahrensburg, Germany) power supply. A stainless-steel sheet with a total area of 20 cm² was employed as the cathode. Prior to the photoelectrochemical oxidation experiments, photolysis studies were conducted in the absence of the anode and using the previously specified concentrations for the individual pharmaceuticals to assess whether the pollutants could be degraded solely by the action of light.

In the treatment of individual pharmaceuticals, the experiments lasted 4 h, with samples collected at intervals of 15 min during the first hour, 30 min during the second hour, and every hour thereafter until the end of the experiment. For the treatment of the synthetic mixture, experiments were conducted over a 6-h period, during which samples were collected at the same time intervals.

2.5. Analytical Techniques

The concentration profiles of ATL, IBU, and NOR, when treated separately, were monitored using UV/vis spectrophotometry (Unicam UV4-200, Cambridge, UK). The absorbance was measured at the characteristic wavelengths of each compound: 223 nm for both atenolol and ibuprofen, and 277 nm for norfloxacin. Pollutant concentrations were then determined using calibration curves correlating absorbance with concentration.

The degradation of the pollutants in the synthetic mixture was monitored using HPLC-MS analysis, with an Agilent 1290 Infinity system equipped with a C-18 column (Agilent ZORBAX Eclipse Plus (Santa Clara, CA, USA), 50 mm × 2.1 mm, 1.8 µm particle size). Mobile phases were A, 0.1% v/v formic acid in water, and B, acetonitrile. The flow rate was 0.5 mL·min⁻¹. The sample injection volume was 20 µL. The chromatographic gradient is shown in Table S2. Samples were previously filtered using polyethersulfone (PES) membranes with a pore size of 0.22 µm to prevent column fouling. The mass spectrometer operated in positive ionization mode, for ATL and NOR, and in negative ionization mode for IBU quantification with the following parameters: capillary voltage, 4000 V; nebulizer pressure, 40 psi; drying gas flow, 9 L·min⁻¹; gas temperature, 325 °C; skimmer voltage, 65 V; octopole rf, 250 V; and fragmentor voltage, 190 V. The mass spectra were recorded between 100 and 1700 m/z. The m/z values of the analytes were 267.17 for ATL, 205.13 for IBU, and 320.14 for NOR, and their approximate retention times were 3.55 min, 8.9 min, and 4.7 min, respectively. The analysis and quantification of each compound were performed using extracted ion chromatograms (EIC), which provide information regarding specific m/z values [25]. Calibration curves were constructed and used for quantification by plotting EIC peak area versus analyte concentration for concentrations ranging from 0.1 to 1 mg·L⁻¹.

Mineralization was evaluated by measuring the non-purgeable organic carbon (NPOC), corresponding to the TOC present in the solution. These values were obtained using a Shimadzu TNM-L ROHS analyzer. During NPOC measurements, the sample undergoes catalytic combustion in a furnace at 680 °C, where all carbon present in the solution is converted to CO₂. The NPOC value is then determined using a calibration curve. This analysis complements the determination of individual pollutant concentrations, as it provides insight into whether the organic molecules are being mineralized into CO₂ and H₂O.

Ionic by-products were identified and quantified using ion chromatography with a Metrohm 883 Basic IC ion chromatograph. The analyzer is equipped with a Metrosep C6-250/4.0 (Metrohm, Herisau, Switzerland) cation exchange resin column and a Metrosep A Sup 150/4.0 (Metrohm, Herisau, Switzerland) anion exchange resin column. For the anionic column, 100 mM H₂SO₄ was used as a suppressor. The elution time was 30 min, with flow rates of 0.9 mL·min⁻¹ and 0.7 mL·min⁻¹, for the cationic and anionic eluent, respectively. Ion concentrations were determined using calibration curves, which correlate the area under the peak obtained in the chromatogram with the concentration of each ion.

2.6. Indicators of the Reactor Performance

Several parameters were selected to assess the process performance. The degree of degradation evaluates the transformation of the pollutant into other species and can be determined using Equation (1):

$$\mathrm{D}\mathrm{e}\mathrm{g}\mathrm{r}\mathrm{e}\mathrm{e} \mathrm{o}\mathrm{f} \mathrm{d}\mathrm{e}\mathrm{g}\mathrm{r}\mathrm{a}\mathrm{d}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n} (\%)={\displaystyle \frac{{\left[C\right]}_0-{\left[C\right]}_t}{{\left[C\right]}_0}}·100$$

(1)

where ${\left[C\right]}_0$ is the initial concentration of the pollutant ($C$ = ATL, IBU, NOR) and ${\left[C\right]}_t$ is the concentration of the pollutant at a certain time $t$.

The degree of mineralization indicates the extent to which the organic pollutants in the solution are decomposed into CO₂, H₂O, and inorganic ions. It was calculated using Equation (2):

$$\mathrm{D}\mathrm{e}\mathrm{g}\mathrm{r}\mathrm{e}\mathrm{e} \mathrm{o}\mathrm{f} \mathrm{m}\mathrm{i}\mathrm{n}\mathrm{e}\mathrm{r}\mathrm{a}\mathrm{l}\mathrm{i}\mathrm{z}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n} (\%)={\displaystyle \frac{{\left[TOC\right]}_0-{\left[TOC\right]}_t}{{\left[TOC\right]}_0}}·100$$

(2)

where ${\left[TOC\right]}_0$ is the initial $TOC$ concentration and ${\left[TOC\right]}_t$ corresponds to the TOC concentration at a certain time $t$.

The unreleased ion percentage refers to the percentage of a certain element originally present in the molecule that remains unconverted or undetected in the form of ionic species in the bulk solution. It was calculated using Equation (3):

$$\mathrm{U}\mathrm{n}\mathrm{r}\mathrm{e}\mathrm{l}\mathrm{e}\mathrm{a}\mathrm{s}\mathrm{e}\mathrm{d} \mathrm{i}\mathrm{o}\mathrm{n} (\%)=[1-({\displaystyle \frac{\sum {\left[Element\right]}_{released}}{{[Element]}_{max}}})]·100$$

(3)

where ${\left[Element\right]}_{released}$ is the total concentration of a specific ion measured at the end of the experiment and ${\left[Element\right]}_{max}$ is the theoretical maximum concentration of the selected element that can be formed from the complete mineralization of the original molecule.

The mineralization-specific energy consumption was also calculated. This parameter quantifies the energy consumption relative to the mineralization process (4):

$$E_{TOC} (\mathrm{k}\mathrm{W}\mathrm{h}·{\mathrm{g}}_{\mathrm{T}\mathrm{O}\mathrm{C}}^{-1})={\displaystyle \frac{{\int }_0^t{U}_c(t)·I(t)dt}{V·({\left[TOC\right]}_0-{\left[TOC\right]}_f)}}$$

(4)

where $t$ is equal to the experiment duration, $U_c$ is the cell voltage (V), $I$ is the operating intensity (A), $V$ is the volume of the reactor (L), ${\left[TOC\right]}_0$ and ${\left[TOC\right]}_f$ are the initial and the final TOC concentration values, respectively, in mg·L⁻¹.

Mineralization current efficiency $MCE$ indicates the percentage of the supplied charge invested in the mineralization process [23]. The $MCE$ value was calculated using Equation (5):

$$MCE (\%)={\displaystyle \frac{n·F·V·({\left[TOC\right]}_0-{\left[TOC\right]}_t)}{7.2·{10}^5·m·I·t}}·100$$

(5)

where $n$ is the number of electrons exchanged in the electrochemical oxidation assuming complete mineralization of the pollutants, 66 (see reaction (6) for ATL, (7) for IBU, and (8) for NOR). $F$ is the Faraday constant (96,487 C·mol⁻¹), 7.2 × 10⁵ is a conversion factor for dimensional homogenization (60 s·min⁻¹ × 12,000 mg C mol C⁻¹), and $m$ is the number of carbon atoms present per mole of the contaminants. When treating the mixture of pharmaceuticals, $m$ value was 14.1.

$$\mathrm{A}\mathrm{T}\mathrm{L}:\hspace{1em}\hspace{1em}{C}_{14}{H}_{22}{N}_2{O}_3+25 H_{2}O \to 14 C{O}_2+2 N{H}_4^{+}+64 H^{+}+66 e^{-}$$

(6)

$$\mathrm{I}\mathrm{B}\mathrm{U}:\hspace{1em}\hspace{1em}{C}_{13}{H}_{18}{O}_2+24 H_{2}O\to 13 C{O}_2+66 H^{+}+66 e^{-}$$

(7)

$$\mathrm{N}\mathrm{O}\mathrm{R}:\hspace{1em}\hspace{1em}{C}_{16}{H}_{18}{F{N}_{3}O}_3+29 H_{2}O\to 16 C{O}_2+3 N{H}_4^{+}+F^{-}+64 H^{+}+66 e^{-}$$

(8)

The specific energy consumption and MCE values were compared with the ones obtained by the research group when using a commercial BDD anode (NeoCoat (Neocoat AB, La Chaux-de-Fonds, Switzerland), thickness of the coating was 6 µm, with a total boron concentration of 2500 ppm) [24].

3. Results and Discussion

3.1. Photoelectrochemical Characterization

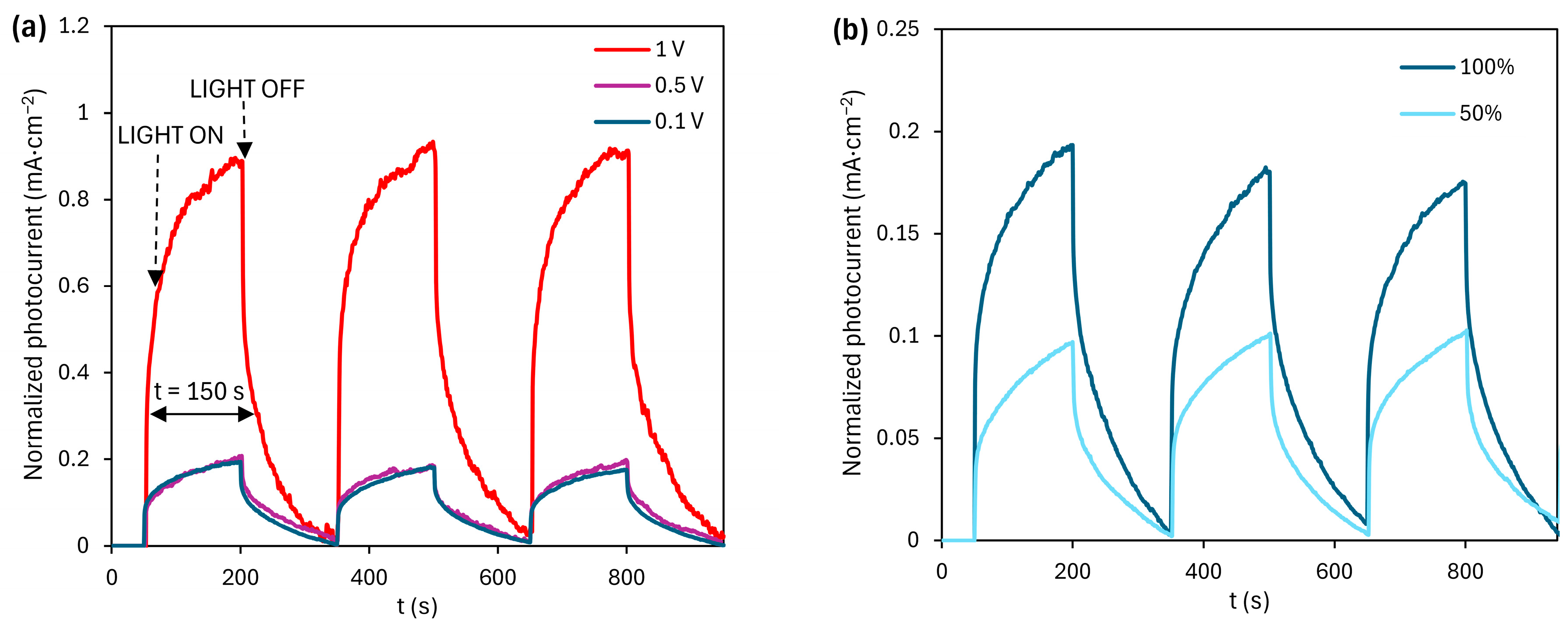

The photoactivity of the material was evaluated by light-pulsed chronoamperometry. As illustrated in Figure 1, the material exhibits an immediate photocurrent response upon irradiation. The photocurrent transient exhibits a two-stage increase: a rapid rise immediately upon illumination, followed by slower growth during continued light exposure, characteristic of inductive materials [26]. The results show that photocurrent depends on both the applied overpotential (Figure 1a) and the irradiation intensity (Figure 1b): higher values of either parameter result in higher photocurrent values. Upon illumination, an abrupt increase in current is initially observed, which can be attributed to the generation and accumulation of photogenerated charge carriers. This response reflects the immediate activation of the system. Subsequently, a second region characterized by a sustained and gradual increase in current is observed. This slower evolution can be explained by a progressive enhancement of electronic conduction, resulting from the continuous excitation of electrons from the valence band to the conduction band under prolonged irradiation. It should be noted that, in none of the cases, the photocurrent reached a steady-state value during the irradiation period.

Regarding the effect of applied potential (Figure 1a), the higher photocurrent values can be attributed to the fact that increasing the bias facilitates electron transfer from the valence band to the conduction band, while simultaneously reducing the recombination of photogenerated holes with electrons, which increases the efficiency of the photocatalytic process. When the light is turned off, the system requires some time to relax and reach stability. Relaxation slows down at lower applied potential and becomes faster as it increases, showing that the transients depend strongly on it. Similar trends observed in semiconductor devices like solar cells confirm that the relaxation process is not limited by resistance-capacitance time constants [27].

The effect of applied light intensity is evaluated in Figure 1b and reflects that applying 100% of light intensity results in higher photocurrent values, with similar inductive behavior as observed in Figure 1a. Note that the initial rise in photocurrent upon illumination becomes more pronounced at higher light intensities. The experiments show that the photocurrent value increases with the incident light intensity, since a higher photon flux generates a greater concentration of charge carriers [28]. Similarly, as shown in Figure 1a, the system relaxes more rapidly under higher light intensities. Taking this into account, the degradation of the pharmaceuticals was performed by applying 100% light intensity from this point onward.

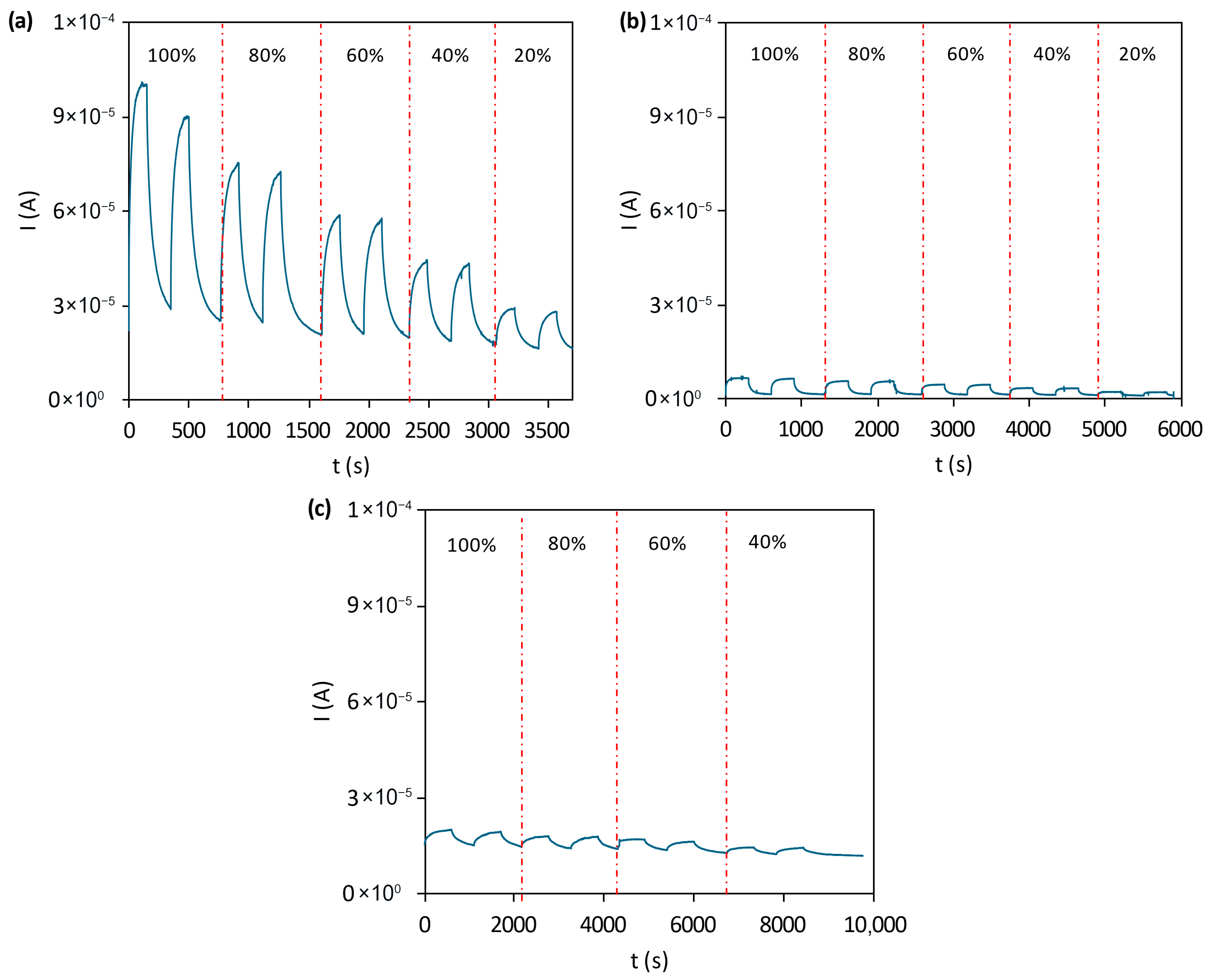

To further correlate the physicochemical characteristics of the photoactive coating with the photoelectrochemical response of the electrode, light-pulsed chronoamperometric curves at three specific wavelengths are shown in Figure 2. With monochromatic light, the effect of light intensity on the photocurrent response is similar to that observed for polychromatic light (Figure 1b). Furthermore, the results obtained clearly demonstrate that the electrode is more responsive under light exposure at 371 nm, which is in agreement with the predominance of monoclinic phases of the BiPO₄ coating reported in a previous study and indicated in Section 2.2 [22].

3.2. Photoelectrochemical Oxidation of the Isolated Pollutants

3.2.1. Degradation

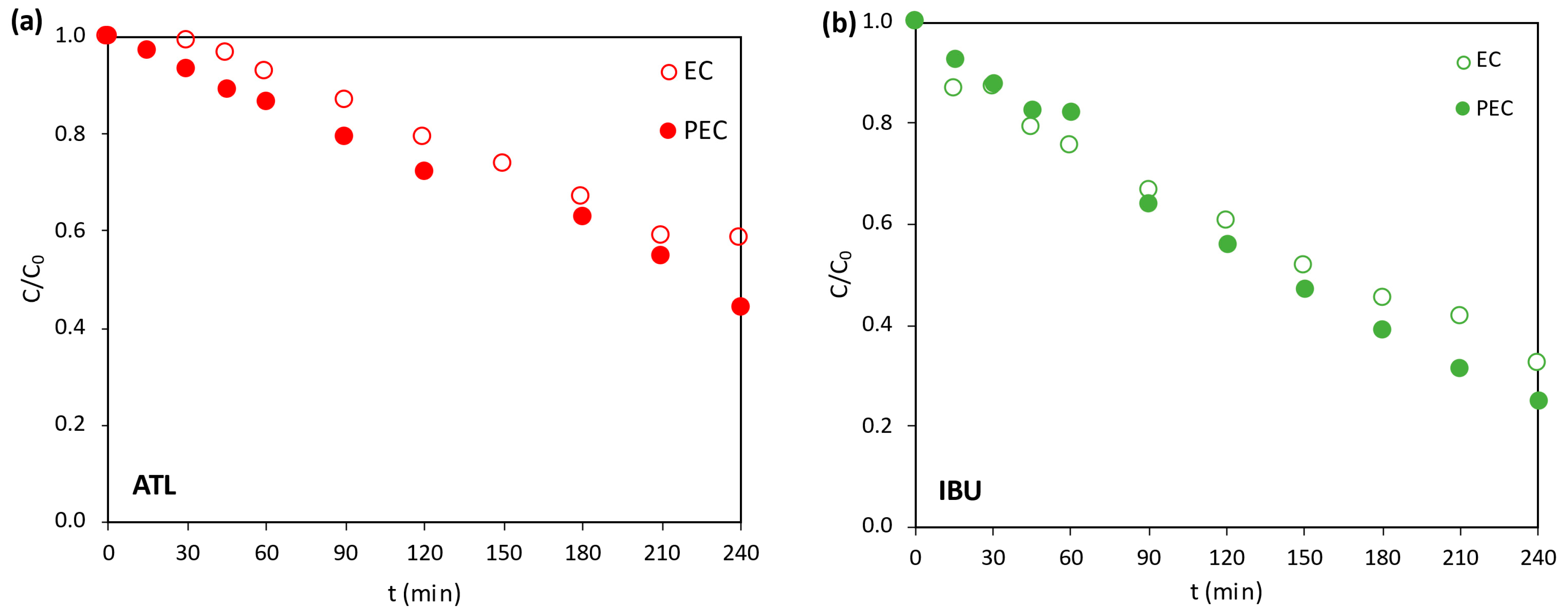

The behavior of the ceramic photoanode was studied by treating the selected pharmaceuticals separately both electrochemically and photoelectrochemically. The evolution of the relative concentration in the absence (EC) and in the presence of light (PEC) is represented in Figure 3a–c for ATL, IBU, and NOR, respectively. The relative concentration of the contaminants declines over time, both in the electrochemical and photoelectrochemical experiments for all pharmaceuticals, because of the electrochemical generation of •OH and other weaker oxidants, e.g., S₂O₈⁼, that may originate from the oxidation of the supporting electrolyte, Na₂SO₄ [29].

The final value of relative concentration achieved is lower when light is applied, due to supplementary photoelectrolytic •OH production, which accelerates the degradation process. Although the effect of illumination was small, it was more pronounced for ATL, especially at the end of the experiments. This observation aligns with reported studies demonstrating that BiPO₄ photocatalysts show superior degradation efficiency for cationic species [30], corresponding to improved acid-base interactions at the semiconductor surface. Under the experimental conditions (pH ≈ 8), which are below the pKa value of ATL (9.6), ATL predominantly remains in its protonated (cationic) form. This characteristic likely explains its enhanced photocatalytic degradation efficiency compared to neutral species or anionic compounds like NOR.

The experimental findings related to the potential degradation of contaminants under UV-visible light irradiation without applying current were also analyzed. The evaluation is based on the hypothesis that UV-visible light may contribute to the breakdown of organic molecules itself, without the application of current to the system. In our study, no notable photodegradation of the target pollutants was observed, as indicated by the evolution of their relative concentrations shown Figure S2. These findings are in line with other studies available in the literature. For instance, Carrillo et al. [16] reported no photodegradation of ATL under visible light irradiation. Furthermore, TOC measurements confirmed the absence of significant mineralization for any of the species under study. The minimal variations in both concentration and TOC values throughout the photolysis experiments suggest that, although slight decreases in pollutant concentrations may occur, they do not involve notable transformation into smaller molecules. These variations in TOC further support the conclusion that photolysis under UV-visible light alone does not result in meaningful mineralization of the pollutants.

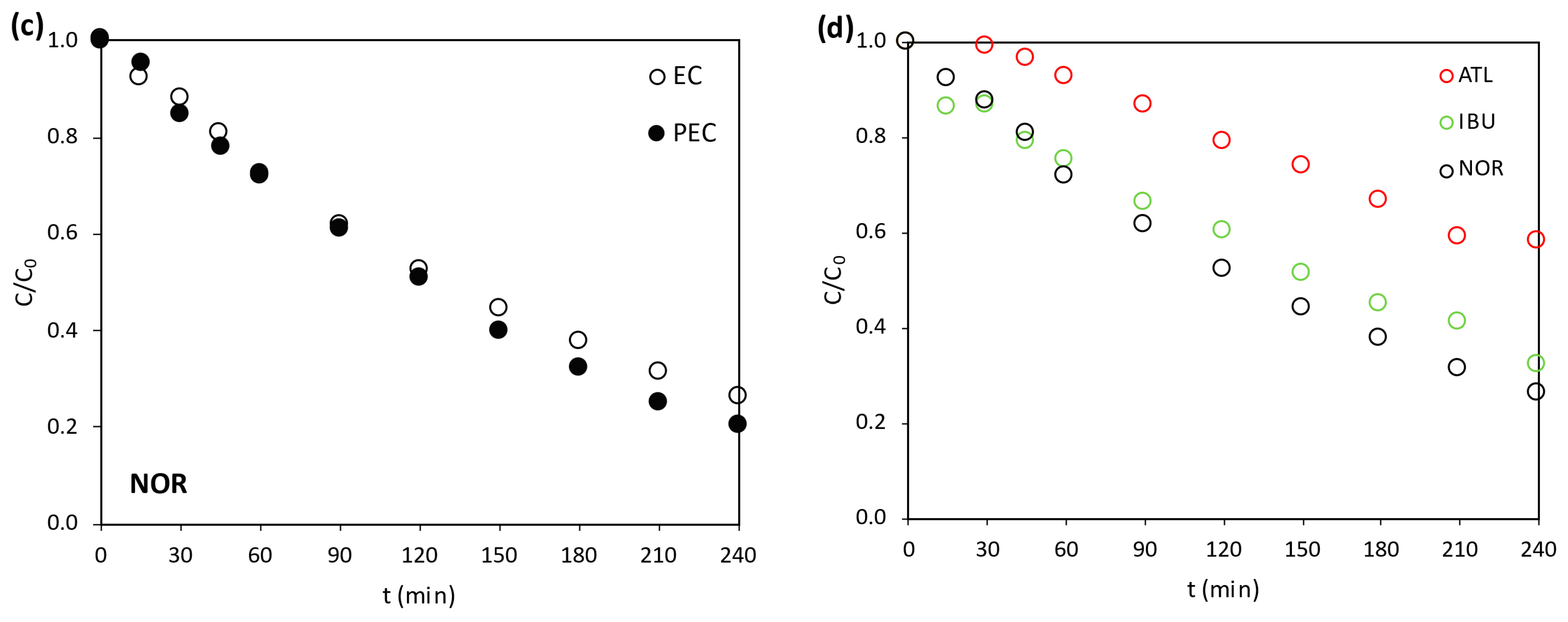

Figure 3d depicts the evolution of C/C₀ in the absence of light for ATL, IBU, and NOR when treated separately. It is observed that ATL achieves the highest C/C₀ value, hence the lowest degradation, followed by IBU and NOR. The increased difficulty of ATL to be degraded may be explained by the fact that ATL contains a specific functional group (NH₂COCH₂-) (Table S1) in its structure, which lowers its reaction rate constant with •OH [31]. IBU exhibits intermediate degradation capacity because IBU is slightly more reactive with •OH than ATL, likely explained by the presence of an aromatic ring in IBU’s structure (Table S2) [32,33]. Finally, NOR presents the highest degradation likely due to defluorination, a mechanism that was disclosed as the primary transformation pathway for NOR in other AOPs, such as ozonation [34] and photoelectrochemical oxidation [23]. The loss of the fluorine atom alters the molecular structure of NOR (Table S1), preventing its detection by UV absorbance and thus indicating transformation of its primary structure [22].

Ion chromatography was employed to monitor the transformation products formed during the degradation process. In the case of ATL, the molecule undergoes oxidation according to the reaction shown in (6). The final concentrations of inorganic ions generated during ATL degradation under both electrochemical and photoelectrochemical conditions are presented in Figure S3a. The presence of nitrite, nitrate, and formate ions was confirmed, which is consistent with findings previously reported in the literature [35,36]. It is important to note that nitrite and nitrate ions were detected instead of ammonium (NH₄⁺) because of the rapid oxidation of NH₄⁺ to more stable nitrogen species under the applied oxidative conditions, such as nitrite and nitrate, due to its low oxidation state (-III) [37]. Notably, nitrite was only detected under illuminated conditions, with a concentration of 0.46 mmol·L⁻¹. In contrast, both nitrate and formate were detected under both dark and illuminated conditions, with similar concentrations in each case: 0.045 mmol·L⁻¹ (dark) vs. 0.039 mmol·L⁻¹ (light) for nitrate, and 0.06 mmol·L⁻¹ (dark) vs. 0.09 mmol·L⁻¹ (light) for formate. The maximum concentration of nitrogen that can be released into the bulk solution due to ATL transformation, assuming complete mineralization following reaction (6), is 0.75 mmol·L⁻¹. Based on this theoretical value, the percentage of unreleased nitrogen was calculated for ATL using Equation (3). Under light conditions, only 33% of nitrogen content remains unreleased, whereas in the absence of light, this percentage increases significantly to 94%, underscoring the crucial role of light in promoting nitrogen release during ATL degradation.

For NOR oxidation (according to reaction (8)), in addition to nitrite, nitrate, and formate, fluoride ions were also detected, and their final concentration is shown in Figure S3b. Fluoride concentrations reached 0.193 mmol·L⁻¹ during electrochemical and 0.28 mmol·L⁻¹ in the photoelectrochemical experiments. As previously calculated for nitrogen-containing ions in the ATL molecule, the maximum concentration of fluoride that can be released from the decomposition of NOR was calculated assuming complete mineralization, resulting in a value of 0.313 mmol·L⁻¹. Based on this value and using Equation (3), the unreleased fluorine percentage was also calculated, resulting in a value of 38% in the absence of light and 11% under illuminated conditions. The decreased amount of fluorine that remains attached to the NOR molecule under illumination suggests photolytic and photoelectrolytic cleavage of C–F bonds in the NOR structure.

3.2.2. Mineralization

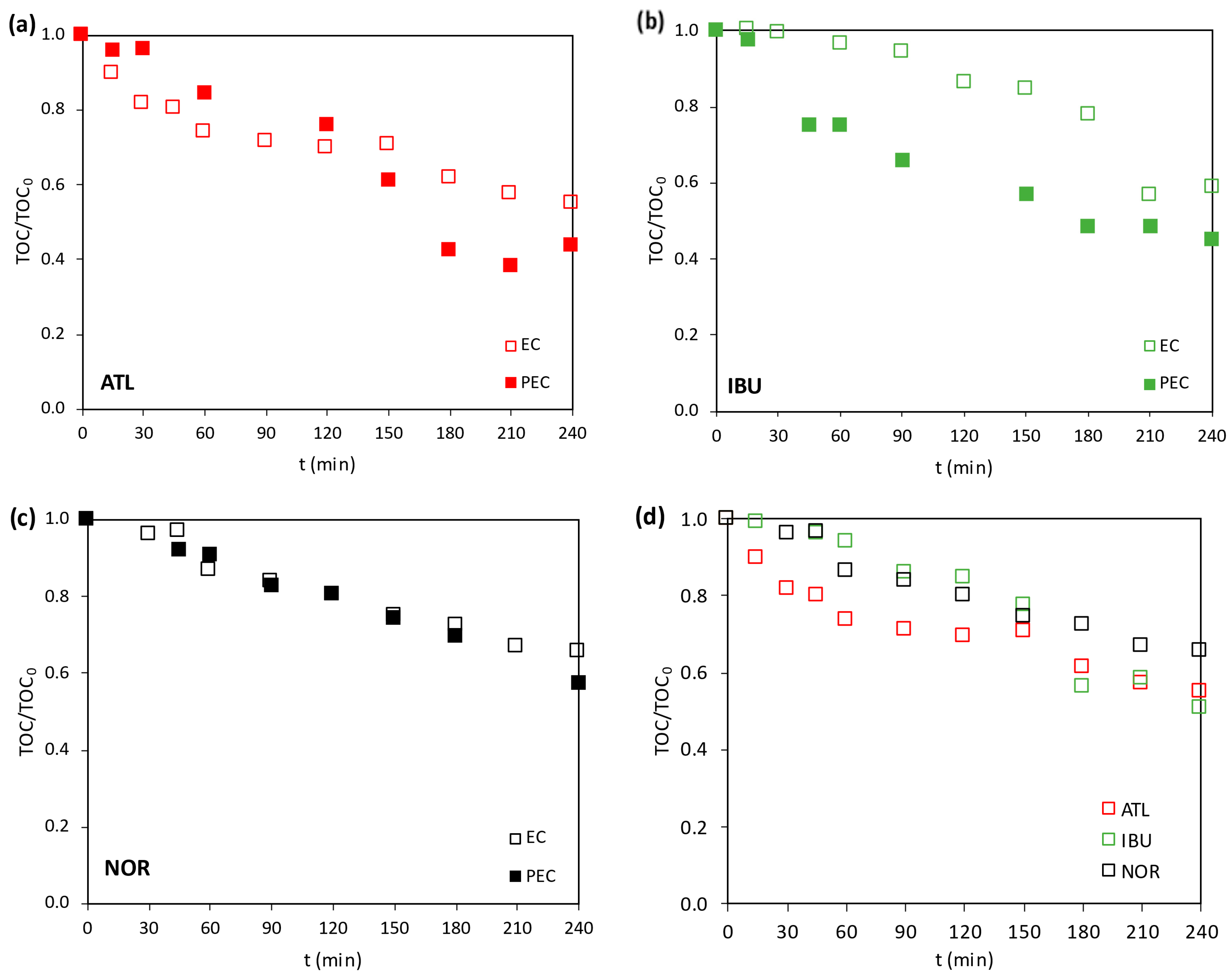

The evolution of the relative TOC concentration was also evaluated for ATL, IBU, and NOR (Figure 4a–c). This parameter decreases over time for all pharmaceuticals, according to their conversion into simpler molecules due to the attack of the oxidants generated near the electrode surface. In the case of IBU (Figure 4b), when no light is applied, the low decrease in TOC/TOC₀ indicates limited mineralization during the first 120 min of the experiment. After that, the TOC/TOC₀ evolution is equivalent to that observed under illuminated conditions. Overall, the results are consistent with other works in the literature for organic pollutants, where the increased radical production resulted in lower relative TOC values [38,39]. However, none of the compounds underwent complete mineralization. An improvement in terms of TOC/TOC₀ was observed under illuminated conditions for all pharmaceuticals, being more pronounced for ATL and IBU. Beyond the molecular degradation observed in Figure 3, the photoelectrochemical process also promotes the breakdown of these compounds into smaller organic compounds. NOR shows the lowest difference between the final TOC/TOC₀ value both in the absence and in the presence of light, since defluorination, though crucial in the transformation of the primary structure of NOR, does not imply mineralization of the molecule. As can be seen in the NOR transformation mechanisms proposed by Zhu et. al. [40], the potential intermediate that is formed due to fluorine loss of the NOR molecule has the same number of carbon atoms in its structure as the original molecule, 16. Figure 4d shows the evolution of TOC/TOC₀ for all pharmaceuticals in the absence of light when treated separately. All pharmaceuticals exhibit almost identical evolutions of the parameter during the experiments and achieve similar final TOC/TOC₀ values.

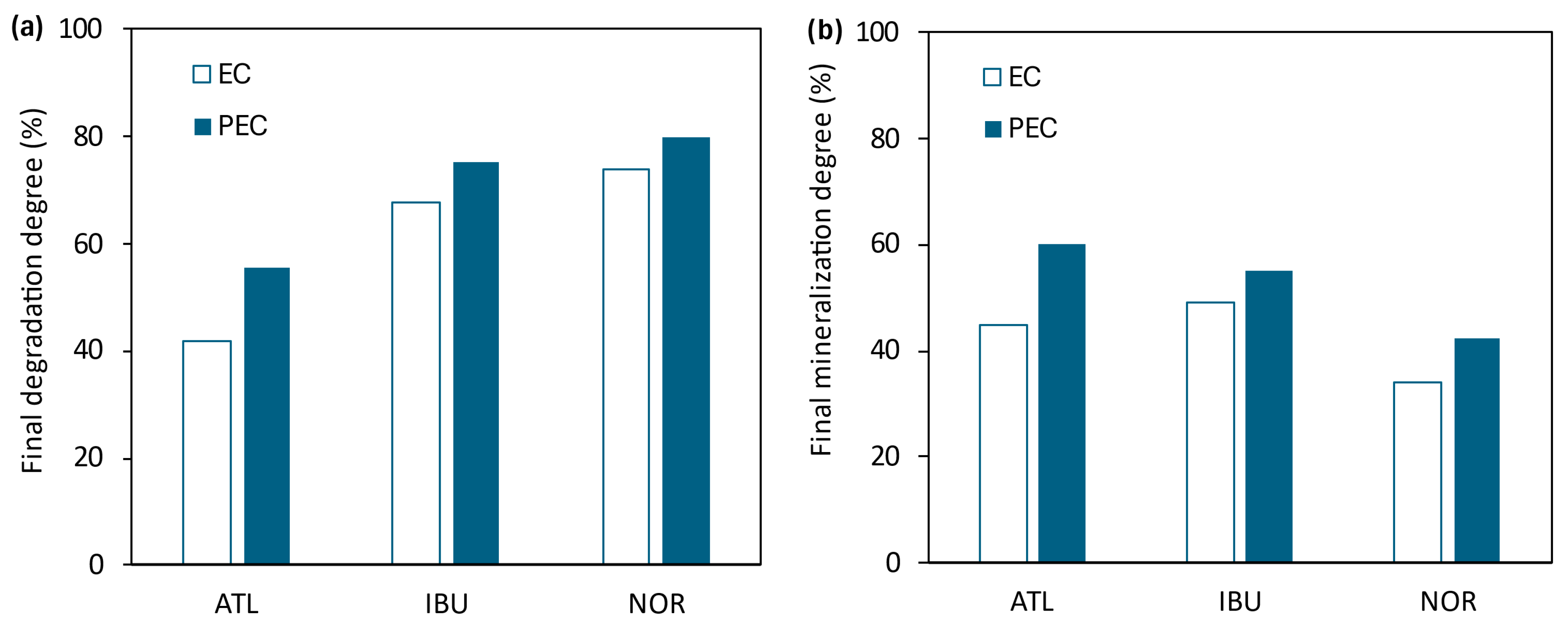

Figure 5 represents the final degradation and mineralization percentages of ATL, IBU, and NOR under both dark and illuminated conditions for a better comparison. In the absence of light, ATL exhibited a degradation efficiency of 41.7%, whereas IBU and NOR achieved higher efficiencies, 67.8% and 73.8%, respectively. Illumination enhanced degradation for all compounds, with efficiencies increasing up to 55.6% for ATL, 75.2% for IBU, and 79.8% for NOR. ATL exhibited the most pronounced light-induced degradation enhancement among the three compounds, as observed in Figure 5a. The synergistic effect of light and electricity is particularly interesting in enhancing the degradation of less reactive compounds such as ATL.

In terms of mineralization, as shown in Figure 5b, the three compounds show mineralization percentages ranging between 34.2 and 60.0%, with NOR presenting a slightly lower value than ATL and IBU. Final mineralization percentages without and with light application were 44.9% vs. 60.0% for ATL, 49.1% vs. 55.0% for IBU, and 34.2% vs. 42.4% for NOR. For all pharmaceuticals, the degree of mineralization increases with the application of light, indicating enhanced mineralization under photo-assisted conditions.

It is important to note that, for all compounds, mineralization degrees are consistently lower than degradation degrees, which emphasizes the complexity of the degradation pathway. This discrepancy can be attributed to the multi-step nature of the mineralization process. While degradation refers to the transformation or breakdown of the parent compound into intermediate products, mineralization quantifies the complete conversion of these intermediates into CO₂ [41]. As a result, a compound may undergo extensive degradation without achieving full mineralization, since the oxidation of organic compounds is reported to lead to the formation of short-chain carboxylic acids (such as formate, see Figure S3) prior to their complete mineralization [42]. For instance, in some studies, ATL achieved up to 99% degradation confirmed by HPLC-MS, but only 80% mineralization when treated with a carbon dot/TiO₂ composite photocatalyst [43]. Similarly, IBU has been shown to reach degradation levels of 91.5% using ozonation, while its mineralization remained significantly lower, around 63.9% [44], highlighting the persistence of intermediate organic species in the system.

The enhancement in degradation and mineralization under UV-visible irradiation observed in Figure 5a may also be related to the physicochemical properties of the photocatalytic BiPO₄ layer, which has been included in a previous work [22]. The characterization of the crystalline structures of this photoanode revealed three allotropes of BiPO₄ in the X-ray diffractogram, with two predominant monoclinic phases. Previous studies have reported that higher photocatalytic activity is observed when the amount of the low-temperature monoclinic phase is greater. Moreover, the presence of both monoclinic phases can enhance the photocatalytic activity of BiPO₄, likely due to the potential formation of a type II heterojunction [45].

3.3. Photoelectrochemical Oxidation of the Synthetic Mixture

3.3.1. Degradation

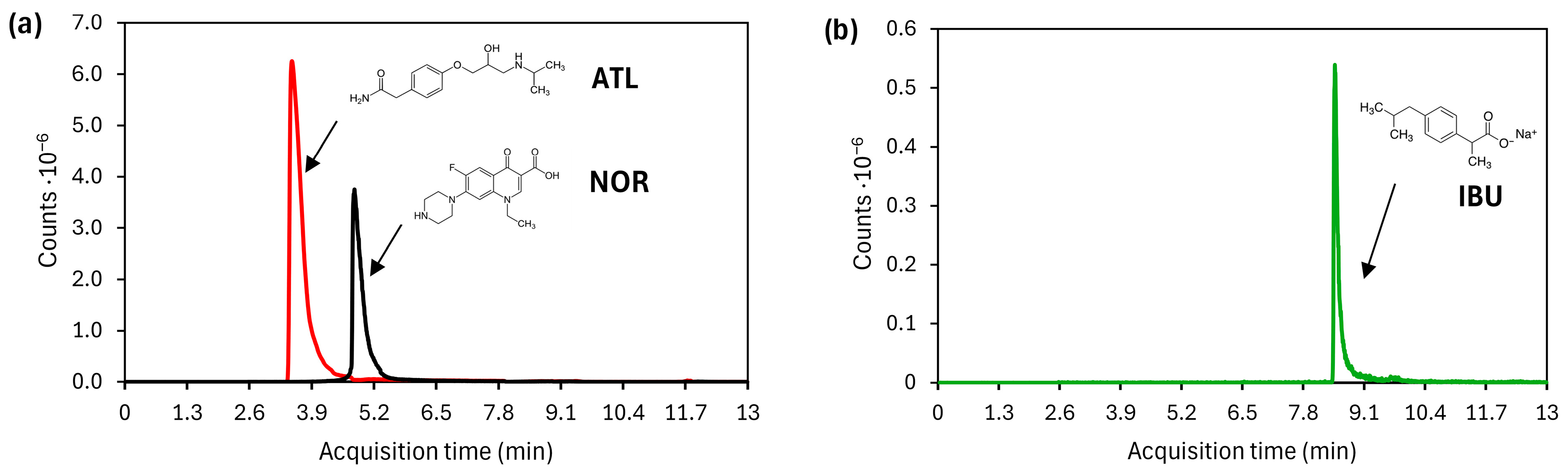

The target pharmaceuticals in the synthetic mixture were effectively detected using the previously described HPLC method, as illustrated in Figure 6. Specifically, in Figure 6a, two intense peaks were detected at retention times of 3.5 and 4.7 min, corresponding to ATL and NOR, respectively. As can be seen in Figure 6b, the other compound of interest, IBU, eluted at approximately 8.9 min.

The degradation of each pharmaceutical was monitored by obtaining EIC chromatograms at selected sampling times. Figure S4 shows the temporal evolution of the peaks in the EICs corresponding to ATL, IBU, and NOR. The peaks decrease over time under both dark and illuminated conditions, with a faster decline observed under illumination, consistent with the results obtained when treating the pollutants individually (Figure 3). These findings confirm the effectiveness of the anode for treating a mixture of pharmaceuticals, as the •OH generated during the process, along with other oxidants, exhibits non-selective reactivity toward all the compounds present in the mixture.

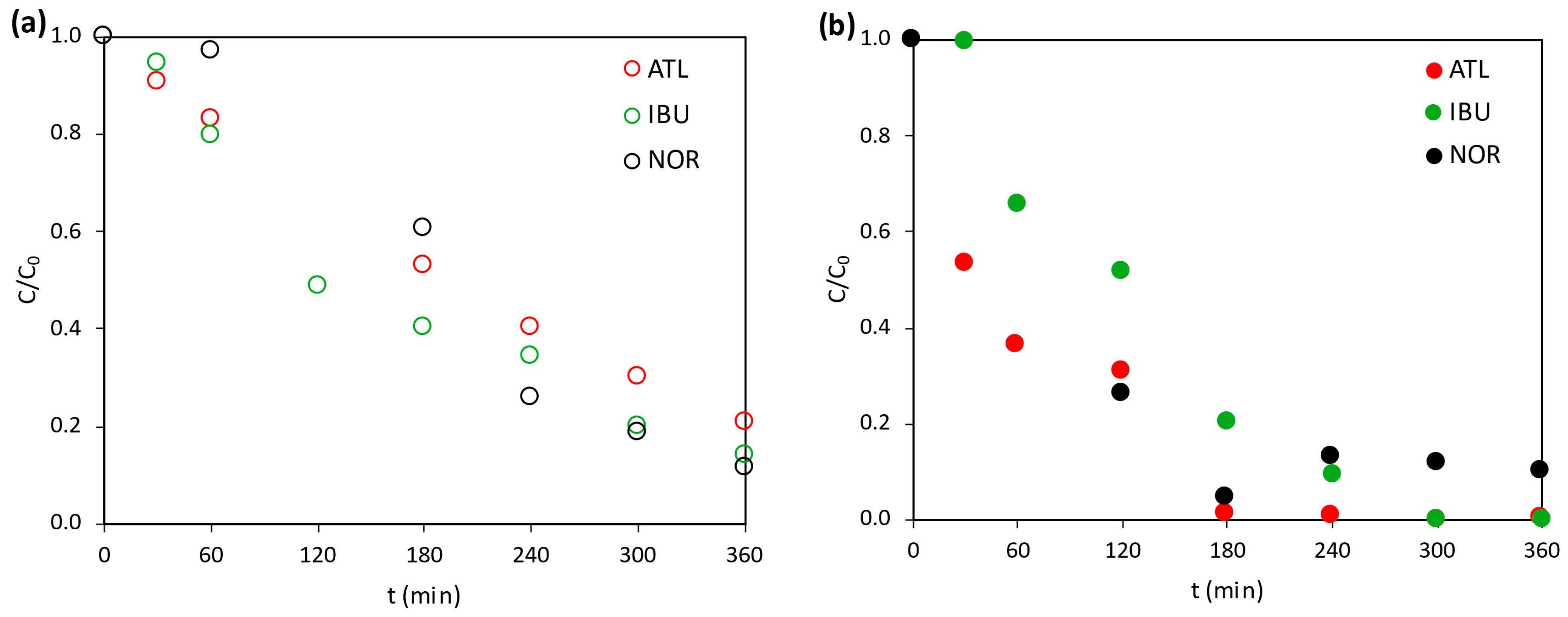

These observations are further substantiated by the results depicted in Figure 7, which illustrate the evolution of the relative concentrations of ATL, IBU, and NOR over time under dark (a) and illuminated (b) conditions. In the absence of light, ATL, IBU and NOR follow a similar trend, with a gradual decrease in concentration, reaching final degradation percentages of 79.4%, 86.3%, and 88.8%, respectively. This observation leads us to assume that their behavior in terms of reactivity toward •OH remains unchanged, even though the pharmaceuticals are treated as a mixture. As can be observed in Figure 7b, ATL and IBU undergo complete degradation (>99.0%), while NOR reaches a 90.0% degradation. The faster decomposition of ATL in the presence of light suggests an enhanced affinity of the pharmaceutical with the BiPO₄ photoactive layer, as previously observed when treating ATL alone (Section 3.2.1). Overall, the results demonstrate the improved performance of the photoelectrochemical system, particularly for compounds with lower reactivity in dark conditions.

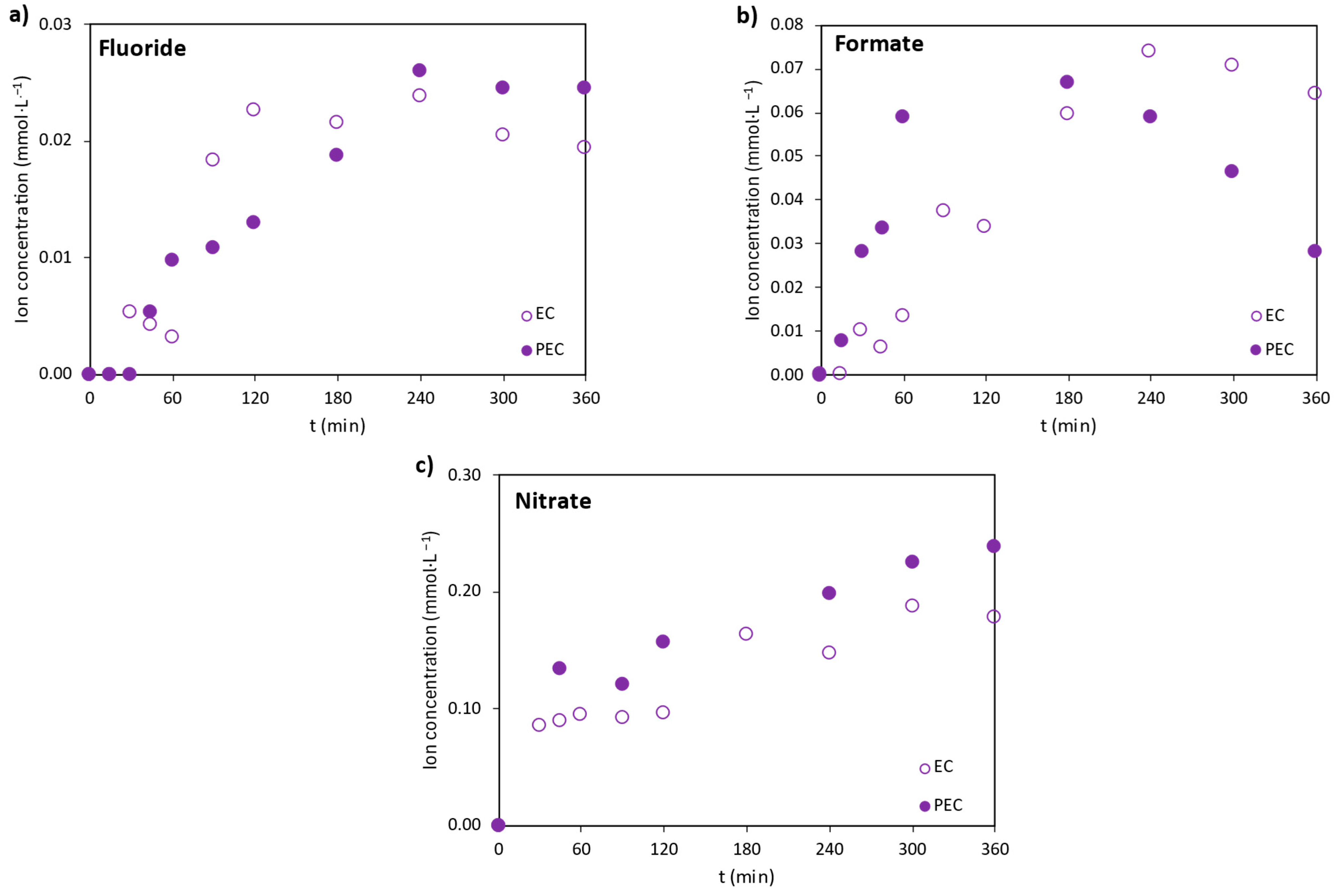

Ion chromatography was used to quantify inorganic ions formed during the degradation of the pharmaceutical mixture. This technique provides insight into transformation pathways, although some ions, such as nitrate, may originate from multiple compounds (e.g., ATL and NOR). In contrast, ions like fluoride are specific to certain pharmaceuticals (NOR) and serve as markers of their degradation. The concentration of ionic by-products increased over time during the initial stages of the experiment for certain ions (e.g., fluoride and formate) and continued to rise throughout the entire treatment period in the case of nitrate. This trend reflects the progressive transformation of the parent compounds. For fluoride (Figure 8a), a maximum concentration of approximately 0.025 mmol·L⁻¹ was reached in the early stages, followed by stabilization around this value. Interestingly, in the case of formate (Figure 8b), a different decrease in concentration was noted under illuminated conditions after 180 min of treatment. Beyond this point, the elimination rate of formate ions exceeds their generation rate, because of the oxidative action of photogenerated •OH, which promotes further mineralization of formate into carbon dioxide. This trend was also observed for other short-chain organic ions, such as acetate, detected during NOR elimination by electrofiltration [46]. Nitrate (Figure 8c) was detected under both dark and illuminated conditions, reaching measured maximum concentrations between 0.20–0.25 mmol·L⁻¹. The saturation values obtained are in coherence with stoichiometric maximum expected from the further oxidation of ammonium ions (calculated at 0.24 mmol·L⁻¹), formed during the decomposition of ATL (reaction (6)), and NOR (reaction (8)) to nitrate.

3.3.2. Mineralization

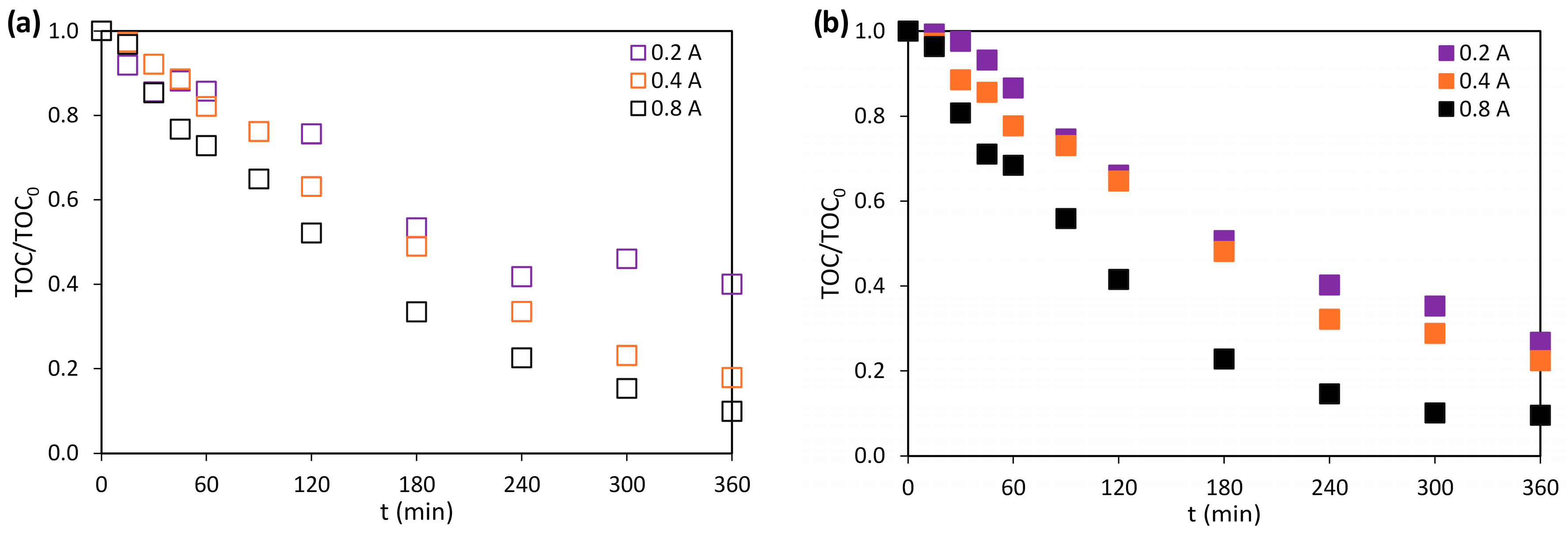

The effect of operating current was evaluated in the treatment of the mixture by obtaining the evolution of the TOC/TOC₀ parameter at 0.2, 0.4, and 0.8 A under dark (Figure 9a) and illuminated (Figure 9b) conditions. The TOC/TOC₀ parameter decreases over time for all conditions tested because of the increased number of oxidants generated when the operating intensity is higher. Final mineralization degrees in the absence of light reached values up to 60.0, 82.0, and 90.1% for operation intensity values of 0.2, 0.4, and 0.8 A, respectively. When light was applied, the contribution of photogenerated •OH in the reduction of TOC/TOC₀ parameter was more significant at 0.2 A. Proof of that is the final mineralization degrees achieved in the photoelectrochemical oxidation experiments: 73.2, 77.6, and 90.4% for operation intensity values of 0.2, 0.4, and 0.8 A, respectively. Although the photoelectrochemical characterization revealed an increase in photocurrent with higher bias potentials (Figure 1a), this enhancement was not reflected in the mineralization of the pollutants. It is likely that the contribution of photochemically generated •OH radicals to mineralization at 0.4 and 0.8 A was masked by the predominant electrochemical production of •OH at higher operating intensities.

3.3.3. Energy Consumption

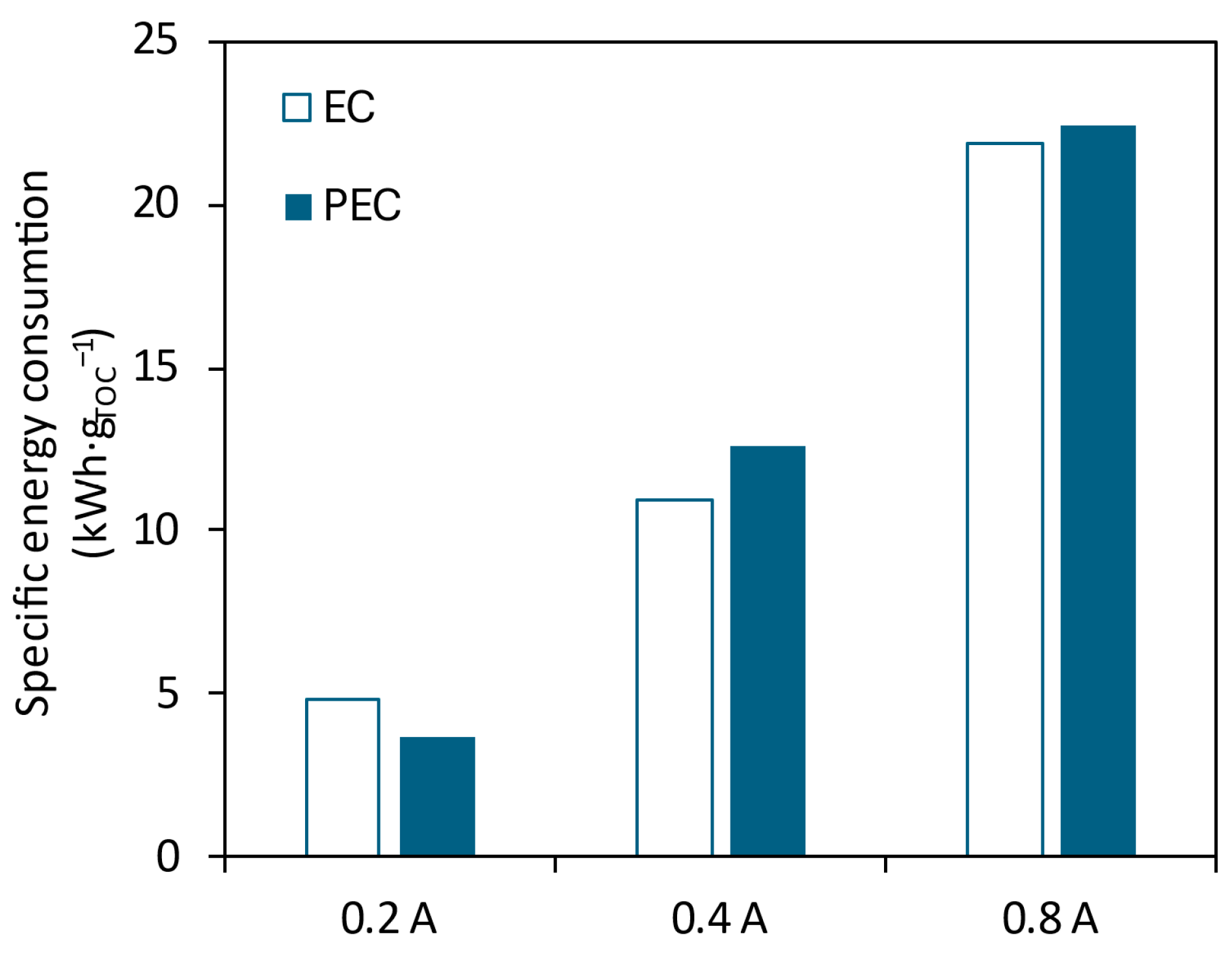

The specific energy consumption (Equation (4)) was determined for the treatment of the mixture containing the three pharmaceuticals in the absence and in the presence of light (Figure 10). The specific energy consumption value increases with operation intensity, both under dark and illuminated conditions, due to the increased cell voltage. This increased power supply to the system also translates into increased •OH generation, and with that, an increased mineralization. The results show that the increased power supply is not outweighed by increased mineralization when the operation intensity is higher. As per the effect of light, at 0.2 A, the specific energy consumption value is lower in the presence of light, which is due to the contribution to mineralization of the photogenerated radicals. As explained in Section 3.3.2, when the operation current is increased in the presence of light, no significant effect in terms of mineralization is observed, which results in slightly higher energy consumption values.

The results indicate that the photoelectrochemical treatment is more energy-efficient for the mixture at 0.2 A, due to the increased mineralization observed during the process (Figure 9). Additionally, it is crucial to find a correct balance between the power supplied to the system and the attained mineralization, to ultimately achieve a cost-effective photoelectrochemical process, where the use of light, preferably from sustainable sources such as solar energy, offsets the associated power consumption.

3.3.4. Comparison with a Commercial BDD Anode

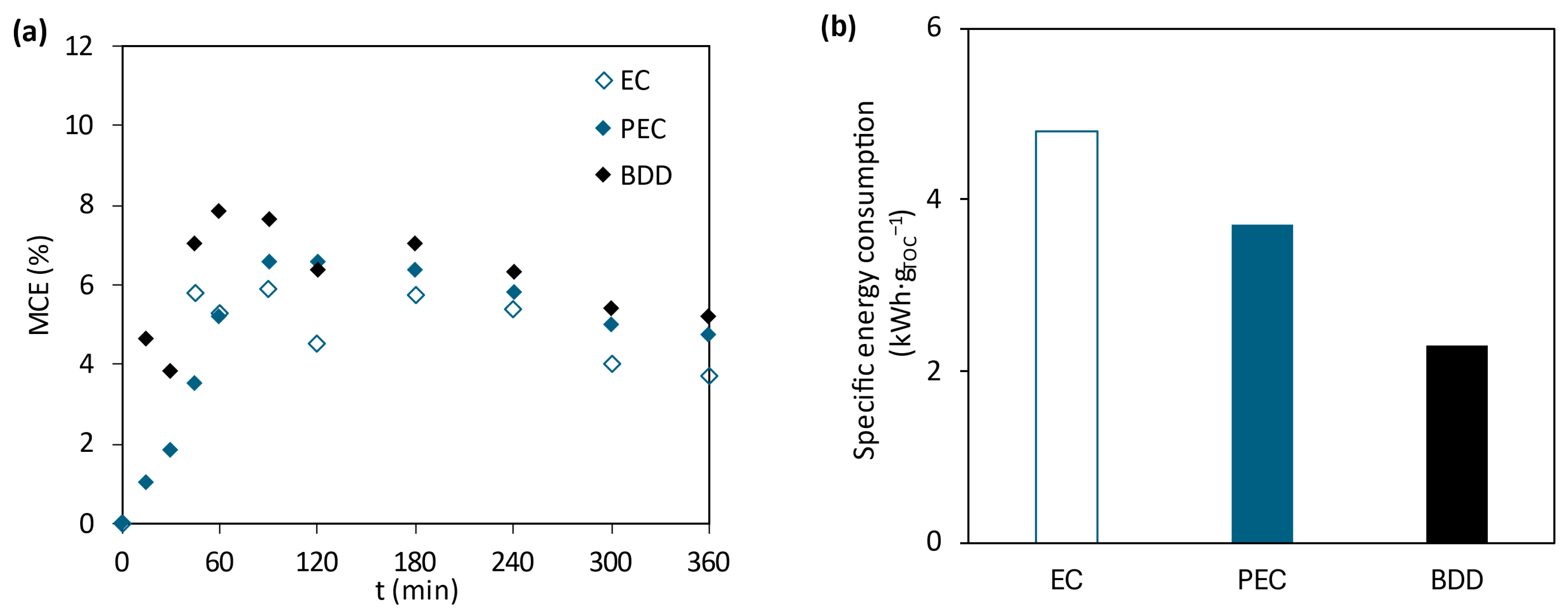

In this section, a comparison of the MCE parameter evolution and energy consumption is conducted between the Sb-doped SnO₂ ceramic electrode coated with BiPO₄ and a commercial BDD based on a previous study performed by the research group [24]. The evolution of the MCE parameter for the ceramic anode coated with BiPO₄ (in dark and illuminated conditions) and the commercial BDD anode is depicted in Figure 11a. The MCE values tend to converge toward similar final values, with a sharp increase during the first 30 min of the experiment, followed by a decrease and subsequent stabilization. The final MCE values attained were similar to those reported in the literature for pharmaceutical treatment when using the BDD or other metal-based anodes [47,48]. Higher MCE values were achieved with the BDD anode compared to the ceramic anode, both under dark and illuminated conditions. However, the difference of the MCE parameter is smaller between the BDD anode and the ceramic anode when light is applied, indicating that the ceramic photoanode exhibits similar efficiency as the BDD anode. The findings support the viability of the ceramic anode as a cost-effective alternative to BDD for the electrochemical treatment of pharmaceutical contaminants.

The specific energy consumption value was obtained for the selected materials, and their values are represented in Figure 11b. The BDD anode exhibits lower energy consumption, which can be attributed to its superior ability to generate weakly adsorbed •OH [49]. Since the energy consumption value is directly dependent on the cell voltage, Figure S5 displays the cell voltage values achieved for 0.2, 0.4, and 0.8 A. It is found that the specific energy consumption is directly dependent on the cell voltage. The average cell voltage increased with applied current for both materials, with a more pronounced rise for the ceramic photoanode, indicating more demanding operating conditions compared to BDD. The higher cell voltages reflect increased anode potentials, leading to greater energy requirements for the electrochemical oxidation process [50]. The enhanced oxidative capacity of the BDD anode leads to more efficient mineralization of pollutants and lower specific energy consumption values, as previously reported by other authors [51].

4. Conclusions

A ceramic material made of Sb-doped SnO₂ and coated with a photoactive layer of BiPO₄ was used in the electrochemical and photoelectrochemical depletion of ATL, IBU, and NOR, both individually and in a synthetic mixture. The performance of the material was evaluated for both types of treatment conditions, with the main findings summarized below:

• The photoelectrochemical characterization of the photoanode revealed an immediate photocurrent response upon illumination, which depended on both the applied bias potential and the light intensity, a behavior typical of semiconductor materials. Based on these results, the light intensity was selected and kept constant for the subsequent experiments.
• Degradation of individual pharmaceuticals showed significant improvement under illumination. Likewise, the mineralization of the solution was also enhanced with light exposure, though always lower than degradation for all pharmaceuticals under study, a fact that emphasizes the complexity of their degradation pathway. Photolysis tests confirmed that ATL, IBU and NOR are stable under light irradiation.
• In the pharmaceutical mixture, HPLC-MS analysis revealed that light exposure also improved removal efficiency. The amount of electrogenerated •OH increased with operation intensity, and with that, greater mineralization of the solution was observed. It was concluded that the effect of the photochemical generation of •OH on mineralization may be masked by its improved electrochemical production when operation intensity is increased.
• Overall, the BDD anode exhibits lower energy consumption. The ceramic material, when acting as photoanode (PEC), exhibits a significant reduction in energy consumption as compared to the EC experiments, reaching values closer to those of the commercial BDD anode.

In summary, the combined effect of current and light resulted in increased degradation and mineralization for both individual compounds and the mixture, confirming a synergistic interaction between electrochemical treatment and anode activation with light. The photoanode under study showed effective degradation and mineralization of both individual pharmaceuticals and their mixture.
