Prospect of Conductive Materials in the Anaerobic Digester Matrix for Methane Production: Electron Transfer and Microbial Communication
Abstract
:1. Introduction

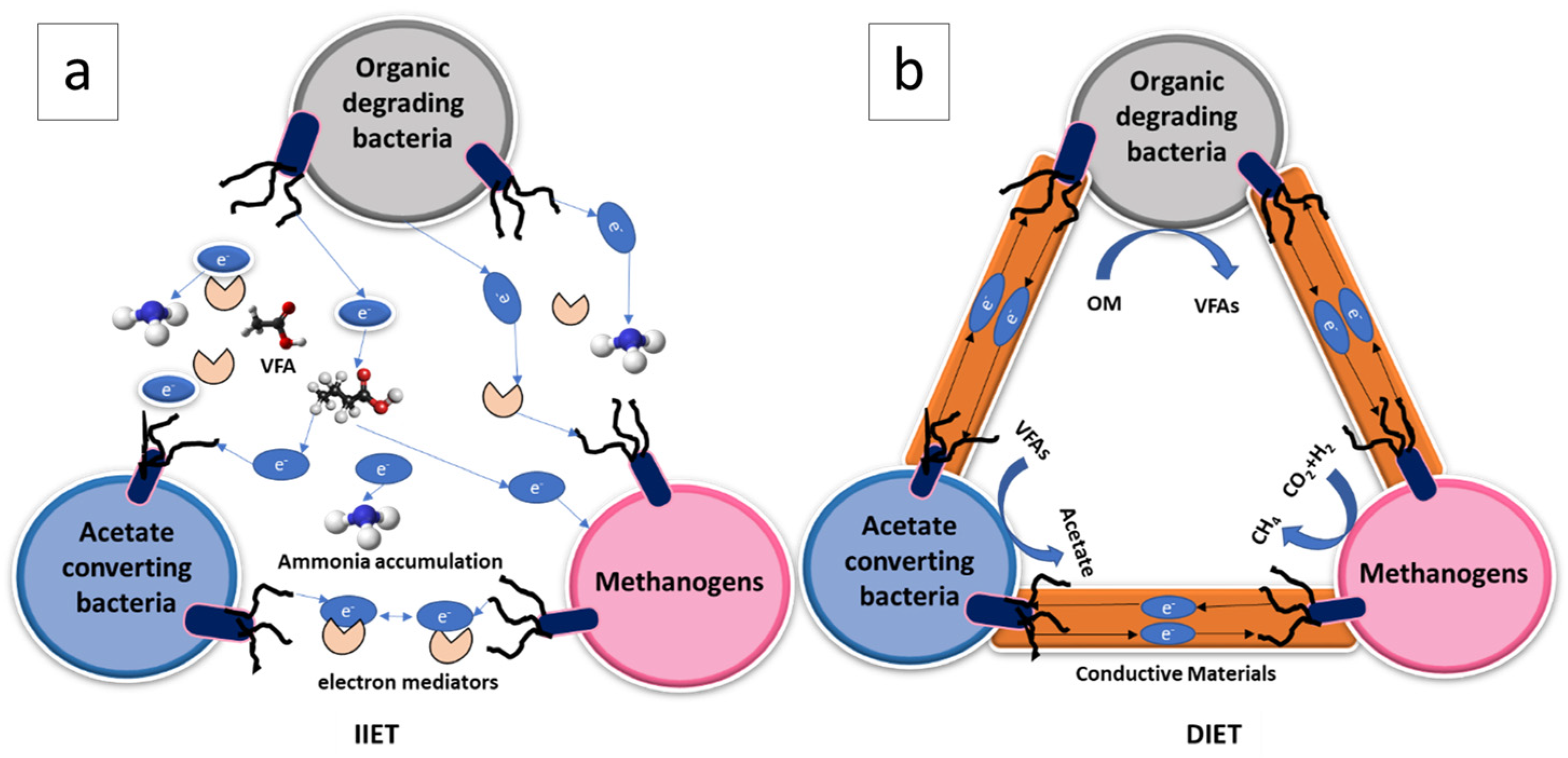

2. Role of Conductive Materials for Electron Transfer
2.1. Indirect Interspecies Electron Transfer
2.2. Direct Interspecies Electron Transfer

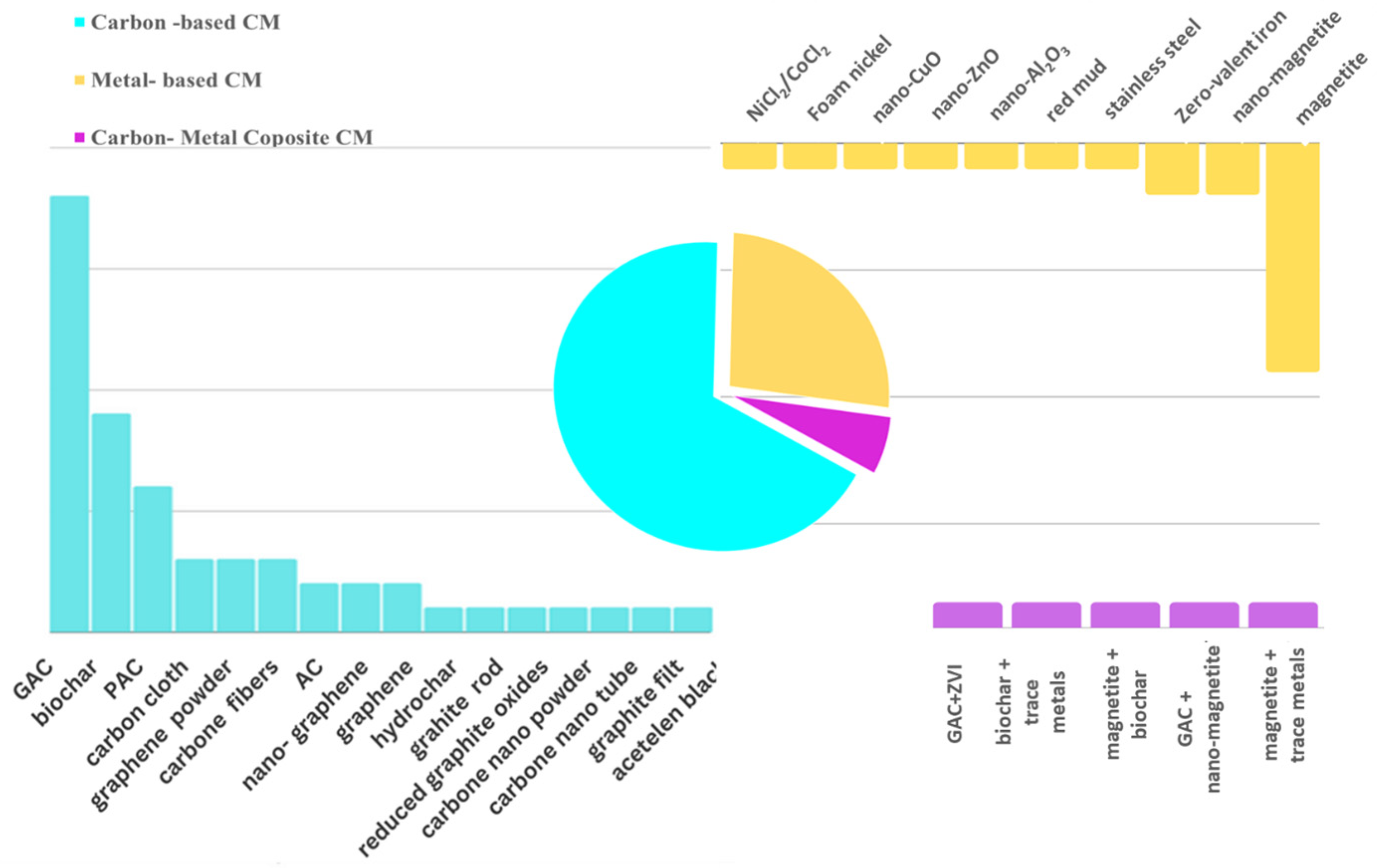

3. Types of Conductive Materials Applied in Anaerobic Digestion
3.1. Carbon-Based Materials
Material | Reactor | Substrate | Methane CH4 Production | % CH4 Increased | Ref. | |
---|---|---|---|---|---|---|
1 | GAC | UASB | Synthetic brewery wastewater | 60% | 60 | [12] |
PAC | 70% | 70 | ||||
2 | Graphite rods | UASB | Artificial wastewater | 23 mL | 10 | [65] |
Carbon cloth | 30 mL | 43 | ||||
Biochar | 28 mL | 33 | ||||
3 | GAC | Continuous-flow AD | Synthetic wastewater | 35.7 mL | 78 | [72] |
4 | GAC | TAD | Artificial dairy wastewater | 1232.5 ± 27.8 mL | 6 | [79] |
5 | Carbon nanotube | Batch | Glucose | 0.48 mL/g VSS | 44 | [80] |
GAC | 0.67 mL/g VSS. | 56 | ||||
6 | Graphene | Batch | Ethanol | 695.0 ± 9.1 mL/g | 25 | [41] |
7 | Biochar | Batch | Food waste | 92–110% of initial VFA | 12.8 | [69] |
8 | GAC | Batch | Nejayote wastewater | 26 L/kg VS | 34 | [70] |
9 | Biochar | Batch | Swine manure | 593.1 ± 50.4 mL | 39 | [81] |
10 | Carbon fibers | Batch | Propionate and butyrate | 800 mL | 100 | [82] |
11 | GAC | Batch | Acetic acid | 176.7 (±1.4) mL | 31 | [83] |
Ethanol | 168.9 (±1.6) mL | |||||
12 | GAC | Batch | Fat, oil, and grease | Max: 108 ± 11 L/kg VS | 50–80 | [71] |
13 | Graphite felt | ASBRs | Artificial wastewater | 537.1 ± 6.4 mL/d | 16.7 | [25] |
14 | Carbon fibers | Batch | Ethanol | 205 ± 32 mL/g sCOD | 50 | [64] |
15 | GAC | UASB | Raw incineration leachate | 0.27 m3/kg COD | - | [84] |
16 | PAC | Batch | Brewery spent yeast | 675 L/kg VS | 69 | [74] |
17 | Nano-carbon powder | Batch | Sewage sludge | 593.94 mL/g VS | 16.9 | [85] |
18 | AC | Pilot-scale reactor | Food waste | 413 ± 25 mL/g VS | 88 | [86] |
19 | Graphite powder | Batch | Glucose | 750.9 mL | −4 | [87] |
AC | 740.1 mL | −5 | ||||
20 | GAC | Batch | Kitchen waste lipid–rapeseed oil | 3300.6 nmol/L | 10 | [77] |
21 | GAC | Batch | Liquid swine manure | 23.6 ± 0.7 mL | 33 | [88] |
Raw swine manure | 165.7 ± 6.4 mL | 10.8 | ||||
22 | GAC | Batch | Rural wastewater | 16.7 mL | 23.4 | [89] |
23 | Acetylene black | Batch | Vinegar Residue | 94.0 ± 20 mL/g VS | 232 | [90] |
Hydrochar | 50.3 ± 18.5 mL/g VS | 76.8 | ||||
24 | Nano-graphite | Batch | Waste fat, oil, and grease | 168 mL | 14 | [78] |
GAC | 167.3 mL | 9 | ||||
Carbon cloth | 179.3 mL | 22 | ||||
25 | Biochar | Batch | Sewage sludge and food waste | 335.7 ± 7.1 mL/g VS | 23 | [91] |
26 | Carbon fiber | Batch | Synthetic glucose | 83 ± 3 mL/g COD | - | [92] |
27 | Biochar | Semi-continuous | Kitchen wastes | Max: 956.1 ± 65.7 mL | 42 | [93] |
28 | GAC | Batch | Synthesized blackwater | Max: 318 ± 28 mL/g COD | 8 | [94] |
PAC | Max: 229 mL/g COD | −1 | ||||
29 | Biochar | Batch | Chicken manure | 260 mL/g VS | 31 | [95] |
30 | Graphene oxide | Semi-continuous | MSW and sewage sludge | 0.211 NL/gVS | 13.4 | [46] |
Carbonnanotubes | 0.206 NL/gVS | 10.7 |
3.2. Metal-Based Materials
Material | Reactor | Substrate | Methane Production | % CH4 Increased | Ref. | |
---|---|---|---|---|---|---|
1 | Magnetite nanoparticles | Batch | Propionate | - | 12 | [109] |
CSTR | Butyrate | - | 22 | |||
2 | Magnetite (Fe3O4) | TAD | Artificial dairy wastewater | 939.6 ± 73.2 mL | 38 | [79] |
3 | Magnetite (Fe3O4) | ASBR | Tryptone-based high-strength wastewater | 70.8 ± 7.6 mL | 12.2 | [99] |
4 | Magnetite | ASBR | Fischer–Tropsch wastewater | 7.46 ± 0.24 L | [110] | |
5 | Red mud with 45.46% hematite | Batch | Waste activated sludge | 1.41 ± 0.02 mmoL/g VSS | 35.52 ± 2.6 | [111] |
6 | Magnetite | Batch | Fat, oil, and grease | Max: 72 ± 9 L/kg VS | [71] | |
7 | Nano-Al2O3 | Batch | Sewage sludge | 627.11 mL/g VS | 23.40 | [85] |
Nano-ZnO | 49.57 mL/g VS | −90.20 | ||||
Nano-CuO | 420.03 mL/g VS | −17.30 | ||||
8 | Foam nickel | Batch | Ethanol | Max: 94.5 mL/g | 14.50 | [27] |
9 | Zero-valent iron | Batch | Food waste | Max: 778.2 mL/g VS | [101] | |
10 | Magnetite | Batch | Glucose | 786.5 mL | 1 | [92] |
Iron(II) sulfate | 760.5 mL | −2 | ||||
12 | Fe3O4 | Batch | Antibiotic fermentation residue | 280 mL/g VS | 48 | [112] |
13 | Zero-valent iron | Batch | Sewage sludge and food waste | 272.6 ±11.0 mL/gVS | 45 | [91] |
Magnetite (Fe3O4) | 394.0 ± 6.3 mL/g VS | 16 | ||||
14 | Nano zero-valent iron | Batch | Artificial wastewater | 309.89 mL/g COD | 24 | [113] |
15 | Micron zero-valent Iron | Batch | Chicken manure | 276 mL/g VS | 31 | [95] |
Micron-magnetite | 288 mL/g VS | 37 | ||||
16 | Red mud | Batch | Kitchen waste | 75.31 mL/g VS | 201 | [14] |
3.3. Modified Conductive Materials
Material | Reactor | Substrate | Methane Production Without Modifications | Methane Production with Modification | % CH4 Increased | Ref. | |
---|---|---|---|---|---|---|---|
1 | GAC with nano-Fe3O4 (magnetic granular activated carbon) | Batch | Low-strength wastewater | 4.7 ± 0.2 mL | 57 | [119] | |
3.0 ± 0.4 mL, over a cycle | |||||||
2 | Biochar without trace metals | Batch | Food waste | 358.5 ± 21.2 mL/g VS | 8 | [102] | |
Biochar + trace metals | 386.6 ± 16.8 mL/g VS | 23 | |||||
3 | GAC and nZVI combined | Batch | Synthetic brewery water | __ | Cum: 122.16 mL/g COD | 14.29 | [121] |
4 | Magnetite—biochar | Batch | Artificial dairy wastewater | No biochar (54.4 mg/day) | 66.7 mL/day | 23 | [122] |
5 | ZVI/AC | Batch | Dichlorophen synthetic wastewater | 20 mL | 253.41 mL | 1167 | [15] |
6 | Biochar/ZVI | Batch | Chicken manure | 210 mL/g VS | 314 mL/g VS | 50 | [95] |
7 | g-C3N4/polyaniline * | Batch | Wastewater | 60.5 mL | 110 mL | 82 | [123] |
4. Operation Conditions Affecting Conductive Materials Performance
4.1. Effects of Sizes and Concentrations of Added Conductive Materials
Material | Dosage (mg/L) | Reactor | Substrate | Methane Production | % CH4 Increased | Ref. | |
---|---|---|---|---|---|---|---|
1 | Nano-graphene | 30 | Continuous-flow AD | Synthetic wastewater | 12.8 ± 0.4 mL/g VSS/d | 17 | [130] |
120 * | 51.4 | ||||||
2 | Powder activated carbon | 1000 | Batch | Primary sludge | 150.6 ± 1.3 mL/g VS | 10.8 | [106] |
15,000 * | 151.6 ± 1.3 mL/g VS | ||||||
20,000 | 146.9 ± 1.2 mL/g VS | ||||||
Graphite powder | 200 | 150.7 ± 1.5 mL/g VS | 13.70 | ||||
100 | 150.7 ± 1.4 mL/g VS | ||||||
500 | 149.0 ± 1.3 mL/g VS | ||||||
Magnetite | 50 * | ||||||
100 | 145.7 ± 1.3 mL/g VS | 9.7 | |||||
200 | 145.1 ± 1.3 mL/g VS | ||||||
140.4 ± 1.3 mL/g VS | |||||||
NiCl2/CoCl2 | 10/10 * | 137.2 ± 1.3 mL/g VS | −4 | ||||
100/100 | 102.8 ± 0.8 mL/g VS | ||||||
3 | Powder activated carbon | 2240 | Batch | Sewage sludge | 211 mL/g VS | 49 | [131] |
4480 | |||||||
11,210 * | |||||||
Powder graphene | 2240 | 195.7 mL/g VS | 7.80 | ||||
4480 | |||||||
11,210 * | |||||||
4 | Granular activated carbon | 10,000 20,000 * 30,000 40,000 50,000 | Batch | Wheat husk and sewage sludge | 263 mL/g VS | 22 | [59] |
GBC | 273 mL/g VS | 27 | |||||
5 | Granular activated carbon | 0/0.5/2 */4/ 8/16/25/33 | Batch | Lipid-rich wastewater (oleate) | 2980.7 ± 185.5 mg CH4 COD/L | 31 | [52] |
6 | Reduced graphene oxide | 10 20 * 30 | Batch | Municipal organic solid waste | Max: 816 ± 14 mL/gVS | 50 | [132] |
7 | Nano-sized magnetite particles | 4600 18,500 37,000 74,000 | TAD | Acetate | 0.96 mol CH4/mol acetate | 80 | [100] |
8 | Stainless steel | 200 500 * 800 | UASB | Artificial wastewater | 159.9 mL/d | 7.5 24.6 10.8 | [133] |

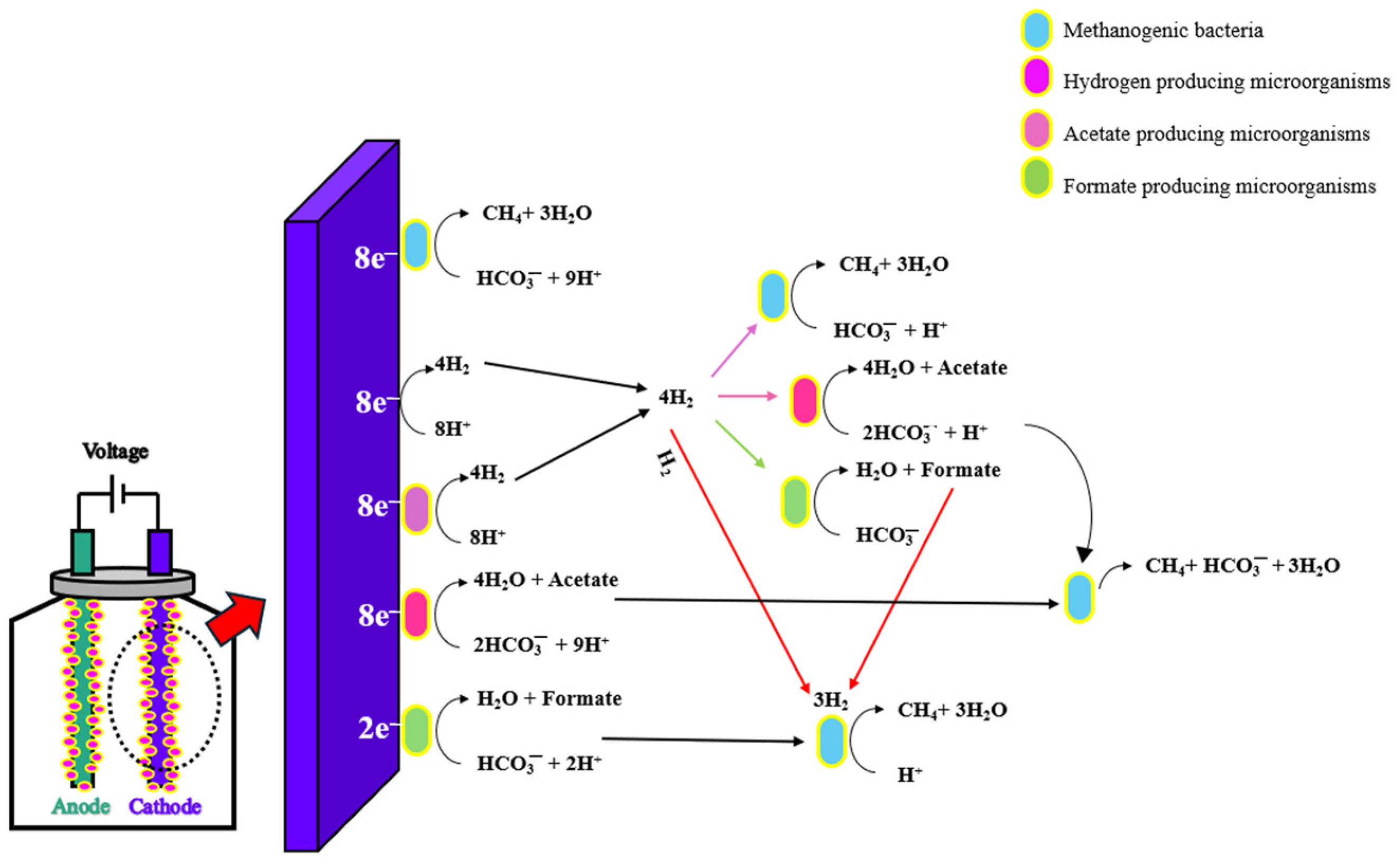

4.2. External Voltage Supply in Conductive Matrix and Methane Production Potential
4.2.1. Optimal Voltage Supply
4.2.2. Cathode Potential
BEAD (Process Type) | Feedstock | Operation Condition | Anode Material | Cathode Material | T (°C) | Power Mode (V) | Methane Content in Biogas | Ref. |
---|---|---|---|---|---|---|---|---|
Direct biochemical methanation Hydrogenotrophic/electromethanogenesis Hydrogenotrophic/electromethanogenesis | Synthetic substrate | (1) Single large brush without electrodes (FB) (2) Half large brush with 2 electrodes operated in a closed circuit (HB-CC) (3) Half large brush with 2 electrodes operated in an open circuit (HB-OC) (4) Two electrodes with a closed circuit and no large brush (NB-CC) | Carbon fiber brush | Stainless-steel brush | 35 | 0.8 | 253 ± 16 mL 240 ± 22 248 ± 15 232 ± 63 | [34] |
DIET DIET Hydrogenotrophic methanogenesis | Food waste Acetate H2/CO2 | Testing for SMA of AD, BEAD, with voltage and without voltage | Graphite carbon mesh coated with Ni | Graphite carbon mesh (metal catalyst) | 0.4 | 0.325 L/g 0.335 0.328 0.345 0.345 | [35] | |
Hydrogenotrophic methanogenesis | Swine manure | V (0.1–0.9), and opt is (0.7), then opt (0.7) with different temperatures (25–45) | Graphite felt | Graphite felt | 35 25 35 45 | - 0.7 0.7 0.7 | 2197 mL/L 2229 2993 3691 | [36] |
Acetate methanogenesis | Wastewater+ wheat straw | Different voltage supplies 0.02–0.12 V | Graphite | Graphite | 37 | 0.02 0.04 0.08 0.12 | 8270.28 ± 163.2 362.07 ± 480.2 16,349.17 ± 742.9 12,314.29 ± 626. 11,054.6 ± 480.6 | [38] |
Indirect methanogenesis via hydrogen and acetate | Mixed culture | Different cathode potentials −0.7 V and −0.9 V vs. NHE | Platinum-coated titanium mesh | Graphite felt | 31 ± 1 | −0.7 −0.9 | 5200 mL | [7] |
Hydrogenotrophic methanogen Acetate methanogenesis | Synthetic wastewater | R1 (control) R2 (graphene/PPy) R3 (MnO2 nanoparticles/PPy) at 3 phases P1 (0 V/20 C) (0.4 V/20 C) (0.4 V/12 C) | Graphite rod (Gr) | _ (Gr)/(PPy) MnO2 NPs/PPy | 20 20 12 | - 0.4 0.4 | R1 (10.2 ± 0.8) R2 (13.0 ± 1.8) R3 (14.3 ± 1.4) R1 (21.7 ± 0.5) R2 (27.2 ± 1.8) R3 (30.0 ± 1.1) R1 (12.3 ± 1.1) R2 (27.2 ± 1.8) R3 (17.1 ± 0.8) | [144] |
Hydrogenotrophic and H2-dependent methylotrophic methanogens | Food waste | R1 (1–364 d), OLR (2–3) R2 (365–598 d), OLR (4.0) R3 (599–795 d), OLR (6.0) R4 (796–950 d), OLR (8.0) R5 (951–1086 d) OLR (10) kg/m3·d | Graphite carbon mesh coated with Ni | Graphite carbon mesh coated with Ni (metal catalyst) | 35 | 0.5 | 18.6 ± 0.9 L/d 35.0 ± 2.6 52.6 ± 4.3 65.0 ± 4.3 75.8 ± 3.2 | [145] |
H2-dependent methylotrophic methanogens. Hydrogenotrophic methanogens. | Food waste | R1 (electrodes w/biofilm) R2 (electrodes w/biofilm) R3 (electrodes w/biofilm) R4 (electrodes w/obiofilm) | Graphite | Graphite | 35 | 0.3 | 62.1 ± 2.1 L/d 18.5 ± 2.8 13.0 ± 0.4 not produced | [146] |
H2-dependent methylotrophic and hydrogenotrophic methanogens | Food waste | R1 (2.0) kg-COD/m3. d R2 (3.0) R3 (4.5) R4 (6.0) | Stainless-steel SUS304 | Stainless-steel SUS304. | 19.8 ± 2.9 | 0.3 | 0.24 ± 0.07 L/d 0.34 ± 0.07 0.42 ± 0.12 0.15 L/d | [147] |
Indirect methanogenesis | Food waste | R1 (2) R2 (4) R3 (6) OLR (kg COD/m3. d) | GC coated with Ni | GC coated with Ni, Fe, and Cu | 35–37 | 0.5 | 16 ± 4.59 35 ± 3.87 53 ± 6.32 | [148] |
5. Critical Analysis of Conductive Materials Applications
6. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
