Decolourisation of a Mixture of Dyes from Different Classes Using a Bioreactor with Immobilised Pleurotus ostreatus Mycelium

Abstract

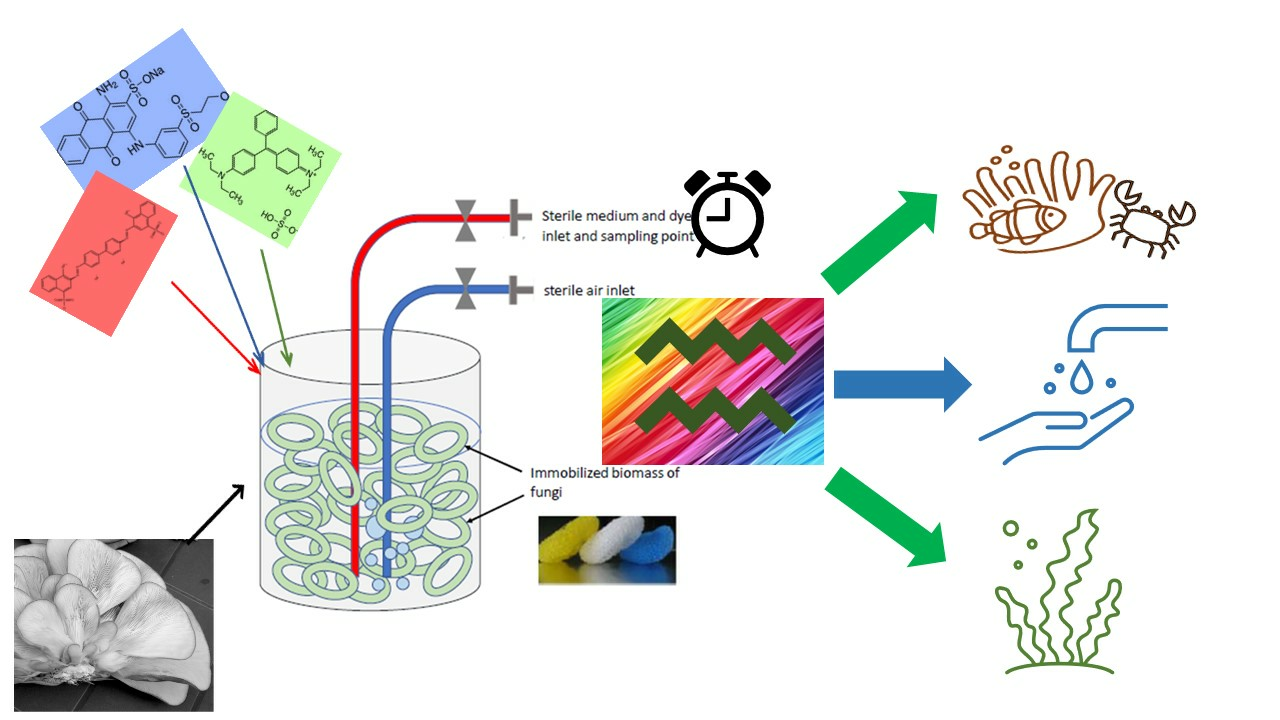

Dyes are widely used in various industries, but their removal from wastewater remains a challenge due to their resistance to biodegradation. While substantial research exists regarding the removal of individual dyes, there is much less about the removal of their mixtures. The aim of the research was to determine the possibility of using the immobilised mycelium of Pleurotus ostreatus strains to remove three-component mixtures of dyes from different classes. Efficiency of the removal in the continuously aerated reactor was similar to that obtained in a periodically aerated reactor and was over 90% at the end of each cycle. Despite the addition of subsequent portions of dyes, no increase in the toxicity of post-process samples was observed, and even a decrease in zootoxicity was noticed. The results of the study therefore indicate that an immobilised biomass can be used to remove the dyes, without the need to constantly inject air into the reactor.

1. Introduction

Dyes are widely used in various industries (production of clothes, fabrics, leather, paints, varnishes, cosmetics, pharmaceuticals, food, information duplication techniques, laser techniques or medical diagnostics, and even in microelectronics). Decolourisation studies are therefore of particular importance due to the prevalence of substances that change the colour of water under the influence of anthropogenic pressure. Removal of synthetic dyes is particularly difficult, as they are supposed to be non-biodegradable. The textile industry has particularly high requirements in this regard; on the one hand, the activity of microorganisms covering our skin cannot cause a change or loss in colour. On the other hand, dyes should be resistant to physical factors and other chemicals so that they do not lose colour during washing or drying [1].

Fungi are among the microorganisms capable of removing dyes. Different mechanisms may be used for different groups of fungi. For example, in yeast, decolourisation mechanisms include sorption, enzymatic degradation—i.e., biodegradation or biotransformation—as well as a combination of both processes [2]. The most frequently studied yeasts, which are attributed to sorption as the main mechanism, include Candida utilis, Kluyveromyces marxinus, Candida tropicalis, Debaryomyces polymorphus [2], Candida pseudoglabeosa, and Yarrowia lipolytica [3]. The enzymes responsible for the enzymatic degradation of dyes are produced by the following: Galactomyces sp., Geotrichum sp., and Debaryomyces polymorphus [2]. A combination of processes has been observed for Trichosporon akiyoshidainum [2] and Candida parapsilosis [3]. When it comes to biological degradation, it can occur, for example, in anaerobic conditions, as observed in Candida rugopelliculosa, or in aerobic conditions, as found for either Paraconiothyrium variabile or Candida tropicalis [2].

However, the main interest of researchers is focused on filamentous fungi, among which the best predisposition to decolourisation is attributed to white rot fungi [4,5,6,7].

To date, the ability to decolourise a large number of strains from this group has been tested. The best characterised species include Bjerkandera adusta, Phanerochaete chrysosporium, Trametes versicolor, Pleurotus ostreatus and Funalia trogii [4,5,6,8,9,10,11]. As mentioned by many researchers, the ability to remove dyes depends mainly on the type of enzymes produced by them, and in this case the so-called ligninolytic enzymes, which as low specificity exoenzymes are capable of transforming dyes of various structures. The most important and most frequently studied are lignin peroxidase (LiP), Mn-dependent peroxidase (MnP), laccase and versatile peroxidases (VPs) [5,6,9]. Of course, we cannot forget about the phenomenon of biosorption. According to the researchers, even 50% of the dye can be absorbed in the first few minutes, and a balance is established after about 10 h. Of course, the structure and concentration of the dye mainly determine the possibility and effectiveness of sorption, but one cannot forget about the reaction [2,12,13,14]. Most often, however, we deal with a combination of both processes [5].

There is a lot of information regarding the removal of individual coloured substances, but the situation is completely different when we consider mixtures of dyes. Particularly little is known about the decolourisation of mixtures of dyes from different groups and even less about the impact of the process on ecotoxicity. The aim of the research was to determine the possibility of removing three-component mixtures of dyes by the use of immobilised mycelium from two strains belonging to the Pleurotus ostreatus species. Zootoxicity and phytotoxicity of post-process samples were evaluated to check the influence of the process on the environment. The focus was on two different strains of one species to compare not only the efficiency of the process, but also the effect in the form of toxic or non-toxic impact on the environment because it is difficult to find such a comparison. Although there are many studies on different species of fungi in the process of removing dyes, it is mainly said that a given species removes and another does not remove contaminants. However, little is known about the potential to remove different xenobiotics of individual strains within one species. Therefore, based on previous experiences that showed that the efficiency of removing contaminants may be different for strains from the same species, and having strains isolated from different places, it was decided to make this type of comparison for Pleurotus ostreatus.

2. Materials and Methods

Decolourisation studies of the dye mixture were carried out in bioreactors with immobilised mycelium of K4 and BWPH strains belonging to the Pleurotus ostreatus species. Both strains came from the collection of the Department of Environmental Biotechnology of the Silesian University of Technology [13,15]. The BWPH strain was isolated with the tissue method from fruit bodies taken from a forest near Gliwice, and the K4 strain was isolated by the spore method (fruits collected in Ruda Śląska) [16].

2.1. Bioreactors

A polypropylene washer in the form of a disc was used as a biomass carrier. As was shown by the previous tests, the mycelium develops intensively throughout its space, allowing high efficiency of the decolourisation process [17,18]. The reactors contained 0.5 L of culture medium with the following components: 10 g/L of glucose, 1 g/L of peptone, 0.5 g/L of MgSO₄·7H₂O and 1 g/L of KH₂PO₄. The reactors were equipped with a probe for sampling and supplying successive portions of the medium and dyes, and with an aeration system. Both pipes were protected with a filter with a pore size of 0.45 µm in order to eliminate contamination of the bioreactors. Before introducing the mycelium into the bioreactors, they were autoclaved at 121 °C for 30 min. Then, mycelium grown on the same medium and homogenised (using a BagMixer® 400 P (stomacher)) was introduced (2 mL of suspension). Reactors prepared in this way were incubated for 7 days on a shaker (150 rpm, room temperature 22 °C), which allowed mycelium to develop on the surface of the carrier. Only after this were additional portions of the dye mixture and medium added to replenish nutrients. The dye mixture consisted of the following: Congo red (azo dye, CR), brilliant green (triphenylmethane dye, BG) and remazol brilliant blue R (anthraquinone dye, RBBR) mixed together in a weight ratio of 1:1:1. Two reactor modifications were prepared for each strain as follows: The first, a continuously aerated reactor, and second, a reactor which was aerated periodically (1000 mL of air was injected once a day. Air was supplied gently by syringe through a probe equipped with a syringe filter to reduce the possibility of contamination of the bioreactor). The autoclaved mixture of dyes was added in a sufficient amount to provide an initial concentration of 0.3 g/L in the first cycle. In subsequent cycles, due to the initial strong colour of the biomass, the decision was made to reduce the dose by half, i.e., to the level of 0.15 g/L. Decolourisation tests were carried out for 5 cycles of 7 days each. The studies were conducted using two parallel bioreactors for each modification in order to limit the possibility of the influence of factors such as temperature fluctuations, differences in the concentration of biomass introduced into the reactor, exposure to light, etc. Samples (2 mL) were taken every 24 h after adding the dye and an additional 4 h after adding the dye mixture. Absorbance measurements were made at wavelengths for which the maximum absorption of the dye was observed: 585 nm (RBBR), 617 nm (Congo Red), 622 nm (mixture of three dyes) and 624 nm (brilliant green). The analysis was carried out using a HITACHI U-1900 spectrophotometer (Panalytica sp. z o.o., Warsaw, Poland.).

2.2. Toxicity Assessment

At the end of each cycle, 50 mL samples were taken for zootoxicity and phytotoxicity tests. A zootoxicity test was performed with Daphnia magna (according to the OECD 202) and the lack of movement of the test organism was considered to be a toxic effect. The phytotoxicity evaluation was performed according to the OECD Lemna sp. growth inhibition test No. 221. EC50 value (effective concentration of a wastewater sample that causes 50% inhibition in tested organisms) was estimated and based on the acute toxicity unit (TUa) that was calculated (Tua = 100/EC50). All tests were conducted for each reactor separately. Samples were classified according to ACE89/BE2/D3 Final Report Commission EC (I class, TUa < 0.4—nontoxic; II class, 0.4 ≤ TUa < 1.0—low toxicity; III class, 1.0 ≤ TUa < 10—toxic; IV class, 10 ≤ TUa ≤ 100—high toxicity; and V class, TUa > 100—extremely toxic).

3. Results and Discussion

3.1. Removal of Dye Mixture in Bioreactor

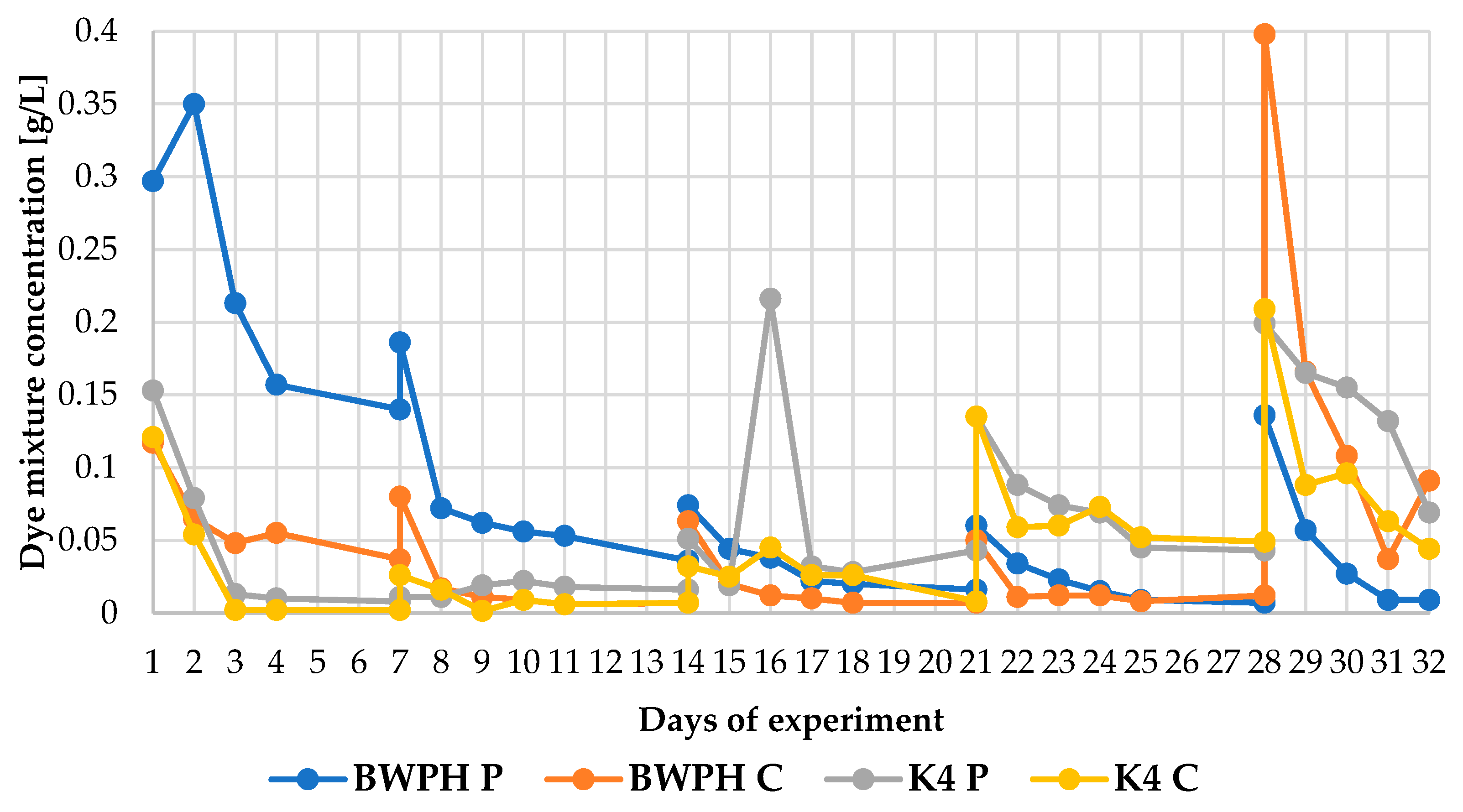

The results of the tests on the effectiveness of decolourisation of the dye mixture are presented in Figure 1 in the form of the concentration recorded in the reactors during the tests. These results refer to tests for the wavelength of 622 nm, but it should be noted that the trends obtained for the other tested wavelengths (waves of maximum absorbance for each of the dyes) were very similar and they are shown in the Supplementary Materials (Figures S1–S3).

On the first day of the experiment, immediately after the addition of dyes, high concentrations of the dye mixture (between 0.117 and 0.297 mg/L) were observed, accompanied by a strong colouration of the biomass in all reactors. Such results, when taking into account the fact that a dose of dyes of 0.3 g/L was added, suggest that in almost all reactors (reactor with biomass BWPH C and in both reactors with biomass of the K4 strain) intense sorption of dyes onto the mycelium occurred (dye mixture concentration was below 0.16 g/L). After 24 h from the addition of the dye (day 2), an intense decrease in colour was observed in almost all reactors (up to the level of 0.054 g/L). In the case of the BWPH P reactor, however, there was an increase in colour (up to 0.35 g/L). Such a phenomenon could be related to the desorption of dyes from biomass. It is necessary to mention that such a phenomenon (increase in colour, not a decrease) was noticed in previous studies for different strains including strains from Pleurotus ostreatus species [13,15]. As has been emphasised many times, it is believed that the first stage of dye decolourisation is sorption. It may be the only mechanism of dye removal, but is also one of the steps followed by biochemical changes [11,12,13,14].

During the first cycle of work of the reactors, it was evident that those with the BWPH strain worked much less effectively than those with the K4 strain. After 48h, regardless of the aeration system in both reactors with the K4 strain, the colour removal was almost complete (to the level of 0.008 g/L in the periodically aerated reactor and 0.002 g/L in the continuously aerated reactor). In the case of reactors with the BWPH strain, decolourisation was lower but the tendency was similar; a better decolourisation efficiency was obtained for the continuously aerated reactor (mixture concentration 0.037 and 0.14 g/L, respectively, for the continuously and periodically aerated reactor).

In the second reactor cycle (days 7 to 14), the addition of half the dose resulted in an increase in the colour of the medium, but not to the expected values of 0.15 g/L. Only in the case of the BWPH P reactor, the concentration of dyes was almost 0.2 g/L, which is close to the expected result. The aim of reducing the concentration of dyes was to preserve active fungal biomass. Very strong mycelium staining was still observed, and the addition of another, similarly large portion could cause the death of the biomass. In regard to the studied fungi, it is known that dyes are toxic and their tolerance depends on the concentration and type of dye [10,15,19,20]. It is worth emphasising that in the second cycle the reactors worked more stably, and on day 14 of the tests the concentration of the mixture was only 0.007 g/L in the BWPH C and K4 C reactors, and 0.016 and 0.036 g/L in the K4 P and BWPH P reactors. The total portion of dyes added to the reactors (calculated for both cycles) was already 0.45 g/L; it can therefore be assumed that such a high colour removal is related not only to sorption, but also to the phenomenon of the biochemical transformation of dyes. However, it is difficult to estimate the amount of both phenomena in the decolourisation process.

The participation of the sorption process in colour removal seems to be confirmed by the results obtained for the K4 strain in the 3rd test cycle and in subsequent ones. In the 3rd cycle of reactor operation, day 16 shows there was a significant increase in the colour of the medium, especially in the K4 P reactor (to levels > 0.2 g/L), followed by a further decrease in colour. This phenomenon was not observed in bioreactors with the biomass of BWPH strain. An increase in colour was noticed after decolourisation in the reactor with strain K4 continuously aerated. For both reactors with the K4 strain, the removal process slowed down significantly, and finally the dye mixture was removed to the level of 0.5 g/L. At the same time, in reactors with BWPH strain the concentration of dyes was reduced to the level of ~0.019 g/L. This indicates that in reactors with the BWPH strain, the process is based on the biochemical transformation, which also makes the process more stable. In the case of the K4 strain, the process can be mostly based on sorption, which causes its low stability. The last, fifth reactor cycle confirmed these observations. The reactors with the K4 strain worked less effectively than those with the BWPH strain. A significant increase in the colour of the substrate was observed after adding the fifth dose of the mixture of dyes, indicating the approaching exhaustion of the sorption capacity of the biomass of the K4 strain. The day 30 colour variations observed for these reactors seem to support this statement. The above-mentioned fluctuations in the concentration of dyes in the reactors confirm the sorption and desorption phenomena. Particularly large fluctuations in the concentration of dyes confirming the participation of sorption in the case of decolourisation with the participation of strain K4 confirm the changes observed in the graph for the wavelength of 585 corresponding to the Congo Red dye (Supplementary Materials Figure S1). For the BWPH strain, the decolourisation process is more stable over time, even if the biomass absorbs dyes.

In the case of bioreactors with BWPH mycelium, the process was stable in the periodically aerated bioreactor, allowing for the removal of dyes to the level of 0.009g/L. In the reactor with constant aeration, the final concentration of mixture was 0.10 g/L. High efficiency of the dye removal process was also obtained in the studies of Gonzalez and Gonzales-Martinez. They found that reducing oxygenation and thus reducing the concentration of dissolved oxygen in samples containing Direct Blue 2 resulted in better dye removal results [21].

As in the case of the presented research results, Kasinath et al. [22] also obtained high efficiency in removing the colour of industrial wastewater using Irpex lacteus. At the same time, it should be emphasised that the results of colour removal obtained using the BWPH and K4 strains are even better than those presented by several other authors. Mielgo et al. [23] used a bioreactor with a Phanerochaete chrysosporium strain immobilised on polyurethane foam to degrade poly R-478 in a nutrient-fed system with a pulsed air supply. It was possible to create a bioreactor that removed this dye with an efficiency of 80% even after 90 days of operation. The same species was used in a reactor tested by Pakshirajan and Kheria [24] to decolourise dilute industrial wastewater. Researchers reported that the efficiency of the process depended on the concentration of nutrients, but it was possible to obtain up to 83% colour reduction [24], which is a more unfavourable result than in the case of both tested strains of the Pleurotus ostreatus. In addition to the structure of the substances themselves, the source of carbon and nitrogen, their concentration and oxygenation conditions are always mentioned as some of the basic factors determining the effectiveness of the decolourisation process [25].

3.2. Ecotoxicity of Post-Process Samples

The results of ecotoxicity tests do not correlate with the efficiency of dye removal (

Table 1. Ecotoxicity evaluation of post-process samples of each bioreactor after 7 days from the addition of dyes.

			Zootoxicity		Phytotoxicity
Strain	Bioreactor Type	Cycle	EC50	TUa (Class)	EC50	TUa (Class)
BWPH	Periodically aerated (P)	1	21.3	4.7 (III)	3.7	27.0 (IV)
		2	18.4	5.4 (III)	3.7	27.0 (IV)
		3	30.8	3.2 (III)	1.7	58.8 (IV)
		4	22.8	4.4 (III)	1.8	55.6 (IV)
		5	28.8	3.5 (III)	1.8	55.6 (IV)
	Continuously aerated (C)	1	26.3	3.8 (III)	3.7	27.0 (IV)
		2	25.0	4.0 (III)	2.3	43.5 (IV)
		3	28.8	3.5 (III)	1.7	58.8 (IV)
		4	47.2	2.1 (III)	2.7	37.0 (IV)
		5	31.6	3.2 (III)	2.3	43.5 (IV)
K4	Periodically aerated (P)	1	1.2	83.3 (IV)	3.6	27.8 (IV)
		2	1.4	71.4 (IV)	2.3	43.5 (IV)
		3	2.3	43.5 (IV)	7.3	13.7 (IV)
		4	2.6	38.5 (IV)	2.3	43.5 (IV)
		5	2.6	38.5 (IV)	2.3	43.5 (IV)
	Continuously aerated (C)	1	1.8	55.6 (IV)	44.7	2.2 (III)
		2	2.6	38.5 (IV)	11.6	8.6 (III)
		3	3.4	29.4 (IV)	3.7	27.0 (IV)
		4	3.2	31.3 (IV)	4.3	23.3 (IV)
		5	3.2	31.3 (IV)	4.3	23.3 (IV)

). The high efficiency of decolourisation did not translate into a reduction in toxicity of test organisms. In the case of the first cycle of operations of the reactor with the mycelia of the BWHP strain, despite poor removal compared to reactors with the K4 strain, the post-process samples were classified as toxic (toxicity class III) in the tests with Daphnia magna and highly toxic (toxicity class IV) in the tests with Lemna minor. In the case of the K4 strain, which removed the mixture of dyes much more effectively than the BWPH strain, the post-process samples were classified as highly toxic to the animal organism (toxicity class IV) and toxic to the plant organism (toxicity class III). For samples from reactors with mycelium of the BWHP strain, and also in subsequent cycles, despite better efficiency of colour removal, no change in toxicity towards both test organisms was observed. All samples were classified as toxic in zootoxicity tests and very toxic in phytotoxicity tests.

The method of aeration also had no significant effect on toxicity. As is evident in the fifth cycle where samples from the continuously aerated reactor (BWPH C), in spite of a lower removal of dyes, were classified to the same toxicity classes as samples from the reactor operating better and more stably (periodically aerated reactor—BWPH P). It seems, however, that the mechanism of colour removal could be important for ecotoxicity, although no definite trends were observed. Only by comparing the results for both strains (BWPH and K4) can it be assumed that the high share of biotransformation in the processes of the elimination of dyes in the mixture contributed to the fact that the zootoxicity did not increase with subsequent cycles, and was lower for samples from reactors with mycelium of the BWPH strain (always third toxicity class) than in the case of reactors with K4 mycelium (always fourth toxicity class). However, the process with the BWPH strain yielded wastewater with lower zootoxicity than the process with the K4 strain.

In the case of phytotoxicity, no significant differences were noted. The lack of correlation between the efficiency of dye removal and changes in ecotoxicity has already been found in studies using the BWPH strain [12,13,15]. However, unlike in the aforementioned studies, in the case of the bioreactors discussed above, lower phytotoxicity and higher zootoxicity of post-process samples were noted. As the research results show, the mechanism of removal of the analysed mixture of dyes should be carefully assessed.

4. Conclusions

The research indicates significant differences in the efficiency of the process carried out by both tested strains, which confirms the need for the appropriate selection of the strain used. It was found that the main mechanisms (sorption/biotransformation) used by both strains are different, which determines the stability of decolourisation. Undoubtedly, the BWPH strain removed dyes better than the K4 strain. In bioreactors, regardless of the strain or aeration method used, the mixture of dyes was eliminated by more than 90%. Despite the initially poor efficiency of decolourisation in periodically aerated reactors in subsequent test cycles, good results of colour reduction were obtained, and this allowed for a reduction in the cost of the process. The obtained research results are extremely promising, indicating the possibility of using a similar system during the initial treatment of wastewater containing dyes, but focusing only on the BWPH strain under periodic aeration conditions. This type of research should be continued and focused, among others, on the optimisation of the process, especially in terms of reducing the toxic impact on aquatic ecosystems.
