Article

Research on the Relationship between Eukaryotic Phytoplankton Community Structure and Key Physiochemical Properties of Water in the Western Half of the Chaohu Lake Using High-Throughput Sequencing

by
Bingbing Zhao
1,2,*,
Wei Peng
2,
Xinhao Zhu
2,
Hua Zhang
1,2,
Xingmei Zhuang
2,
Jinhua Wang
1,2,
Shanshan Xi
1,2 and
Tao Luo
2
1
Anhui Institute of Ecological Civilization, Anhui Jianzhu University, Hefei 230601, China
2
School of Environment and Energy Engineering, Anhui Jianzhu University, Hefei 230601, China
*
Author to whom correspondence should be addressed.
Water 2024, 16(16), 2318; https://doi.org/10.3390/w16162318
Submission received: 24 July 2024 / Revised: 11 August 2024 / Accepted: 16 August 2024 / Published: 18 August 2024
Browse Figures
Versions Notes

Abstract

:
Eukaryotic phytoplankton play a major role in the circulation of material and energy in a lake’s ecosystem. The acquisition of information on the eukaryotic phytoplankton community is extremely significant for handling and regulating the ecosystems of lakes. In this study, samples were collected from the western half of Chaohu Lake in the summer and winter periods. Analyses revealed that the eukaryotic phytoplankton in this region comprised 70 genera, 34 orders, and 7 phyla. There were 61 genera, 29 orders, and 7 phyla in summer, and 25 genera, 14 orders, and 5 phyla in winter. The dominant genus was Chlamydomonas of Chlorophyta in summer. In contrast, the dominant genus was Mychonastes of Chlorophyta in winter. The diversity index analysis revealed that the eukaryotic phytoplankton community exhibited greater fluctuation in the summer than in the winter. Moreover, analysis of the physiochemical properties of the water samples showed considerable spatial and temporal differences in the water quality. This paper focusses primarily on analysing the influence of the physiochemical properties of water on the eukaryotic phytoplankton community. In particular, the effects of the major physicochemical properties of water on the community evolution of eukaryotic phytoplankton classes were evaluated using the redundancy analysis method. The findings demonstrated that total phosphorus (TP), PO4−-P, NH4+-N, and total nitrogen (TN) were the primary influencing factors in summer, whereas NO3−-N, DO, and water temperature (WT) were the major influencing factors in winter. Subsequently, the Mantel test revealed that the phylum level of the eukaryotic phytoplankton community was significantly correlated with WT, DO, NH4+-N, TN, TP, and Chlorophyll a. Variance partitioning analysis indicated that seasonal factors accounted for a large proportion of the variation in the eukaryotic phytoplankton community, reaching 48.4%. Subsequently, co-occurrence network analysis demonstrated that most families of eukaryotic phytoplankton were facilitated mutually, with the proportion of promotion being 94.1%. This study provides insight into the crucial factors that influence the phytoplankton communities and a reasonable control direction for the positive evolution of the eukaryotic phytoplankton community in the western half of Chaohu Lake.

1. Introduction

The ecosystems of lakes play crucial roles in maintaining the stability of regional and global ecosystems. They also serve as regulators of climate change and play a vital role in water supply, agricultural irrigation, ecological habitats, landscaping, and flood control [1]. However, these ecosystems are facing accelerated lake eutrophication due to industrial and agricultural development accompanied by rapid urbanisation. This has ultimately increased the frequency and severity of algal blooms to some extent [2]. Algal blooms may severely and negatively affect biodiversity in water ecosystems, impacting surface water safety. Eutrophication and algal blooms have emerged as global concerns [3]. Chaohu Lake is located in the lower reaches of the Yangtze River. It is the fifth-largest freshwater lake in China and is considered to be a precious, valuable lake [4]. However, Chaohu Lake is also one of the three top eutrophication lakes in China; it has garnered widespread attention worldwide, along with Tai Lake and Dian Lake [5]. Because the western half of Chaohu Lake is close to Hefei City and receives abundant industrial and municipal wastewater, eutrophication of the lake gradually intensifies from east to west [6].
As a leading producer in water ecosystems, phytoplankton accounts for 50% of global net primary productivity. They play vital roles in material circulation and energy flow in aquatic ecosystems [7,8,9,10]. Moreover, phytoplankton are more sensitive to environmental changes in water than other organisms. Hence, the abundance of phytoplankton can be used as an essential biological index to reflect water conditions [11,12]. Phytoplankton might be affected by multiple factors in water ecosystems. For example, N, P, and other nutrients in water may have crucial effects on phytoplankton [13,14]. Water temperature (WT) can influence the mutual competition among phytoplankton and indirectly affect the diversity of phytoplankton [15]. Aside from water quality factors, extreme weather and human activities may also impact phytoplankton communities to a certain extent [16]. Moreover, biology [17], climate hydrology [18], geography, environment [19,20], and other factors may affect the dynamic variations in phytoplankton communities.
The regulation of phytoplankton is increasingly complicated because of the mutual impacts of various influencing factors. Hence, studying the relationships between multiple environmental factors and the phytoplankton community is crucial for the governance of lake ecosystems [21]. To address the phytoplankton issue in Chaohu Lake, many scholars have thoroughly examined the Cyanophyta community; however, there is insufficient research on other eukaryotic phytoplankton [22,23]. Moreover, early studies mainly examined the phytoplankton community using a microscope; as a result, many microplankton species, which are difficult to distinguish with respect to morphology, may have been neglected. Thus, this study monitored the eukaryotic phytoplankton community of Chaohu Lake via high-throughput sequencing [24]. Thus, this study addressed the limitations of previous studies with the ability to investigate micro-eukaryotic phytoplankton in Chaohu Lake. This research focussed on the relationships between eukaryotic phytoplankton and the physicochemical properties of the lake water and offsets shortages of previous studies on eukaryotic phytoplankton. Due to the unique geological position of the west half of Chaohu Lake, the division of the study area along the banks is next to the wetland, and the peripheral regions cover urban and rural areas as well as 7 rivers in the jurisdiction. There are many types of nutrient substances in water, mainly including NH4+-N, NO3−-N, total nitrogen (TN), PO4−-P, total phosphorus (TP), and so on. A survey on the west half of Chaohu Lake was carried out in the present study. The specific research objectives were as follows: (1) To analyse the effects of multiple environmental factors on the dynamic changes in the eukaryotic phytoplankton community. This analysis can facilitate the development of a mutual constraint relationship model between the physiochemical properties of the water and the eukaryotic phytoplankton. The findings are expected to inform control schemes for different phyla and genera of eukaryotic phytoplankton in Chaohu Lake. (2) To determine the key eukaryotic phytoplankton in the community via co-occurrence network analysis and examine their inter-relationships. It was expected that these findings would inform the development of appropriate genetic engineering projects and provide references for the application and promotion of 18S rDNA to aquatic ecological environmental monitoring.

2. Materials and Methods

2.1. Study Area

Chaohu Lake is located in Anhui Province, Eastern China (E:117°16′~117°51′, N:31°25′~31°43′). It is a subtropical shallow lake with a water area of 780 km2 and an average depth of 3 m. The local climate is affected by the East Asian monsoon, and there are four distinctive seasons [25]. A total of 10 sampling points were established in the study area to explore the water quality and eukaryotic phytoplankton community features in the western half of Chaohu Lake. These points were divided into Group A (sampling points 1–5) and Group B (sampling points 6–10) according to the intensity of human activities. Sampling points in Group A were close to urban areas and were significantly affected by human activities. Specifically, points 1–5 were located in Zhongmiao, Nanfei River, Shiwuli River, Tangxi River, and Pai River. The sample points in Group B were far away from urban areas and were less impacted by human activities. Specifically, points 6–10 were located in Gushan, Hangbu River, Baishitian River, Zhao River, and Mushan Island. Figure 1 depicts the distribution of the sampling points.

2.2. Sample Collection

The samples were collected in August 2022 (summer) and February 2023 (winter). A total of 10 sampling points were set in the study area in the winter and summer, respectively. Water samples and phytoplankton samples were collected. The locations of the sampling points were kept consistent (Figure 1). Water samples of 2 L were collected with glass water samplers 0.5 m below the water surface to analyse the physiochemical properties of the water. Moreover, eukaryotic phytoplankton community features were identified. A piece of No.25 plankton filter screen with a mesh diameter of 64 μm was dragged in a “∞” motion 0.5 m below the water surface in order to collect the eukaryotic phytoplankton in the water body. The concentrated samples were placed into centrifuge tubes and brought back to the laboratory in a refrigerated container. In the laboratory, the water samples were filtered using a cellulose acetate fibre filter membrane (Shanghai Xingya Purification Material Plant, Shanghai, China, diameter: 50 mm; pore size: 0.22 μm) to collect the eukaryotic phytoplankton. The filter membrane was placed in a centrifuge tube and kept in a liquid nitrogen tank for subsequent high-throughput sequencing.

2.3. Test of Physicochemical Factors and Chlorophyll a Concentration

Water temperature (WT), pH, and dissolved oxygen (DO) were tested at the sampling sites using a multi-parameter water quality analyser (Hach, HQ2100). The collected water samples were poured into polyethylene bottles and brought to the laboratory in dark conditions. The concentrations of ammonia nitrogen (NH4+-N), nitrate nitrogen (NO3−-N), total nitrogen (TN), phosphate (PO4−-P), total phosphorus (TP), and Chlorophyll a (Chl.a) in the water samples were tested [26,27]. The Chl.a concentration was tested by the acetone method [27] using an ultraviolet spectrophotometer (Beijing Purkinje GENERAL Instrument Co., Ltd, Beijing, China, Puxi TU-1950). Specifically, water samples (0.3 L) were filtered with a glass fibre filter membrane (Shanghai Xingya Purification Material Plant, Shanghai, China, diameter: 50 mm; pore size: 0.45 μm), and the filter membrane was then ground using 90% acetone. A constant volume of 15 mL was established, followed by 6 h immersion and extraction. The supernatant was collected in a cuvette after centrifugation. A 90% acetone solution was used as the reference solution, and the absorbance was tested at wavelengths of 750 nm, 664 nm, 647 nm, and 630 nm. The formula for calculating the Chl.a concentration was as follows:
ρ 1 = 11.85 × A 644 − A 750 − 1.54 × ⁡ A 647 − A 750 ) − 0.08 × ( A 630 − A 750 )
ρ = ρ 1 × V 1 V
where ρ1 is the Chl.a concentration of the sample (mg·L−1), A750 is the absorbance of the sample at 750 nm, A644 denotes the absorbance of the sample at 644 nm, A647 is the absorbance of the sample at 647 nm, A630 is the absorbance of the sample at 630 nm, ρ is the Chl.a concentration in the water (μg·L−1), V1 is the constant volume (mL), and V refers to the volume of the filtered water sample (L).

2.4. DNA Extraction and Sequencing of Plankton

Nucleic acid was extracted with a DNA extraction kit using the TGuide S96 paramagnetic particle method. The extracted nucleic acid concentration was tested by ELISA (Synergy HTX, Gene Company Limited, Hong Kong, China). Electrophoresis of the amplified polymerase chain reaction (PCR) products was conducted using agarose with a concentration of 1.8%, and the integrity was tested. PCR amplification and sequencing were based on the V4 interval of the 18S rDNA. F:CCAGCASCYGCGGTAATTCC and R:ACTTTCGTTCTTGATYRA were used as primers, and the amplification system was 10 μL. The amplification programme was as follows: pre-denaturation for 5 min at 95 °C, 25 cycles (denaturation for 30 s at 95 °C, annealing for 30 s at 50 °C, and extension for 40 s at 72 °C), and finally, extension for 7 min at 72 °C. The built library was sequenced on an Illumina Novaseq6000 platform (novaseq6000, Illumina, San Diego, CA, USA).

2.5. Sequencing Control and Data Analysis

First, the raw reads were filtered using Trimmomatic 0.33 software. Next, the primer sequences were recognised and eliminated using cutadapt 1.9.1 software. Then, the reads were spliced, and the chimaera was eliminated using USEARCH 10.0. Finally, clean reads were collected for subsequent analysis. The sequences were clustered using USEARCH 10.0 at a similarity level of 97% to obtain the OTUs. The sequencing results and the Silva 138 database were compared. Taxonomic annotation of characteristic sequences was performed using the Naive Bayes classifier, thus obtaining species taxonomic information corresponding to each characteristic. In total, 20 samples were collected in the summer and winter. A total of 1,594,142 pairs of reads were obtained following the amplified sequencing of the V4 interval of 18S rDNA. The quality of double-end reads was controlled and spliced, producing a total of 1,402,904 clean reads. Each sample produced at least 51,468 clean reads.
After yielding sufficient OTUs, the α diversity of the eukaryotic phytoplankton community was calculated using the vegan package of the R(4.3.1) language, including the Shannon–Wiener index and Pielou index. The eukaryotic phytoplankton diversity at different points was analysed. Moreover, the diversity index was used to ascertain the water quality, determining the boundary value and corresponding water quality conditions [28,29]. The details are listed in Table 1. Meanwhile, the dominance index (y′) was calculated according to the following formula:
y ′ = P i ⋅ f ⅈ
where Pi is the proportion of individual species i among the total individuals and fi is the frequency of occurrence of species i at different points [28,29].
All parameters were subjected to a lg (x + 1) transformation to achieve normal distributions. Significant differences in the physiochemical properties of the water samples in the different groups were analysed using analysis of variance (ANOVA). IBM SPSS Statistics 26 software was used to perform the analyses. Principal component analysis (PCA) of the physiochemical properties of the water samples in the different groups was conducted to obtain the sample point distribution characteristics of the physiochemical properties at the different sampling points. The inter-group differences in the physiochemical properties were analysed by PERMANOVA. These analyses were performed using the R(4.3.1) language vegan package.
Co-occurrence network analysis using eukaryotic phytoplankton relative abundance data. Co-occurrence network analysis was performed using the R(4.3.1) language psych package and Gephi 0.9 software to examine the co-occurrence relationships between the eukaryotic phytoplankton.
Based on the physicochemical properties of the water and the relative abundance data of the eukaryotic phytoplankton, detrended correspondence analysis (DCA) and redundancy analysis (RDA) were performed using Canoco 5 software to analyse the relationships between the relative abundance of the eukaryotic phytoplankton classes and the physiochemical properties of the water. When the calculation gradient is higher than 4, canonical correlation analysis (CCA) is applied. When the calculation gradient is between 3 and 4, both RDA and CCA are optional. When the calculation gradient is lower than 3, RDA is applied [11]. According to DCA results, the maximum first-axis lengths in summer and winter were 0.98 and 1.25, both of which were lower than 3. Hence, RDA was applied to investigate the influences of the physicochemical properties of the water on the class evolution of the community. The Mantel test was performed using the R language vegan, linkET, dplyr, and ggplot2 packages to examine the influences of the physicochemical properties on the eukaryotic phytoplankton classes. Variance partitioning analysis (VPA) was performed using the R(4.3.1) language vegan package to examine the contributions of environmental factors, seasonal changes, and human influences to changes in the eukaryotic phytoplankton community.

3. Results

3.1. Spatial and Temporal Differences in Physiochemical Factors of Water

Figure 2 illustrates the variations in the physiochemical properties of the water. Specifically, Group A and Group B in summer, as well as Group A and Group B in winter, represent water samples collected at sampling points of Group A and Group B (Figure 1) in summer and winter, respectively, which were denoted as Summer A, Summer B, Winter A, and Winter B. Seasonal changes may influence the physiochemical properties of water to some extent. Here, WT and DO fluctuated significantly in the different seasons (p < 0.01). Human activity may also affect the physiochemical properties of water to a certain extent. Here, there were extremely significant differences in NH4+-N and TN between Summer A and Summer B (p < 0.01). NO3−-N differed significantly between Winter A and Winter B (p < 0.01). In the study area, PO4–-P and TP exhibited no significant differences among the different groups. The average maximum concentrations of NH4+-N, TN, TP, and Chl.a in Summer A were 0.90 mg·L–1, 2.87 mg·L–1, 0.12 mg·L–1, and 109.81 μg·L–1, respectively. The average concentration of NO3−-N in Winter A was the highest, and the average concentration of DO in Winter B was the highest.
A PCA of the physiochemical properties of the four groups of water samples was conducted. The results are presented in Figure 3. If the straight distance between the coordinates of two points is shorter, there is a smaller difference in the physiochemical properties of the water. According to the PCA results, two factors accounted for 70.9% of the variation in the water quality. The physicochemical properties of the water, such as the TN concentration, TP concentration, and WT, were positively related to the PCA factors to some extent, while DO was negatively related to the PCA factors. With respect to the distribution of the sampling points, the physicochemical properties of the water at all sampling points were within the 95% confidence interval. In summer, the sampling points were concentrated in the first and fourth quadrants, whereas they were concentrated in the second and third quadrants in winter. A PERMANOVA was conducted due to the overlapping of the confidence intervals of the different groups after PCA. According to the analysis, the physiochemical properties of the water in the four groups were significantly different (R2 = 0.793, p = 0.001). An inter-group analysis of the four groups was performed. The findings are shown in Table S1. Differences were observed among the different groups.

3.2. Structure of the Eukaryotic Phytoplankton Community

In this study, a total of 70 genera, 34 orders, and 7 phyla of eukaryotic phytoplankton were detected. Among them, 61 genera, 29 orders, and 7 phyla of eukaryotic phytoplankton were detected in the summer, whereas 25 genera, 14 orders, and 5 phyla of eukaryotic phytoplankton were detected in the winter. The diversity index variation in eukaryotic phytoplankton is presented in Table 2. The mean Shannon diversity index of Summer A, Summer B, Winter A, and Winter B was 1.97, 1.83, 1.88, and 1.89, respectively. The maximum mean was observed in Summer A. The mean Pielou diversity index of the four groups was 0.78, 0.76, 0.84, and 0.84, respectively. Both the Shannon diversity index and the Pielou diversity index fluctuated more significantly in the summer than in the winter.
The seasonal and inter-group differences in the phyla of the eukaryotic phytoplankton are shown in Figure 4a. The results indicate that Chlorophyta and Bacillariophyta were dominant in summer and winter in the study area. The relative abundances of Chlorophyta in Summer A and Summer B were 35.4% and 60.6%, and the relative abundances of Bacillariophyta were 33.2% and 26.0%, respectively. The relative abundances of Chlorophyta in Winter A and Winter B were 51.1% and 59.4%, respectively, and the relative abundances of Bacillariophyta were 30.6% and 20.5%. In the same season, the relative abundance of Chlorophyta in Group A was lower than that of Group B, whereas the opposite phenomenon was observed in terms of Bacillariophyta. In summer, the relative abundance of Cryptophyta was only next to that of Chlorophyta and Bacillariophyta, but Cryptophyta was not detected in winter. The relative abundance of Dinophyta was relatively low in the summer but increased to a certain extent in the winter.
Figure 4b illustrates the seasonal and inter-group changes in the orders of eukaryotic phytoplankton. The relative abundance of Chlorosarcinales was highest in the summer, but Chlorosarcinales were not detected in the winter. The relative abundance of Sphaeropleales was relatively low in the summer and reached a maximum in the winter. Moreover, Cryptomonadales and Chaetocerotales were only detected in the summer, whereas Eupodiscales were only detected in the winter. The variability between eukaryotic phytoplankton community groups is shown in Table S2.
The numbers of genera in all phyla in winter decreased to some extent as compared to summer. Only 15 genera of eukaryotic phytoplankton were detected in both summer and winter, with great differences in genera. Table 3 presents the results of the analysis of the dominant genera of the eukaryotic phytoplankton. The dominant genera of the eukaryotic phytoplankton in the study area were distributed in Chlorophyta, Bacillariophyta, and Cryptophyta; there were spatial and temporal differences among the different dominant genera. Among all dominant genera, only unclassified_Chlorophyceae were considered dominant in all groups. The degree of dominance of Chlamydomonas reached a maximum in summer, but Chlamydomona was not detected in winter. A similar phenomenon was observed for Aulacoseira, Chaetoceros, Cryptomonas, and Anomoeoneis. Although Mychonastes was detected in the summer, the degree of dominance was relatively low. However, Mychonastes demonstrated the maximum degree of dominance in winter. Two dominant genera, Picochlorum and Odontella, were only detected in winter.

3.3. Effects of the Physiochemical Properties of Water on the Eukaryotic Phytoplankton Community

RDA was applied to evaluate the effects of the physiochemical properties of the water on evolution at the class level. Figure 5a depicts the RDA results in the summer. Two factors accounted for 92.54% of the variation in the eukaryotic phytoplankton community. In particular, TP, PO4−-P, NH4+-N, and TN demonstrated substantial contributions. In summer, all classes were positively related to TP, NH4+-N, and TN and negatively related to PO4−-P. The RDA results in winter are presented in Figure 5b. Two factors accounted for 75.71% of the variation in the eukaryotic phytoplankton community. NO3−-N, DO, and WT, in particular, had the maximum contributions. The effects of the DO concentration were statistically significant (p ≤ 0.05). Dinophyceae was positively related to NO3−-N. Chrysophyceae and Trebouxiophyceae were positively related to DO and WT. In the same water body, the water quality properties that play a key role in the evolution of the eukaryotic phytoplankton community varied significantly with the seasons.
A mantle test of the relative abundance of the eukaryotic phytoplankton and the physiochemical properties of the water was conducted to further understand the impacts of the physiochemical properties of the water on the eukaryotic phytoplankton community. The results are presented in Figure 6. Correlations were observed between the phyla of eukaryotic phytoplankton and the physiochemical properties of the water. WT, DO, NH4+-N, TN, TP, and Chl.a. in particular had significant effects on the eukaryotic phytoplankton community. Chlorophyta exhibited extremely significant correlations with WT and DO (p < 0.01) and a significant correlation with TP (p < 0.05). Cryptophyta demonstrated extremely significant correlations with WT, NH4+-N, and TN (p < 0.01) and significant correlations with TP and Chl.a (p < 0.05). Both Bacillariophyta and Chrysophyta exhibited significant correlations with NH4+-N (p < 0.05). Dinophyta showed extremely significant correlations with WT and DO (p < 0.01). The correlation coefficients are listed in Table S3.

3.4. Variance Partitioning Analysis of the Eukaryotic Phytoplankton Community

VPA (variance partitioning analysis) was conducted on the physiochemical properties of the water, the effects of human activities, and seasonal changes to understand the effects of different types of influencing factors on the evolution of the eukaryotic phytoplankton community in the study area. The results are presented in Figure 7. These three types of influencing factors accounted for 53.0% of the variation in the evolution of the eukaryotic phytoplankton community. Seasonal changes accounted for 48.4% of the variation in the evolution of the eukaryotic phytoplankton community, followed by the physiochemical properties of the water (48.3%) and human activities (only 3.3%). Human activity influences only interpreted 3.3%. This is because in the Overall Construction Plan of Wetland Parks Around Chaohu Lake, 10 wetland parks were planned around Chaohu Lake, including Anhui Hefei Binghu National Wetland Park, Anhui Lujiang Maweihe National Wetland Park, and Anhui Feixi Sanhe National Wetland Park, covering a total area of 9664.19 ha. These 10 wetland parks are around the whole of Chaohu Lake, giving a small range for human activities. In addition, seasonal changes and the physiochemical properties of the water accounted for 47.0% of the community changes overall. In other words, seasonal changes and the physiochemical properties of the water play critical roles in the evolution of the eukaryotic phytoplankton community.

3.5. Co-Occurrence Network Analysis

The correlations among the eukaryotic phytoplankton were visualised by establishing a co-occurrence network. Figure 8 illustrates the co-occurrence network analysis diagram. A Spearman correlation analysis was conducted on the relative abundances of the families of eukaryotic phytoplankton. When the Spearman correlation coefficient was p < 0.05 and R > 0.8, there was a significant correlation. The co-occurrence network comprised 34 sides and 32 nodes. Nodes belonged to Chlorophyta (9 families), Bacillariophyta (11 families), Cryptophyta (2 families), Chrysophyta (7 families), and Dinophyta (3 families). Among the interaction relationships, promotion accounted for 94.1%, and inhibition accounted for 5.9%. Chlamydomonadaceae, Chrysocapsaceae, Cymatosiraceae, and unclassified_Chaetophorales all had four connection lines with other families. Thus, they may be key eukaryotic phytoplankton in the network. In particular, there was a significant correlation between Chrysocapsaceae and unclassified_Chaetophorales.

4. Discussion

4.1. Structural Features and Changes in Eukaryotic Phytoplankton in the Chaohu Lake

Eukaryotic phytoplankton in west Chaohu Lake were examined through high-throughput sequencing. These results are more detailed than those obtained in previous microscopic studies of phytoplankton in Chaohu Lake. According to the microscopic observation results of Jiang et al., a total of 37 genera and 5 phyla of eukaryotic phytoplankton were detected in Chaohu Lake in four seasons [13]. However, in the current study, Euglenophyta was not detected, which differs, to some extent, from previous research results. This may be related to the specificity of the primers in the V4 interval of 18S rDNA [30].
Existing studies on Cryptophyta have demonstrated its remarkable adaptation. Hence, it can survive stably in lake ecosystems. The abundance of Cryptophyta might be increased in response to eutrophication or increased WT caused by climate change. In this study, Cryptophyta was detected in the summer but not in the winter. This might be due to the decreased WT in winter [31]. According to existing studies, Bacillariophyta prefer low temperatures. With a decrease in temperature, Bacillariophyta will reproduce quickly to take a dominant role in winter and spring. Some scholars have studied Bacillariophyta in the Shengjin Lake and discovered that its relative abundance was higher than that of Chlorophyta in winter, but its relative abundance decreased gradually from winter to summer. This is consistent with the low-temperature preference of Bacillariophyta [32,33]. In this study, the relative abundance of Bacillariophyta was lower than that of Chlorophyta in summer and winter. This result might be attributed to different detection methods for the abundance of eukaryotic phytoplankton. High-throughput sequencing can detect information that might be lost during microscopic observation. For example, Mychonastes in Chlorophyta, with the highest degree of dominance in winter, are challenging to observe under a microscope due to small particle size and lack of unique morphological features [34]. At the genus level, one genus of eukaryotic phytoplankton was considered a dominant genus in all groups. In contrast, other dominant genera only met the requirements for dominance in specific seasons. Hence, there are large differences at the genus level across the seasons. Some scholars have discovered that only a few species dominate the phytoplankton community at specific times and locations, accompanied by many species with relatively low abundances. However, these species with low relative abundances may still exhibit high abundances at least once or twice a year, which is consistent with the changes in the dominant genera [35].

4.2. Water Quality Conditions and Water Quality Evaluation of Chaohu Lake

According to the test results, there were spatial differences in the water quality indices in the study area. The mean NH4+-N, NO3−-N, and PO4−-P concentrations in Group A were higher than those in Group B in twice sampling. Some temporal differences were also observed in the water quality of Chaohu Lake. Although there were no significant differences in TP and PO4−-P in winter and summer, the DO content in summer was far lower than that in winter. The mean TN and NH4+-N concentrations in the summer were higher than those in the winter. This suggests that the water quality in the study area in the summer was worse than that in the winter [36]. In this study, sampling was performed twice in the summer and winter seasons. The maximum mean concentrations of TN and TP of the four groups were 2.87 mg·L−1 and 0.12 mg·L−1, both of which were observed in Summer A. However, these values have significantly decreased compared to previous studies of Chaohu Lake. It is speculated that this is due to the gradual effect of governance measures on Chaohu Lake [37].
In this study, the Shannon index and Pielou index were selected to represent the eukaryotic phytoplankton community. Both indices fluctuated more in summer than in winter, indicating that differences in the eukaryotic phytoplankton community among different water bodies are greater in summer than in winter. Moreover, some scholars have applied phytoplankton diversity indices to freshwater ecosystems to evaluate water quality; however, the applicability of these indices may not be consistent with the research conclusions of different scholars [29,38]. The findings of this study verify the applicability of the phytoplankton diversity indices for the evaluation of the western half of Chaohu Lake. However, it should be noted that the diversity indices may demonstrate inaccuracies in water quality evaluation. For example, the water quality evaluation based on the Shannon index indicated that the study area was moderately polluted in summer and winter. The detection of the nutrition concentration in the study area showed that the water quality in summer was worse than that in winter, but the Shannon index was not able to effectively distinguish the differences in the water quality in summer and winter. In this study, the water quality was also evaluated using the Pielou index. According to this index, the water quality in the study area was mildly polluted in the summer and not polluted in the winter. Thus, these results indicate that the different phytoplankton diversity indices offer inconsistent results and have different abilities to distinguish differences in the water quality in the same water body. At present, several scholars are suspicious of the validity of phytoplankton water quality evaluations and have offered different perspectives on phytoplankton diversity and biogeographical modes related to water quality [38]. Phytoplankton diversity indices might also be affected by climate factors, which may affect the measurement of phytoplankton diversity indices for water quality evaluation [39]. For ecosystems with great geological spans and complicated terrains (e.g., rivers and lakes), the diversity indices can reflect ecological and environmental changes to some extent. However, water quality indices are considered to provide a more comprehensive evaluation of water quality [28,40].

4.3. Eukaryotic Phytoplankton in the Western Half of Chaohu Lake and the Influencing Factors

The relationship between the eukaryotic phytoplankton community and the physiochemical properties of water has been a key focus in research on water ecology. In this study, the Mantel test results demonstrated that the relative abundance of eukaryotic phytoplankton was correlated with the physiochemical properties of the water. According to the RDA analysis results, differences in the major environmental factors influenced the eukaryotic phytoplankton community in summer and winter. WT is considered a crucial environmental factor affecting phytoplankton. High temperatures not only increase photosynthesis and respiration but also increase the activity of thermally sensitive enzymes to increase the turnover rate of enzymes, thus influencing the phytoplankton community directly or indirectly [41,42]. The growth rate of phytoplankton is impacted by the WT. Many phytoplankton can achieve a maximum growth rate when the WT is about 20 °C [18]. pH is also an essential physiochemical index. Different growth and reproduction behaviours of phytoplankton have different requirements for water pH [43]. During the study period, the water in the western half of Chaohu Lake was generally alkaline, which is beneficial for photosynthesis, thereby increasing the productivity of phytoplankton. Some scholars have found that a low pH may inhibit the development of some algae [44,45]. N and P are also major nutrients that limit phytoplankton growth in water ecosystems [46]. Some scholars have proposed that the N/P ratio is one of the most important indices that influence phytoplankton. A P limitation state is when N/P > 16, and an N limitation state is when N/P < 16 [47,48]. Insufficient N content will decrease the Chl.a of major photosynthetic pigments and increase the contents of non-photosynthetic pigments. Insufficient P will cause phytoplankton to increase the synthesis of non-phosphorus compounds, using other compounds instead of phospholipids in the cell membrane [49]. The concentration of Chl.a can usually be used to characterise the biomass of phytoplankton. In this study, the Chl.a concentration differed significantly between summer and winter. The results indicated that the biomass of phytoplankton in the summer was higher than that in the winter. This indirectly suggests that conditions for phytoplankton growth are better in the summer [50].

5. Conclusions

(1) Sampling of the western half of Chaohu Lake in the summer and winter seasons revealed a total of 70 genera, 34 orders, and 7 phyla of eukaryotic phytoplankton through high-throughput sequencing. There were 61 genera, 29 orders, and 7 phyla in summer, and 25 genera, 14 orders, and 5 phyla in winter. The dominant genus was Chlamydomonas of Chlorophyta in the summer and Mychonastes of Chlorophyta in the winter.
(2) According to PCA and PERMANOVA, the water quality indices varied among the four groups, reflecting spatial and temporal differences in water quality in the study area. Moreover, the Shannon index was not able to satisfactorily distinguish differences in water quality in the study area. Thus, in future evaluations of water quality, multiple methods, such as biological evaluation combined with physiochemical indices, should be used.
(3) The effects of the physiochemical properties of the water on the classes of eukaryotic phytoplankton were analysed during the study period through RDA. TP, PO4−-P, NH4+-N, and TN were the primary physiochemical properties of water that affected the eukaryotic phytoplankton in the summer. NO3−-N, DO, and WT were the primary influencing factors in winter. According to the Mantel test, the eukaryotic phytoplankton community was correlated with the WT, DO, NH4+-N, TN, TP, and Chl.a. VPA revealed that seasonal factors could account for 48.4% of the variation in the eukaryotic phytoplankton community. In addition, the co-occurrence network analysis revealed that the promotion effect accounted for 94.1% of the total correlations among the eukaryotic phytoplankton.
(4) Future studies should further investigate the relationships between changes in the physiochemical properties of the water and changes in the eukaryotic phytoplankton community in Chaohu Lake. To this end, additional sampling points and an increased sampling frequency should be adopted in the study area to more comprehensively observe the variation trends in the water quality and eukaryotic phytoplankton community in different regions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/w16162318/s1, Table S1: PERMANOVA on physiochemical factors of water of different sample groups in the study area; Table S2: Results of PERMANOVA analyses of different subgroups of eukaryotic phytoplankton; Table S3: Analysis of the correlations between eukaryotic phytoplankton and physiochemical factors of water in the study area based on the Mantel test.

Author Contributions

Conceptualization, B.Z.; Methodology, B.Z.; Software, X.Z. (Xinhao Zhu); Validation, H.Z. and X.Z. (Xingmei Zhuang); Resources, H.Z., X.Z. (Xingmei Zhuang), J.W., S.X. and T.L.; Data curation, J.W., S.X. and T.L.; Writing—original draft, W.P. and X.Z. (Xinhao Zhu); Funding acquisition, B.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (52303360), the Natural Science Foundation of the Universities of Anhui Province (2022AH050241), the Project of Introducing Talents and Doctoral Start-up Fund of the University (2022QDZ10), the Anhui Institute of Ecological Civilisation (AHSWY-2022-02), and the Project of National College Students’ Innovative Entrepreneurship Training Program (202310878032).

Data Availability Statement

The datasets and materials used and/or analysed during the current study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wang, Y.; Liu, G.; Zhu, S.; Hu, W.; Zhang, H.; Zhou, X.; Peng, Z. Assessment of impacts of water transfer on lake flow and water quality in Lake Chaohu using a three-dimensional hydrodynamic-ecological model. J. Hydrol. Reg. Stud. 2023, 46, 101333. [Google Scholar] [CrossRef]
  2. Li, J.; Ma, R.; Xue, K.; Loiselle, S. Drivers to spatial and temporal dynamics of column integrated phytoplankton biomass in the shallow lake of Chaohu, China. Ecol. Indic. 2020, 109, 105812. [Google Scholar] [CrossRef]
  3. Du, Y.; An, S.; He, H.; Wen, S.; Xing, P.; Duan, H. Production and transformation of organic matter driven by algal blooms in a shallow lake: Role of sediments. Water Res. 2022, 219, 118560. [Google Scholar] [CrossRef] [PubMed]
  4. Peng, Z.; Hu, W.; Zhang, Y.; Liu, G.; Zhang, H.; Gao, R. Modelling the effects of joint operations of water transfer project and lake sluice on circulation and water quality of a large shallow lake. J. Hydrol. 2021, 593, 125881. [Google Scholar] [CrossRef]
  5. Wang, S.; Zhang, X.; Wang, C.; Chen, N. Multivariable integrated risk assessment for cyanobacterial blooms in eutrophic lakes and its spatiotemporal characteristics. Water Res. 2023, 228, 119367. [Google Scholar] [CrossRef]
  6. Fan, Y.-Y.; Li, B.-B.; Yang, Z.-C.; Cheng, Y.-Y.; Liu, D.-F.; Yu, H.-Q. Mediation of functional gene and bacterial community profiles in the sediments of eutrophic Chaohu Lake by total nitrogen and season. Environ. Pollut. 2019, 250, 233–240. [Google Scholar] [CrossRef] [PubMed]
  7. McNabney, D.W.G.; Mangal, V.; Kirkwood, A.E.; Simmons, D.D.B. Phytoplankton metabolite profiles from two Lake Ontario Areas of Concern reveal differences associated with taxonomic community composition. Sci. Total Environ. 2023, 871, 162042. [Google Scholar] [CrossRef]
  8. Nwe, L.W.; Yokoyama, K.; Azhikodan, G. Phytoplankton habitats and size distribution during a neap-spring transition in the highly turbid macrotidal Chikugo River estuary. Sci. Total Environ. 2022, 850, 157810. [Google Scholar] [CrossRef]
  9. Yan, G.; Yin, X.; Huang, M.; Wang, X.; Huang, D.; Li, D. Dynamics of phytoplankton functional groups in river-connected lakes and the major influencing factors: A case study of Dongting Lake, China. Ecol. Indic. 2023, 149, 110177. [Google Scholar] [CrossRef]
  10. Zhang, H.; Yang, Y.; Liu, X.; Huang, T.; Ma, B.; Li, N.; Yang, W.; Li, H.; Zhao, K. Novel insights in seasonal dynamics and co-existence patterns of phytoplankton and micro-eukaryotes in drinking water reservoir, Northwest China: DNA data and ecological model. Sci. Total Environ. 2023, 857, 159160. [Google Scholar] [CrossRef]
  11. Tang, C.; Yi, Y.; Yang, Z.; Zhou, Y.; Zerizghi, T.; Wang, X.; Cui, X.; Duan, P. Planktonic indicators of trophic states for a shallow lake (Baiyangdian Lake, China). Limnologica 2019, 78, 125712. [Google Scholar] [CrossRef]
  12. Zhang, J.; Wang, Y.; Ottmann, D.; Cao, P.; Yang, J.; Yu, J.; Lv, Z. Seasonal variability of phytoplankton community response to thermal discharge from nuclear power plant in temperate coastal area. Environ. Pollut. 2023, 318, 120898. [Google Scholar] [CrossRef] [PubMed]
  13. Jiang, Y.-J.; He, W.; Liu, W.-X.; Qin, N.; Ouyang, H.-L.; Wang, Q.-M.; Kong, X.-Z.; He, Q.-S.; Yang, C.; Yang, B.; et al. The seasonal and spatial variations of phytoplankton community and their correlation with environmental factors in a large eutrophic Chinese lake (Lake Chaohu). Ecol. Indic. 2014, 40, 58–67. [Google Scholar] [CrossRef]
  14. Lu, X.; Yu, W.; Chen, B.; Ma, Z.; Chen, G.; Ge, F.; An, S.; Han, W. Imbalanced phytoplankton C, N, P and its relationship with seawater nutrients in Xiamen Bay, China. Mar. Pollut. Bull. 2023, 187, 114566. [Google Scholar] [CrossRef]
  15. Zhao, Q.; Liu, S.; Niu, X. Effect of water temperature on the dynamic behavior of phytoplankton–zooplankton model. Appl. Math. Comput. 2020, 378, 125211. [Google Scholar] [CrossRef]
  16. Amadei Martínez, L.; Sabbe, K.; Dasseville, R.; Daveloose, I.; Verstraete, T.; D’Hondt, S.; Azémar, F.; Sossou, A.C.; Tackx, M.; Maris, T.; et al. Long-term phytoplankton dynamics in the Zeeschelde estuary (Belgium) are driven by the interactive effects of de-eutrophication, altered hydrodynamics and extreme weather events. Sci. Total Environ. 2023, 860, 160402. [Google Scholar] [CrossRef] [PubMed]
  17. dos Santos Severiano, J.; dos Santos Almeida-Melo, V.L.; Bittencourt-Oliveira, M.D.C.; Chia, M.A.; do Nascimento Moura, A. Effects of increased zooplankton biomass on phytoplankton and cyanotoxins: A tropical mesocosm study. Harmful Algae 2018, 71, 10–18. [Google Scholar] [CrossRef] [PubMed]
  18. Abirhire, O.; Davies, J.-M.; Imtiazy, N.; Hunter, K.; Emmons, S.; Beadle, J.; Hudson, J. Response of phytoplankton community composition to physicochemical and meteorological factors under different hydrological conditions in Lake Diefenbaker. Sci. Total Environ. 2023, 856, 159210. [Google Scholar] [CrossRef] [PubMed]
  19. Chang, C.; Gao, L.; Wei, J.; Ma, N.; He, Q.; Pan, B.; Li, M. Spatial and environmental factors contributing to phytoplankton biogeography and biodiversity in mountain ponds across a large geographic area. Aquat. Ecol. 2021, 55, 721–735. [Google Scholar] [CrossRef]
  20. Wei, Y.; Sun, J.; Zhang, G.; Wang, X.; Wang, F. Environmental factors controlling the dynamics of phytoplankton communities during spring and fall seasons in the southern Sunda Shelf. Environ. Sci. Pollut. Res. 2020, 27, 23222–23233. [Google Scholar] [CrossRef]
  21. Rao, K.; Zhang, X.; Wang, M.; Liu, J.; Guo, W.; Huang, G.; Xu, J. The relative importance of environmental factors in predicting phytoplankton shifting and cyanobacteria abundance in regulated shallow lakes. Environ. Pollut. 2021, 286, 117555. [Google Scholar] [CrossRef] [PubMed]
  22. Guan, Y.; Zhang, M.; Yang, Z.; Shi, X.; Zhao, X. Intra-annual variation and correlations of functional traits in Microcystis and Dolichospermum in Lake Chaohu. Ecol. Indic. 2020, 111, 106052. [Google Scholar] [CrossRef]
  23. Ren, M.; Zhang, M.; Fan, F.; Yang, J.; Yang, Z.; Chen, K.; Li, Y.C.; Shi, X. Difference in temporal and spatial distribution pattern of cyanobacteria between the sediment and water column in Lake Chaohu. Environ. Pollut. 2021, 291, 118163. [Google Scholar] [CrossRef]
  24. Simon, M.; López-García, P.; Deschamps, P.; Moreira, D.; Restoux, G.; Bertolino, P.; Jardillier, L. Marked seasonality and high spatial variability of protist communities in shallow freshwater systems. ISME J. 2015, 9, 1941–1953. [Google Scholar] [CrossRef]
  25. Wei, C.; Bao, S.; Zhu, X.; Huang, X. Spatio-temporal variations of the bacterioplankton community composition in Chaohu Lake, China. Prog. Nat. Sci. 2008, 18, 1115–1122. [Google Scholar] [CrossRef]
  26. Wu, S.; Zhao, H. Methods for Water and Wastewater Monitoring and Analysis, 4th ed.; (Supplemental Edition) Environmental Science[M]; China Environment Publishing Group: Beijing, China, 2002; pp. 722–724. [Google Scholar]
  27. HJ 897-2017; Chinese Standard. Water Quality—Determination of Chlorophyll a—Spectrophotometric Method. National Environmental Protection Standards of the People’s Republic of China. Ministry of Ecology and Environment of the People’s Republic of China: Beijing, China, 2017.
  28. Ding, Y.; Pan, B.; Zhao, G.; Sun, C.; Han, X.; Li, M. Geo-climatic factors weaken the effectiveness of phytoplankton diversity as a water quality indicator in a large sediment-laden river. Sci. Total Environ. 2021, 792, 148346. [Google Scholar] [CrossRef]
  29. Xu, Y.; Li, A.J.; Qin, J.; Li, Q.; Ho, J.G.; Li, H. Seasonal patterns of water quality and phytoplankton dynamics in surface waters in Guangzhou and Foshan, China. Sci. Total Environ. 2017, 590, 361–369. [Google Scholar] [CrossRef] [PubMed]
  30. Cao, H.; Zhang, K.; Deng, D.; Qi, H.; Li, J.; Cao, Y.; Jin, Q.; Zhao, Y.; Wang, Y.; Wu, Z.; et al. Environmental heterogeneity affecting spatial distribution of phytoplankton community structure and functional groups in a large eutrophic lake, Lake Chaohu, China. Environ. Sci. Pollut. Res. 2023, 30, 79001–79014. [Google Scholar] [CrossRef]
  31. An, R.; Liu, Y.; Pan, C.; Da, Z.; Zhang, P.; Qiao, N.; Zhao, F.; Ba, S. Water quality determines protist taxonomic and functional group composition in a high-altitude wetland of international importance. Sci. Total Environ. 2023, 880, 163308. [Google Scholar] [CrossRef]
  32. Wang, L.; Wang, C.; Deng, D.; Zhao, X.; Zhou, Z. Temporal and spatial variations in phytoplankton: Correlations with environmental factors in Shengjin Lake, China. Environ. Sci. Pollut. Res. 2015, 22, 14144–14156. [Google Scholar] [CrossRef] [PubMed]
  33. Zhong, Y.; Su, Y.; Zhang, D.; She, C.; Chen, N.; Chen, J.; Yang, H.; Balaji-Prasath, B. The spatiotemporal variations in microalgae communities in vertical waters of a subtropical reservoir. J. Environ. Manag. 2022, 317, 115379. [Google Scholar] [CrossRef]
  34. Shi, X.; Li, S.; Fan, F.; Zhang, M.; Yang, Z.; Yang, Y. Mychonastes dominates the photosynthetic picoeukaryotes in Lake Poyang, a river-connected lake. FEMS Microbiol. Ecol. 2018, 95, fiy211. [Google Scholar] [CrossRef]
  35. Shi, X.; Li, S.; Zhang, M.; Liu, C.; Wu, Q. Temperature mainly determines the temporal succession of the photosynthetic picoeukaryote community in Lake Chaohu, a highly eutrophic shallow lake. Sci. Total Environ. 2020, 702, 134803. [Google Scholar] [CrossRef]
  36. GB 3838-2002; Chinese Standard. Environmental Quality Standards for Surface Water. National Standards of the People’s Republic of China. Ministry of Ecology and Environment of the People’s Republic of China: Beijing, China, 2002.
  37. Yang, X.; Cui, H.; Liu, X.; Wu, Q.; Zhang, H. Water pollution characteristics and analysis of Chaohu Lake basin by using different assessment methods. Environ. Sci. Pollut. Res. 2020, 27, 18168–18181. [Google Scholar] [CrossRef] [PubMed]
  38. Spatharis, S.; Tsirtsis, G. Ecological quality scales based on phytoplankton for the implementation of Water Framework Directive in the Eastern Mediterranean. Ecol. Indic. 2010, 10, 840–847. [Google Scholar] [CrossRef]
  39. Blois, J.L.; Williams, J.W.; Fitzpatrick, M.C.; Jackson, S.T.; Ferrier, S. Space can substitute for time in predicting climate-change effects on biodiversity. Proc. Natl. Acad. Sci. USA 2013, 110, 9374–9379. [Google Scholar] [CrossRef] [PubMed]
  40. Borics, G.; Görgényi, J.; Grigorszky, I.; László-Nagy, Z.; Tóthmérész, B.; Krasznai, E.; Várbíró, G. The role of phytoplankton diversity metrics in shallow lake and river quality assessment. Ecol. Indic. 2014, 45, 28–36. [Google Scholar] [CrossRef]
  41. Hernando, M.; Varela, D.E.; Malanga, G.; Almandoz, G.O.; Schloss, I.R. Effects of climate-induced changes in temperature and salinity on phytoplankton physiology and stress responses in coastal Antarctica. J. Exp. Mar. Biol. Ecol. 2020, 530, 151400. [Google Scholar] [CrossRef]
  42. Yang, J.; Wang, F.; Lv, J.; Liu, Q.; Nan, F.; Liu, X.; Xu, L.; Xie, S.; Feng, J. Interactive effects of temperature and nutrients on the phytoplankton community in an urban river in China. Environ. Monit. Assess. 2019, 191, 688. [Google Scholar] [CrossRef]
  43. Kim, H.; Spivack, A.J.; Menden-Deuer, S. pH alters the swimming behaviors of the raphidophyte Heterosigma akashiwo: Implications for bloom formation in an acidified ocean. Harmful Algae 2013, 26, 1–11. [Google Scholar] [CrossRef]
  44. Jakobsen, H.H.; Blanda, E.; Staehr, P.A.; Højgård, J.K.; Rayner, T.A.; Pedersen, M.F.; Jepsen, P.M.; Hansen, B.W. Development of phytoplankton communities: Implications of nutrient injections on phytoplankton composition, pH and ecosystem production. J. Exp. Mar. Biol. Ecol. 2015, 473, 81–89. [Google Scholar] [CrossRef]
  45. Unrein, F.; O’Farrell, I.; Izaguirre, I.; Sinistro, R.; dos Santos Afonso, M.; Tell, G. Phytoplankton response to pH rise in a N-limited floodplain lake: Relevance of N2-fixing heterocystous cyanobacteria. Aquat. Sci. 2009, 72, 179–190. [Google Scholar] [CrossRef]
  46. Paerl, H.W. Controlling Eutrophication along the Freshwater–Marine Continuum: Dual Nutrient (N and P) Reductions are Essential. Estuaries Coasts 2009, 32, 593–601. [Google Scholar] [CrossRef]
  47. Li, Y.; Waite, A.M.; Gal, G.; Hipsey, M.R. An analysis of the relationship between phytoplankton internal stoichiometry and water column N:P ratios in a dynamic lake environment. Ecol. Model. 2013, 252, 196–213. [Google Scholar] [CrossRef]
  48. Yang, Y.; Pan, J.; Han, B.-P.; Naselli-Flores, L. The effects of absolute and relative nutrient concentrations (N/P) on phytoplankton in a subtropical reservoir. Ecol. Indic. 2020, 115, 106466. [Google Scholar] [CrossRef]
  49. Jiang, M.; Nakano, S.-I. The crucial influence of trophic status on the relative requirement of nitrogen to phosphorus for phytoplankton growth. Water Res. 2022, 222, 118868. [Google Scholar] [CrossRef]
  50. Zou, W.; Zhu, G.; Xu, H.; Zhu, M.; Qin, B.; Zhang, Y.; Bi, Y.; Liu, M.; Wu, T. Elucidating phytoplankton limiting factors in lakes and reservoirs of the Chinese Eastern Plains ecoregion. J. Environ. Manag. 2022, 318, 115542. [Google Scholar] [CrossRef] [PubMed]
Water 16 02318 g001

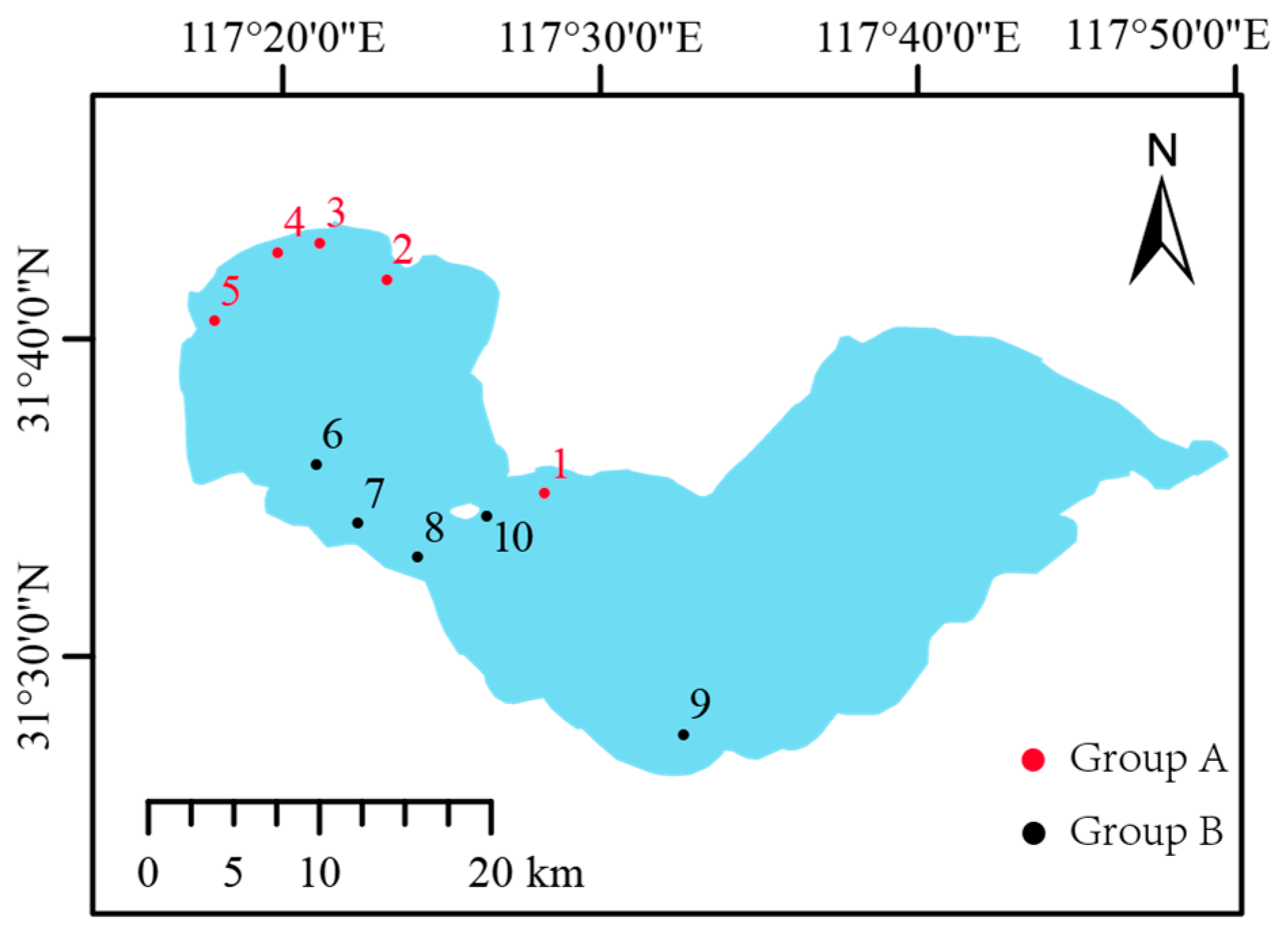

Figure 1. Distribution of the sampling points in the western half of Chaohu Lake. Notes: Group A includes sampling points 1~5; Group B includes sampling points 6~10.
Figure 1. Distribution of the sampling points in the western half of Chaohu Lake. Notes: Group A includes sampling points 1~5; Group B includes sampling points 6~10.
Water 16 02318 g001
Water 16 02318 g002

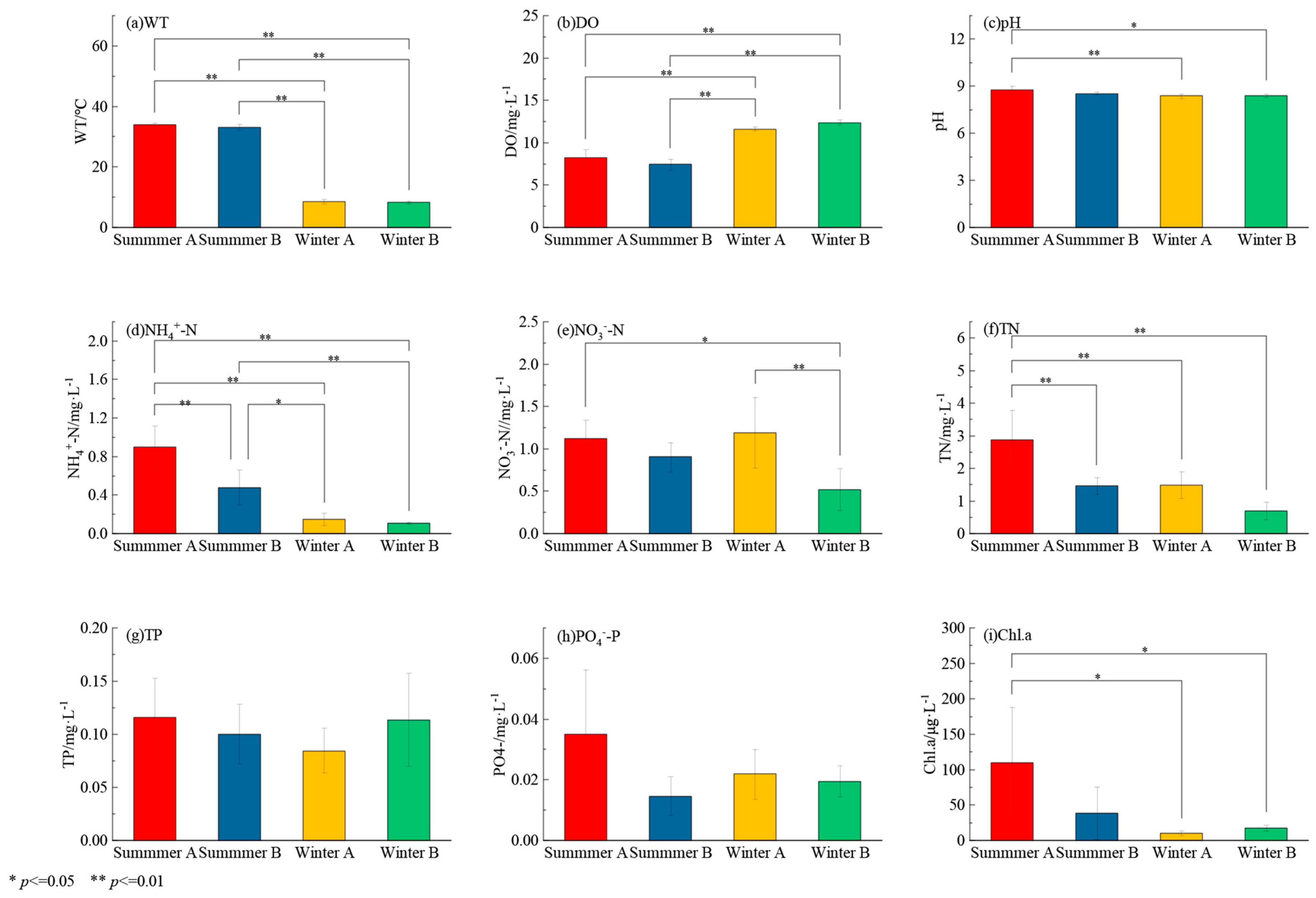

Figure 2. Analysis of the differences in the physiochemical properties of the water in the western half of Chaohu Lake as a function of group. Notes: Group A is close to urban areas, and Group B is far away from urban areas. WT−water temperature; DO−dissolved oxygen; TN−total nitrogen; NH4+−N−ammonia nitrogen; NO3−−N−nitrate nitrogen; TP−total phosphorus; PO4−−P−phosphate; Chl.a− Chlorophyll a.
Figure 2. Analysis of the differences in the physiochemical properties of the water in the western half of Chaohu Lake as a function of group. Notes: Group A is close to urban areas, and Group B is far away from urban areas. WT−water temperature; DO−dissolved oxygen; TN−total nitrogen; NH4+−N−ammonia nitrogen; NO3−−N−nitrate nitrogen; TP−total phosphorus; PO4−−P−phosphate; Chl.a− Chlorophyll a.
Water 16 02318 g002
Water 16 02318 g003

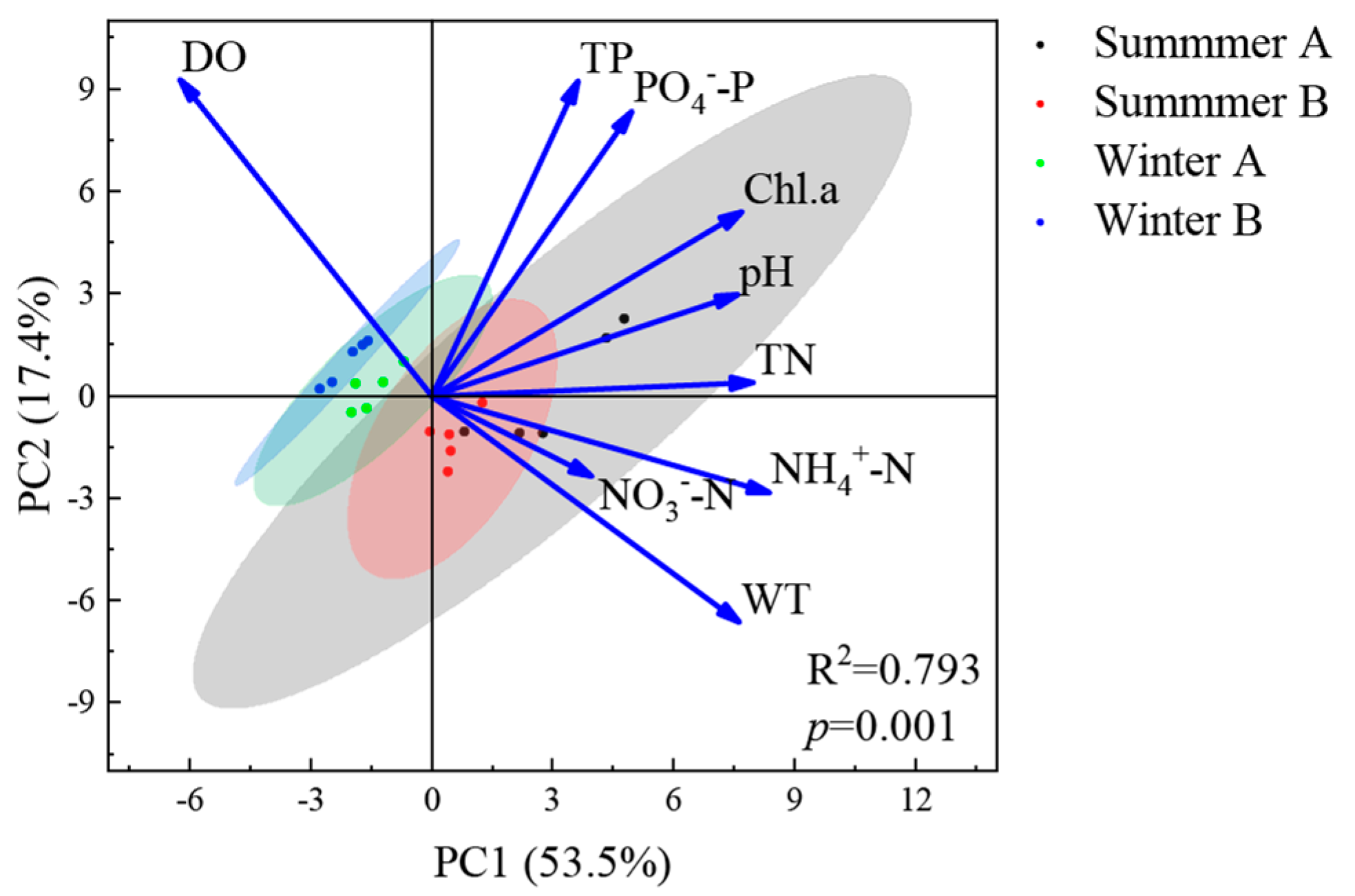

Figure 3. PCA of the physiochemical properties of the water for the different sample groups in the study area. Notes: WT−water temperature; DO−dissolved oxygen; TN−total nitrogen; NH4+−N−ammonia nitrogen; NO3−−N−nitrate nitrogen; TP−total phosphorus; PO4−−P−phosphate; Chl.a− Chlorophyll a.
Figure 3. PCA of the physiochemical properties of the water for the different sample groups in the study area. Notes: WT−water temperature; DO−dissolved oxygen; TN−total nitrogen; NH4+−N−ammonia nitrogen; NO3−−N−nitrate nitrogen; TP−total phosphorus; PO4−−P−phosphate; Chl.a− Chlorophyll a.
Water 16 02318 g003
Water 16 02318 g004

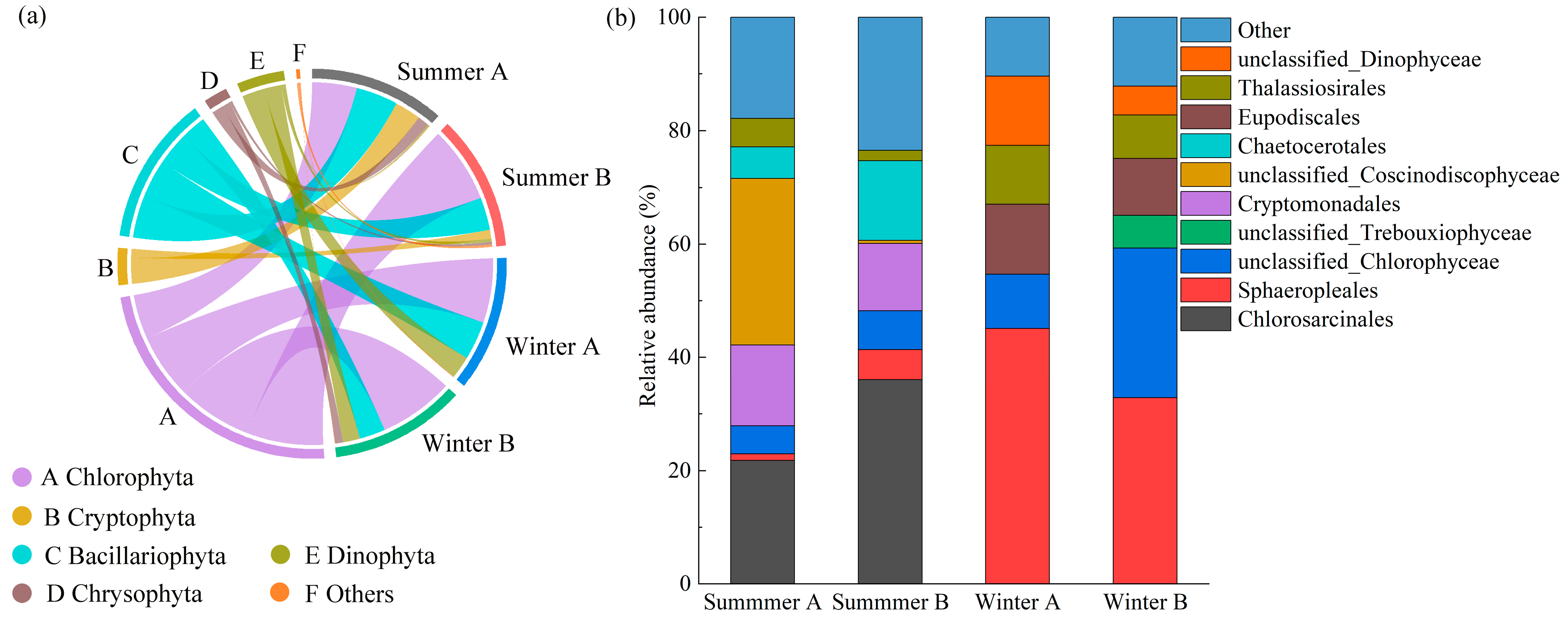

Figure 4. Variations in the phyla (a) and orders (b) of eukaryotic phytoplankton in the study area. Notes: Group A is close to urban areas, and Group B is far away from urban areas.
Figure 4. Variations in the phyla (a) and orders (b) of eukaryotic phytoplankton in the study area. Notes: Group A is close to urban areas, and Group B is far away from urban areas.
Water 16 02318 g004
Water 16 02318 g005

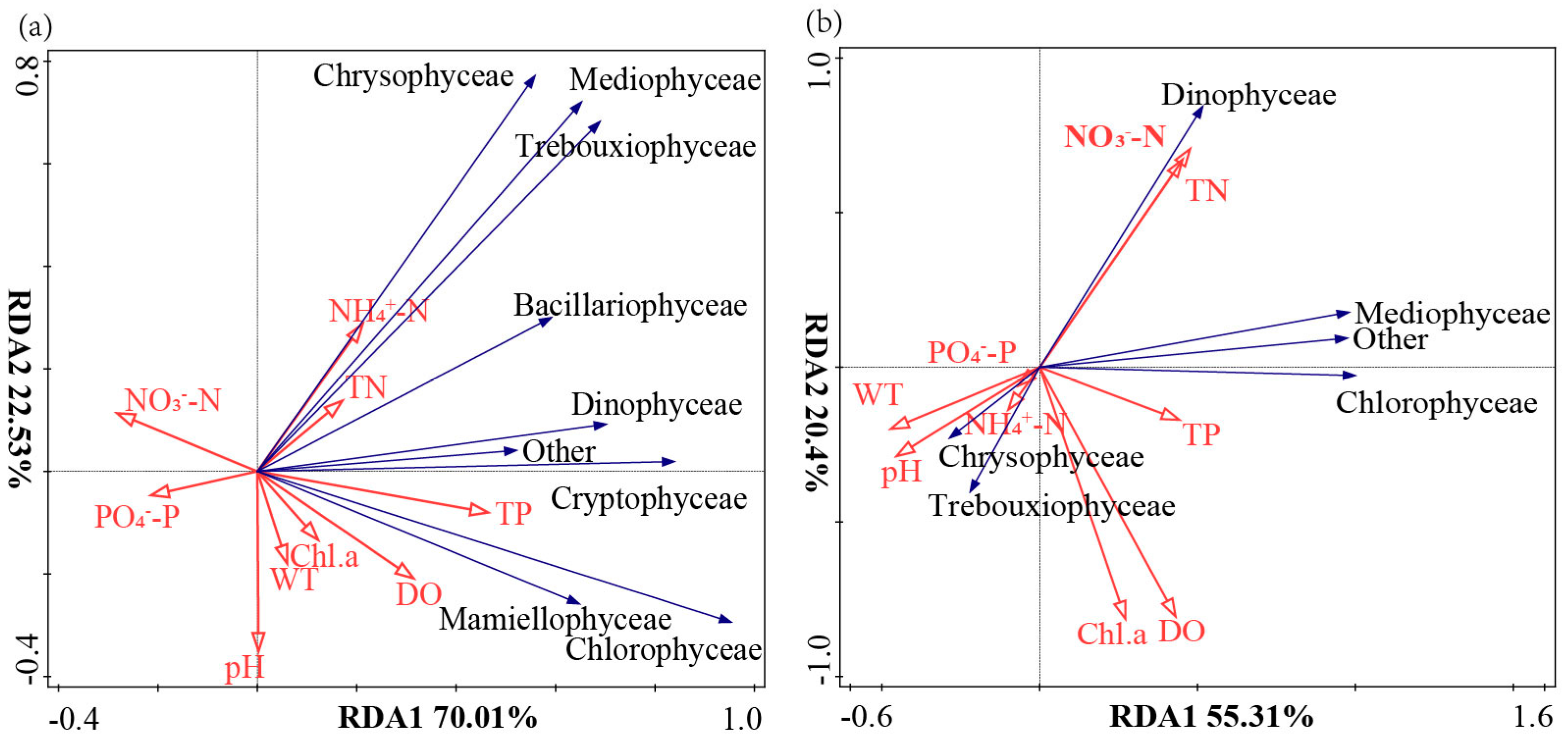

Figure 5. RDA results of the eukaryotic phytoplankton and physiochemical properties of the water in the study area in summer (a) and winter (b). Notes: WT−water temperature; DO−dissolved oxygen; TN−total nitrogen; NH4+−N−ammonia nitrogen; NO3−−N−nitrate nitrogen; TP−total phosphorus; PO4−−P−phosphate; Chl.a− Chlorophyll a.
Figure 5. RDA results of the eukaryotic phytoplankton and physiochemical properties of the water in the study area in summer (a) and winter (b). Notes: WT−water temperature; DO−dissolved oxygen; TN−total nitrogen; NH4+−N−ammonia nitrogen; NO3−−N−nitrate nitrogen; TP−total phosphorus; PO4−−P−phosphate; Chl.a− Chlorophyll a.
Water 16 02318 g005
Water 16 02318 g006

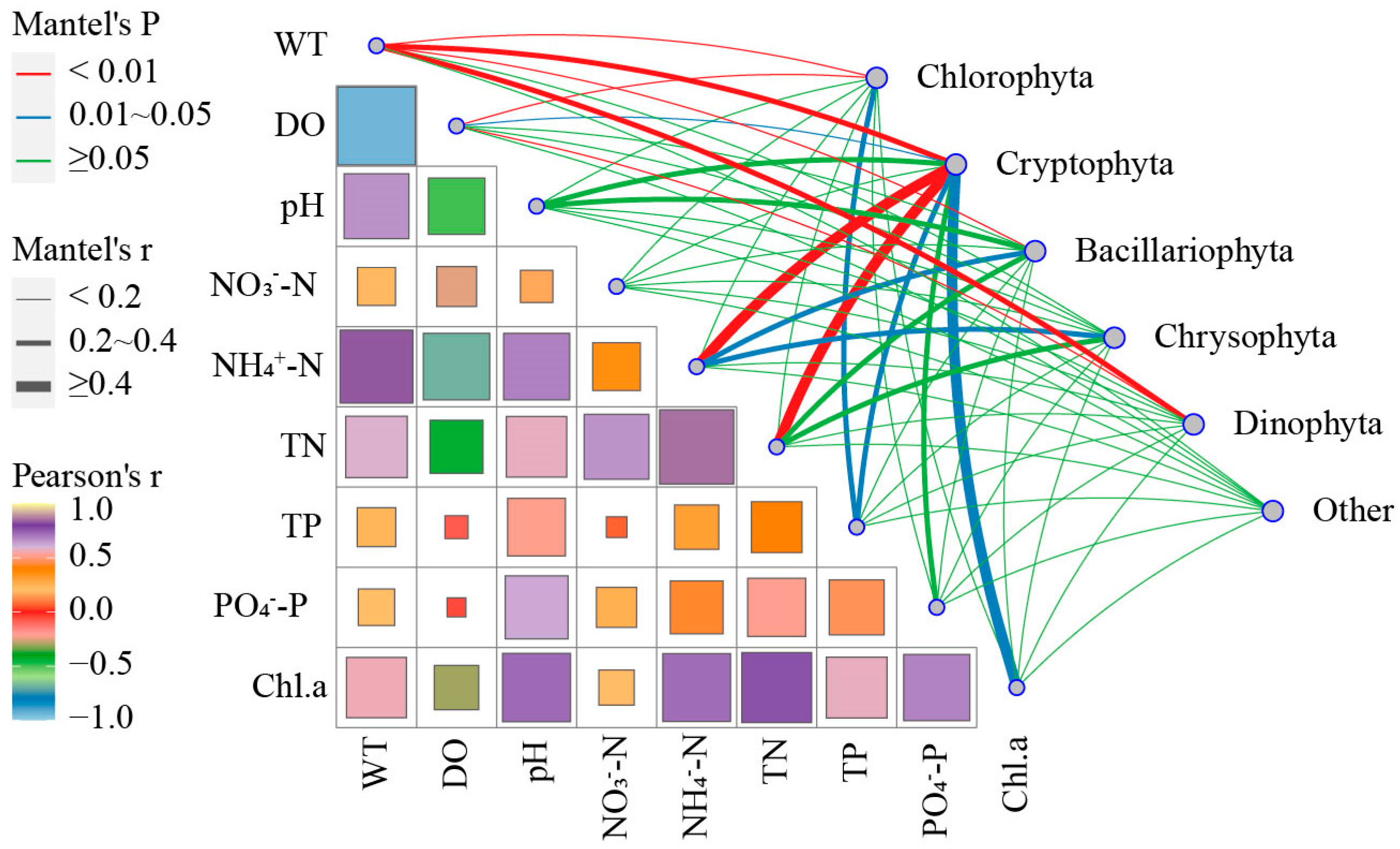

Figure 6. Mantel test of the relative abundances of the eukaryotic phytoplankton and the physiochemical properties of the water in the study area. Notes: WT−water temperature; DO−dissolved oxygen; TN−total nitrogen; NH4+−N−ammonia nitrogen; NO3−−N−nitrate nitrogen; TP−total phosphorus; PO4−−P−phosphate; Chl.a− Chlorophyll a.
Figure 6. Mantel test of the relative abundances of the eukaryotic phytoplankton and the physiochemical properties of the water in the study area. Notes: WT−water temperature; DO−dissolved oxygen; TN−total nitrogen; NH4+−N−ammonia nitrogen; NO3−−N−nitrate nitrogen; TP−total phosphorus; PO4−−P−phosphate; Chl.a− Chlorophyll a.
Water 16 02318 g006
Water 16 02318 g007

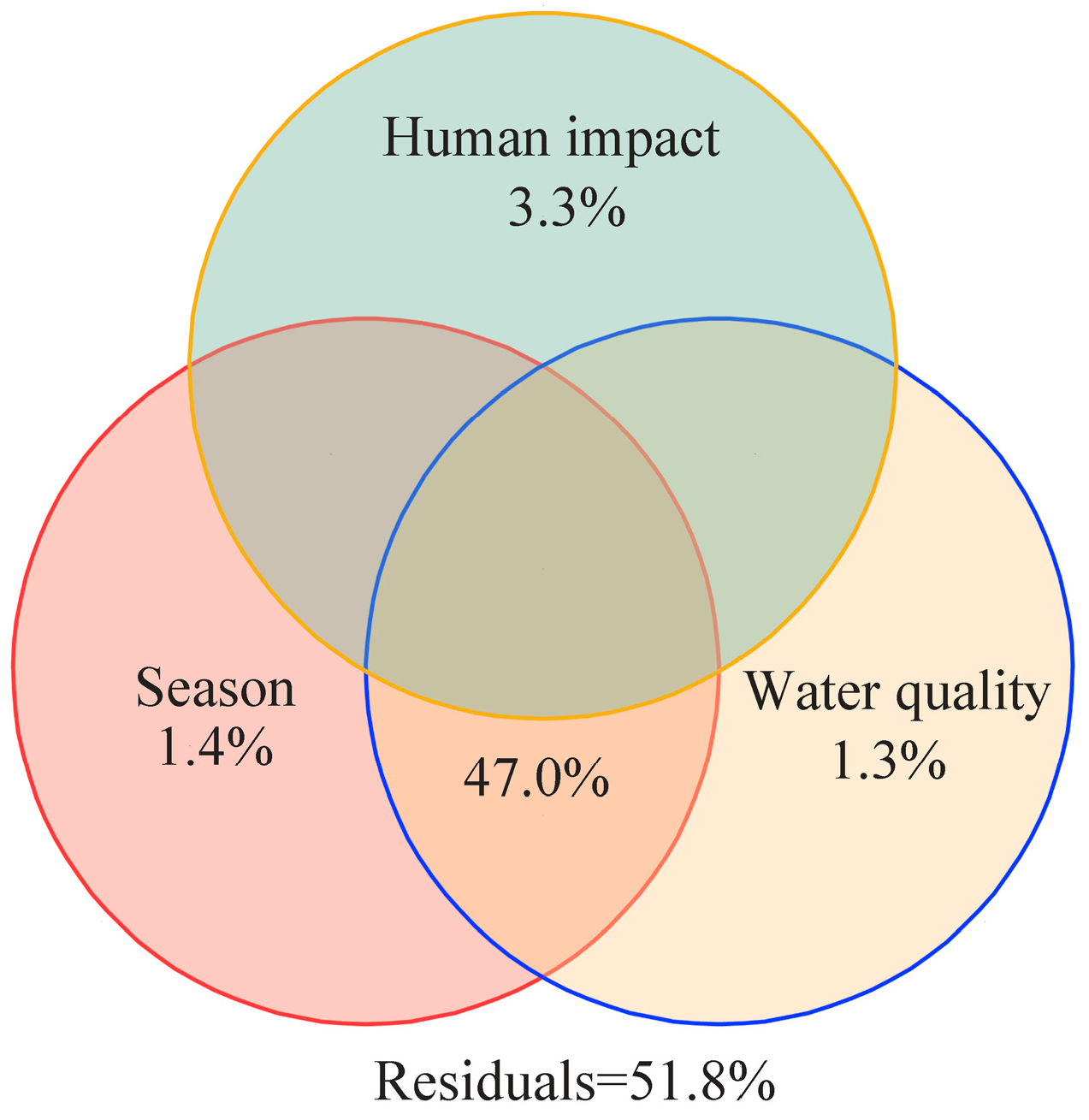

Figure 7. VPA diagram of the eukaryotic phytoplankton community in the study area.
Figure 7. VPA diagram of the eukaryotic phytoplankton community in the study area.
Water 16 02318 g007
Water 16 02318 g008

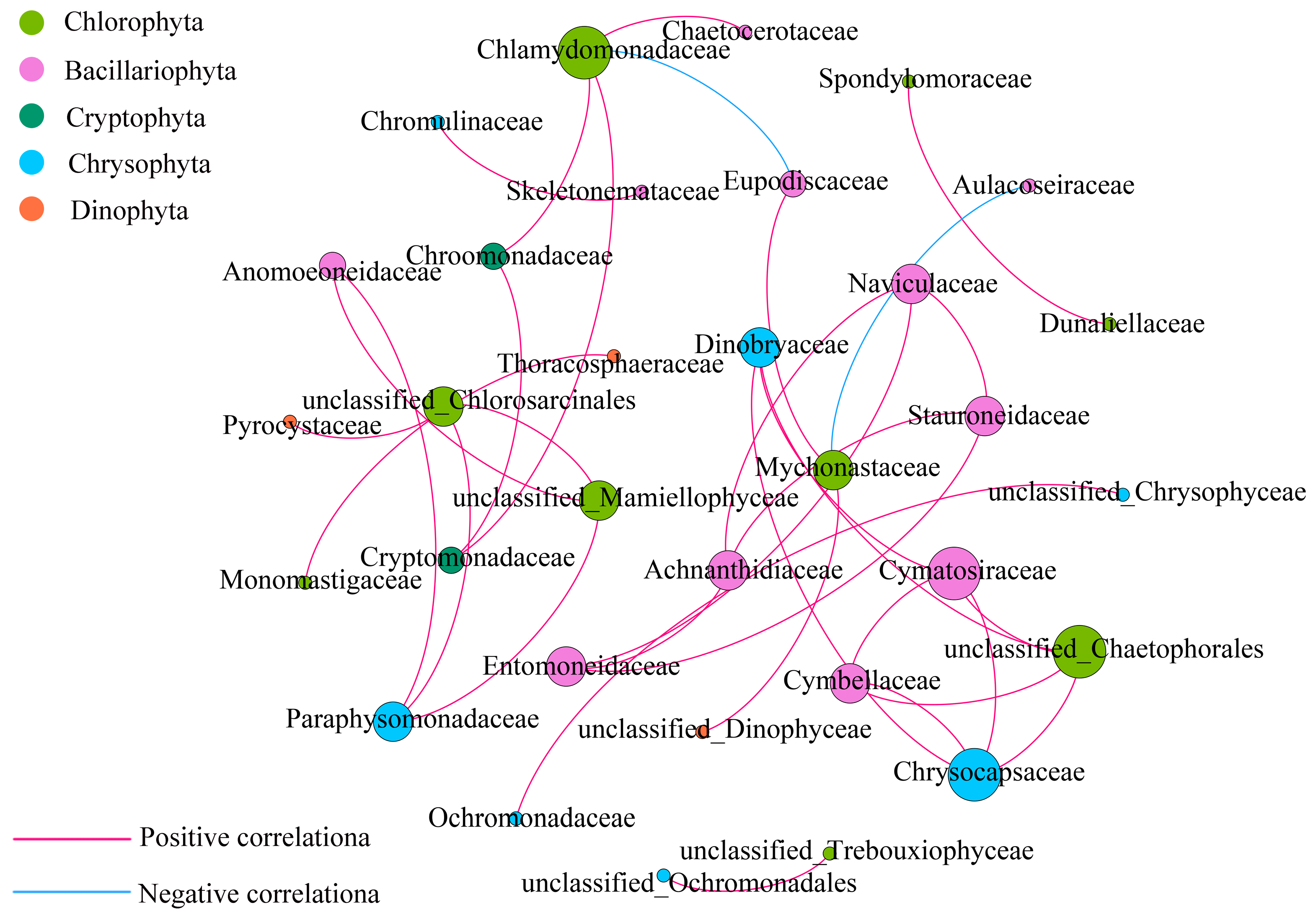

Figure 8. Network analysis of the families of eukaryotic phytoplankton in the study area.
Figure 8. Network analysis of the families of eukaryotic phytoplankton in the study area.
Water 16 02318 g008
Table 1. Water quality evaluation indexes of Shannon–Wiener index and Pielou index.
Table 1. Water quality evaluation indexes of Shannon–Wiener index and Pielou index.
Shannon IndexPielou IndexWater Quality
>30.8~1no pollution
2~30.5~0.8light pollution
1~20.3~0.5moderate pollution
0~10~0.3heavy pollution
Table 2. Diversity index of phytoplankton in summer and winter in the study area.
Table 2. Diversity index of phytoplankton in summer and winter in the study area.
SeasonDiversity Index12345678910
SummerShannon2.332.521.991.991.041.951.21.592.132.27
Pielou0.910.830.80.830.530.760.620.890.720.8
WinterShannon1.861.651.942.041.921.942.281.671.741.76
Pielou0.840.850.880.850.80.840.890.760.790.84
Table 3. Dominant genera and the degree of dominance of the different groups in the study area.
Table 3. Dominant genera and the degree of dominance of the different groups in the study area.
PhylumGenusSummer ASummer AWinter AWinter B
ChlorophytaChlamydomonas0.199 0.331 --
Chlorophytaunclassified_Chlorophyceae0.040 0.069 0.096 0.096
Chlorophytaunclassified_Mamiellophyceae0.001 0.028 --
ChlorophytaMychonastes0.000 0.002 0.323 0.323
Chlorophytaunclassified_Selenastraceae0.000 0.001 0.090 0.090
ChlorophytaPicochlorum---0.023
DiatomeaAulacoseira0.294 0.003 --
DiatomeaCyclotella0.030 0.009 0.104 0.077
DiatomeaChaetoceros0.045 0.141 --
DiatomeaAnomoeoneis0.013 0.032 --
DiatomeaOdontella--0.124 0.100
Diatomeaunclassified_Mediophyceae0.001 0.001 0.034 0.035
Diatomeaunclassified_Diatomea0.007 0.011 0.049 0.017
CryptophytaCryptomonas0.088 0.025 --
Notes: Group A is close to urban areas, and Group B is far away from urban areas. The genera with a degree of dominance higher than 0.02 were defined as the dominant genera. “-” indicates not detected.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhao, B.; Peng, W.; Zhu, X.; Zhang, H.; Zhuang, X.; Wang, J.; Xi, S.; Luo, T. Research on the Relationship between Eukaryotic Phytoplankton Community Structure and Key Physiochemical Properties of Water in the Western Half of the Chaohu Lake Using High-Throughput Sequencing. Water 2024, 16, 2318. https://doi.org/10.3390/w16162318

AMA Style

Zhao B, Peng W, Zhu X, Zhang H, Zhuang X, Wang J, Xi S, Luo T. Research on the Relationship between Eukaryotic Phytoplankton Community Structure and Key Physiochemical Properties of Water in the Western Half of the Chaohu Lake Using High-Throughput Sequencing. Water. 2024; 16(16):2318. https://doi.org/10.3390/w16162318

Chicago/Turabian Style

Zhao, Bingbing, Wei Peng, Xinhao Zhu, Hua Zhang, Xingmei Zhuang, Jinhua Wang, Shanshan Xi, and Tao Luo. 2024. "Research on the Relationship between Eukaryotic Phytoplankton Community Structure and Key Physiochemical Properties of Water in the Western Half of the Chaohu Lake Using High-Throughput Sequencing" Water 16, no. 16: 2318. https://doi.org/10.3390/w16162318

APA Style

Zhao, B., Peng, W., Zhu, X., Zhang, H., Zhuang, X., Wang, J., Xi, S., & Luo, T. (2024). Research on the Relationship between Eukaryotic Phytoplankton Community Structure and Key Physiochemical Properties of Water in the Western Half of the Chaohu Lake Using High-Throughput Sequencing. Water, 16(16), 2318. https://doi.org/10.3390/w16162318

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
