Article

The Stress Effect and Biomineralization of High Phosphorus Concentration on Acid Mine Drainage Treatment Mediated by Acidithiobacillus ferrooxidans

1
College of Environmental Science and Engineering, Guilin University of Technology, Guilin 541004, China
2
Modern Industry College of Ecology and Environmental Protection, Guilin University of Technology, Guilin 541004, China
3
Nanning Engineering Technology Research Center for Water Safety, Guangxi Beitou Environmental Protection &Water Group Co., Ltd., Nanning 530022, China
4
Guangdong Provincial Engineering Research Center for Urban Water Recycling and Environmental Safety, International Graduate School at Shenzhen, Tsinghua University, Shenzhen 518055, China
5
Guangxi Key Laboratory of Environmental Pollution Control Theory and Technology, Guilin University of Technology, Guilin 541004, China
6
Collaborative Innovation Center for Water Pollution Control and Water Safety in Karst Areas, Guilin University of Technology, Guilin 541004, China
*
Author to whom correspondence should be addressed.
Water 2024, 16(16), 2245; https://doi.org/10.3390/w16162245
Submission received: 18 July 2024 / Revised: 6 August 2024 / Accepted: 7 August 2024 / Published: 9 August 2024
(This article belongs to the Section Wastewater Treatment and Reuse)

Abstract

:
Acid mine drainage (AMD), containing large quantities of heavy metals and acidic components, poses a severe threat to the environment and human health. Acidithiobacillus ferrooxidans (A. ferrooxidans) plays a crucial role in the treatment of AMD, but its activity is significantly influenced by environmental conditions. This study systematically analyzes the stress effect of high phosphorus concentration on A. ferrooxidans during AMD treatment and its biomineralization effect. The results indicate that with phosphorus concentrations ranging from 0 g/L to 2 g/L, the system’s pH and Fe2+ oxidation rate initially decrease and then increase, with higher phosphorus concentrations delaying the time of increase. When the phosphorus concentration exceeds 2 g/L, both pH and Fe2+ oxidation rates generally show a downward trend. The morphology and elemental composition of the precipitates obtained under different phosphorus concentrations exhibit significant differences, indicating that phosphorus concentration notably affects the oxidation activity of A. ferrooxidans and its mediated biomineralization process. Under high phosphorus concentrations, the activity of A. ferrooxidans is inhibited, hindering the Fe2+ oxidation process and resulting in the formation of a large quantity of amorphous ferric phosphate precipitates. The findings provide a scientific basis for optimizing AMD treatment technologies, suggesting that reasonable control of phosphorus concentration in practical applications can improve AMD treatment efficiency and pretreatment effects.

1. Introduction

Acid mine drainage (AMD) is one of the most destructive and challenging environmental issues associated with mining activities. AMD contains large amounts of SO42−, Fe, and other heavy (and semi-metal) elements [1,2], which not only severely threaten the ecological environment but also damage land and surface water resources, posing potential hazards to human health [3,4]. Therefore, seeking efficient, economical, and environmentally friendly AMD treatment methods is a significant research direction in the field of environmental science.
Currently, AMD treatment methods mainly include chemical neutralization, sulfide precipitation, constructed wetlands, adsorption, and microbial methods. Chemical neutralization involves adding alkaline substances to neutralize acidic wastewater, but this is costly and may lead to secondary pollution [1,2,5]. Sulfide precipitation effectively removes heavy metals but is complex to operate and requires strict control of reaction conditions [6]. Constructed wetlands use the synergistic effects of plants and microorganisms to naturally remove pollutants; they are low-cost and easy to maintain but have treatment efficiency affected by seasonal and environmental changes [7]. Adsorption uses porous materials to adsorb heavy metals; it is simple to operate but has limited adsorption capacity, requiring periodic replacement of adsorbents [8]. The fixed sulfate-reducing bacteria method can achieve sulfate conversion and biological recovery of metals from acidic metal-containing water, but the initial biomass of sulfate-reducing bacteria is very low, with long start-up times and high environmental requirements [9]. In summary, each method has its advantages and disadvantages, often necessitating the combination of multiple technologies to enhance treatment efficiency and reduce costs. Thus, exploring environmentally friendly and efficient AMD treatment methods is of great significance.
Acidithiobacillus ferrooxidans (A. ferrooxidans) is a Gram-negative, chemolithoautotrophic, acidophilic aerobic bacterium capable of oxidizing Fe2+ and reducing sulfides, producing iron oxides and sulfuric acid, playing a key role in AMD bioremediation. The optimum growth temperature and pH are 28–30 °C and 2.5, respectively [10]. A. ferrooxidans can tolerate organic compounds and metal ions within a certain concentration, which is one of the main reasons for its survival in extreme environments such as metal mines, coal mines, and sludge in sewage treatment plant. In recent years, A. ferrooxidans has become a research hotspot for AMD pretreatment due to its high efficiency in oxidizing iron sulfides. Under the mediation of A. ferrooxidans, it utilizes CO2 as the only carbon source; Fe2+ in AMD is oxidized to Fe3+, which is hydrolyzed to form secondary iron minerals such as jarosite and schwertmannite [11,12]. Schwertmannite has strong adsorption and co-precipitation effects on Mn, Cr, Cu, and As [3], effectively removing soluble iron and SO42− from AMD [4]. As a microorganism, the biomineralization process of A. ferrooxidans is significantly affected by environmental factors, including pH, temperature, CO2 concentration, nutrient elements, induction of added minerals, and the types and concentrations of anions and cations [13,14,15,16].
Phosphorus is an essential nutrient element and a necessary component of nucleic acids, phospholipids, and ATP in cells, participating in the formation of ATP and ADP. It plays an important role in energy accumulation and conversion, as well as physiological metabolism. During the metabolism of A. ferrooxidans, an appropriate amount of phosphorus can significantly enhance its Fe2+ oxidation ability and biomineralization efficiency [17]. However, when phosphorus concentration is too high, it stresses the iron redox reactions, altering the metabolic activities and treatment effects of A. ferrooxidans, thereby reducing the efficiency of AMD treatment [18]. Furthermore, excess phosphorus may stimulate the formation of secondary minerals, affecting subsequent treatment outcomes [19]. However, systematic research on the specific roles and stress effects of phosphorus in A. ferrooxidans-mediated AMD treatment is still lacking.
This study aims to systematically analyze the effect of phosphorus concentration on A. ferrooxidans during AMD treatment. Using a modified phosphorus-free 9K liquid medium under batch conditions, the study investigates the influence of phosphorus concentration on the formation of biogenic secondary iron minerals mediated by A. ferrooxidans. The study examines the pH, Fe2+ oxidation rate, total iron (TFe) precipitation rate, composition, and mineral phase of the precipitates in the reaction system to elucidate the following: (1) the effect of phosphorus concentration on A. ferrooxidans in AMD treatment; (2) the impact of phosphorus concentration on the metal removal efficiency and precipitate products mediated by A. ferrooxidans, revealing the role of phosphorus in A. ferrooxidans-mediated AMD treatment. This research provides a scientific basis for optimizing AMD biotreatment technologies.

2. Materials and Methods

2.1. Test Materials

Preparation of Modified Phosphorus-Free 9K Liquid Medium: The medium was prepared by dissolving (NH4)2SO4 3.0 g, K2SO4 0.50 g (substituted for K2HPO4), MgSO4·7H2O 0.50 g, KCl 0.10 g, and Ca(NO3)2·4H2O 0.01 g in 1 L of deionized water, and adjusting the pH to 2.5 with 1:1 H2SO4. The phosphorus stock solution was prepared using NaH2PO4·2H2O, with a phosphorus concentration of 50 g/L. Strain: The strain used in the experiments was A. ferrooxidans (ATCC 23270), collected from an acid mine pit. Resting Cells of A. ferrooxidans: A. ferrooxidans was inoculated into the 9K medium at 10% (v/v) and incubated on a shaker at 28 °C and 180 r/min for expansion. The cultivation was stopped in the late exponential growth phase (approximately 2–3 days), and the resulting secondary minerals were removed by filtration using qualitative filter paper. The filtrate was centrifuged at 10,000× g (4 °C, 10 min) to collect the cells, which were then washed three times with pH 1.5 acid (prepared with H2SO4) to remove ions. The cells from the 250 mL culture system were resuspended in 5 mL of pH 2.5 acid (prepared with H2SO4), concentrated 50 times to obtain A. ferrooxidans concentrated cell suspension, with a cell density of approximately 109 cells/mL [20].

2.2. Experimental Methods

Seven treatments were set according to phosphorus concentration, with nutrients provided by the modified phosphorus-free 9K liquid medium. The phosphorus concentrations were set to 0, 0.5, 1, 2, 3, 4, and 5 g/L, labeled as “P-0 g/L,” “P-0.5 g/L,” “P-1 g/L,” “P-2 g/L,” “P-3 g/L,” “P-4 g/L,” and “P-5 g/L,” respectively. The substrate was FeSO4·7H2O, with a Fe2+ concentration of 160 mmol/L. Each treatment was inoculated with 1 mL of concentrated cell suspension, and the total reaction volume was 250 mL. The system pH was adjusted to 2.50 ± 0.02 with 1:1 H2SO4. Each treatment was set up with three replicates, and the cultures were shaken at 180 r/min and 28 °C. During the cultivation, the solution pH was periodically monitored, and 1 mL liquid samples were filtered (0.22 μm filter membrane) to analyze changes in Fe2+ and TFe. Sampling times were 12 h, 24 h, 36 h, 48 h, 72 h, 96 h, 120 h, 144 h, and 168 h. At the end of cultivation, the precipitates were filtered using neutral qualitative filter paper, washed three times with pH 1.5 deionized water (prepared with 1:1 H2SO4), and then washed three times with deionized water. The collected minerals were dried at 60 °C to constant weight, weighed, and stored in a desiccator containing anhydrous silica gel for future use.

2.3. Measurement Methods and Data Analysis

pH: The pH of the solution was measured using a pHS-3C pH meter (Shanghai LeiCi Factory, Shanghai, China). Fe2+ Concentration: Measured using the o-phenanthroline colorimetric method. TFe: Fe3+ was reduced to Fe2+ using hydroxylamine hydrochloride, followed by measurement using the o-phenanthroline colorimetric method. Calculation Methods: Fe2+ oxidation rate and TFe precipitation rate were calculated using standard methods.
The TFe precipitation rate was determined as follows:
T F e % = T F e i n i t i a l T F e t / T F e i n i t i a l × 100 ,
where T F e i n i t i a l represents the initial iron concentration and T F e t is the iron concentration at t (hours) of reaction time.
The oxidation rate of Fe2+ was calculated as follows:
F e 2 + ( % ) = F e i n i t i a l 2 + F e t 2 + / F e i n i t i a l 2 + × 100 ,
where F e i n i t i a l 2 + denotes the initial Fe2+ concentration and F e t 2 + is the Fe2+ concentration at t (hours) of reaction time.
In the same experiment, three sets of parallel samples were utilized to obtain error bars.
XRD: X-ray diffraction analysis was performed using an X’Pert 3 Powder diffractometer (PANalytical, The Netherlands) under the following conditions: tube voltage 50 kV, tube current 150 mA, scanning range 10–80° (2θ), step size 0.02°, scanning speed 5°/min, with a Cu target (curved crystal monochromator). FTIR: Fourier transform infrared spectroscopy was conducted using a Frontier FT-IR spectrometer (PerkinElmer, Shanghai, China). SEM: Scanning electron microscopy was carried out using an S-4800 microscope (Hitachi, Japan) with an accelerating voltage of 5.0 kV.
The mean and standard deviation of each data point were calculated using Microsoft Excel® 2019. All figures were generated using Origin® 9.0 software.

3. Results

3.1. Effect of Phosphorus on pH Changes during Acid Mine Drainage Treatment

The presence of phosphorus affects pH changes during AMD treatment, as indicated in Figure 1.
As shown in Figure 1, based on the pH changes under different phosphorus concentrations, the reaction system can be divided into three groups: 0 g/L, 0.5–2 g/L, and above 2 g/L. At a phosphorus concentration of 0 g/L, the system pH initially rises and then falls. The initial rise is due to the oxidation of Fe2+ by A. ferrooxidans, which consumes H+, leading to an increase in pH. Subsequently, Fe3+ is hydrolyzed into minerals, generating H+ and causing the pH to decrease [21].
At phosphorus concentrations of 0.5 g/L to 2 g/L, the pH value initially decreases and then rapidly increases. The higher the phosphorus concentration, the later the increase in pH. At phosphorus concentrations of 0 g/L, 0.5 g/L, 1.0 g/L, and 2.0 g/L, the pH starts to increase at 0 h, 30 h, 92 h, and 119 h, respectively. This is because the added phosphorus source, NaH2PO4·2H2O, is acidic, causing an initial significant drop in pH. As the reaction progresses, A. ferrooxidans begins to consume H+, but NaH2PO4·2H2O has a buffering capacity, which increases with concentration. Therefore, with phosphorus concentrations of 0.5 g/L to 2 g/L, the pH increase is significantly delayed.
At phosphorus concentrations above 2 g/L, the system pH generally shows a downward trend, and the rate of decline is slightly higher than that in systems with phosphorus concentrations below 2 g/L. This may be due to the increased acidity of the reaction system with higher phosphorus concentrations, affecting the reaction between Fe2+, OH, and PO43−, forming precipitates and reducing the Fe2+ available for oxidation, thus decreasing the H+ consumption capacity. Figure 3 also supports this point. Additionally, the increased Na+ concentration (from NaH2PO4·2H2O) might change the osmotic pressure between the solution system and bacterial cells, affecting the Fe2+ oxidation process [22], inhibiting A. ferrooxidans activity, and preventing effective bio-oxidation, leading to a continuous pH decrease.

3.2. Effect of Phosphorus on Fe2+ Oxidation Rate during Acid Mine Drainage Treatment

The presence of phosphorus affects Fe2+ oxidation rate changes during AMD treatment, as indicated in Figure 2.
As shown in Figure 2, based on the changes in Fe2+ oxidation rate under different phosphorus concentrations, the system can be divided into three groups: 0 g/L, 0.5–2 g/L, and above 2 g/L.
At a phosphorus concentration of 0 g/L, the Fe2+ oxidation rate rises rapidly, reaching nearly 100% within 24 h. At phosphorus concentrations of 0.5 g/L to 2 g/L, the Fe2+ oxidation rate initially rises and then levels off. The higher the phosphorus concentration, the slower the oxidation rate increase. At phosphorus concentrations of 0.5 g/L, 1 g/L, and 2 g/L, the Fe2+ oxidation rate reaches nearly 100% at 72 h, 113 h, and 161 h, respectively. This is because the added phosphorus source, NaH2PO4·2H2O, is acidic, inhibiting A. ferrooxidans activity. As the reaction progresses, A. ferrooxidans gradually adapts to the environment and begins to oxidize Fe2+. The oxidation rate curve changes align with the pH curve changes in Figure 1, confirming the impact of the acidic environment on A. ferrooxidans.
At phosphorus concentrations above 2 g/L, the Fe2+ oxidation rate is generally lower and increases slowly. At phosphorus concentrations of 3 g/L, 4 g/L, and 5 g/L, the Fe2+ oxidation rate reaches approximately 51%, 42%, and 48% after 168 h, respectively. This is due to the inhibition or inactivation of A. ferrooxidans at high phosphorus concentrations, affecting the Fe2+ oxidation rate [22]. Compared to existing studies [23,24], the inhibition observed in this study is more pronounced, possibly due to differences in phosphorus sources. When the phosphorus source is potassium phosphate, A. ferrooxidans is completely inhibited at PO43− concentrations ≥500 mmol/L. However, in this study, A. ferrooxidans becomes gradually inactivated at phosphorus concentrations above 0.5 mg/L, possibly due to the influence of cations. Generally, K+ significantly enhances the Fe2+ oxidation process by A. ferrooxidans, while the Na+ used in this study does not have this function, affecting A. ferrooxidans’s tolerance to phosphorus.

3.3. Effect of Phosphorus on TFe Precipitation Rate and Total Precipitation in Acid Mine Drainage Treatment

The presence of phosphorus affects TFe precipitation rate and total precipitate mass changes during AMD treatment, as indicated in Figure 3.
As shown in Figure 3, based on the changes in TFe precipitation rate and total precipitate mass under different phosphorus concentrations, the system can be divided into three groups: 0 g/L, 0.5–2 g/L, and above 2 g/L.
At a phosphorus concentration of 0 g/L, the TFe precipitation rate rises rapidly within 48 h, reaching approximately 37%, and then gradually stabilizes (Figure 3a). The total precipitate mass is 1.87 g (Figure 3b). This indicates that under phosphorus-free conditions, when Fe2+ is completely oxidized by A. ferrooxidans, iron can efficiently precipitate and form stable mineral phases.
At phosphorus concentrations of 0.5 g/L to 2 g/L, the TFe precipitation rate shows a significant downward trend, and the decline rate slows with increasing phosphorus concentration. At phosphorus concentrations of 0.5 g/L to 2 g/L, the TFe precipitation rate reaches approximately 24.9%, 17.7%, and 22.4% at 168 h, respectively, when Fe2+ is completely oxidized by A. ferrooxidans (Figure 3a). The total precipitate mass is 1.29 g, 1.35 g, and 1.43 g, respectively (Figure 3b). The total precipitate mass does not correspond to the precipitation rate, which is due to the increased addition of NaH2PO4·2H2O, causing Fe3+ to react with excess PO43− and OH, forming precipitates and leading to an increase in total precipitate mass with increasing phosphorus concentration [21].
At phosphorus concentrations above 2 g/L, the TFe precipitation rate is generally higher and rises rapidly. At phosphorus concentrations of 3 g/L, 4 g/L, and 5 g/L, the TFe precipitation rate reaches approximately 47.1%, 44.1%, and 47.4% after 168 h, respectively (Figure 3a). The total precipitate mass significantly increases to 3.31 g, 3.05 g, and 3.37 g, respectively (Figure 3b). High phosphorus concentrations significantly enhance iron precipitation efficiency but also lead to changes in precipitate structure and composition (Table 1, Figure 5). This is because under high phosphorus concentrations, the increased acidity from NaH2PO4·2H2O further strengthens the chemical reactions between unoxidized Fe2+, Fe3+, and excess PO43− and OH, resulting in a continuous increase in TFe precipitation rate and total precipitate mass with increasing phosphorus concentration [18].

3.4. XRD Analysis of Precipitates Obtained under Different Phosphorus Concentrations

The presence of phosphorus affects the XRD spectra of the precipitate changes during AMD treatment, as indicated in Figure 4.
As shown in Figure 4, based on the XRD spectra of the precipitates obtained under different phosphorus concentrations, the system can be divided into two groups: 0 g/L to 1 g/L and above 1 g/L.
At phosphorus concentrations of 0 g/L to 1 g/L, the XRD spectra of the precipitates show distinct crystalline peaks, indicating that A. ferrooxidans can effectively catalyze the oxidation of Fe2+ at low phosphorus concentrations, resulting in the formation of highly crystalline mineral phases. These mineral phase characteristic peaks are very similar to the XRD spectra of jarosite (KFe3(SO4)2(OH)6), ammoniojarosite (NH4Fe3(SO4)2(OH)6), natrojarosite (NaFe3(SO4)2(OH)6), and carphosiderite (H3OFe3(SO4)2(OH)6).
At phosphorus concentrations above 1 g/L, the XRD spectra of the precipitates show very weak or no obvious crystalline peaks. This indicates that as the phosphorus concentration increases, the Fe2+ oxidation process is significantly affected, leading to insufficient Fe3+ supply and hindered Fe3+ hydrolysis, resulting in the formation of poorly crystalline mineral phases. The precipitates at this stage are likely composed of amorphous minerals such as Fe3(PO4)2, Fe(OH)3, amorphous iron phosphate (AIP), amorphous ferric hydroxide (AFH), and amorphous iron sulfate (AIS) [25,26,27].

3.5. FTIR Analysis of Precipitates Obtained under Different Phosphorus Concentrations

The presence of phosphorus affects the FTIR spectra of the precipitate changes during AMD treatment, as indicated by Figure 5.
As shown in Figure 5, based on the FTIR spectra of the precipitates obtained under different phosphorus concentrations, the system can be divided into two groups: 0 g/L to 1 g/L and above 1 g/L.
At phosphorus concentrations of 0 g/L to 1 g/L, the FTIR spectra of the precipitates show -OH stretching vibration absorption peaks at 3430–3410 cm−1, H-O-H deformation vibration absorption peaks at 1400–1640 cm−1, and SO42− group vibration peaks at 1005–1125 cm−1. This indicates that the product FeOOH has a certain adsorption capacity for SO42− [28]. Peaks at 1082 cm−1 and 627 cm−1 correspond to SO42− stretching vibrations, 1002 cm−1 corresponds to -OH deformation vibrations, and at around 508 cm−1 appears the FeO6 octahedral vibration peak, indicating the presence of jarosite in the precipitates [29].
At phosphorus concentrations above 1 g/L, the FTIR spectra of the precipitates show P-O vibration peaks around 1050 cm−1 and Fe-O-P stretching vibration peaks around 550 cm−1, suggesting that the precipitates obtained under these conditions are mainly composed of iron phosphate.
Therefore, under phosphorus concentrations of 0 g/L to 1 g/L, the precipitates are composed of jarosite and other jarosites, while at phosphorus concentrations above 1 g/L, the precipitates are mainly composed of amorphous iron phosphate.

3.6. SEM-EDS Analysis of Precipitates Obtained under Different Phosphorus Concentrations

The presence of phosphorus affects the morphology and elemental composition of the precipitate changes during AMD treatment, as indicated in Figure 6 and Table 1.
As shown in Figure 6 and Table 1, the morphology and elemental composition of the precipitates obtained under different phosphorus concentrations show significant differences. With increasing phosphorus concentration, the morphology of the precipitates changes noticeably. At a phosphorus concentration of 0 g/L (Figure 6A), the precipitates exhibit more regular crystalline morphology. At phosphorus concentrations of 0.5 g/L (Figure 6B) and 1 g/L (Figure 6C), the precipitates gradually become loose and granular. At phosphorus concentrations above 2 g/L (Figure 6D–G), the introduction of phosphate significantly alters the microstructure of the precipitates, resulting in agglomeration and condensation phenomena, forming irregular particle shapes and presenting as amorphous granular structures. These changes indicate that with increasing phosphorus concentration, the oxidative capacity of A. ferrooxidans is inhibited, causing the formed mineral phases to gradually transition from highly crystalline to amorphous structures.
The EDS elemental analysis results (Table 1) further confirm this viewpoint. With increasing phosphorus concentration, the phosphorus (P) content in the precipitates increases significantly, while the iron (Fe) content gradually decreases. At a phosphorus concentration of 0 g/L, the precipitates are primarily iron oxides with almost no phosphorus content. At phosphorus concentrations of 0.5 g/L to 2 g/L, the phosphorus content gradually increases, and the iron content gradually decreases, indicating the increasing formation of iron phosphate precipitates. At phosphorus concentrations of 3 g/L to 5 g/L, the phosphorus content increases significantly, and the iron content decreases significantly, indicating the primary formation of iron phosphate precipitates.
Additionally, at phosphorus concentrations of 0 g/L to 1 g/L, the precipitates contain lower amounts of K, Na, and P, and higher amounts of Fe, indicating that the composition mainly includes jarosite and other jarosites (Figure 4 and Figure 5). At phosphorus concentrations above 1 g/L, the phosphorus content gradually increases, and the iron content gradually decreases, indicating the increasing formation of iron phosphate precipitates, consistent with the patterns observed in Figure 4, Figure 5 and Figure 6.

4. Discussion

The present study systematically investigated the impact of varying phosphorus concentrations on the activity of Acidithiobacillus ferrooxidans (A. ferrooxidans) and the subsequent biomineralization processes during acid mine drainage (AMD) treatment. The findings reveal crucial insights into optimizing phosphorus management to enhance AMD treatment efficiency and address both immediate and long-term environmental impacts.
The experimental results indicate that phosphorus concentration exerts a significant influence on the pH and Fe2+ oxidation rate during AMD treatment. At phosphorus concentrations between 0 g/L and 2 g/L, the pH and Fe2+ oxidation rates initially decrease and then increase. Higher phosphorus concentrations delay the recovery time, suggesting that A. ferrooxidans initially struggles to adapt to increased phosphorus levels before eventually resuming activity. However, when phosphorus concentrations exceed 2 g/L, both pH and Fe2+ oxidation rates generally decline, indicating substantial inhibition of A. ferrooxidans activity. This inhibition is likely due to the increased acidity and osmotic stress imposed by high phosphorus levels, which hinder the bio-oxidation processes essential for AMD remediation. Phosphorus concentration significantly affects the formation and composition of secondary iron minerals. At low phosphorus concentrations (0 g/L to 1 g/L), highly crystalline mineral phases such as jarosite and schwertmannite are formed. Schwertmannite, in particular, has strong adsorption and co-precipitation effects on heavy metals such as Mn, Cr, Cu, and As [3]. These properties make schwertmannite an effective mineral for reducing the mobility and environmental impact of heavy metals in AMD. The presence of these crystalline minerals indicates efficient Fe2+ oxidation and Fe3+ hydrolysis, contributing to the overall effectiveness of AMD treatment. Conversely, at high phosphorus concentrations (above 1 g/L), amorphous iron phosphate precipitates dominate. These amorphous structures are less effective in immobilizing heavy metals compared to their crystalline counterparts. The shift from crystalline to amorphous phases under high phosphorus conditions suggests reduced efficiency in both Fe2+ oxidation and the subsequent hydrolysis and precipitation processes, leading to less effective AMD treatment and potential challenges for subsequent remediation efforts.
The formation of amorphous iron phosphate precipitates under high phosphorus conditions could impair the stability and long-term immobilization of heavy metals. This could result in increased mobility of contaminants over time, posing a risk to downstream ecosystems and water quality. Furthermore, the reduced formation of schwertmannite under high phosphorus conditions diminishes the potential for co-precipitation of heavy metals, further compromising the effectiveness of AMD treatment.
The findings underscore the importance of optimizing phosphorus levels in AMD treatment. Managing phosphorus concentration to stay below 0.5 g/L can enhance A. ferrooxidans activity, promote the formation of beneficial crystalline minerals such as jarosite and schwertmannite, and improve overall treatment efficiency. Beyond this range, the inhibitory effects on A. ferrooxidans and the formation of less effective amorphous precipitates could compromise the long-term sustainability of AMD remediation efforts. Future research should focus on the detailed mechanisms underlying the inhibitory effects of high phosphorus concentrations on A. ferrooxidans. In conclusion, by maintaining appropriate phosphorus levels, it is possible to improve the efficiency of AMD treatment, reduce environmental risks, and ensure the sustainability of remediation efforts. The formation and effectiveness of secondary minerals, particularly schwertmannite, play a pivotal role in the successful treatment of AMD and the long-term immobilization of heavy metals.

5. Conclusions

This experiment focused on studying the effects of different phosphorus concentrations on the activity of Acidithiobacillus ferrooxidans and the formation of secondary iron minerals. Through shake flask experiments, the process of A. ferrooxidans-mediated secondary iron mineral formation in an iron-rich sulfate environment was simulated, and the impact of high phosphorus concentration on the A. ferrooxidans-mediated acid mine drainage treatment process was analyzed. The conclusions are as follows:
At phosphorus concentrations ranging from 0 g/L to 2 g/L, the pH and Fe2+ oxidation rates initially decreased and then increased, with higher phosphorus concentrations causing a delayed increase.
Above 2 g/L, both the pH and Fe2+ oxidation rates generally showed a downward trend, indicating significant inhibition of A. ferrooxidans activity by high phosphorus concentrations.
At 0 g/L phosphorus concentration, the TFe precipitation rate and total precipitate mass were the highest. Between 0.5 g/L and 2 g/L phosphorus concentrations, the TFe precipitation rate decreased while the total precipitate mass increased with increasing phosphorus concentration. Above 2 g/L phosphorus concentration, both the TFe precipitation rate and total precipitate mass significantly increased due to the formation of a large quantity of amorphous iron phosphate precipitates.
Low phosphorus concentrations (0–1 g/L) resulted in highly crystalline mineral phases such as jarosite and other jarosites being formed, whereas high phosphorous concentrations (above 1 g/L) led to the formation of amorphous iron phosphate precipitates, which significantly affected mineral phase crystallinity.
The removal of excess phosphorus is necessary prior to pretreating AMD rich in Fe2+ with A. ferrooxidans.
The results of this study may help provide insight to the activity of Acidithiobacillus ferrooxidans and the formation of secondary iron minerals, and provide optimized conditions and theoretical guidance for the treatment of AMD.

Author Contributions

Conceptualization, H.H.; methodology, Z.G. and H.H.; validation, Z.G. and C.W.; formal analysis, Z.G. and X.W.; investigation, Z.G. and C.W.; resources, Y.J. and H.H.; data curation, C.W.; writing—original draft preparation, Z.G. and C.W.; writing—review and editing, Z.G. and H.H.; funding acquisition, Y.J. and H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Guangxi Key Research and Development Program (GUIKE AB22035081) and Supported by Foundation of Guilin University of Technology (GUTQDJJ 2001013).

Data Availability Statement

Data are contained within the article.

Acknowledgments

The assistance provided by Guangxi Engineering Research Center of Comprehensive Treatment for Agricultural Non-Point Source Pollution has been instrumental in facilitating this research experiment.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Qiao, D.; Wang, G.; Li, X.; Wang, S.; Zhao, Y. Pollution, sources and environmental risk assessment of heavy metals in the surface AMD water, sediments and surface soils around unexploited Rona Cu deposit, Tibet, China. Chemosphere 2020, 248, 125988. [Google Scholar] [CrossRef] [PubMed]
  2. Zheng, X.; Lu, Y.; Xu, J.; Geng, H.; Li, Y. Assessment of heavy metals leachability characteristics and associated risk in typical acid mine drainage (AMD)-contaminated river sediments from North China. J. Clean. Prod. 2023, 413, 137338. [Google Scholar] [CrossRef]
  3. Hajihashemi, S.; Rajabpoor, S.; Schat, H. Acid mine drainage (AMD) endangers pomegranate trees nearby a copper mine. Sci. Total Environ. 2023, 889, 164269. [Google Scholar] [CrossRef] [PubMed]
  4. Thomas, G.; Sheridan, C.; Holm, P.E. Arsenic contamination and rare earth element composition of acid mine drainage impacted soils from South Africa. Miner. Eng. 2023, 203, 108288. [Google Scholar] [CrossRef]
  5. Edress, N.A.A.; Abdel-Rahman, E.A.; Abdel-Wahab, M.G.F. Geochemical significance for the composition and depositional environments of the Campanian carbonate-rich phosphorite, Abu-Tartur plateau, Western Desert, Egypt. J. Afr. Earth Sci. 2023, 202, 104938. [Google Scholar] [CrossRef]
  6. Deng, J.H. Research Progress of Treatment Techniques for Acid Mine Drainage. Guangzhou Chem. Ind. 2015, 43, 12–13+40. [Google Scholar]
  7. Sheoran, A.S.; Sheoran, V. Heavy metal removal mechanism of acid mine drainage in wetlands: A critical review. Miner. Eng. 2006, 19, 105–116. [Google Scholar] [CrossRef]
  8. Wibowo, Y.G.; Fadhilah, R.; Syarifuddin, H.; Maryani, A.T. A Critical Review of Acid Mine Drainage Treatment. J. Presipitasi Media Komun. Dan Pengemb. Tek. Lingkung. 2021, 18, 524–535. [Google Scholar] [CrossRef]
  9. Levy, A.; Schneider-Mor, A.; Gelman, F.; Kamyshny, A. Petrological and chemical characterizations of pristine and reworked phosphorites from Negev, Israel: Insights into industrial usage. J. Afr. Earth Sci. 2023, 199, 104843. [Google Scholar] [CrossRef]
  10. Amouric, A.; Brochier-Armanet, C.; Johnson, D.B.; Bonnefoy, V.; Hallberg, K.B. Phylogenetic and genetic variation among Fe(II)-oxidizing acidithiobacilli supports the view that these comprise multiple species with different ferrous iron oxidation pathways. Microbiology 2011, 157, 111–122. [Google Scholar] [CrossRef]
  11. Zhan, Y.; Yang, M.; Zhang, S.; Zhao, D.; Duan, J.; Wang, W.; Yan, L. Iron and sulfur oxidation pathways of Acidithiobacillus ferrooxidans. World J. Microbiol. Biotechnol. 2019, 35, 60. [Google Scholar] [CrossRef] [PubMed]
  12. Alsaiari, A.; Tang, H.L. Field investigations of passive and active processes for acid mine drainage Treatment: Are anions a concern? Ecol. Eng. 2018, 122, 100–106. [Google Scholar] [CrossRef]
  13. Moeng, K. Community perceptions on the health risks of acid mine drainage: The environmental justice struggles of communities near mining fields. Environ. Dev. Sustain. 2018, 21, 2619–2640. [Google Scholar] [CrossRef]
  14. Luís, A.; Córdoba, F.; Antunes, C.; Loayza-Muro, R.; Grande, J.A.; Silva, B.; Diaz-Curiel, J.; da Silva, E.F. Extremely Acidic Eukaryotic (Micro) Organisms: Life in Acid Mine Drainage Polluted Environments—Mini-Review. Int. J. Environ. Res. Public Health 2021, 19, 376. [Google Scholar] [CrossRef]
  15. Wang, H.; Guo, Q.; Guo, Z.; Luo, H.; Li, H.; Yang, J.; Song, Y. Assessment of the induced effect of selected iron hydroxysulfates biosynthesized using Acidithiobacillus ferrooxidans for biomineralization of acid mine drainage. Water Sci. Technol. 2023, 87, 1879–1892. [Google Scholar] [CrossRef] [PubMed]
  16. Song, Y.; Wang, H.; Yang, J.; Cao, Y. Influence of Monovalent Cations on the Efficiency of Ferrous Ion Oxidation, Total Iron Precipitation, and Adsorptive Removal of Cr(VI) and As(III) in Simulated Acid Mine Drainage with Inoculation of Acidithiobacillus ferrooxidans. Metals 2018, 8, 596. [Google Scholar] [CrossRef]
  17. Zhou, L.; Dong, F.; Zhang, W.; Chen, Y.; Zhou, L.; Zheng, F.; Lv, Z.; Xue, J.; He, D. Biosorption and biomineralization of U(VI) by Kocuria rosea: Involvement of phosphorus and formation of U–P minerals. Chemosphere 2022, 288, 132659. [Google Scholar] [CrossRef]
  18. Richardson, A.E.; Simpson, R.J. Soil Microorganisms Mediating Phosphorus Availability Update on Microbial Phosphorus. Plant Physiol. 2011, 156, 989–996. [Google Scholar] [CrossRef] [PubMed]
  19. Simmons, J.A. Phosphorus Removal by Sediment in Streams Contaminated with Acid Mine Drainage. Water Air Soil Pollut. 2009, 209, 123–132. [Google Scholar] [CrossRef]
  20. Esparza, M.; Jedlicki, E.; González, C.; Dopson, M.; Holmes, D.S. Effect of CO2 Concentration on Uptake and Assimilation of Inorganic Carbon in the Extreme Acidophile Acidithiobacillus ferrooxidans. Front. Microbiol. 2019, 10, 603. [Google Scholar] [CrossRef]
  21. Daoud, J.; Karamanev, D. Formation of jarosite during Fe2+ oxidation by Acidithiobacillus ferrooxidans. Miner. Eng. 2006, 19, 960–967. [Google Scholar] [CrossRef]
  22. Bai, S.Y.; Liang, J.R.; Zhou, L.X. Effects of Monovalent Cation and Dissolved Organic Matter on the Formation of Biogenic Secondary Iron Minerals in Bioleaching System. Acta Mineral. Sin. 2011, 31, 118–125. [Google Scholar]
  23. Jiang, F.; Lu, X.; Zeng, L.; Xue, C.; Yi, X.; Dang, Z. The purification of acid mine drainage through the formation of schwertmannite with Fe(0) reduction and alkali-regulated biomineralization prior to lime neutralization. Sci. Total Environ. 2024, 908, 168291. [Google Scholar] [CrossRef] [PubMed]
  24. Tabak, H.H.; Govind, R. Advances in Biotreatment of Acid Mine Drainage and Biorecovery of Metals: 2. Membrane Bioreactor System for Sulfate Reduction. Biodegradation 2003, 14, 437–452. [Google Scholar] [CrossRef] [PubMed]
  25. Patel, V.; Nicar, M.; Emmett, M.; Asplin, J.; Maguire, J.A.; Ana, C.A.S.; Fordtran, J.S. Intestinal and Renal Effects of Low-Volume Phosphate and Sulfate Cathartic Solutions Designed for Cleansing the Colon: Pathophysiological Studies in Five Normal Subjects. Am. J. Gastroenterol. 2009, 104, 953–965. [Google Scholar] [CrossRef] [PubMed]
  26. Geiger, S.; Matalon, S.; Blasbalg, J.; Tung, M.; Eichmiller, F.C. The Clinical Effect of Amorphous Calcium Phosphate (ACP) on Root Surface Hypersensitivity. Oper. Dent. 2003, 28, 496–500. [Google Scholar] [PubMed]
  27. Trautvetter, U.; Camarinha-Silva, A.; Jahreis, G.; Lorkowski, S.; Glei, M. High phosphorus intake and gut-related parameters—Results of a randomized placebo-controlled human intervention study. Nutr. J. 2018, 17, 23. [Google Scholar] [CrossRef] [PubMed]
  28. Ren, Y.; Cao, X.; Wu, P.; Li, L. Experimental insights into the formation of secondary minerals in acid mine drainage-polluted karst rivers and their effects on element migration. Sci. Total Environ. 2023, 858, 160076. [Google Scholar] [CrossRef] [PubMed]
  29. Song, Y.W.; Chen, T.; Wang, H.R.; Zhang, S. Effect of anions on the oxidation activity of Acidithiobacillus ferrooxidans and the formation of secondary iron minerals. Zhongguo Huanjing Kexue/China Environ. Sci. 2018, 38, 574–580. [Google Scholar]

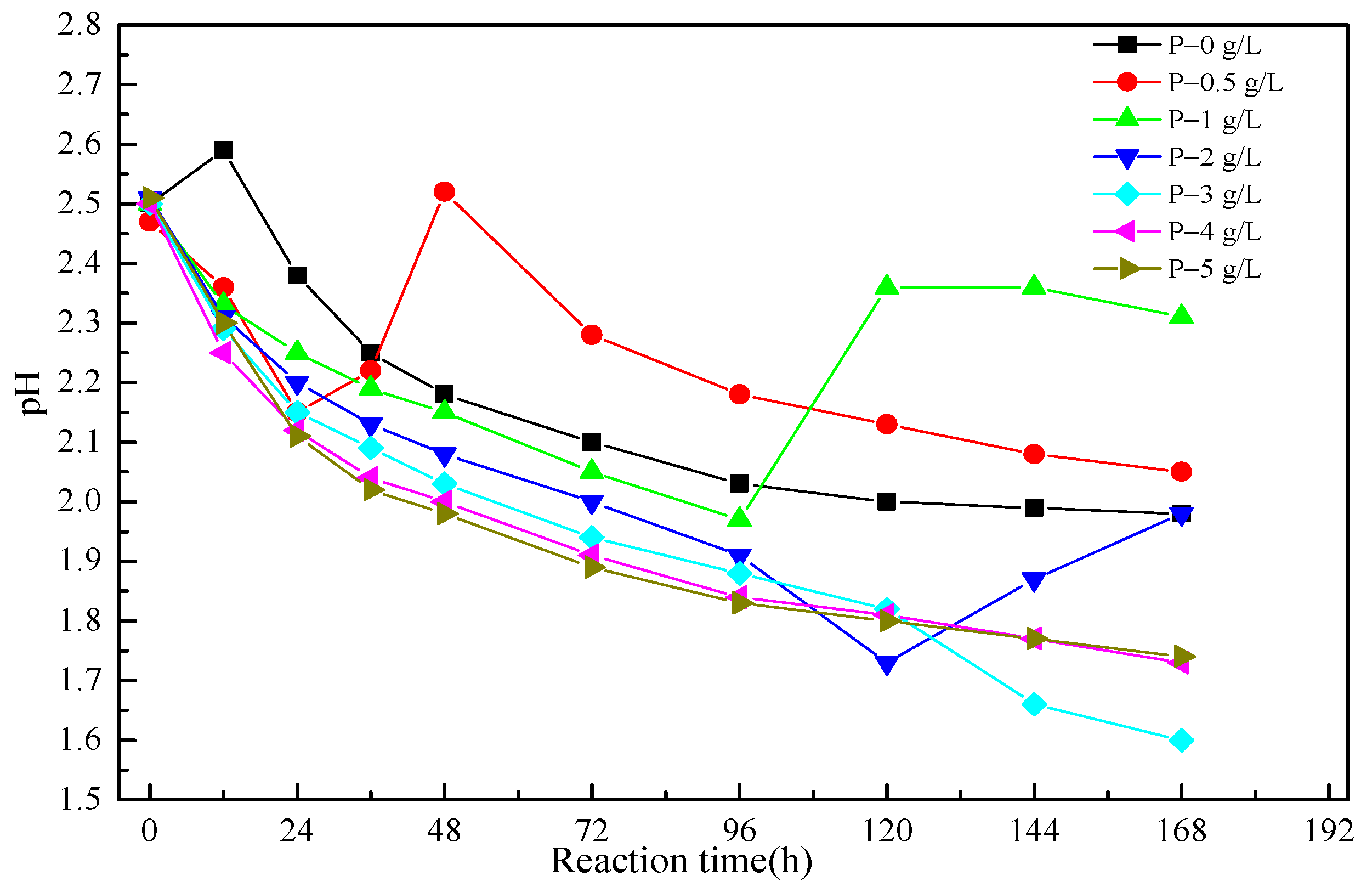

Figure 1. The change in pH in the reaction system under different phosphorus concentration conditions.
Figure 1. The change in pH in the reaction system under different phosphorus concentration conditions.
Water 16 02245 g001

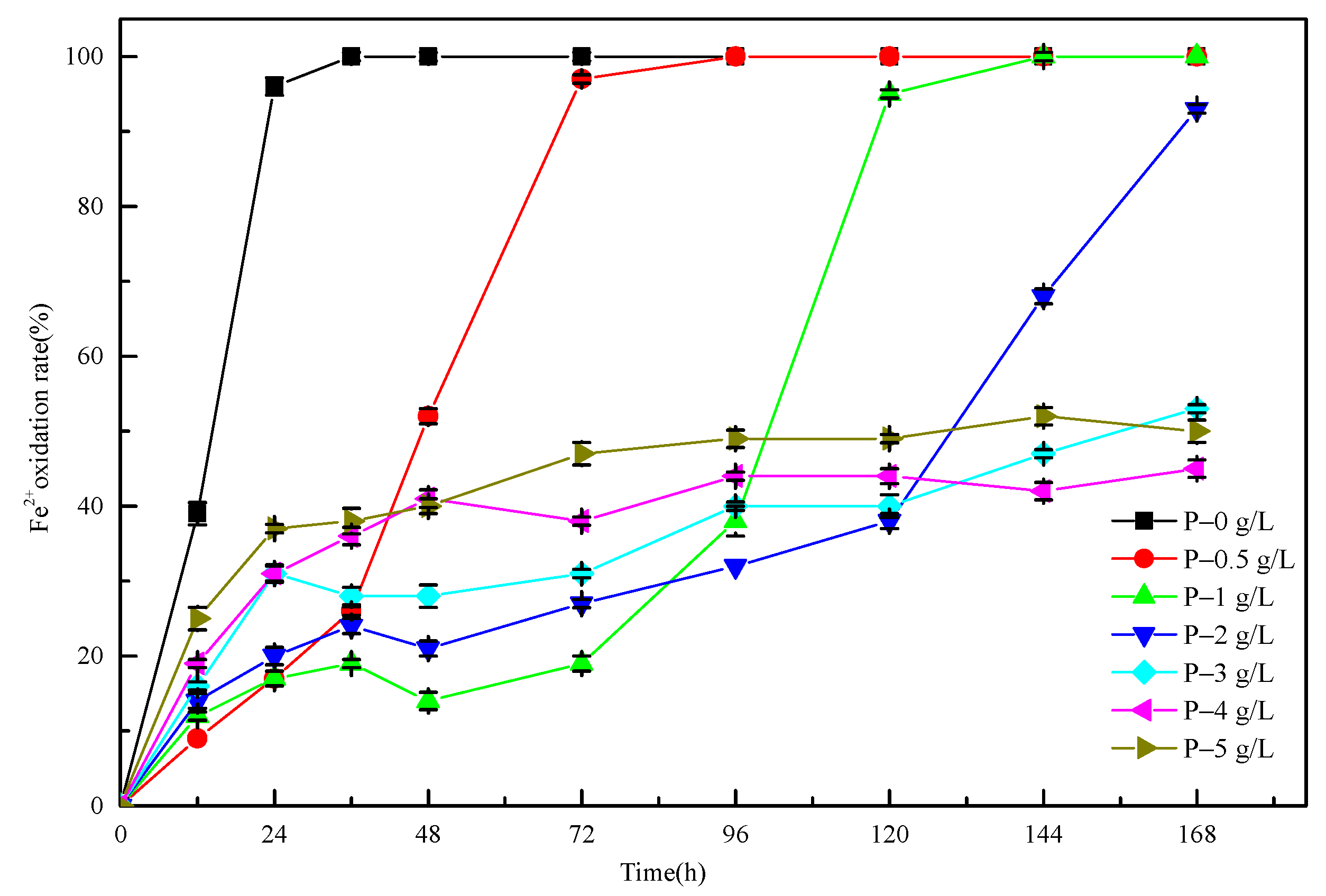

Figure 2. Effects of different phosphorus concentrations on Fe2+ oxidation.
Figure 2. Effects of different phosphorus concentrations on Fe2+ oxidation.
Water 16 02245 g002

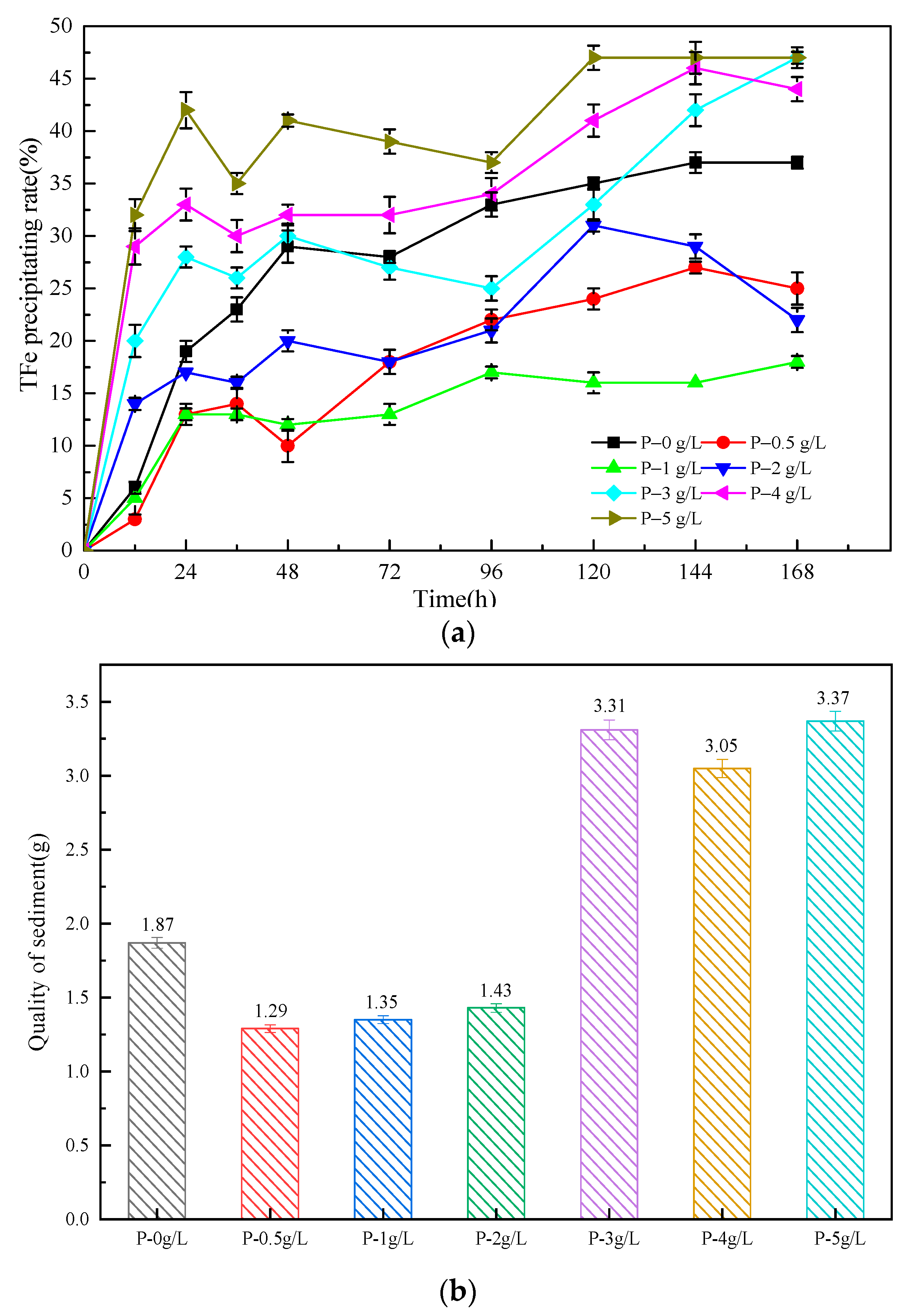

Figure 3. Effects of different phosphorus concentrations on the removal of total iron and total mass of sediment. (a) TFe precipitation rate. (b) Quality of sediment.
Figure 3. Effects of different phosphorus concentrations on the removal of total iron and total mass of sediment. (a) TFe precipitation rate. (b) Quality of sediment.
Water 16 02245 g003
Figure 4. XRD patterns of precipitates obtained under different phosphorus concentration conditions.
Figure 4. XRD patterns of precipitates obtained under different phosphorus concentration conditions.
Water 16 02245 g004
Figure 5. FTIR spectra of the precipitates obtained under different phosphorus concentration conditions.
Figure 5. FTIR spectra of the precipitates obtained under different phosphorus concentration conditions.
Water 16 02245 g005
Figure 6. Scanning electron microscope images of sediment. ((A) 0 g/L; (B) 0.5 g/L; (C) 1 g/L; (D) 2 g/L; (E) 3 g/L; (F) 4 g/L; (G) 5 g/L).
Figure 6. Scanning electron microscope images of sediment. ((A) 0 g/L; (B) 0.5 g/L; (C) 1 g/L; (D) 2 g/L; (E) 3 g/L; (F) 4 g/L; (G) 5 g/L).
Water 16 02245 g006aWater 16 02245 g006b
Table 1. Elemental analysis of the precipitate obtained under different phosphorus concentration conditions.
Table 1. Elemental analysis of the precipitate obtained under different phosphorus concentration conditions.
GroupPercentage of Each Element
K (wt%)N (wt%)Na (wt%)P (wt%)Fe (wt%)SO42− (wt%)
0 g/L phosphorus concentration0.663.830.130.0015.3310.19
0.5 g/L phosphorus concentration0.611.300.383.4717.657.92
1 g/L phosphorus concentration0.501.730.704.9914.357.18
2 g/L phosphorus concentration0.051.230.4614.5713.410.48
3 g/L phosphorus concentration0.111.130.3012.9413.691.27
4 g/L phosphorus concentration0.071.000.2714.1212.490.34
5 g/L phosphorus concentration0.061.010.2814.2612.530.39
KFe3(SO4)2(OH)67.80 33.5038.30
NH4Fe3(SO4)2(OH)6 2.92 35.0040.00
H3OFe3(SO4)2(OH)6 34.8040.00
NaFe3(SO4)2(OH)6 4.38 28.2812.87
