Impact of Forest Conversion to Agriculture on Hydrologic Regime in the Large Basin in Vietnam
2. Materials and Methods

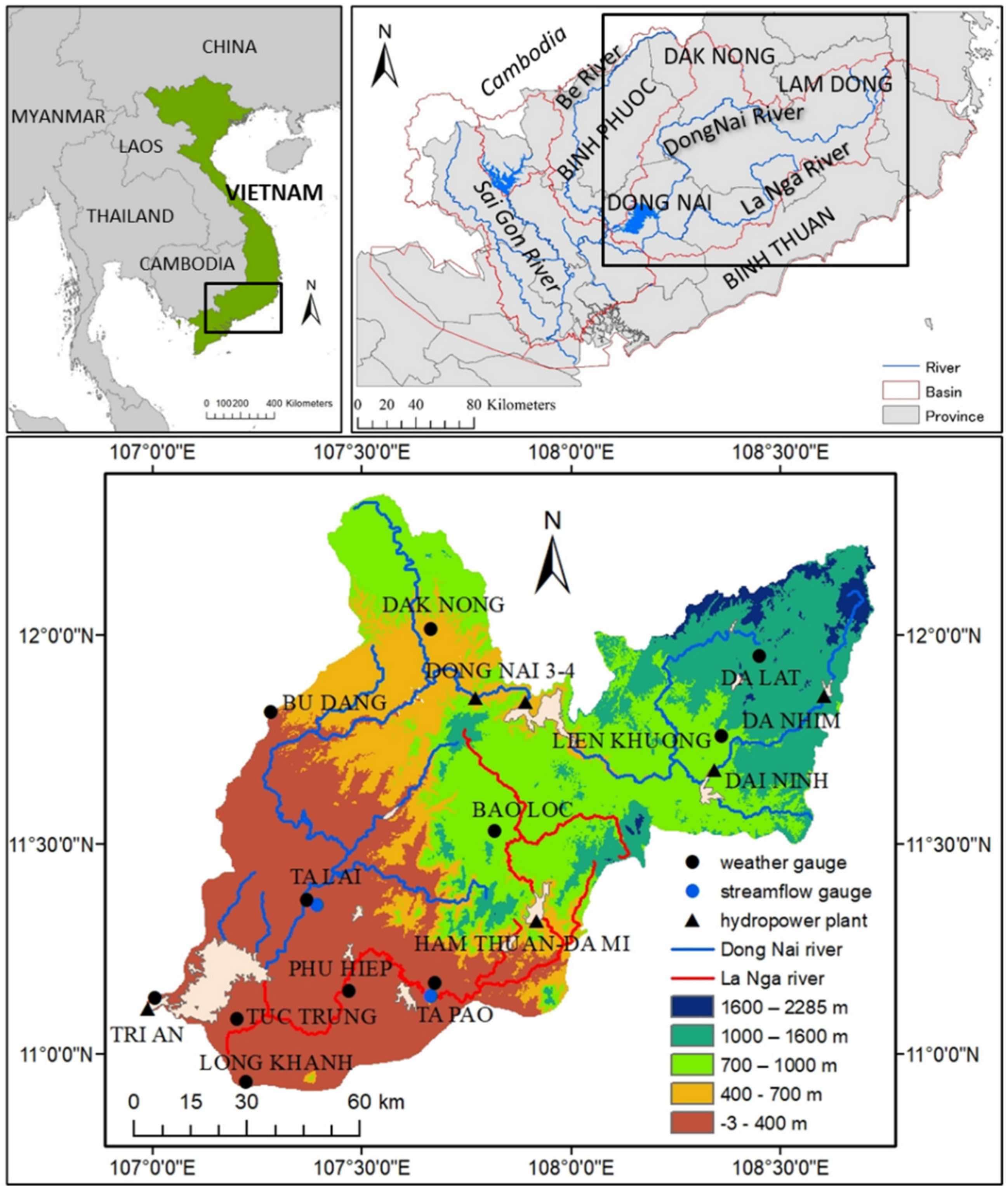

2.1. Study Area

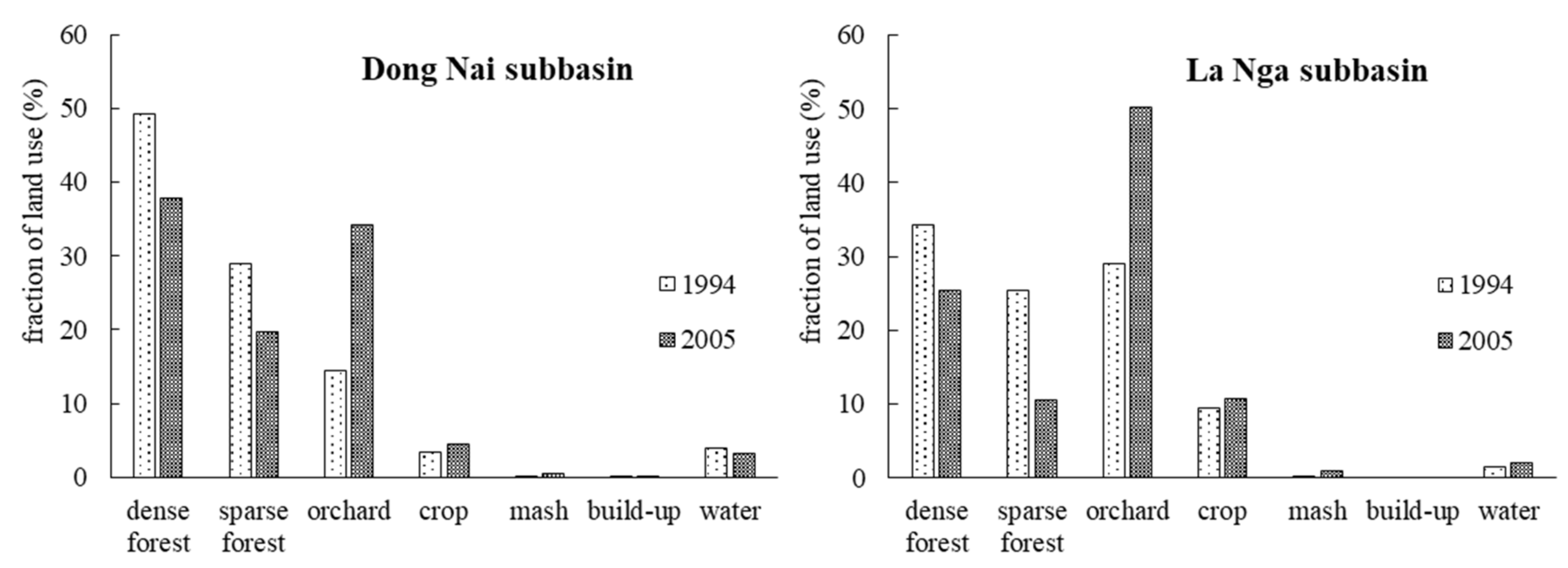

2.2. Land Use/Land Cover Change in the Study Area
2.3. The Soil and Water Assessment Tool (SWAT) Model
- DEM. The DEM of the basin was derived from SRTM30 data that have been published by the United States National Aeronautics and Space Administration (NASA) (Figure 1).
- Soil properties. We used the soil map of the world developed by the Food and Agriculture Organization (FAO) of the United Nations.
- Land use and land cover data. The land use maps of 1994 and 2005 with seven land cover classes, dense forest, sparse forest/Shrub, perennial/orchard, crop land, built-up/residential, marsh/grasses, and water body, which were classified from the Landsat imagery, were used (Figure 2) . To assess the performance of SWAT under LUCC, the daily hydrographs for the two land use maps 1994 and 2005 with the same climatic conditions and model parameters were simulated.
- Meteorological data. Data for daily precipitation (mm), maximum and minimum temperatures (°C), solar radiation (Wm−2), wind speed (ms−1), and relative humidity (%) were provided by the provincial department of natural resources and environment (DONRE). The study area was located in a tropical humid zone receiving southwest monsoon; 80% of the annual rainfall occurred during the rainy season (May–October) while the dry season (November–April) received the remaining rainfall. As UDNB extends from the high hills to the low plain area, temperature and precipitation vary significantly (Figure 3).
- Streamflow data. Daily streamflow data (m3/s) at Ta Lai station from 1 January 1987 to 31 December 2010 were collected and data at Ta Pao station from 1 January 1980 to 31 December 2010 (Figure 1) were compared with the modeled surface flow.
2.4. Model Setup and Performance Evaluation
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
- Pham, T.T.H.; Moeliono, M.; Nguyen, T.H.; Nguyen, H.T.; Vu, T.H. The Context of REDD+ in Vietnam: Drivers, Agents and Institutions; CIFOR Occasional Paper No. 75; Center for International Forestry Research (CIFOR): Bogor, Indonesia, 2012. [Google Scholar] [CrossRef][Green Version]
- Truong, N.C.Q.; Nguyen, H.Q.; Kondoh, A. Land Use and Land Cover Changes and Their Effect on the Flow Regime in the Upstream Dong Nai River Basin, Vietnam. Water 2018, 10, 1206. [Google Scholar] [CrossRef][Green Version]
- Arnold, J.G.; Moriasi, D.N.; Gassman, P.W.; Abbaspour, K.C.; White, M.J.; Srinivasan, R.; Santhi, C.; Harmel, R.D.; Griensven, A.V.; Van Liew, M.W.; et al. SWAT: Model Use, Calibration, and Validation. Trans. ASABE 2012, 55, 1491–1508. [Google Scholar] [CrossRef]
- Hibert, A.R. Forest treatment effects on water yield. In Forest Hydrology, Proceedings of the International Symposium on Forest Hydrology, State College, PA, USA, 29 August–10 September 1965; Sopper, W.E., Lull, H.W., Eds.; Pergamon: Oxford, UK, 1967; pp. 527–543. [Google Scholar]
- Bosch, J.M.; Hewlett, J.D. A review of catchment experiments to determine the effect of vegetation changes on water yield and evapotranspiration. J. Hydrol. 1982, 55, 3–23. [Google Scholar] [CrossRef]
- Bruijnzeel, L.A. Hydrology of Moist Tropical Forests and Effects of Conversion: A State of Knowledge Review; UNESCO Humid Tropics Programme Publication, Free University: Amsterdam, The Netherlands, 1990; 224p. [Google Scholar]
- Stednick, J.D. Monitoring the effects of timber harvest on annual water yield. J. Hydrol. 1996, 176, 79–95. [Google Scholar] [CrossRef]
- Brown, A.E.; Zhang, L.; McMahon, T.A.; Western, A.W.; Vertessy, R.A. A review of paired catchment studies for determining changes in water yield resulting from alterations in vegetation. J. Hydrol. 2005, 310, 28–61. [Google Scholar] [CrossRef]
- Brown, A.E.; Western, A.W.; McMahon, T.A.; Zhang, L. Impact of forest cover changes on annual streamflow and flow duration curves. J. Hydrol. 2013, 483, 39–50. [Google Scholar] [CrossRef]
- Cou, L. Land use/cover change impacts on hydrology in large river basins: A review. In Terrestrial Water Cycle and Climate Change: Natural and Human-Induced Impacts; Tang, Q., Oki, T., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2016; pp. 103–134. [Google Scholar]
- Rientjes, T.H.M.; Hailel, A.T.; Kebede, E.; Mannaerts, C.M.M.; Habib, E.; Steenhuis, T.S. Changes in land cover, rainfall and stream flow in Upper Gilgel Abbay catchment, Blue Nile basin—Ethiopia. Hydrol. Earth Syst. Sci. 2011, 15, 1979–1989. [Google Scholar] [CrossRef][Green Version]
- Bradshaw, C.J.A.; Sodi, N.S.; Peh, K.S.H.; Brook, B.W. Global evidence that deforestation amplifies flood risk and severity in the developing world. Glob. Change Biol. 2007, 13, 2379–2395. [Google Scholar] [CrossRef]
- Van Dijk, A.I.J.M.; Van Noordwijk, M.; Calder, I.R.; Bruijnzeel, L.A.; Schellekens, J.; Chappell, N.A. Forest-flood relation still tenuous—comment on “Global evidence that deforestation amplifies flood risk and severity in the developing world” by C.J.A. Bradshaw, N.S. Sodi, K.S.-H. Peh and B.W. Brook. Glob. Change Biol. 2009, 15, 110–115. [Google Scholar] [CrossRef]
- Kastridis, A.; Theodosiou, G.; Fotiadis, G. Investigation of flood management and mitigation measures in ungauged NATURA protected watersheds. Hydrology 2021, 8, 170. [Google Scholar] [CrossRef]
- Sapountzis, M.; Kastridis, A.; Kazamias, A.-P.; Karagiannidis, A.; Nikopoulos, P.; Lagouvardos, K. Utilization and uncertainties of satellite precipitation data in flash flood hydrological analysis in ungauged watersheds. Glob. NEST J. 2021, 23, 388–399. [Google Scholar] [CrossRef]
- De Jong, C. European perspectives on forest hydrology. In Forest Hydrology: Processes, Management and Assessment; Amatya, D., Williams, T., Bren, L., De Jong, C., Eds.; CABI: Wallingford, UK, 2016; pp. 69–87. [Google Scholar]
- Thanapakpawin, P.; Richey, J.; Thomas, D.; Rodda, S.; Campbell, B.; Logsdon, M. Effects of landuse change on the hydrologic regime of the Mae Chaem river basin, NW Thailand. J. Hydrol. 2006, 334, 215–230. [Google Scholar] [CrossRef]
- Costa, M.H.; Aurélie, B.; Jeffrey, A.C. Effects of large-scale changes in land cover on the discharge of the Tocantins River, Southeastern Amazonia. J. Hydrol. 2003, 283, 206–217. [Google Scholar] [CrossRef]
- Nguyen, T.N.Q.; Nguyen, D.L.; Nguyen, K.L. Effect of land use change on water discharge in Srepok watershed, Central Highland, Viet Nam. Int. Soil Water Conserv. Res. 2014, 2, 74–86. [Google Scholar] [CrossRef][Green Version]
- Khoi, D.N.; Suetsugi, T. Impact of climate and land-use changes on hydrological processes and sediment yield-a case study of the Be River catchment, Vietnam. Hydrol. Sci. J. 2014, 59, 1095–1108. [Google Scholar] [CrossRef]
- Wilk, J.; Andersson, L.; Plermkamon, V. Hydrological impacts of forest conversion to agriculture in a large river basin in northeast Thailand. Hydrol. Processes 2001, 15, 2729–2748. [Google Scholar] [CrossRef]
- Beck, H.E.; Bruijnzeel, L.A.; Van Dijk, A.I.J.M.; McVicar, T.R.; Scatena, F.N.; Schellekens, J. The impact of forest regeneration on streamflow in 12 meso-scale humid tropical catchments. Hydrol. Earth Syst. Sci. 2013, 10, 3045–3102. [Google Scholar] [CrossRef][Green Version]
- Liu, Z.; Cuo, L.; Li, Q.; Liu, X.; Ma, X.; Liang, L.; Ding, J. Impacts of Climate Change and Land Use/Cover Change on Streamflow in Beichuan River Basin in Qinghai Province, China. Water 2020, 12, 1198. [Google Scholar] [CrossRef][Green Version]
- Malmer, A. Water-yield changes after clear-felling tropical rainforest and establishment of forest plantation in Sabah, Malaysia. J. Hydrol. 1992, 34, 77–94. [Google Scholar] [CrossRef]
- Japan International Cooperation Agency (JICA): Nippon Koei Co., Ltd. The Master Plan Study on Dong Nai River and Surrounding Basins Water Resources Development: Final Report; Vol. 4. Appendix II: Topography and Geology, Appendix III: Meteorology and Hydrology. 1996. Available online: http://open_jicareport.jica.go.jp/617/617/617_123_11309523.html (accessed on 20 September 2017).
- ICO (International Coffee Organization). Country Coffee Profile: Vietnam. 2019, ICC-124-9. Available online: http://www.ico.org/documents/cy2018-19/icc-124-9e-profile-vietnam.pdf (accessed on 20 July 2020).
- The World Bank—Agriculture and Rural Development Department. Coffee Sector Report. Report No. 29358-VN. June 2004. Available online: http://documents1.worldbank.org/curated/en/458011468172449689/pdf/293580VN0Coffe1ver0P08262901Public1.pdf (accessed on 20 July 2020).
- Cheesman, J.; Bennett, J. Managing Groundwater Access in the Central Highlands (Tay Nguyen), Viet Nam. ISSN 1832-7435. Australian Centre for International Agricultural Research (ACIAR), Research Report No. 1. May 2005. Available online: https://crawford.anu.edu.au/people/academic/jeff-bennett/managing-groundwater-access-central-highlands-tay-nguyen-viet-nam (accessed on 7 February 2022).
- Mango, L.M.; Melesse, A.M.; McClain, M.E.; Gann, D.; Setegn, S.G. Land use and climate change impacts on the hydrology of the upper Mara River Basin, Kenya: Results of a modeling study to support better resource management. Hydrol. Earth Syst. Sci. 2011, 15, 2245–2358. [Google Scholar] [CrossRef][Green Version]
- Pervez, M.S.; Henebry, G.M. Assessing the impacts of climate and land use and land cover change on the freshwater availability in the Brahmaputra River basin. J. Hydrol. Reg. Stud. 2015, 3, 285–311. [Google Scholar] [CrossRef][Green Version]
- Tan, M.L.; Ibrahim, A.L.; Yusop, Z.; Duan, Z.; Ling, L. Impacts of land-use and climate variability on hydrological components in the Johor River basin, Malaysia. Hydrol. Sci. J. 2015, 60, 873–889. [Google Scholar] [CrossRef]
- Li, D.; Tian, Y.; Liu, C.; Hao, F. Impact of land-cover and climate changes on runoff of the source regions of the Yellow River. J. Geogr. Sci. 2004, 14, 330–338. [Google Scholar] [CrossRef]
- Jun, T. Combined impact of climate and land use changes on streamflow and water quality in eastern Massachusetts, USA. J. Hydrol. 2009, 379, 268–283. [Google Scholar] [CrossRef]
- Karlsson, I.B.; Sonnenborg, T.O.; Refsgaard, J.C.; Trolle, D.; Børgesen, C.D.; Olesen, J.E.; Jeppesen, E.; Jensen, K.H. Combined effects of climate models, hydrological model structures and land use scenarios on hydrological impacts of climate change. J. Hydrol. 2016, 535, 301–317. [Google Scholar] [CrossRef]
- Hua, G.; Qi, H.; Tong, J. Annual land seasonal streamflow responses to climate and land-cover changes in the Poyang Lake basin, China. J. Hydrol. 2008, 355, 106–122. [Google Scholar] [CrossRef]
- Arnold, J.G.; Srinivasan, R.; Muttiah, R.S.; Williams, J.R. Large area hydrologic modeling and assessment part I: Model development. J. Am. Water Resour. Assoc. 1998, 34, 73–89. [Google Scholar] [CrossRef]
- Arnold, J.G.; Fohrer, N. SWAT2000: Current capabilities and research opportunities in applied watershed modelling. Hydrol. Processes 2005, 19, 563–572. [Google Scholar] [CrossRef]
- Neitsch, S.L.; Arnold, J.G.; Kiniry, J.R.; Williams, J.R. Soil and Water Assessment Tool: Theoretical Documentation Version. 2009. Available online: http://swat.tamu.edu/documentation/ (accessed on 20 October 2015).
- SWAT-CUP: SWAT Callibration and Unertainty Programs—A User Manual. Available online: http://swat.tamu.edu/software/swat-cup/ (accessed on 20 October 2015).
- Veith, T.L.; Van Liew, M.W.; Bosch, D.D.; Arnold, J.G. Parameter Sensitivity and Uncertainty in SWAT: A Comparison across Five USDA-ARS Watersheds. Am. Soc. Agric. Biol. Eng. 2010, 53, 1477–1486. [Google Scholar]
- Dile, Y.T.; Karlberg, L.; Srinivasan, R.; Rockstrom, J. Investigation of the curve number method for surface runoff estimation in tropical regions. JAWRA J. Am. Water Resour. Assoc. 2016, 52, 1155–1169. [Google Scholar] [CrossRef]
- Liew, M.W.; Veith, T.L.; Bosch, D.D.; Arnold, J.G. Suitability of SWAT for the Conservation Effects Assessment Project: Comparison on USDA Agricultural Research Service Watershed. J. Hydrol. Eng. 2007, 12, 173–189. [Google Scholar] [CrossRef][Green Version]
- Moriasi, D.N.; Arnold, J.G.; Van Liew, M.W.; Bingner, R.L.; Harmel, R.D.; Veith, T.L. Model evaluation guidelines for systematic quantification of accuracy in watershed simulations. Trans. ASABE 2007, 50, 885–900. [Google Scholar] [CrossRef]
- Singh, J.; Knapp, H.V.; Arnold, J.G.; Demissie, M. Hydrologic modeling of the Iroquois River watershed using HSPF and SWAT. J. Am. Water Resour. Assoc. 2005, 41, 361–375. [Google Scholar] [CrossRef]
- Olanrewaju, O.A.; Huade, G.; Vincent, E.A.P.; Okke, B. Comparison of MODIS and SWAT evapotranspiration over a complex terrain at different spatial scales. Hydrol. Earth Syst. Sci. 2018, 22, 2775–2794. [Google Scholar] [CrossRef][Green Version]
- Li, Z.; Zhang, Y.; Wang, S.; Yuan, G.; Yang, Y.; Cao, M. Evapotranspiration of a tropical rain forest in Xishuangbanna, southwest China. Hydrol. Processes 2010, 24, 2405–2416. [Google Scholar] [CrossRef]
- Kuraji, K. Green-Dam Function (Water Source Protection Function) of Forest and Its Enhancement; Japan Afforestation Flood Control Association: Tokyo, Japan, 2003; 76p, Available online: http://www.uf.a.u-tokyo.ac.jp/~kuraji/Midorinodam.pdf (accessed on 14 September 2016). (In Japanese)
- Nakano, H. Effect on streamflow of forest cutting and change in regrowth on cut-over area [in Japanese with Enghlish abstract]. Bull. Gov. For. Exp. Stn. 1971, 240, 1–251. [Google Scholar]
- Chang, J.H. Hydrology in Humid Tropical Asia. In Hydrology and Water Management in the Humid Tropics; Bonell, M., Hufschmidt, M.M., Gladwell, J.S., Eds.; Cambridge University Press: Cambridge, UK, 1993; pp. 55–66. ISBN 0-521-02002-6. [Google Scholar]
- Lal, R. Challenges in agriculture and forest hydrology in the humid tropics. In Hydrology and Water Management in the Humid Tropics; Bonell, M., Hufschmidt, M.M., Gladwell, J.S., Eds.; Cambridge University Press: Cambridge, UK, 1993; pp. 395–404. ISBN 0-521-02002-6. [Google Scholar]
- Gerold, G.; Leemhuis, C. Effects of “ENSO-events” and rainforest conversion on river discharge in Central Sulawesi (Indonesia). In Tropical Rainforests and Agroforests under Global Change; Tscharntke, T., Leuschner, C., Veldkamp, E., Faust, H., Guhardja, E., Bidin, A., Eds.; Springer: Berlin, German, 2010; pp. 327–350. ISBN 978-3-642-26259-3. [Google Scholar]
- Munoz-Villers, L.E.; McDonnell, J.J. Land use change effects on runoff generation in a humid tropical montane cloud forest region. Hydrol. Earth Syst. Sci. 2013, 17, 3543–3560. [Google Scholar] [CrossRef][Green Version]
- Ma, X.; Xu, J.; Luo, Y.; Aggarwa, S.P.; Li, J. Response of hydrological processes to land- cover and climate changes in Kejie watershed, South-West China. Hydrol. Processes 2009, 23, 1179–1191. [Google Scholar] [CrossRef]
- D’haeze, D.; Deckers, J.; Raes, D.; Tran, A.P.; Nguyen, D.M.C. Over-irrigation of Coffea canephora in the Central Highlands of Vietnam revisited: Simulation of soil moisture dynamics in Rhodic Ferralsols. Agric. Water Manag. 2003, 63, 185–202. [Google Scholar] [CrossRef]
- Ahmad, A. An institutional analysis of changes in land use pattern and water scarcity in dak lak province. In Proceedings of the at the Nordic Conference on “Institutions, Livelihoods and the Environment: Change and Response in Mainland Southeast Asia”, Copenhagen, Denmark, 27–29 September 2000; University of Lund: Lund, Sweden, 2000. [Google Scholar]
- Amarasinghe, U.A.; Chu, T.H.; D’haeze, D.; Tran, Q.H. Toward sustainable coffee production in Vietnam: More coffee with less water. Agric. Syst. 2015, 136, 96–105. [Google Scholar] [CrossRef]
- D’haezea, D.; Raesa, D.; Deckersa, J.; Phong, T.A.; Loi, H.V. Groundwater extraction for irrigation of Coffea canephora in Ea Tul watershed, Vietnam—a risk evaluation. Agric. Water Manag. 2005, 73, 1–19. [Google Scholar] [CrossRef]
- Cheesman, J.; Tran, V.H.S.; Bennett, J. Managing Groundwater Access in the Central Highlands (Tay Nguyen), Viet Nam. ISSN 1832-7435. Australian Centre for International Agricultural Research (ACIAR), Research Report No. 6. November 2007. Available online: https://crawford.anu.edu.au/people/academic/jeff-bennett/managing-groundwater-access-central-highlands-tay-nguyen-viet-nam (accessed on 7 February 2022).
|Parameter||Description of Parameter||Range||Best Simulation|
|Dong Nai||La Nga|
|CN2.mgt||Initial SCS CN II value||−0.5–0.5||−0.312||−0.098|
|CH_K2.rte||Channel effective hydraulic conductivity||−0.01–500||219.299||35.765|
|ALPHA_BF.gw||Baseflow alpha factor||0–1||1.203||1.003|
|SOL_AWC.sol||Available water capacity||−0.5–0.5||0.942||0.559|
|GWQMN.gw||Threshold water depth in the shallow aquifer for flow||0–5000||1654||2021|
|REVAPMN.gw||Threshold water depth in the shallow aquifer for “revap”||0–1000||925||925|
|GW_REVAP.gw||Groundwater ‘revap’ coefficient||0.02–0.2||0.288||0.072|
|SOL_K.sol||Saturated hydraulic conductivity||−0.5–0.5||0.220||0.220|
|Very good||0.75 < NSE ≤ 1.00||PBIAS < ±10.00||0.00 ≤ RSR ≤ 0.50|
|Good||0.65 < NSE ≤ 0.75||10.00 ≤ PBIAS < ±15.00||0.50 < RSR ≤ 0.60|
|Satisfactory||0.50 < NSE ≤ 0.65||15.00 ≤ PBIAS < ±25.00||0.60 < RSR ≤ 0.70|
|Unstatisfactory||NSE ≤ 0.50||PBIAS ≥ ±25.00||RSR > 0.70|
|Station||Calibration (1980/1987–1994)||Validation (1995–2010)|
