# Improving Lake Level Prediction by Embedding Support Vector Regression in a Data Assimilation Framework

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

^{2}increasing from 0.975–0.982 to 0.998–0.999 and the RMSE decreasing from 0.436–0.159 m to 0.105–0.042 m. The prediction lead time also increased with the increase of continuous assimilation data. Further analysis of the assimilation model showed that when there was an assimilation cycle, the prediction remained stable for successive sets of two or more assimilated data, and the prediction lead time increased with successive assimilated data, from 4–8 days (one successive assimilation data) to 9–12 days (five successive assimilation data). Overall, this study found that the data assimilation framework can improve the prediction ability of data-driven models, with assimilated models having a smaller fluctuation range and higher degree of concentration than non-assimilated models. The increase in assimilated data will improve model accuracy as well as the number of days of prediction lead time when an assimilation cycle exists.

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Study Area and Data Collection

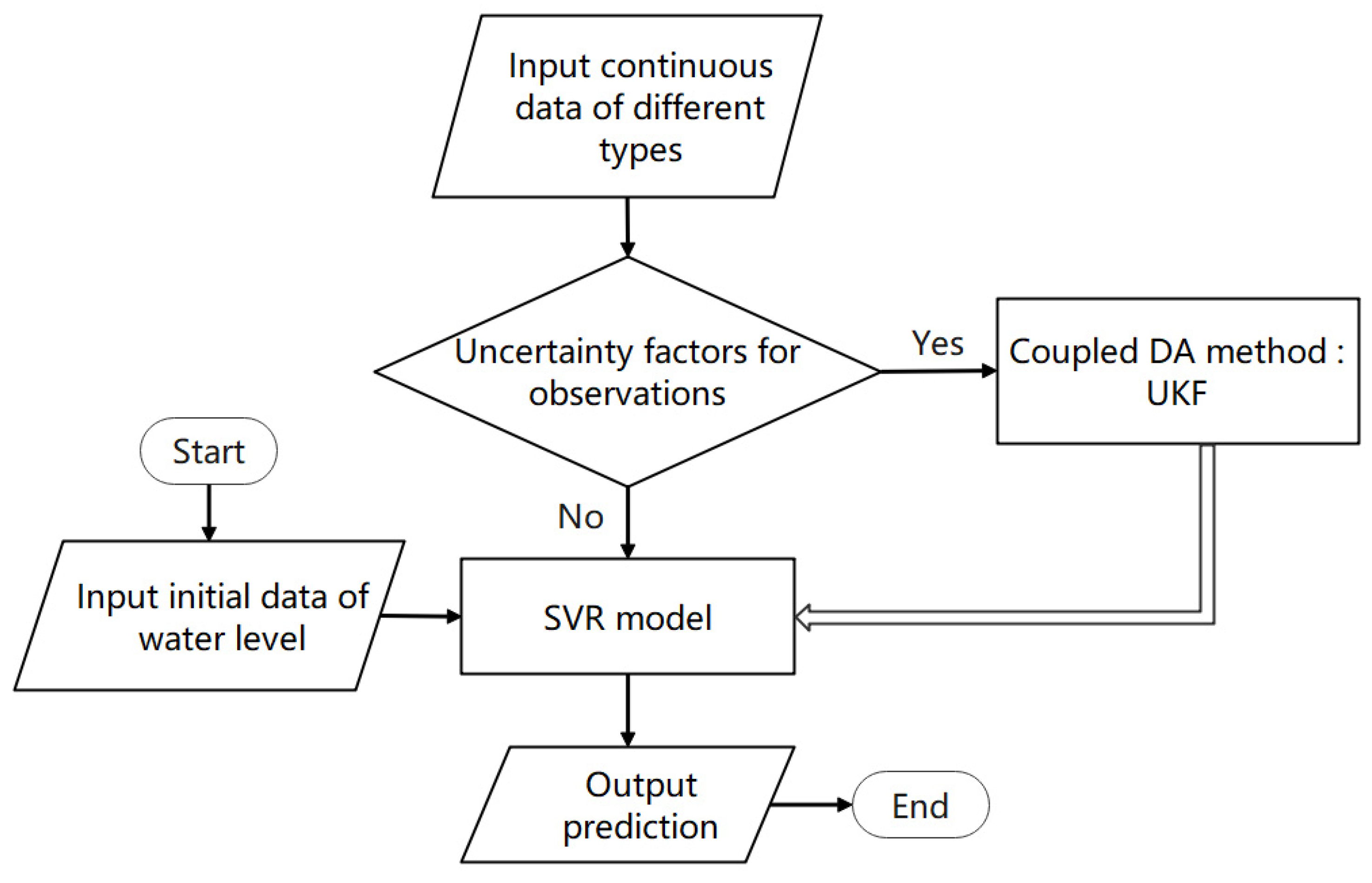

#### 2.2. Problem Formulation

_{t}is the water level at the site on day t; ${D}_{t\u2013j}^{i}$ (i = 1,…, N; j = m

_{i},…, n

_{i}) is the measured flow at river site #i on day t−j; L

_{t}

_{–j}(j = m

_{0},…, n

_{0}) is the water level at the site on day t−j.

#### 2.3. Support Vector Regression

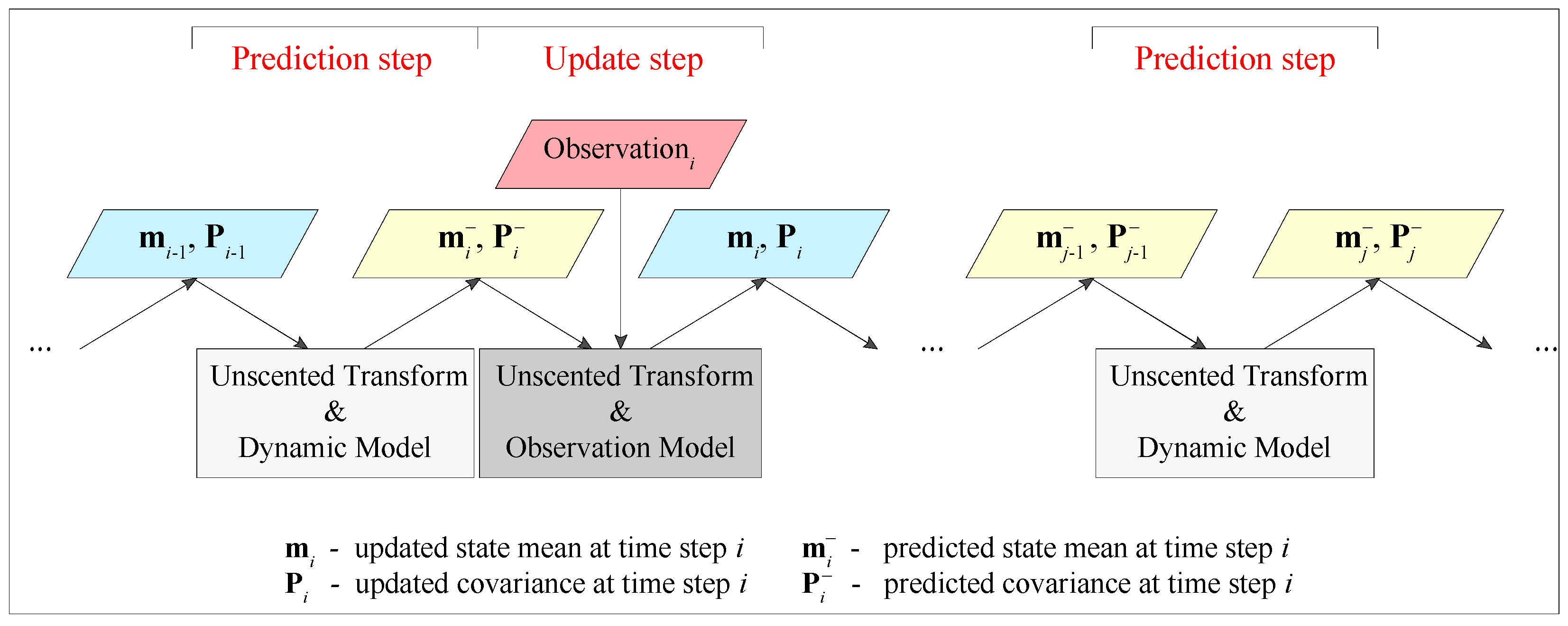

#### 2.4. Unscented Kalman Filter

## 3. Results and Discussion

#### 3.1. Data Assimilation Model Prediction Results

^{2}, the root mean square error (RMSE), and the mean relative error (MRE):

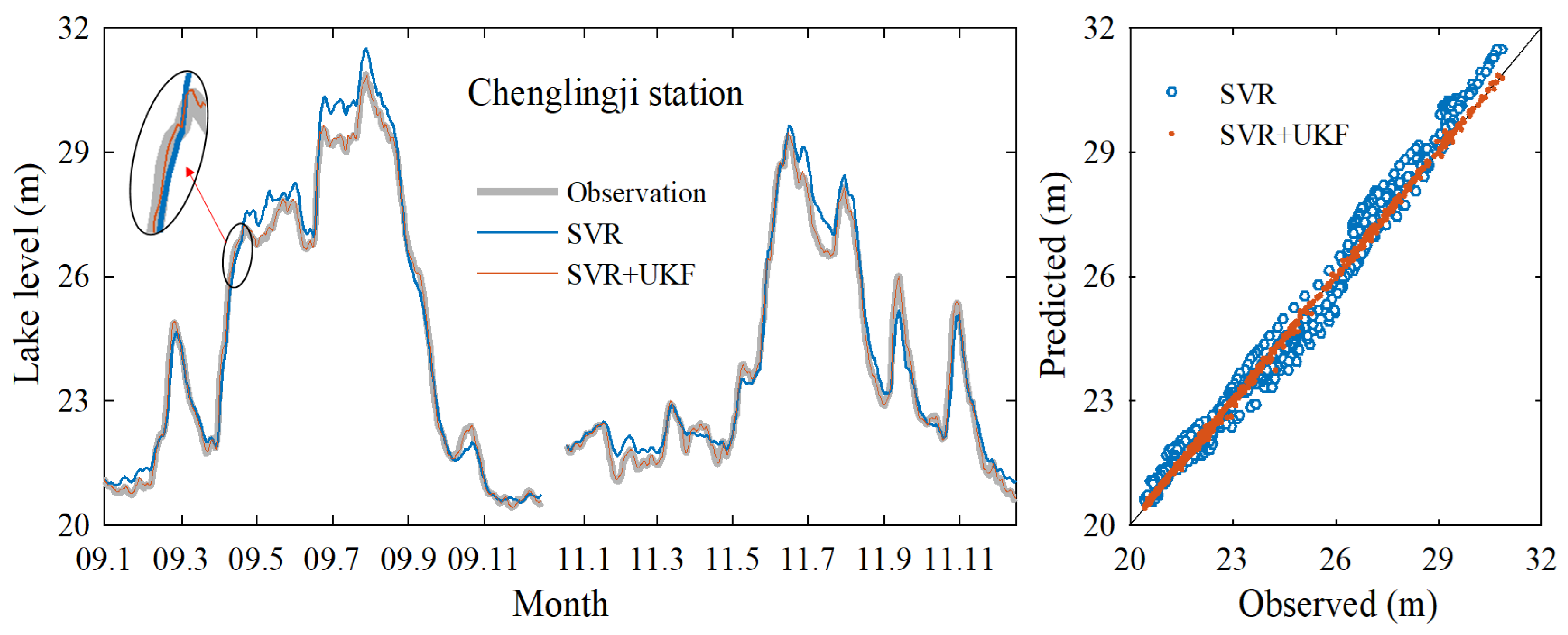

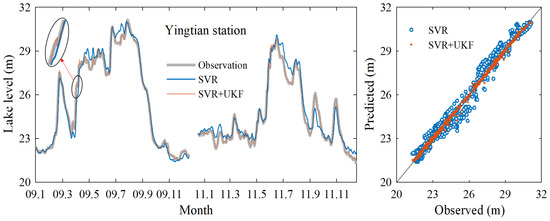

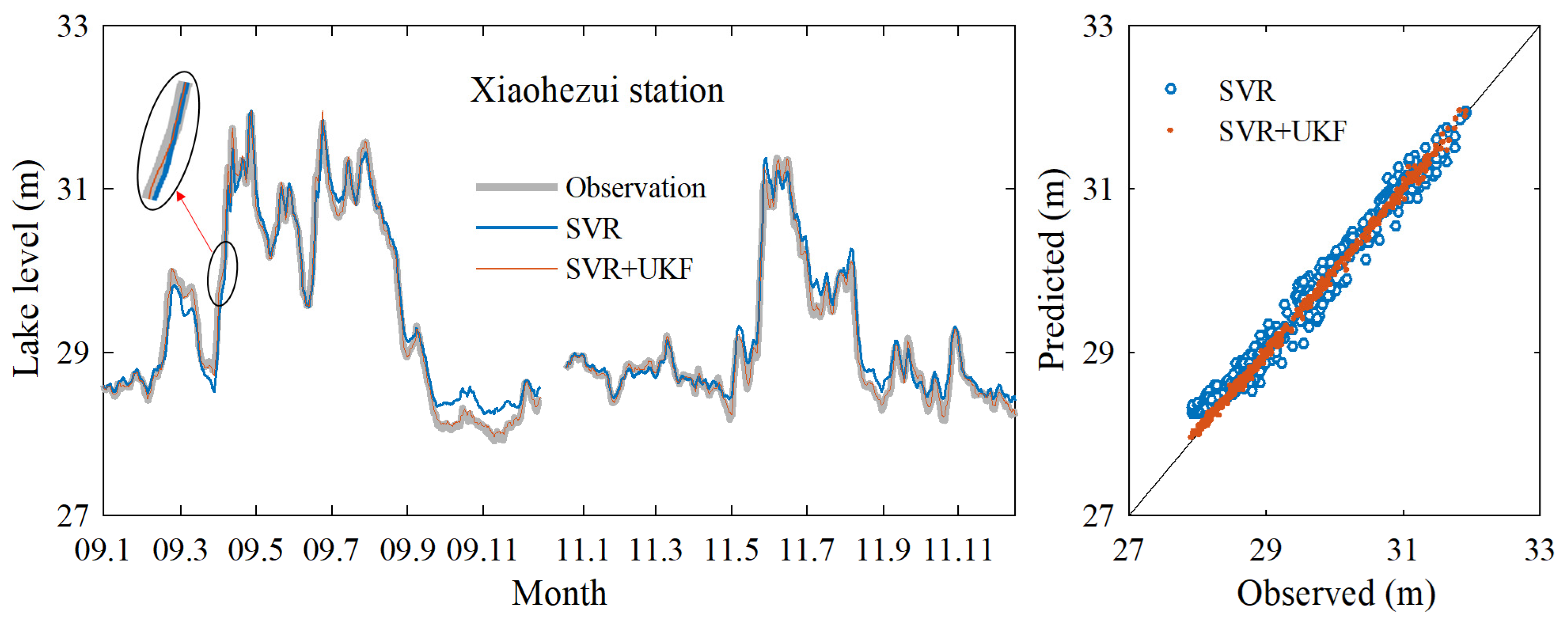

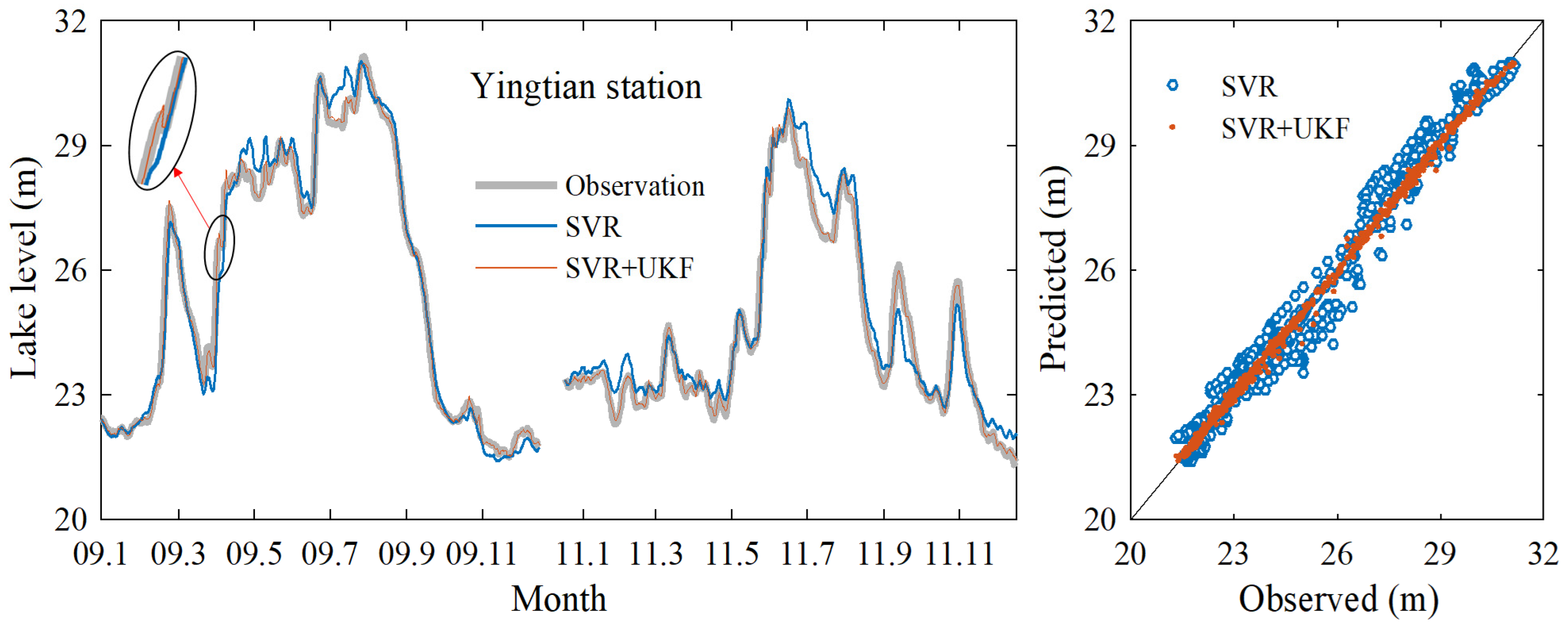

^{2}varying from 0.975 (Yingtian) to 0.982 (Chenglingji) at different stations, the RMSE varying from 0.159 m (Xiaohezui) to 0.436 m (Yingtian), and the MRE in the range of 0.004 (Xiaohezui) to 0.013 (Yingtian). Among the three representative stations in Dongting Lake, Xiaohezui has the highest prediction accuracy, followed by Chenglingji, and Yingtian has the lowest, which is comparable to the error distribution of predictions obtained using the SVR model alone.

^{2}varies from 0.998 (Xiaohezui) to 0.999 (Chenglingji and Yingtian), the RMSE varies from 0.042 m (Xiaohezui) to 0.105 m (Yingtian), and the MRE varies from 0.001 (Xiaohezui) to 0.003 (Yingtian). The performance ranking results of the assimilation models for the different sites according to both the RMSE and MRE metrics are consistent with the previous results.

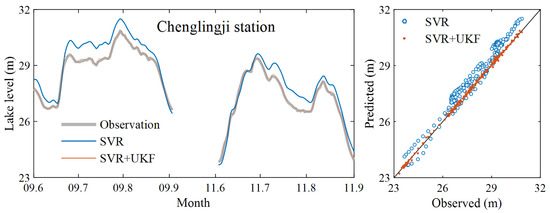

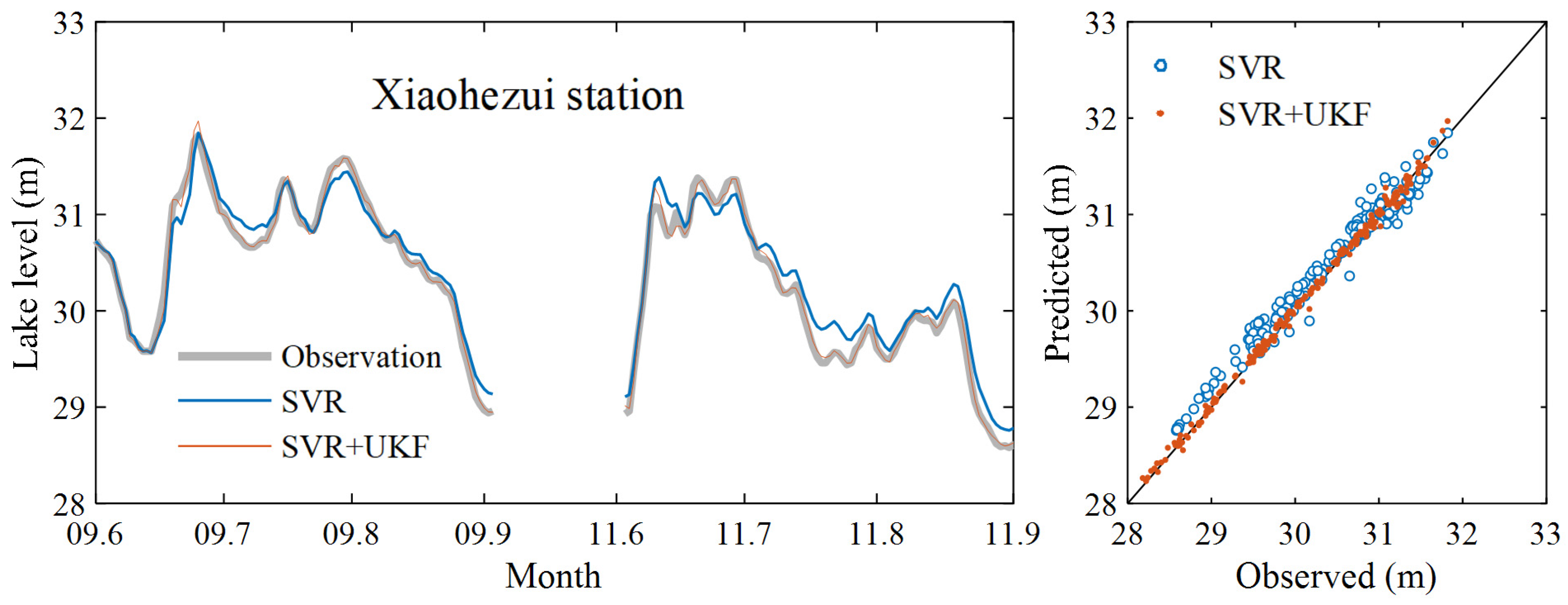

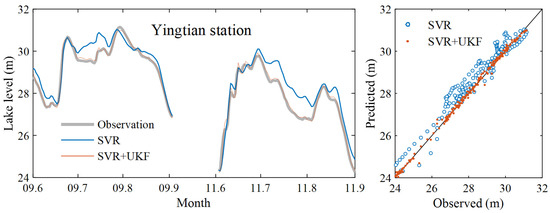

^{2}ranging from 0.949 (Chenglingji) to 0.984 (Xiaohezui) at different stations, the RMSE ranging from 0.103 (Xiaohezui) to 0.487 (Chenglingji), and the MRE in the range of 0.003 (Xiaohezui) to 0.017 (Chenglingji). Among the three representative stations in Dongting Lake, Xiaohezui has the best prediction accuracy, Yingtian has the second highest, and Xiaohezui has the lowest, which is equivalent to the error distribution of predictions produced using the SVR model alone.

^{2}ranges from 0.998 (Yingtian) to 0.999 (Chenglingji and Xiaohezui), RMSE ranges from 0.037 (Xiaohezui) to 0.116 (Yingtian), and MRE ranges from 0.001 (Xiaohezui) to 0.004 (Yingtian). It is worth mentioning that the phenomenon that the determination coefficient R

^{2}of the Xiaohezui model is slightly smaller than that of the models at the remaining two sites is related to the smaller range of water level fluctuations at these two sites.

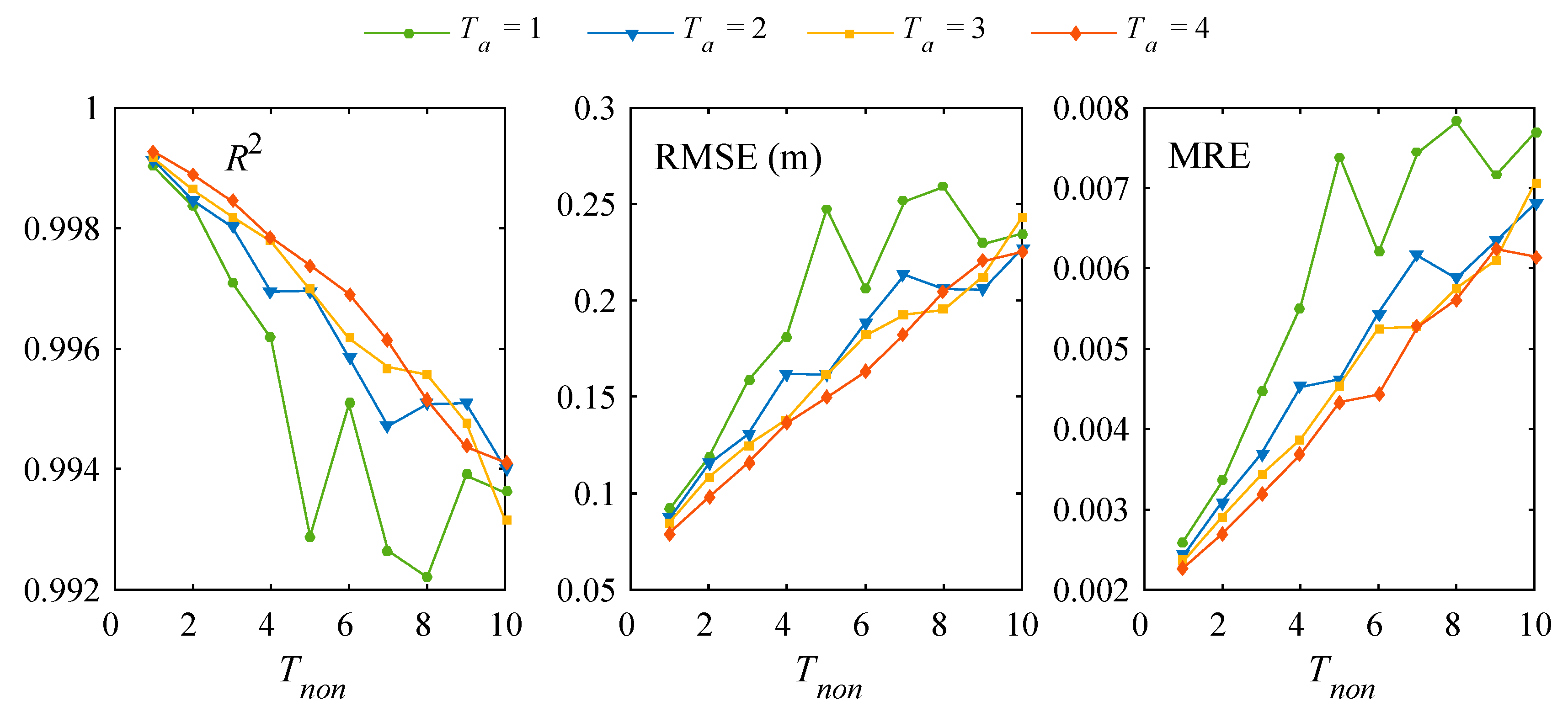

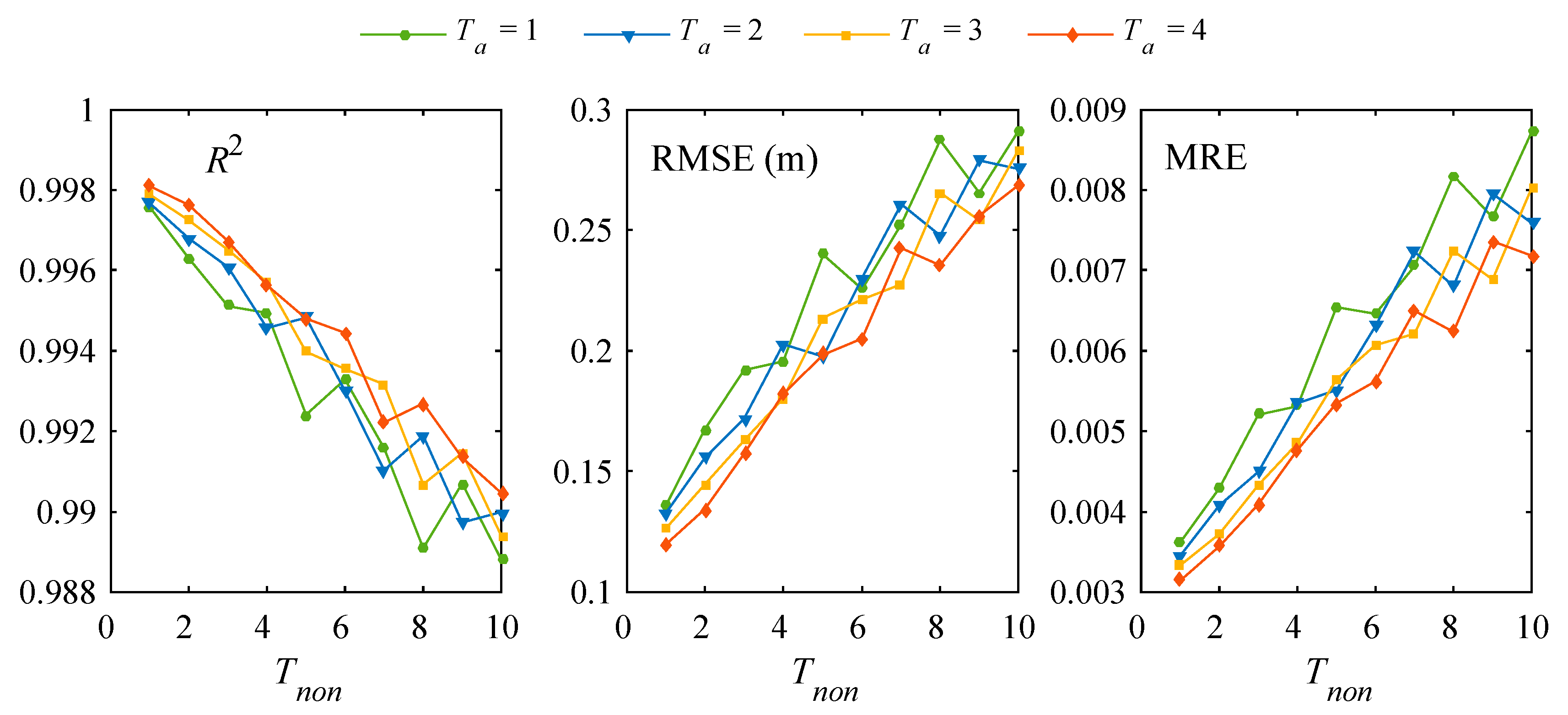

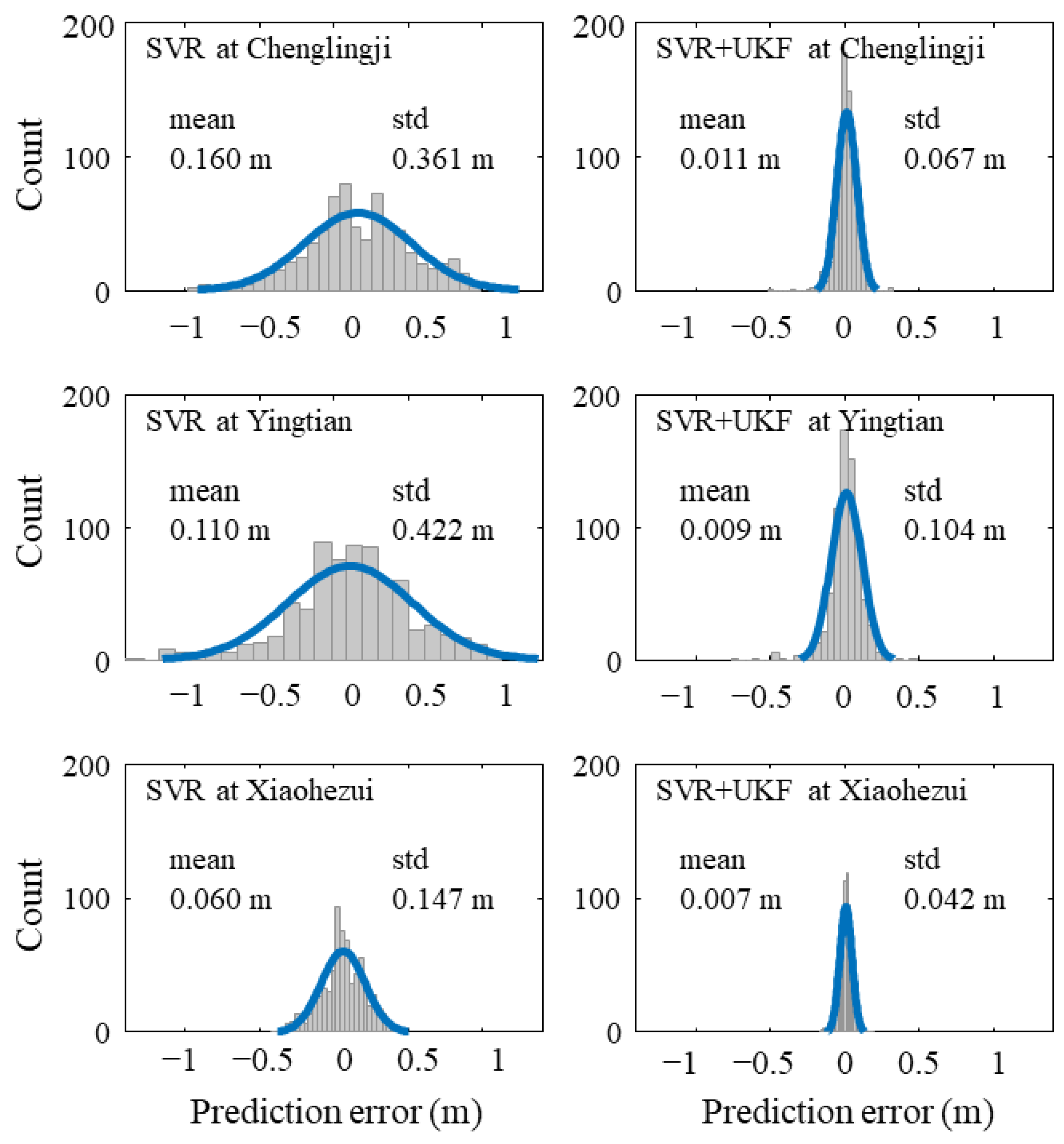

#### 3.2. Further Model Testing

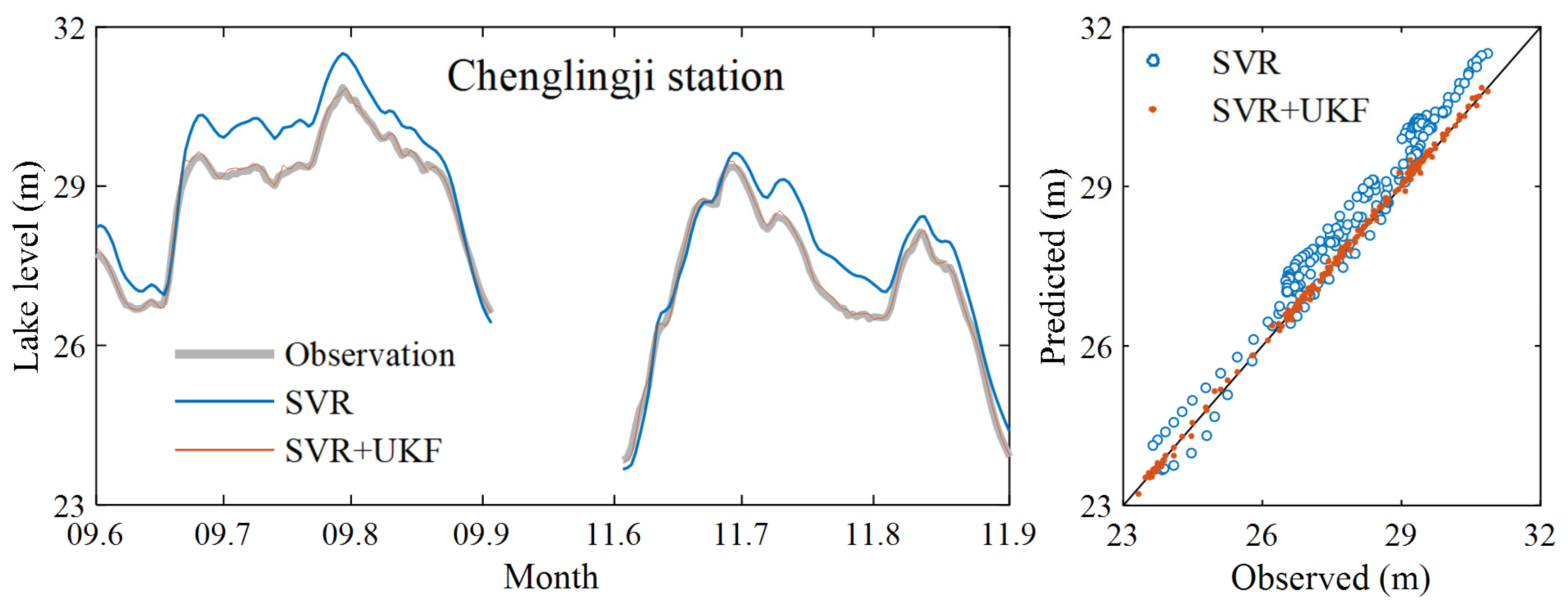

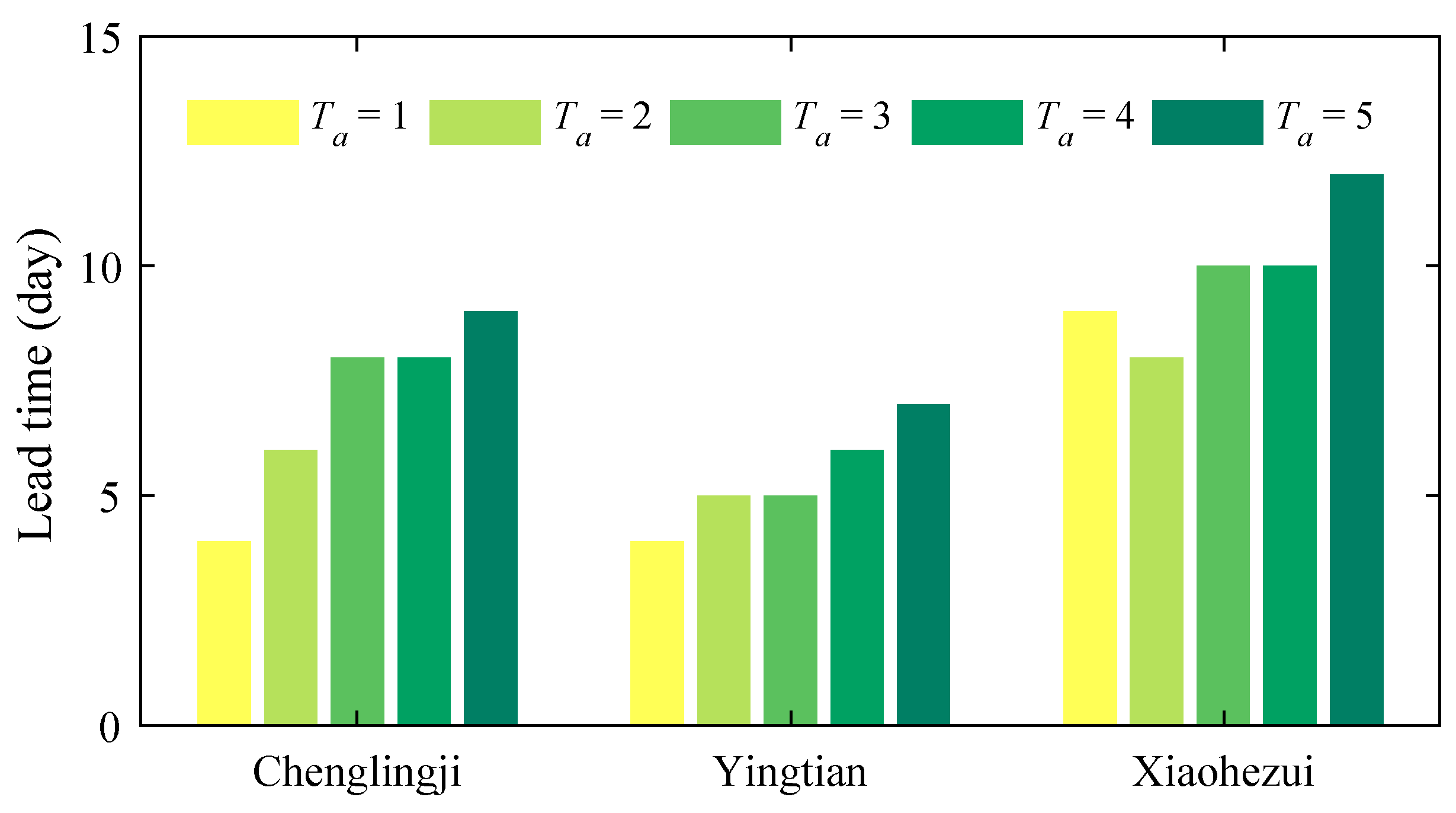

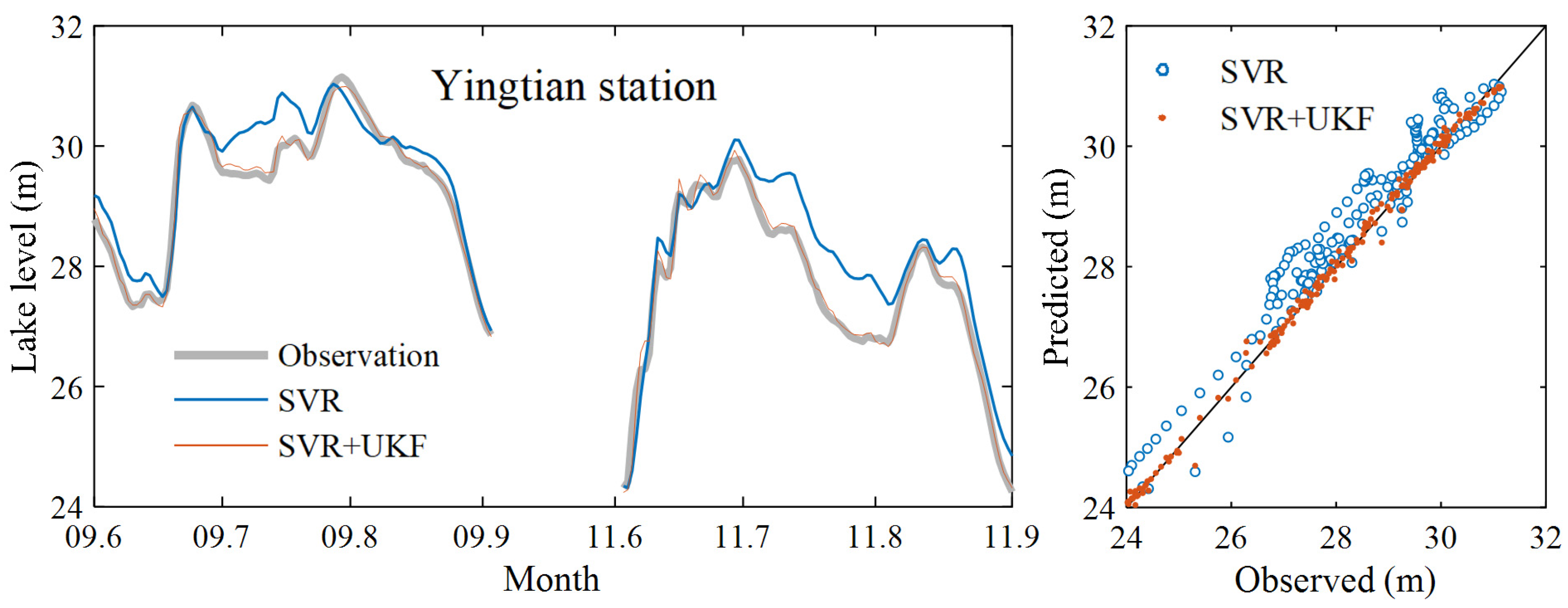

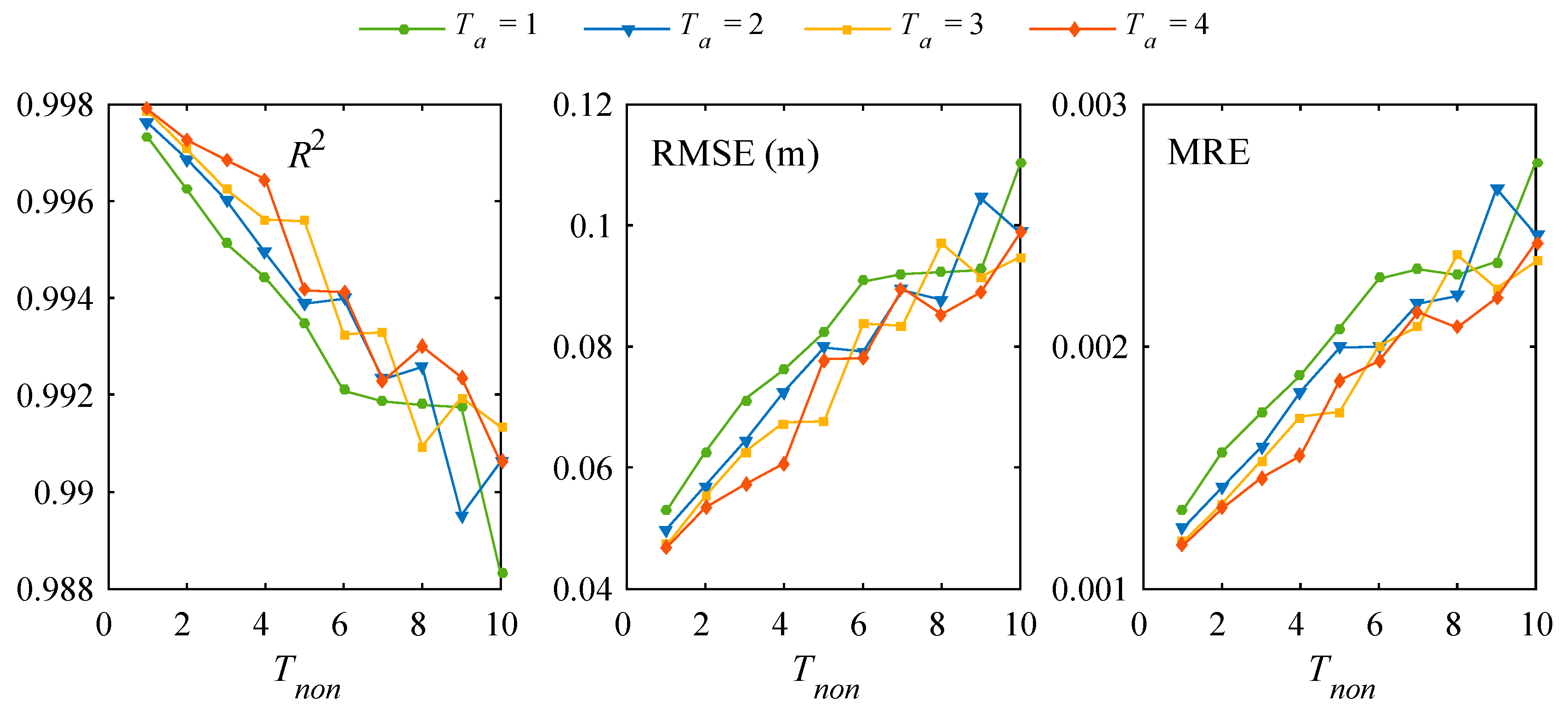

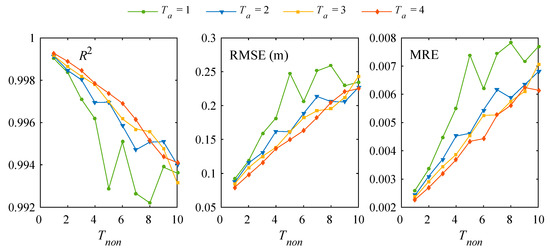

^{2}improved from 0.982 to 0.999 for Chenglingji, from 0.975 to 0.999 for Yingtian, and from 0.975 to 0.998 for Xiaohezui; Chenglingji’s RMSE decreased from 0.395 m to 0.068 m, Yingtian from 0.436 m to 0.105 m, and Xiaohezui from 0.159 m to 0.042 m, all of which significantly improved the model’s predictive capability in practical application scenarios. This data assimilation method is equally applicable to other artificial neural network (ANN) methods and can be extended by coupling them.

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Govindaraju, R.S. Artificial Neural Networks in Hydrology. I: Preliminary Concepts. J. Hydrol. Eng.
**2000**, 5, 115–123. [Google Scholar] - Govindaraju, R.S. Artificial Neural Networks in Hydrology. II: Hydrologic Applications. J. Hydrol. Eng.
**2000**, 5, 124–137. [Google Scholar] - Abebe, A.J.; Price, R.K. Information Theory and Neural Networks for Managing Uncertainty in Flood Routing. J. Comput. Civil. Eng.
**2004**, 18, 373–380. [Google Scholar] [CrossRef] - van den Boogaard, H.; Mynett, A. Dynamic Neural Networks with Data Assimilation. Hydrol. Process.
**2004**, 18, 1959–1966. [Google Scholar] [CrossRef] - Maier, H.R.; Jain, A.; Dandy, G.C.; Sudheer, K.P. Methods Used for the Development of Neural Networks for the Prediction of Water Resource Variables in River Systems: Current Status and Future Directions. Environ. Modell. Softw.
**2010**, 25, 891–909. [Google Scholar] [CrossRef] - Moayedi, H.; Armaghani, D.J. Optimizing an ANN Model with ICA for Estimating Bearing Capacity of Driven Pile in Cohesionless Soil. Eng. Comput.
**2018**, 34, 347–356. [Google Scholar] [CrossRef] - Cimen, M.; Kisi, O. Comparison of Two Different Data-Driven Techniques in Modeling Lake Level Fluctuations in Turkey. J. Hydrol.
**2009**, 378, 253–262. [Google Scholar] [CrossRef] - Khan, M.S.; Coulibaly, P. Application of Support Vector Machine in Lake Water Level Prediction. J. Hydrol. Eng.
**2006**, 11, 199–205. [Google Scholar] [CrossRef] - Gu, R.C.; McCutcheon, S.; Chen, C.J. Development of Weather-Dependent Flow Require-ments for River Temperature Control. Environ. Manag.
**1999**, 24, 529–540. [Google Scholar] [CrossRef] - Maier, H.R.; Dandy, G.C. Neural Networks for the Prediction and Forecasting of Water Resources Variables: A Review of Modelling Issues and Applications. Environ. Modell. Softw.
**2000**, 15, 101–124. [Google Scholar] [CrossRef] - Zhang, X.; Liang, F.; Srinivasan, R.; Van Liew, M. Estimating Uncertainty of Streamflow Simulation Using Bayesian Neural Networks. Water Resour. Res.
**2009**, 45, W02403. [Google Scholar] [CrossRef] - Zhang, X.; Wang, H.; Peng, A.; Wang, W.; Li, B.; Huang, X. Quantifying the Uncertainties in Data-Driven Models for Reservoir Inflow Prediction. Water Resour. Manag.
**2020**, 34, 1479–1493. [Google Scholar] [CrossRef] - Galelli, S.; Humphrey, G.B.; Maier, H.R.; Castelletti, A.; Dandy, G.C.; Gibbs, M.S. An Evaluation Framework for Input Variable Selection Algorithms for Environmental Data-Driven Models. Environ. Modell. Softw.
**2014**, 62, 33–51. [Google Scholar] [CrossRef][Green Version] - Kingston, G.B.; Lambert, M.F.; Maier, H.R. Bayesian Training of Artificial Neural Networks Used for Water Resources Modeling. Water Resour. Res.
**2005**, 41, W12409. [Google Scholar] [CrossRef][Green Version] - Quilty, J.; Adamowski, J.; Boucher, M.-A. A Stochastic Data-Driven Ensemble Forecasting Framework for Water Resources: A Case Study Using Ensemble Members Derived from a Database of Deterministic Wavelet-Based Models. Water Resour. Res.
**2019**, 55, 175–202. [Google Scholar] [CrossRef][Green Version] - Newhart, K.B.; Holloway, R.W.; Hering, A.S.; Cath, T.Y. Data-Driven Performance Analyses of Wastewater Treatment Plants: A Review. Water Res.
**2019**, 157, 498–513. [Google Scholar] [CrossRef] - Vrugt, J.A.; Diks, C.G.H.; Gupta, H.V.; Bouten, W.; Verstraten, J.M. Improved Treatment of Uncertainty in Hydrologic Modeling: Combining the Strengths of Global Optimization and Data Assimilation. Water Resour. Res.
**2005**, 41, W01017. [Google Scholar] [CrossRef] - Liu, Y.; Gupta, H.V. Uncertainty in Hydrologic Modeling: Toward an Integrated Data Assimilation Framework. Water Resour. Res.
**2007**, 43, W07401. [Google Scholar] [CrossRef] - Liu, Y.; Weerts, A.H.; Clark, M.; Franssen, H.-J.H.; Kumar, S.; Moradkhani, H.; Seo, D.-J.; Schwanenberg, D.; Smith, P.; van Dijk, A.I.J.M.; et al. Advancing Data Assimilation in Operational Hy-drologic Forecasting: Progresses, Challenges, and Emerging Opportunities. Hydrol. Earth Syst. Sci.
**2012**, 16, 3863–3887. [Google Scholar] [CrossRef][Green Version] - Mao, J.Q.; Lee, J.H.W.; Choi, K.W. The Extended Kalman Filter for Forecast of Algal Bloom Dynamics. Water Res.
**2009**, 43, 4214–4224. [Google Scholar] [CrossRef] - Zamani, A.; Azimian, A.; Heemink, A.; Solomatine, D. Non-Linear Wave Data Assimilation with an ANN-Type Wind-Wave Model and Ensemble Kalman Filter (EnKF). Appl. Math. Model.
**2010**, 34, 1984–1999. [Google Scholar] [CrossRef][Green Version] - Gill, M.K.; Kemblowski, M.W.; McKee, M. Soil Moisture Data Assimilation Using Support Vector Machines and Ensemble Kalman Filter. J. Am. Water Resour. Assoc.
**2007**, 43, 1004–1015. [Google Scholar] [CrossRef] - Yu, Z.; Liu, D.; Lu, H.; Fu, X.; Xiang, L.; Zhu, Y. A Multi-Layer Soil Moisture Data Assimilation Using Support Vector Machines and Ensemble Particle Filter. J. Hydrol.
**2012**, 475, 53–64. [Google Scholar] [CrossRef] - Kalman, R. A New Approach to Linear Filtering and Prediction Problems. J. Basic Eng.
**1960**, 35–45. [Google Scholar] [CrossRef][Green Version] - Lee, J.H.W.; Mao, J.Q.; Choi, K.W. The Extended Kalman Filter for Short Term Prediction of Algal Bloom Dynamics. In Advances in Water Resources and Hydraulic Engineering; Zhang, C.K., Tang, H.W., Eds.; Tsinghua Univ Press: Beijing, China, 2009; Volume 1–6, pp. 513–517. [Google Scholar]
- Evensen, G. Sequential Data Assimilation with a Nonlinear Quasi-geostrophic Model Using Monte Carlo Methods to Forecast Error Statistics. J. Geophys. Res. Ocean.
**1994**, 99, 10143–10162. [Google Scholar] [CrossRef] - Julier, S.J.; Uhlmann, J.K. A New Extension of the Kalman Filter to Nonlinear Systems. In Proceedings of the Signal Processing, Sensor Fusion, and Target Recognition VI, Orlando, FL, USA, 21–24 April 1997; Kadar, I., Ed.; SPIE—International Society Optical Engineering: Bellingham, WA, USA, 1997; Volume 3068, pp. 182–193. [Google Scholar]
- Qi, J.; Sun, K.; Wang, J.; Liu, H. Dynamic State Estimation for Multi-Machine Power System by Unscented Kalman Filter with Enhanced Numerical Stability. IEEE Trans. Smart Grid
**2018**, 9, 1184–1196. [Google Scholar] [CrossRef] - Ahani, A.; Shourian, M.; Rad, P.R. Performance Assessment of the Linear, Nonlinear and Nonparametric Data Driven Models in River Flow Forecasting. Water Resour. Manag.
**2018**, 32, 383–399. [Google Scholar] [CrossRef] - Shu, C.; Ouarda, T.B.M.J. Flood Frequency Analysis at Ungauged Sites Using Artificial Neural Networks in Canonical Correlation Analysis Physiographic Space. Water Resour. Res.
**2007**, 43, W07438. [Google Scholar] [CrossRef][Green Version] - Haque, A.; Rahman, S. Short-Term Electrical Load Forecasting through Heuristic Configuration of Regularized Deep Neural Network. Appl. Soft. Comput.
**2022**, 122, 108877. [Google Scholar] [CrossRef]

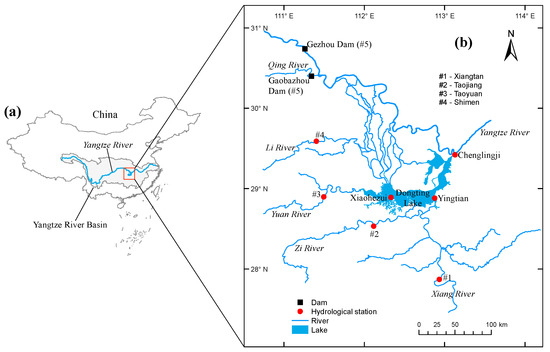

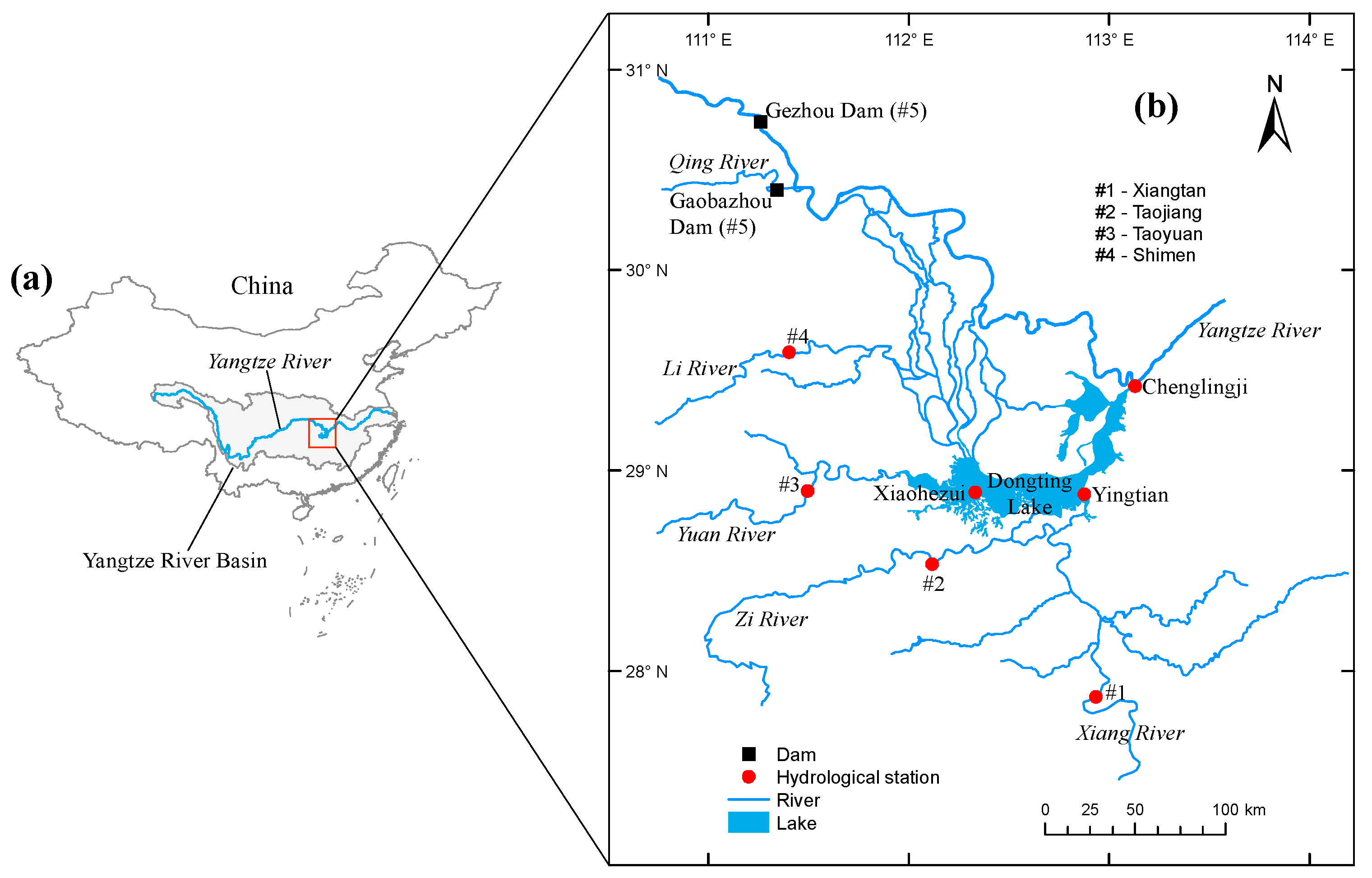

**Figure 1.**Map of the study area, showing (

**a**) its location and (

**b**) the Yangtze River–Dongting Lake water system. #1—Xiangtan, #2—Taojiang, #3—Taoyuan, #4—Shimen, #5—Gezhou Dam.

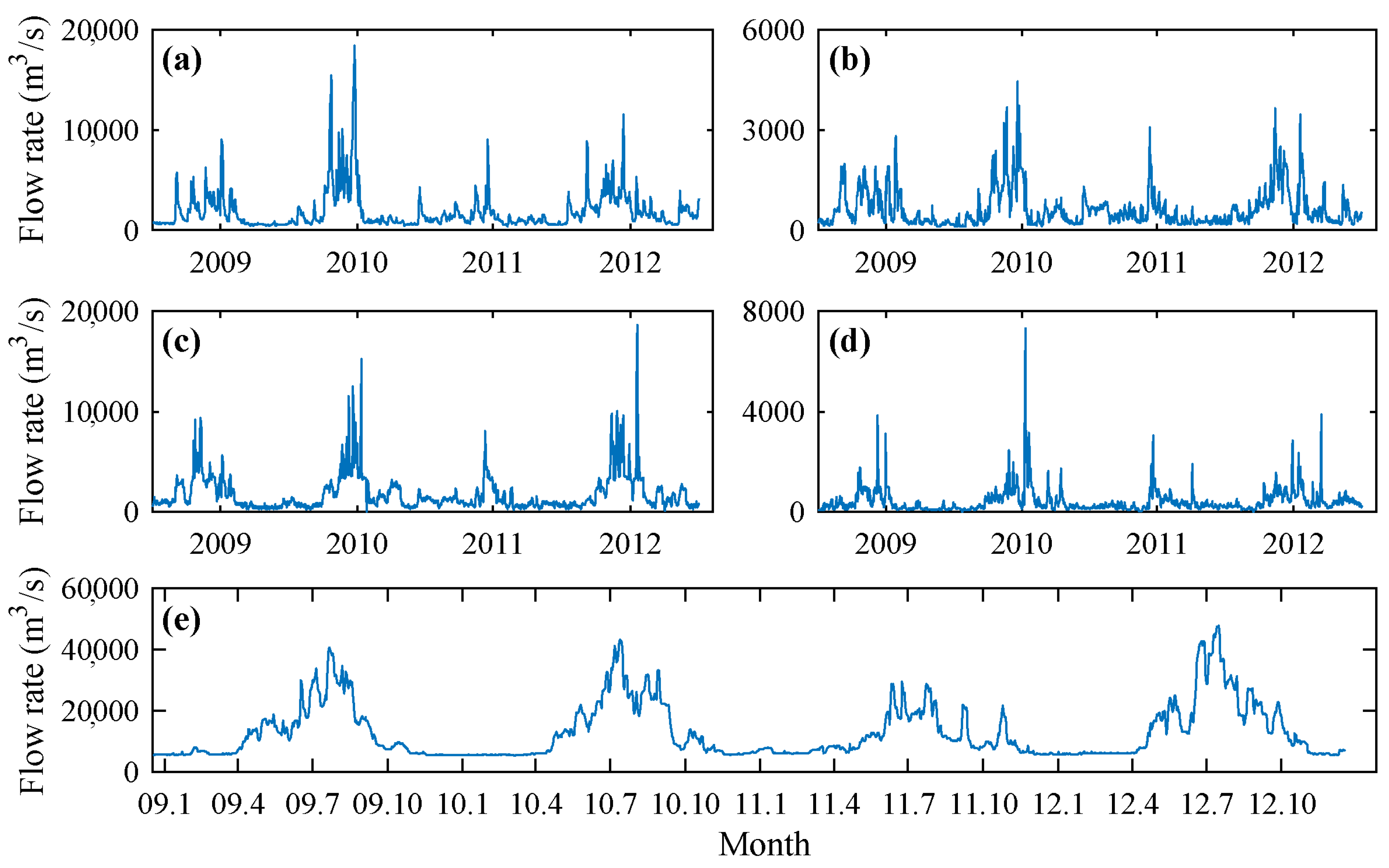

**Figure 2.**Time series of daily discharges of the (

**a**) Xiang River, (

**b**) Zi River, (

**c**) Yuan River, (

**d**) Li River, and (

**e**) Yangtze River.

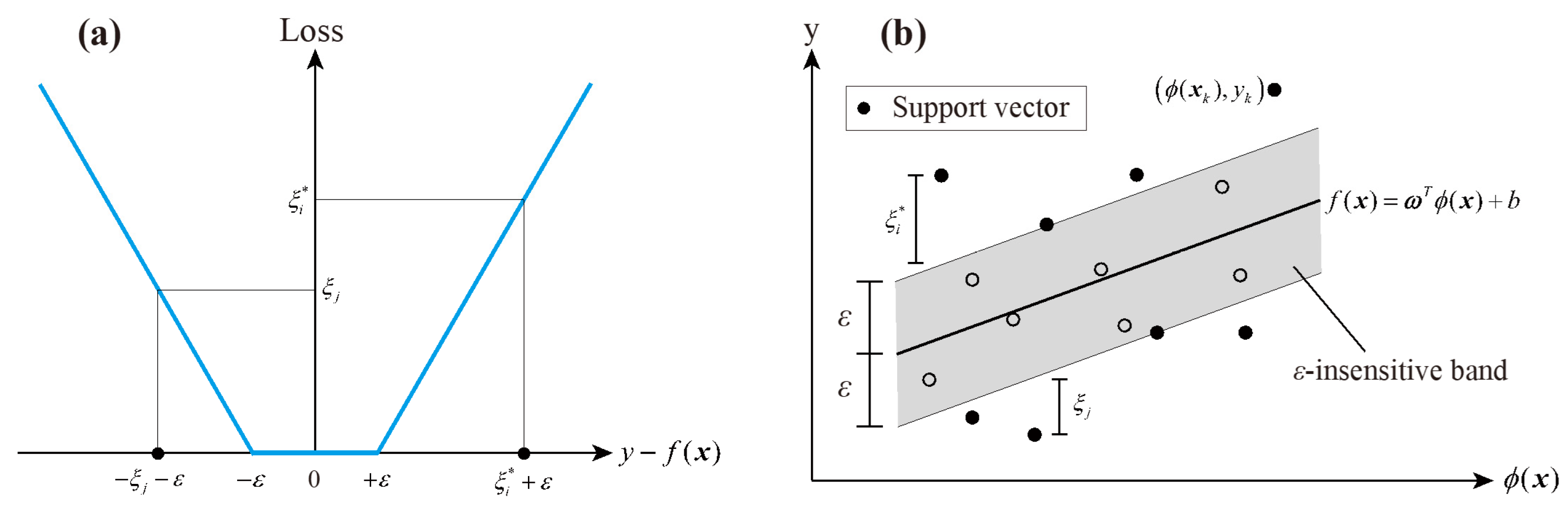

**Figure 4.**Illustration of (

**a**) ε-insensitive loss function and (

**b**) support vector regression in the feature space.

Station | Dataset ^{a} | Minimum Value (m) | Maximum Value (m) | Mean Value (m) | Standard Deviation (m) |
---|---|---|---|---|---|

Chenglingji | Training | 20.21 | 33.40 | 25.66 | 3.95 |

Testing | 20.43 | 30.86 | 24.13 | 2.94 | |

Yingtian | Training | 21.21 | 33.67 | 26.69 | 3.66 |

Testing | 21.32 | 31.15 | 25.05 | 2.75 | |

Xiaohezui | Training | 27.89 | 34.93 | 29.99 | 1.68 |

Testing | 27.91 | 31.91 | 29.27 | 1.02 |

^{a}Training period: 2010 and 2012; testing period: 2009 and 2011.
