Experience of Application of Natural Treatment Systems for Wastewater (NTSW) in Livestock Farms in Canary Islands

Department of Process Engineering, University of Las Palmas de Gran Canaria, 35017 Las Palmas de Gran Canaria, Spain
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Water 2022, 14(14), 2279;
Received: 17 June 2022 / Revised: 15 July 2022 / Accepted: 16 July 2022 / Published: 21 July 2022
(This article belongs to the Section Wastewater Treatment and Reuse)


A real-scale application experience Natural Treatment Systems for Wastewater ( N T S W ) operating in continues with livestock farms for one year. These systems are based on digesters, subsurface vertical flow constructed wetlands ( S V F C W ) and facultative ponds. Chemical Oxygen Demand removal efficiency ( C O D R E ) has obtained between 70 and 90%. Likewise, it have been possible to compare the operation of cascade flow digesters ( C F D ) (<76% C O D R E ) versus complete mixing digesters (CMD) (<50% C O D R E ). Facultative ponds ( F P ) when combined with ( S S F C W ) , removed a higher percentage of C O D R E compared with ponds (92%). Correlations of interest have been found between the variables evaluated in each plant. Finally, different elements are alternated in the same system, this system is capable of supporting variations in changes in flow rate and organic load coming from the farm, maintaining an adequate elimination of C O D and other parameters of interest.

1. Introduction

Natural treatment systems for Wastewater ( N T S W ) or low-cost wastewater treatment systems have proven to be applicable in small communities (with a population equivalent of <2000 inhabitants) with low energy and operating costs in isolated territories [1,2,3,4,5,6,7,8,9]. These systems stand out, compared to conventional treatment systems, with several features such as long residence times, low or null energy cost, reduced maintenance costs and good applicability of effluents in their reuse [10,11,12]. The key is to know if these systems are equally valid for existing livestock farms in isolated island environments, as they have similar sizes in terms of equivalent population. These systems must have a mechanical separation pre-treatment to remove coarse solids and prevent obstructions in the rest of the equipment [13].
The target of this paper is to show the study, at steady state operation, of three types of experimental pilot N T S W plants to manage pig livestock waste, in Gran Canaria Island, which is localized in the Atlantic Ocean Figure 1.
Gran Canaria Island (Spain), with an area of 1560 km 2 , and large areas of environmental protection (Figure 2), has become a territory with problems of elimination and waste management general and particularly from farms, which generate undesirable infiltrations in underground aquifers [14].
In Spain, the legislation on protection against agricultural nitrate and phosphate pollution is Royal Decree 47/18 January 2022 on the protection of water against diffuse pollution caused by nitrates from agricultural sources. This regulation is based on Regulation ( E C ) 2003 / 2003 of 13 October 2003 of the European Parliament and of the Council on fertilizers and other implementing legislation. Specifically, the protection of water against pollution by nitrates and phosphates has its main legal instrument in Directive 91/676/ E E C , known as the Nitrates Directive, and incorporated into national legislation through Royal Decree 261/16 February 1996, on the protection of water against pollution caused by nitrates and phosphates from agricultural sources, and replaced by RD 47 / 2022 . It considers the following to be waters affected by nitrates: Inland surface waters with a nitrate concentration of more than 25 mg/L, Groundwaters with a nitrate concentration of more than 37.5 mg/L.
This regulation establishes Nitrate Vulnerable Zones ( N V Z ) , which are areas of land whose runoff flows into waters affected by nitrates and which contribute to such pollution. Decree 54/4 June 2020, of the Government of the Canary Islands determines the zones of water affected by nitrate pollution of agricultural origin and designates the zones vulnerable to such pollution at altitudes of less than 300 meters on the island of Gran Canaria. In addition, a limit of 170 kg of N/ha per year is established invulnerable zones and a limit for wastewater discharges of 5 mg/L for total phosphorus, 20 mg/L for total nitrogen and 2500 μ S/cm for conductivity.

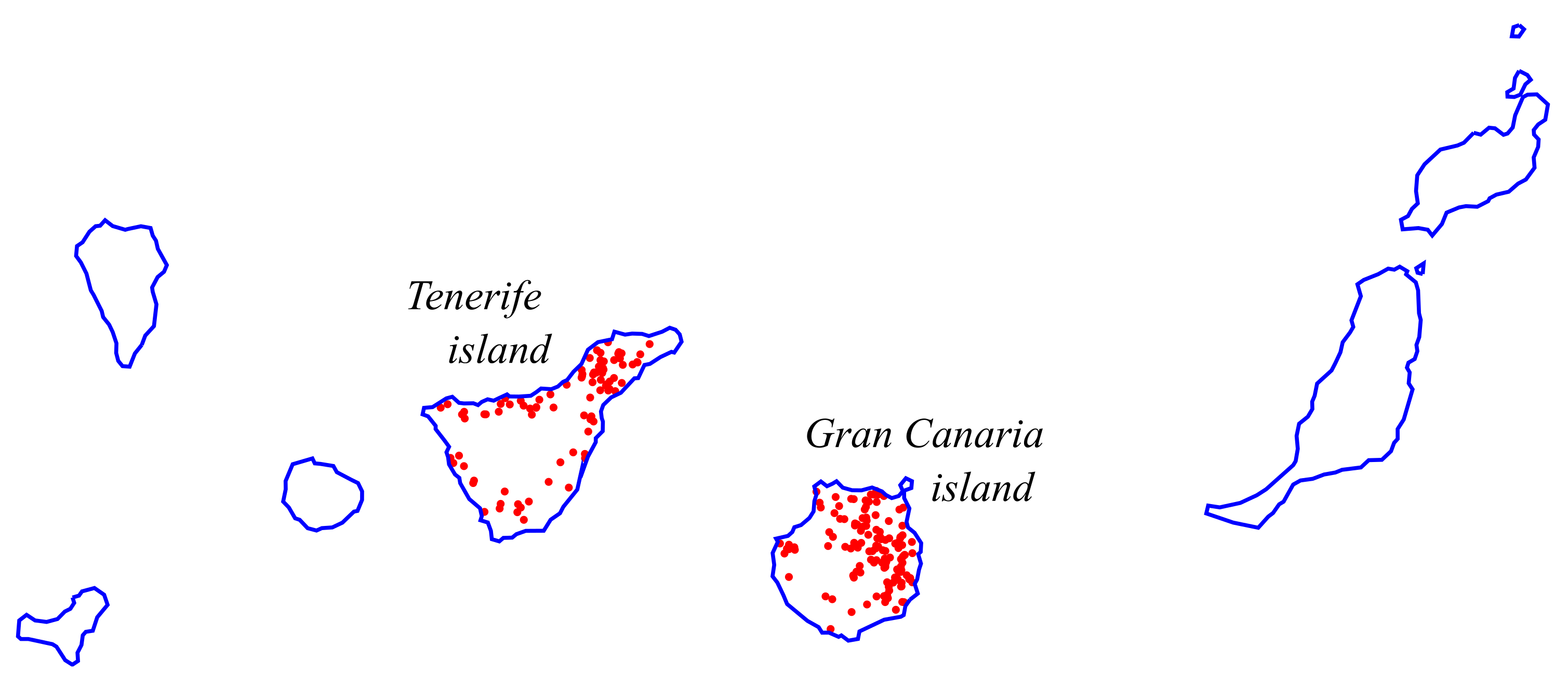

At the moment, In Gran Canaria there are 136 livestock farms of pigs, Figure 3, 90 % , is little family farms. The rest are industrial-sized farms that make up the majority of the island’s census. These farms are around 1400 animals in size and represent a strong impact. This fact is equivalent to an organic load to a population of about 2000 equivalent inhabitants, a considerable amount and comparable to the total population of a town or small city on the island of Gran Canaria. Figure 4 displays, on the left, all the livestock farms (red dots) of Gran Canaria Island, and on the right the detail of the three livestock farms for which proposed the plants established in the objective of this paper.
This work presents the novelty of applying these N T S W in similar pig farms (in terms of equivalent inhabitants) with real scale and under normal production conditions. It presents an approximation of the treatment of the waste on the farm itself, favoring integrated production. This management improves the integration of the livestock farm into its environment and promotes the circular economy by converting the waste-resource.

2. Materials and Methods

2.1. Pilot Plants Features

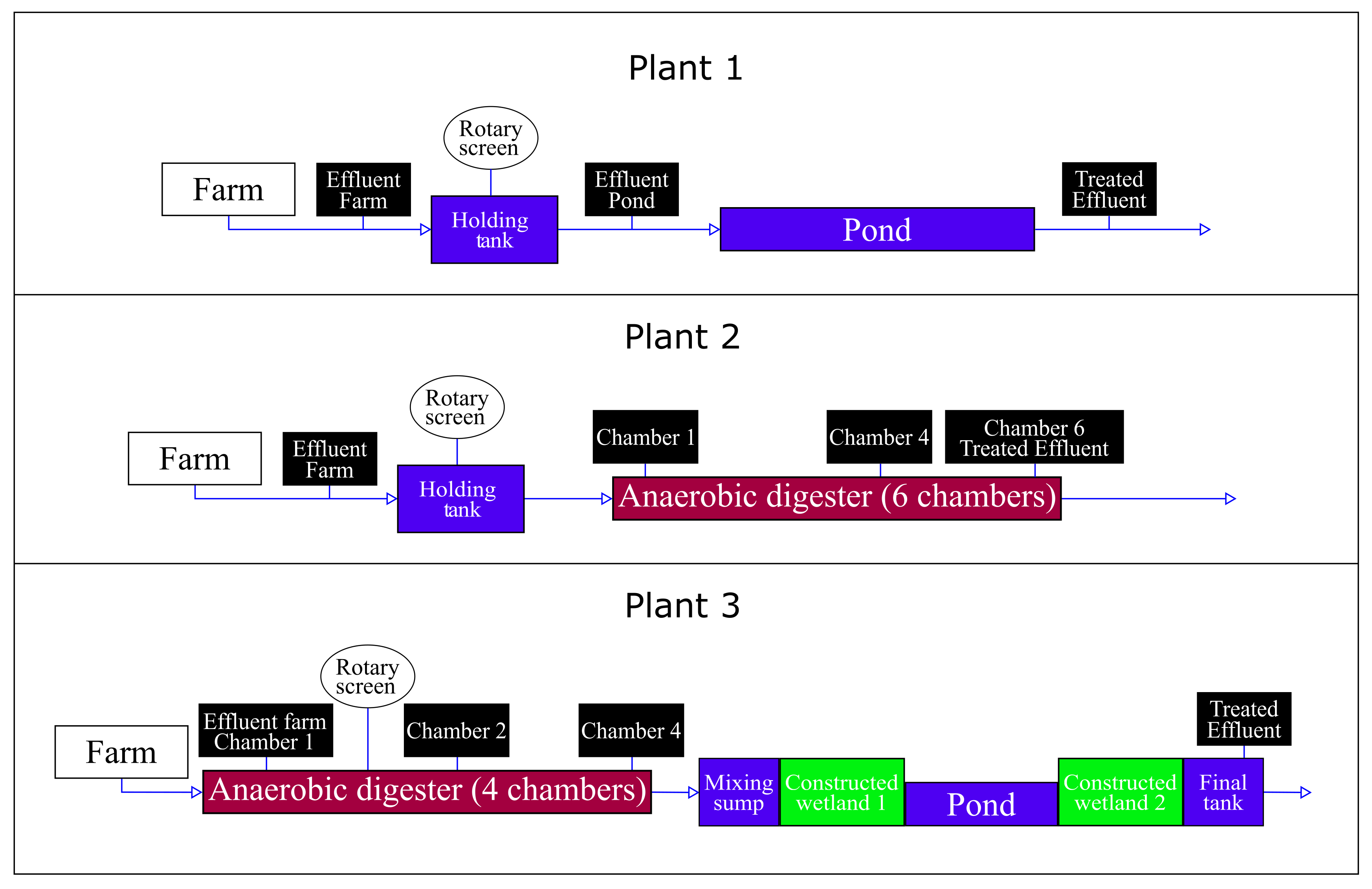

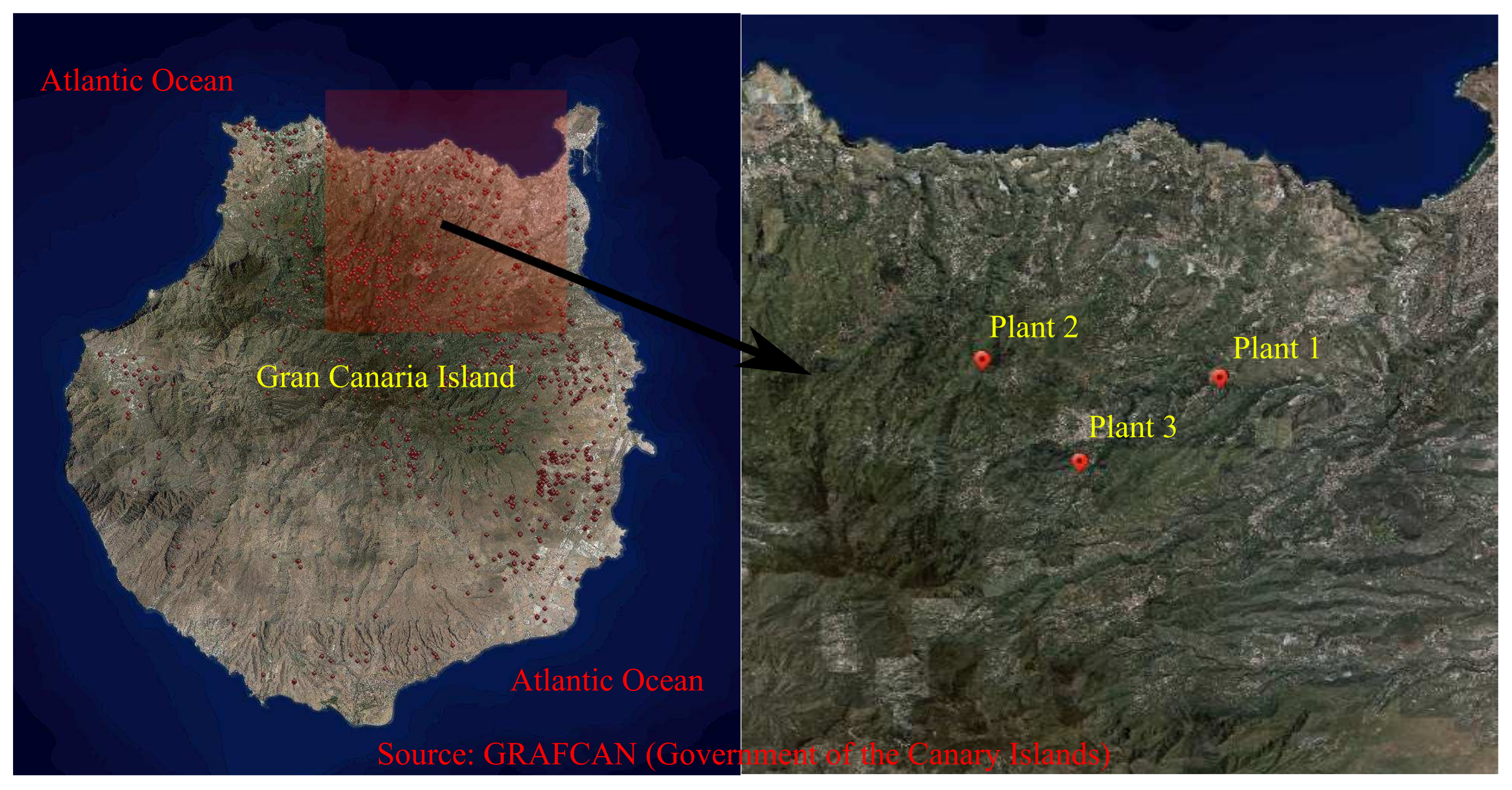

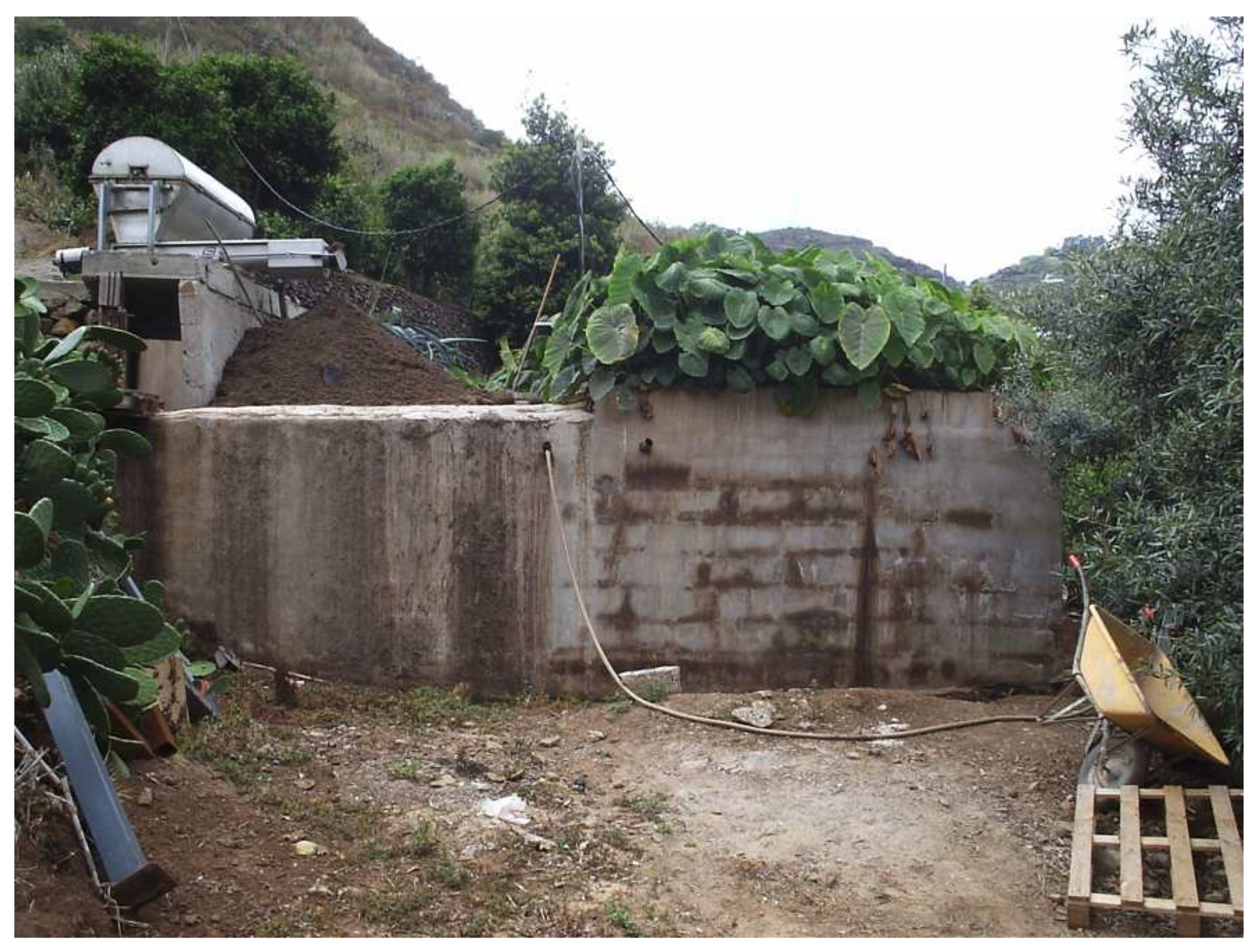

Pilot plants are in the midland of Gran Canaria Island, Figure 4, their photographs are showed in Figure 5, Figure 6, Figure 7 and Figure 8, and their characteristics in Table 1 and in Figure 9 is shown the schematics of the plants and sampling points. Rotary screens are different in each of the plants and work in batches. It has carried out specific analyzes of the solid whose results and the treatment alternatives that have been studied will be published in another article. Figure 9 are schematic, each of the screens has an input tank that feeds the farm effluent by batch, once screened, the liquid fraction is discharged directly into the lagoon (plant 1), in the second chamber (digester with 6 chambers—plant 2) and in the second camber (digester with 4—plant 3).
  • Plant 1. Farm located at 450 m of altitude (UTM coordinates x: 450,052.41 m, y: 3,105,359.68 m), with 1600 animals. The effluent from the farm (13.60 m 3 /day) is discharged to a holding tank, which has been fitted with a 10 micron rotary screen and it is deposited in a pond of l e n g t h / w i d e , 2 / 1 and 1100 m 3 of effective capacity. The depth is 1.5 m. Figure 5 displays a photograph of Plant 1, with a detail of the pond. The total hydraulic retention time ( H R T ) is 80 days.
  • Plant 2. Farm located at 540 m above sea level (UTM coordinates x: 443,504.65 m, y: 3,105,955 m), with 1100 animals. The effluent (6.40 m 3 /day) is conveyed in the retention tank. In the holding tank (capacity 40 m 3 , and retention time 4–6 days), it will be stored the manure until it is sieved. At the top of the half-closed closed digester is a 100-micron mesh rotary screen. The dimensions of the rectangular half-buried digester are 17.50 m × 6.50 m × 3.50 m and an effective height of 1.70 m. It is constituted by six rectangular chambers of dimensions 3.00 m × 3.00 m, being of all them equal and intercommunicated by siphon, with an effective capacity unit of 22.90 m 3 each, and 132.60 m 3 of total volume. By the type of flow, it is possible to assimilate it to the operation of a cascade digester. Figure 6 displays a photograph of Plant 2, with a detail of the rotary screen, and the anaerobic digesters. The H R T is 25 days.
  • Plant 3. Farm located at 700 m of altitude (UTM coordinates x: 446,164 m, y: 3,102,557.64 m 28 2.83 N, 15 32.87 W), with 1400 animals. Effluent (8.70 m 3 /day) is collected in a reception tank with a capacity of 10 m 3 , then it is taken to the chamber 1 of an anaerobic digester. In the chamber 1, the slurry is stored until it is pumped to the 100 micron rotary screen on top of the anaerobic digester. The rectangular anaerobic digester consists of four equal and interconnected rectangular chambers with an effective capacity of 103.00 m 3 in total and H R T of 10 days. At the exit of the digester, the waste past to the first of the constructed wetlands with subsurface vertical flow ( S V S F C W ) constituted by a cubicle with rectangular form, this volume is filled by stones of varied granulometry, being the free volume 22.95 m 3 and a H R T about of 4 days. In the subsurface constructed wetland S S F C W several types of plants are developed that degrade the organic matter. It has two vertical ventilation tubes. The passage of the water to be treated is performed below the surface throughout the lateral contact area with the pond. Slurry from S S F C W 1 flows into a pond of l e n g t h / w i d t h ratio, 2 / 1 and 90 m 3 of effective capacity. The depth will be 1.5 m. The residence time is 10 days.

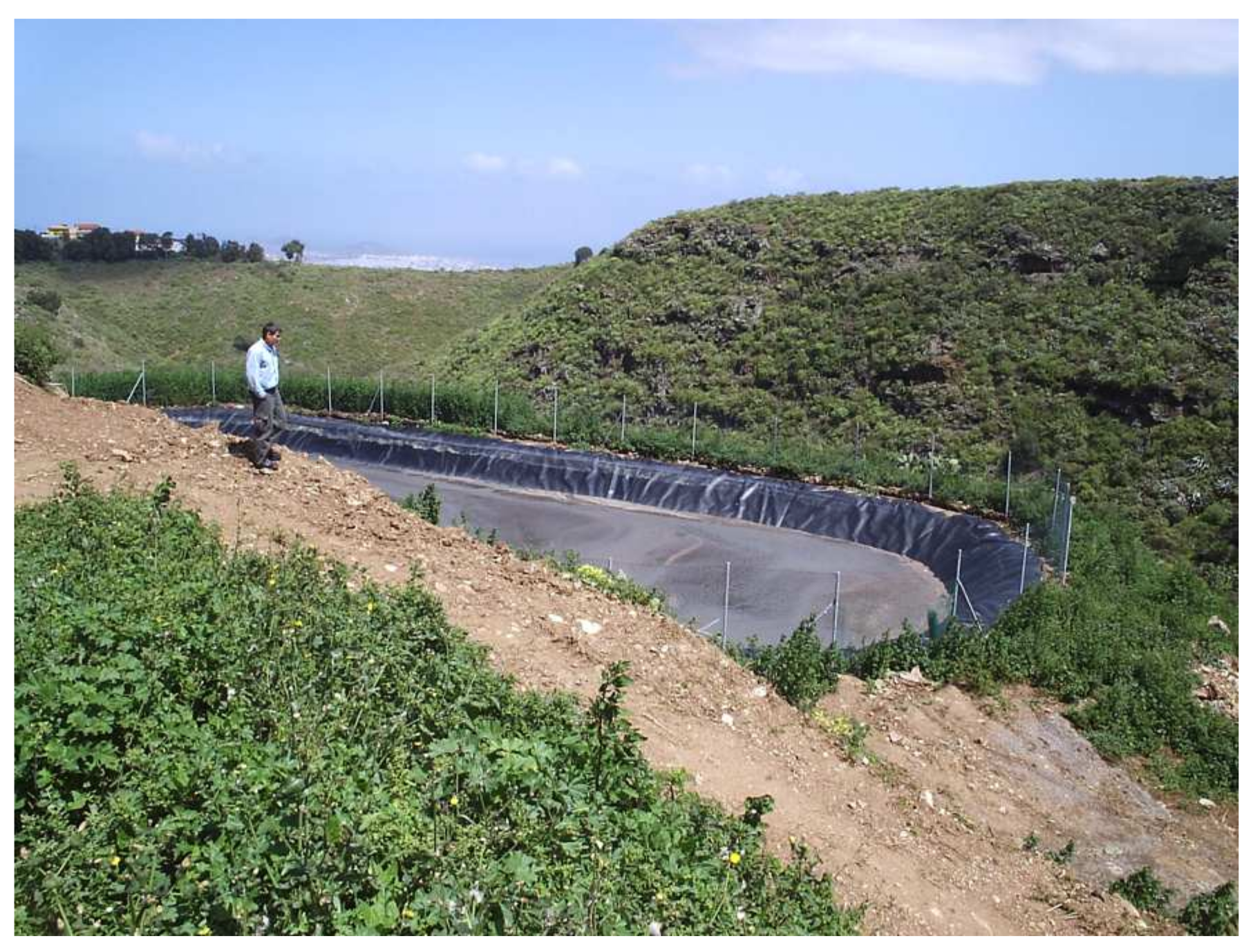

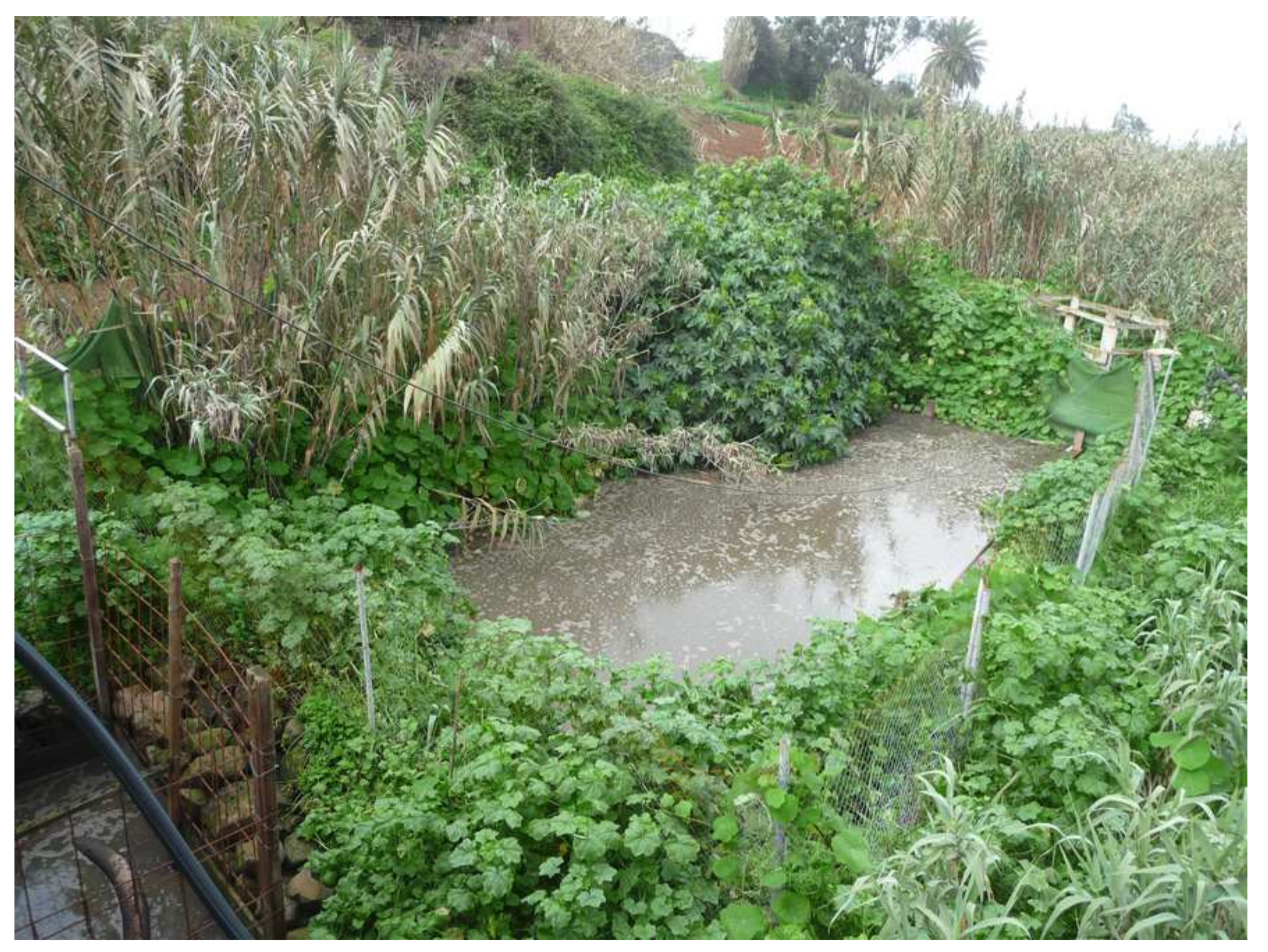

    The pond is surrounded by constructed wetlands, this has allowed us to experiment with a pond of inferior capacity and on the plant 1. The S V F C W 2 , at the outlet of the effluent, has an identical design to the previous one. The installation has a recirculation circuit that allows recirculating of all or part of the liquid that exists in the lagoon to a control pool that is connected to the homogenization tank. At the end of S V F C W 2 , it is the final tank of dimensions of 10.50 m 3 of capacity. The stabilized effluent percolates from the wetland to the final tank. Figure 6 displays a photograph of Plant 3, with a detail of the pond, and the constructed wetlands. The H R T is 28 days.
For the loading of digesters and ponds, it has been followed the following steps:
  • Each chamber of the digesters and ponds were initially filled with clean water.
  • No external resources have been added, such as bacteria cultures, sewage sludge, etc., leaving only the slurry to rest so that the native bacterial flora develops its performance.
The SSFVCW-type wetlands are considered a submerged biofilm biological reactor. The effluent meets macrophytes, which are plants capable of attaching themselves to such soils (waterlogged or waterlogged), with one part submerged and one part emergent [15,16]. Authors such as [17,18,19] have indicated that a large part of the depuration process was due to the presence of plants. However, other studies [20,21] have indicated that the oxygen supply and the depuration capacity is provided by the biofilm that forms in the rhizome areas, with aerobic processes complementing the anaerobic processes in remote areas and therefore a depuration mechanism that is more independent of the type of vegetation selected.
The plants most used and evaluated by other authors are Aneas (Typha), reeds (Phragmites), rushes (Juncus), Scirpus, Carex, etc. [17,20]. macrophytes can transport oxygen to their roots and rhizomes, but in SSFVCW, the amount of oxygen is small compared to the demand and anaerobic processes predominate. However, in our first study, nature was left free to colonize the wetlands of plant 3, focusing on the overall management of the treatment systems and their integration into the management of the livestock farm.

2.2. Parameters and Samples

From plants 1 and 3, 46 samples have been taken; meanwhile, in Plant 2, 39 samples have been taken, totaling 545 days, as an initial follow-up of the implementation of an anaerobic biological treatment facility. The parameters measured were: p H , T, E C , and C O D , and the periodicity of the samples was delivered in the following way:
  • During the first half of the year, the samples were taken four times a month, equally spaced in time.
  • In the second half of the year, the samples were taken twice a month, equally spaced in time.
  • After the first year, samples were taken on a monthly basis.
For measuring the parameters were used the Standard and Methods (APHA 2005). Each plant has a meteorological station with measurement of; ambient temperature T A , humidity ϕ , and rainfall R a c c . For the statistical analysis of the data, the C O D has been set as the central variable so that this variable can be compared with the rest to be able to observe possible correlations. On the data set, under the approach of finding relationships between the parameters of the waste in the sampling point in each one of the digesters chamber and ponds, it was attempted to demonstrate that the variations of C O D during the weeks, it was related to the variation of p H or E C at that same sampling point. When the homoscedasticity tests were carried out, which are a fundamental requirement for good factor analysis, it was not found any relationships between parameters at the point of sampling in each of the chambers and lagoons, and in consequence no significant correlation was going to be obtained from this hypothesis. Therefore, another approach to the data was sought, and it was decided to analyze the behavior of the installation during the complete cycle, in which the slurry passes through the plant, defined by the Global Hydraulic Retention Time for the plant ( H R T G ) of 82, 27 and 27 days (plant 1, 2 and 3, respectively). The initial hypothesis is established, that it is possible to relate punctual data of parameters with their respective evolution at the outlet, after the days of the treatment cycle. From the 131 samples available, for the three plants, we selected 30, 21 and 21 sampling data from the 131 available samples, making the grouping of the corresponding values of the study parameters possible.

3. Results and Discussions

3.1. Atmospheric Conditions

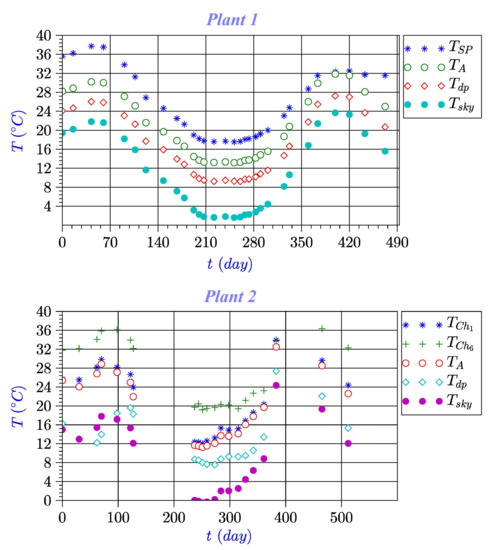

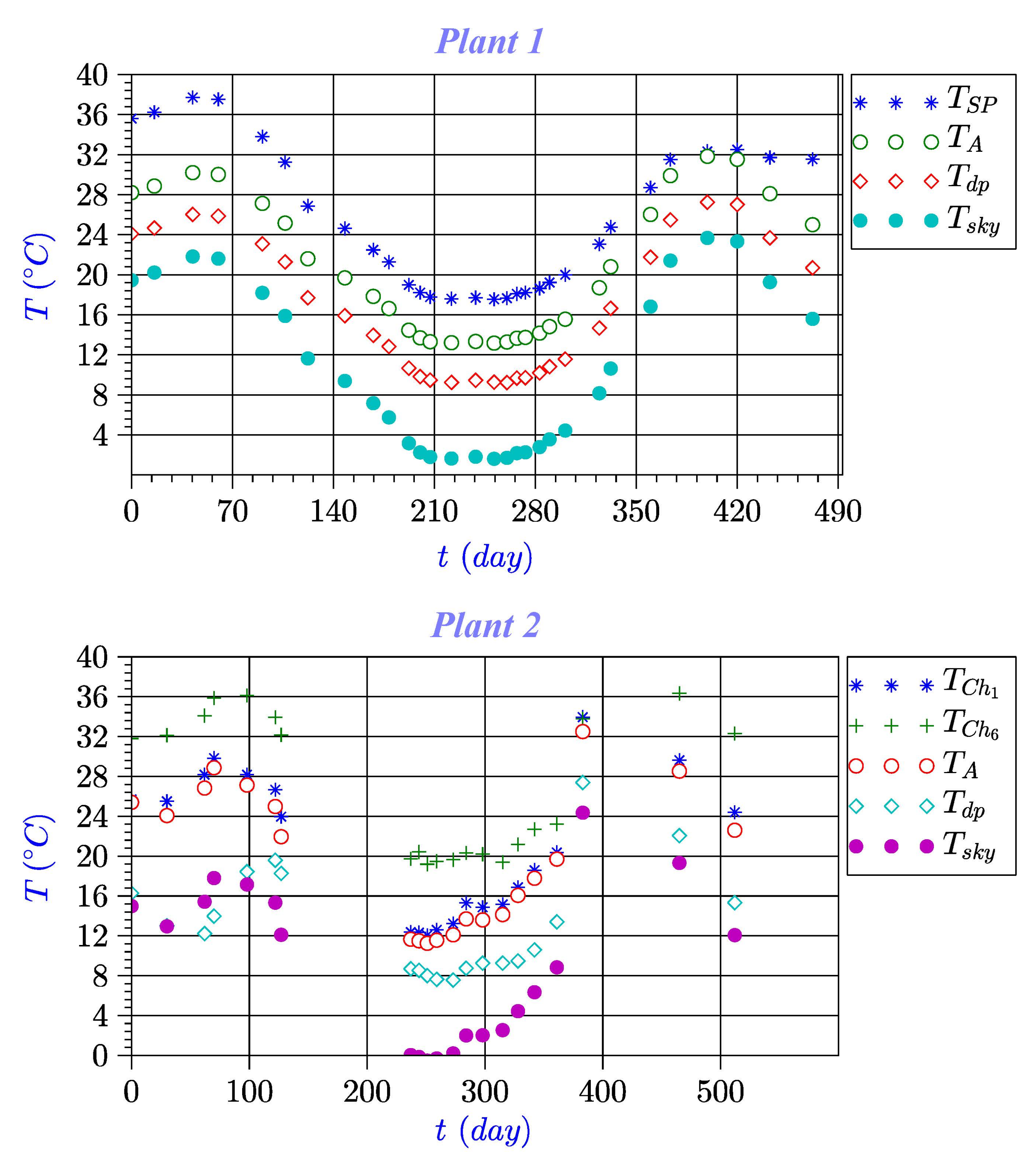

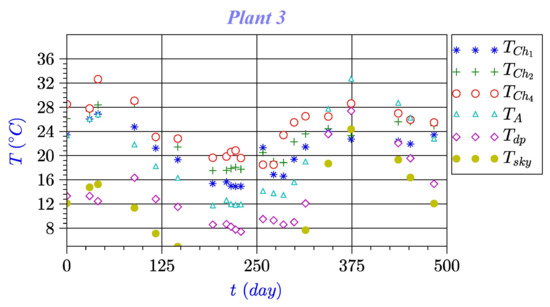

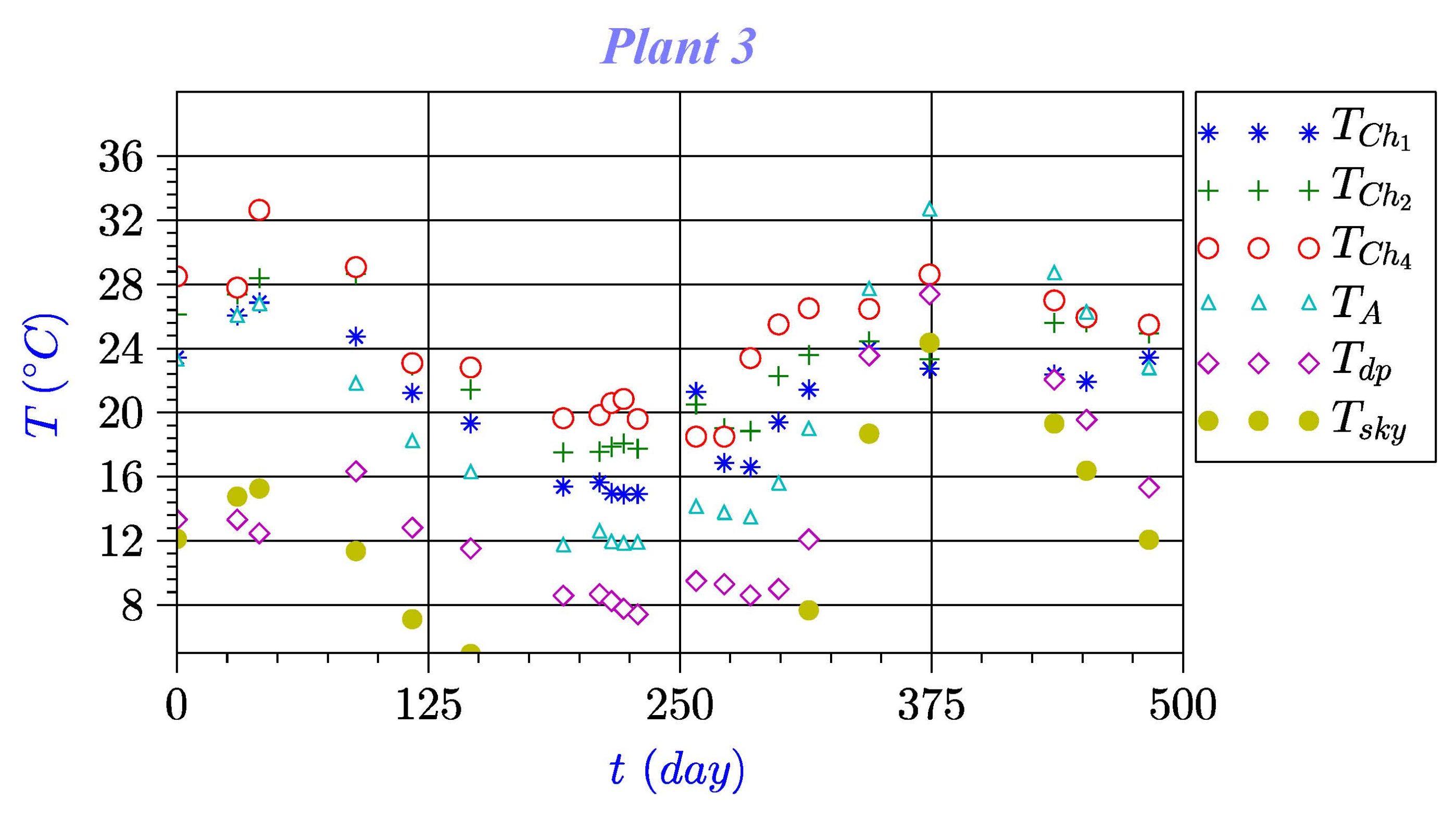

There was no temperature control in the digesters and ponds and wetlands, which were subject to rainfall. It is possible to observe, in Figure 10, for all the plants, throughout the time period, during the months of July and August (Table A1), that the highest ambient temperatures are reached (28 to 32 C), with minimums of 10–14 C in January and February. In addition, the values of the dew point and sky temperatures, estimated according to [22,23], can be observed in the same Figures, which affect the thermal conditions of the systems.
Regarding rainfall, from May to August they are negligible while the months of November to February are the wettest. Figure A1. Because the systems are open, and subject to environmental conditions, rainfall contributions and evaporation losses (associated, among other causes, with the variability of relative humidity, Figure A2), the plants processes were influenced by modification of the liquid fraction, it has been quantified that the difference, in evaporation losses, was between 5 and 20 % , depending on the time of year.

3.2. Temporal Evolution of the Analyzed Variables

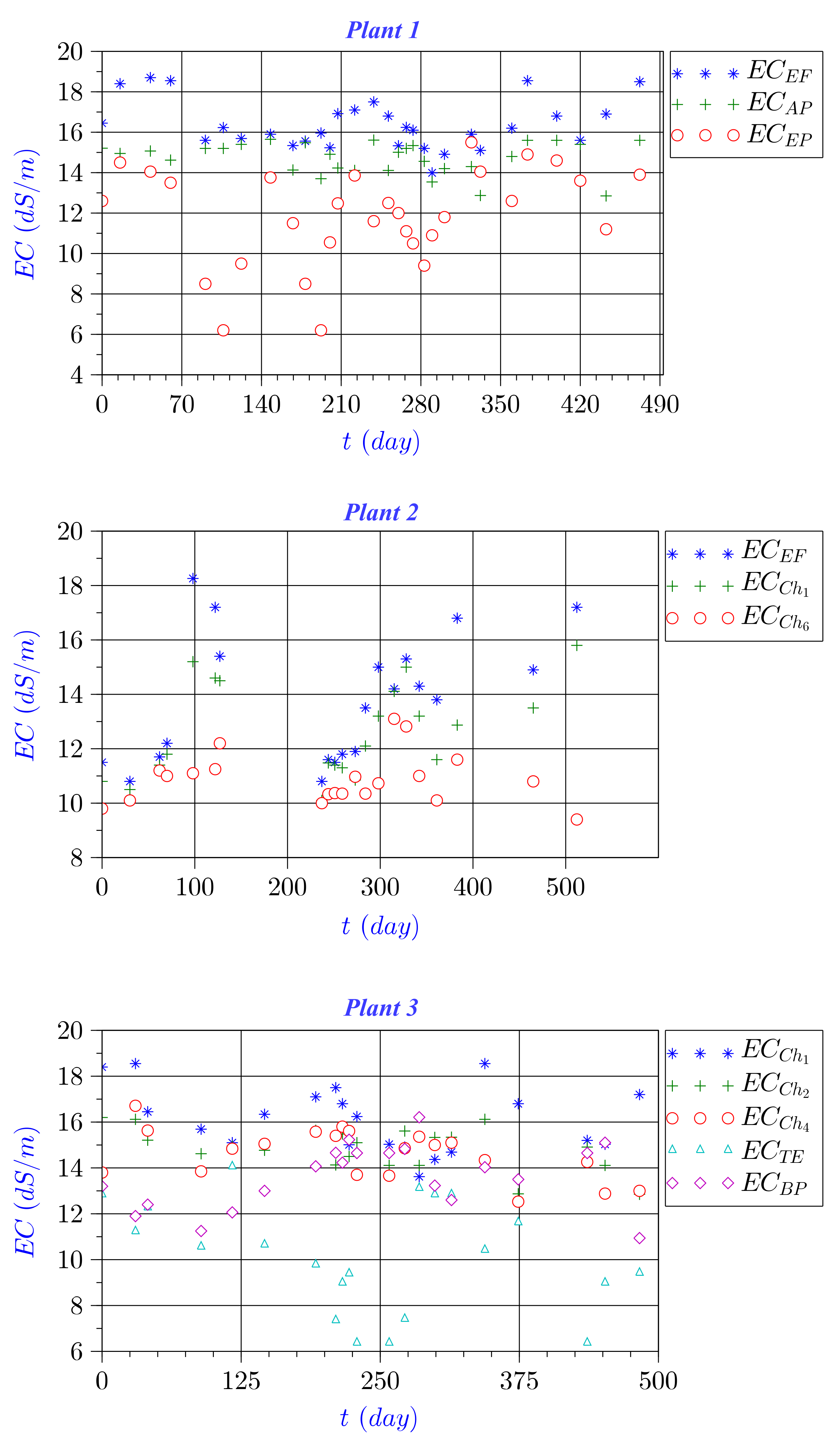

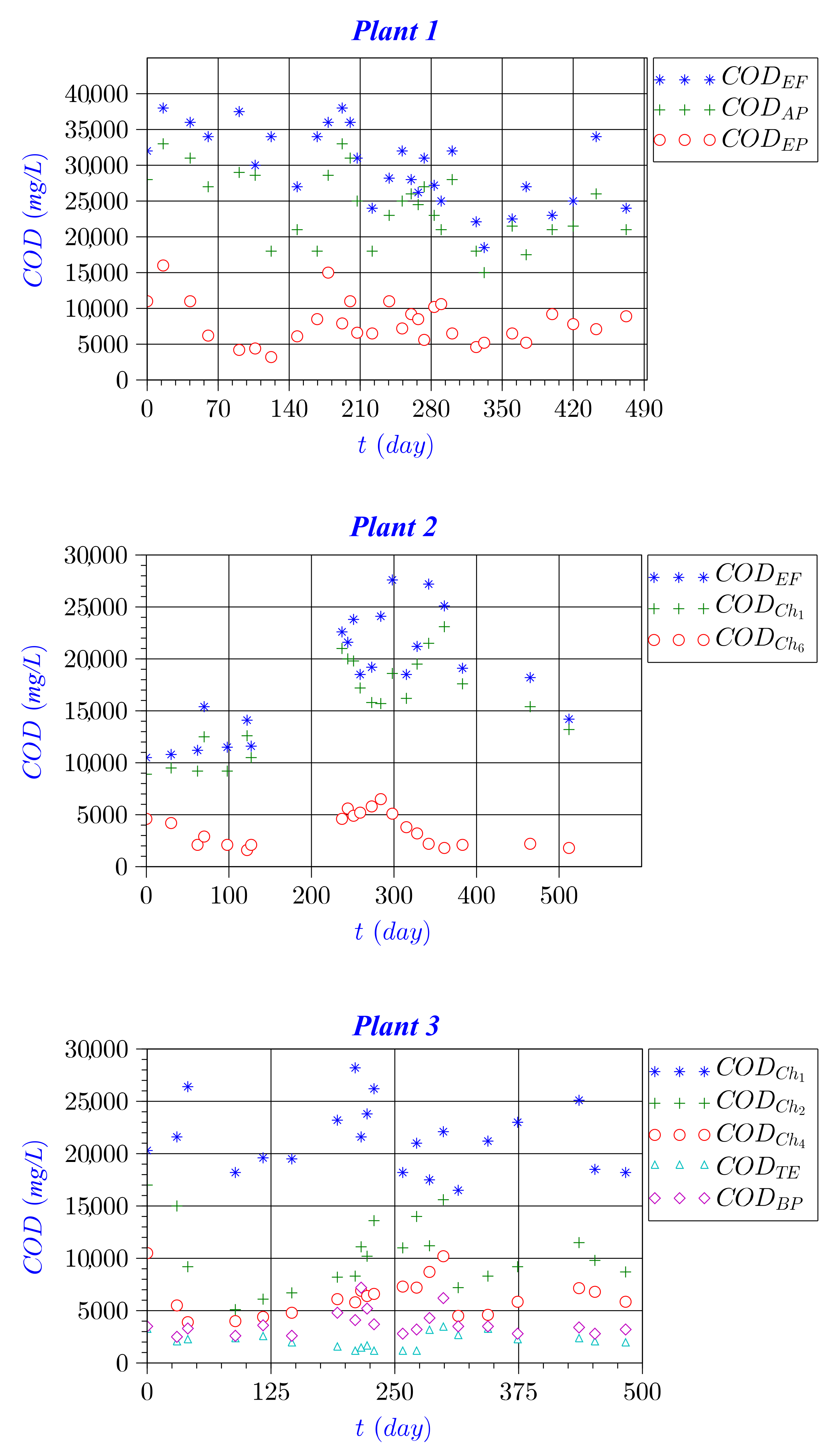

The temporal evolution of the variables, can be analyzed in the graphs represented in the following Figures: the behavior of the temperatures in Figure 10, the values of C O D in Figure 11, the values of E C in Figure 12, and the response of p H in Figure A3. The cyclical behavior shown in the graphs and samples indicates that the three plants operate at a steady state, damping and adapting according to the type of natural purification system the transient variability of the effluent input to the installation resulting from the operation of the operation Livestock. If, it is considered the operating charts of the three plants,
  • The curves of variables, which are labeled E F , for plants 1 and 2, and subindex C h 1 , for plant 3, represent the discharge in the pilot plants of the pools and intermediate tanks that each of the livestock farms have in their pens.
  • The curves of variables, which its label has the subindex E P , for plant 1, and subindex C h 1 , for plant 2, and subindex C h 2 , for plant 3, represent the initial point of the system.
  • An finally, the curves of variables, which its label has the subindex T E , for plants 1 and 3, and subindex C h 6 , for plant 2, represent the effluent treated of the plants.
Although the pond of plant 1 multiplies by 10 the capacity of the pond in plant 3, its performance is similar, but when comparing the performance per cubic meter, the pond on plant 3 shows a better performance. In the digester of the plant 2, only the variability dampens from the sixth chamber. In plant 3, the most complete one, we could observe how the system is able to better cushion the variations due to alterations from external factors (climatology and plant growth) than those motivated by the operating regime itself.

3.3. Correlations

For the three plants, it has been possible to propose significant correlations for the studied variables, among them. In Table 2, it is showed several relationships, established in form of correlation, between several variables of the plants. For example, for plants 2 and 3, it is possible to relate the removal of C O D R E G throughout the entire cycle and the removal in E C R E in the same period. It was demonstrated that there is a direct relationship between these two variables, which is reasonable because of the direct relationship between the amount of salts in a slurry (represented by E C ) versus methanogenic activity in a biological reactor, if the quantity of salts is low, more methane will be produced and therefore more organic matter ( C O D ) will be removed. In this way, it is possible to confirm that periodicity sampling, based on global H R T , allows to evaluate the best installation and to obtain meaningful relationships between different parameters of study in the complete treatment cycle.
Studies have been published with relationships between the variables studied COD and Conductivity ( E C ) [24,25]. As reported by [26], as indicated, Refs. [26,27,28,29] chemical analyses with standard laboratory methods are accurate, but involve a certain cost for the farmer and it is interesting to have COD values related to conductivity that can be taken on the farm. In this study, significant correlations with conductivity ( E C ) , better than the r = 0.511 and r = 0.571 [24,25], were found.

3.4. Performance

Overall, the best C O D and conductivity removal efficiency is found in plant 3 ( 90.42 % and 36.26 % , respectively, Table 3). With respect to the equipment, the sieves have a similar average C O D performance, the digester of plant 2 (with 6 chambers) has a better performance both at a global and specific level with respect to the digester of plant 3 (with 4 chambers), while it is observed that the performance per day of residence is higher in plant 3. However, in conductivity removal, plant 2 is superior both globally and specifically. The ponds show differences in volume in the order of 10:1, with a higher volume in plant 1. However, although globally the two ponds (plant 1 and 3) have similar C O D removal rates ( 66.67 % and 66.27 % , Table 3). The pond of plant 1, despite having a 10:1 volume ratio with respect to plant 3, has a lower specific performance both per volume and per day of residence. This advantage is confirmed by the ability of the plant 3 (which has two associated subsurface vertical flow wetlands) to reduce the overall and specific conductivity. These results can be explained, mainly, because the constructed wetlands are self-sustaining in relation to the removal of contaminants, since different mechanisms are produced in them, which can be classified as: biological (bioremediation and phytoremediation), chemical and physical [30,31]. Constructed wetlands are, as far as possible, controlled environments in which they can act on macrophytes, some plants, fill or gravel, and microbial populations, which act anaerobically to a considerable extent. Macrophytes and microbes take contaminants that reach wetlands as a source of energy, with which a removal of contaminants is achieved [30,32].
Although precipitation has an influence, for an open system it can be found in all three plants, and (to a greater extent in plants 1 and 3, with ponds), it can be affirmed that, although plant 1 has the highest level of average accumulated precipitation, the conductivity reduction capacity of plant 3 is clearly better than that of plant 1, although its capacity and surface area are notably lower. In this case it is clear the contribution of salt elimination caused by the presence of S F S artificial wetlands in plant 3. The role of salts in anaerobic digestion plays an important role in the methanogenic stage, since it has a condition in the form of possible inhibitions [33,34,35], which can reduce methanogenic activity. This could be observed, directly, in the measurement of the pH of the system, since it would cause changes in suitable ranges for the pH in anaerobic digestion, Table 4, to favor the production of biogas, and therefore for the degradation of contaminants.
Plant 2 has a 6 chamber cascade digester in which the layout resembles a channel (or piston flow) digester with better performance than plant 2 (or complete mix) and with a good load buffering capacity. Plant 3 has neither the best digester nor the best pond, but has the best performance, because the integration of different systems results in better treatment and observed performance in terms of C O D and conductivity removal. Regarding the H R T , total capacity, and occupied surface, it can be observed that the COD removal capacity and conductivity are clearly better in plants 2 and 3, being smaller than plant 1 (in capacity and occupied surface), with specific removals 0.464 and 0.377 %/m 3 , respectively, and 3.190 and 3.229 %/day. It is further influenced by the fact that the system is composed of complementary elements that allow the microbial fauna to better adapt to these changes.
NTSWs evaluated are compared in Table 5 with other similar ones both on farms and domestic waters (with equal number of equivalent inhabitants) [5,6,7,36], it can be observed that similar COD removal values both in % and % / H W R are obtained with livestock effluent treatment plants [37] and the more complete the installation ( N T S W Plant 3). Likewise, if the results given are compared against conventional systems, it is observed that they have comparable overall COD removal rates, and again the best installation is Plant 3 [38,39,40,41]. However, as the conventional systems are intensive in energy consumption and with shorter retention times ( H R T ) , in all cases except for those found by [39,40,41] it can be observed that by % / H R T the conventional systems are superior to the natural systems studied, this being the weak point of these systems in terms of retention times [42,43,44,45,46].

4. Conclussions

The N T S W has the capacity to cushion the fluctuations of the organic load due to livestock exploitation, having stable effluents. Systems that combine different alternatives are superior in performance and load capacity. These systems can be an alternative to conventional systems in farms of a similar size in insular and/or isolated territories and provide a low management cost alternative by offering a stabilized effluent. This effluent can be reused and promote the principle of integrated production.

Author Contributions

Conceptualization, C.A.M.-P., A.R.-M. and S.O.P.-B.; Data curation, C.A.M.-P., T.G.-R. and A.R.-M.; Formal analysis, C.A.M.-P. and A.R.-M.; Funding acquisition, A.R.-M. and S.O.P.-B.; Investigation, C.A.M.-P., T.G.-R., A.R.-M. and S.O.P.-B.; Methodology, C.A.M.-P. and A.R.-M.; Project administration, S.O.P.-B.; Resources, C.A.M.-P., T.G.-R. and S.O.P.-B.; Software, C.A.M.-P., T.G.-R. and A.R.-M.; Supervision, S.O.P.-B.; Validation, C.A.M.-P. and A.R.-M.; Visualization, C.A.M.-P. and A.R.-M.; Writing—original draft, C.A.M.-P. and A.R.-M.; Writing—review & editing, C.A.M.-P. and A.R.-M. All authors have read and agreed to the published version of the manuscript.


This research has been co-funded by the INTERREG V-A Cooperation Spain–Portugal MAC (Madeira-Azores-Canarias) programme MITIMAC project MAC2/1.1a/263.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


This research work has been carried out within the Livestock Industry Modernization Program of the Cabildo de Gran Canaria (Government of the island), and with the inestimable help of the farmers and the technical staff of the Agrarian Extension and Agricultural Development Service, Agrofood and Phytopathological Laboratory of the Cabildo de Gran Canaria and Analytical Control of Environtmental Sources (CAFMA), Institute for Environmental Studies and Natural Resources (i-UNAT) of the University of Las Palmas de Gran Canaria.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
C O D Chemical oxigen demand
C O D E F Effluent farm C O D
C O D E P C O D of Effluent pond
C O D T E C O D of Treated Effluent
C O D C h i C O D of chamber number i
C O D B P C O D at bottom of pond
C O D R E Percentage ratio of the removal efficiency of Chemical oxigen demand
C O D R E G C O D R E of the global plant
C O D R E S C O D R E at the screen
C O D R E D C O D R E at the digester
C O D R E E P C O D R E at the effluent pond
E C Electrical conductivity
E C E F Effluent farm E C
E C E P E C at Effluent pond
E C E F E C of the treated effluent
E C C h i E C at chamber number i
E C B P E C at bottom of pond
E C R E Percentage ratio of the removal efficiency of electrical conductivity
E C R E G E C R E of the global plant
E C R E P E C R E of the pond
E C R E S E C R E of the screen
E C R E D E C R E of the digesters
H R T Hydraulic retention time
H R T G Global Hydraulic retention time for the plant
N T S W Natural treatment system for wastewater
N B r Number of bristles
N T Total number of animals
p H Measure of the concentration of protons H + in a solution
p H E F p H at effluent farm
p H S P p H at the surface pond
p H D p H at the digester
p H C h i p H at chamber number i
p H G p H of the global plant
p H ¯ G Average p H of the global plant
p H ¯ D Average p H of the digester
p H ¯ S P Average p H at the surface pond
p H ¯ E F Average p H at effluent farm
Q e f f Effluent flow rate
R a c c Accumulated rainfall
R ¯ a c c     Average accumulated rainfall
S S F C W     Subsurface flow constructed wetland
T S P     Temperature surface pond
T A     Ambient temperature
T C h i     Indoor temperature chamber number i
T ¯ S P     Average temperature surface pond
T ¯ A     Average ambient temperature
T ¯ D     Average digester temperature
V R T     Reception tank volume
V A D     Anaerobic digester volume
V S S F C W     SSFCW volume
V P     Pond volume
ϕ     Relative humidity
ϕ ¯     Average relative humidity

Appendix A. Samples for the Plants

Table A1. Samples for the plants.
Table A1. Samples for the plants.
Plant 1 Plant 2 Plant 3
Monthly day Time (day) Sample Monthly day Time (day) Sample Monthly day Time (day) Sample
June 2701June 401July 401
July 13162July 4302August 3302
July 30433August 6623August 14413
August 18614August 14704October 2894
September 18925September 12985October 301175
October 41086October 61226Nobember 291466
October 101247October 111277January 141927
November 161508January 312378February 22108
December 71709February 72449February 82169
December 1818110February 1425110February 1322210
January 219511February 2225911February 2022911
January 1020312March 627312March 1925812
January 1721013March 1728413April 327213
February 322514March 3129814April 1628514
February 2024215April 1731515April 3029915
March 325516April 3032816May 1531416
March 1226417May 1434217June 1534417
March 1927118June 336118July 1537418
March 2527719June 2538319September 1743619
April 528720September 1746520October 345220
April 1229421November 451221Nobember 448321
April 2330522
May 1732923
May 2533724
June 2336525
July 737926
August 0340527
August 2442628
September 1744929
October 1847930

Appendix B. Rainfall, Relative Humidity and pH Results

In this appendix is displayed the results above rainfall, relative humidity and pH.

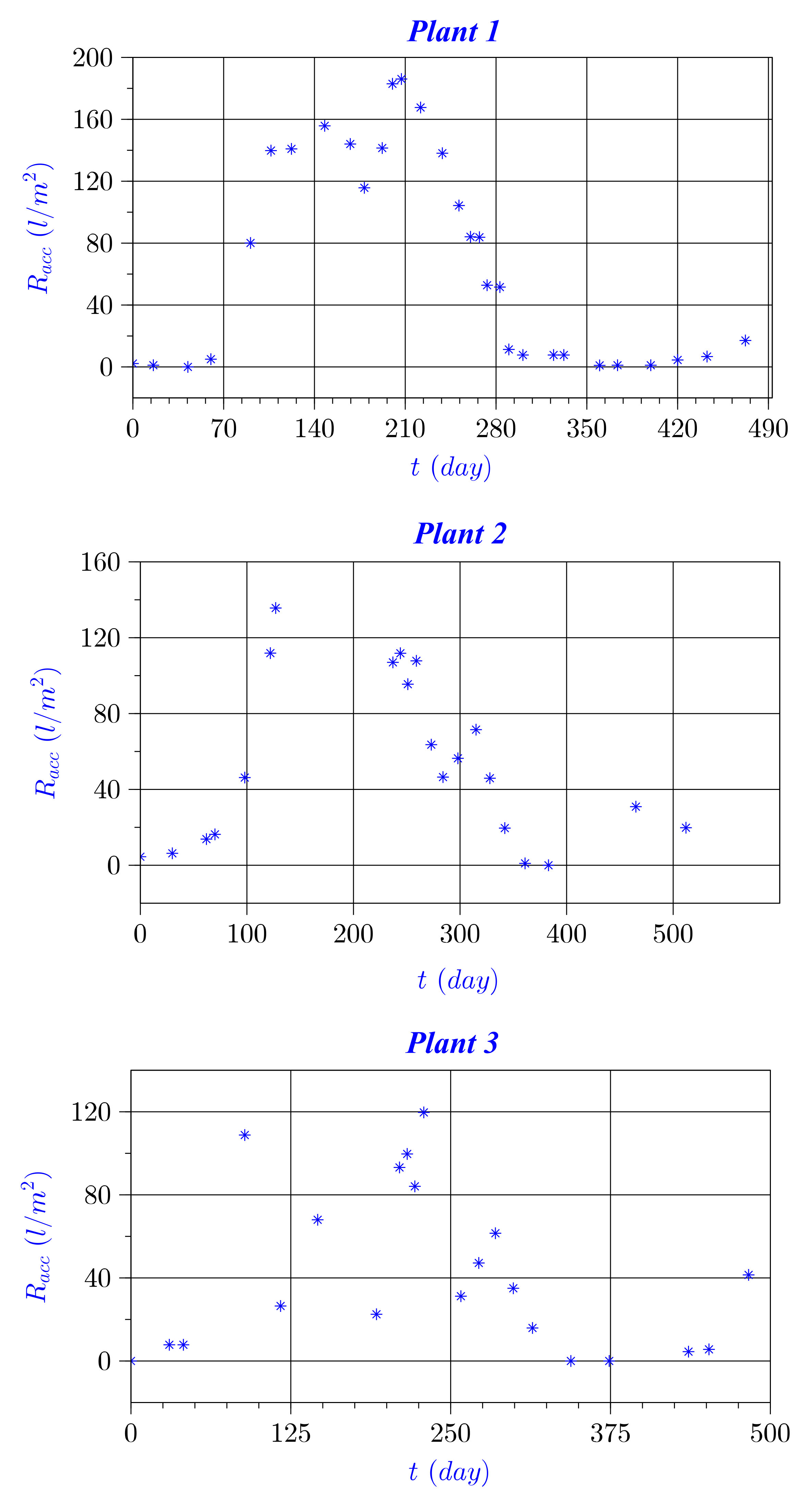

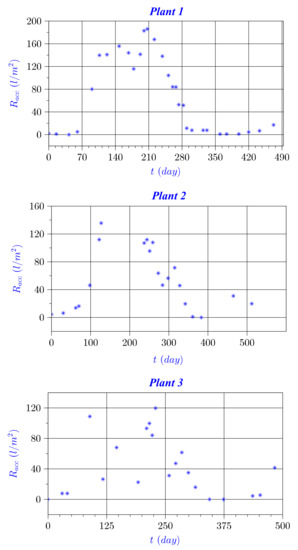

Figure A1. Rainfall results for plants 1, 2, and 3.
Figure A1. Rainfall results for plants 1, 2, and 3.
Water 14 02279 g0a1

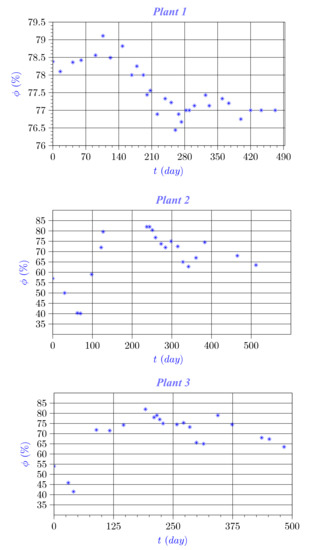

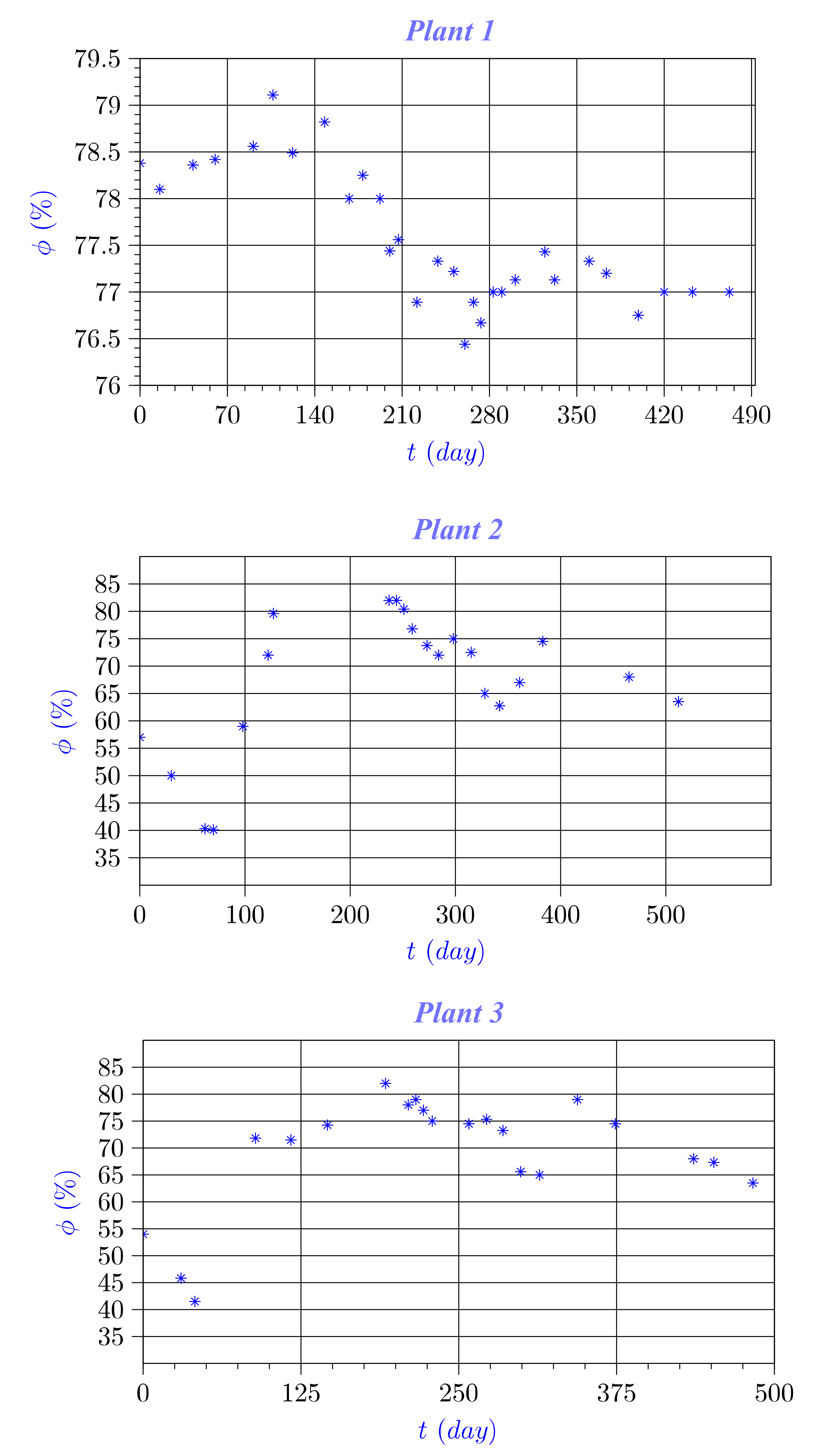

Figure A2. Relative humidity results for plants 1, 2, and 3.
Figure A2. Relative humidity results for plants 1, 2, and 3.
Water 14 02279 g0a2

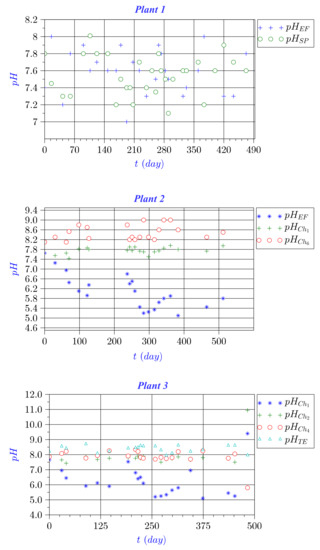

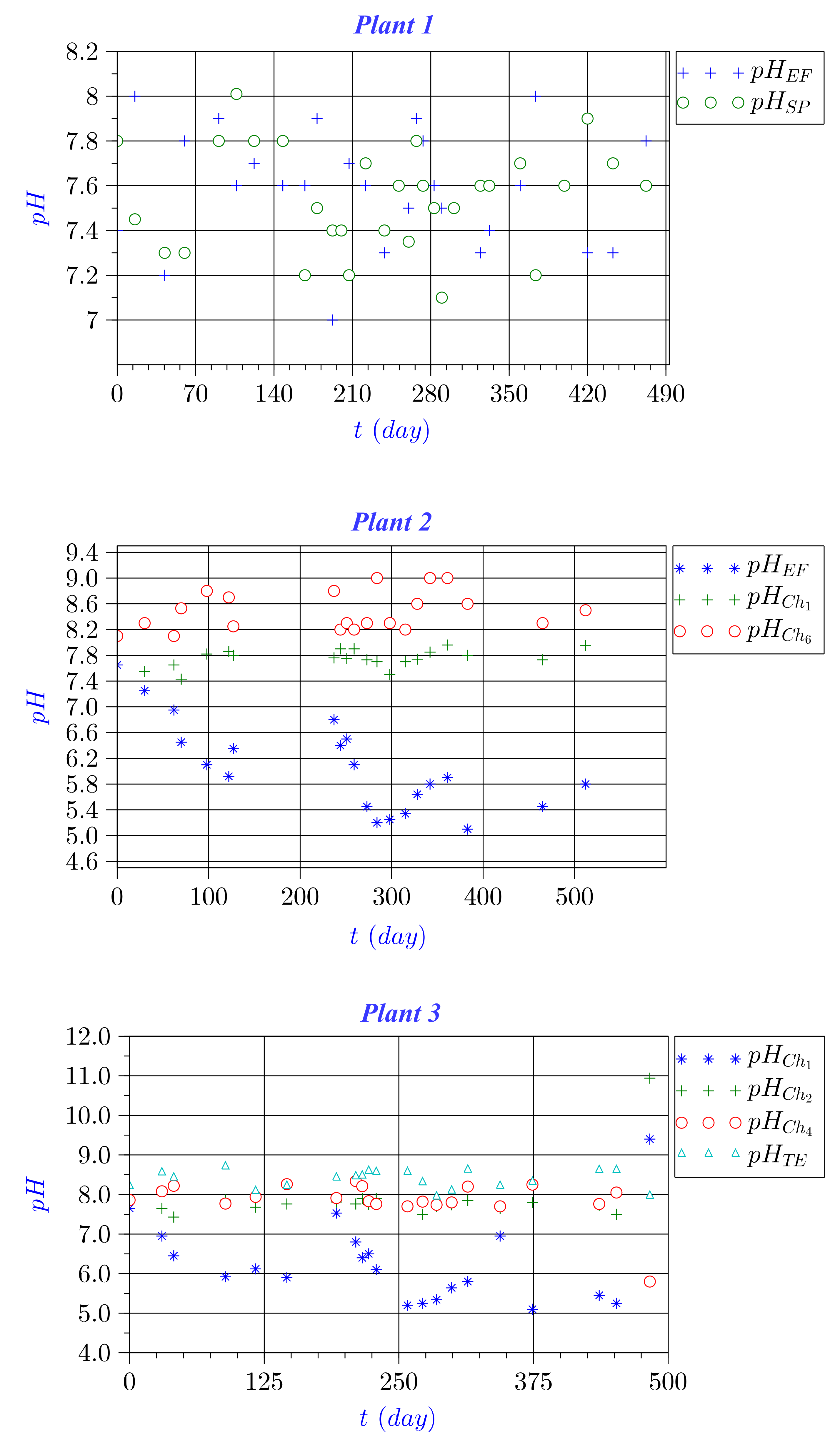

Figure A3. p H results for plant 1, 2, and 3.
Figure A3. p H results for plant 1, 2, and 3.
Water 14 02279 g0a3

References and Note

  1. Gearheart, R.A. Use of Constructed Wetlands to Treat Domestic Wastewater, City of Arcata, California. Water Sci. Technol. 1992, 26, 1625–1637. [Google Scholar] [CrossRef]
  2. Yoon, C.G.; Kim, S.B.; Kwun, T.Y.; Jung, K.W. Development of natural and ecological wastewater treatment system for decentralized community in Korea. Paddy Water Environ. 2008, 6, 221–227. [Google Scholar] [CrossRef]
  3. Vera-Pena, L.; Martel-Rodriguez, G.; Armas-Estevez, A.; Toscon, A. DEPURANAT Gestion sostenible del agua residual en los entornos rurales. Rincones Del Atl. 2005, 3, 1–4. [Google Scholar]
  4. Ayaz, S.C.; Akca, L. Treatment of wastewater by natural systems. Environ. Int. 2001, 26, 189–195. [Google Scholar] [CrossRef]
  5. Ayaz, S.; Akca, I. Treatment of wastewater by constructed wetland in small settlements. Water Sci. Technol. 2000, 41, 69–72. [Google Scholar] [CrossRef]
  6. Belmont, M.A.; Cantellano, E.; Thompson, S.; Williamson, M.; Sánchez, A.; Metcalfe, C.D. Treatment of domestic wastewater in a pilot-scale natural treatment system in central Mexico. Ecol. Eng. 2004, 23, 299–311. [Google Scholar] [CrossRef]
  7. Vera, L.; Martel, G.; Marquez, M. Two years monitoring of the natural system for wastewater reclamation in Santa Lucia, Gran Canaria Island. Ecol. Eng. 2013, 50, 21–30. [Google Scholar] [CrossRef]
  8. Mendieta, C.; Lopez, C.; Perez, S. Evaluacion de sistemas de tratamiento no-convencional para efluentes procedentes de explotaciones ganaderas. In Proceedings of the I Simposio Iberoamericano de Ingeniería de Residuos—REDISA, Castellón, Spain, 23–24 July 2008; Volume 1, p. 7. [Google Scholar]
  9. Caballero-Lajarin, A.; Faz, A.; Lobera, J. Constructed wetland application to remove the pollution of waste water from pig farms. In Proceedings of the 5th International Conference on Land Degradation, Valenzano, Italy, 18–22 September 2008; Volume 1, p. 9. [Google Scholar]
  10. Crites, R.; Middlebrooks, E.J.; Bastian, R. Natural Wastewater Treatment Systems, 2nd ed.; CRC Press Taylor and Francis Group: Boca Raton, FL, USA, 2014; Volume 1. [Google Scholar]
  11. Gachango, F.G.; Pedersen, S.M.; Kjaergaard, C. Cost-Effectiveness Analysis of Surface Flow Constructed Wetlands (SFCW) for Nutrient Reduction in Drainage Discharge from Agricultural Fields in Denmark. Environ. Manag. 2015, 56, 1478–1486. [Google Scholar] [CrossRef]
  12. Mannino, I.; Franco, D.; Piccioni, E.; Favero, L.; Mattiuzzo, E.; Zanetto, G. A Cost-Effectiveness Analysis of Seminatural Wetlands and Activated Sludge Wastewater-Treatment Systems. Environ. Manag. 2008, 41, 118–129. [Google Scholar] [CrossRef][Green Version]
  13. Hjorth, M.; Christensen, K.V.; Christensen, M.L.; Sommer, S.G. Solid—Liquid separation of animal slurry in theory and practice. A review. Agron. Sustain. Dev. 2010, 30, 153–180. [Google Scholar] [CrossRef][Green Version]
  14. Goberment, C.I. Plan Integral de Residuos de Canarias. Decreto 161/2001, 2001. An optional note.
  15. U.S. Environmental Protection Agency. Manual: Constructed Wetlands Treatment of Municipal Wastewaters; U.S. Environmental Protection Agency: Cincinnati, OH, USA, 2000. [Google Scholar]
  16. Castillo, P.; Collado, R. Eliminacion de nitrogeno en sistemas naturales de depuracion de aguas residuales: Analisis comparativo. Retema Rev. Tec. Medio Ambiente 1996, 2, 49–55. [Google Scholar]
  17. Qadiri, R.Z.Z.; Gani, K.M.; Zaid, A.; Aalam, T.; Kazmi, A.A.; Khalil, N. Comparative evaluation of the macrophytes in the constructed wetlands for the treatment of combined wastewater (greywater and septic tank effluent) in a sub-tropical region. Environ. Challenges 2021, 5, 100265. [Google Scholar] [CrossRef]
  18. Yu, Q.; Duan, X.; Gu, Y.; Li, J.; Zhang, X.; Chen, C.; Zhao, D. Increasing chemical oxygen demand and nitrogen removal efficiencies of surface-flow constructed wetlands in macrophyte-dominant seasons by adding artificial macrophytes. Bioresour. Technol. 2022, 348, 126755. [Google Scholar] [CrossRef]
  19. Ji, B.; Zhao, Y.; Li, Q.; Yang, Y.; Wei, T.; Tang, C.; Zhang, J.; Ruan, W.; Tai, Y. Interrelation between macrophytes roots and cathode in constructed wetland-microbial fuel cells: Further evidence. Sci. Total Environ. 2022, 838, 156071. [Google Scholar] [CrossRef]
  20. Kataki, S.; Chatterjee, S.; Vairale, M.G.; Dwivedi, S.K.; Gupta, D.K. Constructed wetland, an eco-technology for wastewater treatment: A review on types of wastewater treated and components of the technology (macrophyte, biolfilm and substrate). J. Environ. Manag. 2021, 283, 111986. [Google Scholar] [CrossRef]
  21. Brix, H. Do macrophytes play a role in constructed treatment wetlands? Water Sci. Technol. 1997, 35, 11–17. [Google Scholar] [CrossRef]
  22. Brito-Espino, S.; Ramos-Martín, A.; Pérez-Báez, S.O.; Mendieta-Pino, C.; Leon-Zerpa, F. A Framework Based on Finite Element Method (FEM) for Modelling and Assessing the Affection of the Local Thermal Weather Factors on the Performance of Anaerobic Lagoons for the Natural Treatment of Swine Wastewater. Water 2021, 13, 882. [Google Scholar] [CrossRef]
  23. Walton, G.N. Thermal Analysis Research Program Reference Manual; National Bureau of Standards: Gaithersburg, MD, USA, 1983. [Google Scholar]
  24. Suresh, A.; Choi, H.; Oh, D.; Moon, O. Prediction of the nutrients value and biochemical characteristics of swine slurry by measurement of EC – Electrical conductivity. Bioresour. Technol. 2009, 100, 4683–4689. [Google Scholar] [CrossRef]
  25. Suresh, A.; Choi, H.L. Estimation of nutrients and organic matter in Korean swine slurry using multiple regression analysis of physical and chemical properties. Bioresour. Technol. 2011, 102, 8848–8859. [Google Scholar] [CrossRef]
  26. Moral, R.; Perez-Murcia, M.D.; Perez-Espinosa, A.; Moreno-Caselles, J.; Paredes, C. Estimation of nutrient values of pig slurries in Southeast Spain using easily determined properties. Waste Manag. 2005, 25, 719–725. [Google Scholar] [CrossRef]
  27. Antezana, W.; de Blas Beorlegui, J.C.; Rebollar, P.G.; Rodriguez, C.; Beccaccia, A.; Ferrer, P.; Cerisuelo, A.; Moset, V.; Estelles, F.; Lopez, M.C.; et al. Composition, potential emissions and agricultural value of pig slurry from Spanish commercial farms. Nutr. Cycl. Agroecosyst. 2016, 104, 159–173. [Google Scholar] [CrossRef][Green Version]
  28. Moral, R.; Perez-Murcia, M.; Perez-Espinosa, A.; Moreno-Caselles, J.; Paredes, C.; Rufete, B. Salinity, organic content, micronutrients and heavy metals in pig slurries from South-eastern Spain. Waste Manag. 2008, 28, 367–371. [Google Scholar] [CrossRef]
  29. Ngwabie, N.M.; Chungong, B.N.; Yengong, F.L. Characterisation of pig manure for methane emission modelling in Sub-Saharan Africa. Biosyst. Eng. 2018, 170, 31–38. [Google Scholar] [CrossRef]
  30. Sharma, R.; Malaviya, P. Constructed wetlands for textile wastewater remediation: A review on concept, pollutant removal mechanisms, and integrated technologies for efficiency enhancement. Chemosphere 2022, 290, 133358. [Google Scholar] [CrossRef]
  31. Wdowczyk, A.; Szymańska-Pulikowska, A.; Gałka, B. Removal of selected pollutants from landfill leachate in constructed wetlands with different filling. Bioresour. Technol. 2022, 353, 127136. [Google Scholar] [CrossRef]
  32. Wang, Y.; Li, Q.; Zhang, W.; Wang, S.; Peng, H. Pollutants removal efficiency assessment of constructed subsurface flow wetlands in lakes with numerical models. J. Hydrol. 2021, 598, 126289. [Google Scholar] [CrossRef]
  33. Yellezuome, D.; Zhu, X.; Wang, Z.; Liu, R. Mitigation of ammonia inhibition in anaerobic digestion of nitrogen-rich substrates for biogas production by ammonia stripping: A review. Renew. Sustain. Energy Rev. 2022, 157, 112043. [Google Scholar] [CrossRef]
  34. Tsapekos, P.; Kovalovszki, A.; Alvarado-Morales, M.; Rudatis, A.; Kougias, P.G.; Angelidaki, I. Anaerobic co-digestion of macroalgal biomass with cattle manure under high salinity conditions. J. Environ. Chem. Eng. 2021, 9, 105406. [Google Scholar] [CrossRef]
  35. Xie, Z.; Zou, H.; Zheng, Y.; Fu, S.F. Improving anaerobic digestion of corn straw by using solid-state urea pretreatment. Chemosphere 2022, 293, 133559. [Google Scholar] [CrossRef]
  36. Vera, L.; Martel, G.; Marquez, M. First year performance of a new constructed wetland on the island of Gran Canaria: A case study. In Proceedings of the 12th International Conference on Wetland Systems for Water Pollution Control, Venice, Italy, 4–8 October 2010; Volume 1, p. 7. [Google Scholar]
  37. Knight, R.L.; Payne, V.W.; Borer, R.E.; Clarke, R.A.; Pries, J.H. Constructed wetlands for livestock wastewater management. Ecol. Eng. 2000, 15, 41–55. [Google Scholar] [CrossRef]
  38. Becares, E.; Alvarez, J.; Garcia-Gonzalez, M. Caracterizacion de purines de cerdo y eficacias de tratamiento en Espana Central. Innovacion y Tecnologia Agroalimentaria 2008, 4, 65–75. [Google Scholar]
  39. Choi, E.; Kim, D.; Eum, Y.; Yun, Z.; Min, K.S. Full-Scale Experience for Nitrogen Removal from Piggery Waste. Water Environ. Res. 2005, 77, 381–389. [Google Scholar] [CrossRef]
  40. Dias, T.; Fragoso, R.; Duarte, E. Anaerobic co-digestion of dairy cattle manure and pear waste. Bioresour. Technol. 2014, 164, 420–423. [Google Scholar] [CrossRef]
  41. Ferreira, L. Anaerobic co-digestion of pig manure with fruti wastes. Process development for the recycling in decentralised farm scale plants. In Proceedings of the 12th Ramiran International Conference, Aarhus, Denmark, 11–13 September 2006; Volume 1, p. 7. [Google Scholar]
  42. Deng, L.; Cai, C.; Chen, Z. The treatment of pig slurry by a full-scale Anaerobic-Adding Raw Wastewater-Intermittent Aeration Process. Biosyst. Eng. 2007, 98, 327–334. [Google Scholar] [CrossRef]
  43. Fugère, R.; Mameri, N.; Gallot, J.E.; Comeau, Y. Treatment of pig farm effluents by ultrafiltration. J. Membr. Sci. 2005, 255, 225–231. [Google Scholar] [CrossRef]
  44. Juteau, P.; Tremblay, D.; Ould-Moulaye, C.B.; Bisaillon, J.G.; Beaudet, R. Swine waste treatment by self-heating aerobic thermophilic bioreactors. Water Res. 2004, 38, 539–546. [Google Scholar] [CrossRef]
  45. Kalyuzhnyi, S.; Sklyar, V.; Epov, A.; Arkhipchenko, I.; Barboulina, I.; Orlova, O.; Kovalev, A.; Nozhevnikova, A.; Klapwijk, A. Sustainable treatment and reuse of diluted pig manure streams in Russia. Appl. Biochem. Biotechnol. 2003, 109, 77–94. [Google Scholar] [CrossRef]
  46. Yi, Y.S.; Kim, S.; An, S.; Choi, S.; Choi, E.; Yun, Z. Gas analysis reveals novel aerobic deammonification in thermophilic aerobic digestion. Water Sci. Technol. 2003, 47, 131–138. [Google Scholar] [CrossRef]
  47. Gonzalez-Fernandez, C.; Nieto-Diez, P.P.; Leon-Cofreces, C.; Garcia-Encina, P.A. Solids and nutrients removals from the liquid fraction of swine slurry through screening and flocculation treatment and influence of these processes on anaerobic biodegradability. Bioresour. Technol. 2008, 99, 6233–6239. [Google Scholar] [CrossRef]
Figure 1. Location of Gran Canaria island in the Atlantic ocean.
Figure 1. Location of Gran Canaria island in the Atlantic ocean.
Water 14 02279 g001

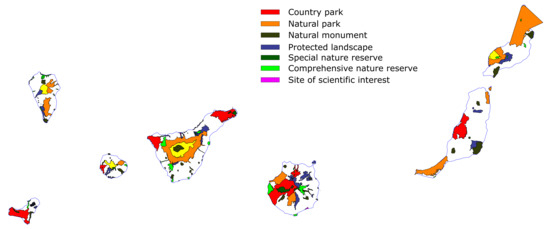

Figure 2. Areas of environmental protection.
Figure 2. Areas of environmental protection.
Water 14 02279 g002
Figure 3. Location of the livestock farms of pigs of Tenerife and Gran Canaria Islands.
Figure 3. Location of the livestock farms of pigs of Tenerife and Gran Canaria Islands.
Water 14 02279 g003
Figure 4. Location of the plants in Gran Canaria Island.
Figure 4. Location of the plants in Gran Canaria Island.
Water 14 02279 g004
Figure 5. Photograph of Plant 1, with a detail of the pond.
Figure 5. Photograph of Plant 1, with a detail of the pond.
Water 14 02279 g005
Figure 6. Photograph of Plant 2, with a detail of the rotary screen, and the anaerobic digesters.
Figure 6. Photograph of Plant 2, with a detail of the rotary screen, and the anaerobic digesters.
Water 14 02279 g006

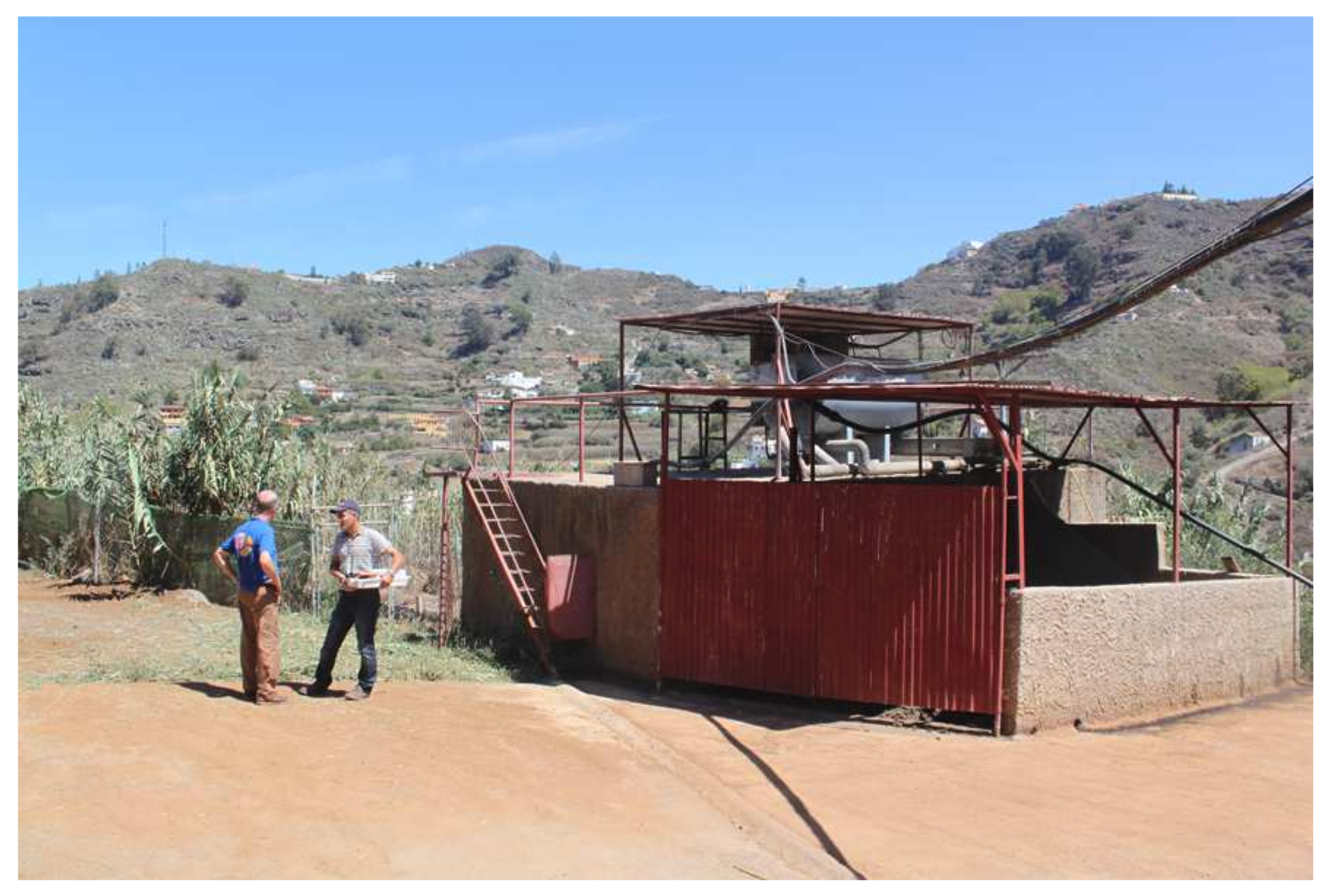

Figure 7. Photograph of Plant 3, with a detail of the rotary screen, and the anaerobic digesters.
Figure 7. Photograph of Plant 3, with a detail of the rotary screen, and the anaerobic digesters.
Water 14 02279 g007
Figure 8. Photograph of Plant 3, with a detail of the pond, and the constructed wetlands.
Figure 8. Photograph of Plant 3, with a detail of the pond, and the constructed wetlands.
Water 14 02279 g008
Figure 9. Schematics of the plants and Sampling Points.
Figure 9. Schematics of the plants and Sampling Points.
Water 14 02279 g009
Figure 10. Temperature results for plant 1, 2, and 3.
Figure 10. Temperature results for plant 1, 2, and 3.
Water 14 02279 g010aWater 14 02279 g010b
Figure 11. C O D results for plants 1, 2, and 3.
Figure 11. C O D results for plants 1, 2, and 3.
Water 14 02279 g011
Figure 12. E C results for plant 1, 2, and 3.
Figure 12. E C results for plant 1, 2, and 3.
Water 14 02279 g012
Table 1. Data pilot Plants.
Table 1. Data pilot Plants.
Plant COD EF ( mg / L ) Q eff ( m 3 / day ) N Br N T V RT HRT ( m 3 ) ( day ) V AD HRT ( m 3 ) ( day ) V SSFCW HRT ( m 3 ) ( day ) V P HRT ( m 3 ) ( day )
145,600 13.60 ( 180 ) ( 1890 ) ( 10 ) ( 1 ) ( 1100 ) ( 80 )
229,000 6.40 ( 115 ) ( 1068 ) ( 40 ) ( 4 ) ( 132 ) ( 21 )
350,000 8.70 ( 160 ) ( 1432 ) ( 10 ) ( 1 ) ( 104 ) ( 11 ) ( 46 ) ( 5 ) ( 90 ) ( 10 )
Plant Total Capacity ( m 3 ) Occupied Surface ( m 2 ) HRT Global ( day )
Table 2. Relations between variables of Plants.
Table 2. Relations between variables of Plants.
Plant 1
R 2 Correlation
0.866 C O D R E G = 43.2947 + 70.5771 · C O D R E E P 2 8.781 · C O D R E E P 3
0.500 E C R E G = 19.202 0.097 · R a c c + 0.002 · R a c c 2 1.488 × 10 5 · R a c c 3
0.798 E C R E G = 18.250 0.60 · E C R E P + 0.020 · E C R E P 2 + 38.87 × 10 5 · C O D R E P 3
Plant 2
R 2 Correlation
0.942 C O D R E G = 5.923 + 0.437 · E C R E D + 0.0161 · E C R E D 2 0.001 · E C R E D 3
0.602 E C R E G = 7.213 + 1.023 · E C R E S + 0.135 · E C R E S 2 0.006 · E C R E S 3
0.847 E C R E G = 5.923 + 0.437 · E C R E D + 0.061 · E C R E D 2 0.001 · C O D R E D 3
Plant 3
R 2 Correlation
0.748 C O D R E G = 92.559 1.087 · E C R E P + 0.0501 · E C R E P 2 0.001 · E C R E P 3
0.769 E C R E G = 19.854 0.759 · E C R E P + 0.063 · E C R E P 2 0.001 · E C R E P 3
0.426 E C R E G = 18.824 20.123 · R a c c 6.424 · R a c c 2 0.824 · R a c c 3
Table 3. Removal rate values (COD, EC…).
Table 3. Removal rate values (COD, EC…).
Plant COD RES ( % ) COD RED ( % ) COD REP ( % ) COD REG ( % ) EC RES ( % ) EC REP ( % ) EC RED ( % ) EC REG ( % )
1 18.08 66.67 72.64 9.56 19.37 27.63
2 14.63 75.92 79.75 7.78 12.94 19.41
3 15.41 46.86 66.27 90.42 8.31 30.79 5.41 36.26
Plant COD RES ( % / m 3 ) COD RED ( % / m 3 ) COD REP ( % / m 3 ) COD REG ( % / m 3 ) EC RES ( % / m 3 ) EC REP ( % / m 3 ) EC RED ( % / m 3 ) EC REG ( % / m 3 )
1 1.291 0.061 0.065 0.683 0.018 0.025
2 0.366 0.575 0.464 0.195 0.091 0.107
3 4.541 0.455 0.488 0.377 0.831 0.342 0.053 0.146
Plant COD RES ( % / day ) COD RED ( % / day ) COD REP ( % / day ) COD REG ( % / day ) EC RES ( % / day ) EC REP ( % / day ) EC RED ( % / day ) EC REG ( % / day )
1 0.833 0.897 0.922 0.776
2 3.615 3.190 0.345 0.341
3 4.686 3.898 3.229 0.907 2.226 1.295
Table 4. Average values ( p H ¯ , R ¯ a c c , ϕ ¯ , T ¯ ).
Table 4. Average values ( p H ¯ , R ¯ a c c , ϕ ¯ , T ¯ ).
Plant pH ¯ EP pH ¯ SP pH ¯ D pH ¯ G R ¯ acc ( L / m 2 ) T ¯ A ( C ) ϕ ¯ ( % ) T ¯ SP ( C ) T ¯ D ( C )
1 7.58 7.55 7.55 68.11 20.79 77.56 25.44
2 6.07 8.48 7.44 52.95 19.80 67.30 26.86
3 9.40 7.95 5.80 7.95 41.46 22.60 63.50 21.74 22.38
Table 5. Comparison between natural treatment systems.
Table 5. Comparison between natural treatment systems.
Treatment HRT ( days ) Total Removed ( % COD ) Total Removed ( % COD / HRT ( day ) ) References
Anoxic-aerobic54 95.90 1.78 [39]
Anerobic-anoxic-aerobic48 95.00 1.98 [39]
Anaerobic14 94.00 6.71 [40]
Codigestion anaerobic 15.5 69.20 4.46 [41]
Anoxic-aerobic13 86.90 6.68 [38]
Anoxic-aerobic13 93.60 7.20 [38]
Activated Slugge10 95.00 9.50 [38]
NTSW Domestic20 96.00 4.80 [6]
NTSW Domestic28 90.00 3.21 [4]
NTSW Domestic30 90.00 3.00 [7]
NTSW Livestock25 65.00 2.60 [37]
SBR and MBR technology 6.5 96.00 14.77 [47]
Anaerobic-Biofilters6 98.00 16.33 [45]
Aerobic termofilic3 62.00 20.67 [46]
Anaerobic-SBR 4.5 96.70 21.49 [42]
MBR technology1 51.20 51.20 [43]
Aerobic termofilic3 60.00 20.00 [44]
NTSW Plant 181 72.64 0.90 This work
NTSW Plant 225 79.75 3.19 This work
NTSW Plant 328 91.70 3.28 This work
SBR6 70.40 11.73 [39]
SBR and MBR technology8 98.00 12.25 [47]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mendieta-Pino, C.A.; Garcia-Ramirez, T.; Ramos-Martin, A.; Perez-Baez, S.O. Experience of Application of Natural Treatment Systems for Wastewater (NTSW) in Livestock Farms in Canary Islands. Water 2022, 14, 2279.

AMA Style

Mendieta-Pino CA, Garcia-Ramirez T, Ramos-Martin A, Perez-Baez SO. Experience of Application of Natural Treatment Systems for Wastewater (NTSW) in Livestock Farms in Canary Islands. Water. 2022; 14(14):2279.

Chicago/Turabian Style

Mendieta-Pino, Carlos A., Tania Garcia-Ramirez, Alejandro Ramos-Martin, and Sebastian O. Perez-Baez. 2022. "Experience of Application of Natural Treatment Systems for Wastewater (NTSW) in Livestock Farms in Canary Islands" Water 14, no. 14: 2279.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
