Article

Major Elements in the Upstream of Three Gorges Reservoir: An Investigation of Chemical Weathering and Water Quality during Flood Events

1
Institute of Earth Sciences, China University of Geosciences (Beijing), Beijing 100083, China
2
State Key Laboratory of Simulation and Regulation of Water Cycle in River Basin, Beijing 100083, China
3
Department of Water Ecology and Environment, China Institute of Water Resources and Hydropower Research, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Water 2021, 13(4), 454; https://doi.org/10.3390/w13040454
Received: 28 December 2020 / Revised: 4 February 2021 / Accepted: 5 February 2021 / Published: 9 February 2021
(This article belongs to the Special Issue River Water Management and Water Quality)

Abstract

:
Rivers transport terrestrial matter into the ocean, constituting a fundamental channel between inland and oceanic ecosystem and affect global climate change. To reveal chemical weathering processes and environmental health risks during flood periods, water samples were collected in the upper reaches of Three Gorges Reservoir (TGR) in 2020. HCO3 and Ca2+ were the most abundant anions and cations of the river water, respectively. The range of HCO3 concentration was between 1.81 and 3.02 mmol/L, while the mean content of Ca2+ was 1.03 mmol/L. The results of the Piper diagram and element ratios revealed that the river solutes were mainly contributed by carbonate weathering and gypsum-rich evaporite dissolution. A mass balance model indicated that the contribution order of sources to cations in the main channel (Yibin-Luzhou) was evaporites > carbonates > atmospheric input > silicates. The order in the Chongqing—Three Gorges Dam was carbonates > atmospheric input > evaporites > silicates. These results showed a lithologic control on hydrochemical characteristics. Most sampling sites were suitable for agricultural irrigation according to the water quality assessment. However, indexes sodium adsorption ratio (SAR) and soluble sodium percentage (Na%) were higher than 1.0 in Yibin-Luzhou and 30% in Yibin–Chongqing, respectively, suggesting a potential sodium hazard. In addition, except Tuojiang River and Shennong River, the risk of sodium hazard in tributaries was relatively low. High Na+ concentration in irrigation water can damage soil structure and function and ultimately affect agricultural production. Water quality in the upstream of a Piper diagram should attract enough attention.

1. Introduction

As the channel that connects inland waters with the ocean, the river is the main carrier to transport inland materials [1,2]. It provides water for human activities (e.g., irrigation and drinking water) [3,4,5], as well as power generation and aquatic habitats [6,7,8,9]. It is also the carrier of pollutants brought by human activities [10,11,12,13,14]. Meanwhile, rivers are one of the major players in the carbon cycle [15,16,17,18]. CO2 in rivers can affect climate change by being released into the atmosphere due to higher partial pressure [19,20,21]. Rock weathering, atmospheric input and soil consumption contribute to the river inorganic carbon composition [22,23,24]. The weathering processes can increase river solutes concentration, further affecting water chemistry [25,26] and the carbon cycle [24,27,28]. In addition, human activities can also have an impact on carbon fluxes in rivers [17,29,30]. For example, damming alter the geochemical behavior of inorganic carbon in Changjiang has been reported [31,32,33]. However, the carbon cycle in rivers is complex; understand the contribution of natural weathering on rivers is important before the impact of human activities can be revealed. Therefore, it is necessary to study the relationship between chemical weathering and rivers water chemistry.
River solutes can provide information about weathering processes [34,35,36,37,38]. The primary sources of river solutes are natural sources, such as atmospheric input and rock weathering [39,40,41,42,43]. Qu et al. [44] measured and analyzed the elemental composition and other environmental indicators in 11 rivers on the Tibetan Plateau, suggesting that carbonate weathering dominated the major ions in rivers of southern Tibetan Plateau and the central riverine ions were dominated by evaporite dissolution and silicate weathering. Similarly, by the methods of Piper, Gibbs, and mixing models, the source of rock weathering of the major riverine ions such as Yamuna River, Gandaki River and Xijiang River has also been revealed [45,46,47]. Anthropogenic inputs are another important source, such as agricultural irrigation and industrial production are another important source [48,49,50]. In addition, human-accelerated weathering can improve the major ions migration rate in urban rivers [51]. Overall, measurements of river solute chemical composition can provide a better knowledge of weathering processes and the degree of human disturbance to the river, and then the water quality can be assessed accordingly.
The Three Gorges Dam (TGD), which intercepts the Changjiang River, is the largest dam-building project in the world [52,53,54]. The changes in the water chemistry of this basin have been constantly a concern for decades [55,56,57]. The data of the Changjiang River monitoring stations over 35 years were analyzed by Chen et al. [58], who indicated the role of rock weathering in hydrochemistry could not be neglected. Based on the mass balance equation, Chetelat et al. [34] further pointed out the major cations in Changjiang River were mainly from dissolution products of carbonate rocks, and anthropogenic input also had a certain influence. A certain amount of research downstream of the TGR was reported, aiming to understand the effects of the damming and chemical weathering process [58,59,60,61,62,63]. Although some local studies have investigated the weathering source of major ions upstream of the TGR [64,65,66,67], the hydrochemical processes during periods of flood events are still unclear. The risks of irrigation water in the basin are also unclear. The contribution of natural weathering to the river solutes can be better understood by collecting the hydrochemical information during the flood period. Therefore, this study in the upstream of the TGR (Yibin-Wushan) aims to examine (1) elements composition of the river water, (2) source analysis of cations in the river and (3) the water quality and risks. This study enriches the information of the chemical weathering in the TGR river water during the flood period and provides a reference for the management of irrigation water resources in the Changjiang River basin.

2. Research Area and Methods

2.1. Location of Area

TGD was built in the Yichang City of Hubei Province, which is the largest dam in the world with a length of about 2309 m and 185 m in height [52]. After Changjiang River was held back by the TGD, the floodwaters gradually covered the area from Chongqing City to Yichang City (from west to east), eventually becoming known as the Three Gorges Reservoir (TGR) [68]. According to the Köppen climate classification, Yibin-Luzhou and part of Chongqing belong to humid subtropical (Cfa), and most of the area from Chongqing to TGD belongs to dry-winter subtropical (Cwa) [69]. The annual precipitation is between 1000–1800 mm [70]. Precipitation in June and July 2020 were between 200 and 300 mm and 300–500 mm, respectively, and rainfall in the Wanzhou-Wushan region exceeded 500 mm in July (Changjiang River Hydrological Network, www.cjh.com.cn (accessed on 11 December 2020)). From April to September of each year is the period of the wet season, the rest of the month for the dry season [53].

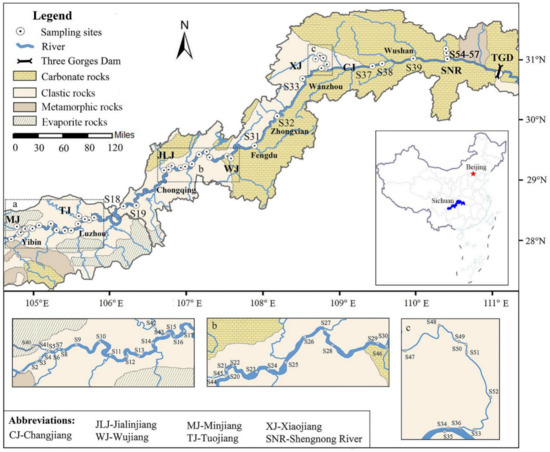

As shown in Figure 1, clastic rocks of red beds contain quartz and feldspars widely distributed from Yibin to Fengjie (S38) and evaporate rocks dominated by gypsum are concentrated in this region [71]. Large areas of carbonate rocks occur from Chongqing to TGD, contain materials such as calcites, dolomites and calcium chloride, and the main outcrop along the river are calcite-dominated limestones [71,72]. In addition, metamorphic rocks are outcropping in Yibin and Badong.
Sampling sites include the main channel (start from Yibin in the west) and some tributaries (Minjiang River, Tuojiang River, Jialingjiang River, Wujiang River, Xiaojiang River and Shennong River) of Changjiang River, located between longitudes 104°26′ to 110°19′ and latitudes 28°37′ to 31°11′. The elevation of the sampling sites is approximately between 64 and 270 m. The farthest sampling site (S1) from TGD is at Yibin City, nearly 994 km from the dam.

2.2. Sample Collection and Treatment

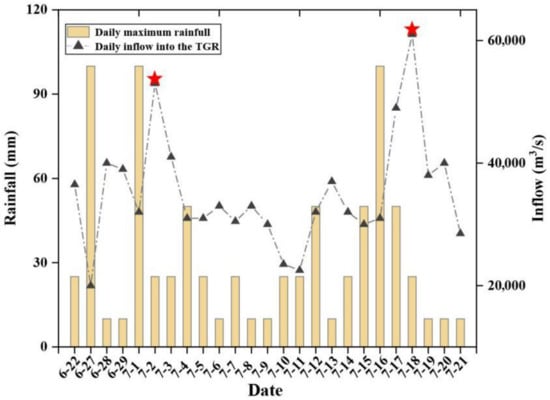

From June 25 to July 21, 2020, fifty-seven surface water samples in the main channel (Changjiang River) and tributaries in the TGR were collected. As shown in Figure 2, rainfall continuously occurred during the data collection period, resulting in two flood events—one on July 2 and the other on July 18. From June 25 to 28, water samples from the main stream (Badong to Fengjie and part of Chongqing), Shennong River and Wujiang River were collected, and the remaining water samples were collected in July. The river water samples were collected in the center of the river under a depth of about 50 cm.
All samples were filtered using cellulose acetate membranes (the diameter was 0.47 mm and the aperture was 0.22 μm) on the sampling day and then stored in precleaned high-density polyethylene (HDPE) bottles. After this, the samples that were used for cationic measurement were acidized (by ultra-purified HNO3) to keep the water pH < 2. A global positioning system (GPS) was used for recording sampling locations, while pH values of water samples were measured with a pH meter (Rex., Shanghai, China).
Measurement of total dissolved solids (TDS), water temperature and electrical conductivity (EC) was performed in the field at the time of sampling with a portable multiparameter instrument (YSI Inc., Yellow Springs, OH, USA). A total of 0.02 M HCl was used to titrate the value of HCO3. An inductively coupled plasma optical emission spectrometer (Optima 5300DV, PerkinElmer Inc., Waltham, MA, USA) and an ion chromatograph (ICS-600, Thermo Fisher Scientific Inc., USA) were used to determine the concentration of cations (Na+, Mg2+, K+ and Ca2+) and anions (NO3-N, Cl, F and SO42−) in water samples, respectively. To ensure the quality of analysis, blank, duplicate samples and standard solutions (GBW08606 and GBW082051, National Research Center for Certified Reference Materials, China) were measured, and the deviation of all duplicate samples was within 5%. All the measured raw data of of all samples please see Table S1.

2.3. Methods for Chemical Weathering Analysis

A Na-normalized molar ratio can be used to roughly determine the type of rocks from which chemical weathering of rivers is derived [24,73]. Thus, the chemical composition of the silicate, carbonate and evaporite end members were assigned as [Ca2+]/[Na+] and [HCO3]/[Na+] ratios [73]. In addition, the ratios of [SO42−/HCO3] and [Ca2+ + Mg2+]/[HCO3] were used to identify the contribution from soluble rocks (gypsum and carbonates). The contributions of silicate minerals (albite and anorthite) were determined by the ratios of [Na+ + K+/HCO3] and [Ca2+ + Mg2+/HCO3]. Stoichiometry of weathering processes was based on the following reactions:
2 Ca x Mg ( 1 x ) CO 3 + H 2 SO 4 2 xCa 2 + + 2 ( 1 x ) Mg 2 + + 2 HCO 3 + SO 4 2
Ca x Mg ( 1 x ) CO 3 + H 2 O + CO 2 xCa 2 + + ( 1 x ) Mg 2 + + 2 HCO 3
2 Na x K ( 1 x ) AlSi 3 O 8 + H 2 SO 4 2 xNa + + 2 ( 2 x ) K + + SO 4 2 + 6 SiO 2 + 2 AlOOH
2 Na x K ( 1 x ) AlSi 3 O 8 + H 2 CO 3 2 xNa + + 2 ( 1 x ) K + + 2 HCO 3 + 6 SiO 2 + 2 AlOOH
CaAl 2 Si 2 O 8 + H 2 SO 4 Ca 2 + + SO 4 2 + 2 SiO 2 + 2 AlOOH
CaAl 2 Si 2 O 8 + H 2 CO 3 Ca 2 + + 2 HCO 3 + 2 SiO 2 + 2 AlOOH

2.4. Assessment of Irrigation Water Quality

Water quality assessment can help a visually understand the potential risks of water quality to farmland. Salinity and alkalinity are an important index affecting soil quality. The soluble sodium percentage (Na%), residual sodium carbonate (RSC) and indexes sodium adsorption ratio (SAR), which were adopted in this study, are commonly used to assess the salinity and alkalinity of irrigation water. The calculation formulas are as Equations (7)–(9):
SAR = Na + × [ 2 / ( Ca 2 + + Mg 2 + ) ] 1 / 2
Na % = 100 % × Na + / ( Na + + K + + Ca 2 + + Mg 2 + )
RSC = ( HCO 3 + CO 3 2 ) ( Ca 2 + + Mg 2 + )

2.5. Statistical and Spatial Analysis

ArcGIS 10.4 GIS (ESRI®) (Environmental Systems Research Institute; Redlands, CA, USA) was used to draw the map of the study area and the sampling points. Correlation analysis of data was performed using the “Pearson’s bivariate correlation” function of SPSS 25.0, and a Piper diagram was made with the function of “three-line diagram” by software Origin 2018. Adobe Illustrator 2018 and Software Origin 2018 were used to made figures.

3. Results and Discussion

3.1. Hydrochemical Characteristics

The chemical compositions of the river in the TGR are shown in Table 1. The mean pH value was 7.84 in the main stream and 7.74 in tributaries, indicating that the river water was slightly alkaline. The normalized inorganic charge balance of most samples was ≤10, suggesting the anion and anion in samples were basically balanced, and the data were reliable. In the main stream of the TGR, the concentration of TDS was between 178 and 410 mg/L (mean value was 292 mg/L), while the range of EC (mean value was 522 μs/cm) was between 318 and 734 μs/cm. The decreasing trend of TDS values from west to east may be due to the difference in lithologic composition. Evaporites are the main bedrock of Yibin-Luzhou (by the west) reach, while the region near the dam is mostly carbonic acid (by the east) (Figure 1). Evaporite dissolves much faster than carbonate and silicate [34,74]. Additionally, the low TDS concentrations were observed in the reservoir area, and the larger amount of the river water and precipitation may dilute the absolute concentrations [75]. As for tributaries, most parameter values of water samples were lower than those in the main stream; this may be due to solutes from the tributaries pooling in the main channel.
Compared with previous data, the hydrochemical composition of the TGR main stream in 2020 was different (Table 2). The concentration of Cl (37.95 mg/L) and Na+ + K+ (28.24 mg/L) were higher than other months and the mean of the year. The value of SO42− (17.10 mg/L) was obviously lower than others [34,58,67,76]. The content of SO42− can be associated with dissolved gypsum-rich evaporates, oxidation of sulfide deposits and human activities. The increased concentrations of Na+ and Cl may be due to the rainfall. Precipitation in the upper and middle reaches of the Changjiang River increased by 40 to 70 percent in June and July 2020 compared with previous years (Changjiang River Hydrological Network, www.cjh.com.cn (accessed on 11 December 2020)). Since the evaporites (the most soluble rocks) are present in the TGR region and rainfall could increase its amount of dissolved, which may result in an increase of Na+ and Cl [34,72].

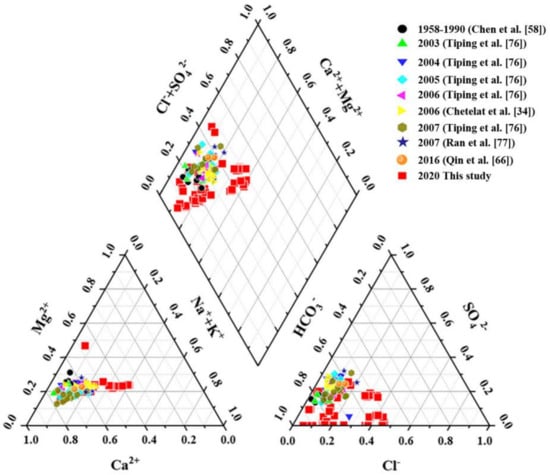

Piper diagram reflects the constitute of major elements in samples of this study and superimposed with data reported by other studies from 1958–1990 [58], 2003–2007 [34,76,77], and 2016 [66] (Figure 3). All sample data in this study and collected data are distributed in a narrow range. HCO3 was the most abundant anion in the river, followed by Cl and SO42−. As for cations, Ca2+ accounted for more than half of the total cations, the order of concentration was Ca2+ > Mg2+ > Na+ + K+. The type of the upstream TGR was Ca2+ − Mg2+ − HCO3—type from the distribution range of data. Some rivers in China also fall into this type reported from previous studies, such as Zhujiang River [78], Xijiang River [79] and Yalong River [80]. It suggested a weathering process of carbonate-control may occur in the water chemistry.
The correlation analysis results showed Ca2+ and K+ had a positive correlation (r = 0.471, p < 0.01, Table 3), Na+ was also significantly positively correlated with Mg2+ (r = 0.672, p < 0.01), which indicated their source were probably same. In addition, Na+ and Ca2+ were significantly positively correlated with Cl and SO42−, respectively. This result may suggest that the evaporite rocks had a certain contribution to the ions in the river water. However, the correlation of ions was not a complete indicator of their origin since the correlation may also be derived from dilution [73].

3.2. Stoichiometry of Weathering Processes

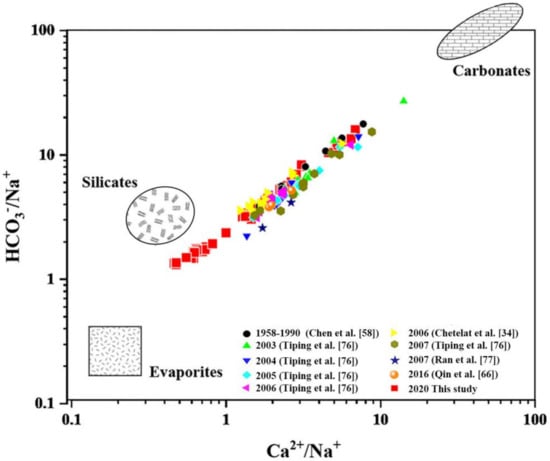

As shown in Figure 4, the elemental ratio of the main channel and tributaries upstream of the TGR was distributed between the end-members of evaporites, silicates and carbonates, indicating a process of mixed weathering occurred in the catchment. Most data collected from other years within the study area are distributed within the range in our data, Showed a similar contribution to weathering. The sampling points from Chetelat et al. [34] and Ding et al. [76] are the closest to this study, but their data sample point distribution is closer to between silicates and carbonates end-member. Ratios near the end-member of evaporites were mostly from Yibin and Luzhou, and the content of Na+ and Cl in these samples was higher than that in other regions. This may be due to the heavy rainfall. The precipitation during the sampling period was 40–70% higher than it in previous years, and evaporites in the Yibin-Luzhou region contributed more than those in the lower reaches [34], the combined action of these conditions may lead to the increase of local evaporates dissolution.

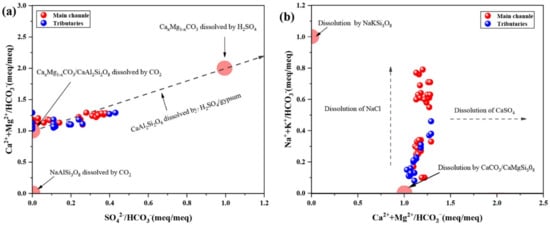

In Figure 5a, three red circles represent the three different end-members, respectively. According to Equations (4)–(9), when the value of [HCO3/Ca2+ + Mg2+] is about 2 and the ratio of [SO42−/HCO3] is close to 1, the dissolution of CaxMg1-XCO3 is caused only by sulfuric acid. If carbonic acid completely controlled the dissolution of CaAl2Si2O8 or CaxMg1−XCO3, the value of [HCO3/Ca2+ + Mg2+] and [HCO3/SO42−] should be 0. In addition to these, there are end-members of albite dissolution. In this study, the ion ratios of the TGR were littered between three end-members. The [Ca2+ + Mg2+/HCO3] values of most samples were close to 1, and the ratios of [SO42−/HCO3] were distributed between 0 and 0.5. This result suggests that the minerals of the TGR were mainly dissolute by carbonic acid. In addition, the farther the sampling point was from the dam, the greater the ratio of [Ca2+ + Mg2+/HCO3] and [SO42−/HCO3]. There is no volcanic activity or mineral deposit in the TGR basin, but evaporitic rocks are present [67]. Dissolution of gypsum in evaporitic rocks produces SO42−, which can increase the ratios of [SO42−/HCO3]. According to previous studies, the contribution of evaporites to the Changjiang River Basin decreases gradually from the upper to the lower reaches, which is consistent with the trend of these ratios [34,58]. Thus, the contribution of SO42− in our study possibly from gypsum dissolution in evaporites.
Similarly, the two end-members in Figure 5b were defined according to Formulas (4)–(9). If the ions in the river were all formed by dissolving NaKSi3O8, then [Ca2+ + Mg2+/HCO3] should close to 0. Correspondingly, if all contribution derived from CaCO3 and CaMgSi3O8, the ratios of [Na+ + K+/HCO3] and [Ca2+ + Mg2+/HCO3] are 0 and 1, respectively. The distribution of all ratios was between two end-members, and the ratios of [Ca2+ + Mg2+/HCO3] were higher than [Na+ + K+/HCO3]. This result suggests the TGR basin was more derived from weathering of CaCO3 and CaMgSi3O8. Another trend from data was farther away from the dam, follows by higher ratios of [Na+ + K+/HCO3] and [Ca2+ + Mg2+/HCO3]. As discussed earlier, the dissolution of evaporitic rocks can provide Na+, Cl, and SO42−. This trend is consistent with the geological background of the study area [34,57,58]. In addition, human activities (e.g., industrial production and irrigation) may also contribute to the concentration of [Na+ + K+] [5,81].
Discussing the source apportionment of the river solutes in the TGR can reflect the contribution of different sources. The sources of riverine ions include atmospheric precipitation, chemical weathering and human activities [39,72,82]. The atmospheric input mainly refers to the precipitation since the abundance of rainfall during the sampling period (Figure 2) has an important contribution to the river ions in the TGR. According to the geological background of the study area (Figure 1), this basin is dominated by large areas of carbonate rocks, gypsum-based evaporites and silicate minerals such as feldspar. Usually, Mg2+ and Ca2+ are primarily produced from the dissolution of silicates, evaporites and carbonates, SO42− and Cl are connect with dissolved evaporate rocks, K+ and NO3 are mainly related to atmosphere and anthropogenic inputs [73,83]. K+ and Na+ can also be derived from the dissolution of salts and weathering of feldspar. The previous results showed that the content of K+ was low (Table 1), and there was no significant correlation with Cl (Table 3), so the contribution of potassium salts was excluded. Due to the low concentration of K+ and NO3-N in samples, anthropogenic inputs were not considered as a part of the ion source. Therefore, the potential source of the main ions in the TGR is expressed as follows:
[ K + ] river = [ K + ] atmosphere + [ K + ] silicates
[ Cl ] river = [ Cl ] atmosphere + [ Cl ] evaporites
[ SO 4 2 ] river = [ SO 4 2 ] atmosphere + [ SO 4 2 ] evaporites
[ Na + ] river = [ Na + ] atmosphere + [ Na + ] evaporites + [ Na + ] silicates
[ Ca 2 + ] river = [ Ca 2 + ] atmosphere + [ Ca 2 + ] evaporites + [ Ca 2 + ] silicates + [ Ca 2 + ] carbonates
[ Mg 2 + ] river = [ Mg 2 + ] atmosphere + [ Mg 2 + ] evaporites + [ Mg 2 + ] silicates + [ Mg 2 + ] carbonates
[ Cl ] evaporites = [ Na + ] evaporites
[ SO 4 2 ] evaporites = [ Ca 2 + ] evaporites
The lowest value of Cl (0.08 mmol/L) in the river was assumed to be the concentration of it in rainfall. Subsequently, the atmospheric input of other ions was calculated by the ratio between each ion and Cl in rainwater (Table 4). Then the contributions of [K+]silicates, [Cl]evaporites and [SO42−]evaporites can be calculated by subtracting their respective concentrations in the rain from their respective concentration in the river. Since [Cl]evaporites is equal to [Na+]evaporites, the [Na+]river is equal to the sum of the atmosphere input and silicates concentrations of Na+ and the evaporites content of Cl. With reference equilibrium formulas (Equations (10)–(17)) and ratios of end-members (Table 3), the contribution of different sources of the remaining ions can be calculated in a similar way.

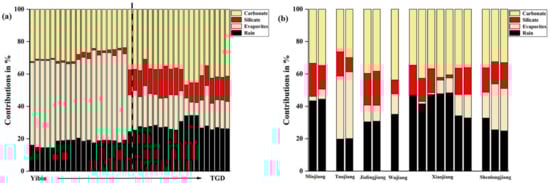

As shown in Figure 6, the contributions of each source were calculated using the equation and corresponding ratio. Overall, the cations of the Changjiang River trunk stream in the upper reach of the TGR came from evaporite rocks (1–57%) and carbonate rocks (24–47%), accounting for 35% and 34%, respectively on average. The closer to the TGD, the more cation accumulation in the trunk stream was affected by carbonate weathering and rainfall (Figure 6a). The left side of the dotted line is the samples of Yibin-Luzhou, while 52% of cations in the main stream were from evaporite rocks and rarely came from silicate (14%), which was similar to the report of Chetelat et al. [34]. The data to the right of the dotted line belongs to Chongqing—TGD. The cationic contribution of evaporite rocks to these samples only accounts for 18%, while the contribution of carbonate rocks accounts for 39% at most. In tributaries (Figure 6b), carbonate weathering (account for 37%) and precipitation (account for 35%) play an important role in cation accumulation. This result corresponds to ratios of [Na+ + K+/HCO3] to [Ca2+ + Mg2+/HCO3] (Figure 5b). In addition, evaporite rocks made the most contribution to the cations in the Tuojiang River, accounting for about 40%. The contribution rate of evaporite to Xiaojiang River gradually increases from upper to lower reaches. In general, in the wet season, the contribution of major elements in the upper reach of the TGR mainly comes from rainfall and the dissolution of carbonate rocks and evaporite rocks.
In fact, the concentrations of ions in the river water were also affected by the dissolution rates of rocks [73,80]. Different rock types have different dissolution rates, which can result in differences in actual rock weathering contribution rates from theoretical ones calculated by the mass balance equation, especially during the flood season (increased rainfall and runoff). Usually, the dissolving rate of evaporates is much higher than carbonates and silicates [34,72]. Hence, during the flood events, it can be inferred that the actual contribution rate of evaporites can be larger than the calculated values in evaporites-rich regions (such as Yibin-Luzhou), while the contribution rate of silicates and carbonates may be smaller. Overall, the trends of rock contribution rates in Figure 6 were reliable because these trends were consistent with the geological background and the law of dissolution.

3.3. Potential Risks to Water Quality from Chemical Weathering

The Changjiang River flowing through the TGR is the main source of agricultural irrigation [84,85]. The acceleration of chemical weathering can cause solute changes in water, which is possible to affect the soil quality of farmland [50,81,86]. In this study, the index of SAR, Na% and RSC, which reflect the sodium hazard of irrigation water to the soil, was used to show the impact of accelerated weathering on water salinity and alkalinity.

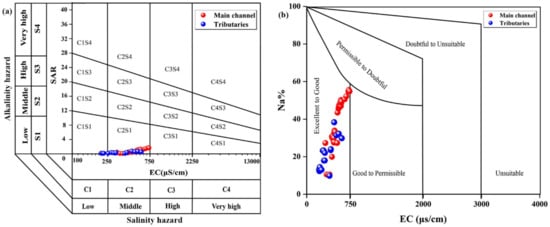

SAR < 1, Na% < 30% and RSC < 1 in water samples were considered to be excellent or good quality. In the trunk stream, the SAR and Na% values of most sample points distributed in urban areas (Yibin, Luzhou and Chongqing) were higher (SAR > 1 and Na% > 30%) than in other regions, and the same characteristic occurs in the Tuojiang River, suggesting a sodium hazard. Accelerating chemical weathering can be the reason. A rainstorm can accelerate the erosion of the rock and soil [87]; meanwhile, rainwater falling into the river also increases the amounts of ions in water. As shown in Figure 7, the United States salinity laboratory diagram (USSL) and Wilcox diagrams are used to indicate the potential salinity hazard in the TGR. All sampling sites were distributed in C2S1 and C1S1 (C stands for conductivity and S for salinity) and “excellent to good” space from diagrams. This result indicates that the irrigation water in this region was of good quality and have a low risk of salinization. Overall, potential sodium hazards in this basin need to be paid attention to. Especially in urban areas, targeted policies need to be developed.

4. Conclusions

Composition analysis, source identification and sodium hazard assessment of the major ions in the upper reach of the TGR rivers during the wet season, which was performed by statistical and stoichiometric methods. The chemical weathering processes change during flood events, while the composition and source of the river solutes vary on a watershed scale. The conclusions can be list as follows:
(1)
The dominant hydrochemical facies was Ca2+ − Mg2+ − HCO3. The order of cationic was Ca2+ > Mg2+ > Na+ + K+, while the order of anions was HCO3 > Cl > SO42−. Ca2+ and HCO3 dominated the total cations and anions, respectively;
(2)
Hydrochemistry of the river during flood events was controlled by the weathering of carbonates and evaporites. Cationic sources of Yibin-Luzhou River trunk were mainly from weathering of gypsum-rich evaporite rocks, while weathering of carbonate rocks was dominant in the TGR section;
(3)
Due to chemical weathering accelerated by heavy rains, sodium hazards exist in Changjiang River that flows through Yibin, Luzhou and Chongqing. Long-term watering of the land can damage soil aggregates, thereby affecting crop yields. Measures need to be taken to improve water quality.
Overall, the ionic composition of the river water in the TGR was mainly derived from natural chemical weathering, which was controlled by the weathering of evaporites and carbonates, and their contributions vary significantly from the upstream to the downstream. This study provides effective data support for understanding the chemical weathering of the river water in the TGR during the flood period and is helpful to understand better the impact of large-scale hydropower projects on the ecological environment. However, as it is greatly affected by natural conditions and human activities, the source of the river solute is very complex, which requires long-term monitoring and more diversified methods to study.
