# Spatiotemporal Modes of Short Time Rainstorms Based on High-Dimensional Data: A Case Study of the Urban Area of Beijing, China

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Study Area and Data Process

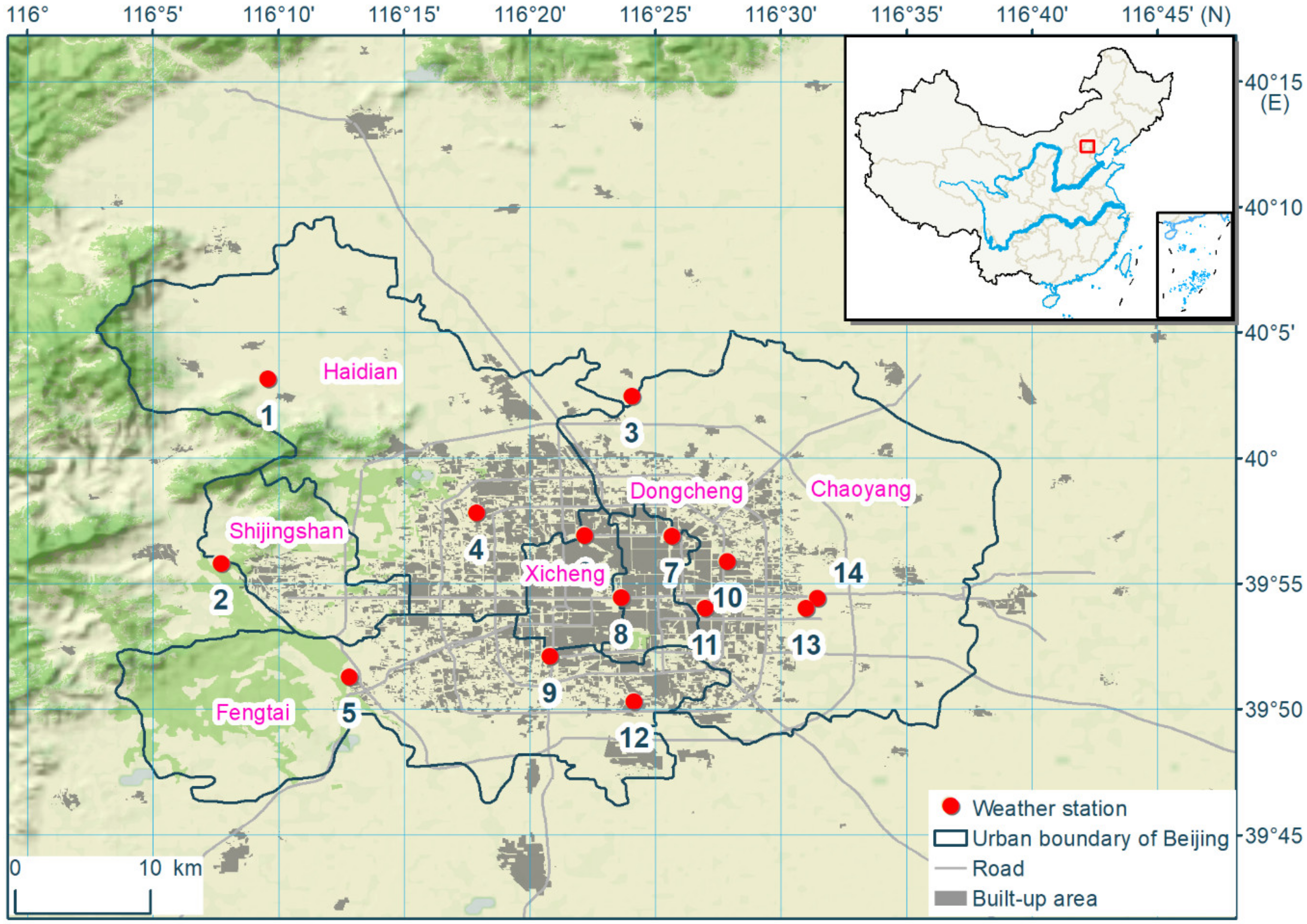

^{2}. Fourteen meteorological monitoring stations have continuously recorded the rainfall data of the Beijing urban area in recent years. The continuous monitoring data of 14 rainfall stations were selected from the database, which contains data from 2004 to 2016, at intervals of 5 min. The 14 rainfall stations were evenly distributed in urban areas, as shown in Figure 1.

## 3. Methodology

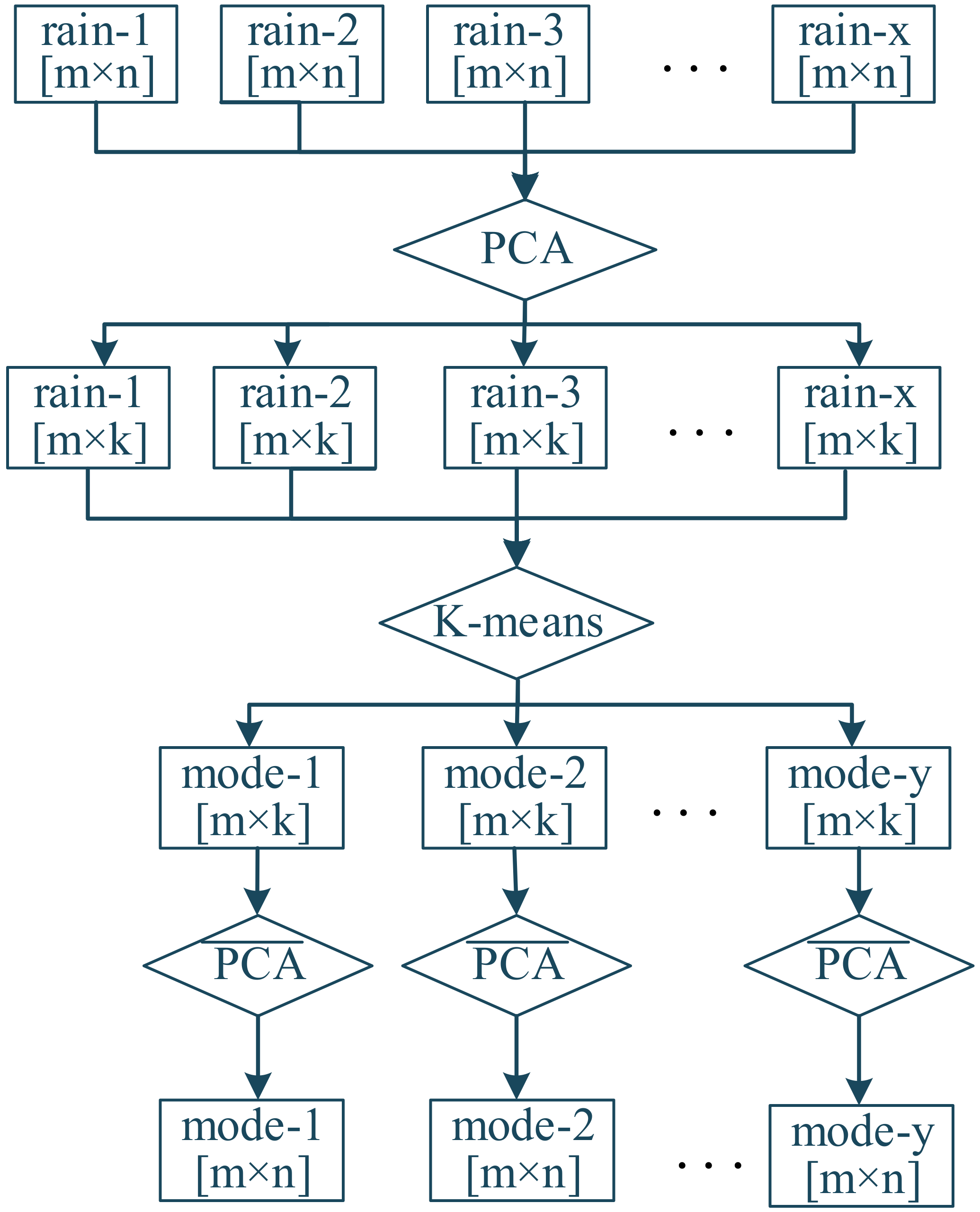

#### 3.1. Flowchart for Extraction of Rainfall Temporal and Spatial Modes

- (1)
- The rainstorm events were digitized and structured. High-dimensional arrays were established from temporal and spatial dimension perspectives.
- (2)
- Principal component analysis was used to map high-dimensional array to low latitude array.
- (3)
- Dynamic clustering was used to categorize samples to typical modes for describing the temporal and spatial distribution of rainstorms.
- (4)
- With the inverse calculation of principal component analysis, the low dimensional array was reduced to a high-dimensional array to express the spatiotemporal process of each rainstorm modes.

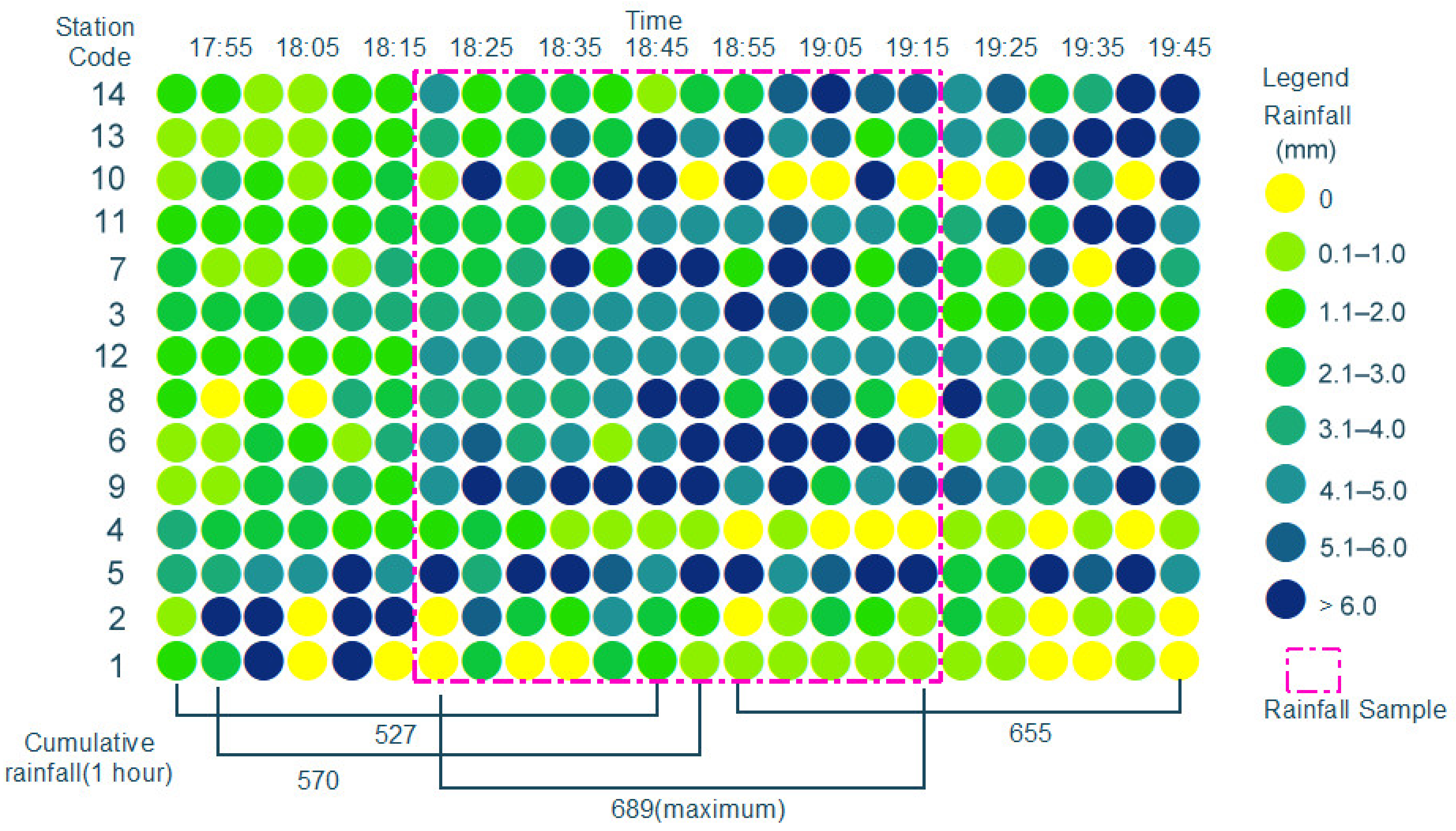

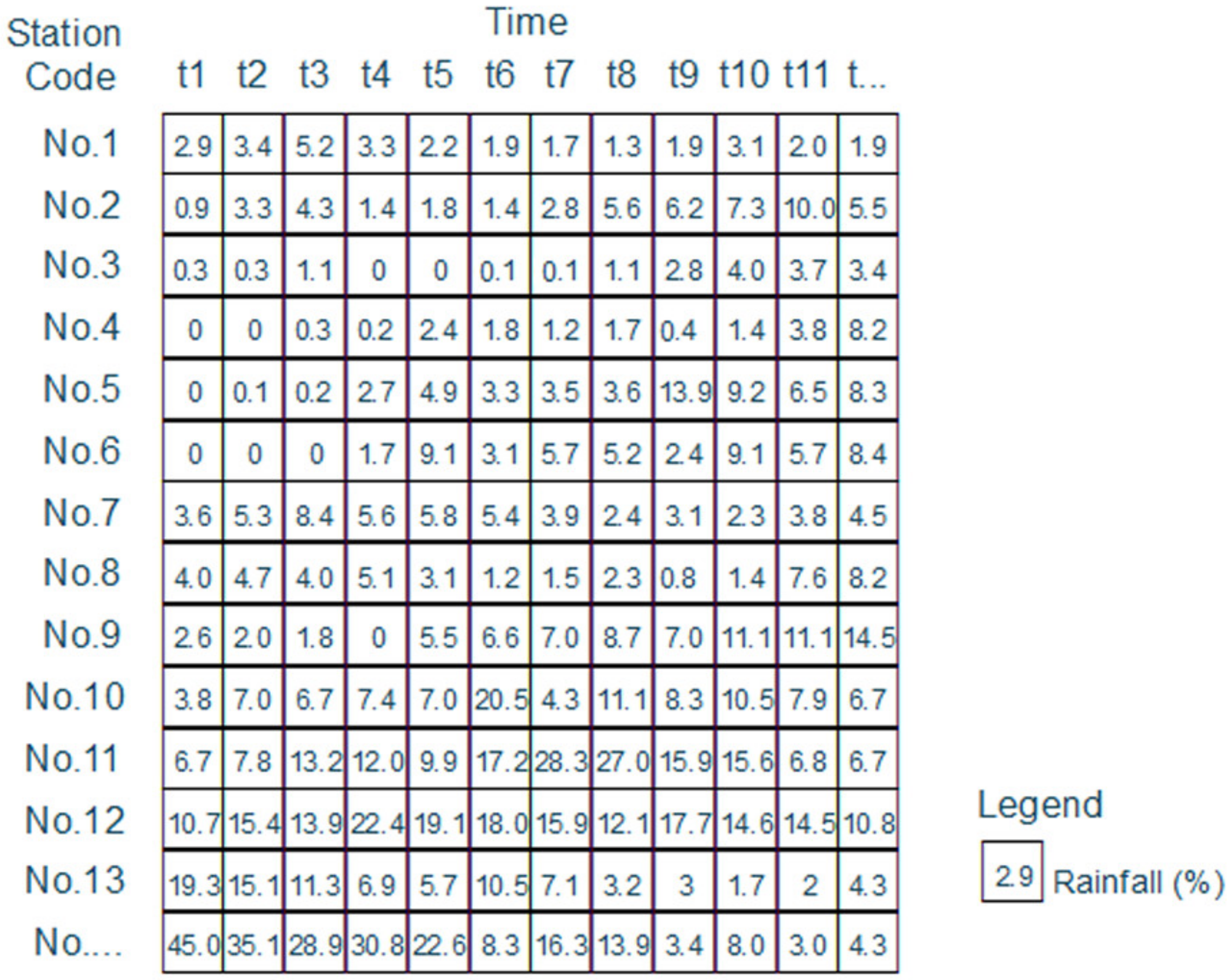

#### 3.2. Construction of High-Dimensional Array for Rainstorms

#### 3.3. Dimensionality Reduction of High Dimensional Array

- (1)
- The transformation matrix ${X}_{n\times m}$ was obtained by centralization of the matrix U,
- (2)
- Calculation of covariance matrix ${\sigma}_{m\times m}$ of ${X}_{n\times m}$,
- (3)
- Calculating the eigenvalues and eigenvectors of the variance matrix of M, M = ${\sigma}_{m\times m}$,
- (4)
- The dimension k, which can retain more than 90% information of original data, was obtained. K eigenvectors constitute the transformation matrix ${V}_{m\times k}$ as column vectors,
- (5)
- Descending dimensions by Equation (3).

#### 3.4. Clustering and Feature Selection

- (1)
- r initial cluster centers are set up: ${Z}_{1}\left(p\right),{Z}_{2}\left(p\right),\dots \dots {Z}_{r}\left(p\right)$, where p is the number of iterations.
- (2)
- Calculating the distance from samples x $\left(x\in X\right)$ to each cluster center, if ${D}_{x}\left(j\right)=min\left\{{D}_{x}\left(i\right)\right\}i=1,2,\cdots $r, then $x\in {S}_{j}$, where ${S}_{j}$ represents cluster j with the center of ${Z}_{j}$.
- (3)
- The new center of each cluster is calculated. The new center of ${Z}_{j}$ is calculated by Equation (4).$${Z}_{j}\left(p+1\right)=\frac{1}{N}{\displaystyle \sum}_{i=1}^{N}{x}_{i},j=1,2,\cdots r$$$${J}_{j}={\left[{\displaystyle \sum}_{x\in {S}_{j}\left(k\right)}\u23a2\u23a2x-{z}_{j}\left(k+1\right)\u23a5{\u23a5}^{2}\right]}^{\frac{1}{2}}$$
- (4)
- If ${Z}_{j}\left(p+1\right)\ne {Z}_{j}\left(p\right)$, j = 1,2,…r, then go to step (2); if ${Z}_{j}\left(p+1\right)={Z}_{j}\left(p\right)$, j = 1,2,…r, the calculation is over.

#### 3.5. Reconstruction of Rainstorms

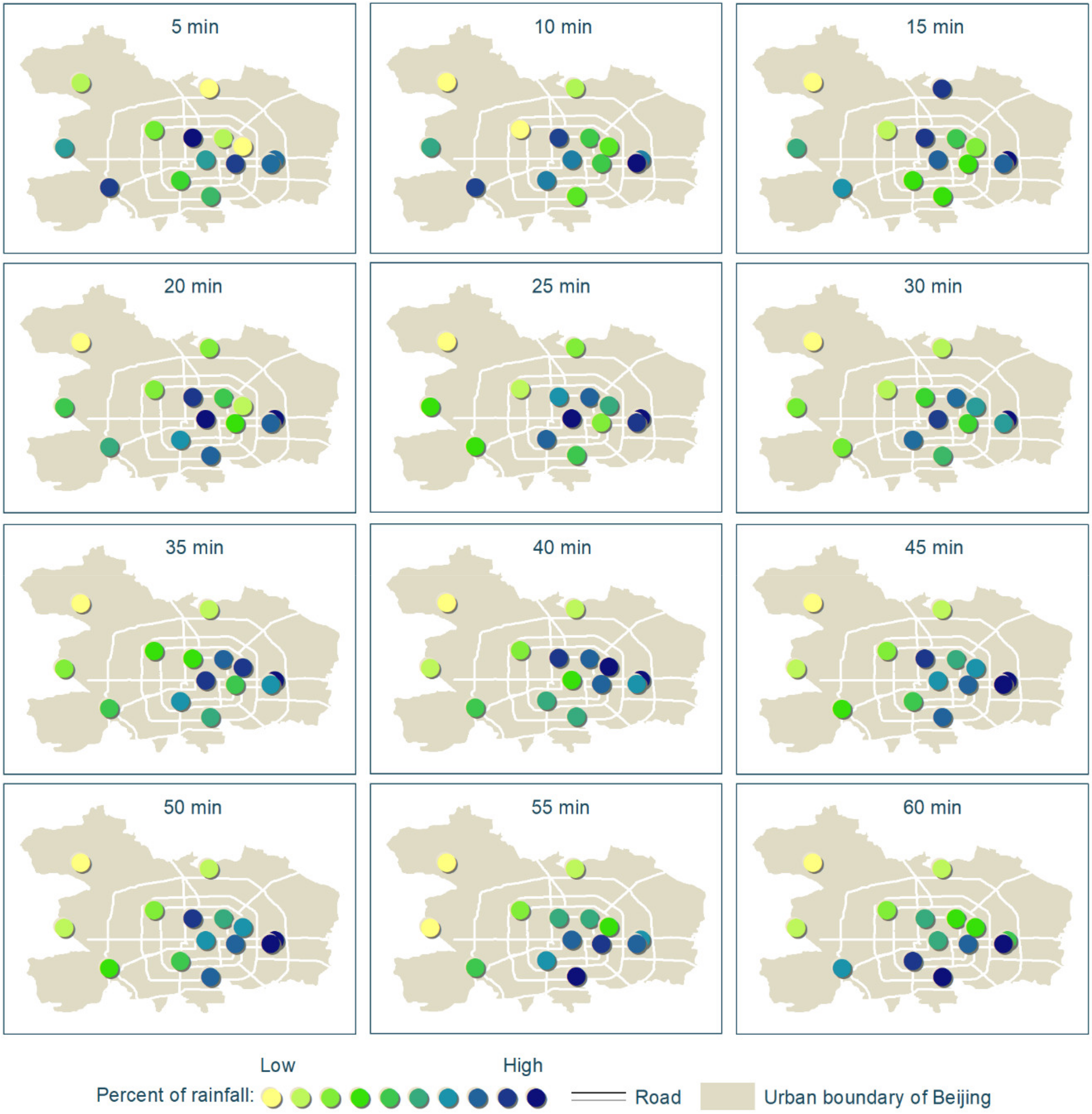

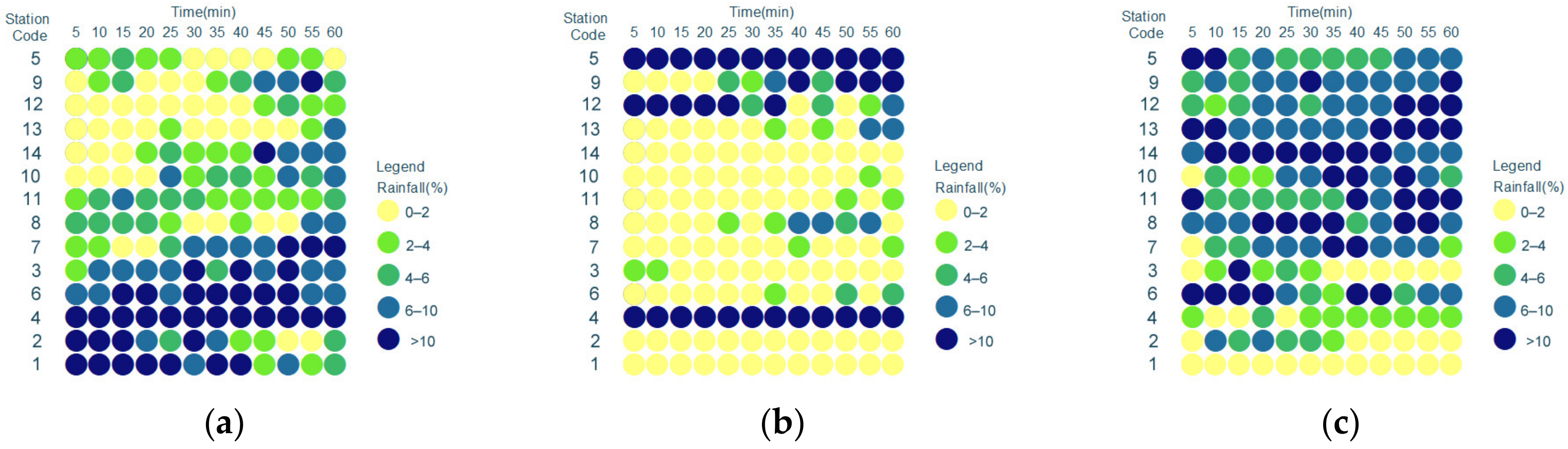

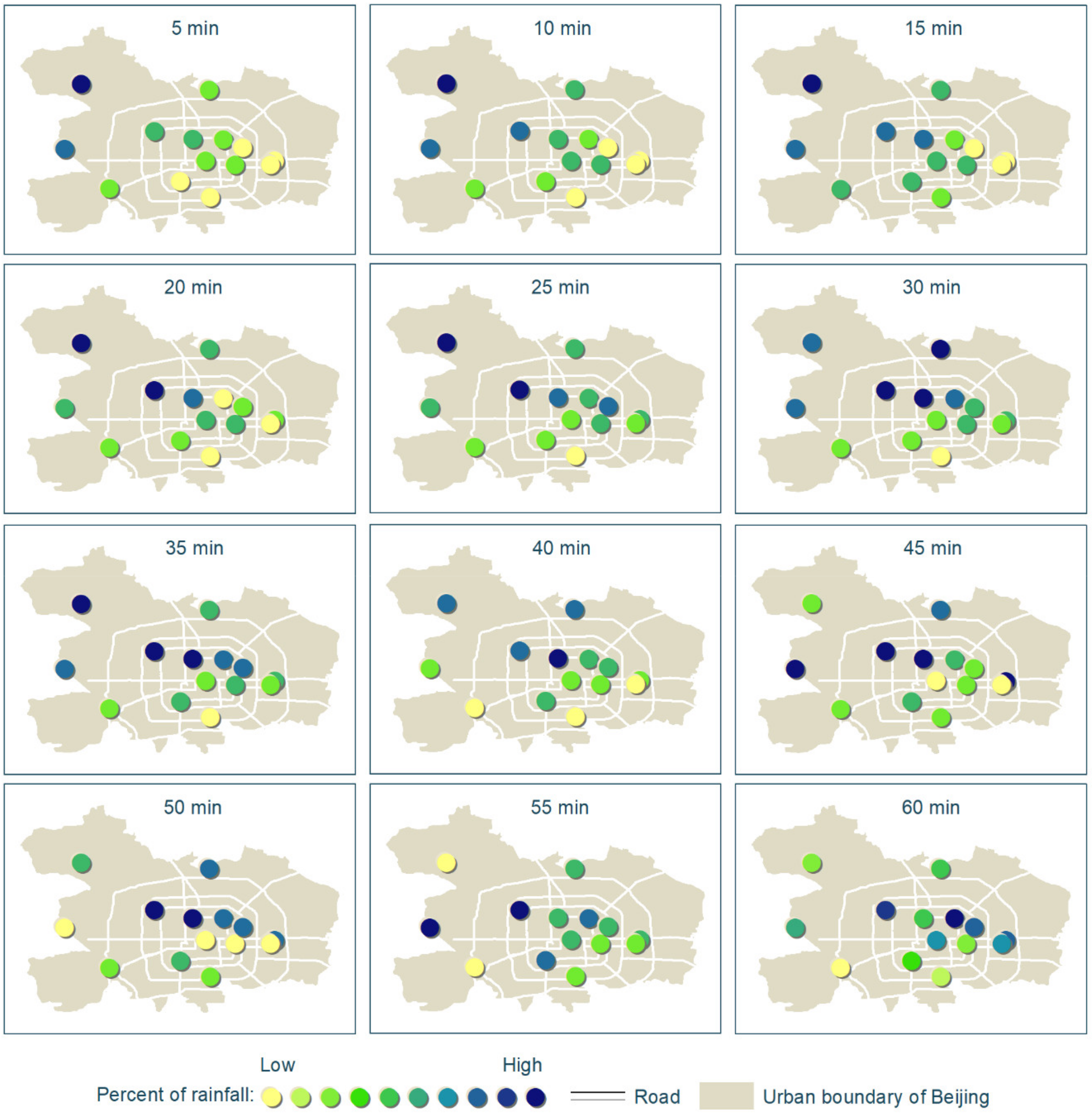

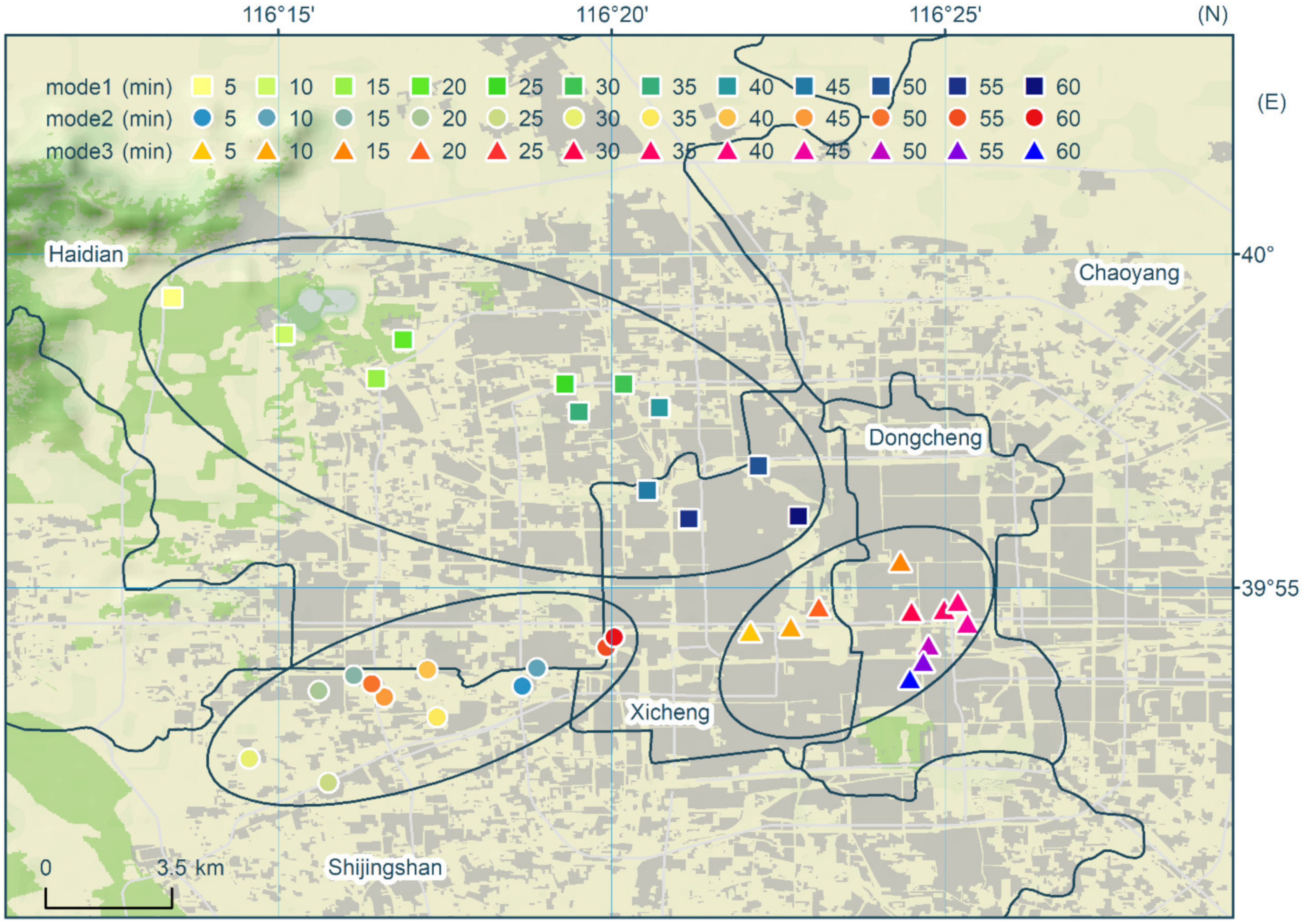

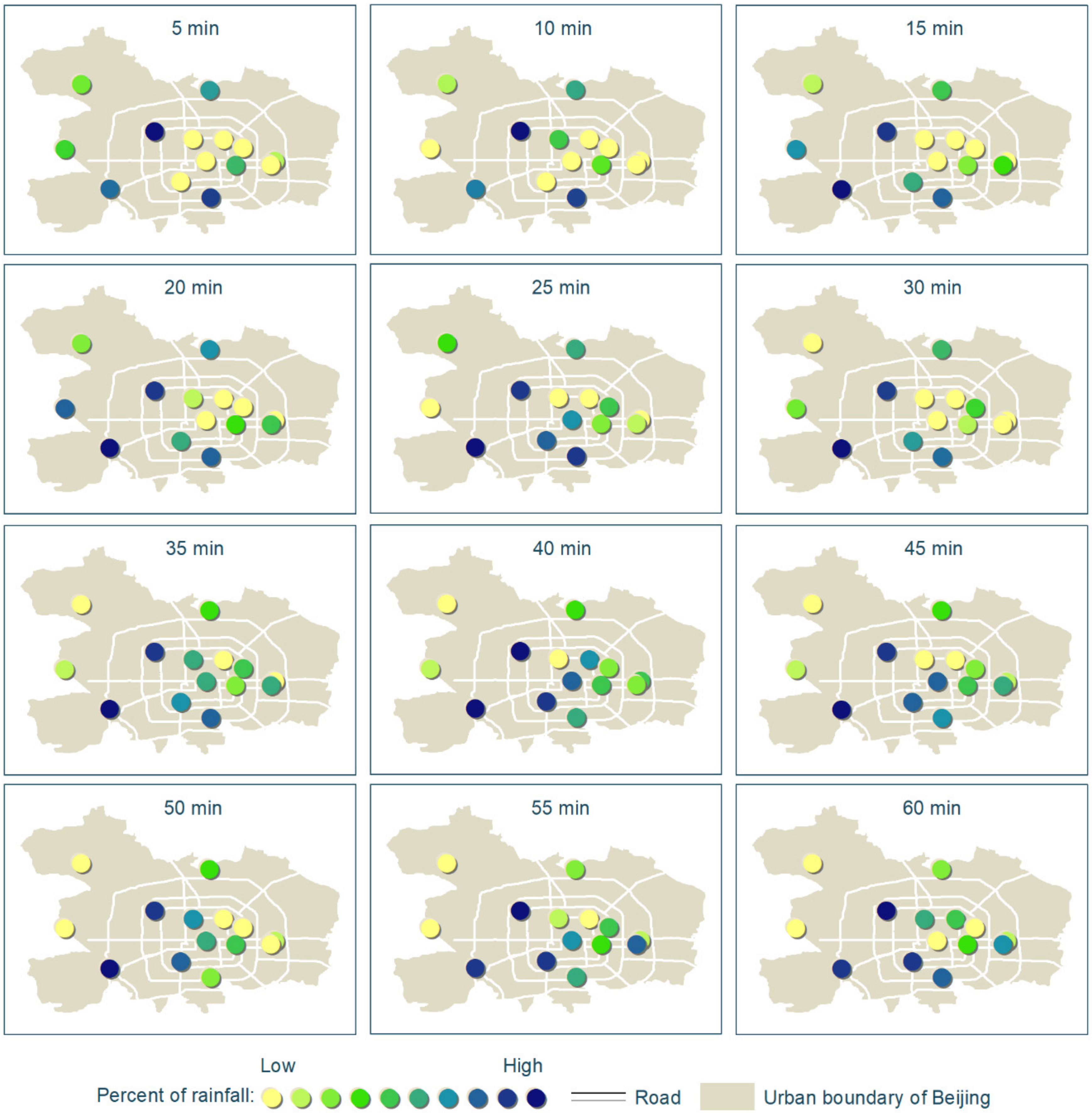

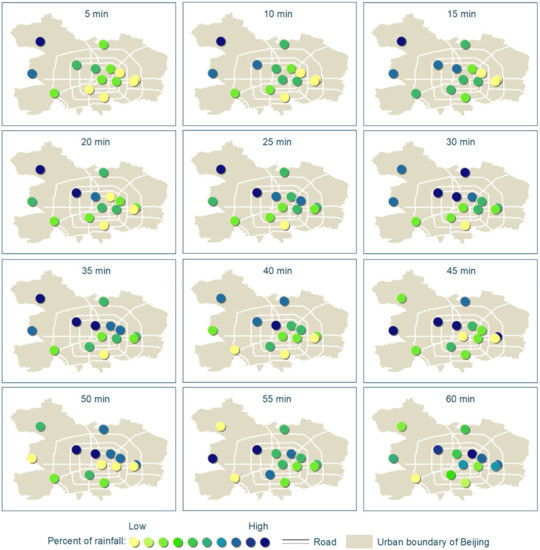

## 4. Results

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Conflicts of Interest

## References

- Willems, P.; Arnbjerg-Nielsen, K.; Olsson, J.; Nguyen, V. Climate change impact assessment on urban rainfall extremes and urban drainage: Methods and shortcomings. Atmos. Res.
**2012**, 103, 106–118. [Google Scholar] [CrossRef] - Xia, J.; Wei, S. Perspective on water security issue of changing environment in China. J. Hydraul. Eng.
**2016**, 47, 292–301. [Google Scholar] - Kong, F.; Shi, P.J.; Fang, J.; Lu, L.; Fang, J.; Guo, L. Advances and Prospects of Spatiotemporal Pattern Variation of Extreme Precipitation and its Affecting Factors under the Background of Global Climate Change. J. Catastrophology
**2017**, 32, 165. [Google Scholar] - Wang, B.; Zhao, L.; Gong, Y. Characteristics of temporal pattern and return period of short-duration rainfall at Beijing Observatory. Torrential Rain Disasters
**2015**, 35, 302–308. [Google Scholar] - Rafieeinasab, A.; Norouzi, A.; Kim, S.; Habibi, H.; Nazari, B.; Seo, D.-J.; Lee, H.; Cosgrove, B.; Cui, Z. Toward high-resolution flash flood prediction in large urban areas—Analysis of sensitivity to spatiotemporal resolution of rainfall input and hydrologic modeling. J. Hydrol.
**2015**, 531, 370–388. [Google Scholar] [CrossRef] [Green Version] - Zhangchun, W.; Guoping, C.; Zhimin, A. Experimental study on overland flow. J. Hydraul. Eng.
**1995**, 26, 84–89. [Google Scholar] - Guan, M.; Sillanpää, N.; Koivusalo, H. Storm runoff response to rainfall pattern, magnitude and urbanization in a developing urban catchment. Hydrol. Process.
**2016**, 30, 543–557. [Google Scholar] [CrossRef] - Guoping, C.; Jin, S.; Rongsheng, F. Research on Rainfall Pattern of Urban Design Storm. Adv. Water Sci.
**1998**, 9, 41–46. [Google Scholar] - Keifer, C.J.; Chu, H.H. Synthetic Storm Pattern for Drainage Design. J. Hydraul. Div.
**1957**, 83, 1332-1–1332-25. [Google Scholar] [CrossRef] - Kibler, D.F. Urban Stormwater Hydrology; American Geophysical Union: Washington, DC, USA, 1982. [Google Scholar]
- Song, X.; Zhang, J.; Zou, X.; Zhang, C.; AghaKouchak, A.; Kong, F. Changes in precipitation extremes in the Beijing metropolitan area during 1960–2012. Atmos. Res.
**2019**, 222, 134–153. [Google Scholar] [CrossRef] - Wei, Z.; Changhe, L.U. Assessing Changes in Rainstorms in Beijing During the Last 50 Years. J. Resour. Ecol.
**2016**, 7, 372–377. [Google Scholar] [CrossRef] - Hutchinson, M.F. ANUSPLIN Version 4.3; Centre for Resource and Environment Studies, The Australian National University: Canberra, Australia, 2004. [Google Scholar]
- Wenhai, Z.; Lei, L. An initial application of artificial intelligence on the detection and nowcasting of hail weather. ACTA Meteorol. Sin.
**2019**, 77, 282–291. [Google Scholar] - Liu, Y.Y.; Li, L.; Liu, Y.S.; Chan, P.W.; Zhang, W.H. Dynamic spatial-temporal precipitation distribution models for short-duration rainstorms in Shenzhen, China based on machine learning. Atmos. Res.
**2020**, 237, 104861. [Google Scholar] [CrossRef] - Zhang, Y.; Li, Q.; Huang, H.; Wu, W.; Du, X.; Wang, H. The Combined Use of Remote Sensing and Social Sensing Data in Fine-Grained Urban Land Use Mapping: A Case Study in Beijing, China. Remote. Sens.
**2017**, 9, 865. [Google Scholar] [CrossRef] [Green Version] - Liu, X.; Tian, G.; Feng, J.; Ma, B.; Wang, J.; Kong, L. Modeling the Warming Impact of Urban Land Expansion on Hot Weather Using the Weather Research and Forecasting Model: A Case Study of Beijing, China. Adv. Atmos. Sci.
**2018**, 35, 723–736. [Google Scholar] [CrossRef] - Zhicong, Y.; Guo, W.; Li, N.; Xie, Y. Numerical Simulation of Urban Ponding in Beijing. Meteorol. Mon.
**2015**, 41, 1111–1118. [Google Scholar] - Gu, X.; Li, N.; Zhou, Y.; Wu, J. Thinking on urban waterlogging disaster defense initiated by “7 • 21” extraordinary rainstorm in Beijing. J. Nat. Disasters
**2013**, 22, 1–6. [Google Scholar] - Weidong, L.; You, H.; Ren, G.; Yang, P.; Zhang, B. Subtle Precipitation Characteristics in Beijing Area. Clim. Environ. Res.
**2014**, 19, 61–68. [Google Scholar] - Zhang, T.; Detang, L.; Daolun, L.; Yi, D. Research on Statistical Information Reconstruction of Images Based on Multiple-Point Geostatistics Integrating Soft Data with Hard Data. J. Comput. Res. Dev.
**2010**, 47, 573–578. [Google Scholar] - Jolliffe, I.T. Principal Components Analysis; Wiley Online Library: New York, NY, USA, 2002. [Google Scholar]
- Mitchell, T. Machine Learning; China Machine Press: Beijing, China, 2003; pp. 417–433. [Google Scholar]
- Ng, R.T.; Han, J. Efficient and Effective Clustering Methods for Spatial Data Mining. In Proceedings of the VLDB Conference, Santiago, Chile, 12–15 September 1994. [Google Scholar]

Instantaneous Rainfall (mm) Every 5 min | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Date | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | Total |

2006-6-27 23:00 | 4.2 | 7.4 | 22.2 | 8.2 | 8.6 | 8.6 | 10.3 | 10.8 | 12.1 | 11.1 | 7.7 | 5 | 116.2 |

2006-6-30 22:45 | 3.8 | 3.3 | 3.8 | 4 | 3.4 | 3 | 7 | 19.7 | 18.9 | 18.4 | 5.4 | 8.9 | 99.6 |

2006-7-12 4:25 | 3 | 3 | 3 | 3 | 3.5 | 4.1 | 13.6 | 19.3 | 14.2 | 22.2 | 20.6 | 13.1 | 122.6 |

2006-7-12 19:05 | 4.5 | 4.5 | 7.3 | 20.3 | 24.2 | 16.3 | 11 | 13.2 | 14.8 | 11.6 | 9.6 | 8.6 | 145.9 |

2006-7-13 22:50 | 3.6 | 3.3 | 3.3 | 4.2 | 9.9 | 11.5 | 16 | 11.4 | 7.3 | 7.8 | 6.3 | 4.3 | 88.9 |

2006-7-31 8:50 | 10.6 | 7.1 | 3.3 | 9.7 | 12.7 | 16.7 | 20.7 | 28.7 | 18.2 | 17.2 | 15.7 | 11.7 | 172.3 |

2007-6-27 13:05 | 8.4 | 12.4 | 16.4 | 15.9 | 23.9 | 28.9 | 24.9 | 20.4 | 18.4 | 13.9 | 11.1 | 9.6 | 204.2 |

2008-6-23 14:55 | 4.8 | 3.5 | 5.8 | 4 | 9.2 | 11.7 | 16.3 | 9.2 | 10.3 | 7.7 | 10.7 | 8.5 | 101.7 |

2008-7-18 9:10 | 8.4 | 6.8 | 8.8 | 7.8 | 4.8 | 6.8 | 5.8 | 2.8 | 4.8 | 3.8 | 3.8 | 7.1 | 71.5 |

2009-7-22 17:15 | 6.5 | 11.5 | 16 | 16.2 | 8.5 | 20.4 | 24.9 | 19.9 | 17.9 | 12.9 | 5 | 6.5 | 166.2 |

2009-7-23 15:50 | 2 | 1 | 13.5 | 18.7 | 16.5 | 28 | 23 | 19.4 | 16.6 | 4.6 | 3.6 | 4.6 | 151.5 |

2009-8-7 16:20 | 2.1 | 3.4 | 2.7 | 6.6 | 9.3 | 8.6 | 9 | 9.6 | 6 | 3.5 | 5 | 2.2 | 68 |

2011-7-1 7:05 | 4 | 5.3 | 4.2 | 8.6 | 4.8 | 12.2 | 16.5 | 19.1 | 19.9 | 19.1 | 19 | 14.5 | 147.2 |

2013-7-31 19:20 | 5.1 | 0.6 | 5.1 | 1.1 | 13.6 | 0.1 | 5.6 | 0.6 | 3.6 | 1.1 | 11.1 | 7.8 | 55.4 |

2014-6-10 14:05 | 4.9 | 6.9 | 4.6 | 7.5 | 16.5 | 26.9 | 52.5 | 18.8 | 39.3 | 25.2 | 16.5 | 21.2 | 240.8 |

2014-6-15 18:55 | 8.5 | 2.3 | 6.2 | 9.6 | 14.2 | 13.1 | 8.7 | 8.4 | 8.6 | 9.1 | 11.2 | 7.3 | 107.2 |

2014-7-16 18:55 | 16.3 | 8.8 | 22 | 6.3 | 5.8 | 8.5 | 7.3 | 15.1 | 15.6 | 25 | 26.9 | 20 | 177.6 |

2014-8-23 22:30 | 0.3 | 1.8 | 7.9 | 14.3 | 16.8 | 12.7 | 18.3 | 22.8 | 12.3 | 7.8 | 8.4 | 4.8 | 128.2 |

2014-8-30 21:50 | 4.9 | 9.4 | 7.9 | 14.6 | 7.7 | 13.4 | 8.4 | 10.9 | 12.8 | 7.7 | 11.2 | 13.9 | 122.8 |

2015-8-23 14:10 | 2.5 | 4.5 | 5.7 | 9.5 | 15.6 | 7.4 | 3.7 | 2 | 5.3 | 9.9 | 4.2 | 5.1 | 75.4 |

2016-8-6 22:05 | 7.5 | 7 | 11 | 7 | 5.5 | 5.1 | 6 | 7.1 | 5.5 | 5.5 | 6.2 | 17.3 | 90.7 |

2016-9-7 18:25 | 5 | 3.7 | 1.3 | 21.3 | 26 | 32.5 | 38.1 | 22.8 | 6.8 | 18.3 | 9.5 | 5.3 | 190.6 |
