In transitional water systems (TWSs; lagoons, ponds, deltas, estuaries, fjords), nutrient concentrations in surface sediments are key parameters strictly related to changes of anthropogenic impacts [1
], mostly eutrophication [3
], river inputs [9
] and clam harvesting [12
]. Since the Second World War, the rapid increases in industrial activities, agriculture, urban centers and tourism have profoundly altered the trophic conditions of the TWS [4
], and sediments have proved to be an excellent litmus paper of the changes taking place. Indeed, they accumulate nutrients [17
] and pollutants [19
], above all, during the death of primary producers and the settlement of suspended particles [22
The lagoon of Venice is the largest TWS in the Mediterranean Sea (549 km2
) and presents the ecological conditions recorded in most of these coastal environments [24
]. Data on the nitrogen and phosphorus concentrations in the surface sediments of the whole lagoon have been available since the second half of the 20th century [25
] and are strongly correlated with the ecological changes observed over time [2
]. Until the 1990s, a progressive increase of nutrients in the superficial sediments was observed, especially with regard to phosphorus, mainly due to (i) the production of nutrients by industrial synthesis (phosphates and ammonia); (ii) the draining waters from an areas of ca. 1800 km2
extensively cultivated with monocultures fertilized with high amounts of nutrients; (iii) the discharge of urban wastewater not yet fully treated from the historic center of Venice, the islands of the lagoon and the city of Mestre and its hinterland [28
]. In addition, the nutrient increase in the water column and surface sediments [18
] favored the massive production of nuisance macroalgae [21
], which during their degradation, further increased the load of nutrients in the surface sediments. The same impacts, especially the increase in trophy with abnormal development of macroalgae nuisance, also affected other TWSs both in Italy and in many other countries worldwide [5
Later, more extensive studies carried out in 2003 and 2011 showed a significant decrease of these eutrophic substances due to industrial activity’s decline, the implementation of water treatment plants equipped with a third stage for nitrogen and phosphorus abatement, the banning of phosphorus from detergent formulations (4–5% of total weight) in 1989 [1
] and sediment remobilization during the intense Manila clam harvesting [15
]. In 2014 and 2018, two additional extensive nutrient mapping studies were carried out but the data were again unpublished. Since 1987, for the central basin of the Venice lagoon, the TWS most studied due to its greater number of anthropogenic impacts, a greater number of mapping datasets are available for both phosphorus and nitrogen during different environmental scenarios.
On the other hand, there is little information from other TWSs of the Northern Adriatic Sea, data on which are scarce and fragmentary. Indeed, only a few data are available for the lagoons of Grado-Marano (2007) [32
], the Po Delta (2008), Pialassa della Baiona (2009) and the Comacchio Valleys (2009) [33
]. However, these data, all collected by our research group, are very useful to understand the correlations of nitrogen and phosphorus with the parameters associated with different ecological conditions.
This paper aimed to integrate the knowledge on the nitrogen and phosphorus concentrations in the TWS of the northern Adriatic Sea with particular reference to the Venice lagoon, of which a high number of data is available. The complete dataset allows us to analyze the interactions of nutrients with other sediment characteristics and the ecological conditions of these TWSs as a function of anthropogenic impacts and climate changes. The results allow to understand the roles of these elements as indicators of ecological changes and for forecasting future trends.
2. Materials and Methods
2.1. Description of Study Areas and Sampling Campaigns

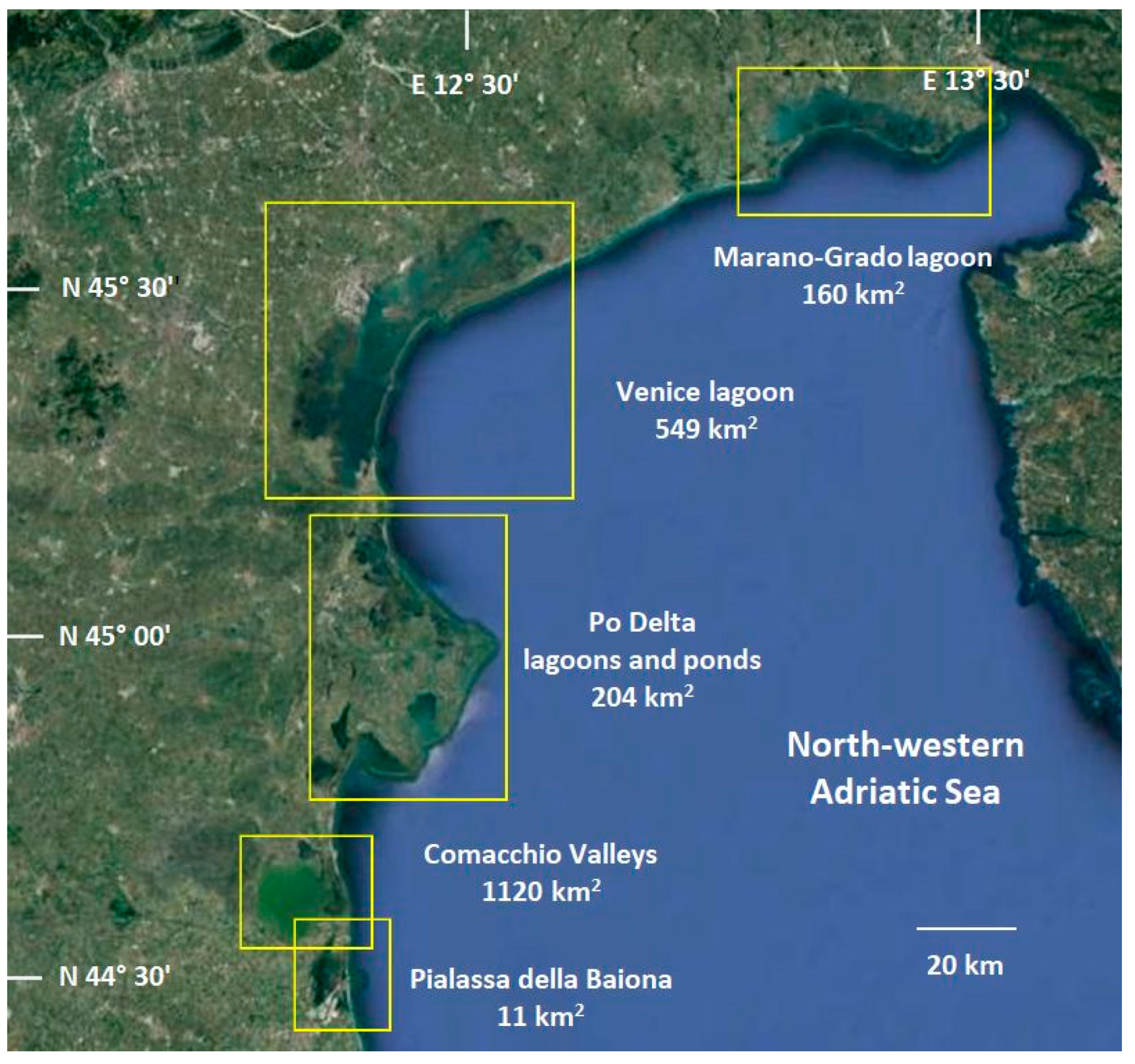

The lagoons and ponds investigated in this paper are reported in Figure 1
. From the north to the northwestern Adriatic Sea, they are: Marano-Grado lagoon, Venice lagoon, Po Delta lagoons and ponds, Comacchio valleys and Pialassa della Baiona lagoon. The stations sampled in 2003 in the Venice lagoon were selected to study the biomass distribution of macrophytes [34
]. All the stations sampled in the Venice lagoon since 2011 and the stations sampled in the other lagoons were selected by the Italian Regional Agencies for Environmental Prevention and Protection. Sampling was carried out to determine the ecological status of TWSs in the framework of the European Water Framework Directive 2000/60/EC by using the biological element “Macrophytes”. On this occasion, our research group also collected surface sediments to study some sediment characteristics and nutrient concentrations.
2.1.1. The Venice Lagoon
The lagoon of Venice (45°11′–45°34′ N, 12°08′–12°38′ E) (Figure 1
) is the largest and the most studied TWS of the Mediterranean Sea. It is located in the northwestern Adriatic Sea and extends over an area of ca. 549 km2
accounting for ca. 39% of the total Italian TWSs [24
]. The waters have a mean depth of ca. 1.2 m, ranging from a few centimeters in the shallower areas to 15–20 m in the main channels. The water exchange with the sea is mainly driven by tidal action [35
]—through the three wide (600–900 m) and deep (12–15 m) inlets of Lido, Malamocco and Chioggia—and accounts for ca. 60% of the total reservoir every 12 h [36
], whereas the freshwater inputs (ca. 34.5 m3
) are negligible [37
]. This allows a high grain-size difference between the sandy areas close to the inlets where water exchange (ca 19,000 m3
) occurs in a few hours, and the clay chocked areas where water renewal may take 40 days [38
]. The lagoon is morphologically separated in three main basins—from the salt marshes of Burano and Torcello in the north and the Malamocco-Marghera canal in the south—showing very different morpho-ecological conditions, the central basin being the most polluted and most affected by anthropogenic impacts.
Since 2003, the research team at the Marine Ecology Lab, Ca’ Foscari University of Venice (Italy) has collected data on the nitrogen and phosphorus concentrations in the superficial sediments of the entire lagoon. Sampling campaigns were carried out in 2003 (165 stations), 2011 (118 stations), 2014 and 2018 (88 stations), in the late spring to early summer period. In this paper, the concentrations recorded at 85 common stations sampled in all the four surveys are analyzed and compared.
In addition, the concentrations of phosphorus compounds (Ptot
= total phosphorus, Pinorg
= inorganic phosphorus, Porg
= organic phosphorus) were recorded at 34 stations of the central lagoon (132 km2
) in 1987, 1993, 1998, 2003, 2011, 2014 and 2018, during different ecological scenarios that characterized the lagoon since the late 1980s: the dominance of nuisance macroalgae (1987) [18
]; the decline of nuisance macroalgae (1993) [39
]; the intense Manila clam (Ruditapes philippinarum
) harvesting activities (1998–2003) [15
]; the collapse of clam stocks (2011) [2
]; the decrease of anthropogenic impacts and the beginning of the lagoon’s environmental recovery (2014–2018) [2
2.1.2. The Lagoon of Marano-Grado
The Marano-Grado lagoon (45°41′–45°46′ N, 13°04′–12°27′ E) (Figure 1
) has morphological features similar to those of the Venice lagoon with a surface of ca. 160 km2
and a tidal difference of 65 cm [36
]. It is subdivided in two main basins: The Marano basin, a wide shallow water body characterized by a few islands and tidal-marshes, and the Grado basin, which is rich in morphological reliefs and is shallower than the Marano basin [40
]. The average freshwater inflow is ca. 98.5 m3
], whereas water exchange with the sea occurs through three main inlets (Lignano, Porto Buso, Grado) and other smaller mouths. Fine sediments are on average greater at Grado than at Marano and are prevalently calcareous. Information on the nutrient content is scarce. Falace et al. [42
] report data for the total nitrogen (Ntot
) only, with the concentration ranging from 0.5 mg g−1
at the sea-inlets, to 1.5 mg g−1
at the internal edges. Samples of surface sediments for the analysis of Ntot
were collected at 20 stations evenly distributed throughout the lagoon in summer 2007.
2.1.3. Po Delta Lagoons and Ponds
The Po Delta (44°09′–45°47′ N, 12°16′–12°32′ E) (Figure 1
) has a water surface of ca. 204 km2
and is sorted into many lagoons and ponds with depths ranging from 0.5 to 2.5 m, according to the water body. Salinity is the most variable parameter due to the many branches of the Po River. Hard substrata are rare and mainly represented by some stone embankments along the edges of the various basins and oyster beds scattered on their bottoms. Clam-farming and clam-fishing activities are very intense and cause high sediment resuspension with severe environmental consequences. The main primary producers of the Po Delta basins are phytoplankton in the areas affected by clam harvesting or free-floating nuisance macroalgae, especially Ulvaceae, Gracilariaceae and Solieriaceae, in the other areas with lower anthropogenic impact. Populations of the aquatic angiosperm Ruppia cirrhosa
(Petagna) Grande that before the 1990s colonized some basins have now completely disappeared [43
]. Samples of surface sediments were collected in 2008 at 20 stations (three at Caleri, two at Marinetta, two at Vallona, three at Barbamarco, three at Canarin, four at Scardovari and three at Goro) during late spring-early summer period.
2.1.4. Comacchio Valleys
The Comacchio valleys (44°55′–44°65′ N, 12°10′–12°25′ E) (Figure 1
) are a complex of choked shallow ponds with a surface of ca. 110 km2
, connected with the sea by two small channels that do not allow for sufficient water renewal. They are affected by anthropogenic impacts like fish farming, especially eel farming, and receive freshwater from the Reno River that has shifted the ecological conditions from a good ecological status dominated by aquatic angiosperms and macroalgae of high ecological value, to a degraded and homogeneous basin dominated by phytoplankton and picocyanobacterial blooms of poor-to-bad status [44
]. Samples for nutrient analyses of surface sediments were collected at two stations, Donna Bona and Dosso Pugnalino, in the main basin during late spring or early summer 2009.
2.1.5. Pialassa Della Baiona
The Pialassa della Baiona lagoon (44°28′–44°31′ N, 12°14′–12°16′ E) (Figure 1
) is a shallow basin of ca. 11 km2
characterized by a mean depth of 60 cm. It is furrowed by a network of herringbone canals, 1–4 m deep, which converge towards the Ravenna harbor connected with the Adriatic Sea. The freshwater inputs, coming from a network of small canals draining an intensively cultivated area, are negligible. The basin is colonized by rich populations of macroalgae, especially the non-indigenous species Agarophyton vermiculophyllum
] (Ohmi) Gurgel, J.N. Norris et
Fredericq. This species covers mostly the southern part of the lagoon with a biomass of 5–10 kg m−2
on a fresh weight (fwt) basis. It is a little studied basin characterized by poor ecological conditions [48
]. Surface sediments were sampled at three stations—Chiaro Magni, Chiaro Risega and Vena del Largo—in 2009 in late spring to early summer. For this basin, no other samples are available.
2.2. Sediment Sampling
At each station, three subsamples of surface sediments (5 cm top layer) were sampled by a Plexiglas corer (i.d. 10 cm) and mixed together. One subsample (ca. 100 mL) was retained for nutrient (total nitrogen, total phosphorus, inorganic phosphorus, organic phosphorus) analyses and another (ca. 50 mL) for the determination of the sediment density and grain size. Both subsamples were stored at −20 °C until the laboratory analyses.
2.3. Nutrient Determination in Surface Sediments
Information on the concentrations of Ptot
in the sediments of the whole lagoon date back to the mid-20th century. The analyses were carried out in the first 30 cm in 1948–49 and 1968–73 and in the first 20 cm in 1983 and 1987–88. In those periods, sediments were collected with a bucket to study the benthic communities [49
]. During the following years, sediments were collected with a plexiglass corer (i.d. 10 cm) retaining the first 20 cm [27
] or 5 cm top layer (this paper). This latter thickness is the sediment most affected by the growth and degradation cycles of macrophytes.
In the laboratory, sediments were freeze-dried and pulverized using a sediment mill (Fritsch Pulverisette, Germany). The concentration of total nitrogen (Ntot) was measured in duplicate by a CHNS Analyzer (Vario-MICRO, Elementar CHNS by Elementar Italia S.r.l.) after an accurate sample powdering of ca. 0.3 g of sample. The standard used was “low level N- and S-contents” with N = 0.74%, art. no. 05 000 959.
Total phosphorus (Ptot
) was determined after sample combustion in the muffle at 550 °C for at least 2 h of 0.3–0.4 g of sample. Subsequently, the residue thus obtained was suspended in 50 mL of 1 N HCl and sonicated for ca. 30 min. After allowing the sample to settle for at least 1 h, 0.5 mL of the supernatant were taken with a graduated gas-chromatographic syringe and brought to exactly 10 mL using volumetric flasks for a final dilution of 1 L, with the result expressed directly in µM. At this point, the phosphorus concentration was determined by spectrophotometry by adding the mixed reagent and reading the absorbance at 885 nm after ca. 10–15 min [51
]. Inorganic phosphorus was obtained with the same procedure used for Ptot
but without combustion at 550 °C. Organic phosphorus (Porg
) was determined by difference. All samples were analyzed in duplicate and the analyses were replicated on two different days to obtain an accuracy > 95. Otherwise, the analyses were repeated until the coefficient of variation (standard deviation/mean) between two replicates was < 5%.
2.4. Map Preparation
Maps of nutrient distribution were prepared in six concentration ranges by using data collected in the surveys carried out in 2003, 2011, 2014 and 2018. Maps were obtained by Kriging methods using the software R, version 4.0.3, and SAGA, version 2.3.2. Models for each analysis were selected to minimize the prediction errors, and model performances were estimated using cross-validation procedures. Maps were then produced using the software QGIS, version 3.6.0 and integrated into one image using Corel Paintshop Pro X5, version 18.104.22.168 (Corel Corporation, 2012).
2.5. Sediment Characteristic Determination
Dry sediment density (g DWT cm−3) was determined in the laboratory by sediment desiccation at 110 °C in tared crucibles of 20–30 mL. The percentage of Fines (fraction <63 µm) was obtained by wet sieving ca. 50 g of dried sediment throughout Endecotts sieves (ENCO Scientific Equipment, Spinea, Italy). All analyses were performed in duplicate.
2.6. Statistical Analyses
The analysis of variance (one-way ANOVA) allowed us to test differences of the sediment parameters in different monitoring periods. The differences were considered significant when p < 0.05. Prior to the analyses, the distribution of each variable was checked for normality and homogeneity of variance by the Kolmogorov-Smirnov test (p < 0.05).
Pearson coefficients (p < 0.05, p < 0.001) highlighted the correlations among environmental parameters and variables using STATISTICA software, version 10 (StatSoft Inc., Tulsa, OH, USA).
Principal component analysis (PCA), determined using the same software, showed the multivariate patterns of the matrix of 162 cases (stations) and five variables (sediment density, fines, inorganic and organic phosphorus, total nitrogen). The significant loading was considered to be at p > 0.7. Moreover, the PCA analysis of the transposed matrix showed the affinity between stations and lagoons.
The concentrations of nutrients in the surface sediments of the lagoons of the northwestern Adriatic Sea showed a close relationship with sediment characteristics such as the grain size and density. In fact, finer-sized sediments had a greater relative surface and a greater capacity to retain nutrients and pollutants. Vaze and Chew [52
] found that almost all the TP and TN were attached to sediments with grain sizes between 11 and 150 µm. Furthermore, their density was lower due to the presence of a greater quantity of interstitial water, which in turn contains, high concentrations of nutrients, especially ammonium [53
In the case of the Venice lagoon, of which we have numerous data collected in different periods, significant temporal variations due to different anthropogenic impacts were also monitored.

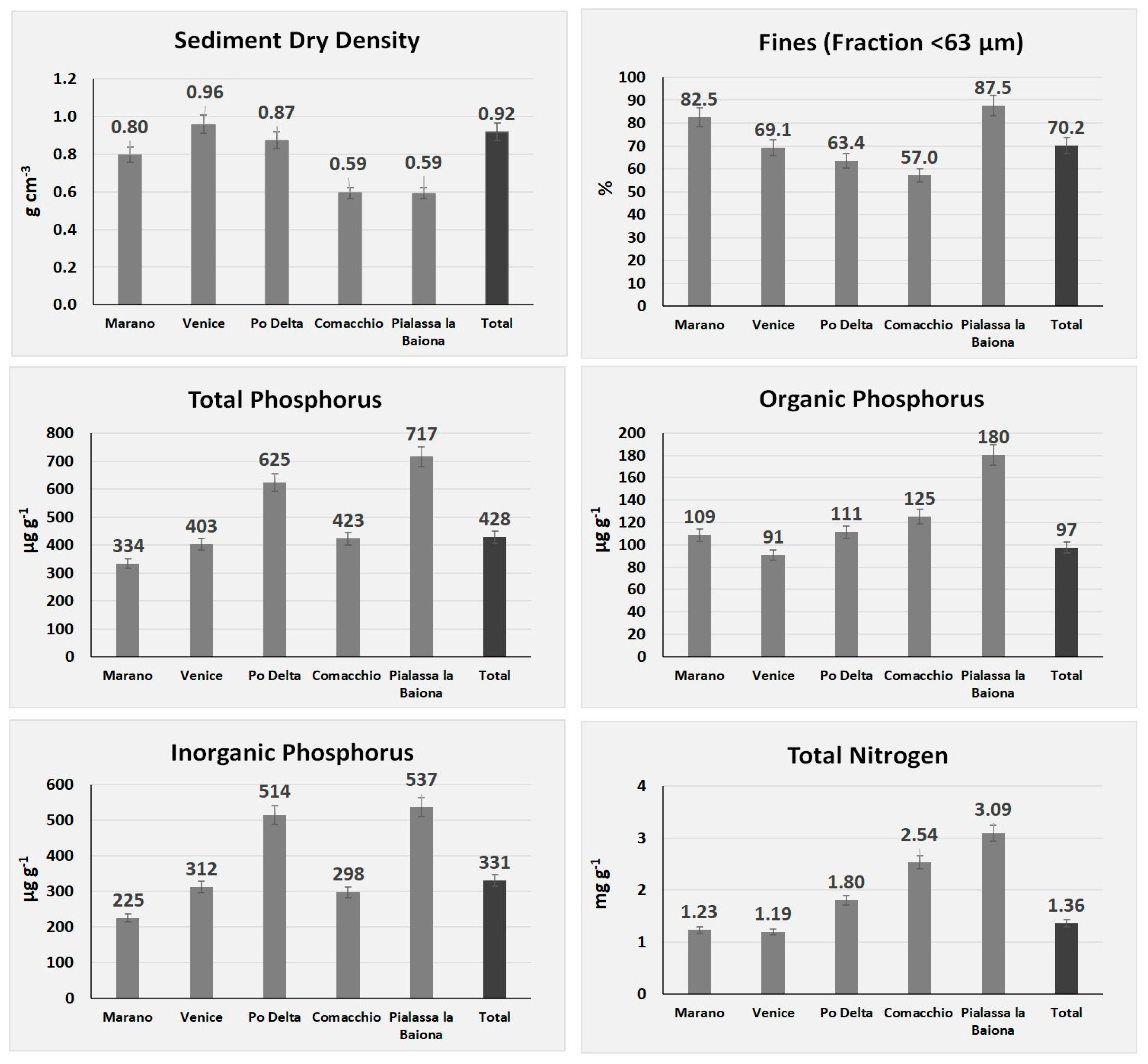

In general, the highest sediment concentrations of Ntot
were recorded in Pialassa della Baiona, characterized by the highest percentage of fines (fraction < 63 µm: 87.5%) and the lowest density (0.59 g dwt cm−3
). The same low sediment density was also recorded in the Comacchio valleys. However, the Comacchio valleys showed a significantly lower percentage of fines (57.0%), which could explain the lower concentrations of nitrogen and phosphorus in the sediments of this basin. Moreover, the poor water renewal of the Comacchio valleys accounted for the bad ecological conditions of these large ponds recorded since the last two decades of the 20th century. Despite the fact that for this basin, previous data on nutrient concentrations are missing, the list of macrophytes reported by [54
] and [55
] highlights that before the 1970s, the Comacchio valleys were colonized by aquatic angiosperms such as Ruppia cirrhosa
(Petagna) Grande and Zostera noltei
Hornemann, and sensitive macroalgae. First of all, these included Lamprothamnium papulosum
(Wallroth) J. Grove, a Chlorophycea even more sensitive than aquatic angiosperms and currently present only in some fishing valleys of the Venetian lagoon such as the Cavallino valley, which shows almost pristine ecological conditions [43
]. The presence of that vegetation was linked to a low trophy and nutrient concentrations certainly lower than the current ones. Indeed, in the following years, almost all the macrophytes disappeared from the valleys and only cyanobacteria and phytoplankton were recorded [44
]. Discharges from fish farms, especially from eel breeding, the polluted water drainage from extensive agricultural practices and freshwater inputs from the Reno river have irremediably changed the trophic status of these basins and eliminated the macrophytes present, even those of low ecological value. Recently, some small thalli of some tionitrophilic Chlorophyceae, mostly Ulvaceae, have been recorded at only 5–15 cm from the surface because the waters were very turbid and the transparency never exceeded 25–40 cm all year round.
On the whole, the Marano-Grado and Venice lagoons were the less eutrophicated basins, showing the lowest mean concentrations of Ptot (334 and 403 µg g−1, respectively) and Ntot (1.23 and 1.19 mg g−1, respectively). The Comacchio valleys had intermediate concentrations.
However, for the Venice lagoon, many data are available from the mid-20th century (Table 5
The concentrations of Ptot
recorded in 1948–49, before the development of the industrial area of Porto Marghera, were very low and can be considered the background values for the lagoon. Indeed, the mean value of the Ptot
concentration was only 24 µg g−1
, whereas Ntot
was 1.00 mg g−1
]. Twenty years later, both nutrients were recorded by the same authors at the same stations to have increased markedly. Total phosphorus increased ca. 6.8 times (164 µg g−1
) and Ntot
almost doubled (1.86 mg g−1
]). The highest Ptot
concentrations were recorded in 1983, with a mean value of 454 µg g−1
], ca. 19 times greater than the value recorded in 1948–49, whereas Ntot
reached the highest value in 1968–73, with a mean value of 1.86 mg g−1
]. However, single stations close to the industrial area of Porto Marghera reached 1102 µg g−1
in 1987–88 and 4.9 mg g−1
in 2003. Indeed, after the Second World War, the lagoon received sewage effluents from about 300,000 inhabitants of Venice, Mestre, Marghera and Chioggia, wastes from chemical and steel plants located in the 30-km2
Porto Marghera industrial area and runoff from an intensively-cultivated drainage basin (ca. 2000 km2
). Particularly relevant was the massive extraction of phosphorus from phosphorites and the industrial synthesis of ammonia to support the rapidly expanding agricultural production [56
]. The main consequence was the high pollution of water and sediments. Phosphorus rapidly accumulated in surface sediments until the end of production in the mid-1980s. In the following years, Ptot
showed a reverse trend but its concentrations fluctuated between 403 and 412 µg g−1
because this element remained trapped in the sediments due to its sedimentary cycle. In contrast, Ntot
changed slightly. It was higher in 2003 (1.42 ± 1.42 mg g−1
) and decreased markedly in 2011 (1.19 ± 1.95 mg g−1
) during the maximum clam fishing activities [2
] that favored nitrogen release in the water column as ammonium and loss into the atmosphere due to the high denitrification processes [58
]. In the following years, when clam fishing activities were negligible, Ntot
The studies carried out in the central part of the Venice lagoon are more recent but they show the variations of nutrients in the sediments (Table 2
, Figure 4
) during the various scenarios that have characterized the lagoon from the 1980s to today. In addition, for the central lagoon, Pinorg
were also determined, highlighting the significant changes of Porg
remained almost unchanged. The concentrations of Porg
were mainly affected by the presence of a high biomasses of macroalgae and the intensity of clam-fishing activities, which had an inverse impact on nutrient concentrations. Macroalgae produced great quantities of decomposing organic matter, which enriched surface sediments with both Ntot
, whereas biomass reduction and fishing activities occurring between 1995 and 2012, plowing the sediments to a depth of 15–20 cm, which released into the water column the ammonium and reactive phosphorus present in interstitial waters. As a consequence, the Ntot
(−73%) in 2011 and Porg
(−51%) in 2003 reached their minimum concentrations (Figure 4
). In the following years, when clam fishing was negligible or completely absent, both Ntot
increased again but without reaching the concentrations recorded in 1987 due to the negligible macroalgal biomass present in this period. A one-way ANOVA confirmed that the most significant decrease of Ntot
was due to clam-harvesting that triggered the release of ammonium from surface sediments into the water column. In contrast, the strong reduction of the macroalgal biomass [36
] was the main cause of Porg
decreasing. The analysis of the global data (Spearman’s coefficients and PCA) confirms that nutrient concentrations were positively correlated with the sediment grain size (fines) and inversely with sediment density as recorded from many other analyses carried out in these environments [24

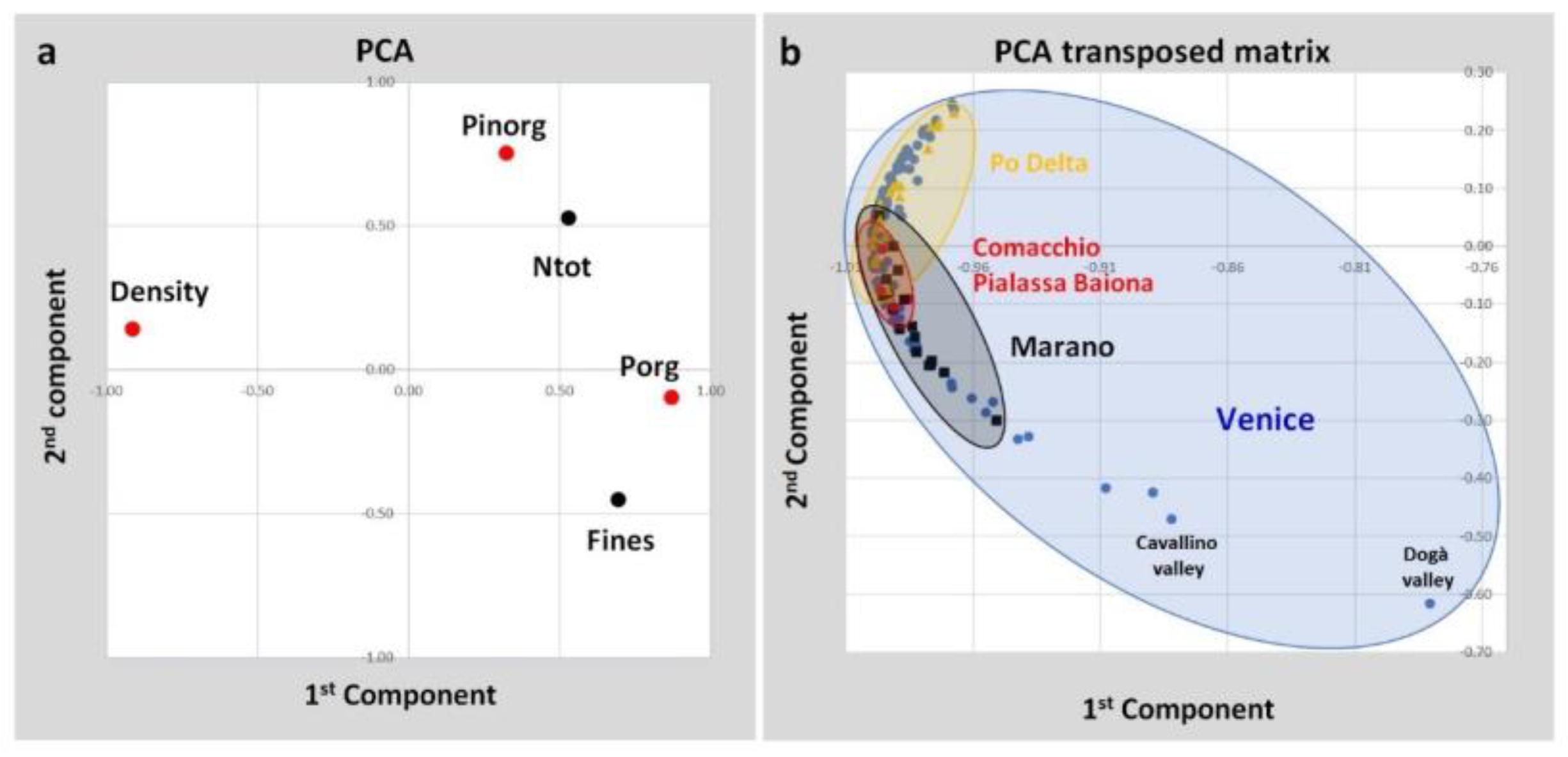

Finally, plotting all the stations in the transposed PCA matrix highlights that the concentrations of nutrients in the surface sediments of the Venice lagoon cover all the concentrations recorded in the Po Delta, Marano-Grado, Comacchio and Pialassa della Baiona, which present lower environmental variability, as recorded in [24
If we consider the concentrations of nutrients in the sediments of other lagoons recorded in the literature, Sørensen et al. [60
] reported the concentrations of Ntot
in the Keta lagoon (Ghana) and compared their results with those of other lagoons around the world. In the Keta lagoon, Ptot
were in the ranges of 130–240 µg g−1
and 0.1–1.0 mg g−1
, respectively. These values were similar to the values recorded in a lagoon of the Balearic islands, Spain [61
] and in the Ringkjøbing Fjord, Denmark [62
] (Table S2, Supplementary Material
), but were significantly lower than the values recorded in this study.
Nutrient concentrations similar to those recorded in the TWS of the northwestern Adriatic Sea were recorded in a system of eutrophic lagoons in northwestern Mexico [63
], where Ptot
were in the ranges of 341–1240 µg g−1
and 0.15–8.89 mg g−1
, respectively. High nutrient values were also recorded in the Méjean-Pérols lagoon (France) [64
], with Ptot
concentrations in the ranges of 398–1147 µg g−1
and 1.9–6.0 mg g−1
, respectively. Intermediate concentrations were found in some lagoons of the Sabana-Camagüey archipelago at Cuba [65
]. In these basins, Ptot
showed concentrations up to 241 µg g−1
and 11.5 mg g−1
, respectively. Therefore, the TWSs of the northwestern Adriatic Sea are placed among the most eutrophic basins and have concentrations strongly linked to the grain-size of the sediment. The Venice lagoon, due to its large surface and the heterogeneity of its micro-environments, presents conditions that cover the concentrations found in most of the other basins.
