Open Lake Phosphorus Forcing of Cladophora Growth: Modeling the Dual Challenge in Great Lakes Trophic State Management

Abstract

Stimulated by excess levels of phosphorus, the attached, filamentous green alga Cladophora grows to nuisance proportions in Lake Michigan, one of the Laurentian Great Lakes. While nearshore waters impacted by local sources of the nutrient continue to support nuisance conditions, offshore waters have undergone oligotrophication in response to reductions in phosphorus loading and benthification of phosphorus cycling by invasive dreissenid mussels. A concept termed the Dual Challenge recognizes that implementation of more stringent phosphorus-loading objectives (to control Cladophora in the nearshore) stands in conflict with a foreseen need to mitigate oligotrophication in the offshore (to sustain a healthy fishery). Attention to this nearshore–offshore dynamic calls into play the role of cross-margin phosphorus transport in mediating both endmembers of the conflict. We applied a biophysical model simulating soluble reactive (SRP) and particulate (PP) phosphorus, mussel biokinetics, and cross-margin mass transport in addressing the Dual Challenge. Pre- and post-dreissenid monitoring results suggest that a reduction in offshore PP levels (food web nutrition) in excess of 40% (2.4 to 1.4 mgP·m⁻³) has driven oligotrophication and attendant food web dysfunction. Yet, in the absence of local sources, model-predicted nearshore SRP levels remain at or below those required to prevent nuisance growth. These findings indicate that there is a margin of ~1 mgP·m⁻³ over which offshore PP levels could be increased (to the benefit of the food web and the fishery) without hindering efforts to reduce nuisance algal growth through local source control.

1. Introduction

Cladophora glomerata, a filamentous green alga, colonizes solid substrate in four of the five Laurentian Great Lakes (Erie, Huron, Michigan and Ontario). Cladophora is considered to be an ephemeral macroalga as its growth is mediated seasonally by conditions of light and temperature. Biomass accrual is initiated in spring (May) and continues until a peak biomass is reached in mid-summer (July). At this point, the alga enters a period of late summer senescence (August), which continues into fall [1,2]. Nuisance growth of Cladophora has plagued the nearshore area of the Great Lakes for over 80 years [3], depositing mats of detached algal debris that fouls beaches, clogs water intakes, and harbors microbes that pose threats to wildlife (hosting avian botulism; [4]) and the public health (hosting bacterial pathogens; [5]).

When (seasonally) and where (depth and bottom type) the alga’s requirements relating to light, temperature, and substrate for attachment are met, growth is limited by phosphorus (P; taken up in its soluble reactive form, SRP; [6,7]). Historically, nuisance conditions have tracked increases in population pressure and associated phosphorus discharges, becoming widespread across the four lower Great Lakes in the 1960s and 1970s [1]. With the implementation of point-source P management in the 1970s, the frequency of nuisance growth reports declined only to increase significantly with the invasion and proliferation of invasive mussels in the 1990s [3].

Ecosystem engineering by invasive dreissenid mussels (zebra mussels, Dreissena polymorpha, and quagga mussels, Dreissena rostriformis bugensis) have profoundly impacted conditions supporting Cladophora growth. As described by Hecky et al. [8], mussel filtration of particulate matter has increased water-column transparency (extending the colonizable depth for the alga), provided a particulate phosphorus (PP) to SRP shunt through mineralization of terrigenous and phytoplankton PP, and, by their simple presence, increased the surface area of hard substrate available for colonization. Kuczynski et al. [3], noting that the stored P content in and biomass accrual by Cladophora have both declined in Lake Ontario in the post-dreissenid period, concluded that clearing of the water column by mussel filtration and attendant expansion of colonization by the alga haves been the primary drivers for the resurgence of nuisance growth.

However, while habitat expansion has been identified as the fundamental cause of the resurgence, phosphorus continues to play a critical role. Of interest here is the dichotomy of whole-lake versus locally-forced nutrient supply, a condition particularly well illustrated by Lake Ontario. In the interval prior to the implementation of P management, nuisance growth of Cladophora was widespread, occurring wherever light penetrated to the lake bottom and solid substrate for attachment were available; the system was whole-lake forced, supported by offshore P levels. Following implementation of P management, offshore levels of the nutrient fell precipitously [9], the nutritional status and rate of biomass accrual in Cladophora declined [10], and occurrences of nuisance growth became limited to sites locally impacted by phosphorus discharges [7].

While a strong case has been made for mussel-mediated water-column clearing as the driving force for resurgence, control of phosphorus loading has been recognized as the “primary, and perhaps only, remedial action that may address nuisance Cladophora growth” [11] (p. 7). It has been recommended that nearshore phosphorus management in the post-dreissenid era focus on local source control while ensuring that lake-wide levels do not increase [7]. Remediation of local sources may require increased regulation of nonpoint P sources and more stringent controls on point sources [8]. While next-generation control technologies are available, (particularly for point sources; [12,13]), attendant costs are significant, and a credible level of confidence in realized outcomes is necessary. In this regard, uncertainty has been expressed regarding the efficacy of load management in reducing nuisance growth and in the system-wide consequences of implementing those reductions [11], e.g.,

• With respect to efficacy, will reduction in local source phosphorus loading lead to measurable improvement if offshore forcing through cross-margin transport of SRP (for direct uptake by Cladophora) and PP (for conversion to SRP in the nearshore by dreissenids) have the capacity to sustain nuisance conditions of algal growth [11,14,15,16]?
• With respect to consequences, will reductions in phosphorus loading seeking mitigation of nuisance conditions in the nearshore promote oligotrophication and exacerbate the reductions in lake-wide ecosystem productivity presently observed to impact commercial, recreational, and native fish populations in the offshore? ([17]; see also [18], with respect to the Dual Challenge).

Three studies performed on Lake Ontario demonstrate the uncertainty related to offshore forcing. Higgins et al. [7] (p. 116), conducted a seven-site lake wide survey of peak Cladophora biomass and nutrient status (stored P content) and concluded that “there was little evidence that P from metabolic waste products of dreissenid mussels was sufficient to produce severe blooms [of Cladophora] in the absence of localized P enrichment.” Simulations performed by Auer et al. [12] predicted a successful remediation of locally forced nuisance growth through implementation of advanced technology for P removal. Those simulations included offshore ambient SRP but not offshore PP forcing. Contrasting findings have been reported for Lake Ontario as well. For example, Howell [16] (p. 103) reported nuisance levels of Cladophora at a site on Lake Ontario seemingly away from sources of local P enrichment.

Similar contrasts have been reported for Lake Michigan. Bravo et al. [19] combined field monitoring and mathematical modeling of the phosphorus–Cladophora dynamic at sites influenced by the discharge from the South Shore Wastewater Treatment Plant (Milwaukee, WI). The results of biophysical modeling exercises indicated that phosphorus and Cladophora biomass associated with the discharge extended for tens of kilometers in the longshore and ~2 km in the offshore directions, a clear case of local forcing. Simulation results further demonstrated that the system was responsive to reduction of P discharges from that point source. However, high densities of Cladophora biomass have also been documented in northern Lake Michigan (e.g., North and South Manitou Islands and nearshore waters at Sleeping Bear National Lakeshore; Bootsma, unpublished; [11]). These sites are remote from any local P source, indicating that Cladophora growth must rely on supplies from open lake waters [11].

The contrasting findings observed for both Lake Ontario and Lake Michigan have resulted in a level of uncertainty that constitutes an existential barrier to the development of policies and regulations providing relief from the impacts of nuisance Cladophora growth. The Great Lakes Water Quality Agreement has adopted a precautionary approach in addressing serious threats (such as the long standing and extant Cladophora problem), stating that “lack of full scientific certainty shall not be used as a reason for postponing cost-effective measures to prevent environmental degradation.” Our work sought to contribute to the body of knowledge regarding both the efficacy and consequences concerns, helping to resolve the management gridlock hindering progress in managing the phosphorus–Cladophora dynamic.

2. Objectives and Approach

A key feature of the nearshore phosphorus shunt hypothesis of Hecky et al. [8], that dreissenid recycling of particulate matter can yield ecologically meaningful levels of SRP, has been well validated through field measurements [20,21]. It has been further demonstrated that the rate of SRP excretion by mussels increases with increasing ambient PP concentration [22]. Our objective, stated as a guiding question, is thus:

• Would ambient nearshore SRP concentrations, determined solely by cross-margin transport of offshore SRP and PP (the latter subsequently mineralized to SRP in the nearshore by mussels), be sufficient to support nuisance growth of Cladophora?

Beyond addressing the efficacy concern, attainment of this objective would provide an upper bound for SRP and PP concentrations in the offshore necessary to protect nearshore waters from Cladophora proliferation. That upper bound would offer guidance for future work seeking to balance eutrophication potential in the nearshore and oligotrophication in the offshore, the consequences the concern of the Dual Challenge. We sought to achieve our objectives by linking a hydrodynamic model simulating cross-margin transport and a biokinetic model simulating the ecophysiology of dreissenid P recycling.

3. Methods

3.1. Study Site

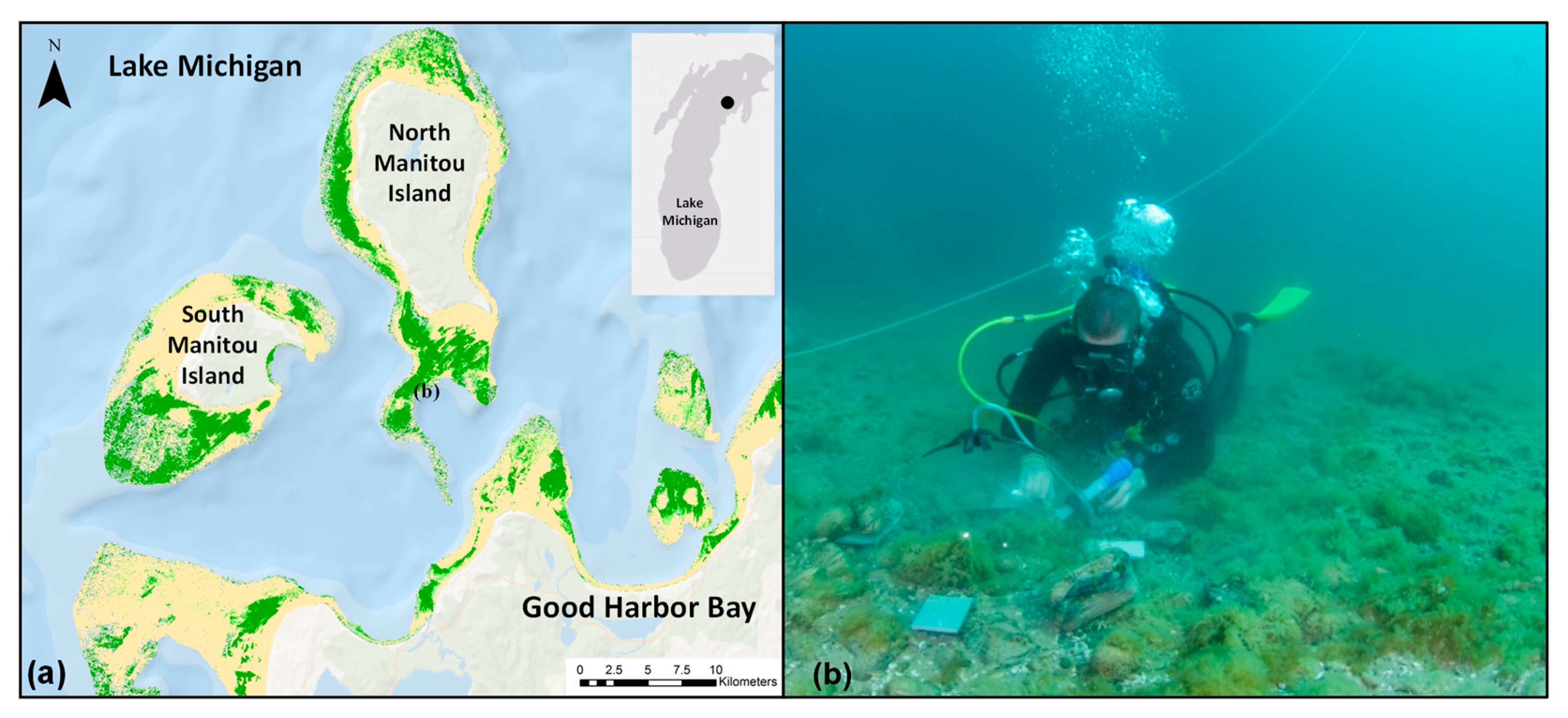

The study site for this research was Good Harbor Bay (Lake Michigan), part of the Sleeping Bear Dunes National Lakeshore (Figure 1a). The site is particularly appropriate for our study, as it was the location for research on mussels and bottom boundary layer phosphorus [21], has been reported to host high densities of Cladophora biomass [11] and is a component of the USGS Great Lakes Cladophora survey [23]. Additionally, the National Lakeshore has received considerable public attention with respect to beach deposition of algal debris.

No significant local sources of phosphorus have been identified at Good Harbor Bay, and thus, it may be assumed that Cladophora growth there is supported by SRP and mussel recycling of particulate phosphorus delivered from offshore waters. The location is influenced by a broad range of mass transport conditions, including direct exposure to the open lake, and shielding by islands (Figure 1a). Good Harbor Bay has a maximum depth of 45 m, with a system-wide average depth of 21 m. Bottom types include sand and cobbles, the latter colonized by Cladophora and quagga mussels (Figure 1b; [21]). Triplicate measurements of Cladophora biomass were made at 3, 6, 10, and 18 m in 2019 [23]. The season average (Jun.–Aug.) biomass density was 47 ± 28 gDW·m⁻² over depths of 3–6 m, with maxima of 103 and 110 gDW·m⁻² reported for two replicates at the 3-m depth in June and 103 gDW·m⁻² for a single collection in July. Cladophora density declined markedly at 18 m (light limitation; [3]) averaging 17 ± 16 gDW·m⁻², with a maximum of 47 gDW·m⁻² in July. These average biomass densities are well below those characteristic of nuisance conditions.

Dreissenids in Lake Michigan are now dominated by the quagga mussel, Dreissena rostriformis bugensis [24]. There are three records of sampling in Good Harbor Bay. In 2011, Dayton et al. [21] reported densities of 500 individuals·m⁻² (on a mix of sand and rocky substrate) and 3500 individuals·m⁻² (on a continuous bed of rocky substrate), both at 8-m depth. Sampling in 2019, LimnoTech [25] reported average mussel densities of 4400 ± 1275 individuals·m⁻² at an 8–10 m deep site. Przybyla-Kelly et al. [23] sampled depths of 3, 6, 10, and 18 m in 2018 and 2019. Mussel density was low at the 3-m site, with a median of 27 individuals·m⁻² and a maximum of 267 individuals·m⁻². At depths of 6–18 m, the median density was reported to be 2080 individuals·m⁻². We carried forward a mussel density of 1796 individuals·m⁻² calculated as the simple average of the measurements listed above for depths ranging from 3–18 m ([21,23,25]). In biokinetic applications, this representative value may be expressed as a mussel biomass density of 15,266 mgAFDW·m⁻² (ash-free dry weight). The conversion was performed based on the representative mussel density and length-weight metrics developed specifically for Good Harbor Bay by LimnoTech [25]: a mean shell length of 15 mm, a ratio of shell-free dry weight to shell length of 0.67, and a ratio of ash-free dry weight to shell free dry weight of 0.85 [26,27]. The range of mussel biomass densities used in performing sensitivity analyses was 0–50,000 mgAFDW·m⁻², based on a lake-wide benthic survey of Lake Michigan performed in 2010 by Nalepa et al. [24].

3.2. Framework for Modeling the Mussel-Phosphorus Dynamic

Our biophysical modeling approach draws upon the capabilities of linked hydrodynamic and biokinetic models, with the former simulating cross-margin mass transport of water and P components (PP and SRP) across the nearshore–offshore boundary (margin) and the latter simulating mussel filtration of PP and attendant P recycling (Figure 2). In this process-oriented study, the biokinetic model was applied to a completely mixed nearshore control volume, assuming horizontal and vertical homogeneity in PP and SRP and in mussel distribution and density. This approach is appropriate for our objective to explore mussel mediation of nearshore ambient SRP levels supported only by offshore SRP and PP reserves and eases the computational burden so that we may focus on process-based (biokinetic) features and more rigorously characterize model sensitivity and uncertainty. We note that concentrations of SRP_nearshore predicted for low concentrations of PP_offshore (<0.5 mgP·m⁻³·d⁻¹) in combination with low rates of cross-margin transport (<2 × 10⁸ m³·d⁻¹) and/or high biomass densities (most commonly > 45,000 mgAFDW⁻¹·m⁻²) represent non-equilibrium (starvation) conditions. While calculated rates are applicable in the time frame of our simulation, the occurrence of starvation conditions would lead to mussel mortality and establishment of a new equilibrium condition over a longer time frame (see [28]).

Models of mussel biokinetics typically take the form of a mass balance on one of three state variables: phosphorus [21,28], carbon [17,29], or mussel biomass [30], with differences dependent upon research goals and the larger model framework in which they are imbedded (e.g., NPZDM). The mass balance used here (Figure 2) is phosphorus-based and includes a source term (filtration, PP) and three sink terms (egestion of pseudo-feces, PP; excretion of feces, PP; and excretion in the soluble phase, SRP). Phosphorus excreted in the soluble form is primarily SRP [31,32]. Mosely and Bootsma [33] measured dissolved organic phosphorus excretion (DOP, mgP·m⁻³) as well, but negligible amounts of organic P were generated by mussels greater than ~5 mgDW·individual⁻¹.

The mass balance is performed on PP and SRP in the nearshore, the former being the fuel for recycling and the latter the product of the process:

$$\mathrm{V}·\frac{{\mathrm{dPP}}_{\mathrm{nearshore}}}{\mathrm{dt}}={ \mathrm{J}}_{\mathrm{PP},\mathrm{offshore}}-{\mathrm{J}}_{\mathrm{PP},\mathrm{nearshore}}-{\mathrm{J}}_{\mathrm{PP},\mathrm{mussels}}$$

(1a)

$$\mathrm{V}·\frac{{\mathrm{dSRP}}_{\mathrm{nearshore}}}{\mathrm{dt}}={ \mathrm{J}}_{\mathrm{SRP},\mathrm{offshore}}-{\mathrm{J}}_{\mathrm{SRP},\mathrm{nearshore}}+{ \mathrm{J}}_{\mathrm{SRP},\mathrm{mussels}}$$

(1b)

where V is the control volume (m³), PP_nearshore and SRP_nearshore are the P component concentrations in the nearshore (mgP·m⁻³), J_PP,offshore and J_PP,nearshore and J_SRP,offshore and J_{SRP,nearshore} are the cross-margin fluxes for PP and SRP (mgP·d⁻¹), and J_PP,mussels and J_SRP,mussels are, respectively, the mussel filtration and excretion fluxes (mgP·d⁻¹).

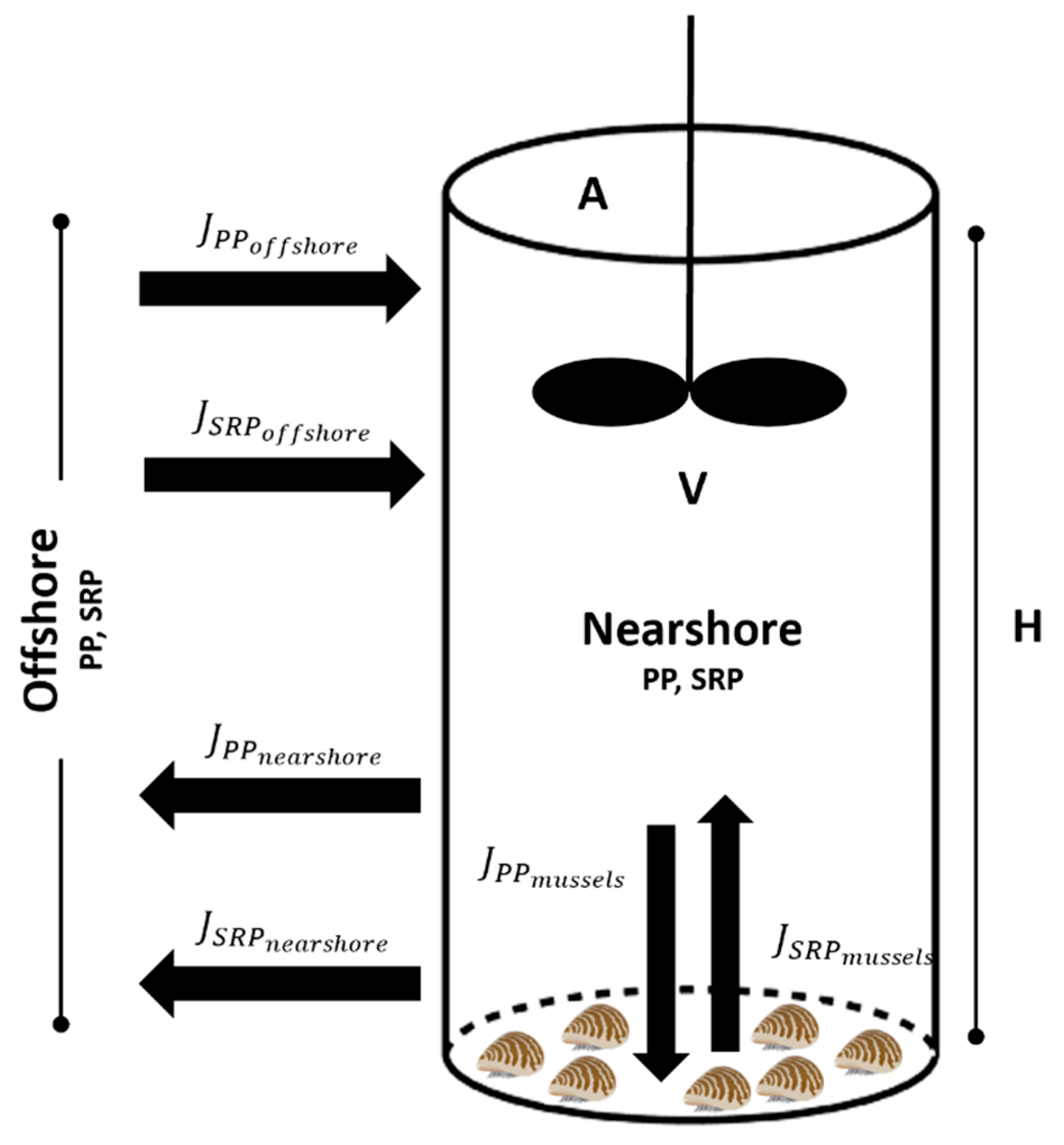

Inspection of Figure 2 and Equations (1a) and (1b) reveals that levels of SRP in the nearshore are mediated by the interplay of mass fluxes at the nearshore–offshore and sediment–water boundaries. Replacing the mass fluxes in Equations (1a) and (1b) by their defining component terms yields

$$\mathrm{V}·\frac{{\mathrm{dPP}}_{\mathrm{nearshore}}}{\mathrm{dt}}=- {{\mathrm{J}}^{\prime }}_{\mathrm{PP},\mathrm{mussels}}·\mathrm{A}+\mathrm{Q}·{\mathrm{PP}}_{\mathrm{offshore}}-\mathrm{Q}·{\mathrm{PP}}_{\mathrm{nearshore}}$$

(2a)

$$\mathrm{V}·\frac{{\mathrm{dSRP}}_{\mathrm{nearshore}}}{\mathrm{dt}}= {{\mathrm{J}}^{\prime }}_{\mathrm{SRP},\mathrm{mussels}}·\mathrm{A}+\mathrm{Q}·{\mathrm{SRP}}_{\mathrm{offshore}}-\mathrm{Q}·{\mathrm{SRP}}_{\mathrm{nearshore}}$$

(2b)

where ${{\mathrm{J}}^{\prime }}_{\mathrm{PP},\mathrm{mussels}}$ is the PP flux density resulting from mussel filtration (mgP·m⁻²·d⁻¹), ${{\mathrm{J}}^{\prime }}_{\mathrm{SRP},\mathrm{mussels}}$ is the SRP flux density for mussel excretion (mgP·m⁻²·d⁻¹), A is the bottom area of the control volume (m²), Q is the cross-margin flow (m³·d⁻¹), and PP_offshore and SRP_offshore are the P component concentrations in the offshore (mgP·m⁻³). Dividing both sides of Equations (2a) and (2b) by the control volume (V) yields

$$\frac{{\mathrm{dPP}}_{\mathrm{nearshore}}}{\mathrm{dt}}=-\frac{{{\mathrm{J}}^{\prime }}_{\mathrm{PP},\mathrm{mussels}}}{\mathrm{H}}+\frac{\mathrm{Q}·{\mathrm{PP}}_{\mathrm{offshore} }-\mathrm{Q}·{\mathrm{PP}}_{\mathrm{nearshore} } }{\mathrm{V}}$$

(3a)

$$\frac{{\mathrm{dSRP}}_{\mathrm{nearshore}}}{\mathrm{dt}}=\frac{{{\mathrm{J}}^{\prime }}_{\mathrm{SRP},\mathrm{mussels}}}{\mathrm{H}}+\frac{\mathrm{Q}·{\mathrm{SRP}}_{\mathrm{offshore} }-\mathrm{Q}·{\mathrm{SRP}}_{\mathrm{nearshore} }}{\mathrm{V}}$$

(3b)

where H is the control volume depth (m).

Calculation of the PP flux density for filtration (${{\mathrm{J}}^{\prime }}_{\mathrm{PP},\mathrm{mussels}}$, mgP·m⁻²·d⁻¹) involves two steps. First, the mussel-specific rate of PP filtration (F_PP, mgP·mgAFDW⁻¹·d⁻¹) is determined as the product of the mussel-specific volumetric filtration rate (F_vol, m³·mgAFDW·d⁻¹) and PP_nearshore (mgP·m⁻³),

$${\mathrm{F}}_{\mathrm{PP}} ={ \mathrm{F}}_{\mathrm{vol}}·{\mathrm{PP}}_{\mathrm{nearshore}}$$

(4a)

and recognizing that the mussel-specific SRP excretion rate (E_SRP, mgP·mgAFDW⁻¹·d⁻¹) will be a fraction (f, dimensionless) of the PP captured by filtration (F_PP),

$${\mathrm{E}}_{\mathrm{SRP}}=f·{\mathrm{F}}_{\mathrm{vol}}·{\mathrm{PP}}_{\mathrm{nearshore}}$$

(4b)

Substituting from Equations (4a) and (4b) and multiplying by the mussel biomass density (B, mgAFDW·m⁻²) yields the flux densities for PP filtration (${{\mathrm{J}}^{\prime }}_{\mathrm{PP},\mathrm{mussels}}$, mgP·m⁻²·d⁻¹) and SRP excretion (${{\mathrm{J}}^{\prime }}_{\mathrm{SRP},\mathrm{mussels}}$, mgP·m⁻²·d⁻¹),

$${{\mathrm{J}}^{\prime }}_{\mathrm{PP},\mathrm{mussels}}={\mathrm{F}}_{\mathrm{vol}}·{\mathrm{PP}}_{\mathrm{nearshore}}·\mathrm{B}$$

(5a)

$${{\mathrm{J}}^{\prime }}_{\mathrm{SRP},\mathrm{mussels}}=f ·{\mathrm{F}}_{\mathrm{vol}}·{\mathrm{PP}}_{\mathrm{nearshore}}·\mathrm{B}$$

(5b)

Finally, substituting Equations (5a) and (5b) to Equations (3a) and (3b) and re-arranging yields the governing equations for the nearshore P-mussel model:

$$\frac{{\mathrm{dPP}}_{\mathrm{nearshore}}}{\mathrm{dt}}=\frac{\mathrm{Q}·\left({\mathrm{PP}}_{\mathrm{offshore} }-{ \mathrm{PP}}_{\mathrm{nearshore}}\right)}{\mathrm{V}}-\frac{F_{vol}·\mathrm{B}·{\mathrm{PP}}_{\mathrm{nearshore}}}{\mathrm{H}}$$

(6a)

$$\frac{{\mathrm{dSRP}}_{\mathrm{nearshore}}}{\mathrm{dt}}=\frac{\mathrm{Q}·\left({\mathrm{SRP}}_{\mathrm{offshore}}-{\mathrm{SRP}}_{\mathrm{nearshore}} \right)}{\mathrm{V}}+f·\frac{F_{vol}·\mathrm{B}·{\mathrm{PP}}_{\mathrm{nearshore}}}{\mathrm{H}}$$

(6b)

In this form, solution of the PP and SRP mass balances requires:

• parameterization of the biokinetic coefficients F_vol and f (Section 3.2.1);
• specification of mussel biomass density (Section 3.1);
• specification of offshore PP and SRP concentrations (Section 3.2.2);
• specification of control volume physical characteristics (H and V; (Section 3.2.3)); and
• determination of the rate of cross margin flow (Q; Section 3.2.3).

3.2.1. Parameterization of the Biokinetic Coefficients F_vol and f

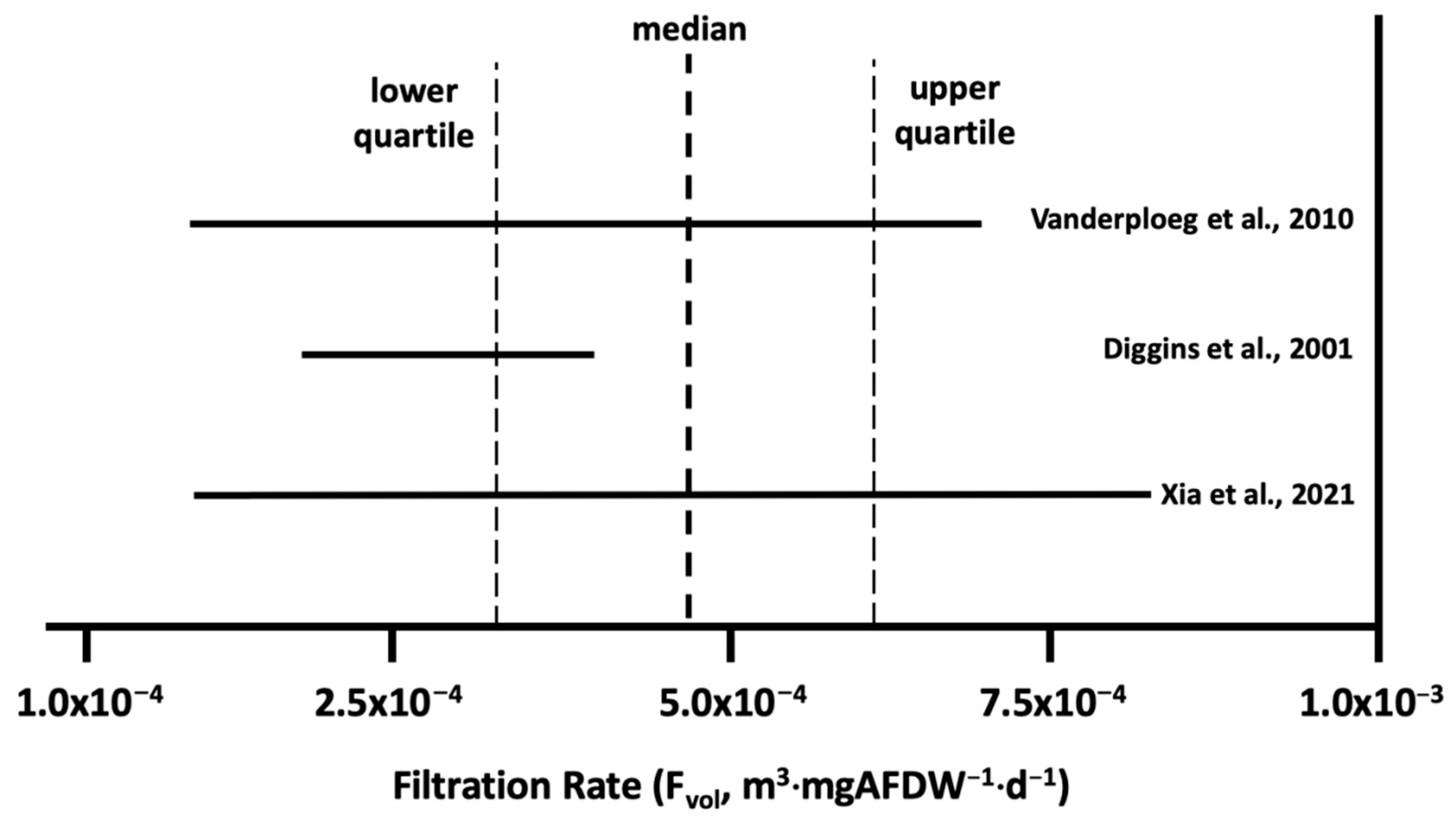

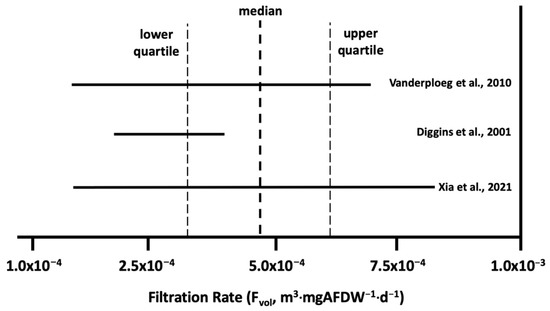

Implementation of the biokinetic model requires specification of two coefficients, the mussel-specific filtration rate (F_vol) and the PP to SRP conversion efficiency (f). Filtration, the means by which mussels acquire particulate matter, is known to be influenced by water temperature [34,35] and by food quality and quantity [35,36]. We did not treat temperature and food-quality mediation here, as these are seasonal and nutritional conditions beyond the resolution of our steady-state analysis. Instead, we focused on filtration-rate mediation by mussel body size at the mussel-specific scale and mussel density at the population scale [37]. Literature derived estimates of F_vol range from 10⁻⁴ to 10⁻³ m³·mgAFDW⁻¹d⁻¹ (Figure 3). We ascribe this order of magnitude variation to cross-study non-normalization for temperature and food quality and quantity as well as techniques for mussel harvest, maintenance and manipulation, and experimental design [38]. Here, we adopted a value for F_vol = 4.75 × 10⁻⁴ m³·mgAFDW⁻¹·d⁻¹ as a representative rate for use in the biokinetic model. This rate is the median value for ranges of F_vol reported by Diggins et al. [39]; Vanderploeg et al. [34]; and Xia et al. [40] (Figure 3). The upper (6.46 × 10⁻⁴ m³·mgAFDW⁻¹·d⁻¹) and lower (3.04 × 10⁻⁴ m³·mgAFDW⁻¹·d⁻¹) quartiles of these ranges were utilized in sensitivity analysis.

Proceeding from the work of Bootsma [22] and Mosely and Bootsma [33], one may determine the PP to SRP mussel conversion efficiency (f) as the ratio of the mussel-specific rate of SRP excretion (E_SRP, mgP·mgDW⁻¹·d⁻¹) to the mussel-specific rate of PP filtration (F_PP, mgP·mgDW⁻¹·d⁻¹),

$$f=\frac{{\mathrm{E}}_{\mathrm{SRP}}}{{\mathrm{F}}_{\mathrm{PP}}}$$

(7)

Excluding the small quantities of P retained in mussel biomass [41], F_PP may be seen to equal the sum of the mussel-specific rates of SRP excretion (mgP·mgDW⁻¹·d⁻¹) and PP pseudo-feces egestion and feces excretion (E_PP, mgP·mgDW⁻¹·d⁻¹),

$$f=\frac{{\mathrm{E}}_{\mathrm{SRP}}}{{\mathrm{E}}_{\mathrm{SRP}}+{ \mathrm{E}}_{\mathrm{PP}}}$$

(8)

Again, ignoring P retained as biomass and substituting from Equation (4a) to Equation (7) yields

$$f=\frac{{\mathrm{E}}_{\mathrm{SRP}}}{{\mathrm{F}}_{\mathrm{vol}}·\mathrm{PP}}$$

(9)

Thus, the approaches presented as Equations (8) and (9), similar in nature but drawing on different aspects of experimental measurement, are available for estimating values of f.

Mosley and Bootsma [33] measured rates of egestion and excretion for profunda morph quagga mussels in Lake Michigan and developed functions relating those rates to mussel biomass (dry weight, DW):

$${\mathrm{E}}_{\mathrm{SRP}}=0.01·{\mathrm{DW}}^{-0.343}$$

(10)

$${\mathrm{E}}_{\mathrm{PP}}=0.0686·{\mathrm{DW}}^{-0.791}$$

(11)

We calculated conversion efficiency by applying Equations (10) and (11) to Equation (8) for mussel biomass ranging from 0.08 mgDW (2-mm shell length) to 40 mgDW (30-mm shell length). This yields values of f ranging from 0.05–0.43 with a value of f = 0.29 for a shell length of 15 mm, the average length for Good Harbor Bay [25].

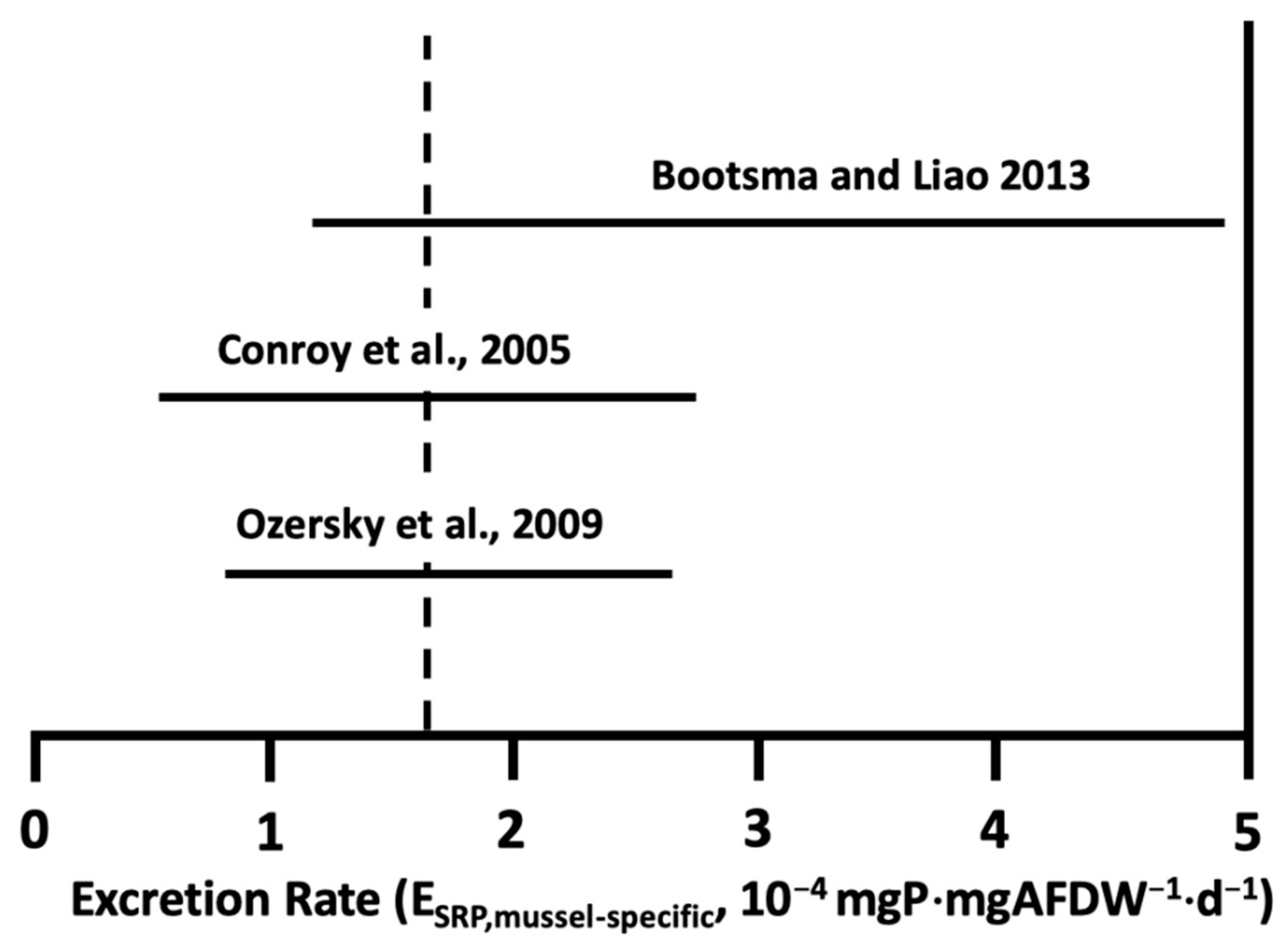

In a previous study focusing on the shallow morph quagga mussel in Lake Michigan, Bootsma [22] developed a relationship for calculating SRP excretion as a function of mussel biomass:

$${\mathrm{E}}_{\mathrm{SRP}}=0.1525·{\mathrm{DW}}^{-0.7617}$$

(12)

However, no relationship was provided between shallow morph E_PP and DW (as was done for the profunda morph, Equation (11)). Therefore, Equation (9) was utilized, applying an F_vol value of 4.18 × 10⁻⁴ m³·mgDW⁻¹·d⁻¹, converted from the representative value (F_vol = 4.75 × 10⁻⁴ m³·mgAFDW⁻¹·d⁻¹) using an AFDW:DW ratio of 0.88 [26]. In making the calculation, we used a PP value of 6.8 mgP·m⁻³, the concentration reported by Bootsma [22] for shallow morph site measurements. The resulting values of f ranged from 0.21–0.49 for a mussel biomass of 5–15 mgDW, a range corresponding to shell lengths of 14–25 mm, mid-range for shallow morph populations (Figure 3 and Figure 4 of Mosley and Bootsma [33]). For a 15-mm quagga mussel (the average mussel length in Good Harbor Bay), the value of f is 0.29.

Based on calculations made using results from Bootsma [22] and Mosely and Bootsma [33], we carried forward f = 0.29 as the representative conversion efficiency for application to shallow-water habitats co-inhabited by mussels and Cladophora. This representative value is comparable to estimates of f applied in other modeling studies focusing on the quagga mussel in Lake Michigan ([17], f = 0.35 and [29], f = 0.30). We further examined selection of the coefficient by calculating E_SRP using Equation (4b) with f = 0.29, F_vol = 4.75 × 10⁻⁴ m³·mgAFDW⁻¹·d⁻¹ (

Table 1. Coefficients and model inputs used in simulations: (a) median concentrations and ranges for soluble reactive and particulate phosphorus in the offshore waters of Lake Michigan as applied in sensitivity analyses and management simulations for the post-dreissenid period, (b) model inputs and coefficients representative of conditions in Good Harbor Bay for the post-dreissenid period, (c) median concentrations for soluble reactive and particulate phosphorus in the offshore waters of Lake Michigan for the pre-dreissenid period, and (d) median concentrations for soluble reactive and particulate phosphorus in the east side and west side nearshore waters of Lake Michigan for the post-dreissenid period.

Model Input or Coefficient	Value	Range
(a). Model inputs and coefficients for Good Harbor Bay, post-dreissenid period
Mussel biomass density (B, mgAFDW·m−2)	15,266	0–50,000
Mussel filtration rate (Fvol, ×10−4 m3·mgAFDW−1·d−1)	4.75	3.04, 4.75, 6.46
Mussel PP to SRP conversion efficiency (f, d’less)	0.29	0.2, 0.3, 0.4, 0.5
Rate of cross-margin flow (Q, ×108 m3·d−1)	2.1	0.25, 1.0, 2.0,4.0, 6.0
(b). Phosphorus levels for the Lake Michigan offshore, post–dreissenid period
SRP in the offshore, SRPoffshore, mgP·m−3	0.84	0.50, 0.80, 1.00, 1.25, 1.50
PP in the offshore, PPoffshore, mgP·m−3	1.05	0–7
(c). Phosphorus levels for the Lake Michigan offshore, pre-dreissenid period
SRP in offshore waters (SRPoffshore, mgP·m−3)	0.80
PP in offshore waters, (PPoffshore, mgP·m−3)	2.10
(d). Phosphorus levels for the Lake Michigan nearshore, post-dreissenid period
SRP at nearshore east stations, SRPnearshore, mgP·m−3	1.45
SRP at nearshore west stations, SRPnearshore, mgP·m−3	2.34
PP at nearshore east stations, PPnearshore, mgP·m−3	5.70
PP at nearshore west stations, PPnearshore, mgP·m−3	6.12

), and PP_nearshore = 1.21 mgP·m⁻³ (Good Harbor Bay, [21]). The resulting rate, 1.65 × 10⁻⁴ mgSRP·mgDW⁻¹·d⁻¹, is consistent with those reported from the literature (Figure 4). We applied conversion efficiencies of f = 0.2, 0.3, 0.4, and 0.5 in performing sensitivity analyses.

3.2.2. The Phosphorus Environment

Application of the linked hydrodynamic-biokinetic model requires specification of offshore concentrations of SRP and PP. It is critical that the phosphorus environment be carefully and reliably described because the phosphorus–Cladophora dynamic is played out across a narrow range of SRP concentrations (0–2 mgP·m⁻³) approaching the limit of detection (typically 0.5 mgP·m⁻³). Here, we refer to monitoring performed by the U.S. EPA Great Lakes Water Quality Survey available through the GLENDA database. These surveys were performed in spring (late March to early May) and summer (late July to mid-September) from 1983–2018 (excepting 1994). We selected 11 stations on Lake Michigan having a maximum depth of ≥90 m and a monitoring record of 30 or more years (Appendix A, Figure A1). The database reports concentrations of total phosphorus (TP), total dissolved phosphorus (TDP), and SRP, from which PP and dissolved organic phosphorus (DOP) may be determined.

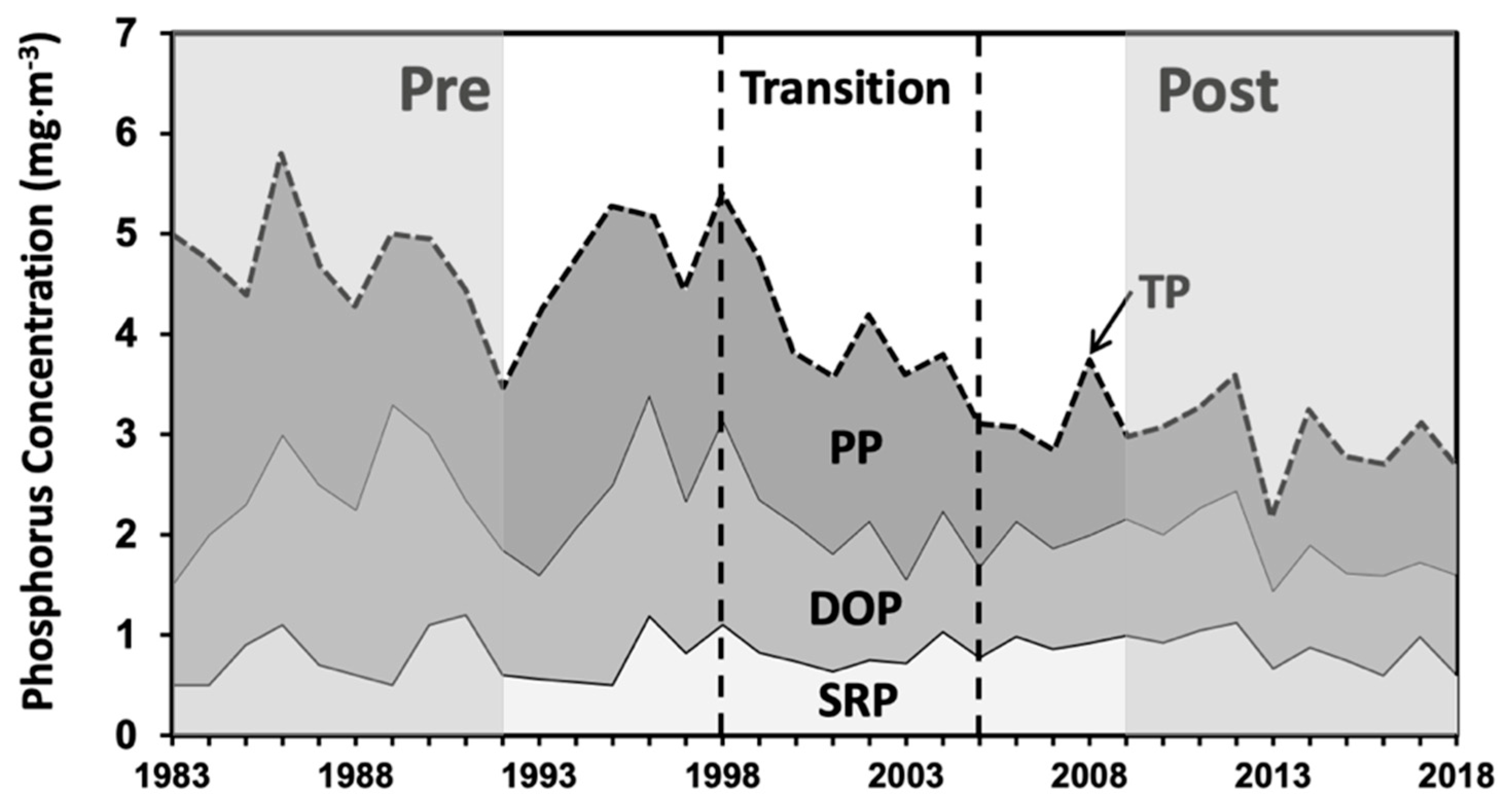

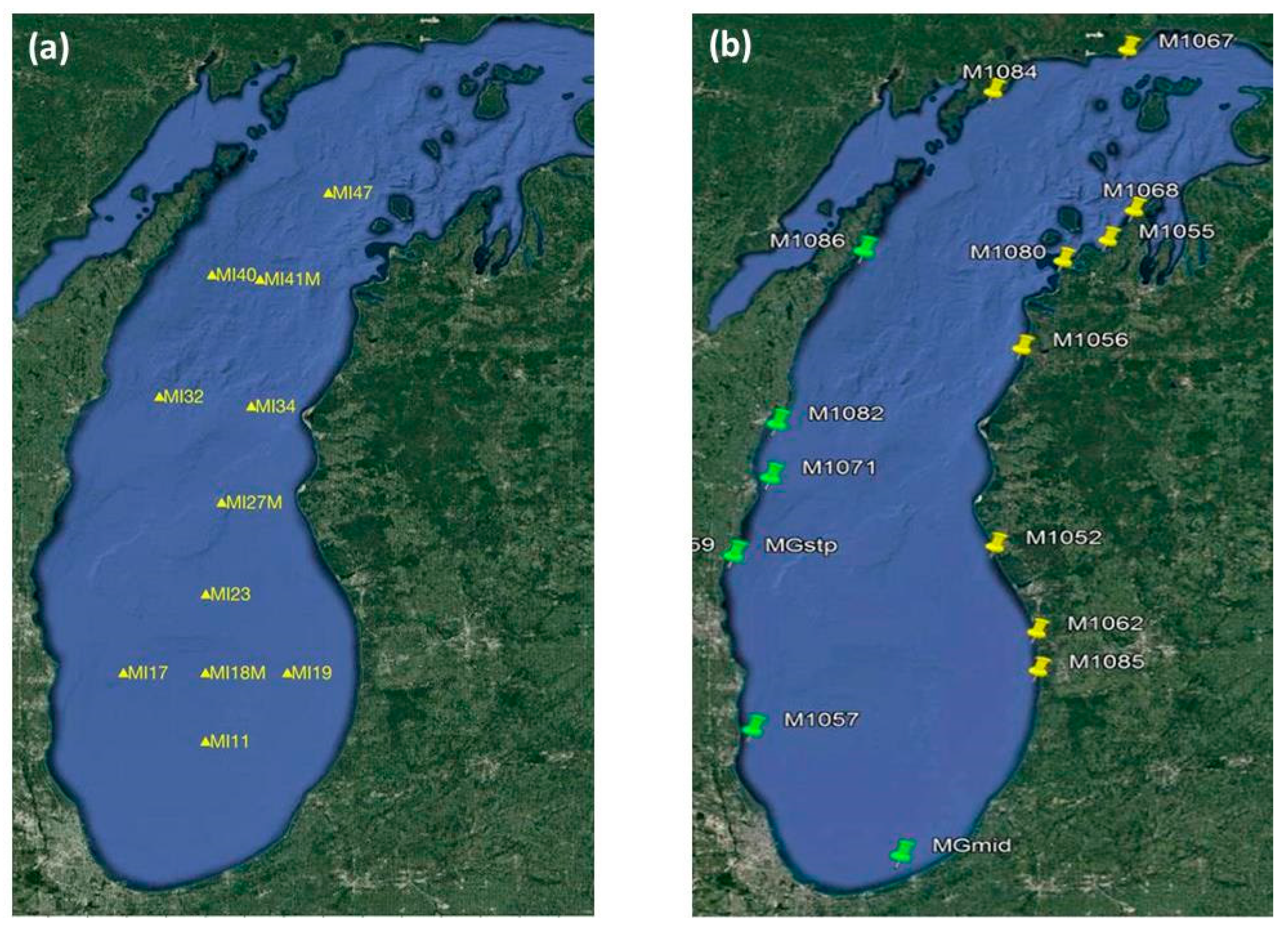

We partitioned the full database into a 2 × 2 matrix (Spring, Summer, Surface, and Bottom) yielding four quadrants. Matrix pairs were examined for significant differences (t-test, p ≤ 0.05) in an effort to identify those that could be treated collectively as representative of offshore conditions. The Spring Surface vs. Spring Bottom pair exhibited the least significant difference. However, we limited further analysis to the Spring Surface quadrant (Appendix B,

Table A2. Determination of representative concentrations of total, particulate, dissolved organic, and soluble reactive phosphorus for the offshore waters of Lake Michigan.

(a) Spring cruise, surface water (Spring Surface) concentrations of total, particulate, dissolved organic, and soluble reactive phosphorus for offshore sites on Lake Michigan over the entire period of record, 1983–2018 (n = 940). Data extracted from the U.S. EPA Great Lakes Water Quality Survey GLENDA database prior to partitioning with respect to region (north south; east west) or era (pre- and post-dreissenid periods).
	Mean (mgP·m−3)			S.D. (mgP·m−3)		Median (mgP·m−3)
TP	4.17			1.44		4.03
PP	1.86			1.20		1.75
DOP	1.41			0.70		1.30
SRP	0.90			0.49		0.82
(b) Spring cruise, surface water (Spring Surface) concentrations of total, particulate, dissolved organic, and soluble reactive phosphorus for offshore sites on Lake Michigan, partitioned into data for the pre-dreissenid (1983–1992; n = 339) and post-dreissenid (2009–2018; n = 244) periods. Data extracted from the U.S. EPA Great Lakes Water Quality Survey GLENDA database.
	Mean (mgP·m−3)			S.D. (mgP·m−3)		Median (mgP·m−3)
	Pre	Post		Pre	Post	Pre		Post
TP	5.02	3.06		1.56	0.76	4.80		3.03
PP	2.32	1.17		1.45	0.73	2.10		1.05
DOP	1.72	1.04		0.82	0.44	1.60		1.00
SRP	0.97	0.86		0.70	0.33	0.80		0.84
(c) Concentrations of total, soluble reactive, and particulate phosphorus for nearshore (depth < 20 m) sites on Lake Michigan, partitioned into data for east (lower levels of watershed activity) and west (higher levels of watershed activity) stations. Data extracted from a monitoring survey performed in September 2010 by Yurista et al. [43] (Anne Cotter, U.S. EPA MED, personal communication).
	Nearshore East Stations				Nearshore West Stations
	Mean (mgP·m−3)	S.D. (mgP·m−3)	n	Median (mgP·m−3)	Mean (mgP·m−3)	S.D. (mgP·m−3)	n	Median (mgP·m−3)
TP	7.87	2.28	8	7.53	11.15	4.77	6	10.56
PP	6.11	1.28	8	5.70	6.39	1.09	4	6.12
SRP	1.54	0.38	9	1.45	2.27	0.50	6	2.34

a), as that sampling aligns well temporally with the alga’s growing season, capturing SRP levels during the period of active Cladophora growth and prior to SRP drawdown by phytoplankton. We examined the Spring Surface data set for significant differences among stations horizontally (north-south and east-west) and found none. Finally, differences in the Spring Surface subset were examined in a long-term context, i.e., for a period (1983–1992) in the pre-dreissenid period, prior to dreissenid invasion, and a period (2009–2018) in the post-dreissenid period, following colonization of Lake Michigan by dreissenid mussels (Appendix B, Table A2b). Striking changes in TP and several of its components were reported from the pre- to post-dreissenid periods (Figure 5 and Figure 6). TP dropped 37% from 4.8. to 3.0 mgP·m⁻³, PP dropped 50% from 2.10 to 1.05 mgP·m⁻³, and DOP dropped 38% from 1.60 to 1.00 mgP·m⁻³; SRP levels modestly increased (5%) from 0.80 to 0.84 mgP·m⁻³.

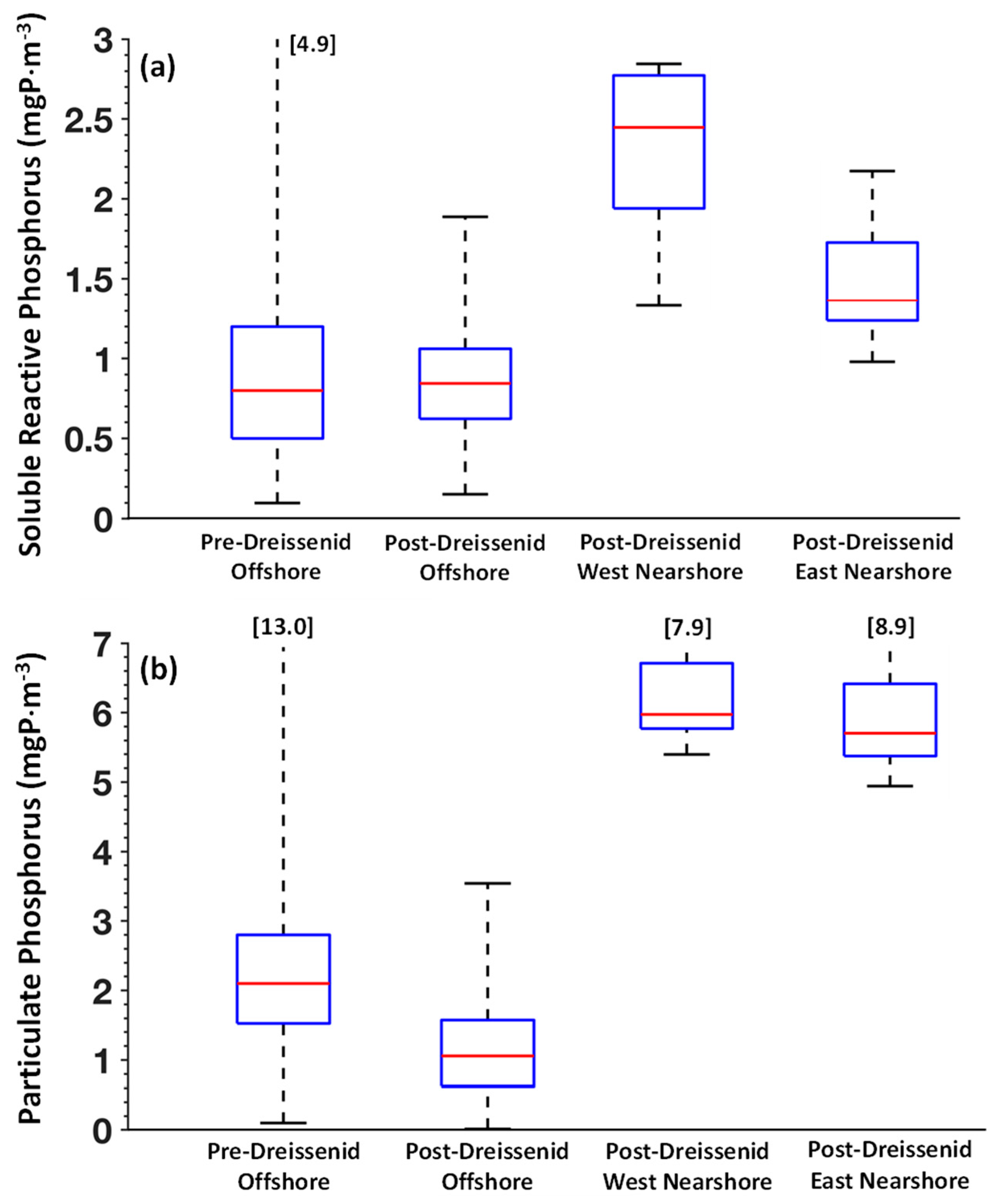

As a basis for comparison to offshore conditions, we also examined monitoring results for TP, SRP, and PP obtained during a survey of the Lake Michigan nearshore performed by Yurista et al. [43] (Anne Cotter, U.S. EPA MED, personal communication) from 9–15 September 2010. Samples were collected at depths <20 m at 15 stations along a ~1000 km track encircling Lake Michigan (Appendix A, Figure A2). We separated the nearshore data set into east and west components, recognizing the potential impact of different levels of landscape activity. It is evident from this analysis that SRP concentrations (the source immediately available to Cladophora) were markedly higher in the nearshore than the offshore and higher along the west coast than the east (Figure 6; see also Appendix B, Table A2c).

3.2.3. The 3-D Hydrodynamic Model: Simulating Cross-Margin Transport

Flow patterns are complex at the nearshore–offshore boundary and within Good Harbor Bay, as strong coastal jets flow northeastward and southwestward along the boundary. As an example, monthly average flow for July 2018 was driven by a coastal jet moving northeastward along the boundary. Inflow was received at the northeast limit of the margin as a branch of the coastal jet and returned to join the coastal jet at the southwest limit of the margin. A bay-wide eddy was formed in the nearshore, reflecting the influence of variability in shoreline structure and bathymetry (Figure 7a).

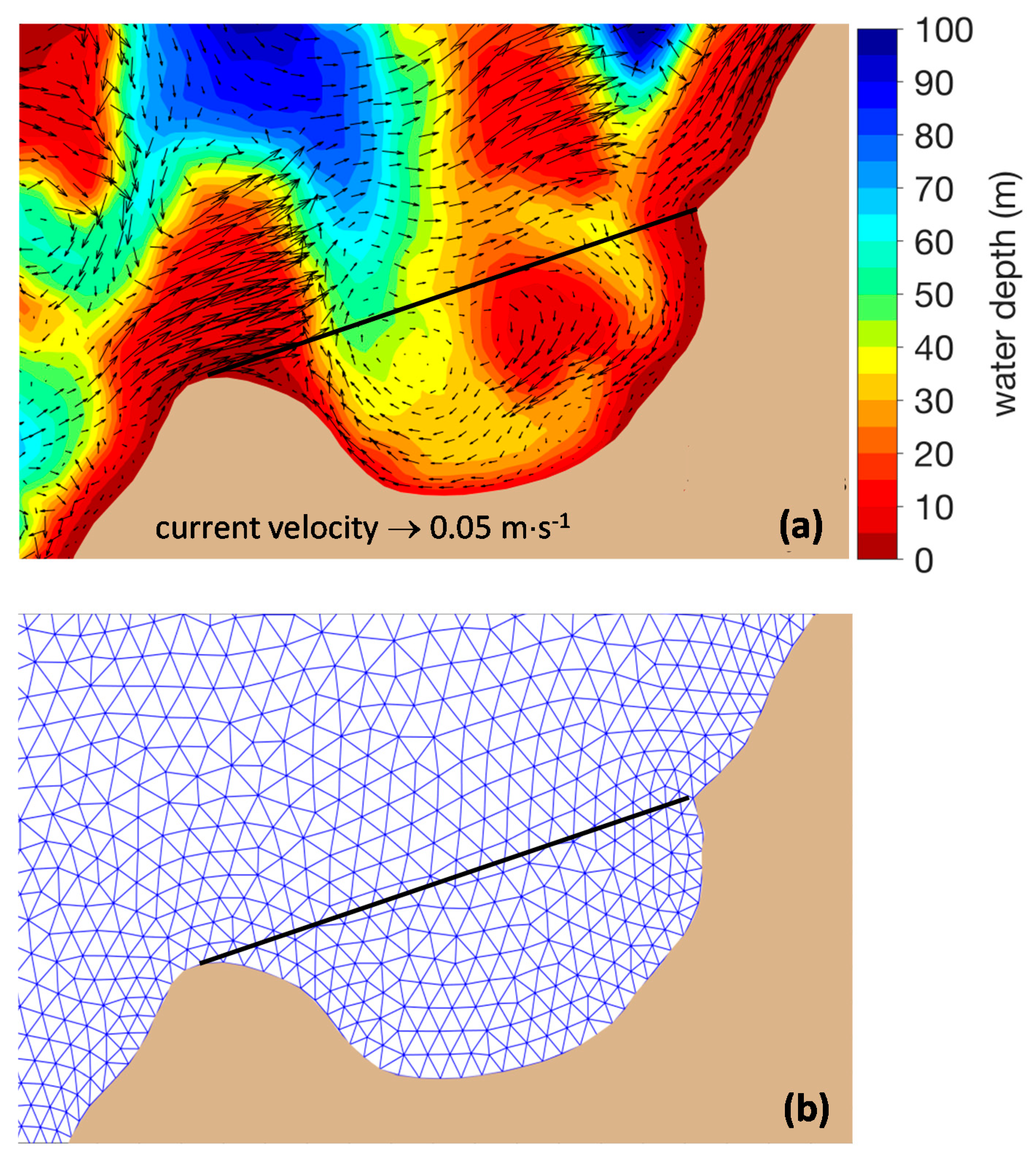

Due to the complexity of the flow pattern (Figure 7a), it is not sufficient to estimate cross-margin transport from one or several ADCP (Acoustic Doppler Current Profiler) observations of water velocity. It is more effective to calculate cross-boundary transport using a hydrodynamic model and test model performance using ADCP measurements. The Finite Volume Community Ocean Model (FVCOM) was applied here to determine cross-margin transport. FVCOM is a three-dimensional (3D), free-surface, primitive-equation hydrodynamic model that solves the integral form of the governing equations on an unstructured, sigma-coordinate mesh. The advantage of an unstructured grid mesh for shoreline fitting and local mesh refinement makes the model particularly attractive in applications to coastal waters. FVCOM has been applied in many coastal systems characterized by geometric complexities and highly variable flow patterns, including Lake Ontario [12,44] and Lake Michigan [29,45]. The particular version of the tool used here is the Lake Michigan-Huron FVCOM model, which supports the NOAA Lake Michigan-Huron Operational Forecast System (LMHOFS). The LMHOFS is driven by hourly data from High-Resolution Rapid Refresh (HRRR), a 3-km, cloud-resolving, and convection-allowing atmospheric model running in real time at the National Oceanic and Atmospheric Administration (NOAA) with radar data assimilated into the model at 15-min intervals [46]. The LMHOFS resolution varies from 2.5 km (coarse) in the offshore to 100 m (fine) in the targeted nearshore, adequately resolving the geographic complexity and coastal hydrodynamic conditions of the system (Figure 7b). Details regarding configuration and validation of FVCOM and LMHOFS skill assessments are provided by Peng et al. [47].

FVCOM was applied in calculating the mean daily cross-margin flow at Good Harbor Bay for the April–August period of 2016, 2017, and 2018; these results were then averaged to provide a representative cross-margin flow for the study system (Q = 2.1 × 10⁸ m³·d⁻¹). Good Harbor Bay includes shallow nearshore water and shoal environments having light conditions favorable for Cladophora growth (0–10 m; [3]). Thus, in our biophysical model, we utilized the water volume and transport as calculated for the mean depth of 21 m normalized to a depth of 10 m. Finally, we calculated cross-margin flow for 2018 at several other nearshore and embayment locations (Appendix A, Figure A1,

Table A1. Site characteristics and rates of cross-margin flow for locations having differing coastal structure. With Q, cross-margin transport; τ, water residence time; H, average water depth; A_cs, transect cross-sectional area, A_b, bottom area; and V, water volume.

Site	Q (108 m3·d−1)	τ (d)	H (m)	Acs (105 m2)	Ab (105 m2)	V (109 m3)
Embayments
Good Harbor Bay	2.10	4.47	10	2.79	430	0.934
Big Bay De Noc	2.19	15.3	7.63	2.51	4400	3.35
Nearshore Regions
Milwaukee, WI	4.70	5.44	13.03	7.60	1965	2.56
Southeast Lake Michigan	2.90	7.48	12.29	9.55	1770	2.17

) to facilitate comparison of conditions at Good Harbor Bay with other coastal environments. Cross-margin flows determined using FVCOM served as the hydrodynamic input to the biophysical model.

3.3. Design and Execution of Numerical Experiments

The modeling objective was to calculate concentrations of SRP_nearshore corresponding to a matrix of PP_offshore concentrations and mussel biomass densities (B) for specified values of SRP_offshore and cross-margin flow (Q). Model calculations also required input of two biokinetic coefficients: F_vol, the mussel-specific filtration rate, and f, the coefficient for efficiency of mussel conversion of PP to SRP. Representative values and ranges for F_vol, f, and B were identified from the literature, for Q from FVCOM simulations (Appendix A, Table A1), and for PP and SRP in the nearshore and offshore from the U.S. EPA database (Appendix A, Table A2b,c). Inputs and coefficients supporting numerical experiments are summarized in Table 1.

Numerical experiments were performed to examine the sensitivity of SRP_nearshore to values of F_vol and f, to values of Q, and to concentrations of SRP_offshore. Next, numerical experiments were performed in a management context, first seeking to place pre- and post-dreissenid levels of PP_offshore and SRP_offshore on a two-dimensional map of model predicted SRP_nearshore concentrations for Good Harbor Bay. This result served to establish the likelihood that offshore P reserves could support nuisance levels of Cladophora growth at the study site. Finally, an approach was described where site-specific physical and biological mediating conditions may be quantified, extending model application broadly to coastal regions across the Great Lakes.

Numerical experiments consisted of applications of the linked hydrodynamic-biokinetic model, solving the mass balances for PP_nearshore (Equation (3a)) and SRP_nearshore (Equation (3b)) using a forward Euler method with a 0.1-day time step applied in Fortran 90. Each numerical experiment was run for 120 days, over which a steady state was reached, typically in ~12 days. Initial conditions are not relevant where a steady state is the desired endpoint.

3.4. Interpreting the Results of Numerical Experiments

The primary objective of this work was to quantify the potential for offshore reserves of SRP and PP to maintain nearshore SRP concentrations at levels sufficient to support nuisance growth of Cladophora in the absence of local sources of the nutrient. It has long been recognized that the relationship between Cladophora growth potential (growth rate, maximum biomass) and the nutritional status of the alga (stored P content) takes the form of a rectangular hyperbola [6,48,49,50]. We adopted the approach of Auer et al. [12], where the Great Lakes Cladophora Model (GLCM v3; [50]) was applied in developing a plot of normalized maximum attainable Cladophora biomass versus SRP concentration. Biomass increases in a linear fashion with increasing SRP concentration (region of P limitation), eventually transitioning to an asymptote where biomass accrual is insensitive to further increases in SRP (region of saturation). We adopted an SRP concentration of 1.25 mgP·m⁻³, mid-range in the region of P limitation, as the criterion for avoidance of nuisance growth of Cladophora. In model output, we display the adopted criterion as a solid black line overlain on the SRP map at a concentration of 1.25 mgP·m⁻³. We note that there is uncertainty with respect to the value identified for the adopted criterion (interpretation of the Cladophora biomass–SRP curve), input of the offshore SRP and PP concentrations (spatiotemporal variation, limit of detection), and the biophysical model (variability in biokinetic coefficients). These uncertainties are of lesser concern below the adopted criterion, as any position there is expected to avoid nuisance growth. Above the adopted criterion, however, uncertainties become more important as efforts to supplement phosphorus nutrition in offshore waters drives nearshore SRP concentrations toward those supporting nuisance conditions.

4. Results and Discussion

4.1. Sensitivity Analysis

The primary focus of our work was to characterize the potential for offshore reserves of SRP and PP, delivered to the nearshore through cross-margin transport, to maintain nearshore SRP concentrations at levels sufficient to support nuisance growth of Cladophora in the absence of local sources of the nutrient. We examined that potential across a matrix of offshore PP concentrations and mussel biomass densities, examining model sensitivity to the biokinetic parameters F_vol and f, the rate of cross-margin transport and offshore SRP concentrations.

4.1.1. Sensitivity to Biokinetic Coefficients

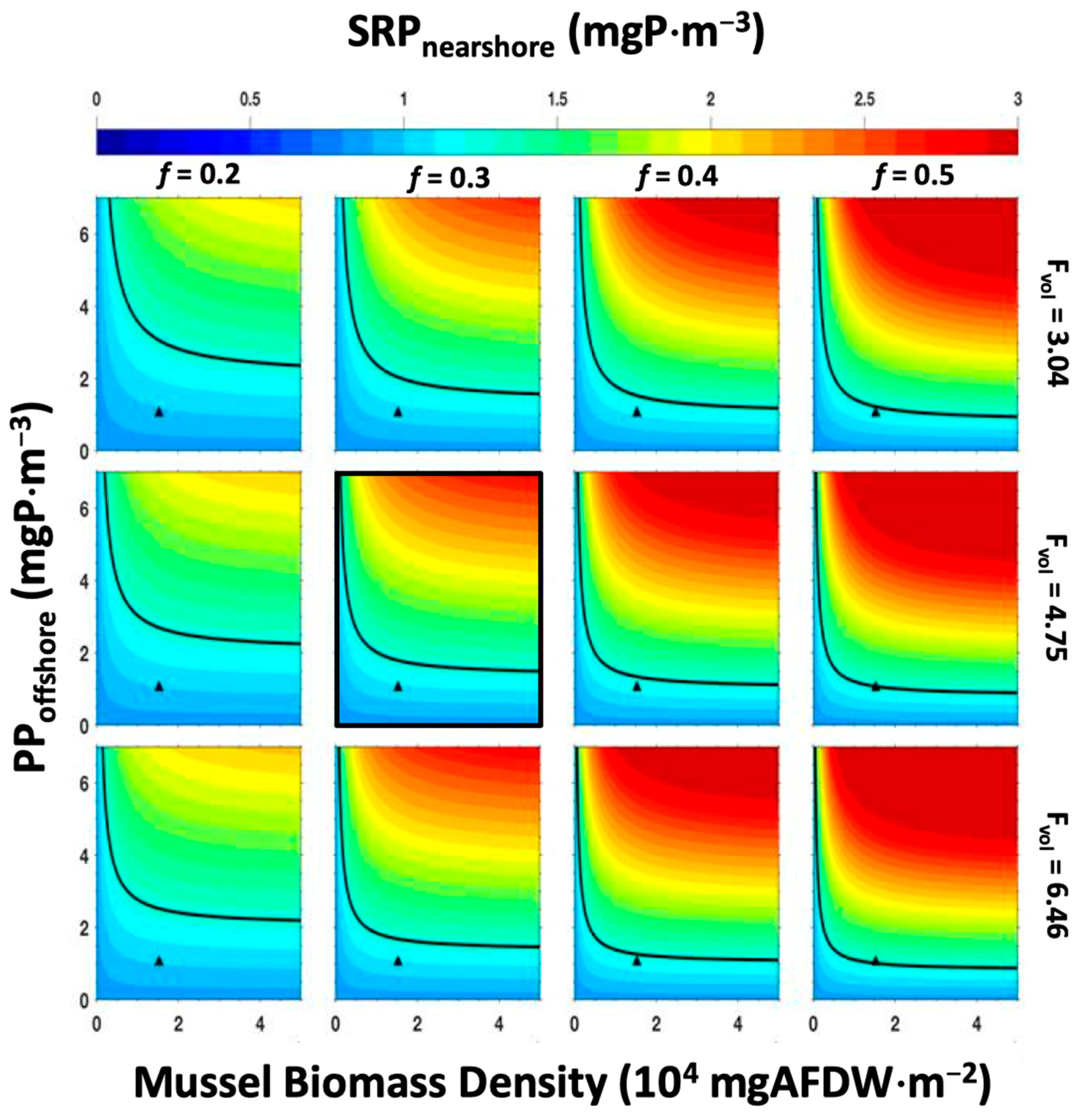

In the biophysical model utilized here, biokinetic processes play a role in mediating levels of SRP_nearshore in two ways: first, with respect to the rate at which PP-containing water is entrained by mussels (filtration, F_vol), and second, by the efficiency with which that PP is converted to SRP (f). Model sensitivity to values of F_vol was examined for the lower quartile (3.04 m³·mgAFDW⁻¹·d⁻¹), median (4.75 m³·mgAFDW⁻¹·d⁻¹; representative value), and upper quartile (6.46 × 10⁻⁴ m³·mgAFDW⁻¹·d⁻¹) of selected results reported in the literature (Section 3.3; see Table 1). Values of f applied in performing sensitivity analyses (0.2, 0.3, 0.4, and 0.5) bracketed the representative value (0.29) adopted from the literature in Section 3.2.1 (Section 3.3; see Table 1). Simulations were performed over ranges of PP_offshore and mussel biomass density with other model inputs (SRP_offshore, Q, and B) set at the representative values for Good Harbor Bay (Table 1).

Model-predicted concentrations of SRP_nearshore remained below the criterion concentration across the entire F_vol × f matrix (Figure 8). Of the two coefficients, model output was least sensitive to the value of F_vol, i.e., the map position for Good Harbor Bay (triangle, Figure 8) remained in essentially the same position relative to the criterion over the range of F_vol values. The impact of variation in the value of f was greater, with the gap in the Good Harbor map position and criterion concentration closing (but remaining within the criterion boundary) as f increased. The first result, lack of sensitivity to F_vol, reflects the non-linearity and asymptotic behavior of biophysical forcing, as discussed subsequently (Section 4.3), while that of the second result points to increased lability of PP in mussel recycling.

4.1.2. Sensitivity to the Rate of Cross-Margin Transport

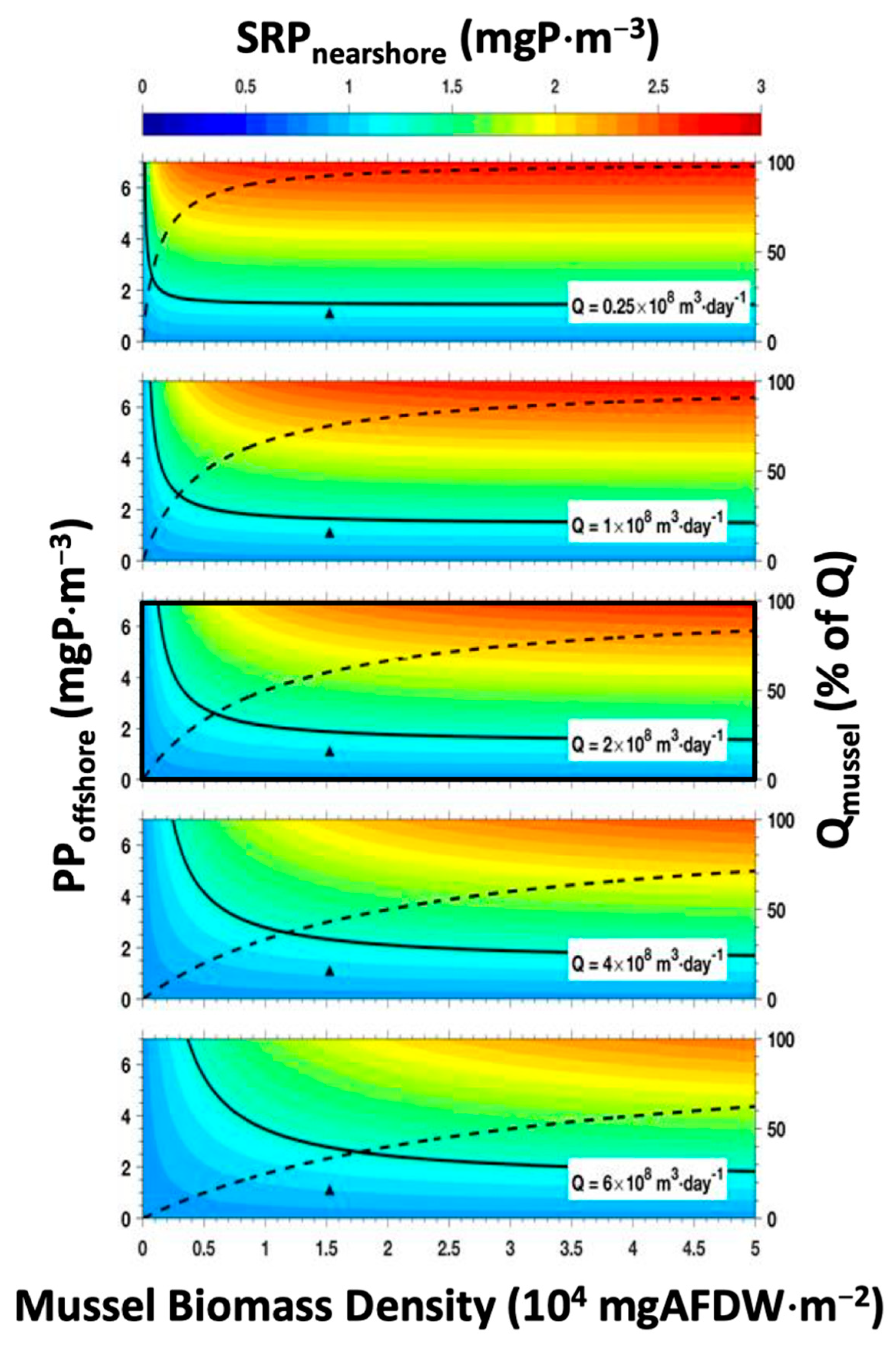

The degree to which offshore forcing serves to mediate nuisance Cladophora growth is, in part, influenced by the rate of cross-margin transport (Q). In this sensitivity analysis, we explored the impact of variability in that rate over a range of cross-margin flows (Q = 0.25 − 6 × 10⁸ m³·d⁻¹) representing two reaches of near-linear Lake Michigan shoreline and two of the lake’s embayments (Appendix A, Table A1). Ranges for PP_offshore and B were as for the previous scenario, and values for other model inputs and coefficients were those presented as representative values in Table 1. We also included a new metric (Q_mussels, %), calculated as the ratio of mussel filtration (F_vol·B, m³·d⁻¹) calculated and expressed as a percentage of Q.

In these simulations, representing diverse shoreline structure, model-predicted SRP_nearshore concentrations remained below the adopted criterion for avoidance of nuisance growth of Cladophora (Figure 9). In essence, this simulation portrays a dilution series. The dilution effect is evident in the opening of the gap between the Good Harbor Bay map position and the criterion concentration as Q increases (Figure 9). Here, mussels were processing a lesser fraction of the cross-margin supply, and the nearshore waters came more to resemble offshore conditions. The rate of cross-margin flow, determined for Good Harbor Bay using FVCOM (Q = 2.1x × 10⁸ m³·d⁻¹; Section 3.3, Table 1), was carried forward as the representative value for further simulations.

4.1.3. Sensitivity to Offshore SRP Concentration

Forcing of SRP_nearshore by offshore reserves is of particular interest in a management context because the SRP analyte is the form of the nutrient freely and fully available to support Cladophora growth. In examining the sensitivity of SRP_nearshore to cross-margin transport, we examined SRP_offshore concentrations of 0.5, 0.8, 1.0, 1.25, and 1.5 mgP·m⁻³. The lowest value, 0.5 mgP·m⁻³, is below the representative value for the offshore waters of Lake Michigan (Table 1) in the pre- and post-dreissenid periods and approximates the detection limit for the analyte. The value 0.8 mgP·m⁻³ approximates that considered a representative value for the offshore waters of Lake Michigan in the pre- and post-dreissenid Periods (Table 1). Values of 1.0, 1.25, and 1.5 mgP·m⁻³ represent the linear, P-limited range of Cladophora growth, with 1.25 mgP·m⁻³ being the adopted criterion for avoidance of nuisance growth. Concentrations beyond this range correspond to P-saturated conditions, levels experienced at times in Lakes Michigan (and regularly in Lake Ontario; [9]) in the pre-dreissenid period.

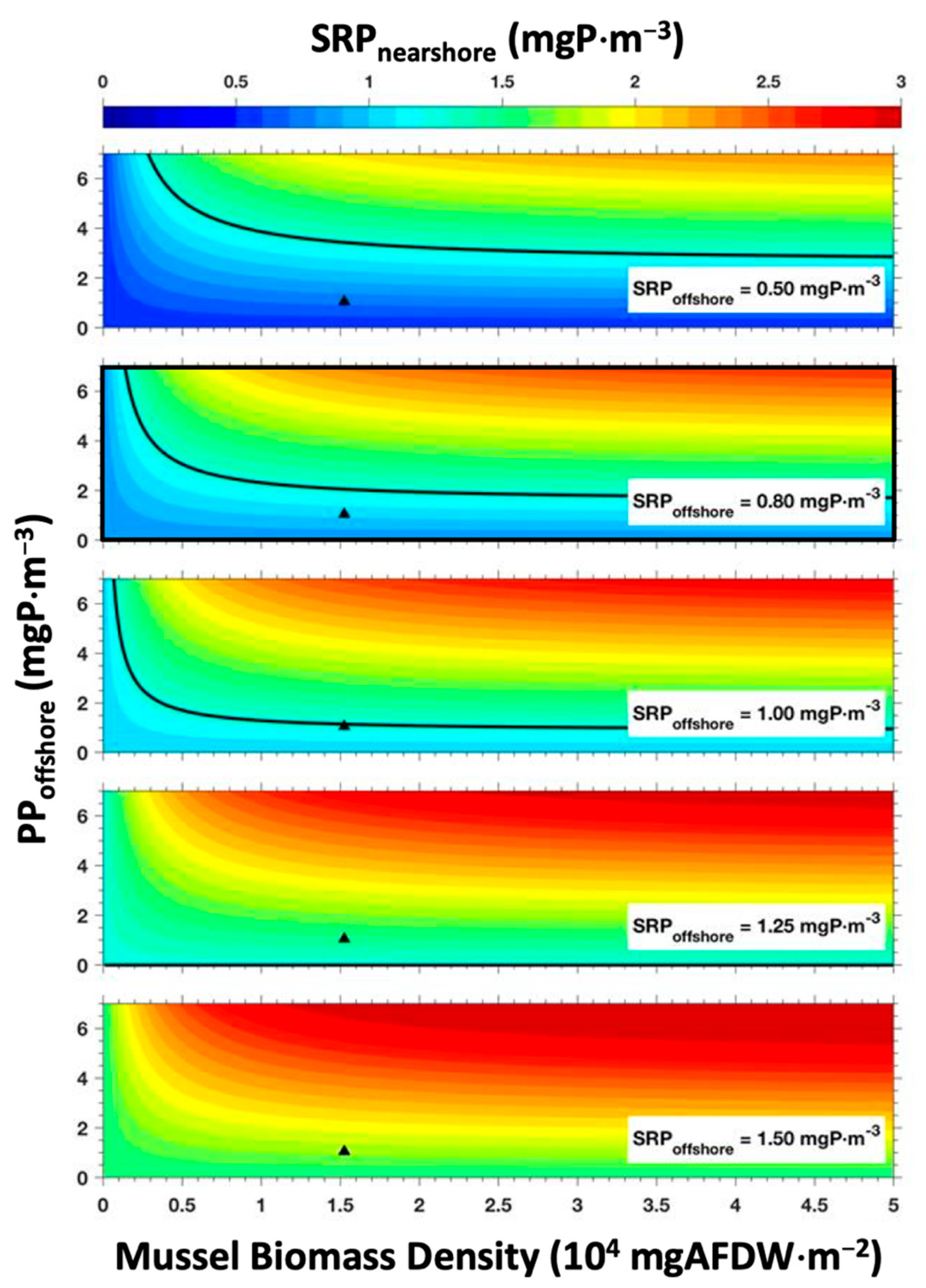

Simulation results, presented here as Figure 10, indicate that concentrations of SRP_nearshore will remain below the adopted SRP criterion of 1.25 mgP·m⁻³ for SRP_offshore concentrations <1 mgP·m⁻³ and a PP_offshore concentration 1.05 mgP·m⁻³, the median value for the post-dreissenid period (Table 1). At an SRP concentration of 1.25 mgP·m⁻³, SRP_nearshore will, by definition, be greater than or equal to the adopted criterion, exceeding that value through conversion of PP to SRP. At SRP_offshore levels exceeding 1.25 mgP·m⁻³, the adopted criterion will be exceeded at all combinations of PP_offshore and mussel biomass density, and the system becomes whole-lake forced. These simulation results indicate that nuisance growth of Cladophora will not be supported where SRP_offshore and PP_offshore concentrations both remain ≤ 1 mgP·m⁻³, i.e., a condition consistent with contemporary (post-dreissenid) levels (Table 1).

4.2. Management Analysis for Good Harbor Bay

The biophysical model was then applied to examine management considerations relating to offshore forcing of nuisance growth of Cladophora at Good Harbor Bay. Model inputs and coefficients were those applied to and derived from sensitivity analyses (Table 1). The biophysical model generates a two-dimensional map of SRP_nearshore concentrations for ranges of SRP_offshore and PP_offshore (Figure 11). The position of the Good Harbor Bay environment on the SRP_nearshore map was identified for the post-dreissenid period (Table 1), evaluated with respect to the adopted SRP_nearshore criterion and placed in a management context by comparing conditions forced solely by offshore SRP and PP reserves with those forced locally. Simulation results for the post-dreissenid period indicated that nearshore waters, forced solely by offshore PP and SRP levels, would be P-limited and essentially consistent with the objective of the SRP adopted criterion (Figure 11).

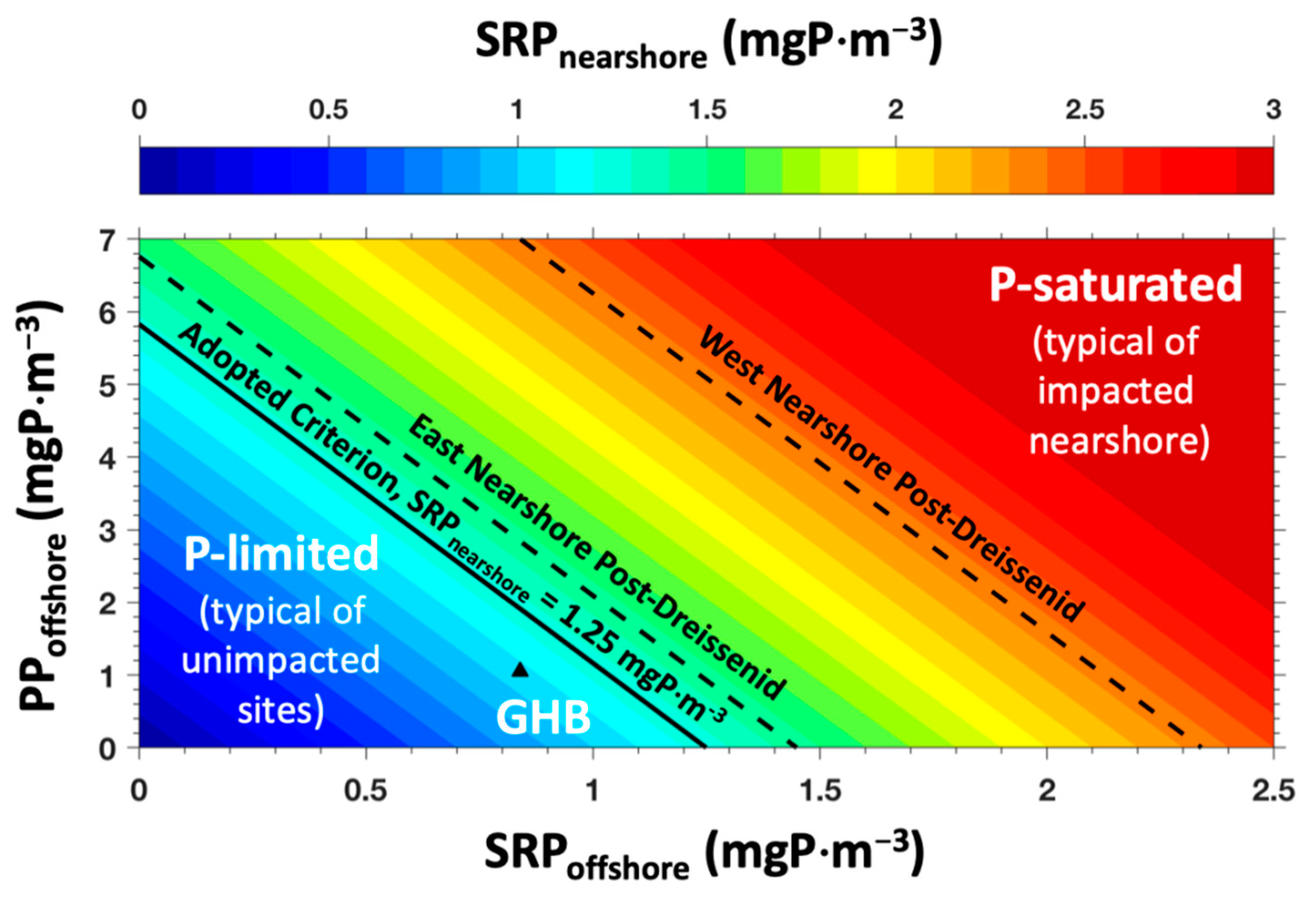

The results presented as Figure 11 provide a map of model calculated SRP_nearshore concentrations corresponding to sole source forcing by offshore SRP and PP reserves, i.e., in the absence of local discharges to nearshore waters. It is not appropriate to apply our 0-D steady-state biophysical model in simulating nearshore conditions influenced by local forcing. This is due to the heterogeneity inherent in discharge plumes attributable to the complexity of coastal hydrodynamics and the placement and timing of inputs. It is, however, appropriate (and useful) to identify the map position of nearshore waters relative to the adopted criterion (Figure 11) as reflected in measurements of SRP_nearshore (Table 1d). This result shows that SRP_nearshore concentrations along the east coast of Lake Michigan (lower landscape activity) would lie beyond the adopted criterion for SRP_nearshore even with a reasonable uncertainty in the boundary between P-limited and P-saturated conditions. Concentrations of SRP_nearshore along the west coast lie far beyond the criterion boundary, likely reflecting higher levels of landscape activity.

4.3. Extending the Model Application

The map of SRP_nearshore, presented previously as Figure 11, serves well in illustrating several points relating to offshore forcing and the Dual Challenge. However, its application as a more general-purpose tool is limited, as it accommodates only the intrinsic representative values for mussel biokinetics (F_vol, f) selected here and the site-specific conditions of cross-margin transport (Q) and mussel biomass density (B) for Good Harbor Bay. To provide a more broadly applicable and user-friendly tool, we developed algorithms for determination of conditions satisfying the adopted criterion for various combinations of those inputs and coefficients. This is accomplished by introducing a term, the biophysical coefficient (α), defined mathematically as

$$\mathsf{\alpha }=\frac{{\mathrm{F}}_{\mathrm{vol}}·\mathrm{B}}{\mathrm{H}}·\mathsf{\tau }$$

(13)

where τ is the water residence time (days) in an embayment or coastal segment. The R.H.S of Equation (13) can be rewritten as

$$\mathsf{\alpha }=\frac{{\mathrm{F}}_{\mathrm{vol}}·\mathrm{B}}{\mathrm{H}}/\left(\frac{1}{\mathsf{\tau }}\right)$$

(14)

which reflects the complementary or competitive role of biological (F_vol·B/H) and physical (1/τ) processes in determining the value of α. For example, a site with high mussel biomass densities (B) and a low flushing rate (extended residence time) would reflect a case where biophysical processes act in a complementary fashion to increase the value of α and thus the potential for nuisance growth of Cladophora. On the other hand, a site with high mussel biomass densities but experiencing a high flushing rate (limited residence time) would serve as an example of competition between biophysical processes resulting in a lower value of α and a lower potential for nuisance growth.

In this derivation, α is embedded in a parenthetical term referred to as the biophysical influence factor, $IF=\left(1-\frac{1}{1+\alpha }\right)·100\%$, quantifying the percentage of the PP_offshore delivered to the nearshore by cross-margin transport converted to SRP. Substituting α to the governing equations of the nearshore P-mussel model (Equations (6a) and (6b)), a steady-state solution for SRP_nearshore can be developed as

$${\mathrm{SRP}}_{\mathrm{nearshore}}={\mathrm{SRP}}_{\mathrm{offshore}}+IF·f·{\mathrm{PP}}_{\mathrm{offshore}}$$

(15)

Mathematically, α could range from 0 to positive infinity (∞⁺), and the influence factor (IF) would vary between 0% and 100% (Figure 12). For α → 0, the influence factor → 0%, and SRP_nearshore would → SRP_offshore, its lower limit. At the other extreme, ∞⁺, the influence factor → 100%, and SRP_nearshore → SRP_offshore + f · PP_offshore, its upper limit. The model-calculated concentration of SRP_nearshore would lie between these extremes, with its position depending on the value of IF as mediated by α, i.e., local biophysical conditions (Equation (15)). The significance of this solution lies in the fact that, for any given set of boundary conditions (the open-lake properties SRP_offshore and PP_offshore), the intrinsic processes of mussels (f and F_vol) and site-specific values of B, H, and τ, concentrations of SRP_nearshore can be estimated at any location.

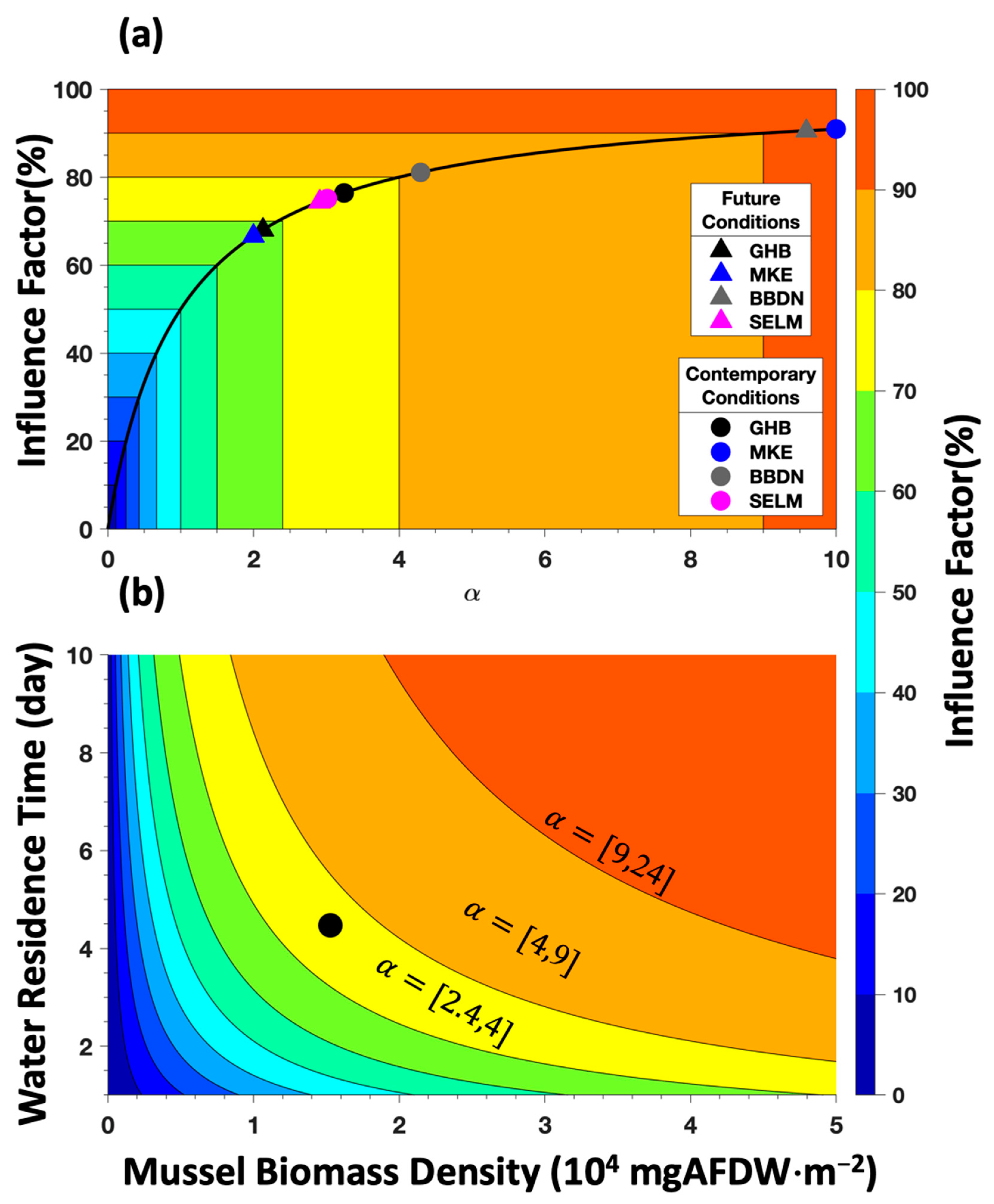

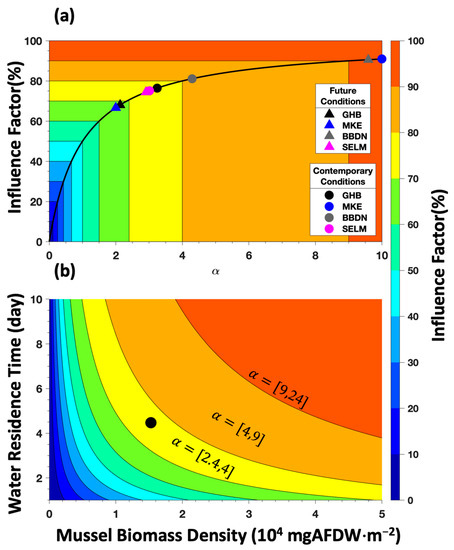

The nonlinear nature of the α-IF relationship (Figure 12a) is such that IF increases rapidly with α when α is small (e.g., α = (0,2.4) corresponds to IF = (0%, 70%)) and less rapidly and asymptotically approaching a value of 100% when α is large (e.g., α = (4, ∞⁺) corresponds to IF = (80%, 100%)). This suggests that the value of IF may be insensitive to changes in τ and B for values of α > 2.4 and certainly insensitive for α > 4 (Figure 12b). This is illustrated for Good Harbor Bay (black dots in Figure 12a,b) by examining the IF response to variation in τ about its representative value (4.47 ± 1.5 days). The resulting change in IF (68–81%) is only 13% because Good Harbor Bay lies in the insensitive region. Similarly, the response for a change in B about its representative value (15,266 ± 5000) mgAFDW·m⁻² would result in only a change of 12% (69%–81%), again, because Good Harbor Bay lies in the insensitive region.

Next, we extended the application of the model to three additional sites on Lake Michigan, yielding a total of four study locations: two embayments (Good Harbor Bay, MI, GHB and Big Bay De Noc, MI, BBDN) and two near-linear coastal segments (the nearshore at Milwaukee, WI, MKE and a segment of the southeast coastline, MI, SELM) (Appendix A, Figure A2). The coefficient α was calculated using Equation (14) and site-specific values for H (depth, influencing water-column dilution of mussel SRP excretion), B (mussel biomass density, influencing PP processing capacity), and τ (residence time, influencing flushing of the nearshore) (Appendix A1, Table A1 and

Table 2. Coefficients and inputs used to calculate the value of α for four selected regions on Lake Michigan.

Site on Lake Michigan	H (m)	τ (Days)	B Contemporary (mgAFDW·m−2)	α Contemporary (Dimensionless)	B No Local P Sources (mgAFDW·m−2)	α No Local P Sources (Dimensionless)
Good Harbor Bay	10	4.47	15,266 [21,23,25]	3.24	10,069	2.13
Milwaukee, WI nearshore region	13.03	5.44	98,560 [15]	19.55	10,069	2.00
Big Bay De Noc	7.63	15.3	4510 [24]	4.29	10,069	9.59
Southeast nearshore region	12.29	7.48	10,431 [24]	3.01	10,069	2.91

). Simulation results are presented for each location (dots in Figure 12a) applying site-specific values of H and τ (invariant in time) and values of B representing contemporary levels of food supply (i.e., prior to any local P source remediation). All of the stations fall within the insensitive region of the α-IF plot, yielding IF values ranging from 70% to 100% (yellow, orange, and red) and indicating that variability in B would only modestly influence the impact factor.

We note, however, that α is defined for equilibrium conditions, i.e., that mussel biomass densities are in equilibrium with the contemporary mussel food supply. Changes in nearshore conditions, such as reductions in point-source effluent P levels, would alter mussel food source concentrations, lead to an increase in mussel mortality, and result in a new equilibrium condition with different values for α and IF. We tested this consideration by running the model at a level of B (10,069 mgAFDW·m⁻²) calculated as the simple average for densities measured at sites apparently unimpacted by local inputs (GHB, SELM, and BBDN). The results indicate that all four locations (Figure 12a, triangles) would remain within the IF-insensitive region for levels of B characteristic of locations unimpacted by local sources. There is a small incursion into the transition region for GHB and MKE, but the magnitude of this effect is with the tolerances of the regional definitions. We conclude from these simulations that model inputs of B may be equally well represented by biomass densities at local source-driven sites or those estimated for unimpacted sites.

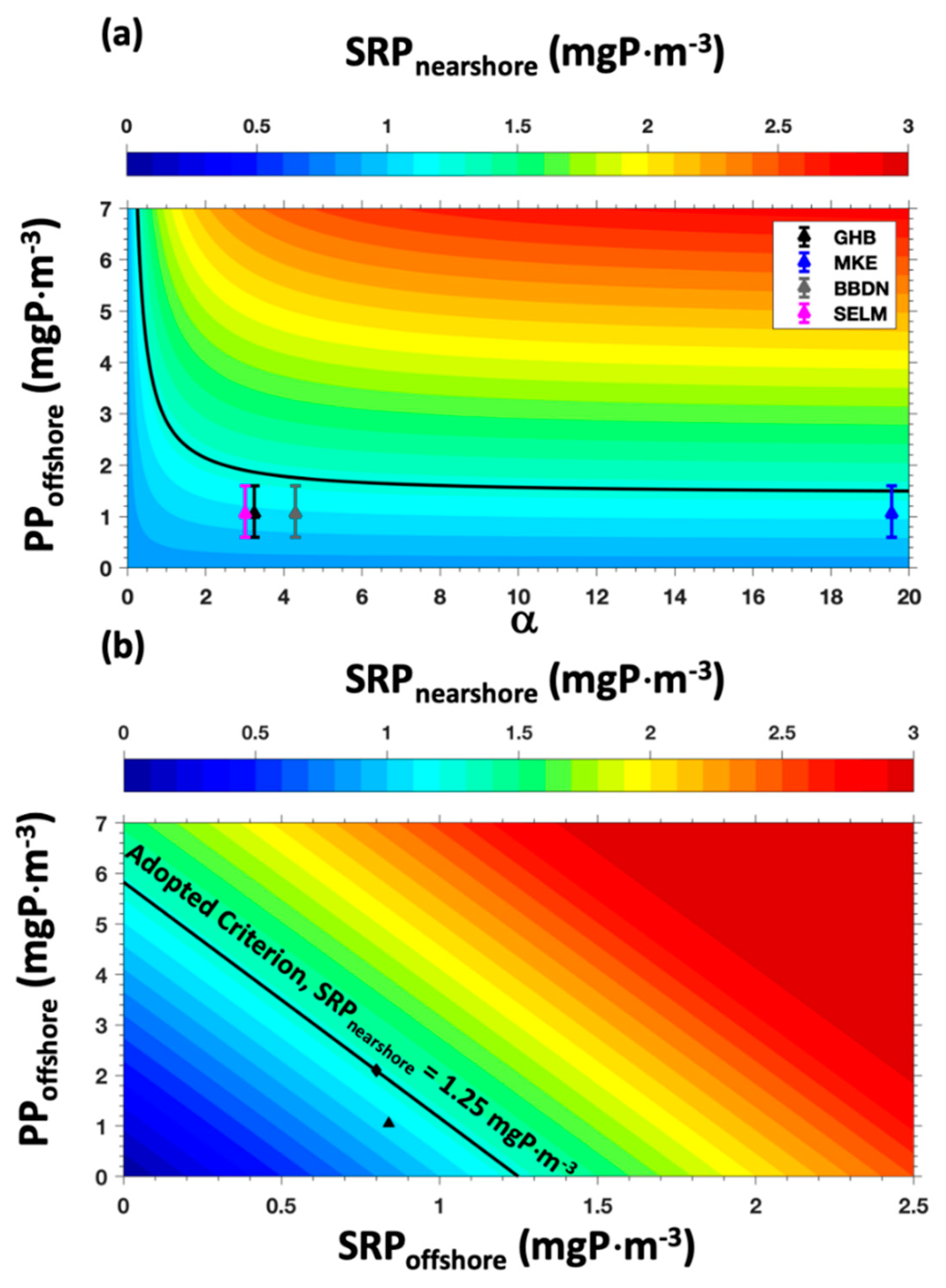

Having addressed the issue of intersite variability in biophysical factors, we turned to the management implications of our findings with respect to offshore forcing of Cladophora growth in the absence of local sources and to a management approach for meeting the objectives of the nearshore endmember of the Dual Challenge. First, we examined model-predicted concentrations of SRP_nearshore at the four sites identified previously. Simulation results take the form of a 2-D map of SRP_nearshore (Figure 13a) with the biokinetic coefficients F_vol and f as in Table 1a and site-specific inputs (H, τ, and B), as in Table 2. SRP_nearshore (triangles and lower and upper bars in Figure 13a) was simulated for the median SRP_offshore concentration (0.84 mgP·m⁻³; Table 1b) and the median (1.05 mgP·m⁻³; Table 1b) and lower and upper quartile concentrations (0.6 and 1.6 mgP·m⁻³; Figure 6b) of PP_offshore. The black line represents the adopted criterion for elimination of nuisance growth of Cladophora. The results of these simulations (median and quartile positions in Figure 13a) affirm the finding presented above that variability in biophysical conditions (as reflected in α) will not influence the magnitude of SRP_nearshore (Figure 13a). Thus, simulations using Equations (6a) and (6b) or the simplified form presented as Equation (15) and drawing on inputs developed for Good Harbor Bay and the offshore waters of Lake Michigan (Table 1 and Table 2) will yield credible results for all sites on Lake Michigan (and potentially across the Great Lakes). Of particular importance is the key finding that concentrations of SRP_nearshore remain below the adopted standard for all cases, indicating that none of the sites would be expected to experience nuisance conditions of Cladophora growth solely through offshore forcing.

The finding that, absent local sources, the Lake Michigan nearshore would not support nuisance growth solely through offshore forcing suggests that there is a margin available for use in supplementing offshore nutrient conditions to benefit the food web. To explore this concept, we utilized a map of model calculated SRP_nearshore concentrations (in the spirit of Figure 11) corresponding to sole-source forcing by offshore reserves of SRP and PP (Figure 13b). We then calculated pre- and post-dreissenid SRP_nearshore concentrations based on the corresponding pre- and post-dreissenid offshore SRP and PP levels (Table 1b,c). The outcome was twofold. First, we found that SRP_nearshore levels remained at or below the adopted threshold for nuisance Cladophora growth in both the pre- and post-dreissenid periods. Second, the difference in SRP_nearshore between the pre- (2.10 mgP·m⁻³) and post-(1.05 mgP·m⁻³) dreissenid periods may reflect the change in trophic-state, causing food web disruption and thus the margin available to supplement offshore phosphorus reserves without engendering nuisance Cladophora growth in the nearshore.

5. Cross-Margin Transport in a Management Context

The research results presented here have sought to address questions relating to the efficacy and consequences of implementing a higher level of phosphorus removal for point-source discharges to the Lake Michigan nearshore. The efficacy question proceeds from the premise that nuisance levels of Cladophora growth could be sustained by cross-margin, offshore to nearshore transport of SRP and PP, even following implementation of P-reduction strategies at wastewater-treatment facilities and management of nonpoint sources. The work of Waples and Klump [51] contributed significantly to development of this train of thought, reporting that cross-margin transport of particulate matter was an order of magnitude greater than vertical water-column fluxes and exceeded estimates of terrigenous flux.

Subsequently, Waples et al. [52] noted that the mussel organic carbon demand in the nearshore exceeded that of pelagic primary production by several fold and that two-thirds of the vertical particulate organic carbon flux to the nearshore benthos was sourced from the offshore, with the remaining one-third produced locally. The authors thus concluded that if mussels are fed by particulate organic matter produced in the water column, then local demand must be supplemented by lateral (cross-margin) transport. Based on these findings, it is reasonable to conclude that if offshore waters are the dominant food source for mussels, then a significant portion of the attendant mussel phosphorus excretion flux may also be attributed to the particulate phosphorus provided through cross-margin transport. From this evolves the efficacy concern and the first research question: Can offshore reserves of particulate matter (PP) support nuisance growth of Cladophora in the nearshore in the absence of local sources of the nutrient?

The consequences concern changes the question from one of offshore waters supplementing nearshore phosphorus reserves to that of nearshore phosphorus providing a source for food web production in the offshore. Shen et al. [17] applied a biophysical model to examine the influence of mussels on phosphorus cycling in Lake Michigan. Their results pointed to a lake-wide reduction in the particulate to dissolved phosphorus ratio, evidence of a lesser amount of food available at the base of the food chain. The nearshore was identified as a net source of particulate phosphorus to the offshore, raising the concern that mussel activity could reduce PP levels in the nearshore and thus the supply to the offshore, negatively impacting both the lower and upper food web. The consequences concerned has been recognized and incorporated into what has been termed the Dual Challenge [18], balancing the management of phosphorus stimulation in the nearshore while sustaining commercial, recreational, and native fish populations. Our second research question then becomes: How can this balance be achieved?

In this paper, we applied a biophysical model in seeking insights regarding the “efficacy” and “consequences” research questions. The biophysical model contains a biological component simulating rates of mussel PP acquisition and SRP excretion and a physical component simulating the rate of cross-margin transport. Implementation of the biological component requires specification of SRP and PP concentrations in offshore waters and mussel biomass densities in the nearshore. Representative values for these inputs were established from online databases (U.S. EPA GLENDA and USGS). The biological component also requires specification of two kinetic coefficients: the mussel volumetric filtration rate, and the conversion efficiency for PP to SRP in mussel recycling. These coefficients were determined through a review of the literature and a comparison of representative coefficient values to measured rates. The physical component, FVCOM, is driven by meteorological forcing conditions and has been performance tested by our group at sites across the Great Lakes [12,44,53,54,55,56]. Output from the biophysical model may be portrayed as a map of SRP concentrations in the nearshore as a function of offshore SRP and PP levels for representative values of the biophysical inputs and coefficients described above. Various combinations of offshore SRP and TP may be placed on the nearshore SRP map to compare contemporary or forecast conditions with an adopted criterion for preventing nuisance Cladophora growth. Simulations were performed here for Good Harbor Bay and then extended to three additional locations on Lake Michigan, resulting in two segments of near-linear shoreline and two embayments. Having conducted this study, we make the following summary observations:

The Efficacy Question.

Can offshore reserves of soluble, reactive, and particulate phosphorus support nuisance growth of Cladophora in the absence of local sources of the nutrient?

1.

In the absence of local sources of phosphorus, rates of Cladophora growth and biomass accrual are controlled by cross-margin transport of the nutrient from offshore to nearshore waters. The development of Cladophora beds and attendant beach accumulation will, in the absence of local sources, vary with the concentrations of SRP and PP in the open lake, i.e., the lake’s trophic status.

2.

The potential for offshore stimulation of nuisance conditions on Lake Michigan was examined at Good Harbor Bay, a location absent local forcing. Simulations were performed for representative offshore concentrations of SRP and PP and other model inputs and coefficients. The results indicate that offshore forcing would not support SRP concentrations in the Good Harbor Bay nearshore sufficient to cause nuisance conditions. We posit that observations of accumulating algal debris in water adjoining Good Harbor Bay (e.g., Sleeping Bear Dunes National Lakeshore) reflects habitat expansion due to water-column clearing by mussels.

3.

The analysis was extended beyond Good Harbor Bay to three additional locations on Lake Michigan to examine the sensitivity of nearshore SRP levels to variability in physical (cross-margin transport, flushing time) and biological (mussel biomass) forcing. Model projections indicate that nearshore SRP levels are insensitive to these factors for these four sites and that results evolving from analysis of conditions at Good Harbor Bay are applicable lake wide.

In conclusion, we return to our initial point. Offshore levels of SRP and PP mediate rates of Cladophora growth and biomass accrual in the absence of local sources. In addition, while colonization of solid substrate by Cladophora is almost ubiquitous across the nearshore waters of Lakes Michigan, Huron, and Ontario, the occurrence of nuisance conditions is not. This observation and the results of our offshore forcing analysis in Lake Michigan resonate with the conclusion of Higgins et al. [7] that, in Lake Ontario, there was little evidence that P from metabolic waste products of dreissenid mussels was sufficient to produce severe Cladophora blooms in the absence of localized P enrichment. The association of severe blooms of the alga with local P sources has been demonstrated for Lake Michigan (e.g., [19]) and evidenced in the regional effect of local P sources, with higher SRP and PP concentrations along the west shore of the lake than along the east shore (data of Yurista et al. [43]), a result ascribed to differences in landscape activity. We thus support the recommendation made by Higgins et al. [7] that effective management of Cladophora blooms should occur through management of P loading at local scales while ensuring lake-wide P concentrations do not increase.

The Consequences Question.

How may we balance the interest in controlling nuisance growth of Cladophora in the nearshore through reduction of phosphorus discharges without exacerbating oligotrophication in the offshore to the detriment of the lower and upper food web?

• The combined effect of reductions in external phosphorus loading to Lake Michigan and the benthification of paths of phosphorus recycling through mussel filtration of particulate phosphorus have driven offshore waters to a state of oligotrophy. This change has cascaded through the ecosystem, resulting in a reduction in prey species abundance and a decline in the number and condition of recreational and commercial fish species.
• In the broadest sense, it is the point and nonpoint discharges of phosphorus received in the nearshore that provide the foundation for a food web that can support the desired fishery. However, as those discharges remain resident in the nearshore for a period of time before being delivered to the offshore by cross-margin transport, they provide phosphorus enrichment that can stimulate nuisance growth of Cladophora.
• The conflicting nature of managing these two water-quality issues lies at the heart of what has been termed the Dual Challenge [18]. We refer to the two issues, Cladophora in the nearshore and the food web in the offshore, as endmembers for phosphorus-management scenarios. The phosphorus concentration required to eliminate nuisance Cladophora is the nearshore endmember and that supporting a healthy fishery is the offshore endmember. In this work, we applied a biophysical phosphorus–mussel model in establishing the nearshore endmember SRP concentration.
• As illustrated by the map of nearshore SRP (Figure 13), reductions in total phosphorus manifested in the transition from the pre- to post-dreissenid period are driven by changes in the offshore PP concentration (SRP increased modestly). If one assumes that pre-dreissenid production in the offshore food web was sufficient to support the fishery, then it is the difference in PP offshore levels between the pre- and post-dreissenid periods that must be “made up” in order to satisfy the objectives for the offshore endmember.

In conclusion, we used a biophysical model and an adopted criterion for nearshore SRP to support identification of combinations of SRP and PP in offshore waters that would meet the objective of the nearshore endmember, i.e., elimination of nuisance growth of Cladophora. We also provided a first-cut estimate for an allowable level of SRP and PP offshore, which could serve in achieving the offshore endmember objective (a healthy fishery) without sacrificing the nearshore endmember objective (elimination of nuisance algae growth). While the Dual Challenge may seem to represent an insurmountable obstacle, we have taken the first step by establishing the nearshore endmember. Future work with phosphorus–mussel–food web dynamics will necessarily focus on the offshore endmember. It will then be necessary to perform engineering analysis to identify discharge strategies, in time and place, for meeting the final endmember concentrations. We recommend that federal, state, and provincial authorities consider these findings in forming policies and establishing target phosphorus loads to address the Dual Challenge in the Great Lakes, reverse deterioration of nearshore water quality, and secure a healthy food web and fishery in the offshore.
