Winter Inputs Buffer Streamflow Sensitivity to Snowpack Losses in the Salt River Watershed in the Lower Colorado River Basin
Abstract
:1. Introduction
2. Materials and Methods

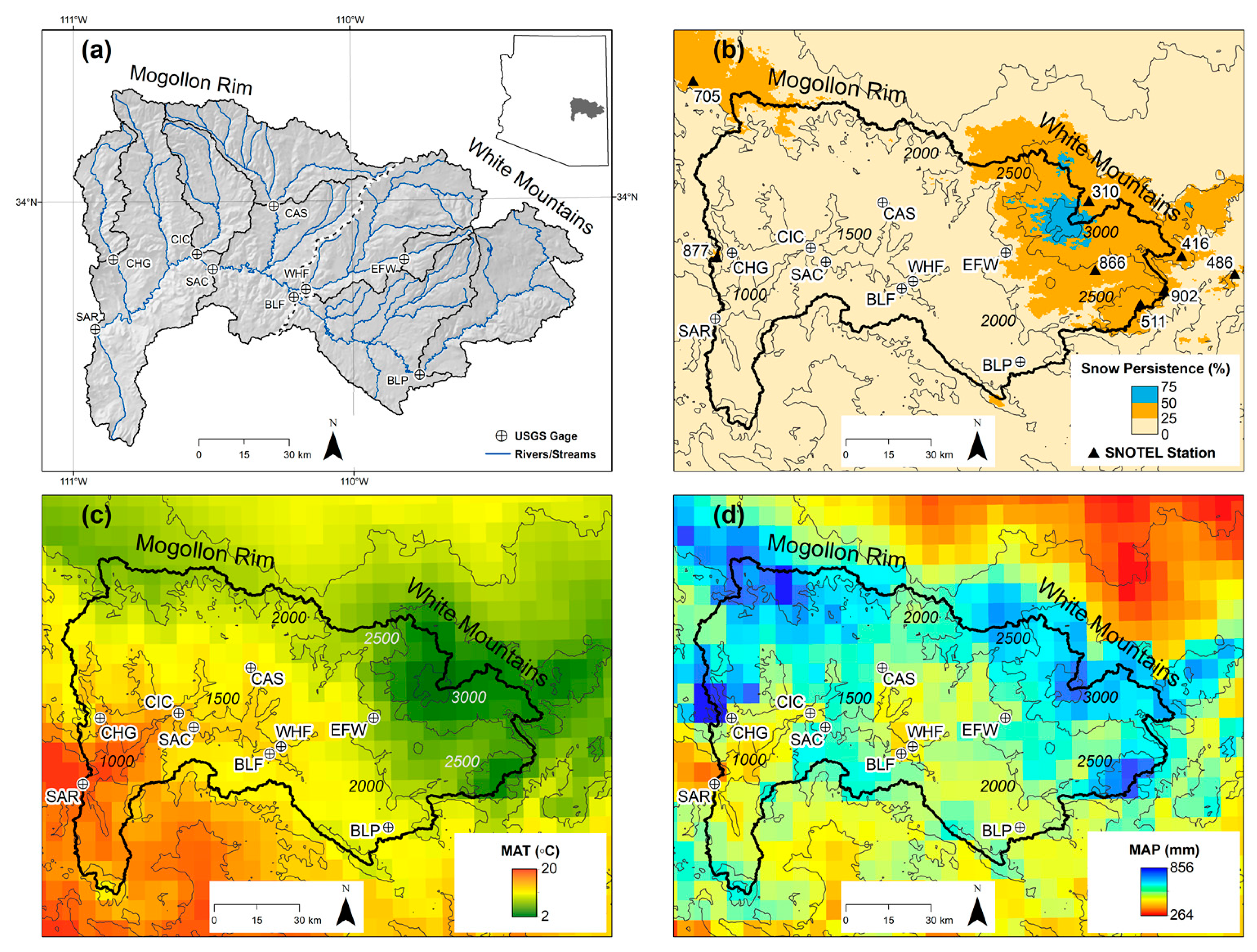

2.1. Site Description
2.2. Data Sets
2.3. Snow-Rain Model
- (1)
- Snowmelt (as a depth of liquid water) for days with decline in SWE;
- (2)
- Rain depths for days with rain but no SWE present;
- (3)
- Rain-on-snow depth for days with both rain and snowmelt inputs.
2.4. Seasonal Analyses
2.5. Sub-Annual Seasonal Responses
3. Results
3.1. Snow-Rain Model
3.2. Seasonal Analyses
3.3. Sub-Annual Seasonal Responses
4. Discussion
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Barnett, T.P.; Adam, J.C.; Lettenmaier, D.P. Potential impacts of a warming climate on water availability in snow-dominated regions. Nature 2005, 438, 303–309. [Google Scholar] [CrossRef]
- Li, D.; Wrzesien, M.L.; Durand, M.; Adam, J.; Lettenmaier, D.P. How much runoff originates as snow in the western United States, and how will that change in the future? Western U.S. Snowmelt-Derived Runoff. Geophys. Res. Lett. 2017, 44, 6163–6172. [Google Scholar] [CrossRef] [Green Version]
- Hammond, J.C.; Saavedra, F.A.; Kampf, S.K. Global snow zone maps and trends in snow persistence 2001–2016. Int. J. Clim. 2018, 38, 4369–4383. [Google Scholar] [CrossRef]
- Kim, Y.; Kimball, J.S.; Robinson, D.A.; Derksen, C. New satellite climate data records indicate strong coupling between recent frozen season changes and snow cover over high northern latitudes. Environ. Res. Lett. 2015, 10, 084004. [Google Scholar] [CrossRef] [Green Version]
- Mote, P.W.; Li, S.; Lettenmaier, D.P.; Xiao, M.; Engel, R. Dramatic declines in snowpack in the western US. Npj Clim. Atmos. Sci. 2018, 1, 2. [Google Scholar] [CrossRef]
- Xu, W.; Ma, L.; Ma, M.; Zhang, H.; Yuan, W. Spatial–Temporal Variability of Snow Cover and Depth in the Qinghai–Tibetan Plateau. J. Clim. 2017, 30, 1521–1533. [Google Scholar] [CrossRef]
- McCabe, G.J.; Wolock, D.M. Warming may create substantial water supply shortages in the Colorado River basin. Geophys. Res. Lett. 2007, 34, 5. [Google Scholar] [CrossRef] [Green Version]
- McCabe, G.J.; Wolock, D.M.; Pederson, G.T.; Woodhouse, C.A.; McAfee, S. Evidence that Recent Warming Is Reducing Upper Colorado River Flows. Earth Interact. 2017, 21, 1–14. [Google Scholar] [CrossRef] [Green Version]
- Udall, B.; Overpeck, J. The twenty-first century Colorado River hot drought and implications for the future. Water Resour. Res. 2017, 53, 2404–2418. [Google Scholar] [CrossRef] [Green Version]
- Woodhouse, C.A.; Pederson, G.T.; Morino, K.; McAfee, S.A.; McCabe, G.J. Increasing influence of air temperature on upper Colorado River streamflow. Geophys. Res. Lett. 2016, 432, 174–2181. [Google Scholar] [CrossRef] [Green Version]
- Chavarria, S.B.; Gutzler, D.S. Observed Changes in Climate and Streamflow in the Upper Rio Grande Basin. JAWRA J. Am. Water Resour. Assoc. 2018, 54, 644–659. [Google Scholar] [CrossRef] [Green Version]
- McCabe, G.J.; Wolock, D.M.; Valentin, M. Warming is Driving Decreases in Snow Fractions While Runoff Efficiency Remains Mostly Unchanged in Snow-Covered Areas of the Western United States. J. Hydrometeorol. 2018, 19, 803–814. [Google Scholar] [CrossRef]
- Nayak, A.; Marks, D.; Chandler, D.G.; Seyfried, M. Long-term snow, climate, and streamflow trends at the Reynolds Creek Experimental Watershed, Owyhee Mountains, Idaho, United States. Water Resour. Res. 2010, 46, W06519. [Google Scholar] [CrossRef]
- Robles, M.D.; Turner, D.S.; Haney, J.A. A century of changing flows: Forest management changed flow magnitudes and warming advanced the timing of flow in a southwestern US river. PLoS ONE 2017, 12, e0187875. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Christensen, N.S.; Lettenmaier, D.P. A multimodal ensemble approach to assessment of climate change impacts on the hydrology and water resources of the Colorado River Basin. Hydrol. Earth Syst. Sci. 2007, 11, 1417–1434. [Google Scholar] [CrossRef] [Green Version]
- Molotch, N.P.; Brooks, P.D.; Burns, S.P.; Litvak, M.; Monson, R.K.; McConnell, J.R.; Musselman, K. Ecohydrological controls on snowmelt partitioning in mixed-conifer sub-alpine forests. Ecohydrol. 2009, 2, 129–142. [Google Scholar] [CrossRef]
- Knowles, N.; Dettinger, M.D.; Cayan, D.R. Trends in snowfall versus rainfall in the Western United States. J. Clim. 2006, 19, 4545–4559. [Google Scholar] [CrossRef] [Green Version]
- Stewart, I.T.; Cayan, D.R.; Dettinger, M.D. Changes toward earlier streamflow timing across Western North America. J. Clim. 2005, 18, 1136–1155. [Google Scholar] [CrossRef]
- Jeton, A.E.; Dettinger, M.D.; Smith, J.L. Potential Effects of Climate Change on Streamflow, Eastern and Western Slopes of the Sierra Nevada, California and Nevada. U.S. Geological Survey Water Resources Investigations Report 95-4260; 1996. Available online: https://pubs.usgs.gov/wri/1995/4260/report.pdf (accessed on 21 December 2020).
- Hammond, J.C.; Kampf, S.K. Subannual Streamflow Responses to Rainfall and Snowmelt Inputs in Snow-Dominated Watersheds of the Western United States. Water Resour. Res. 2020, 56. [Google Scholar] [CrossRef]
- Dettinger, M.D.; Ralph, F.M.; Das, T.; Neiman, P.J.; Cayan, D.R. Atmospheric Rivers, Floods and the Water Resources of California. Water 2011, 3, 445–478. [Google Scholar] [CrossRef]
- Demaria, E.M.C.; Dominguez, F.; Hu, H.; von Glinski, G.; Robles, M.; Skindlov, J.; Walter, J. Observed Hydrologic Impacts of Landfalling Atmospheric Rivers in the Salt and Verde River Basins of Arizona, United States. Water Resour. Res. 2017, 53, 10025–10042. [Google Scholar] [CrossRef]
- Neiman, P.J.; Ralph, F.M.; Moore, B.J.; Hughes, M.; Mahoney, K.M.; Cordeira, J.M.; Dettinger, M.D. The landfall and inland penetration of a flood-producing atmospheric river in Arizona. Part I: Observed synoptic-scale, orographic, and hydrometeorological characteristics. J. Hydrometeorol. 2013, 14, 460–484. [Google Scholar] [CrossRef]
- Gershunov, A.; Shulgina, T.; Ralph, F.M.; Lavers, D.A.; Rutz, J.J. Assessing the climate-scale variability of atmospheric rivers affecting western North America: Atmospheric River Climate-Scale Behavior. Geophys. Res. Lett. 2017, 44, 7900–7908. [Google Scholar] [CrossRef]
- Payne, A.E.; Demory, M.-E.; Leung, L.R.; Ramos, A.M.; Shields, C.A.; Rutz, J.J.; Siler, N.; Villarini, G.; Hall, A.; Ralph, F.M. Responses and impacts of atmospheric rivers to climate change. Nat. Rev. Earth Environ. 2020, 1, 143–157. [Google Scholar] [CrossRef] [Green Version]
- Stitzer, L.; Burtell, R.; Andrewes, P.; Birks, C.; Mott Lacroix, K.; Stuart, J. Arizona Water Atlas; Arizona Department of Water Resources: Phoenix, AZ, USA, 2009; p. 204.
- Fassnacht, S.R. Upper versus lower Colorado River sub-basin streamflow: Characteristics, runoff estimation and model simulation. Hydrol. Process. 2006, 20, 2187–2205. [Google Scholar] [CrossRef]
- Murphy, K.W.; Ellis, A.W. An assessment of the stationarity of climate and stream flow in watersheds of the Colorado River Basin. J. Hydrol. 2014, 509, 454–473. [Google Scholar] [CrossRef]
- Trujillo, E.; Molotch, N.P. Snowpack regimes of the Western United States. Water Resour. Res. 2014, 50, 5611–5623. [Google Scholar] [CrossRef]
- Hawkins, G.A.; Vivoni, E.R.; Robles-Morua, A.; Mascaro, G.; Rivera, E.; Dominguez, F. A climate change projection for summer hydrologic conditions in a semiarid watershed of central Arizona. J. Arid Environ. 2015, 118, 9–20. [Google Scholar] [CrossRef] [Green Version]
- Pool, D.R.; Blasch, K.W.; Callegary, J.B.; Leake, S.A.; Graser, L.F. Regional Groundwater-Flow Model of the Redwall-Muav, Coconino, and Alluvial Basin Aquifer Systems of Northern and Central Arizona; U.S. Geological Survey: Reston, VA, USA, 2011; p. 116.
- Falcone, J.A. GAGES-II: Geospatial Attributes of Gages for Evaluating Streamflow; U.S. Geological Survey: Reston, VA, USA, 2011.
- Hammond, J.C.; Saavedra, S.; Kampf, S.K. MODIS MOD10A2 Derived Snow Persistence and No Data Index for the Western; U.S. HydroShare: Cambridge, MA, USA, 2017. [CrossRef]
- Livneh, B.; Rosenberg, E.A.; Lin, C.; Nijssen, B.; Mishra, V.; Andreadis, K.M.; Maurer, E.P.; Lettenmaier, D.P. A long-term hydrologically based dataset of land surface fluxes and states for the conterminous United States: Update and extensions. J. Clim. 2013, 26, 9384–9392. [Google Scholar] [CrossRef]
- Abatzoglou, J.T. Development of gridded surface meteorological data for ecological applications and modelling. Int. J. Climatol. 2013, 33, 121–131. [Google Scholar] [CrossRef]
- Jennings, K.S.; Winchell, T.S.; Livneh, B.; Molotch, N.P. Spatial variation of the rain–snow temperature threshold across the Northern Hemisphere. Nat. Commun. 2018, 9, 1–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ma, C.; Fassnacht, S.R.; Kampf, S.K. How Temperature Sensor Change Affects Warming Trends and Modeling: An Evaluation Across the State of Colorado. Water Resour. Res. 2019, 55, 9748–9764. [Google Scholar] [CrossRef]
- Abatzoglou, J.T.; Dobrowski, S.Z.; Parks, S.A.; Hegewisch, K.C. TerraClimate, a high-resolution global dataset of monthly climate and climatic water balance from 1958–2015. Sci. Data 2018, 5, 170191. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kampf, S.K.; Lefsky, M.A. Transition of dominant peak flow source from snowmelt to rainfall along the Colorado Front Range: Historical patterns, trends, and lessons from the 2013 Colorado Front Range floods. Water Resour. Res. 2016, 52, 407–422. [Google Scholar] [CrossRef] [Green Version]
- Kampf, S.K.; Richer, E.E. Estimating source regions for snowmelt runoff in a Rocky Mountain basin: Tests of a data-based conceptual modeling approach. Hydrol. Process. 2014, 28, 2237–2250. [Google Scholar] [CrossRef]
- Moriasi, D.N.; Arnold, J.G.; Van Liew, M.W.; Bingner, R.L.; Harmel, R.D.; Veith, T.L. Model Evaluation Guidelines for Systematic Quantification of Accuracy in Watershed Simulations. Trans. ASABE 2007, 50, 885–900. [Google Scholar] [CrossRef]
- Kendall, M.G. Rank Correlation Methods, 5th ed.; Oxford University Press: Oxford, UK, 1990. [Google Scholar]
- Mann, H.B. Nonparametric Tests against Trend. Econometrica 1945, 13, 245–259. [Google Scholar] [CrossRef]
- Helsel, D.R.; Frans, L.M. Regional Kendall Test for trend. Environ. Sci. Technol. 2006, 40, 4066–4073. [Google Scholar] [CrossRef]
- Sen, P.K. Estimates of the regression coefficient based on Kendall’s Tau. J. Am. Stat. Assoc. 1968, 63, 1379–1389. [Google Scholar] [CrossRef]
- Broxton, P.; Zeng, X.; Dawson, N. Daily 4 km Gridded SWE and Snow Depth from Assimilated In-Situ and Modeled Data over the Conterminous US, Version 1; NASA National Snow and Ice Data Center Distributed Active Archive Center: Boulder, CO, USA, 2019. [CrossRef]
- Zeng, X.; Broxton, P.; Dawson, N. Snowpack Change from 1982 to 2016 over Conterminous United States. Geophys. Res. Lett. 2018, 45, 12–940. [Google Scholar] [CrossRef]
- Cho, E.; Jacobs, J.M.; Vuyovich, C.M. The Value of Long-Term (40 years) Airborne Gamma Radiation SWE Record for Evaluating Three Observation-Based Gridded SWE Data Sets by Seasonal Snow and Land Cover Classifications. Water Resour. Res. 2020, 56, e2019WR025813. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Lyne, V.; Hollick, M. Stochastic time-variable rainfall-runoff modelling. In Institute of Engineers Australia National Conference; Institute of Engineers Australia: Barton, Australia, 1979; Volume 1979. [Google Scholar]
- Nathan, R.J.; McMahon, T.A. Evaluation of automated techniques for base flow and recession analyses. Water Resour. Res. 1990, 26, 1465–1473. [Google Scholar] [CrossRef]
- Mann, H.B.; Whitney, D.R. On a Test of Whether one of Two Random Variables is Stochastically Larger than the Other. Ann. Math. Stat. 1947, 18, 50–60. [Google Scholar] [CrossRef]
- Wang, G.; Power, S.B.; McGree, S. Unambiguous warming in the western tropical Pacific primarily caused by anthropogenic forcing: Warming in the tropical pacific. Int. J. Climatol. 2016, 36, 933–944. [Google Scholar] [CrossRef] [Green Version]
- Hagos, S.M.; Leung, L.R.; Yoon, J.-H.; Lu, J.; Gao, Y. A projection of changes in landfalling atmospheric river frequency and extreme precipitation over western North America from the Large Ensemble CESM simulations. Geophys. Res. Lett. 2016, 43, 1357–1363. [Google Scholar] [CrossRef] [Green Version]
- Musselman, K.N.; Lehner, F.; Ikeda, K.; Clark, M.P.; Prein, A.F.; Liu, C.; Barlage, M.; Rasmussen, R. Projected increases and shifts in rain-on-snow flood risk over western North America. Nat. Clim. Chang. 2018, 8, 808–812. [Google Scholar] [CrossRef]
- Singh, I.; Dominguez, F.; Demaria, E.; Walter, J. Extreme Landfalling Atmospheric River Events in Arizona: Possible Future Changes. J. Geophys. Res. Atmos. 2018, 123, 7076–7097. [Google Scholar] [CrossRef]
- Hammond, J.C.; Harpold, A.A.; Weiss, S.; Kampf, S.K. Partitioning snowmelt and rainfall in the critical zone: Effects of climate type and soil properties. Hydrol. Earth Syst. Sci. 2019, 23, 3553–3570. [Google Scholar] [CrossRef] [Green Version]
- Gonzalez, P.; Garfin, G.M.; Breshears, D.; Brooks, K.; Brown, H.E.; Elias, E.; Gunasekara, A.; Huntly, N.; Maldonado, J.K.; Mantua, N.J.; et al. Chapter 25: Southwest. Impacts, Risks, and Adaptation in the United States: The Fourth National Climate Assessment, Volume II; U.S. Global Change Research Program: Washington, DC, USA, 2018; p. 84.
Code | Name | USGS Gauge | Data Record | Area (km2) | Mean Elev (m) | MAT (°C) | MAP (mm) | MAQ (mm) | RR (MAQ/MAP) | Snow Persistence |
---|---|---|---|---|---|---|---|---|---|---|
White Mountains Subregion | ||||||||||
BLP | Black River Point of Pines | 9489500 | 1954–2011 | 1439 | 2456 | 6.69 | 637 | 138 | 0.22 | 34 |
BLF | Black River Fort Apache | 9490500 | 1958–2011 | 3165 | 2201 | 8.74 | 549 | 110 | 0.20 | 32 |
EFW | East Fork White River | 9492400 | 1958–2011 | 185 | 2494 | 10.0 | 597 | 157 | 0.26 | 38 |
WHF | White River Fort Apache | 9494000 | 1958–2011 | 1629 | 2207 | 8.5 | 651 | 108 | 0.17 | 27 |
Mogollon Rim Subregion | ||||||||||
CAS | Carrizo Creek | 9496500 | 1953–1960, 1968–1974, 1978–2011 | 1142 | 1928 | 10.7 | 484 | 35 | 0.07 | 14 |
CHG | Cherry Creek | 9497980 | 1966–1978, 1980–2011 | 517 | 1689 | 11.6 | 603 | 54 | 0.09 | 9 |
CIC | Cibecue Creek | 9497800 | 1960–2009, 2011 | 748 | 1746 | 11.7 | 439 | 54 | 0.12 | 10 |
Salt River Basin | ||||||||||
SAC | Salt River at Chrysotile | 9497500 | 1926–2011 | 7327 | 2058 | 9.75 | 602 | 86 | 0.14 | 8 |
SAR | Salt River at Roosevelt | 9498500 | 1916–2011 | 11097 | 1884 | 10.9 | 583 | 75 | 0.13 | 6 |
Station Number | Station | Elevation (m.a.s.l.) | Water Years of Record |
---|---|---|---|
310 | Baldy | 2781 | 1997–2016 |
416 | Coronado Trail | 2560 | 1996–2016 |
486 | Frisco Divide | 2438 | 1993–2016 |
511 | Hannagan Meadows | 2749 | 1993–2016 |
705 | Promontory | 2417 | 1993–2016 |
866 | Wildcat | 2393 | 1993–2015 |
877 | Workman Creek | 2103 | 1993–2016 |
902 | Beaver Head | 2435 | 1996–2015 |
(a) Model Parameters | ||||||
Low Snow | Moderate Snow | High Snow | ||||
α (mm °C−1) | 5.5 | 5.5 | 5.5 | |||
RHt (%) | 60 | 60 | 60 | |||
Ts1 (°C) | 5.5 | 6.8 | 6.8 | |||
Ts2 (°C) | 2.0 | 2.5 | 3.0 | |||
(b) Model Calibration | ||||||
Low Snow | Moderate Snow | High Snow | ||||
Station | NSE | PBIAS | NSE | PBIAS | NSE | PBIAS |
310 | 0.77 | 9 | 0.78 | −1 | 0.74 | −30 |
416 | −0.14 | 92 | 0.32 | 65 | 0.70 | 21 |
486 | 0.85 | 6 | 0.79 | −8 | 0.57 | −43 |
511 | 0.89 | −5 | 0.84 | −14 | 0.74 | −35 |
705 | 0.66 | 36 | 0.63 | −42 | 0.45 | −58 |
866 | 0.53 | 53 | 0.61 | 37 | 0.76 | 2 |
877 | 0.53 | −7 | 0.47 | −30 | 0.32 | −61 |
902 | 0.80 | 9 | 0.81 | −2 | 0.69 | −29 |
Average | 0.62 | −29 | 0.66 | 1 | 0.61 | 24 |
Station | Low Snow | Moderate Snow | High Snow | VIC | ||||
---|---|---|---|---|---|---|---|---|
NSE | PBIAS | NSE | PBIAS | NSE | PBIAS | NSE | PBIAS | |
310 | 0.53 | 10 | 0.40 | 23 | 0.41 | 26 | 0.70 | −24 |
416 | 0.61 | 21 | 0.36 | 47 | 0.28 | 58 | 0.76 | −43 |
486 | −3.78 | 158 | −6.36 | 226 | −6.61 | 236 | 0.12 | −30 |
511 | 0.81 | −31 | 0.82 | −14 | 0.82 | −8 | 0.64 | −56 |
705 | 0.45 | −59 | 0.62 | −45 | 0.64 | −41 | 0.58 | −55 |
866 | 0.58 | −22 | 0.54 | 9 | 0.47 | 20 | 0.50 | −61 |
877 | 0.17 | −81 | 0.19 | −64 | 0.20 | −64 | -0.11 | −98 |
902 | 0.53 | −5 | 0.23 | 33 | 0.26 | 39 | 0.49 | −63 |
Regional | 0.54 | −24 | 0.53 | −3 | 0.53 | 2 | 0.57 | −55 |
