Identifying Capabilities and Potentials of System Dynamics in Hydrology and Water Resources as a Promising Modeling Approach for Water Management

Ahmed F. Mashaly
1,2,* and
Alexander G. Fernald
College of Agricultural, Consumer and Environmental Sciences, New Mexico State University, Las Cruces, NM 88003-8003, USA
New Mexico Water Resources Research Institute, New Mexico State University, Las Cruces, NM 88003-8001, USA
Author to whom correspondence should be addressed.
Water 2020, 12(5), 1432;
Submission received: 18 February 2020 / Revised: 1 May 2020 / Accepted: 4 May 2020 / Published: 18 May 2020
(This article belongs to the Special Issue System Dynamics Modelling for Water–Energy–Climate Nexus)


Agriculture is the most important sector with regard to water resources management due to its social, economic, hydrological, and environmental aspects, and many scholars and researchers have been driven to investigate the dynamic interrelationships among hydrological, environmental, and socioeconomic factors affecting agriculture. The system dynamics (SD) approach has become widely used because of its merits and benefits as a tool to deal with complex, dynamic problems and systems with many aspects and components that are involved and must be understood to ensure sound decisions regarding water and hydrological systems. Although agricultural water management needs to be studied as a main part of water management, socioeconomic management, and environmental management requiring the use of SD, this review shows that SD is currently used to a limited extent in terms of agricultural water management. This paper sheds light on the studies and investigations on the use of SD in the water sector and highlights the strengths of SD in order to encourage researchers to use this promising method to manage such a vital resource. Accordingly, this review seeks to include a comprehensive and up-to-date survey of existing publications and scholarly papers on the use of SD modeling as an effective technique for dealing with different problems associated with planning, management, and analysis of hydrology and water resources systems. Recent trends in the integration of SD with other modeling systems, such as artificial intelligence systems, are discussed along with the limitations and challenges facing application. This article makes a new contribution by giving a foundation of references and studies for scholars, researchers, and academics which encourages future investigation in employing the SD approach to hydrology and water resources management and planning, especially with agricultural water.

1. Introduction

Water is at the heart of economic development and is essential for food and energy sustainability, ecosystem integrity, and human life. According to the Food and Agriculture Organization [1], agriculture is the major consumer (70% of all water consumption) of ground and surface water worldwide. The term “agricultural water” broadly describes the water used in agriculture to cultivate and irrigate agricultural field crops, vegetables, fruits, aromatic and medicinal plants, and to raise and conserve livestock, poultry, and fish. Agricultural water also includes water used in applications of pesticides, fertilizers, frost/freeze protection, and cooling of crops. Accordingly, as the backbone of agriculture, water must be managed and used in a sustainable, efficient, and balanced manner for sustainable agriculture.
The UN and UNESCO predicted that by 2050, about 5.7 billion people worldwide would face water shortages [2]. Water, in general, is an invaluable economic resource in which it is regarded as a cornerstone in a number of major economic industries such as oil and gas, chemical, petrochemical, electrical and electronics, food, and even healthcare and pharmaceutical industries. Water shortage and scarcity can therefore have a serious effect on agriculture, business, and economic development, and can generate many financial, health, environmental, and ecological problems [3,4,5]. All of these problems greatly intensify the need to consider and predict the actions and relationship of water resources systems and their consumers. In particular, finding new, quick, and effective management methods for both water, in general, and agricultural water is essential to maintaining and promoting the development of water. Moreover, the investigation and management of water systems needs the integration and adoption of a long-term view of processes and procedures that are hydrological, natural, environmental, and social [6,7,8]. Therefore, water resources development should usually adopt a systems philosophy and consider dynamic relations among environmental, socioeconomic, natural, and ecological components which are portrayed and described by nonlinear feedback loops [9,10,11,12]. Particularly, the management of agricultural water is a complex dynamic process and includes hydrological, natural, and socioeconomic dimensions. Agricultural water also affects strategic sectors such as health, economic development, and poverty alleviation. As a result, agricultural water management should consider these dimensions and factors as well as their interactions and effects in order to better understand complex interrelationships and give a holistic picture of agricultural water.
Many mathematical techniques and models have been proposed to manage these hydrology and water sector interactions. Some have proven useful, yet many water and hydrology models still experience shortcomings regarding methodology, usage, and capacity to comprehensively incorporate the relevant systems [7,9,13,14,15,16,17]. The difficulty and uncertainty included in water systems makes their study, analysis, management, and planning an immensely difficult task, especially when using traditional and classical tools. These tools and methods such as regression, work breakdown structures (WBS), critical path method (CPM), or program evaluation and review technique (PERT) are not able to deal with problems of a dynamic nature, such as those with water systems, and do not take into account the interaction between different variables and subsystems, and require a relatively long time and big data to develop models [18,19,20]. Additionally, traditional modeling methods, such as general multiple regression, are dependent on linear causal reasoning and, thus, cannot introduce the rational and fundamental frameworks needed to face issues at advanced levels of difficulty [19,20]. Thus, new tools and techniques are required to face this challenge and address these issues. With advancements in mathematical modeling and computational technology, the usage of system dynamics (SD) with hydrology and water resources could yield results that are not easily obtained with classical and traditional modeling methods using mental model simplifications of the real world through methods such as WBS/CPM/PERT, while SD models can use computing power to capture more complexity [18,21,22].
System dynamics was proposed by Forrester in 1958 [21] for the use of simulating industrial dynamics, and there has been considerable development in the use of SD for understanding, analyzing, managing, and planning of hydrology and water systems in the course of recent decades [23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40]. SD is a technique aimed at examining and analyzing the practices of a system over time by transforming it into associated chains of stocks and flows which influence each other via negative and positive feedback loops. SD methodology tries to analyze and investigate the dynamic connections within whole systems. The strength of SD methodology is its capability to represent the behavior and performance of a system without the need to examine and test the system in advance [16,18,26,31,32,33,34,35]. In addition to saving time and effort, these features make SD’s approach able to manage large, diverse, interconnected systems such as water systems in general [28,33] and agricultural water systems in particular. There are currently numerous studies dealing with the application of SD modeling to different water management systems and their economic, political, social, environmental, and technical aspects. Although at least one recent paper has reviewed and categorized water and SD [29], there are surprisingly few useful scientific papers that comprehensively review, collect, and compile published studies and research practices in the realm of water resources and SD [36,37,38], and there is a particular dearth of papers that compile agriculture water and SD studies. To our best knowledge, however, little previous work has holistically used the SD approach to evaluate, plan, and manage agricultural water, such as [12,39,41,42,43], despite the importance of this vital water resource, which accounts for the largest share of global water consumption and reflects important community and economic realities. Although these few efforts represent beneficial directories for using and applying the SD approach with agricultural water, there is no doubt, however, that there is still a long way to go and that further efforts are required, including new ideas that take advantage of past experiences of SD with water systems in general. Thus, this review paper seeks to fill this gap by addressing multiple objectives and highlighting the importance and technical aspects of the SD approach with a focus on promising applications of the SD method in the water sector that may serve and benefit agricultural water management. It compiles, reviews, and summarizes the objectives, characteristics, and features of previous SD water resources studies and modeling experiments to work as a reference when conducting and implementing SD research for water management, especially in the agricultural sector. This paper allows scientists, modelers, and researchers to quickly identify uses of SD for water and hydrology topics. Beyond serving as a review, this paper seeks to provide useful perspectives for SD modeling applications in the water resources sector and encourage researchers and scholars to use SD for agricultural water applications. By achieving the objectives above, this paper will contribute to opening up new horizons for wide applications of SD in agricultural water management. The approach to this review is as follows. First, it provides a historic overview and analysis of different techniques, types, and applications of water system dynamics models. Second, SD model performance and suitability are assessed as tools for management, analyzing, planning, and evaluation by tracing different developments and applications of SD methodology in the water sector. Third, recent trends to combine system dynamics with other modeling systems, such as artificial intelligence (AI) and geographic information system (GIS), are discussed to ensure the highest levels of accuracy, reliability, and quality in water resource modeling. Fourth, the most important SD software programs used in water applications are provided and analyzed. Last, challenges and limitations of the SD methodology are provided, including concluding remarks and directions for future work.

2. System Dynamics (SD) Methodology

SD is a tool for modeling and simulating complex dynamic systems and used to define, analyze, and simulate feedback structures, making it appropriate for simulating and modeling natural, ecological, hydrological, and water systems issues [17,23,24,25,34,40,41,42,43,44,45,46,47,48,49,50]. Richardson [26] stated that SD is instituted on boundaries and structure, positive and negative feedbacks, and stock (level) and flow (rate). Boundaries are main elements in analyzing systems and central in recognizing the dynamics for determining subsystems [26]. The feedback loop concept is the most important property of SD, which encourages modeling the conduct of problematical issues, mainly when the purpose is to simulate and forecast durable results and attain sustainability [26]. Stock and flows are the cornerstones of SD models, distinguishing overall system status and offering necessary information helping to understand the system and taking appropriate decisions [26]. Stocks are changed by the flows. Stocks are also the foundation for systems decisions and behavior, and can be defined by ordinary differential equations [23,25,28]. The mathematical expression of the stock–flow relationship is presented in the following equations [34]:
S t o c k ( t ) = t s t [ I n f l o w ( s ) O u t f l o w ( s ) ] d s + S t o c k ( t s )
d S t o c k ( t ) / d s = I n f l o w ( s ) O u t f l o w ( s ) .
where Inflows and Outflows are the inflow and outflow values at any specific time (s) between the original (ts) and present (t) time [34]. The change rate is the difference between inflow and outflow, and the stock value at time (t) is the stock value at time (ts) in addition to the integral of difference between inflow and outflow from ts to t [34].
To simulate a problem, the system is frequently divided into various spatially and temporally dynamic subsystems which are applied to create a grid of stocks, flows, and feedbacks [41,42,45]. The capability of any SD model to effectively offer a well-organized, precise, and efficient way to simulate a system relies on identifying the key parameters and feedbacks in the system [10,15,16,32,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105]. Many studies have shown that feedbacks are necessary and pivotal for analyzing, assessing, and managing problems related to water issues [43,47,60,74,80,81,85,88,106]. Overall, models using the SD technique are created by building a causal loop diagram (CLD) and transforming it into a stock-and-flow diagram [22,25,26,34]. The process of creating SD models commonly begins with goals identification and recognition of modeling parameters and their interactions by means of polarity analysis and dynamic hypothesis, in which the CLD is drawn and the dynamic interactions among the various modeling parameters are hypothesized [34,59,70]. It has been found that integration of qualitative and quantitative simulation techniques can considerably improve model effectiveness [34,70]. As a result, an approach for SD modeling has been introduced [59] with the suggested modeling steps [22,34,35,40,41,58,70,87], which are objective determination, polarity analysis, model structure, simulation and theory building.

3. System Dynamics and Water Systems

As a useful modeling and simulation technique, SD integrates many hydrological, scientific, scientific, ecological, economic, political, and social variables and parameters into models to find suitable and effective solutions to complex and challenging water resources issues. Employment of SD in analyzing and managing hydrology and water systems has developed over the course of recent decades [25,28,40]. According to Mirchi et al. [29], there are three common approaches to water systems dynamics modeling that can be found: predictive simulation, descriptive, and participatory modeling. It has also been noted in several studies and analysis in recent times that researchers prefer to use other combined SD modeling systems to enhance modeling efficiency and more accurately and clearly define and analyze hydrology and water systems [3,13,67,107,108,109,110,111,112,113,114,115,116,117,118], and this adds a new SD type. This paper thus deals with four SD types in depth, describing their characteristics and being accompanied by examples. Figure 1 illustrates the four types of different SD models discussed in this study that are used in hydrology and water systems modeling with elaboration of the combined modeling techniques that have been integrated and combined with an SD approach.

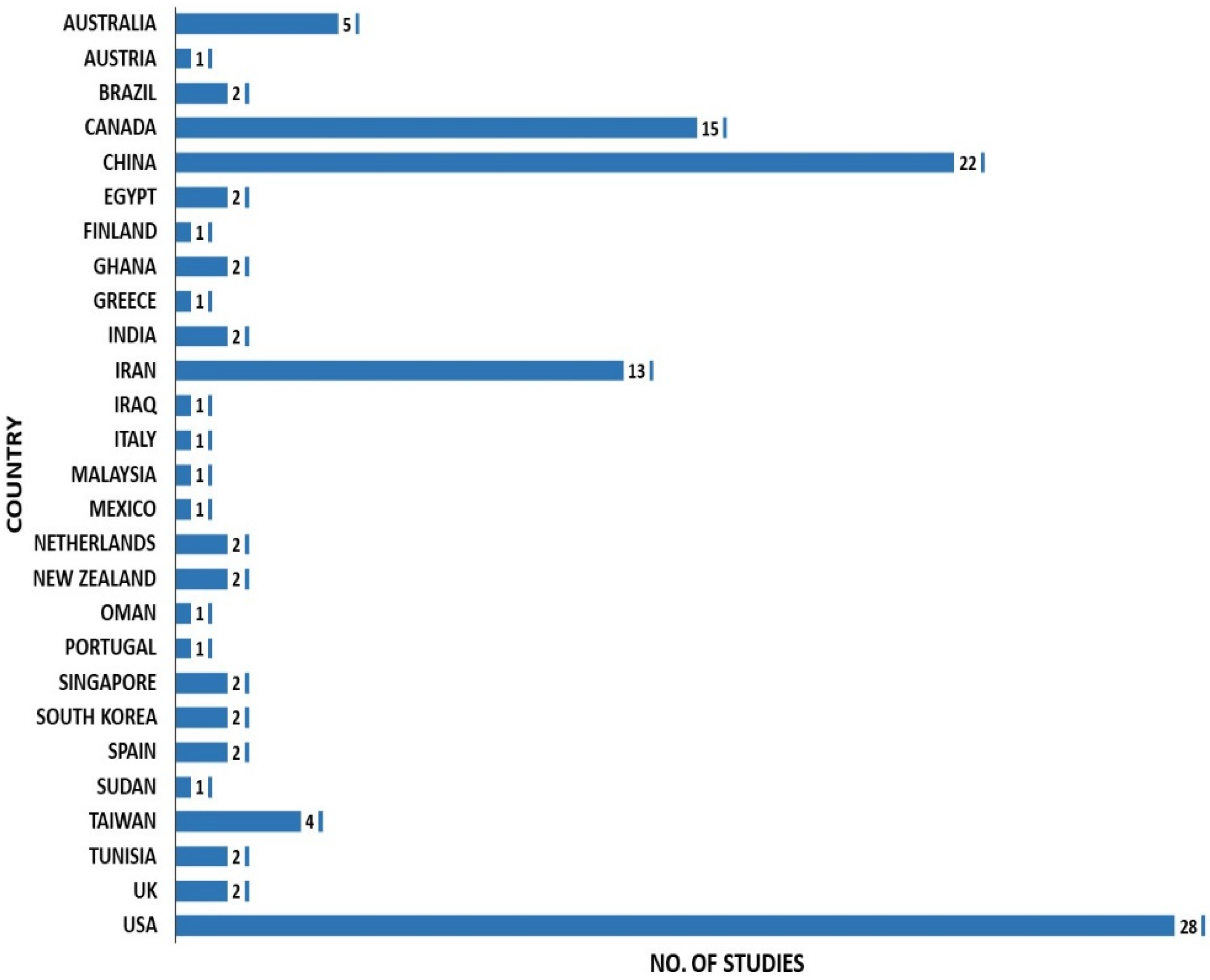

There are at least 119 studies and investigations that have explicitly used SD methodology for water resources management, evaluation, analyzing, and planning around the world since 1996. The SD model type has varied in recent studies, with 64% of the studies using a single descriptive integrated model, 16% used predictive simulation models, 8% participatory and shared vision models, and 12% SD combined with other methods (Figure 2). There has been considerable interest in using SD with water issues over the last 25 years (Figure 3). From 1996 to 2019, the largest number of studies was achieved in 2015, while the lowest number was achieved between 1996 and 2002, at the rate of one paper per year (Figure 3). This indicates a growing trend in the use of systems with water issues.
These studies were carried out to apply SD methodology for the field of hydrology and water resources in different applications in different countries around the world in the period 1996–2019 (Figure 4). The country was determined based on the case study addressed in each paper. The United States and China lead the list of countries in the use of SD modeling techniques in research on water issues with a total of 50 published papers (42%), as indicated in Figure 4. In Canada and Iran, SD has also been considerably used for modeling different water issues and applications. In general, many water issues and problems have been addressed, as detailed below.

3.1. SD Potential in Water Predictive Simulation Models

Predictive simulation models use SD methodology to model systems based on historical performance data and to use the calibrated and validated model to extrapolate or predict the effects of water problems and issues in the future [13,30,45,46,50]. Predictive simulation models have been used and utilized with many water and hydrology issues covering hydrologic cycle modeling, aquifer and groundwater modeling, river basin modeling, irrigation water modeling, hydropower generation modeling, ecological modeling, and water quality modeling in many different regions of the world [30,52,57,58]. The capabilities of the predictive simulation models have been reliable in improving the prediction of water availability, flood management, and climate change impacts, which improves the resilience of agricultural water systems and enables more detailed water management interventions to reduce production risks [51,53,56,57]. The capability to investigate different feedbacks, interactions, and predictions helps researchers to increase the precision of developed models for water systems and decrease the number of modeling variables, as many studies published in this field have shown [55,56,57].
SD methodology with predictive simulation models is a suitable simulation tool for examining hydrology and water resources problems as well as watershed processes such as flooding [13,45,46]. One of the most dynamic predictive issues addressed is flood management because of its importance in flood control, forecasting and mitigation, and understanding the development of flooding and related factors. For instance, Ahmad and Simonovic [45] applied the SD approach to demonstrate hydrologic cycle components for reservoir operations and flood management. Influences on reservoir’s flood capacity are investigated by modeling gated and unregulated spillways. The developed model can be expanded from one reservoir to a series of reservoirs considering different inflows and outflows. The smooth modification of the model to test the expected changes and the high capability to conduct sensitivity analysis makes this approach effective. Simonovic and Li [46] used an SD model in creating flood system evaluation methodology. The SD model used is dependent on flood flow levels and flood capacity at various points in a river basin system. The outcomes showed that the ability of the current flood protection procedure is adequate and suitable under conditions of future climate change fluctuation. Ahmad and Simonovic [13] introduced a new technique called spatial SD to model feedback impacts and dynamic interactions governing flood reproduction. The suggested approach was successfully utilized in flood management and assessing floodway operation considering spatial variability and different parameters such as depth, extent, and discharge of flooding. Based on the above, it is clear that SD modeling is a suitable simulation tool for examining hydrology and water resources problems and watershed processes such as flooding. In addition to those mentioned, listed below in Table 1 are a few more examples and studies of predictive simulation models that have been successfully applied in the water and hydrology sector.

3.2. SD Potential in Water Descriptive Integrated Models

The current literature in SD recognizes major feedback loops in descriptive integrated models of water and hydrology systems [10,11,12,17,39,56,57,58,59,60,61,62], and it includes topics related to social, economic, and hydrological modeling [77,81,82,83]. By using descriptive integrated models, scholars and modelers have embraced a comprehensive method that aims to find and describe the feedbacks for different systems, such as ecological, environmental, social, political, hydrological, and economic systems. In fact, many of the latest SD uses in water and hydrological systems belong to descriptive integrated models [17,39,56,57,58,59,60,61,62,66], and address topics related to social, economic, and hydrological modeling. Descriptive integrated models can be used for integrated modeling of water resources, and this is due to the fact that integrated modeling of a water resources system involves many facilities, clarifications, and simplifications for various nonlinear relationships and feedbacks between several subsystems. Descriptive integrated models present many advantages that have made it a common simulation tool for integrated water resources planning, analysis, and management. The following sections review several hydrology and water resources systems studies and investigations using SD methods to define and analyze the feedback structure and behavioral trends of water descriptive integrated models.
Descriptive integrated models have been employed to help specify, study, and understand what the sociohydrology system is, what it does, and how it does this. For example, Di Baldassarre et al. [77] proposed an SD methodology for expressing feedbacks and interactions among sociohydrology processes to recognize the internal relationships of the human–flood system and the influence of changing individual characteristics, and found SD is capable of reproducing reciprocal impacts between floods and humans. The challenges in hydrological and socioeconomic processes have been overcome by developing a dynamic perception for floodplains and considering them to be associated with human activity. Maxwell et al. [81] introduced a comprehensive SD approach for simulating hydrosocio-environmental processes, interactions, and feedbacks for reducing the resulting effects of sediment transport, drought occurrence, and floods risk in an arid environment. A water budget methodology was employed as the cornerstone for the developed model, which simulates groundwater recharge and stormwater reuse and illustrates the strategies needed for managing stormwater runoff and groundwater storage. The findings demonstrated the importance of management strategies and trade-offs in managing watershed restoration and soil water storage.
Additionally, descriptive integrated models have been used with water applications related to hydrologic–socioeconomic aspects. For instance, Karamouz et al. [83] presented a comprehensive economic framework using SD methodology of every possible profit and expense emerging from current actions, procedural applications, and application of procedures and policies for a basin plain. The costs involved in modeling process are capital and operating costs, crop production costs, pumping costs, and ecological costs. The study provides a general framework for evaluating the administrative policies of water resources, taking into account the economic and environmental interactions, their overlaps, and their implications for crop productivity, cultivated areas, and water efficiency. The SD’s results showed how merging many techniques and methods alongside an economic structure could successfully help stakeholders to know the outcomes of an applied policy on water resources. De Stercke et al. [17] developed an SD model with a clear demonstration of the water–energy nexus of domestic application and consumption and their effect on future demand in London, UK. The proposed methodology is based on a climate change mitigation policy and involves reducing demand via price. It covers water systems and their capacity and supply. Interactions and interferences among water supply, demand, available sewage system, energy intensity, and their implications for water resources scarcity have also been taken into account. The findings revealed a conspicuous need in policy evaluation to consider the water–energy nexus. This methodology can be used efficiently with the overlapping and branched economies found in industrialized countries. Langarudi and his colleagues [43] introduced an SD model to investigate the effect of water use dynamics on the agriculture, population, and economy along with their feedbacks for lower Rio Grande (LRG) region in New Mexico, USA. The developed LRG model is an offshoot model that acts as an extension to the New Mexico dynamic statewide water budget model (NMDSWB) that uses a mass balance methodology to assemble monthly water storages and flows for counties, water planning regions, river basins, and statewide in New Mexico [120]. Seven subsystems represented the developed LRG model, namely hydrology, water use, agricultural production, non-agricultural production, wage, labor, and population. The results showed that the model offered an important starting point for any attempt at modeling the sociohydrology. The authors concluded that in water modeling issues, it is important to evaluate the effect of socioeconomic parameters such as population, economic output, and irrigated area.
There are several research advances and applications illustrating and explaining the importance of integrated descriptive models using SD in the water and hydrological field. For example, Liu et al. [82] described the development of a model-based SD approach able to precisely simulate the economic growth, resource consumption, and ecological influences in Beijing, China. The dynamic model was mainly based on hydrological, economic, demographic, and environmental parameters. The methodology used lists the expected negative impacts on human welfare, environmental safety, and urban development. Statistical evaluations, calibrations and validations, along with dynamic interactions and feedbacks, will help support different required policies, scenarios, and analyses. The model showed that water is the dominant component of the sustainable development process. The results of their SD model will enable policymakers to understand interactions and impacts on urban development and economic growth. Wang et al. [88] developed integrated SD-based methodology for managing water resources considering water supply and demands as well as different socioeconomic and environmental scenarios. A new index has been generated to assess the various interactions based on water balance, and this creates a complete and strong representation of river basin environment. The results of the various trade-offs have shown and contributed to the development of a general vision of water security in the river basins, which has helped to develop the performance of integrated management of water resources and pave the way for the concept of the water sustainability in basins. Additionally, Table 2 demonstrates some of the different issues and applications of water descriptive integrated models.
Ultimately, descriptive integrated methodology can be effectively applied to create models that can simulate and make predictions for a wide range of hydrological, environmental, ecological, economic, and political parameters. It is clear to us through all these reviewed studies that descriptive integrated modeling is efficient in water problems associated with social, economic, ecological, or environmental impacts. With increased attention to studying the sociohydrological aspects, as stated earlier, several researchers have used descriptive integrated modeling approaches to establish comprehensive sociohydrological models. SD-integrated models are able to cover a variety of components and subsystems and perfectly simulate interactions among several variables and parameters. The effectiveness of such a modeling method, in which the researcher should have sufficient know-how to create an integrated model covering all aspects, causes, variables, parameters, inputs, and relationships between external and internal and dynamic effects, must be taken into account. The value of using descriptive integrated models of agricultural water management is to ensure the correct balance of agriculture, climate, and water systems for resources sustainability without any environmental, economic, and social changes adversely affecting the agricultural sector’s efficiency.

3.3. SD Potential in Water Participatory and Shared Vision Models

Participatory and shared vision modeling is the approach of integrating stakeholders, community, and decision makers in an analytical modeling process to assist critical decisions related to hydrology and water resources. SD modeling has been utilized as an effective way for boosting shared vision planning and learning modeling by different stakeholders in the water sectors [98,99,100]. Participatory and shared vision models support the process of the joint comprehension of a water and hydrological systems and enhance the social, economic, ecological, and environmental aspects of water management policies and decisions by engaging policymakers and stakeholders. Decision makers’ involvement in the modeling process promotes understanding of the problem and its different aspects, increases confidence in the results obtained, supports the chosen strategies and provides a strong modeling framework for water resources systems [10,131,132]. There are many examples of participatory water resources modeling employing system dynamics. However, some studies which address and discuss participatory modeling of water resources systems using SD methodology are presented in the upcoming section.
Many researchers and scholars have used SD as participatory and shared vision models in the water sectors. For example, Ford [102] designed a computer simulation model based on an SD approach for the Snake River, US. The model simulates the annual flows in the Snake River at major points of importance for agrarian groups, ecology groups, and the power industry. The proposed model also shows problems related to water rights and falling water levels and can be used to check the possible solutions to resolve these problems. Karamouz et al. in Iran [103] proposed an SD dispute resolution model for monthly allocation of waste in river systems, where stakeholders and decision makers take into account their relative authorities and address the expectations and dissatisfactions with one another. Spatial and temporal variations were considered in the developed SD model which offers a good solution for assessing water quality. The findings demonstrated that the developed model can successfully incorporate the preferences of the stakeholders and decision makers in providing a final agreement.
Kotir et al. [106] presented participatory and methodological processes contributing to creating an SD model to support integrated water resources management, environmental development, and sustainable agricultural development. The proposed model offers a detailed understanding of the principal biophysical and socioeconomic elements and processes in the Volta River Basin, West Africa. Assessing the SD findings obtained from a stakeholder perspective has helped to comprehensively evaluate various feedbacks and interactions of the water resources in the basin. Additionally, participatory and shared vision models have been utilized for an extensive variety of water applications and modeling, including public water management [131], community-based water planning [132], water supply and demand [101], river basin management [99], aquifer dynamics [100], wetland modeling [6], hydrological, environmental and socioeconomic systems [104], and drought management [105]. It is evident from the above articles that participatory and shared modeling can be used for a range of purposes, including decision support, information management, and forecasts of complex and difficult water systems for modelers, researchers, and policymakers. Participatory and shared modeling is mainly consistent with the growing focus on comprehensive water resources management, which includes systems theory and takes into account economic, social, and environmental parameters. Multiple water problems have been widely and successfully studied with participatory and shared vision models, such as watershed management, surface and groundwater planning, drought management, water conflict, and climate change. It is clear to us that participatory and shared models have become of great importance due to the complexities of the water systems and their urgent need to incorporate various efforts to create an effective vision that serves all parties and takes environmental, economic, and social aspects into consideration.

3.4. SD Potential in Water Combined Models

Combining SD methodology with other modeling approaches helps to analyze, represent, and understand complicated and difficult problems, issues, and systems as well as to discover potential solutions and policies. Although SD modeling has important advantages, it is unavoidably subject to some limitations. In addition, SD cannot find the perfect choices, outcomes, and solutions on its own. Modeling uncertainty using SD is a daunting task, and modeling processes in the case of spatially distributed data [13,108,109,110] will be difficult. Many studies and investigations have illustrated that SD modeling of complex problems can be improved by integrating with other modeling procedures and methods. One of the benefits of combination is the ability to deal comprehensively with water problems and issues and to draw stronger conclusions than standard or usual SD methods [5,111].
Generally, SD modeling can be employed to combine descriptive and numerical parameters of a complex circumstance. There are six stages and phases by which SD modeling methodologies are combined and incorporated with other approaches and techniques. The first step, according to Sterman [34] and Zolfagharian et al. [110], is to identify the initial problem, which allows researchers to know if SD can be used to solve the problem. The second stage involves analyzing the issue in terms of kind, the key parameters, and their causal relationships. The third step deals with why a specific combination should be acceptable. The fourth step is the way the intended combination is actually implemented. The fifth step is to get the combined model, while in the sixth step, it is assessed and strengthened. As a result, several researchers have suggested combining SD with other water sector simulation, modeling, or optimization techniques. Nevertheless, given the abundance of literature on the combination method, there is no simple and concise study, description, or review of when and how SD is combined with other techniques, or findings of different combinations used for water land issues and uses. The key reasons for combining the SD technique with other approaches can be illustrated in the water problem, its complexity and multiple levels, the difficulty in formulating causal relationships, and the variability and ambiguity of the causes, variables, and parameters involved. Table 3 shows combined system dynamics models in some studies and their modeling objectives, results, and findings.
This review found that SD approaches have been successfully combined with many other modeling techniques (Table 3). In short, there is promise for combined systems because of the great benefits derived from the combination process, summed up as improving SD’s ability to express the water problem clearly, increase the confidence and accuracy in the modeling process, and incorporate new features and characteristics of water and hydrological models.

4. System Dynamics Software Packages used in Water and Hydrological Sectors

One of the success criteria of the SD modeling process is the appropriate and proper selection of software used in the development of the SD model [131,132,133,134,135,136,137,138,139,140]. However, numerous modeling packages have been developed to ease structuring and implementing SD models in different fields such as AnyLogic, DYNAMO, Exposé, Forio, IThink/Stella, MyStrategy, Powersim, Simile, True, MapSim, and Vensim. Through the review of various publications and papers related to the application of SD in the water sector, the most used software packages are Vensim, IThink/Stella, and PowerSim. More information on these packages is listed in Table 4. In general, these packages are simple to use and provide a diversity of functions and offer optimization and validation techniques. Moreover, they boost cooperative modeling and connection with very large datasets. According to our review, the largest number of studies and research was carried out using Vensim software by 52% of the total studies in the field of water, while the IThink/Stella software was used in about 39% of all studies (Table 4). Only 9% of the total studies were conducted using PowerSim, and this may be due to the fact that PowerSim is more suitable for business solutions, and requires more experience and has a higher cost compared to Vensim and IThink/Stella packages.

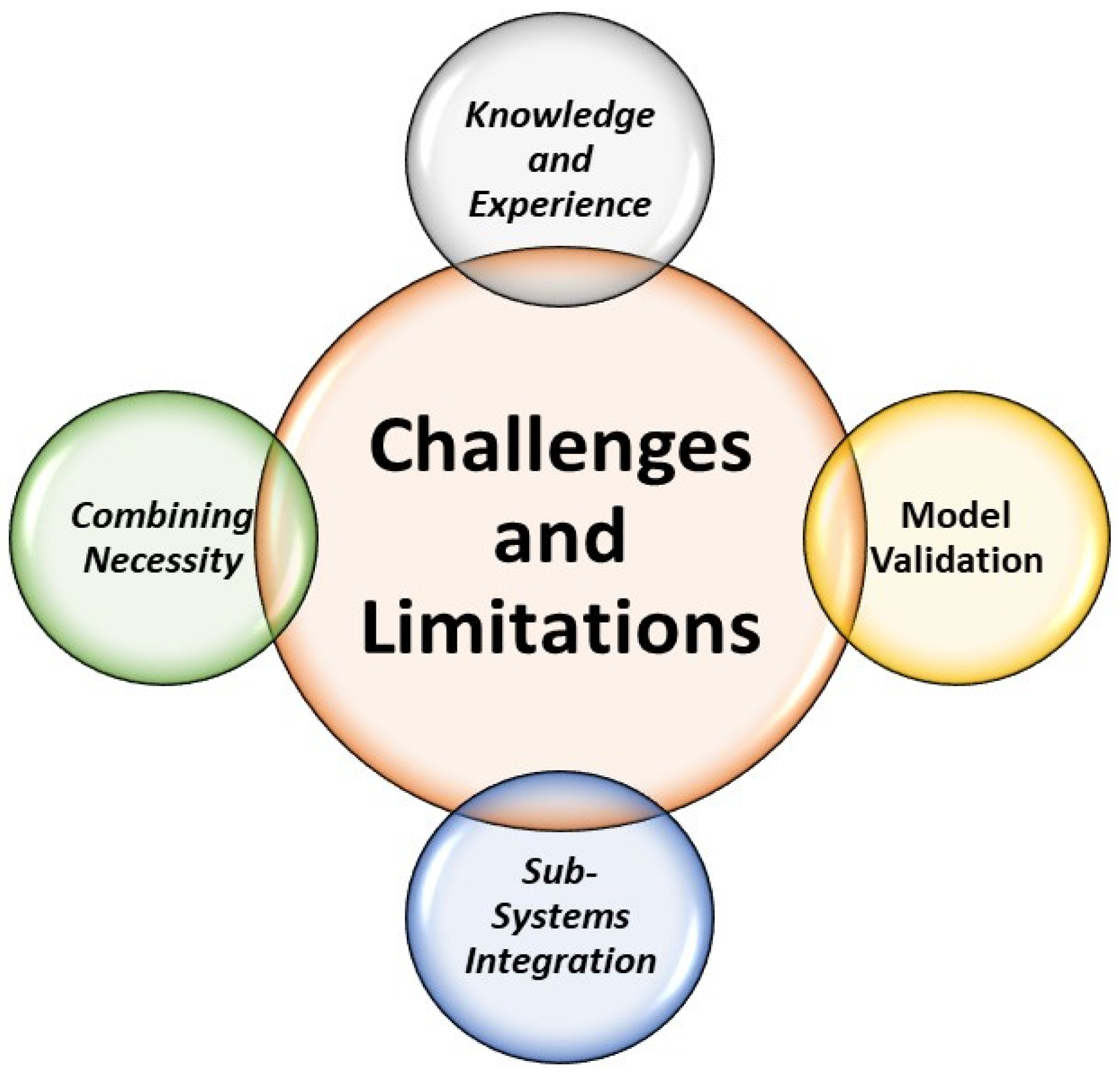

5. Challenges and Limitations of System Dynamics

It is evident from the above that many researchers and modelers performed extensive studies on water issues and water systems and achieved substantial outcomes and progress using SD approach. Even though there is much research and experience, there are still some difficulties, constraints, and challenges that limit the comprehensive use of the SD modeling approach in issues related to and specialized in water resources systems. We can summarize the challenges and limitations facing SD with water applications as presented in Figure 5, and each challenge is explained separately below.

5.1. Knowledge and Experience

In order to establish an integrated system of water management, substantial, multifaceted knowledge, and great experience are required to recognize the relations among different systems. Describing causality relation among many variables and factors is handy and simple using the system dynamics approach. However, this convenience and ease may cause incorrect results due to simplistic models that may be focused on unnecessary and irrelevant details. Consequently, knowledge and experience are required to prevent these cases by performing causality checks, evaluations, and causal relationship assessments. These tests and checks help to ascertain the existence of causal relationships for validation and calibration processes, which considerably increase the reliability of the integrated modeling process.

5.2. Model Validation

Validation is extremely relevant in issues relating to water resources that are addressed by mathematical modeling and, in particular, by the approach of SD modeling. Unfortunately, according to Barlas [112], the validation of an SD model is much more difficult than that of a black box model. The reason for this is that the verifying procedure for the internal model frame is largely philosophically and technically complex. Barlas [112] concluded that it is philosophically problematic because it is directly connected and closely linked to the irreplaceable philosophical problem of testing the validity of the scientific argument. Moreover, the issue is technically complicated and this is because there are no recognized validations, such as the tests of statistical hypothesis, which can be used to determine whether or not the model frame is, in reality, close to the problem frame.

5.3. Subsystems Integration

While subsystem integration is of great importance in water resource modeling, in most published works, only two or three subsystems are used and treated. Models of efficiently integrated water management systems involve careful consideration of hydrological, ecological, environmental, political, social, economic, and technical parameters and variables in order to shape and cover a number of subsystems that are critical for improving and updating the overall implementation of the integrated modeling process. To be integrated in an evolutionary and holistic manner, some of the critical contemporary issues such as water security, water conflict, water scarcity, water footprint, water sustainability, water pollution control, and conjunctive groundwater and surface water management and wastewater management strategies must be considered in the water resources modeling process.

5.4. Combining Necessity

In many water-related problems, the SD modeling approach alone cannot comprehensively describe, analyze. and understand the water system. Accordingly, there is an urgent need for combination with other modeling methods and procedures to expand certainty and confidence when obtaining and measuring parameters, including different features, directions, and patterns of impacting components and building structures in addition to direct procedures to assist the SD modeling. Combining the SD method with other procedures, such as exploratory modeling and analysis, geographic information system, artificial neural network, fuzzy logic, agent-based modeling and simulation, Bayesian network, analytic hierarchy process, impact analysis, game theory, and Delphi method will lead to a stronger framework capable of understanding and modeling hydrology and water management systems more effectively and sufficiently because it can combine its advantages with those of these techniques.

6. Concluding Remarks and Directions for Future Work

Effective agricultural water management includes integrating a number of hydrological, environmental, social, economic, administrative, and political factors into the decision-making process for exploiting, managing, and maintaining available water for agricultural sectors. In this study, a new, comprehensive review of research scientific papers and articles is presented on the application and usage of SD modeling approach in sustainable water management. By examining and analyzing the various applications of SD in hydrological and water systems, we attempted to demonstrate how SD may provide a potentially useful modeling tool for agricultural water management. Issues and problems such as water quality management, water footprints, water conservation policies, regional water resources, environmental water management, drainage water quantity, wastewater reuse, salinity reduction, modeling surface water and groundwater, urban water resources, water scarcity assessment, flood risk, transboundary systems, sustainable management of municipal water, and climate change have been reviewed. Using examples, we addressed the various forms, measures, advantages, and drawbacks of the SD method.
In general, the SD approach is able to provide a complete understanding for relations, influences, and feedbacks among several interrelated subsystems in a hydrological or water system. It is a promising technique to manage emerging complicated issues and relationships while modeling and analyzing hydrological systems. The SD approach can integrate numerical and descriptive techniques, systematically investigate and evaluate complex systems, and realize different internal relations for water resources systems. However, the SD strategy is subject to certain obstacles, issues, and difficulties that need to be tackled and resolved. It requires a thorough understanding of the water management system being studied, and before beginning the modeling process, the modeler or researcher needs to be familiar with the basic parameters and factors that affect the system. In addition, the SD method poses some challenges when dealing with structures and systems with high levels of complexity and changes in different social and environmental conditions. Nevertheless, a number of studies and investigations suggested that the SD modeling methodology be combined with other modeling techniques to resolve these issues and increase performance. Several studies combined the SD modeling approach with artificial neural network, fuzzy logic, geographic information system, agent-based modeling and simulation, Bayesian network, analytic hierarchy method, impact analysis, game theory, exploratory modeling and analysis, and Delphi method. By combining the SD modeling approach with these methods, the findings have improved considerably, and the modeling capacities of the SD approach have expanded, thereby positively impacting water resource systems decision-making, planning, management, and research. Through our analysis, it can be inferred that SD can be used successfully in applications relating to water and agriculture water management economics, policies, and strategies. This will resolve many of the main problems of great importance to agricultural water management, such as groundwater management in agriculture, crop water relations, rainwater harvesting, saline agriculture, farm-level water management, and global climate change.
