# A Three-Dimensional Numerical Study of Wave Induced Currents in the Cetraro Harbour Coastal Area (Italy)

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Governing Equations

^{th}contravariant and covariant component of the generic vector $\overrightarrow{b}$ (or tensor $\underset{\_}{C})\text{}$ are given, respectively, by the scalar product between $\overrightarrow{b}$ (or $\underset{\_}{C}$) and the base vectors ${\overrightarrow{g}}^{\left(l\right)}$ and ${\overrightarrow{g}}_{\left(l\right)}$ [20]. Let us define with $\Delta {V}_{0}=\Delta {\xi}^{1}\Delta {\xi}^{2}\Delta {\xi}^{3}$ a control volume bounded by moving curvilinear coordinate surfaces, which at the generic instant coincides with a material volume of fluid. In a curvilinear coordinates system, in order to obtain an integral form of the governing equations, the rate of change of the momentum of a material volume and the net forces acting on it must be projected onto a direction in space that does not coincide with a coordinate line. In this coordinate system, a direction in space is identified by a vector field $\overrightarrow{\lambda}$ whose covariant components ${\lambda}_{k}$ are not constant in space. In this paper, the vector field $\overrightarrow{\lambda}$ that identifies the abovementioned direction in space (and that is used to obtain a contravariant integral form of the momentum equation) is the one parallel to the l

^{th}contravariant base vector defined at the centre of the volume $\Delta {V}_{0}$. We indicate by ${\overrightarrow{\tilde{g}}}^{\left(l\right)}$ this base vector and by ${\lambda}_{k}={\overrightarrow{\tilde{g}}}^{\left(l\right)}\xb7{\overrightarrow{g}}_{\left(k\right)}$ its k

^{th}covariant component. By following this procedure, the contravariant integral form of the Navier–Stokes equations in a time dependent curvilinear coordinate system can be expressed as:

## 3. Numerical Procedure

#### Surface Boundary Condition

## 4. Results

#### 4.1. Breaking Wave Test Case

#### 4.2. T-head Groin Test Case

#### 4.3. Wave Induced Currents in the Cetraro Harbour (Italy)

#### 4.3.1. Wave Fields and Wave Induced Currents in the Present Configuration

#### 4.3.2. Wave Fields and Wave Induced Currents in the Project Configuration

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Cannata, G.; Barsi, L.; Petrelli, C.; Gallerano, F. Numerical investigation of wave fields and currents in a coastal engineering case study. WSEAS Trans. Fluid Mech.
**2018**, 13, 87–94. [Google Scholar] - Erduran, K.S.; Ilic, S.; Kutija, V. Hybrid finite-volume finite-difference scheme for the solution of Boussinesq equations. Int. J. Numer. Methods Fluids
**2005**, 49, 1213–1232. [Google Scholar] [CrossRef] - Chen, Q.; Kirby, J.T.; Dalrymple, R.A.; Shi, F.; Thornton, E.B. Boussinesq modeling of longshore currents. J. Geophys. Res.
**2003**, 108. [Google Scholar] [CrossRef] - Cannata, G.; Petrelli, C.; Barsi, L.; Fratello, F.; Gallerano, F. A dam-break flood simulation model in curvilinear coordinates. WSEAS Trans. Fluid Mech.
**2018**, 13, 60–70. [Google Scholar] - Zhu, Z.; Yang, Z.; Bai, F.; An, R. A new well-balanced reconstruction technique for the numerical simulation of shallow water flows with wet/dry fronts and complex topography. Water
**2018**, 10, 1661. [Google Scholar] [CrossRef] [Green Version] - Fan, C.; An, R.; Li, J.; Li, K.; Deng, Y.; Li, Y. An approach based on the protected object for dam-break flood risk management exemplified at the Zipingpu reservoir. Int. J. Environ. Res. Public Health
**2019**, 16, 3786. [Google Scholar] [CrossRef] [Green Version] - Roeber, W.; Cheung, K.F. Boussinesq-type model for energetic breaking waves in fringing reef environment. Coast. Eng.
**2012**, 70, 1–20. [Google Scholar] [CrossRef] - Tonelli, M.; Petti, M. Shock-capturing Boussinesq model for irregular wave propagation. Coast. Eng.
**2012**, 61, 8–19. [Google Scholar] [CrossRef] - Tonelli, M.; Petti, M. Simulation of wave breaking over complex bathymetries by a Boussinesq model. J. Hydraul. Res.
**2011**, 49, 473–486. [Google Scholar] [CrossRef] - Bradford, S.F. Non-hydrostatic model for surf zone simulation. J. Waterw. Port Coast. Ocean Eng.
**2011**, 137, 163–174. [Google Scholar] [CrossRef] - Ma, G.; Shi, F.; Kirby, J.T. Shock-capturing non-hydrostatic model for fully dispersive surface wave processes. Ocean Model.
**2012**, 43–44, 22–35. [Google Scholar] [CrossRef] - Bradford, S.F. Improving the efficiency and accuracy of a nonhydrostatic surf zone model. Coast. Eng.
**2012**, 65, 1–10. [Google Scholar] [CrossRef] - Derakhti, M.; Kirby, J.T.; Shi, F.; Ma, G. NHWAVE: Consistent boundary conditions and turbulence modeling. Ocean Model.
**2016**, 106, 121–130. [Google Scholar] [CrossRef] - Cannata, G.; Petrelli, C.; Barsi, L.; Gallerano, F. Numerical integration of the contravariant integral form of the Navier–Stokes equations in time-dependent curvilinear coordinate systems for three-dimensional free surface flows. Contin. Mech. Thermodyn.
**2019**, 31, 491–519. [Google Scholar] [CrossRef] [Green Version] - Chen, X.J. A fully hydrodynamic model for three dimensional, free surface flows. Int. J. Numer. Methods Fluids
**2003**, 42, 929–952. [Google Scholar] [CrossRef] - Lin, P.; Li, C.W. A σ-coordinate three-dimensional numerical model for surface wave propagation. Int. J. Numer. Methods Fluids
**2002**, 38, 1045–1068. [Google Scholar] [CrossRef] - Young, C.C.; Wu, C.H. A σ-coordinate non-hydrostatic model with embedded Boussinesq-type-like equations for modeling deep-water waves. Int. J. Numer. Methods Fluids
**2010**, 63, 1448–1470. [Google Scholar] [CrossRef] - Cannata, G.; Gallerano, F.; Palleschi, F.; Petrelli, C.; Barsi, L. Three-dimensional numerical simulation of the velocity fields induced by submerged breakwaters. Int. J. Mech.
**2019**, 13, 1–14. [Google Scholar] - Luo, H.; Bewley, T. On the contravariant form of the Navier–Stokes equations in time-dependent curvilinear coordinate systems. J. Comput. Phys.
**2004**, 19, 355–375. [Google Scholar] [CrossRef] - Aris, R. Vectors, Tensors, and the Basic Equations of Fluid Mechanics; Dover: New York, NY, USA, 1989. [Google Scholar]
- Ting, F.C.K.; Kirby, J.T. Observation undertow and turbulence in a wave period. Coast. Eng.
**1994**, 24, 51–80. [Google Scholar] [CrossRef] - Gravens, M.B.; Wang, P. Data Report: LSTF Experiments—Transport by Waves and Currents & Tombolo Development Behind Headland Structures, Technical Report ERDC/CHLTR-04-9; Coastal and Hydraulics Laboratory, US Army Engineer Research and Development Center: Vicksburg, MS, USA, 2007. [Google Scholar]

**Figure 1.**Ting and Kirby [21] breaking wave test case. Phase-averaged wave crest elevations. Experimental data (circles) and numerical results obtained by ${y}^{+}$ average fixed value of 40 (solid line).

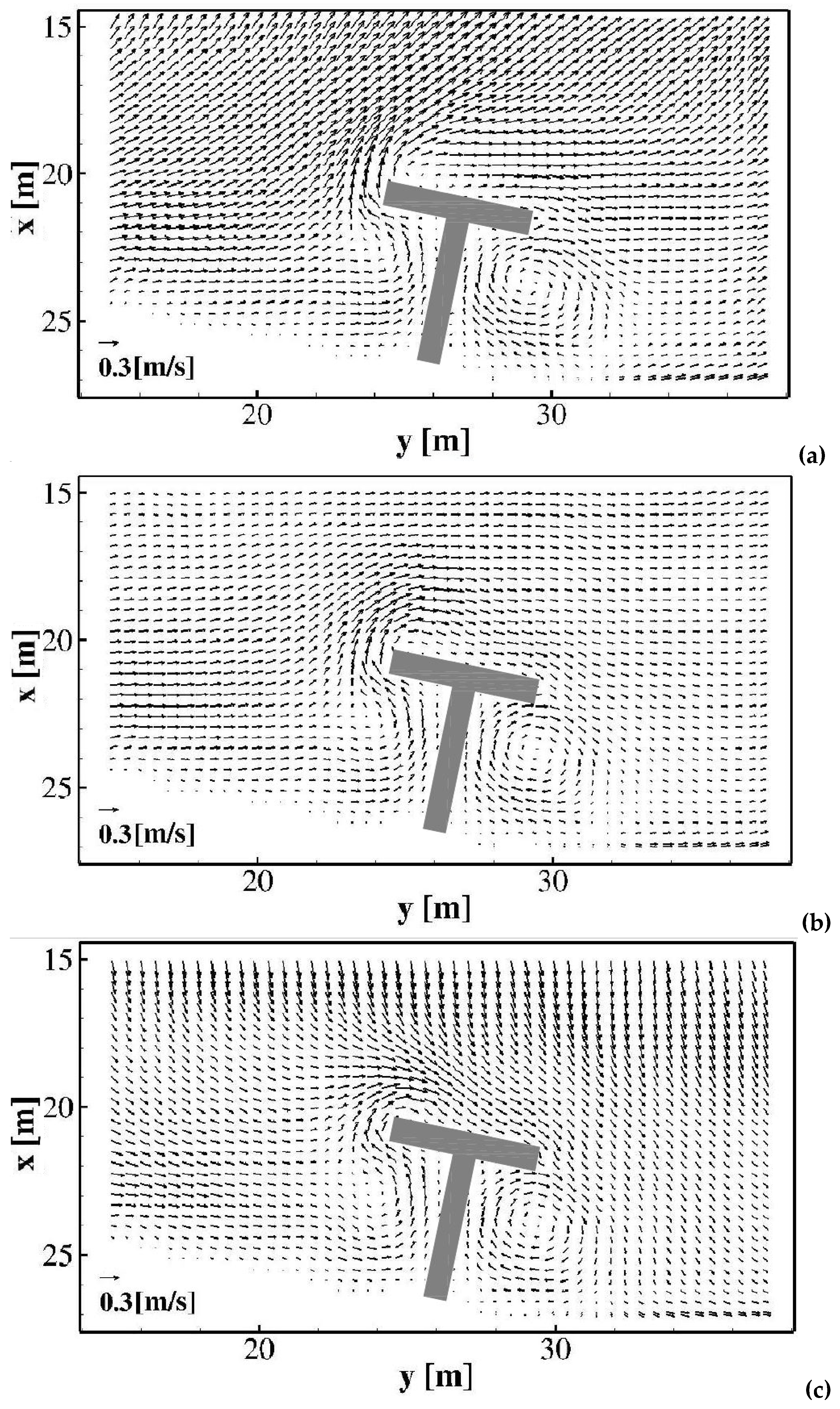

**Figure 2.**Plan view of the time-averaged velocity field: (

**a**) $z/{z}_{b}=0.894$, near the bottom; (

**b**) $z/{z}_{b}=0.488$, intermediate position along the vertical direction; (

**c**) $z/{z}_{b}=0.081$, near the free surface.b.

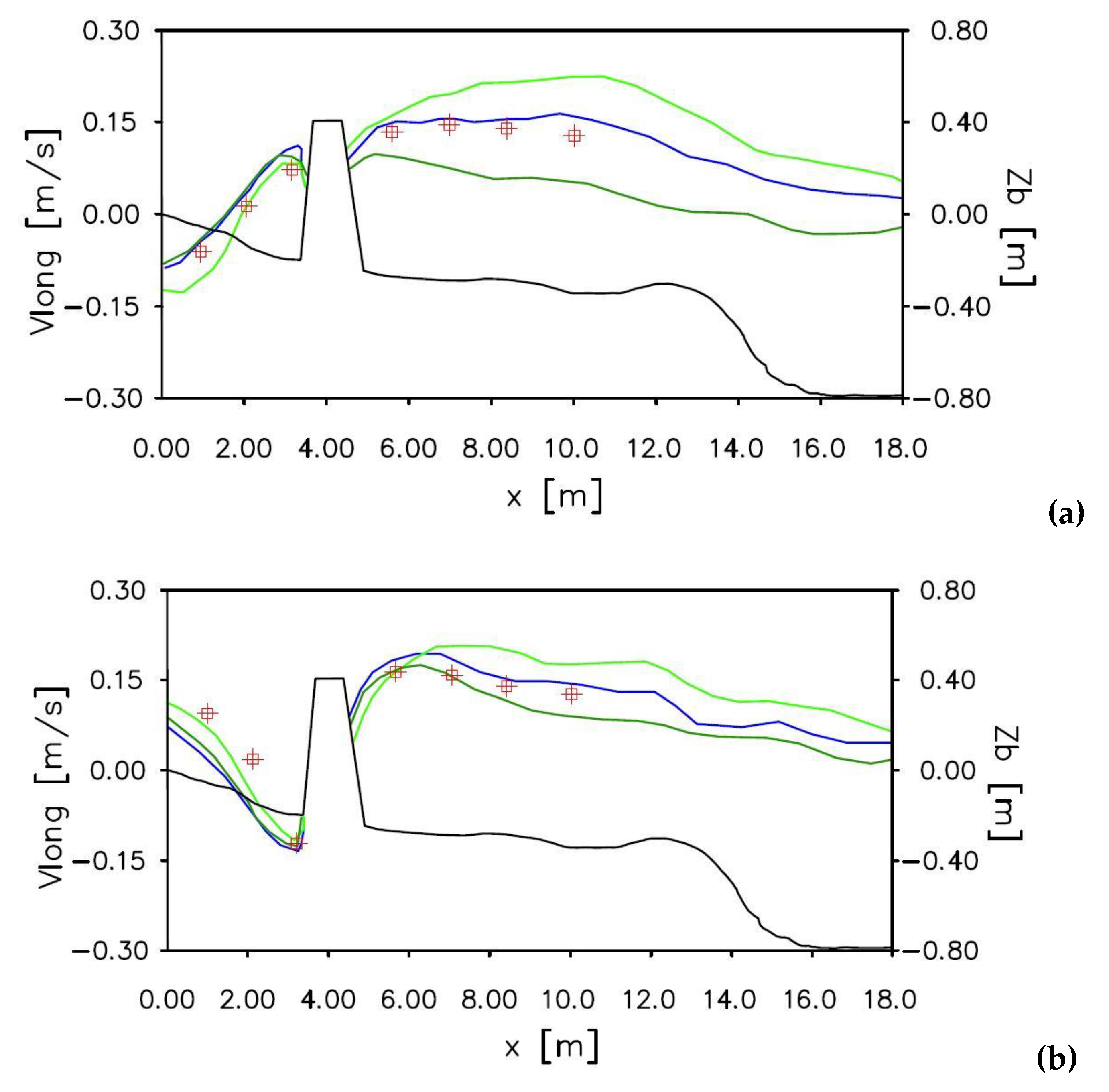

**Figure 3.**Long-shore currents: (

**a**) at $\text{}y=22\text{}m$, (

**b**) at $\text{}y=26\text{}m$. Comparison between experimental data by Gravens and Wang [22] (red square) and numerical results of the depth-averaged cross-shore currents (blue line). Numerical results of cross-shore currents near the bottom at a relative distance from the free surface $z/{z}_{b}=0.894$ (light green line) and cross-shore currents, near the free surface at a relative distance from the free surface $z/{z}_{b}=0.081$ (green line). Bottom profile in black.

**Figure 4.**Cross-shore currents: (

**a**) at $\text{}y=22\text{}m$, (

**b**) at $\text{}y=26\text{}m$. Comparison between experimental data by Gravens and Wang [22] (red square) and numerical results of the depth-averaged longshore currents (blue line). Numerical results of longshore currents near the bottom at a relative distance from the free surface $z/{z}_{b}=0.894$ (light green line) and long-shore currents, near the free surface at a relative distance from the free surface $z/{z}_{b}=0.081$ (green line). Bottom profile in black.

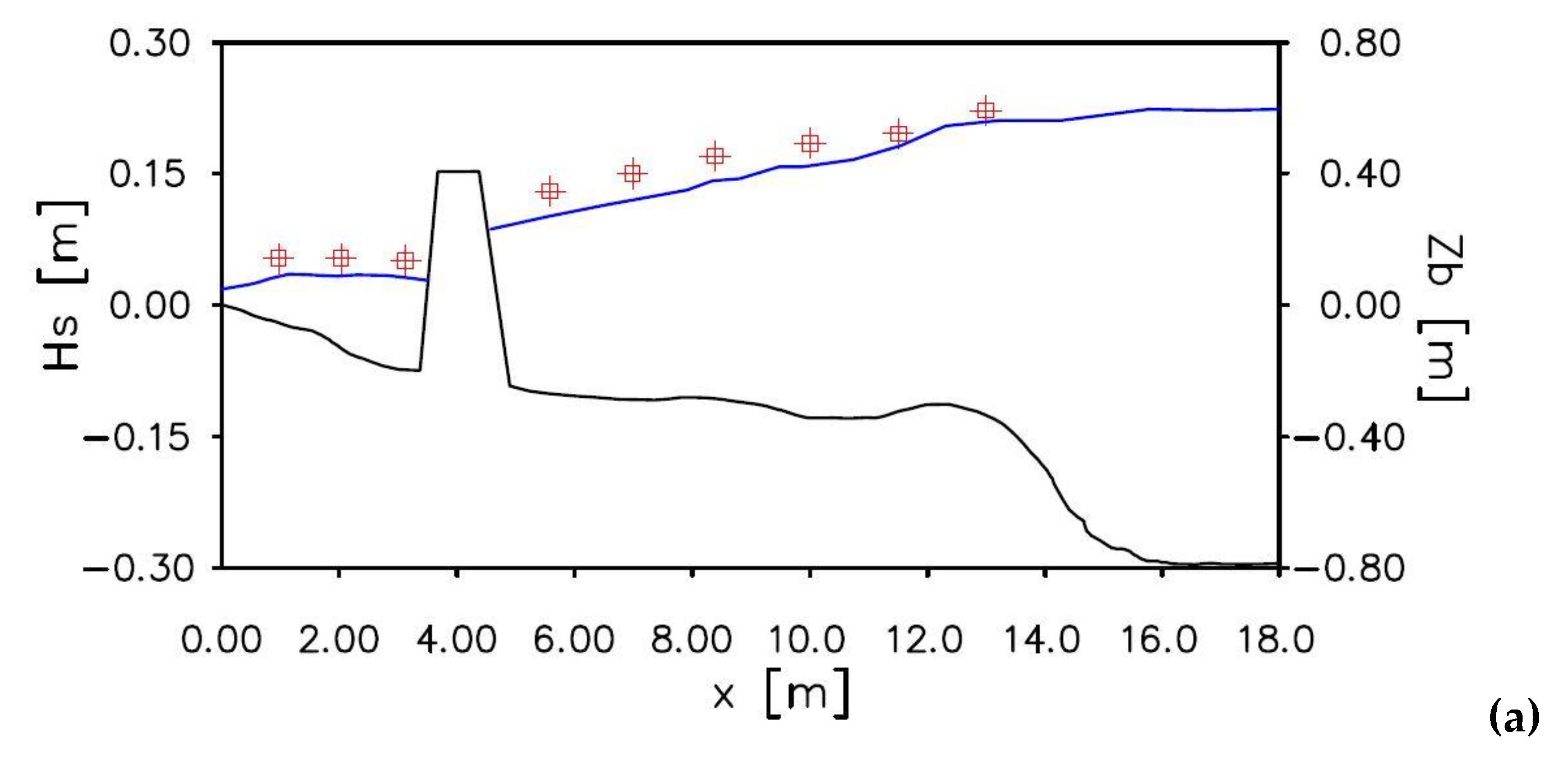

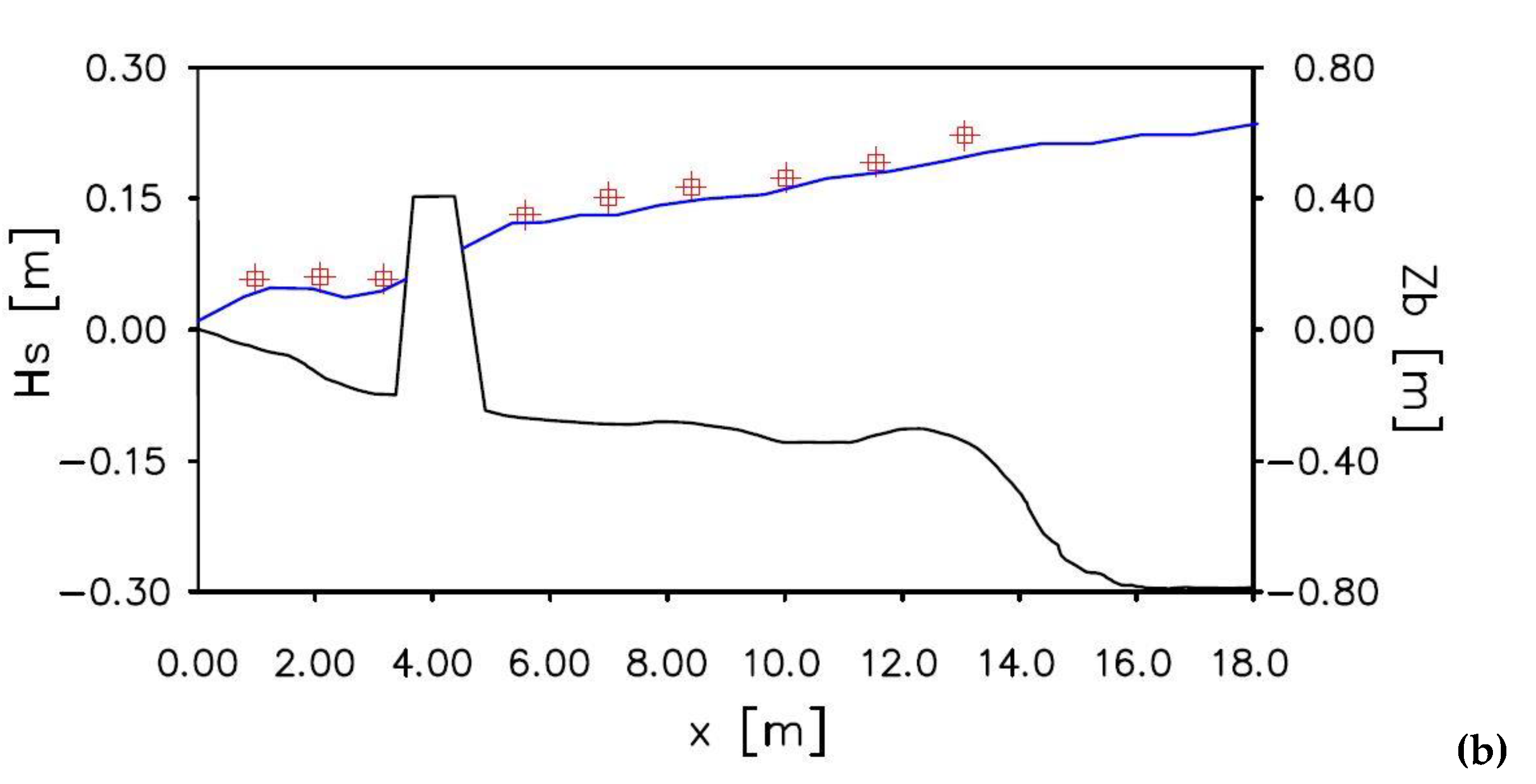

**Figure 5.**Significant wave height: (

**a**) section at $\text{}y=22\text{}m$, (

**b**) section at $\text{}y=26\text{}m$. Comparison between experimental data by Gravens and Wang [22] (red square) and numerical results (blue line). Bottom profile in black.

**Figure 6.**(

**a**)

**:**Plan view of Cetraro harbour (Italy). (

**b**): Wave height directional distribution offshore Cetraro harbour.

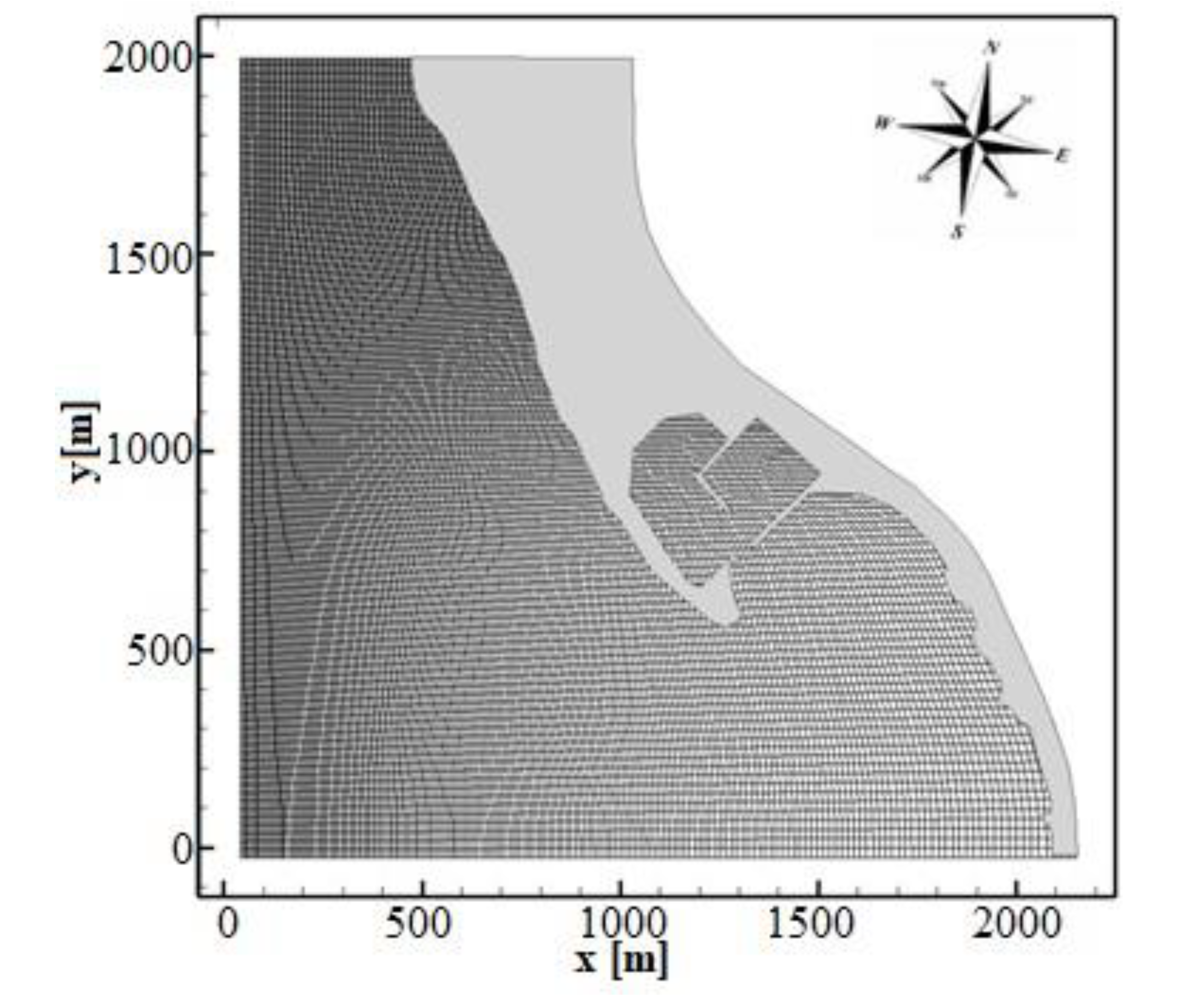

**Figure 7.**Plan view of the boundary conforming curvilinear grid adopted for the numerical simulation in the present configuration. One curvilinear coordinate line out of 6 is shown.

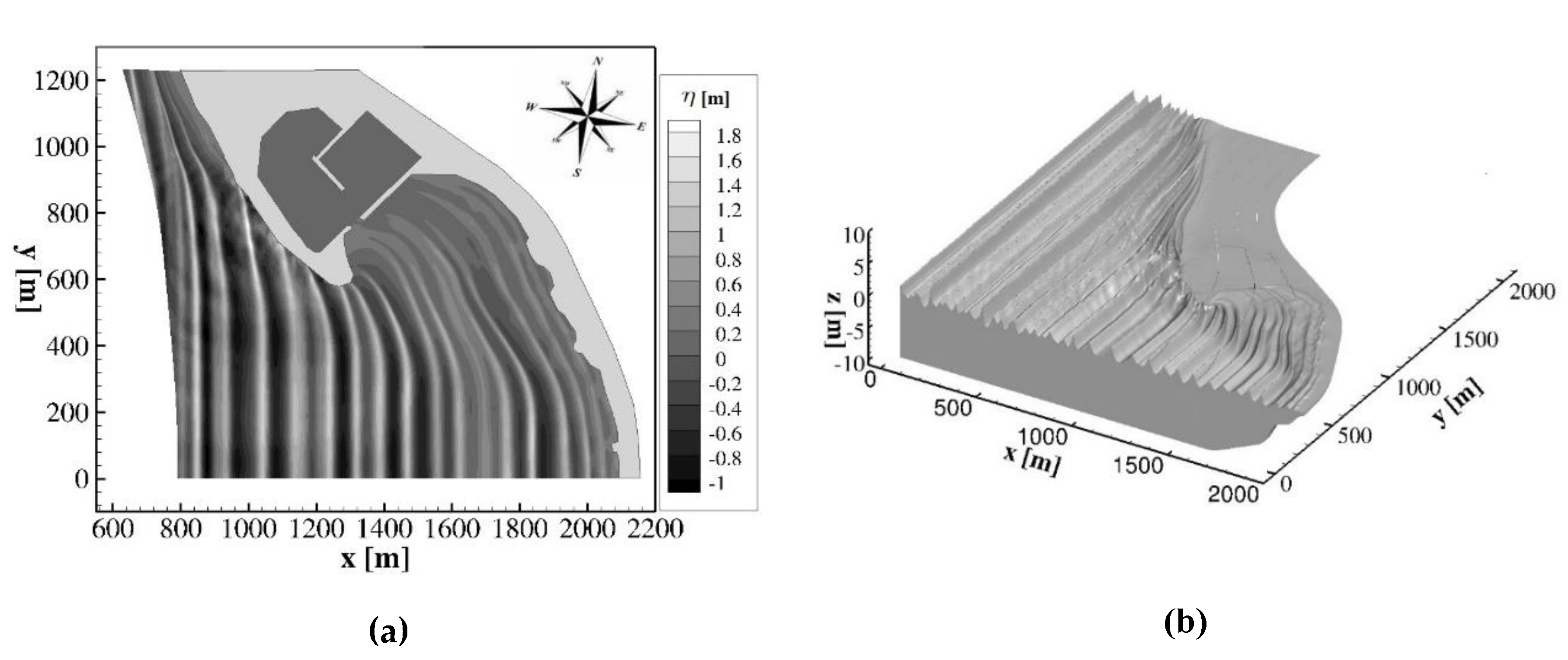

**Figure 8.**(

**a**) Plan view and (

**b**) three-dimensional view of an instantaneous wave field obtained by the numerical simulation of the significant wave event in the coastal region of Cetraro harbour in the present configuration. $\eta $: free surface elevation.

**Figure 9.**Time-averaged velocity field: (

**a**) near the free surface, (

**b**) at intermediate water depth, (

**c**) near the bottom, obtained by the numerical simulation of the significant wave event in the present configuration of the Cetraro harbour.

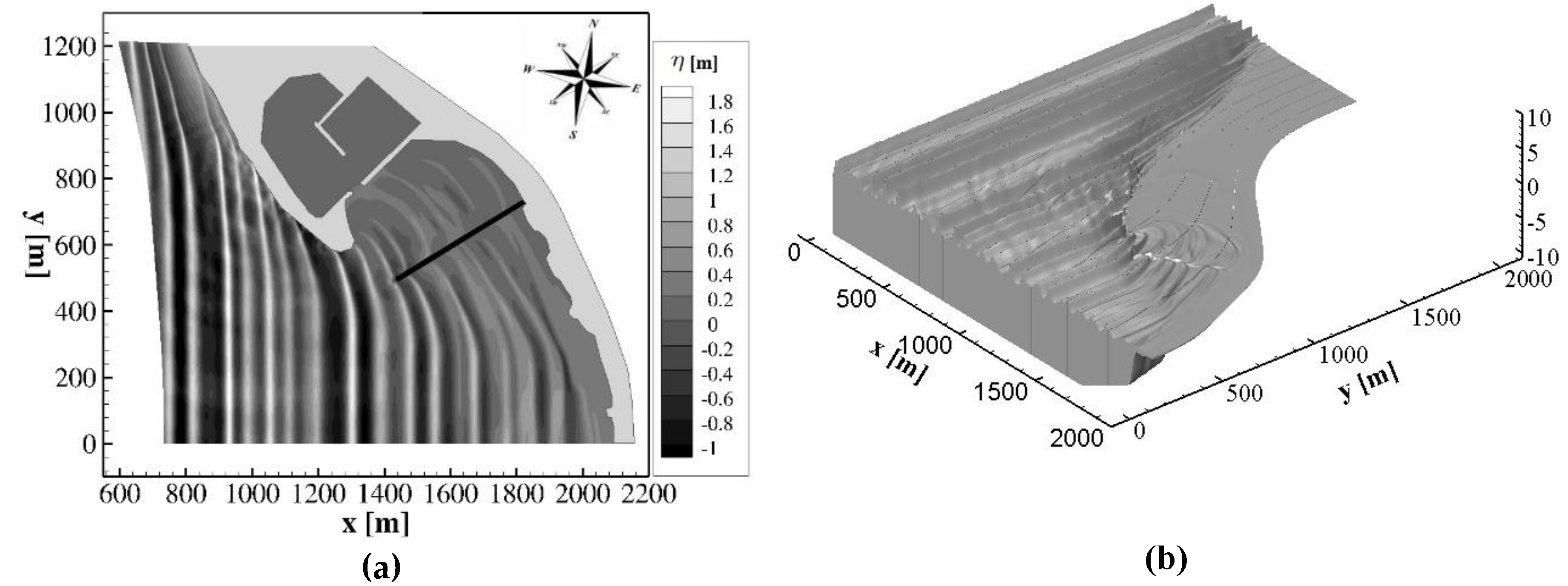

**Figure 10.**(

**a**) Plan view and (

**b**) three-dimensional view of an instantaneous wave field obtained by the numerical simulation of the significant wave event in the coastal region of Cetraro harbour in the project configuration.

**Figure 11.**Time-averaged velocity field: (

**a**) near the free surface, (

**b**) at intermediate water depth, (

**c**) near the bottom, obtained by the numerical simulation of the significant wave event in the project configuration of the Cetraro harbour.
