Development of a Safety-Inspection Method for River Bridges in Turkey

Civil Engineering Department, Gazi Universitesi, Maltepe, Cankaya, 06570 Ankara, Turkey
Civil Engineering Department, Orta Dogu Teknik Universitesi, Dumlupinar Blv. No:1, 06800 Ankara, Turkey
Author to whom correspondence should be addressed.
Water 2019, 11(9), 1902;
Received: 30 July 2019 / Revised: 2 September 2019 / Accepted: 6 September 2019 / Published: 12 September 2019
(This article belongs to the Special Issue Bridge Hydraulics: Current State of the Knowledge and Perspectives)


In this paper, findings of a research project about river bridges in Turkey are shared and details of the developed safety-inspection method based on hydrological and hydraulic factors are presented. In the project, the Western Black Sea Basin was chosen as the pilot area, where the basin is mountainous with steep slopes and has a rainy climate with frequent flash floods. Many river bridges in the basin were inspected at different flow conditions throughout the project duration of three years. The developed safety-inspection method is composed of four main parts: evaluation of watershed hydrology and its flood potential, stream stability, bridge characteristics and a rapid scour assessment. A structural assessment is also included in the method. Five river bridges in the area were chosen for detailed inspection and application of the method. Results showed that the method was capable of identifying and ranking the bridges in regard to maintenance needs and forming a comprehensive inventory for bridge engineers.

1. Introduction

After failure of Caycuma Bridge pier in April 2012 that resulted in the death of 15 people, problems of river bridges attracted further attention in Turkey. Since then, severe damages or failures of some river bridges have been reported, especially in the Black Sea Basin of the country. This basin is mountainous with steep slopes and has a rainy climate with frequent flash floods. With an increasing number of bridge disasters, the General Directorate of Highways (GDH) introduced a bridge management system (BMS) in 2017 in which all structural data of bridges in Turkey were transferred to the system, with the information about the requirements of the inspection/repair needs of the bridges, and the cost of maintenance. In this system, each subsidiary component of the bridge is inspected and graded visually or with equipment, where necessary, according to deterioration, aging, damage and loss of elements. Meanwhile, a collaborative research project with GDH and two universities was conducted with duration of three years to investigate the problems of river bridges in Turkey with extensive field observations and measurements in the Western Black Sea Region [1]. The study noted that almost all bridge failures in Turkey are river bridges and these were caused by various hydraulic factors, mainly excessive scouring around bridge piers, and debris accumulation. Along with this study, Akay [2] developed a safety-inspection method for river bridges that could be implemented into the current BMS to inspect bridges, especially with regard to hydraulic effects, and to form an inventory consisting of hydrologic and hydraulic factors and their effects on the structure.
Many countries developed their own BMSs depending on their needs, to manage their bridge stock efficiently, while some countries adopted widely used well-known systems of other countries [3,4,5,6]. In a traditional BMS, there are four modules: inventory, inspection, maintenance and optimization. Among those modules, inventory is considered as the most important part in which detailed database of all attributes of the bridge elements are collected [7]. Thus, various countries all over the world, such as France, Italy, Taiwan and India are still attempting to develop their national bridge database to improve their asset management [8,9,10]. Currently consisting of 28-member countries, the European Union has a wide variety of infrastructure assets with different construction types and BMSs. The majority of those BMSs focused mainly on structural health monitoring with less consideration for water-related hazards, such as scour at bridge foundation, and debris accumulation [11]. Meanwhile, some studies were conducted on the extreme weather events and changes in the frequency of extreme flooding due to global warming and the potential risks they pose to bridges [12,13,14]. Thus, today emphasis is placed on the bridge scour assessment with the increase in the number of catastrophic failures of bridges associated with flood induced events. Various studies were conducted to assess stream stability and channel conditions, while, especially in the last decade or so, research has focused on the development of bridge scour assessment methods and the estimation of bridge scour vulnerability [15,16,17,18,19,20,21,22,23].
In 1995, Lagasse et al. [24] proposed a three-level approach to assess the channel stability in vicinity of bridges, in which geomorphic concepts and qualitative analysis in Level 1, hydrologic, hydraulic and sediment transport aspects in Level 2, and mathematical and physical modelling studies in Level 3 were assessed. This approach is implemented in HEC-20 which is a widely known manual for identifying stream stability problems and presenting guidelines for bridge owners in the USA. According to this approach, stream characteristics and land use changes are considered for an overall stability with the analysis of vertical and lateral stability and stream response, with a number of parameters considered for characterization of the watershed response and morphological evolution. Rosgen [25] proposed a method based on assessing the stability of a stable reach as a reference and then performing a departure analysis to an unstable reach of the same stream type. Montgomery and MacDonald [26] developed a diagnostic approach in which the system and its elements were defined and assessed. Johnson [27] developed a preliminary assessment method based on the previous research related with stream stability and rating channel stability in the vicinity of the bridges located across the USA. In that study, Johnson [27] assessed the channel stability using thirteen indicators of watershed and floodplain activity and characteristics, flow habit, channel pattern and entrenchment or channel confinement, following the concept of Montgomery and MacDonald [26] who stated that geomorphic conditions, such as confinement and entrenchment, played an important role in characterizing channel stability. Furthermore, Shields et al. [28] stated that watershed characteristics were crucial for assessing the existing and future channel stability. In all these approaches, watershed response was very limitedly considered, and focus was mainly on the stream stability. Moreover, various prediction methodologies, such as simulating the temporal variations of the total scour depth under unsteady flow conditions or introducing a dimensionless effective work done by the flow on the sediment bed around the pier, were developed for bridge scour assessment, which are applicable under complex hydraulic/hydrological conditions, and limited scour field data [29,30,31,32,33,34,35]. In a study, Bekic et al. [36] applied two different methods of bridge scour assessment, namely the Colorado method [37] and the modified BA 74/06 method [38], on 100 railway bridges located over watercourse and showed that the resulting scour rankings differed for 20% of bridges with a significant difference of ranking in 10% of cases.
Within the European framework programs, many projects were carried out to meet the demands of a growing bridge stock and the need for future traffic demands [39]. One of these projects was the BRIDGE SMS: Intelligent bridge maintenance and management system which aimed to provide standardized methods for the assessment of bridge scour risk and implement common procedures among different organizations [40]. In this method, standardized procedures for structural and scour inspection were developed, allowing for four different inspection levels for scour inspection and evaluation, with the complexity and comprehensiveness of the inspections increasing with the levels. Level 1—general inspection, is comprised of 11 structural elements and 11 scour components. In a case where a structure Level 1 inspection is not adequate, then the assessment is progressed to detailed inspection, in which 14 individual structural elements are considered throughout scour inspection in Level 2. This level evaluates and records general scour, constriction scour and local scour. The procedure for inspecting bridge elements and components include a detailed visual assessment [41] and a detailed scour inspection, requiring inputs of river bed levels, foundation depth and data on general river channel instabilities. The condition rating between very good (0) to failed (5) is calculated separately for the structural and scour aspect and is accompanied with the time for the next inspection and the assessment of maintenance/repair costs. The scour condition is graded by a custom algorithm in Level 1 and by a risk-based matrix in Level 2, combining the result of the general, constriction and total scour. In the literature, there are many methods and systems, ranging from simple to advanced levels, using sophisticated measuring equipment and techniques. Hence, each country has to decide on the scope of their BMS according to their needs, future projections and budget limits.
In Turkey, a practical, simple but comprehensive method that involves various parameters and characteristics of watershed to enable assessment of the hydrological behavior and flash flood potential of the watershed is necessary for successful asset management. Thus, a simple approach similar to that of Johnson [27] was adopted. However, many indicators of not just stream, but watershed, bridge and environmental characteristics were taken into consideration to form an inclusive database of the bridge stock, as done in more comprehensive systems. The method allowed for two levels, as in many systems. Level 1 is comprised of a basic assessment of all bridge stock while Level 2 is performed in case the result of the Level 1 inspection is found to be insufficient. The method lacks a detailed scour assessment method in Level 1, which is considered in Level 2.
The goals of this study are to share findings of the aforementioned collaborative research project and present the developed safety-inspection algorithm, especially based on hydraulic indicators for river bridges in Turkey. Many river bridges located in the Western Black Sea Basin were inspected at different flow conditions throughout the project duration of three years. According to the problems encountered and observations made, the developed safety-inspection method was composed of four main parts: evaluation of watershed hydrology and its flood potential, stream stability, bridge characteristics and a rapid scour assessment. A structural assessment algorithm different from the current method in the BMS was also incorporated. These comprise the Level 1 of the developed safety-inspection algorithm. Five river bridges whose inventory data are partially available and either had a serious maintenance work during their service life or still have some problems and were inspected from time to time by GDH were chosen in the pilot area. These bridges were inspected in detail throughout the project duration to test the applicability of the method and its capability.

2. Development of the Safety-Inspection Method

2.1. Field Study

Many river bridges in the Western Black Sea Basin were observed at different flow conditions throughout the study, about ten times in three years. During field trips, characteristics of the watersheds, stream flow, environmental or human induced factors affecting bridges and bridge characteristics were observed. Among those inspected bridges, five of them whose details are given in Table 1 and shown in Figure 1, were selected for full inspection and the application of the developed method.
The bathymetry of stream bed and scour holes around piers and abutments was also measured to track changes in stream beds in the vicinity of bridges, and possible settlements at the structures. Field measurements were conducted by a private company. Measurements of stream bed elevation including scour holes, coordinates of the location and mean water level were performed across and along the stream in the vicinity of the bridge concerned, at frequent intervals using a GPS coupled instrument situated at the reach of the stream. Similar measurements were also performed at the same coordinates during subsequent field visits. However, no noteworthy change in stream bed was noted during this three-year period.

2.2. Safety-Inspection Study

The current safety-inspection method for bridges in Turkey lacks the consideration of the functionality of the bridges. Therefore, the developed methodology was especially designed for river bridges in which various hydrologic and hydraulic factors were considered. As Johnson [27] pointed out that overall evaluation of river bridges should include stability indicators, starting at watershed characteristics or vertical and lateral aspects of the channel; the current method involved four main parts, all concentrated on hydrological and hydraulic factors. The first part involved a hydrological assessment of the watershed and flood potential while the second and third parts consisted of the stability indicators of stream and bridge characteristics, respectively, that were determined or modified using past studies in the literature, lessons learned from failures of river bridges in Turkey, and observations from field studies. During evaluation of the indicators, characteristics of the indicator in the upstream and downstream parts of the bridge were assessed. In the last part, a rapid scour check was carried out to determine scour susceptibility of the bridges. Besides hydrological and hydraulic assessment, a structural evaluation of the river bridges was also included, which was composed of evaluation of main body, and earth retaining and serviceability components of bridges in regard to loss, damage, aging and deformation. According to the developed methodology, the hydrological and hydraulic assessment with the structural evaluation formed the Level 1 assessment. Depending on the results of Level 1, the bridge owner is directed to the Level 2 assessment, if necessary, for a detailed bridge scour analysis and numerical modelling of flow and sediment transport. In this study, only Level 1 was conducted.

2.3. Hydrologic Assessment of Watershed Characteristics

Hydrological assessment of a watershed with the outlet located at river bridge section was performed using several hydrological indicators, such as morphometric index, watershed land use and vegetation cover, physical structure, watershed precipitation magnitude and type, landslide and flood history, and water detention/retention structures in the watershed, as given in Table 2. Morphometric index (MI), a parameter, was introduced to estimate the flash flood potential of the watershed using selected morphometric parameters, such as bifurcation ratio (Rb), drainage density (Dd), stream frequency (Fs), texture ratio (T), ρ coefficient, length of overland flow (Lo), elongation ratio (Er), shape factor (Sf), form factor (Ff), compactness coefficient (Cc), circularity ratio (Cr) and width to length ratio (WLr). MI was calculated as the average of the ranks of those morphometric parameters. Other hydrological indicators were complementary features affecting rainfall-runoff process and soil erosion. Then, a hydrological grade (HG) was introduced for rating the overall watershed hydrology and flash flood potential of that watershed. HG was computed by summing up the ranking values (RV) of the five indicators given in Table 2. Since the RV of each of these five indicators ranged between 1 and 12, HG can have a minimum of 5 and a maximum of 60.
Topographic, land cover/land use maps of the watersheds, meteorological data and flow data were obtained from General Directorate of Mapping, Turkish State Meteorological Service and the General Directorate of State Hydraulic Works, respectively. Further details about the hydrological assessment can be found in Akay and Baduna Kocyigit [42].

2.4. Indicators of Stream Stability

Channel cross-section was subdivided into three groups as bed, floodplain and banks, to determine vertical or horizontal stability of the stream. River training structures, material type and cover, formation, and sediment dynamics in the channel sections were considered in this section. Most of the indicators and their classifications were taken from Johnson [27] with small adjustments to their limits depending on the field observations in Turkey for the calibration of the classification of the indicators.

2.4.1. Stream Bed Characteristics

Stream bed characteristics consisted of flow habit, stream longitudinal profile, channel pattern, bar development, bed material and protection, as given in Table 3, in which S is the slope of the stream, Fs is the approximate portion of sand in stream bed, and w and y are the stream width and flow depth, respectively.
Although flow habit may be considered as a hydrologic response for stream flow, discharge is mainly an interaction with stream bed. Therefore, this indicator was taken into consideration in this part. For instance, Karaman Bridge in the project area was located on an ephemeral stream and failed due to heavy rain in the dry season. It was also observed that flow habit was seriously affected by hydroelectric power plants (HEPP) and dams in the area, since they could hold or suddenly release water during their operation. Moreover, indicators of stream longitudinal profile, channel pattern, bed material and bar development directly denote flow depth and velocity, sediment transportation mechanism and capacity. Another indicator was chosen as the bed protection structures which might contribute to the grade control of stream bed. However, they may cause accumulation or degradation at low flow periods. For instance, grade control structures located nearby Filyos I Bridge in the pilot area caused huge scour holes and instability of bed in vicinity of the bridge.

2.4.2. Floodplain Characteristics

The formation and width of floodplains were selected as indicators as given in Table 4. These indicators were used to assess the capability of floodplains for carrying excess bankfull discharge. Occupation of these floodplains by some residential units is a common problem in Turkey. This leads to increase in bed-roughness conditions. Therefore, even during moderately frequent flood events, the river flow rises such that the nearby lands become inundated. This problem was also observed in the pilot area, especially near settlements. For instance, the floodplain in the downstream part of Bartin III Bridge was occupied by local people for private use near the stream. During February 2016 flood, this area was entirely inundated. The degree of damages depends on the intensity of all types of properties located at the floodplains.

2.4.3. Stream Bank Characteristics

Stream banks are the most important components of a channel cross-section for the assessment of the vertical stability of streams. Bank height, average bank slope, vegetative bank protection, soil texture, mass wasting, or bank failure and bank cutting are the dominant indicators for the stability assessment of stream banks, as given in Table 5.
Instability in stream banks may cause lateral bank erosion, and deepening or widening of channel and floodplain developments due to slumped materials in the bank. Evidence for potential instability for channel banks should be investigated during inspection of river bridges. In this part of the method, the bank stability assessment was adopted from Johnson [27], which was thoroughly studied and tested, while field observations also approved its competence.

2.4.4. Other Effects

During field studies, it was observed that some human-induced activities and site-specific channel characteristics resulted in instability problems in vicinity of river bridges. Hence, these types of activities were considered under this heading. These were gravel mining from the stream bed, the presence of stream conjunctions, debris jamming/accumulation, river reclamation, percentage of channel constriction and new bridge construction near the current bridge, as given in Table 6.
Gravel mining from the stream bed is a common problem, especially in the Western Black Sea Basin. There exists a circular issued by Turkish State Highways, which states that gravel mining from stream beds cannot be performed at 750 m in upstream and 1000 m in downstream of the river bridges. However, many bridges in the area are still affected by this practice. For instance, it was observed that a significant amount of bed material is extracted uncontrolled at a site 2 km downstream of Gokcebey Bridge.
Another important factor was chosen—the stream conjunction, which affects bed slope of the main channel by carrying and accumulating significant amounts of sediment at those locations. Therefore, in the study, ruggedness number (R) described by Melton [43] was considered to describe the hydro-geomorphic process of floods to debris floods [44]. Another important indicator is debris accumulation at piers and in the openings of river bridges, which can easily be spotted during low flow seasons. During field trips, it was observed that accumulated debris, especially around piers, was not cleared causing an increase in scour hole depths. Another important issue was river reclamation, which is a common practice in the area due to frequent flood events in the basin. However, observations showed that it might change flow structure and cause channel migration in the vicinity of bridges. Hence, extra care should be given when a river bridge is involved in the process. During project duration, river reclamation was conducted near Gokcebey Bridge and it was seen that alignment of water was diverted to a pier. This is an important issue, since am increase in lateral channel migration after reclamation may accelerate the failure of river bridges, as stated by Johnson [27]. It was also observed that new bridges constructed near the old ones might cause increases in the local turbulence fields and scouring. Therefore, this was taken as an indicator in the developed method.

2.5. Bridge Characteristics

Some characteristics of river bridges may increase local scouring around foundations. As given in Table 7, bridge location, upstream distance to bridge from meander impact, bridge skewness, flow in the spans, and pier and abutment characteristics were selected as indicators of bridge characteristics. During inventory review and field studies, it was noted that location of bridges was an important common feature, besides distance of bridge site from a meander impact point and bridge skewness. A detailed review of the inventory of General Directorate of Highways showed that the skew angle of river bridges can increase up to 67° due to topographic or economic constraints. Most of the known failed bridges were observed to have a skew angle of more than 10°. Among inspected bridges, Filyos V Bridge had a skew angle of 45° while the skew angle of Bartin I Bridge was 20°. In an experimental study, Demir [45] showed that a bridge deck model with a skewness of 15° increased the maximum depth of scour up to 57% under submerged flow conditions. Another important feature is the spans of the bridges that should be larger, and not constricted due to sediment deposition or debris accumulation, to let excessive water to pass through, especially during floods. Otherwise, submerged flow conditions, increased flow intensity and higher turbulence may result in excessive scouring around piers and the bridge may need to be closed to traffic for public safety resulting in additional operational and time costs. For instance, Bartin I Bridge was inundated during a 1998 flood event and the abutment of Gebelit Bridge failed in a 2013 flood event due to low meandering impact distance, bridge skewness and submerged flow conditions. Channel alignment, geometric characteristics and observability of piers, degree of scouring and existence of countermeasures around piers are also important indicators of stream stability and local scouring. Observability of bridge piers is also considered, since under water inspection it would be necessary to check the degree of scouring around piers. Moreover, inspection studies are easier around abutments in low flow seasons. However, in some cases, environmental factors affecting abutments and approach fill conditions should also be examined in terms of vulnerability of abutments with respect to erosion.

2.6. Rapid Procedure for Scour Check

In addition to the hydrological and hydraulic evaluations, it is recommended to perform a rapid and simple scour check, specifically to detect any potential scouring problem at the foundations. Thus, river bridges that are not ranked as poor based on the developed method, but are still scour critical can be identified. The scour check involves information about foundations, the presence of any countermeasures against scouring, and characteristics of the river flow and bridge characteristics, such as skew angle, which directly increase scouring around infrastructural elements. Depending on the result of this assessment, a more detailed scour risk assessment could be advised in Level 2, including empirical equations [46,47] and numerical model simulations to predict hydraulic conditions and sediment transport around piers and abutments. This level of assessment is recommended if the bridge is considered to be poor in Level 1, the basic assessment of the bridge.

2.7. Structural Assessment of River Bridges

Elements of river bridges should be inspected with regard to structural stability as well, every two years [48]. Berk [49] and Yanmaz et al. [50] noted the necessity of periodic inspections and effective factors on inspections and formed a structural checklist for river bridges in Turkey using sample bridges in USA and Turkey. That structural assessment was composed of main body, earth retaining and serviceability components of bridges. In this study, a ranking of the checklist for the structural evaluation of river bridges in Turkey proposed by Yanmaz et al. [50] was modified using the same classes as in hydraulic assessment. Table 8 and Table 9 show the indicators of structural assessment and their classifications, respectively. Bridge characteristics specified in Table 8 and Table 9 were obtained via visual inspection or from design projects of the bridges.

2.8. Evaluation of Scoring of the Method

Figure 2 illustrates the main steps of the developed safety-inspection algorithm. The method used for classification of the indicators was adopted from Johnson [27]. Each indicator of the watershed hydrology and flash flood potential, stream stability and bridge characteristics in the safety inspection algorithm was classified as excellent, good, fair and poor, and a rating value was assigned for that indicator ranging between 1 and 12. Johnson [27] noted that weighted indicators yielded the same results as the equally weighted indicators.
Therefore, in this study, each indicator in the method was also equally weighted as the rating value was determined. Then, a risk point (RP) was introduced in order to make a decision using the grading of the indicators. According to the adopted method, the initial value of the RP was set to zero and then for indicators classified as excellent or good, the value of RP did not change; while for indicators classified as fair, RP was increased by one; and for indicators classified as poor, RP was increased by two. Table 10 shows the change in RP with the grades of the indicators of hydrological and hydraulic assessment. The minimum and maximum values of HG changed between five and 60, respectively, as seen in Table 2; and the ranges of HG were determined by dividing the highest possible difference in the grades of HG into four equal parts for the classification groups of excellent, good, fair and poor. Then, starting from five and taking excellent and good classes as one, since RP was not changed for those classes, the ranges of HG were determined. Thus, when all the indicators were classified as excellent or good, the RP would be zero, and if all the indicators were classified as poor, the RP would be 66, since there was a total of 33 indicators in the method (one for watershed hydrology, six for a stream bed, two for a floodplain, six for a stream bank, six for other effects and twelve for bridge characteristics). Then, the bridges were ranked according to the ranges of RP given in Table 11. The ranges of RP were determined by dividing the highest possible value of RP into three equal parts, each corresponding to the computation steps of RP: no change, increased by one and increased by two. The first part was then divided into two to determine the two-rating classification as excellent and good. This approach was adopted in the method, since the RP was not changed for indicators classified as excellent or good. A structural grade (SG) value, RP, was introduced and computed from the sum of RV of all indicators of structural assessment. According to the method, the SG was classified as given in Table 12 and the classification of its ranges was determined similarly to the RP. At the end of the assessment, a rapid scour assessment was carried out.

3. Results and Discussion

Five river bridges located in the Western Black Sea Basin were selected for detailed inspection and the application of the proposed method. Results of ratings of those bridges with regard to hydrological and hydraulic bridge characteristics are given in Table 13. Starting from zero, the RP value was determined, as given in Table 13, for both hydrological and hydraulic evaluation. In the table, the overall score of hydrological evaluation HG was obtained using Table 2 and was classified as given in Table 9. Furthermore, for each bridge the single underlined RVs in the column increased RP by one while double underlined ones increased RP by two. For structural assessment, the RV of each indicator in the same column presented in Table 14 was simply summed up to obtain SG values for each bridge. Table 15 shows the HG, RP and SG values of those bridges inspected and Table 16 gives the grading of the bridges with regard to hydrological, hydraulic and structural indicators. Finally, a rapid scour assessment was performed as given in Table 17.
As seen from Table 15, the most critical river bridge was determined to be the Filyos V Bridge, while Bartin III was found to be the least critical, based on hydraulic assessment. In order to interpret the results and evaluate the capability of the method, available inventory of those inspected bridges was examined. It was found that Filyos V Bridge was repaired after a 1998 flood event due to a settlement of 65 cm at one of its piers, and since then the bridge was kept under regular inspection due to the persistence of the problem. After some maintenance work for the solution, the 15th Regional Directorate of GDH, the local bridge owner, decided to demolish the bridge. However, the bridge is currently in service due to the lack of alternative routes. Therefore, possible alternatives are being considered for the solution. Contrarily, Bartin III Bridge, which was determined as the least critical with respect to hydraulic assessment, has not ever been submerged or closed to traffic in its service life even during the catastrophic flood of 1998, which affected Bartin I Bridge and many others in the area. The rest of the inspected bridges were ranked “fair,” as given in Table 16.
Another example for effective hydraulic factors was Gokcebey Bridge, which had a crack at its abutment and experienced serious maintenance in 1968. Then, again in 1999, it was reconditioned after a progressive settlement at one of its abutments. Repeating similar problems at those bridges show the importance of detecting problems caused by hydraulic factors, since the condition is persistent and only defining the source of the problem can enable an appropriate solution. When the results of the application of the method were analyzed, it was found that the bridges having problems due to hydraulic factors were successfully identified. Moreover, further assessment for Filyos V Bridge was strongly recommended according to the rapid scour assessment, while scouring around piers of other bridges was considered negligible, as presented in Table 17. It was also seen that there was a good agreement between the results of the proposed method and the rapid scour assessment, showing that indicators of hydraulic factors affecting scouring around piers were successfully identified and ranked.
According to the structural assessment, the most critical bridge was found to be Bartin III Bridge (Table 15 and Table 16). During visual inspections, serious structural problems, such as segregation, deterioration of concrete cover leading to corrosion of reinforcements, and cavities on the concrete surface at the bridge were observed. Bartin III Bridge got the highest SG value from the inspection. Therefore, the safety-inspection method classified the bridge as structurally poor. Hence, it was recommended that Bartin III Bridge should urgently be inspected with equipment and necessary maintenance should be carried out.
Considering the current situation of Filyos V Bridge, some amendments could be suggested with simple or comprehensive measures that can be made on the auxiliary elements of the bridge, which was classified as the poorest bridge among four other bridges. Generally speaking, scour holes observed at the piers were assumed to be partly induced by debris accumulation, such as tree branches and trunks. A simple scaled rod can be installed at scour critical piers of the bridges, thus scour depth around piers can be observed. It should be noted that important bridges crossing large rivers may be supplemented by a sonar instrument for continuous monitoring of scour patterns. Sufficient quantities of riprap can also be dumped into scour holes to mitigate further scouring around piers of the bridge. Damages to the guiding wall of abutments and approach fill should be repaired. That way, a reduction in the RP of the bridge by 11 points can be achieved. Thus, instead of a costly solution, such as reconstruction of a new bridge, the risk factors can be reduced by repairing the problematic parts. Moreover, construction of a new bridge without considering the stream stability and other local hydraulic indicators may result in the same problems in time. Therefore, inventory of those bridges and lessons learned can be used during design stage of new bridges nearby. Furthermore, HYRISK [51], a risk-based software can be applied to determine the annual risk of scour to a bridge, as done by Yanmaz and Apaydin [52] for several bridges in Turkey.
Age of the bridge is an important indicator for hydraulic/hydrologic and structural aspects. The effect of the age is implicitly considered in this study for structural evaluation of bridge components. Based on in-situ observations and some tests, e.g., aiming to detect the instantaneous compressive strength of concrete, the aging effect can be considered. Using such information, the approximate remaining lifetime of the bridge concerned can be estimated. Caner et al. [48] developed a simple method to assess the remaining service life of a bridge through defining a relationship between its current condition rating and its age by evaluating a set of bridges of different ages in Turkey. With the integration of this method, more realistic grading can be handled for structural components of bridges. The age of the bridge can also be considered for a more comprehensive analysis of the scouring history. However, with no field data reflecting scour hole geometries belonging to individual past storms, a realistic analysis of the effects of past storms on bridge scouring cannot be handled. Even limited scour data are available for some bridges; accuracy of the data is highly questionable, since it is almost impossible to gather scour data during the period of maximum flows. When the scour depths are measured after the flood wave leaves the bridge section, the scour hole might have been filled with the sediment accumulated during the falling stage of the flood or debris accumulation. Therefore, maximum scour depth data are not available. Furthermore, even if highly sophisticated sonar sensors are installed on bridge piers for continuous monitoring of the streambed, they may be swept away by the high impact effect of flood wave. Therefore, the valuable information will be lost. On the other hand, it is a regular approach by the GDH to fill the scour holes around piers and abutments of bridges with riprap after heavy floods. Carrying that out would certainly affect local turbulent flow field, hence the bed regime. As a concluding remark, although past flow data may be available, the corresponding conditions at bridge sites are definitely unknown. This makes it impossible to attain a reliable scouring history for a bridge. Moreover, it should be kept in mind that the proposed inspection check is based on instantaneous field observations reflecting the date of visit at several seasons to consider the effect of variations in flow conditions. With the detailed studies concerning evaluations of geomorphic variables and hydrological information, more realistic information can be obtained for flood characteristics, which would definitely characterize the type and depth of scour hole, to be used in Level 2 analysis.
When the proposed algorithm is accepted to be used as an integral component of the BMS by GDH, bridges will be assigned a kind of identity card. With the implementation and use of the proposed algorithm, which is partly based on in-situ observations and hydrological evaluations, it will eventually be possible to rank the bridges according to priorities in regard to repair and maintenance needs. With the collected future information and its interpretation, more robust validation would be achieved for those bridges, which were identified as critical ones.
Globally, there are numerous BMSs, ranging from very sophisticated ones with detailed measurements and advanced decision-making systems, to very simple ones with only basic visual inspections. Features of the BMS depend on the characteristics of the bridge stock, the need and future projections of the country and its budget. For instance, Pontis is used in the USA [53] with a well-developed and comprehensive database; namely, the National Bridge Inventory. The UK, which has one of the oldest infrastructural systems in the world does not have a national BMS. It has a Structures Information Management System, two manuals for design, assessment and operation, with one manual for guidance on scouring on infrastructure. On the other hand, some countries, such as Belgium, France, Germany and Ireland use engineering judgement for decision-making instead of a BMS [7]. In the BMS introduced in Turkey in 2017, the hydrological and hydraulic factors were not sufficiently considered for river bridges. Therefore, the developed-safety inspection method that could be implemented into the BMS would enable a comprehensive database for river bridges considering the work load and budget limits of the GDH.

4. Conclusions

In this study, a safety-inspection method was developed for river bridges in Turkey. The method specifically takes into account the effects of hydraulic factors on river bridges. The Western Black Sea Basin, Turkey, was selected as the study area, where incidents of severe damage or failure of river bridges frequently occur. Inspection methodology consists of watershed hydrology and flash flood potential, and stream and bridge characteristics, with a rapid and simple scour assessment. Most of the indicators about stream stability were taken from Johnson [17], lessons learned from past failures of river bridges and observations from field studies. Due to the absence of required data for calibration of the classification of the indicators and the method, five river bridges in the study area were chosen for detailed inspection and observation. Results of hydraulic assessment showed that Filyos V Bridge was ranked as fair, with the highest rating score among the sample, while Bartin III Bridge was good and the rest were classified as fair. Inventory of the bridge also proved that serious problems due to hydraulic factors were encountered and demolishing of the bridge was an option. A rapid scour assessment also recommended that Filyos V Bridge was a scour-critical river bridge and further studies should be undertaken. Although Filyos V and Gokcebey Bridges were on the same watercourse and close to each other, Filyos V Bridge was found to be more critical. This might show the importance of bridge characteristics that were taken into consideration. It was also noted that gravel mining was a serious problem in the area. This was a threat, especially for Gokcebey Bridge, downstream of which is a nearby runoff river plant. During the three-year inspection period, debris at the piers was not removed and found to create a serious problem for increasing scouring potential around the piers. Bartin III Bridge was found to be subject to structural deficiencies of main body components. Therefore, retrofitting of the bridge should be performed.
It should be noted herein that the calibration of the classification limits of the indicators and the method could be performed with the collection of necessary input data from numerous river bridges over time, thus the capability of the developed algorithm could be improved. With the help of the developed safety-inspection method, the management and maintenance of river bridges in Turkey could be improved, and necessary maintenance work could be scheduled according to the RP values of the bridges. Thus, the lifespan and the serviceability of the bridges could be extended. Furthermore, new bridges that could be exposed to increased flood potential can be designed accordingly. A failure risk assessment using those indicators as inputs of channel, substructure and scour criticality conditions, can also be estimated. Developed by considering hydrological, hydraulic and management conditions in Turkey, this method can be recommended for use in countries with no detailed safety-inspection methodology.

Author Contributions

A.M.Y. and M.B.K. designed the research and methodology; M.B.K. and H.A. conducted the field studies; A.M.Y., M.B.K. and H.A. analyzed the data and developed the model; A.M.Y., M.B.K. and H.A designed and wrote the paper.


This research was funded by the TÜRKİYE BİLİMSEL VE TEKNOLOJİK ARAŞTIRMA KURUMU, grant number 114M292.

Conflicts of Interest

The authors declare no conflict of interest.


BMSBridge Management System
GDHGeneral Directorate of Highways
HEPPHydroelectric Power Plants
HGHydrologic grade
MIMorphometric index
RPRisk point used for hydrological and hydraulic assessment
RVRanking value of indicators
SGStructural grade for structural assessment


  1. Yanmaz, A.M.; Baduna Kocyigit, M.; Kocyigit, O.; Seker, N.; Akay, H.; Yilmaz, M. Final Report of Safety–Inspection Methodology and Scour Risk Assessment for River Bridges in Turkey; Kastamonu Case Study; TUBITAK: Ankara, Turkey, 2018. (In Turkish) [Google Scholar]
  2. Akay, H. Development of Safety-Inspection Methodology for River Bridges in Turkey. Ph.D. Thesis, Gazi University, Ankara, Turkey, 2018. (In Turkish). [Google Scholar]
  3. Lipkus, S.E. Bridgit Bridge Management System Software; TRB Circular No. 423; Transportation Research Board: Washington, DC, USA, 1994. [Google Scholar]
  4. Lauridsen, J.; Bjerrum, J.; Andersen, N.H.; Lassen, B. Creating a Bridge Management System. Struct. Eng. Int. 1998, 8, 216–220. [Google Scholar] [CrossRef]
  5. Soederqvist, M.K.; Veijola, M. The Finnish Practice and Experience Regarding Bridge Inspection and Management. Struct. Eng. Int. 1998, 8, 315–319. [Google Scholar]
  6. Thompson, P.D.; Small, E.; Johnson, M.; Marshall, A.R. The Pontis Bridge Management System. Struct. Eng. Int. 1993, 8, 303–308. [Google Scholar] [CrossRef]
  7. Pregnolato, M. Bridge Safety is Not for Granted—A Novel Approach to Bridge Management. Eng. Struct. 2019, 196, 109193. [Google Scholar] [CrossRef]
  8. Orcesi, A.D.; Cremona, C.F. Optimization of Maintenance Strategies for the Management of the National Bridge Stock in France. Bridge Eng. 2011, 16, 44–52. [Google Scholar] [CrossRef]
  9. Calabrese, C. Ponti e Cavalcavia, Proposto un Database ‘Open’ per Monitorarli. Edilportale Sicurezza. 2017. Available online: (accessed on 30 May 2017).
  10. Business Standard. Road Ministry to Compile Database of All Bridges on Highways in India. Business Standard, 2016. Available online: (accessed on 19 September 2016).
  11. Mirzaei, Z.; Adey, B.T.; Thompson, P.; Klatter, L. The IABMAS Bridge Management Committee Overview of Existing Bridge Management Systems, Report by the IAMBAS Bridge Management Committee. In Proceedings of the International Association for Bridge Maintenance and Safety (IABMAS), Shanghai, China, 7–11 July 2014. [Google Scholar]
  12. Nasr, A.; Björnsson, I.; Honfi, D.; Ivanov, O.L.; Johansson, J.; Kjellström, E. A Review of the Potential Impacts of Climate Change on the Safety and Performance of Bridges. Sustain. Resilient Infrastruct. 2019. [Google Scholar] [CrossRef]
  13. Jongman, B.; Hochrainer-Stigler, S.; Feyen, L.; Aerts, J.C.J.H.; Mechler, R.; Botzen, W.J.W.; Bouwer, L.M.; Pflug, G.; Rojas, R.; Ward, P.J. Increasing Stress on Disaster Risk Finance Due to Large Floods. Nat. Clim. Chang. 2014, 4, 264–268. [Google Scholar] [CrossRef]
  14. Khelifa, A.; Garrow, L.A.; Higgins, M.J.; Meyer, M.D. Impacts of Climate Change on Scour-Vulnerable Bridges: Assessment Based on HYRISK. J. Infrastruct. Syst. 2013, 19, 138–146. [Google Scholar] [CrossRef][Green Version]
  15. Pfankuch, D.J. Stream Reach Inventory and Channel Stability Evaluation; Forest Service, Northern Region U.S. Dept. of Agriculture: Missoula, MT, USA, 1979.
  16. Mitchell, P. The Environmental Condition of Victorian Streams; Department of Water Resources Victoria: Melbourne, Australia, 1990; ISBN 072417267X.
  17. Gordon, N.D.; McMahon, T.A.; Finlayson, B.L. Stream Hydrology: An Introduction for Ecologists, 2nd ed.; Wiley: New York, NY, USA, 1992; ISBN 978-0-470-84358-1. [Google Scholar]
  18. Simon, A.; Downs, P.W. An Interdisciplinary Approach to Evaluation of Potential Instability in Alluvial Channels. Geomorphology 1995, 12, 215–232. [Google Scholar] [CrossRef]
  19. Thorne, C.R.; Allen, R.G.; Simon, A. Geomorphological River Channel Reconnaissance for River Analysis, Engineering, and Management. Trans. Inst. Br. Geogr. 1996, 21, 469–483. [Google Scholar] [CrossRef]
  20. Johnson, P.A.; Gleason, G.; Hey, R.D. Rapid Assessment of Channel Stability in Vicinity of Road Crossing. J. Hydraul. Eng. 1999, 125, 645–651. [Google Scholar] [CrossRef]
  21. Tubaldi, E.; Macorini, L.; Izzuddin, B.A.; Manes, C.; Laio, F. A Framework for Probabilistic Assessment of Clear-Water Scour around Bridge Piers. Struct. Saf. 2017, 69, 11–22. [Google Scholar] [CrossRef]
  22. Barbetta, S.; Camici, S.; Moramarco, T. A Reappraisal of Bridge Piers Scour Vulnerability: A Case Study in the Upper Tiber River Basin (Central Italy). J. Flood Risk Manag. 2017, 10, 283–300. [Google Scholar] [CrossRef]
  23. Manfreda, S.; Link, O.; Pizarro, A. A Theoretically Derived Probability Distribution of Scour. Water 2018, 10, 1520. [Google Scholar] [CrossRef]
  24. Lagasse, P.F.; Schall, J.D.; Johnson, F.; Richardson, E.V.; Richardson, J.R.; Chang, F. Stream Stability at Highway Structures, 2nd ed.; Department of Transportation, Federal Highway Administration: Washington, DC, USA, 1995.
  25. Rosgen, D.L. A Stream Channel Stability Assessment Methodology. Available online: (accessed on 1 September 2019).
  26. Montgomery, D.R.; MacDonald, L.H. Diagnostic Approach to Stream Channel Assessment and Monitoring. J. Am. Water Resur. Assoc. 2002, 38, 1–16. [Google Scholar] [CrossRef]
  27. Johnson, P.A. Preliminary Assessment and Rating of Stream Channel Stability. J. Hydraul. Eng. 2005, 131, 845–852. [Google Scholar] [CrossRef]
  28. Shields, F.D., Jr.; Copeland, R.R.; Klingeman, P.C.; Doyle, M.W.; Simon, A. Design for Stream Restoration. J. Hydraul. Eng. 2003, 129, 575–584. [Google Scholar] [CrossRef]
  29. Pizarro, A.; Ettmer, B.; Manfreda, S.; Rojas, A.; Link, O. Dimensionless Effective Flow Work for Estimation of Pier Scour Caused by Flood Waves. J. Hydraul. Eng. 2017, 143, 06017006. [Google Scholar] [CrossRef]
  30. Pizarro, A.; Samela, C.; Fiorentino, M.; Link, O.; Manfreda, S. BRISENT: An Entropy-Based Model for Bridge-Pier Scour Estimation under Complex Hydraulic Scenarios. Water 2017, 9, 889. [Google Scholar] [CrossRef]
  31. Lu, J.Y.; Hong, J.H.; Su, C.C.; Wang, C.Y.; Lai, J.S. Field Measurements and Simulation of Bridge Scour Depth Variations during Floods. J. Hydraul. Eng. 2008, 134, 810–821. [Google Scholar] [CrossRef][Green Version]
  32. Su, C.C.; Lu, J.Y. Measurements and Prediction of Typhoon-Induced Short-Term General Scours in Intermittent Rivers. Nat. Hazards 2013. [Google Scholar] [CrossRef]
  33. Hong, J.H.; Guo, W.D.; Chiew, Y.M.; Chen, C.H. A New Practical Method to Simulate Flood-Induced Bridge Pier Scour—A Case Study of Mingchu Bridge Piers on the Cho-Shui River. Water 2016, 8, 238. [Google Scholar] [CrossRef]
  34. Sturm, T.; Sotiropoulos, F.; Landers, M.; Gotvald, T.; Lee, S.; Ge, L.; Navarro, R.; Escauriaza, C. Laboratory and 3D Numerical Modeling with Field Monitoring of Regional Bridge Scour in Georgia; Georgia Department of Transportation Final Project, Project, No. 2002; Georgia Department of Transportation: Atlanta, GA, USA, 2004.
  35. Crotti, G.; Cigada, A. Scour at River Bridge Piers: Real-Time Vulnerability Assessment through the Continuous Monitoring of a Bridge over the River Po, Italy. J. Civ. Struct. Health Monit. 2019. [Google Scholar] [CrossRef]
  36. Bekić, D.; McKeogh, E.; Kerin, I.; Hand, S.; Bruton, G. Experiences from Bridge Scour Inspections by Using Two Assessment Methods on 100 Railway Bridges. In Proceedings of the 2nd International Conference on Road and Rail Infrastructure CETRA 2012, Dubrovnik, Croatia, 7–9 May 2002; pp. 499–505. [Google Scholar]
  37. U.S. Department of Agriculture—Forest Service. Bridge Scour Evaluation: Screening, Analysis and Countermeasures; U.S. Department of Agriculture—Forest Service: Washington, DC, USA, 1998.
  38. The Highways Agency. Assessment of Scour at Highway Bridges, Design Manual for Roads and Bridges BA 74/06; The Highways Agency: London, UK, 2006.
  39. Helmerich, R.; Niederleithinger, E.; Algernon, D.; Streicher, D.; Wiggenhauser, H. Bridge Inspection and Condition Assessment in Europe. Transp. Res. Rec. J. Transp. Res. Board 2008, 2044, 31–38. [Google Scholar] [CrossRef]
  40. Bekić, D.; Kerin, I.; Cahill, P.; Michalis, P.; Lapthorne, J.; Šolman, H.; Gilja, G.; Potocki, K.; Pakrashi, V.; McKeogh, E. BRIDGE SMS—Innovative Solution for Management of Bridges Over Water. In Proceedings of the 5th International Conference on Road and Rail Infrastructure (CETRA 2018), Zadar, Croatia, 17–19 May 2018. [Google Scholar]
  41. Quirk, L.; Matos, J.; Murphy, J.; Pakrashi, V. Visual Inspection and Bridge Management. J. Struct. Infrastruct. Eng. 2018, 14, 320–332. [Google Scholar] [CrossRef]
  42. Akay, H.; Baduna Kocyigit, M. Hydrologic Assessment Approach for River Bridges in Western Black Sea Basin, Turkey. J. Perform. Constr. Fac. 2019, in press. [Google Scholar]
  43. Melton, M.A. An Analysis of the Relations among the Elements of Climate, Surface Properties and Geomorphology; Technical Report 11; Department of Geology, Columbia University Office of Navy Research: New York, NY, USA, 1957.
  44. Jackson, L.E., Jr.; Kostaschuk, R.A.; MacDonald, G.M. Identification of Debris Flow Hazard on Alluvial Fans in the Canadian Rocky Mountains. Geol. Soc. Am. Rev. Eng. Geol. 1987, VII, 115–124. [Google Scholar]
  45. Demir, G. Experimental Investigation of Scouring Under Skewed Bridge Deck in Pressurized and Weir Type of Flow. Master’s Thesis, Gazi University, Ankara, Turkey, 2018. (In Turkish). [Google Scholar]
  46. Gaudio, R.; Grimaldi, C.; Tafarojnoruz, A.; Calomino, F. Comparison of Formulae for the Prediction of Scour Depth at Piers. In Proceedings of the First European IAHR Congress, Edinburgh, UK, 4–6 May 2010. [Google Scholar]
  47. Gaudio, R.; Tafarojnoruz, A.; De Bartolo, S. Sensitivity Analysis of Bridge Pier Scour Depth Predictive Formulae. J. Hydroinform. 2013, 15, 939–951. [Google Scholar] [CrossRef]
  48. Caner, A.; Yanmaz, A.M.; Yakut, A.; Avsar, O.; Yilmaz, T. Service Life Assessment of Existing Highway Bridges with no Planned Regular Inspections. J. Perform. Constr. Fac. 2008, 22, 108–114. [Google Scholar] [CrossRef]
  49. Berk, A. Development of a Safety-Inspection Methodology for River Bridges. Master’s Thesis, Middle East Technical University, Ankara, Turkey, 2006. [Google Scholar]
  50. Yanmaz, A.M.; Caner, A.; Berk, A. Renovation of a Safety-Inspection Methodology for River Bridges. J. Perform. Constr. Fac. 2007, 21, 382–389. [Google Scholar] [CrossRef]
  51. Pearson, D.; Stein, S.; Jones, J.S. HYRISK Methodology and User Guide; Federal Highway Administration Rep. FHWA-RD-02-XXX; Federal Highway Administration: Washington, DC, USA, 2002.
  52. Yanmaz, A.M.; Apaydin, M. Bridge Scour Risk Assessment and Countermeasure Design. J. Perform. Constr. Fac. 2012, 26, 499–506. [Google Scholar] [CrossRef]
  53. Robert, W.E.; Marshall, A.R.; Shepard, R.W.; Aldayuz, J. Pontis Bridge Management System. In Proceedings of the 9th International Bridge Management Conference, Orlando, FL, USA, 28–30 April 2003. [Google Scholar]

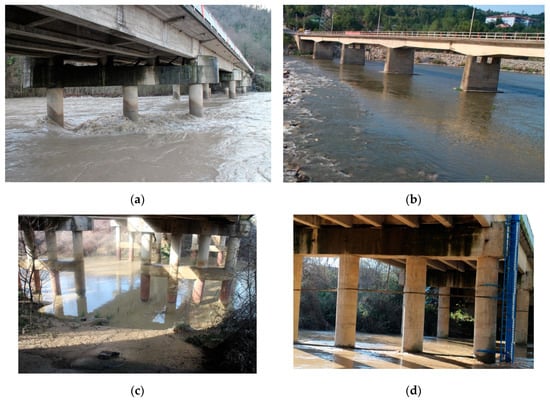

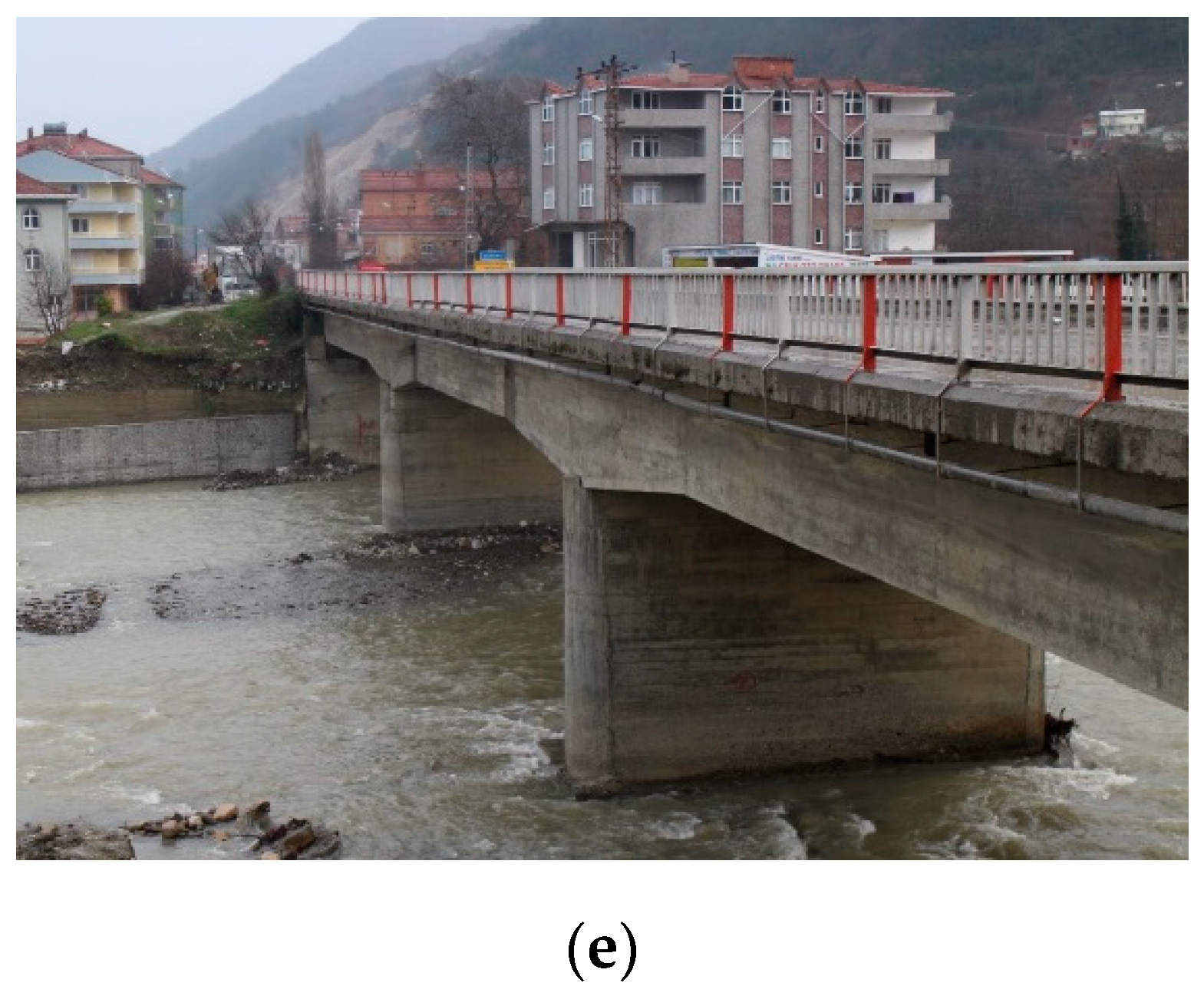

Figure 1. Bridges selected for full inspection: (a) Filyos V Bridge (April 2016); (b) Gokcebey Bridge (August 2017); (c) Bartin I Bridge (April 2017); (d) Bartin III Bridge (December 2014); (e) Catalzeytin Bridge (February 2016).
Figure 1. Bridges selected for full inspection: (a) Filyos V Bridge (April 2016); (b) Gokcebey Bridge (August 2017); (c) Bartin I Bridge (April 2017); (d) Bartin III Bridge (December 2014); (e) Catalzeytin Bridge (February 2016).
Water 11 01902 g001aWater 11 01902 g001b

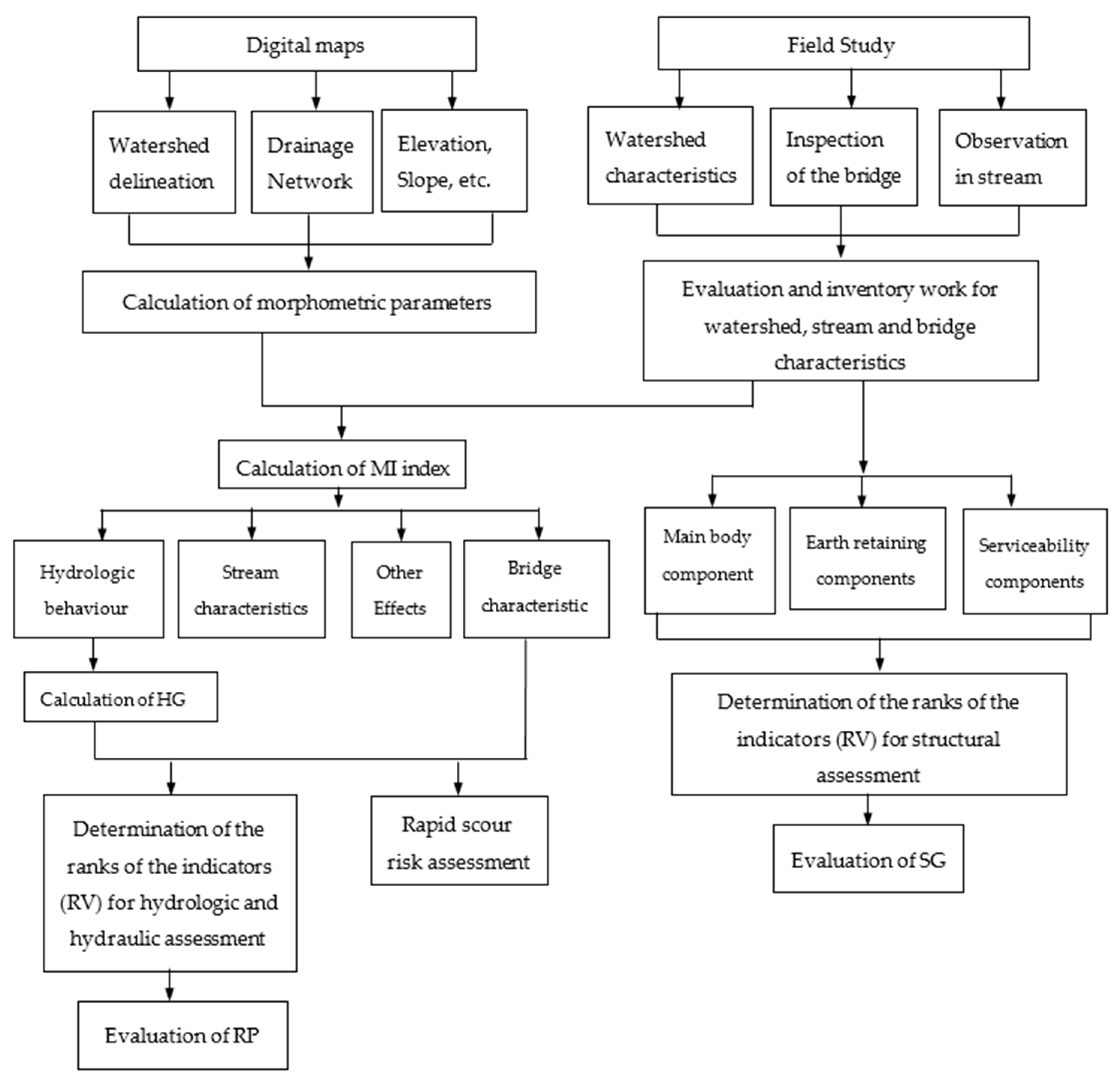

Figure 2. Schematic of developed safety-inspection methodology.
Figure 2. Schematic of developed safety-inspection methodology.
Water 11 01902 g002
Table 1. River bridges inspected in the pilot area of the study.
Table 1. River bridges inspected in the pilot area of the study.
BridgeLocationProvinceStreamAge (Year)
Bartin I41°37′24.47″ N 32°20′00.42″ EBartinGokirmak39
Bartin III41°38′28.62″ N 32°21′20.60″ EBartinKocanaz34
Catalzeytin41°57′10.59″ N 34°13′39.69″ EKastamonuAkcay55
Filyos V41°12′06.89″ N 32°22′35.19″ EKarabukYenice28
Gokcebey41°18′25.90″ N 32°07′34.80″ EZonguldakYenice63
Table 2. Assessment of watershed hydrology and flash flood potential [42].
Table 2. Assessment of watershed hydrology and flash flood potential [42].
Watershed Hydrology and Flash Flood Potential
Morphometric Index (MI)0 < MI ≤ 33 < MI ≤ 66 < MI ≤ 99 < MI ≤ 12
Watershed land useUndisturbed watershed, no or little human activitiesLimited loss of forest, minor change due to agricultural land, cattle and human interventionNoticeable urbanization, loss of forest, cattle and agricultural activityDense urbanization and industrialization, agricultural and livestock activities, meadow pastures are present
Watershed vegetation cover and physical structureNatural, little or no change in vegetation cover mostly plain or mildly sloped landRare deteriorations in natural structure of watershed, partially rough structure with moderate slopeForest often deteriorated, increase in pastures and meadow, presence of hills, plateaus, steep slopesSeriously deteriorated or no regular vegetation cover, mountainous, steep basin
Watershed precipitation magnitude, type, landslides and flood historyMost of the year is arid, rainfalls with long-term and low intensities, flood recurrence frequency ≥ 50 yearsShort-term and heavy rainfall in the spring and autumn, little amount of snowfall, 25 years ≤ flood recurrence frequency < 50 yearsIn majority of the year short periods of heavy rain and snow, landslides occur and 10 years ≤ flood recurrence frequency < 25 yearsShort-term and heavy rainfall throughout the year, plenty of snowfall, serious landslides and flood recurrence frequency < 10 years
Water retention structures in the watershedNo HEPP or dam, only small capacity of ponds or flood detention basin and are remote to the bridgeRatio of water surface area of HEPP, pond or flood detention basin to basin area < 0.5% and remoteness to the bridgeConsecutive HEPPs, 0.5% < water surface area/basin area < 1% and close to bridge site such that flow passing under bridge current is affectedConsecutive dams and HEPPs, 1% < ratio of water surface area/basin area, very close to the bridge site such that flow passing under bridge and stream bed affected
Table 3. Stream bed characteristics.
Table 3. Stream bed characteristics.
Stream Bed Characteristics
Main Channel Characteristics
Flow habit [27]Perennial stream with no flashy behaviorPerennial stream or intermittent stream with slightly increased rate of floodingPerennial or intermittent stream with flashy behaviorExtremely flashy; high risk of flash floods
Stream longitudinal profileWide channels and estuaries, S < 0.0001Lowland streams 0.001< S < 0.0001Plateau streams, 0.001 < S < 0.01Mountainous streams, S > 0.01
Channel pattern [27]Straight non-engineered to meandering with low radius of curvature; primarily suspended loadMeandering, moderate radius of curvature; mix of suspended and bed loads; well maintained engineered channelMeandering with some braiding; primarily bed load; poorly maintained engineered channelBraided; primarily bed load; unmaintained engineered channel
Bed material [27]Assorted sizes tightly packed, overlapping, and possibly imbricated; most material >4 mm; Fs < 20%Moderately packed with some overlapping; very small amounts of material <4 mm; 20% < Fs < 50%Loose assortment with no apparent overlap; small to medium amounts of material <4 mm; 50% < Fs < 70%Very loose assortment with no packing; large amounts of material <4 mm; Fs > 70%
Channel bed protection, grade control structures, consolidation and armoring [20] Rare or not present, bed armoring presentOccasional, causing cross currents and minor bank and bottom erosion, sufficient bed armoringModerately frequent and occasionally unstable obstructions cause noticeable erosion of channel; considerable sediment accumulation behind obstructions, loose armoringFrequent and often unstable, causing continual shift of sediment and flow; traps are easily filled, causing channel to migrate and/or widen, very loose armoring
Bar development, material and plant cover characteristics [24] For S < 0.02 and w/y > 12, bars are mature, narrow relative to stream width at low flow, well vegetated, and composed of coarse gravel to cobbles; for S > 0.02 and w/y < 12, no bars are evidentFor S < 0.02 and w/y > 12, bars may have vegetation and/or be composed of coarse gravel to cobbles, but minimal recent growth of bar evident by lack of vegetation on portions of bar; for S > 0.02 and w/y < 12, no bars are evidentFor S < 0.02 and w/y > 12, bar widths tend to be wide and composed of newly deposited coarse sand to small cobbles and/or may be sparsely vegetated; bars forming for S > 0.02 and w/y < 12Bar widths are generally greater than one-half of stream width at low flow; bars are composed of extensive deposits of fine particles up to coarse gravel with little to no vegetation; no bars for S < 0.02 and w/y > 12
Table 4. Floodplain characteristics.
Table 4. Floodplain characteristics.
Floodplain Characteristics
Floodplain formation [26,27] Active flood plain exists, no natural leveesActive floodplain abandoned, new flood plain is at forming stage, levees are lowNo active floodplain, terracing exists, levees are moderate in sizeNo active floodplain or terraces, levees are high along channel edge
Floodplain width and cover Uniform width, total width > 5 river widths, no trees, debris or other obstructions for flowClose to uniform width, 3 < total width/river width < 5, with some vegetation but no obstructionNon uniform width, 1 < total width/river width <3, some obstruction due to vegetation and tressNon uniform width, total width < 1 river width, heavily vegetated with serious obstruction
Table 5. Stream bank characteristics.
Table 5. Stream bank characteristics.
Stream Bank Characteristics
Bank height Below longitudinal girder of the bridgeBetween longitudinal girder of the bridge and the deckAt bridge deck levelAbove bridge railings
Average bank slope angle [27] Bank slopes 3H:1 V 18° for non-cohesive or unconsolidated materials to 1:1 45° in clays on both sidesBank slopes up to 2H:1 V 27° in non-cohesive or unconsolidated materials to 0.8:1 50° in clays on one or occasionally both banksBank slopes commonly steep; to 1H:1 V 45° in non-cohesive or unconsolidated materials to 0.6:1 60° in clays common on one or both banksBank slopes consistently steep over 45° in non-cohesive or unconsolidated materials or over 60° in clays common on one or both banks
Vegetative bank protection [15] Primarily hard wood, leafy, deciduous trees with mature, healthy, and diverse vegetation located on the bank. Woody vegetation oriented vertically, both banks are lined or heavily armored.Medium band of woody vegetation with 70–90% plant density and cover. A majority of hard wood, leafy, deciduous trees with maturing, diverse vegetation located on the bank. Woody vegetation oriented 80–90° from horizontal with minimal root exposure. Partial lining or armoring of one or both banks, disturbed natural bank structureSmall band of woody vegetation with 50–70% plant density and cover. A majority of soft wood, piny, coniferous trees with young or old vegetation lacking in diversity located on or near the top of bank. Woody vegetation oriented at 70–80° from horizontal often with evident root exposure. No lining of banks, but some armoring may be in place on one bank; problems at present bank protectionWoody vegetation band may vary depending on age and health with less than 50% plant density and cover. Primarily soft wood, piny, coniferous trees with very young, old and dying, and/or mono stand vegetation located off of the bank. Woody vegetation oriented at less than 70° from horizontal with extensive root exposure. No lining or armoring of banks; serious at present bank protection
Bank soil texture [15] Clay and silty clay; cohesive materialClay loam to sandy clay loamSandy clay to sandy loamLoamy sand to sand; non-cohesive material
Mass wasting or bank failure [15] No or little evidence of potential or very small amounts of mass wasting; uniform channel width over entire reachEvidence of infrequent and/or minor mass wasting; mostly healed over with vegetation; relatively constant channel width and minimal scalloping of banksEvidence of frequent and/or significant occurrences of mass wasting that can be aggravated by higher flows, which may cause under-cutting and mass wasting of unstable banks; channel width quite irregular and scalloping of banks is evidentFrequent and extensive mass wasting; potential for bank failure, as evidenced by tension cracks, massive under-cuttings, and bank slumping, is considerable; channel width is highly irregular and banks are scalloped
Bank cutting [15] Little or none evident. Infrequent raw banks less than 15 cm high generallySome intermittently along channel bends and at prominent constrictions. Raw banks may be up to 30 cmSignificant and frequent. Cuts 30–60 cm high. Root mat overhangsAlmost continuous cuts, some over 60 cm high. Undercutting, sod-root overhangs, and
side failures frequent
Table 6. Other effects.
Table 6. Other effects.
Other Effects
Gravel mining from stream bed No gravel mining or its distance from the bridge > 5 kmDistance from the bridge 2-5 km, not continuous and large quantities of material miningGravel mining located 1-2 km from bridge, an established facility, continuous mining with large quantitiesGravel mining located <1 km from bridge, established facility, continuous mining with large quantities
Stream conjunctions No stream conjunction to the main channel near the bridge, no temporary creek close to the main river bed during extreme rainfallTemporary creeks with insignificant amounts of discharge joining to the main flow well away from the bridgeStream conjunction order less than 3–4 orders of magnitude from the main stream, distance from the main channel <4 km, 0.05 < R ≤ 0.15 for adjoining streamStream conjunction order less than 1–2 orders of magnitude from the main stream, distance from the main channel <2.5 km R > 0.15 for adjoining stream
Debris jam accumulation [15]Debris or potential for debris in channel is negligibleSmall amounts of debris present. Small jams could be formedNoticeable accumulation of all sizes. Moderate downstream debris jam potential possibleModerate to heavy accumulations of various size debris presents. Debris jam potential significant
River (bed and bank) reclamationNo change in flow structure that would affect bridgeChange in the flow structure but no visible unfavorable effect on the bridgeChange in the magnitude and direction of the flow, scouring started around piers, vortices existSerious scouring around piers and strong vortices exist
Percentage of channel constriction [18]0–5%6–25%26–50%>50%
New bridge construction near the bridgeNo or negligible effect on changing the flow structure around piers of present bridgeAffect the flow structure but its effect on old bridge is negligibleChange the flow structure but doesn’t cause serious scouringCause serious vortex, turbulence, secondary flow and scouring
Table 7. Bridge characteristics.
Table 7. Bridge characteristics.
Bridge Characteristics
Bridge locationAt sea or lake levelOn mild sloped streamsOn valley streamsOn mountain skirts or steep sloped streams
Upstream distance to bridge from meander impact point and alignment [27]Dm > 35 m20 < Dm ≤ 35 m10 < Dm ≤ 20 m0 < Dm ≤ 10 m
Bridge skewness [18]0 ≤ α ≤ 5°5 < α ≤ 10°10 < α ≤ 30°α > 30°
Flow in the spans of the bridgeSufficient opening, no backwater, free surface flow present in the openingsSufficient opening, some backwater building, free surface flow present in the openingsWater level rising to the bottom of the bridge girder, pressurized flow existsFlow overflow the bridge at least one time during its service life so weir type of flow prevails
Pier Characteristics
Pier type, single or group of piers and skew angleSingle pier, rounded or semi-circular nosed, no or negligible separation in the flowSingle pier, pier not rounded nosed in the upstream or downstream side, separation in the flow but not strong vorticesPiers in tandem arrangement, no skew angle, strong vortices existPiers in tandem arrangement, skewness and strong vortices exist
Length width ratio<22–33–5>5
ObservabilityCan always be observedCan usually be observed due to the shallowness of the waterCan only be observed at dry season when there is no stream flowAlways under water so can never be visually observed
ScouringNo or negligible depth of scouring around piers, foundation wedges not seenLittle scouring, foundation wedges are slightly seenImportant amount of scouring where foundation wedges can be seenSerious amount of scouring around piers
Countermeasures against scouringNo need for any countermeasures against scouringLarge rocks are used against scouring, an adequate and appropriate countermeasure against scouringLarge rocks are used against scouring but they man adequate and appropriate countermeasure against scouring, rocks have been replaced and countermeasure is not efficientInappropriate or no countermeasure taken against scouring
Abutment Characteristics
Protection type and conditionsNo damage in the reinforced concrete shear wall, no deformationSmall damage and cracks in the reinforced concrete wall but no deformationCracks and damage in the reinforced concrete shear wall, no deformationSerious cracks and damage in the reinforced concrete shear wall and deformation
Settlement and approach fill conditionNo visual settlement or deformationNo visual settlement or deformation, small amount of shear in the fillSerious shear and deformation in the fillSettlement and serious shear in the fill, fill wedge not functioning
Physical and environmental factors affecting abutmentsNo changeLittle damage to the approach fill due to road expansionSettlement occurred due to problems, such as drainage or river reclamationDamaged by changing flow structure due to river reclamation work etc.
Table 8. Bridge characteristics.
Table 8. Bridge characteristics.
Components of Structural Assessment
Main Body ComponentsEarth Retaining Components
Concrete disintegration Cracks
Apparent reinforcement Concrete Disintegration
Holes and cavities Apparent reinforcement
Water leakage Holes and cavities
SupportsMain damage Water and debris abrasion
Support bed Scour in foundation
Loss of elements Settlement and slump
AnchorageApproach fillErosion on road platform
Surface arrangement Erosion in fill
Deformation Settlement and slump
Cracks Scour in bed level
RustingServiceability Components
Bolts and rivetsCoatingWaving
Concrete Disintegration Tire tracks
Apparent reinforcement Cracks
Holes and cavities Holes and cavities
Cracks Concrete disintegration
Concrete Disintegration Apparent reinforcement
Apparent reinforcementRailingDeformation
Holes and cavities Rusting
Water and debris abrasion Deficiency
Scour in foundationExpansion jointNoise
Water leakage
Holes and cavities
Loss of elements
Loss of function
Table 9. Bridge characteristics.
Table 9. Bridge characteristics.
Structural Components
Listed in Table 8New or undamaged, damaged or deterioration is yet in its early stagesSlightly damaged but noticeable, causing no problemDamaged but still functioning, stability problem has started to occurSeverely damaged, serious safety problems, urgent action needed, element deficiency or cannot be assessed
Table 10. Determination of risk point (RP) value using hydrological grade (HG) and ranking values (RV).
Table 10. Determination of risk point (RP) value using hydrological grade (HG) and ranking values (RV).
HeaderRP Not ChangedRP Increased by 1RP Increased by 2
Hydrologic evaluationHG < 3333 ≤ HG < 47HG ≥ 47
Hydraulic evaluation1 < RV < 77 ≤ RV ≤ 910 ≤ RV ≤ 12
Table 11. Evaluation of river bridges in terms of RP.
Table 11. Evaluation of river bridges in terms of RP.
CaseRPRatingRecommended Action against Hydraulic Factors
10 ≤ RP ≤ 11ExcellentNo significant hydraulic factors acting on the bridge.
211 < RP ≤ 22GoodThere are hydraulic factors affecting the bridge but no problem on the bridge.
322 < RP ≤ 44FairImportant hydraulic factors affecting the bridge. Precautions should be taken and the bridge be monitored
4RP > 44PoorVery important hydraulic factors affecting the bridge. Urgent action should be taken. Level 2 Works should be carried out.
Table 12. Evaluation of river bridges in terms of structure grade (SG).
Table 12. Evaluation of river bridges in terms of structure grade (SG).
CaseSGRatingRecommended Action against Structural Condition
1SG < 199ExcellentNo maintenance—repair is needed.
2199 ≤ SG < 345GoodMinor maintenance—repair work present but not urgent.
3345 ≤ SG < 491FairMaintenance—repair is needed. Bridge must be regularly inspected.
4SG ≥ 491PoorUrgent maintenance—repair is needed. Bridge has structural problems.
Table 13. Grading of river bridges in regard to hydraulic indicators.
Table 13. Grading of river bridges in regard to hydraulic indicators.
ComponentsIndicatorsBartin IBartin IIICatalzeytinFilyos VGokcebey
Hydrologic evaluationOverall score4849524546
Stream bed characteristicsFlow habit56799
Stream longitudinal profile871197
Channel pattern769119
Bed material55356
Channel bed protection, consolidation and armoring41957
Bar development, material and plant cover characteristics1110128
Floodplain characteristicsFloodplain formation1212121212
Floodplain width and cover12101275
Bank CharacteristicsBank height955123
Average bank slope angle10812119
Vegetative bank protection16183
Bank soil texture811121
Mass wasting or bank failure66141
Bank cutting32131
Other EffectsGravel mining from stream bed11118
Stream conjunctions81212710
Debris jam accumulation9103129
River (bed and bank) reclamation13759
Percentage of channel constriction42121
New bridge construction near the bridge18111
Bridge CharacteristicsBridge location44384
Upstream distance to bridge from meander impact point and alignment46129
Bridge skewness811121
Flow in the spans of the bridge129343
Pier type, single or group of piers and skew angle775102
Pier length width ratio2211212
Pier Observability121291210
Scouring in piers55789
Countermeasures against scouring (pier)12711911
Protection type and conditions (abutment)11119123
Settlement and approach fill condition10116123
Physical and environmental factors affecting abutments11177
Table 14. Grading of river bridges with regard to structural indicators.
Table 14. Grading of river bridges with regard to structural indicators.
ComponentsIndicatorsBartin IBartin IIICatalzeytinFilyos VGokcebey
Concrete Disintegration612776
Apparent reinforcement812777
Holes and cavities612753
Water leakage10128115
SupportMain damage1212121212
Support bed1212121212
Loss of elements (M)1212121212
Anchorage (M)1212121212
Surface arrangement (E)-----
Deformation (E)-----
Rusting (S)-----
Bolts and rivets (S)-----
Welding (S)-----
Concrete Disintegration (C)1012777
Apparent reinforcement (C)1012877
Holes and cavities (C)812624
Concrete Disintegration1212747
Apparent reinforcement212728
Holes and cavities1012626
Water and debris abrasion71111129
Scour in foundation121281212
Concrete Disintegration11131
Apparent reinforcement11111
Holes and cavities11111
Water and debris abrasion11111
Scour in foundation11111
Approach fillSettlement and slump5911102
Erosion on road platform381171
Erosion in fill1611122
StabilizationSettlement and slump11111111
Scour in bed level11111111
Tire tracks881297
Holes and cavities35784
BorderCracks (C)67462
Disintegration (C)5128104
Apparent reinforcement (C)412682
Rusting (S)771085
Deficiency (S)261062
Expansion jointNoise912121210
Water leakage912121212
Holes and cavities1212121212
Loss of elements1212121212
Loss of function1212121212
DrainagePipe damage101111108
* M: Metallic; E: Elastomeric; S: Steel; C: Concrete.
Table 15. Inspection grades for river bridges.
Table 15. Inspection grades for river bridges.
Bridge NameHydrologic Grade (HG)Hydrologic and Hydraulic Assessment (RP)Structural Assessment (SG)
Bartin I4826394
Bartin III4922493
Filyos V4534428
Table 16. Prioritization of river bridges according to inspection grades.
Table 16. Prioritization of river bridges according to inspection grades.
NoHydraulic AssessmentBridge RatingStructural AssessmentBridge Rating
1Filyos VFairBartin IIIPoor
2Bartin IFairFilyos VFair
4GokcebeyFairBartin IFair
5Bartin IIIGoodGokcebeyGood
Table 17. Rapid scour assessment for river bridges.
Table 17. Rapid scour assessment for river bridges.
IndicatorBartin IBartin IIICatalzeytinFilyos VGokcebey
Foundation on sound ground?NoNoNoNoNo
Adequate and appropriate precautions against scouring?NoYesYesNoYes
River flow high and fast, unsteady?No Yes
Instability in river bed? Yes
Bridge immediately downstream of a bend or skewness > 10°? Yes
DecisionNegligible scouring problemNegligible scouring problemNegligible scouring problemProceed to Level 2 assessmentNegligible scouring problem

Share and Cite

MDPI and ACS Style

Akay, H.; Baduna Kocyigit, M.; Yanmaz, A.M. Development of a Safety-Inspection Method for River Bridges in Turkey. Water 2019, 11, 1902.

AMA Style

Akay H, Baduna Kocyigit M, Yanmaz AM. Development of a Safety-Inspection Method for River Bridges in Turkey. Water. 2019; 11(9):1902.

Chicago/Turabian Style

Akay, Huseyin, Musteyde Baduna Kocyigit, and A. Melih Yanmaz. 2019. "Development of a Safety-Inspection Method for River Bridges in Turkey" Water 11, no. 9: 1902.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
