Experimental Analysis of the Influence of Aeration in the Energy Dissipation of Supercritical Channel Flows

1
Hydraulic Laboratory of the Hydrographical Study Center, CEDEX, Ministry of Public Works and Transport, 28005 Madrid, Spain
2
Department of Civil Engineering: Hydraulics, Energy and Environment, Universidad Politécnica de Madrid, 28040 Madrid, Spain
3
Department of Infrastructures Planning, Ministry of Public Works and Transport, 28071 Madrid, Spain
*
Author to whom correspondence should be addressed.
Water 2019, 11(3), 576; https://doi.org/10.3390/w11030576 (registering DOI)
Received: 8 February 2019 / Revised: 13 March 2019 / Accepted: 15 March 2019 / Published: 20 March 2019
  |
PDF [7193 KB, uploaded 16 July 2019]
  |     |

Abstract

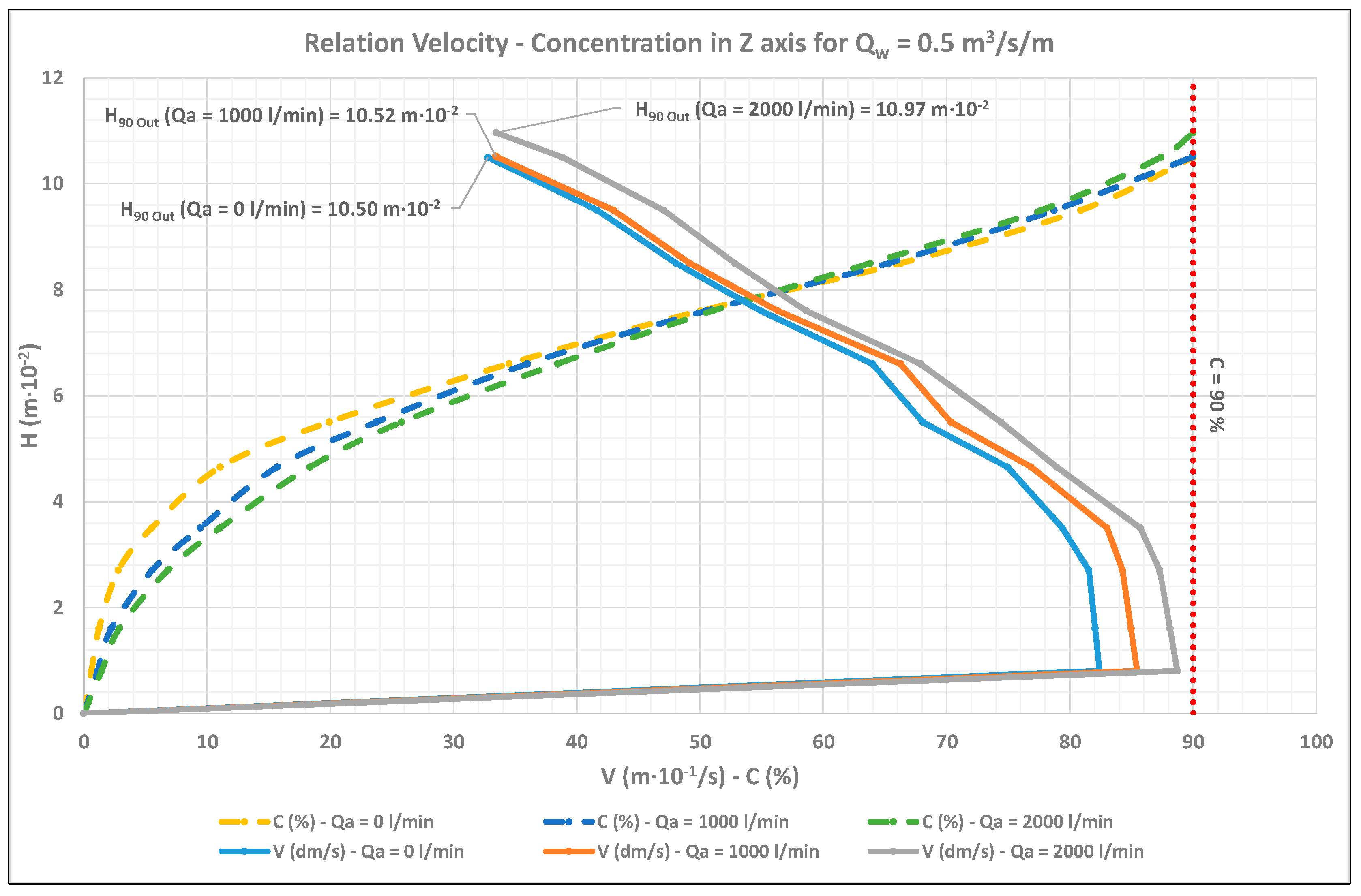

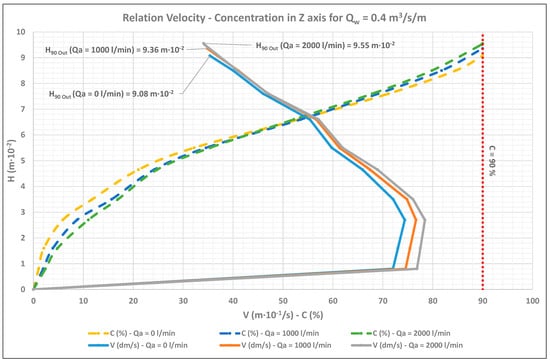

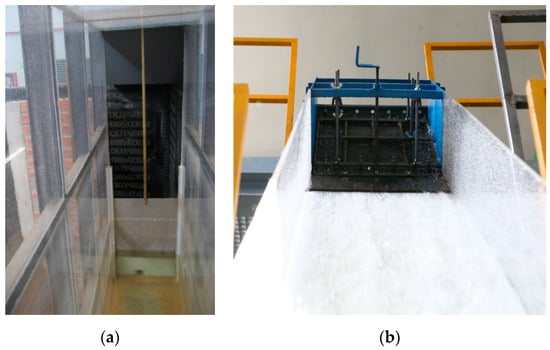

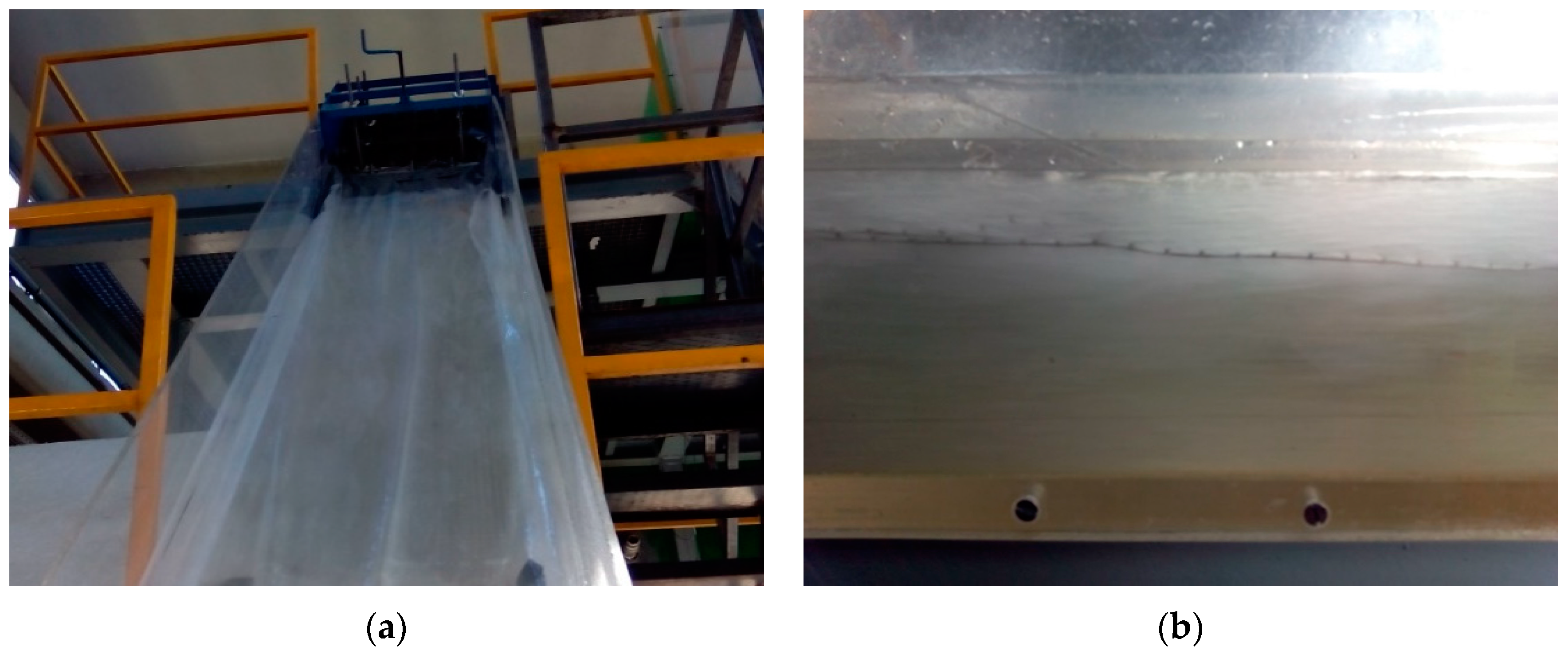

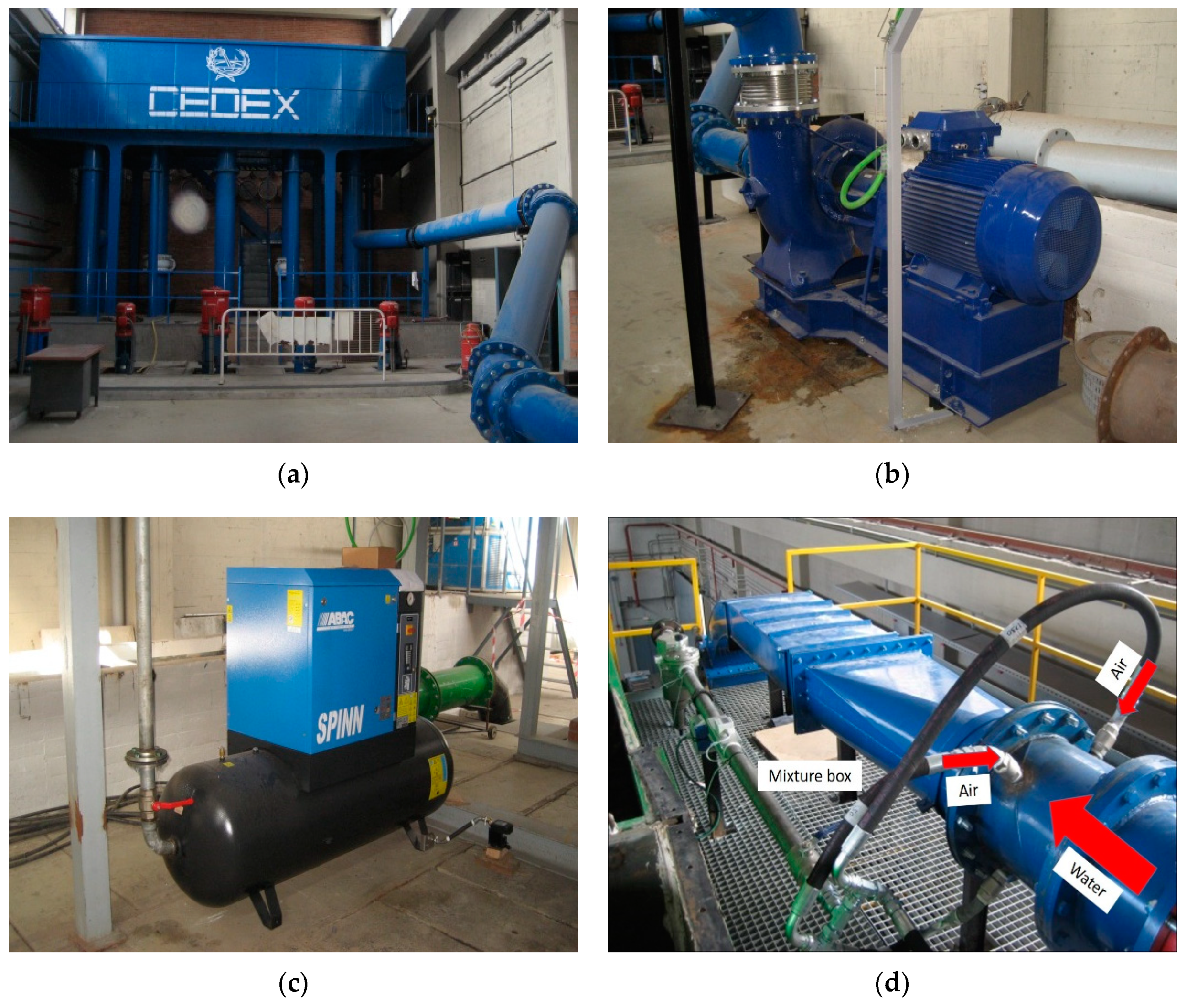

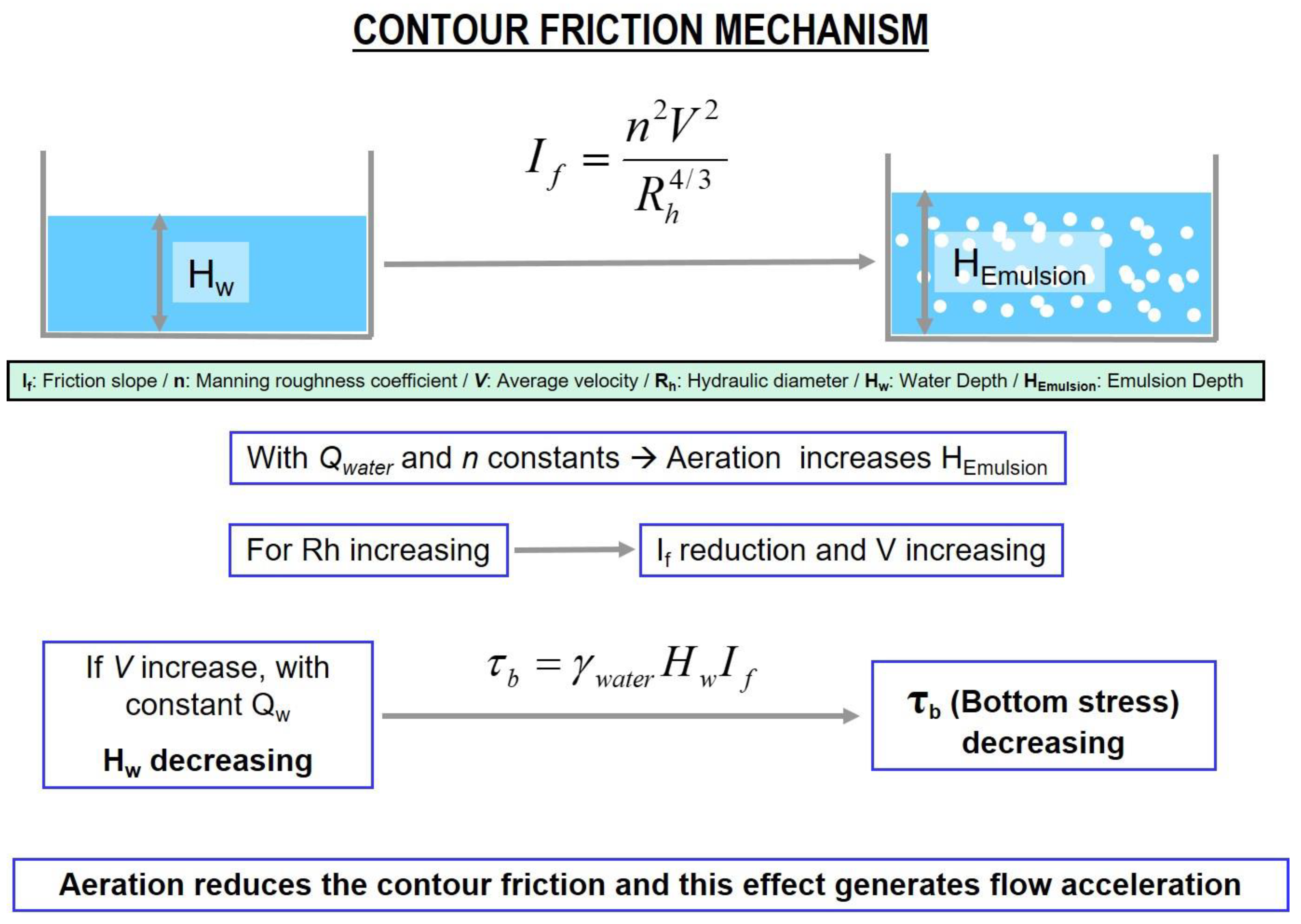

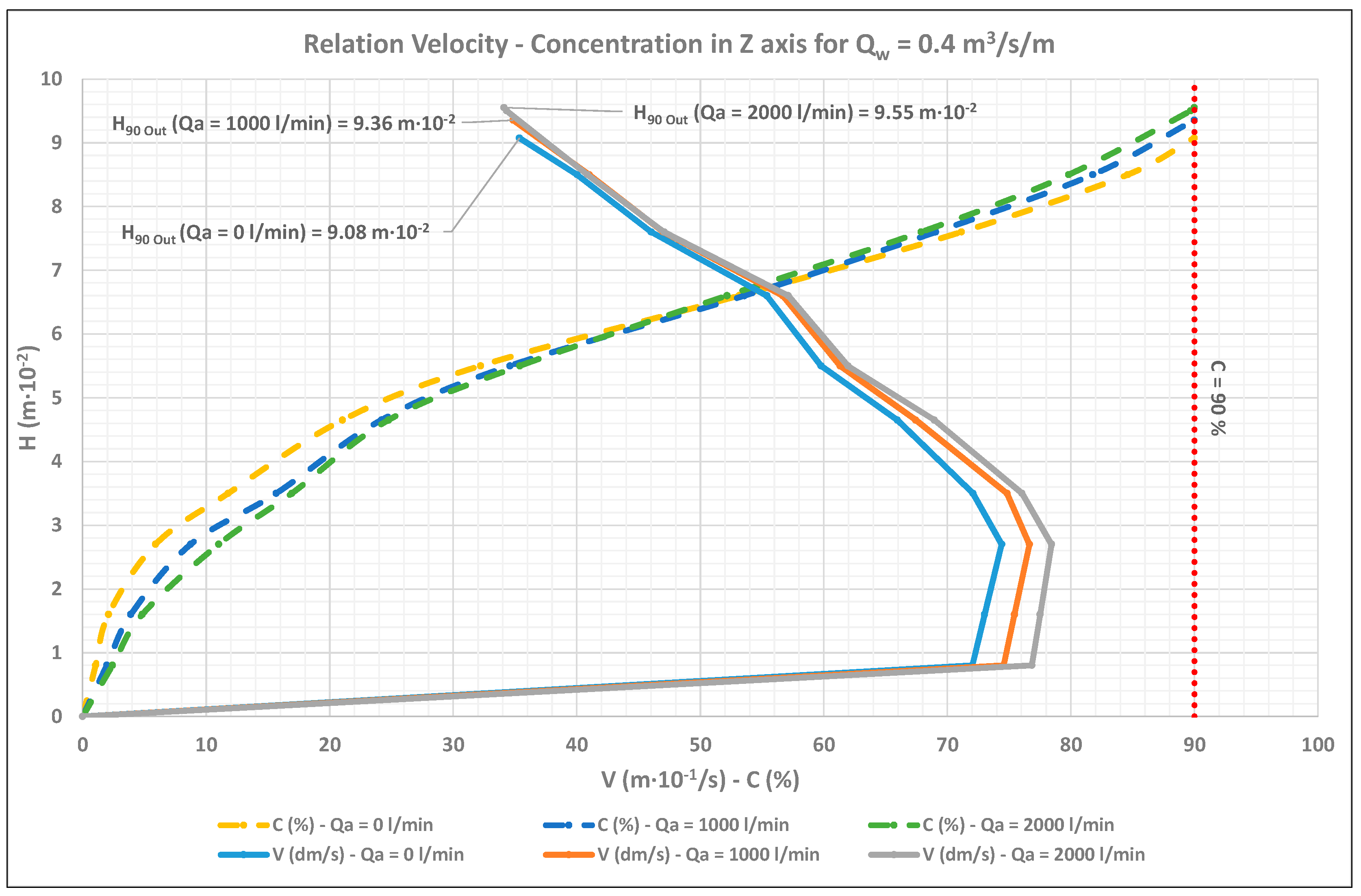

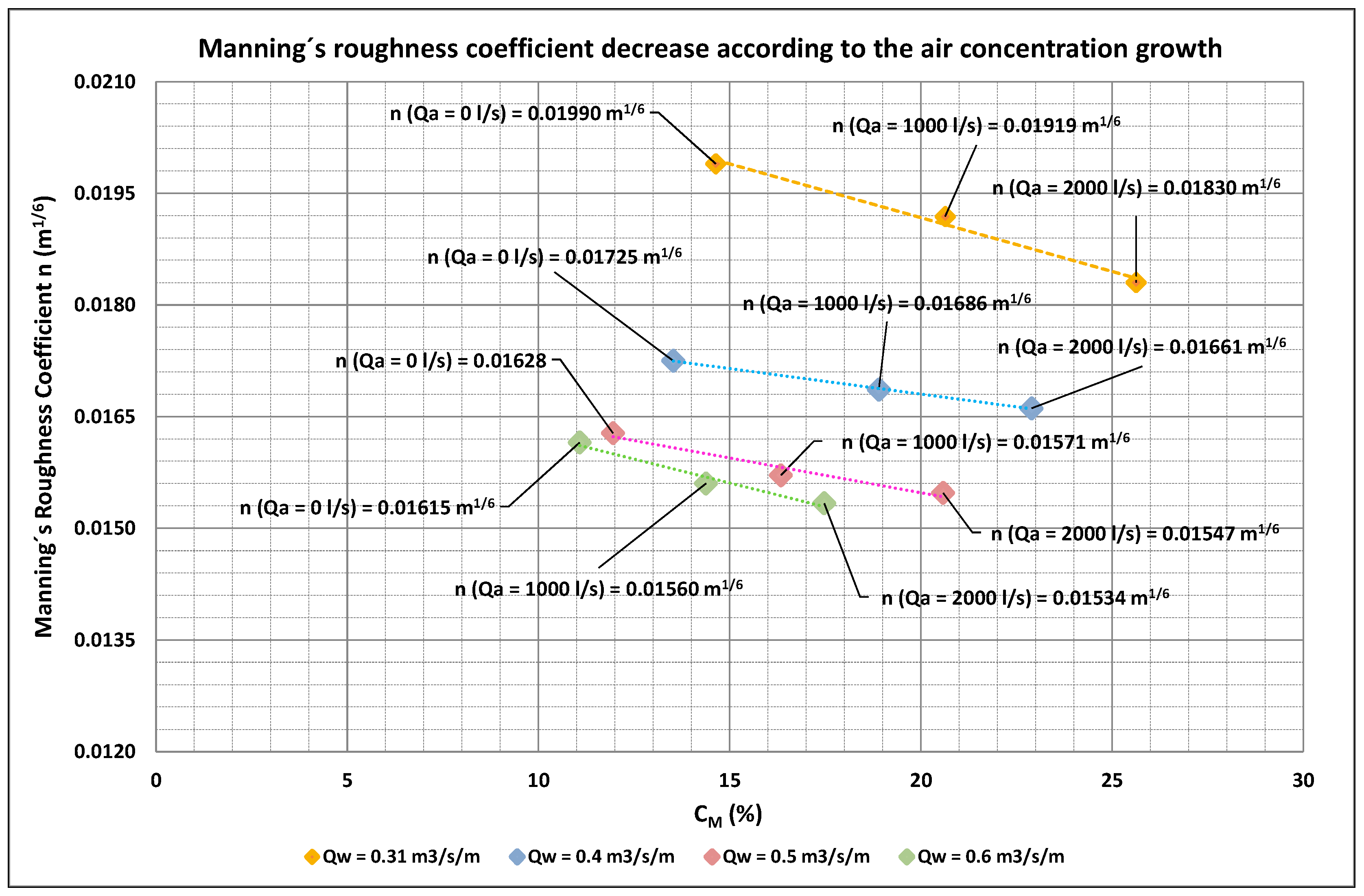

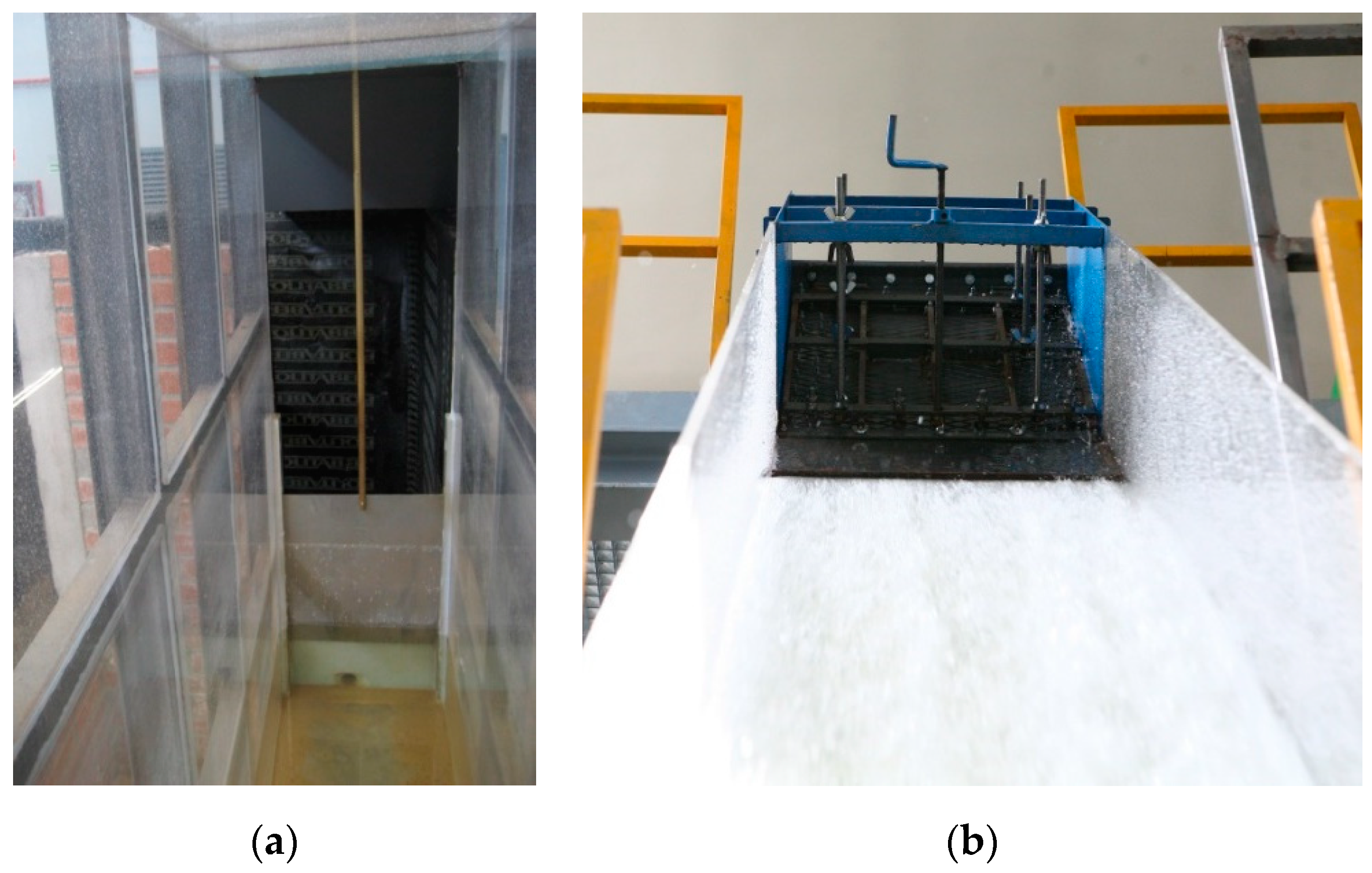

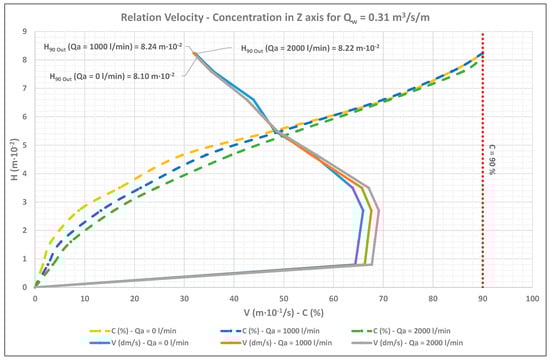

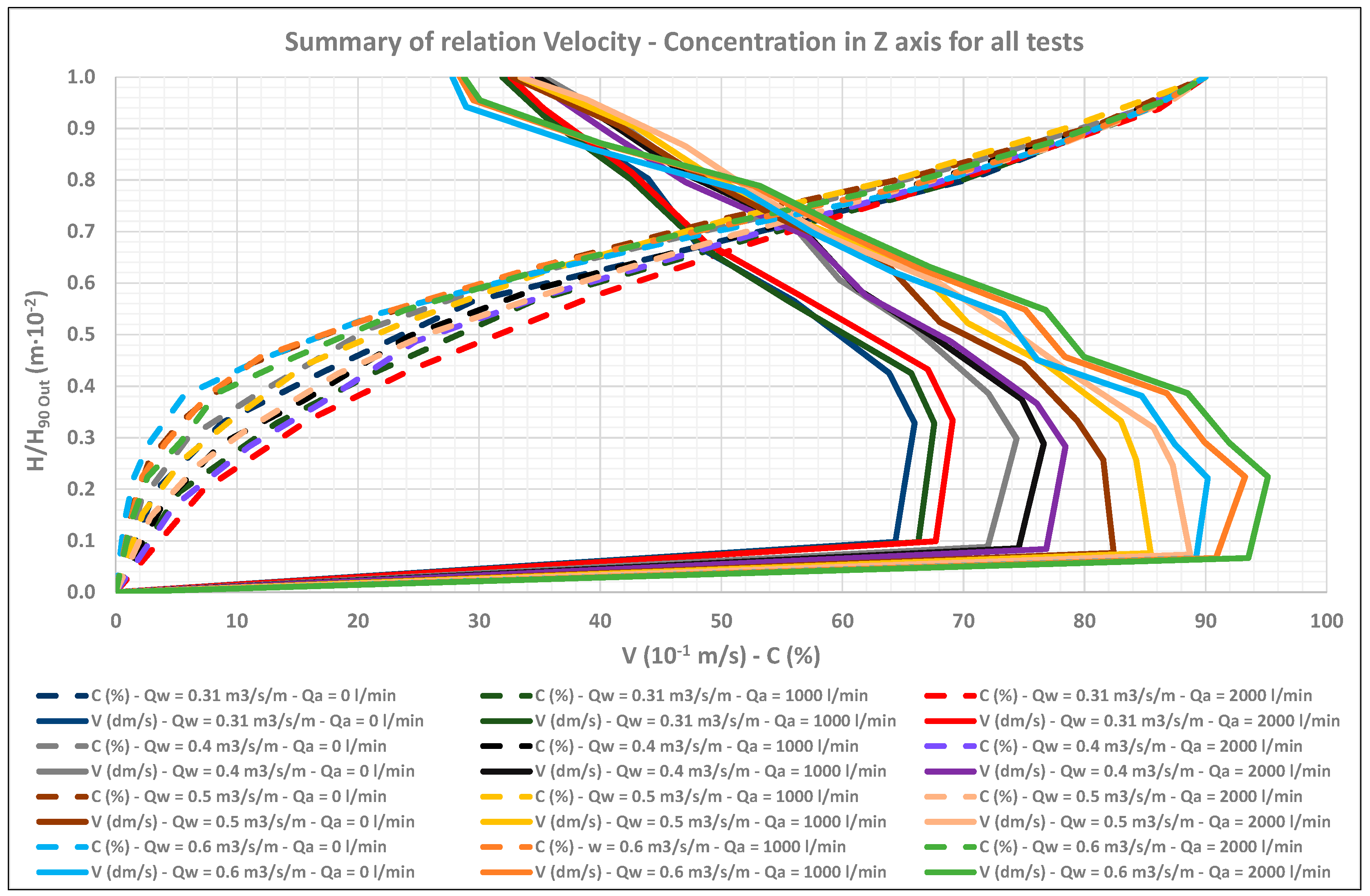

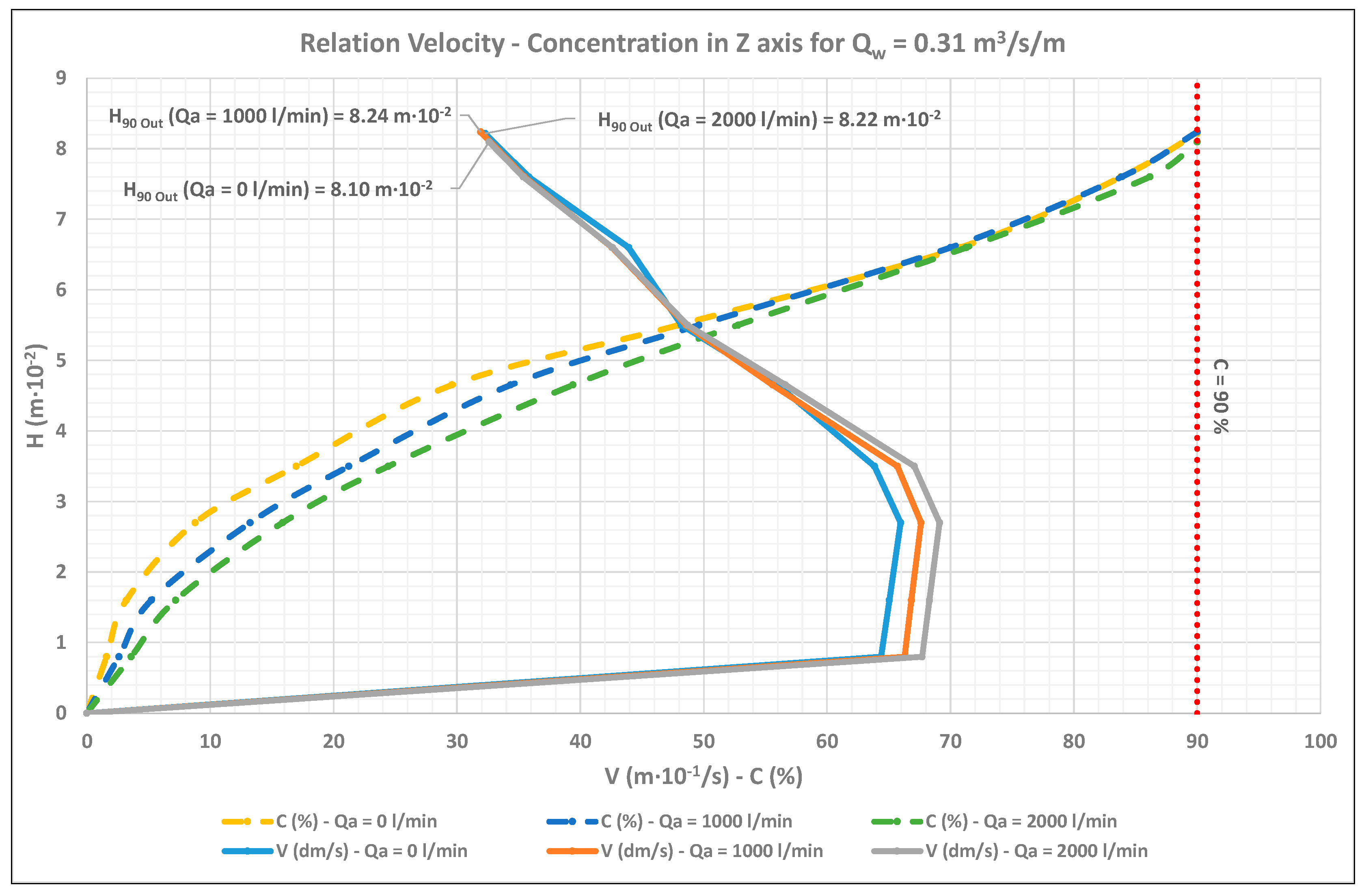

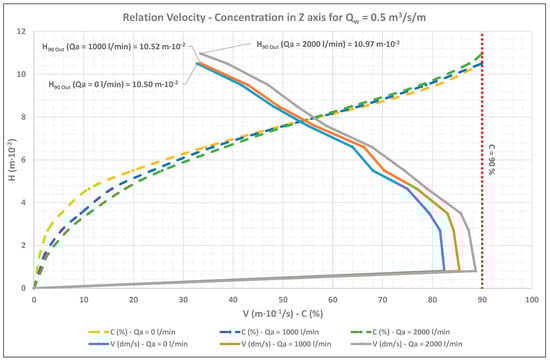

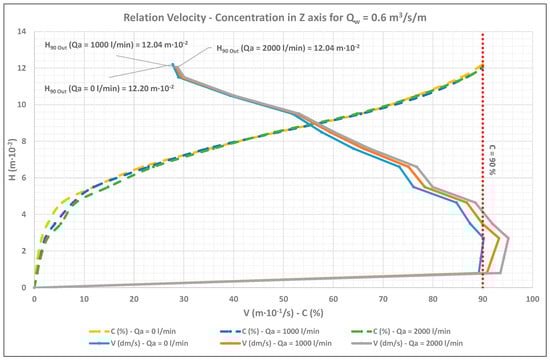

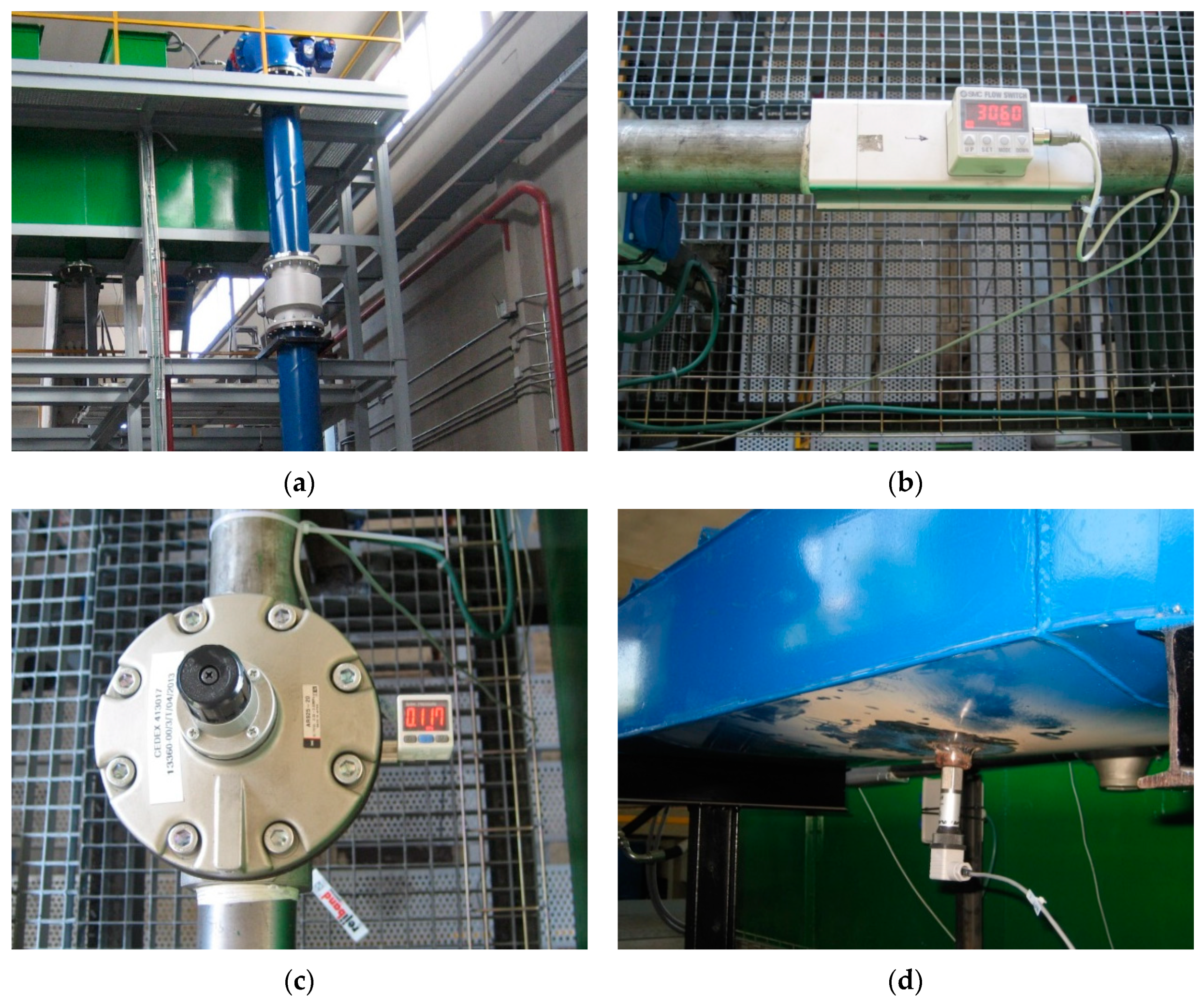

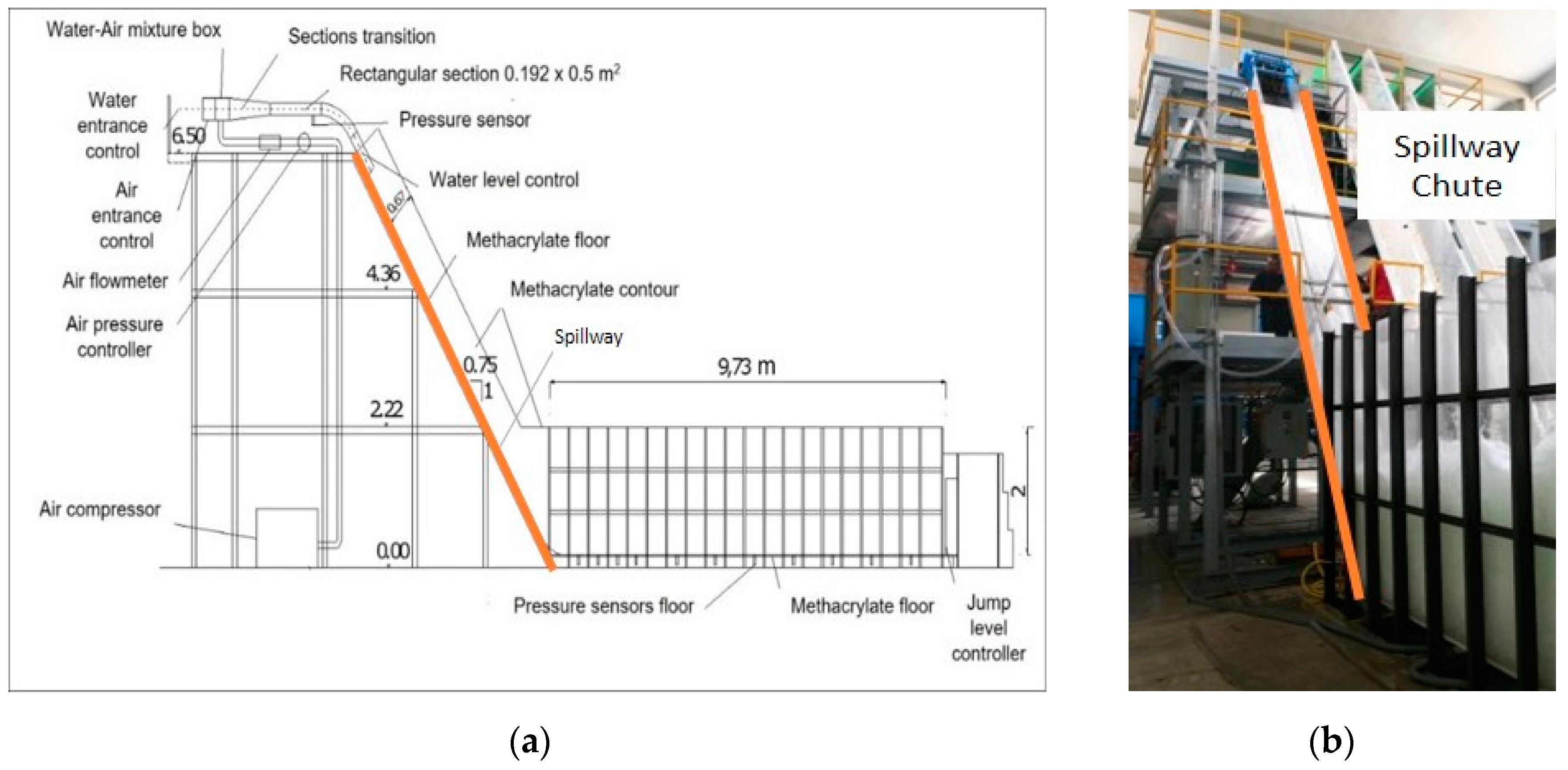

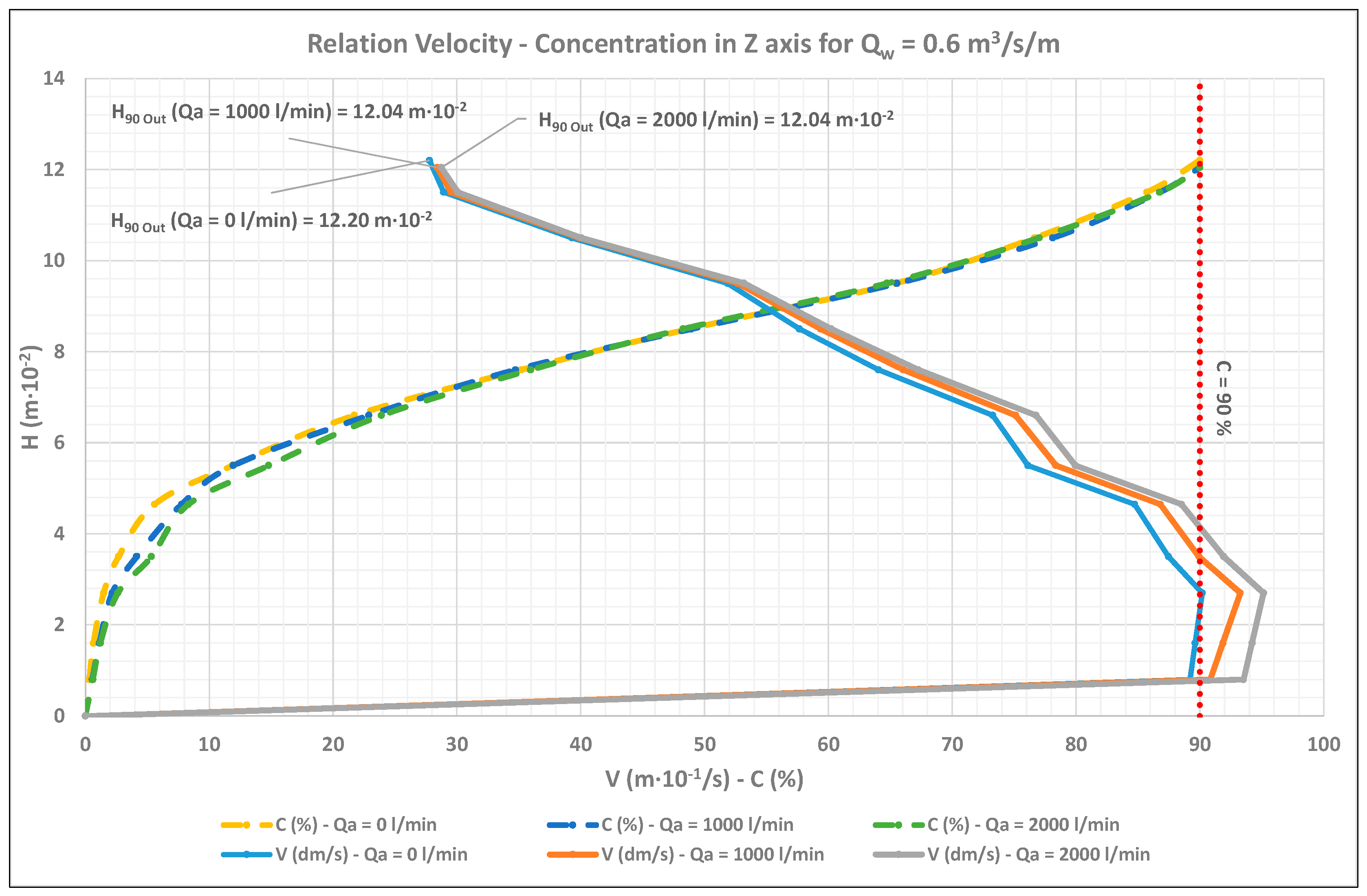

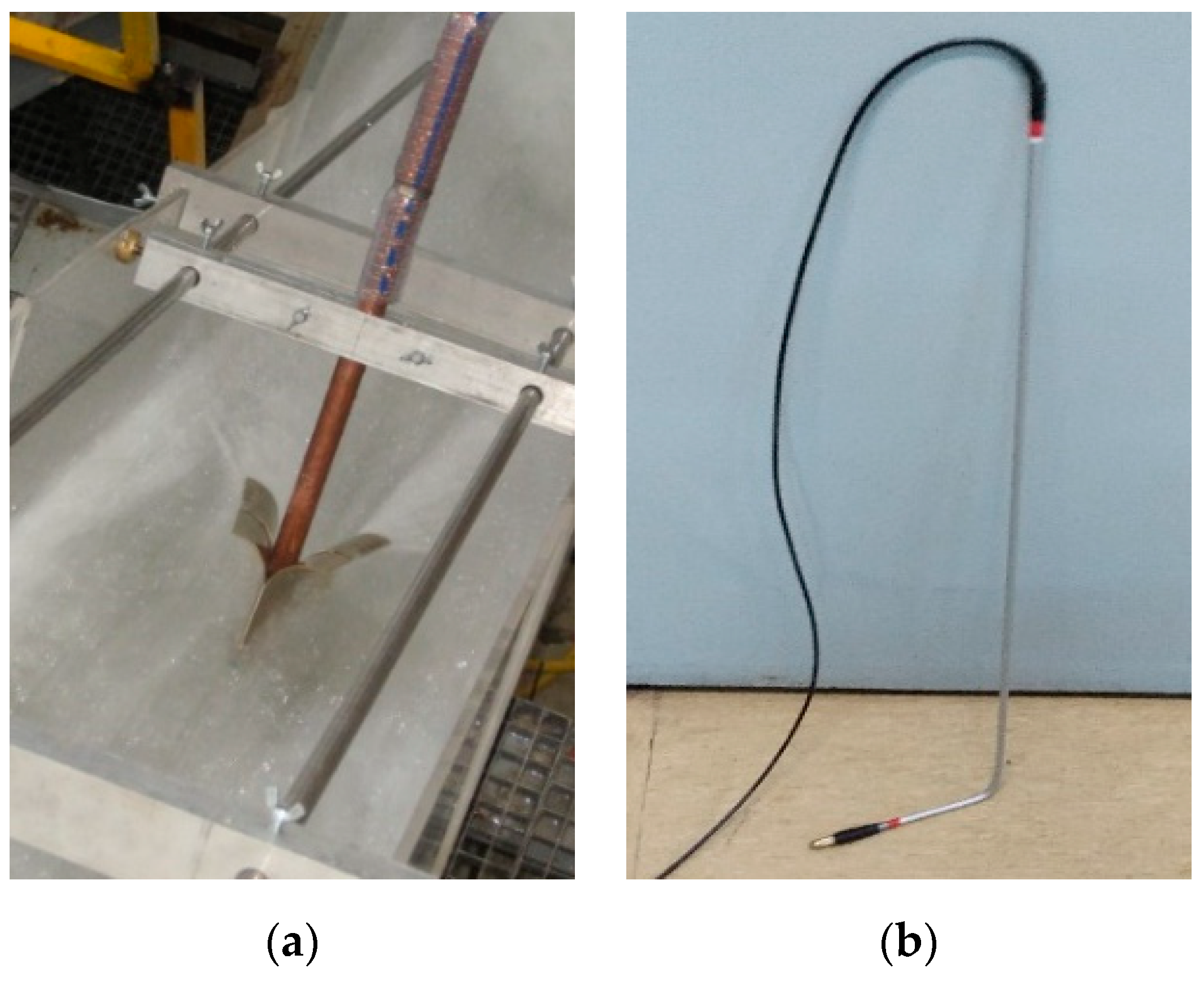

Energy dissipation structures play an important role in flood risk management. Many variables need to be considered for the design of these structures. Aeration has been one of the more studied phenomena over the last years, due to its influence in the performance of hydraulic structures. The purpose of the work presented in this article is to experimentally characterize the effects of aeration on boundary friction in supercritical and fully turbulent flows. The physical model used to analyze the aeration effects consists of a spillway chute 6.5 m high and a stilling basin of 10 m length and 2 m high. A pump and compressor supply the water-air mixture and are controlled at the entrance by valves and flowmeters. The ensuing channel is monitored to determine the velocity profile and air concentration of the flow into the stilling basin. The average values of both variables and Manning’s coefficient along the channel are used to determine the relation between air concentration and energy dissipation by friction. A velocity increase with greater air entrainment has been found in all scenarios since friction is the main energy dissipation mechanism in open channels flow. Finally, an equation is proposed to characterize this evolution based on the results obtained. View Full-Text
Keywords: aeration; concentration; velocity; friction; roughness; Manning’s coefficient; energy dissipation; physical model aeration; concentration; velocity; friction; roughness; Manning’s coefficient; energy dissipation; physical model
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
