Effects of a Groundwater Heat Pump on Thermophilic Bacteria Activity

by 1 and 2,3,*
The Research Institute for Earth Resources, Kangwon National University, Chuncheon 24341, Korea
Department of Geology, Kangwon National University, Chuncheon 24341, Korea
Critical Zone Frontier Research Laboratory (CFRL), Kangwon National University, Chuncheon 24341, Korea
Author to whom correspondence should be addressed.
Water 2019, 11(10), 2084;
Received: 2 September 2019 / Revised: 2 October 2019 / Accepted: 4 October 2019 / Published: 6 October 2019
(This article belongs to the Special Issue Human Impact on Water Resources)


Groundwater samples were collected from the tubular wells of a groundwater heat pump (GWHP), and the psychrophilic, mesophilic, and thermophilic bacteria inhabiting the collected groundwater were cultured and isolated. Using the isolated bacteria, we analyzed temperature-dependent changes in autochthonous bacteria based on the operation of the GWHP. Microbial culture identified eight species of bacteria: five species of thermophilic bacteria (Anoxybacillus tepidamans, Bacillus oceanisediminis, Deinococcus geothermalis, Effusibacillus pohliae, and Vulcaniibacterium thermophilum), one species of mesophilic bacteria (Lysobacter mobilis), and two species of psychrophilic bacteria (Paenibacillus elgii and Paenibacillus lautus). The results indicated A. tepidamans as the most dominant thermophilic bacterium in the study area. Notably, the Anoxybacillus genus was previous reported as a microorganism capable of creating deposits that clog above-ground wells and filters at geothermal power plants. Additionally, we found that on-site operation of the GWHP had a greater influence on the activity of thermophilic bacteria than on psychrophilic bacteria among autochthonous bacteria. These findings suggested that study of cultures of thermophilic bacteria might contribute to understanding the bio-clogging phenomena mediated by A. tepidamans in regard to GWHP-related thermal efficiency.

1. Introduction

Renewable energy is collected from renewable sources, such as sunlight, wind, rain, tides, waves, and geothermal heat [1,2], whereas geothermal energy describes heat derived from the Earth, and represents both clean and sustainable energy. The increase in fuel and environmental costs related to the use of fossil fuels has made renewable and efficient energy systems more accepted. This has been reflected in the increased use of groundwater heat pumps (GWHP) for heating and cooling systems in commercial and residential buildings [3]. Numerous ongoing studies are focused on the technical aspects of this field [4,5], as well as the groundwater and soil pollution caused by the installation and operation of a GWHP [3,6].
Use of geothermal heat pump cooling and heating systems has experienced rapid growth in Germany, Denmark, Switzerland, Norway, France, Canada, the United States, the Netherlands, and China [7,8,9,10,11,12,13,14,15]. Geothermal energy has long been acknowledged as a highly efficient method for cooling and heating buildings, and a variety of geothermal heat pumps have, thus, been installed in general residential and commercial structures [16,17,18,19,20,21]. In Korea, heat pump cooling and heating systems are being installed mainly in large buildings, such as new buildings built for public institutions, commercial use, welfare facilities, and schools [3,6,7,22].
The benefits of geothermal energy provided by these systems support market demands, including providing low operating costs, eco-friendliness, and compatibility with building designs. Additionally, geothermal systems, such as those based on the use of groundwater, reportedly ensure high efficiency as the most stable, eco-friendly, and low-cost options among currently available cooling and heating systems, and have promoted increased related academic research [4,21].
GWHP systems need an aquifer with a high transmissivity and adequate recharge, as well as adequate water quality to avoid corrosion, scaling, and well clogging. The high groundwater yield (the volume of exploitable groundwater) should be combined with relatively high natural water levels and the presence of rocks to prevent inner-well destruction at the junction of circulation between groundwater and the injected circulating water. Additionally, the water quality should be adequate enough to prevent corrosion or scaling phenomena, and a hydrogeothermal system is required to prevent radical, long-term temperature fluctuations at the entry to the geothermal source, normally caused by a circulating water temperature. A sudden fall in pumping level during groundwater collection can result in excessive power costs, resulting in inefficient and higher-cost operation.
Notably, for the GWHP, problems of thermal efficiency due to inevitable physicochemical and microbiological factors have been identified in several studies [23,24,25]. The efficiency of the tubular wells continuously used for long periods decreases upon clogging through the mechanical process associated with erosion of the underwater pump, chemical processes associated with mineral precipitation due to water–rock reactions, and biological processes related to biomass accumulation due to bacterial activity. Such phenomena might also reduce thermal efficiency and the quantity of water collected by the GWHP, as well as water quality [26,27,28,29,30,31,32]. Among these problems, microorganisms can negatively influence the thermal efficiency of the geothermal system by mediating the bio-clogging phenomena [6,25]. However, there has been a general lack of studies on the effects of temperature changes due to the operation of a GWHP on the composition of autochthonous bacteria. Therefore, we performed analytical experiments on psychrophilic, mesophilic, and thermophilic bacteria in seasonal groundwater samples collected from a GWHP system and evaluated temperature-dependent changes in autochthonous bacteria based on GWHP operation.

2. Study Area and Methods

2.1. Study Area

The study area was located in Janghak-ri, Dong-myeon, Chuncheon-si, Gangwon-do, Korea, and had geological features that included Chuncheon granite rocks and Mesozoic granite as the bedrock, with a quaternary alluvium layer covering the upper level (Figure S1 in Supplementary Materials) [6]. The geothermal wells for the study area were 200 mm in diameter and 250 m deep. The drilling results identified distributions for the alluvium layer (0–9 m), weathered rocks (10–15 m), soft rocks (16–26 m), and moderate rocks (>26 m).
The hydraulic conductivity of the study area was 1.92 × 10−4 cm/day, and the transmissivity was 0.10 m2/day. A step-drawdown test to determine the optimal yield and well efficiency at the study site revealed a yield of 240 m3/day and a well efficiency of 66.0%. The permeability of the testbed was 6.0 × 10−12 m2, and the coefficient of transmissivity was 17.50 m2/day. Thermal properties, such as thermal conductivity, well-flow rate, and thermal power of the GWHP circulating water were 3.23 W/mK, 432 m3/day, and 98.2 kW, respectively. The geothermal wells were installed in August 2014, and water sampling was conducted seven times for microbial analysis until November 2016 (13 August 2014; 28 October 2014; 2 December 2014; 9 November 2015; 27 May 2016; 25 August 2016; and 24 November 2016) (Figure 1). The natural groundwater at the study area exhibited a steady range that reflected the annual mean temperature of the atmosphere, whereas the water temperature displayed a gradually increasing trend due to the influence of the ground temperature toward the core. The mean temperature of the circulating water in the GWHP was 16.1 °C. The system operated from 22:00 to 07:30, for 9 h and 30 min, with coefficients of performance of 3.1 and 3.2 for cooling and heating, respectively [6].

2.2. Physicochemical Analysis

Groundwater samples were collected seven times during the period between 13 August 2014, and 24 November 2016 (13 August 2014; 28 October 2014; 2 December 2014; 9 November 2015; 27 May 2016; 25 August 2016; and 24 November 2016). The collected groundwater was filtered using a 0.45-μm membrane filter, and a quantity of the filtered sample was acidized using concentrated nitric acid (pH ~2.0). The water temperature, pH, dissolved oxygen (DO), oxidation reduction potential (ORP), and electric conductivity (EC) were measured on site using a portable hydrometer (ProDSS; YSI, Yellow Springs, OH, USA). The concentrations of the main cations (Ca2+, Mg2+, Na+, and K+) and anions (Cl, NO3, SO42−, and HCO3) were analyzed using inductively coupled plasma and ion chromatography mass spectrometry, respectively, by the Natural Science Research Center of the Industry–University Cooperation Group at Sangji University (Wonju, Korea).

2.3. Microbial Isolation and Culture

To analyze the culturable bacteria, the filtered contents in the stored filters were retrieved. A 0.20 μm membrane filter was immersed in 100 ml sterilized distilled water, and for DNA recovery, it was placed in a shaking incubator at 28 °C for 48 h. All pretreatment processes were performed using aseptic techniques. The medium used for sample treatment was R2A agar (Difco Laboratories Inc., Detroit, MI, USA). Following serial dilution of the pretreated sample as the stock, 100 µL was inoculated and streaked onto the medium, followed by culture at 10 °C, 28 °C, and 45 °C for 48 h. Colony counts were then performed and presented colony forming units (CFU)/L.

2.4. Bacterial Identification

To isolate and store thermophilic and psychrophilic/mesophilic bacteria, a visible colony of one species of dominant culturable bacteria and a colony of one random species were isolated. For thermophilic bacteria, two species were isolated per sample and stored in 20% glycerol at −70 °C. For psychrophilic/mesophilic bacteria, due to the small number of colonies, a total of three colonies were isolated from SY-3 samples and stored in 20% glycerol at −70 °C.
To extract nucleic acids from the isolated bacteria, the InstaGene Matrix system (Bio-Rad, Hercules, CA, USA) was used. Briefly, 20 μL of InstaGene Matrix was placed in a sterilized polymerase chain reaction (PCR) tube, and a sterilized toothpick was used to collect and transfer a single colony into the tube. Using a thermocycler, the reaction was performed at 99 °C for 8 min, followed by centrifugation at 13,000 rpm and removal of the supernatant. For DNA amplification, we used AccuPower HotStart PCR PreMix (Bioneer, Daejeon, Korea) in a 20 μL reaction containing 1 μL of 10 pmol of each primer used to amplify bacterial 16S rRNA [8-27F (5’-AGA GTT TGA TCM TGG CTC AG-3’) and 1,510-1,492R (5’-GGT TAC CTT GTT ACG ACT T-3’)] and 1 μL of the extracted nucleic acid template. The PCR conditions were as follows: initial denaturation at 95 °C for 3 min, 30 cycles of denaturation at 95 °C for 1 min, annealing at 55 °C for 1 min, and extension at 75° for 1.5 min, followed by a final extension at 72 °C for 8 min.
To confirm the results of DNA amplification, products were electrophoresed at 135 V for 35 min in agarose gels in 1.2% 1× TAE buffer stained with TopRed nucleic acid gel stain (Biopure, Horndean, UK), and the resulting bands were examined under ultraviolet light. Purification of the PCR products was performed using a QIAquick PCR purification kit (Qiagen, Hilden, Germany) according to manufacturer instructions, resulting in acquisition of a 20 μL sample. Sequencing was performed by Macrogen (Seoul, Korea), and sequences were analyzed using PHYDIT software (v.3.2; Identification was confirmed using query sequences entered into the EZBioCloud server (

3. Results and Discussion

3.1. Physicochemical Composition

The temperature of the groundwater collected from the tubular wells installed at the GWHP in the study area displayed a considerably wide range (12.5–21.5 °C) due to the influence of the GWHP system. We observed a particularly distinct seasonal fluctuation, with the highest and lowest levels reached during summer (21.5 °C) and winter (12.5°), respectively, and a comparatively high water temperature detected in October 2014 and August 2015. The EC ranged from 186 μS/cm to 350 μS/cm, with the lowest and highest values obtained in May 2016 (186 μS/cm) and August 2016 (350 μS/cm), respectively. Exclusion of these two values resulted in a relatively stable range (204–254 μS/cm) (Figure 2). The pH ranged from 4.4 to 8.3, although exclusion of values obtained in July 2016 returned a range of 6.0 to 8.3, with no seasonal fluctuation in pH observed. The DO ranged from 1.42 mg/L to 5.88 mg/L, with relatively high values (4.10 mg/L) found exclusively in the summer during in-flow of river water, whereas other seasons showed similar values (2.23 mg/L).
We observed a marked increase in EC in August and November of 2015, which was attributed to the inefficient circulation of groundwater at the geothermal wells that caused different EC between the upper and lower levels of groundwater [6]. The main chemical composition of the collected samples is presented as a Piper diagram (Figure 3a). The overall geochemical characteristics of the groundwater in the study area identified it as Ca–HCO3-type groundwater with relatively low depth. Although some samples indicated an increased contribution of Na+ and K+, the majority of samples showed steady values for contributions by the main cations and anions. A similar pattern to that observed in the Piper diagram was observed in a Durov diagram (Figure 3b). In agreement with the Piper diagram, groundwater quality did not show significant compositional changes with respect to the anions; however, an increase in the cations Na+ and K+ was identified in the Durov diagram. The Ca–HCO3 classification presented by the Piper and Durov diagrams generally indicates the type of natural groundwater quality relatively less affected by pollution [33,34,35]. Furthermore, the (total dissolved solid) value ranged from 106.4 mg/L to 134.1 mg/L. Along with the increasing trend in TDS, we observed increasing trends for Ca2+, Mg2+, NO3−, Cl, SO42−, and HCO3− contents, with the most distinct trends exhibited by Ca2+, SO42−, and HCO3−, and no clear correlations identified for Na+, K+, and NO3− (Figure 4). These findings indicated that changes in hydrogeochemical properties according to the GWHP operation were not distinct. Nevertheless, geophysicochemical analysis should continue to be conducted, as such analyses often provide basic data for use in developing response measures necessary for the preservation and management of surrounding groundwater quality required for system operation.

3.2. Culturable Bacteria Based on GWHP Operation

Two species of psychrophilic bacteria (Paenibacillus elgii and Paenibacillus lautus) and one species of mesophilic bacteria (Lysobacter mobilis) was obtained for psychrophilic (10 °C) and mesophilic (28 °C) bacteria, whereas we obtained high colony counts for thermophilic (45 °C) bacteria (Table 1). The detected concentration of culturable bacteria based on operation of the SY-3 GWHP from August 2014 to November 2016 was relatively high in samples collected in August 2014 and August 2016 (1.6 × 109 and 1.0 × 109 CFU/L, respectively) (Table 1). We speculated that this was due to the relatively high atmospheric and water temperatures during the summer season in the study area (Figure 5). The detected concentration of culturable bacteria in the samples collected during months other than August ranged from 1.0 × 107 CFU/L to 7.4 × 108 CFU/L, which was lower than samples collected during the summer season.

3.3. Identified Bacteria

The results of bacterial identification are presented in Table 2. The Anoxybacillus genus reportedly includes 23 species and subspecies, with Anoxybacillus amylolyticus representing the type species. The major sites of isolation included hot springs, fertilizers, and geothermal power plants [36]. The Anoxybacillus genus comprises rod-shaped, Gram-positive bacteria (size: 0.4–0.9 × 2.5–5.0 µm) frequently arranged as a pair or chain, with a single pore per cell. The oxygen demand and catalase reaction varied, with some members being anaerobic and others facultatively anaerobic. The bacteria were either alkalophilic or alkalophobic, and the DNA G+C content ranged from 42% to 57% [37].
Filippidou et al. [38] isolated a strain of Anoxybacillus from deposits clogging ground surface filters at geothermal power plants in a field of enhanced geothermal systems in the Groß Schönebeck region of northern Germany, which formed endospores that are thermophilic, Gram-positive, facultatively anaerobic, and positive for catalase and oxidase reactions. Additionally, Dai et al. [39] isolated a thermophilic and ethanol-resistant strain of Anoxybacillus from deposit samples collected from groundwater wells at a hot spring in Yunnan Province in China. Schäffer et al. [40] isolated a bacterial strain from geothermally heated soil samples collected from Yellowstone National Park in the United States, identified by Coorevits et al. [41] as belonging to the Anoxybacillus genus (subsequently named Anoxybacillus tepidamans.
Anoxybacillus spp. are found abundantly in areas close to geothermal power plants and hot springs, and from which they are easily isolated. According to previous studies, bacteria belonging to this genus are resistant to hostile environmental conditions, such as high temperature and pH, and capable of continuously increasing colony number to ultimately promote bio-clogging. In this study, seven of 14 species of thermophilic bacteria isolated and identified from SY-3 were identified as A. tepidamans, with a sequence homology of 98.6% to 98.9%.
The strain of bacteria isolated from the SY-3 GWHP (24 November 2016) was identified as 99.4% Bacillus oceanisediminis, which was first reported by Zhang et al. [42]. B. oceanisediminis is a rod-shaped (size: 0.6–0.8 × 2.0–3.0 µm), anaerobic, Gram-positive bacteria that we isolated at 45 °C, despite the optimal growth conditions requiring 37 °C. Because the strain grows within a temperature range of 4 °C to 45 °C, it is difficult to classify it as a thermophilic bacterium.
To date, 59 species of Deinococcus have been reported, with Deinococcus radiodurans representing the type species. In this study, the dominant culturable bacteria isolated from the SY-3 GWHP (November 9, 2015) was identified as 98.1% Deinococcus geothermalis, which has an optimal growth temperature of 45 °C to 50 °C and is classified as a thermophilic bacterium. D. geothermalis is particularly important to the formation of biofilms [43]. According to Kolari et al. [43], biofilms formed by D. geothermalis negatively influence the product quality from paper manufacturing machines. Additionally, this species should be managed as an important microorganism capable of biofilm formation. It can reduce thermal efficiency and degrade the system integrity of machines and wells associated with GWHP systems installed in the study area.
Effusibacillus pohliae was also isolated from the SY-3 GWHP. The Effusibacillus genus was first reported by Watanabe et al. [44], and little is known about the three known species. Effusibacillus spp. are spore-forming, rod-shaped, anaerobic or facultatively anaerobic chemotrophs. The Lysobacter genus includes 13 species and are mainly isolated from soil environments. In this study, the strain of mesophilic bacteria isolated from the SY-3 GWHP samples (13 August 2014) was identified as 97.2% Lysobacter mobilis. The Lysobacter genus comprises Gram-negative bacteria characterized by gliding motility and generally categorized as beneficial microorganisms. These bacteria produce enzymes that exhibit diverse functions, as well as reported sources of a novel antibiotic.
Paenibacillus spp. includes ~200 species and subspecies of facultatively anaerobic bacteria that form endospores and originate from multiple habitats, such as soil, water, and plants. In this study, among the SY-3 regions, samples collected on 27 May 2016, and 25 August 2016, resulted in isolation of two strains identified as Paenibacillus elgii and Paenibacillus lautus. The first reported isolation of P. elgii was from perilla seeds and resulted in identification of a rod-shaped bacterium with motility. P. lautus was reclassified from Bacillus lautus by Heyndrickx et al. [45]. Neither of the two strains has shown strain-specific functionality. Paenibacillus is a mesophilic bacterium that can grow in temperatures up to 45 °C, thereby classifying is as a psychrophilic bacterium.
The Vulcaniibacterium genus, first reported by Yu et al. [46], includes Vulcaniibacterium tengchongense and Vulcaniibacterium thermophilum is Gram-negative bacteria that can grow in temperatures ranging from 25 °C to 55 °C, classifying them as mesophilic bacteria.
Here, we describe collection and analysis of groundwater samples from tubular wells installed at the GWHP between 2014 and 2016 in order to investigate correlations between water temperature and microbial activity. Physicochemical data and microorganism activity (psychrophilic, mesophilic, and thermophilic bacteria) revealed microbial distribution in groundwater at the study area, with an excessively high level of thermophilic bacteria and with microbial count increasing according to increases in water temperature during the summer season. Investigation of the effects of temperature on the growth of the isolated and identified culturable bacteria identified eight species of bacteria (5 thermophilic bacteria, 1 mesophilic bacterium, and 2 psychrophilic bacteria). A. tepidamans was the most dominant thermophilic bacteria in the study area, with this genus having previously been reported as capable of creating bio-clogging deposits in wells and above-ground filters at geothermal power plants. Our experimental results showed that changes in groundwater temperature according to on-site management of the GWHP had a greater influence on the activity of thermophilic bacteria than on psychrophilic bacteria among autochthonous bacteria. Analysis of the thermal efficiency of the GWHP will benefit from studies on thermophilic bacterial cultures, and contribute to the understanding of bio-clogging phenomena that is possibly mediated by A. tepidamans. Furthermore, our results imply that quantitative and qualitative studies of autochthonous bacteria inhabiting areas near GWHPs should be conducted using next-generation sequencing to determine microbial community structures.

4. Conclusions

To investigate the correlation between water temperature and microbial activity in the groundwater collected from tubular wells installed at the GWHP, sample collection was conducted seven times during the period between 2014 and 2016. Furthermore, using the samples collected from the study area, physicochemical data and the activity of microorganisms (psychrophilic, mesophilic, and thermophilic bacteria) were examined. The microbial distribution in the groundwater of the study area showed a high level of thermophilic bacteria, while the microbial count increased according to the increase in water temperature during the summer season. The results of the investigation of how temperature affected the growth of the isolated and identified culturable bacteria are as follows: The microbial culture reported 8 species of bacteria, where 5 species of thermophilic bacteria (Anoxybacillus tepidamans, Bacillus oceanisediminis, Deinococcus geothermalis, Effusibacillus pohliae, and Vulcaniibacterium thermophilum) were isolated, and where one species of mesophilic (Lysobacter mobilis) and two species of psychrophilic (Paenibacillus elgii and Paenibacillus lautus) bacteria were identified. Anoxybacillus tepidamans was found to be the most dominant thermophilic bacteria in the study area. The Anoxybacillus genus, in particular, is known to create deposits that clog the wells and the filters above ground at geothermal power plants. The experimental results showed that the changes in groundwater temperature depending on the on-site management of the GWHP had greater influence on the activity of thermophilic bacteria than on the psychrophilic bacteria among autochthonous bacteria, and for the thermal efficiency of the GWHP, the study on the culture of thermophilic bacteria is anticipated to contribute to the understanding of the bioclogging phenomena mediated by Anoxybacillus tepidamans, which may be exerting a negative influence. Furthermore, it seems necessary that in addition to the experiments on the culturable bacteria in this study, more quantitative and qualitative studies on the autochthonous bacteria inhabiting the area around the GWHP should be conducted based on next-generation sequencing for microbial community structures.

Supplementary Materials

The following are available online at, Figure S1: Location map of the study area showing the monitoring well for groundwater samples.

Author Contributions

Conceptualization, H.K.; methodology, H.K.; validation, H.K. and J.-Y.L.; formal analysis, H.K.; investigation, H.K.; resources, H.K. and J.-Y.L.; data curation, H.K.; writing—original draft preparation, H.K.; writing—review and editing, H.K. and J.-Y.L.; visualization, H.K.; supervision, J.-Y.L.; funding acquisition, J.-Y.L.


This work supported by Basic Science Research Program through the National Research Foundation of Korea (NRF) grant funded by the Ministry of Education (No. 2019R1A6A1A03033167).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Boyle, G. Renewable Energy; Oxford University Press: Oxford, UK, 2004. [Google Scholar]
  2. Quaschning, V.V. Renewable Energy and Climate Change; Wiley: Leicester, UK, 2010. [Google Scholar]
  3. Lee, J.Y. Current status of ground source heat pumps in Korea. Renew. Sustain. Energy Rev. 2009, 13, 1560–1568. [Google Scholar] [CrossRef]
  4. Hahn, J.; Han, H.; Hahn, C.; Kim, H.S.; Jeon, J.S. Design guidelines of geothermal heat pump system using standing column well. Econ. Environ. Geol. 2006, 39, 607–613. [Google Scholar]
  5. Snijders, A.L.; Drijver, B.C. Open-loop heat pump and thermal energy storage systems. In Advances in Ground-Source Heat Pump Systems; Woodhead Publishing: Dexford, UK, 2016; pp. 247–268. [Google Scholar]
  6. Kim, H.; Mok, J.K.; Park, Y.; Kaown, D.; Lee, K.K. Composition of Groundwater Bacterial Communities before and after Air Surging in a Groundwater Heat Pump System According to a Pyrosequencing Assay. Water 2017, 9, 891. [Google Scholar] [CrossRef]
  7. Park, Y.; Mok, J.K.; Jang, B.J.; Lee, J.Y.; Park, Y.C. Influence of closed loop ground source heat pumps on groundwater: A case study. J. Geol. Soc. Korea 2015, 51, 243–251. (In Korean) [Google Scholar] [CrossRef]
  8. Casasso, A.; Sethi, R. Assessment and Minimization of Potential Environmental Impacts of Ground Source Heat Pump (GSHP) Systems. Water 2019, 11, 1573. [Google Scholar] [CrossRef]
  9. García-Gil, A.; Gasco-Cavero, S.; Garrido, E.; Mejías, M.; Epting, J.; Navarro-Elipe, M.; Alejandre, C.; Sevilla-Alcaine, E. Decreased waterborne pathogenic bacteria in an urban aquifer related to intense shallow geothermal exploitation. Sci. Total Environ. 2018, 633, 765–775. [Google Scholar] [CrossRef]
  10. García-Gil, A.; Epting, J.; Garrido, E.; Vázquez-Suñé, E.; Lázaro, J.M.; Sánchez Navarro, J.Á.; Huggenberger, P.; Calvo, M.Á.M. A city scale study on the effects of intensive groundwater heat pump systems on heavy metal contents in groundwater. Sci. Total Environ. 2016, 572, 1047–1058. [Google Scholar] [CrossRef]
  11. Bucci, A.; Prevot, A.B.; Buoso, S.; De Luca, D.A.; Lasagna, M.; Malandrino, M.; Maurino, V. Impacts of borehole heat exchangers (BHEs) on groundwater quality: The role of heat-carrier fluid and borehole grouting. Environ. Earth Sci. 2018, 77, 175. [Google Scholar] [CrossRef]
  12. Klotzbücher, T.; Kappler, A.; Straub, K.L.; Haderlein, S.B. Biodegradability and groundwater pollutant potential of organic anti-freeze liquids used in borehole heat exchangers. Geothermics 2007, 36, 348–361. [Google Scholar] [CrossRef]
  13. Bonte, M.; Röling, W.F.M.; Zaura, E.; Van Der Wielen, P.W.J.J.; Stuyfzand, P.J.; Van Breukelen, B.M. Impacts of shallow geothermal energy production on redox processes and microbial communities. Environ. Sci. Technol. 2013, 47, 14476–14484. [Google Scholar] [CrossRef]
  14. Griebler, C.; Brielmann, H.; Haberer, C.M.; Kaschuba, S.; Kellermann, C.; Stumpp, C.; Hegler, F.; Kuntz, D.; Walker-Hertkorn, S.; Lueders, T. Potential impacts of geothermal energy use and storage of heat on groundwater quality, biodiversity, and ecosystem processes. Environ. Earth Sci. 2016, 75, 1391. [Google Scholar] [CrossRef]
  15. Rafferty, K.D. Water Chemistry Issues in Geothermal Heat Pump Systems. Ashrae Trans. 2004, 110, 550. [Google Scholar]
  16. Sanner, B.; Karytsas, C.; Mendrinos, D.; Rybach, L. Current status of ground source heat pumps and underground thermal energy storage in Europe. Geothermics 2003, 32, 579–588. [Google Scholar] [CrossRef]
  17. Lund, J.; Sanner, B.; Rybach, L.; Curtis, R.; Hellström, G. Geothermal (ground-source) heat pumps: A world overview. Geo-Heat Cent. Bull. 2004, 25, 1–10. [Google Scholar]
  18. Gao, Q.; Li, M.; Yu, M.; Spitler, J.D.; Yan, Y.Y. Review of development from GSHP to UTES in China and other countries. Renew. Sustain. Energy Rev. 2009, 13, 1383–1394. [Google Scholar] [CrossRef]
  19. Abesser, C. Open-Loop Ground Source Heat Pumps and the Groundwater Systems: A Literature Review of Current Application, Regulations and Problems; Energy Geoscience Programme Open Report OR/10/045; British Geological Survey: Nottingham, UK, 2010. [Google Scholar]
  20. Bonte, M. Impacts of Shallow Geothermal Energy on Groundwater Quality—A Hydrochemical and Geomicrobial Study on the Effects of Ground Source Heat Pumps and Aquifer Thermal Energy Storage. Ph.D. Thesis, VU University Amsterdam, Amsterdam, The Netherlands, 2013. [Google Scholar]
  21. Antics, M.; Bertani, R.; Sanner, B. Summary of EGC 2016 Country Update Reports on Geothermal Energy in Europe. In Proceedings of the European Geothermal Congress 2016, Strasbourg, France, 19–24 September 2016; pp. 1–16. [Google Scholar]
  22. Park, Y.; Kim, N.; Lee, J.Y. Geochemical properties of groundwater affected by open loop geothermal heat pump systems in Korea. Geosci. J. 2015, 19, 515–526. [Google Scholar] [CrossRef]
  23. York, K.P.; Jahangir, Z.M.G.S.; Solomon, T.; Stafford, L. Effects of a large scale geothermal heat pump installation on aquifer microbiota. In Proceedings of the 2nd Stockton International Geothermal Conference, Stockton, NJ, USA, 16–17 March 1998; p. 8. [Google Scholar]
  24. Jo, Y.J.; Lee, J.Y.; Lim, S.Y.; Hong, G.P. A review on potential effects of installation and operation of ground source heat pumps on soil and groundwater environment. J. Soil Groundw. Environ. 2009, 14, 22–31. [Google Scholar]
  25. Jo, Y.J.; Lee, J.Y.; Kim, C.G.; Han, J.S. Effects of grouts and temperature change on microorganisms in geothermal heat pump. J. Soil Groundw. Environ. 2009, 14, 10–14. [Google Scholar]
  26. Saner, D.; Juraske, R.; Kübert, M.; Blum, P.; Hellweg, S.; Bayer, P. Is it only CO2 that matters? A life cycle perspective on shallow geothermal systems. Renew. Sustain. Energy Rev. 2010, 14, 1798–1813. [Google Scholar] [CrossRef]
  27. Bayer, P.; Saner, D.; Bolay, S.; Rybach, L.; Blum, P. Greenhouse gas emission savings of ground source heat pump systems in Europe: A review. Renew. Sustain. Energy Rev. 2012, 16, 1256–1267. [Google Scholar] [CrossRef]
  28. Rivoire, M.; Casasso, A.; Piga, B.; Sethi, R. Assessment of Energetic, Economic and Environmental Performance of Ground-Coupled Heat Pumps. Energies 2018, 11, 1941. [Google Scholar] [CrossRef]
  29. Houben, G.; Treskatis, C. Water Well Rehabilitation and Reconstruction; McGraw-Hill: New York, NY, USA, 2007. [Google Scholar]
  30. Smith, S.A.; Comeskey, A.E. Sustainable Wells: Maintenance, Problem Prevention, and Rehabilitation; CRC Press: Boca Raton, FL, USA, 2009. [Google Scholar]
  31. van Beek, C.K. Cause and Prevention of Clogging of Wells Abstracting Groundwater from Unconsolidated Aquifers; IWA Publishing: London, UK, 2011. [Google Scholar]
  32. Burté, L.; Cravotta, C.; Bethencourt, L.; Farasin, J.; Pédrot, M.; Dufresne, A.; Gérard, M.-F.; Baranger, C.; Le Borgne, T.; Aquilina, L. Kinetic study on clogging of a geothermal pumping well triggered by mixing-induced biogeochemical reactions. Environ. Sci. Technol. 2019, 53, 10. [Google Scholar] [CrossRef] [PubMed]
  33. Mirza, M.M.Q. The Ganges Water Diversion: Environmental Effects and Implications; Springer: Dordrecht, The Netherlands, 2004; pp. 93–95. [Google Scholar]
  34. Chadha, D.K. A proposed new diagram for geochemical classification of natural waters and interpretation of chemical data. Hydrogeol. J. 1999, 7, 431–439. [Google Scholar] [CrossRef]
  35. Schneider, E.A.G.; García-Gil, A.; Vázquez-Suñè, E.; Sánchez-Navarro, J.Á. Geochemical impacts of groundwater heat pump systems in an urban alluvial aquifer with evaporitic bedrock. Sci. Total Environ. 2016, 544, 354–368. [Google Scholar] [CrossRef] [PubMed]
  36. Belduz, A.O.; Dulger, S.; Demirbag, Z. Anoxybacillus gonensis sp. nov., a moderately thermophilic, xylose-utilizing, endospore-forming bacterium. Int. J. Syst. Evol. Microbiol. 2003, 53, 1315–1320. [Google Scholar] [CrossRef]
  37. Pikuta, E.; Cleland, D.; Tang, J. Aerobic growth of Anoxybacillus pushchinoensis K1T: Emended descriptions of A. pushchinoensis and the genus Anoxybacillus. Int. J. Syst. Evol. Microbiol. 2003, 53, 1561–1562. [Google Scholar] [CrossRef]
  38. Filippidou, S.; Jaussi, M.; Junier, T.; Wunderlin, T.; Jeanneret, N.; Palmieri, F.; Palmieri, I.; Roussel-Delif, L.; Vieth-Hillebrand, A.; Vetter, A.; et al. Anoxybacillus geothermalis sp. nov., a facultatively anaerobic, endospore-forming bacterium isolated from mineral deposits in a geothermal station. Int. J. Syst. Evol. Microbiol. 2016, 66, 2944–2951. [Google Scholar] [CrossRef]
  39. Dai, J.; Liu, Y.; Lei, Y.; Gao, Y.; Han, F.; Xiao, Y.; Peng, H. A new subspecies of Anoxybacillus flavithermus ssp. yunnanensis ssp. nov. with very high ethanol tolerance. FEMS Microbiol. Lett. 2011, 320, 72–78. [Google Scholar]
  40. Schäffer, C.; Franck, W.L.; Scheberl, A.; Kosma, P.; McDermott, T.R.; Messner, P. Classification of isolates from locations in Austria and Yellowstone National Park as Geobacillus tepidamans sp. nov. Int. J. Syst. Evol. Microbiol. 2004, 54, 2361–2368. [Google Scholar] [CrossRef]
  41. Coorevits, A.; Dinsdale, A.E.; Halket, G.; Lebbe, L.; De Vos, P.; Van Landschoot, A.; Logan, N.A. Taxonomic revision of the genus Geobacillus: Emendation of Geobacillus, G. stearothermophilus, G. jurassicus, G. toebii, G. thermodenitrificans and G. thermoglucosidans (nom. corrig., formerly ‘thermoglucosidasius’); transfer of Bacillus thermantarcticus to the genus as G. thermantarcticus comb. nov.; proposal of Caldibacillus debilis gen. nov., comb. nov.; transfer of G. tepidamans to Anoxybacillus as A. tepidamans comb. nov.; and proposal of Anoxybacillus caldiproteolyticus sp. nov. Int. J. Syst. Evol. Microbiol. 2012, 62, 1470–1485. [Google Scholar]
  42. Zhang, J.; Wang, J.; Fang, C.; Song, F.; Xin, Y.; Qu, L.; Ding, K. Bacillus oceanisediminis sp. nov., isolated from marine sediment. Int. J. Syst. Evol. Microbiol. 2010, 60, 2924–2929. [Google Scholar] [CrossRef] [PubMed]
  43. Kolari, M.; Nuutinen, J.; Salkinoja-Salonen, M.S. Mechanisms of biofilm formation in paper machine by Bacillus species: The role of Deinococcus geothermalis. J. Ind. Microbiol. Biotechnol. 2001, 27, 343–351. [Google Scholar] [CrossRef] [PubMed]
  44. Watanabe, M.; Kojima, H.; Fukui, M. Proposal of Effusibacillus lacus gen. nov., sp. nov., and reclassification of Alicyclobacillus pohliae as Effusibacillus pohliae comb. nov. and Alicyclobacillus consociatus as Effusibacillus consociatus comb. nov. Int. J. Syst. Evol. Microbiol. 2014, 64, 2770–2774. [Google Scholar] [CrossRef] [PubMed]
  45. Heyndrickx, M.; Vandemeulebroecke, K.; Scheldeman, P.; Kersters, K.; De Vos, P.; Logan, N.A.; Aziz, A.M.; Ali, N.; Berkeley, R.C.W. A polyphasic reassessment of the genus Paenibacillus, reclassification of Bacillus lautus (Nakamura 1984) as Paenibacillus lautus comb. nov. and of Bacillus peoriae (Montefusco et al. 1993) as Paenibacillus peoriae comb. nov., and emended descriptions of P. lautus and of P. peoriae. Int. J. Syst. Evol. Microbiol. 1996, 46, 988–1003. [Google Scholar]
  46. Yu, T.T.; Zhou, E.M.; Yin, Y.R.; Yao, J.C.; Ming, H.; Dong, L.; Nie, G.X.; Li, W.J. Vulcaniibacterium tengchongense gen. nov., sp. nov. isolated from a geothermally heated soil sample, and reclassification of Lysobacter thermophilus Wei et al. 2012 as Vulcaniibacterium thermophilum comb. nov. Antonie van Leeuwenhoek 2013, 104, 369–376. [Google Scholar] [CrossRef]

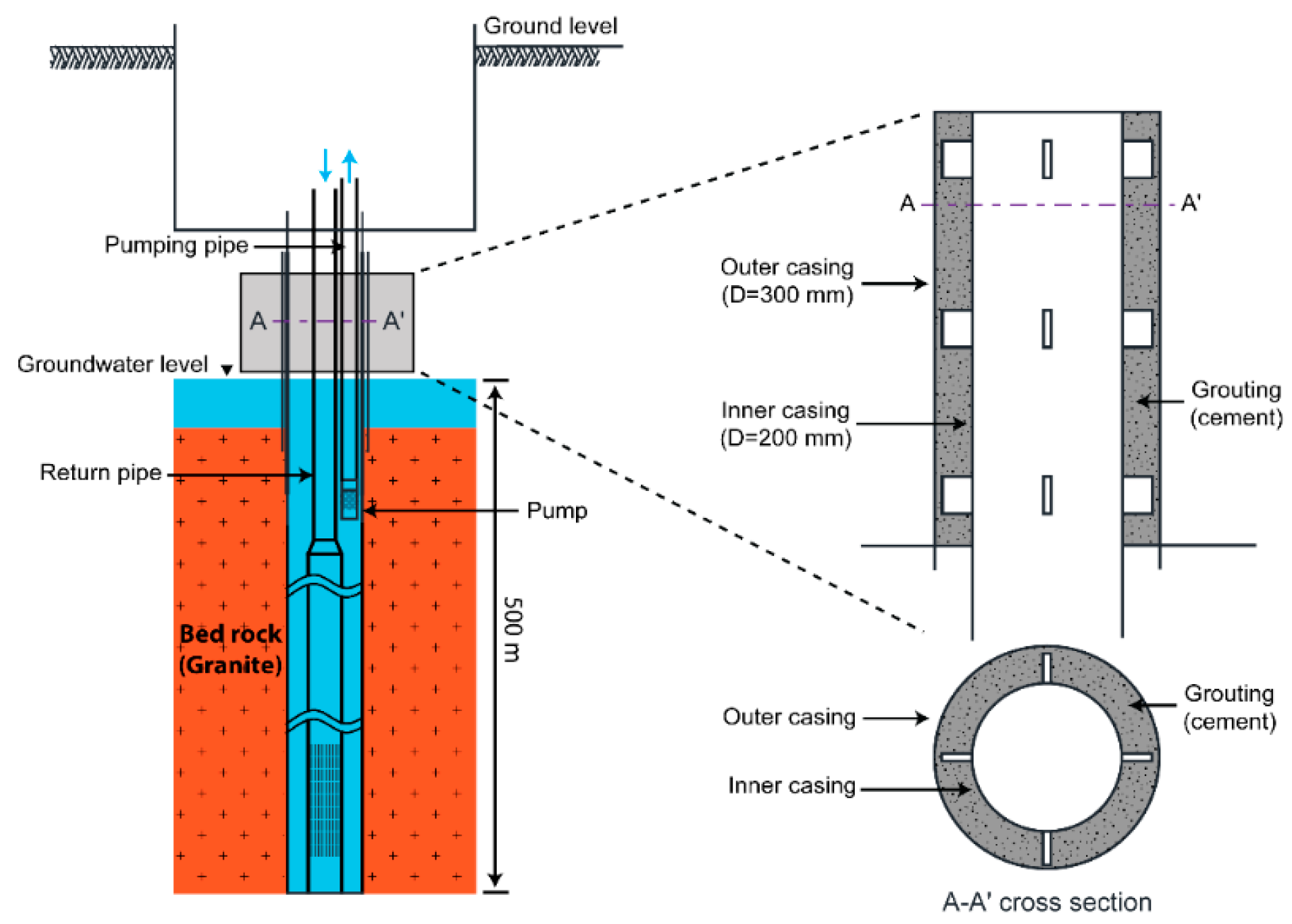

Figure 1. Schematic diagram of the groundwater heat pump (GWHP) well (adapted from Kim et al. [6]).
Figure 1. Schematic diagram of the groundwater heat pump (GWHP) well (adapted from Kim et al. [6]).
Water 11 02084 g001

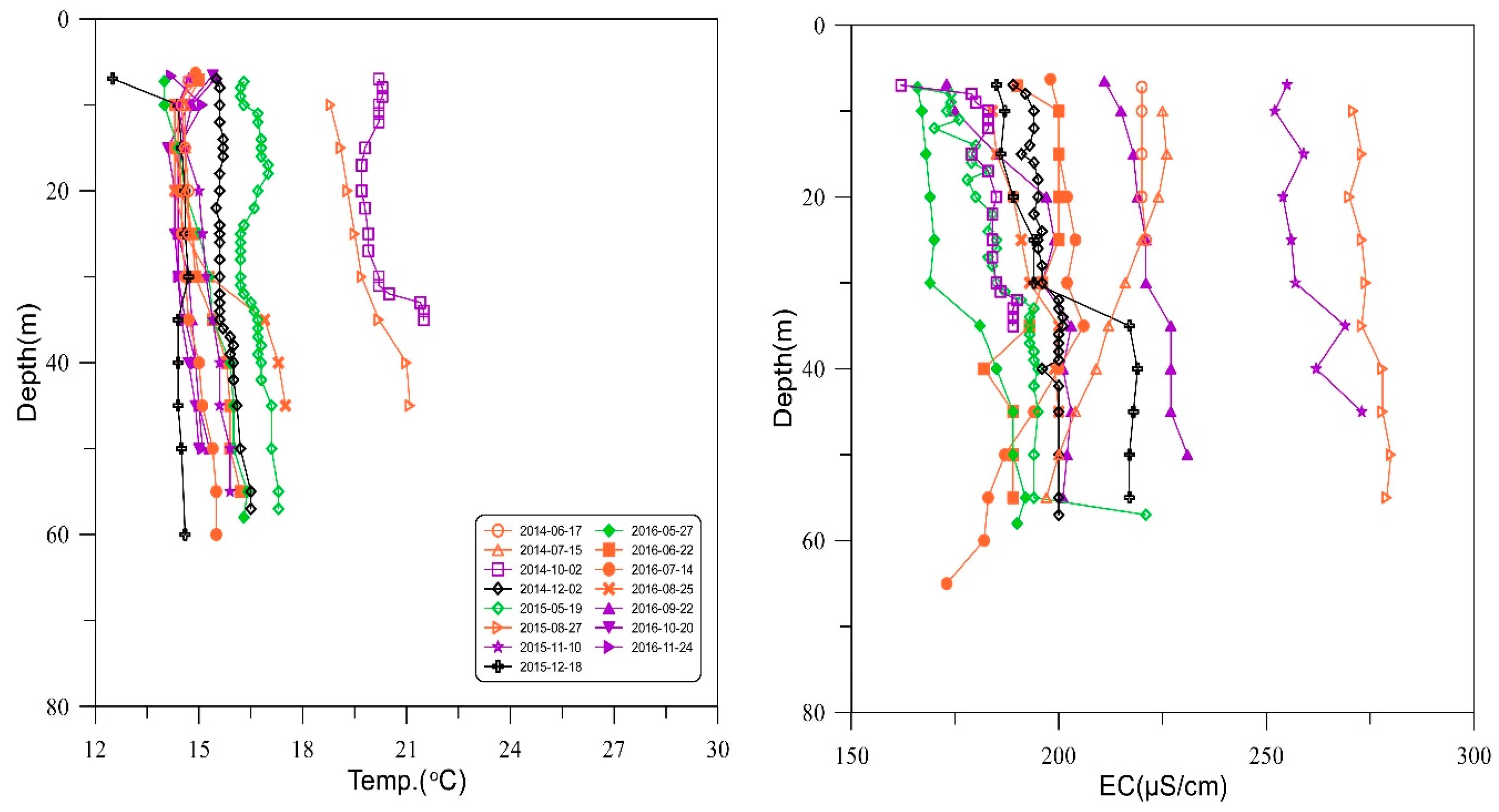

Figure 2. Temperature and EC values with depths.
Figure 2. Temperature and EC values with depths.
Water 11 02084 g002

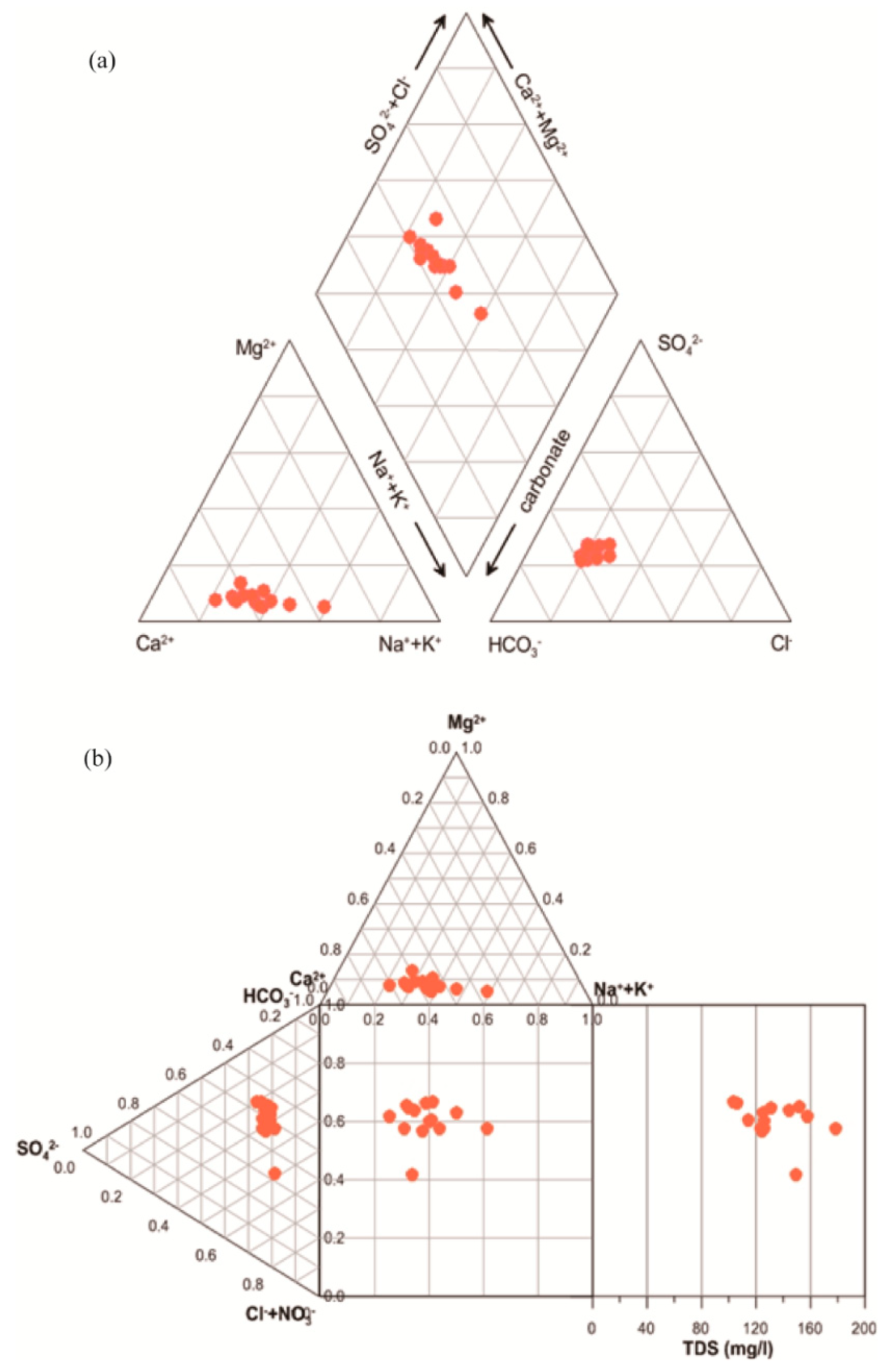

Figure 3. (a) Piper and (b) Durov diagrams showing the hydrogeochemical evolution of SY-3.
Figure 3. (a) Piper and (b) Durov diagrams showing the hydrogeochemical evolution of SY-3.
Water 11 02084 g003

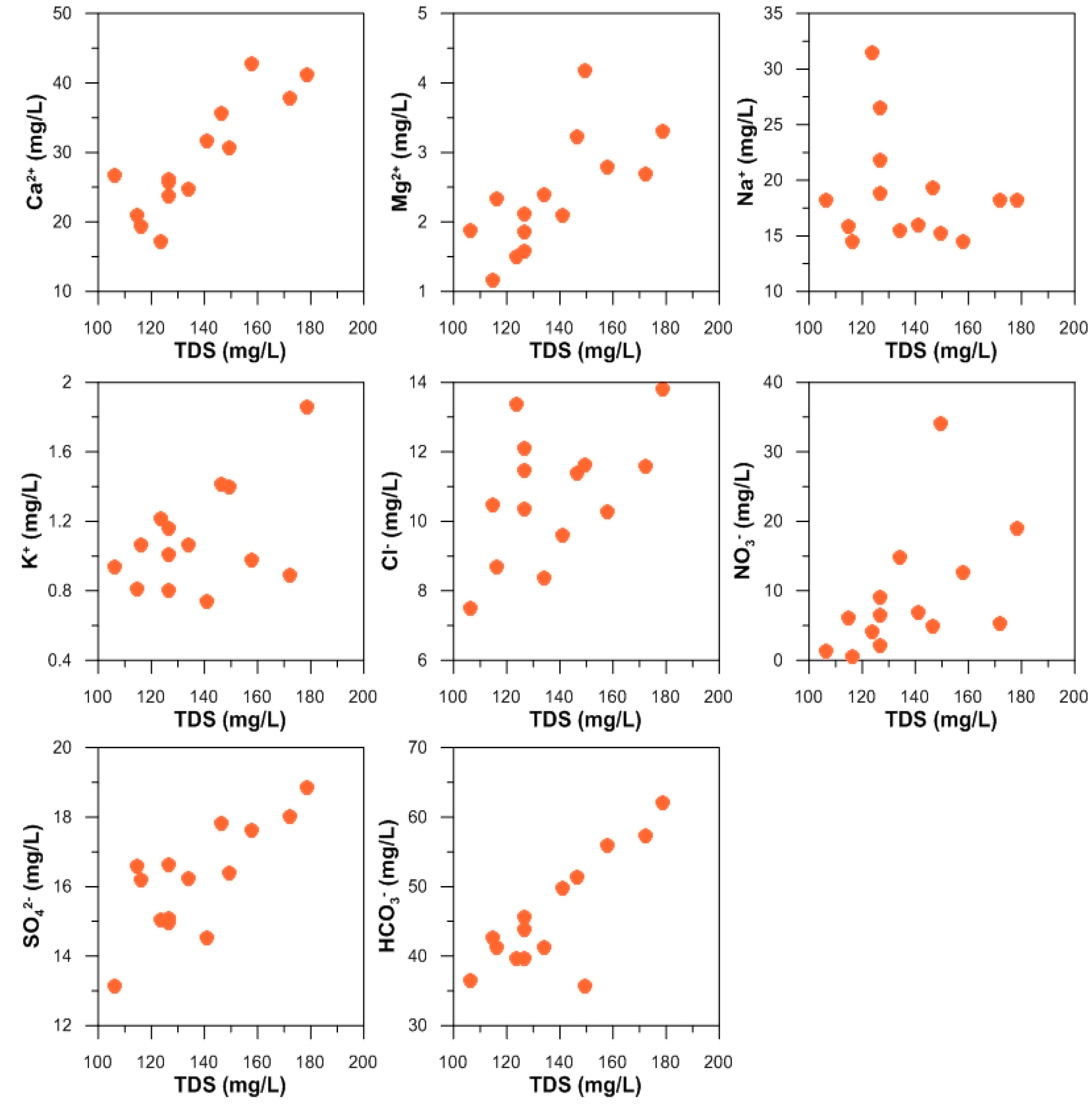

Figure 4. Variations in major ions according to TDS.
Figure 4. Variations in major ions according to TDS.
Water 11 02084 g004

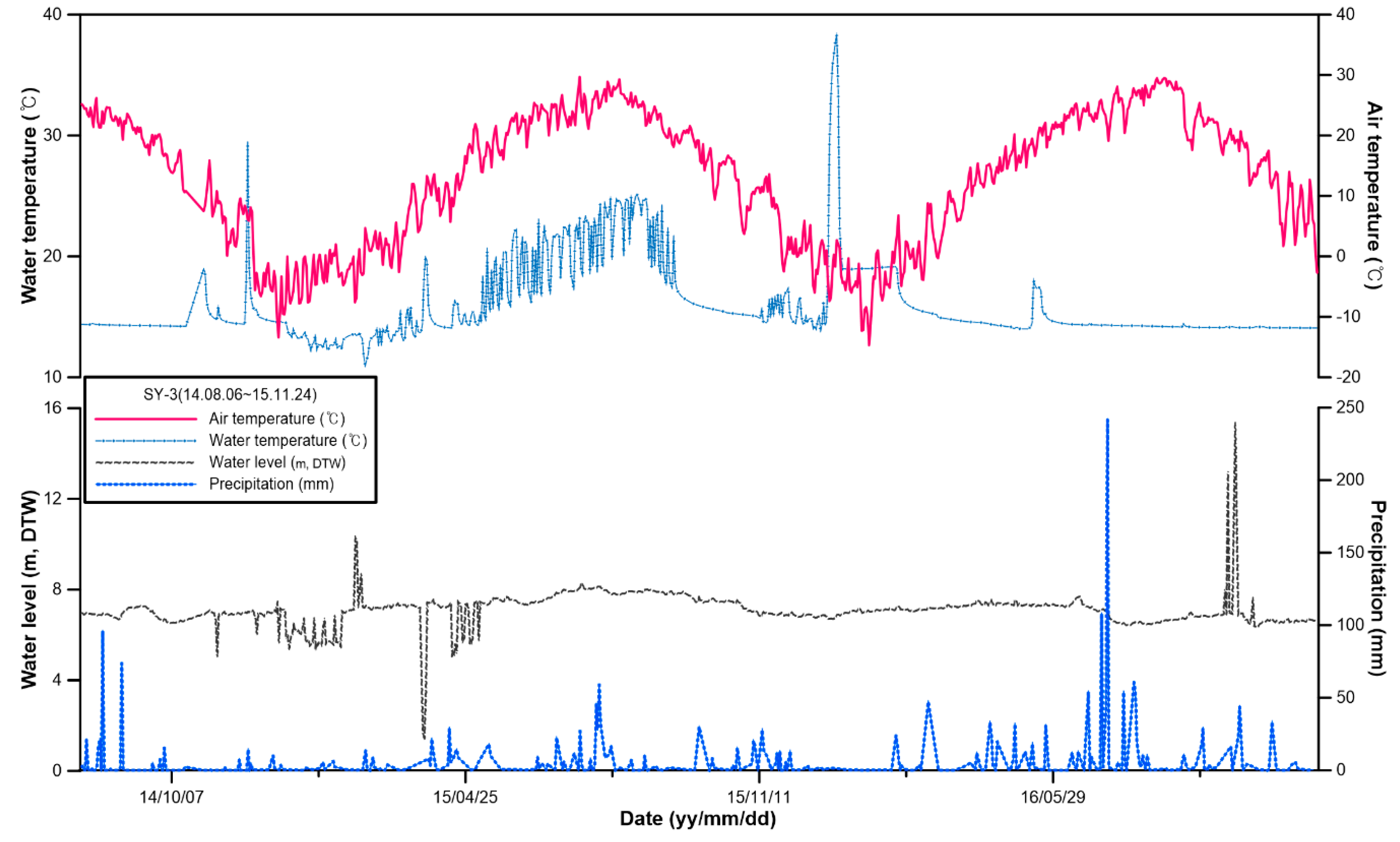

Figure 5. Air temperature, precipitation, water level, and water temperature measured at the study site from 13 August 2014, to 24 November 2016.
Figure 5. Air temperature, precipitation, water level, and water temperature measured at the study site from 13 August 2014, to 24 November 2016.
Water 11 02084 g005
Table 1. Colony counts of culturable thermophilic bacteria.
Table 1. Colony counts of culturable thermophilic bacteria.
1SY-313 August 20141.6 × 109
228 October 20147.0 × 107
32 December 20149.0 × 107
49 November 20152.9 × 108
527 May 20167.4 × 108
625 August 20161.0 × 108
724 November 20161.0 × 107
Table 2. Identification and isolation of major and specific thermophilic bacteria.
Table 2. Identification and isolation of major and specific thermophilic bacteria.
SampleIsolateStrainHitSimilarity (%)
SY-313 August 2014Major1MVulcaniibacterium thermophilum99.9
Specific11Anoxybacillus tepidamans98.8
28 October 2014Major2MAnoxybacillus tepidamans98.8
Specific21Effusibacillus pohliae99.2
2 December 2014Major3MAnoxybacillus tepidamans98.8
Specific31Anoxybacillus tepidamans98.9
9 November 2015Major4MDeinococcus geothermalis98.1
Specific41Anoxybacillus tepidamans98.6
27 May 2016Major5MEffusibacillus pohliae99.3
Specific51Not determined -
25 August 2016Major6MAnoxybacillus tepidamans98.7
Specific61Anoxybacillus tepidamans98.8
24 November 2016Major7MEffusibacillus pohliae99.2
Specific71Bacillus oceanisediminis99.4
