Relationship between Landform Development and Lake Water Recharge in the Badain Jaran Desert, China

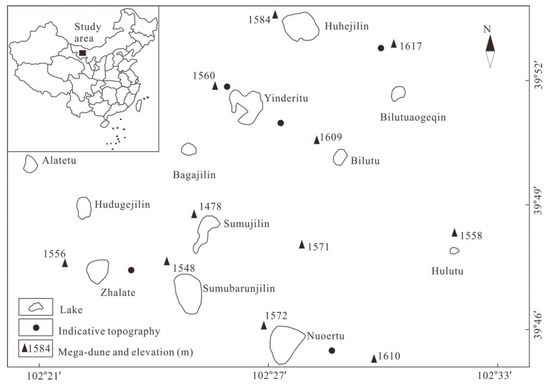

2. Materials and Methods

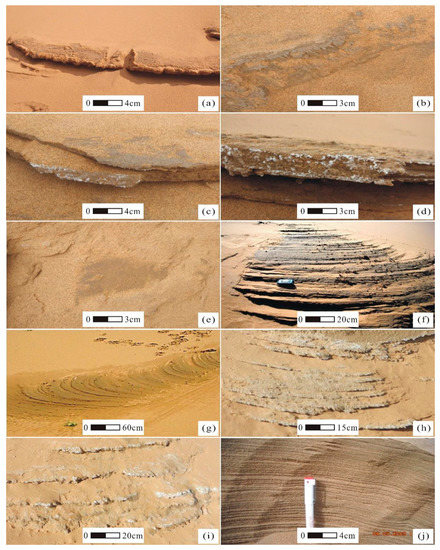

3.1. Arcuate Steps on the Slopes of Megadunes
3.2. Depressions Caused by Surface Runoff
3.3. Multi-Stage fans Deposited by Spring Water

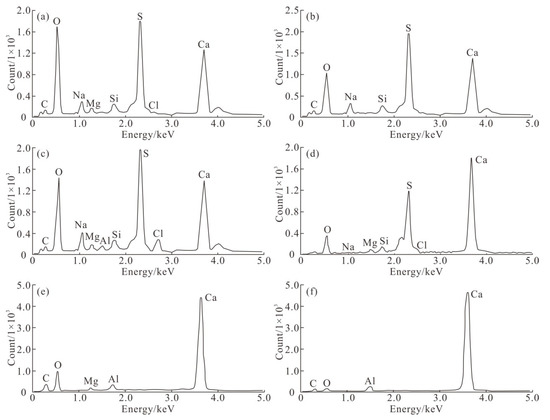

3.4. Secondary Formation of Carbonate and Sulfate

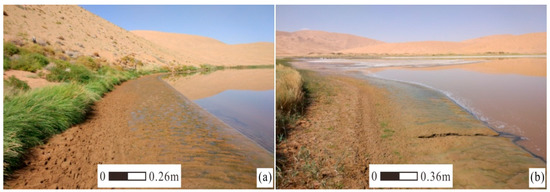

3.5. Groundwater Overflow Zone at the Leading and Trailing Edges of Lakes

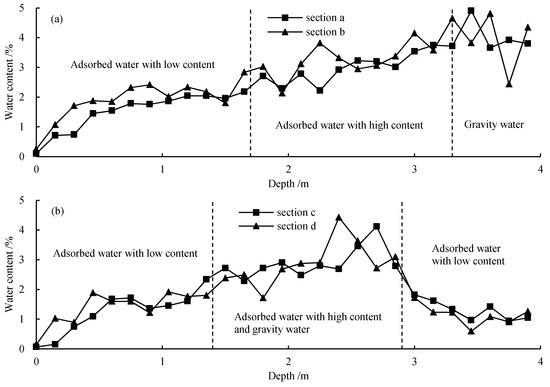

3.6. Water Content and Seepage

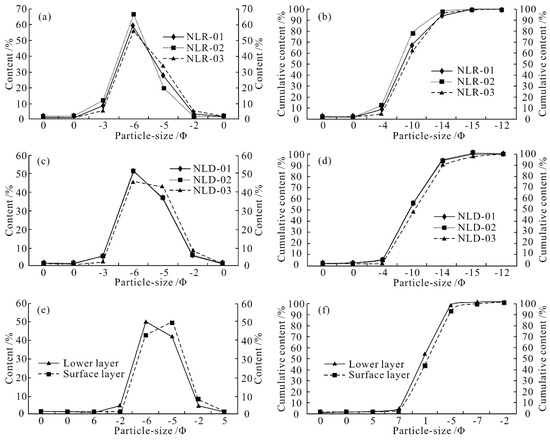

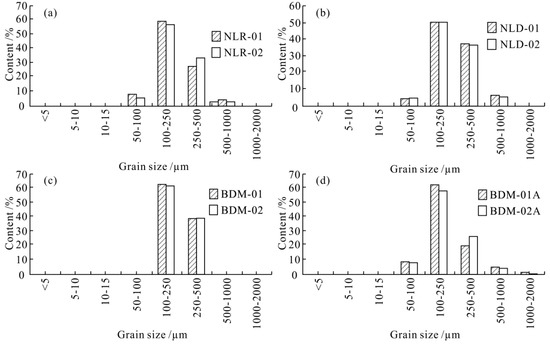

3.7. Particle-size Composition of the Studied Landforms and Aeolian sand
3.8. Water Balance Assessment of the Megadune-Lake Region
- Total area of the megadune-lake region of the Badain Jaran Desert, which is ~29,242.7 km2 .
- Annual precipitation = ~90 mm.
- Area of slopes with gradient >20° = 4719.77 km2 (29,242.7 km2 × 16.14%).
- Average lake area throughout the year = 17.72 km2 .
- Area covered by megadunes vegetation = 1225.26 km2 ((29,242.7 km2 − 17.72 km2 − 4719.77 km2) × 5%).
- Area of seepage springs = ~2.9 km2 .
- Area of bare sand dunes that can be used to calculate recharge. This was calculated as follows: 29,242.7 km2 − 4719.77 km2 − 1225.26 km2 − 2.9 km2 − 17.72 km2 = 23,277.05 km2.
- Annual precipitation recharge of sand layer water. The annual rainfall in the region was average in 2010 (105 mm) and below average in 2011 (75 mm). During both 2010 and 2011 there were only two precipitation events exceeding 15 mm: 27.8 mm and 25.0 mm in 2010 and 19.7 mm and 15.8 mm in 2011 . Based on the results of previous studies [34,35], such events are critical for determining whether or not the sand layer receives an effective water supply from precipitation. The annual recharge of precipitation to sand layer water for the period of 2010–2011 can be calculated as follows:[(25 mm − 15 mm) + (27.8 mm − 15 mm) + (15.8 mm − 15 mm) + (19.7 mm − 15 mm)]/2 = 14.2 mm.Because of the low precipitation in 2011, the annual recharge of precipitation to sand layer water in the region should be >14.2 mm, which represents only 15.8% available to recharge the groundwater. Notably, the recharge rate of soil water to groundwater is substantially lower than that in Mu Us sandy land .
- Total annual evaporation capacity of seepage springs. Water surface evaporation for the megadune-lake region has been estimated as 1200–1550 mm [14,37]. The seepage springs can maintain the megadunes microtopography in a wet condition for a long time; however, their annual evaporation will not exceed that from the water surface. Therefore, 1550 mm was used as the annual evaporation of seepage springs in the region. The total evaporation capacity of seepage springs is ~4,495,000 m3 (2.9 km2 × 1550 mm).
- Total annual evaporation capacity of lakes. The total lake annual evaporation capacity is estimated to be 1550 mm . Using this value, the total annual evaporation capacity of the lakes can be calculated as: 17.72 km2 × (1550 mm − 90 mm) = 25,871,200 m3.
- Annual transpiration and evaporation of the vegetated area. In order to obtain reliable results, the mean annual rainfall value of 90 mm (for 2010 and 2011) was assumed to be equal to annual transpiration and evaporation in the vegetated area. Thus, total annual transpiration and evaporation of the vegetated area is 110,273,400 m3 (1225.26 km2 × 90 mm).
- Total annual precipitation recharge of bare sand dunes, which can be used to calculate recharge. This is calculated as: 23,277.05 km2 × 14.2 mm = 330,534,110 m3.
4.1. Landform Development and Water Source of the Megadunes
4.2. Implications of the Water Content of the sand Layer
4.3. Significance of the Groundwater Overflow Zone

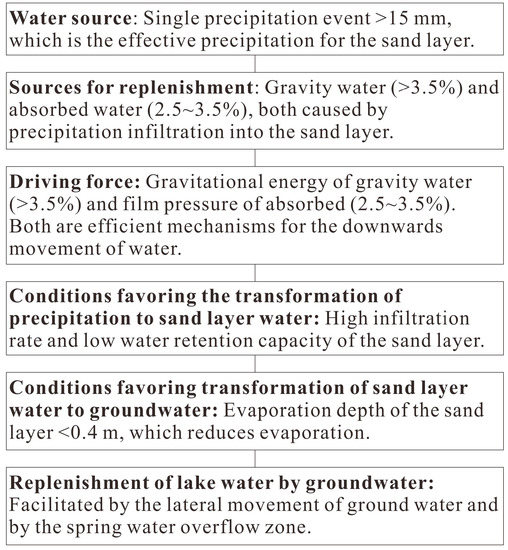

4.4. Mechanism by Which Groundwater is Supplemented by Rainfall
Conflicts of Interest
- Chen, W.N. Grain size parameters of aeolion sediments in the vicinity of the longitude 84°E, Taklamakan Desert. Acta Geogr. Sin. 1993, 48, 33–46. [Google Scholar]
- Watson, A. Variations in wind velocity and sand transport rates on the windward flanks of desert sand dunes: Comments. Sedimentology 1987, 34, 511–516. [Google Scholar] [CrossRef]
- Dong, Z.B.; Wang, T.; Wang, X.M. Geomorphology of the megadunes in the Badain Jaran Desert. Geomorphology 2004, 60, 191–203. [Google Scholar] [CrossRef]
- Dong, Z.B.; Qian, G.Q.; Luo, W.Y.; Zhang, Z.C.; Xiao, S.C.; Zhao, A.G. Geomorphological hierarchies for complex mega-dunes and their implications for mega-dune evolution in the Badain Jaran Desert. Geomorphology 2009, 106, 180–185. [Google Scholar] [CrossRef]
- Chen, G.T.; Feng, Q. The Formation and Evolution of Aeolian Environment Along the Desert Oil Highways in Tarim Basin; China Environmental Science Press: Beijing, China, 1997; pp. 158–162. [Google Scholar]
- Yan, M.C.; Wang, G.Q.; Li, B.S. Formation and growth of high megadunes in Badain Jaran Desert. Acta Geogr. Sin. 2001, 56, 83–91. [Google Scholar]
- Zhang, W.M.; Wang, T. Approach to formation and evolution of megadunes in Badain Jaran Desert. J. Desert Res. 2005, 25, 281–286. [Google Scholar]
- Ha, S.; Dong, G.R.; Wang, G.Y. Near surface airflow and slop morphology of dunes in southeastern Tengger Desert. J. Desert Res. 1999, 19, 1–5. [Google Scholar]
- Ji, Q.H. Application of grain size analysis in the studies of Taklimakan Desert. J. Desert Res. 1996, 16, 173–179. [Google Scholar]
- Hofman, J. The lakes in the SE Part of Badain Jaran Shamo, their limnology and geochemistry. Geowissenschaften 1996, 718, 275–278. [Google Scholar]
- Ma, J.Z.; Edmunds, W.M. Groundwater and lake evolution in the Badain Jaran Desert ecosystem, Inner Mongolia. Hydrogeol. J. 2006, 14, 1231–1243. [Google Scholar] [CrossRef]
- Yang, X.P.; Li, H.; Conacher, A. Large-scale controls on the development of sand seas in northern China. Quat. Int. 2012, 250, 74–83. [Google Scholar] [CrossRef]
- Chen, J.S.; Li, L.; Wang, J.Y.; Barry, D.A.; Sheng, X.F.; Gu, W.Z.; Zhao, X.; Chen, L. Groundwater maintains dune landscape. Nature 2004, 432, 459–460. [Google Scholar] [CrossRef] [PubMed]
- Yang, X.P.; Scuderi, L.; Liu, T.; Paillou, P. Formation of the highest sand dunes on Earth. Geomorphology 2011, 135, 108–116. [Google Scholar] [CrossRef]
- Yang, X.P. Nearly 30000 Years to the Badain Jaran desert landscape development and changes in rainfall. Chin. Sci. Bull. 2000, 45, 428–434. [Google Scholar]
- Yang, X.P. Evolution of megadunes and lakes in the Badain Jaran Desert, Inner Mongolia, China during the last 31,000 years. Quternary Int. 2003, 104, 99–112. [Google Scholar] [CrossRef]
- Ci, L.J. Desertification of extra-arid deserts. Chin. Sci. Bull. 2011, 56, 2616–2622. [Google Scholar] [CrossRef]
- Gates, J.B.; Edmunds, W.M.; Darling, G.W.; Ma, J.Z.; Peng, Z.H.; Young, A.A. Conceptual model of recharge to southeastern Badain Jaran Desert groundwater and lakes from environmental tracers. Appl. Geochem. 2008, 23, 3519–3534. [Google Scholar] [CrossRef][Green Version]
- Ma, N.; Yang, X.P. Environmental isotopes and water chemistry in the Badain Jaran desert and in its southeastern adjacent areas, Inner Mongolia and their hydrological implications. Quat. Sci. 2008, 28, 703–711. [Google Scholar]
- Shao, T.J.; Zhao, J.B.; Zhou, Q.; Dong, Z.B.; Ma, Y.D. Recharge sources and chemical composition types of groundwater and lake in the Badain Jaran Desert, northwestern China. J. Geogr. Sci. 2012, 22, 479–496. [Google Scholar] [CrossRef]
- Huang, T.M.; Pang, Z.H. Groundwater recharge in Badain Jaran desert and Gurinai Oasis based on environmental tracers. Geoscience 2007, 21, 624–631. [Google Scholar]
- Ma, J.Z.; Huang, T.M.; Ding, Z.Y. Environmental isotopes as the indicators of the groundwater recharge in the south Badain Jaran desert. Adv. Earth Sci. 2007, 22, 922–930. [Google Scholar]
- Ma, Y.D.; Zhao, J.B.; Zhou, Q.; Luo, X.Q.; Shao, T.J.; Yue, D.P. Identification of runoff type and an assessment of water balance for the megadune area of Badain Jaran Desert. Environ. Earth Sci. 2017, 76, 424. [Google Scholar] [CrossRef]
- Feng, Q.; Chen, G.D. Moisture distribution and movement in sandy lands of China. Acta Pedol. Sin. 1999, 36, 225–236. [Google Scholar]
- Yang, W.Z.; Shao, M.A. The Loess Plateau Soil Moisture; Science Press: Beijing, China, 2000; pp. 84–111. [Google Scholar]
- Zhao, J.B.; Gu, J.; Du, J. Climate and soil moisture environment during development of the fifth palaeosol in Guanzhong Plain. Sci. ChinaSreies D 2008, 51, 665–676. [Google Scholar] [CrossRef]
- Zhang, J.X. Water and heat condition of blown sand soil in Shapotou region. J. Desert Res. 1997, 17, 154–158. [Google Scholar]
- Warner, T.T. Desert Meteorology; Cambridge University Press: Cambridge, UK, 2004; pp. 44–106. [Google Scholar]
- Ma, J.Z.; Zhou, X.Y.; Wang, Y.Q.; Gates, J.B. Spatial distribution of soil moisture at unsaturated zone in megadunes, sountheast of Badain Jaran desert. J. Desert Res. 2011, 31, 1365–1372. [Google Scholar]
- Zhao, J.B.; Ma, Y.D.; Xing, S. Sand layer water permeability of Tengger Desert in Zhongwei city, Ningxia Hui Autonomous Region. Bull. Soil Water Conserv. 2011, 31, 12–16. [Google Scholar]
- Zhu, J.F.; Wang, N.A.; Li, Z.L.; Dong, C.Y.; Lu, Y.; Ma, N. RS-based monitoring seasonal changes of lake in Badain Jaran Desert. J. Lake Sci. 2011, 23, 657–664, (In Chinese with English abstract). [Google Scholar][Green Version]
- Zhu, J.F.; Wang, N.A.; Chen, H.B.; Dong, C.Y.; Zhang, H.A. Study on theboundary and the area of Badain Jaran Desert based on remote sensing imagery. Progr. Geogr. 2010, 23, 1087–1094, (In Chinese with English abstract). [Google Scholar]
- Wang, N.A.; Ma, N.; Chen, H.B.; Chen, X.L.; Dong, C.Y.; Zhang, Z.Y. A preliminary study of precipitation characteristic in the hinterland of Badain Jaran Desert. Adv. Water Sci. 2013, 24, 153–160. [Google Scholar]
- Berndtsson, R.; Nodomi, K.; Yasuda, H.; Persson, T.; Chen, H.S.; Jinno, K. Soil water and temperature patterns in an arid desert dune sand. J. Hydrol. 1996, 185, 221–240. [Google Scholar] [CrossRef]
- Yuan, P.F.; Ding, G.D.; Wang, W.W. Characteristics of rain water in filtration and evaporation in Mu Us Sand Land. Sci. Soil Water Conserv. 2008, 6, 23–27. [Google Scholar]
- Liu, J.S.; Gao, Q.; Guo, K.; Liu, X.P.; Shao, Z.Y.; Zhang, Z.C. Actual evaporation of bare sand dunes in Maowusu, China and its response to precipitation pattern. J. Plant Ecol. 2008, 32, 123–132. [Google Scholar]
- Wang, X.S.; Hu, X.N.; Jin, X.M.; Hou, L.Z.; Qian, R.Y.; Wang, L.D. Interactions between groundwater and lakes in Badain Jaran Desert. Earth Sci. Front. (China Univ. Geosci. (Beijing) Peking Univ.) 2014, 21, 91–99. [Google Scholar]
- Ensign, K.L.; Webb, E.A.; Longstaffe, F.J. Microenvironmental and seasonal variations in soil water content of the unsaturated zone of a sand dune system at Pinery Provincial Park, Ontario, Canada. Geoderma 2006, 136, 788–802. [Google Scholar] [CrossRef]
- Zhu, B.Q.; Yang, X.P. The origin and distribution of soluble salts in the sand seas of northern China. Geomorphology 2010, 123, 232–242. [Google Scholar] [CrossRef]
- Liu, W.Z.; Zhang, X.C.; Dang, T.H.; Zhu, Q.Y.; Li, Z.; Wang, J.; Wang, R.; Gao, C.Q. Soil water dynamics and deep soil recharge in a record wet year in the southern Loess Plateau of China. Agric. Water Manag. 2010, 97, 1133–1138. [Google Scholar] [CrossRef]
|Moisture content in drill A (%)||7.8||7.2||5.4||7.1||4.7|
|Moisture content in drill B (%)||6.3||6.7||7.2||7.6||5.6|
|Sample Types||Sample Number||Coarse Sand (2.0–0.5 mm)||Medium Sand (0.5–0.25 mm)||Fine Sand (0.25–0.1 mm)||Very Fine Sand (0.1–0.05 mm)||Mean Mz||Mean σ||Mean Kg|
|Coarse particle layers of multi-stage fans||10||7.1||39.6||49.6||3.9||1.94||0.76||0.96|
|Fine particle layers of the multi-stage fans||10||4.5||26.9||60.8||8.1||2.23||0.49||0.95|
|Normal aeolian sand layer||26||3.1||41.0||54.0||1.9||2.08||0.53||0.96|
|surface coarse layer of mega dune||26||12.6||47.5||39.4||0.5||1.83||0.56||0.96|
