# Flood Classification Based on a Fuzzy Clustering Iteration Model with Combined Weight and an Immune Grey Wolf Optimizer Algorithm

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

- (1)
- The fuzzy clustering iterative model with combined weight (FCI-CW) is proposed by using the sensitivity coefficient to combine the subjective weight and objective weight.
- (2)
- An immune grey wolf optimizer algorithm (IGWO) is proposed by employing an immune clone selection operator based on the grey wolf optimizer algorithm.
- (3)
- IGWO was employed to obtain the optimal fuzzy class center matrix and optimal sensitivity coefficient of FCI-CW.
- (4)
- Two case studies of flood classification at Nanjing station and Yichang station were carried out to demonstrate the reasonableness and effectiveness of the proposed methodology.

## 2. The Fuzzy Clustering Iteration Model with Combined Weight (FCI-CW)

#### 2.1. Overview of the Fuzzy Clustering Iteration Model

**Step 1**Set the precision of ${\epsilon}_{1}$, ${\epsilon}_{2}$, and ${\epsilon}_{3}$ for calculating ${\omega}_{j}$, ${u}_{hi}$, and ${s}_{jh}$, and set the maximum iterative number $T$.

**Step 2**Let the iterative number be $t=0$, assume that the original weight matrix ${\omega}_{j}^{t}$ satisfies the constraint $0\le {\omega}_{j}\le 1,{\displaystyle \sum _{j=1}^{m}{\omega}_{j}}=1$ shown in Equation (7), and assume that the original fuzzy membership matrix ${u}_{hi}^{t}$ satisfies the constraint $\sum _{h=1}^{c}{u}_{hi}}=1;0\le {u}_{hi}\le 1$ shown in Equation (5).

**Step 3**Calculate the corresponding original clustering center ${s}_{jh}^{t}$ by importing ${u}_{hi}^{t}$ and ${\omega}_{j}^{t}$ into Equation (12).

**Step 4**Seek an approximate clustering matrix ${\omega}_{j}^{t+1}$ by importing ${s}_{jh}^{t}$ and ${u}_{hi}^{t}$ into Equation (10).

**Step 5**Seek an approximate clustering matrix ${u}_{hi}^{t+1}$ by importing ${s}_{jh}^{t}$ and ${\omega}_{j}^{t+1}$ into Equation (11).

**Step 6**Seek an approximate clustering center matrix ${s}_{jh}^{t+1}$ by importing ${u}_{hi}^{t+1}$ and ${\omega}_{j}^{t+1}$ into Equation (12).

**Step 7**Compare the corresponding values ${\omega}_{j}^{t}$ and ${\omega}_{j}^{t+1}$, ${u}_{hi}^{t}$ and ${u}_{hi}^{t+1}$, and ${s}_{jh}^{t}$ and ${s}_{jh}^{t+1}$, respectively, and update the iteration counter by $t=t+1$ until the termination conditions in Equation (13) are satisfied or the iteration counter reaches the maximum iterative number; otherwise go to

**Step 3**.

**Step 8**Finally, ${\omega}_{j}^{t+1}$, ${u}_{hi}^{t+1}$, and ${s}_{jh}^{t+1}$ are obtained through the above computational steps. The objective value GEWD of the FCI is then calculated as the objective function fitness.

#### 2.2. Combined Weight for Flood Classification

#### 2.3. The Fuzzy Clustering Iteration Model with Combined Weight

#### 2.4. The Procedure of FCI-CW

**Step 1**Set the iteration counter to $g=0$;

**Step 2**Obtain the subjective weight ${\omega}_{Sj}$ and the objective weight ${\omega}_{Oj}$ according to the subjective weighting method and the objective weighting method separately; initialize ${s}_{jh}^{0}$ and ${\beta}^{0}$, set the objective function value of Equation (17) to ${F}^{0}=\xi $, where $\xi $ is a large constant; and set the precision $\epsilon $;

**Step 3**Calculate the combined weight ${\omega}_{j}^{g}$ based on Equation (14);

**Step 4**Calculate the membership matrix ${u}_{hi}^{g}$ based on Equation (19);

**Step 5**Calculate the fuzzy class center matrix ${s}_{ih}^{g}$ based on Equation (20);

**Step 6**Calculate the sensitivity coefficient ${\beta}^{g}$ based on Equation (21);

**Step 7**Calculate the objective function value ${F}^{g}=F({\beta}^{g},{\omega}_{Sj},{\omega}_{Oj},{{u}_{hi}}^{g},{{s}_{jh}}^{g})$;

**Step 8**Compare ${F}^{g}$ with ${F}^{g-1}$. If $\left|{F}^{g}-{F}^{g-1}\right|<\epsilon $, stop the calculation; otherwise $g=g+1$ and return to

**Step 3**.

## 3. The Immune Grey Wolf Optimizer Algorithm

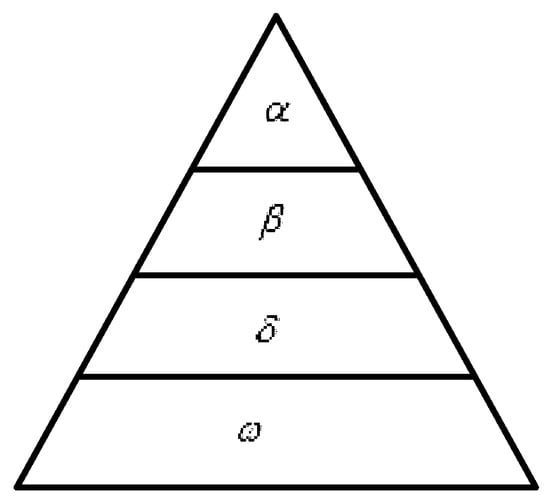

#### 3.1. Overview of the Grey Wolf Optimizer Algorithm

#### 3.2. Immune Clone Selection Operator

**Step 1**The current population is ranked according to fitness, and the best $nn$ individuals are selected to form the elite population.

**Step 2**All the individuals in the elite population are respectively cloned to form a temporary population $S$. The clone size is directly proportional to the affinity, and the population number ${N}_{c}$ of $S$ is calculated as:

**Step 3**All the individuals in $S$ are successively implemented based on a mutation operator $mm$ times to obtain better candidate solutions nearby to themselves. The mutation operator is shown in Equations (32)–(34) as follows:

**Step 4**The best $nn$ individuals are selected from $S$ to replace the elite population in the next generation.

#### 3.3. The Pseudo Code of IGWO

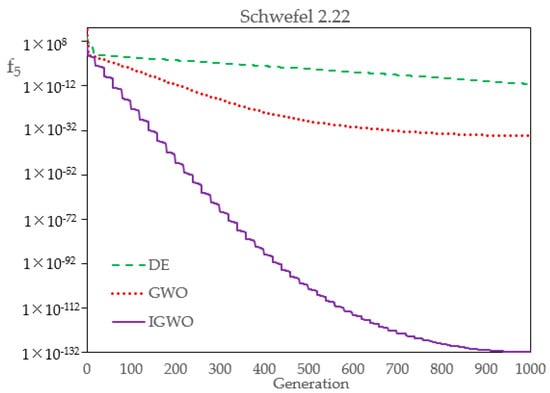

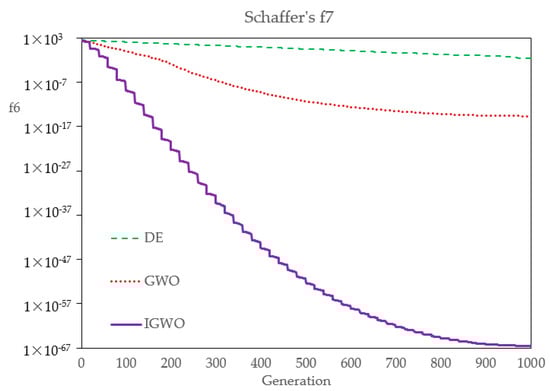

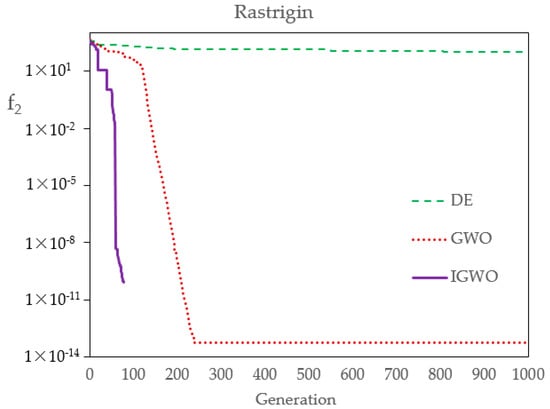

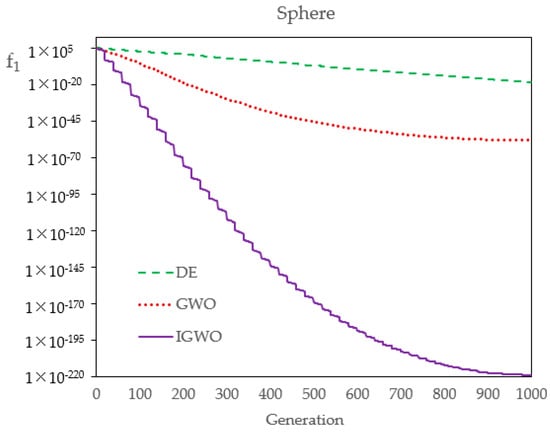

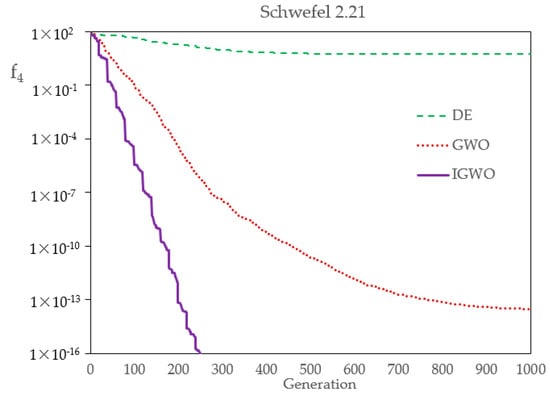

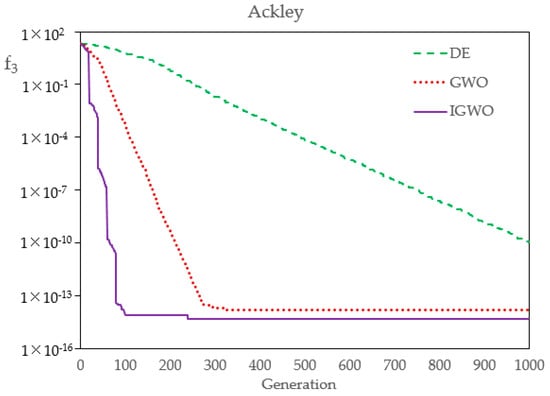

#### 3.4. Simulation of IGWO for Solving Benchmark Optimization Problems

## 4. The Procedure for Flood Classification Using FCI-CW and IGWO

#### 4.1. Search-Variable Representation and Fitness Function

#### 4.2. The Procedure of FCI-CW and IGWO

## 5. Case Study

#### 5.1. The First Case at Nanjing Station

^{−2}, and the optimal search result of IGWO was output to obtain the optimal fuzzy class center matrix ${S}^{*}$ and the optimal sensitivity coefficient ${\beta}^{*}$ shown in Equations (36) and (37), respectively. Afterwards, the index weight matrix was calculated as ${\mathsf{\omega}}^{*}=(0.1644,0.2412,0.1944,0.1676,0.2324)$, which was combined with the subjective weight and the objective weight by using ${\beta}^{*}$ to obtain the best optimal value of GEWD.

^{−2}, which is less than the optimal value 2.020046 × 10

^{−2}by the proposed method. However, its optimal weight vector, denoted as ${\mathsf{\omega}}^{\prime}$ = (0.0908, 0.6267, 0.1141, 0.0801, 0.0883), is just the “mathematical weight” in the sense of sample data calculation, which indicates that the importance of the second index is much larger than the sum of the other four indices. This is contrary to the decision-maker’s subjective cognition and the actual situation, so it is necessary to reasonably modify the weight results.

^{−1}, the GEWD was the smallest of all, which indicates that the proposed methodology to calculate the fuzzy class center matrix and the sensitivity coefficient for flood classification is reasonable. This renders it superior to the conventional methods, since only considering subjectivity or objectivity, or just setting β = 0.5, lacks a powerful mathematical basis.

#### 5.2. The Second Case of Yichang Station

^{−2}, and the optimal search result of IGWO was output to obtain the optimal fuzzy class center matrix ${S}^{*}$ and the optimal sensitivity coefficient ${\beta}^{*}$ shown in Equations (40) and (41), respectively. Afterwards, the index weight matrix was calculated as ${\mathsf{\omega}}^{*}=(0.2789,0.1970,0.2002,0.1556,0.1683)$, which was combined with the subjective weight and the objective weight. Finally, the optimal fuzzy clustering matrix ${U}^{*}$ was achieved as shown in Equation (43).

^{−1}, the GEWD was the smallest of all, which indicates that the proposed methodology is reasonable. This renders it superior to the conventional methods, since only considering subjectivity or objectivity, or just setting β = 0.5, lacks a powerful mathematical basis.

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Barredo, J.I. Major flood disasters in Europe: 1950–2005. Nat. Hazards
**2007**, 42, 125–148. [Google Scholar] [CrossRef] - Zou, Q.; Zhou, J.Z.; Zhou, C.; Song, L.X.; Guo, J.; Liu, Y. The practical research on flood risk analysis based on IIOSM and fuzzy α-cut technique. Appl. Math. Model.
**2012**, 36, 3271–3282. [Google Scholar] [CrossRef] - Zhao, Y.; Gong, Z.W.; Wang, W.H.; Luo, K. The comprehensive risk evaluation on rainstorm and flood disaster losses in China mainland from 2004 to 2009: Based on the triangular gray correlation theory. Nat. Hazards
**2014**, 71, 1001–1016. [Google Scholar] [CrossRef] - Anders, S.O.; Zhou, Q.Q.; Jens, J.L.; Karsten, A.N. Comparing Methods of Calculating Expected Annual Damage in Urban Pluvial Flood Risk Assessments. Water
**2015**, 7, 255–270. [Google Scholar] [CrossRef] [Green Version] - He, B.S.; Huang, X.L.; Ma, M.H.; Chang, Q.R.; Tu, Y.; Li, Q.; Zhang, K.; Hong, Y. Analysis of flash flood disaster characteristics in China from 2011 to 2015. Nat. Hazards
**2018**, 90, 407–420. [Google Scholar] [CrossRef] - Wang, X.W.; Xie, H.J. A Review on Applications of Remote Sensing and Geographic Information Systems (GIS) in Water Resources and Flood Risk Management. Water
**2018**, 10, 608. [Google Scholar] [CrossRef] - Chen, S.Y. Theory and Application Engineering Fuzzy Sets; National Defense Industry Press: Beijing, China, 1998. (In Chinese) [Google Scholar]
- Xu, D.M.; Chen, S.Y.; Qiu, L. Study on flood classification based on variable fuzzy sets theory. Water Resour. Power
**2011**, 29, 23–25. (In Chinese) [Google Scholar] - Johanna, S.; Andreas, P.; Catharina, S.; Henrik, A.; Jerry, N.; Jonas, N.; Karin, J.; Misagh, M.; Per, B.; Petter, P.; et al. Re-Thinking Urban Flood Management—Time for a Regime Shift. Water
**2016**, 8, 332. [Google Scholar] [CrossRef] - Bracken, L.J.; Oughton, E.A.; Donaldson, A.; Cook, B.; Forrester, J.; Spray, C.; Cinderby, S.; Passmore, D.; Bissett, N. Flood risk management, an approach to managing cross-border hazards. Nat. Hazards
**2016**, 82, 217–240. [Google Scholar] [CrossRef] [Green Version] - Vose, D. Risk Analysis: A Quantitative Guide; John Wiley & Sons: Chichester, UK, 2008. [Google Scholar]
- Heimhuber, V.; Hannemann, J.; Rieger, W. Flood Risk Management in Remote and Impoverished Areas—A Case Study of Onaville, Haiti. Water
**2015**, 7, 3832–3860. [Google Scholar] [CrossRef] [Green Version] - Rui, Y.H.; Fu, D.F.; Minh, H.D.; Mohanasundar, R.; Zevenbergen, C.; Pathirana, A. Urban Surface Water Quality, Flood Water Quality and Human Health Impacts in Chinese Cities. What Do We Know? Water
**2018**, 10, 240. [Google Scholar] [CrossRef] - Cochrane, J.L.; Zeleny, M. Multiple Criteria Decision Making; The University of South Carolina Press: Columbia, SC, USA, 1973. [Google Scholar]
- Nalal, H.K.; Ratnayake, U.R. Flood risk analysis using fuzzy models. J. Flood Risk Manag.
**2011**, 4, 128–139. [Google Scholar] [CrossRef] - Chen, S.Y. Theories and Methods of Variable Fuzzy Sets in Water Resources and Flood Control System; Dalian University of Technology Press: Dalian, China, 2005. (In Chinese) [Google Scholar]
- Kellens, W.; Vanneuville, W.; Verfaillie, E.; Deckers, P.; Maeyer, P.D. Flood risk management in flanders: Past developments and future challenges. Water Resour. Manag.
**2013**, 27, 3585–3606. [Google Scholar] [CrossRef] - Wang, S.J.; Zhang, X.L.; Hou, Y.; Ding, J. Projection pursuit model for evaluating of flood events. J. China Hydrol.
**2002**, 22, 1–4. (In Chinese) [Google Scholar] - Dong, Q.J.; Wang, X.J.; Ai, X.S.; Zhang, Y.M. Study on flood classification based on project pursuit and particle swarm optimization algorithm. J. China Hydrol.
**2007**, 27, 10–14. (In Chinese) [Google Scholar] - Wang, L.L.; Chen, X.H.; Li, Y.A. Study on flood classification based on project pursuit and artificial fish swarm algorithm. Yangtze River
**2008**, 39, 34–37. (In Chinese) [Google Scholar] - Wang, L.L.; Chen, X.H.; Li, Y.A. Study on flood classification based on shuffled frog leaping algorithm and projection pursuit model. Water Resour. Power
**2009**, 27, 62–64. (In Chinese) [Google Scholar] - Wang, Z.; Ni, C.J. Study on projection pursuit dynamic cluster model and its application to flood disaster evaluation. J. Sichuan Norm. Univ. (Nat. Sci.)
**2008**, 31, 635–638. (In Chinese) [Google Scholar] - Ni, C.J.; Wang, S.J.; Wang, J. Optimal curve projection dynamic cluster index and its application in flood classification—A case study of a flood observed at Nanjing observation station. J. Catastrophol.
**2011**, 26, 1–4. (In Chinese) [Google Scholar] - Sun, Q.; Duan, Q.C.; Qiu, L. Application of fuzzy clustering model based on entropy weights in flood classification. J. North China Inst. Water Conserv. Hydroelectr. Power
**2007**, 28, 4–6. (In Chinese) [Google Scholar] - Ying, G.; Zhao, S.X. Application of fuzzy clustering based on entropy weights in flood classification. J. North China Inst. Water Conserv. Hydroelectr. Power
**2009**, 30, 9–11. (In Chinese) [Google Scholar] - He, Y.Y.; Zhou, J.Z.; Kou, P.G.; Lu, N.; Zou, Q. A fuzzy clustering iterative model using chaotic differential evolution algorithm for evaluating flood disaster. Expert Syst. Appl.
**2011**, 38, 10060–10065. [Google Scholar] [CrossRef] - Liao, L.; Zhou, J.Z.; Zou, Q. Weighted fuzzy kernel-clustering algorithm with adaptive differential evolution and its application on flood classification. Nat. Hazards
**2013**, 69, 279–293. [Google Scholar] [CrossRef] - Wang, Z.; Wu, J.; Cheng, L.; Wei, Y.M. Regional flood risk assessment via coupled fuzzy c-means clustering methods: An empirical analysis from China’s Huaihe River Basin. Nat. Hazards
**2018**, 93, 803–822. [Google Scholar] [CrossRef] - Zou, Q.; Zhou, J.Z.; Zhou, C.; Song, L.X.; Guo, J. Comprehensive flood risk assessment based on set pair analysis-variable fuzzy sets model and fuzzy AHP. Stoch. Environ. Res. Risk Assess.
**2013**, 27, 525–546. [Google Scholar] [CrossRef] - He, Y.Y.; Wan, J.H.; Lei, X.H.; Singh, H. Flood disaster level evaluation using a particle swarm optimization algorithm considering decision-maker’s preference. Water Sci. Technol. Water Supply
**2017**, 18, 288–298. [Google Scholar] [CrossRef] - Guo, Y. Research on application of engineering fuzzy sets theory in water resources and flood control system. Ph.D. Thesis, Dalian University of Technology, Dalian, China, 2006. (In Chinese). [Google Scholar]
- Wang, X.J.; Zhao, R.H.; Hao, Y.W. Flood control operations based on the theory of variable fuzzy sets. Water Resour. Manag.
**2011**, 25, 777–792. [Google Scholar] [CrossRef] - He, Y.Y.; Song, X.C.; Wan, J.H. Flood disaster fuzzy clustering iterative assessment model considering preference information of decision-makers. Syst. Eng. Theory Pract.
**2016**, 36, 2680–2688. (In Chinese) [Google Scholar] - Chen, S.; Guo, Y. Variable fuzzy sets and its application in comprehensive risk evaluation for flood-control engineering system. Fuzzy Optim. Decis. Mak.
**2006**, 5, 153–162. [Google Scholar] [CrossRef] - Wu, C.G.; Wang, Y.M.; Tang, Y.M.; Huang, Q.; Jin, J.L. Variable fuzzy recognition model for the flood hazard assessment based on set pair analysis. J. Northwest A F Univ.
**2012**, 40, 221–226. (In Chinese) [Google Scholar] - Wei, Y.M.; Jin, J.L.; Yang, C.J.; Huang, S.F.; Fan, Y.; Chen, D.Q. Theory of Risk Management of Flood Disaster; Science Press of China: Beijing, China, 2002. (In Chinese) [Google Scholar]
- Mirjalili, S.; Mirjalili, S.M.; Lewis, A. Grey Wolf Optimizer. Adv. Eng. Softw.
**2014**, 69, 46–61. [Google Scholar] [CrossRef] - Hu, C.J.; Zhang, J. Immune differential evolution algorithm using clone selection. Appl. Res. Comput.
**2010**, 22, 2342–2347. (In Chinese) [Google Scholar] - Zou, Q.; Zhou, J.Z.; Yang, X.L.; He, Y.Y.; Zhang, Y.C. A comprehensive assessment model for severity degree of dam failure impact based on attribute interval recognition theory. J. Sichuan Univ. Eng. Sci. Ed.
**2011**, 43, 45–50. (In Chinese) [Google Scholar] - Li, Y.H.; Zhou, J.Z.; Zhang, Y.C.; Liu, L.; Qin, H. Risk decision model for the optimal operation of reservoir flood control and its application. Water Power
**2009**, 35, 19–21, 37. (In Chinese) [Google Scholar] - Liu, J.; Wang, B.D. Variable fuzzy model based on combined weights and its application to risk assessment for flood control engineering. J. Dalian Univ. Technol.
**2009**, 49, 272–275. (In Chinese) [Google Scholar] - Mirjalili, S.; Saremi, S.; Mirjalili, S.M.; Coelho, L. Multi-objective grey wolf optimizer: A novel algorithm for multi-criterion optimization. Expert Syst. Appl.
**2016**, 47, 106–119. [Google Scholar] [CrossRef] - Qin, H.; Zhou, J.Z.; Li, Y.H.; Lu, Y.L.; Yang, J.J.; Zhang, Y.C. Optimal dispatch of cascade hydroelectric stations based on cultured clone select algorithm. J. Syst. Simul.
**2010**, 22, 2342–2347. (In Chinese) [Google Scholar] - Storn, R.; Price, K. Differential evolution—A simple and efficient heuristic for global optimization over continuous spaces. J. Glob. Optim.
**1997**, 11, 341–359. [Google Scholar] [CrossRef] - Wen, X.H.; Zhou, J.Z.; He, Z.Z.; Wang, C. Long-Term Scheduling of Large-Scale Cascade Hydropower Stations Using Improved Differential Evolution Algorithm. Water
**2018**, 10, 383. [Google Scholar] [CrossRef]

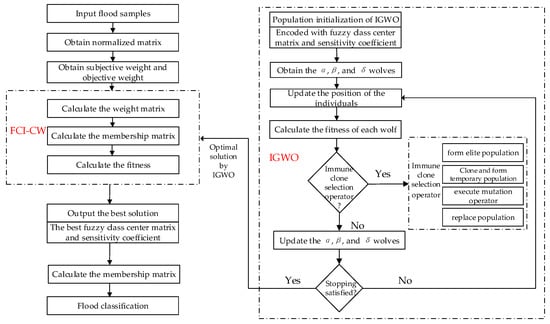

**Figure 8.**The procedure of flood classification using the fuzzy clustering iterative model with combined weight (FCI-CW) and IGWO.

Algorithm Immune Grey Wolf Optimizer Algorithm (IGWO) |
---|

1: Set generation $g=0$ |

2: Initialize the grey wolf population ${Y}_{i}^{0}$, $i=1,2,\dots ,N$. |

3: Initialize $a$, ${A}_{1}$, ${A}_{2}$, ${A}_{3}$, ${C}_{1}$, ${C}_{2}$, ${C}_{3}$, $nn$, $mm$. |

4: Calculate the fitness of each individual |

5: ${Y}_{\alpha}$ = the best search individual |

6: ${Y}_{\beta}$ = the second best search individual |

7: ${Y}_{\delta}$ = the third best search individual |

8: While ($g$ < Max number of generations) |

9: For each search individual |

10: Update position of each current search individual by Equation (26) |

11: End for |

12: Update $a$, ${A}_{1}$, ${A}_{2}$, ${A}_{3}$, ${C}_{1}$, ${C}_{2}$, ${C}_{3}$ |

13: Calculate the fitness of all search individuals |

14: Choose the best $nn$ individuals to form the elite population |

15: Clone the elite population to form the temporary population |

$S$ by Equation (31) |

16: execute the mutation operator by Equation (32) |

17: replace the elite population and the GWO population |

18: Update ${Y}_{\alpha}$, ${Y}_{\beta}$, and ${Y}_{\delta}$, |

19: $g=g+1$ |

20: End while |

21: Output ${Y}_{\alpha}$ |

Function | Expression | Dim | Shift Position | Optimal Value |
---|---|---|---|---|

Sphere | ${f}_{1}(x)={\displaystyle {\sum}_{i=1}^{D}{x}_{i}^{2}}$ | 30 | [−100,100] | 0 |

Rastrigin | ${f}_{2}(x)={\displaystyle {\sum}_{i=1}^{D}[{x}_{i}^{2}-10\mathrm{cos}(2\pi {x}_{i})+10]}$ | 30 | [−5.12,5.12] | 0 |

Ackley | ${f}_{3}(x)=-20\mathrm{exp}(-0.2\sqrt{\frac{1}{D}{\displaystyle {\sum}_{i=1}^{D}{x}_{i}^{2}}})-\mathrm{exp}[\frac{1}{D}{\displaystyle {\sum}_{i=1}^{D}\mathrm{cos}(2\pi {x}_{i})}]+20+e$ | 30 | [−30,30] | 0 |

Schwefel 2.21 | ${f}_{4}(x)=\underset{1\le i\le D}{\mathrm{max}}\{|{x}_{i}|\}$ | 30 | [−100,100] | 0 |

Schwefel 2.22 | ${f}_{5}(x)={\displaystyle {\sum}_{i=1}^{D}\left|{x}_{i}\right|}+{\displaystyle {\prod}_{i=1}^{D}\left|{x}_{i}\right|}$ | 30 | [−10,10] | 0 |

Schaffer’s f7 | ${f}_{6}(x)=\frac{1}{4000}{\displaystyle {\sum}_{i=1}^{D-1}{({x}_{i}^{2}+{x}_{i+1}^{2})}^{0.25}[{\mathrm{sin}}^{2}(50{({x}_{i}^{2}+{x}_{i+1}^{2})}^{0.1})+1]}$ | 30 | [−100,100] | 0 |

**Table 3.**The test function results for the differential evolution (DE), grey wolf optimization (GWO), and IGWO algorithms.

Function | Algorithm | Best | Worst | Mean | Standard Deviation |
---|---|---|---|---|---|

Sphere | DE | 1.15 × 10^{−19} | 1.49 × 10^{−18} | 5.60 × 10^{−19} | 6.33 × 10^{−19} |

GWO | 1.35 × 10^{−60} | 6.54 × 10^{−59} | 2.77 × 10^{−59} | 3.11 × 10^{−59} | |

IGWO | 1.05 × 10^{−223} | 8.78 × 10^{−220} | 4.51 × 10^{−220} | 0 | |

Rastrigin | DE | 84.5 | 109 | 99.5 | 11.9 |

GWO | 0 | 3.22 | 8.04 × 10^{−1} | 1.61 | |

IGWO | 0 | 0 | 0 | 0 | |

Ackley | DE | 1.09 × 10^{−10} | 1.41 × 10^{−10} | 1.29 × 10^{−10} | 1.53 × 10^{−11} |

GWO | 1.51 × 10^{−14} | 2.93 × 10^{−14} | 1.87 × 10^{−14} | 7.11 × 10^{−15} | |

IGWO | 4.44 × 10^{−15} | 7.99 × 10^{−15} | 6.22 × 10^{−15} | 2.05 × 10^{−15} | |

Schwefel 2.21 | DE | 1.00 | 5.69 | 3.20 | 2.05 |

GWO | 8.27 × 10^{−15} | 4.68 × 10^{−14} | 2.83 × 10^{−14} | 1.58 × 10^{−14} | |

IGWO | 4.52 × 10^{−42} | 4.21 × 10^{−36} | 1.05 × 10^{−36} | 2.10 × 10^{−36} | |

Schwefel 2.22 | DE | 2.96 × 10^{−12} | 9.44 × 10^{−12} | 5.94 × 10^{−12} | 3.14 × 10^{−12} |

GWO | 4.06 × 10^{−35} | 7.89 × 10^{−35} | 6.29 × 10^{−35} | 1.69 × 10^{−35} | |

IGWO | 1.24 × 10^{−135} | 1.80 × 10^{−132} | 9.01 × 10^{−133} | 1.02 × 10^{−132} | |

Schaffer’s f_{7} | DE | 2.36 × 10^{−02} | 9.19 × 10^{−02} | 4.74 × 10^{−02} | 3.15 × 10^{−02} |

GWO | 1.09 × 10^{−15} | 4.99 × 10^{−15} | 3.11 × 10^{−15} | 1.74 × 10^{−15} | |

IGWO | 2.00 × 10^{−67} | 7.36 × 10^{−67} | 3.72 × 10^{−67} | 2.46 × 10^{−67} |

Number of Floods | Year | Flood Peak Level (m) | The Days of Flood Level over 9 m (day) | Flood Peak Discharge in DaTong Station (m^{3}·s^{−1}) | Flood Volume from May to September (10^{8} m^{3}) | The Synthetic Index of Discharge and Time |
---|---|---|---|---|---|---|

(1) | 1954 | 10.22 | 87 | 92,600 | 8891 | 7800 |

(2) | 1969 | 9.20 | 8 | 67,700 | 5447 | 1710 |

(3) | 1973 | 9.19 | 7 | 70,000 | 6623 | 3280 |

(4) | 1980 | 9.20 | 10 | 64,000 | 6340 | 2730 |

(5) | 1983 | 9.99 | 27 | 72,600 | 6641 | 3560 |

(6) | 1991 | 9.70 | 17 | 63,800 | 5576 | 1930 |

(7) | 1992 | 9.06 | 13 | 67,700 | 5295 | 1575 |

(8) | 1995 | 9.66 | 23 | 75,500 | 6162 | 2390 |

(9) | 1996 | 9.89 | 34 | 75,100 | 6206 | 2702 |

(10) | 1998 | 10.14 | 81 | 82,100 | 7773 | 5283 |

**Table 5.**The comparison results of objective fitness by the different algorithms for the first case study.

Algorithms | Minimum | Maximum | Average | Standard Deviation |
---|---|---|---|---|

DE | 2.032220 × 10^{−2} | 2.324090 × 10^{−2} | 2.099263 × 10^{−2} | 1.266623 × 10^{−3} |

GWO | 2.030084 × 10^{−2} | 2.030152 × 10^{−2} | 2.030128 × 10^{−2} | 1.364308 × 10^{−8} |

IGWO | 2.023083 × 10^{−2} | 2.023083 × 10^{−2} | 2.023083 × 10^{−2} | 3.878990 × 10^{−18} |

**Table 6.**The results from the comparison of the proposed method with other methods at Nanjing station.

Number of Floods | Year | OC-PDC | VFS | FCI-CDE | WFKCA-ADE | The Proposed Method |
---|---|---|---|---|---|---|

(1) | 1954 | I | I | I | I | I |

(2) | 1969 | III | III | III | III | III |

(3) | 1973 | III | III | III | III | III |

(4) | 1980 | III | III | III | III | III |

(5) | 1983 | II | II | II | II | II |

(6) | 1991 | III | III | III | III | III |

(7) | 1992 | III | III | III | III | III |

(8) | 1995 | II | II | II | II | II |

(9) | 1996 | II | II | II | II | II |

(10) | 1998 | I | I | I | I | I |

**Table 7.**The comparison results of the general Euclidean weighted distance (GEWD) with different sensitivity coefficients for the first case study.

β | 0 | 0.2 | 0.4 | 0.45 | 0.5 |
---|---|---|---|---|---|

GEWD | 2.037210 × 10^{−2} | 2.028914 × 10^{−2} | 2.024230 × 10^{−2} | 2.0236234 × 10^{−2} | 2.02324 × 10^{−2} |

β | 0.55 | 5.595729 × 10^{−1} | 0.6 | 0.8 | 1 |

GEWD | 2.023087 × 10^{−2} | 2.023083 × 10^{−2} | 2.023157 × 10^{−2} | 2.025693 × 10^{−2} | 2.031831 × 10^{−2} |

Number of Floods | Year | Flood Peak Level (m) | Flood peak Discharge (m^{3}·s^{−1}) | Three-Day Flood (10^{8} m^{3}) | Seven-Day Flood (10^{8} m^{3}) | Fifteen-Day Flood (10^{8} m^{3}) |
---|---|---|---|---|---|---|

(1) | 1931 | 55.0 | 64,600 | 163.2 | 350.4 | 621.3 |

(2) | 1935 | 54.6 | 56,900 | 137.1 | 283.3 | 509.5 |

(3) | 1954 | 55.7 | 66,800 | 170.1 | 385.3 | 785.1 |

(4) | 1958 | 53.5 | 59,500 | 148.8 | 305.1 | 550.2 |

(5) | 1966 | 54.0 | 59,600 | 151.7 | 334.2 | 592.4 |

(6) | 1969 | 51.5 | 41,900 | 105.1 | 217.4 | 412.2 |

(7) | 1974 | 54.8 | 61,000 | 151.8 | 301.6 | 545.7 |

(8) | 1980 | 54.0 | 54,600 | 139.7 | 300.8 | 545.6 |

(9) | 1981 | 55.4 | 70,800 | 172.5 | 334.8 | 558.3 |

(10) | 1982 | 54.6 | 59,000 | 146.9 | 303.8 | 583.8 |

(11) | 1983 | 53.3 | 52,600 | 129.9 | 268.1 | 491.3 |

(12) | 1998 | 54.5 | 63,600 | 151.3 | 347.8 | 728.2 |

**Table 9.**The comparison results of objective fitness by the different algorithms for the second case study.

Algorithms | Minimum | Maximum | Average | Standard Deviation |
---|---|---|---|---|

DE | 2.750000 × 10^{−2} | 3.150000 × 10^{−2} | 2.888000 × 10^{−2} | 1.213095 × 10^{−3} |

GWO | 2.648600 × 10^{−2} | 2.990000 × 10^{−2} | 2.732100 × 10^{−2} | 1.142702 × 10^{−6} |

IGWO | 2.644227 × 10^{−2} | 2.644230 × 10^{−2} | 2.644227 × 10^{−2} | 6.633250 × 10^{−16} |

Number of Floods | Year | VFS | The Proposed Method |
---|---|---|---|

(1) | 1931 | I | I |

(2) | 1935 | II | II |

(3) | 1954 | I | I |

(4) | 1958 | II | II |

(5) | 1966 | II | II |

(6) | 1969 | III | III |

(7) | 1974 | II | II |

(8) | 1980 | II | II |

(9) | 1981 | I | I |

(10) | 1982 | II | II |

(11) | 1983 | II | II |

(12) | 1998 | I | I |

**Table 11.**The comparison results of the GEWD with different sensitivity coefficients for the second case study.

β | 0 | 0.2 | 0.4 | 0.45 | 0.5 |
---|---|---|---|---|---|

GEWD | 2.740795 × 10^{−2} | 2.687555 × 10^{−2} | 2.655286 × 10^{−2} | 2.650519 × 10^{−2} | 2.647082 × 10^{−2} |

β | 0.55 | 0.6 | 6.027070 × 10^{−1} | 0.8 | 1 |

GEWD | 2.644981 × 10^{−2} | 2.644229 × 10^{−2} | 2.644227 × 10^{−2} | 2.655053 × 10^{−2} | 2.689421 × 10^{−2} |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Zou, Q.; Liao, L.; Ding, Y.; Qin, H.
Flood Classification Based on a Fuzzy Clustering Iteration Model with Combined Weight and an Immune Grey Wolf Optimizer Algorithm. *Water* **2019**, *11*, 80.
https://doi.org/10.3390/w11010080

**AMA Style**

Zou Q, Liao L, Ding Y, Qin H.
Flood Classification Based on a Fuzzy Clustering Iteration Model with Combined Weight and an Immune Grey Wolf Optimizer Algorithm. *Water*. 2019; 11(1):80.
https://doi.org/10.3390/w11010080

**Chicago/Turabian Style**

Zou, Qiang, Li Liao, Yi Ding, and Hui Qin.
2019. "Flood Classification Based on a Fuzzy Clustering Iteration Model with Combined Weight and an Immune Grey Wolf Optimizer Algorithm" *Water* 11, no. 1: 80.
https://doi.org/10.3390/w11010080
