Open AccessArticle

Water Sources of Upland Swamps in Eastern Australia: Implications for System Integrity with Aquifer Interference and a Changing Climate

1
Department of Environmental Sciences, Macquarie University, North Ryde, NSW 2109, Australia
2
Australian Nuclear Science and Technology Organisation, Locked Bag 2001, Kirrawee DC, NSW 2232, Australia
3
Department of Biological Sciences, Macquarie University, North Ryde, NSW 2109, Australia
*
Author to whom correspondence should be addressed.
Water 2019, 11(1), 102; https://doi.org/10.3390/w11010102
Received: 1 November 2018 / Revised: 28 December 2018 / Accepted: 2 January 2019 / Published: 9 January 2019
(This article belongs to the Section Hydrology and Hydrogeology)

Abstract

Temperate Highland Peat Swamps on Sandstone (THPSS) in Eastern Australia are Groundwater Dependent Terrestrial Ecosystems that occur in the headwaters of streams on low relief plateaus. Like upland swamps and peatlands globally, they provide base flow to downstream catchments. However, these swamps are subject to aquifer interference from mining and groundwater extraction and are threatened by urbanization and climate change. We collected winter and summer water samples from swamps in two highland regions of Eastern Australia. Water from the swamps was analyzed for hydrogen (δ2H) and oxygen (δ18O) isotopes and compared with rainwater, surface water and groundwater samples from the surrounding bedrock aquifers to identify likely swamp water sources. Radon (222Rn) was used as an environmental tracer to determine whether the swamps were predominantly groundwater or rainwater fed. Four out of five swamps sampled in the Blue Mountains had greater than 30% of water derived from the surrounding bedrock aquifer, whereas swamps in the Southern Highlands received less than 15% of water from the surrounding aquifer. The water sources for swamps in both regions are controlled by catchment morphology, e.g., valley shape. Understanding water sources of these systems is critical for the determination of likely impacts on THPSS from aquifer interference activities and a changing climate.
Keywords: upland swamps; peatland; radon; isotopes; aquifer connectivity; water table; groundwater dependent terrestrial ecosystems upland swamps; peatland; radon; isotopes; aquifer connectivity; water table; groundwater dependent terrestrial ecosystems

1. Introduction

Temperate Highland Peat Swamps on Sandstone (THPSS) are a type of peat forming wetland located on plateaus in the headwaters of streams that feed into major drinking water catchments of eastern Australian cities. They are valley bottom swamps similar to the ‘fen’ classification of Northern Hemisphere peatlands in terms of their landscape position, morphology and sedge dominated floristics [1,2]. THPSS are low energy, sediment accumulation systems that terminate downslope at a bedrock constriction or step, discharging at the downstream end to small bedrock streams [3,4,5]. Like their Northern Hemisphere counterparts, THPSS are late-Pleistocene to Holocene features that began forming when increased rainfall and higher temperatures facilitated plant growth which led to organic matter accumulation within the sediment matrix, allowing for the formation of peat [6,7,8].
THPSS function in ways similar to other upland swamps and peatlands, acting as water storage and delivery systems to downstream catchments and providing base flow in dry times [9,10,11,12,13]. The standing water level in the swamps is typically around 0.2 m below the soil surface [3] although the sediment column is typically saturated due to soil capillary forces [14]. There is almost no surface water within THPSS, except during rainfall events [15]. They are Groundwater Dependent Terrestrial Ecosystems where their high water tables are an essential requirement for the maintenance of their unique hydrophilic vegetation and for the storage of carbon [3,9,14,16,17].
THPSS and peatland systems globally are under considerable stress from anthropogenic activities operating at different spatial scales [18,19,20]. Degradation from swamp drainage, channelization and peat extraction is well documented [3,21,22,23,24]. However, impacts from indirect, catchment-scale activities such as underground (longwall) mining and groundwater extraction have not been widely studied [25]. Activities that interfere with local and regional aquifers can have catastrophic consequences for groundwater dependent ecosystems such as peatlands and swamps [26,27,28]. Understanding where these swamps source their water is essential, not only for the appropriate management of downstream water resources, but also for the conservation of these ecosystems.
The water budgets of peatland systems typically consist of precipitation, evapotranspiration and interactions with surface and regional groundwaters [29,30]. The extent to which regional groundwater influences peatland hydrology is often constrained by geology and geomorphic setting [31,32,33,34], while the precipitation and evapotranspiration components are largely a function of climate and altitude [35,36,37].
Peatlands in the northern hemisphere have been classified according to their hydrological and geomorphic structure [2]. Blanket bogs and raised mires are largely rainwater fed systems located in undulating to flat catchments. They rely on high precipitation and low evaporation rates to maintain their water tables [2]. Valley or basin fens source a significant component of their water from the surrounding groundwater aquifers [33,38,39]. These peatlands are moderately steep and found in low points or valleys within high altitude areas [2]. Thus, the geomorphic structure of these systems plays a significant role in whether they have hydrological connectivity with the surrounding aquifer. Despite the similarities in the geomorphology of Northern Hemisphere fens and THPSS, no work has been undertaken, to date, to determine whether, like fens, THPSS are groundwater fed.
The aims of this paper are to:
(1)
investigate the structural attributes that may play a role in determining the hydraulic connectivity of THPSS swamp water to local bedrock aquifers (henceforth called groundwater);
(2)
identify the extent to which the swamp aquifer (henceforth called swamp water) contributes to downstream surface waters; and
(3)
discuss implications of how groundwater interference and climate change disturbances will impact on the water storage capacity of these systems with knock-on effects to other functions such as carbon storage.
We used oxygen (δ18O) and hydrogen (δ2H) isotopes, and 222Rn as environmental tracers of rainwater and groundwater contributions to determine the relative sources of water within 17 swamps in the Blue Mountains and Southern Highlands regions of NSW, Australia. Swamp/catchment morphometrics were analyzed using GIS. We hypothesized that the geomorphic structure of swamps and their catchments are a key control on where swamps source their water from and that swamp water makes a significant contribution to downstream surface water flow.

2. Regional Setting

2.1. Blue Mountains Study Area and Hydrogeology

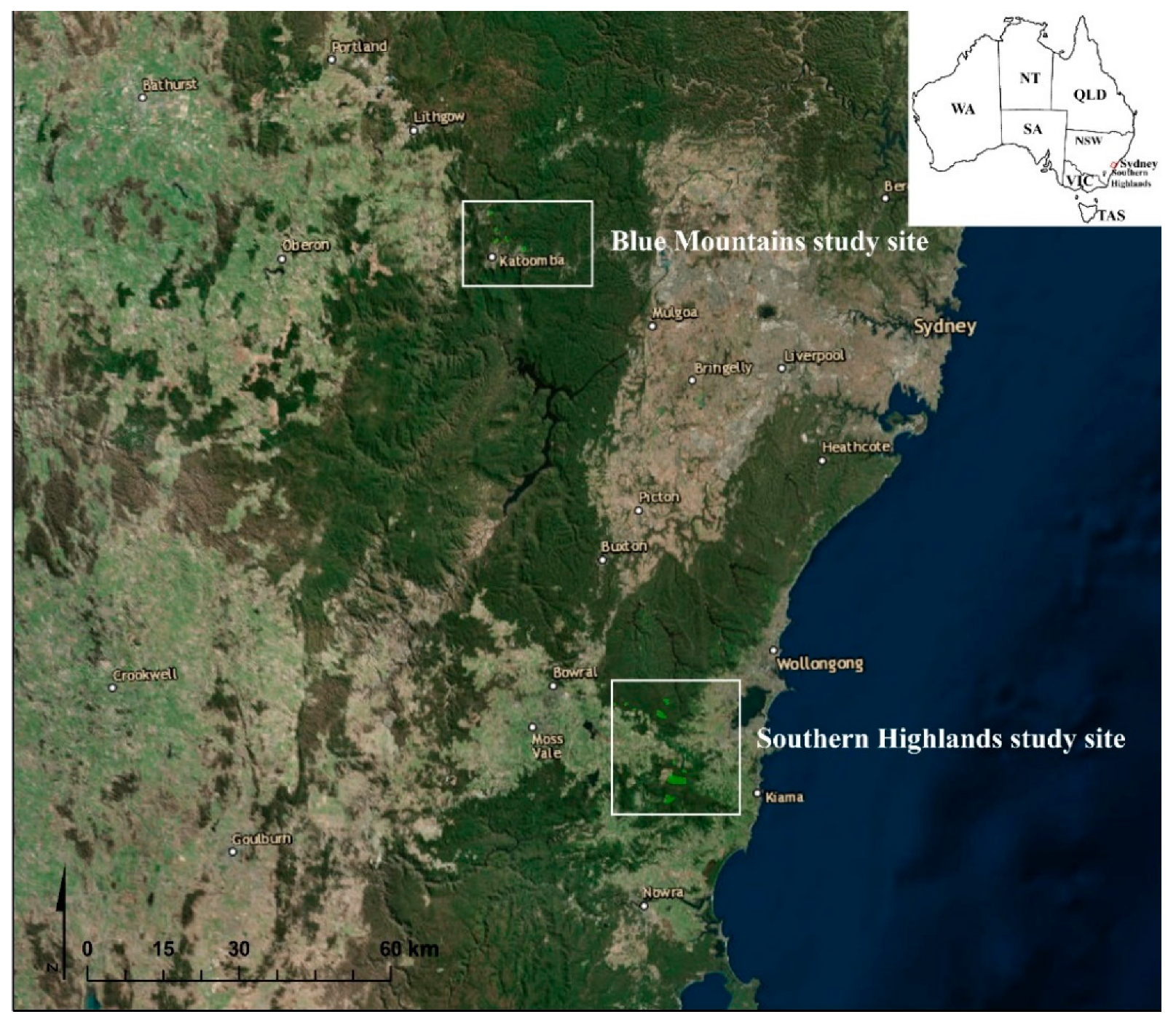

The study area is located within the Blue Mountains World Heritage Area (Katoomba 33°42′51″ S; 150°18′36″ E), approximately 100 km west of Sydney (Figure 1 and Figure 2a). The geology of the Blue Mountains plateau consists of low relief Triassic quartz sandstones inter-bedded with claystones which are dissected by steep dendritic gorges [40,41]. Elevation extends to over 1000 m above sea level (asl) at Blackheath. Rainfall for the region falls primarily in the summer months with mean annual rainfall at Katoomba of 1400 mm/year [42]. Snowfalls in the upper Blue Mountains can occur during winter with Blackheath receiving 15–20 cm in July 2015 during the study period [43]. The average maximum air temperature for Katoomba in summer is 23 °C while the mean minimum is 13 °C. The average maximum for winter is 9 °C while mean minimum is 3 °C. Relative humidity averages 74% [42].
The hydrogeology of the upper Blue Mountains sandstones is complex with both primary and secondary permeability occurring within four geological formations: Hawkesbury Sandstone dominates the ridges of the lower Blue Mountains consisting of cross-bedded medium to coarse quartzose sandstone, 1–10 m thick with lenses of laminate shale up to 3 m thick. The upper 30 m of this formation is poorly cemented west of Hazelbrook. The Narrabeen Group underlies the Hawkesbury Sandstone and consists of three formations: the Burralow Formation, an interbedded shale, laminate, fine quartz lithic sandstone and medium to coarse quartzose sandstone and conglomerate that is coarser and interbedded with more fine conglomerates in the western Blue Mountains: Wentworth Falls Claystones are red to grey kaolinite, illite and quartz claystone interbedded with sandstone 2 m thick at Katoomba: Banks Wall Sandstone, a coarse to very coarse quartzose sandstone with frequent claystone layers and iron cemented zones, 100 to 300 m thick [44]. Within the Hawkesbury Sandstone, primary permeability occurs west of Hazelbrook particularly within the sandstone overlying the Wentworth Falls claystone in the upper Blue Mountains [44]. Primary water bearing zones are between 2.5 and 185 m below ground level (bgl) with an average depth of 34.5 m. THPSS are located within these claystone/sandstone geological units [45].
The sedimentology of intact Blue Mountains THPSS consists of four distinct units [3,9,46,47]. The surficial organic fines (SOF) is a surface layer to a maximum depth of 0.7 m. This layer is highly porous consisting of red-brown fine sands and silts with living organic matter within the sediment matrix [3]. Relatively low carbon to nitrogen ratios indicate high rates of organic decomposition [48]. Moisture content within this unit is high, however the water table only reaches this layer during or after rainfall [9]. Underlying the SOF is the alternating organic sands (AOS) which are black, highly organic, alternating sandy loams and loamy sands. High carbon to nitrogen ratios in this unit indicate high carbon storage [3]. Water tables generally sit within this layer [9].
Five THPSS in the Blue Mountains were chosen from the database reported in Fryirs and Hose [4] and Fryirs, et al. [49]. The swamps are located in Wentworth Falls, Leura, North Katoomba, Medlow Bath and Blackheath (Figure 2a). The swamps range in elevation from 836 m aslfor the Wentworth Falls Site to 983 m asl for Blackheath. The swamps are located within small steep sided elongate V-shaped valleys at the top of the Blue Mountains plateau with a generally north-easterly aspect. Downslope, the swamps discharge into small bedrock streams from a knickpoint or bedrock step [49] (Figure 2b,c). Sclerophyll forest or woodland vegetation communities border the swamps with sedge, grass, heath and shrub communities occupying the swamp center [50] (Figure 2c). Dominant species includes Carex spp., Lepidosperma limicolum, Dichelachne inaequalis, Poa labillardieri var. labillardieri, Epacris microphylla, Epacris paludosa and shrubs; Grevillea acanthifolia, Hakea spp., Leptospermum spp. [20].

2.2. Southern Highlands Study Area and Hydrogeology

The Southern Highlands study area is located approximately 100 km southwest of Sydney on the Illawarra Escarpment, an undulating, low relief plateau of Hawkesbury sandstone lying at approximately 600–800 m asl [51] (Figure 1 and Figure 3a). The geology consists of horizontally bedded Triassic sandstone with basalt capping in localized areas [52]. Hawkesbury Sandstone is the surficial geological unit in the area [53]. The study area can be divided into two subregions: the East Kangaloon area, located within the Nepean River catchment and the Budderoo area, located within the Kangaroo River catchment (Figure 3a). The East Kangaloon area falls within Sydney’s drinking water catchment. The Budderoo area, 16 km west of Kiama, falls within Budderoo National Park and drains into the Kangaroo River, which is part of the Shoalhaven River catchment. Average annual rainfall is 1600 mm/year at Robertson to the northwest of both subregions [42], however a rainfall gradient occurs on the plateau, increasing in the east at approximately 50 mm/km, largely due to orographic precipitation [51]. Evaporation is lower than precipitation inputs, creating a positive precipitation to evaporation ratio that is most apparent in winter [54]. Mean minimum and maximum summer temperatures are 12 and 26 °C respectively, and mean winter minimum and maximums are 2 and 13 °C, respectively. Relative humidity averages 75% [42].
The Hawkesbury Sandstone unit in this region is considered the primary water bearing geological unit. It is a layered aquifer with multiple groundwater bearing zones within vertically discrete horizons of varying connectivity. Groundwater occurs as both primary (through sandstone pore space) and secondary fracture flows. The East Kangaloon area is considered the primary recharge area for the regional aquifer [53]. Distinct water bearing zones occur within secondary porosity fractures that have considerable lateral variability [55]. There are two major aquifer zones in the upper part of the Hawkesbury Sandstone; the upper aquifer lies at depths of 15–40 m and the lower aquifer occurs between 40 and 60 m although a shallow water bearing zone occurs at 5–7 m bgl [56]. The sedimentology of the Southern Highlands THPSS is similar to that of the Blue Mountains swamps with the four previously described sedimentary units overlying bedrock or saprolite [47].
Seven THPSS in the East Kangaloon sub-region and five in the Budderoo sub-region were selected for sampling based on previous investigations [47] (Figure 3a). Elevation ranges from 580 m to 640 m asl across the two subregions. These swamps are relatively large, flat basins located within round, low relief valleys (Figure 3b,c). Vegetation is dominated by Gymnoschoenus sphaerocephalus, Drosera binata, Baumea articulate, Leptospermum juniperinum, Gleichenia dicarpa and Xyris operculata [14].

3. Materials and Methods

3.1. Swamp Morphometry

Mapping of THPSS catchment areas was undertaken using hydrologically enforced SRTM Digital Elevation Models (DEM) sourced from Geoscience Australia’s Elevation Information System in ARCGIS 10.3. Swamps and their associated catchments were mapped as discrete polygons for attribute analysis. Physical attributes such as swamp and catchment area, slope and elevation were measured using GIS automation tools. Statistical analysis of physical attributes and water sources and storage times was undertaken using Principal Component Analysis, 1-way analysis of variance (ANOVA) and a linear regression model in Minitab® (version 17.3.1). Assumptions of normality and homogeneity of variance were assessed using Q-Q plots and plots of residuals. The significance level (α) for all tests was 0.05.

3.2. Water Sample Collection

3.2.1. Isotopes

Stable isotopes of oxygen (δ18O) and hydrogen (δ2H) are widely used in hydrological investigations because kinetic changes that produce fractionation and mixing of δ18O and δ2H isotopes from differing sources can provide valuable information on water residence times, sources and climate sensitivity [57]. In this study, δ2H and δ18O isotope values were used to establish mixing lines to ascertain whether regional groundwater is an endmember of swamp water.
Sampling within the Blue Mountains and Southern Highlands took place between July 2015 and February 2016. Samples for isotope analysis from both swamp water and surface water of bedrock streams located downstream of the swamps were collected in two rounds; July–August 2015 and January–February 2016. Rainwater samples for isotope analysis were collected in each region from rain events either prior to, or during sampling events. Additional rainwater δ18O and δ2H isotope values from samples were collected as part of a study by Hose, et al. [58].
Swamp water was collected from piezometers installed within the swamps. Each piezometer was constructed of 50 mm diameter PVC pipe, slotted (1 mm width) along its entirety, with a basal cap. The piezometers extended through the alluvial sediment to saprolite or bedrock and were installed using a Russian D-corer to maximum depth of 2.81 m. The depth of swamp sediments ranged from 0.75 to 2.81 m.
The piezometers were purged prior to sampling by removing three well-volumes of water using a bailer. Physico-chemical parameters of temperature, dissolved oxygen, pH, and electrical conductivity were measured using a YSI Pro Plus multi-parameter meter (YSI Inc., Yellow Springs, OH, USA) and sampling was undertaken after these parameters had stabilized. Samples were collected in 30 mL HDPE bottles, ensuring no headspace. Lids of the bottles were sealed with tape to prevent evaporation and were stored away from direct sunlight until analysis. Surface water samples were collected from small bedrock streams downstream of the swamps at the same time as swamp water sampling. Physico-chemical parameters were measured during sample collection. Groundwater samples were collected from existing groundwater bores in each region with physico-chemical parameters measured prior to sampling.
The depth of the Wentworth Falls and Katoomba groundwater bores in the Blue Mountains were 50 m and 19 m below ground level (bgl) respectively with static water levels in the Katoomba bore between 3.4 and 4.4 m bgl. Groundwater bores in the Southern Highlands were at depths of 7 m and 90 m bgl with static water levels between 1.05 and 2.5 and 1.7 and 3.12 m bgl respectively. Three well volumes were purged using a peristaltic pump (Geotech Geopump™ Peristaltic Pump Series II). Samples were analyzed at the Environmental Isotope Laboratory at Australian Nuclear Science and Technology (ANSTO).
The stable isotope ratios of δ18/16O‰ and δ2/1H‰ were obtained via isotope ratio infrared spectroscopy (IRIS) [59,60] using a Picarro™ L2130i cavity ring down spectrometer. Instrument calibration and quality control is achieved by utilizing secondary standards that have been accurately calibrated against IAEA primary standards VSMOW2, SLAP2 and GISP. Multiple sets of standards are analyzed throughout the analytical run to enable instrument drift correction. Each standard and sample are injected six times into the instrument, the first injection is used to flush the system to remove memory effects; the remaining five injections are used to generate analytical data with small standard deviations. Raw data analysis and reduction are undertaken using the IAEA’s SICalb software, version 2.14j. Stable isotope data are reported as δ-values relative to VSMOW.

3.2.2. Radon (222Rn)

Radon (222Rn) is an inert gas with a half-life of 3.8 days that has been used as an environmental tracer of groundwater for well over 20 years [61,62]. It is produced by the radioactive decay of 226Ra and emanates from mineral grains by α-recoil which dissolves in the aqueous phase making it an ideal conservative tracer for groundwater [62,63,64].
Sample collection for 222Rn took place in October 2015 in the Blue Mountains and in December 2015 in the Southern Highlands. Samples were collected from the swamp water within the fully screened piezometers installed within the swamps. Three well volumes were purged prior to sampling using a peristaltic pump (Geotech Geopump™ Peristaltic Pump Series II). Temperature, dissolved oxygen, pH, and electrical conductivity were measured using handheld meters and water sampling for 222Rn analysis was undertaken after these parameters had stabilized.
Samples were collected in 1.25 L PET bottles using the peristaltic pump. The bottles were filled to three times overflowing to ensure no headspace remained in the bottle. Surface water samples were collected from the small bedrock streams, below each swamp. The PET bottles were then placed within an insulated container heated to 25 °C prior to extraction.
Extraction took place within 4 h of sampling. Fifty milliliters of water was removed from the bottles using a syringe and then 25 mL of mineral scintillant was injected into the bottles. The bottle was then shaken for 4 min prior to scintillant aqueous phase extraction into a 20 mL PTFE scintillation vial [65]. Samples were transported within 2 h of extraction to the Radon Analytical Laboratory at Australian Nuclear Science and Technology Organisation (ANSTO).
Sediment emanation incubation was undertaken using 350 g of sediment from cores collected during the water sampling rounds. The sediment was placed in 50 µm filter bags within PVC containers 300 mm high and 100 mm diameter. The containers were then filled with 2.4 L deionized water ensuring no headspace and sealed. The containers were then left to incubate for six weeks. The incubated water was then removed from the containers using a peristaltic pump connected to HDPE tubing (sealed within the PVC container) into 1.25 L PET bottles. Extraction methods then followed the field-based extraction methodology.
The 222Rn samples were analyzed via liquid scintillation counting on a PerkinElmer™ Quantulus 1220 ultra-low background liquid scintillation counter. Samples were allowed to thermally stabilize inside the counter for several hours before being assayed. A standardized solution of 226Ra, which was sealed inside an air-tight glass Schott bottle with no headspace for 2 months, was used as the analytical standard. The 222Rn from this solution was extracted from the solution in the same way as the samples. An analytical blank was also created by utilizing RO water in place of sample/standard solutions, hence eliminating matrix effects. All samples/standards/blanks were counted under identical conditions using a PSA value of 58 to discriminate between alpha and beta decay. Quantification of the 222Rn activity in the samples was completed using first principles including blank subtraction and decay correction back to the sampling date/time.

3.3. Calculating Water Sources

Radon is conventionally used as an environmental tracer to quantify groundwater inputs in surface waters. This study attempts to determine if groundwater is a significant swamp water source. This means that conventional mixing equations require some modification to suit the examination of a receiving body that is a shallow groundwater aquifer rather than a surface water body.
To estimate 222Rn activity in the swamp water that can be explained by groundwater sources, 222Rn emanation from the sediment incubation was subtracted from the radon activity derived from the swamp water samples, as modified from Santos and Eyre [66]:
222Rnex = 222Rnsw222Rnem
where 222Rnex is the 222Rn activity in swamp water that can be explained by groundwater sources, 222Rnsw is the 222Rn activity in the swamp water at the time of measurement and 222Rnem is the 222Rn emanation from the sediment incubation.
Outgassing of 222Rn to atmosphere was not considered to be important for the calculation of groundwater contribution to the swamp water, however radioactive decay of groundwater derived 222Rn was considered in the mixing model. The calculation of radioactive decay for groundwater derived 222Rn was modified from Burnett, et al. [67] such that:
222Rndec = 222Rngw − ([Ln(222Rnex/222Rngw)1/−λ] × λ)
where 222Rndec is the actual groundwater derived 222Rn activity after radioactive decay has been accounted for, 222Rngw is the 222Rn activity in the groundwater at the time of measurement and λ is the radon decay constant (0.181 day−1).
To calculate the relative ratio of groundwater to other water inputs, a simple mixing ratio, modified from Santos and Eyre [66], was used:
GWra = (222Rnex/222Rngwdec) × 100
where: GWra is the percentage of groundwater passing through the vertical plane of the swamp at the point of measurement and 222Rngwdec is the 222Rn concentration in the groundwater end member after radioactive decay has been accounted for.
To calculate the minimum percentage of water from the swamp water that contributes to downstream surface waters, Equation (3) was modified such that:
SWrn = (Rnsur/Rnsw) × 100
where SWrn is the percentage of water derived from the swamp water, Rnsur is the 222Rn concentration in surface waters and Rnsw is the 222Rn concentration in the swamp water. As evasion to atmosphere has not been accounted for in this equation, it can only provide an estimate of the minimum contribution of the swamp water to surface waters.
Uncertainty analysis was undertaken for the radon mixing model to confirm their validity. Uncertainty was calculated from an error propagation equation [68] such that:
γQ/Q = [√(γ222Rnsw/222Rnsw)2 + (γ222Rngw/222Rngw)2] × GWr
where γQ is the uncertainty of groundwater derived swamp water, Q is the calculated groundwater derived swamp water, γ222Rnsw is the uncertainty of 222Rn activity in the swamp water at the time of measurement and γ222Rngw is the uncertainty of 222Rn activity in the groundwater at the time of measurement.
Defining endmembers of hydrological systems can be difficult due to spatial and temporal variability as well as errors in mixing models [69]. Determining endmembers from mixing lines can be useful in determining water sources, particularly for the identification of groundwater recharge [69]. Endmembers of mixed water samples should fall along the mixing line with the mixed waters within the interval defined by the endmembers [69]. Mixing lines for each swamp were developed from isotope ratios of the summer and winter groundwater and swamp water to validate whether groundwater was an endmember of the swamp water.

4. Results

4.1. Regional Differences in Swamp Morphometry

There were significant differences in swamp and catchment morphometry between the two regions. Mean swamp slope in the Blue Mountains ranged from 28° to 45° while swamps in the Southern Highlands ranged from 2.2° to 7° (Table 1). Minimum swamp slope differences were also significant (p < 0.05) with Blue Mountains mean minimum slopes, on average, 0.9° less than Southern Highlands’ minimums. Catchment slope between the two regions was also significantly different (p < 0.5). Blue Mountains mean catchment slopes were between 5.3° and 9.9°, while Southern Highlands’ catchment slopes were between 1.9° and 6.5° (Table 1). Catchment slope variability or range was also significantly different in the two regions, with slope ranges showing 55% more variation in the Blue Mountains (Table 1).

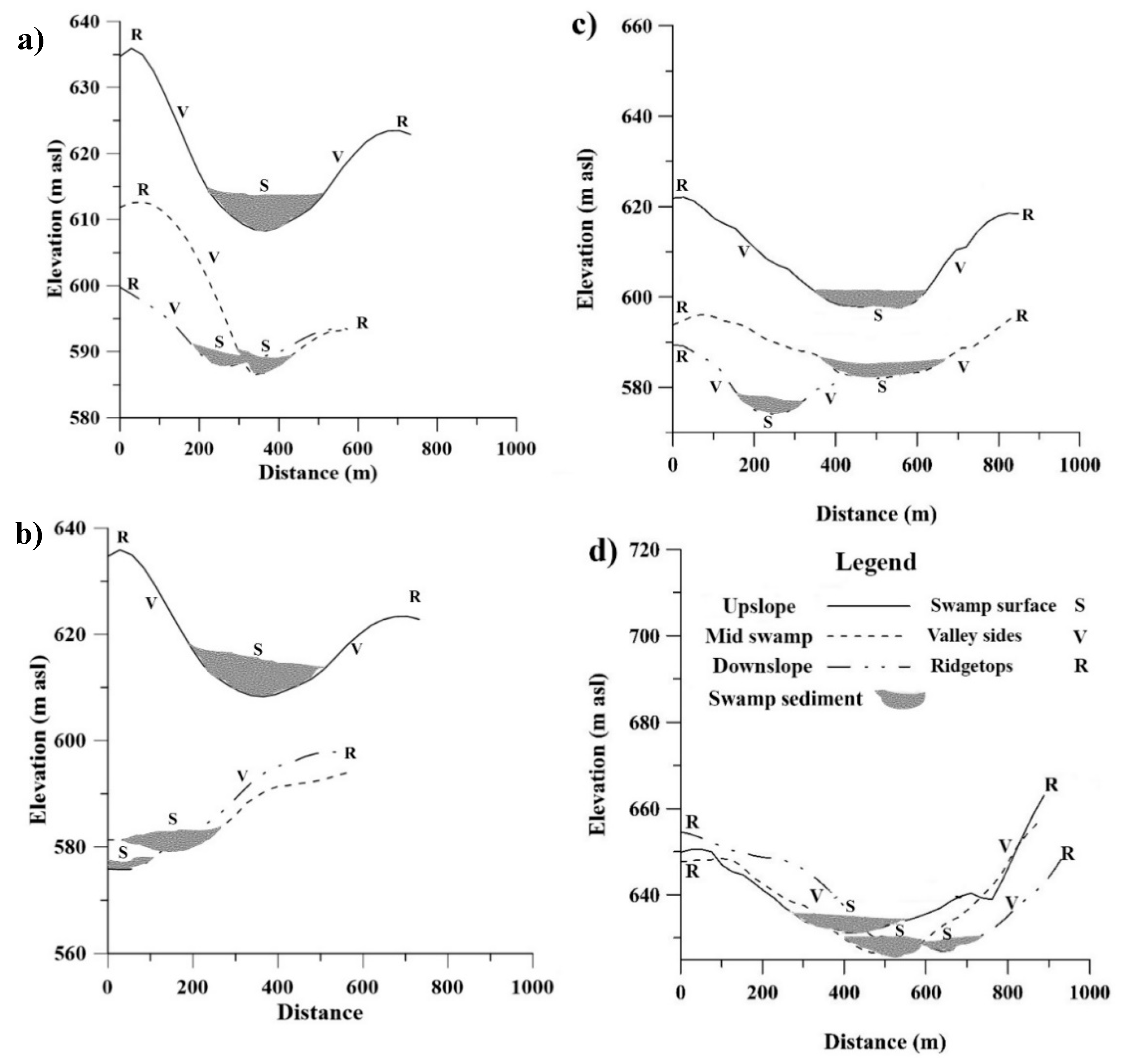

There were clear differences in swamp morphometry between the two regions as apparent from cross-sectional profiles in Figure 4 and Figure 5. THPSS of the Blue Mountains are set within V-shaped valleys with increasing gradients toward the swamp termination point or foot, located at downstream bedrock steps or valley constrictions. The swamps are narrow, steep-sided and elongate [49]. Southern Highlands’ swamps are set within broad U-shaped valleys and have gentler gradients toward the swamp outlet. Elevation differences were also significantly different between the two regions. On average, the Blue Mountains swamps were 953 m asl while Southern Highlands swamps were 619 m asl (Table 1). Other physical attributes of these systems such as swamp and catchment area, and aspect were not significantly different.

4.2. Swamp Water Sources

Radon concentrations in the swamp water of Blue Mountains THPSS ranged from 1 Bq/L to 4.3 Bq/L in the swamp water and between 2.4 and 5.3 Bq/L in the groundwater (Table S1). Southern Highlands’ 222Rn concentrations ranged from 1.1 Bq/L to 9.3 Bq/L in the swamp water. 222Rn concentrations in groundwater were 69.3 Bq/L for shallow groundwater (7 m bgl) and 17.7 Bq/L for the deep groundwater (90 m bgl) (Table S1).
The Radon mixing ratio for the Blue Mountains’ swamps indicated relatively high contributions from groundwater to the swamp water. Groundwater contributions ranged from 28% to 82%, with an average of 51% (Table 2 and Figure 6a). Except for Walmer Crescent swamp in Wentworth Falls, the degree of uncertainty for the Radon mixing model was less than 5% (Table S2). Four out of the five swamps had contributions from groundwater of greater than 30% (Table S2 and Figure 6a). Mixing lines of groundwater and swamp water isotope ratios (Figure 7a–e) show groundwater isotope ratios for three of the five swamps, Walmer Cres at Wentworth Falls, Mt Hay at Leura and Perrys St at Blackheath sitting at one end, along the mixing line, indicating that groundwater was one endmember of the swamp water.
In the Southern Highlands, the radon mixing ratios from groundwater to the swamp water ranged from 7% to 14%, with an overall average of 10%, significantly lower than that of the Blue Mountains (Table 2 and Figure 6b). The uncertainty for the Southern Highlands Radon mixing models were either equal to, or below 1% (Table S2). Isotope mixing lines (Figure 8a–d) for the southern highlands indicated that, with the exception of the Budderoo swamp (Jess and Jane), groundwater was not an endmember of these swamps.
Principal component analysis of swamp water sources and swamp/catchment morphometrics indicated a positive correlation between elevation, swamp and catchment slope, and catchment elongation and percentage of swamp water sourced from groundwater. These variables account for around 54% of the variation in swamp water sources. There was also a weak negative correlation between swamp and catchment area and length, swamp elongation and aspect (Figure 9). Regression for swamp and catchment slope, catchment elongation and elevation also showed a strong correlation (p < 0.05) between these swamp/catchment attributes and groundwater connectivity (Table 3 and Figure S1). In general, steeper swamps in rounder catchments with steeper more variable slopes at higher, more variable elevations had greater groundwater connectivity than did swamps with lower gradients in flatter, more elongate catchments at lower, less variable elevations.

4.3. Swamp Water Contributions to Downstream Surface Waters

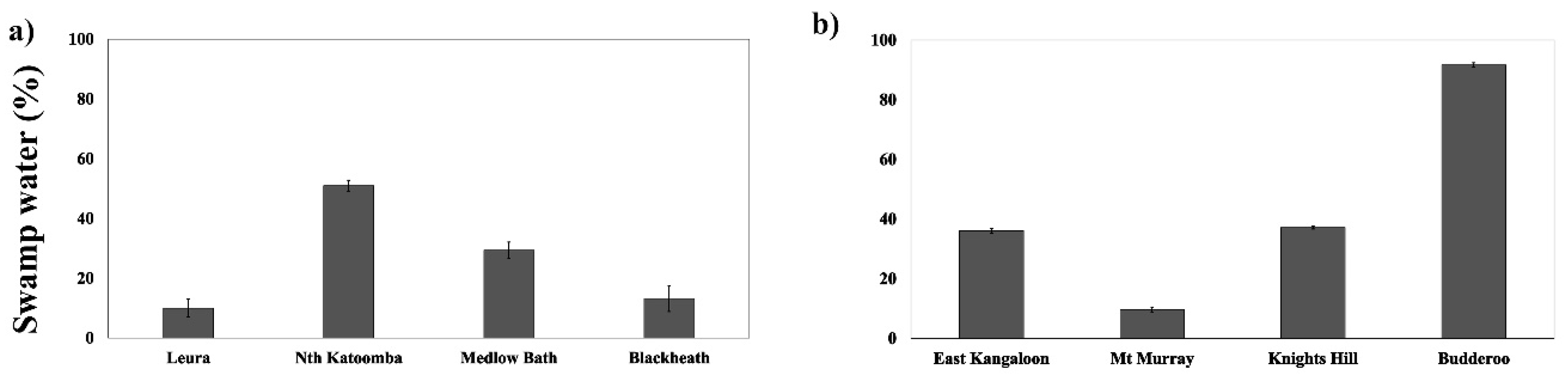

222Rn concentrations in Blue Mountains surface waters ranged from 0.03 to 0.5 Bq/L with a mean of 0.3 Bq/L (Table S3). Radon mixing ratios for surface waters downstream of Blue Mountains’ swamps indicated that an average of 21% of surface water was derived from swamp water within a range of 0.6 and 51% for the study swamps. 222Rn concentrations in Southern Highlands’ surface waters ranged from 0.16 to 3.4 Bq/L with a mean of 1.4 Bq/L (Table S3). Contributions from the swamp water to downstream surface waters were somewhat higher than those of the Blue Mountains and ranged between 9.7 and 92% with a mean of 44%, however mean contributions in each region were not significantly different (p > 0.05, Table 2 and Figure 10).

5. Discussion

5.1. Structural Controls on Water Sources of THPSS

The connectivity of upland swamps and peatlands to aquifers has been well documented in the Northern Hemisphere [2,70,71] with slope and catchment morphology being key controls on water sources (surface water or groundwater) [72,73,74]. The results of this study indicate that, like Northern Hemisphere peatlands and other Groundwater Dependent Terrestrial; Ecosystems, morphometric characteristics of THPSS valleys and their catchments are also key controls on water sources. The Blue Mountains swamps are set within steep sided v-shaped valleys at elevations between 820 and 1000 m asl as Figure 5 and Table 2 shows. These swamps source between 28% and 82% of their water from groundwater. In contrast, the Southern Highlands’ swamps set within more rounded, gentler valleys at lower elevations with more uniform relief. These swamps source between 7% and 14% of their water from groundwater (Figure 5, Table 2).
The extent to which a swamp is sourcing water from groundwater or surface water has implications for the extent to which key swamp functions (water storage and carbon storage in particular) can be affected by different disturbances [9,10,14,75,76,77]. Here we consider the dual role of groundwater interference and a changing climate on swamp function, disturbances that are particular threats to THPSS [25].

5.2. Sensitivity of THPSS to Groundwater Interference

THPSS that receive a high proportion of water from groundwater are particularly vulnerable to groundwater interference or extraction. These swamps have more stable water tables than those that are surface water fed, therefore maintaining the permanently saturated sediments required for primary functions such as carbon storage and peat formation [3,13,15,78]. More stable water levels also help maintain biotic composition and function [14]. Differences in the water table response of groundwater fed swamps to low rainfall periods differs markedly from that of primarily rainwater fed swamps where water table drawdowns frequently occur during dry periods. Figure 11a shows two Blue Mountains swamps, Grand Canyon and Walmer Cres which source 38% and 82% of their water from groundwater, respectively with stable water tables during a month without significant rainfall, while Figure 11b shows Butlers and North Stockyard swamps in the Southern Highlands (13.7% and 10% of water sourced from groundwater, respectively), with drawdowns of up to 0.6 m. Fryirs, et al. [9] found similar drawdowns occurred during dry times at Jess and Jane swamp in the Southern Highlands where this study found only 7% of swamp water was derived from groundwater.
Changes in the hydrological connectivity of swamps to groundwater sources is likely to lead to changes in water levels with knock-on effects on other important swamp functions. Lower, more variable water tables, have the potential to reduce the water and carbon storage capacities of these systems and increase the rate of organic matter decomposition [5,15]. With lower water tables, the swamps retain less water and the aeration of upper layers of sediment increases the filtration of oxic water to the deeper layers [79]. This in turn lowers organic matter content within swamp sediments, thus reducing their water holding capacity [79,80]. Increased primary productivity within the sediments leads to CO2 emission to the atmosphere as well as the export of dissolved organic carbon (DOC) and particulate organic carbon (POC) downstream [81]. Loss of these crucial swamp functions can, in turn lead to structural changes to the swamp sediments themselves, thus initiating a positive feedback loop that further reduces the carbon and water storage function of these systems [3,22,82].
While we have highlighted the importance of groundwater to upland swamps, we can only speculate on how they respond to changing groundwater inputs. Given the considerable capillary fringe (potentially several meters [14] in the THPSS sediments), sediments remain saturated well above the water table. Minor changes in groundwater input may have little effect on the swamp structure and function, suggesting a staged response [83] with effects occurring after a critical threshold is reached, although inevitably swamp discharge will be reduced. However, given the often dramatic water table drawdowns in swamps and peatlands as a result of aquifer interference from mining, water extraction and tunneling [26,28,84], the buffering capacity of the system will be quickly exceeded. The consequences of water table drawdown on swamp desiccation, channelization, carbon emissions and export, and vegetation changes, even leading to swamp destruction, have also been documented [25,80,84,85,86]. Thus consideration of impacts on Groundwater Dependent Terrestrial Ecosystems such as THPSS, of aquifer interference at a regional scale should be undertaken [17].
Although swamps may tolerate small changes to groundwater input, swamps provide 0.6% and 92% of downstream surface waters. Any significant change in the water balance of the swamps will have serious implications for downstream water supply and provision of base flow to lower catchment streams during relatively short dry periods [87].
It is essential that swamps vulnerable to water table drawdowns from aquifer interference be identified prior to the commencement of any aquifer interference activity within these hydrologically connected zones. Once swamps have experienced significant drawdowns, the re-instatement of their former structure and function is virtually impossible [25,26]. By understanding the structural controls on the hydrological connectivity of THPSS, appropriate planning controls can be employed to identify the swamps that may be sensitive to aquifer interference, to prevent aquifer interference where impacts on swamp water tables are likely, and better inform management and rehabilitation activities [88].

5.3. Sensitivity of THPSS to a Changing Climate

THPSS that are primarily rainwater fed are particularly vulnerable to a changing climate. The high water tables that are a feature of THPSS and upland swamps more generally, are dependent on a climate regime where evaporation rates are lower than precipitation [89]. Diurnal patterns of water table fluctuation during periods of low rainfall have been observed in Northern Hemisphere peatlands [2,90] but evaporation rates are generally low [91,92]. In Australia, average annual evaporation rates are expected to increase by approximately 5.6% between 2030–2050 [93] and rainfall is expected to become more variable with longer duration droughts punctuated by more intense rainfall and flooding events [94]. The proportion of THPSS that source a majority of their water from rainfall, such as the Southern Highlands’ swamps will, under predicted climate warming scenarios, be placed under significant water stress. Given that these swamps are located at lower elevations than other THPSS, these swamps are likely to be impacted by increased temperatures and evaporation earlier than those found at higher elevations (Table 1). Lowered water tables within THPSS in the upper catchments as a result of climate change will produce changes to geomorphic structure and function of the primary water storage and carbon storage sedimentary unit, the alternating organic sands [3,95]. Increased temperature and evaporation rates will also affect organic matter supply and decomposition, leading to decreased water storage and increased carbon emission and export [96,97]. Nichols, et al. [98] found higher temperatures and evaporation during the mid-Holocene led to much lower carbon accumulation rates as a result of vegetation changes at an ecosystem scale. Jassey, et al. [99] found increases in warming lead to changes in the microbial food web which destabilizes carbon and nitrogen cycling in peatlands, leading to significant climate feedbacks.
Any disturbance that affects the water holding capacity of THPSS will decrease base flows to lower catchment streams. Given that THPSS occupy a significant area of the drinking water supply catchments for Sydney, Australia’s largest city, a management focus aimed at minimizing disturbance to their water sources and maintenance of their water storage function is imperative for safe guarding future water supplies, particularly in times of drought [100,101].

6. Conclusions

This study has been the first to investigate the water sources of THPSS and to identify the structural features that control where these swamps source their water. THPSS that are found at high elevations within steep sloped V-shaped valleys are more likely to be groundwater fed than those at lower elevations in more U-shaped valleys with gentler slopes. THPSS provides up to 92% of the water in downstream water courses, confirming their importance in the water supply of downstream catchments. Changes in water table levels in THPSS as a result of aquifer interference within hydrologically connected swamp catchments or increases in temperature and evaporation from a warming climate in rainwater fed systems, will likely result in losses of organic matter within the sediment with concomitant decreases in carbon accumulation and increases in carbon exports. By understanding the water source and storage dynamics of these systems, and their sensitivity to groundwater interference and climate change, it is vital that THPSS are protected, particularly in regions where they make an important contribution to water supply catchments and ecosystem services.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4441/11/1/102/s1, Figure S1: Regression plots showing correlations between groundwater connectivity and a subset of swamp-catchment morphometrics such as (a) Mean swamp slope, (b) Mean catchment slope, (c) Maximum catchment slope (d) Catchment slope range, (e) Catchment elongation, (f) Swamp elevation range, Table S1: Individual Radon and isotope sampling results for swamp water, groundwater, surface waters and rainwater, Table S2: Groundwater mixing model results for swamp waters and surface waters for all swamps within the two study regions, Table S3. Statistics for δ2H‰, δ18O‰ and 222Rn for swamp water, groundwater and surface water in the two regions.

Author Contributions

Conceptualization, K.L.C., K.A.F. and G.C.H.; Methodology, K.L.C. and R.C.; Formal analysis, K.L.C. and R.C.; Validation, R.C.; Writing—original draft preparation, K.L.C.; Writing—review and editing, K.A.F., G.C.H. and R.C.; Visualization, K.L.C., K.A.F. and R.C.; Supervision, K.A.F.; Investigation, K.L.C.; Project administration, K.A.F.; Funding acquisition, K.A.F. and G.C.H.

Funding

This project was supported by an Australian Research Council Linkage Grant (LP130100120) awarded to KF and GH, with the Southern and Greater Sydney Local Land Services as industry partners. Funding was also received from the Temperate Highland Peat Swamps on Sandstone Research Program (THPSS Research Program). This Program was funded through an enforceable undertaking as per section 486A of the Environment Protection and Biodiversity Conservation Act 1999 between the Minister for the Environment, Springvale Coal Pty Ltd and Centennial Angus Place Pty Ltd. Further information on the enforceable undertaking and the terms of the THPSS Research Program can be found at www.environment.gov.au/news/2011/10/21/centennial-coal-fund-145-million-research-program. Two Australian Institute of Nuclear Science and Engineering (AINSE) grants (ALNGRA 15035 and ALNGRA 15527) awarded to KF supported the isotope and Radon work. KC held a Macquarie University Research Excellence Scholarship (MQRES) and received Higher Degree Research support.

Acknowledgments

We thank WaterNSW for the use of swamp hydrograph data for Southern Highlands swamps in Figure 11b. We thank the following volunteers who contributed their time collecting field data; John Cowley, Alan Baldry, Jack Flanagan, Susie Schwartz, David Wooldridge, Fletcher Milthorpe, Brad Graves, Nakia Belmer, Danielle Camenzuli, Recce Toase, Rory Williams. We also thank our rainwater collection volunteers; Alan Lane, Tania O’Sullivan, Fitzroy Falls Visitors Centre and Ross Day. Fieldwork was approved under NSW National Parks and Wildlife Service Scientific License No. SL101129, a Sydney Catchment Authority License (D2014/69166) and with permission of the Blue Mountains City Council.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bonn, A.; Allott, T.; Evans, M.; Joosten, H.; Stoneman, R. Peatland Restoration and Ecosystem Services: Science, Policy and Practice; Cambridge University Press: Cambridge, UK, 2016. [Google Scholar]
  2. Evans, M.G.; Warburton, J. Geomorphology of Upland Peat; Blackwell Publishing: Oxford, UK, 2007. [Google Scholar]
  3. Cowley, K.L.; Fryirs, K.A.; Hose, G.C. Identifying key sedimentary indicators of geomorphic structure and function of upland swamps in the Blue Mountains for use in condition assessment and monitoring. Catena 2016, 147, 564–577. [Google Scholar] [CrossRef]
  4. Fryirs, K.; Hose, G. The Spatial Distribution and Physical Characteristics of Temperate Highland Peat Swamps on Sandstone (THPSS). Ecological Management and Restoration. 20 April 2016. Available online: https://site.emrprojectsummaries.org/2016/04/20/the-spatial-distribution-and-physical-characteristics-of-temperate-highland-peat-swamps-on-sandstone-thpss/ (accessed on 18 October 2018).
  5. Cowley, K.; Looman, A.; Maher, D.T.; Fryirs, K. Geomorphic controls on fluvial carbon exports and emissions from upland swamps in eastern Australia. Sci. Total Environ. 2018, 618, 765–776. [Google Scholar] [CrossRef] [PubMed]
  6. Belyea, L.R.; Malmer, N. Carbon sequestration in peatland: Patterns and mechanisms of response to climate change. Glob. Chang. Biol. 2004, 10, 1043–1052. [Google Scholar] [CrossRef]
  7. Charman, D.J.; Beilman, D.W.; Blaauw, M.; Booth, R.K.; Brewer, S.; Chambers, F.M.; Christen, J.A.; Gallego-Sala, A.; Harrison, S.P.; Hughes, P.D.M.; et al. Climate-related changes in peatland carbon accumulation during the last millennium. Biogeosciences 2013, 10, 929–944. [Google Scholar] [CrossRef][Green Version]
  8. Cohen, T.J.; Nanson, G.C. Mind the gap: An absence of valley-fill deposits identifying the Holocene hypsithermal period of enhanced flow regime in southeastern Australia. Holocene 2007, 17, 411–418. [Google Scholar] [CrossRef]
  9. Fryirs, K.; Gough, J.; Hose, G.C. The geomorphic character and hydrological function of an upland swamp, Budderoo plateau, southern highlands, NSW, Australia. Phys. Geogr. 2014, 35, 313–334. [Google Scholar] [CrossRef]
  10. Pemberton, M. Australian peatlands: A brief consideration of their origin, distribution, natural values and threats. J. R. Soc. West. Aust. 2005, 88, 81–89. [Google Scholar]
  11. Hope, G.S.; Nanson, R.; Flett, I. The Peat-Forming Mires of the Australian Capital Territory; Territory and Municipal Services; Australian Capital Territory: Canberra, Australia, 2009.
  12. Bragg, O.M. Hydrology of peat-forming wetlands in Scotland. Sci. Total Environ. 2002, 294, 111–129. [Google Scholar] [CrossRef]
  13. Bispo, D.F.A.; Silva, A.C.; Christofaro, C.; Silva, M.L.N.; Barbosa, M.S.; Silva, B.P.C.; Barral, U.M.; Fabris, J.D. Hydrology and carbon dynamics of tropical peatlands from Southeast Brazil. Catena 2016, 143, 18–25. [Google Scholar] [CrossRef]
  14. Hose, G.C.; Bailey, J.; Stumpp, C.; Fryirs, K. Groundwater depth and topography correlate with vegetation structure of an upland peat swamp, Budderoo Plateau, NSW, Australia. Ecohydrology 2014, 7, 1392–1402. [Google Scholar] [CrossRef]
  15. Cowley, K.L.; Fryirs, K.A.; Hose, G.C. The hydrological function of upland swamps in eastern Australia: The role of geomorphic condition in regulating water storage and discharge. Geomorphology 2018, 310, 29–44. [Google Scholar] [CrossRef]
  16. Shepherd, J.; Keyzer, V. Ecology of Eucalyptus aquatica (Myrtaceae): A restricted eucalypt confined to montane swamp (fen) habitat in south-eastern Australia. Cunninghamia 2014, 14, 63–76. [Google Scholar] [CrossRef]
  17. European Commission. Water Framework Directive (2000/60/EC), Technical Report No. 6 Groundwater Dependent Terrestrial Ecosystems 6; European Commission: Brussels, Belgium, 2011.
  18. Ballard, C.E.; McIntyre, N.; Wheater, H.S.; Holden, J.; Wallage, Z.E. Hydrological modelling of drained blanket peatland. J. Hydrol. 2011, 407, 81–93. [Google Scholar] [CrossRef][Green Version]
  19. Wheeler, B.; Shaw, S.; Routh, C. Restoration of Damaged Peatlands; HMSO: London, UK, 1995; Volume 4, pp. 31–33.
  20. Department of Environment. Temperate Highland Peat Swamps on Sandstone. Available online: http://www.environment.gov.au/node/14561 (accessed on 25 April 2016).
  21. Holden, J.; Wallage, Z.E.; Lane, S.N.; McDonald, A.T. Water table dynamics in undisturbed, drained and restored blanket peat. J. Hydrol. 2011, 402, 103–114. [Google Scholar] [CrossRef]
  22. Holden, J.; Evans, M.G.; Burt, T.P.; Horton, M. Impact of land drainage on peatland hydrology. J. Environ. Qual. 2006, 35, 1764–1778. [Google Scholar] [CrossRef]
  23. Parry, L.E.; Holden, J.; Chapman, P.J. Restoration of blanket peatlands. J. Environ. Manag. 2014, 133, 193–205. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Fryirs, K.A.; Cowley, K.; Hose, G.C. Intrinsic and extrinsic controls on the geomorphic condition of upland swamps in Eastern NSW. Catena 2016, 137, 100–112. [Google Scholar] [CrossRef]
  25. Krogh, M. Management of longwall coal mining impacts in Sydney’s southern drinking water catchments. Australas. J. Environ. Manag. 2007, 14, 155–165. [Google Scholar] [CrossRef]
  26. Jankowski, J. Surface Water-Groundwater Interaction in the Fractured Sandstone Aquifer Impacted by Mining-Induced Subsidence: 2. Hydrogeochemistry. Biul. Pañstw. Inst. Geol. 2010, 441, 43–54. [Google Scholar]
  27. McLean, W.; Divine, C.; Reece, E.; Jankowski, J.; Ross, J. The Investigation of Groundwater-Surface Water Linkages in the Sandstone Aquifers of the Upper Nepean Catchment. In H2009: 32nd Hydrology and Water Resources Symposium, Newcastle: Adapting to Change; Engineers Australia: Barton, Australia, 2009; pp. 298–309. [Google Scholar]
  28. Kværner, J.; Snilsberg, P. Groundwater hydrology of boreal peatlands above a bedrock tunnel—Drainage impacts and surface water groundwater interactions. J. Hydrol. 2011, 403, 278–291. [Google Scholar] [CrossRef]
  29. Rassam, D.W.; Werner, A. Review of Groundwater-Surfacewater Interaction Modelling Approaches and Their Suitability for Australian Conditions; eWater Cooperative Research Centre: Canberra, Australia, 2008. [Google Scholar]
  30. Walton, R.; Chapman, R.S.; Davis, J.E. Development and application of the wetlands Dynamic Water Budget Model. Wetlands 1996, 16, 347–357. [Google Scholar] [CrossRef]
  31. Stein, E.D.; Mattson, M.; Fetscher, A.E.; Halama, K.J. Influence of geologic setting on slope wetland hydrodynamics. Wetlands 2004, 24, 244–260. [Google Scholar] [CrossRef]
  32. Yeh, H.-F.; Lee, C.-H.; Hsu, K.-C.; Chang, P.-H. GIS for the assessment of the groundwater recharge potential zone. Environ. Geol. 2009, 58, 185–195. [Google Scholar] [CrossRef]
  33. Almendinger, J.E.; Leete, J.H. Regional and local hydrogeology of calcareous fens in the Minnesota River Basin, USA. Wetlands 1998, 18, 184–202. [Google Scholar] [CrossRef]
  34. Winter, T.C. Relation of streams, lakes, and wetlands to groundwater flow systems. Hydrogeol. J. 1999, 7, 28–45. [Google Scholar] [CrossRef]
  35. Sevruk, B. Regional dependency of precipitation-altitude relationship in the Swiss Alps. In Climatic Change at High Elevation Sites; Springer: New York, NY, USA, 1997; pp. 123–137. [Google Scholar]
  36. Fowler, D.; Cape, J.N.; Leith, I.D.; Choularton, T.W.; Gay, M.J.; Jones, A. The influence of altitude on rainfall composition at great dun fell. Atmos. Environ. 1988, 22, 1355–1362. [Google Scholar] [CrossRef]
  37. Brunsdon, C.; McClatchey, J.; Unwin, D.J. Spatial variations in the average rainfall-altitude relationship in Great Britain: An approach using geographically weighted regression. Int. J. Climatol. 2001, 21, 455–466. [Google Scholar] [CrossRef]
  38. Wassen, M.J.; Barendregt, A.; Palczynski, A.; de Smidt, J.T.; de Mars, H. The Relationship Between Fen Vegetation Gradients, Groundwater Flow and Flooding in an Undrained Valley Mire at Biebrza, Poland. J. Ecol. 1990, 78, 1106–1122. [Google Scholar] [CrossRef]
  39. Charman, D. Peatlands and Environmental Change; John Wiley & Sons Ltd.: Chichester, UK, 2002. [Google Scholar]
  40. Taylor, J.A. Peatlands of Great Britain and Ireland. In Ecosystem of the World; Elsevier: Amsterdam, The Netherlands, 1983; pp. 1–46. [Google Scholar]
  41. Pickett, J. Layers of time: The Blue Mountains and their geology. In Blue Mountains and Their Geology; Alder, J.D., Geological Survey of New South Wales, Eds.; Geological Survey of New South Wales: Sydney, Australia, 1997. [Google Scholar]
  42. van der Beek, P.; Pulford, A. Cenozoic Landscape Development in the Blue Mountains (SE Australia): Lithological and Tectonic. J. Geol. 2001, 109, 35–56. [Google Scholar] [CrossRef]
  43. Bureau of Meteorology Climate Data. Available online: http://www.bom.gov.au/jsp/ncc/cdio/weatherData/av?p_nccObsCode=139&p_display_type=dataFile&p_startYear=&p_c=&p_stn_num=063039 (accessed on 7 August 2016).
  44. Bureau of Meteorology. Monthly Weather Review—Australia July 2015; Bureau of Meteorology: Melbourne, Australia, 2015.
  45. Van Putten, R.; McQueen, L.B. Blue mountains sewage transfer scheme: A review of tunnelling. Tunn. Undergr. Space Technol. 1994, 9, 215–224. [Google Scholar] [CrossRef]
  46. Holland, W.N.; Benson, D.H.; McRae, R.H.D. Spatial and temporal variation in a perched headwater valley in the Blue Mountains: Geology, geomorphology, vegetation, soils and hydrology. Proc. Linn. Soc. N. S. W. 1992, 113, 271–295. [Google Scholar]
  47. Freidman, B.L.; Fryirs, K.A. Rehabilitating Upland Swamps Using Environmental Histories: A Case Study of the Blue Mountains Peat Swamps, Eastern Australia. Geogr. Ann. Ser. A Phys. Geogr. 2015, 97, 337–353. [Google Scholar] [CrossRef]
  48. Fryirs, K.; Freidman, B.; Williams, R.; Jacobsen, G. Peatlands in eastern Australia? Sedimentology and age structure of Temperate Highland Peat Swamps on Sandstone (THPSS) in the Southern Highlands and Blue Mountains of NSW, Australia. Holocene 2014, 24, 1527–1538. [Google Scholar] [CrossRef]
  49. Eiland, F.; Klamer, M.; Lind, A.-M.; Leth, M.; Bååth, E. Influence of initial C/N ratio on chemical and microbial composition during long term composting of straw. Microb. Ecol. 2001, 41, 272–280. [Google Scholar] [CrossRef] [PubMed]
  50. Fryirs, K.A.; Farebrother, W.; Hose, G.C. Understanding the spatial distribution and physical attributes of upland swamps in the Sydney Basin: Building a region-specific geomorphological model as a basis for conservation and management. Aust. Geogr. 2018. [Google Scholar] [CrossRef]
  51. Gorissen, S.; Mallinson, J.; Greenlees, M.; Shine, R. The impact of fire regimes on populations of an endangered lizard in montane south-eastern Australia. Austral Ecol. 2015, 40, 170–177. [Google Scholar] [CrossRef]
  52. Burrough, P.A.; Brown, L.; Morris, E.C. Variations in vegetation and soil pattern across the Hawkesbury Sandstone plateau from Barren Grounds to Fitzroy Falls, New South Wales. Aust. J. Ecol. 1977, 2, 137–159. [Google Scholar] [CrossRef]
  53. Taylor, G.; Eggleton, R.A. Bauxites of the NSW Southern Highlands. Aust. J. Earth Sci. 2015, 62, 341–363. [Google Scholar]
  54. Sydney Catchment Authority. Priority Groundwater Investigations for Contingency Drought Relief Area 2: Upper Nepean Catchment; Sydney Catchment Authority: Sydney, Australia, July 2005.
  55. Prosser, I.P.; Melville, M.D. Vegetation communities and the empty pore space of soils as indicators of catchment hydrology. CATENA 1988, 15, 393–405. [Google Scholar] [CrossRef]
  56. Chambers, T. Stage 2 Drilling and Pilot Testing Program, Upper Nepean—Monitoring Well Installation; 5065RP04; Sydney Catchment Authority: Sydney, Australia, 2006.
  57. Parsons Brinckerhoff. Hydrochemical and Environmental Isotope Sampling Program—Upper Nepean Groundwater Investigation Sites; Sydney Catchment Authority: Sydney, Australia, April 2006.
  58. Coplen, T.B.; Herczeg, A.L.; Barnes, C. Isotope Engineering—Using stable isotopes of the water molecule to solve practical problems. In Environmental Tracers in Subsurface Hydrology; Cook, P.G., Herczeg, A.L., Eds.; Kluwer Academic Publishers: Norwell, MA, USA, 2000; pp. 79–110. [Google Scholar]
  59. Hose, G.C.; Fryirs, K.A.; Bailey, J.; Ashby, N.; White, T.; Stumpp, C. Different depths, different fauna: Habitat influences on the distribution of groundwater invertebrates. (Primary Research Paper). Hydrobiologia 2017, 797, 145–157. [Google Scholar] [CrossRef]
  60. Kerstel, E.; Gianfrani, L. Advances in laser-based isotope ratio measurements: Selected applications. Appl. Phys. B Lasers Opt. 2008, 92, 439–449. [Google Scholar] [CrossRef]
  61. Lis, G.; Wassenaar, L.I.; Hendry, M.J. High-Precision Laser Spectroscopy D/H and 18O/16O Measurements of Microliter Natural Water Samples. Anal. Chem. 2008, 80, 287–293. [Google Scholar] [CrossRef]
  62. Genereux, D.P.; Hemond, H.F.; Mulholland, P.J. Use of radon-222 and calcium as tracers in a three-end-member mixing model for streamflow generation on the West Fork of Walker Branch Watershed. J. Hydrol. 1993, 142, 167–211. [Google Scholar] [CrossRef]
  63. Bertin, C.; Bourg, A.C.M. Radon-222 and Chloride as Natural Tracers of the Infiltration of River Water into an Alluvial Aquifer in Which There Is Significant River/Groundwater Mixing. Environ. Sci. Technol. 1994, 28, 794–798. [Google Scholar] [CrossRef] [PubMed]
  64. Cook, P.G.; Wood, C.; White, T.; Simmons, C.T.; Fass, T.; Brunner, P. Groundwater inflow to a shallow, poorly-mixed wetland estimated from a mass balance of radon. J. Hydrol. 2008, 354, 213–226. [Google Scholar] [CrossRef]
  65. Hoehn, E.; Von Gunten, H.R.; Stauffer, F.; Dracos, T. Radon-222 as a groundwater tracer. A laboratory study. Environ. Sci. Technol. 1992, 26, 734–738. [Google Scholar] [CrossRef]
  66. Leaney, F.W.; Herczeg, A.L. A rapid field extraction method for determination of radon-222 in natural waters by liquid scintillation counting. Limnol. Oceanogr. Methods 2006, 4, 254–259. [Google Scholar] [CrossRef][Green Version]
  67. Santos, I.R.; Eyre, B.D. Radon tracing of groundwater discharge into an Australian estuary surrounded by coastal acid sulphate soils. J. Hydrol. 2011, 396, 246–257. [Google Scholar] [CrossRef]
  68. Burnett, W.C.; Peterson, R.N.; Santos, I.R.; Hicks, R.W. Use of automated radon measurements for rapid assessment of groundwater flow into Florida streams. J. Hydrol. 2010, 380, 298–304. [Google Scholar] [CrossRef]
  69. Taylor, J. Introduction to Error Analysis, the Study of Uncertainties in Physical Measurements; University Science Books: New York, NY, USA, 1997. [Google Scholar]
  70. Carrera, J.; Vázquez-Suñé, E.; Castillo, O.; Sánchez-Vila, X. A methodology to compute mixing ratios with uncertain end-members. Water Resour. Res. 2004, 40, W12101. [Google Scholar] [CrossRef]
  71. Winter, T.C.; Rosenberry, D.O.; Buso, D.C.; Merk, D.A. Water source to four U.S. wetlands: Implications for wetland management. Wetlands 2001, 21, 462–473. [Google Scholar] [CrossRef]
  72. Devito, K.J.; Hill, A.; Roulet, N. Groundwater-surface water interactions in headwater forested wetlands of the Canadian Shield. J. Hydrol. 1996, 181, 127–147. [Google Scholar] [CrossRef]
  73. Cardenas, M.B. Surface water-groundwater interface geomorphology leads to scaling of residence times. Geophys. Res. Lett. 2008, 35, L08402. [Google Scholar] [CrossRef]
  74. Poole, G.C.; Stanford, J.A.; Running, S.W.; Frissell, C.A. Multiscale geomorphic drivers of groundwater flow paths: Subsurface hydrologic dynamics and hyporheic habitat diversity. J. N. Am. Benthol. Soc. 2006, 25, 288–303. [Google Scholar] [CrossRef]
  75. Sear, D.; Armitage, P.; Dawson, F. Groundwater dominated rivers. Hydrol. Process. 1999, 13, 255–276. [Google Scholar] [CrossRef]
  76. Balek, J.; Perry, J.E. Hydrology of seasonally inundated African headwater swamps. J. Hydrol. 1973, 19, 227–249. [Google Scholar] [CrossRef]
  77. Van Seters, T.E.; Price, J.S. Towards a conceptual model of hydrological change on an abandoned cutover bog, Quebec. Hydrol. Process. 2002, 16, 1965–1981. [Google Scholar] [CrossRef]
  78. Proulx-McInnis, S.; St-Hilaire, A.; Rousseau, A.N.; Jutras, S.; Carrer, G.; Levrel, G. Seasonal and monthly hydrological budgets of a fen-dominated forested watershed, James Bay region, Quebec. Hydrol. Process. 2013, 27, 1365–1378. [Google Scholar] [CrossRef]
  79. Parry, L.E.; Charman, D.J. Modelling soil organic carbon distribution in blanket peatlands at a landscape scale. Geoderma 2013, 211–212, 75–84. [Google Scholar] [CrossRef]
  80. Leifeld, J.; Steffens, M.; Galego-Sala, A. Sensitivity of peatland carbon loss to organic matter quality. Geophys. Res. Lett. 2012, 39, L14704. [Google Scholar] [CrossRef]
  81. Straková, P.; Penttilä, T.; Laine, J.; Laiho, R. Disentangling direct and indirect effects of water table drawdown on above- and belowground plant litter decomposition: Consequences for accumulation of organic matter in boreal peatlands. Glob. Chang. Biol. 2012, 18, 322–335. [Google Scholar] [CrossRef]
  82. Danevčič, T.; Mandic-Mulec, I.; Stres, B.; Stopar, D.; Hacin, J. Emissions of CO2, CH4 and N2O from Southern European peatlands. Soil Biol. Biochem. 2010, 42, 1437–1446. [Google Scholar] [CrossRef]
  83. Ramchunder, S.J.; Brown, L.E.; Holden, J. Catchment-scale peatland restoration benefits stream ecosystem biodiversity. J. Appl. Ecol. 2012, 49, 182–191. [Google Scholar] [CrossRef]
  84. Murray, B.B.R.; Zeppel, M.J.; Hose, G.C.; Eamus, D. Groundwater-dependent ecosystems in Australia: It’s more than just water for rivers. Ecol. Manag. Restor. 2003, 4, 110–113. [Google Scholar] [CrossRef]
  85. State of New South Wales. Impacts of Underground Coal Mining on Natural Features in the Southern Coalfield: Strategic Review; NSW Department of Planning: Sydney, Australia, 2008.
  86. Yang, J.; Liu, J.; Hu, X.; Li, X.; Wang, Y.; Li, H. Effect of water table level on CO2, CH4 and N2O emissions in a freshwater marsh of Northeast China. Soil Biol. Biochem. 2013, 61, 52–60. [Google Scholar] [CrossRef]
  87. Rooney, R.C.; Bayley, S.E.; Schindler, D.W. Oil sands mining and reclamation cause massive loss of peatland and stored carbon. Proc. Natl. Acad. Sci. USA 2012, 109, 4933–4937. [Google Scholar] [CrossRef] [PubMed][Green Version]
  88. Morris, P.J.; Waddington, J.M. Groundwater residence time distributions in peatlands: Implications for peat decomposition and accumulation. Water Resour. Res. 2011, 47, 2511. [Google Scholar] [CrossRef]
  89. Hare, D.K.; Boutt, D.F.; Clement, W.P.; Hatch, C.E.; Davenport, G.; Hackman, A. Hydrogeological controls on spatial patterns of groundwater discharge in peatlands. Hydrol. Earth Syst. Sci. 2017, 21, 6031–6048. [Google Scholar] [CrossRef][Green Version]
  90. Gong, J.; Wang, K.; Kellomäki, S.; Zhang, C.; Martikainen, P.J.; Shurpali, N. Modeling water table changes in boreal peatlands of Finland under changing climate conditions. Ecol. Model. 2012, 244, 65–78. [Google Scholar] [CrossRef]
  91. Boatman, D.J.; Tomlinson, R.W. The Silver Flowe: I. Some Structural and Hydrological Features of Brishie Bog and Their Bearing on Pool Formation. J. Ecol. 1973, 61, 653–666. [Google Scholar] [CrossRef]
  92. Campbell, D.I.; Williamson, J.L. Evaporation from a raised peat bog. J. Hydrol. 1997, 193, 142–160. [Google Scholar] [CrossRef]
  93. Thompson, M.A.; Campbell, D.I.; Spronken-Smith, R.A. Evaporation from natural and modified raised peat bogs in New Zealand. Agric. For. Meteorol. 1999, 95, 85–98. [Google Scholar] [CrossRef]
  94. Helfer, F.; Lemckert, C.; Zhang, H. Impacts of climate change on temperature and evaporation from a large reservoir in Australia. J. Hydrol. 2012, 475, 365–378. [Google Scholar] [CrossRef][Green Version]
  95. IPCC. Climate Change 2007: Synthesis Report. Contribution of Working Groups I, II and III to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change; IPCC: Geneva, Switzerland, 2007; p. 104. [Google Scholar]
  96. Freeman, C.; Evans, C.D.; Monteith, D.T.; Reynolds, B.; Fenner, N. Export of organic carbon from peat soils. Nature 2001, 412, 785. [Google Scholar] [CrossRef] [PubMed]
  97. Grover, S.P.P.; Baldock, J.A. Carbon chemistry and mineralization of peat soils from the Australian Alps. Eur. J. Soil Sci. 2012, 63, 129–140. [Google Scholar] [CrossRef]
  98. Nichols, J.E.; Peteet, D.M.; Moy, C.M.; Castañeda, I.S.; McGeachy, A.; Perez, M. Impacts of climate and vegetation change on carbon accumulation in a south-central Alaskan peatland assessed with novel organic geochemical techniques. Holocene 2014, 24, 1146–1155. [Google Scholar] [CrossRef]
  99. Jassey, V.E.J.; Chiapusio, G.; Binet, P.; Buttler, A.; Laggoun-Défarge, F.; Delarue, F.; Bernard, N.; Mitchell, E.A.D.; Toussaint, M.-L.; Francez, A.-J.; et al. Above- and belowground linkages in Sphagnum peatland: Climate warming affects plant-microbial interactions. Glob. Chang. Biol. 2013, 19, 811–823. [Google Scholar] [CrossRef]
  100. NSW Government. State Environmental Planning Policy. (Sydney Drinking Water Catchment); NSW Government: Sydney, Australia, 2011.
  101. Water NSW; Office of Environment and Heritage. Special Areas Strategic Plan of Management 2015; Water NSW; Office of Environment and Heritage: Sydney, Australia, August 2015.
Figure 1. Location map of the study regions.
Figure 1. Location map of the study regions.
Water 11 00102 g001
Figure 2. Blue Mountains swamps. (a) swamp and groundwater bore locations (b) tilted Google Earth image showing swamp morphology for Michael Eade swamp; (c) on-ground shot of Marmion swamp, photo source: K. Fryirs. Note steep-sided V-shaped valley and elongate swamp morphology.
Figure 2. Blue Mountains swamps. (a) swamp and groundwater bore locations (b) tilted Google Earth image showing swamp morphology for Michael Eade swamp; (c) on-ground shot of Marmion swamp, photo source: K. Fryirs. Note steep-sided V-shaped valley and elongate swamp morphology.
Water 11 00102 g002
Figure 3. Southern Highlands swamps. (a) swamp and groundwater bore locations (b) tilted Google Earth image showing swamp morphology (modified from Fryirs et al., 2018 [50]); (c) on-ground shot of Jess and Jane swamp, photo source: K. Fryirs. Note low-lying plateau, shallow U-shaped valley and rounded swamp morphology.
Figure 3. Southern Highlands swamps. (a) swamp and groundwater bore locations (b) tilted Google Earth image showing swamp morphology (modified from Fryirs et al., 2018 [50]); (c) on-ground shot of Jess and Jane swamp, photo source: K. Fryirs. Note low-lying plateau, shallow U-shaped valley and rounded swamp morphology.
Water 11 00102 g003
Figure 4. Swamp profiles for Blue Mountains swamps showing swamp positions within valley settings: (a) Walmer Cres, Wentworth Falls (b) Perrys St, Blackheath (c) Grand Canyon, Medlow Bath (d) Michael Eade, North Katoomba (e) Mt Hay, Leura.
Figure 4. Swamp profiles for Blue Mountains swamps showing swamp positions within valley settings: (a) Walmer Cres, Wentworth Falls (b) Perrys St, Blackheath (c) Grand Canyon, Medlow Bath (d) Michael Eade, North Katoomba (e) Mt Hay, Leura.
Water 11 00102 g004
Figure 5. Swamp profiles for Southern Highlands’ swamps showing swamp positions within valley settings: (a) BNP2, Budderoo (b) North Stockyard, Mt Murray (c) Butlers swamp, East Kangaloon (d) Jess & Jane, Knights Hill.
Figure 5. Swamp profiles for Southern Highlands’ swamps showing swamp positions within valley settings: (a) BNP2, Budderoo (b) North Stockyard, Mt Murray (c) Butlers swamp, East Kangaloon (d) Jess & Jane, Knights Hill.
Water 11 00102 g005
Figure 6. The percentage of swamp water derived from groundwater sources for (a) Blue Mountains and (b) Southern Highlands swamps. Error bars derived from uncertainty analysis.
Figure 6. The percentage of swamp water derived from groundwater sources for (a) Blue Mountains and (b) Southern Highlands swamps. Error bars derived from uncertainty analysis.
Water 11 00102 g006

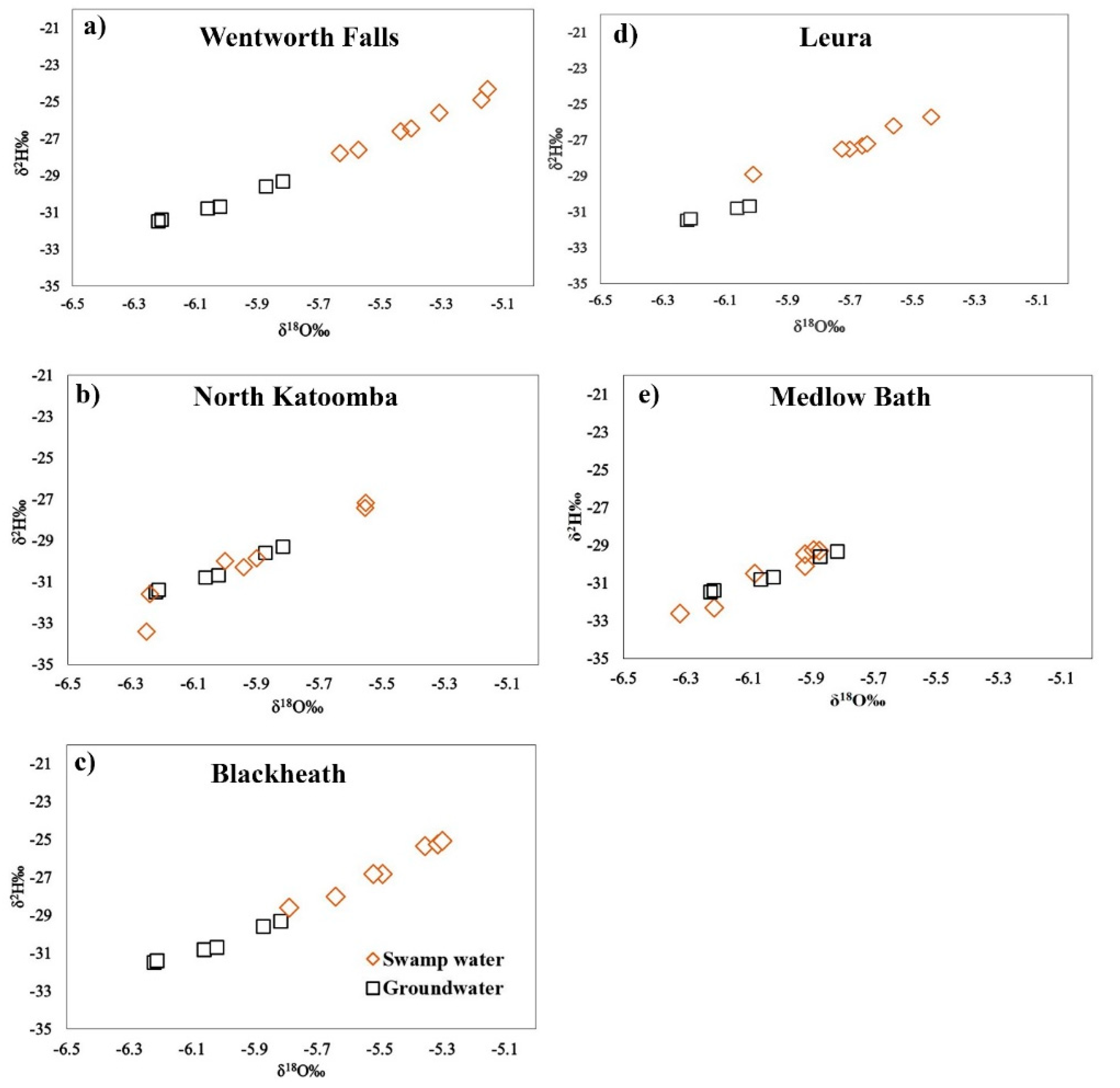

Figure 7. Mixing lines comprised from oxygen and deuterium isotope ratios for groundwater endmembers and swamp water in Blue Mountains (a) Walmer Cres, Wentworth Falls; (b) Michael Eade, North Katoomba; (c) Perrys St, Blackheath; (d) Mt Hay, Leura; (e) Grand Canyon, Medlow Bath.
Figure 7. Mixing lines comprised from oxygen and deuterium isotope ratios for groundwater endmembers and swamp water in Blue Mountains (a) Walmer Cres, Wentworth Falls; (b) Michael Eade, North Katoomba; (c) Perrys St, Blackheath; (d) Mt Hay, Leura; (e) Grand Canyon, Medlow Bath.
Water 11 00102 g007

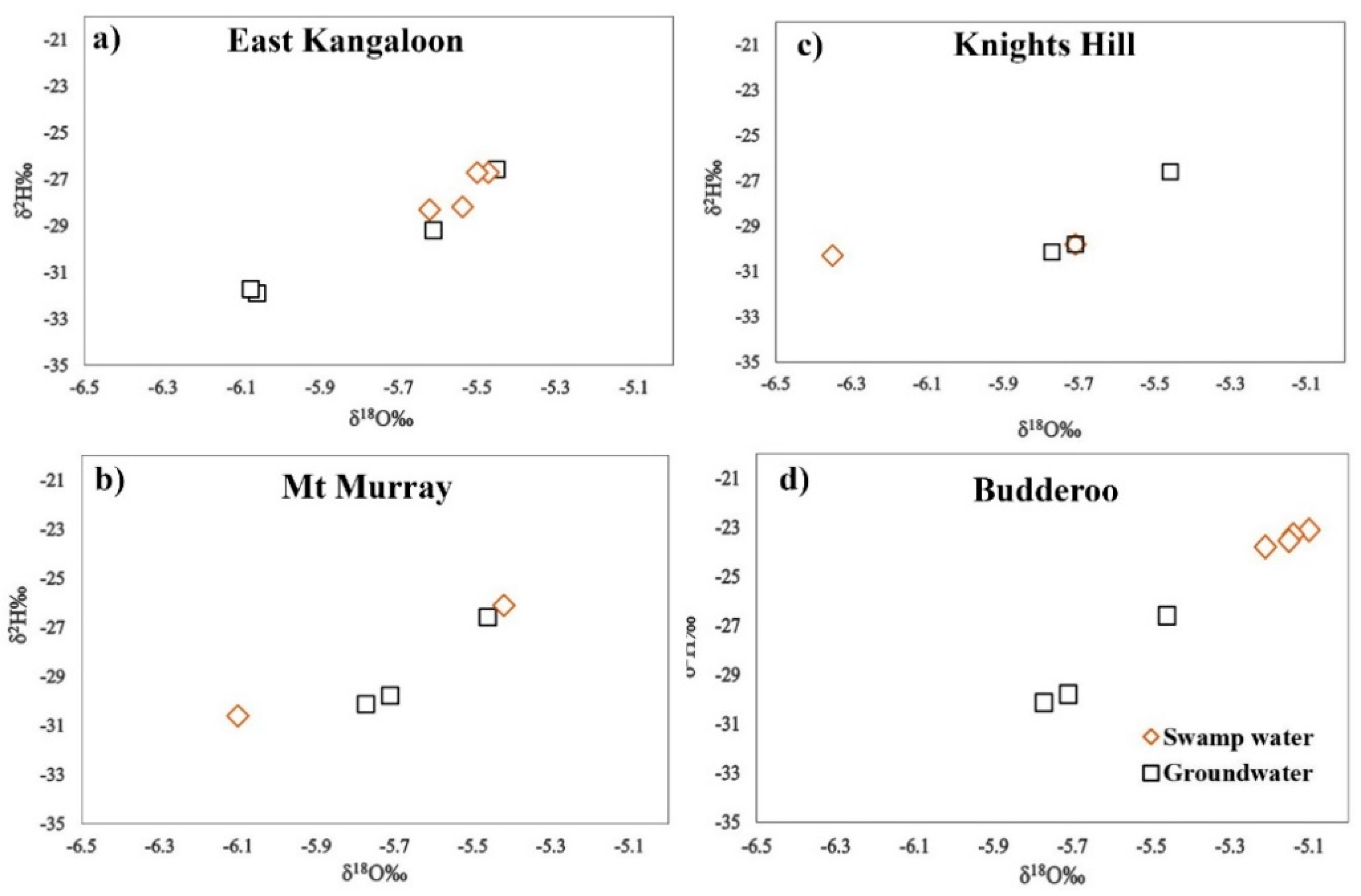

Figure 8. Mixing lines comprised from oxygen and deuterium isotope ratios for groundwater endmembers and swamp water in Southern Highlands (a) Butlers, East Kangaloon; (b) North Stockyard, Mt Murray; (c) Jess & Jane, Knights Hill (d) BNP2, Budderoo.
Figure 8. Mixing lines comprised from oxygen and deuterium isotope ratios for groundwater endmembers and swamp water in Southern Highlands (a) Butlers, East Kangaloon; (b) North Stockyard, Mt Murray; (c) Jess & Jane, Knights Hill (d) BNP2, Budderoo.
Water 11 00102 g008
Figure 9. Principle components analysis biplot of 17 swamp/catchment morphometric variables and percentage of swamp water derived from groundwater sources.
Figure 9. Principle components analysis biplot of 17 swamp/catchment morphometric variables and percentage of swamp water derived from groundwater sources.
Water 11 00102 g009
Figure 10. The minimum percentage of surface water derived from swamp water sources for (a) Blue Mountains; (b) Southern Highlands. Error bars derived from uncertainty analysis.
Figure 10. The minimum percentage of surface water derived from swamp water sources for (a) Blue Mountains; (b) Southern Highlands. Error bars derived from uncertainty analysis.
Water 11 00102 g010

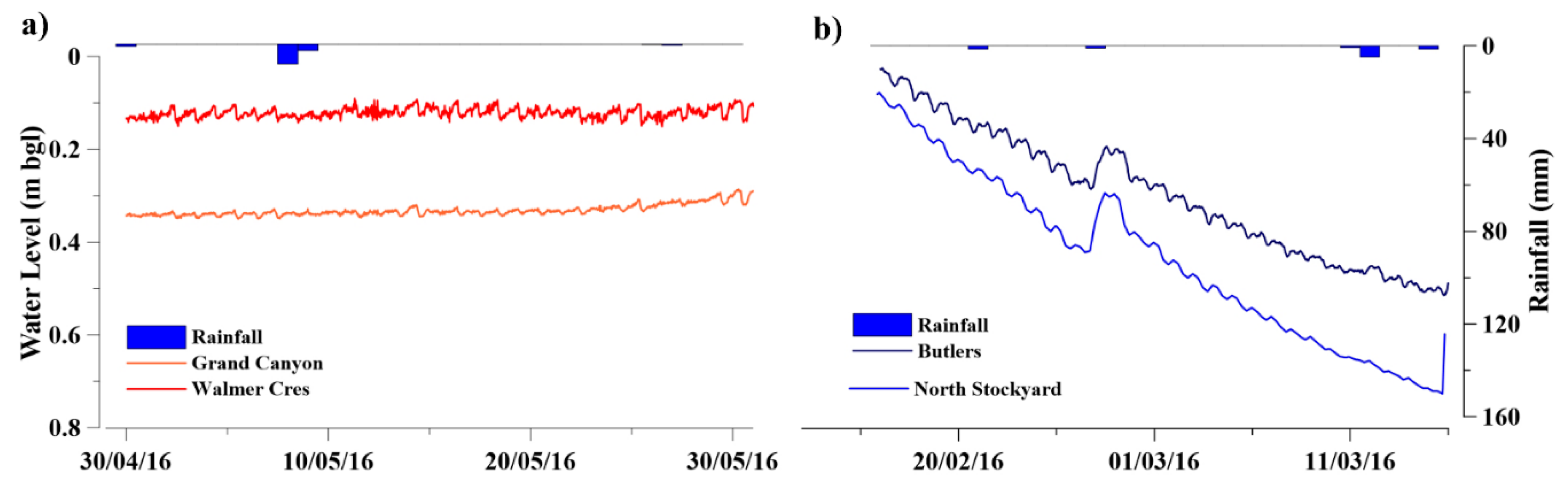

Figure 11. Water table levels for (a) Blue Mountains and (b) for Southern Highlands’ swamps during a dry period. Source: (a) unpublished data from Cowley, et al. [15]; (b) WaterNSW unpublished data.
Figure 11. Water table levels for (a) Blue Mountains and (b) for Southern Highlands’ swamps during a dry period. Source: (a) unpublished data from Cowley, et al. [15]; (b) WaterNSW unpublished data.
Water 11 00102 g011
Table 1. Statistics for geomorphic attributes of swamps in the two regions.
Table 1. Statistics for geomorphic attributes of swamps in the two regions.
Geomorphic Attribute of SwampRegionMinMaxMean (±SD)ANOVA p-Value
Swamp area (m2)Blue Mountains69,468146,17998,792 (±31,946)0.3
Southern Highlands12,9131,794,440275,337 (±504,070)
Swamp length (m)Blue Mountains6521,086.6845 (±171)0.7
Southern Highlands2593373987 (±938)
Minimum swamp slope (°)Blue Mountains01.30.3 (±0.6)0 *
Southern Highlands0.23.11.2 (±0.73)
Mean swamp slope (°)Blue Mountains284536 (±7)0 *
Southern Highlands2.274.5 (±1.5)
Swamp elongation ratioBlue Mountains0.30.40.4 (±0.08)0.2
Southern Highlands0.30.60.4 (±0.1)
Aspect (°)Blue Mountains114234176 (±51)0.3
Southern Highlands103292212 (±62)
Catchment area (m2)Blue Mountains404,568707,840580,168 (±131,493)0.4
Southern Highlands159,3454,557,040925,632 (±1,332,324)
Catchment length (m)Blue Mountains100013931217 (±171)0.7
Southern Highlands51538541410 (±984)
Min catchment slope (°)Blue Mountains01.20.5 (±0.5)0.1
Southern Highlands00.40.06 (±0.13)
Max catchment slope (°)Blue Mountains18.433.425 (±6.2)0 *
Southern Highlands7.43014 (±6.5)
Mean catchment slope (°)Blue Mountains5.3108 (±2)0 *
Southern Highlands1.96.54 ± 1.2
Catchment slope rangeBlue Mountains18.43325 ± 6.30 *
Southern Highlands7.13014 ± 6.6
Catchment elongation ratioBlue Mountains0.60.70.7 ± 0.050.6
Southern Highlands0.50.80.6 ± 0.1
Min elevation (m asl)Blue Mountains823946906 ± 520 *
Southern Highlands565639594 ± 27
Max elevation (m asl)Blue Mountains9111038984 ± 500 *
Southern Highlands607789663 ± 60
Mean elevation (m asl)Blue Mountains8761,002953 ± 510 *
Southern Highlands587671619 ± 27
Elevation range (m asl)Blue Mountains649478 ± 130.7
Southern Highlands1921064 ± 59
* statistically significant difference (p < 0.05) between regions.
Table 2. Statistics for swamp and surface water mixing models and mean residence times for swamps in the two regions.
Table 2. Statistics for swamp and surface water mixing models and mean residence times for swamps in the two regions.
Water Source and StorageRegionMinMaxMean (±SD)ANOVA p-Value
Groundwater contribution to swamp water (%)Blue Mountains288251 (±22)0 *
Southern Highlands71410 (±3)
Swamp water contribution to downstream surface water (%)Blue Mountains0.65121 (±20)0.2
Southern Highlands109244 (±35)
* statistically significant difference (p < 0.05) between regions.
Table 3. Regression analysis of swamp water - groundwater connectivity (from Radon mixing model) and a range of geomorphic attributes of the swamps. Shaded cells are statistically significant differences (p < 0.05) between regions.
Table 3. Regression analysis of swamp water - groundwater connectivity (from Radon mixing model) and a range of geomorphic attributes of the swamps. Shaded cells are statistically significant differences (p < 0.05) between regions.
ResponseContinuous Predictorp-ValueR2Random Residual
Groundwater contribution to swamp water (%) (222Rn mixing model)Swamp area0.30.1
Swamp length0.30.1
Minimum swamp slope0.10.2
Mean swamp slope0 *0.6Yes
Swamp elongation ratio10
Aspect0 *0.5Yes
Catchment area0.20.2
Catchment length0.20.2
Minimum catchment slope0 *0.5No
Maximum catchment slope0 *0.6Yes
Mean catchment slope0 *0.8Yes
Catchment slope range0 *0.6Yes
Catchment elongation0 *0.8Yes
Minimum elevation0 *0.5No
Maximum elevation0 *0.5No
Mean elevation0 *0.5No
Elevation range0 *0.7Yes
* statistically significant difference (p < 0.05) between morphometric attribute and groundwater contribution.
Back to TopTop
