Insight into the Degradation of Two Benzophenone-Type UV Filters by the UV/H₂O₂ Advanced Oxidation Process

Abstract

Environmental problems caused by UV filters, a group of emerging contaminants, have attracted much attention. The removal of two typical UV filters benzophenone (BP) and 4,4′-dihydroxy-benzophenone (HBP) in water was investigated by the UV/H₂O₂ process. The response surface methodology (RSM) and central composite design (CCD) were applied to investigate the effects of the process parameters on the degradation rate constants, including the initial contaminant concentration, H₂O₂ dose, and UV light intensity. BP is more easily degraded by the UV/H₂O₂ process. Both processes followed pseudo-first-order kinetics. The results obtained with the built RSM model are in accordance with the experimental results (adjusted coefficients R²(adj)= 0.9835 and 0.9778 for BP and HBP, respectively). For both processes, the initial contaminant concentration (exerting a negative effect) were the most important factors controlling the degradation, followed by H₂O₂ dose and UV intensity (exerting positive effects). A total of 15 BP degradation products and 13 HBP degradation products during the UV/H₂O₂ process were identified by LC/MS and GC/MS. A series of OH radical irritated reactions, including hydroxylation, carboxylation, and ring cleavage, led to the final degradation of BP and HBP. Degradation pathways of BP and HBP were also proposed. On the whole, this work is a unique contribution to the systematic elucidation of BP and HBP degradation by the UV/H₂O₂ process.

1. Introduction

Organic UV filters have been extensively used in sunscreens for skin protection. The organic UV filters and their metabolites may flow into rivers or lakes due to the emission through direct discharge (washing) or indirect discharge (sewage plant effluents) [1,2]. Many UV filters have been detected in the aqueous environment, including 2,4-dihydroxy benzophenone (2,4-DBP), benzophenone-3 (BP3), 2-phenylbenzimidazole-5-sulfonic acid (UV-T), octyl methoxycinnamate (OMC), and octocrylene [3,4]. Most of the organic UV filters are lipophilic compounds and tend to accumulate in soils and sediments of the aqueous environment, as well as in the food chain (e.g., fish, birds, mammals) [5]. The accumulation of UV filters in organisms has become a major concern, because many UV filters and their metabolites show the apparent endocrine disruption and the hormonal effects, both in vitro and in vivo [6,7].

Benzophenone (BP) and 4,4′-dihydroxy-benzophenone (HBP), two type of benzophenone-type UV filters, are widely detected in sewage and other environmental media across the world, such as United States, Japan, and Switzerland [5,8,9,10,11,12]. There are reports that the concentration of BP reached 250 ng/L in wastewater [13]. The potential risks resulting from the occurrence of BP and HBP must not be overlooked.

Advanced oxidation processes (AOPs) are a series of processes that can generate hydroxyl radicals to efficiently degrade organic pollutants in contaminated water [4,14,15]. The UV/H₂O₂ system is a type of AOP, in which hydrogen peroxide (H₂O₂) is added in the presence of UV light to generate hydroxyl radicals [16,17,18]. It is found that the UV/H₂O₂ process can remove a large range of organic pollutants, including cyanobacterial toxins [19], diclofenac [20], amoxicillin [21], and other emerging contaminants [22,23,24].

Benzophenone-type UV filters are usually the hardly biodegradable substances [25]. There are over 20 benzophenone-type UV filters, including HBP, BP, benzophenone-2, benzophenone-3 (BP3), benzophenone-4, benzophenone-5, and benzophenone-9. Among them, BP3 is the dominant UV filter and the most-frequently detected in the aquatic environment [26,27]. Many reported works have focused on the occurrence, transformation, and fate of BP3 [28,29,30]. The removal, degradation mechanism, and ecotoxicity of BP3 by different treatment processes were assessed, such as UV/H₂O₂ [31], ozone [32], fungal [33], chlorination [34,35], and activated persulfate [36,37]. In addition, the removal of other benzophenone-type UV filters, including BP2, BP4, and BP9, were also evaluated by different AOPs [38,39,40,41,42,43].

BP, as a basic benzophenone-type substance with the simplest structure, is the important precursor for the production of other benzophenone-type UV filters. However, there are few reports on the removal of BP by photocatalysis and ozonation [44,45]. Chen [46] and Katsuhiko [47] investigated the biodegradation and fate of BP in aquatic environments and the activated sludge of a sewage treatment plant. It took a relatively long time for microbes to degrade a certain concentration of BP due to the toxic effect of BP. HBP is the di-hydroxyl addition product of BP. To date, research examining about the removal of BP and HBP by the UV/H₂O₂ process is rarely reported. The degradation behavior and characteristics of BP by AOPs have great reference value for the treatment and control of wastewater containing benzophenone-type UV filters.

The primary purpose of this research is to explore the degradation of two UV filters BP and HBP in water by the UV/H₂O₂ advanced oxidation process. The response surface methodology (RSM) analysis combined with the experimental design is used to investigate the main factors of the UV/H₂O₂ process. Additionally, the degradation intermediates are identified by an LTQ-Orbitrap high-resolution mass spectrometer and GC-MS. Through these analyses, combined with the chemical structure analysis, degradation mechanisms of BP and HBP by the UV/H₂O₂ process are also proposed.

2. Materials and Methods

2.1. Chemicals and Reagents

BP and HBP were purchased from Energy Chemical Reagent (Shanghai, China). The relevant physical and chemical properties are shown in

Table 1. Properties of benzophenone (BP) and 4,4′-dihydroxy-benzophenone (HBP).

Properties	BP	HBP
Name	Benzophenone	4,4′-dihydroxy-benzophenone
CAS Number	119-61-9	611-99-4
Molecular Formula	C13H10O	C13H10O3
Molecular Weight	182.2179	214.2167
Partition coefficient (Log P)	3.18	2.55
Molar Refractivity	56.0 ± 0.3	59.8 ± 0.3
Chemical Structure

. Methanol (HPLC grade) was obtained from Sigma-Aldrich, Inc. (St. Louis, MO, USA). Hydrochloric acid, sodium hydroxide, and hydrogen peroxide (H₂O₂ 30% w/w) were all of analytical grade. All solutions were prepared using ultrapure water (resistivity 18.3 mΩ·cm) from a Milli-Q water purification system (Millipore, Burlington, MA, USA). An Oasis HLB cartridge (Waters, 500 mg, 6 cc, Milford, MA, USA) was used for the solid phase extraction (SPE) pretreatment. A silylation reagent (Ekear, Shanghai, China), containing N,O-bis(trimethylsilyl)trifluoroacetamide and trimethylchlorosilane (BSTFA/TMCS, 99:1), was used for the GC derivatization.

2.2. Photoreactor and Experimental Tests

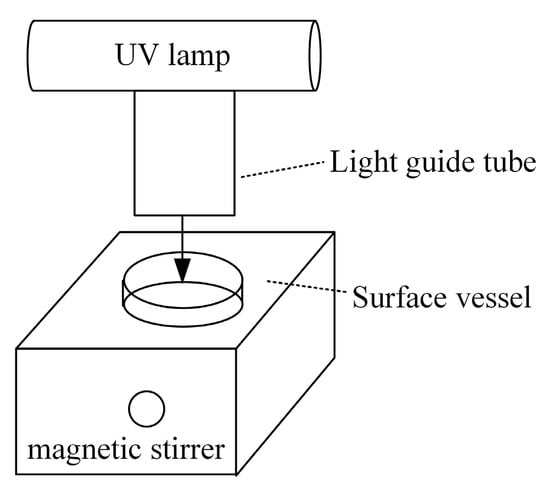

The photodegradation experiment was performed in a glass photoreactor (200-mL volume, 10-cm diameter), as shown in Figure 1. A lamp emitting at 254 nm (75 W, Philips, Shanghai, China) was hung over the glass photoreactor. A stir bar was kept in the reactor for the solution mixing. The compound solution and H₂O₂ were added into the reactor. The compound solution and H₂O₂ were added in a range of concentrations to the photoreactor. The range of BP/HBP concentration is 4 to 50 mg·L⁻¹, while the rang of H₂O₂ dose is 0.1–0.5 mmol·L⁻¹. The UV light was then turned on to start the degradation reaction. BP and HBP samples were collected at set intervals. The distance between the UV lamp and the water surface was adjusted manually for various UV intensities, which were determined by an ultraviolet meter (Model UV-B, Photoelectric Instrument Factory of Beijing Normal University).

2.3. Compounds Determination

Quantitative analyses of BP and HBP were carried out by liquid chromatography (LC-100, Wu Feng, China), which was equipped with an HPLC C18 column (4.6 × 150 mm, 5 µm, LK Tech). The mobile phase was 60% methanol and 40% water with 5 mM ammonium acetate. The other optimized conditions were as follows: a flow velocity of 1.0 mL·min⁻¹, an isocratic elution, and a UV wavelength of 264 nm. Under the HPLC conditions, the compound peak with high resolution was obtained for quantitative analyses. The determination error was less than 5%.

2.4. Degradation Products Identification

Water samples were collected at set intervals during the process and later mixed together. Before the LC-MS and GC-MS analysis, water samples were pretreated according to an SPE procedure developed and optimized by our research group [40].

Mass spectrum data was acquired through the acquisition of parent ions combined with the analysis of diagnostic product ions on a hybrid LTQ-Orbitrap (Thermo Scientific, Waltham, MA, USA). The other MS conditions were as follows: negative mode, data-dependent acquisition (DDA), a dynamic exclusion of 5 s, and a collision energy (CE%) of 45 eV. The chromatography separation was performed with a Polar-RP C₁₈ column (Welch Ultimate, 100 × 2.1 mm, 3.0 µm).

A GC-MS (QP-2010, Shimadzu, Kyoto, Japan) equipped with a capillary column (DB-5, 30 m × 0.5 mm × 0.5 mm) was used to identify the degradation products, such as small molecular organic acids. Before the GC-MS analysis, water samples were prepared through freeze-drying and sequent derivatization by a BSTFA/TMCS reagent at 70 °C [48]. Sample preparation was repeated three times for LC-MS and GC-MS analysis.

2.5. CCD Experimental Design and RSM Analysis

RSM is a useful tool for the exploration of the relationship between explanatory variables and response variables [49,50]. Currently, RSM is extensively used for experimental design, model building, and parameter evaluation and optimization [51,52,53]. Central composite design (CCD) is an experimental design, useful in response surface methodology, for building a RSM model. In this research, RSM and central composite design (CCD) were applied to investigate the contaminant degradation by the UV/H₂O₂ process, as shown in

Table 2. Expert design together with the observed experimental data.

Run	UV Light x1 (µw·cm−2)	Initial Concentration x2 (mg·L−1)	H2O2 Concentration x3 (mmol·L−1)	First-Order Degradation Rate Constant (min−1)
				KBP (min−1)	KHBP (min−1)
1	1400	5.00	0.10	0.050	0.023
2	900	22.5	0.20	0.020	0.010
3	400	5.00	0.50	0.069	0.037
4	900	22.5	0.30	0.027	0.012
5	400	5.00	0.10	0.015	0.008
6	900	31.3	0.30	0.025	0.007
7	900	22.5	0.30	0.031	0.013
8	400	40.0	0.10	0.003	0.004
9	900	22.5	0.30	0.029	0.012
10	900	22.5	0.40	0.032	0.015
11	900	22.5	0.30	0.023	0.012
12	400	40.0	0.50	0.013	0.005
13	1150	22.5	0.30	0.033	0.014
14	900	22.5	0.30	0.030	0.012
15	650	22.5	0.30	0.021	0.011
16	1400	5.00	0.50	0.131	0.065
17	900	22.5	0.30	0.025	0.012
18	1400	40.0	0.50	0.036	0.008
19	1400	40.0	0.10	0.013	0.002
20	900	13.8	0.30	0.047	0.015

.

Design Expert 7.1 software (student evaluation version) (Stat-Ease, Minneapolis, MN, USA) was applied for the experimental design, RSM analysis, and RSM model construction. Three factors were selected to evaluate the influence of the operating parameters, including the UV light intensity (x₁), initial contaminant concentration (x₂), and H₂O₂ dose (x₃). A total of 40 runs were performed in the experiment, including 20 runs for BP, and 20 runs for HBP. The experiment was repeated three times to obtain the average. Pseudo-first-order rate constants for a 30 min UV radiation ($K_{\mathrm{BP}1}$, $K_{\mathrm{HBP}}$) were taken as the response variables, calculated by Equation (1).

$$\ln (\frac{C}{C_0})=-K\times t$$

(1)

where $C_0$ and C are the contaminant concentration at 0, and t min in mg·L⁻¹, K is the first-order rate constant in min⁻¹, and t the reaction time in min.

For the statistical calculation, the variables $x_i$ were coded to $X_i$ through Equation (2):

$$X_i=\frac{x_i-x_0}{\delta x}$$

(2)

where $X_i$ is the dimensionless value of an independent variable, $x_i$ is the real value of the variable, $x_0$ is the real value of the variable at the center point, and δx represents the step change [54].

3. Results and Discussion

3.1. BP and HBP Degradation by the UV/H₂O₂ Process

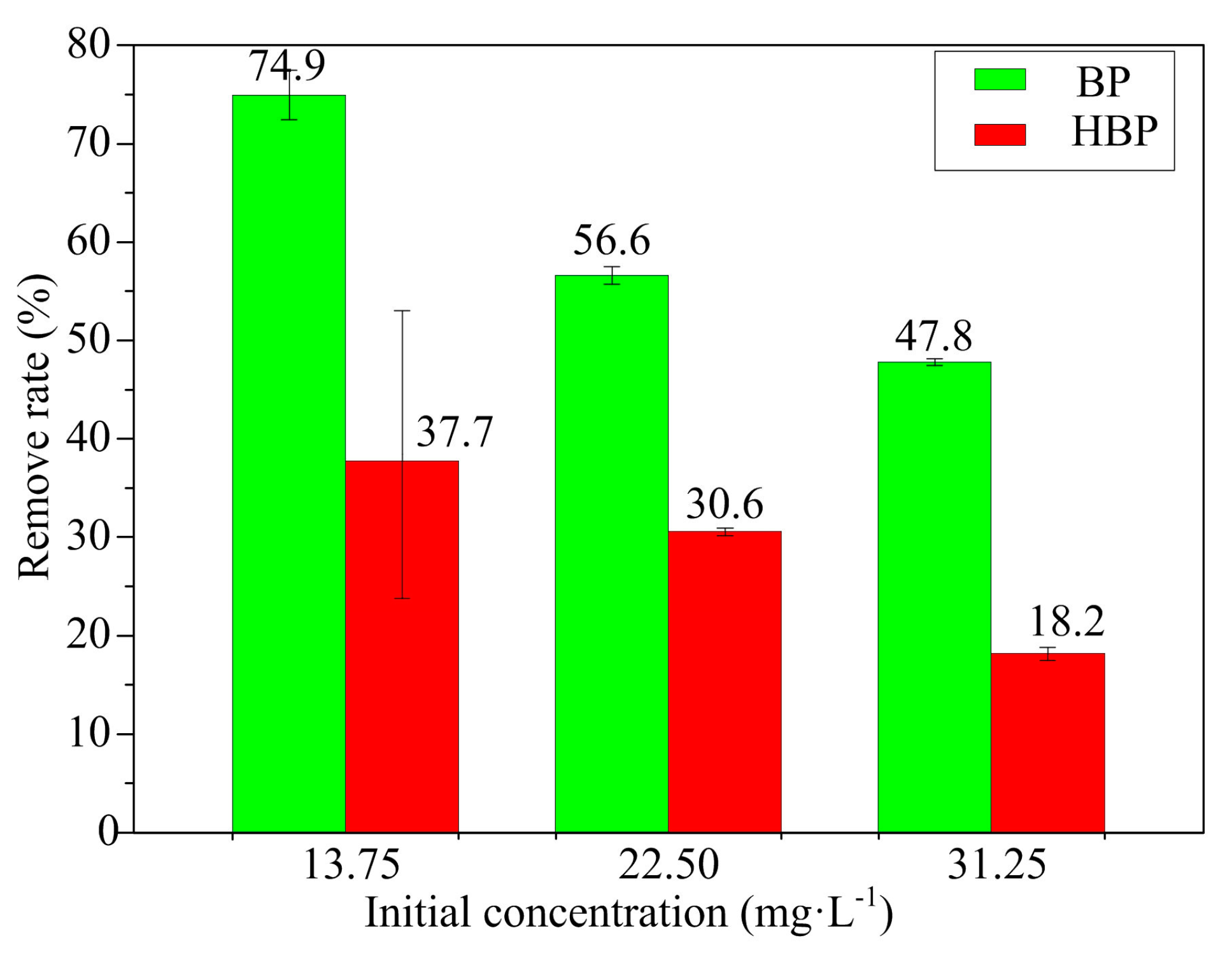

The removal of BP and HBP with three different initial contaminant concentrations in 30 min was compared, as shown in Figure 2. The other reaction conditions included a UV intensity of 900 µW·cm⁻² and an H₂O₂ concentration of 0.30 mmol·L⁻¹. The removal of HBP was only 37.7%, while the BP removal was as high as 74.9% in 30 min with an initial contaminant concentration of 13.8 mg·L⁻¹. It is evident that the removal of BP was much higher than that of HBP under the same degradation conditions, which means that BP is more easily degraded by the UV/H₂O₂ process. HBP is the di-hydroxyl addition product of BP. After a hydroxyl group is added on the ring of BP, the steric hindrance effect possibly prevents the further addition of hydroxyl radical on the ring [55], which makes the degradation of HBP by the UV/H₂O₂ process more difficult.

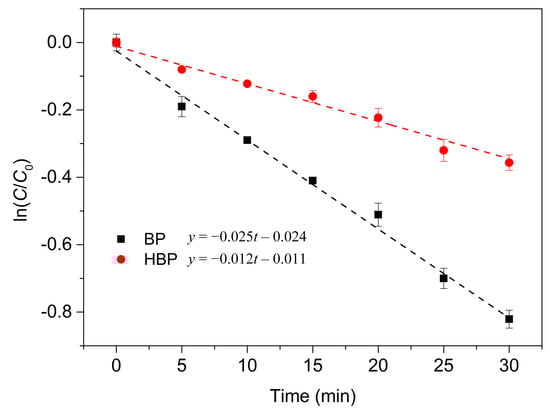

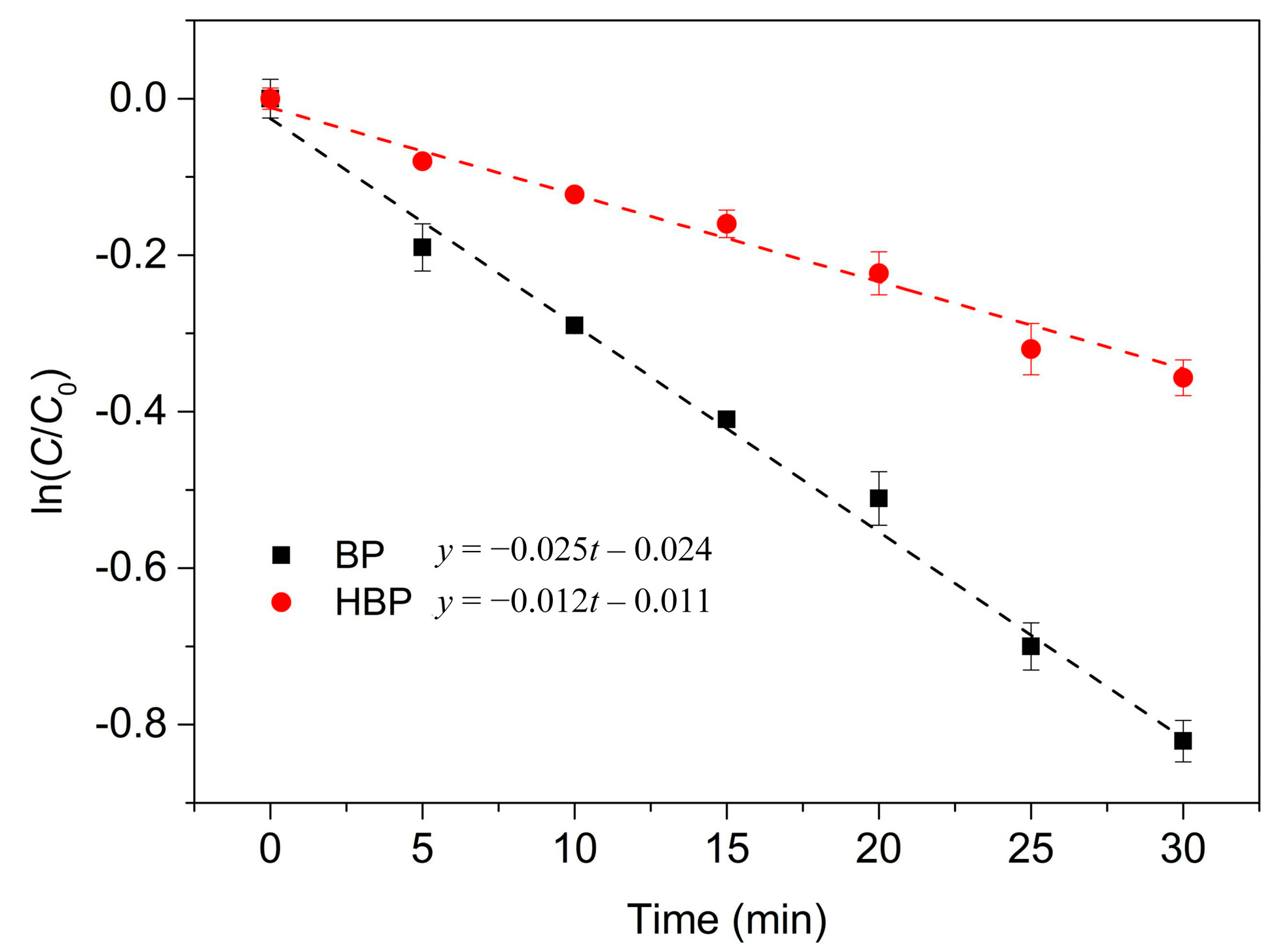

Pseudo first-order reaction kinetics was also used to describe the UV/H₂O₂ process, as shown in Figure 3. The experimental conditions were as follows: a UV intensity of 900 µW·cm⁻², an H₂O₂ concentration of 0.30 mmol·L⁻¹, and an initial BP/HBP concentration of 22.5 mg·L⁻¹. The reaction rate constants of BP and HBP are 0.025 and 0.012, respectively. Figure 3 shows that pseudo-first-order reaction kinetics was successfully fitted with test results (R²(adj) 0.991 and 0.982), according to the kinetic model Equation (1).

3.2. Established RSM Model and Its Validation

All runs were performed according to the CCD experimental design. Pseudo-first-order reaction kinetics was used to fit the experimental results of every run. The regression coefficients (R² > 0.95) show that the degradation reactions were in good agreement with the pseudo-first-order reaction kinetics at different degradation parameters. Pseudo-first-order rate constants were calculated by Equation (1), summarized in Table 2.

Based on the results obtained in each run, an RSM model was constructed to explain the relationship between the reaction parameters and the results, as follows:

$$\begin{array}{l}{K}_{\mathrm{BP}}=0.0280+0.0160{{\rm X}}_1-0.0250{{\rm X}}_2+0.0210{{\rm X}}_3-0.0080{{\rm X}}_1{{\rm X}}_2+\\ 0.0050{{\rm X}}_1{{\rm X}}_3-0.0130{{\rm X}}_2{{\rm X}}_3-0.0069{{\rm X}}_1^2+0.0310{{\rm X}}_2^2-0.0100{{\rm X}}_3^2\end{array}$$

(3)

$$\begin{array}{c}{K}_{HBP}=0.0120+0.0053{{\rm X}}_1-0.014{{\rm X}}_2+0.0093{{\rm X}}_3-0.0054{{\rm X}}_1{{\rm X}}_2+\\ 0.0019{{\rm X}}_1{{\rm X}}_3-0.0082{{\rm X}}_2{{\rm X}}_3+0.0036{{\rm X}}_1^2-0.0016{{\rm X}}_2^2+0.0052{{\rm X}}_3^2\end{array}$$

(4)

Considering only the first-order effect in Equation (3), X₂ has a high coefficient of 0.025, followed by X₃ (0.021) and X₁ (0.016). This means X₂ (the initial BP concentration) has the most important effect on rate constants and therefore inhibits the observed rate constant. From the above polynomial, it can be readily seen that a high synergetic effect of X₂X₃ (0.013) decreases the rate constant. The similar observation can also be seen in Equation (4).

After the models are built, the analysis of variance (ANOVA) is used to assess the significance of each term, and the robustness of the RSM model.

Table 3. Analysis of variance (ANOVA) for BP and HBP degradation model.

Terms	BP				HBP
	Sum of Squares	Mean Square	F-Value	P-Value	Sum of Squares	Mean Square	F-Value	P-Value
Model	1.412 × 10−3	1.549 × 10−3	127.01	<0.0001	3.668 × 10−3	4.076 × 10−4	93.92	<0.0001
X1	2.194 × 10−3	2.194 × 10−3	179.87	<0.0001	2.404 × 10−4	2.404 × 10−4	55.38	<0.0001
X2	5.223 × 10−3	5.223 × 10−3	428.25	<0.0001	1.652 × 10−3	1.652 × 10−3	380.65	<0.0001
X3	3.582 × 10−3	3.582 × 10−3	293.74	<0.0001	7.380 × 10−4	7.380 × 10−4	170.04	<0.0001
X1X2	5.072 × 10−4	5.072 × 10−4	41.59	<0.0001	2.365 × 10−4	2.365 × 10−4	54.50	<0.0001
X1X3	2.030 × 10−4	2.030 × 10−4	16.65	0.0022	3.003 × 10−5	3.003 × 10−5	6.92	0.0251
X2X3	1.303 × 10−3	1.303 × 10−3	106.84	<0.0001	5.396 × 10−4	5.396 × 10−4	124.32	<0.0001
X12	8.762 × 10−6	8.762 × 10−6	0.72	0.4165	2.413 × 10−6	2.413 × 10−6	0.56	0.4731
X22	1.742 × 10−4	1.742 × 10−4	14.28	0.0036	4.803 × 10−7	4.803 × 10−7	0.11	0.7462
X32	1.962 × 10−5	1.962 × 10−5	1.61	0.2335	5.038 × 10−6	5.038 × 10−6	1.16	0.3066
Lack of Fit	7.843 × 10−5	1.569 × 10−5	1.65	0.2978	1.962 × 10−5	1.962 × 10−5	1.61	0.2335

shows the summary of the analysis outcomes, including the estimated effects, and the ANOVA of the models with coded units. F-values of 127.0 (BP model) and 93.9 (HBP model) imply that the two models are of significance. There is a less than 0.01% chance for the BP and HBP models that these large “Model F-values” could occur due to noise. The degree of significance of each term is represented by its P-value. A P-value less than 0.05 indicates the significance of the model terms, while the value higher than 0.05 explains that the model terms are of insignificance [56].

As for the two models, UV intensity (X₁), initial contaminant concentration (X₂), and H₂O₂ dose (X₃) are the significant model terms and have a statistically significant effect upon the degradation rate constants (P-value < 0.05). Their interaction terms between the three factors, including X₁X₂ and X₂X₃, are also significant terms. However, the terms′ square interactions ($X_1^2$, $X_2^2$, and $X_3^2$) do not exhibit a statistically significant effect.

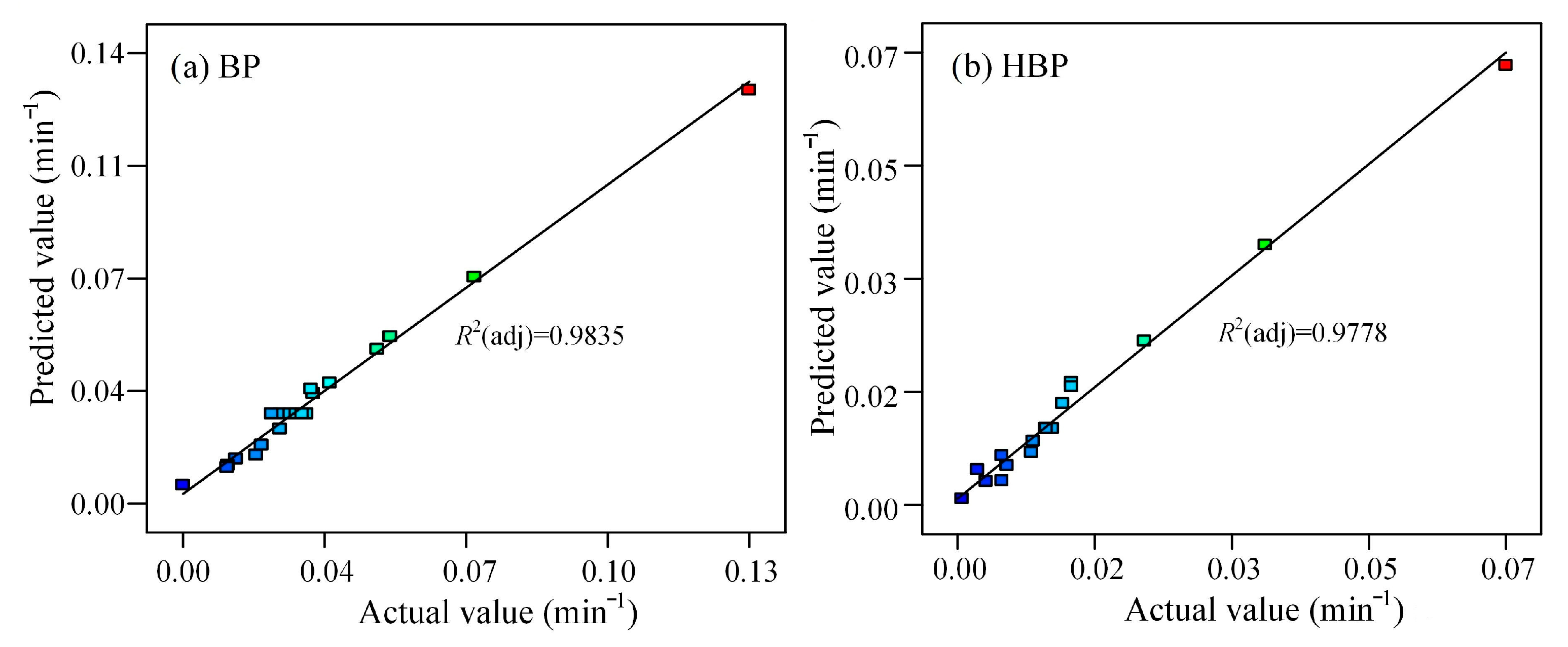

The regression coefficients (R²) indicates how much of the variability in the data is accounted for by the model. R²(adj) values of the BP and HBP models are 0.9835 and 0.9778, respectively. These imply that 98.35% and 97.78% of the variations for BP/HBP degradation rate constants are explained by the independent variables, and only about 1.65% and 2.22% of the variations are not explained by the model. The F-values for the lack-of-fit test of the BP and HBP models are 1.65 and 4.50, respectively, which means the lack-of-fit is significant relative to the pure error. The results illustrate that the two models adequately match the UV/H₂O₂ process and can serve to investigate the experimental data space.

3.3. Analysis of the Response Surface Models

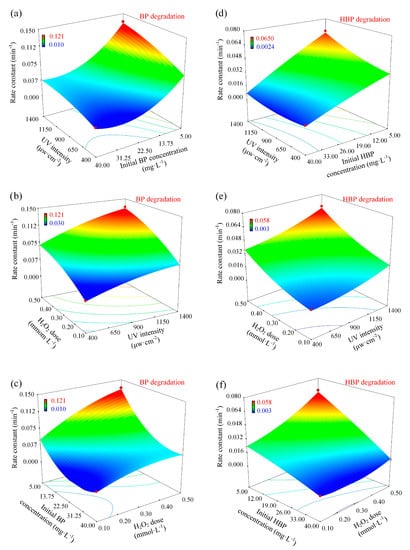

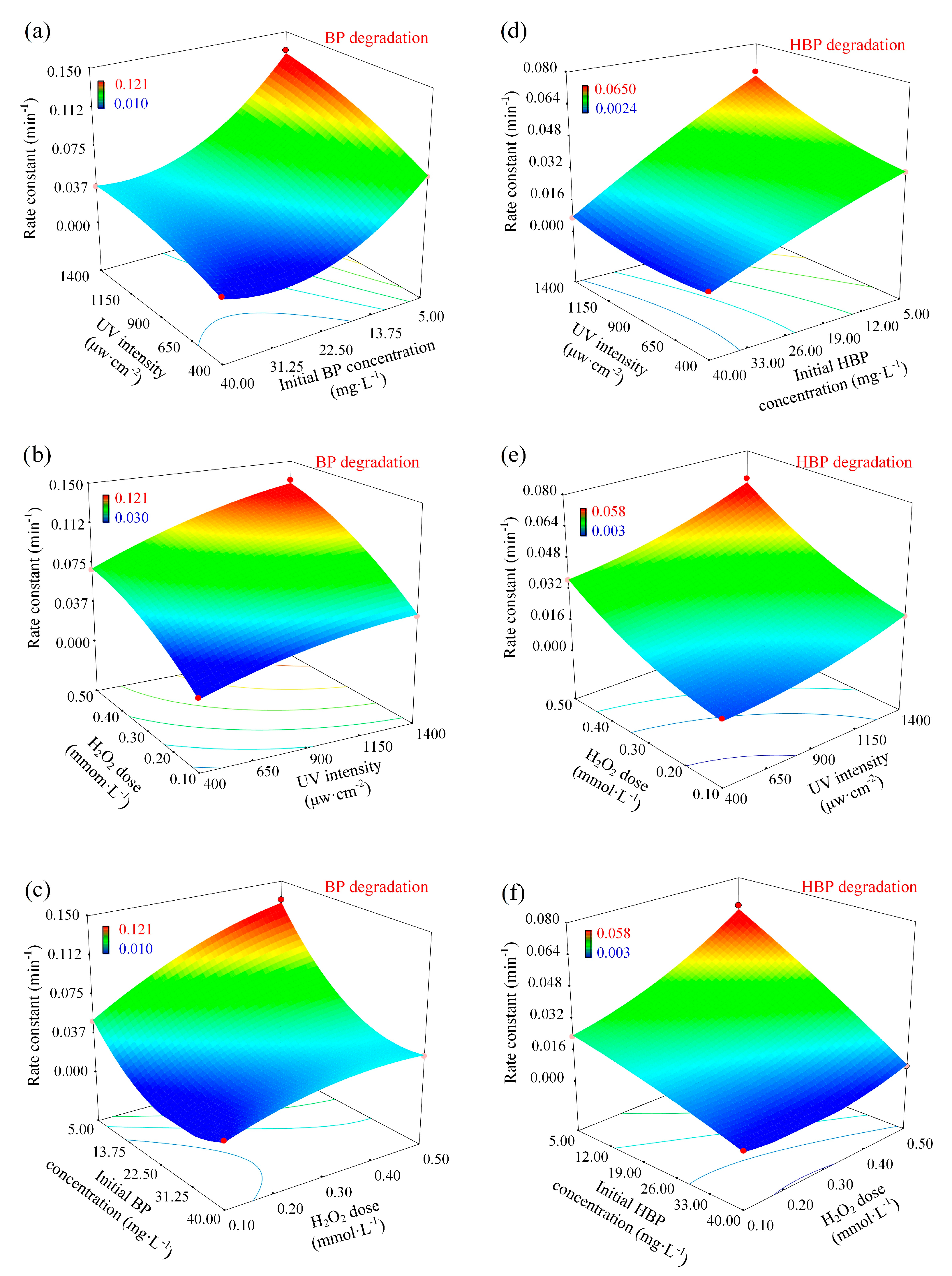

Response surface contour plots of BP and HBP degradation are shown in Figure 4, in which the inner effects of three variables on the rate constant are presented. These charts show the strong interaction among UV light intensity, initial contaminant concentration, and H₂O₂ dose, which had a statistically significant effect on the UV/H₂O₂ degradation. The single effects on the rate constants of BP and HBP degradation are also shown in Figure A1.

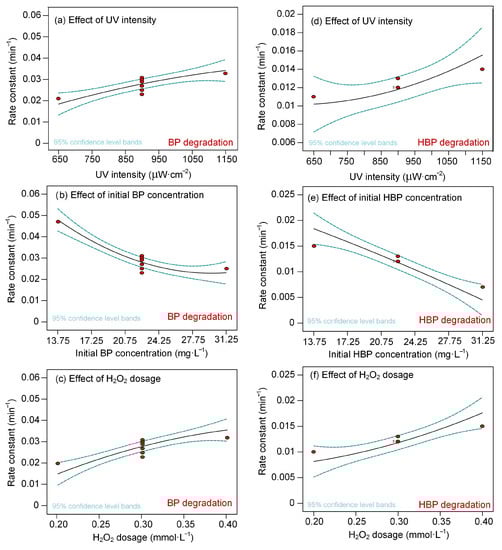

The results show that UV light intensity and H₂O₂ dose have a positive effect on the rate constant (Figure 4a–d; Figure A1a,e). In other words, a higher UV intensity and H₂O₂ dose yields a higher rate constant. UV intensity is a critical factor for the OH radical production, which is primarily responsible for the contaminant degradation. The increase in UV photons in the solution causes an increase in OH radical concentration, thereby accelerating the degradation process.

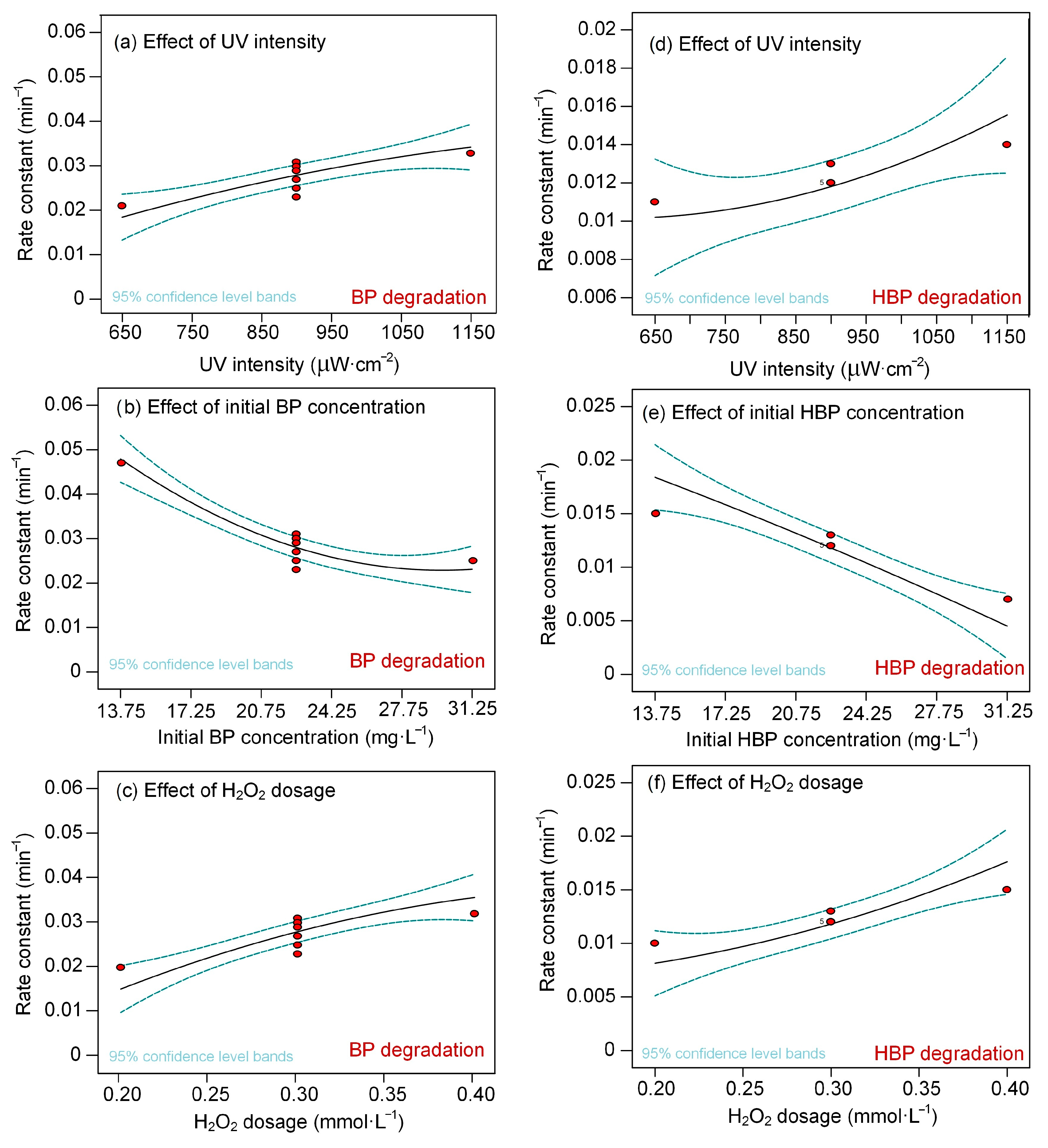

It is also evident that H₂O₂ is an essential source for the OH radical production (Figure A1c,f). The addition of H₂O₂ could produce more OH radicals to accelerate the degradation process. Similar findings were also observed during BP3 and ibuprofen degradation by the UV/H₂O₂ process [31,57]. However, previous studies explained that the excessive addition of H₂O₂ shows an adverse effect on the removal, due to the scavenger effect of H₂O₂ on OH radicals [51,58]. In the current test, H₂O₂ dose shows a positive effect on the rate constant in the range of 0.1 to 0.5 mmol·L⁻¹, which means H₂O₂ concentration has not reached the inhibition zone.

The initial BP and HBP concentrations illustrate the adverse effect on the rate constant (Figure 4c,f; Figure A1b,e). In other words, a higher initial contaminant concentration could inhibit the degradation process. BP and HBP are both efficient UV filters and could absorb UV photons in solution. With the increasing of initial contaminant concentration, the contaminants could absorb more UV photons, which reduces the production of OH radicals inspired by UV photons, thereby further decreasing the degradation efficiency [31]. Moreover, the robustness of the models was also investigated by the diagnostic plots (Figure 5). The data points nearly scattering along a straight line in Figure 5 indicates that the predicted values in the models are equal to the actual values.

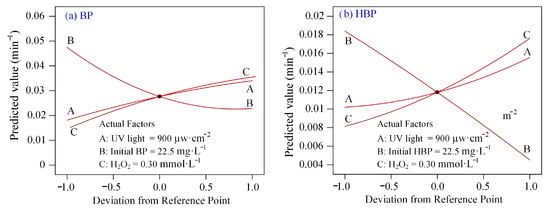

The effects of three parameters on degradation can be compared with the help of perturbation plots (Figure 6). The plots were obtained at UV intensity of 900 µw·cm⁻², the initial BP/HBP concentration 22.5 mg·L⁻¹ and H₂O₂ dose of 0.30 mmol·L⁻¹. The steep curvatures indicated that the response of BP/HBP degradation rate constant was sensitive to these three factors [59]. The degradation was largely controlled by the initial BP/HBP concentration, followed by H₂O₂ dose and UV intensity.

Based on RSM analysis above, the maximum degradation rate constants of BP and HBP were optimized. The optimized conditions were as follows: a UV light intensity of 1150 µw·cm⁻², an H₂O₂ dosage of 0.40 mmol·L⁻¹, and an initial BP/HBP concentration of 13.8 mg·L⁻¹. The predicted maximum rate constants of BP and HBP degradation were 0.068 and 0.032 min⁻¹, respectively. The results of the further experimental test with the optimized parameters were in good agreement with the predicted values. It was concluded that RSM analysis is a powerful strategy to investigate and optimize the process parameters [60,61,62].

3.4. Degradation Mechanism of BP

Degradation products could be produced during the UV/H₂O₂ process. A total of 15 products (including isomers) were identified, including 9 compounds by LTQ-Orbitrap and 6 compounds by GC-MS, as summarized in

Table 4. Molecular formula and properties of BP and its degradation products.

Code	Retention Time (min)	Molecular Formula	Molecular Ions			Structure
			Theoretical m/z	Measured m/z	Δ ppm
BP	13.96	C13H10O	183.0804 *	183.0806	1.10
BP-OH	13.19	C13H10O2	197.0608	197.0608	0.25
BP-2OH-a	15.34	C13H10O3	213.0557	213.0556	0.47
BP-2OH-b	16.89	C13H10O3	213.0557	213.0555	0.94
BP-3OH	14.27	C13H10O4	229.0506	229.0505	0.44
Pr138-a	2.58	C7H6O3	137.0244	137.0244	0.18
Pr138-b	6.42	C7H6O3	137.0244	137.0245	0.73
Benzoic acid	12.43	C7H6O2	121.0295	121.0295	0.33
Pr110-a	8.62	C6H6O2	109.0295	109.0296	0.91
Pr110-b	12.93	C6H6O2	109.0295	109.0298	2.75

* All of the molecular ions are detected in the negative mode, except BP detected in the positive mode; “Pr” is the abbreviation of “product”.

and

Table 5. Degradation products of BP detected by GC/MS.

Products	Molecular Weight	CAS Number	GC Retention Time (min)	Molecular Structure
Glycolic acid (2TMS *)	220	33581-77-0	5.42
Oxalic acid (2TMS)	234	18294-04-7	5.81
Malonic acid (2TMS)	248	18457-04-0	6.29
2-Butenedioic acid (2TMS)	260	23508-82-9	6.91
Tartronic acid (3TMS)	336	38165-93-4	7.40
Malic acid (3TMS)	350	38166-11-9	7.92

* TMS in the product name stands for a trimethylsilyl group.

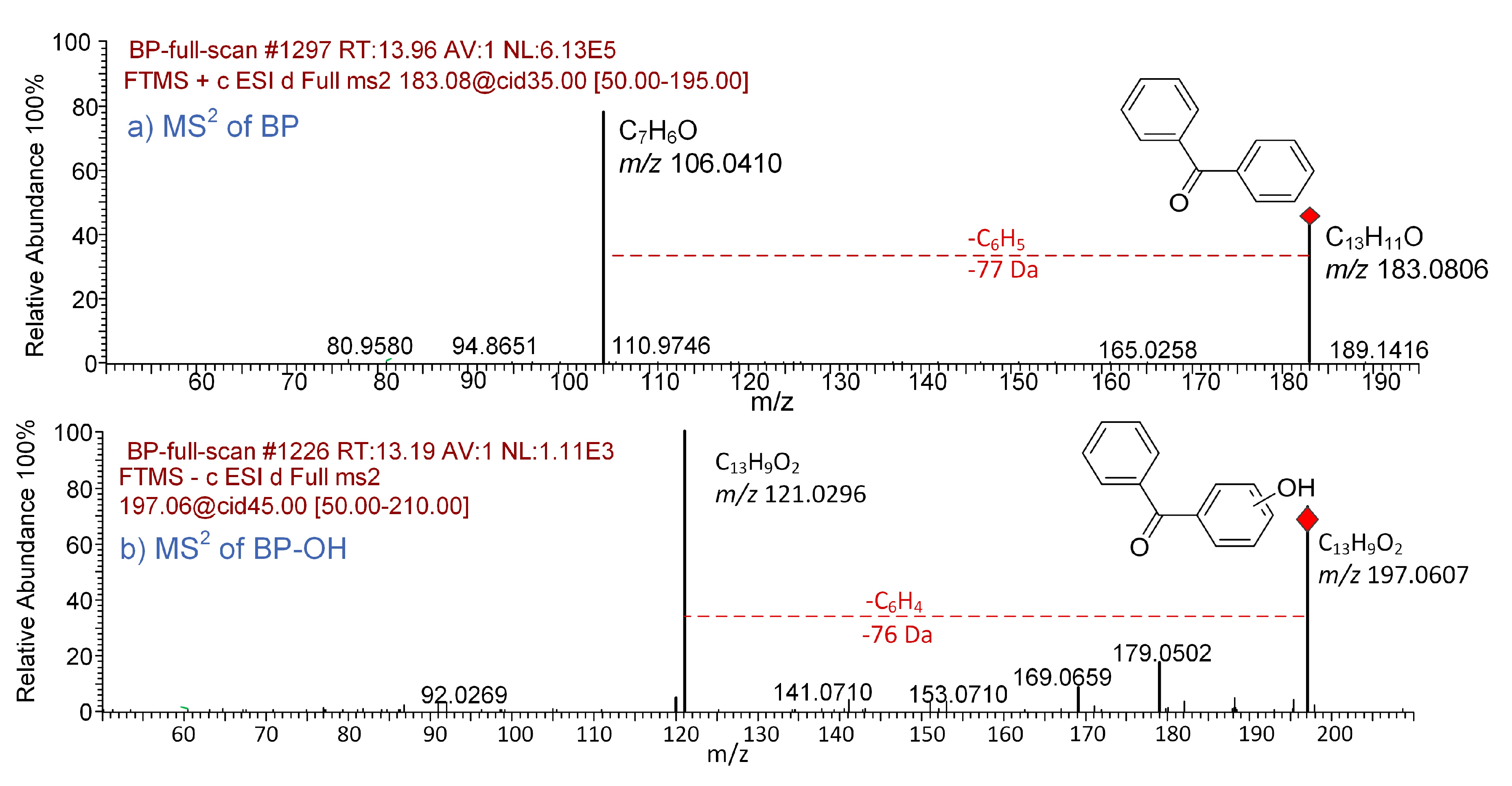

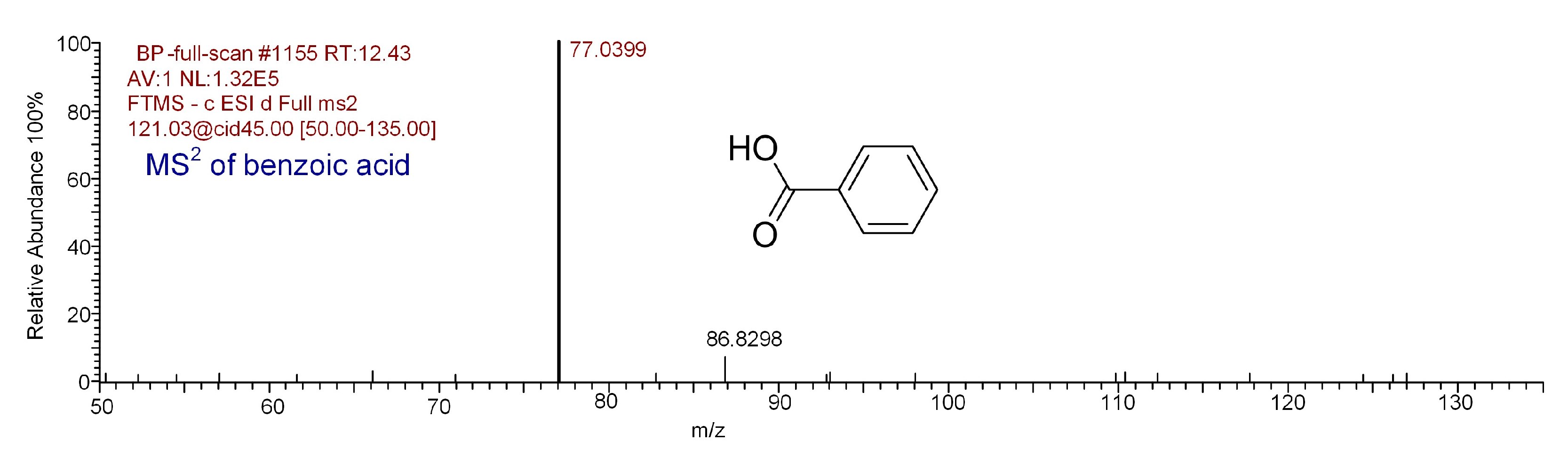

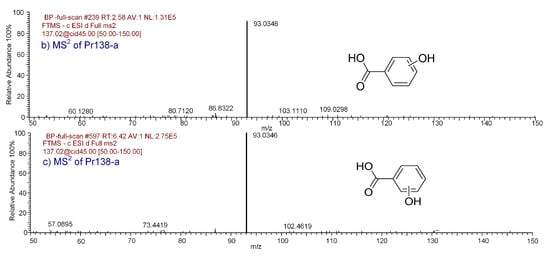

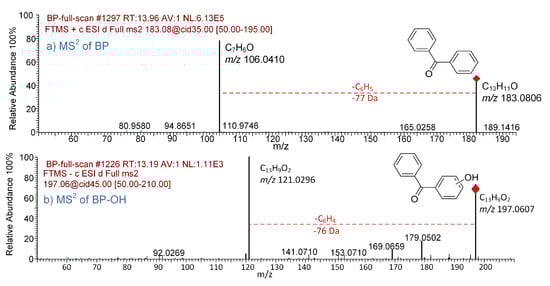

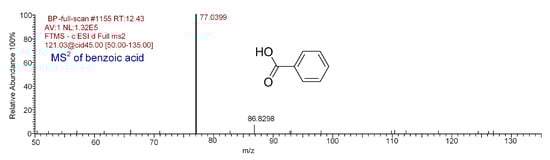

, respectively. Chromatogram (EIC), and MS² spectra of BP and its products identified by LTQ-Orbitrap are illustrated in Figure 7 and Figure A2, Figure A3, Figure A4, Figure A5 and Figure A6, respectively.

BP was detected with an appearance time of 13.96 min and the molecular ion at 183.0804 m/z in a positive mode (Figure 7a). In particular, one structural diagnostic ion was evidenced at 106.04 m/z, formed from the loss of a phenyl group (-C₆H₅, 77 dalton(Da)).

One degradation product at [M−H]⁻ 197.0608 m/z with an empirical formula of C₁₃H₁₀O₂ was determined with an appearance time of 13.19 min in a negative mode and attributed to the mono-hydroxylated BP (entitled BP-OH, Figure 7b). MS² spectrum presents one product ion at 121.03 m/z, also attributed to the detachment of one phenyl group. Hydroxyl (OH) radicals could be attached and added to different sites on the aromatic ring of BP. However, the specific position cannot be distinguished owing to the limitation of the current HRMS technology.

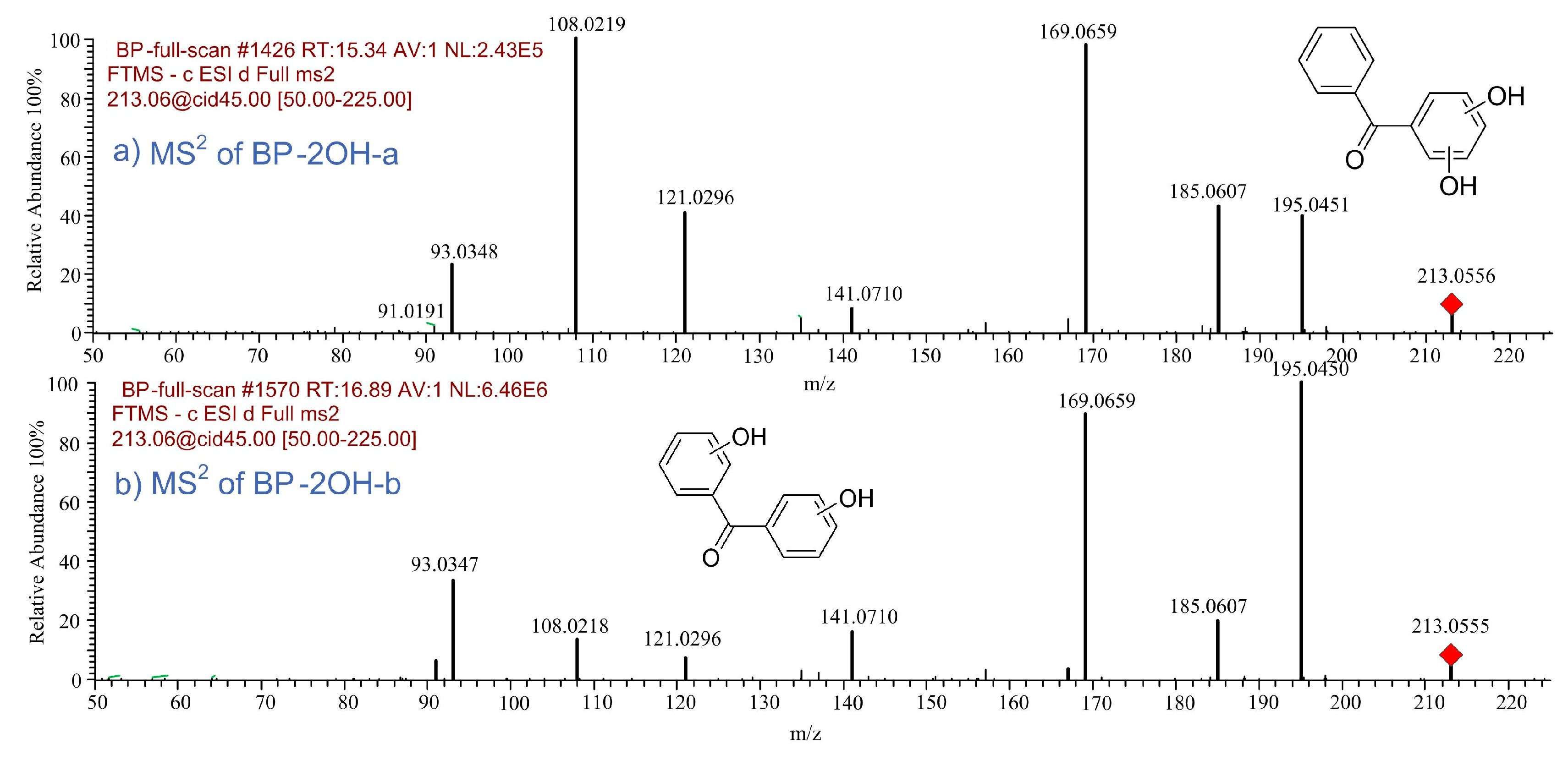

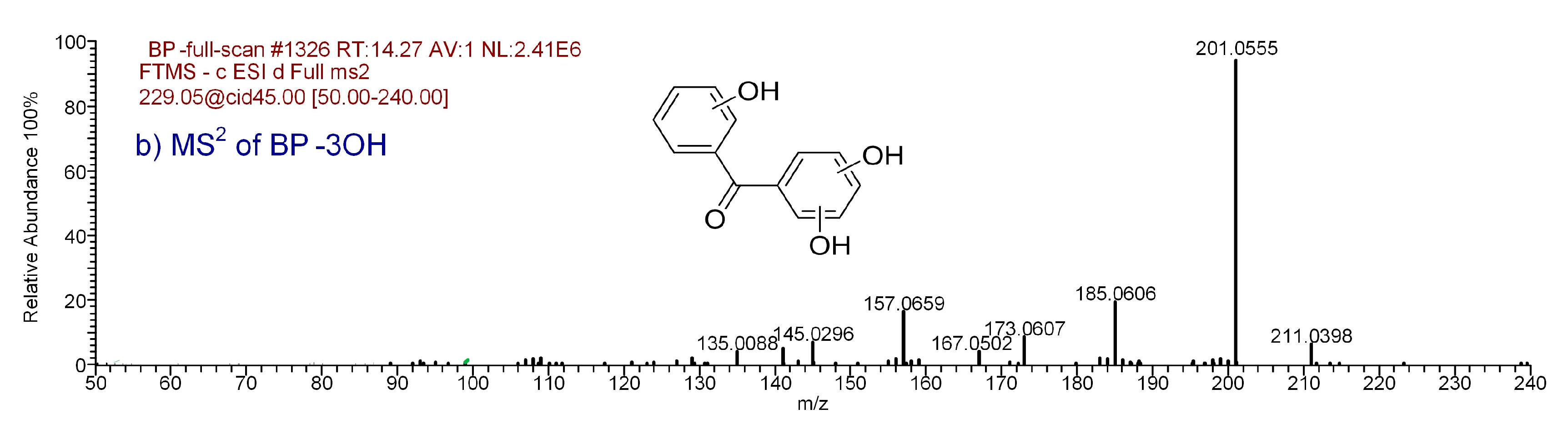

More than one OH radical could further be added to the ring to yield di-hydroxylated or tri-hydroxylated products [40]. Two di-hydroxylated products, named BP-2OH-a and BP-2OH-b, were found at [M−H]⁻ 213.0556 m/z with a retention time of 15.34 min and [M−H]⁻ 213.0555 m/z with a retention time of 16.89 min (Table 4, Figure A2), respectively. Both BP-2OH-a and BP-2OH-b are the isomers of HBP. In fact, hydroxyl addition reaction is very common in AOPs and biological oxidation processes. Pablo et al. found the occurrence of HBP during BP-3 degradation by ozonation process [63] and microbial oxidation in soil [64]. Moreover, one tri-hydroxylated product (BP-3OH) was also determined at [M − H]⁻ 229.0505 m/z with a retention time of 14.27 min (Figure A3).

OH radicals will attack the ketone group of BP and its addition products, which leads to the break of the C–C bond adjacent to the ketone group and the generation of the formyl group. The formyl group could be oxidized to the carboxyl group. With the successive attack by OH radicals, a series of products containing a mono-benzene ring were produced, including Pr138-a, Pr138-b, benzoic acid, Pr110-a, and Pr110-b (Table 4 and Figure A4, Figure A5 and Figure A6).

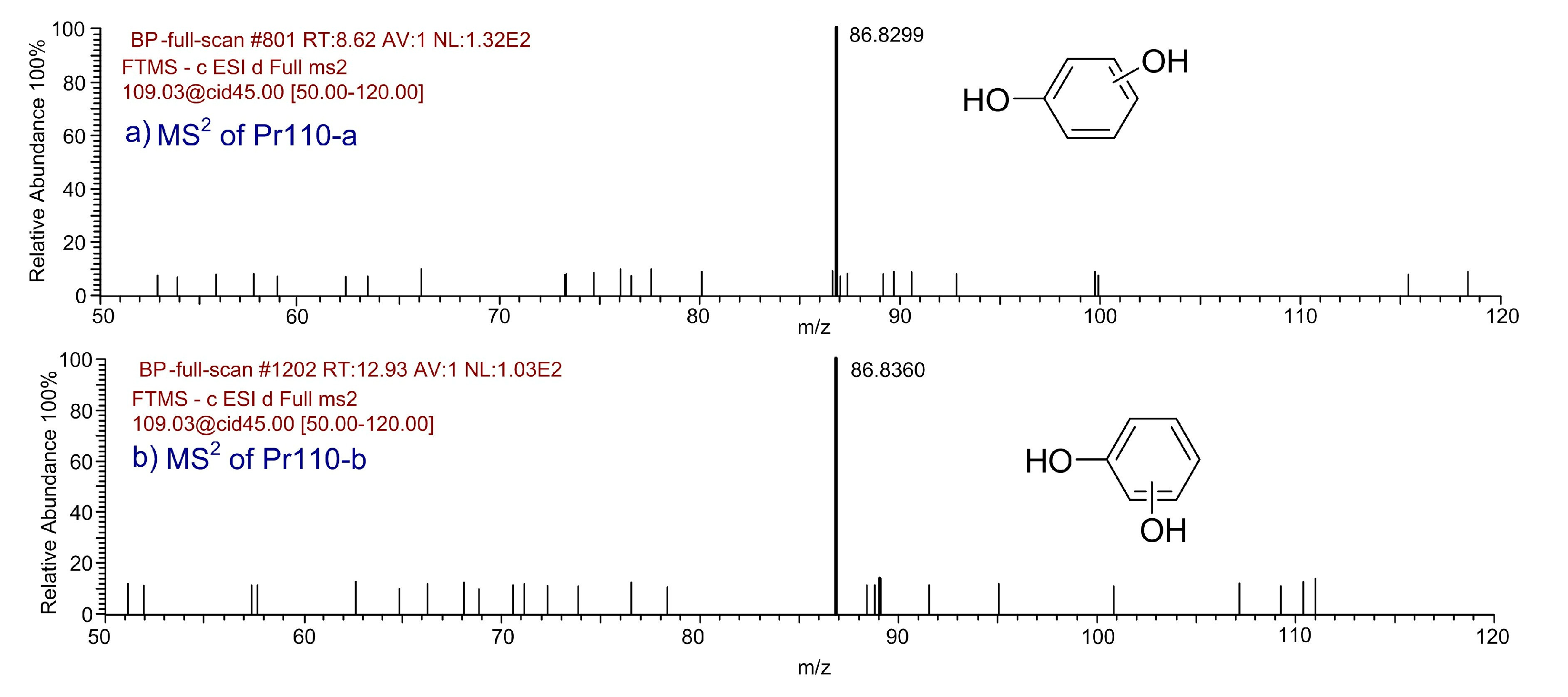

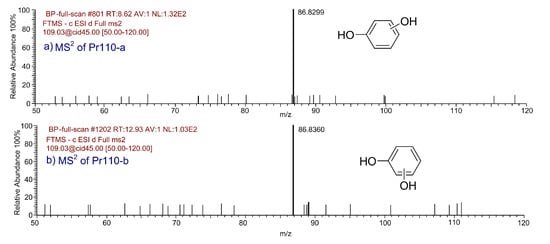

In the later degradation period of compounds containing aromatic rings, OH radicals could cleave the aromatic ring and produce small molecular organic acids. Several reports illustrate that the common organic acids, such as 1,2-dihydroxypropane, glycolic acid, pyruvic acid, formic acid, and propane-dioic acid, usually appear during the degradation of ibuprofen and dimethyl phthalate by the UV/H₂O₂ process [40,48,57]. In this study, six organic acids were determined, including glycolic acid, oxalic acid, malonic acid, 2-butenedioic acid, tartronic acid, and malic acid (Table 5).

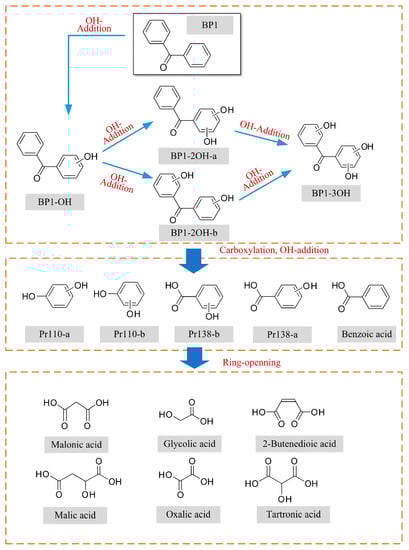

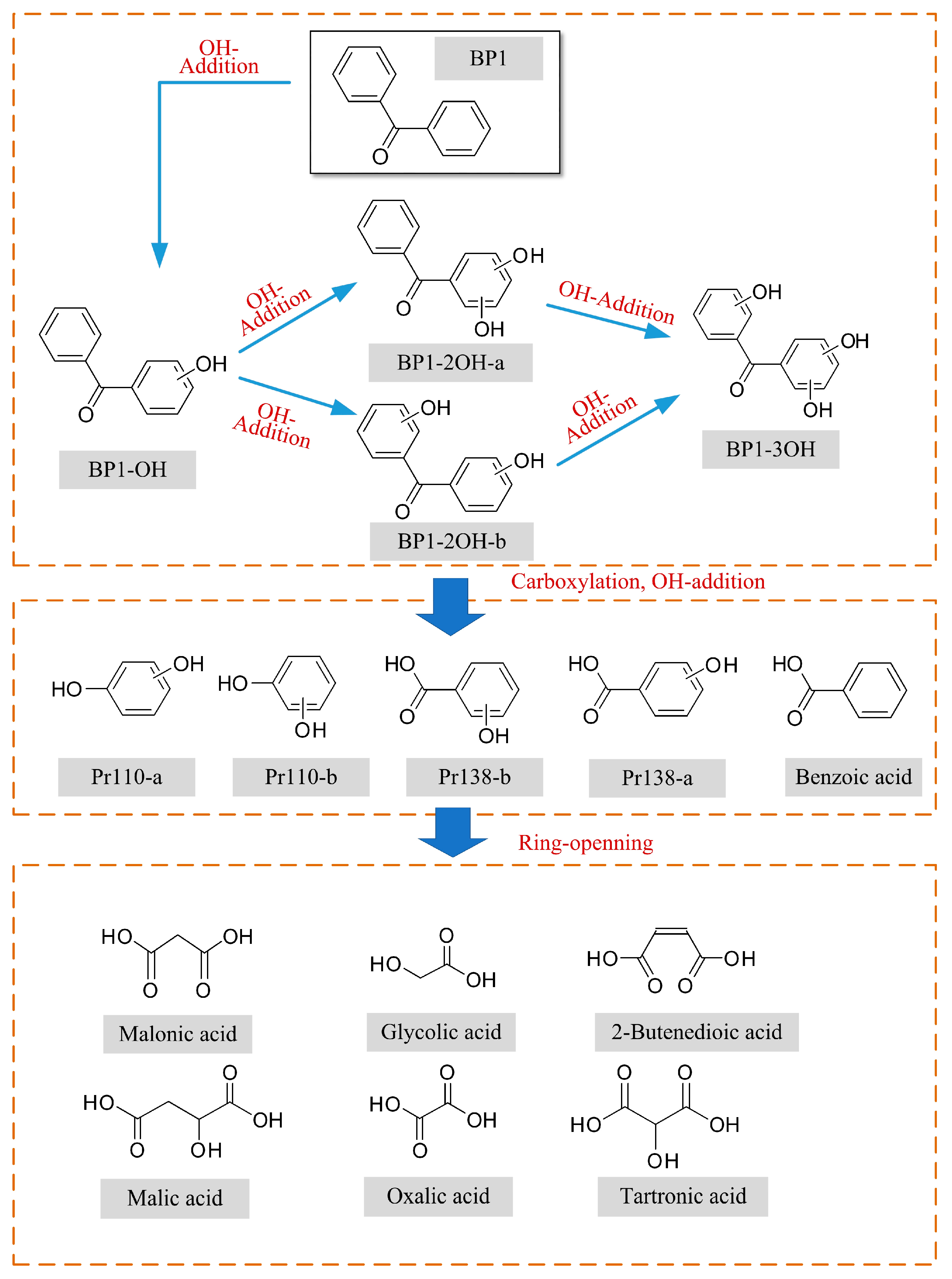

Therefore, a possible reaction pathway for the BP degradation by the UV/H₂O₂ process is proposed (Figure 8). A series of OH radical irritated reactions take place during the process, including hydroxylation, carboxylation, and ring cleavage, which result in the degradation of BP and finally the formation of CO₂ and H₂O.

3.5. Degradation Mechanism of HBP

Both BP and HBP have the homologous benzophenone-type structure. The only difference is that HBP holds two hydroxyl groups on the aromatic rings. In this research, 13 HBP products were detected, including seven compounds by LTQ-Orbitrap and six compounds by GC-MS, shown and listed in Figure 9 and

Table 6. Molecular formula and properties of HBP and its degradation products.

Code	Retention Time (min)	Molecular Formula	Molecular Ions			Structure
			Theoretical m/z	Measured m/z	Δ ppm
HBP	12.29	C13H10O3	213.0557	213.0556	0.47
HBP-OH	11.80	C13H10O4	229.0506	229.0504	0.87
HBP-2OH-a	7.99	C13H10O5	245.0455	245.0455	0.06
HBP-2OH-b	11.24	C13H10O5	245.0455	245.0456	0.41
HBP-3OH	12.79	C13H10O6	261.0405	261.0405	0.09
Pr152	11.85	C7H4O4	151.0037	151.0036	0.66
Benzoic acid	12.25	C7H6O2	121.0295	121.0296	0.82
Pr138-b	7.38	C7H6O3	137.0244	137.0245	0.73

and

Table 7. Degradation products of HBP detected by GC/MS.

Products	Molecular Weight	CAS Number	GC Retention Time (min)	Molecular Structure
Glycolic acid (2TMS *)	220	33581-77-0	5.43
Oxalic acid (2TMS)	234	18294-04-7	5.33
Malonic acid (2TMS)	248	18457-04-0	6.29
2-Butenedioic acid (2TMS)	260	23508-82-9	6.91
Butanedioic acid (2TMS)	262	40309-57-7	6.94
Tartronic acid (3TMS)	336	38165-93-4	7.40

* TMS in the product name stands for a trimethylsilyl group.

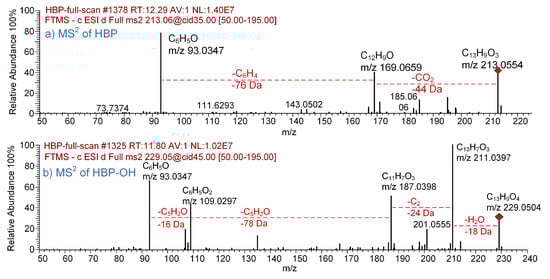

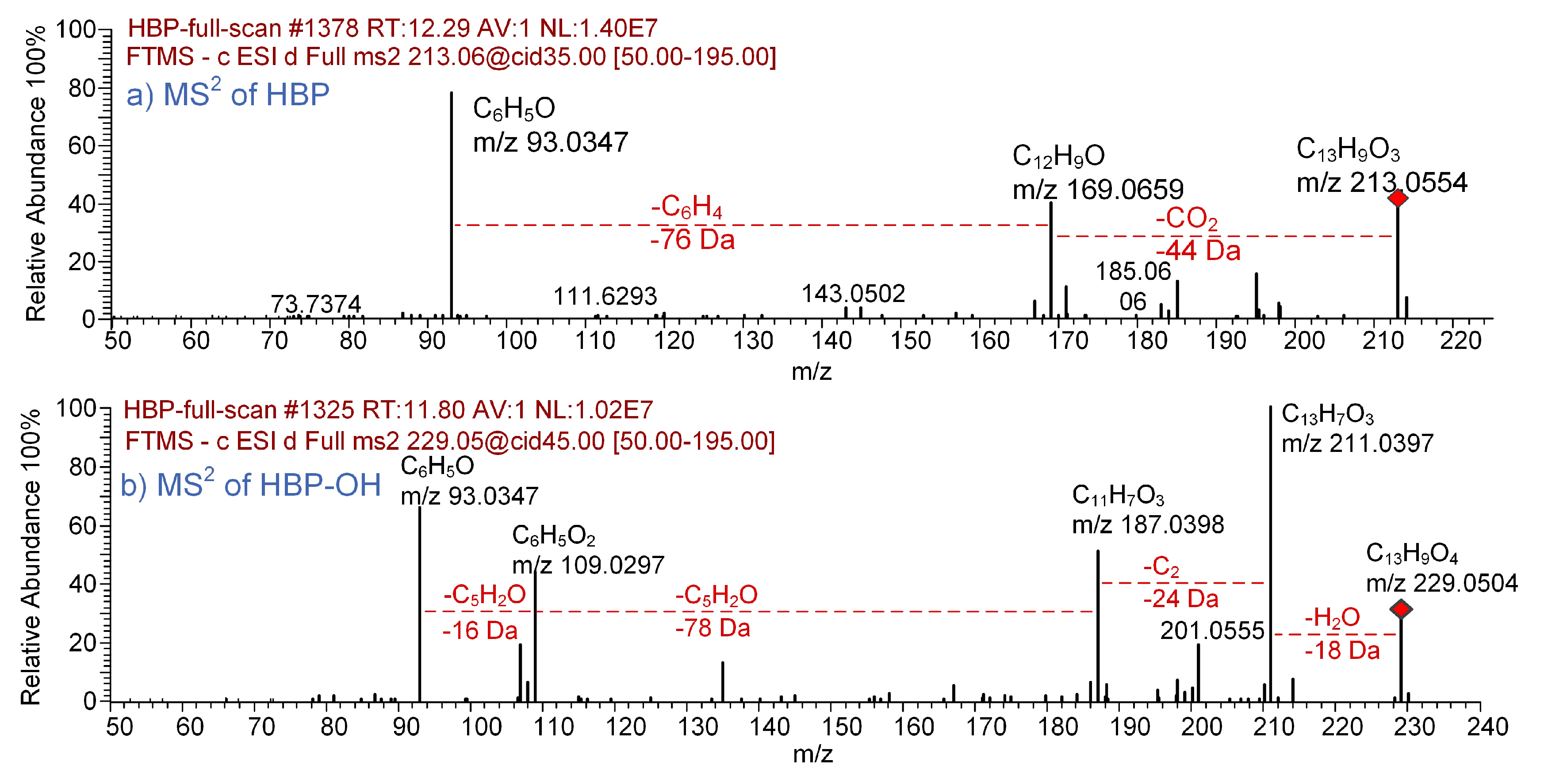

. HBP was determined with the appearance time of 12.29 min, at 213.0554 m/z in negative mode with two structural diagnostic ions at 169.06 and 93.03 m/z (Figure 9a).

One degradation product (called HBP-OH) at [M − H]⁻ 229.0506 m/z with an empirical formula of C₁₃H₁₀O₄ was detected with an appearance time of 11.80 min (Figure 9b). Hydroxylation usually occurs during the primary degradation stage of AOPs [65]. The OH-addition on the HBP ring results in the product of HBP-OH with two main fragment ions at 211.04 and 93.03 m/z.

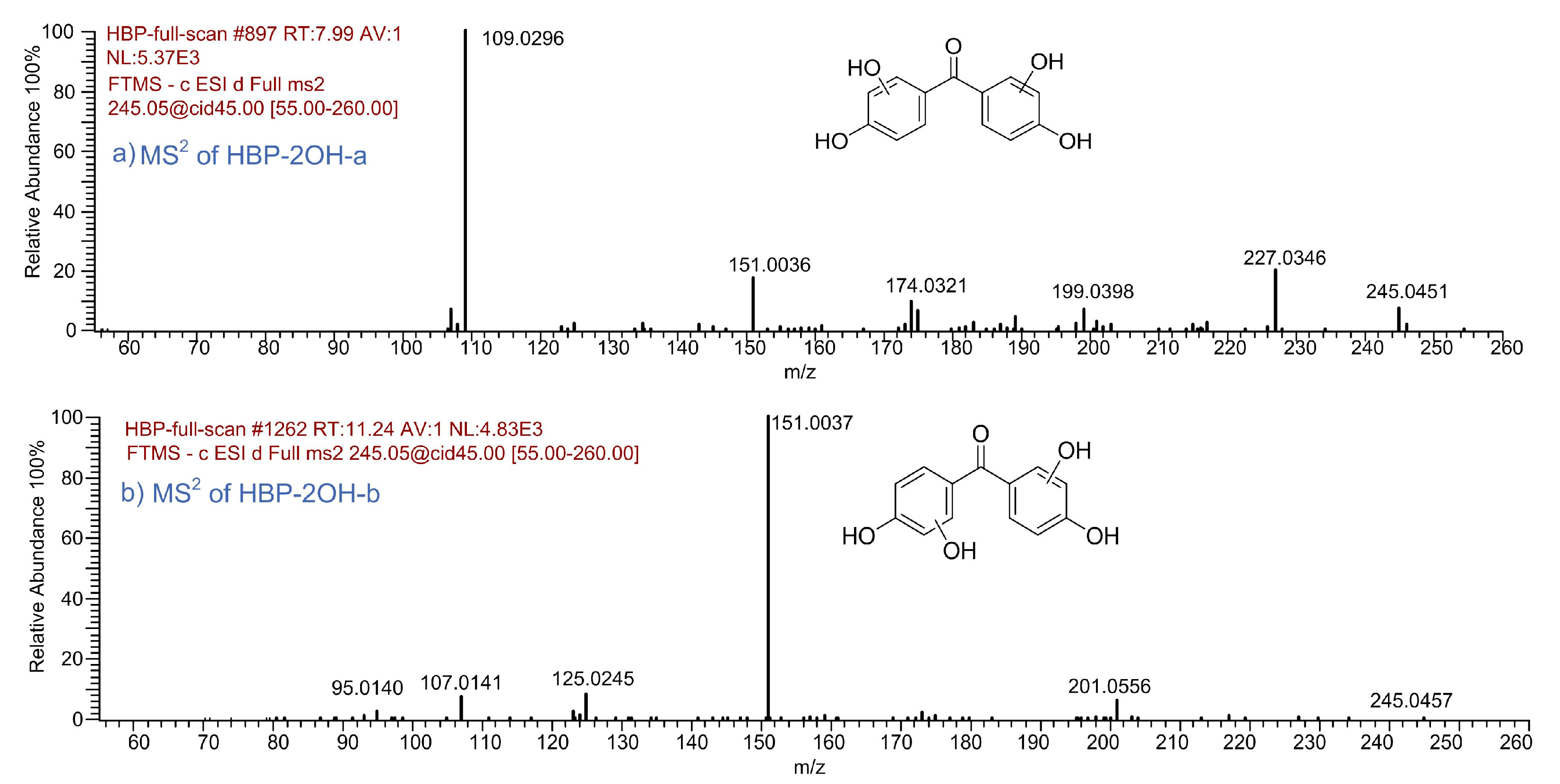

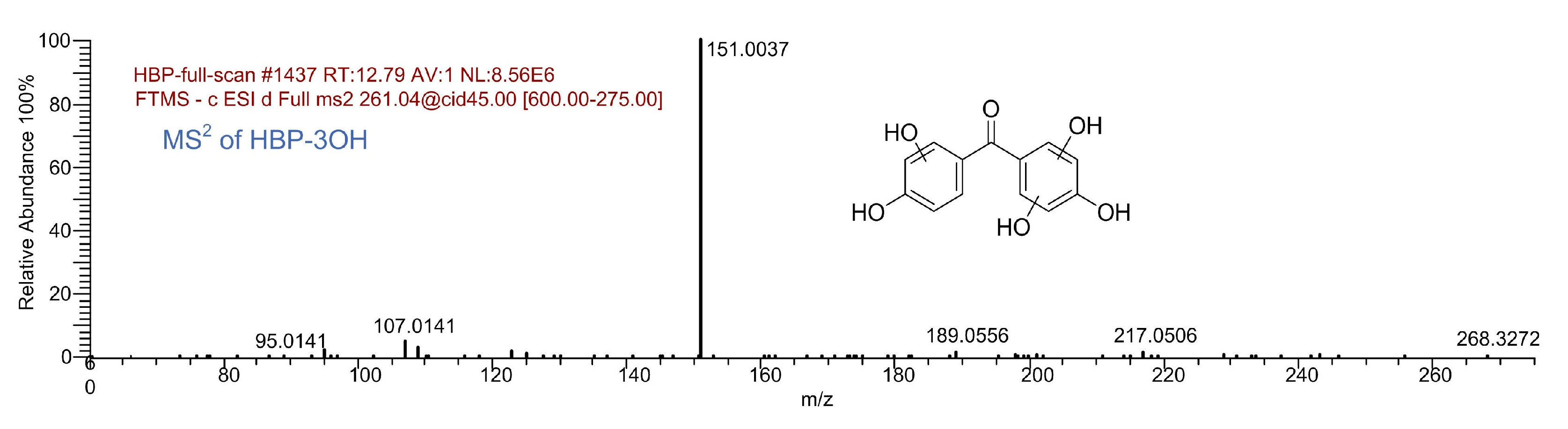

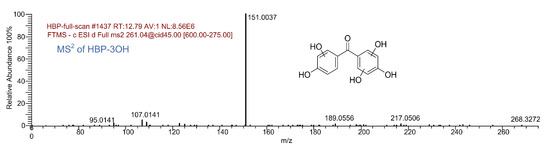

Similar to the degradation of BP, there are also the di-hydroxylated or tri-hydroxylated products for the HBP degradation. Two di-hydroxylated products (HBP-2OH, Table 6, Figure A7) were identified at 245.0455 m/z with retention times of 7.99 and 11.24 min, while one tri-hydroxylated product (HBP-3OH, Table 6, Figure A8) was found at 261.0405 m/z with a retention time of 12.79 min.

The continuous attack of the ketone group by OH radicals leads to the production of compounds containing the mono-benzene ring, including benzoic acid and Pr110-b (Table 6). Benzoic acid, as the common degradation product, was also detected in the BP degradation above (Table 4) and BP3 oxidation by activate persulfate process [36]. Subsequently, the OH radical also can oxidize aromatic matter to quinone-type compounds, such as Pr152 at 151.0037 m/z with the retention time of the 11.85 min (Figure A9).

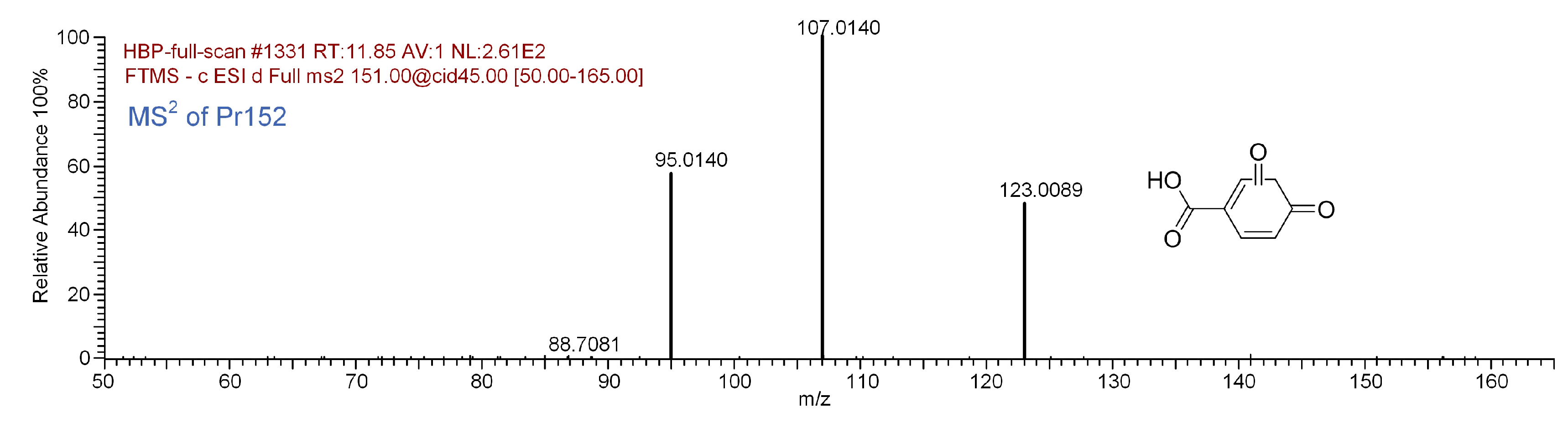

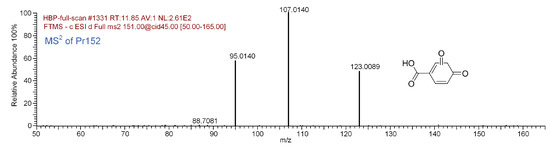

Finally, OH radicals will also cleave the aromatic ring and generate small molecular compounds, such as glycolic acid, oxalic acid, malonic acid, 2-butenedioic acid, butanedioic acid, and tartronic acid (Table 7). Acetic acid and formic acid were also detected in another benzophenone-type compound BP2 degradation by photo-fenton process [43].

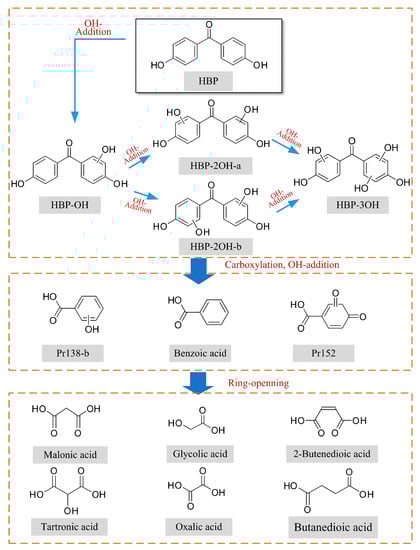

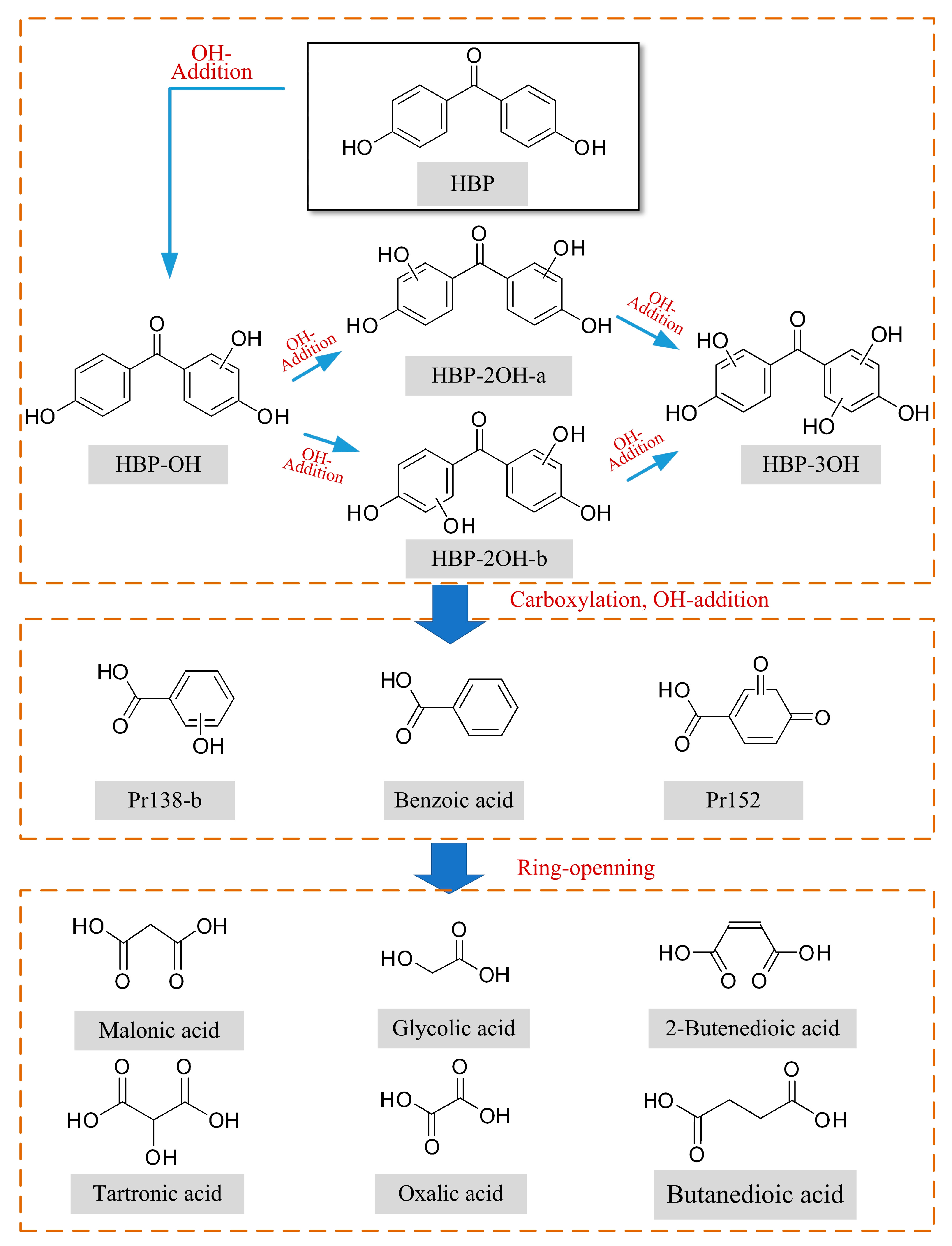

Therefore, a reaction pathway for the HBP degradation by the UV/H₂O₂ process is also provided in Figure 10. Through hydroxylation, carboxylation, and ring cleavage, HBP is further degraded and mineralized to CO₂ and water.

4. Conclusions

The occurrence of benzophenone-type UV filters in wastewater and the aqueous environment has gradually drawn the attention of researchers. For the first time, two typical UV filters, BP and HBP, were selected to explore their degradation in water by a typical type of AOPs, the UV/H₂O₂ process.

• The built RSM model is in accordance with the experimental results and helps to elucidate the reaction factors. For both processes, the initial contaminant concentration (exerting a negative effect) were the most important factors controlling the degradation, followed by H₂O₂ dose and UV intensity (exerting positive effects).
• A total of 15 BP and 13 HBP degradation products were detected. There exist hydroxylated products during the BP and HBP degradation, including mono-hydroxylated, di-hydroxylated, and tri-hydroxylated degradation products. OH radical irritated reactions, including hydroxylation, carboxylation, and ring cleavage, result in the degradation of BP and HBP to CO₂ and H₂O.
• The research provides support for the future application of UV/H₂O₂ advanced oxidation processes for the treatment of wastewater containing benzophenone-type UV filters.
