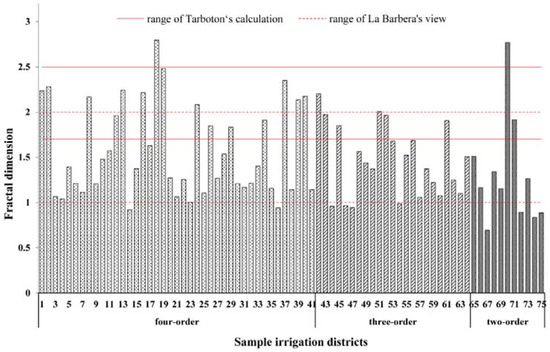

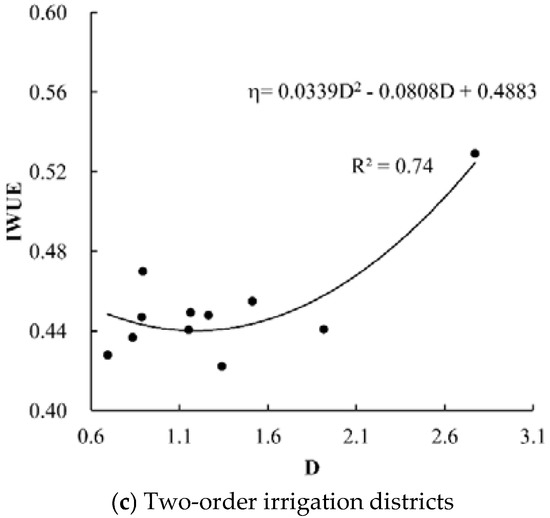

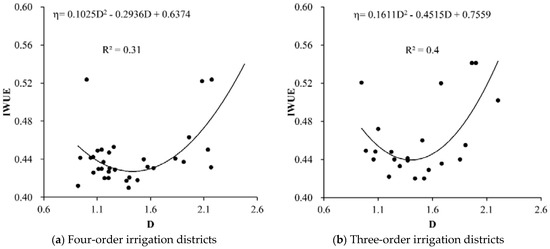

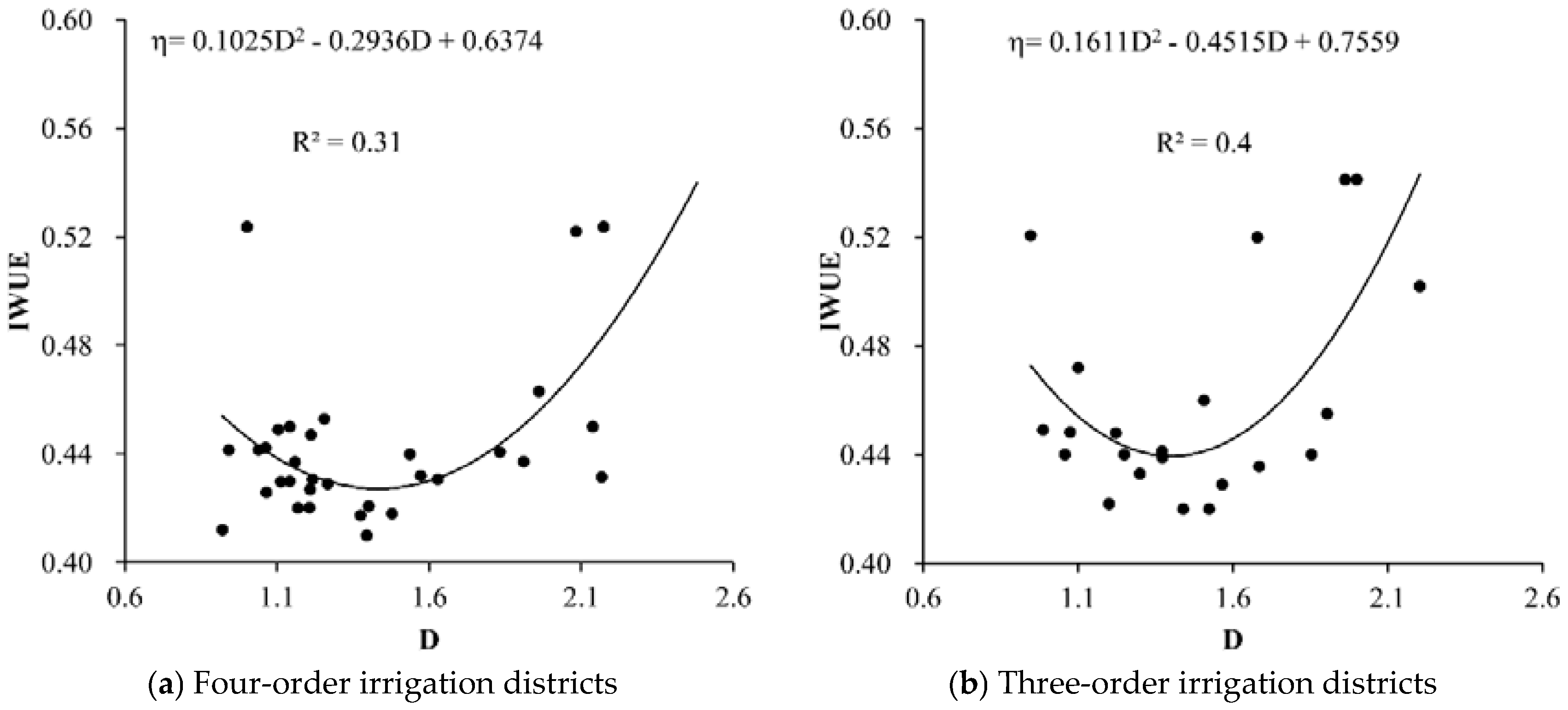

Irrigation water use efficiency is a primary evaluation index that links economic production development with the efficient use of water resources. Canal water conveyance is an important part of irrigation, and the distribution characteristics of canal systems have an important influence on irrigation water use efficiency. In this paper, 75 irrigated districts in Heilongjiang Province in 2015 were selected as the study objects. The main, branch, lateral, and sublateral canals were graded into first-, second-, third-, and fourth-order classes, respectively. The irrigation districts were divided into three classes, that is, four-order, three-order, and two-order, according to the canal orders that the irrigation districts contained. The canal system framework was described by Horton’s law. The fractal dimension of the canal system was calculated based on the bifurcation ratio and length ratio of the canals. The relationships between fractal dimensions and irrigation water use efficiency were evaluated. The results showed that the irrigation water use efficiency of the four-order and three-order irrigation districts initially increased and then decreased with increases in the fractal dimension (D). In the irrigation districts, an irrigation water use efficiency of more than 10 × 103
and less than 0.67 × 103

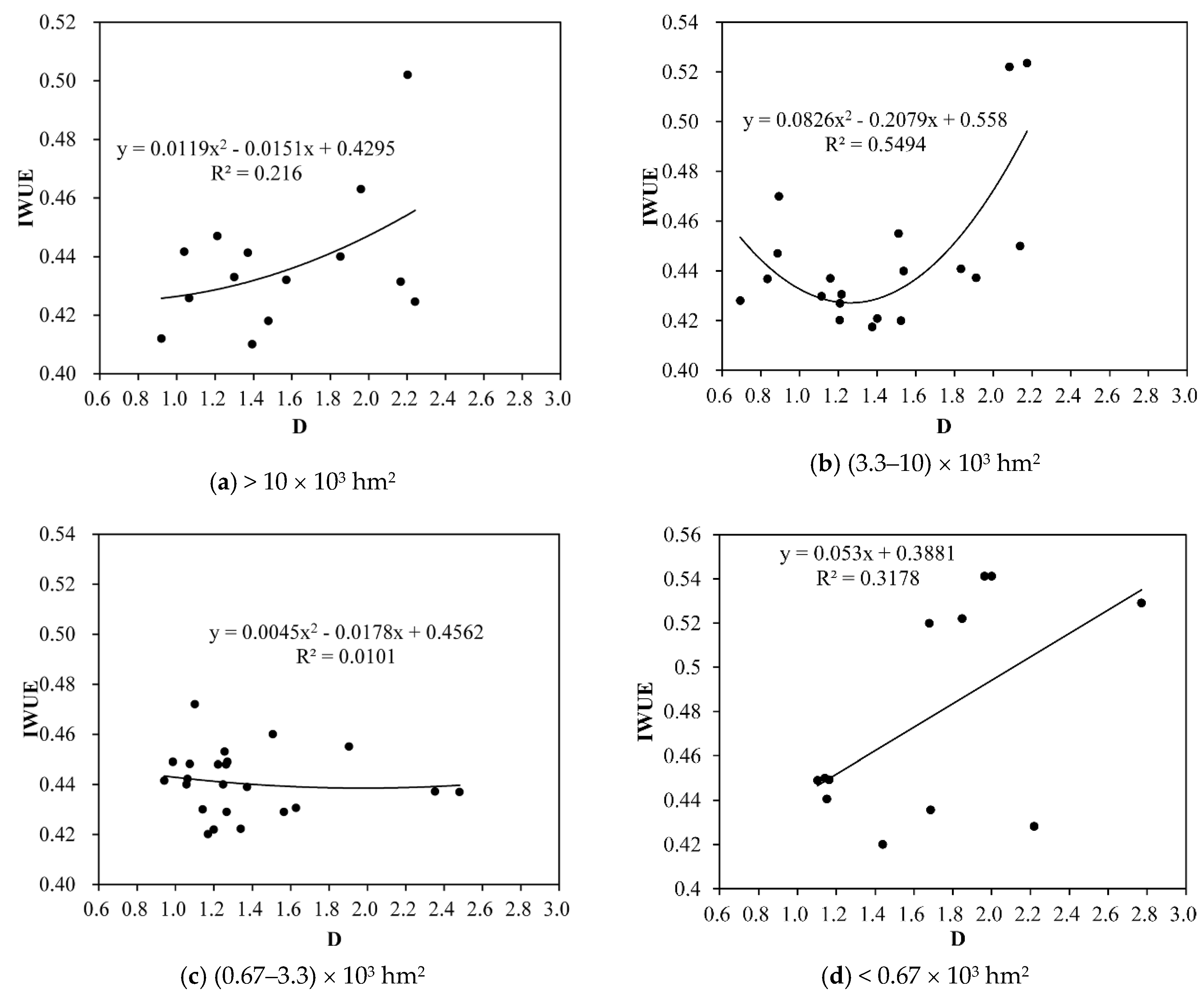

was proportional to the increase in the fractal dimension, whereas the opposite result was found for districts with (0.67–10) × 103
. The irrigation water use efficiency of the four-order and two-order irrigation districts with less than 3.3 × 103

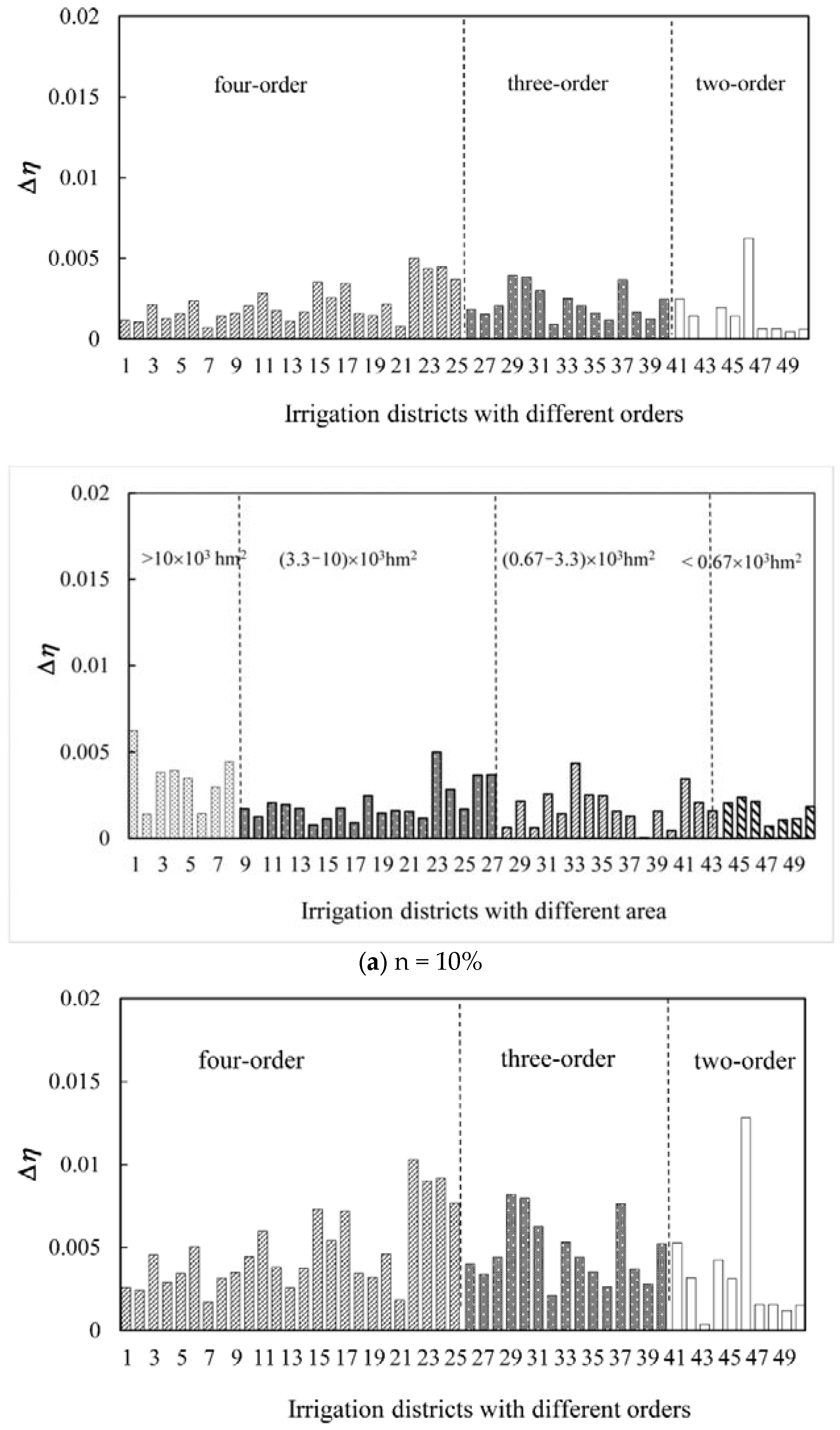

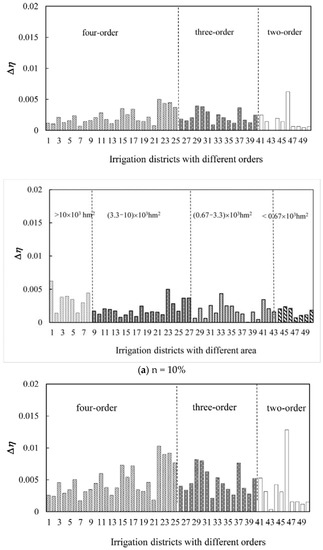

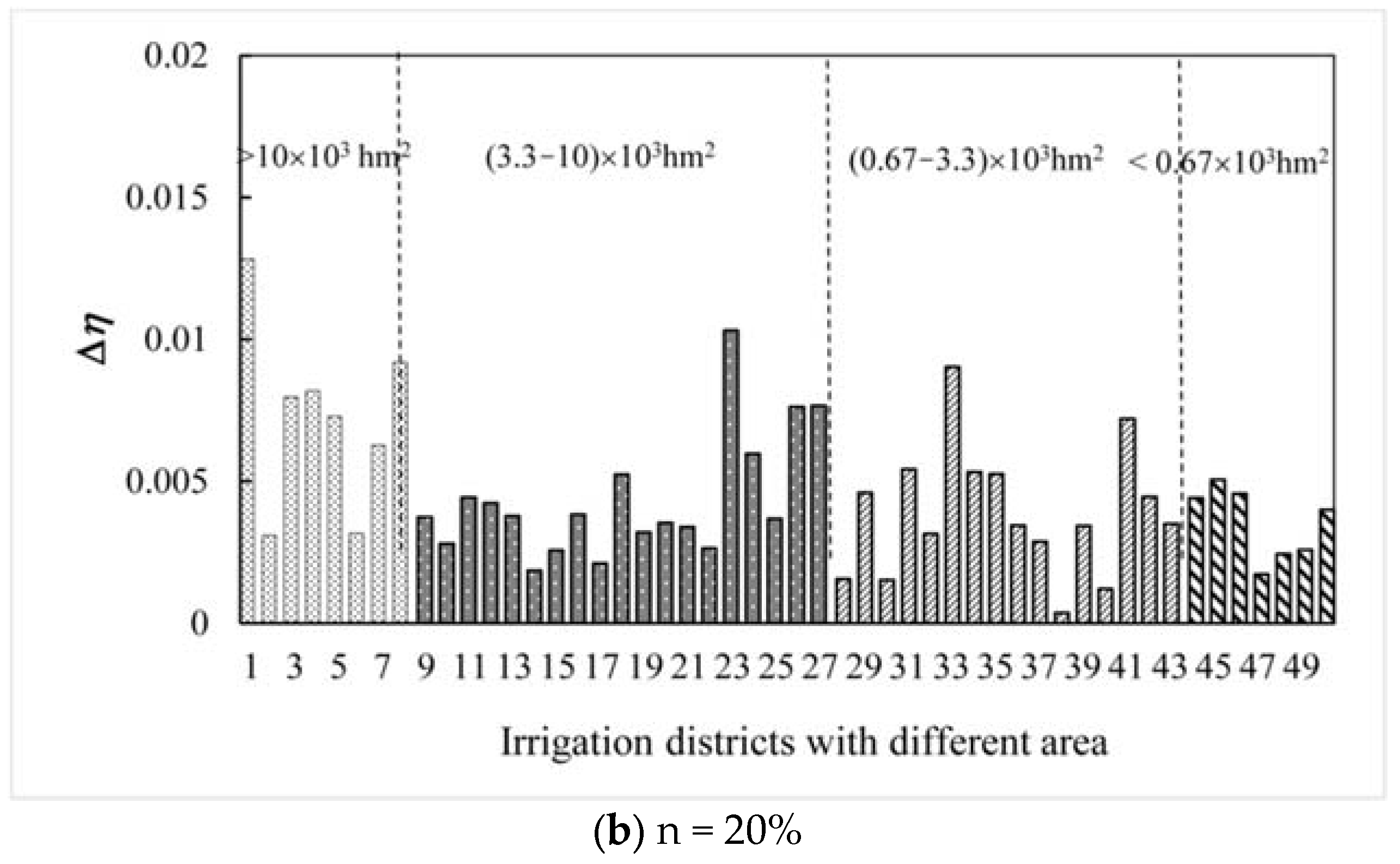

had the greatest potential to increase the water use efficiency. Therefore, canal system reconstruction suggestions for different irrigation districts were provided. The results have important theoretical significance and practical value for the improvement of irrigation construction and the promotion of irrigation water efficiency planning.
