# Comparing Transient and Steady-State Analysis of Single-Ring Infiltrometer Data for an Abandoned Field Affected by Fire in Eastern Spain

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{8}

^{*}

## Abstract

**:**

_{fs}, of an unmanaged field affected by fire by means of single-ring infiltrometer runs and the use of transient and steady-state data analysis procedures. Sampling and measurements were carried out in 2012 and 2017 in a fire-affected field (burnt site) and in a neighboring non-affected site (control site). The predictive potential of different data analysis procedures (i.e., transient and steady-state) to yield proper K

_{fs}estimates was investigated. In particular, the transient WU1 method and the BB, WU2 and OPD methods were compared. The cumulative linearization (CL) method was used to apply the WU1 method. Values of K

_{fs}ranging from 0.87 to 4.21 mm·h

^{−1}were obtained, depending on the considered data analysis method. The WU1 method did not yield significantly different K

_{fs}estimates between the sampled sites throughout the five-year period, due to the generally poor performance of the CL method, which spoiled the soil hydraulic characterization. In particular, good fits were only obtained in 23% of the cases. The BB, WU2 and the OPD methods, with a characterization based exclusively on a stabilized infiltration process, yielded an appreciably lower variability of the K

_{fs}data as compared with the WU1 method. It was concluded that steady-state methods were more appropriate for detecting slight changes of K

_{fs}in post-fire soil hydraulic characterizations. Our results showed a certain degree of soil degradation at the burnt site with an immediate reduction of the soil organic matter and a progressive increase of the soil bulk density during the five years following the fire. This general impoverishment resulted in a slight but significant decrease in the field-saturated soil hydraulic conductivity.

## 1. Introduction

_{fs}, exerts a key role in the partitioning of rainfall into runoff and infiltration [1]. Therefore, estimates of K

_{fs}are essential for evaluating the hydrological response of fire-affected soils [2]. Soil properties are highly affected by fires due to the removal of the aboveground vegetation, the heat impact on the soil, the removal of the organic matter, the ash cover and the changes induced by rainfall on the soil surface [3,4,5]. Most of the research carried out on fire-affected land has paid attention to the “window of disturbance”, which is the period during which the soil losses are higher than before the fire and which lasts for a few years [6,7,8]. In order to understand the evolution of soil erosion after forest fires it is necessary to monitor fire-affected sites over a long period of time, in order to enable the assessment of the period affected by the window of disturbance [9]. Moreover, it is also possible to carry out measurements and experiments in areas with a different fire history. This gives information about the temporal changes in soil erosion after fire.

_{fs}in the field (e.g., [14,15,16,17]). With a single-ring infiltrometer, a constant or falling-head infiltration process has to be established. In the field, a constant-head single-ring infiltrometer often needs level-control setups or expensive devices with monitoring equipment containing proprietary technology with prohibitive costs [18,19,20]. Therefore, a falling-head experiment is preferable since it minimizes the complexity of implementation, characterizing an area of interest with minimal experimental efforts [11,21]. Recently, Nimmo et al. [11] developed the so-called bottomless bucket, named BB method hereafter, which uses a portable, falling-head, small-diameter single-ring infiltrometer. These authors adapted the Reynolds and Elrick (1990) formula to be applied instantaneously during a falling-head test. However, only few comparisons of BB estimates with other procedures can be found in the literature (e.g., [2,22]), notwithstanding that this method of soil hydraulic characterization is of noticeable practical interest. In general, establishing the reliability of new methods is not a simple task, also due to the high K

_{fs}variability both in space and time [23,24]. Moreover, many other sources of variability may also arise when comparing different field measurement techniques, such as sample size [25], ring diameter [26], source shape [27] and field sampling procedure [28,29]. One could expect that considering laboratory measurements as targeted values would help to check the reliability of field data. However, this approach may be questioned due to the difficulty of representing the soil heterogeneity encountered in the field in small-scale laboratory samples (e.g., [24,30,31,32,33]). An alternative approach, considering different calculation techniques applied to the same dataset, is expected to facilitate the interpretation rising from the comparison [24]. Different methods of calculating K

_{fs}from single-ring data were developed over time (e.g., [10,11,12,21,34,35,36,37]). Among them, the one ponding depth (OPD) calculation approach of Reynolds and Elrick [12] and Method 2 by Wu et al. [38] (WU2) have in common with the BB method that all these approaches analyze steady-state single-ring infiltrometer data, thus considering the same part of the infiltration process [24]. Moreover, they all require an estimate of the sorptive number (or macroscopic capillary length parameter), α* (L

^{−1}), expressing the relative importance of gravity and capillary forces during a ponding infiltration process [1].

_{fs}of an abandoned unmanaged field affected by fire by means of single-ring infiltrometer runs and the use of transient and steady-state data analysis procedures. Sampling and measurements were carried out in 2012 and 2017 in a fire-affected (on 15 July) field (burnt site) and in a neighboring non-affected site (control site). The focus was put on the predictive potential of different data analysis procedures (i.e., transient and steady-state) to yield proper K

_{fs}estimates and to detect the effect of fire on saturated hydraulic conductivity. More specifically, we chose to test the bottomless bucket method by comparing the field-saturated soil hydraulic conductivity estimates with those obtained by other well-tested methods.

## 2. Theory

#### 2.1. Steady-State Analysis of Single-Ring Infiltrometer Data

_{fs}(L·T

^{−1}) is calculated by the following equation:

_{0}(L) is the initially established ponded depth of water, H(t) (L) is the ponded depth of water at time t, λ

_{c}(L) is the macroscopic capillary length of the soil [39], and the so-called ring installation scaling length, L

_{G}(L), is calculated as follow:

_{s}(L

^{3}·T

^{−1}), which is estimated from the flow rate versus time plot. The following relationship is used to obtain K

_{fs}:

_{G}is a shape factor that can be estimated as follows:

_{fs}is calculated by the following equation:

_{s}(L·T

^{−1}) is the slope of the straight line fitted to the data describing steady-state conditions on the cumulative infiltration, I (L), versus time, t (T), relation, a is a dimensionless constant equal to 0.9084 [36], and f is a correction factor that depends on soil initial and boundary conditions and ring geometry:

#### 2.2. Transient Analysis of Single-Ring Infiltrometer Data

_{fs}. In addition, this method offered the possibility to check the assumed α* value by directly estimating this parameter from a single-ring test and a measurement of the soil water content. This method is based on the assumption that the cumulative infiltration can be described by a relation formally identical to the two-term infiltration model by Philip [40]:

_{1}(L·T

^{−0.5}) and C

_{2}(L·T

^{−1}) are infiltration coefficients. With method 1, K

_{fs}is calculated by the following equation:

^{3}·L

^{−3}) is the difference between the saturated volumetric soil water content, θ

_{s}(L

^{3}·L

^{−3}), and the initial one, θ

_{i}(L

^{3}·L

^{−3}). The λ

_{c}(L) and T

_{c}(T) terms have the following expressions:

^{−1}), may also be obtained taking into account that:

_{1}and C

_{2}coefficients according to the fitting method referred to as cumulative linearization (CL, [41]). With the CL method, Equation (8) is linearized by dividing both sides by $\surd t$, giving:

_{1}and C

_{2}coefficients are determined respectively as the intercept and the slope of the I/$\surd t$ vs. $\surd t$ plot.

## 3. Materials and Methods

#### 3.1. Soil Sampling

^{2}plot. Undisturbed soil cores were also collected at 0–60 mm soil depth. The cores were used to determine the soil bulk density, ρ

_{b}(g·cm

^{−3}), and the initial volumetric soil water content, θ

_{i}(m

^{3}·m

^{−3}). According to other investigations, the saturated soil water content, θ

_{s}(m

^{3}·m

^{−3}), was approximated by total soil porosity, determined from bulk density ρ

_{b}(e.g., [28,37,43,44,45,46,47,48]). Soil organic matter was determined by the Walkley-Black [49] method.

#### 3.2. Single-Ring Infiltrometer

_{0}= 50 mm. In this investigation, the possible occurrence of soil water repellency was not considered, given that this phenomenon is uncommon for scrub terrain on calcareous soils in the region, even after fire [50,51]. Therefore, the use of ponding experiments, which are known to overwhelm positive soil-water-entry values induced by water repellency (e.g., [2,52,53,54]), was not expected to induce bias. The rate of drop of the water level was monitored by measuring the ponding depth at prescribed time intervals, H(t). After each measurement, another volume of water was poured immediately into the ring to re-establish a ponded depth of water of 50 mm. During the first minutes, small time intervals were used. The time interval was increased up to 5 min in the late phase of the experiment. Steady-state conditions were attained within 60 min of all experiments. This procedure differs from the one proposed by Nimmo et al. [11], since these authors logged the time needed for the water to reach a minimum fixed H(t) value, thus pouring in known water volumes to re-establish the initial ponding depth. The obvious advantage to consider prescribed time intervals instead of a preselected water amount, is that monitoring time is significantly easier than monitoring water levels. Moreover, in their investigation Nimmo et al. [11] stated that the “modification of these procedures is likely to be necessary for different soils and conditions”. In our case, the sampled soils were characterized by low permeability. In such conditions, logging the time needed for the water to reach a minimum fixed H(t) value, such as the Nimmo’s procedure, would imply obtaining less data points for the same duration of the experiment, or alternatively it would imply considerably extending the experiment duration to have a similar number of data points and, thus, to properly evaluate the steady-state phase of the infiltration process. Therefore, the applied criterion also allowed us to increase our confidence in the sampled data. A total of forty experimental cumulative infiltrations versus time were then deduced. Cumulative infiltration data were firstly analyzed according to the criterion suggested by Bagarello et al. [55]. Specifically, apparent steady-state infiltration rates were estimated by linear regression analysis of the last three (I, t) data points. Then, the equilibration time, t

_{s}(min), namely the duration of the transient phase of the infiltration process, was determined as the first value for which:

_{reg}is estimated from the regression analysis of the I versus t plot, and E is a criterion to check linearity. Equation (15) is applied from the start of the experiment and progressively excludes the first data points until E ≤ 2 [1,24]. An illustrative example of the t

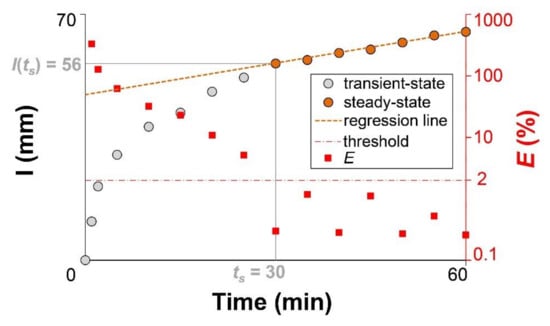

_{s}estimation is reported in Figure 2.

#### 3.3. Data Analysis and Calculations

_{fs}(K

_{fs}

_{-BB}) by Equation (1), assuming λ

_{c}= 1/α* = 0.25 m. A value of α* = 4 m

^{−1}for unstructured fine-textured soils (strong soil capillarity category) was selected from the soil texture–structure categories defined by Elrick and Reynolds [56]. The last determinations of K

_{fs}

_{-BB}, representative of steady-state conditions, were averaged to obtain an estimate of K

_{fs}

_{-BB}for a given test, as suggested by Angulo-Jaramillo et al. [1].

_{fs}data, which were denoted with the symbols K

_{fs}

_{-WU2}and K

_{fs}

_{-OPD}, for WU2 and OPD, respectively. It has to be noted that these latter methods are theoretically usable for a constant ponded depth of water on the infiltration surface. However, in our case, the variation of the water level during the late-phase of the infiltration process never exceeded 1–2 mm. Therefore, the ponded depth at the late-phase of the run was assumed to be practically constant.

_{fs}and α* by Equations (9) and (13), respectively. These estimates were denoted with the symbols K

_{fs}

_{-WU1-CL}and α*

_{CL}. We first obtained the C

_{1}and C

_{2}values with the CL method by fitting Equation (14). The adequacy of the fitting procedure was evaluated by checking both the linearity of the data and the relative error defined as:

_{fs}and α* data were assumed to be lognormal, as is common for these variables (e.g., [57,58]). Therefore, geometric means and associated coefficients of variation, CV, were calculated using the appropriate “log-normal equations” [59]. The other variables considered in this investigation were summarized by calculating the arithmetic mean and the associated CV, since the characterization of an area of interest is generally based on arithmetic averages of individual determinations [60]. To compare mean values, untransformed and natural log-transformed data were used for the normal and the natural log-normal distributed variables, respectively. Different K

_{fs}datasets were also compared in terms of factors of difference (FoD), calculated as the ratio between the maximum and minimum of two K

_{fs}values estimated by different calculation techniques from a run [24]. Following Elrick and Reynolds [56], FoD values not exceeding a factor of two or three were considered indicative of similar estimates.

## 4. Results

#### 4.1. Physical Properties

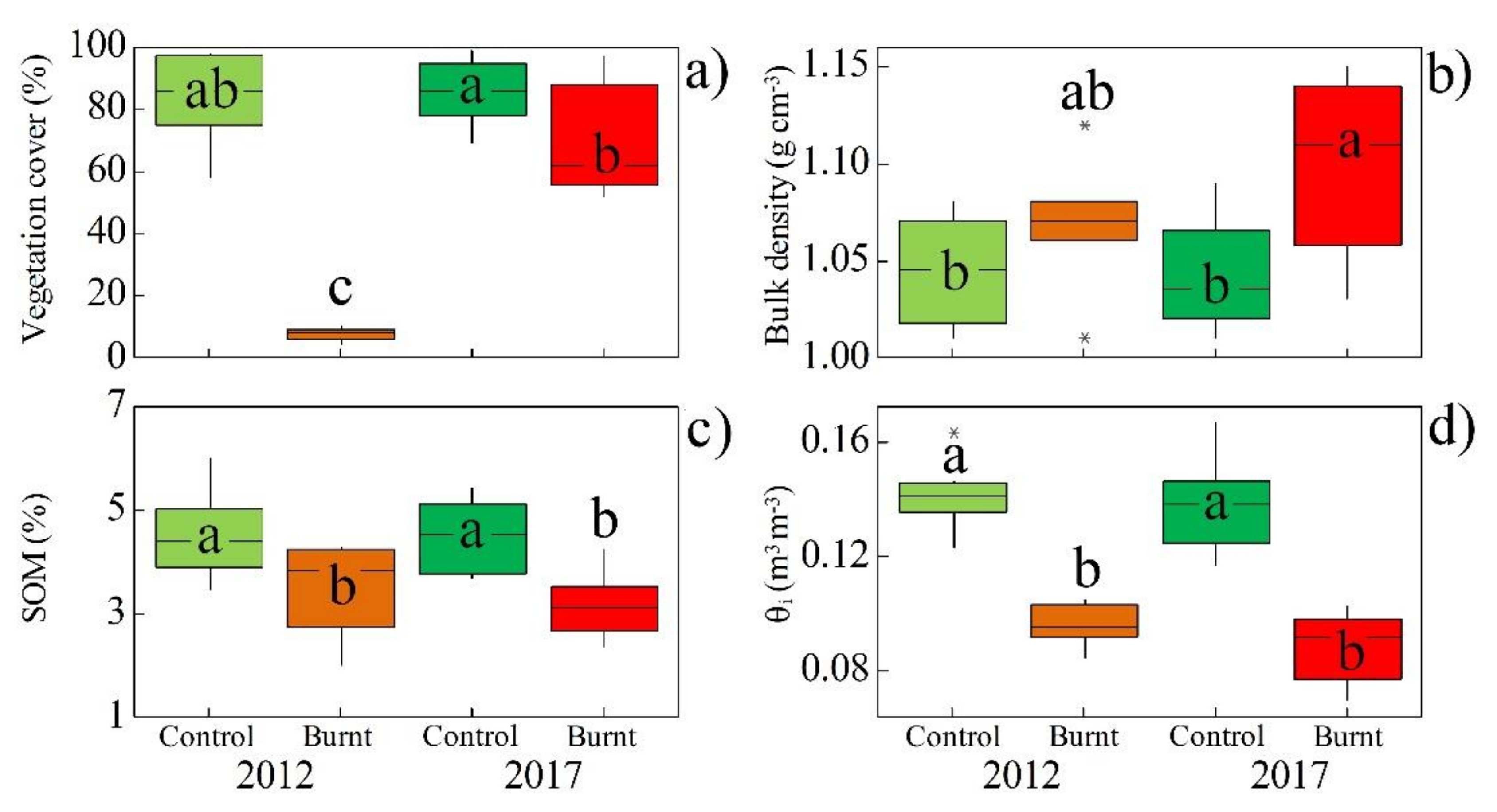

_{i}values equal to 0.141 and 0.137 m

^{3}·m

^{−3}at the control site and 0.096 and 0.087 m

^{3}·m

^{–3}at the burnt site, for the 2012 and 2017 sampling campaigns, respectively. No significant differences in terms of soil dry bulk density were detected between the control and burnt sites four months after the fire. On the contrary, our results showed a significant increase of the bulk density five years after the fire, due probably to a progressive collapse of aggregates [9], highlighting a certain degree of soil degradation at the burnt site.

#### 4.2. Performance of the Cumulative Linearization (CL) Method

_{fs}and α* required the estimation of the C

_{1}and C

_{2}coefficients. We obtained the C

_{1}and C

_{2}values with the CL fitting method. This method showed general poor performance both in terms of the linearity of the data and the relative error. The ΔI/Δ$\surd \mathrm{t}$ vs. $\surd \mathrm{t}$ plots did not show the expected linear relationship between the considered variables for the entire infiltration run. Therefore, we progressively excluded the first data points selecting the C

_{1}and C

_{2}values when the following criteria were fulfilled: (i) positive values of the C

_{2}parameter (yielding physically plausible K

_{fs}estimates i.e., K

_{fs}> 0); and (ii) a linear relationship between the considered variables. An example of the applied selection procedure for the infiltration coefficients is depicted in Figure 4. The example refers to the case of an infiltration run carried out at the burnt site in 2017. The exclusion of no or one data point yielded negative C

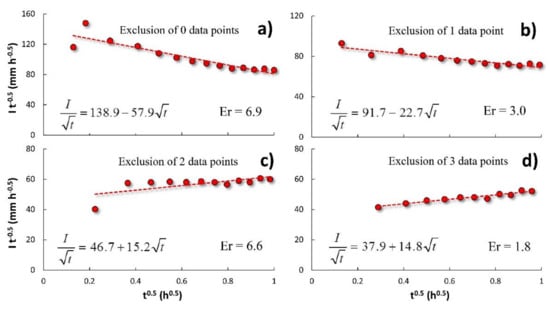

_{2}values (Figure 4a,b). The exclusion of two data points yielded a positive C

_{2}value, but a value of Er = 6.6% was obtained due to the departure of the first point from the general linear behaviour (Figure 4c). In this case, the C

_{2}coefficient should make it possible to obtain an apparently physically plausible K

_{fs}estimate, i.e., K

_{fs}> 0. However, given that the dataset was not linear, Equation (8) was considered inappropriate and hence the fitted parameters were considered as meaningless from a physical point of view [65]. Finally, the C

_{1}and C

_{2}coefficients could be properly estimated by excluding the first three data points (Figure 4d). Other investigations also suggested removing the fitting procedures the early stage of the infiltration process when a perturbation occurs (e.g., [21,38,46,66]). In contrast, the last points may be removed since the CL method mostly applies to the transient state [65,67]. Only one test never yielded positive C

_{2}values whatever the number of data points excluded. Good fits, i.e., fitting yielding Er values lower than 5% [10], were only obtained in 23% of the cases (Figure 5).

#### 4.3. Estimation of K_{fs} Data with the WU1 Method

_{fs}

_{-WU1-CL}values ranged from 0.87 to 1.50 mm·h

^{−1}. All average K

_{fs}values were lower than the expected saturated conductivity on the basis of the soil textural characteristics alone, e.g., K

_{s}= 4.5 mm·h

^{−1}for a silt loam soil according to Carsel and Parrish [68]. This suggested that soil macroporosity in the control and burnt site did not influence the results [28]. All differences between the average K

_{fs}values of different sites and sampling campaigns were not statistically significant according to the Tukey honestly significant difference test (p < 0.05). A high variability of K

_{fs}was detected in most cases, with coefficient of variations (CVs) ranging from 100.7% to 373.1% (Table 1).

_{CL}values ranged from 2.42 to 6.45 m

^{−1}(Table 2). We never detected extremely unreliable α* values, i.e., lower than 0.1 m

^{−1}and higher than 1000 m

^{−1}[56,69]. All differences between the average α*

_{CL}values of different sites and sampling campaigns were not statistically significant according to the Tukey honestly significant difference test (p < 0.05). Considering all the infiltration measurements, the average α*

_{CL}value was equal to 3.89 m

^{–1}. This value was in line with the one suggested by Elrick and Reynolds [56] for strong capillarity soils (α* = 4 m

^{−1}) in their soil texture–structure categories.

#### 4.4. Estimation of K_{fs} Data with Steady-State Methods

_{s}(min), namely the duration of the transient phase of the infiltration process, was reached, on average, after 33 min, with a mean volume of infiltrated water I(t

_{s}) = 56 mm. All the experiments exhibited a sufficiently long steady-state phase ranging from 10 to 45 min (Table 3).

_{fs}, obtained with the BB, OPD and WU2 methods. The average K

_{fs}

_{-BB}, K

_{fs}

_{-OPD}and K

_{fs}

_{-WU2}values ranged from 2.0 to 3.96, from 2.03 to 4.21 and from 1.92 to 3.91 mm·h

^{−1}, respectively. The applied methods yielded similar information, i.e., the differences between average K

_{fs}values of the control site were never statistically significant at p < 0.05. On the contrary, for the burnt site, the field campaign carried out in 2017 yielded, in all cases, two times lower K

_{fs}values than the previous campaign, and the differences between sampling campaigns were always statistically significant at p < 0.05 (Table 4). Figure 6 depicts the box plots of the factor of difference values, i.e., a “point-by-point” comparison between all K

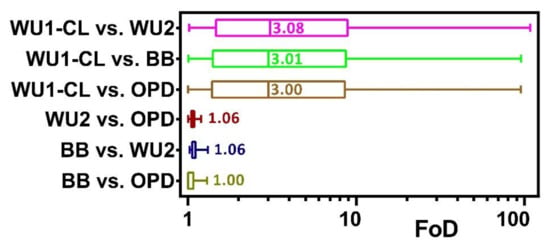

_{fs}datasets. FoD values never exceeded 1.3 between steady-state methods. Therefore, the three steady-state methods considered in this investigation yielded similar results, supporting the soundness of the BB analysis procedure. On the contrary, appreciably higher FoD values were obtained with the WU1 method (Figure 6). In this case, the high variability of the data affected K

_{fs}comparisons between sites and sampling campaigns (Table 1).

## 5. Discussion

_{1}values due to the importance of the lateral capillary flow [65]. As a result, a reliable estimation of K

_{fs}was unlikely. In other words, the generally poor performance of the fitting method spoiled the soil hydraulic characterization, affecting the general quality of the K

_{fs}estimates and, thus, the comparison between the sampled sites and field campaigns. Indeed, this method relies on an infiltration model, i.e., Equation (8), that does not account for such a time evolution of soil properties between the early- and late-time infiltration stages responsible for the observed strong concavity of cumulative curves [71]. Moreover, it has to be remarked that the transient portion of the infiltration curves is frequently not usable to estimate steady-state infiltration rates, since it could be affected by several factors, including soil permeability, antecedent soil water content, ring radius and insertion depth (e.g., [1,13,21]). Although the poor performance of the CL method likely affected the reliability of the WU1 estimates, by increasing parameter variability, it has to be noted that the WU1 method allowed at least a check of the α* value, which was selected a priori from the soil texture–structure categories to apply steady-state methods.

_{fs}decrease five years after the fire. These methods, with a characterization based exclusively on a stabilized infiltration process, yielded an appreciably lower variability of K

_{fs}data compared to the WU1 method (Table 1). Steady-state methods were expected to give less variable K

_{fs}estimates when compared to WU1, also as a consequence of the use of a fixed α* value for the whole field, whereas variations of this parameter exist in the field depending on the texture and structure [1]. On the other hand, this assumption substantially facilitated the hydraulic characterization, yielding at the same time a sufficient level of accuracy for determining K

_{fs}(e.g., [11,15,38]).

## 6. Summary and Conclusions

_{fs}at the field sites. However, with the WU1 method, the variability in K

_{fs}made it difficult to draw conclusions regarding the changes in the fire-affected soil. The choice of the method of soil hydraulic characterization led to contrasting conclusions, thus highlighting the need to choose the appropriate techniques. All the applied steady-state methods appeared more appropriate to detect and quantify slight changes in K

_{fs}, whereas WU1 allowed at least a check of the selected α* value. Our results showed a certain degree of soil degradation at the burnt site with an immediate reduction of the soil organic matter and a progressive increase of the soil bulk density during the five years following the fire. This general impoverishment resulted in a slight but significant decrease of the field-saturated soil hydraulic conductivity. A main implication of these results is the importance of long-term investigations of fire effects, since shorter-term studies may not always be sufficient for detecting and characterizing changes to the hydrological processes caused by a fire. This investigation also yielded encouraging signs on the applicability of the bottomless bucket method for a plausible estimation of K

_{fs}. The comparison with other steady-state methods and the similarity of the results support this assessment.

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Angulo-Jaramillo, R.; Bagarello, V.; Iovino, M.; Lassabatère, L. Infiltration Measurements for Soil Hydraulic Characterization; Springer International Publishing: New York, NY, USA, 2016; ISBN 978-3-319-31786-1. [Google Scholar]
- Ebel, B.A.; Moody, J.A.; Martin, D.A. Hydrologic conditions controlling runoff generation immediately after wildfire. Water Resour. Res.
**2012**, 48, W03529. [Google Scholar] [CrossRef] - Certini, G. Effects of fire on properties of forest soils: A review. Oecologia
**2005**, 143, 1–10. [Google Scholar] [CrossRef] [PubMed] - Mataix-Solera, J.; Cerdà, A.; Arcenegui, V.; Jordán, A.; Zavala, L.M. Fire effects on soil aggregation: A review. Earth-Sci. Rev.
**2011**, 109, 44–60. [Google Scholar] [CrossRef] - Keesstra, S.; Wittenberg, L.; Maroulis, J.; Sambalino, F.; Malkinson, D.; Cerdà, A.; Pereira, P. The influence of fire history, plant species and post-fire management on soil water repellency in a Mediterranean catchment: The Mount Carmel range, Israel. CATENA
**2017**, 149, 857–866. [Google Scholar] [CrossRef] - Cerdà, A. Changes in overland flow and infiltration after a rangeland fire in a Mediterranean scrubland. Hydrol. Process.
**1998**, 12, 1031–1042. [Google Scholar] [CrossRef] - Novara, A.; Gristina, L.; Bodì, M.B.; Cerdà, A. The impact of fire on redistribution of soil organic matter on a mediterranean hillslope under maquia vegetation type. Land Degrad. Dev.
**2011**, 22, 530–536. [Google Scholar] [CrossRef] - Pereira, P.; Cerdà, A.; Úbeda, X.; Mataix-Solera, J.; Arcenegui, V.; Zavala, L.M. Modelling the Impacts of Wildfire on Ash Thickness in a Short-Term Period. Land Degrad. Dev.
**2015**, 26, 180–192. [Google Scholar] [CrossRef] - Cerdà, A.; Doerr, S.H. Influence of vegetation recovery on soil hydrology and erodibility following fire: An 11-year investigation. Int. J. Wildland Fire
**2005**, 14, 423–437. [Google Scholar] [CrossRef] - Lassabatere, L.; Angulo-Jaramillo, R.; Soria Ugalde, J.M.; Cuenca, R.; Braud, I.; Haverkamp, R. Beerkan estimation of soil transfer parameters through infiltration experiments—BEST. Soil Sci. Soc. Am. J.
**2006**, 70, 521. [Google Scholar] [CrossRef] - Nimmo, J.R.; Schmidt, K.M.; Perkins, K.S.; Stock, J.D. Rapid Measurement of Field-Saturated Hydraulic Conductivity for Areal Characterization. Vadose Zone J.
**2009**, 8, 142. [Google Scholar] [CrossRef] - Reynolds, W.D.; Elrick, D.E. Ponded Infiltration from a Single Ring: I. Analysis of Steady Flow. Soil Sci. Soc. Am. J.
**1990**, 54, 1233. [Google Scholar] [CrossRef] - Reynolds, W.D. Saturated hydraulic conductivity: Field measurement. In Soil Sampling and Methods of Analysis; Carter, M.R., Ed.; Canadian Society of Soil Science, Lewis Publishers: Boca Raton, FL, USA, 1993; pp. 599–613. [Google Scholar]
- Ciollaro, G.; Lamaddalena, N. Effect of tillage on the hydraulic properties of a vertic soil. J. Agric. Eng. Res.
**1998**, 71, 147–155. [Google Scholar] [CrossRef] - Bagarello, V.; Iovino, M.; Elrick, D. A Simplified Falling-Head Technique for Rapid Determination of Field-Saturated Hydraulic Conductivity. Soil Sci. Soc. Am. J.
**2004**, 68, 66. [Google Scholar] [CrossRef] - Bagarello, V.; Baiamonte, G.; Castellini, M.; Di Prima, S.; Iovino, M. A comparison between the single ring pressure infiltrometer and simplified falling head techniques. Hydrol. Process.
**2014**, 28, 4843–4853. [Google Scholar] [CrossRef] - Gonzalez-Sosa, E.; Braud, I.; Dehotin, J.; Lassabatère, L.; Angulo-Jaramillo, R.; Lagouy, M.; Branger, F.; Jacqueminet, C.; Kermadi, S.; Michel, K. Impact of land use on the hydraulic properties of the topsoil in a small French catchment. Hydrol. Process.
**2010**, 24, 2382–2399. [Google Scholar] [CrossRef] [Green Version] - Fisher, D.K.; Gould, P.J. Open-Source Hardware Is a Low-Cost Alternative for Scientific Instrumentation and Research. Mod. Instrum.
**2012**, 01, 8–20. [Google Scholar] [CrossRef] - Di Prima, S. Automated single ring infiltrometer with a low-cost microcontroller circuit. Comput. Electron. Agric.
**2015**, 118, 390–395. [Google Scholar] [CrossRef] - Fisher, D.K.; Fletcher, R.S.; Anapalli, S.S.; Iii, H.C.P. Development of an Open-Source Cloud-Connected Sensor-Monitoring Platform. Adv. Internet Things
**2017**, 8, 1. [Google Scholar] [CrossRef] - Bagarello, V.; Di Prima, S.; Iovino, M.; Provenzano, G. Estimating field-saturated soil hydraulic conductivity by a simplified Beerkan infiltration experiment. Hydrol. Process.
**2014**, 28, 1095–1103. [Google Scholar] [CrossRef] - Alagna, V.; Bagarello, V.; Di Prima, S.; Iovino, M. Determining hydraulic properties of a loam soil by alternative infiltrometer techniques. Hydrol. Process.
**2016**, 30, 263–275. [Google Scholar] [CrossRef] - Bagarello, V.; Di Prima, S.; Iovino, M. Comparing Alternative Algorithms to Analyze the Beerkan Infiltration Experiment. Soil Sci. Soc. Am. J.
**2014**, 78, 724. [Google Scholar] [CrossRef] - Bagarello, V.; Di Prima, S.; Iovino, M. Estimating saturated soil hydraulic conductivity by the near steady-state phase of a Beerkan infiltration test. Geoderma
**2017**, 303, 70–77. [Google Scholar] [CrossRef] - Pachepsky, Y.A.; Guber, A.K.; Yakirevich, A.M.; McKee, L.; Cady, R.E.; Nicholson, T.J. Scaling and Pedotransfer in Numerical Simulations of Flow and Transport in Soils. Vadose Zone J.
**2014**, 13. [Google Scholar] [CrossRef] - Khodaverdiloo, H.; Khani Cheraghabdal, H.; Bagarello, V.; Iovino, M.; Asgarzadeh, H.; Ghorbani Dashtaki, S. Ring diameter effects on determination of field-saturated hydraulic conductivity of different loam soils. Geoderma
**2017**, 303, 60–69. [Google Scholar] [CrossRef] - Bagarello, V.; Santis, A.D.; Giordano, G.; Iovino, M. Source shape and data analysis procedure effects on hydraulic conductivity of a sandy-loam soil determined by ponding infiltration runs. J. Agric. Eng.
**2017**, 48, 71–80. [Google Scholar] [CrossRef] - Di Prima, S.; Bagarello, V.; Lassabatere, L.; Angulo-Jaramillo, R.; Bautista, I.; Burguet, M.; Cerdà, A.; Iovino, M.; Prosdocimi, M. Comparing Beerkan infiltration tests with rainfall simulation experiments for hydraulic characterization of a sandy-loam soil. Hydrol. Process.
**2017**, 31, 3520–3532. [Google Scholar] [CrossRef] - Di Prima, S.; Concialdi, P.; Lassabatère, L.; Angulo Jaramillo, R.; Pirastru, M.; Cerda, A.; Keesstra, S. Laboratory testing of Beerkan infiltration experiments for assessing the role of soil sealing on water infiltration. CATENA
**2018**, submitted. [Google Scholar] - Haverkamp, R.; Bouraoui, F.; Zammit, C.; Angulo-Jaramillo, R. Soil properties and moisture movement in the unsaturated zone. In The Handbook of Groundwater Engineering, 3rd ed.; Taylor & Francis Group: Boca Raton, FL, USA, 1999. [Google Scholar]
- Brooks, E.S.; Boll, J.; McDaniel, P.A. A hillslope-scale experiment to measure lateral saturated hydraulic conductivity. Water Resour. Res.
**2004**, 40, W04208. [Google Scholar] [CrossRef] - Castellini, M.; Di Prima, S.; Iovino, M. An assessment of the BEST procedure to estimate the soil water retention curve: A comparison with the evaporation method. Geoderma
**2018**, 320, 82–94. [Google Scholar] [CrossRef] - Di Prima, S.; Marrosu, R.; Lassabatere, L.; Angulo Jaramillo, R.; Pirastru, M. Determination of lateral preferential flow by combining plot- and point-scale infiltration experiments on a hillslope. J. Hydrol.
**2018**, submitted. [Google Scholar] - Bagarello, V.; Castellini, M.; Di Prima, S.; Giordano, G.; Iovino, M. Testing a Simplified Approach to Determine Field Saturated Soil Hydraulic Conductivity. Procedia Environ. Sci.
**2013**, 19, 599–608. [Google Scholar] [CrossRef] - Touma, J.; Voltz, M.; Albergel, J. Determining soil saturated hydraulic conductivity and sorptivity from single ring infiltration tests. Eur. J. Soil Sci.
**2007**, 58, 229–238. [Google Scholar] [CrossRef] - Wu, L.; Pan, L. A generalized solution to infiltration from single-ring infiltrometers by scaling. Soil Sci. Soc. Am. J.
**1997**, 61, 1318–1322. [Google Scholar] [CrossRef] - Yilmaz, D.; Lassabatere, L.; Angulo-Jaramillo, R.; Deneele, D.; Legret, M. Hydrodynamic Characterization of Basic Oxygen Furnace Slag through an Adapted BEST Method. Vadose Zone J.
**2010**, 9, 107. [Google Scholar] [CrossRef] - Wu, L.; Pan, L.; Mitchell, J.; Sanden, B. Measuring Saturated Hydraulic Conductivity using a Generalized Solution for Single-Ring Infiltrometers. Soil Sci. Soc. Am. J.
**1999**, 63, 788. [Google Scholar] [CrossRef] - White, I.; Sully, M.J. Macroscopic and microscopic capillary length and time scales from field infiltration. Water Resour. Res.
**1987**, 23, 1514–1522. [Google Scholar] [CrossRef] - Philip, J. The theory of infiltration: 4. Sorptivity and algebraic infiltration equations. Soil Sci.
**1957**, 84, 257–264. [Google Scholar] [CrossRef] - Smiles, D.; Knight, J. A note on the use of the Philip infiltration equation. Soil Res.
**1976**, 14, 103–108. [Google Scholar] [CrossRef] - Soil Survey Staff. Keys to Soil Taxonomy, 12th ed.; USDA-Natural Resources Conservation Service: Washington, DC, USA, 2014.
- Di Prima, S.; Rodrigo-Comino, J.; Novara, A.; Iovino, M.; Pirastru, M.; Keesstra, S.; Cerda, A. Assessing soil physical quality of citrus orchards under tillage, herbicide and organic managements. Pedosphere. in press.
- Mubarak, I.; Mailhol, J.C.; Angulo-Jaramillo, R.; Ruelle, P.; Boivin, P.; Khaledian, M. Temporal variability in soil hydraulic properties under drip irrigation. Geoderma
**2009**, 150, 158–165. [Google Scholar] [CrossRef] - Xu, X.; Kiely, G.; Lewis, C. Estimation and analysis of soil hydraulic properties through infiltration experiments: Comparison of BEST and DL fitting methods. Soil Use Manag.
**2009**, 25, 354–361. [Google Scholar] [CrossRef] - Bagarello, V.; Di Prima, S.; Iovino, M.; Provenzano, G.; Sgroi, A. Testing different approaches to characterize Burundian soils by the BEST procedure. Geoderma
**2011**, 162, 141–150. [Google Scholar] [CrossRef] - Alagna, V.; Bagarello, V.; Di Prima, S.; Giordano, G.; Iovino, M. Testing infiltration run effects on the estimated water transmission properties of a sandy-loam soil. Geoderma
**2016**, 267, 24–33. [Google Scholar] [CrossRef] - Alagna, V.; Di Prima, S.; Rodrigo-Comino, J.; Iovino, M.; Pirastru, M.; Keesstra, S.D.; Novara, A.; Cerdà, A. The Impact of the Age of Vines on Soil Hydraulic Conductivity in Vineyards in Eastern Spain. Water
**2017**, 10, 14. [Google Scholar] [CrossRef] - Walkley, A.; Black, I.A. An examination of the Degtjareff method for determining soil organic matter, and a proposed modification of the chromic acid titration method. Soil Sci.
**1934**, 37, 29–38. [Google Scholar] [CrossRef] - Mataix-Solera, J.; Doerr, S. Hydrophobicity and aggregate stability in calcareous topsoils from fire-affected pine forests in southeastern Spain. Geoderma
**2004**, 118, 77–88. [Google Scholar] [CrossRef] - Cerdà, A.; Doerr, S.H. Soil wettability, runoff and erodibility of major dry-Mediterranean land use types on calcareous soils. Hydrol. Process.
**2007**, 21, 2325–2336. [Google Scholar] [CrossRef] - Wang, Z.; Wu, L.; Wu, Q.J. Water-entry value as an alternative indicator of soil water-repellency and wettability. J. Hydrol.
**2000**, 231–232, 76–83. [Google Scholar] [CrossRef] - Alagna, V.; Iovino, M.; Bagarello, V.; Mataix-Solera, J.; Lichner, Ľ. Application of minidisk infiltrometer to estimate water repellency in Mediterranean pine forest soils. J. Hydrol. Hydromech.
**2017**, 65. [Google Scholar] [CrossRef] - Di Prima, S.; Bagarello, V.; Angulo-Jaramillo, R.; Bautista, I.; Cerdà, A.; del Campo, A.; González-Sanchis, M.; Iovino, M.; Lassabatere, L.; Maetzke, F. Impacts of thinning of a Mediterranean oak forest on soil properties influencing water infiltration. J. Hydrol. Hydromech.
**2017**, 65, 276–286. [Google Scholar] [CrossRef] - Bagarello, V.; Iovino, M.; Reynolds, W. Measuring hydraulic conductivity in a cracking clay soil using the Guelph permeameter. Trans. ASAE
**1999**, 42, 957–964. [Google Scholar] [CrossRef] - Elrick, D.E.; Reynolds, W.D. Methods for analyzing constant-head well permeameter data. Soil Sci. Soc. Am. J.
**1992**, 56, 320. [Google Scholar] [CrossRef] - Mohanty, B.P.; Kanwar, R.S.; Everts, C.J. Comparison of saturated hydraulic conductivity measurement methods for a glacial-till soil. Soil Sci. Soc. Am. J.
**1994**, 58, 672–677. [Google Scholar] [CrossRef] - Warrick, A.W. Spatial variability. In Environmental Soil Physics; Hillel, D., Ed.; Academic Press: San Diego, CA, USA, 1998; pp. 655–675. [Google Scholar]
- Lee, D.M.; Elrick, D.E.; Reynolds, W.D.; Clothier, B.E. A comparison of three field methods for measuring saturated hydraulic conductivity. Can. J. Soil Sci.
**1985**, 65, 563–573. [Google Scholar] [CrossRef] - Reynolds, W.D.; Drury, C.F.; Tan, C.S.; Fox, C.A.; Yang, X.M. Use of indicators and pore volume-function characteristics to quantify soil physical quality. Geoderma
**2009**, 152, 252–263. [Google Scholar] [CrossRef] - Garcı́a-Oliva, F.; Sanford, R.L.; Kelly, E. Effects of slash-and-burn management on soil aggregate organic C and N in a tropical deciduous forest. Geoderma
**1999**, 88, 1–12. [Google Scholar] [CrossRef] - Kane, E.S.; Kasischke, E.S.; Valentine, D.W.; Turetsky, M.R.; McGuire, A.D. Topographic influences on wildfire consumption of soil organic carbon in interior Alaska: Implications for black carbon accumulation. J. Geophys. Res. Biogeosci.
**2007**, 112, G03017. [Google Scholar] [CrossRef] - Ebel, B.A.; Moody, J.A. Rethinking infiltration in wildfire-affected soils. Hydrol. Process.
**2013**, 27, 1510–1514. [Google Scholar] [CrossRef] - Rawls, W.J.; Pachepsky, Y.A.; Ritchie, J.C.; Sobecki, T.M.; Bloodworth, H. Effect of soil organic carbon on soil water retention. Geoderma
**2003**, 116, 61–76. [Google Scholar] [CrossRef] - Vandervaere, J.-P.; Vauclin, M.; Elrick, D.E. Transient flow from tension infiltrometers I. The two-parameter equation. Soil Sci. Soc. Am. J.
**2000**, 64, 1263–1272. [Google Scholar] [CrossRef] - Vandervaere, J.-P.; Vauclin, M.; Elrick, D.E. Transient Flow from Tension Infiltrometers II. Four Methods to Determine Sorptivity and Conductivity. Soil Sci. Soc. Am. J.
**2000**, 64, 1272–1284. [Google Scholar] [CrossRef] - Lassabatere, L.; Angulo-Jaramillo, R.; Soria-Ugalde, J.M.; Šimůnek, J.; Haverkamp, R. Numerical evaluation of a set of analytical infiltration equations: EVALUATION INFILTRATION. Water Resour. Res.
**2009**, 45. [Google Scholar] [CrossRef] - Carsel, R.F.; Parrish, R.S. Developing joint probability distributions of soil water retention characteristics. Water Resour. Res.
**1988**, 24, 755–769. [Google Scholar] [CrossRef] - White, I.; Sully, M.J. On the variability and use of the hydraulic conductivity alpha parameter in stochastic treatments of unsaturated flow. Water Resour. Res.
**1992**, 28, 209–213. [Google Scholar] [CrossRef] - Di Prima, S.; Lassabatere, L.; Bagarello, V.; Iovino, M.; Angulo-Jaramillo, R. Testing a new automated single ring infiltrometer for Beerkan infiltration experiments. Geoderma
**2016**, 262, 20–34. [Google Scholar] [CrossRef] - Poulovassilis, A.; Elmaloglou, S.; Kerkides, P.; Argyrokastritis, I. A variable sorptivity infiltration equation. Water Resour. Manag.
**1989**, 3, 287–298. [Google Scholar] [CrossRef] - Cerdà, A. The influence of aspect and vegetation on seasonal changes in erosion under rainfall simulation on a clay soil in Spain. Can. J. Soil Sci.
**1998**, 78, 321–330. [Google Scholar] [CrossRef] - Badalamenti, E.; Gristina, L.; Laudicina, V.A.; Novara, A.; Pasta, S.; Mantia, T.L. The impact of Carpobrotus cfr. acinaciformis (L.) L. Bolus on soil nutrients, microbial communities structure and native plant communities in Mediterranean ecosystems. Plant Soil
**2016**, 409, 19–34. [Google Scholar] [CrossRef] - Pasta, S.; Badalamenti, E.; Mantia, T.L. Acacia cyclops A. Cunn. ex G. Don (Leguminosae) in Italy: First cases of naturalization. An. Jardín Botánico Madr.
**2012**, 69, 193–200. [Google Scholar] [CrossRef] - Moody, J.A.; Martin, D.A. Initial hydrologic and geomorphic response following a wildfire in the Colorado Front Range. Earth Surf. Process. Landf.
**2001**, 26, 1049–1070. [Google Scholar] [CrossRef] - Castellini, M.; Iovino, M.; Pirastru, M.; Niedda, M.; Bagarello, V. Use of BEST Procedure to Assess Soil Physical Quality in the Baratz Lake Catchment (Sardinia, Italy). Soil Sci. Soc. Am. J.
**2016**. [Google Scholar] [CrossRef]

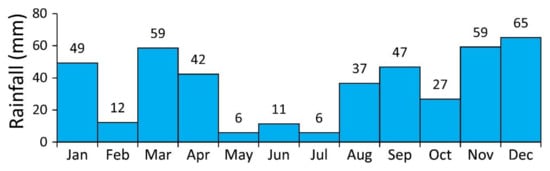

**Figure 1.**Mean monthly rainfall data recorded at the Cocentaina meteorological station during the study period (2012–2017).

**Figure 2.**Procedure for estimating equilibration time, t

_{s}(min), and infiltrated depth at the equilibration time, I(t

_{s}) (mm), from cumulative infiltrations. Case of an infiltration run carried out at the burnt site in 2012.

**Figure 3.**Box plots of the (

**a**) vegetation cover (%), (

**b**) soil bulk density (g·cm

^{−3}), (

**c**) soil organic matter, (SOM) (%), and (

**d**) initial volumetric soil water content, θ

_{i}(m

^{3}·m

^{−3}), for the four scenarios. Asterisks denote outliers. Different letters represent significant differences at p < 0.05.

**Figure 4.**Examples of the estimation of the C

_{1}(mm·h

^{−0.5}) and C

_{2}(mm·h

^{−1}) parameters by the cumulative linearization (CL) approach excluding a different number of data points of an infiltration run carried out at the burnt site in 2017. The values of the ratio between the cumulative infiltration, I (mm), and the square root of time, t (h), are plotted against the square root of t. (

**a**) Exclusion of zero data points: C

_{2}< 0. (

**b**) Exclusion of one data point: Lower Er value (3.0%) but C

_{2}< 0. (

**c**) Exclusion of two data points: C

_{2}> 0 but Er = 6.6%. (

**d**) Exclusion of three data points: C

_{2}> 0 and lowest Er value (1.8%; selected case).

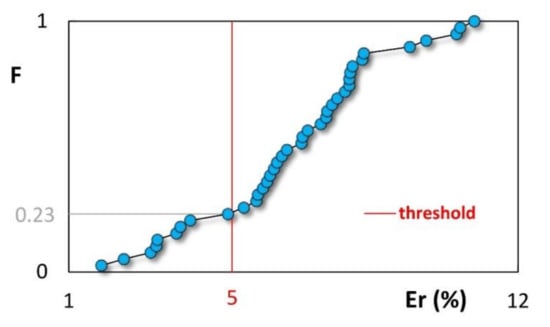

**Figure 5.**Cumulative frequency distribution of the relative errors, Er (%), of the fitting of the functional relationship (i.e., Equation (14)) for the CL method to the experimental data. Er values not exceeding 5% denote a satisfactory fitting ability of the infiltration model to the data [10].

**Figure 6.**Box plots of the factor of difference, FoD, between the field-saturated hydraulic conductivity, K

_{fs}(mm·h

^{−1}), data sets obtained by the BB, WU2, and OPD methods and the WU1 method with the cumulative linearization (CL) fitting method. The median values are also reported.

**Table 1.**Summary of the field-saturated hydraulic conductivity, K

_{fs}(mm·h

^{−1}), values obtained by the WU1 method for each sampling campaign and site.

Variable | Year | Site | Statistic | ||||
---|---|---|---|---|---|---|---|

N | min | max | mean | CV | |||

K_{sf}_{-WU-CL} | 2012 | Control | 10 | 0.18 | 5.36 | 1.11 | 211.8 |

Burnt | 10 | 0.04 | 8.17 | 0.87 | 373.1 | ||

2017 | Control | 10 | 0.17 | 2.85 | 0.91 | 100.7 | |

Burnt | 9 | 0.28 | 7.73 | 1.50 | 158.0 |

**Table 2.**Summary of the α*

_{CL}(m

^{−1}) values obtained by the WU1 method for each sampling campaign and site.

Variable | Year | Site | Statistic | ||||
---|---|---|---|---|---|---|---|

N | min | max | mean | CV | |||

α*_{CL} | 2012 | Control | 10 | 0.90 | 79.99 | 6.45 | 436.8 |

Burnt | 10 | 0.74 | 21.29 | 2.94 | 131.7 | ||

2017 | Control | 10 | 0.85 | 27.25 | 2.42 | 117.8 | |

Burnt | 9 | 1.12 | 16.71 | 5.16 | 109.1 |

**Table 3.**Summary of the equilibration time, t

_{s}(min), and infiltrated depth at the equilibration time, I(t

_{s}) (mm). Sample size, N = 10 for each site and sampling campaign.

Variable | Year | Site | Statistic | |||
---|---|---|---|---|---|---|

min | max | mean | CV | |||

t_{s} (min) | 2012 | Control | 25 | 40 | 30.5 | 12.1 |

Burnt | 25 | 45 | 35.0 | 22.3 | ||

2017 | Control | 20 | 50 | 33.5 | 29.9 | |

Burnt | 15 | 45 | 32.5 | 32.6 | ||

I(t_{s}) (mm) | 2012 | Control | 29 | 86 | 61.9 | 22.0 |

Burnt | 36 | 59 | 49.8 | 17.2 | ||

2017 | Control | 53 | 84 | 64.1 | 17.1 | |

Burnt | 19 | 71 | 49.3 | 40.6 |

**Table 4.**Summary of the field-saturated hydraulic conductivity, K

_{fs}(mm·h

^{−1}), data sets obtained by the BB, WU2, and OPD methods. Sample size, N = 10 for each site and sampling campaign.

Variable | Year | Site | Statistic | |||
---|---|---|---|---|---|---|

min | max | mean | CV | |||

K_{sf}_{-BB} | 2012 | Control | 1.52 | 4.99 | 3.04 AB | 45.4 |

Burnt | 2.49 | 4.99 | 3.96 A | 19.5 | ||

2017 | Control | 2.18 | 5.35 | 3.62 A | 31.6 | |

Burnt | 0.83 | 8.01 | 2.00 B | 68.7 | ||

K_{sf}_{-WU2} | 2012 | Control | 1.34 | 5.28 | 2.95 AB | 59.5 |

Burnt | 2.64 | 5.16 | 4.21 A | 20.6 | ||

2017 | Control | 2.00 | 5.82 | 3.57 AB | 39.1 | |

Burnt | 0.88 | 8.91 | 2.03 B | 74.7 | ||

K_{sf}_{-OPD} | 2012 | Control | 1.24 | 4.98 | 2.85 AB | 56.2 |

Burnt | 2.49 | 4.98 | 3.91 A | 19.9 | ||

2017 | Control | 1.99 | 5.34 | 3.44 A | 35.0 | |

Burnt | 0.83 | 7.97 | 1.92 B | 71.8 |

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Di Prima, S.; Lassabatere, L.; Rodrigo-Comino, J.; Marrosu, R.; Pulido, M.; Angulo-Jaramillo, R.; Úbeda, X.; Keesstra, S.; Cerdà, A.; Pirastru, M.
Comparing Transient and Steady-State Analysis of Single-Ring Infiltrometer Data for an Abandoned Field Affected by Fire in Eastern Spain. *Water* **2018**, *10*, 514.
https://doi.org/10.3390/w10040514

**AMA Style**

Di Prima S, Lassabatere L, Rodrigo-Comino J, Marrosu R, Pulido M, Angulo-Jaramillo R, Úbeda X, Keesstra S, Cerdà A, Pirastru M.
Comparing Transient and Steady-State Analysis of Single-Ring Infiltrometer Data for an Abandoned Field Affected by Fire in Eastern Spain. *Water*. 2018; 10(4):514.
https://doi.org/10.3390/w10040514

**Chicago/Turabian Style**

Di Prima, Simone, Laurent Lassabatere, Jesús Rodrigo-Comino, Roberto Marrosu, Manuel Pulido, Rafael Angulo-Jaramillo, Xavier Úbeda, Saskia Keesstra, Artemi Cerdà, and Mario Pirastru.
2018. "Comparing Transient and Steady-State Analysis of Single-Ring Infiltrometer Data for an Abandoned Field Affected by Fire in Eastern Spain" *Water* 10, no. 4: 514.
https://doi.org/10.3390/w10040514
