Estimating the Optical Properties of Inorganic Matter-Dominated Oligo-to-Mesotrophic Inland Waters

Abstract

Many studies over the years have focused on bio-optical modeling of inland waters to monitor water quality. However, those studies have been conducted mainly in eutrophic and hyper-eutrophic environments dominated by phytoplankton. With the launch of the Ocean and Land Colour Instrument (OLCI)/Sentinel-3A in 2016, a range of bands became available including the 709 nm band recommended for scaling up these bio-optical models for productive inland waters. It was found that one category of existing bio-optical models, the quasi-analytical algorithms (QAAs), when applied to colored dissolved organic matter (CDOM) and detritus-dominated waters, produce large errors. Even after shifting the reference wavelength to 709 nm, the recently re-parameterized QAA versions could not accurately retrieve the inherent optical properties (IOPs) in waterbodies dominated by inorganic matter. In this study, three existing versions of QAA were implemented and proved inefficient for the study site. Therefore, several changes were incorporated into the QAA, starting with the re-parameterization of the empirical steps related to the total absorption coefficient retrieval. The re-parameterized QAA, QAA_OMW showed a significant improvement in the mean absolute percentage error (MAPE). MAPE decreased from 58.05% for existing open ocean QAA (QAA_Lv5) to 16.35% for QAA_OMW. Considerable improvement was also observed in the estimation of the absorption coefficient of CDOM and detritus from a MAPE of 91.05% for QAAL_v5 to 18.87% for QAA_OMW. The retrieval of the absorption coefficient of phytoplankton ($a_{\varphi }$) using the native form of QAA proved to be inaccurate for the oligo-to-mesotrophic waterbody due to the low $a_{\varphi }$ returning negative predictions. Therefore, a novel approach based on the normalized $a_{\varphi }$ was adopted to maintain the spectral shape and retrieve positive values, resulting in an improvement of 119% in QAA_OMW. Further tuning and scale-up of QAA_OMW to OLCI bands will aid in monitoring water resources and associated watershed processes.

1. Introduction

The inland waters represented by rivers, lakes, and reservoirs play a key role in the hydrological cycle providing different habitats and ecosystem services [1]. As many other ecosystems, inland waters have been under increasing anthropogenic or developmental pressure from industry, agriculture, and urban activities, increasing nutrient loading and other organic and inorganic pollution [2]. Infusion of nutrients (nitrogen (N) and phosphorus (P)) from the land via runoff often leads to eutrophication increasing the primary production of phytoplankton and macrophytes [3]. In oligo-to-mesotrophic reservoirs, the submersed species of macrophytes, which are usually rooted, occupy the edges and often the slow-moving zones of rivers [4]. They are dependent on the sediment supply and light availability for their optimal growth [5]. The clarity of the water is affected by the turbidity generated from sediments or other suspended particles, algae, and dissolved matter [6]. Frequent spatiotemporal monitoring of the physical, chemical, and biological constituents is of great importance for monitoring point and non-point source pollution for effective lake and reservoir management. Brazilian inland waters are being adversely affected by increased runoff originating from anthropogenic activities, such as expansions in agriculture and urban centers. They are still being managed using traditional methods such as in situ point sampling and lab analysis, which often fail to provide information about the spatiotemporal variability of water constituents. Due to the synoptic view and periodicity provided by the orbital sensors, remote sensing is considered an appropriate method for monitoring water quality, although the accuracy of bio-optical models for inland waters is still a challenge.

Yacobi et al. and Odermatt et al. [7,8] highlighted the main scientific challenges in studying complex waters using remote sensing. The variability within these types of waters in terms of concentrations, as well as specific inherent optical properties (SIOPs) of chlorophyll-a (Chl-a), suspended particulate matter (SPM), and colored dissolved organic matter (CDOM), can be difficult to separate. On the contrary, in the open ocean, the concentrations of non-algal particles (NAP) and CDOM are directly correlated with phytoplankton [9]. This means that at certain wavelengths, such as blue and green, it is possible to retrieve Chl-a concentrations in the open ocean but in inland waters, it can be highly erroneous because CDOM and NAP have strong overlapping absorption, particularly in the blue spectral region. To address this issue, much effort has been given to understanding the bio-optical properties of inland waters in order to retrieve the optically significant constituents (OSCs: Chl-a, SPM, NAP, and CDOM) by using inversion models based on empirical and analytical approaches [10,11]. In general, the inversion models first derive the inherent optical properties (IOPs) using the in situ measured apparent optical property (AOP) and then retrieve the OSC concentration [12].

Empirical models retrieve the water quality parameters by statistical relationships between an AOP, such as the remote sensing reflectance ($R_{rs}$) or the irradiance reflectance (R), and a known OSC [13,14,15]. The method can be time and site limited and it is not related to any physical principle [16]. The semi-analytical and quasi-analytical (QAA) algorithms are based on radiative transfer theory and often include some empirical steps [8,11,17,18]. A semi-analytical algorithm estimates the total absorption coefficient ($a_t(\lambda )$) by the sum of the absorption coefficients of phytoplankton ($a_{\varphi }(\lambda )$), CDOM ($a_{CDOM}(\lambda )$), and NAP ($a_{NAP}(\lambda )$), while QAA estimates $a_t(\lambda )$ using $R_{rs}$ alone. A semi-analytical algorithm also estimates a backscattering coefficient ($b_b(\lambda )$) by summing the backscattering of each in-water constituent except for CDOM while the QAA retrieves $b_b(\lambda )$ [19].

The original QAA by [20] was developed to retrieve absorption and backscattering properties in the open ocean and coastal waters and later re-parameterized for turbid inland waters [21,22,23]. The model follows several steps mixing empirical and analytical approaches to derive the IOPs using radiative transfer equations, considering the reference wavelength (${\lambda }_0$) at 555 nm [20] (

Table 1. List of symbols and abbreviations.

Symbol	Description	Unit
$a_w(\lambda )$	Absorption coefficient of pure water	m−1
$a_{t-w}(\lambda )$	Represented by the subtraction between $a_t(\lambda )-a_w(\lambda )$	m−1
$a_d(\lambda )$	Absorption coefficient of detritus	m−1
$a_{CDOM}(\lambda )$	Absorption coefficient of colored dissolved organic matter (CDOM)	m−1
$a_{CDM}(\lambda )$	Absorption coefficient of CDOM and detritus	m−1
$a_p(\lambda )$	Absorption coefficient of particulate matter	m−1
$a_{\varphi }(\lambda )$	Absorption coefficient of phytoplankton	m−1
$a_t(\lambda )$	Total absorption coefficient, $a_{\varphi }(\lambda )+a_w(\lambda )+a_{CDM}(\lambda )$	m−1
$b_{bw}(\lambda )$	Backscattering coefficient of pure water	m−1
$b_{bp}(\lambda )$	Backscattering coefficient of particulate matter	m−1
$b_b(\lambda )$	Total backscattering coefficient, $b_{bp}(\lambda )+b_{bw}(\lambda )$	m−1
$\eta$	Spectral power for backscattering coefficient	-
$R_{rs}(\lambda )$	Above-surface remote sensing reflectance	sr−1
$r_{rs}(\lambda )$	Subsurface remote sensing reflectance	sr−1
$u$	Ratio of backscattering coefficient to the sum of backscattering and absorption coefficients	Unitless
$S_{CDM}$	Spectral slope of colored detrital matter absorption coefficient	nm−1
$\zeta$	$a_{\varphi }(412)/a_{\varphi }(443)$	-
$\xi$	$a_{CDOM}(412)/a_{CDOM}(443)$	-
${\lambda }_0$	Reference wavelength	nm

). At this wavelength, the contribution of SPM is very high in turbid eutrophic waters, which requires ${\lambda }_0$ to be shifted to longer wavelengths such as 710 nm [21], 754 nm [22], and 708 nm [23,24]. Lee et al. [20] also showed the performance of QAA using 640 nm as ${\lambda }_0$ and noticed considerable improvement for high-absorption environments where $a_t(400)$ is higher than 0.3 m⁻¹. However, Le et al. [21] emphasized the importance of more validation to improve the performance of this approach. In mesotrophic inland waters, Yacobi et al. [7] highlighted that for wavelengths longer than 600 nm, $a_w$ increases over other OSCs, which means that at shorter wavelengths the contribution of other OSCs, except water, is decreasing the performance of QAA.

The performance of QAAs for inland waters has been tested in various studies using the center bands from the medium resolution imaging spectrometer (MERIS), which is not operational now; however, the sites considered were all highly turbid and productive inland waters. For instance, Le et al. [21] studied the turbid Taihu Lake with a Chl-a concentration ranging between 3.07 and 299.60 mg m⁻³, Yang et al. [22] studied three turbid Asian lakes with Chl-a varying between 9.79 and 153.92 mg m⁻³, and Mishra et al. [23] explored the performance of QAA in aquaculture ponds dominated by cyanobacteria with Chl-a ranging between 95.68 and 1376.57 mg m⁻³ and $a_{\varphi }$ accounting for 54% of $a_t(413)$. The main modification carried out by these studies, besides shifting ${\lambda }_0$ to the near-infrared (NIR), was in the estimation of the spectral slope of particle backscattering (η).

With the launch (16 February 2016) of the Ocean and Land Colour Instrument (OLCI) onboard Sentinel-3A (OLCI/Sentinel-3A), a broader range of spectral bands became available mainly for applications in inland waters where the contribution of SPM in longer wavelengths is still present. Watanabe et al. [25] modified the original empirical steps of QAA from Lee et al. [26] to estimate the IOPs in an inland water dominated by phytoplankton and then shifted the ${\lambda }_0$ to 709 nm, achieving an average normalized root mean square error (NRMSE) of 21.88% for $a_t(\lambda )$. Their results confirmed the suitability of a band at 709 nm to study inland waters, which means that the OLCI can be a powerful instrument for water quality monitoring considering inland waters. These findings have opened a new frontier for QAA applications based on re-parameterizations for inland waters. However, there is still a lack of research related to non-productive inland waters with $a_t$ dominated by CDOM and NAP and not by phytoplankton. Therefore, we hypothesized that even with the OLCI band at 709 nm (width of 10 nm), the accuracy of the IOP retrieval will be compromised by the version of QAA chosen, which means that the empirical steps should be locally tuned to increase its accuracy. This is justified because the inorganic matter presented in our study site can increase the reflectance in the NIR spectral region affecting the QAA accuracy. For that reason, this study aimed at evaluating the performance and potential of the OLCI/Sentinel-3A in retrieving the IOPs in a non-productive tropical reservoir. The specific objectives were (i) to validate three different approaches for QAA in non-productive inland water; (ii) to re-parameterize key steps of QAA using field data typical of non-turbid inland water and validate the model using an independent dataset; (iii) to replace the original steps associated with $a_{\varphi }$ estimation for non-productive inland waters and propose an alternative method in order to avoid negative predictions; (iv) to link the QAA-derived IOP variability to physical and meteorological conditions; and (v) to characterize the factors that affect the bio-optical properties.

2. Materials and Methods

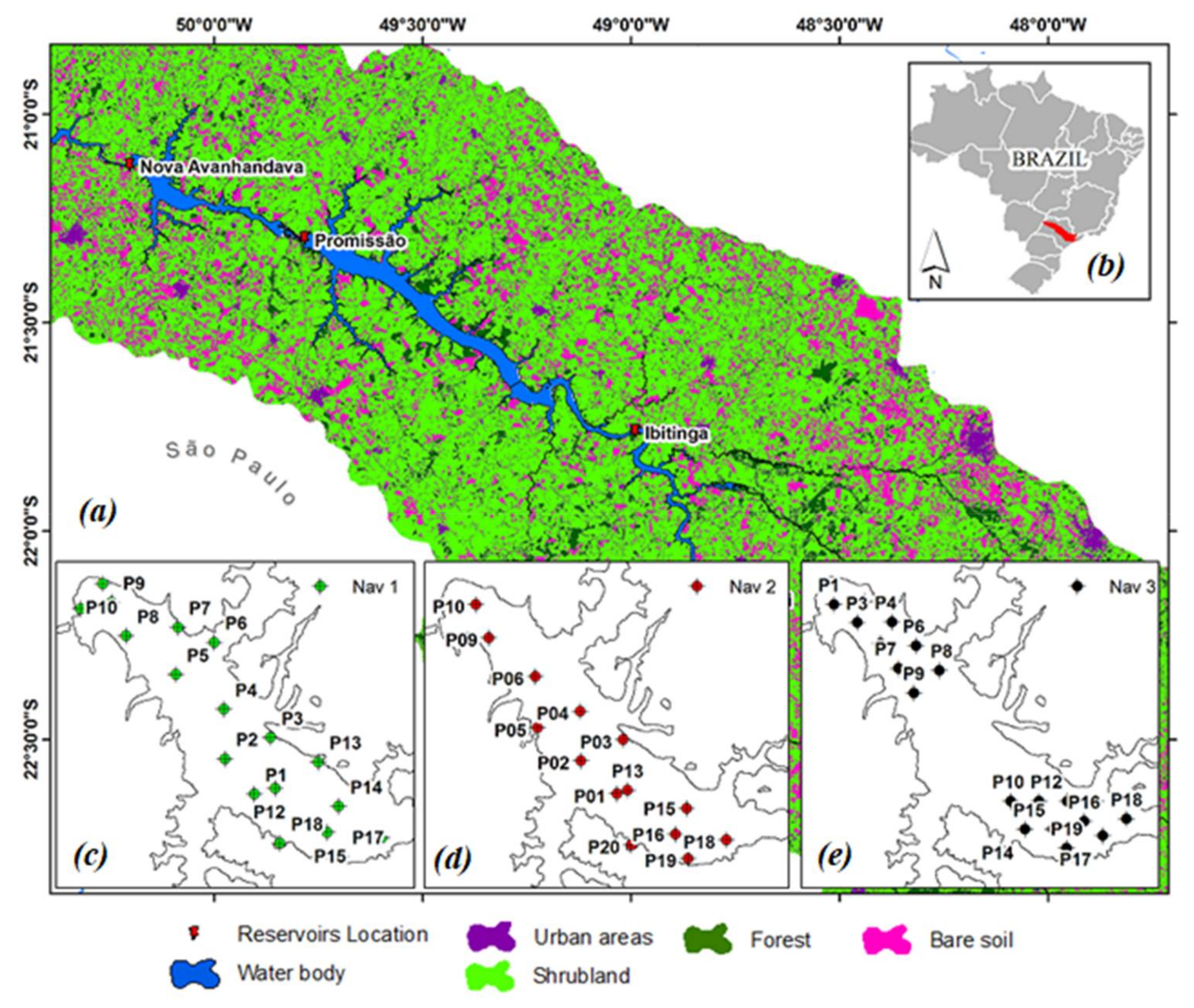

2.1. Study Area

Nova Avanhandava (Nav) is a run-of-river reservoir with a mean water level fluctuation lower than 0.50 m/year [27] (Figure 1). Nav is also the fifth of six reservoirs situated along the Tietê River in the west region of São Paulo State, Brazil, and started its activity in 1982, flooding an area of 210 km² (at its maximum quota), with a usable volume of 2.83 × 10⁶ m³, perimeter of 462 km, maximum depth of 30 m, mean residence time of water of about 46 days, and an average flow of 688 m³ s⁻¹ [28].

Nav is an oligo-to-mesotrophic reservoir with the upper layer of the water column well oxygenated and pH ranging from slightly acid to alkaline (6.47–8.2), conductivity relatively high (83–150 µS cm⁻¹), and low concentrations of nutrients (total N 0.05–0.23 µg L⁻¹ and total P 18.02–32.33 µg L⁻¹) [29,30]. The high transparency of the water often leads to the growth of submerged macrophytes (e.g., Egeria sp.) [30], although during sample collections we avoided those areas. The catchment basin surrounding the reservoir receives input from non-point source pollution, such as sugarcane and citric plantation (orange and lemon) and cattle breeding.

The reservoir is part of a region where the influences of continental, tropical, and polar Antarctic air masses are marked. The first air mass is hot and dry and occurs mainly in the summer (24 and 30 °C), while the second one is cold and damp and despite being active all year its occurrence is more intense during winter, causing a temperature drop (14 to 22 °C).

2.2. Water Quality Data

Three field trips were conducted during 2014 and 2016. The first field trip (Nav 1) occurred in austral autumn (28 April to 2 May 2014), the second (Nav 2) in austral spring (23–26 September 2014), and the third (Nav 3) in austral autumn (7 and 14 of May 2016). Fifty-one samples were used in this study for model calibration, validation, and temporal comparison (Nav 1: 18 samples for model calibration; Nav 2: 14 samples for model validation; and Nav 3: 19 samples for temporal comparison) (see Figure 1 for sampling station locations) following the sampling strategy described by Rodrigues et al. [31], which consisted of selecting samples randomly, taking into account the spectral differences of regions (stratum).

Water samples (1L from each location) were collected just below the air–water interface (~20 cm) and then filtered on the same day of collection under vacuum pressure through a pre-ashed and pre-weighed Whatman fiberglass GF/F filter (nominal pore size of 0.7 μm), and kept in a refrigerator for further laboratory analysis. Chl-a was extracted with 90% acetone solution and analyzed spectrophotometrically [32]. The SPM concentration was determined by applying the method described by APHA [33] where the samples were previously filtered in calcined filters to remove the inorganic substance. The filters with the particulate were dried in an oven at 100 °C for 12 h and then weighed using an analytical scale. To retrieve the suspended inorganic matter (SIM), the dried filters were subjected to a muffle furnace for 75 min at 550 °C and weighed again. In the end, the SPM and inorganic fraction were determined. To estimate the organic fraction, the last filter weight was subtracted from the original filter weight after first drying.

2.3. In Situ Radiometric Data

The $R_{rs}$ spectra were estimated from radiometric measurements taken between 10 a.m. and 2 p.m. This procedure was carried out in order to maintain consistent acquisition geometry based on the time window of light availability [34]. At each sample station, below and above water readings were acquired using hyperspectral radiometers RAMSES TriOS^® (TriOS, Rastede, Germany) operating in the spectral range between 400 and 900 nm. The radiance sensor was equipped with a 7° field-of-view and the irradiance sensor with a cosine collector. Before being used, the radiometric quantities such as the total upwelling radiance $(L_t(\lambda );W m^{-2} s{r}^{-1 }{\mathrm{nm}}^{-1})$, incident sky radiance $(L_s(\lambda );W{m}^{-2}s{r}^{-1}{\mathrm{nm}}^{-1})$ and downwelling irradiance incident onto the water surface ($E_d(\lambda );W{m}^{-2}{\mathrm{nm}}^{-1}$) were subjected to a linear interpolation to transform the original spectral resolution of ~3.3 nm to 1 nm. This procedure was designed to homogenize RAMSES measurements between the sensors, since they have different wavelength values.

The sampling rate was around 15 s per sample resulting in 16 readings at each sampling location. From these measurements, a median value was retrieved to represent the spectrum of that location. The acquisition geometry followed the protocol described by Mobley [34] and Mueller [35]. During the campaigns, the sky was mostly clear with few days partially covered by clouds and no whitecaps or foam were observed. Care was taken to avoid the effects of specular reflectance and boat shading. The instruments were positioned on a steel frame and the $L_t$ sensor was set with a viewing angle of 40° from nadir and an azimuth of 135° (oriented from the sun), and the $L_s$ sensor was set with the same angles of 40° from zenith and 135° azimuth. $R_{rs}(s{r}^{-1})$ spectra were calculated from the radiometric profiles in accordance with Mobley [34]:

$$R_{rs}(\lambda )=\frac{L_t(\lambda )-\rho L_s(\lambda )}{E_d(\lambda )},$$

(1)

where $\rho$ is the proportionality factor that considers the wind speed and sky radiance distribution. $\rho$ was chosen as 0.028 since the average wind speed did not exceed 5 m s⁻¹ during data collection and the geometry of acquisition was kept the same as Mobley [34].

In situ $R_{rs}$ is the main input data for QAA to retrieve the OSC concentration. However, for broader applicability of a model, it is necessary to match the hyperspectral data with satellite data by using the spectral response functions of the sensor of choice. In this study, the OLCI/Sentinel-3A band spectral response functions were convolved with in situ $R_{rs}$ data to derive the band-weighted reflectance data [36]:

$$R_{rs}^{OLCI}({\lambda }_k)=\frac{{{\displaystyle \int }}_{{\lambda }_i}^{{\lambda }_j}S(\lambda )R_{rs}(\lambda )}{{{\displaystyle \int }}_{{\lambda }_i}^{{\lambda }_j}S(\lambda )},$$

(2)

where $R_{rs}^{OLCI}$ is the in situ $R_{rs}$ matching the band width of the OLCI sensor; ${\lambda }_i$ and ${\lambda }_j$ are the lower and upper limits of the band ${\lambda }_k$; and S(λ) is the spectral response function of the ith spectral band of OLCI [37].

Due to the unavailability of OLCI data during the collection of calibration and validation datasets, the model’s performance was tested on simulated OLCI data. Independent coincident OLCI and field data will be acquired for future studies to scale-up and examine the model’s performance.

2.4. In Situ IOPs

Water samples were filtered through a 0.7 μm pore size GF/F fiberglass that was stored flat under freezing conditions. The determination of the total particulate (algal and detritus) absorption ($a_p$) was performed by an integrating sphere module in the double-beam Shimadzu UV-2600 UV-Vis spectrophotometer (SHIMADZU, Kyoto, Japan) with spectral sampling from 280 nm to 800 nm. A white filter wetted with ultrapure water was used as a reference. The filter containing the particulate was positioned in the integrating sphere to measure their optical density (OD). The T–R (transmittance–reflectance) filter-pad technique presented in Tassan and Ferrari [38,39] was employed to obtain $a_p$. To acquire the phytoplankton ($a_{\varphi }$) and detritus ($a_d$) absorption coefficients, the filter underwent pigmentation bleaching with 10% sodium hypochlorite (NaClO), ensuring that the samples would not contain any pigment interference. Using the empirical relationships described by Tassan and Ferrari [38,39], the respective coefficients were determined and $a_{\varphi }$ was obtained by the difference between the OD of the total particulate and detritus fractions.

To estimate the CDOM absorption coefficient ($a_{CDOM}$), water samples were filtered through a fiberglass Whatman GF/F with 0.7 μm pores and then re-filtered under low vacuum pressure using a Whatman nylon membrane filter with 0.2 μm pores. The readings were performed using the absorbance mode and the samples were placed in 10 cm quartz cuvettes. For each set of measurements, a reference reading was performed containing Milli-Q water and for each read sample (ODsample), the reference absorbance value (ODreference) was subtracted. The ODsample was converted to an absorption coefficient according to Equation (3):

$$a_{CDOM}(\lambda )=2.303\frac{O{D}_{\mathrm{sample}}}{l},$$

(3)

where l is the path length (l = 0.1 m for a 10 cm cuvette).

A baseline correction was performed by subtracting the average value between 700 and 750 nm from all the spectrum values [40]. This procedure was used because CDOM absorption is negligible in this range and the temperature and salinity have a slight effect on water absorption [41]. Due to the similarities in the absorption spectrum and the difficulty in separating $a_{CDOM}$ and $a_d$ fractions from their total absorption coefficient, many studies have treated both components as a single measure, such as the $a_{CDM}$ comprised of the sum of $a_{CDOM}$ and $a_d$ [42,43,44]. The spectral slope of $a_{CDM}$ ($S_{CDM}$) is a constant obtained by the exponential fit within the 400–700 nm wavelength range [23].

2.5. QAA General Context

Following the first step from native QAA [20], $a_t(\lambda )$ was retrieved based on several parameters described in

Table 2. Quasi-analytical algorithm (QAA) steps comparing version 5 from Lee et al. [20] and the QAA_OMW proposed in this study.

Property	QAALv5	QAAOMW
$r_{rs}(\mathsf{\lambda })$	$r_{rs}(\mathsf{\lambda })=R_{rs}(\mathsf{\lambda })/(0.52+1.7R_{rs}(\mathsf{\lambda }))$
$u=\frac{b_b}{a_t+b_b}$	$u(\lambda )=\frac{-0.0895+\sqrt{{(g_0)}^2+4g_1*r_{rs}(\mathsf{\lambda })}}{2*g_1};g_0=0.089, g_1=0.125$
${\lambda }_0$	$\chi =\log \left(\frac{r_{rs}(443)+r_{rs}(490)}{r_{rs}({\lambda }_0)+5\frac{{(r_{rs}(667))}^2}{r_{rs}(490)}}\right)$ $a_t({\lambda }_0)=a_w({\lambda }_0)+{10}^{-1.146-1.366\chi -0.469{\chi }^2}$ where ${\lambda }_0=550; 555;560$	$\chi =\log \left(\frac{r_{rs}(443)+r_{rs}(665)}{r_{rs}({\lambda }_0)+5\frac{{(r_{rs}(681))}^2}{r_{rs}(443)}}\right)$ $a_t({\lambda }_0)=a_w({\lambda }_0)+{10}^{-1.148+2.814\chi -5.813{\chi }^2}$ where ${\lambda }_0=709$
$\eta$	$\eta =2\times \left(1-1.2\times \exp \left(-0.9\times \frac{r_{rs}443}{r_{rs}({\lambda }_0)}\right)\right)$	$\eta =2\times \left(1-1.2\times \exp \left(-0.9\times \frac{r_{rs}665}{r_{rs}754}\right)\right)$
$\zeta =\frac{a_{\varphi }(412)}{a_{\varphi }(443)}$	$\zeta =0.74+\left(\frac{0.2}{0.8+r_{rs}443/r_{rs}{\lambda }_0}\right)$	$\zeta =0.5+\left(\frac{0.2}{0.8+r_{rs}443/r_{rs}{\lambda }_0}\right)$
$\xi =\frac{a_{CDM}(412)}{a_{CDM}(443)}$	$\xi =\exp [S\times (443-412)]$ $S_{CDM}=0.015+\left(\frac{0.002}{0.6+(r_{rs}443/r_{rs}{\lambda }_0)}\right)$	$\xi =\exp [S\times (443-412)]$ $S_{CDM}=0.0095+\left(\frac{0.002}{0.6+(r_{rs}490/r_{rs}{\lambda }_0)}\right)$
$a_{CDM}(443)$	$a_{CDM}(443)=\frac{[a_t(412)-\zeta a_t(443)]-[a_w(412)-\zeta a_w(443)]}{\xi -\zeta }$	$a_{CDM}(443)=\frac{[a_t(412)-\zeta a_t(443)]-[a_w(412)-\zeta a_w(412)]}{\xi -\zeta }$
$a_{CDM}(\lambda )$	$a_{CDM}(\lambda )=a_{CDM}(443)e^{-S_{CDM}(\lambda -443)}$	$a_{CDM}(\lambda )=a_{CDM}(443)e^{-S_{CDM}(\lambda -443)}$
$a_{\varphi }(443)$	—	$a_{\varphi }(443)=\frac{[\xi a_t(443)-a_t(412)]-[\xi a_w(412)-a_w(412)]}{\xi -\zeta }$
$a_{\varphi }(\lambda )$	$a_{\varphi }(\lambda )=a_t(\lambda )-a_{CDM}(\lambda )-a_w(\lambda )$	$a_{\varphi }(\mathsf{\lambda })=a_{\varphi }(443)\times a_{\varphi }^{+}(\lambda )$ where $a_{\varphi }^{+}(\lambda )=a_{\varphi }(\mathsf{\lambda })/\frac{\int a_x(\lambda )d\lambda }{{\lambda }_{max}-{\lambda }_{min}}$

. The success in determining $a_t(\lambda )$ is of great importance in estimations of $b_b(\lambda )$ and the OSCs absorption coefficients (CDM and phytoplankton). The partitioning of $a_t(\lambda )$ into $a_{CDM}(\lambda )$ followed the same flow proposed in native QAA; however, to derive $a_{\varphi }(\lambda )$, an alternative step (see Section 3.6) was needed to avoid negative predictions due to low $a_{\varphi }(\lambda )$ signal.

Three existing models were used to test their performance using Nav’s dataset convoluted to OLCI bands. Two of the models proposed by Lee et al. [26,42] are referred to as QAA_Lv5 and QAA_Lv6 for versions 5 (${\lambda }_0$ = 560 nm) and 6 (${\lambda }_0$ = 665 nm) and are available on the International Ocean Colour Coordinating Group (IOCCG) website (http://www.ioccg.org/groups/software.html). The third model was based on Mishra et al. [23] and referred to as QAA_M14 (${\lambda }_0$ = 709 nm). The performance of the new re-parameterized model developed in this study (QAA_OMW) was also compared with the three existing models.

2.6. Re-Parameterization of QAA_OMW

The ${\lambda }_0$ plays a critical role in $a_t$ retrieval and bands in the NIR region should be considered for ${\lambda }_0$ selection even in an oligo-to-mesotrophic environment with very low Chl-a and SPM concentrations. In Nav, both OSCs did not co-vary among themselves, which is different from case-1 waters and that could be the reason why QAAL_v5 or QAAL_v6 were expected to fail in Nav. The set of steps described by Lee et al. [20] to derive $a_t$ is comprised of empirical, semi-analytical, and analytical approaches and was modified to parameterize the current model. The absorption at 709 nm, $a_t$ (709), was chosen as ${\lambda }_0$ to derive χ in the empirical model, which combines four bands associated with the OSCs contribution. To parameterize this variable, the relationship between $a_{t-w}(709)$ and OLCI bands was verified and the best combination was chosen based on the coefficient of determination (R²) using bands at 443, 665, and 681 nm (R² = 0.52, p < 0.001) (Equation (4)). As an empirical step and considered as second-order of importance by Lee et al. [20], the parameterization of χ is necessary because it affects the performance of the entire routine. Therefore, for better results, regional and seasonal information must be introduced to improve the end product.

$$\chi ={\log }_{10}\left(\frac{r_{rs}443 + r_{rs}665}{r_{rs}({\lambda }_0) + (0.05 \times \frac{r_{rs}{681}^2}{r_{rs}443})}\right),$$

(4)

The band at 443 nm was used to highlight the contribution of CDOM despite being the spectral region of Chl-a absorption as well [45]. Mishra et al. [23] found that these bands reflect the different contributions of OSCs typically present in inland waters to the total absorption budget and, therefore, the band combinations used in QAA_M14 worked well for Nav. The estimation of $a_t$ is analytically related to $b_b(\lambda )$. Considering that $b_b(\lambda )$ is the sum of $b_{bw}$ and $b_{bp}$ and the value of $b_{bw}$ is already known [46], the spectral dependency of $b_{bp}(\lambda )$ is widely expressed as [14,45]:

$$b_{bp}(\lambda )=b_{bp}({\lambda }_0){(\frac{{\lambda }_0}{\lambda })}^{\eta },$$

(5)

$$b_b(\lambda )=b_{bp}(\lambda )+b_{bw}(\lambda ),$$

(6)

where $b_{bw}(\lambda )$ is the pure water backscattering coefficient from Smith and Baker [46]; $b_{bp}({\lambda }_0)$ is the particulate backscattering coefficient at ${\lambda }_0$ and can be estimated using Lee et al. [20]; η is the spectral power factor for the particulate backscattering coefficient and can be empirically retrieved using the $R_{rs}$ band ratio sensitive to phytoplankton and CDOM absorption [12]. To model η, Lee et al. [20] used an empirical band ratio between 440 and 550 nm while Yang et al. [22] used a semi-analytical algorithm based on bands at 750 and 780 nm from MERIS. Previous studies showed that shifting the ${\lambda }_0$ to longer wavelengths alone is not enough to produce accurate IOPs therefore the improving of η retrieval is required. Thus, the calibration of η was performed by comparing in situ $a_t$ with derived $a_t$. Several band combinations were tested and the best result was achieved with the ratio of 665 over 754 nm as shown below:

$$\eta =2\times \left(1-1.2\times \exp \left(-0.9\times \frac{r_{rs}665}{r_{rs}754}\right)\right),$$

(7)

The estimation of η is based on an empirical relationship, and according to Yang et al. [22], the impact of this step on the final product is significant mainly at shorter wavelengths. The use of a longer wavelength was replaced instead with one in the green spectral region. The values of η typically ranged from 0 to 2.2 and the higher values are associated mainly with oligotrophic waters [14,20,47]. η ranged from 1.24 to 2.17 in Nav. η is higher when the backscattering is due to small particles and/or water [19]. After $b_b$ retrieval, the derivation of $a_t$ followed the equation that relates the ratio of $b_b$ to the sum of absorption and backscattering coefficients (u) as defined by Gordon et al. [48] and expressed as:

$$a_t(\lambda )=\frac{[1-u(\lambda )]b_b(\lambda )}{u(\lambda )},$$

(8)

The re-parameterization involved improvements to derive the CDM spectral slope ($S_{CDM}$) and the parameters ξ and ζ. ζ is related to the Chl-a concentration or pigment absorption at a specific wavelength. However, according to Lee et al. (2002), due to the lack of absolute measurements, ζ was empirically estimated using a blue-to-green band ratio of $r_{rs}$(440)/$r_{rs}$(555) and successfully applied in case-1 waters [19,49]. At this spectral region, the organic and inorganic suspended matters also affect the absorption budget [11,50]. Yang et al. [22] used another approach to estimate $a_{\varphi }(443)$ independently of ξ and ζ with an assumption that the applicability of these empirical estimations was unclear for turbid waters. On the contrary, Mishra et al. [23] maintained the original band ratio, but the coefficients used in ζ estimation were changed. A new band ratio was proposed in this study by considering the local information and as recommended by Lee et al. [20], this procedure is needed to improve the split-up of pigment and CDOM absorption fractions. After recalibration, a suitable band ratio between 443 and 709 nm $(r_{rs}(443)/r_{rs}(709))$ was applied to the Nav dataset. Besides, the offset coefficient was also recalibrated by testing values ranging between 0.5 and 0.74 and followed the form:

$$\zeta =0.5+\left(\frac{0.2}{0.8 + r_{rs}443/r_{rs}{\lambda }_0}\right),$$

(9)

ξ approximated using a ratio $(a_{CDM}(410)/(a_{CDM}(440)$ and $S_{CDM}$ is associated with the water composition such as pigment, dissolved organic and detritus [43,51,52]. In the Nav dataset, the spectral slope varied from 0.010 to 0.012 nm⁻¹. Therefore, the original offset value from Mishra et al. [23] was replaced with 0.0095 after a simple optimization using the in situ range. The new calibration for ξ is given below:

$$S_{CDM}=0.0095+\left(\frac{0.002}{0.6 + (r_{rs}490/r_{rs}{\lambda }_0)}\right),$$

(10)

$$\xi =\exp [S\times (443-412)].$$

(11)

The remaining steps proposed by Mishra et al. [23] were used to derive $a_{CDM}$ in the current model as presented below:

$$a_{CDM}(443)=\frac{[a_t(412) - \zeta a_t(443)] - [a_w(412) - \zeta a_w(412)]}{\xi - \zeta },$$

(12)

$$a_{CDM}(\lambda )=a_{CDM}(443)e^{-S_{CDM}(\lambda -443)}.$$

(13)

The re-parameterization of $a_{\varphi }$ used a combined method based on Roesler et al. [53] and Lee et al. [54], which was also referenced by Ogashawara et al. [55]; however, the former study used neither the factors C1 and C2 to compute CDOM influence on the water column nor the band combination to derive $a_{\varphi }({\lambda }_0)$. $a_{\varphi }(443)$ was calculated according to Lee et al. [54] as a function of ξ and ζ, both used in the estimation of $a_{CDM}({\lambda }_0)$. The combination of wavelengths was slightly changed from the original as presented in Equation (14).

$$a_{\varphi }(443)=\frac{[\xi a_t(443) - a_t(412)] - [\xi a_w(412) - a_w(412)]}{\xi - \zeta },$$

(14)

$a_{\varphi }(\lambda )$ was then calculated by multiplying $a_{\varphi }(443)$ by the normalized spectral absorption, $a_{\varphi }^{+}(\lambda )$ as described by Roesler et al. [53] using Equation (15). The $a_{\varphi }^{+}(\lambda )$ component aims to reproduce the spectral shape for $a_{\varphi }(\mathsf{\lambda })$. To find a suitable spectrum of $a_{\varphi }^{+}(\lambda )$, the calibrated dataset was used in Equations (16) and (17).

$$a_{\varphi }(\mathsf{\lambda })=a_{\varphi }(443)\times a_{\varphi }^{+}(\lambda ),$$

(15)

$$a_{\varphi }^{+}(\lambda )=\frac{a_{\varphi }{(\mathsf{\lambda })}_i}{a_{\varphi i}}$$

(16)

$$a_{\varphi i}=\frac{\int a_{\varphi }{(\lambda )}_{i}d\lambda }{{\lambda }_{max} - {\lambda }_{min}},$$

(17)

where $a_{\varphi }{(\lambda )}_i$ is the spectral absorption of phytoplankton, $a_{\varphi i}$ is spectrally averaged absorption coefficient of phytoplankton (350–800 nm), ${\lambda }_{max}$ and ${\lambda }_{min}$ are the maximum and minimum wavelengths. The denominator of Equation (16) was derived based on the area under the curve (AUC) and then divided by the spectral difference (${\lambda }_{max}-{\lambda }_{min}$) as shown in Equation (17). Then, the in situ $a_{\varphi }{(\lambda )}_i$ was divided by the latter component. A representative spectrum from Equation (16) was chosen based on statistical metrics (average, standard deviation, minimum, maximum and median) and for Nav’s dataset, the metric based on the minimum value was suitable to represent the $a_{\varphi }^{+}(\lambda )$. Equation (16) is used to remove the effect of the Chl-a concentration and permits the estimation of variance due uniquely to spectral shape [53].

2.7. Validation and Accuracy Assessment

The performance of the three QAAs was tested using Nav’s dataset before the re-parameterization procedure. For this step, water samples collected on the first field trip were analyzed in the laboratory by the filter-pad technique to retrieve $a_{CDM}$ and $a_{\varphi }$ including $a_w(\lambda )$ from Pope and Fry [56] and combined to obtain $a_t(\lambda )$. The re-parameterization steps in QAA_OMW primarily involved modifying the intermediary steps such as the computation of χ, $a_t({\lambda }_0)$, and η for $a_t$ estimation (see Table 2). After that, the partitioning of $a_t$ into $a_{CDM}$ and $a_{\varphi }$ was assessed by comparing the estimated with in situ measures. To validate the newly parameterized model related to oligo-to-mesotrophic waters, the samples collected in the second field trip were used.

The statistical indicators used for the validation were the total root mean square difference (RMSD) and the mean absolute percentage error (MAPE). To provide a broader statistical overview of the error, the normalized bias (B*), normalized standard deviation (σ*), linear correlation (R), and normalized unbiased RMSD (uRMSD*) were also analyzed. The term normalized stands for all statistical metrics divided by the standard deviation of the reference and here named as σ_meas, while unbiased, the measure removes any information about the potential bias. σ* and R represent the magnitude of data dispersion and shape patterns. To obtain the ideal situation, the magnitude and shape of data dispersion may consider σ* = R = 1, which leads to the minimum uRMSD*.

A different perspective about the contribution of the error at a specific wavelength was achieved by using the Taylor and target graphics [57,58]. In the polar coordinate diagram (Taylor graphic), the radial (along-axis) distance from the origin is related to σ* and the angular position corresponds to R. The distance between the reference and the measured points are proportional to uRMSD*. The observation is the reference point, which is indicated by the polar coordinates (1.0, 1.0) when the metrics are considered normalized. The target diagram considers the Cartesian plane (uRMSD*, B*) where uRMSD* > 0 means that the model standard deviation is larger than the reference, whilst uRMSD* < 0 indicates the contrary. B* > 0 signifies positive bias while B* < 0 indicates negative bias. The distance from the origin to the model value is defined by the normalized total RMSD (RMSD* = RMSD/σ_meas). A circle is created to represent RMSD* = 1.0 and the model values falling inside the circle (total RMSD values are less than the σ_meas) tend to provide a better estimate than the mean of the observations [59]. The Taylor graphic can be displayed in 90° or, as presented here, in 180° covering negative correlations. Values of σ* higher than 2.0 were not depicted while B* and uRMSD* higher than 3 and/or less than −3 were also disregarded in the target diagrams. This condition was used to avoid presenting huge error models.

The error indices are defined based on Equations (18)–(23):

$$\mathrm{RMSD}=\sqrt{\frac{1}{n}{{\displaystyle \sum }}_{i=1}^n{(x_{est,i}-x_{meas,i})}^2},$$

(18)

$$\mathrm{MAPE}=\frac{100\%}{n}{{\displaystyle \sum }}_{i=1}^n\left|\frac{x_{est,i}-x_{meas,i}}{x_{meas,i}}\right|,$$

(19)

$$B^{*}=\left(\frac{{\overline{x}}_{est}-{\overline{x}}_{meas}}{{\sigma }_{meas}}\right),$$

(20)

$${\sigma }^{*}=\frac{{\sigma }_{est}}{{\sigma }_{meas}},$$

(21)

$$R=\frac{\frac{1}{n}{{\displaystyle \sum }}_{i=1}^n(x_{est,i}-{\overline{x}}_{est})(x_{meas,i}-{\overline{x}}_{meas})}{{\sigma }_{meas}{\sigma }_{est}},$$

(22)

$$uRMS{D}^{*}=sign({\sigma }_{est}-{\sigma }_{meas})\sqrt{1+{{\sigma }^{*}}^2-2{\sigma }^{*}R},$$

(23)

where n is the number of samples, and $x_{est,i}$ and $x_{meas,i}$ represent the estimated and measured values, respectively; ${\overline{x}}_{est}$ and ${\overline{x}}_{meas}$ represent the average of estimated and measured values, respectively; ${\sigma }_{meas}$ and ${\sigma }_{est}$ are the standard deviation of the measured and the estimated values, respectively.

3. Results

3.1. Water Quality Characterization

Samples collected during the first field trip or dry season showed very low concentrations of Chl-a (average of 5.95 µg L⁻¹) and SPM (average of 0.63 mg L⁻¹) and an average Secchi depth of 3.22 m (

Table 3. Descriptive statistics of the water quality variables used for calibration and validation. SD is the standard deviation, CV is the coefficient of variation, and n is the number of samples.

	Average	SD	Minimum	Maximum	CV (%)	n
April–May 2014
$a_t(443)$ (m−1)	0.74	0.11	0.49	1.06	15.45	18
$a_{\varphi }(443)$ (m−1)	0.16	0.05	0.10	0.29	31.55	18
$a_{\varphi }(560)$ (m−1)	0.04	0.02	0.02	0.09	48.49	18
$a_{\varphi }(665)$ (m−1)	0.08	0.03	0.04	0.16	35.31	18
$a_{NAP}(443)$ (m−1)	0.32	0.08	0.13	0.55	25.06	18
$a_{CDM}(443)$ (m−1)	0.57	0.08	0.39	0.77	13.54	18
SPM (mg L−1)	0.95	0.63	0.10	2.60	66.04	15
Chl-a (µg L−1)	5.95	2.11	2.46	10.65	35.46	18
Chl-a : SPM (µg/mg)	12.27	15.97	2.47	68.26	130.14	15
Depth (m)	17.81	8.64	5.30	30.00	48.51	18
Secchi depth (m)	3.22	0.62	2.29	4.80	19.25	18
Turbidity (NTU)	1.60	0.41	1.01	2.47	25.35	18
Zenital angle (DD)	40.15	4.38	35.45	51.96	10.90	18
Wind speed (m s−1)	3.66	1.35	2.00	6.40	36.91	18
September 2014
$a_t(443)$ (m−1)	0.88	0.21	0.58	1.45	24.02	14
$a_{\varphi }(443)$ (m−1)	0.27	0.09	0.10	0.43	33.00	14
$a_{\varphi }(560)$ (m−1)	0.04	0.03	0.01	0.12	68.02	14
$a_{\varphi }(665)$ (m−1)	0.09	0.04	0.02	0.16	40.52	14
$a_{NAP}(443)$ (m−1)	0.28	0.16	0.13	0.75	55.67	14
$a_{CDM}(443)$ (m−1)	0.60	0.17	0.43	1.04	27.86	14
SPM (mg L−1)	0.93	0.42	0.50	2.20	45.21	13
Chl-a (µg L−1)	7.94	3.45	3.41	16.38	43.43	14
Chl-a : SPM (µg/mg)	9.83	4.23	4.75	18.57	43.05	13
Depth (m)	21.56	5.27	12.00	28.00	24.44	14
Secchi depth (m)	3.14	0.86	0.90	4.65	27.58	14
Turbidity (NTU)	2.44	2.46	1.01	11.17	100.97	14
Zenital angle (DD)	29.84	9.23	20.82	47.08	30.92	14
Wind speed (m s−1)	2.82	2.00	0.00	5.60	70.86	14
May 2016
$a_t(443)$ (m−1)	0.99	0.18	0.65	1.37	17.84	19
$a_{\varphi }(443)$ (m−1)	0.30	0.13	0.11	0.57	43.47	19
$a_{\varphi }(560)$ (m-1)	0.06	0.05	0.00	0.15	76.24	19
$a_{\varphi }(665)$ (m−1)	0.15	0.06	0.09	0.26	38.57	19
$a_{NAP}(443)$ (m−1)	0.61	0.12	0.38	0.82	19.65	19
$a_{CDM}(443)$ (m−1)	0.68	0.12	0.45	0.91	17.68	19
SPM (mg L−1)	3.08	0.94	1.87	5.30	30.69	10
Chl-a (µg L−1)	26.36	6.32	38.59	15.84	23.98	10
Chl-a : SPM (µg/mg)	8.93	1.96	4.64	12.21	21.95	10
Depth (m)						-
Secchi depth (m)	2.97	0.63	1.91	3.80	21.03	19
Turbidity (NTU)						-
Zenital angle (DD)	41.10	2.33	38.78	48.15	5.67	19
Wind speed (m s−1)	3.92	2.07	0.40	600	52.86	19

). The concentrations of the OSCs in the samples collected during the second field trip showed a modest increase in Chl-a (average of 7.94 µg L⁻¹) and SPM (average of 1.58 mg L⁻¹) and an average Secchi depth of 3.14 m. In situ $a_t(443)$ represented non-productive waters with values ranging between 0.72 and 1.52 m⁻¹ from the first field trip and 0.58–1.45 m⁻¹ from the second field trip. Lee et al. [20] recommended their open ocean version of QAA to be applied for datasets where $a_t(443)$ is less than 0.3 m⁻¹. In NAV, the $a_t(443)$ was higher than this threshold and, therefore, a poor performance was expected from the native QAA approach.

The low turbidity caused by the low Chl-a and SPM concentrations provided more transparency to the water column and, hence, the high Secchi depth measures. The water transparency was negatively correlated with rainfall and according to Table 3 the Secchi depth range changed from 2.29–4.80 m during the dry season to 0.90–4.65 m during the wet season [60]. Smith et al. [30] highlighted that the high concentrations of suspended matter during the rainy season in Nav can be attributed to the runoff effect. Slight differences in the limnological parameters from one season to another were observed and factors such as water level fluctuation and seasonality are of great importance for the changes in geochemical dynamics of the reservoir [30]. The relationship (not shown here) between Chl-a and SPM concentrations during the first (R² = 0.12, p > 0.05, n = 18) and second (R² = 0.07, p > 0.05, n = 14) field campaigns indicated the non-productive property of Nav, which was mostly dominated by inorganic matter.

3.2. OSCs Relative Contribution

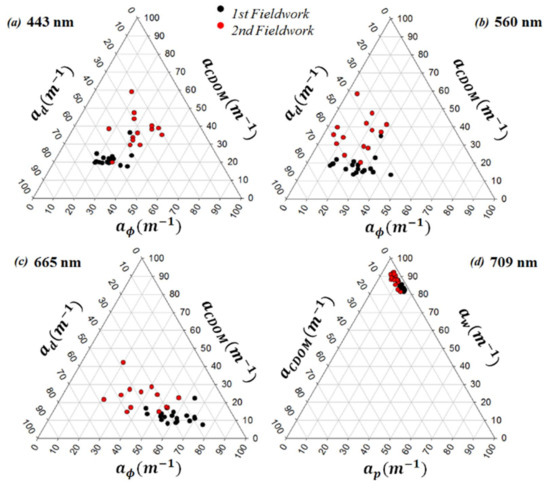

The relative contribution of phytoplankton, CDOM, and detritus absorption to the total absorption budget without the water fraction ($a_{t-w}$) can be visualized in Figure 2. The wavelengths chosen for analysis (443, 560, and 665 nm) characterize the light interaction with the particulate and dissolved organic matter [61,62,63]. According to the ternary plots, the first set of field data were dominated by $a_d$, mainly in the blue (443 nm) and green (560 nm) wavelengths with 52.05 ± 6.37% and 56.78 ± 8.80%, respectively. $a_{\varphi }$ dominated in the red (655 nm) wavelength with 59.87 ± 8.34% contribution toward $a_{t-w}$. The contribution of the OSCs was a little more balanced in the second field dataset. At 443 nm, the $a_{CDOM}$ contributed with 37.22 ± 9.18% while at 560 nm the $a_d$ accounted for 47.13 ± 10.44% and $a_{\varphi }$ for 40.17 ± 12.38% at 665 nm. At 443 nm, the samples from the second field trip were spread within the central zone of the ternary plot indicating that all three absorption coefficients co-varied.

As expected, the ternary plot showed the predominance of $a_{\varphi }$ at 665 nm to ($a_{t-w}$) from both datasets with a slight dominance in the first. $a_d$ dominated the absorption at 560 nm and at 443 nm the absorption was mainly governed by $a_d$ in the first and $a_{CDOM}$ in the second dataset. Since the QAA approach combines the absorption by CDOM and detritus, it can be considered that IOP data in Nav were dominated by $a_{CDM}$ in the blue-green region and $a_{\varphi }$ had a moderate contribution in the red region. The QAA_Lv5 was developed using case-1 waters where $a_t$ at 440 nm was less than 0.3 m⁻¹. The QAA_M14 was developed using data from very turbid productive waters where the average $a_t(443)$ was 19.9 m⁻¹ and 13.5 m⁻¹ in July and April, respectively. The accuracy of QAA for ocean waters generally degrades rapidly with increasing CDOM and NAP concentrations [64]. Li et al. [65] used QAA with ${\lambda }_0$ shifted to longer wavelengths and found that if the average contribution of $a_{CDOM}(443)$ dominates the absorption budget, then QAA can achieve a better result in turbid inland waters; however, the higher contribution of $a_p(443)$ leads to poorer prediction results. The datasets used in previous QAAs did not fit to bio-optical properties of the current dataset with $a_t(443)$ ranging between 0.72 and 1.52 m⁻¹. In addition, the poorer performance can also be related to allochthonous substances such as suspended matter and organic matter that increase the uncertainties, which called for a re-parameterization.

3.3. Performance of Existing QAAs

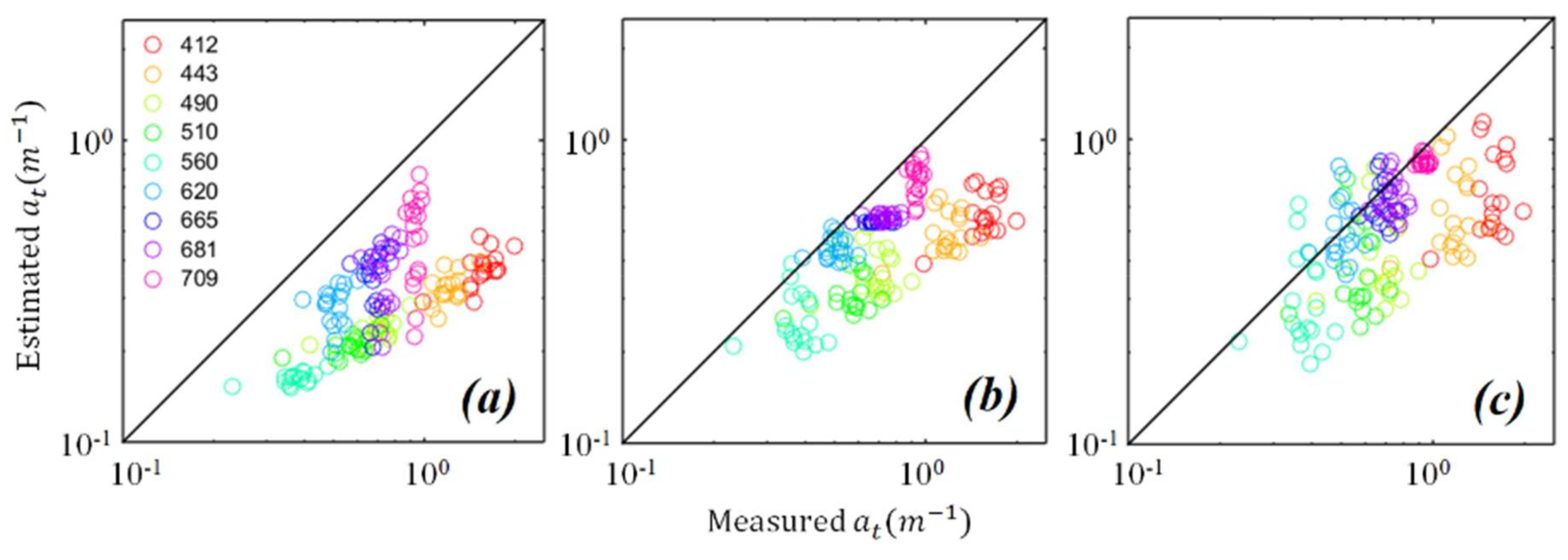

The first step was to test the performance of the existing QAAs: QAA_Lv5, QAA_Lv6, and QAA_M14. Shifting the ${\lambda }_0$ from 560 to 708 nm, the $a_t(\lambda )$ retrieval improved (Figure 3). QAA_Lv5 and QAA_Lv6 consistently underestimated $a_t$ at all wavelengths while QAA_M14 showed some improvement, particularly at longer wavelengths. The underestimation can be attributed to the inefficiency of the model at ${\lambda }_0$ (560 and 665 nm, respectively) and due to the contribution of other OSCs, such as suspended matter, to the absorption budget. The ternary plot showed that $a_w$ contributed approximately 87% to the absorption budget at 709 nm, which means $a_{CDOM}$, $a_d$, and $a_{\varphi }$ together contributed 13% to $a_t$ (Figure 2d). QAA_M14 showed more consistency when compared with measured $a_t$; however, since it was developed for highly productive environments, the coefficients and band combinations are not suitable to describe the particularities of non-productive waters such as Nav. Therefore, the re-parameterization of the model was needed and initially based on QAA_M14 using 709 nm as ${\lambda }_0$ and then followed the steps proposed by QAA_Lv5.

3.4. Re-Parameterization of QAA to Derive $a_t$

After re-parameterization, the estimation accuracy of $a_t$ improved significantly with a MAPE = 16.35% and RMSD = 0.15 m⁻¹. The errors were considerably less compared to existing QAAs such as QAA_Lv5 (MAPE = 58.05% and RMSD = 0.51 m⁻¹), QAA_Lv6 (MAPE = 35.59% and RMSD = 0.35 m⁻¹), and QAA_M14 (MAPE = 30.98% and RMSD = 0.31 m⁻¹). However, the improvement was not consistent across all OLCI bands, particularly at 620 nm, which exhibited the second highest error among all tested versions (

Table 4. Comparative band-specific errors related to the re-parameterization of $a_t(\lambda )$ based on mean absolute percentage error (MAPE) (%) and root square mean difference (RSMD) (m⁻¹) metrics. The first column represents the nominal OLCI center bands (nm).

OLCI Bands	QAALv5		QAALv6		QAAM14		QAAOMW
Wavelengths (nm)	RMSD (m−1)	MAPE (%)	RMSD (m−1)	MAPE (%)	RMSD (m−1)	MAPE (%)	RMSD (m−1)	MAPE (%)
412	1.21	75.88	1.01	63.01	0.93	56.21	0.35	19.74
443	0.87	72.52	0.71	57.55	0.64	49.64	0.23	16.02
490	0.47	65.93	0.35	46.66	0.32	41.04	0.14	16.78
510	0.37	62.96	0.26	41.76	0.24	38.12	0.13	19.02
560	0.22	56.39	0.14	31.83	0.15	32.99	0.12	24.33
620	0.23	43.32	0.08	13.35	0.13	20.92	0.17	29.05
665	0.34	48.56	0.16	21.48	0.13	15.30	0.09	11.17
681	0.38	50.26	0.19	24.31	0.14	15.55	0.07	8.29
709	0.46	46.63	0.21	20.39	0.09	9.04	0.03	2.70
Average	0.51	58.05	0.35	35.59	0.31	30.98	0.15	16.35

). This may not be a problem for oligo-to-mesotrophic reservoirs such as Nav where phycocyanin concentration (620 nm absorption feature) is negligible. This could be an issue for waters dominated by cyanobacteria, such as highly productive inland lakes and ponds.

The Taylor diagram was used to understand how good model simulations were compared to observations. As shown in Figure 4a, the distance between the red data symbol (reference) on the x-axis and each colored model symbol represents the uRMSD*. For the four models, the R was very different, ranging between 0.09 (QAA_M14) and 0.63 (QAA_Lv5). Among all tested models at 443 nm, QAA_Lv5 produced the lowest σ* (0.26), which means that the variance of $a_t(443)$ derived using the model was far from the variance of the reference (1.00 − 0.26 = 0.74 units), and highest R (0.63) in comparison with the reference. As stated in [60], for an R value of 0.63, the minimum uRMSD* should occur where σ* = 0.63. However, if the goal is to move R and σ* closer to an ideal value of 1.0, then uRMSD* is not a suitable validation metric. If we want to reduce the variability of both measured and estimated values, then σ* < 1.0. Thus, QAA_Lv5 presented the best performance. However, if we intend to bring the model patterns to the ideal value of the reference, then QAA_OMW presented the best combination of R and σ* (R = 0.54, σ* = 0.96) as compared to the reference. To support the choice of the model, the target function was also used. At 443 nm (Figure 4b), QAA_OMW was the only model that showed the lowest B* (−1.07) and all of them underestimated the variance of $a_t(443)$. QAA_Lv5 retrieved the highest B* (−5.43) emphasizing the bad performance of this model when compared to QAA_OMW. The other models did not appear because they presented B* out of the range bound by the interval of −3 and 3. Models positioned at the positive side of uRMSD* mean that σ_est > σ_meas.

At 560 nm (Figure 4c), QAA_Lv5 was the only model that produced R > 0.50 and σ* = 0.14. Therefore, the uRMSD* was minimum relative to the other models studied. However, B* achieved again the highest value (−4.47) showing the underestimation pattern of this approach in retrieving $a_t(560)$. Both QAA_Lv6 and QAA_M14 also underestimated $a_t(560)$. QAA_OMW produced a high value for σ* (2.12) and a low value for R (0.03) showing the high variability between the measured and estimated values; however, B* was the lowest (0.84) compared to the other models (Figure 4d). Models not displayed in the target graphic presented values outside the established range. Figure 4e showed that QAA_OMW was the only model that retrieved at least one error metric close to the reference (σ* = 1.34) at 665 nm. Based on Figure 4f, QAA_OMW overestimated $a_t(665)$ while QAA_M14 (B* = −1.32) showed underestimation, as well as QAA_Lv5 (B* = −7.10) and QAA_Lv6 (B* = −3.18). Overall, the error analysis showed a significant improvement by the newly re-parametrized model mainly in the shorter and longer wavelengths (Table 4). The Taylor diagrams showed that QAA_Lv5 could model $a_t(\lambda )$ with low variability when compared to the reference data; however, the underestimation was reasonably high, becoming unviable for $a_t(\lambda )$ retrieval.

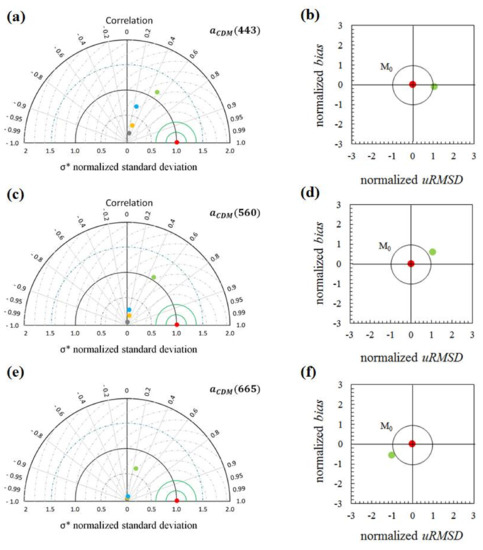

3.5. Re-Parameterization of QAA to Derive $a_{CDM}$

The average errors showed improvements mainly at shorter wavelengths when compared to the previous versions (

Table 5. Comparative band-specific errors related to the re-parameterization of $a_{CDM}(\lambda )$ based on MAPE (%) and RSMD (m⁻¹) metrics. The first column represents the nominal OLCI center bands (nm).

OLCI Bands	QAALv5		QAALv6		QAAM14		QAAOMW
Wavelengths (nm)	RMSD (m−1)	MAPE (%)	RMSD (m−1)	MAPE (%)	RMSD (m−1)	MAPE (%)	RMSD (m−1)	MAPE (%)
412	1.03	81.35	0.96	75.81	0.93	72.88	0.21	12.76
443	0.74	83.90	0.69	79.13	0.67	76.61	0.13	12.99
490	0.47	87.77	0.45	84.14	0.44	82.22	0.08	14.68
510	0.38	89.06	0.37	85.81	0.36	84.09	0.07	15.57
560	0.22	91.53	0.21	89.02	0.21	87.70	0.04	17.98
620	0.13	94.28	0.12	92.61	0.12	91.74	0.03	19.92
665	0.10	96.48	0.10	95.45	0.10	94.89	0.03	21.04
681	0.10	97.15	0.09	96.31	0.09	95.86	0.03	24.18
709	0.08	97.89	0.08	97.27	0.08	96.93	0.03	30.66
Average	0.36	91.05	0.34	88.39	0.33	86.99	0.07	18.87

). The agreement between measured and estimated values showed an average MAPE of 18.87% and the bands at 681 and 709 nm had the highest errors of 24.18 and 30.66%, respectively. Mishra et al. [23] observed a similar trend of high errors at longer wavelengths starting from 560 nm and highlighted that the magnitude of $a_{CDM}$ at this region is small and, therefore, does not affect the overall performance to a large extent. Besides, the main spectral region associated with $a_{CDOM}$ is situated in the blue region. For instance, at 440 nm, $a_{CDOM}$ is considered a proxy of its concentration and used in inversion models [44]. $a_{CDM}$ using QAA_OMW produced the least error at blue wavelengths, specifically at 443 nm.

Figure 5a showed that both QAA_Lv5 and QAA_Lv6 presented low σ* (0.21 and 0.31, respectively) and R very close to these values (0.28 and 0.34, respectively), which means that uRMSD* was minimum in those models. On the other hand, QAA_OMW showed σ* = 1.16 and R = 0.54, which is closer to the reference value when compared to other models. The difference from all the models can be distinguished in the target diagram (Figure 5b), and QAA_OMW is only displayed with B* = −0.12, depicting the underestimation of $a_{CDM}(443)$, while the others presented B* between −6.28 and −5.73. The green data symbol is close to the black circle, indicating a uRMSD* close to 1. Figure 5c also showed the good performance of QAA_OMW in retrieving $a_{CDM}(560)$. Overall, the result showed a similar result at 443 nm but the parameterized model presented a B* = 0.59, highlighting the overestimation pattern (Figure 6d). At 665 nm, QAA_OMW again showed an improved combination of σ*, R, and B* (Figure 5e,f). Information about the bias contributes to the sense of scale or magnitude in the model skill assessment process; therefore, it is not suitable to use the Taylor diagram alone to evaluate the performance of a model.

3.6. Re-Parameterization of QAA to Derive $a_{\varphi }$

QAA_Lv5 and QAA_Lv6 produced very high errors and negative predictions particularly at longer wavelengths in $a_{\varphi }$ estimation (

Table 6. Comparative band-specific errors related to the re-parameterization of $a_{\varphi }(\lambda )$ based on MAPE (%) and RSMD (m⁻¹) metrics. The first column represents the nominal OLCI center bands (nm).

OLCI Bands	QAALv5		QAALv6		QAAM14		QAAOMW
Wavelengths (nm)	RMSD (m−1)	MAPE (%)	RMSD (m−1)	MAPE (%)	RMSD (m−1)	MAPE (%)	RMSD (m−1)	MAPE (%)
412	0.19	53.69	0.11	21.31	0.14	33.80	0.19	44.39
443	0.15	40.10	0.10	25.20	0.17	45.24	0.18	42.67
490	0.04	24.02	0.14	92.11	0.22	130.02	0.10	47.57
510	0.04	34.77	0.16	150.98	0.22	184.86	0.08	47.97
560	0.03	42.49	0.16	238.37	0.18	229.39	0.05	47.28
620	0.11	100.73	0.33	402.82	0.19	173.98	0.06	45.56
665	0.25	157.52	0.37	264.71	0.11	56.92	0.09	46.47
681	0.29	167.75	0.38	241.91	0.10	42.84	0.10	46.04
709	0.38	870.85	0.69	1858.15	0.04	63.91	0.04	53.29
Average	0.16	165.77	0.27	366.17	0.15	106.77	0.10	46.80

). On the other hand, QAA_M14 provided positive values but the errors remained too high. As a result, the agreement between the measured and estimated $a_{\varphi }(\lambda )$ from the re-parameterized model produced the lowest average values of MAPE = 46.80% and RMSD = 0.10 m⁻¹ (Table 6). The band-specific contribution showed that other models performed slightly better in the blue regions compared to the QAA_OMW. For instance, QAA_Lv6 produced the least errors at 412 and 443 nm; similarly, QAA_M14 had a MAPE of 42.84% at 681 nm. However, the QAA_OMW showed consistent results across all OLCI bands without a spike in errors in a specific band, unlike the other QAAs. In addition, the QAA_OMW produced the least errors at 620, 665, and 709 nm with MAPE ranging between 45.56 and 53.29%.

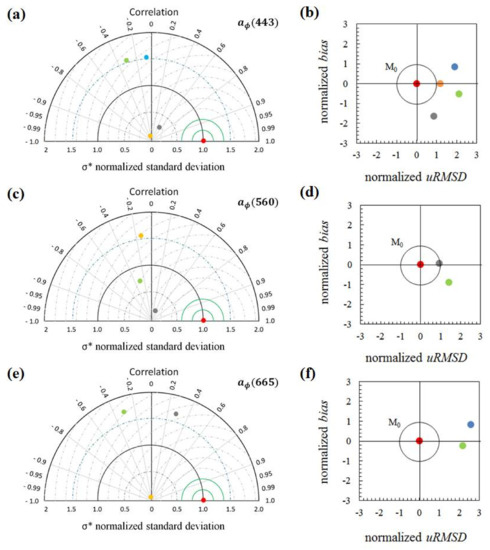

As depicted in Figure 6a, both QAA_Lv5 and QAA_Lv6 showed low variability in the reference dataset at 443 nm, while QAA_M14 and the QAA_OMW presented high σ* (1.55 and 1.60, respectively). Figure 6b showed that QAA_M14 overestimated $a_{\varphi }$ and produced high uRMSD* (1.92) followed by QAA_OMW (2.13). To produce the best match between measured and estimated values, it requires a combination of low uRMSD* and B*. At 443 nm, QAA_Lv6 provided the best fit for $a_{\varphi }$ followed by QAA_Lv5 and QAA_OMW. At 560 nm, QAA_Lv5 and QAA_OMW presented the lowest σ* (0.14 and 0.76, respectively) while R was 0.40 and −0.31, respectively (Figure 6c). Again, only QAA_Lv5 and QAA_OMW produced low uRMSD* and B* but QAA_Lv5 yielded a better result than QAA_OMW (Figure 6d). Even after producing the lowest variability between the reference and modeled data, QAALv6 still overestimated the variance of $a_{\varphi }(665)$. On the other hand, QAA_OMW presented the lowest B* (−0.246) indicating the most accurate method amongst all those evaluated in this study (Figure 6e,f). As mentioned in the previous section, the band-specific errors varied widely between models.

The modifications improved the $a_{\varphi }(\lambda )$ retrieval with an average error (MAPE) of ~47%. The difficulty in retrieving $a_{\varphi }(\lambda )$ was probably due to the very low Chl-a concentration combined with the dominance of $a_d$ in the blue and green regions followed by $a_{CDOM}$ dominating $a_t$ at 412 nm. Lee et al. [54] also highlighted the difficulties in estimating $a_{\varphi }(\lambda )$ in complex waters. They observed that uncertainties associated with $a_{CDM}(\lambda )$ are smaller than that of $a_{\varphi }(\lambda )$ and, therefore, methods other than simple algebraic inversions are required to improve the accuracy of $a_{\varphi }(\lambda )$ prediction. Besides, refinements are expected when parameterizations to $a_t({\lambda }_0)$, η, ζ and ξ are carried out for different study sites.

3.7. Model Validation

An independent dataset (n = 14) collected in September 2014 (Nav 2, see Figure 1 for sampling location) was used to verify the performance of QAA_OMW by comparing in situ and derived measurements at OLCI spectral bands. The results related to backscattering were not assessed due to the lack of data availability. Shorter wavelengths were highly affected by inorganic and dissolved matter (Figure 2).

The uncertainty based on the average MAPE (

Table 7. Comparative band-specific errors after validation procedure of $a_t(\lambda )$, $a_{CDM}(\lambda )$, and $a_{\varphi }(\lambda )$ based on MAPE (%) and RSMD (m⁻¹) metrics. The first column represents the nominal OLCI center bands (nm).

OLCI Bands	${\mathit{a}}_{\mathit{t}}$		${\mathit{a}}_{\mathit{C}\mathit{D}\mathit{M}}$		${\mathit{a}}_{\mathit{\varphi }}$
Wavelengths (nm)	RMSD (m−1)	MAPE (%)	RMSD (m−1)	MAPE (%)	RMSD (m−1)	MAPE (%)
412	0.43	36.00	0.56	66.21	0.14	41.23
443	0.36	41.40	0.44	78.30	0.13	39.27
490	0.30	57.66	0.28	79.34	0.08	46.24
510	0.26	59.74	0.22	73.89	0.05	44.65
560	0.20	62.81	0.12	58.89	0.03	85.02
620	0.26	54.15	0.05	30.95	0.04	176.35
665	0.16	22.81	0.04	19.37	0.08	94.12
681	0.10	12.65	0.05	26.54	0.08	70.31
709	0.05	4.15	0.05	35.82	-	-
Average	0.23	39.04	0.20	52.15	0.08	74.65

) was above 50% for $a_t$ between 490 and 620 nm and the lowest average error was observed at 709 nm (4.15%), 681 nm (12.65%), 665 nm (22.81%), and 412 nm (36.00%). Five specific sampling stations (P1, P9, P10, P13 and P19) were responsible for the increase in error above 50% and after the removal of these samples, the average MAPE decreased below 50% at all OLCI wavelengths, representing an average error of 26.62%. The average MAPE for $a_{CDM}$ was 52.15% and high errors were observed at 490 nm (79.34%), 443 nm (78.30%), 412 nm (66.21%), and 560 nm (58.89%). However, when the same five outlier stations’ data were eliminated, the average MAPE decreased to 42.94%. The accuracy of $a_{CDM}(\lambda )$ and $a_{\varphi }(\lambda )$ is associated with the uncertainties in $a_t(\lambda )$ and the parameters ζ and ξ [54]. The reference $a_{CDM}(443)$ was overestimated, possibly due to the mismatch between in situ and measured ζ and ξ. The estimation of $a_{\varphi }$ followed a method different from the native QAA to avoid negative prediction and maintain the shape, which can be difficult to achieve in waters with very low Chl-a concentrations.

The prediction of $a_{\varphi }$ was dependent on the uncertainties associated with $a_t(\lambda )$ and ζ and ξ parameters. High MAPE values (average 74.65%) were observed from 412 to 681 nm and the highest errors were associated at longer wavelengths, mainly at 520, 620, and 665 nm. The previous five samples contributed to this increased error. After excluding those samples, the average error decreased to 48.23%. It is worth mentioning that in situ $a_{\varphi }(709)$ returned negative values using the protocol described in Section “Data and Methods”; for that reason, the data at that wavelength were disregarded.

Overall, QAA_OMW improved the estimation of $a_t$ and $a_{CDM}$ for Nav but the challenge remains for $a_{\varphi }$ retrieval in low Chl-a waters. Ogashawara et al. [55] also found a low accuracy for the Itumbiara Reservoir (CDOM-rich water), located in the west center of Brazil, in the blue and green region for $a_t$. For $a_{CDM}$, the uncertainties decreased but the errors were associated with higher wavelengths such as 500–600 nm and 600–750 nm, whereas for $a_{\varphi }$, the challenge was to improve the accuracy between 400 and 500 nm and between 500 and 600 nm. These results imply that optical properties of a waterbody can have a big influence on the results obtained by a QAA. However, the re-parameterization steps presented in this study showed promise in accurately estimating IOPs in oligo-to-mesotrophic waterbodies. The authors also highlighted the need for additional tuning and validation exercises using data from broad geographic regions to further increase the accuracy of the IOP prediction.

4. Discussion

4.1. Linking QAA_OMW-Derived IOP Variability to Physical and Meteorological Conditions

IOPs are intrinsically related to water quality parameters and, therefore, they are governed by physical and meteorological variations at a broader landscape scale, such as rainfall, runoff, discharge, and water level. After heavy rainfall, for example, sediment can enter the aquatic system by surface runoff, reducing the euphotic zone and leading to a decrease in the primary production by planktonic communities and submerged macrophytes [66]. Over dry seasons, the opposite can be expected and the increase in primary production due to light availability and higher nutrient concentration can be inferred by the increase of $a_{\varphi }(443)$. QAA_OMW-derived IOPs and their spatiotemporal variability can be used to study and isolate the environmental forces related to landscape or atmosphere that control the bio-optical properties of the reservoir.

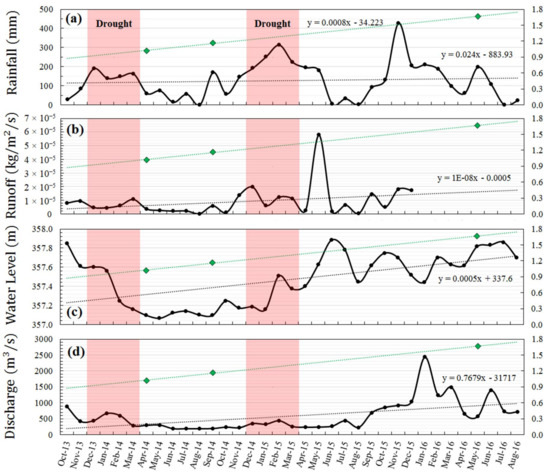

In situ $R_{rs}(\lambda )$ data from the third field trip was used to retrieve the IOPs using QAA_OMW. $a_t(443)$ data retrieved from QAA_OMW from all field trips were averaged and analyzed with rainfall, runoff, water level, and discharge data (Figure 7). Total rainfall during the months of April 2014, September 2014, and May 2016 were 60.33 mm, 169.95 mm, and 197.49 mm, respectively (Figure 7a). An increasing trend in rainfall was observed from October 2013 to August 2016. The State of São Paulo experienced a dramatic drought event in 2014 and early 2015, which affected water availability for agriculture, hydropower generation, and public use during the austral summer (December–March) [67]. Extreme events such as droughts can affect the water supply, as well as degrade water quality [68]. Besides, Cairo et al. [69] reported the influence of an atypical dry year, such as 2014, on the quality of inland waters. They noticed that the Ibitinga Reservoir, displayed along the Tietê River cascade system in Figure 1, worked as an accumulator of organic matter due to the decrease in precipitation rate and increase in retention time. The water quality composition is highly affected by the seasons and the rise in nutrient loads could be due to allochthonous sources that are maximized during the rainy season as a result of high surface runoff [70,71]. Although a definitive pattern cannot be established because of limited IOP data, the QAA_OMW-derived $a_t(443)$ showed an increasing trend and seemed to correlate with the rainfall data.

The runoff corroborated the rainfall data, meaning that in April 2014 the runoff to the reservoir was lower compared to September 2014 and May 2016 (Figure 7b). Non-point pollutants attributable to agricultural activities can be carried across the land surface by runoff and reach the reservoir, increasing the nutrient load leading to water quality degradation [72]. Rodgher et al. [29] and Smith et al. [30] found an increase in total phosphorus, nitrite, and suspended materials during rainy seasons from upstream to downstream in the Tietê River. The increase in nitrite and total phosphorus was related to soil fertilization. Numerous studies have reported similar phenomena of increased nutrient load caused by stream inputs and surface runoff [73,74,75]. QAA_OMW-derived $a_t(443)$ also increased with increasing runoff emphasizing the growing trend from 2014 to 2016 and indicating input from the watershed contributed to the increase in absorbing components, such as dissolved and particulate matter. The annual average of the water level in the Nav Reservoir was 357.18 ± 0.15 m in 2014 and 357.56 ± 0.23 m in 2015. From January to August of 2016, the average was 357.70 ± 0.20 m, showing low variability but a growing trend from 2014 to 2016 (Figure 7c). The low water level variance is because the Nav is a run-of-river reservoir and, therefore, there is no water storage. The discharge (Figure 7d) also showed a direct relationship with $a_t(443)$ and an increasing trend. The period between 2012 and early 2015 showed that the discharge was low, which was probably related to rainfall dynamics where low rainfall rates led to the closing of the floodgates; the opposite situation was found in 2016 where the floodgates were opened to control floods due to heavy rains.

4.2. Other Factors Influencing the Bio-Optical Characteristics of the Reservoir

Land use and land cover (LULC) can affect the supply of particulate and dissolved matter into a waterbody leading to the modification of its bio-optical properties. Land uses such as urban and agricultural areas can contribute with high suspended solids, intensifying the primary production in inland waters [71,76]. Similar phenomena have been commonly observed in estuarine systems where both land uses (urban + agriculture) have played an important role in triggering phytoplankton growth and increasing light attenuation [77]. The intensification of the primary production increases the magnitude of $a_{\varphi }(443)$. In the Tietê River, the most significant sources of pollution come from the metropolitan and industrial region of São Paulo [30]. However, the water quality consistently improves from the upstream reservoirs to the downstream due to auto-depuration and sedimentation of suspended matter increasing the dissolved oxygen and water clarity [78]. LULC surrounding Nav is primarily composed of agriculture, especially sugarcane and pasture [27]. That is in accordance with Figure 2, which shows detritus and CDOM mainly controlling the IOPs in Nav. It implies that the origin of the dominant OSCs in Nav can be linked to watershed activities.

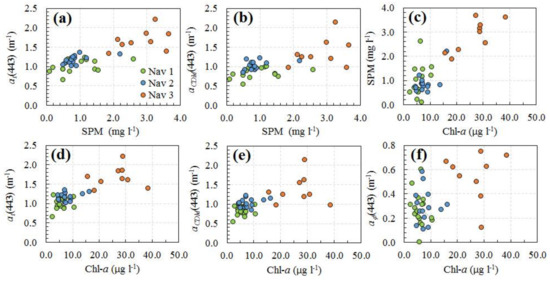

When $a_t(443)$ was analyzed using the entire dataset, the correlation with SPM and Chl-a was very high (r = 0.80 and r = 0.79, p < 0.001, respectively) (Figure 8a,d). However, when $a_t(443)$ was analyzed using data from individual campaigns, the correlation with SPM dropped and only data from the second field trip showed statistical significance (r = 0.54, p < 0.05). The correlation between $a_t(443)$ and Chl-a was non-significant (p > 0.05) when the campaigns were considered individually. $a_{CDM}(443)$ using the entire dataset presented a correlation of 0.66 (p < 0.001) with both SPM and Chl-a. On the other hand, the individual campaigns did not present any statistical correlation (Figure 8b,e). Using the overall data, the correlation between SPM and Chl-a was 0.88 (p < 0.001) although from all campaigns only the second and third were statistically significant (r = 0.62 and 0.80, respectively, p < 0.05) (Figure 8c). The relationship between $a_{\varphi }(443)$ and Chl-a was weak but significant (r = 0.51, p < 0.001) (Figure 8f). A poor correlation between SPM and Chl-a in the first field trip (r = 0.35, p > 0.05) indicated that Chl-a was not the only parameter controlling the water’s optical properties, thus assuming the properties of a typical case-2 water [10]. Besides, the weak or non-correlation allied with the low Chl-a concentration suggested that both SPM and CDOM originated from allochthonous sources or even sediment resuspension but not from the degradation of phytoplankton. Wu et al. [79] who studied an inorganic matter-dominated lake (Poyang, China) made a similar observation. Thus, factors such as LULC introduce different sources of sediments into the water modulating its bio-optical composition and affecting the bio-optical modeling.

5. Conclusions

There have been significant efforts to accurately retrieve IOPs using QAAs for open ocean, coastal, and very productive inland waters. However, their accuracies decline when applied to non-productive inorganic matter-dominated inland waters. In this study, three well-known QAAs—QAA_Lv5, QAA_Lv6 and QAA_M14—were applied to an oligo-to-mesotrophic reservoir in Southeast Brazil. The three QAAs were developed to retrieve IOPs in open ocean, coastal waters, and hyper-eutrophic inland waters, respectively, using different ${\lambda }_0$. These models did not show a good agreement between estimated and measured $a_t(\lambda )$, $a_{CDM}(\lambda )$, and $a_{\varphi }(\lambda )$ even with the shifting of ${\lambda }_0$ to 709 nm, confirming the hypothesis presented in this study and justifying the need for a re-parameterization and development of QAA_OMW.

For re-parameterization, in addition to shifting the ${\lambda }_0$ to 709 nm (available in both MSI/Sentinel-2 and OLCI/Sentinel-3), the $a_t({\lambda }_0)$ and η were also modified to improve the retrieval of $a_t(\lambda )$ and $b_b(\lambda )$. This step was crucial to minimize the propagation of error in subsequent steps i.e., $a_{CDM}(\lambda )$, and $a_{\varphi }(\lambda )$ estimation. Moreover, the parameters ζ and ξ, often considered as second order of importance, were shown to be significant for retrieving $a_{CDM}({\lambda }_0)$ and $a_{\varphi }({\lambda }_0)$. Specifically, the changes involved were the modification of band combinations (443, 665, 709, 681 nm) designed to retrieve χ and further the estimation of new coefficients for $a_t({\lambda }_0)$ retrieval. In addition, the tuning of η based on bands 665 and 754 nm increased the accuracy of $a_t(\lambda )$ estimation. The main obstacle found with the previous QAAs were related to the accuracy of $a_{\varphi }(\lambda )$ retrieval based on simple subtraction between $a_t(\lambda )$, $a_w(\lambda )$, and $a_{CDM}(\lambda )$. The errors were very high surpassing 100% at critical wavelengths. Therefore, a new approach that was recently suggested was incorporated but with relevant modifications aiming to derive $a_{\varphi }(443)$ based on the normalized $a_{\varphi }^{+}(\lambda )$. As result, the uncertainties went below 50% (412–681 nm) for $a_{\varphi }$ estimation. Validation using an independent dataset showed QAA_OMW to be promising in retrieving the IOPs in oligo-to-mesotrophic reservoirs dominated by inorganic matter.

In general, the model has provided new insight for IOP and water quality monitoring in oligo-to-mesotrophic environments such as in tropical reservoirs; however, the retrieval of $a_{\varphi }$ with high accuracy still needs to be addressed. To further tune QAA_OMW, more data from different sites, as well as in situ backscattering coefficients, must be included to improve the estimation of $a_t$. Only then can the scaling-up of QAA_OMW to the OLCI sensor be performed, since the sensor would have the necessary band architecture to support the model. Successful scale-up of QAA_OMW would facilitate frequent large-scale bio-optical characterization of these reservoirs for effective water resource management.
