Atmosphere 2018, 9(9), 347; https://doi.org/10.3390/atmos9090347

The Effect of Aerosol Radiative Heating on Turbulence Statistics and Spectra in the Atmospheric Convective Boundary Layer: A Large-Eddy Simulation Study

1
Yale-NUIST Center on Atmospheric Environment, International Joint Laboratory on Climate and Environment Change (ILCEC)/Key Laboratory of Meteorological Disaster, Ministry of Education (KLME)/Collaborative Innovation Center on Forecast and Evaluation of Meteorological Disasters (CIC-FEMD), Nanjing University of Information Science & Technology, Nanjing 210044, China
2
School of Meteorology, University of Oklahoma, Norman, OK 73072, USA
3
Center for Analysis and Prediction of Storms, University of Oklahoma, Norman, OK 73072, USA
4
School of Forestry and Environmental Studies, Yale University, New Haven, CT 06511, USA
*
Author to whom correspondence should be addressed.
Received: 21 June 2018 / Revised: 26 August 2018 / Accepted: 1 September 2018 / Published: 5 September 2018
(This article belongs to the Special Issue Large-Eddy Simulations (LES) of Atmospheric Boundary Layer Flows)
Full-Text   |   PDF [10188 KB, uploaded 5 September 2018]   |

Abstract

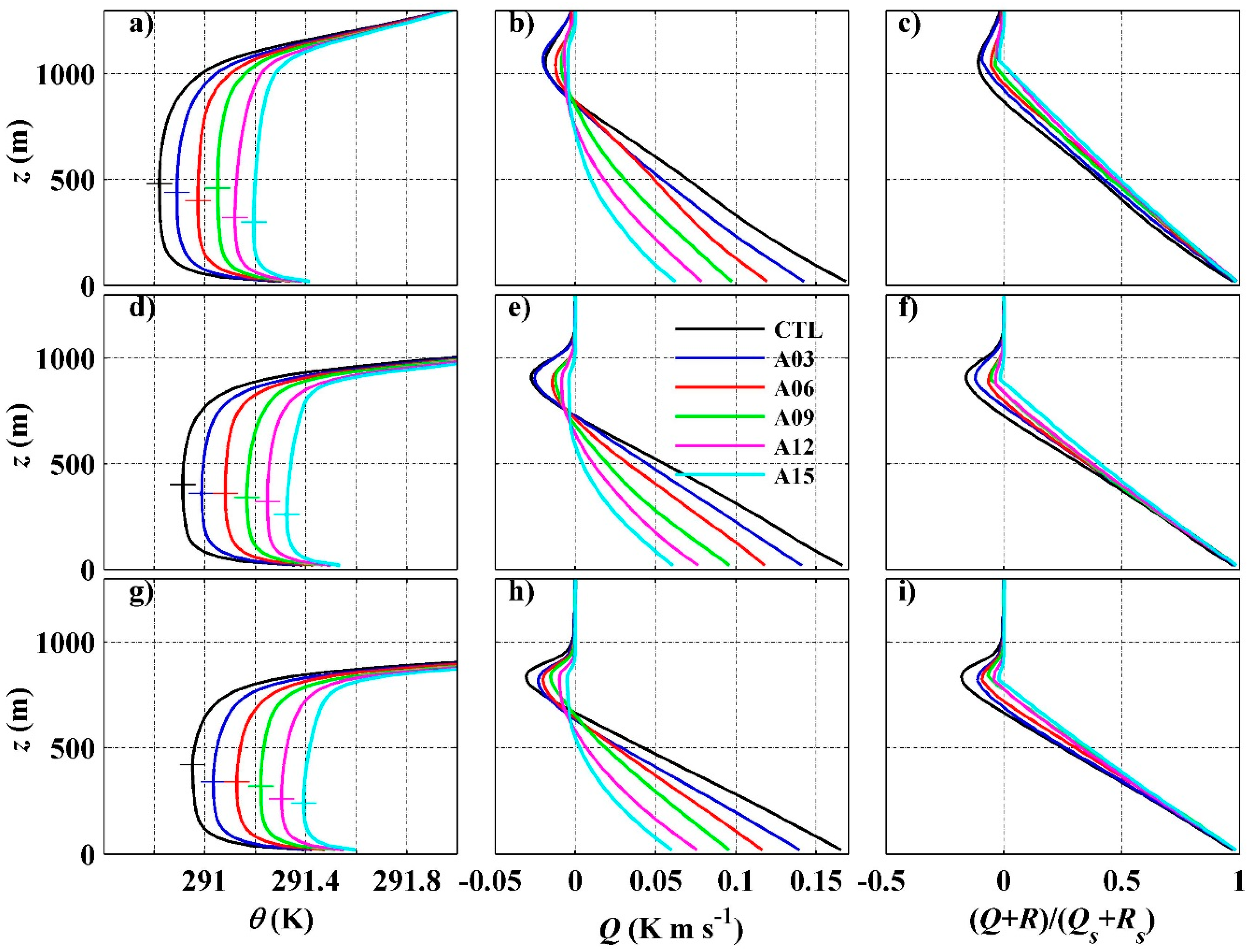

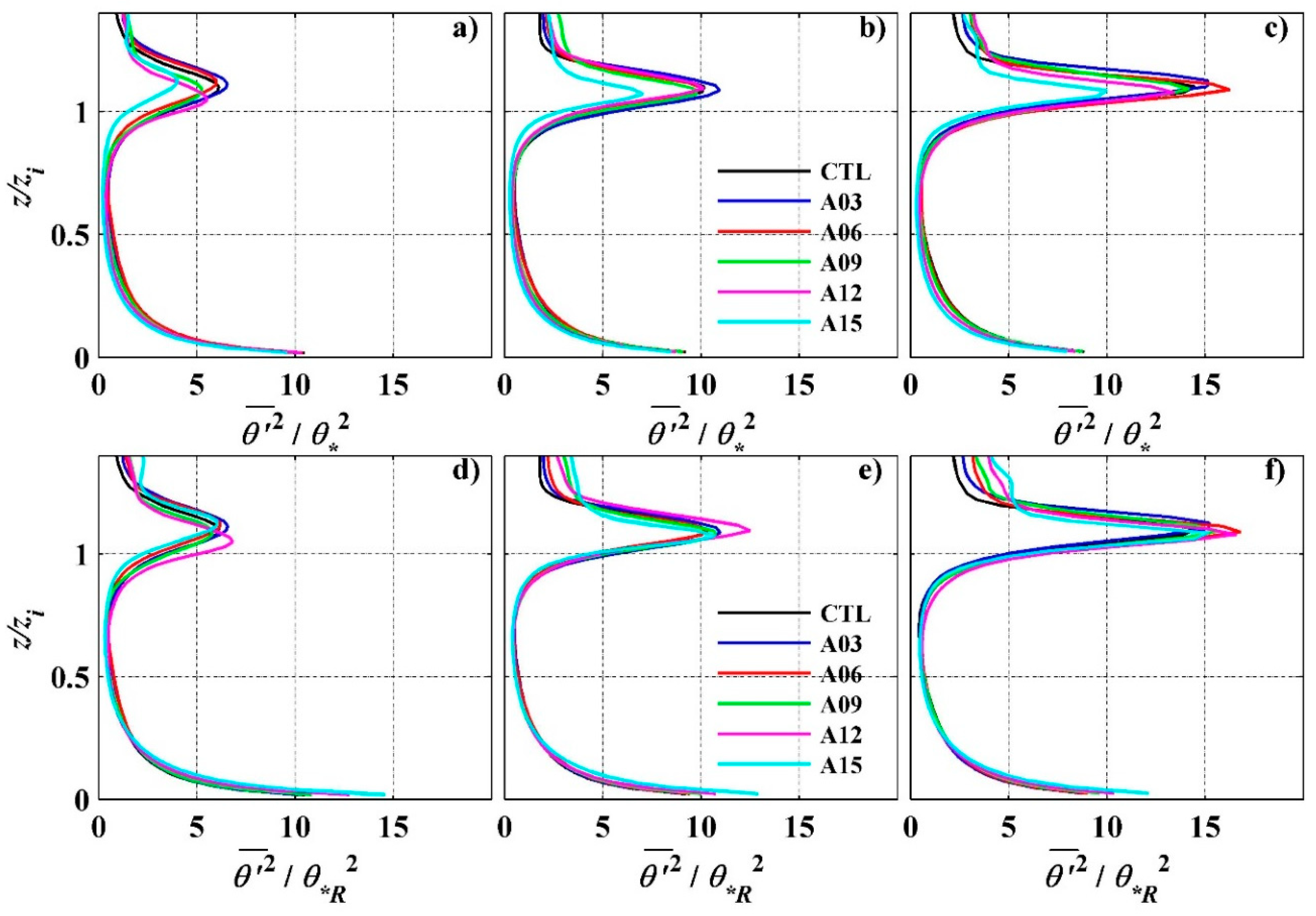

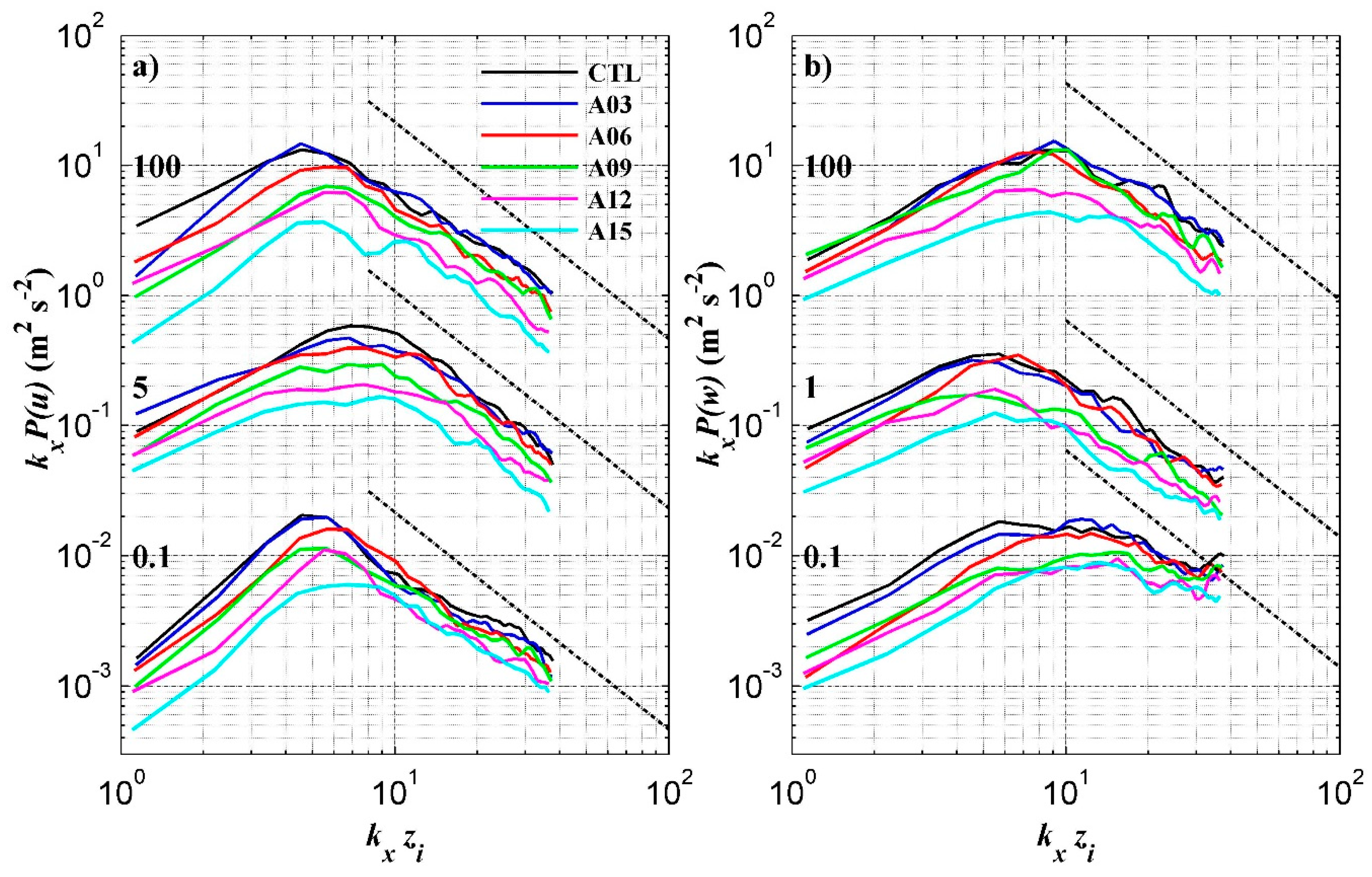

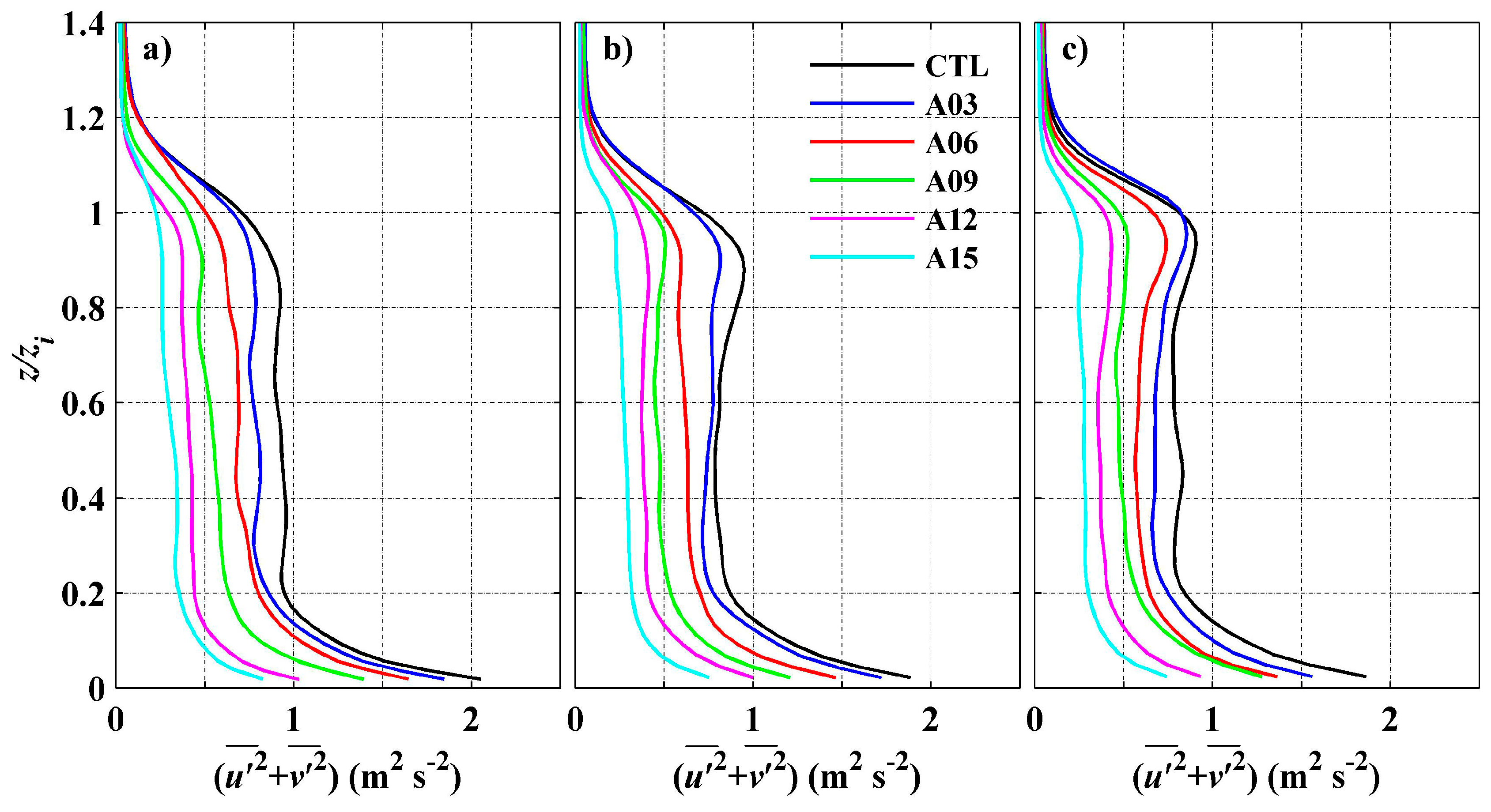

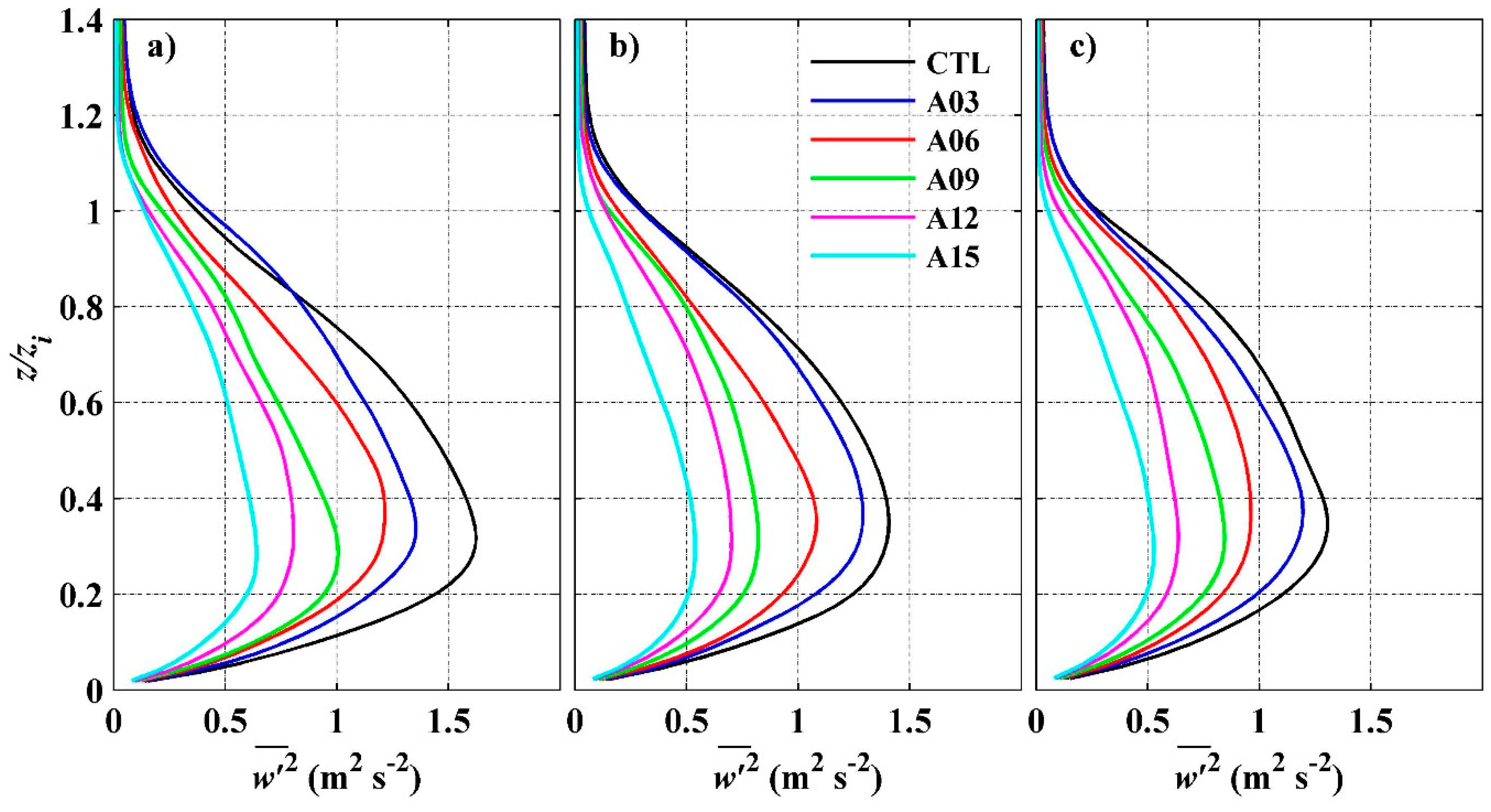

Turbulence statistics and spectra in a radiatively heated convective boundary layer (CBL) under aerosol pollution conditions are less investigated than their counterparts in the clear CBL. In this study, a large-eddy simulation (LES) coupled with an aerosol radiative transfer model is employed to determine the impact of aerosol radiative heating on CBL turbulence statistics. One-dimensional velocity spectra and velocity–temperature cospectra are invoked to characterize the turbulence flow in the CBL with varying aerosol pollution conditions. The results show that aerosol heating makes the profiles of turbulent heat flux curvilinear, while the total (turbulent plus radiative) heat flux profile retains the linear relationship with height throughout the CBL. The horizontal and vertical velocity variances are reduced significantly throughout the radiatively heated CBL with increased aerosol optical depth (AOD). The potential temperature variance is also reduced, especially in the entrainment zone and near the surface. The velocity spectral density tends to be smaller overall, and the peak of the velocity spectra is shifted toward larger wavenumbers as AOD increases. This shift reveals that the energy-containing turbulent eddies become smaller, which is also supported by visual inspection of the vertical velocity pattern over horizontal planes. The modified CBL turbulence scales for velocity and temperature are found to be applicable for normalizing the corresponding profiles, indicating that a correction factor for aerosol radiative heating is needed for capturing the general features of the CBL structure in the presence of aerosol radiative heating. View Full-Text
Keywords: aerosol radiative heating; spectral analysis; convective boundary layer; large-eddy simulation; turbulence statistics aerosol radiative heating; spectral analysis; convective boundary layer; large-eddy simulation; turbulence statistics
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Liu, C.; Huang, J.; Fedorovich, E.; Hu, X.-M.; Wang, Y.; Lee, X. The Effect of Aerosol Radiative Heating on Turbulence Statistics and Spectra in the Atmospheric Convective Boundary Layer: A Large-Eddy Simulation Study. Atmosphere 2018, 9, 347.
