Mobile DOAS Observations of Tropospheric NO₂ Using an UltraLight Trike and Flux Calculation

Abstract

In this study, we report on airborne Differential Optical Absorption Spectroscopy (DOAS) observations of tropospheric NO₂ using an Ultralight Trike (ULT) and associated flux calculations. The instrument onboard the ULT was developed for measuring the tropospheric NO₂ Vertical Column Density (VCD) and it was operated for several days between 2011 and 2014, in the South-East of Romania. Collocated measurements were performed using a car-DOAS instrument. Most of the airborne and mobile ground-based measurements were performed close to an industrial platform located nearby Galati city (45.43° N, 28.03° E). We found a correlation of R = 0.71 between tropospheric NO₂ VCDs deduced from airborne DOAS observations and mobile ground-based DOAS observations. We also present a comparison between stratospheric NO₂ Slant Column Density (SCD) derived from the Dutch OMI NO₂ (DOMINO) satellite data product and stratospheric SCDs obtained from ground and airborne measurements. The airborne DOAS observations performed on 13 August 2014 were used to quantify the NO₂ flux originating from an industrial platform located nearby Galati city. Measurements during a flight above the industrial plume showed a maximum tropospheric NO₂ VCD of (1.41 ± 0.27) × 10¹⁶ molecules/cm² and an associated NO₂ flux of (3.45 ± 0.89) × 10⁻³ kg/s.

1. Introduction

Nitrogen dioxide (NO₂) is a chemical gaseous compound with an important role in the Earth’s atmosphere. NO₂ is a key trace element in the chemistry of ozone, since it is involved in the catalytic destruction of ozone in the stratosphere [1], while in the troposphere its photolysis leads directly to the formation of ozone (O₃) in the presence of VOCs (volatile organic compounds). NO₂ is released in the atmosphere from natural sources (soil, lightning, solar cosmic rays) and anthropogenic emissions (fossil fuels and biomass burning, industrial activities). Long-term exposure to NO₂ may affect the respiratory system and lead to coronary diseases. NO₂ can lead to acidification of the aquatic ecosystem following the oxidation to HNO₃.

The Differential Optical Absorption Spectroscopy (DOAS) technique [2] has been used for NO₂ atmospheric measurements since the early 1970s [3,4]. Nowadays, besides ground-based zenith sky measurements, DOAS techniques have developed into Multi-Axis Differential Optical Absorption Spectroscopy (MAX-DOAS) observations [5]. The mobile DOAS technique was recently used on several platforms such as: cars [6,7], airplanes [8,9,10], Unmanned Aerial Vehicles (UAVs) [11] or satellites [12,13,14,15,16].

Airborne observations have a number of important advantages for atmospheric research such as: the flexibility during the flights and the possibility to access remote areas such as oceans, deserts, rural or areas without roads.

The ULMs (Ultralight Motorized) are airborne platforms with an important scientific potential for atmospheric research. So far, ULMs have been used to study the ultraviolet actinic radiation flux [17], formaldehyde distribution [18], aerosol profiles [19], SO₂, NO₂ and ozone distribution [20,21,22,23].

This work highlights the capability of a low-cost system (ULT-DOAS) used for measurements of tropospheric NO₂ VCD and associated flux calculations. This study presents airborne DOAS observations of tropospheric NO₂ using an Ultralight Trike (ULT) and associated flux calculations. The work presented here was motivated by the need to further assess the intrapixel variability of NO₂ detected by UV-VIS DOAS instruments onboard satellites. This work comes in the context of a validation programme of the future Atmospheric Sentinels, starting with the Sentinel-5 Precursor to be launched in summer 2017. A similar system based on DOAS onboard the ULM was used during the Airborne Romanian Measurements of Aerosols and Trace gases (AROMAT) campaign, held in Romania in August 2015 [24]. The AROMAT campaign was conducted under the aegis of the European Space Agency (ESA) in the framework of a series of ESA field campaigns.

2. Methodology

2.1. Experimental and Instrumental Descriptions

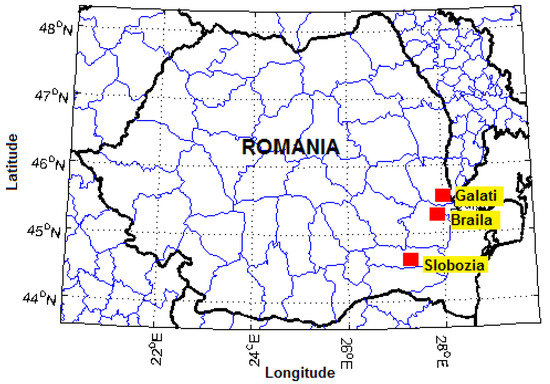

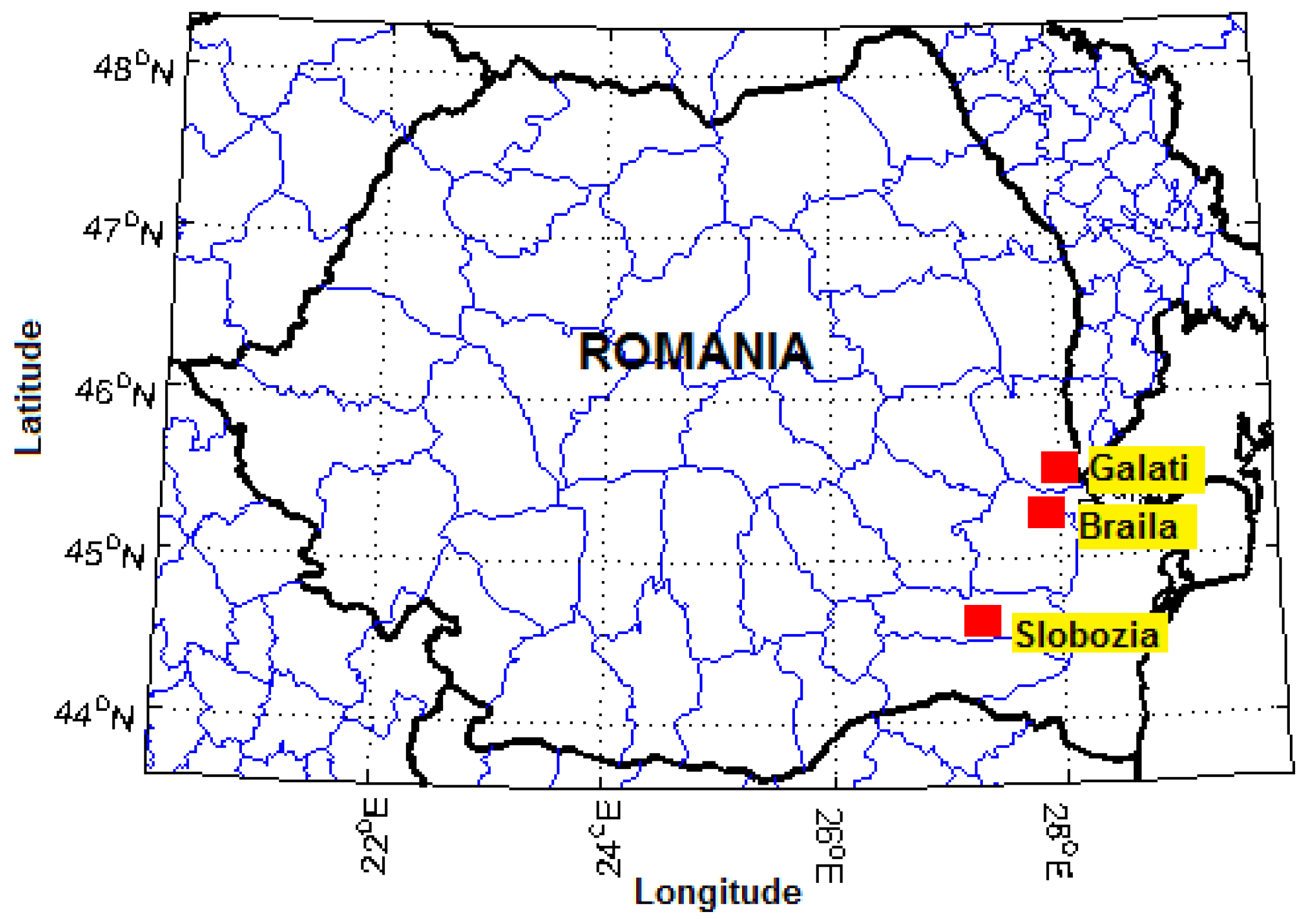

The mobile DOAS observations were performed onboard of an Ultralight Trike (ULT), in the South-East of Romania (Figure 1) during several days between 2011 and 2014. All measurements were performed under clear-sky conditions (see

Table 1. Coordinates and temporal coverage of the mobile DOAS measurements.

Day	Time Interval UTC *	Route of ULT-DOAS ** Measurements	NO2 Source Target
1 September 2011	8.31–9.45	Galati–Braila	Braila urban area
25 August 2012	7.53–8.89	Galati–Braila	Braila urban area
21 July 2014	9.51–10.96	Galati–Slobozia	Slobozia industrial area
13 August 2014	7.32–8.19	Galati	Galati industrial area

* Coordinated Universal Time. ** ULT-DOAS = Ultralight Trike-Differential Optical Absorption Spectroscopy.

). The Mobile DOAS system used for measurements will be described in the following as the ULT-DOAS system. The measurements took place in an area around Galati (located at 45.43° N, 28.03° E), Braila (45.26° N, 27.95° E), and close to the industrial areas of Slobozia (44.56° N, 27.35° E). Note that an operational steel mill factory is located in the vicinity of Galati, while Slobozia was chosen due to the presence of a fertilizer factory. Due to security concerns, direct flights above the cities or industrial platforms were not performed. Most of the airborne DOAS observations were performed in nadir geometry. Details about the ULT-DOAS measurements are presented in Table 1.

Airborne-DOAS measurements were accompanied by car-DOAS measurements and static twilight observations on 21 July 2014. Static twilight DOAS measurements, used for determination of the NO₂ content from the reference spectra, were performed in a rural area close to Galati city. The car-DOAS measurements were performed right before or after the experimental flights.

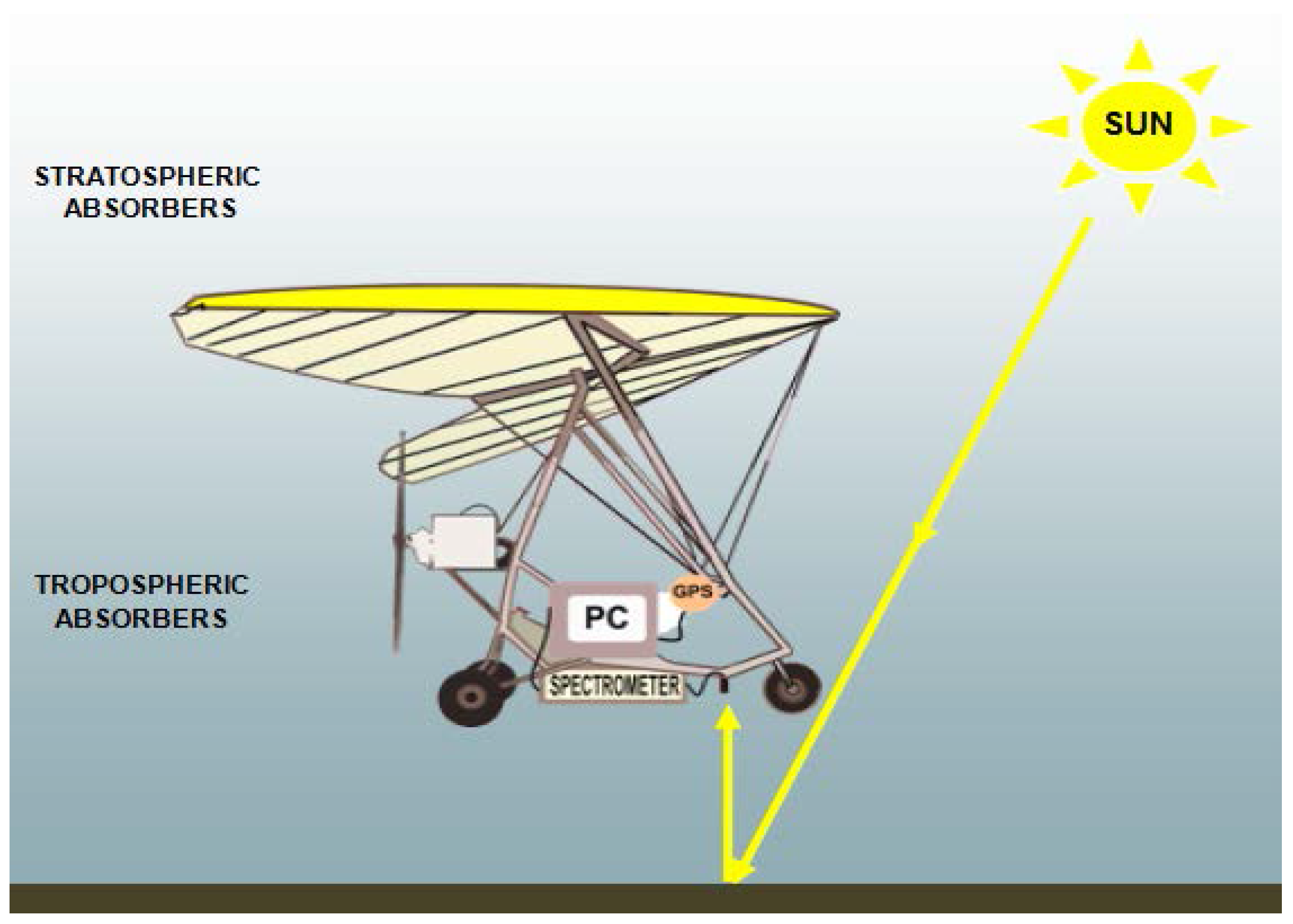

The aircraft used for all the flight experiments presented in this paper is a double-seated, open-cockpit ultralight aircraft, trike type (model Fanagoria 21, produced by Plovdiv Air Bulgaria). The flexible wing (Atlant-21, produced by Plovdiv Air Bulgaria) has an area of 16 m². The ULT is powered by a Subaru EA81 engine with 75 HP. The cruise speed is 75 km/h and the maximum speed is 100 km/h relative to the ground. The aircraft has a maximum total weight at take-off of 450 kg.

The ULT-DOAS instrument consists of a compact Czerny-Turner spectrometer (AvaSpec-ULS2048XL-USB2, of 175 × 110 × 44 mm dimensions and 855 g weight) placed in the Ultralight Trike. Figure 2 presents the instrumental DOAS set-up. The spectral range of the spectrometer is 280–550 nm with 0.7 nm resolution (FWHM—Full Width at Half Maximum) with a focal length of 75 mm. The entrance slit is 50 μm and the grating is 1200 L/mm, blazed at 250 nm. The spectrometer is connected to the telescope through a 400 μm chrome-plated brass optical fiber. The telescope achieves a 2.3° field-of-view with fused silica collimating lenses. Each spectrum is recorded by a laptop and georeferenced by a GPS receiver. The spectrometer and the GPS receiver are powered by the laptop USB ports. The entire set-up is powered by 12 V of the ULT through an inverter. Each measurement is a 10-second average of 10 scans accumulations at an integration time between 50 and 150 ms.

This work is mostly based on nadir-DOAS observations but we also present zenith-sky observations onboard ULT for stratospheric NO₂ measurements. The same DOAS system was used in the case of the zenith sky car-DOAS observations.

2.2. Determination of the NO₂ Tropospheric Vertical Column and Flux Calculation

2.2.1. Retrieval of NO₂ Slant Column

The analysis of the measured spectra was performed using the QDOAS software [25]. For the NO₂ fit, the spectral window of 425–490 nm was used. The NO₂ spectral analysis included five absorption cross sections: the NO₂ cross sections at 298 K and 220K [26], the O₃ cross section at 223 K [27], the O₄ cross section [28] and a Ring spectrum [29]. A fifth-degree polynomial to account for scattering processes and broad-band absorption in the atmosphere was used in the DOAS analysis. The direct result of the spectral analysis is a differential slant column density (DSCD), which is the integrated trace gas concentration along the light path through the atmosphere. The DSCD is the difference between the slant column densities in the measured spectra (SCD_meas) and the Fraunhofer reference spectrum (SCD_ref). The NO₂ amount in the Fraunhofer reference spectrum is unknown and its retrieval is important for the determination of the SCD_meas (Equation (1)).

$${\mathrm{SCD}}_{\mathrm{meas}}=\mathrm{DSCD}+{\mathrm{SCD}}_{\mathrm{ref}}$$

(1)

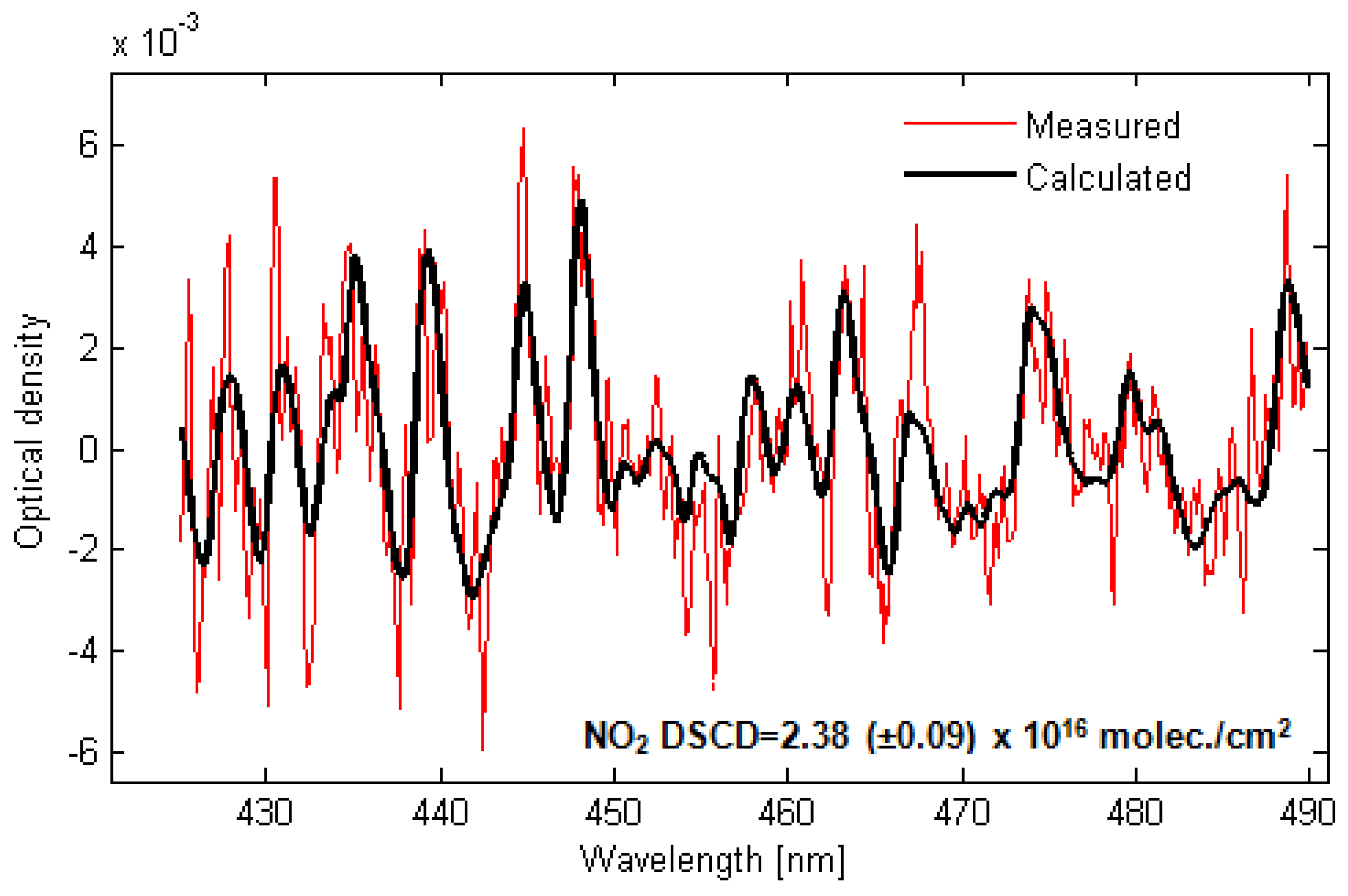

Figure 3 presents a typical DOAS fit using a spectrum recorded during the experiment close to the Galati steel factory, on 13 August 2014.

The Slant Column Density (SCD) is converted to a Vertical Column Density (VCD) by means of an Air Mass Factor (AMF), which is defined as the ratio between SCD and VCD (Equation (2))

$$\mathrm{AMF}=\frac{\mathrm{SCD}}{\mathrm{VCD}}=\frac{{\mathsf{\tau }}_{\mathrm{SCD}}}{{\mathsf{\tau }}_{\mathrm{VCD}}}$$

(2)

where τ_SCD and τ_VCD are the optical thickness for the slant column (SCD) and vertical column (VCD), respectively.

Since the measured spectra contain information about both stratospheric and tropospheric NO₂ content, the SCD_meas can be written as:

$${\mathrm{SCD}}_{\mathrm{meas}}={\mathrm{AMF}}_{\mathrm{tropo}}\cdot {\mathrm{VCD}}_{\mathrm{tropo}}+{\mathrm{AMF}}_{\mathrm{strato}}\cdot {\mathrm{VCD}}_{\mathrm{strato}}-{\mathrm{SCD}}_{\mathrm{ref}}$$

(3)

The above equations can be further simplified assuming that SCD_ref is dominated by stratospheric NO₂. Using this assumption, the stratospheric contributions can be canceled by the NO₂ amount in the reference spectrum (Equation (4)) [8].

$${\mathrm{VCD}}_{\mathrm{tropo}}=\mathrm{DSCD}/{\mathrm{AMF}}_{\mathrm{tropo}}$$

(4)

The assumption presented above is valid if the reference spectrum (needed for the spectral evaluation) is recorded at noon, in an area with a very low NO₂ content and if SCD_strato does not vary in time. The Fraunhofer reference spectrum could also be a zenith-sky spectrum recorded at high altitude over the boundary layer [30]. However, in this work the tropospheric NO₂ VCD is based on calculations using Equation (3).

2.2.2. Deduction of the SCD_ref and VCD_strato

To avoid systematic errors due to the use of multiple reference spectra, only one spectrum will be used for the spectral analysis of all DOAS observations presented in this paper.

The NO₂ amount in the reference spectrum was calculated using a photo-chemically modified Langley plot [6,31]. The SCD_ref corresponds to a zenith spectrum recorded at noon, in a clean rural area close to Galati city. The spectrum was recorded on 13 August 2014 (9.70 UTC and solar zenith angle (SZA) = 31.55°).

The photo-chemically modified Langley plot was applied for the twilight sunrise observations performed on 21 July 2014. By applying the Langley plot method, we calculated the SCD_ref as 4.1 × 10¹⁵ molecules/cm² of NO₂.

The stratospheric contribution used for the retrieval of the VCD_tropo is derived from the assimilated vertical stratospheric columns simulated by Dutch OMI NO₂ (DOMINO).

Table 2. OMI satellite overpasses data sets.

Day	Orbit Nr.	Overpass Time UTC	Stratospheric VCD [×1015 molecules/cm2]
1 September 2011	37,923	11:04:28	3.76
25 August 2012	43,151	11:11:07	3.75
21 July 2014	53,272	11:17:36	4.14
13 August 2014	53,607	11:23:47	3.74

VCD = Vertical Column Density.

shows the satellite overpass data sets that were used for the retrieval algorithm presented in this work.

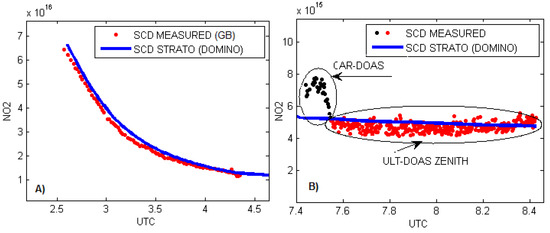

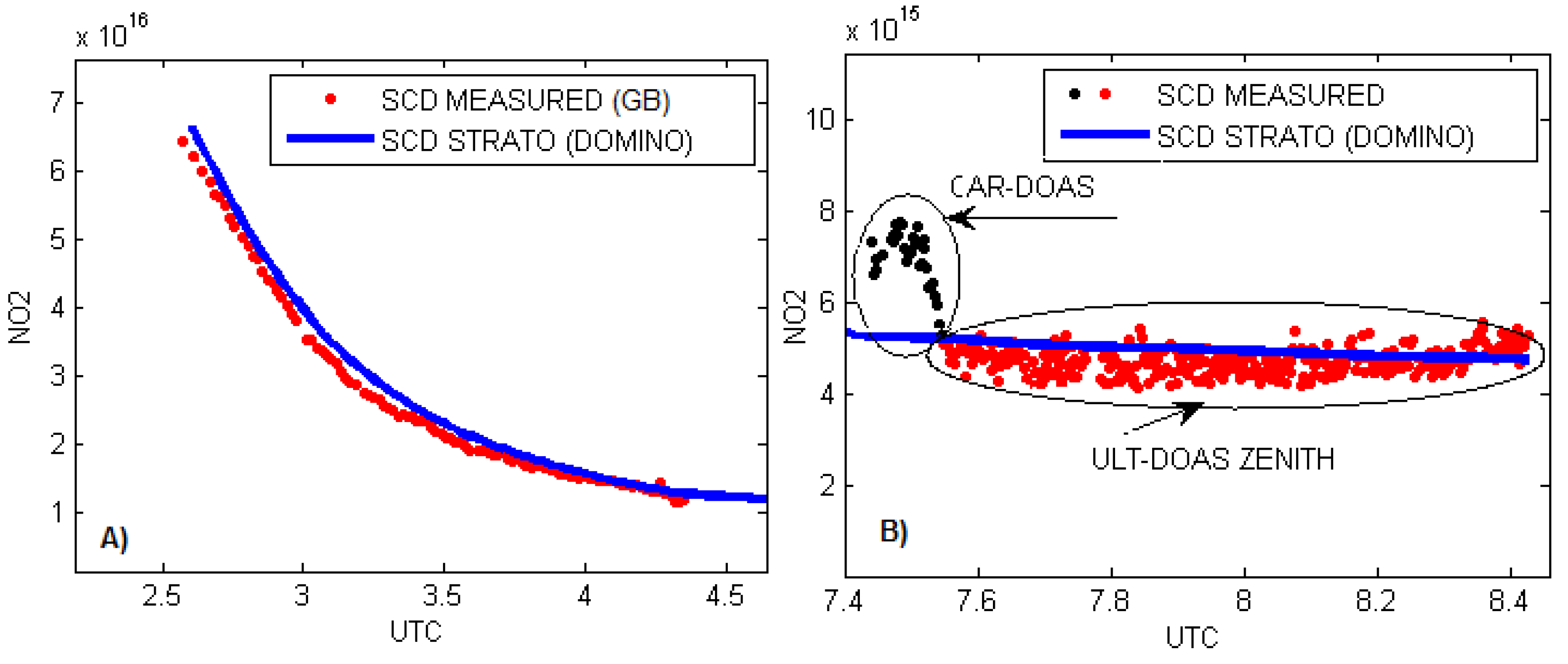

Figure 4A presents the SCD determined at twilight sunrise on 21 July 2014 compared with the SCD_strato derived from the DOMINO Level 2 product [32] scaled with a chemically modified AMF calculated by PSCBOX [33,34]. More details about the retrieval of the SCD_strato using twilight observations and model simulations are presented in [6]. A good agreement between the two types of SCD_strato determinations is obtained, which gives confidence in the stratospheric SCD measured by our static DOAS observations.

Figure 4B shows the SCDstrato derived from DOMINO compared with the SCDs determined by car-DOAS zenith-sky observations and ULT-DOAS measurements performed in the zenith geometry, for the same day of 21 July 2014. From this plot, one can see that the car-DOAS measurements are dominated by tropospheric NO₂ while the zenith-sky ULT-DOAS observation presents a low amount of NO₂ close to the stratospheric NO₂ SCD derived from OMI. This is due to the fact that zenith-sky ULT-DOAS observations are performed above the NO₂ plume or above the planetary boundary layer.

2.2.3. Radiative Transfer Calculation

In order to determine the VCD, the SCD retrieved with the DOAS method has to be converted using an appropriate AMF. The geometric approximation for the airborne DOAS observations assumes a simple reflection of the sunlight on the earth’s surface. In this case (neglecting the earth’s sphericity) the nadir AMF can be described as a function of the solar zenith angle (SZA) as:

$${\mathrm{AMF}}_{\mathrm{geo}}=1+1/\cos (\mathrm{SZA})$$

(5)

Since the ULT-DOAS measurements were performed in the open atmosphere using scattered sunlight radiation, the radiative transfer during the observations needs to be modeled to interpret the retrieved data. In this work, the AMF was calculated using the radiative transfer model (RTM) UVspec/DISORT [35], which is a fully spherical model. This RTM has been validated using six other different codes [34].

The general assumptions made for the radiative transfer calculation using the RTM UVspec/DISORT are introduced in

Table 3. Input parameters used for the radiative transfer model (RTM) calculations.

Trace Gas	Nitrogen Dioxide
wavelength	440 nm
flight altitude	1000 m		1500 m
albedo	0.1
visibility	1 km	5 km	20 km
line of sight	0°

.

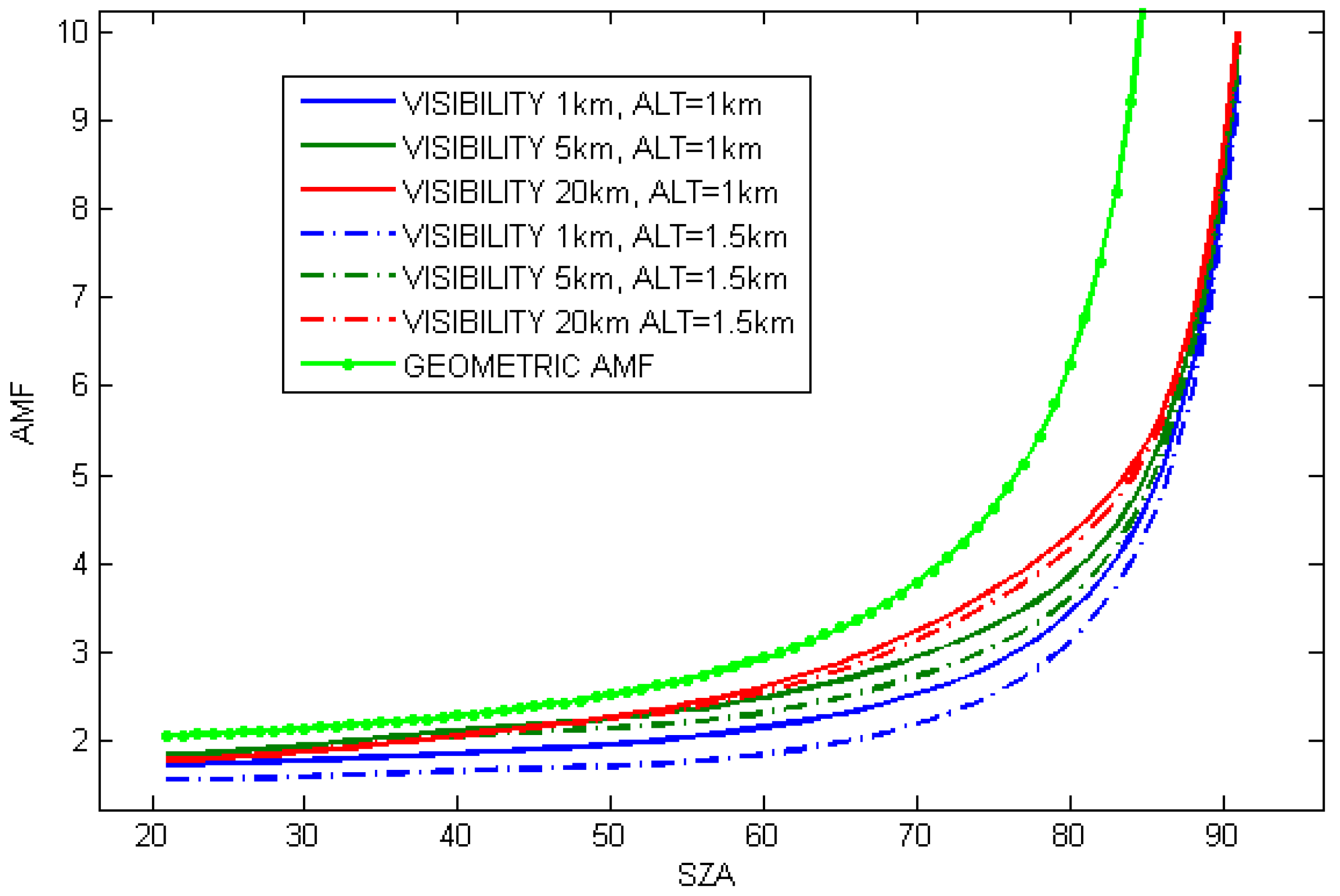

Results of AMF simulations for the nadir flight performed on 13 August 2014, using the input parameters presented in Table 3, are displayed in Figure 5. The geometric AMF for the nadir view is also shown. The visibility parameter accounts for the effect of aerosols.

3. Results and Discussions

The airborne DOAS observations were designed to determine the distribution of tropospheric NO₂ from the South-East of Romania from urban, industrial and rural areas and associated flux.

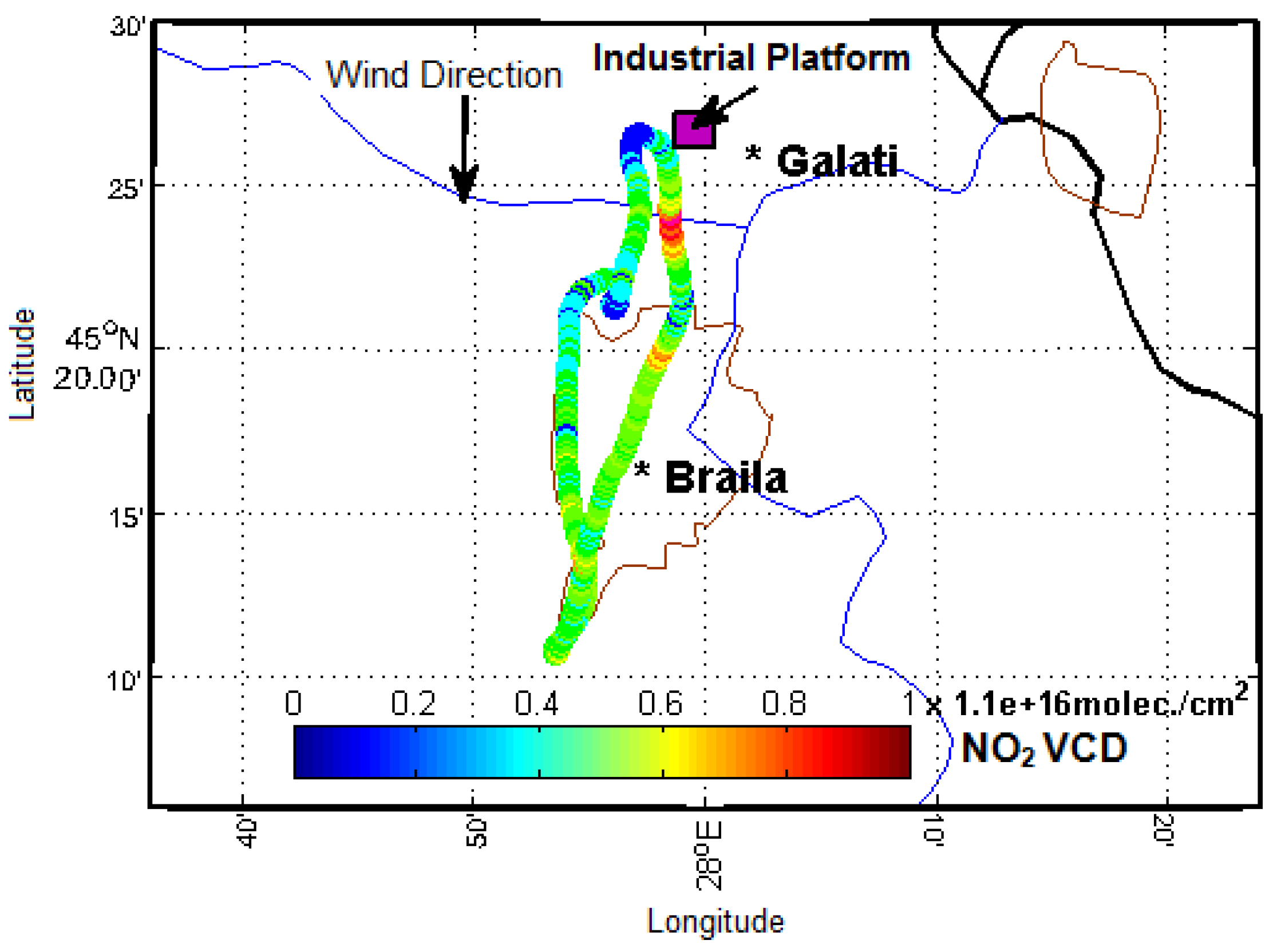

The first flights were performed on 1 September 2011 and 25 August 2012, and aimed at measuring the NO₂ around the industrial area of Galati city and from Braila city. The flight performed on 21 July 2014 aimed to measure the NO₂ emitted by a fertilizer factory located nearby Slobozia city; unfortunately, during the DOAS flight the fertilizer factory was not operational. Figure 6 presents the horizontal distribution of the tropospheric NO₂ determined in nadir geometry for 1 September 2011, while Figure 7 depicts the results during a similar flight, but on 25 August 2012. During this experiment, the plume from the industrial platform was not fully crossed by the optical instrument onboard the ULT. The wind was northerly resulting in local increases of the NO₂ amount detected by the spectrometer. The maximum tropospheric NO₂ VCD detected during this experiment was (1.1 ± 0.24) × 10¹⁶ molecules/cm² while the minimum tropospheric NO₂ VCD was (2.1 ± 0.81) × 10¹⁵ molecules/cm².

The trajectory of the flight on 13 August 2014 gave us the opportunity of calculating the NO₂ flux emissions around the industrial area of Galati city. This was not possible for the other flights because encircling the NO₂ source was not authorized.

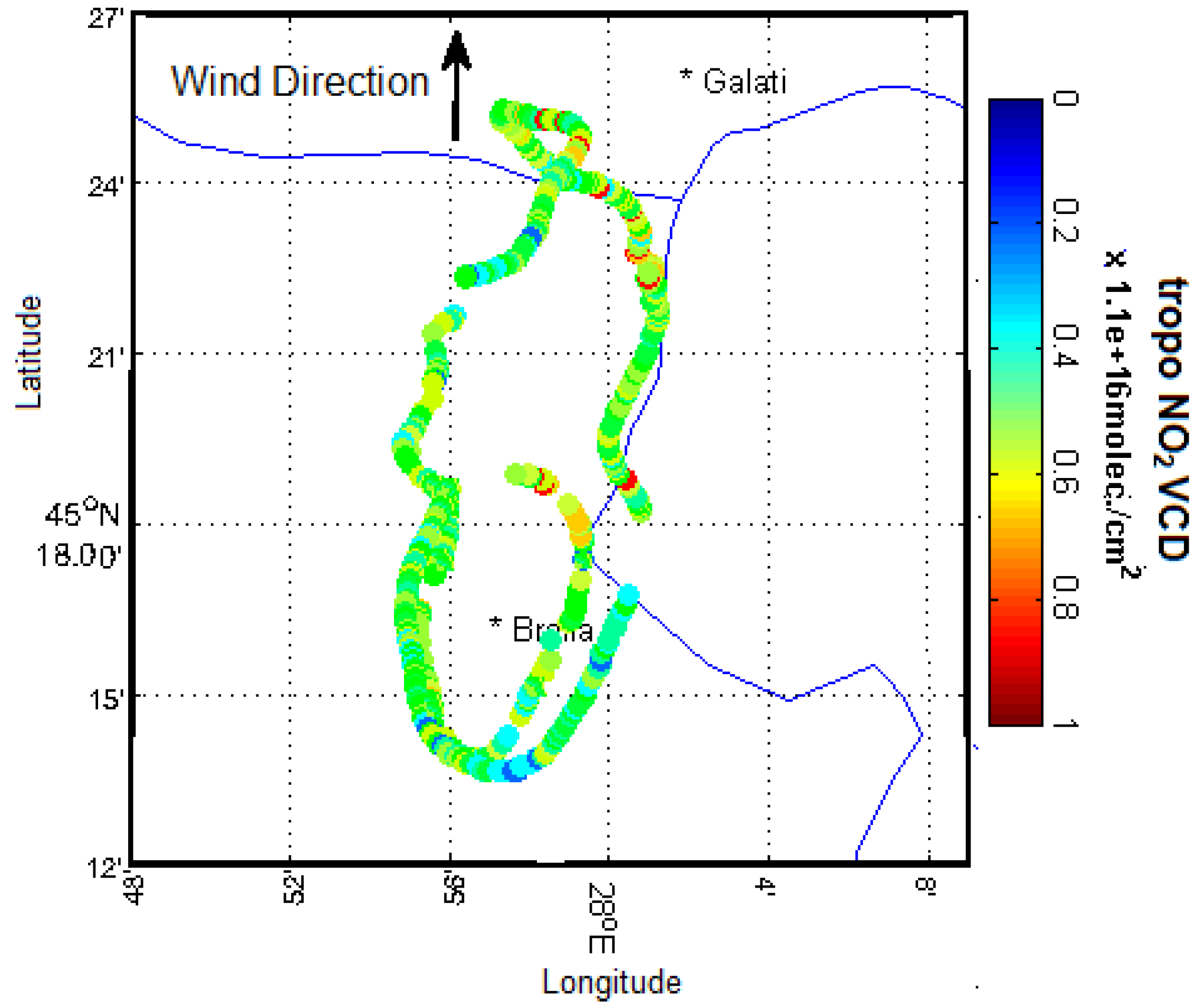

On 1 September 2011, the NO₂ amount was low relative to the other day. The flight comprised almost two complete circles around Braila; however, the NO₂ displayed no clear variation. The horizontal distribution of NO₂ was quite homogenous over Braila city on this day.

A double experiment was performed on 13 August 2014, using both a ULT-DOAS and a car-based DOAS system. The mobile ground-based DOAS observations were performed using the same equipment during 9.75–10 UTC, while the ULT-DOAS observations were performed during 7.30–8.15 UTC.

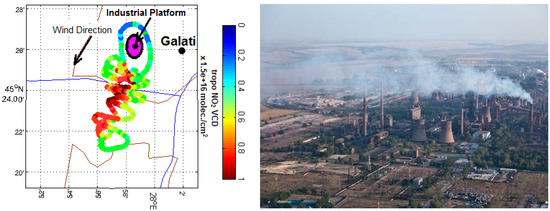

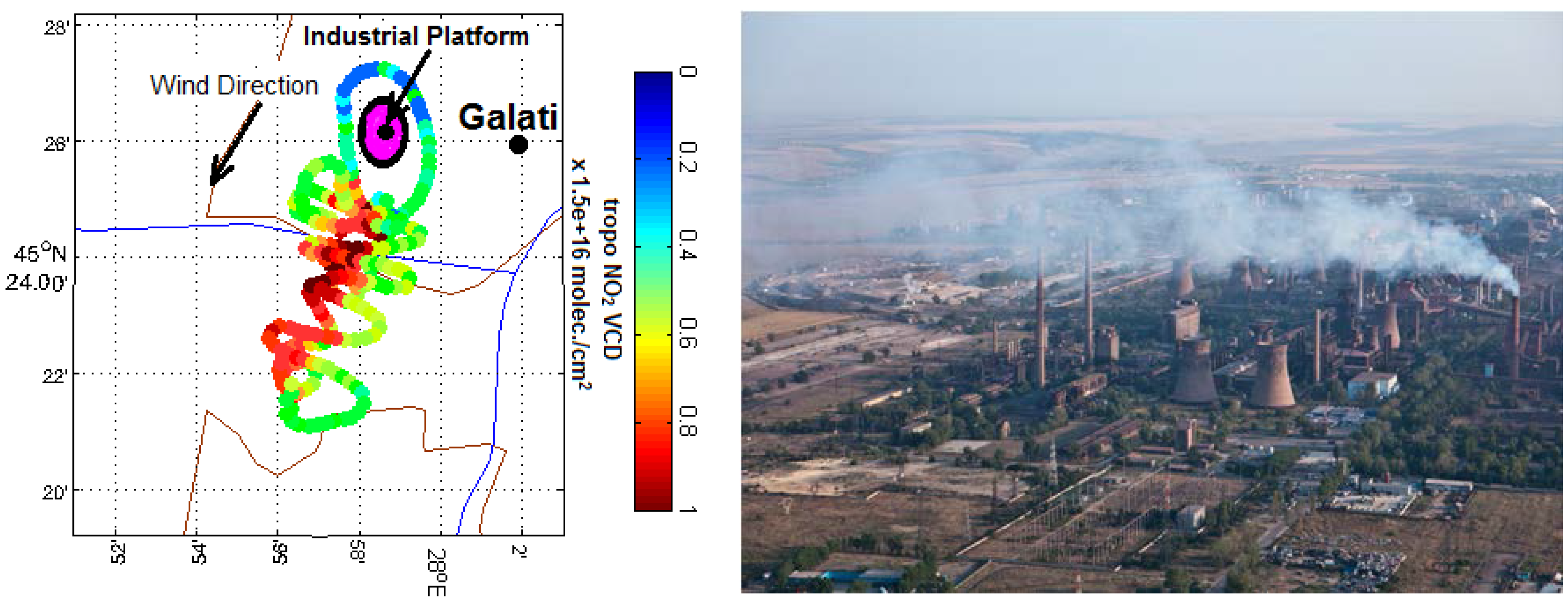

Figure 8 shows the tropospheric NO₂ VCD derived along the trajectory of the ULT-DOAS measurements. The right plot shows a photograph of the plume crossed by the ULT flights. During the same day, approximately 1 h after the acquisition of the ULT-DOAS measurements, a zenith-sky car-DOAS system was used to sample the NO₂ plume at the same location as the ULT-DOAS observations. We assume that the quantity of the NO₂ emitted by the steel factory was almost constant during the airborne and car-DOAS system.

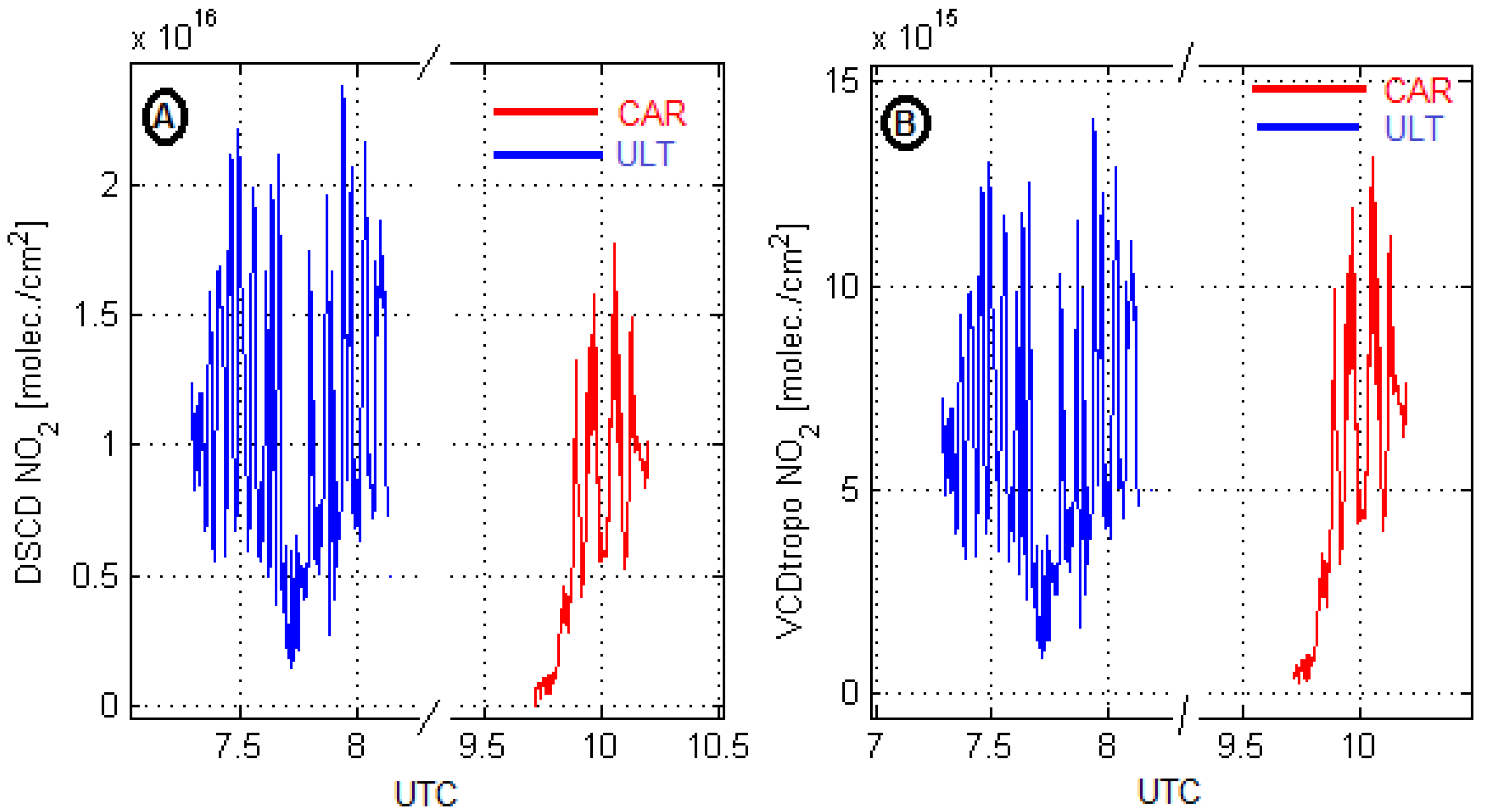

Figure 9 presents the NO₂ VCD derived from the nadir airborne DOAS observations performed over the industrial area of Galati city compared with zenith-sky ground-based mobile DOAS measurements performed over the same area in the same day (13 August 2014). In these figures, we show the original SCDs (A) and the retrieved tropospheric NO₂ VCD (B). Figure 9A shows that the DSCDs determined from the ULT-DOAS system are ~30% higher than the DSCDs determined using car-DOAS observations. This difference is attributed to the different observation geometries. After appropriate AMF calculation (see Section 2.2.2), both observations show close results.

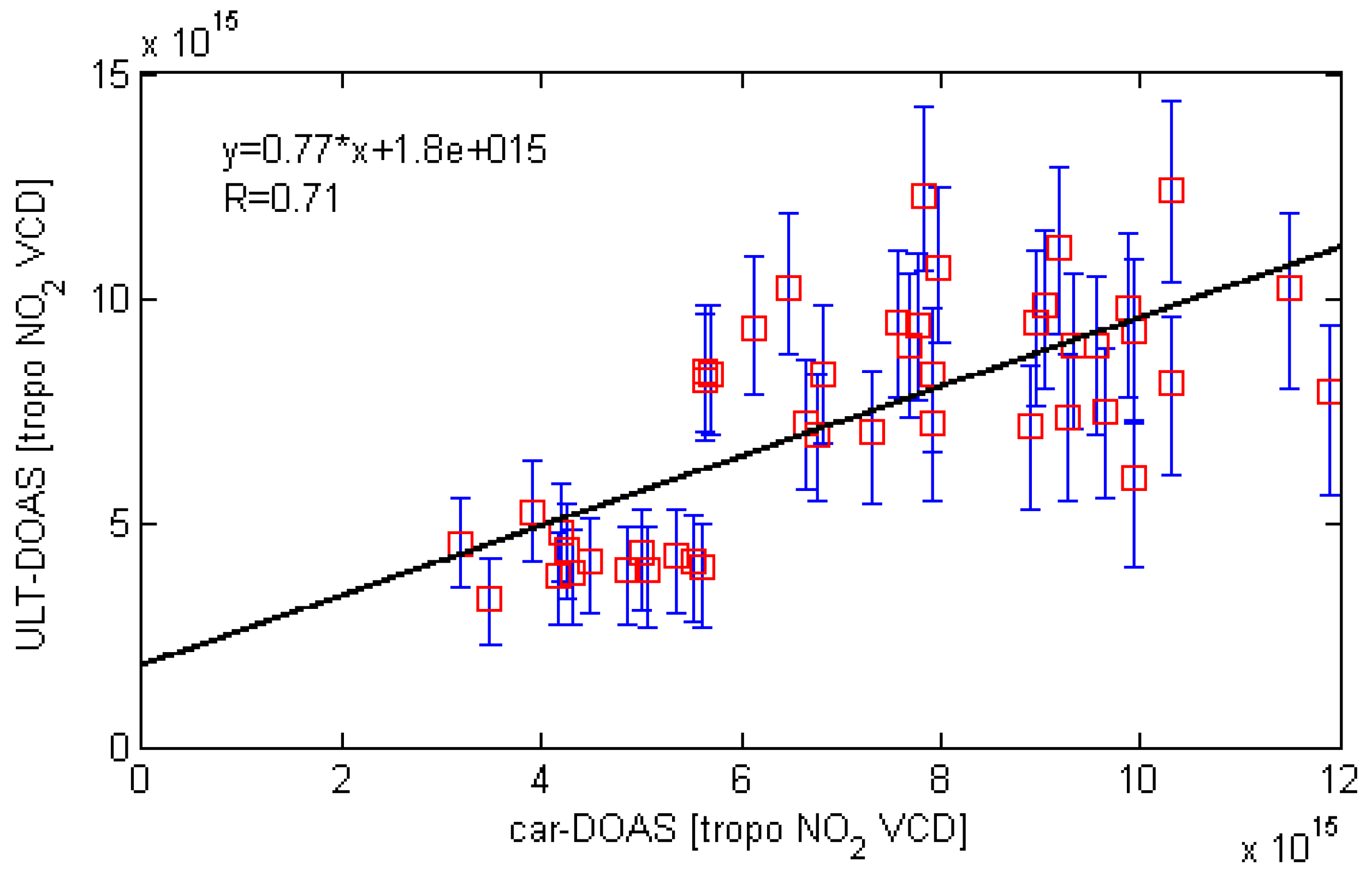

The ULT flight above the industrial plume led to the detection of a maximum tropospheric NO₂ VCD of (1.41 ± 0.27) × 10¹⁶ molecules/cm² while the car-DOAS observation shows a maximum tropospheric NO₂ VCD of (1.36 ± 0.21) × 10¹⁶ molecules/cm². Figure 10 displays the correlation between the tropospheric NO₂ VCD retrieved by the ULT-DOAS and the car-DOAS instrument, where closest spatially coincident data were selected. A Pearson correlation coefficient R = 0.71 was obtained between ground mobile DOAS observations and airborne DOAS measurements.

NO₂ Flux Calculation

The NO₂ flux above the industrial platform located nearby Galati city was calculated by performing upwind and downwind measurements around the point source using ULT-DOAS observations on 13 August 2014. The calculation of the emission flux is based on the following parameters: the NO₂ VCD determined from the transect over the plume, the wind speed and the wind factor correction, taking into account the angle between the flight direction and wind direction (Equation (6)), [20,36,37]:

$${\mathrm{Flux}}_{{\mathrm{NO}}_2}={\displaystyle \sum _{\mathrm{i}}{\mathrm{VCD}}_{{\mathrm{NO}}_2}({\mathrm{s}}_{\mathrm{i}})\cdot \mathrm{v}\cdot \sin ({\alpha }_{\mathrm{i}})\cdot \Delta {\mathrm{s}}_{\mathrm{i}}}$$

(6)

where VCD_NO2 is the NO₂ tropospheric vertical column, v is the wind speed, α the angle between wind direction and driving route, i is the observations index, and ∆s_i is the distance between two successive spectra.

The wind data used for the NO₂ flux calculation rely on measurements of the automatic weather station (Davis Vantage Pro2) located in the campus university of Galati city (45.44° N, 28.05° E), while vertical wind profiles come from the Hybrid Single Particle Lagrangian Integrated Trajectory Model (HYSPLIT) [38] model using archived dataset GDAS 0.5° × 0.5°. The weather station is located at 30 m height and acquires data every 30 min. Since no atmospheric sounding was possible during the experiments, the wind measured on the ground was scaled to the output of HYSPLIT model simulation at 1000 m altitude. During the period of the ULT-DOAS measurements, the mean NO₂ emission flux was determined to be (3.45 ± 0.89) × 10⁻³ kg/s. A local environmental report indicates ~600 tons/year NO_x emissions emitted by the steel factory [39]. Using a Leighton ratio (L = [NO]/[NO₂]) of 0.3, we calculated that the steel factory has emitted a mean of ~10 × 10⁻³ kg/s of NO₂. The difference between the two types of estimation may be attributed to the fact that the NO_x emissions from the steel factory are dependent on the quantity of the steel produced, which can vary from one day to another. Also, the derived NO₂ fluxes must be dealt with some care because of the probably incomplete NO to NO₂ conversion [40].

4. Conclusions

Ultralight-trike DOAS observations were performed in the South-East of Romania during four days between 2011 and 2014. The first two flights were focused over Braila city, the third aimed at measurements of the NO₂ plume emitted by a fertilizer factory near Slobozia city. Unfortunately, during the DOAS flight the fertilizer factory was not operational. The last flight, performed on 13 August 2014, was focused over the industrial area of Galati city. Nadir observations were performed around the industrial platform of Galati city aiming at measuring the tropospheric NO₂ VCD around the source and at evaluating the associated NO₂ flux. To retrieve the tropospheric NO₂ VCD from ULT-DOAS observations, complementary ground- and space-based measurements were used.

We showed that the tropospheric NO₂ VCD deduced from the ULT-DOAS observations are consistent with measurements performed from the ground using a zenith-sky car-DOAS system. Although two hours separated the two experiments, a correlation coefficient of R = 0.71 was found between the two results, a tropospheric NO₂ VCD of (1.41 ± 0.27) × 10¹⁶ molecules/cm² and an estimated associated flux of (3.45 ± 0.89) × 10⁻³ kg/s was measured close to the industrial area of Galati city on 13 August 2014, the only day that it was possible to determine the NO₂ flux.

Also, we showed that the stratospheric SCD derived from ground-based and airborne measurements correlates well with stratospheric NO₂ derived from observations by the OMI satellite sensor.

Based on this study, we conclude that the ULT is an efficient tool which allows determining with a high resolution the NO₂ distribution around urban or industrial sources. Also, the ULT-DOAS system is a very efficient tool for measuring fluxes due to its flexibility during the flights and the possibility to access remote areas. The ULT-DOAS system might also constitute a promising tool for satellite validation and calibration under clear-sky conditions, especially for upcoming high-resolution sensors such as the TROPOMI/Sentinel-5 Precursor instrument to be launched in summer 2017.
