Atmosphere 2017, 8(2), 41; https://doi.org/10.3390/atmos8020041

Article
Spatial and Temporal Variation of the Extreme Saharan Dust Event over Turkey in March 2016
Turkish State Meteorological Service, Kütükçü Alibey Caddesi No.4, Ankara 06120, Turkey
Academic Editor: Robert W. Talbot
Received: 27 December 2016 / Accepted: 14 February 2017 / Published: 17 February 2017

Abstract

:
In this study, the influence of an extraordinary Saharan dust episode over Turkey on 23–24 March 2016 and the atmospheric conditions that triggered this event were evaluated in detail. PM10 (particulate matter less than 10 μm) observations from 97 air quality stations, METAR (Meteorological Terminal Aviation Routine Weather Report) observations at 64 airports, atmospheric soundings, and satellite products were used for the analysis. To determine the surface and upper levels of atmospheric circulation, National Centers of Environmental Prediction (NCEP)/National Center for Atmospheric Research (NCAR) Reanalysis data were applied to the extreme dust episodes. On 23 March 2016, high southwesterly winds due to the interaction between surface low- and high-pressure centers over Italy and Levant basin brought thick dust particles from Libya to Turkey. The daily PM10 data from 43 stations exceeded their long-term spring means over Turkey (especially at the northern and western stations). As a consequence of the longitudinal movement of the surface low from Italy to the Balkan Peninsula, and the quasi-stationary conditions of the surface high-pressure center allowed for the penetration of strong south and southwesterly winds to inner parts of the country on the following day. As a consequence, 100%, 90%, 88%, and 87% of the monitoring stations in Marmara (NW Turkey), central Anatolia, western (Aegean) and northern (Black Sea) regions of Turkey, respectively, exhibited above-normal daily PM10 values. In addition, while strong subsidence at the low levels of the atmosphere plays a significant role in having excessive daily PM10 values in Black Sea, dry atmospheric conditions and thick inversion level near the ground surface of Marmara ensured this region to have peak PM10 values ~00 Local Time (LT).
Keywords:
Saharan dust; air quality; synoptic analysis; METAR; Turkey

1. Introduction

Dust outbreaks are considered to be one of the major natural hazards that affect the daily life. As a consequence of the intense dust storm, mineral aerosols of the desert dust are transported up to thousands of kilometers away from the source regions by atmospheric circulation. From the desert dusts, Saharan dust is known as the largest source of aeolian soil dust [1]. Previous studies showed that dust originating from the Sahara is mainly transported to the Caribbean and South America [2,3], the Mediterranean and Europe [4], the eastern Mediterranean (EM hereafter), and the Middle East [5]. Due to the transfer of the Saharan dust to distant places of the world, numerous studies investigated its impacts on health problems (e.g., [6,7,8,9,10,11]), atmospheric heating and stability [12], cloud formation and radiation [13], and visibility [14], from regional perspectives. In the EM basin (extending from Turkey to northern Africa and eastward to Iran), dust loadings originating from Sahara are shown mostly in spring months [15] due to the occurrence of intense Sharav cyclones, which are generated by the thermal contrast between cold Atlantic air and warm continental air, over the south of the Atlas Mountains (Morocco). As a consequence of these high energetic Sharav cyclones, mobilized dust is transported to eastward directions with a typical speed of 7–8 degrees of longitude (~700–800 km) per day [5]. Therefore, many researchers investigated the relationship between synoptic-scale circulation patterns and dust particles by focusing on extreme case events in this EM region. Tsidulko [16] investigated the significant variation of the dust layers within the cyclone centers using the Eta weather and dust prediction model. They found that the dust layer extends up to 8-10 km in the warm sector of the cyclone over Mediterranean Sea, and this condition enables low dust concentration values. On the other hand, high values of the dust concentrations were found in the area of a cold front over Africa. Papayannis [17] emphasized the importance of the southerly air masses from the Sahara Desert on the high PM10 levels over Eastern Mediterranean Basin. Kaskaoutis [18], using satellite observations and ground-based measurements, presented Saharan dust outbreaks affecting Greece. It was found that a thick dust layer transported from Libya dramatically increased the PM10 concentrations (reaching up to 200 μg·m−3) over Athens on 17 April 2005.
In Turkey, Kubilay [5] first pointed out the origins of the dust storms affecting Erdemli, a rural site located on the coast of the EM. They presented that the region is influenced by strong dust storms originating from the central Sahara in spring, the eastern Sahara in summer, and the Middle East/Arabian Peninsula in autumn. Griffin [19] studied the relationship between Saharan sourced dust days and microorganisms over the Turkish Mediterranean coastline. They found that a statistically significant correlation during the spring months was observed between an increase in the prevalence of microorganisms recovered from atmospheric samples on dust days. Later, Koçak [20] analyzed the contributions of natural sources to high PM10 events for the same area. They explained that mineral dust which is transported from North Africa causes highest levels of PM10 during the transition period (March, April and May). Kabatas [21] investigated the possible effect of Saharan dust on high concentration levels of PM10 over Turkey. For this purpose, they firstly applied RAQMS (Real-Time Air Quality Modeling System) model to the intense dust storm event on April 2008 and then, they compared simulated results with the measured ones at 118-air quality stations distributed throughout the country. According to their results, RAQMS model outputs and in situ PM10 observation time series show similar patterns with a correlation of 0.87.
Although there are several studies concerning the origin of Saharan dust and its contributions to PM10 levels over Turkey, the influence of atmospheric circulation on dust concentrations has not previously been studied in detail with high spatial and temporal resolution. Therefore, the goal of the current study is to contribute to a better understanding the impacts of the synoptic mechanisms on PM10 concentration levels and horizontal visibility conditions over Turkey during the Saharan dust outbreaks of 23–24 March 2016.

2. Data Sources

To investigate the activity of dust plumes over Turkey, hourly and daily averages of PM10 data belonging to the 97 air quality monitoring stations, which were provided by the Turkish Ministry of Environment and Urbanization (National Air Quality Observation Network), were used in the study for the period 23–24 March 2016 (Figure 1). For the climatological approach, seasonal mean PM10 variations of these air quality stations were extracted from their daily averages for the period between 2010 and 2015. To illustrate the possible spatial and temporal variations in the plume concentrations of stations and their regional distributions, Turkey was divided into the seven geographical regions, which were described by Erinç [22], as follows: The Marmara region (MR), The Aegean region (AR), The Mediterranean region (MeR), The central Anatolian region (CAR), The Black Sea region (BSR), The eastern Anatolian region (EAR) and the southeastern Anatolian region (SEAR). To represent MR, AR, MeR, CAR, BSR, EAR, and SEAR; arithmetic averages of the PM10 data belonging to 9, 17, 12, 22, 15,14, and 8 air quality stations, respectively, were also used in the study. The detailed explanations of the numbered 97 air quality stations (Figure 1) such as geographic coordinates and the daily average PM10 concentrations belonging to 23 and 24 March dust episodes are described in Table 1.
The influence of these two-day extraordinary dust events on the horizontal visibility across Turkey was also investigated using the hourly observations of METAR reports at 64 airports (blue squares in Figure 1). This dataset was taken from Turkish State Meteorological Service (TSMS).
To determine the surface and upper levels of the atmospheric circulation, six- hourly values of NCEP/NCAR Reanalysis data [23] between 5° W–55° E and 30° N–60° N were applied on the extreme dust episodes. In this study, the inverse distance weighting methodology was applied for mapping METAR observations and total cloud cover data.
In order to characterize qualitatively the dust activity over Sahara and Turkey, satellite observations (Cloud-Aerosol Lidar and Infrared Pathfinder Satellite Observation (CALIPSO, provided by ICARE Data and Services Center, available at http://www.icare.univ-lille1.fr/calipso) and Meteosat Second Generation (MSG) Spinning Enhanced Visible and Infrared Imager (SEVIRI)) at high spatiotemporal resolution were used. Information about the vertical structure of the dust episode and vertical behaviors of the atmospheric conditions is provided from attenuated backscatter profiles at 532 nm retrieved from the spaceborne Cloud-Aerosol Lidar with Orthogonal Polarization (CALIOP) on board the CALIPSO together with its 60 m and 12 km vertical and horizontal resolutions, respectively. From the literature, numerous studies investigated the vertical structure of the Saharan dust outbreaks by using CALIPSO observations for Mediterranean Basin (e.g., [24,25,26]) and for Turkey [21]. In this study, CALIPSO observations for 23 March. and two radiosonde observations (Izmir and Kartal), which were located in western Turkey, at 00:00 UTC of March 24 were used in the analysis (The data can be accessed online at http://weather.uwyo.edu/upperair/sounding.html).
The horizontal distribution of dust was described considering the combination of three infrared channels, namely channel 10 (12 µm), channel 9 (10.8 µm), and channel 7 (8.7 µm). MSG-SEVIRI is located geostationary at 0° W over the equator and provides 15 min temporal resolution images. False-color images are created using an algorithm developed by EUMETSAT, which colors the difference between the 12.0 and 10.8 µm channels as red, the difference between the 10.8 and 8.7 µm channels as green and the 10.8 µm channel as blue (e.g., [27]). From this RGB combination, dust appears pink or magenta.

3. Results and Discussion

3.1. Seasonal Averages of PM10 Concentrations over Turkey

Before analyzing the extreme PM10 concentration levels over Turkey on March 2016, long-term seasonal averages of the 97 stations were extracted from the daily averages for the period from 2010 to 2015. Arithmetic averages of the PM10 concentrations related to these 97 stations indicate that highest seasonal average PM10 concentrations are shown in winter, fall, spring, and summer seasons over Turkey with the average values of 78, 65, 54, and 49 μg·m−3, respectively.
In winter, while highest mean PM10 values occur in the southeastern parts of the Anatolian Peninsula (i.e., SEAR: 96 μg·m−3), MR has the lowest concentration levels (61 μg·m−3 in Figure 2a). The other regions present their averaged PM10 concentrations within these two limits (i.e., EAR: 84 μg·m−3, AR: 83 μg·m−3, MeAR: 82 μg·m−3, and CAR: 75 μg·m−3). As shown in Figure 2a, while all of the stations in SEAR exceed 50 μg·m−3 on average, four of them exhibit above 100 μg·m−3. Moreover, 70% of the winter days exceed EU (European Union) daily limits in this region (not shown). In EAR, whereas two stations (i.e., Bingol and Tunceli) have below 50 μg·m−3, average PM10 concentration reached to 185 μg·m−3 in Igdir and is shown as the most polluted city over Turkey. Practically, 55% of the winter days exceed the daily EU threshold value in this region. In the Aegean region (AR), 30% of all stations that were close to the seaside showed high PM10 values (above 100 μg·m−3). As stated by Koçak [20] this condition can be explained by the transportation of sea spray.
In the transition period (spring), many Saharan dust outbreaks are transported to the EM basin and have a significant role for the excessive daily PM10 concentrations over Turkey. The two highest levels of PM10 are shown in the regions of SEAR and AR with the values of 68 and 56 μg·m−3, respectively. This condition can be explained by the positions of the Sharav cyclones, and thus; southerly components of the flows (i.e., SE, S, and SW) transport intense dust particles without any obstacle such as mountains. When compared with AR, geographical proximity to the source region and abundant dust particles in flat areas of the Levant basin facilitated the transportation of denser, dusty particles to SEAR. It is also known that the Tigris-Euphrates alluvial plain has been recognized as the main dust source in the Middle East [28]. Due to transferring of these intense dust particles by suitable synoptic systems, average PM10 values of all stations show high particulate matter concentrations (between 50 and 100 μg·m−3) in this basin (Figure 2b). On the other hand, while the dust particles pass over the Aegean Sea they take up moisture resulting in precipitation over the AR during spring days, therefore removing the PM via wet deposition, resulting in lower PM10. As a result, average PM10 levels at about half of the stations were below 50 μg·m−3. In regard to MeR, the barrier effect of the Taurus Mountains, a great chain running parallel to the Mediterranean coast, attenuates penetrations of Saharan dust particles to the inner parts, and thus, dust minerals are transferred only to the eastern portions of the region (Figure 2b).
Figure 2c presents 57% of all stations’ average PM10 summer data that are below 50 μg·m−3 for the area over Turkey (Figure 2c). The three highest PM10 concentrations are observed in the SEAR, MeR, and AR basins with 65, 52, and 50 μg·m−3 averages, respectively. Also, highest summer mean PM10 level is measured in Siirt province with 103 μgm−3 (Figure 2c). In fall, average PM10 data of eight air quality stations over the whole territory exceed 100 μg·m−3 with inhomogeneous spatial distribution (Figure 2d)

3.2. Spatio-Temporal Variations of Extreme Dust Episodes on 23–24 March 2016

In this section, spatial and temporal variations of the PM10 concentrations of air quality stations were evaluated for every two dust storm days.
The data collected for 23 March 2016 show that almost 45% of all available stations’ daily PM10 concentrations exceeded the long-term spring mean (Figure 3a). In comparison with the daily limit threshold value, 54% of the stations exceed 50 μgm−3 daily average and 6% of them display over 100 μg·m−3 (Table 1). In regional perspective, 80%, 67%, and 47% of the stations in the BSR, MR, and AR regions, respectively, exceed their long-term spring mean PM10 levels. On the other hand, daily PM10 data at most stations over the SEAR, EAR, and the eastern parts of the MeR exhibit below-normal values. For the CAR, mostly the inner parts of the region indicate low daily PM10 concentrations. In addition, the positive or negative anomaly magnitudes of the particulate matter (PM) concentrations ranged from 0 to 50 μg·m−3 at many of the air quality stations.
On 24 March 2016, the higher daily PM10 values were recorded at many stations of the country (Table 1 and Figure 3b). In this day, 74% of all stations show above-normal daily PM10 concentrations. In the regional perspective, all stations located in MR present higher daily PM10 anomalies, and followed by CAR (90%), AR (88%), and BSR (87%) regions, respectively. When compared with measurements from the previous day, daily PM10 values for certain stations turned from negative to positive anomalies over MR, AR and BSR; maximum positive variation was observed in the central part of the Anatolian Peninsula. It has also been shown that only the limited regions (i.e., SEAR and eastern portions of the MeR) illustrate the below-normal daily PM10 values. However, although all the stations in the SEAR have negative daily PM10 anomalies, all of them also exceed the EU daily PM10 threshold level (Table 1). In addition, most of the stations in Istanbul, (NW Turkey, most populated city in Turkey), show four times higher daily PM10 concentrations when compared with the long-term climatological spring means (i.e., stations numbered as 4, 5, and 6 in Table 1 and Figure 1).
To determine the starting, ending, and peak times for PM10 concentration levels, we analyzed the temporal behavior of the PM10 values for each region and the selected air quality stations (Figure 4). As shown in Figure 4a, Aegean Region reached to peak value with 104 μg·m−3 at 12 LT (Local Time: UTC + 2-hours) of the 23 March, and followed by decreasing trend to the 18 LT, and started to increase thereafter. The other six regions show increasing trend between 12 and 20 LT and started to decrease except Marmara Region. The increasing trend of the PM10 levels over Marmara continued in the first hours of the next day (Figure 4b) and reached to the maximum level at 03 LT with 413 μg·m−3. After 06 LT, rapid decreasing trend of the PM10 concentrations concluded with 24 μg·m−3 at the end of the day. The continued transportation of dust particles resulted with increased PM10 levels observed during the morning. Thereafter, PM10 levels started to decrease in AR. According to the results, MR is shown as the most influenced region of the country from this extraordinary event. From this point of view, it was shown that Istanbul and its surroundings have the highest PM10 levels, which have not measured before. Therefore, the temporal behavior of the four urban settlements of Istanbul was evaluated between 23 and 24 March, 2016. As it can be shown from Figure 4c that three urban stations (i.e., Esenler, Kartal, and Kadikoy) indicated similar increasing or decreasing tendencies in the selected time. While Esenler and Kartal air quality stations have maximum PM10 values at 18 LT with 139, 126 μg·m−3, respectively, Kadikoy area reached to its peak value at 19 LT with 153 μg·m−3. At the first hours of the next day (Figure 4d), highest concentration level of PM10 over Esenler, Kartal, Kadikoy and Besiktas were recorded with 636, 574, 564, 555 μg·m−3, respectively.

3.3. Association between Visibility and PM10 Concentrations

It is well known that there is a negative relation between visibility and atmospheric PMs. In this section, it was analyzed the influence of dust events on horizontal visibility conditions over Turkey was analyzed. For this reason, hourly observations at 64 METAR stations were used for the period of 23–24 March 2016. As a consequence of the examining horizontal visibility conditions related to the PM10 concentration, low visibility conditions were found between 06:00 UTC and 12:00 UTC of the 24 March 2016. The results are coherent with the previous studies that show that midday visibility is less likely to be influenced by the diurnal variation in humidity (e.g., [29]). Herewith, we used 06:00, 09:00 and 12:00 UTC METAR observations in order to investigate the spatial distribution of the low visibility over Turkey (Figure 5). At 06:00 UTC on 24 March, horizontal visibility less than 9 km is shown over the whole Marmara and western parts of the Aegean regions. In Marmara, the north areas show the lowest visibility conditions (between 3 and 4 km) over the airports owing to high particle concentrations (Figure 5a). Three hours later (09:00 UTC), while horizontal visibility started to increase between 8 and 9 km in AR, north of MR region still shows low visibility conditions (Figure 5b). At midday, although most parts of the country have clear sky conditions, the impacts of suspended particles on visibility are substantial in the limited areas of the north Marmara (between 6 and 9 km) and southern Aegean (Figure 5c). After 12:00 UTC, all stations in Turkey have high visibility conditions (not shown). According to all these results, only western parts of the country (i.e., MAR and AR) showed low visibility conditions owing to the atmospheric particulates and these conclusions are coherent with high PM10 concentrations (Figure 3b). However, we cannot see the inverse relation between high PM10 values and horizontal visibility over the BSR and CAR regions. This condition can be explained by different physical and chemical reactions of the particulate matters with ambient air conditions (e.g., different local temperature, humidity or wind profile).

3.4. A Review of the Synoptic Pattern of 23–24 March 2016

In this section, synoptic conditions that trigger the transportation of the pollutants over Turkey were analyzed in detail. Before the extraordinary event in Turkey, the Sharav cyclone over the lee of the Moroccan Atlas mountains, and high-pressure center (HPC) over Egypt settled in the area over latitude of 30–35° N. As a result, dense dust particles were transported to the central Mediterranean basin on 22 March, 2016 (not shown). It was shown 24-hours later that Sharav cyclone developed (985-hpa in the core) and moved to Italy in the direction of NE. Simultaneously, surface high pressure moved more east and settled over Levant basin (Figure 6a). On the other hand, cut off-surface low over the western Russia expanded towards to Black Sea. Ultimately, the mobilization of Saharan dust plumes turned to the eastern Mediterranean basin. In terms of the low level of the atmosphere at that time (Figure 6b), the positions of the low- and high-pressure centers were similar to those of the centers of the surface, and most regions of Turkey were influenced by strong southwesterly wind flows (over 30 m·s−1). While positions of the surface- and 850-hPa- low centers remain almost stationary at 12:00 UTC, expanding of surface- and low-level highs above southeastern Turkey leaded to more strong southerly winds (i.e., high pressure gradient situation) over the western parts of the country (Figure 6c,d). Hence, rapid increment in aerosol load over the Aegean region is more distinct than the other regions of Turkey at the midday of the 23 March (Figure 4a). Differently from the other regions, the anticyclonic conditions over SEAR prevented transferring of particles, which originated from Sahara, to this region (Figure 3a).
The temporal movements of dust layers can be analyzed using satellite images. Therefore, we extracted the RGB product of the three SEVIRI infrared channels for 12:00 and 18:00 UTC of 23 March. The dust appears pink and is concentrated into several plumes in Figure 7. As seen in Figure 7a, a thick dust layer from Libya is transported to the Aegean coasts of Greece, and relatively high PM10 values were observed in the AR regions of Turkey. At 18:00 UTC, ongoing movement of the particles to east longitudes resulted with highest PM10 values over the large areas of the country (Figure 7b).
On March 24 at 00:00 UTC, only the zonal movement of surface- and 850-hpa low- centers from 15° E to 20° E (from Italy to Balkan Peninsula) resulted with penetration of strong south and southwesterly winds over the most regions of the Anatolian Peninsula (Figure 8a,b). That day, 74% of air quality stations showed above-normal PM10 concentrations (Figure 3b). In regional perspective, coarse PM increment was more remarkable in MR than the other parts of the country and over 600 μg·m−3 concentration values were measured over the urban settlements of Istanbul (e.g., Esenler) in these hours (Figure 4b,d). South and southwesterly winds turned into the westerly winds owing to the rapid movement of this cyclone to more northeast (over Black Sea) at 12-hours later (Figure 8c,d) and thus; PM10 concentration levels started to decrease in the whole county from the highest points (Figure 4b).
It is well known from the previous studies that, omega winds in the context of the synoptic perspective show the upward and downward movements of the dust particles (e.g., [14,30,31]). From this viewpoint, the omega winds at 1000-hPa synoptic map were extracted for 00:00 UTC of March 24, available time for the observed dense particles over Turkey. As shown in Figure 9, sink regions (positive values) owing to the strong downward movements of the air are shown over the Black Sea and thus; transported dust can easily be subside in this region of the country.

3.5 Vertical Profiles of Saharan Dust

Figure 10a shows the ground track of the CALIPSO orbit and the altitude orbit cross-section measurement of ß532 during the southward descent of the night flight of the CALIPSO on 23 March 2016. It was chosen this time and day because the CALIPSO profiles for the other times and days are unavailable due to its transport route (flies only once every 16 days over a defined site) and unfavorable weather conditions such as presence of thick clouds. The attenuated backscatter quick-looks derived from CALIOP on board CALIPSO satellite indicate that aerosol-loaded plumes were distributed from the near-ground surface to an altitude of 8 km between 24.5° N and 26.5° N. Most of the aerosol load is shown between 2 and 4 km in these source regions. To illustrate the vertical behavior of the suspended dust particles during transportation, we analyzed the atmospheric sounding observations of Izmir (WMO number 17220, as a representative Aegean station, 38.43° N, 27.16° E) and Kartal (WMO number 17064, as a representative station of Marmara, 40.90° N, 29.15° E) for the 00:00 UTC of March 24. From Figure 10b, a thin inversion layer at 700-hPa is shown in Izmir. This level is important for Saharan originated dust particles, which are transported to the eastern Mediterranean and generally enriched with important aerosol loads [17]. When we compared with the previous day’s radiosonde profile (23 March 00:00 UTC, not shown), the atmosphere is fully saturated from ground to this level. Based on METARs reports numerous convective precipitation events between 00:00 UTC and 12:00 UTC were observed at stations located in AR (not shown). In conclusion, both thin inversion layer at mid-level of the atmosphere and removal mechanism of the precipitation prevented us showing highest PM concentration levels in the AR. For Marmara, thick inversion level near the ground surface on the previous day shows parallelism on 24 March and restricts the escape of the dust particles to upper levels. In addition to this, dry atmospheric conditions enable us to observe the highest PM10 observations at this date, which had never been recorded (Figure 10c).

4. Summary and Conclusions

It is well known that the Saharan dust outbreaks are frequently transported to western Turkey in spring months. In one of the latest Saharan dust episodes, high particulate matter concentrations were observed in the larger area of the Anatolian Peninsula between 23 and 24 March of 2016. Therefore, the spread of dust over Turkey and its effect on horizontal visibility have been investigated using PM10 observations from 97 air quality stations, and METAR observations from 64 airports. These two-day synoptic considerations of high dust events were analyzed using synoptic charts, and satellite images were also used in the analyses.
A severe dust storm event occurred during the late quarter of March 2016. On 23 March 2016, Sharav cyclone developed and moved from its origin to Italy in NE direction. On the other side, surface high pressure simultaneously was settled over the Levant basin. Maintaining similar positions of the low (high) centers at 850-hPa with its surface pressure centers enabled us to observe strong southwesterly wind flows over Turkey. As a consequence, 45% of all stations exceeded their long-term means (54% showed daily limit values above those proposed by the EU). In a regional approach, northern and western parts of the country (i.e., Black Sea, Marmara, and Aegean regions) are most influenced from these strong dust plumes. Anticyclonic conditions over southeastern Anatolia prevented loading of the dust particles to this region.
During the beginning of the 24 March 2016, zonal shifting of the low (pressure) centers from Italy to the Balkan Peninsula and quasi-stationary conditions of the high (pressure) centers facilitate rapid and dense transport of a thick Saharan dust layer (between 2 and 4 km) to Anatolian Peninsula under favor of strong south-southwestern winds. As a consequence, 74% of the 97 air quality stations showed above-normal PM10 concentrations. In a regional perspective, 100%, 90%, 88%, and 87% of the stations in Marmara (NW Turkey), central Anatolia, western (Aegean) and northern (Black Sea) portions of Turkey, respectively, exhibited above-normal daily PM10 values. For northern Turkey (BSR), subsidence at low-levels plays a significant role in observing above-normal PM10 concentrations. While occurring of some convective precipitation events over Aegean Region and thin inversion level at mid-level of the atmosphere (700-hPa) prevent excessive increase of PM10 levels in this region. When particles moved more north under the same synoptic conditions, a thick inversion layer near the ground surface restricted the escape of the suspended air particles from Marmara. In conclusion, the highest PM10 levels are shown in MR (on average, 413 μg·m−3 at 03 LT); peak values reached over 550 μg·m−3 in the four urban settlements of Istanbul (Esenler, Kartal, Kadikoy, and Besiktas) at 03 LT. When examined on a diurnal basis, the PM10 levels of these four stations were almost four times higher than their long-term spring means, and almost 1.5-fold higher than the previous spring's peak daily PM10 values. It was also shown that visibility decreased to 3–4 km in the north of Marmara, especially in the metropolitan city of Istanbul. Thus, there were significant negative effects of Saharan dust outbreaks on aviation activities. Combination of large dust storms coupled with cyclonic activities should definitely be a point of consideration in forecasting low visibility and above-normal PM10 values over the particular or whole terrain of Turkey.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Goudie, A.S.; Middleton, N.J. Saharan dust storms: Nature and consequences. Earth-Sci. Rev. 2001, 56, 179–204. [Google Scholar] [CrossRef]
  2. Chiapello, I.; Bergametti, G.; Gomes, L.; Chatenet, B.; Dulac, F.; Pimenta, J.; Santos Suares, E. An Additional Low Layer Transport of Sahelian and Saharan Dust over the North-Eastern Tropical Atlantic. Geophys. Res. Lett. 1995, 22, 3191–3194. [Google Scholar] [CrossRef]
  3. Kellogg, C.A.; Griffin, D.W.; Garrison, V.H.; Peak, K.K.; Royall, N.; Smith, R.R.; Shinn, E.A. Characterization of aerosolized bacteria and fungi from desert events in Mali, West Africa. Aerobiologia 2004, 20, 99–110. [Google Scholar] [CrossRef]
  4. Perez, L.; Tobias, A.; Querol, X.; Künzli, N.; Pey, J.; Alastuey, A.; Viana, M.; Valero, N.; Gonzales-Cabre, M.; Sunyer, J. Coarse particles from Saharan dust and daily mortality. Epidemiology 2008, 19, 800–807. [Google Scholar] [CrossRef] [PubMed]
  5. Kubilay, N.; Cokacar, T.; Oguz, T. Optical properties of mineral dust outbreaks over the northeastern Mediterranean. J. Geophys. Res. 2003, 108, 4666. [Google Scholar] [CrossRef]
  6. Akpinar-Elci, M.; Martin, F.E.; Behr, J.G.; Diaz, R. Saharan dust, climate variability, and asthma in Grenada, the Caribbean. Int. J. Biometeorol. 2015, 59, 1667–1671. [Google Scholar] [CrossRef] [PubMed]
  7. Jimenez, E.; Linares, C.; Martinez, D.J. Role of Saharan dust in the relationship between particulate matter and short-term daily mortality among the elderly in Madrip (Spain). Sci. Total Environ. 2010, 408, 5729–5736. [Google Scholar] [CrossRef] [PubMed]
  8. Mate, T.; Guaita, R.; Pichiule, M.; Linares, C.; Diaz, J. Short-term effect of fine particulate matter (PM2.5) on daily mortality due to diseases of the circulatory system in Madrid (Spain). Sci. Total Environ. 2010, 408, 5750–5757. [Google Scholar] [CrossRef] [PubMed]
  9. Middleton, N.; Yiallouros, P.; Kleanthous, S.; Kolokotroni, O.; Schwartz, J.; Dockery, D.W.; Demokritou, P.; Koutrakis, P. A 10-year time-series analysis of respiratory and cardiovascular morbidity in Nicosia, Cyprus: The effect of short-term changes in air pollution and dust storms. Environ. Health 2008, 7, 39. [Google Scholar] [CrossRef] [PubMed]
  10. Samoli, E.; Kougea, E.; Kassomenos, P.; Analitis, A.; Katsouyanni, K. Does the presence of desert dust modify the effect of PM10 on mortality in Athens, Greece? Sci. Total Environ. 2011, 409, 2049–2054. [Google Scholar] [CrossRef] [PubMed]
  11. Zauli Sajani, S.; Miglio, R.; Bonasoni, P.; Cristofanelli, P.; Marinoni, A.; Sartini, C.; Goldoni, C.A.; de Girolamo, G.; Lauriola, P. Saharan dust and daily mortality in Emilia-Romagna (Italy). Occup. Environ. Med. 2011, 68, 446–451. [Google Scholar] [CrossRef] [PubMed]
  12. Alpert, P.; Kishcha, P.; Shtivelman, A.; Krichak, S.O.; Joseph, J.H. Vertical distribution of Saharan dust based on 2.5-year model predictions. Atmos. Res. 2004, 70, 109–130. [Google Scholar] [CrossRef]
  13. Bangert, M.; Nenes, A.; Vogel, B.; Vogel, H.; Barahona, D.; Karydis, V.A.; Kumar, P.; Kottmeier, C.; Blahak, U. Saharan dust event impacts on cloud formation and radiation over Western Europe. Atmos. Chem. Phys. 2012, 12, 4045–4063. [Google Scholar] [CrossRef]
  14. Cabello, M.; Orza, J.A.G.; Barrero, M.A.; Gordo, E.; Berasaluce, A.; Canton, L.; Duenas, C.; Fernandes, M.C.; Perez, M. Spatial and temporal variation of the impact of an extreme Saharan dust event. J. Geophys. Res. 2012, 117, D11204. [Google Scholar] [CrossRef]
  15. Moulin, C.; Lambert, C.E.; Dayan, U.; Masson, V.; Ramonet, M.; Bousquet, P.; Legrand, M.; Blakanski, Y.J.; Guella, W.; Marticorena, B.; Bergametti, G.; Dulac, F. Satellite climatology of African dust transport in the Mediterranean atmosphere. J. Geophys. Res. 1998, 103, 13137–13144. [Google Scholar] [CrossRef]
  16. Tsidulko, M.; Krichak, S.O.; Alpert, P.; Kakaliagou, O.; Kallos, G.; Papadopoulos, A. Numerical study of a very intensive eastern Mediterranean dust storm, 13–16 March 1998. J. Geophys. Res. 2002, 107, 4581. [Google Scholar] [CrossRef]
  17. Papayannis, A.; Balis, D.; Amiridis, V.; Chourdakis, G.; Tsaknakis, G.; Zerefos, C.; Castanho, A.D.A.; Nickovic, S.; Kazadzis, S.; Grabowski, J. Measurements of Saharan dust aerosols over the Eastern Mediterranean using elastic backscatter-Raman lidar, spectrophotometric and satellite observations in the frame of the EARLINET project. Atmos. Chem. Phys. 2005, 5, 2065–2079. [Google Scholar] [CrossRef]
  18. Kaskaoutis, D.G.; Kambezidis, H.D.; Nastos, P.T.; Kosmopoulos, P.G. Study on an intense dust storm over Greece. Atmos. Environ. 2008, 42, 6884–6896. [Google Scholar] [CrossRef]
  19. Griffin, D.W.; Kubilay, N.; Koçak, M.; Gray, M.A.; Borden, T.C.; Shinn, E.A. Airborne desert dust and aeromicrobiology over the Turkish Mediterranean coastline. Atmos. Environ. 2007, 41, 4050–4062. [Google Scholar] [CrossRef]
  20. Koçak, M.; Mihalopoulos, N.; Kubilay, N. Contributions of natural sources to high PM10 and PM2.5 events in the eastern Mediterranean. Atmos. Environ. 2007, 41, 3806–3818. [Google Scholar] [CrossRef]
  21. Kabatas, B.; Unal, A.; Pierce, R.B.; Kindap, T.; Pozzoli, L. The contribution of Saharan dust in PM10 concentration levels in Anatolian Peninsula of Turkey. Sci. Total Environ. 2014, 488–489, 413–421. [Google Scholar] [CrossRef] [PubMed]
  22. Erinç, S. Climatology and Its Methods, 3rd ed.; Istanbul, Gür-ay Pres Inc.: Istanbul, Turkey, 1984. (in Turkish) [Google Scholar]
  23. Kalnay, E.; Kanamitsu, M.; Kistler, R.; Collins, W.; Deaven, D.; Gandin, L.; Iredell, M.; Saha, S.; White, G.; Wollen, J.; et al. The NCEP/NCAR 40 year reanalysis project. Bull. Am. Meteorol. Soc. 1996, 77, 437–471. [Google Scholar] [CrossRef]
  24. De la Paz, D.; Vedrenne, M.; Borge, R.; Lumbreras, J.; de Andres, J.M.; Perez, J.; Rodriguez, E.; Karanasiou, A.; Moreno, T.; Boldo, E.; Linares, C. Modelling Saharan dust transport into the Mediterranean basin with CMAQ. Atmos. Res. 2013, 70, 337–350. [Google Scholar] [CrossRef][Green Version]
  25. Guerrero-Rascado, J.L.; Olmo, F.J.; Aviles-Rodriguez, I.; Navas-Guzman, F.; Perez-Ramirez, D.; Lyamani, H.; Arboledas, L.A. Extreme Saharan dust event over the southern Iberian Peninsula in September 2007: Active and passive remote sensing from surface and satellite. Atmos. Chem. Phys. 2009, 9, 8453–8469. [Google Scholar] [CrossRef]
  26. Mona, L.; Amodeo, A.; Pandolfi, M.; Pappalardo, G. Saharan dust intrusions in the Mediterranean area: Three years of Raman lidar measurements. J. Geophys. Res. 2006, 111, D16203. [Google Scholar] [CrossRef]
  27. Schepanski, K.; Tegen, I.; Laurent, B.; Heinold, B.; Macke, A. A new Saharan dust source activation frequency map derived from MSG-SEVIRI IR-channels. Geophys. Res. Lett. 2007, 34, L18803. [Google Scholar] [CrossRef]
  28. Hamidi, M.; Kavianpour, M.R.; Shao, Y. Synoptic analysis of dust storms in the Middle East. Asia-Pac. J. Atmos. Sci. 2013, 49, 279–286. [Google Scholar] [CrossRef]
  29. Vajanapoom, N.; Shy, C.M.; Neas, L.M.; Loomis, D. Estimation of particulate matter from visibility in Bangkok, Thailand. J. Expo. Sci. Environ. Epidemiol. 2001, 11, 97–102. [Google Scholar] [CrossRef]
  30. Ganor, E.; Stupp, A.; Osetinsky, I.; Alpert, P. Synoptic classification of lower troposphere profiles for dust days. J. Geophys. Res. 2010, 115, D11201. [Google Scholar] [CrossRef]
  31. Prasad, A.K.; El-Askary, H.; Kafatos, M. Implications of high altitude desert dust transport from Western Sahara to Nile Delta during biomass burning season. Environ. Pollut. 2010, 158, 3385–3391. [Google Scholar] [CrossRef] [PubMed]

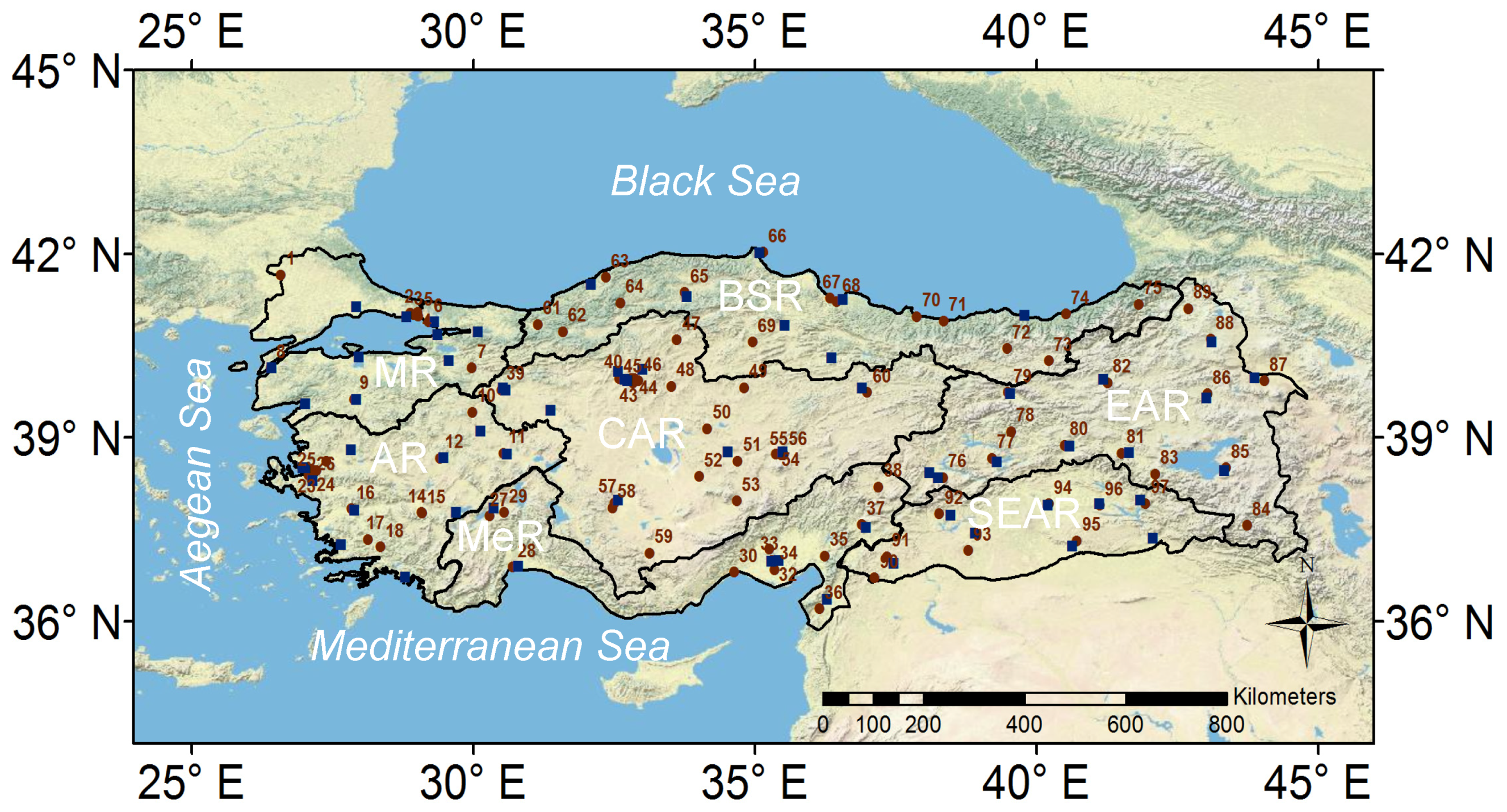

Figure 1. The distribution of PM10 observations at 97 air quality monitoring stations (brown points) and visibility observations (METARs, blue square) at 64 airports in Turkey. The detail explanations (i.e., geographic coordinates and daily averaged PM10 values of the stations during the dust storm days) of the numbers of the stations are described in Table 1. The borders of the seven geographic regions with its abbreviated names are also shown in the figure. MR: Marmara Region, AR: Aegean Region, MeR: Mediterranean Region, CAR: Central Anatolian Region, BSR: Black Sea Region, EAR: Eastern Anatolian Region, SEAR: Southeastern Anatolian Region.
Figure 1. The distribution of PM10 observations at 97 air quality monitoring stations (brown points) and visibility observations (METARs, blue square) at 64 airports in Turkey. The detail explanations (i.e., geographic coordinates and daily averaged PM10 values of the stations during the dust storm days) of the numbers of the stations are described in Table 1. The borders of the seven geographic regions with its abbreviated names are also shown in the figure. MR: Marmara Region, AR: Aegean Region, MeR: Mediterranean Region, CAR: Central Anatolian Region, BSR: Black Sea Region, EAR: Eastern Anatolian Region, SEAR: Southeastern Anatolian Region.
Atmosphere 08 00041 g001

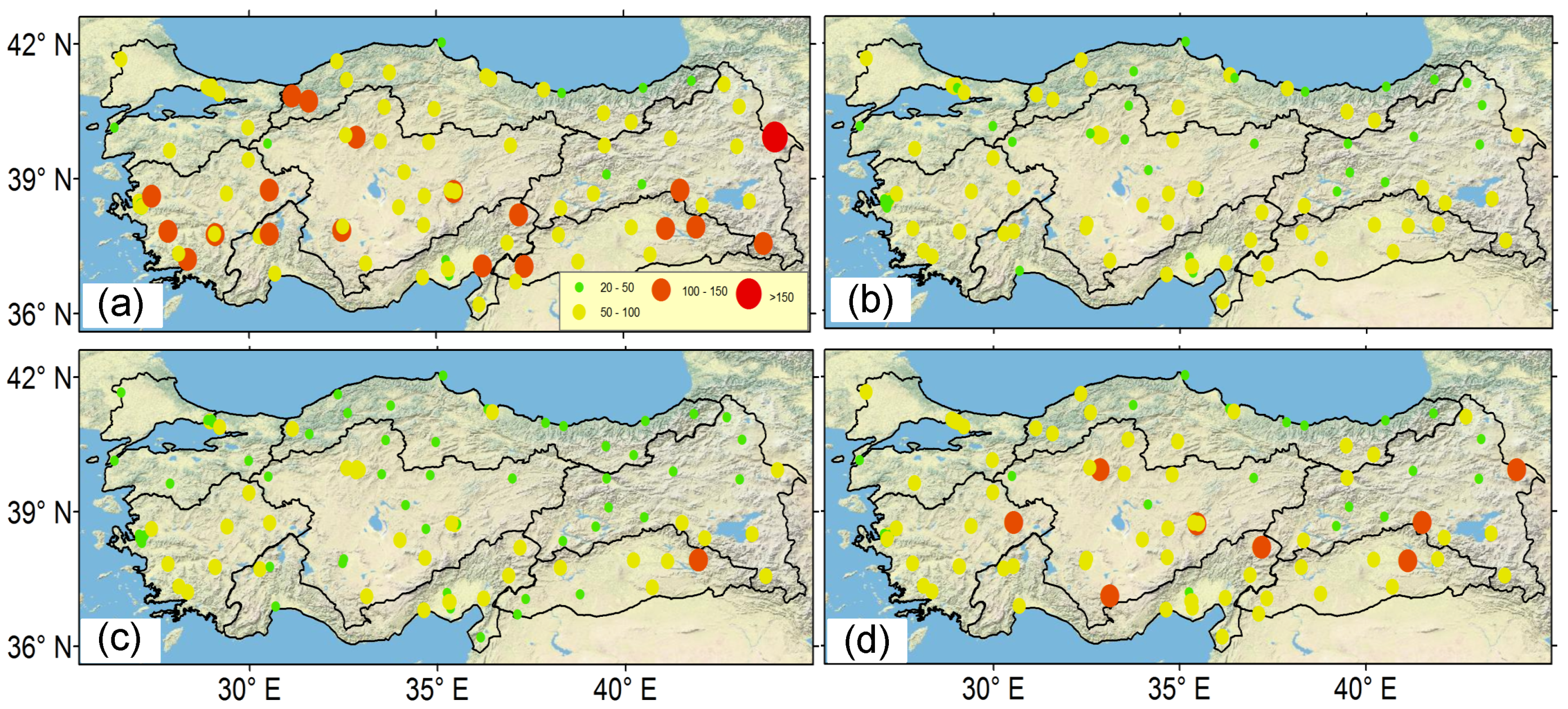

Figure 2. The long-term (2010–2015) mean of the seasonal PM10 concentrations (μg·m−3) related to 97 air quality stations. (a) Winter, (b) Spring, (c) Summer, and (d) Fall seasons, respectively.
Figure 2. The long-term (2010–2015) mean of the seasonal PM10 concentrations (μg·m−3) related to 97 air quality stations. (a) Winter, (b) Spring, (c) Summer, and (d) Fall seasons, respectively.
Atmosphere 08 00041 g002
Figure 3. Anomaly values of the (a) March 23, 2016 and (b) March 24, 2016 daily PM10 observations (μg·m−3) of the stations when compared with its long-term spring mean PM10 values.
Figure 3. Anomaly values of the (a) March 23, 2016 and (b) March 24, 2016 daily PM10 observations (μg·m−3) of the stations when compared with its long-term spring mean PM10 values.
Atmosphere 08 00041 g003

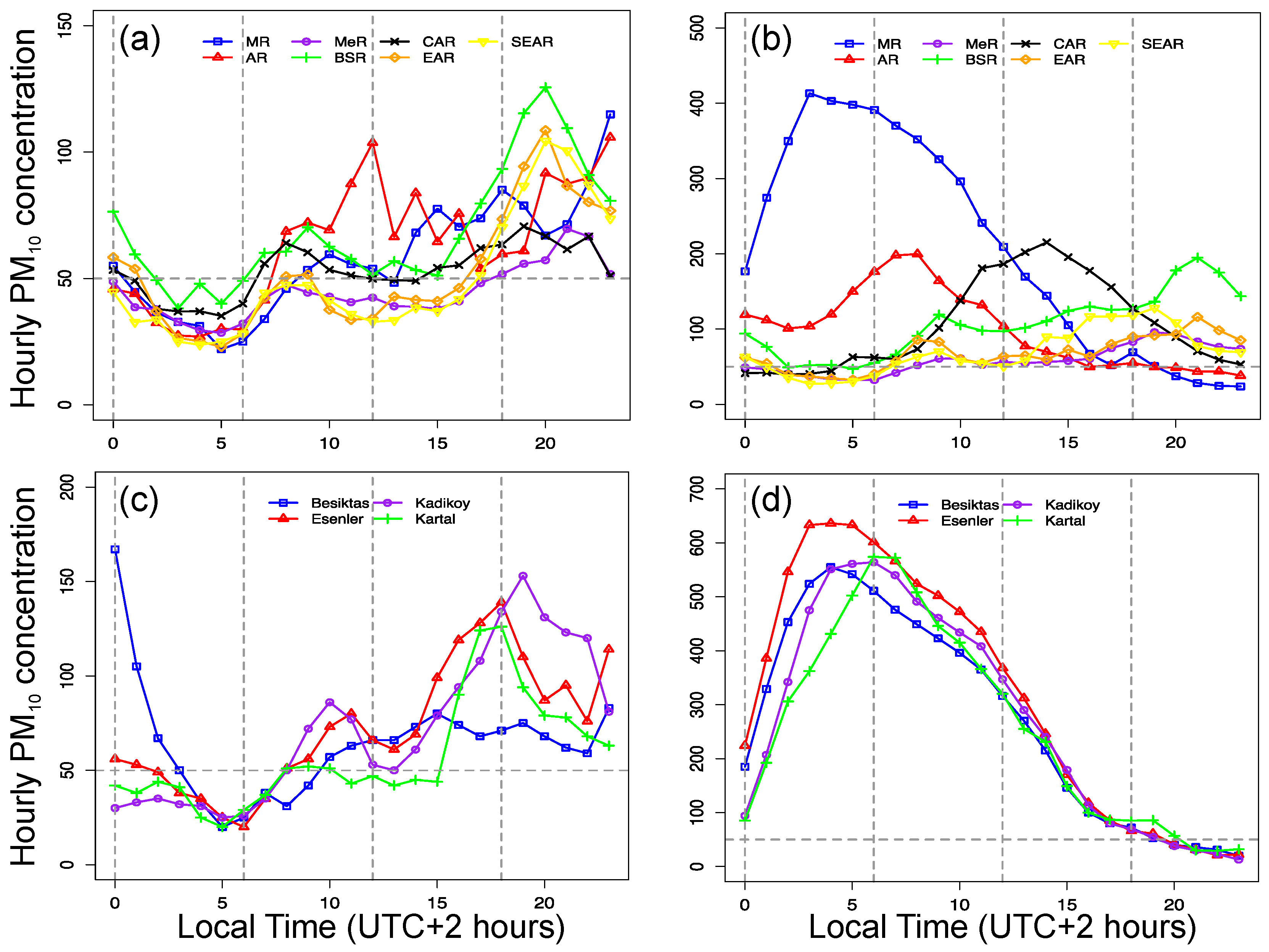

Figure 4. (a) Temporal behavior of the hourly PM10 values (μg·m−3) of the seven geographical regions of Turkey for 23 March, 2016. (b) same as (a) but for 24 March, 2016. (c) same as (a), and (d) same as (b) but denote the four urban settlements of Istanbul.
Figure 4. (a) Temporal behavior of the hourly PM10 values (μg·m−3) of the seven geographical regions of Turkey for 23 March, 2016. (b) same as (a) but for 24 March, 2016. (c) same as (a), and (d) same as (b) but denote the four urban settlements of Istanbul.
Atmosphere 08 00041 g004

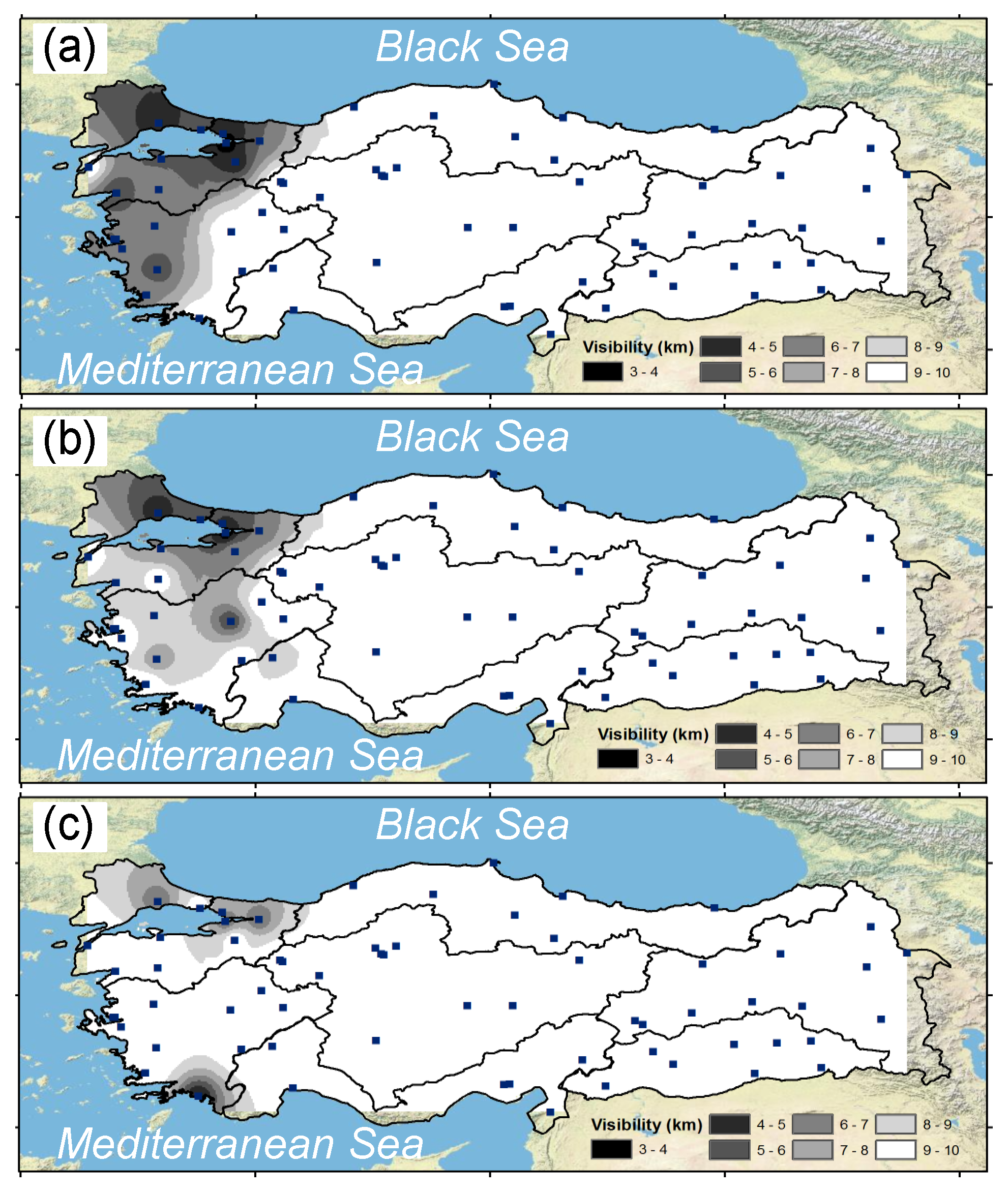

Figure 5. (a) Spatial distribution of the horizontal visibility conditions of the METAR observations belonging to 64 airports at 06:00 UTC of 24 March. (b) Same as (a) but for 09:00 UTC. (c) same as (a) but for 12:00 UTC.
Figure 5. (a) Spatial distribution of the horizontal visibility conditions of the METAR observations belonging to 64 airports at 06:00 UTC of 24 March. (b) Same as (a) but for 09:00 UTC. (c) same as (a) but for 12:00 UTC.
Atmosphere 08 00041 g005
Figure 6. The evolution of the first dust storm event over Turkey at 00:00 UTC 23 March 2016. (a) sea level pressures (solid lines, every 5-hPa), and total cloud cover (shaded, %) at surface. (b) Height (solid lines, dam) and winds (m·s−1) at 850-hPa. (c) same as (a), and (d) same as (b) but for 12:00 UTC of the 23 March.
Figure 6. The evolution of the first dust storm event over Turkey at 00:00 UTC 23 March 2016. (a) sea level pressures (solid lines, every 5-hPa), and total cloud cover (shaded, %) at surface. (b) Height (solid lines, dam) and winds (m·s−1) at 850-hPa. (c) same as (a), and (d) same as (b) but for 12:00 UTC of the 23 March.
Atmosphere 08 00041 g006

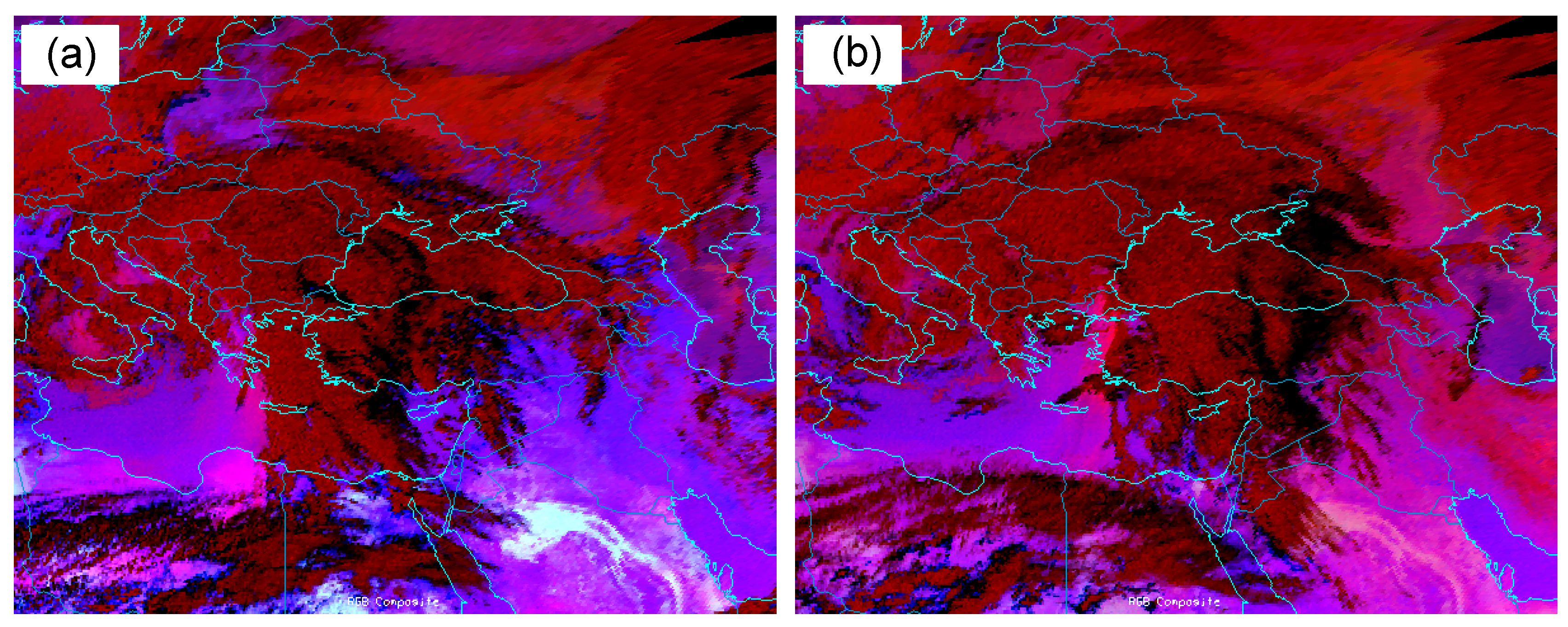

Figure 7. Dust product for (a) 12:00 UTC and (b) 18:00 UTC on 23 March 2016, derived from three infrared channels of the SEVIRI imager on Meteosat-10, with center wavelengths at 12.0, 10.8, and 8.7 µm. This false-color image was created using an algorithm from EUMETSAT, which colors red the difference between the 12.0 and 10.8 µm channels, green the difference between the 10.8 and 8.7 µm channels and blue the 10.8 µm channel. Dust appears pink or magenta, water vapor dark blue, thick high-level clouds red-brown, thin high-level clouds almost black and surface features pale blue or purple.
Figure 7. Dust product for (a) 12:00 UTC and (b) 18:00 UTC on 23 March 2016, derived from three infrared channels of the SEVIRI imager on Meteosat-10, with center wavelengths at 12.0, 10.8, and 8.7 µm. This false-color image was created using an algorithm from EUMETSAT, which colors red the difference between the 12.0 and 10.8 µm channels, green the difference between the 10.8 and 8.7 µm channels and blue the 10.8 µm channel. Dust appears pink or magenta, water vapor dark blue, thick high-level clouds red-brown, thin high-level clouds almost black and surface features pale blue or purple.
Atmosphere 08 00041 g007

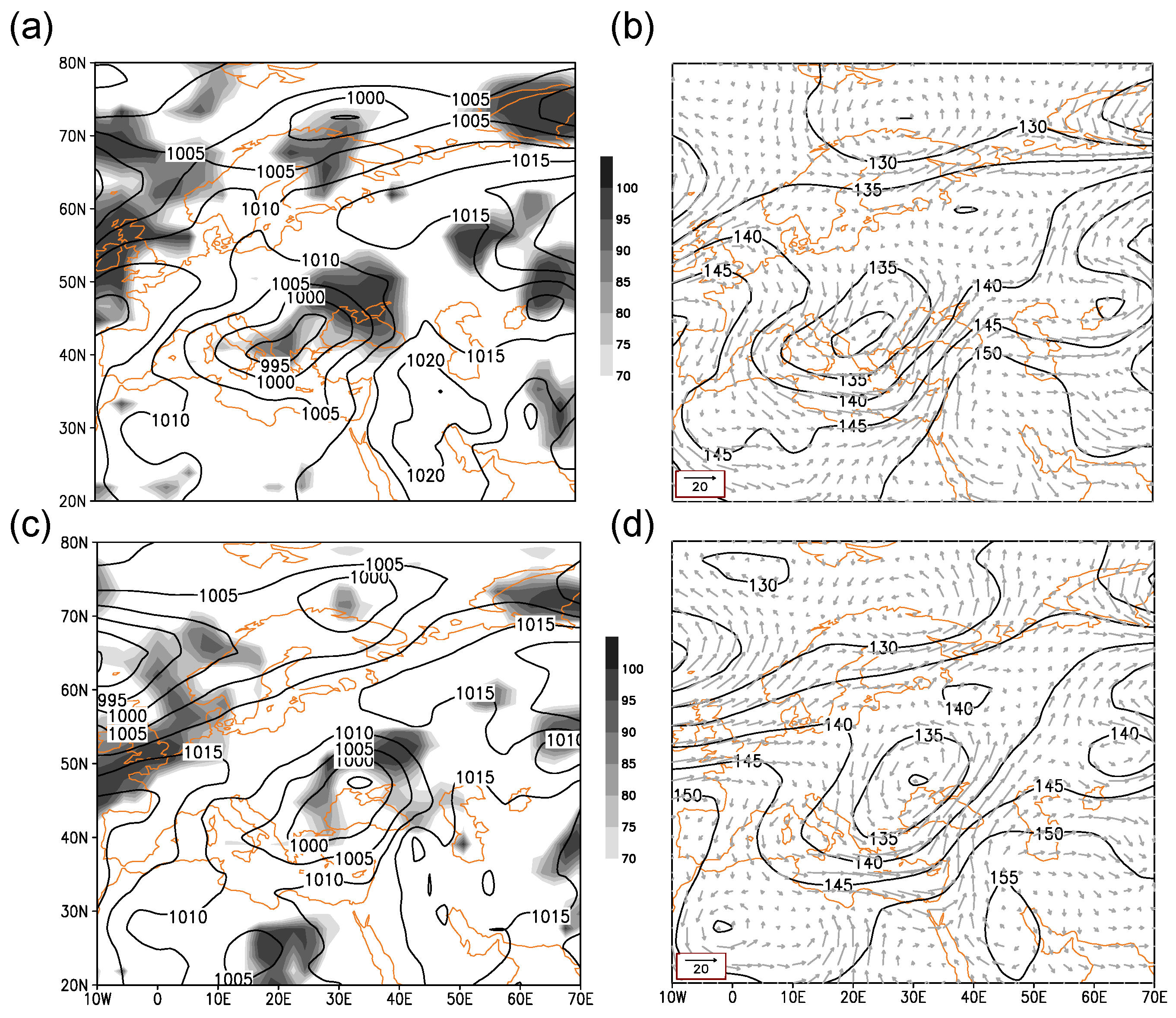

Figure 8. The evolution of the second dust storm event over Turkey at 00:00 UTC 24 March 2016. (a) sea level pressures (solid lines, every 5-hPa), and total cloud cover (shaded, %) at surface. (b) Height (solid lines, dam) and winds (m·s−1) at 850-hPa. (c) same as (a) and (d) same as (b) but for 12:00 UTC of the 24 March.
Figure 8. The evolution of the second dust storm event over Turkey at 00:00 UTC 24 March 2016. (a) sea level pressures (solid lines, every 5-hPa), and total cloud cover (shaded, %) at surface. (b) Height (solid lines, dam) and winds (m·s−1) at 850-hPa. (c) same as (a) and (d) same as (b) but for 12:00 UTC of the 24 March.
Atmosphere 08 00041 g008
Figure 9. Omega map (Pa·s−1) at 1000-hPa for 24 March 00:00 UTC. Red-to-yellow area corresponds to a sink area, while negative values show upward movement of air.
Figure 9. Omega map (Pa·s−1) at 1000-hPa for 24 March 00:00 UTC. Red-to-yellow area corresponds to a sink area, while negative values show upward movement of air.
Atmosphere 08 00041 g009

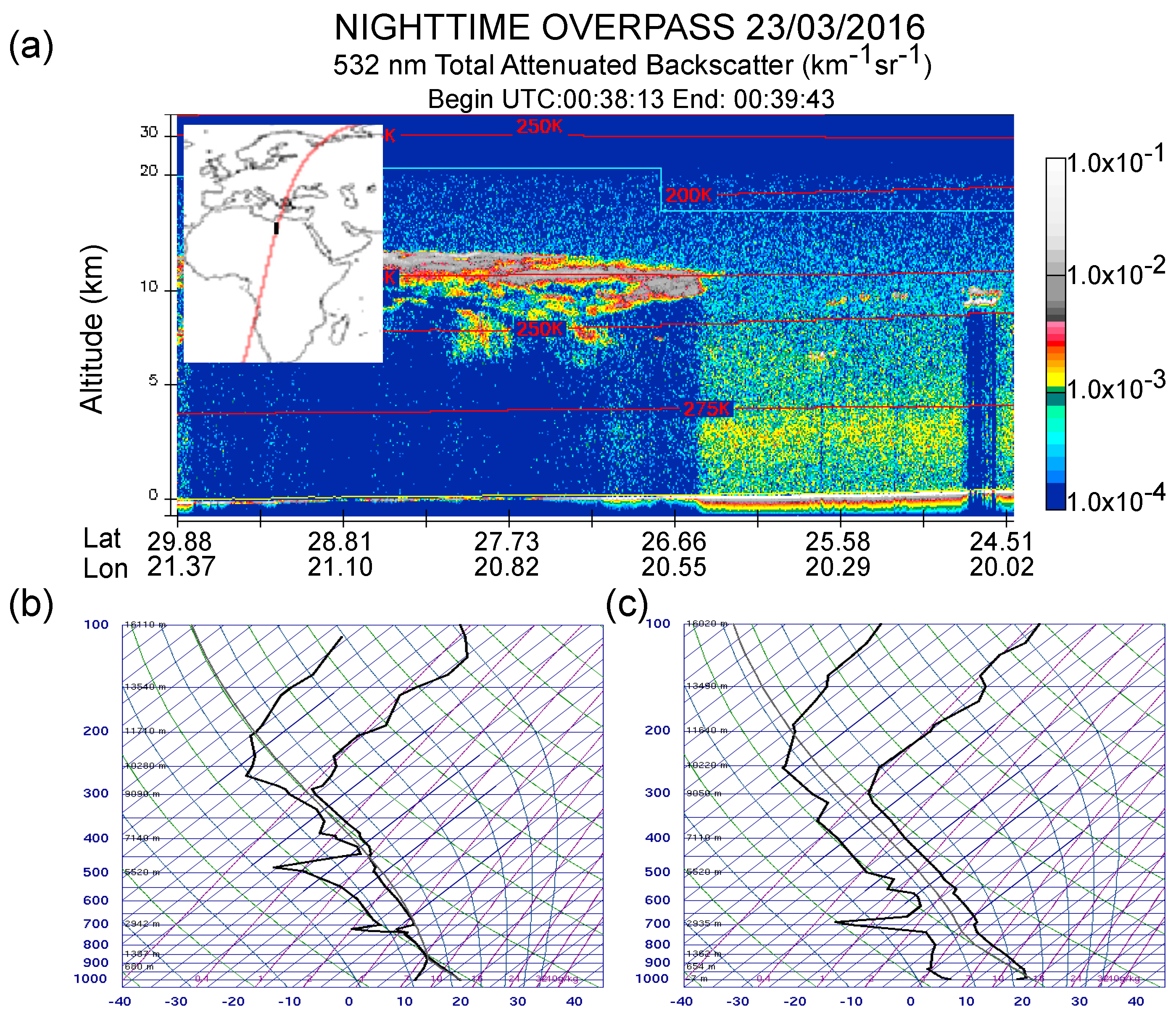

Figure 10. (a) Attenuated backscatter quicklook derived from CALIOP (CALIPSO satellite on 23 March 2016 at night during the over passes over the dust source region. (b) Skew T-logp diagram of Izmir (western station, WMO number: 17220) at 00:00 UTC of 24 March, 2016. The solid thick lines represent temperature and dewpoint observations. Temperature in °C and pressure levels in hPa. (c) same as (b) but for Kartal (northern station, WMO number: 17064)
Figure 10. (a) Attenuated backscatter quicklook derived from CALIOP (CALIPSO satellite on 23 March 2016 at night during the over passes over the dust source region. (b) Skew T-logp diagram of Izmir (western station, WMO number: 17220) at 00:00 UTC of 24 March, 2016. The solid thick lines represent temperature and dewpoint observations. Temperature in °C and pressure levels in hPa. (c) same as (b) but for Kartal (northern station, WMO number: 17064)
Atmosphere 08 00041 g010
Table 1. Geographic coordinates of the 97 air quality stations and their measured daily PM10 values (μg·m−3) during dust storm days.
Table 1. Geographic coordinates of the 97 air quality stations and their measured daily PM10 values (μg·m−3) during dust storm days.
No.RegionLongitudeLatitudeStation Name23 March 201624 March 2016No.RegionLongitudeLatitudeStation Name23 March 201624 March 2016
1 Marmara (MR)26.5941.66Edirne6515650Central Anatolia (CAR)34.738.62Nevsehir49212
2 28.8941.04Esenler 723215134.0138.37Aksaray4585
3 28.9541.01Aksaray54855234.6837.97Nigde80188
4 29.0141.05Besiktas642745335.3838.74Osb 69186
5 29.0340.99Kadikoy 722755435.4738.72Hurriyet95189
6 29.2140.89Kartal572595535.5238.72Melikgazi 51126
7 29.9840.14Bilecik441165632.5137.94Selcuklu 5291
8 26.4140.14Canakkale46995732.4837.86Meram 3388
9 27.8939.63Balikesir681555833.1337.12Karaman47121
10 Aegean (AR)29.9939.42Kutahya6486593739.74Sivas86136
11 30.5438.75Afyon33586033.6240.6Cankiri2628
12 29.4138.67Usak877761Black Sea (BSR)31.1540.85Duzce111117
13 27.438.62Manisa1282236231.640.73Bolu3029
14 29.0937.78Merkezefendi921366332.3641.62Bartin9888
15 29.137.77Bayramyeri921206432.6241.2Karabuk9580
16 27.8437.84Aydin511416533.7641.37Kastamonu94147
17 28.1337.34Yatagan1421156635.1542.03Sinop50211
18 28.3637.22Musluhittin851146736.3441.28Ilkadim81214
19 27.0738.5Cigli30856836.4641.22Tekkekoy 55158
20 27.1138.45Karsiyaka16346934.9640.56Corum7686
21 27.1738.46Bayrakli42957037.8840.98Ordu5086
22 27.0838.4Guzelyali411067138.3640.91Giresun66100
23 27.2238.47Bornova551117239.4840.46Gumushane8789
24 27.1438.43Alsancak25637340.2240.26Bayburt8399
25 27.1538.38Sirinyer44837440.5341.02Rize4071
26 27.1438.31Gaziemir52647541.8241.18Artvin913
27 Mediterranean (MeR)30.2937.72Burdur285476Eastern Anatolia (EAR)38.3438.35Malatya3981
28 30.736.89Antalya371037739.2138.67Elazig3337
29 34.6436.81Icel60667839.5539.1Tunceli2025
30 35.2637.19Catalan26337939.539.74Erzincan109145
31 35.3437Meteoroloji48498040.538.88Bingol1627
32 35.3137Valilik51598141.5138.75Mus161203
33 35.3536.85Dogankent12158241.2739.9Erzurum2639
34 36.2437.07Osmaniye52658342.1138.41Bitlis3442
35 36.1536.21Antakya68728443.7437.57Hakkari6484
36 36.937.58Kahramanmaras35618543.3738.51Van3743
37 37.238.2Elbistan53598643.0439.72Agri2636
38 30.5537.78Isparta61658744.0539.93Igdir81100
39 Central Anatolia (CAR)30.539.78Eskisehir24478843.140.61Kars6060
40 32.5939.97Sincan44598942.741.11Ardahan2220
41 32.839.97Demetevler577790Southeastern Anatolia (SEAR)37.1336.72Kilis4956
42 32.8639.97Kecioren61719137.3537.06Gaziantep4372
43 32.8839.94Cebeci70709238.2837.76Adiyaman59102
44 32.8639.93Sihhiye64779338.7937.16Sanliurfa2575
45 32.8439.9Dikmen42799440.2237.92Diyarbakir4446
46 32.9339.93Kayas1091349540.7237.32Mardin3462
47 33.5239.84Kirikkale21449641.1337.9Batman5765
48 34.8139.82Yozgat42769741.9437.93Siirt8975
49 34.1639.15Kirsehir3098
