Atmosphere 2015, 6(1), 1-20; https://doi.org/10.3390/atmos6010001

Article
Seasonal Variations in Health Hazards from Polycyclic Aromatic Hydrocarbons Bound to Submicrometer Particles at Three Characteristic Sites in the Heavily Polluted Polish Region
1
Department of Air Protection, Silesian University of Technology, 2 Akademicka St., 44-100 Gliwice, Poland
2
Institute of Environmental Engineering, Polish Academy of Sciences, 34 M. Skłodowskiej-Curie St., 41-819 Zabrze, Poland
*
Author to whom correspondence should be addressed.
Academic Editor: Huiting Mao
Received: 13 October 2014 / Accepted: 12 December 2014 / Published: 24 December 2014

Abstract

:
Suspended particles with aerodynamic diameters not greater than 1 μm (PM1) were sampled at the urban background; regional background; and urban traffic points in southern Poland. In total, 120 samples were collected between 2 August 2009 and 27 December 2010. Sixteen polycyclic aromatic hydrocarbons (PAHs) were determined in each sample. The samples were collected with a high volume sampler (Digitel). Afterwards, they were chemically analyzed with a gas chromatograph equipped with a flame ionization detector (Perkin Elmer Clarus 500). The mean concentration values of the PAH sum (ΣPAH) and particular PAHs; the percentages of carcinogenic PAHs in total PAHs (ΣPAHcarc/ΣPAH); carcinogenic equivalent (CEQ); mutagenic equivalent (MEQ); and TCDD-toxic equivalent (TEQ) were much higher in the winter (heating) season than in the summer (non-heating) one. For both periods, the resulting average values obtained were significantly higher (a few; and sometimes a several dozen times higher) in the researched Polish region than the values observed in other areas of the world. Such results indicate the importance of health hazards resulting from PM1 and PM1-bound PAHs in this Polish area.
Keywords:
PAH; organic matter; PM1; health hazard; mutagenicity; carcinogenicity; TEF; municipal emission

1. Introduction

The degree to which the ambient particulate matter-bound (PM-bound) polycyclic aromatic hydrocarbons (PAHs) are hazardous to health depends on: PAH concentrations both in the ambient air and in the PM mass; their mass distributions in respect to the particle size; and the physicochemical properties of PM.
Despite that fact that almost every PM-bound PAH, and PM itself, strongly affects human health, the ambient concentrations of only a few of them are limited. The following PAHs (16 congeners) are considered as a priority due to their health effects: naphthalene (Na), acenaphthylene (Acy), acenaphthene (Ace), fluorene (Flu), phenanthrene (Ph), anthracene (An), fluoranthene (Fl), pyrene (Py), benzo[a]anthracene (BaA), chrysene (Ch), benzo[b]fluoranthene (BbF), benzo[k]fluoranthene (BkF), benzo[a]pyrene (BaP), indeno[1,2,3-cd]pyrene (IP), dibenzo[ah]anthracene (DBA) and benzo[ghi]perylene (BghiP). According to the International Agency for Research on Cancer (IARC), 48 PAHs can be carcinogenic for humans or animals. The strength of their carcinogenicity grows with their molecular weight. However, it is still unknown if the carcinogenicity of PAHs (which always occur in the mixture form and never as a single compound in the air) may be ascribed to the individual hydrocarbons or if it is rather the concerted effect of some PAHs combined together.
BaP is a well-studied five-ring hydrocarbon. It is particularly important to the environmental toxicology as one of the most mutagenic and carcinogenic hydrocarbons [1,2,3,4]. It also constitutes a basis for defining the toxic (carcinogenic) equivalence factor (TEF) and the carcinogenic equivalent (CEQ) for other PAHs. Namely, a TEF for a PAH is defined as relative to the TEF of BaP (assumed to be 1). The CEQ of a PAH group is the linear combination of the TEF and the ambient concentrations of the PAHs from this group. TEF expresses absolute toxicity of a particular PAH, whereas CEQ specifies carcinogenicity of a PAH group in the air [5]. The so-called mutagenic equivalent (MEQ) or the TCDD-toxic equivalent (TEQ) can also be useful as indicators to assess the PAH mixture health effect [6].
In Poland, and particularly in its southern part, PM comes mainly from energy production and municipal and industrial sources [7,8,9,10]. To some degree, Southern Poland is representative of those areas in East and Central Europe where power and heat are produced mainly from fossil fuels (coal), and the road traffic is still not so dense as in the western and northern parts of Europe, or even in the USA ten years ago. In other urbanized regions of Western Europe, air pollution with PM is mainly due to road traffic [11]. The PM1-bound PAHs, the concern of this paper, are well enough recognized both in Poland as well as in other European countries.
The following study presents the results of the research into the ambient concentrations of 16 PM1-bound PAHs (Na, Acy, Ace, Flu, Ph, An, Fl, Py, BaA, Ch, BbF, BkF, BaP, IP, DBA and BghiP) at three locations in Silesia (southern Poland). The measurement points were selected due to their specific emission conditions. Seasonal variations of 16 PM1-bound PAHs and their mutual correlations in the seasons were discussed. Additionally, the seasonal variations in the exposure to the mixture of the PM1-bound PAHs were assessed with selected indicators (∑PAHcarc/∑PAH, CEQ, MEQ and TEQ).

2. Materials and Methods

Twenty-four-hour samples of PM1 were collected (with a high volume DIGITEL DHA-80 sampler (flow rate 30 m3∙h−1) onto the quartz fiber filters (Whatman™ 1851-150 Grade QM-A, Piscataway, NJ, USA) at three sites in southern Poland (Figure 1); prior to sampling, the filters were baked at 600 °C for at least 6 h to remove any traces of organics.

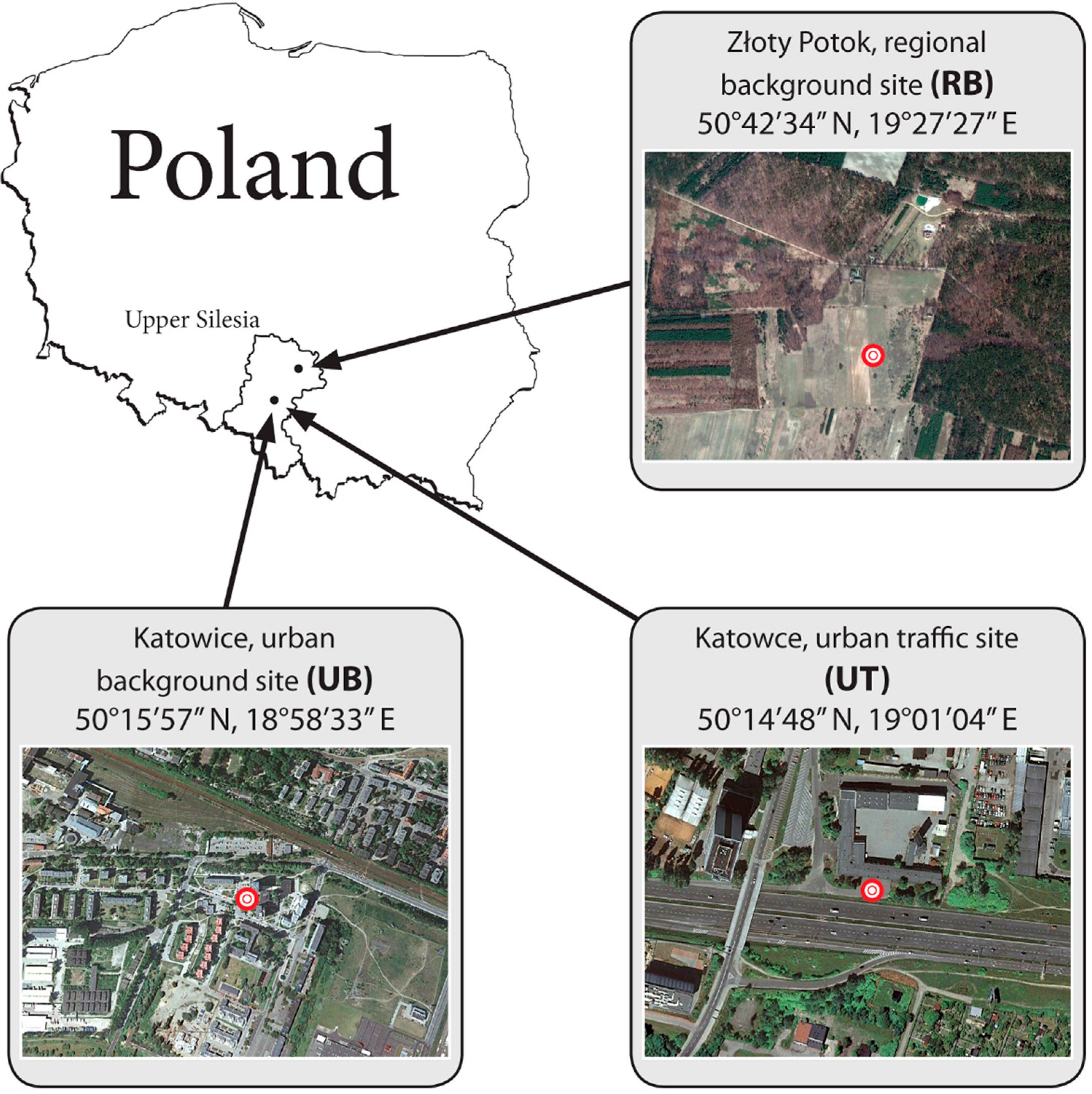

Figure 1. Sampling sites.
Figure 1. Sampling sites.
Atmosphere 06 00001 g001
The first point met the requirements for the so-called urban background site (UB); the second one represented the regional background site (RB); and the third one was the so-called urban traffic site (urban site directly affected by road traffic, UT). UB was located in a residential district in the western part of Katowice, approx. 3.2 km west of the city center. There were blocks of flats, commercial areas, and a railway line in its neighborhood. A post-mining terrain could be found at some distance off. UT was located near the A4 highway—Almost on its shoulder, approx. 1.5 km south of the city center. The volume of traffic was about 30,000 vehicles per day at this point. RB was located in Złoty Potok (commune of Janów), approx. 20 km south-east of Częstochowa and 25 km north of Zawiercie. It was surrounded by meadows and agricultural lands. Several wood-heated chalets and a forester’s house were approx. 150 m away.
The research took place between 2 August 2009 and 27 December 2010. There were two measurement campaigns at each sampling point held in each heating (January–March and October–December) and non-heating (April–September) season. Six to fourteen (usually 10) 24-h samples of PM1 were collected in one campaign. Importantly, the campaigns were not consecutive at a given point. For example, in the heating season, the measurements were conducted in the following order: RB, UB and UT. Afterwards, the sampling was conducted in the same way. Altogether, there were 40 24-h samples collected for each point (120 samples in total).
The sampled dust mass was determined gravimetrically (Sartorius balance, resolution 0.01 g; Goettingen, Germany) according to the CSN EN 14907 standard (Ambient air quality—Standard gravimetric measurement method for the determination of the PM2.5 mass fraction of suspended particulate matter). Before each weighing, filters were conditioned in a weighing room (min. 48 h; air temperature of 20 ± 1 °C; and air relative humidity of 50% ± 5%). After weighing, the filters were put into petri dishes wrapped light-tightly in aluminum foil and stored in a freezer at −18 °C till the analysis.
The dust collected on a filter was extracted with 3 × 10 cm3 dichloromethane (DCM) for 30 min under ultrasonic agitation. The extract was percolated, washed and dried in helium atmosphere. The dry residue was dissolved in propanol-2 (CH3CH(OH)CH3), next distilled water was added to receive alcohol/water volume ratio 15/85. For selective purification, the obtained samples were solidified (SPE) via extraction in columns filled with octadecylsilane – C-18 (Supelclear™ ENVI-18 Tubes, Supelco, Bellefonte, PA, USA). Before the extraction, the columns were conditioned with methanol and next with a mixture of propanol-2/water (15/85). Subsequently, the sample was passed through the columns. After the extraction, the bed was dried under vacuum. The fraction of PAHs was eluted with two portions of 0.5 cm3 of DCM. The extract of PAHs was thickened in helium to the volume of 0.1 cm3.
The SPE extracts were analyzed on a Clarus 500 Perkin Elmer gas chromatograph (PerkinElmer, Inc., Waltham, MA, USA) equipped with an auto-sampler. The compounds were separated on a capillary column (Restek RTX-5, 5% phenyl methyl siloxane, 30 m × 0.32 mm × 0.25 µm). The carrier gas (helium) flow in the column was maintained at the constant rate of 1.5 cm3∙min−1. The 3 µL samples were introduced using splitless injection, the temperature of the injector was 240 °C. A flame ionization detector (FID) was used. For the PAHs analysis, the initial temperature of the oven, 60 °C, was held for 4 min, then the temperature grew at 10 °C∙min−1 to 280 °C and held for 14 min. The flow rates of hydrogen and air in the detector were 45 cm3∙min−1 and 450 cm3∙min−1, respectively; the FID’s temperature was 280 °C.
The calibration curves for the quantitative analysis were prepared for 16 standard PAHs. The linear correlation between the peak surface areas and PAH concentrations was checked within the range of 1–20 µg∙mL−1 (correlation coefficients: 0.99; PAH Mix PM-611 Ultra Scientific standard at the concentration of 100 µg∙mL−1 for each PAH in DCM).
The analysis of each campaign sample series was accompanied with the blank sample analysis. It consisted in the application of the whole analytical procedure to a clean quartz fiber filter. The blank result was used to adjust the PAH concentration, but only if the blank exceeded 10% of the PAH concentration. The limits of detection (LODs), obtained from the statistical development of the blank results (10–11 blanks for each PAH; PN-EN 15549 standard), were between 0.01 and 0.03 ng∙m−3 (average air flow rate = 700 m3/24 h).
The method performance was verified through analyzing the NIST SRM 1649b reference material and comparing the results with the certified concentrations of the investigated PAHs. The standard recoveries were from 92% to 111%.
The cumulative health hazard from the PAH mixture was expressed quantitatively as the carcinogenic equivalent (CEQ) or mutagenic equivalent (MEQ) relative to the carcinogenicity or mutagenicity of BaP, respectively, or as the TCDD-toxic equivalent (TEQ) relative to the 2,3,7,8-tetrachlorodibenzo-p-dioxin toxicity. The indicators were computed for each site and, separately, for the heating and non-heating periods: CEQs as linear combinations of the concentrations of PM1-related PAHs and their toxicity equivalence factors (TEF); MEQs as linear combinations of the concentrations and the PAH minimum mutagenic concentrations (MMC); TEQs as linear combinations of the concentrations of the PM1-related PAHs and their TCDD-TEF. The values of TEF, MMC and TCDD-TEF for particular PAHs were taken from Nisbet and LaGoy [5], Durant et al. [2] and Willett et al. [12]. Additionally, the proportion of the concentration sum of seven carcinogenic PAHs (Ch, BaA, BbF, BkF, BaP, DBA and IP - ΣPAHcarc [13]) to the concentration sum of the 16 determined PAHs was calculated. The closer the value of ΣPAHcarc/ΣPAH was to 1, the more hazardous ΣPAH was to humans.

3. Results and Discussion

In the heating season, the mean PM1 concentrations were 16.37 μg∙m−3, 40.70 μg∙m−3, 41.55 μg∙m−3 at RB, UB and UT, respectively. They were 1.6-2.3 times higher than the mean PM1 concentrations in the non-heating season (Table 1). When compared to the European concentrations, the values were high. For example, winter concentrations of PM1 observed in Brno and Šlapanice (Czech Republic) in 2009 were 19.9 μg∙m−3 and 19.2 μg∙m−3, respectively [14]. Perrone et al. [15] measured even lower PM1 concentrations (13 μg∙m−3) in southern Italy.
Fine PM concentrations in Asian cities were similar to the Polish ones or even higher. In Tabriz (Iran), the PM1 concentrations measured in the urban and industrial-suburban sites were 28.4 μg∙m−3 and 31.4 μg∙m−3, respectively [16]. In Shanghai (China), the mean PM1 concentration was 78.9 μg∙m−3 [17]. In Beijing (China), the PM2.5 concentration varied and depended on the measurement point location. Nonetheless, it was never lower than 100 μg∙m−3 [18]. In Agra (India), the mean PM2.5 concentration differed at various locations and ranged between 91.2 and 308.3 μg∙m−3 [19].
Similarly to PM1 concentrations, concentrations of the 16 PAH (∑PAH) sum and particular PAHs varied and depended on the season. The definitely higher 24-h ∑PAH concentrations were observed in the heating season, which was visible in the mean concentrations ranging between 23.1 ng∙m−3 (RB) and 186.1 ng∙m−3 (UT). In the non-heating season, the values ranged between 18.6 ng∙m−3 (RB) and 56.0 ng∙m−3 (UT) (Table 1). The biggest differences in the 24-h and mean seasonal concentrations of ∑PAH were found for UB, whereas the lowest values were observed at RB. The heating season ∑PAH/non-heating season ∑PAH ratios were 1.2, 4.6 and 3.3 at RB, UB and UT, respectively.
Table 1. The statistics of 24-h concentrations of PM1 (µg∙m−3) and PM1-bound PAHs (ng∙m−3) at three locations in two measurement periods.
Table 1. The statistics of 24-h concentrations of PM1 (µg∙m−3) and PM1-bound PAHs (ng∙m−3) at three locations in two measurement periods.
Regional Background (RB)Urban Background (UB)Traffic Point (UT)
Heating Season (N = 20)Non-Heating Season (N = 20)Heating Season (N = 20)Non-Heating Season (N = 20)Heating Season (N = 20)Non-Heating season (N = 20)
Min MaxAvrg ± SD50% *Min MaxAvrg ± SD50%Min MaxAvrg ± SD50%Min MaxAvrg ± SD50%Min MaxAvrg ± SD50%Min MaxAvrg ± SD50%
PM13.49 71.4116.37± 14.4214.404.82 16.0610.32 ± 3.5110.1717.33 73.5940.70 ± 14.8236.647.99 34.8620.83 ± 8.5024.2420.50 88.3441.55 ± 16.5636.6011.83 27.7218.40 ± 4.4817.17
16PAH6.74 82.2523.10 ± 17.8217.493.48 45.3218.57 ± 11.7513.8631.32 400.14138.74 ± 87.07116.2816.18 58.5930.26 ± 11.1527.2820.23 695.67186.12 ± 162.63132.428.23
179.89
56.02 ± 43.7942.31
Na0
0
0 ± 000
0.48
0.02 ± 0.1100
0
0 ± 000
0
0 ± 000
0
0 ± 000
0
0 ± 00
Acy0
3.40
0.51 ± 0.810.110
1.74
0.35 ± 0.5000
0.39
0.02 ± 0.0900
4.52
0.62 ± 1.040.320
3.36
0.17 ± 0.7500
0.42
0.02 ± 0.090
Ace0
5.29
0.35 ± 1.1800
1.16
0.12 ± 0.2800
1.26
0.28 ± 0.3800
16.32
2.64 ± 3.870.800
2.20
0.11 ± 0.4900
1.45
0.14 ± 0.380
Flu0.40 14.822.55 ± 3.281.610 7.972.81 ± 2.601.670.33 12.112.88 ± 3.371.100.40
1.44
0.82 ± 0.290.760 15.513.54 ± 4.162.160.77 25.066.11 ± 7.442.85
Ph0
2.63
0.64 ± 0.9200
2.19
0.93 ± 0.781.102.53 32.679.98 ± 8.296.640.53 16.973.62 ± 4.371.810
97.13
15.55 ± 23.317.540
18.16
1.69 ± 3.930.93
An0
5.42
0.64 ± 1.3400
6.61
0.75 ± 1.5800
16.28
3.53 ± 4.731.730.28 12.912.16 ± 3.280.900
40.88
6.31 ± 9.852.630.35 17.244.84 ± 5.452.07
Fl1.29 29.883.42 ± 6.251.961.33 6.372.65 ± 1.532.073.02 71.8923.36 ± 17.2218.761.23
6.01
2.01 ± 1.011.791.86 109.0326.69 ± 28.3015.200.55
8.91
3.62 ± 2.023.60
Py0
4.73
1.86 ± 1.391.730
4.24
1.64 ± 1.141.493.53 60.4920.30 ± 14.4016.020.40
6.24
1.87 ± 1.471.171.67 90.1221.51 ± 22.0413.890.66 78.6410.90 ± 19.182.98
BaA0 13.162.05 ± 2.980.950
9.54
1.57 ± 2.6303.78 51.2817.67 ± 11.3714.255.08 10.737.81 ± 1.837.751.72 76.1419.02 ± 17.2214.032.60 24.0110.41 ± 4.469.44
Ch0.62 8.603.26 ± 2.152.380.76 5.662.81 ± 1.782.715.19 37.5617.30 ± 7.6217.301.70
3.82
2.48 ± 0.502.342.24 59.9519.85 ± 13.8318.241.01 12.683.86 ± 2.343.23
BbF0
6.61
1.55 ± 1.461.250
3.34
0.80 ± 1.130.423.17 24.649.95 ± 4.928.890
1.78
0.76 ± 0.670.621.29 35.8814.23 ± 8.6611.860
6.94
3.38 ± 2.463.83
BkF0
3.09
1.24 ± 0.921.180
2.98
0.68 ± 0.960.223.22 26.0910.74 ± 5.219.510
7.13
1.87 ± 1.581.561.79 34.5113.80 ± 7.7711.970
6.01
0.97 ± 1.380.68
BaP0.80 28.234.03 ± 5.972.400
9.52
2.46 ± 2.611.514.52 32.2812.48 ± 6.3611.290.41
5.14
2.97 ± 1.393.151.48 46.7014.27 ± 11.2711.870
19.45
4.73 ± 3.924.13
IP0
5.52
0.49 ± 1.2500
5.15
0.38±1.1700.77 18.705.03 ± 4.183.950
1.07
0.35 ± 0.360.430
13.36
5.57 ±3.835.890
6.59
0.51 ± 1.480
DBA0
2.37
0.21 ± 0.5800
5.25
0.37 ± 1.1900
3.71
0.27 ± 0.8500
0.94
0.24 ± 0.3800
47.91
17.21 ± 12.9211.590
57.64
4.77 ± 12.800.40
BghiP0
1.82
0.30 ± 0.5900
4.73
0.24 ± 1.0600
17.17
4.95 ± 4.433.980
0.59
0.05 ± 0.1600
23.00
8.29 ± 5.827.970
1.12
0.09 ± 0.280
* median.
The mean concentrations of nearly all the compounds differed in each season at each measurement point. For example, for UT, the mean concentrations of 16 PAHs in the heating season were in the decreasing order Fl > Py > Ch > BaA > DBA > Ph > BaP > BbF > BkF > BghiP > An > IP > Flu > Acy > Ace (0.1–26.7 ng∙m−3); whereas, the order was Py > BaA > Flu > An > DBA > BaP > Ch > Fl > BbF > Ph > BkF > IP > Ace > BghiP > Acy (0.02–10.9 ng∙m−3) in the non-heating season.
The profile of 16 PM1-bound PAHs is illustrated in Figure 2, Figure 3 and Figure 4. In RB, Ch, Fl, BaP, Flu, Py had the biggest total percentages in ∑PAH (67.9% and 72.8% of the ∑PAH mass in the heating and non-heating seasons, respectively). In the heating season in UB, BaA, Fl, Ch, BaP and Py constituted 66.1% of the ∑PAH mass. BaA, BaP, Ph and Ch were dominant in the non-heating season (total value = 58.0%). The PAH profile in UT was slightly different - BaA, Py, Fl, Ch, DBA, BaP and BbF made 74.4% of the ∑PAH mass. In the heating season, Fl, DBA, Ch, Py, BaA, BkF, BbF and BaP were responsible for 82.6% of the ∑PAH mass. In the non-heating season, BaA, Py, BaP, Flu and An constituted 65.9% of the ∑PAH mass (BaA made 22.8%).

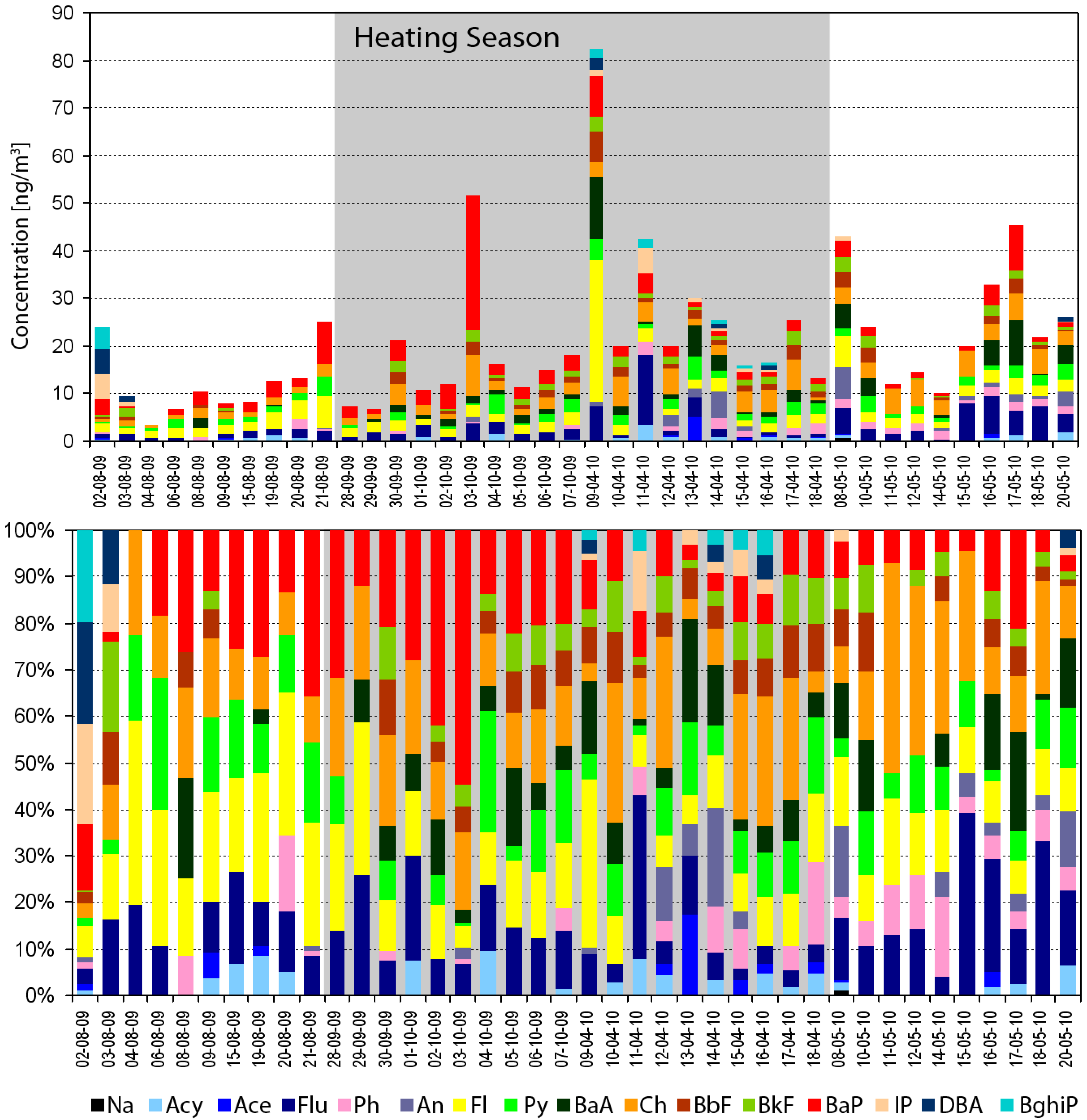

Figure 2. Twenty-four-hour concentrations of 16 PAHs contained in PM1 and percentages of specific PAHs in the PAH sum at the regional background point (RB).
Figure 2. Twenty-four-hour concentrations of 16 PAHs contained in PM1 and percentages of specific PAHs in the PAH sum at the regional background point (RB).
Atmosphere 06 00001 g002

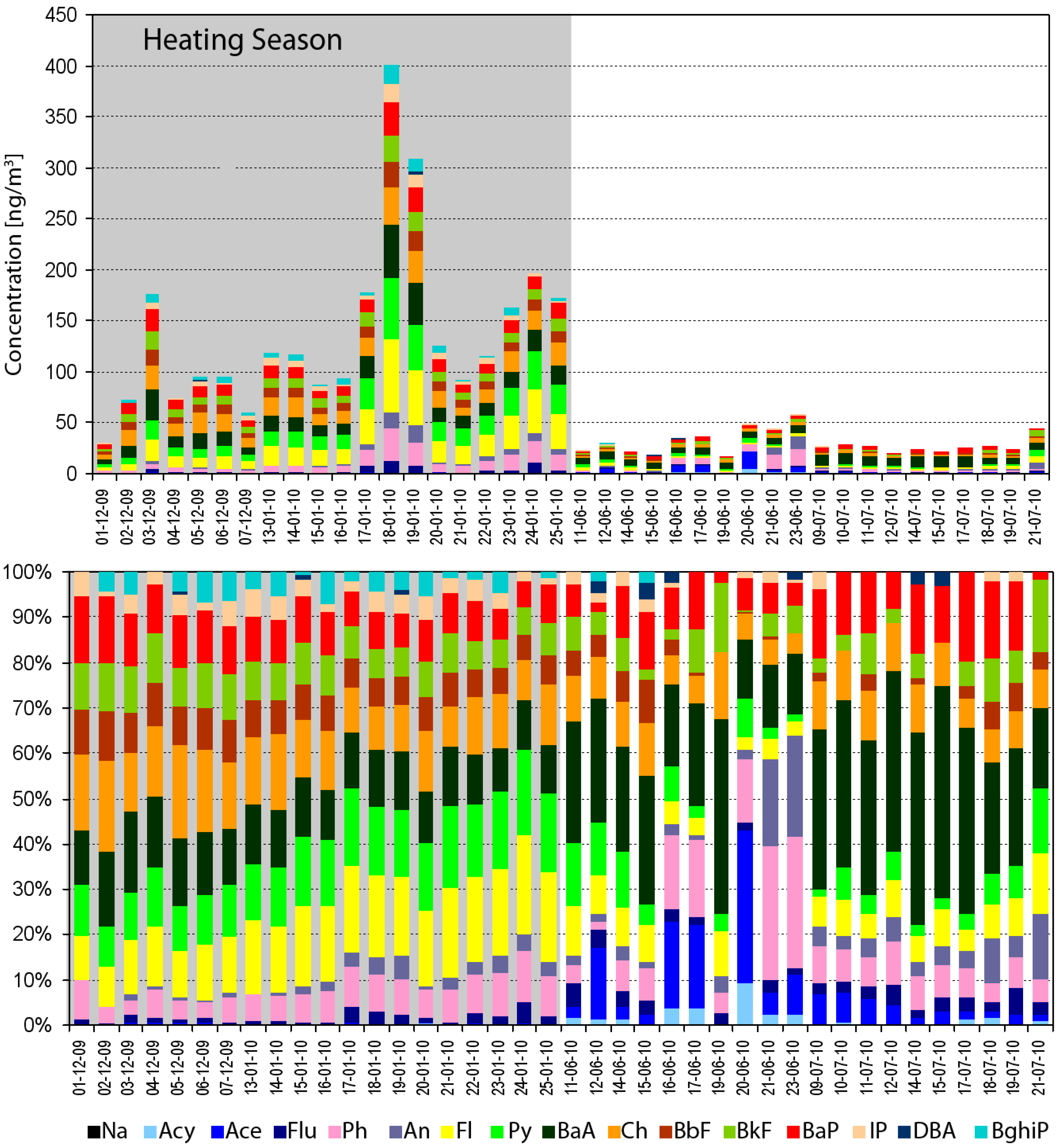

Figure 3. Twenty-four-hour concentrations of 16 PAHs contained in PM1 and percentages of specific PAHs in the PAH sum at the urban background point (UB).
Figure 3. Twenty-four-hour concentrations of 16 PAHs contained in PM1 and percentages of specific PAHs in the PAH sum at the urban background point (UB).
Atmosphere 06 00001 g003
On several winter days (03.10.2009 and 9.04.2010 at RB, 17–19.01.2010 at UB, 29.10.2010 at UT), some PAHs had unusually high mass contributions to ∑PAH and ambient concentrations and caused very high ∑PAH ambient concentrations. At each point they were BaA, Py, Fl, Ch, BaP, and BbF, markers of the emissions from coal combustion and incineration [4]. Such high ambient concentrations of these compounds in the high pollution episode days may be accounted for by intensified fuel combustion (heating season) and also by the meteorological conditions favoring accumulation of the pollutants in the near-ground layer of the atmosphere.
The differences in the PAH profiles, both between the points and within the surroundings of each measurement point between the seasons, reflected the differences in the PAH origin at the points and in seasons. The finding was corroborated by the differences in the linear correlation coefficients calculated between the concentrations of specific PAHs, the PAH sum and PM1 for the points and seasons (Figure 5).

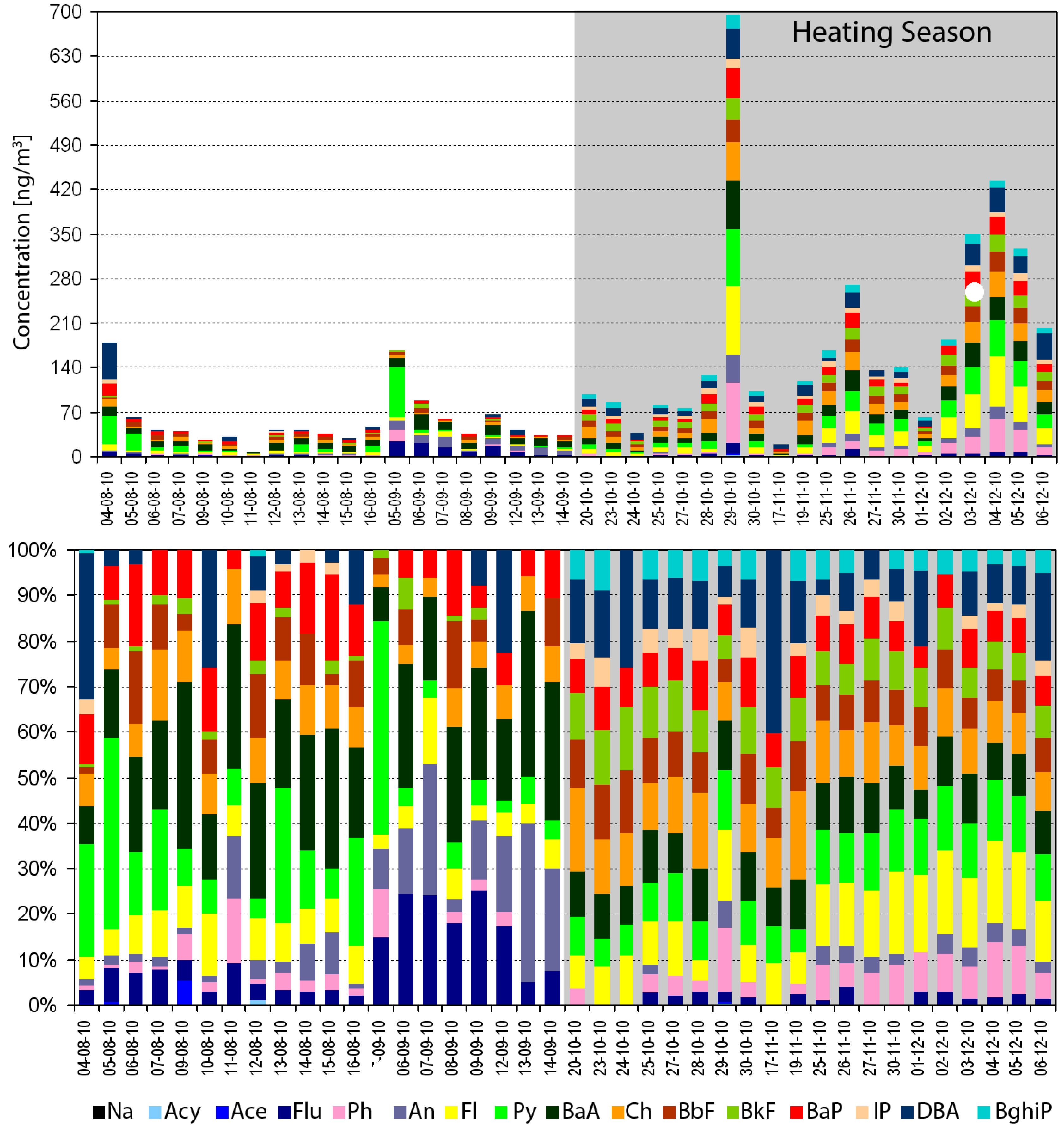

Figure 4. Twenty-four-hour concentrations of 16 PAHs contained in PM1 and percentages of specific PAHs in the PAH sum at the traffic point (UT).
Figure 4. Twenty-four-hour concentrations of 16 PAHs contained in PM1 and percentages of specific PAHs in the PAH sum at the traffic point (UT).
Atmosphere 06 00001 g004
In the non-heating season in UT, RB and UB, there were high values of correlations between the concentrations of heavier PAHs (i.e., BghiP or DBA), which confirmed the dominant influence of the PAH emission from traffic sources [10,18,20,21]. It seems that due to the lack or to the significant reduction of emissions from other sources, traffic and industry (including energy production) were dominant sources of PAHs in the air of southern Poland. In the heating period (particularly in UB and UT), concentrations of most examined compounds were highly correlated. It is possible that the activity of numerous PAH sources was responsible for such a situation. In UB, these were mainly low emissions (coal and biomass combustion in home furnaces) and more intensive (than in summer) energy production (mainly based on the hard and brown coal combustion). In UT, the same sources were active; additionally, there was a strong influence of the traffic emission. In RB, mainly local and dispersed sources and the inflow of pollutants from other, more polluted regions, affected the air pollution with PAHs in both seasons [10,22,23].

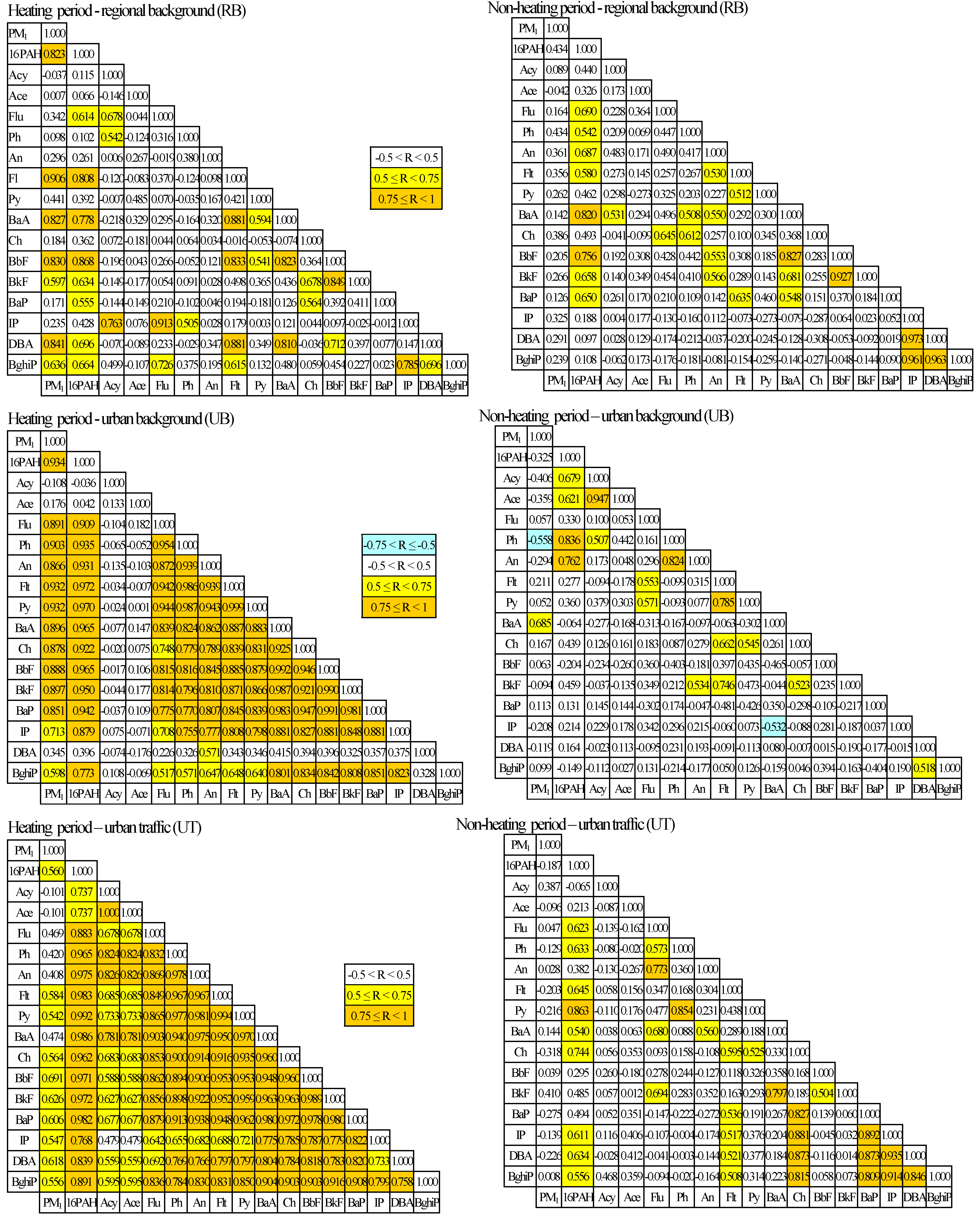

Figure 5. Correlation matrices for 24-h concentrations of PM1, sum of 16 PAHs and particular PAHs in two averaging periods for three locations in Silesia (Poland).
Figure 5. Correlation matrices for 24-h concentrations of PM1, sum of 16 PAHs and particular PAHs in two averaging periods for three locations in Silesia (Poland).
Atmosphere 06 00001 g005
It is worth taking into account the high BaP percentage in the concentration of 16 PAHs. For the examined areas and over the whole measurement period, it was 9%–13%. The ambient concentration of the PM10-bound BaP (BaP bound to particles not greater than 10 μm) has the limit that should not be exceeded; the yearly permissible ambient concentration of PM10-bound BaP is 1 ng∙m−3 [24,25]. Consequently, the mean PM1-bound BaP concentrations in RB, UB and UT were very high. The values were 3.24 ng∙m−3 (4.03 ng∙m−3—Heating season; 2.46 ng∙m−3—Non-heating season), 7.72 ng∙m−3 (12.48 ng∙m−3—Heating season; 2.97 ng∙m−3—Non-heating season) and 9.5 ng∙m−3 (14.27 ng∙m−3—Heating season; 4.73 ng∙m−3—Non-heating season) in RB, UB and UT, respectively. Such a finding shows that even though RB was located far away from the anthropogenic emission sources, the BaP and PM1-bound BaP concentrations exceeded the permissible level more than three times there. In UB in the densely developed and populated area, the permissible BaP value was exceeded nearly eight times, whereas the value was almost 10 times higher in UT. High BaP concentrations were observed both in the heating season and the remaining part of the year. Such a situation was not observed in other European regions even though the permissible mean yearly values were also exceeded in the Czech cities. Nonetheless, the PM1-bound BaP concentrations did not exceed 0.39 ng∙m−3 [14]. The research conducted at the roadside and urban background in Madrid (Spain) showed that the BaP concentration in winter was 0.24 ng∙m−3 and 0.054 ng∙m−3, respectively. In summer, the BaP concentrations observed in Madrid (Spain) were even lower [26]. On the other hand, the BaP concentrations as high as those observed in RB, UB and UT are typical for cities in southern Poland and are observed every year. For example, in the urban background in Zabrze (a city 15 km away from Katowice), the mean concentration of the PM1-bound BaP was 16 ng∙m−3 in winter 2007 [27].
Table 2 presents BaP concentrations and the following indicators of the exposure to the PAH mixture: carcinogenic equivalent (CEQ), mutagenic equivalent (MEQ), TCDD-toxic equivalent (TEQ), and percentages of seven PAHs determined in this study, whose carcinogenic influence was confirmed in the sum of the determined PAHs (∑PAHcarc/∑PAH). The way in which each indicator was calculated is given under the table. The values in the table were calculated with the results obtained in this study and additionally, results from other world regions taken from the publications quoted in Table 2 [6,10,14,26,28,29,30,31,32,33].
In the heating season, the mean CEQs for the whole monitoring period were 5.85 ng∙m−3 (range: 0.01–30.33 ng∙m−3)—RB; 18.46 ng∙m−3 (range: 5.78–51.93 ng∙m−3)—UB; and 106 ng∙m−3 (range: 19.36–303.78 ng∙m−3)—UT. They were unquestionably higher than the non-heating season values. It was particularly visible for UT, where CEQ was approx. seven times higher in the heating season than its mean value in the non-heating season.
In the European cities, the CEQ values were lower at the urban and background locations than in Złoty Potok or Katowice (Poland). The values obtained for Asian cities (e.g., Urumqi in China, and Chennai City and Delhi in India) were as high as or higher than those observed in Poland. The values observed for Urumqi and Chennai City in the urban area in winter were 43.18 ng∙m−3 and 20.72 ng∙m−3, respectively. The value for Chennai City was even higher in summer (44.29 ng∙m−3) with the BaP concentration of 25.6 ng∙m−3. On the other hand, the CEQ value did not exceed 1 ng∙m−3 in Madrid (Spain), Atlanta (USA), or Bumardas and Chréa (Algeria).
Table 2. Concentration values of BaP, CEQ, MEQ, TEQ and ∑PAHcarc/∑PAH for PM-bound PAHs in various world regions.
Table 2. Concentration values of BaP, CEQ, MEQ, TEQ and ∑PAHcarc/∑PAH for PM-bound PAHs in various world regions.
City, CountrySampling PointSampling PeriodBaPCEQMEQTEQ∑PAHcarc/∑PAHReference
ng∙m−3pg∙m−3
Złoty Potok, Poland 1regional backgroundheating season 2009/20104.035.854.877.360.52This study
Katowice, Poland 1urban background12.4818.4620.4791.950.56
traffic point14.27106.0029.54147.790.63
Złoty Potok, Poland 1regional backgroundnon-heating season 2009/20102.464.504.2913.800.50
Katowice, Poland 1urban background2.975.294.2313.710.59
traffic point4.7315.466.4520.420.55
Zabrze, Poland 1urban backgroundWinter 2007/200816.0925.0425.24116.030.66[6]
Zabrze, Poland 2crossroadsJune–August 20061.11.481.9010.290.48[10]
Ruda Śląska 2roadside0.31.570.876.620.84
Brno, Czech Republic 1large cityWinter 20091.395.353.199.650.55[14]
Winter 20102.828.715.8515.810.57
Summer 20090.353.170.842.740.58
Summer 20100.150.450.290.830.54
Šlapanice, Czech Republic 1small townWinter 20091.655.943.7210.630.67
Winter 20102.849.245.9816.560.58
Summer 20090.393.080.932.930.58
Summer 20100.150.350.270.790.57
Madrid, Spain 1roadsideWinter 20090.240.510.512.550.47[26]
urban background0.0540.120.110.620.56
roadsideSummer 20090.0340.120.090.430.47
urban background0.0220.100.050.260.57
Bumardas, Algeria 1urbanOctober 20060.1110.430.260.370.44[28]
Rouiba-Réghaia, Algeria 1industrial district0.2961.480.701.330.62
Chréa, Algeria 1forested mountains0.0180.110.040.080.39
Florence, Italy 2urban backgroundCold 2009–20100.472.720.995.390.78[29]
urban traffic1.05.432.1711.790.74
Livorno, Italy 2suburban background0.200.830.442.100.63
Florence, Italy 2urban backgroundWarm 2009–20100.0490.410.141.010.61
urban traffic0.211.540.543.470.60
Livorno, Italy 2suburban background0.020.090.070.370.46
Urumqi, China 2urbanWinter 2010/20112.2143.1813.3963.400.77[30]
Autumn 20100.5310.092.5612.770.93
Chennai City, India 2commercial regionWinter 2009/20106.513.4425.77111.220.31[31]
urban region8.120.7237.42136.130.28
residential region16.219.6824.2837.320.13
industrial region24.439.7858.52242.650.21
Chennai City, India 2commercial regionSummer 200910.316.8825.9679.580.29
urban region25.644.2977.37246.680.47
residential region6.213.8526.6494.190.39
industrial region8.538.3791.24516.480.33
Delhi, India 2traffic pointWinter 20079.928.9224.27125.430.67[32]
Summer 2007/20085.117.6410.6057.760.62
Atlanta, USA 2urbanApril–June 20040.040.100.120.480.47[33]
suburban-highway0.0660.150.180.660.51
rural0.0150.050.050.230.44
urbanOctober–December 20040.2650.530.592.270.64
suburban-highway0.4920.900.973.520.68
rural0.1990.480.462.120.70
1 PM1 2 PM2.5; CEQ = 0.001 × ([Na] + [Acy] + [Ace] + [Flu] + [Ph] + [Fl] + [Py]) + 0.01 × ([An] + [Ch] + [BghiP]) + 0.1 × ([BaA] + [BbF] + [BkF] + [IP]) + 1 × [BaP] + 5 × [DBA]; values of 0.001, 0.01, 0.1 and 1 are the so-called toxic equivalence factors (TEF) for specific PAHs, taken from the study [5]; MEQ = 0.00056 × [Acy] + 0.082 × [BaA] + 0.017 × [Ch] + 0.25 × [BbF] + 0.11 × [BkF] + 1 × [BaP] + 0.31 × [IP] + 0.29 × [DBA] + 0.19 × [BghiP]; values of 0.00056, 0.082, 0.017, 0.25, 0.11, 1, 0.31, 0.29, 0.19 and 0.01 are the so-called minimum mutagenic concentrations (MMC) for specific PAHs, taken from the study [2]; TEQ = 0.000025 × [BaA] + 0.00020 × [Ch] + 0.000354 × [BaP] + 0.00110 × [IP] + 0.00203 × [DBA] + 0.00253 × [BbF] + 0.00487 × [BkF]; values of 0.000025, 0.00020, 0.000354, 0.00110, 0.00203, 0.00253 and 0.00487 are the so-called. TCDD-TEF, i.e., toxic equivalency factor relative to 2,3,7,8-tetrachlorodibenzo-p-dioxin TCDD (for TCDD, TEF = 1.0) for specific PAHs, taken from the study [12]; ∑PAHcarc/∑PAH = ([BaA] + [BaP] + [BbF] + [BkF] + [Ch] + [DBA] + [IP])/([Acy] + [Ace] + [Flu] + [Ph] + [An] + [Fl] + [Py] + [BaA] + [Ch] + [BbF] + [BkF] + [BaP] + [DBA] + [BghiP] + [IP]).
In winter, the MEQ values in UB and UT were also high, i.e., 20.27 n∙m−3 (range: 6.61–55.21 ng∙m−3) and 29.54 ng∙m−3 (range: 4.55–89.13 ng∙m−3), respectively. Similar values were obtained in Zabrze (Poland), Chennai City (India) and Delhi (India). The calculated values were much lower in other locations, particularly in the European ones. For Polish locations, the MEQ values were always higher in the heating season. On the other hand, the MEQ values calculated in summer for Chennai City (India) in the urban and industrial regions were much higher than in winter, i.e. 77.37 ng∙m−3 and 91.24 ng∙m−3, respectively.
In the heating season, the CEQ and MEQ at UB were three to four times higher than the values observed at RB. The TEQ values were 12.5 times higher (UB—91.9 pg∙m−3; RB—7.4 pg∙m−3). At UT (heating season), TEQ was also high (147.8 pg∙m−3). A similar situation was observed in Chennai City (India), where TEQ values exceeded 200 pg∙m−3 and reached 516.5 pg∙m−3 in the industrial region. In the non-heating season in UB and UT, the mean TEQ values were definitely lower than in the heating season (RB was an exception). In general, the values were still higher than in the European locations.
The mean concentrations of seven carcinogenic PAHs [13] in the heating season were 4.2–4.5 times higher in UT and UB than in the non- heating season. For ∑PAHcarc/∑PAH, no significant visible seasonal change was observed at three Polish locations. In the heating season, only in UT was the indicator value slightly higher than in the non-heating season. For the remaining measurement points, the values were similar and ranged between 0.52 and 0.59. For most measurement points for which CEQ, MEQ and TEQ were calculated, the ∑PAHcarc/∑PAH ratio was 0.45–0.60 (Table 2). In the extreme cases, the observed values were 0.84 (roadside; Ruda Śląska, Poland), 0.77 and 0.93 (urban area; Urumqi, China), and 0.78 (urban background; Florence, Italy).
Extremely low values were seen in the research conducted by [31]. The ∑PAHcarc/∑PAH ratios differed from the remaining ones and were 0.13–0.47. The remaining indicators of the exposure to the PAH sum (CEQ, MEQ, TEQ and BaP concentration) were high in comparison to other locations.

4. Conclusions

The detailed analyses helped to reach the following conclusions:
  • over the whole measurement period, mean concentrations of the PM1-bound PAH sum and particular compounds within this group were high at each of the three selected points in Silesia; particularly high values were observed for the heating season;
  • concentrations of the sum of 16 PM1-related PAHs and BaP in the air in Silesia were higher than most values observed in other regions of the world; nonetheless, they did not differ from the concentrations measured in this area previously;
  • the highest concentrations of most PAHs were observed at UT point, both in the heating and in the non-heating seasons;
  • in the typical urban background area, mainly municipal emissions (burning coal, biomass, waste and rubbish in home furnaces) and energy production (mainly based on hard and brown coal combustion) influence PAH concentrations in the air; in the urban site located near highway, the same sources were active as in the urban background area; additionally, there was a strong influence of the traffic emission. In RB, mainly local and dispersed sources and the inflow of pollutants from other, more polluted regions, affected the air pollution with PAHs in both seasons;
  • high percentage of BaP in the PAH sum (9%–13%) and very high ambient concentrations of the PM1-bound BaP, particularly in the heating season (4–14 ng∙m−3), may pose a serious threat to the Silesia inhabitants; the risk does not only concern the residents of large cities and regions located close to important traffic emission sources, it also involves people who dwell in the “clean” areas far away from large urban agglomerations (regional/rural background);
  • in the heating season, the mean CEQs for the whole monitoring period were 5.85 ng∙m−3 in RB, 18.46 ng∙m−3 in UB, and 106 ng∙m−3 in UT; they were unquestionably higher than the non-heating season values and definitely higher than the values obtained in other European regions;
  • MEQ, TEQ and ∑PAHcarc/∑PAH, proposed by the authors as other indicators of the exposure to the PAH mixture, were very high in the Upper Silesian urban area when compared to other regions; the highest indicator values were observed in the heating season;
  • it may be suspected that in Central, Central-East and East Europe traffic is not the primary PAH source; the PM-bound PAHs come mainly from the fossil fuel combustion for heat and power production.

Acknowledgments

The work was partially supported by the Polish Ministry of Science and Higher Education (Grant No. N N523421037).

Author Contributions

The study was completed with cooperation between all authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nikolaou, K.; Masclet, P.; Mouvier, G. Sources and chemical reactivity of polynuclear aromatic hydrocarbons in the atmosphere—A critical review. Sci. Total Environ. 1984, 32, 103–132. [Google Scholar] [CrossRef]
  2. Durant, J.L.; Busby, W.F., Jr.; Lafleur, A.L.; Penman, B.W.; Crespi, C.L. Human cell mutagenicity of oxygenated, nitrated and unsubstituted polycyclic aromatic hydrocarbons associated with urban aerosols. Mutat. Res. Genetic Toxicol. 1996, 371, 123–157. [Google Scholar] [CrossRef]
  3. Saunders, C.R.; Ramesh, A.; Shockley, D.C. Modulation of neurotoxic behavior in F-344 rats by temporal disposition of benzo(a)pyrene. Toxicol. Lett. 2002, 129, 33–45. [Google Scholar] [CrossRef] [PubMed]
  4. Ravindra, K.; Sokhi, R.; van Grieken, R. Atmospheric polycyclic aromatic hydrocarbons: Source attribution, emission factors and regulation. Atmos. Environ. 2008, 42, 2895–2921. [Google Scholar] [CrossRef][Green Version]
  5. Nisbet, I.C.T.; LaGoy, P.K. Toxic Equivalency Factors (TEFs) for Polycyclic Aromatic Hydrocarbons (PAHs). Regul. Toxicol. Pharmacol. 1992, 16, 290–300. [Google Scholar] [CrossRef] [PubMed]
  6. Rogula-Kozłowska, W.; Kozielska, B.; Klejnowski, K. Concentration, origin and health hazard from fine particle-bound PAH at three characteristic sites in Southern Poland. Bull. Environ. Contam. Toxicol. 2013, 91, 349–355. [Google Scholar] [CrossRef] [PubMed]
  7. Majewski, G.; Kleniewska, M.; Brandyk, A. Seasonal variation of particulate matter mass concentration and content of metals. Pol. J. Environ. Stud. 2011, 20, 417–427. [Google Scholar]
  8. Rogula-Kozłowska, W.; Klejnowski, K.; Rogula-Kopiec, P.; Mathews, B.; Szopa, S. A study on the seasonal mass closure of ambient fine and coarse dusts in Zabrze, Poland. Bull. Environ. Contam. Toxicol. 2012, 88, 722–729. [Google Scholar] [CrossRef] [PubMed]
  9. Kozielska, B.; Rogula-Kozłowska, W.; Pastuszka, J.S. Traffic emission effects on ambient air pollution by PM2.5-related PAH in Upper Silesia, Poland. Int. J. Environ. Pollut. 2013, 53, 245–264. [Google Scholar]
  10. Rogula-Kozłowska, W.; Klejnowski, K.; Rogula-Kopiec, P.; Ośródka, L.; Krajny, E.; Błaszczak, B.; Mathews, B. Spatial and seasonal variability of the mass concentration and chemical composition of PM2.5 in Poland. Air Qual. Atmos. Health 2014, 7, 41–58. [Google Scholar] [CrossRef] [PubMed]
  11. Viana, M.; Kuhlbusch, T.A.J.; Querol, X.; Alastuey, A.; Harrison, R.M.; Hopke, P.K.; Winiwarter, W.; Vallius, M.; Szidat, S.; Prévôt, A.S.H.; et al. Source apportionment of particulate matter in Europe: A review of methods and results. J. Aerosol. Sci. 2008, 39, 827–849. [Google Scholar] [CrossRef]
  12. Willett, K.L.; Gardinali, P.R.; Sericano, J.L.; Wade, T.L.; Safe, S.H. Characterization of the H4IIE rat hepatoma cell bioassay for evaluation of environmental samples containing Polynuclear Aromatic Hydrocarbons (PAHs). Arch. Environ. Contam. Toxicol. 1997, 32, 442–448. [Google Scholar] [CrossRef] [PubMed]
  13. USEPA (Environmental Protection Agency). Polycyclic Aromatic Hydrocarbons (PAHs)—EPA Fact Sheet; National Center for Environmental Assessment, Office of Research and Development: Washington, DC, USA, 2008.
  14. Křůmal, K.; Mikuška, P.; Večeřa, Z. Polycyclic aromatic hydrocarbons and hopanes in PM1 aerosols in urban areas. Atmos. Environ. 2013, 67, 27–37. [Google Scholar] [CrossRef]
  15. Perrone, M.R.; Dinoi, A.; Becagli, S.; Udisti, R. Chemical composition of PM1 and PM2.5 at a suburban site in southern Italy. Int. J. Environ. Anal. Chem. 2014, 94, 127–150. [Google Scholar] [CrossRef]
  16. Gholampour, A.; Nabizadeh, R.; Yunesian, M.; Naseri, S.; Taghipour, H.; Rastkari, N.; Nazmara, S.; Mahvi, A.H. Physicochemical characterization of ambient air particulate matter in Tabriz, Iran. Bull. Environ. Contam. Toxicol. 2014, 92, 738–744. [Google Scholar] [CrossRef] [PubMed]
  17. Shi, Y.; Chen, J.; Hu, D.; Wang, L.; Yang, X.; Wang, X. Airborne submicron particulate (PM1) pollution in Shanghai, China: Chemical variability, formation/dissociation of associated semi-volatile components and the impacts on visibility. Sci. Total Environ. 2014, 473–474, 199–206. [Google Scholar] [CrossRef] [PubMed]
  18. Duan, J.; Tan, J.; Wang, S.; Chai, F.; He, K.; Hao, J. Roadside, urban, and rural comparison of size distribution characteristics of PAHs and carbonaceous components of Beijing, China. J. Atmos. Chem. 2012, 69, 337–349. [Google Scholar] [CrossRef]
  19. Pachauri, T.; Satsangi, A.; Singla, V.; Lakhani, A.; Maharaj Kumari, K. Characteristics and sources of carbonaceous aerosols in PM2.5 during wintertime in Agra, India. Aerosol Air Qual. Res. 2013, 13, 977–991. [Google Scholar]
  20. Hassan, S.K.; Khoder, M.I. Gas-particle concentration, distribution, and health risk assessment of polycyclic aromatic hydrocarbons at a traffic area of Giza, Egypt. Environ. Monit. Assess. 2012, 184, 3593–3612. [Google Scholar] [CrossRef] [PubMed]
  21. Šišović, A.; Pehnec, G.; Jakovljević, I.; Šilović Hujić, M.; Vacrossed D Signić, V.; Bešlić, I. Polycyclic aromatic hydrocarbons at different crossroads in Zagreb, Croatia. Bull. Environ. Contam. Toxicol. 2012, 88, 438–442. [Google Scholar] [CrossRef] [PubMed]
  22. Tang, N.; Hattori, T.; Taga, R.; Igarashi, K.; Yang, X.; Tamura, K.; Kakimoto, H.; Mishukov, V.F.; Toriba, A.; Kizu, R.; et al. Polycyclic aromatic hydrocarbons and nitropolycyclic aromatic hydrocarbons in urban air particulates and their relationship to emission sources in the Pan-Japan Sea countries. Atmos. Environ. 2005, 39, 5817–5826. [Google Scholar] [CrossRef]
  23. Kuo, C.-Y.; Chien, P.-S.; Kuo, W.-C.; Wei, C.-T.; Rau, J.-Y. Comparison of polycyclic aromatic hydrocarbon emissions on gasoline- and diesel-dominated routes. Environ. Monit. Assess. 2013, 185, 5749–5761. [Google Scholar] [CrossRef] [PubMed]
  24. WHO. Air Quality Guidelines for Europe; World Health Organization Regional Office for Europe: Copenhagen, Denmark, 2000. [Google Scholar]
  25. EC. Council Directive 2004/107/EC Relating to Arsenic, Cadmium, Mercury, Nickel and Polycyclic Aromatic Hydrocarbons in Ambient Air. Available online: http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2005:023:0003:0016:EN:PDF (accessed on 17 December 2014).
  26. Mirante, F.; Alves, C.; Pio, C.; Pindado, O.; Perez, R.; Revuelta, M.A.; Artiñano, B. Organic composition of size segregated atmospheric particulate matter, during summer and winter sampling campaigns at representative sites in Madrid, Spain. Atmos. Res. 2013, 132–133, 345–361. [Google Scholar] [CrossRef]
  27. Rogula-Kozłowska, W.; Kozielska, B.; Błaszczak, B.; Klejnowski, K. The mass distribution of particle-bound PAH among aerosol fractions: A case-study of an urban area in Poland. In Organic Pollutants Ten Years after the Stockholm Convention—Environmental and Analytical Update; Puzyn, T., Mostrag-Szlichtyng, A., Eds.; InTech: Rijeka, Croatia, 2012; pp. 163–190. [Google Scholar]
  28. Ladji, R.; Yassa, N.; Balducci, C.; Cecinato, A.; Meklati, B.Y. Distribution of the solvent-extractable organic compounds in fine (PM1) and coarse (PM1–10) particles in urban, industrial and forest atmospheres on Northern Algeria. Sci. Total Environ. 2009, 409, 415–424. [Google Scholar] [CrossRef]
  29. Martellini, T.; Giannoni, M.; Lepri, L.; Katsoyiannis, A.; Cincinelli, A. One year intensive PM2.5 bound polycyclic aromatic hydrocarbons monitoring in the area of Tuscany, Italy. Concentrations, source understanding and implications. Environ. Pollut. 2012, 164, 252–258. [Google Scholar] [CrossRef] [PubMed]
  30. Da Limu, Y.L.M.A.B.; LiFu, D.L.N.T.; Miti, A.B.L.Y.; Wang, X.; Ding, X. Autumn and wintertime polycyclic aromatic hydrocarbons in PM2.5 and PM2.5–10 from Urumqi, China. Aerosol Air Qual. Res. 2013, 13, 407–414. [Google Scholar]
  31. Mohanraj, R.; Solaraj, G.; Dhanakumar, S. Fine particulate phase PAHs in ambient atmosphere of Chennai metropolitan city, India. Environ. Sci. Pollut. Res. 2011, 18, 764–771. [Google Scholar] [CrossRef]
  32. Singh, D.P.; Gadi, R.; Mandal, T.K. Characterization of particulate-bound polycyclic aromatic hydrocarbons and trace metals composition of urban air in Delhi, India. Atmos. Environ. 2011, 45, 7653–7663. [Google Scholar] [CrossRef]
  33. Li, Z.; Porter, E.N.; Sjödin, A.; Needham, L.L.; Lee, S.; Russell, A.G.; Mulholland, J.A. Characterization of PM2.5-bound polycyclic aromatic hydrocarbons in Atlanta-Seasonal variations at urban, suburban, and rural ambient air monitoring sites. Atmos. Environ. 2009, 43, 4187–4193. [Google Scholar] [CrossRef]
Back to TopTop
