Article

Enhancing Maritime Navigation: A Global Navigation Satellite System (GNSS) Signal Quality Monitoring System for the North-Western Black Sea

by
Petrica Popov
*,
Maria Emanuela Mihailov
*,
Lucian Dutu
and
Dumitru Andrescu
Maritime Hydrographic Directorate “Comandor Alexandru Catuneanu”, Fulgerului Street No. 1, 900218 Constanta, Romania
*
Authors to whom correspondence should be addressed.
Atmosphere 2025, 16(5), 500; https://doi.org/10.3390/atmos16050500
Submission received: 13 March 2025 / Revised: 22 April 2025 / Accepted: 23 April 2025 / Published: 26 April 2025
(This article belongs to the Section Atmospheric Techniques, Instruments, and Modeling)

Abstract

:
Global Navigation Satellite Systems (GNSSs) are the primary source of information for Positioning, Navigation, and Timing (PNT) in the maritime sector; however, they are vulnerable to unintentional or deliberate interference, such as jamming, spoofing, or meaconing. The continuous monitoring of GNSS signals is crucial for vessels and mobile maritime platforms to ensure the integrity, availability, and accuracy of positioning and navigation services. This monitoring is essential for guaranteeing the safety and security of navigation and contributes to the accurate positioning of vessels and platforms involved in hydrographic and oceanographic research. This paper presents the implementation of a complex system for monitoring the quality of signals within the GNSS spectrum at the Maritime Hydrographic Directorate (MHD). The system provides real-time analysis of signal parameters from various GNSSs, enabling alerts in critical situations and generating statistics and reports. It comprises four permanent stations equipped with state-of-the-art GNSS receivers, which integrate a spectrum analyzer and store raw data for post-processing. The system also includes software for monitoring the GNSS spectrum, detecting interference events, and visualizing signal quality data. Implemented using a Docker-based platform to enable efficient management and distribution, the software architecture consists of a reverse proxy, message broker, front-end, authorization service, GNSS orchestrator, and GNSS monitoring module. This system enhances the quality of command, control, communications, and intelligence decisions for planning and execution. It has demonstrated a high success rate in detecting and localizing jamming and spoofing events, thereby improving maritime situational awareness and navigational safety. Future development could involve installing dedicated stations to locate interference sources.

1. Introduction

Global Navigation Satellite Systems (GNSSs) provide essential Positioning, Navigation, and Timing (PNT) information across various sectors, including high-precision maritime applications. These systems, encompassing global (GNSS) and regional (RNSS) configurations, rely on satellite-transmitted radio signals for precise location and time determination. However, GNSS signal quality is susceptible to various threats and influencing factors, necessitating robust monitoring systems, as discussed in the following sections.
One of the foremost challenges for Assured PNT (APNT) solutions users is the threat to GNSS RF signals, particularly in environments completely denied, disrupted, intermittent, or limited (Denied/Disrupted/Intermittent/Limited). These conditions are commonly encountered in conflict zones but also in coastal maritime areas, such as the Black Sea and the Mediterranean Sea, where commercial and military activities create a congested RF environment [1].
Any disruption to GNSS signal transmission can lead to a partial or complete loss of the PNT solution, meaning that navigation (whether by car, aircraft, or vessel) occurs without geo-referencing. Typically, the fundamental tasks of GNSS receivers are to receive and separate satellite signals, calculate pseudo-ranges for each satellite based on the signal reception time, demodulate the navigation message to obtain ephemeris data, and finally estimate the PVT solution. In this context, GNSS signal threats, whether unintentional or intentional, can cause signal denial or falsification. Intentional transmission of interference signals within the GNSS frequency spectrum is known as jamming.
Spoofing involves deliberately transmitting false GNSS signals to a receiver, causing it to compute an incorrect position and leading the user to believe they are in a different location or time than they are [2]. This type of threat is a significant concern in safety-critical applications across all industries, whether commercial or military, that rely on precise PNT solutions [3]. From the user’s perspective, the distinguishing factor between the two types of GNSS interference—jamming and spoofing—is their effect on the receiver’s ability to provide a PNT solution.
GNSS jamming disrupts positioning, navigation, and timing (PNT) by overpowering the genuine GNSS signal, causing loss. Spoofing, conversely, feeds the receiver false PNT data, leading to incorrect location information. Spoofing is a more serious threat to GNSS users due to its deceptive nature. While both jamming and spoofing disrupt GNSS, the methods and tools used to carry them out differ.
Although illegal in most cases, very-low-power jamming can be carried out using devices known as PPDs (personal privacy devices), which can be purchased online and used for this purpose. Even simple, low-power jamming can effectively disrupt real/authentic GNSS signals over a relatively large area [4]. However, the effectiveness of these GNSS applications, particularly in critical maritime operations within the Black Sea, is threatened by several factors. Therefore, the effectiveness of jamming primarily depends on its transmission power and range (i.e., the distance to the target receiver). A nearby low-power jammer could have the same effect as a high-power jammer transmitting from a much greater distance. Other characteristics of jamming include the frequency bands in which it is emitted (narrowband or wideband) and whether the signal is transmitted as a continuous wave (either on a selected frequency or across multiple frequencies in a spectrum) or as pulsed signals at a lower power level (chirping) [5].
The threats to GNSS signals, namely jamming and spoofing, represent only one category of factors that can degrade the accuracy and reliability of GNSS-based positioning. Atmospheric phenomena also play a significant role in GNSS signal propagation and must be carefully considered in any comprehensive GNSS monitoring system. The following sections will discuss the impact of these atmospheric effects, highlighting their relevance to the Black Sea region.
Maintaining the same focus on the quality and integrity of GNSS signals, the impact of atmospheric effects is a significant factor that can lead to errors in positioning and timing solutions. Two primary atmospheric phenomena that impact GNSS signal propagation are ionospheric scintillation and tropospheric delays. While users of Assured Positioning, Navigation, and Timing (APNT) solutions, particularly in military and safety-critical applications, have the most stringent requirements for GNSS signal integrity and are, therefore, a key focus when discussing GNSS vulnerabilities, it is important to emphasize that all GNSS users can be affected by interference. Ionospheric scintillation, for example, occurs due to irregularities in the ionosphere, which can cause rapid fluctuations in the amplitude and phase of GNSS signals. This phenomenon is particularly pronounced during periods of high solar activity, when the total electron content (TEC) in the ionosphere increases, resulting in more significant signal degradation [6]. Jamming and spoofing, although potentially more targeted in specific scenarios, can also disrupt GNSS signals for civilian users, resulting in navigation errors or a complete loss of positioning. Research indicates that scintillation can lead to positioning errors exceeding 10 m, especially for low-elevation satellites, which are more susceptible to these disturbances. Furthermore, monitoring ionospheric conditions is essential to mitigate these effects effectively.
Tropospheric delays arise from the interaction of GNSS signals with the neutral atmosphere, which consists of water vapour, temperature, and pressure variations. The troposphere can introduce delays of up to 2.6 m in the zenith direction, significantly affecting GNSS positioning accuracy [7]. The complexities of modelling tropospheric delays are well-documented, noting that variations in atmospheric conditions can lead to substantial errors in GNSS measurements.
Specifically, for the Black Sea region, monitoring Global Navigation Satellite System (GNSS) signal quality poses specific challenges due to geographical and environmental features.
To understand the factors affecting GNSS signal quality in the Black Sea region, it is essential to consider both atmospheric and interference effects and the specific applications of GNSS technology in this environment. One such application that is particularly relevant is the use of GNSS Interferometric Reflectometry (GNSS-IR) for monitoring sea levels. GNSS-IR utilizes reflected GNSS signals to derive information about the Earth’s surface, including sea level. Therefore, understanding the factors that affect the quality of both direct and reflected GNSS signals is crucial. While this paper focuses on a GNSS signal quality monitoring system designed to detect interference, the discussion of GNSS-IR provides essential context for the broader challenges of ensuring reliable GNSS positioning in the Black Sea.
One of the primary applications of GNSS technology in the Black Sea is monitoring sea level changes. For instance, Avsar and Kutoğlu (2020) utilized data from six GNSS stations near tide gauges to assess vertical land movements and seasonal sea level variations [8]. Their findings indicated significant vertical land movements at specific tide gauge locations, which is crucial for understanding the region’s relative sea-level changes. This highlights the importance of accurate GNSS data for coastal monitoring applications.
The GNSS Interferometric Reflectometry (GNSS-IR) technique has emerged as a promising continuous sea-level monitoring method. Peng et al. (2019) highlighted the advantages of GNSS-IR in providing weather-independent sea level information while simultaneously detecting vertical land motions [9]. A critical consideration in GNSS signal quality monitoring, particularly for applications such as GNSS-IR, is the potential difference in received signal power between direct and reflected signals. As GNSS-IR relies on reflected signals, which are inherently weaker, the system’s sensitivity to interference becomes a key concern. The monitoring system employed in this study utilizes a receiver with a high dynamic range, enabling it to effectively capture and analyze both direct and reflected signals within the same power spectrum.
The analysis of the power difference between direct and reflected signals in the Black Sea region indicates that distinct interference detection thresholds may not be essential. The existing literature provides substantial evidence regarding the power characteristics of GNSS signals, highlighting that the power levels of reflected signals tend to be lower than those of direct signals. For example, Larson et al. observed that the reflected GNSS signals maintained an approximately 3 dB lower signal-to-noise ratio (SNR) than direct signals in their study on coastal sea-level measurements using a single geodetic GPS receiver, which suggests that these power levels are comparable enough not to warrant separate thresholds for interference detection [10]. This is pivotal since the core principle in GNSS Reflectometry (GNSS-R) is the ability to measure the time delay between the direct and reflected signals, which operate effectively as long as the SNR remains sufficiently high [11]. However, further investigation into optimizing interference detection thresholds for GNSS-IR applications in diverse maritime environments remains a valuable area for future research.
This technique utilizes reflected GNSS signals to estimate sea level changes, making it particularly valuable in coastal areas where environmental conditions may hinder traditional measurement methods. The application of GNSS-IR in the Black Sea context is further supported by studies that demonstrate its effectiveness in detecting storm surges and other hydrodynamic phenomena [9].
Moreover, the integration of GNSS data with numerical models has proven to be beneficial for understanding the dynamics of the Black Sea. For instance, Dorofeyev and Sukhikh (2017) employed atmospheric forcing functions in their modelling of Black Sea circulation dynamics, revealing the influence of various environmental factors on hydrophysical fields [12]. This modelling approach, combined with GNSS observations, enhances the understanding of long-term changes in the Black Sea’s hydrodynamics, essential for effective maritime navigation and environmental management.
The quality of GNSS signals can be significantly affected by multipath effects and environmental conditions, particularly in maritime settings. Research by Wang et al. (2018) indicates that the use of dual-frequency GNSS signals can mitigate some of these issues, leading to improved sea level estimation accuracy [13]. These studies highlight the importance of signal quality monitoring in ensuring the reliability of GNSS applications, particularly in the context of rising sea levels and coastal management in the Black Sea region.
While the preceding discussion has highlighted the diverse applications of GNSS technology in the Black Sea, it is essential to recognize that a complex interplay of factors affects the accuracy and reliability of GNSS signals in this region. These include atmospheric effects, unique oceanographic conditions, and unintentional and intentional interference sources. The subsequent sections will delve into these challenges, providing a comprehensive overview of the factors affecting GNSS signal quality in the Black Sea.
In addition to sea level monitoring, GNSS technology is increasingly being applied to assess wave energy potential in the Black Sea. Rusu (2015) conducted a comprehensive assessment of wave energy based on a 15-year hindcast, utilizing GNSS data to identify relevant energetic features and patterns [14]. This research highlights the potential for GNSS technology to contribute to renewable energy assessments in the region, which is particularly relevant given the growing interest in sustainable energy sources. The impact of environmental factors on GNSS signal quality is also a critical area of investigation. Studies have shown that atmospheric conditions, such as humidity and temperature variations, can introduce errors in GNSS measurements [15,16].
Advanced algorithms and machine learning techniques are gaining traction in GNSS signal quality monitoring. Recent research has demonstrated the effectiveness of these approaches in enhancing the accuracy of sea surface wind speed retrieval and other geophysical parameters [17]. It is also important to note that while jamming and spoofing are distinct forms of interference, they can sometimes be executed using similar tools, such as software-defined radios (SDRs). SDRs offer the flexibility to generate and transmit a wide range of radio signals, making them adaptable for jamming and spoofing purposes.
As the challenges posed by climate change and human activities continue to evolve, the role of GNSS technology in understanding and managing the Black Sea’s dynamic environment will become increasingly important.
Extensive research has examined the various factors that deteriorate GNSS signal quality. Several investigations have focused on characterizing atmospheric impairments, including analyses of ionospheric scintillations and associated delay models, as well as tropospheric delay effects, which are critical for understanding signal degradation [18,19]. In parallel, the development and deployment of dedicated monitoring networks, exemplified by the GNSS Finland Service, have demonstrated the value of continuous reference station data and real-time corrections in evaluating GNSS performance under coastal conditions [20]. These initiatives have provided extensive datasets that validate innovative techniques, such as GNSS interferometric reflectometry (GNSS-IR), for coastal sea-level monitoring and beyond [21].
Despite these significant advances, the literature reveals a persistent gap in developing integrated, multi-station systems capable of simultaneously analyzing atmospheric and oceanographic parameters in real-time. While prior studies have individually addressed the atmospheric challenges—emphasizing phenomena such as scintillation and delay modelling—and the oceanographic influences—through sea-level multipath and coastal refraction effects [18,21] —a holistic approach combining these factors has yet to be fully implemented. Recent comparative analyses between GNSS-derived sea-level measurements and traditional tide gauge data have reinforced that these techniques provide complementary insights into tidal dynamics and sea-level changes, enhancing our understanding of climate variability [19,22].
Additionally, operational practises established through the GNSS Finland initiative provide a valuable blueprint for extending integrated approaches to coastal regions, such as the Black Sea [20]. Comparative investigations have shown that GNSS-derived sea-level measurements are consistent with conventional tide gauge data and contribute additional perspectives on tidal asymmetry and coastal refraction effects [21,22]. Beyond sea-level assessment, the GNSS Finland Service has successfully expanded the scope of GNSS applications to include remote sensing tasks such as soil moisture estimation and vegetation cover monitoring. Studies employing GNSS interferometric reflectometry in these domains have demonstrated that such techniques can seamlessly incorporate into routine monitoring frameworks, broadening environmental remote sensing applications without introducing significant processing complexity [23].
Furthermore, while pulsed signals (commonly referred to as “chirping”) are one method for jamming, it is important to note that broadband jamming via alternative modulation techniques can also severely disrupt GNSS signals across a wide frequency range. This highlights the need for systems that enable real-time interference detection and signal quality analysis across multiple stations, particularly in the challenging maritime environment of the Black Sea [20]. The present study introduces a novel multi-station monitoring system that integrates atmospheric parameters, including ionospheric and tropospheric conditions, with oceanographic influences such as sea surface multipath and coastal refraction. This integrated approach enhances the reliability of GNSS-based applications in coastal regions and improves our overall capability to develop real-time mitigation strategies for interference sources [21,22].
The effectiveness of GNSS applications, particularly in critical maritime operations within the Black Sea, is threatened by several factors. Current Global Navigation Satellite Systems (GNSSs) consist of various satellite positioning configurations that provide global or regional coverage. The radio frequency (RF) signals transmitted by GNSS satellites are essential for PNT (Positioning, Navigation, and Timing) across multiple industries and in the military domain, including land, air, and maritime applications, many of which require high precision and reliability.

2. Materials and Methods

2.1. GNSS Jamming Analysis

The increasing reliance on Global Navigation Satellite Systems (GNSSs) for critical infrastructure and applications has heightened concerns about their vulnerability to intentional or unintentional interference, known as jamming. GNSS jamming can disrupt the reception of GNSS signals, leading to positioning errors, loss of accuracy, and even complete denial of service. Understanding the characteristics and patterns of GNSS jamming is crucial for developing effective mitigation techniques and ensuring the resilience of GNSS-based systems.
To effectively address the challenges posed by GNSS jamming, it is essential to develop robust analysis techniques, as detailed in the following subsections. This section will detail the methodologies used to analyze GNSS jamming incidents, focusing on data collection, processing, and visualization techniques. It will describe the sources of jamming data, the methods used to process and filter the data, and the visualization techniques employed to represent the spatial and temporal distribution of jamming activities. The analysis will leverage data from various sources, including online jamming incident reports, GNSS monitoring networks, and satellite-based observations.

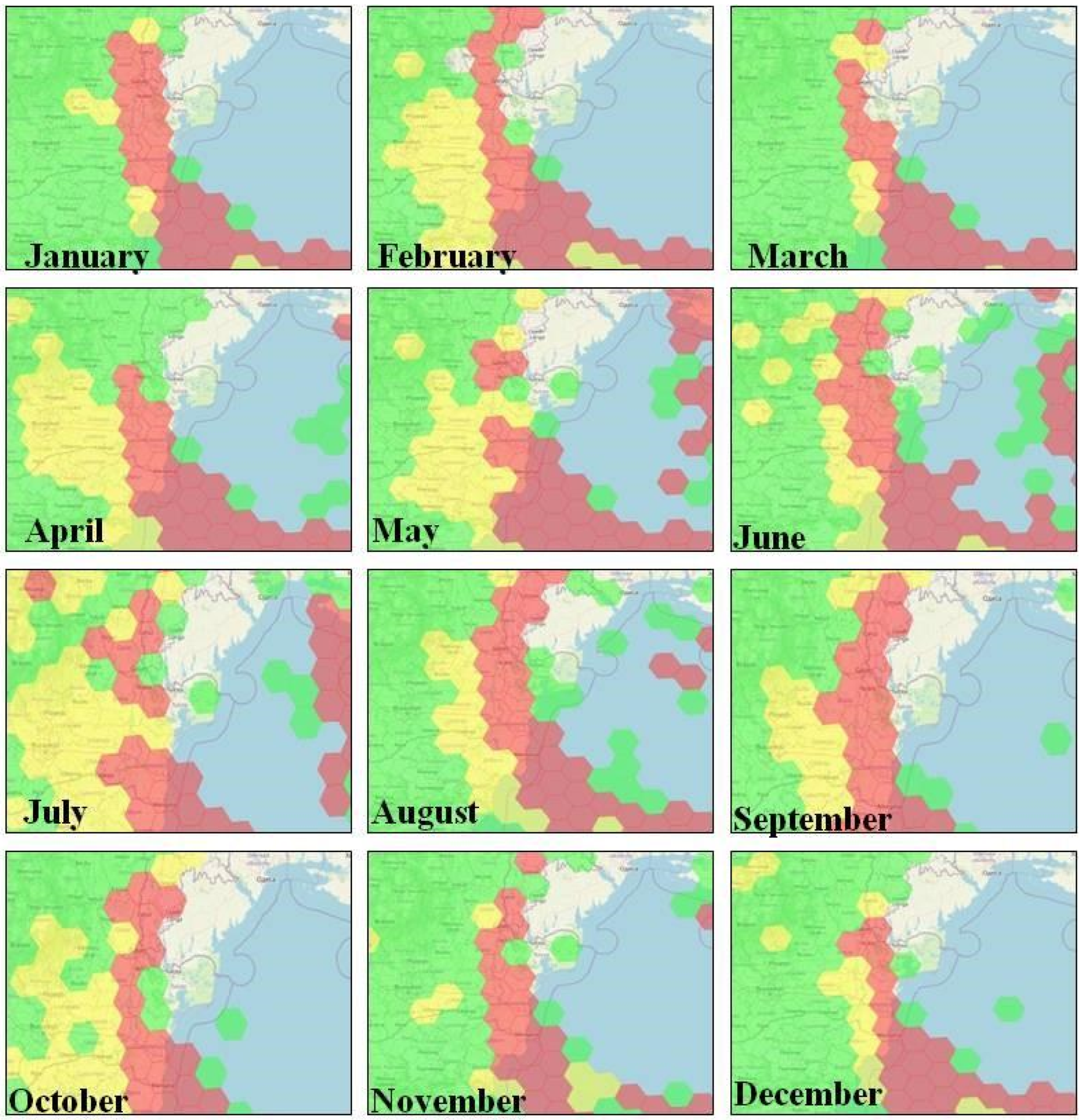

Figure 1, derived from data from [24], presents a monthly overview of GNSS jamming incidents detected by commercial aircraft GNSS receivers over the Romanian coastline in the L1/E1 frequency band throughout the year 2024. These monthly maps reveal both spatial and temporal patterns in jamming activity. Spatially, the data suggest a concentration of jamming incidents along specific stretches of the coastline, particularly in the southern regions. This indicates the possibility of localized jamming sources or activities that are more prevalent in these areas. In contrast, other coastal areas experience less frequent or intense jamming, as indicated by the varying colour codes on the maps.
Temporally, the monthly progression reveals fluctuations in jamming frequency and intensity. Some months show widespread jamming affecting a significant portion of the coastline (e.g., March, June, August), suggesting periods of heightened jamming activity. In other months, the jamming appears to be more intermittent or confined to smaller areas (e.g., April, May, and October), indicating variations in the nature and extent of the interference.
It is important to note that aircraft-based detection, as shown in Figure 1, provides a broader perspective on jamming events due to the high altitude and extended line of sight of aircraft GNSS receivers. This contrasts with ground-based monitoring systems, which typically have a more limited detection range. Consequently, this allows aircraft to detect jamming signals from greater distances, potentially including sources beyond the immediate coastal area, providing valuable regional context. In contrast, fixed ground stations have a more limited detection range, primarily capturing interference in their vicinity. Nevertheless, the broader jamming patterns observed from aircraft provide valuable regional context for interpreting the localized interference events detected by the ground-based monitoring system, aiding in assessing the overall threat level to maritime navigation.
Existing GNSS monitoring solutions include terrestrial networks (e.g., IGS) with anomaly detection and satellite-based augmentation systems (SBASs) like EGNOS and WAAS, which enhance GNSS accuracy and integrity. Emerging trends involve AI-based spoofing detection and hybrid infrastructure development. Next-generation user devices are also gaining interference detection capabilities.

2.2. Experimental Setup

This section details the experimental setup of the GNSS signal quality monitoring system, focusing on the scientific rationale behind its operational parameters and functions. The system is designed to continuously monitor GNSS signals and detect potential interference events, with specific functions activated based on predefined thresholds and conditions. The system’s interference detection capabilities are primarily driven by real-time analysis of signal power, spectral characteristics, and signal-to-noise ratio (SNR). For instance, the wideband interference (WBI) mitigation system is automatically engaged when the received signal power exceeds a predetermined threshold, indicating the presence of potential wideband interference. This threshold is dynamically adjusted based on background noise levels to minimize false positives while ensuring effective interference mitigation. Similarly, narrowband interference detection triggers the activation of notch filters when spectral analysis reveals distinct peaks exceeding a defined amplitude within specific frequency bands, suggesting the presence of jamming signals.
These functions’ specific thresholds and activation criteria are determined through manufacturer specifications, empirical testing, and established signal processing techniques to optimize detection accuracy and responsiveness. These parameters are crucial for accurately identifying and classifying interference events, which the system reports and logs. The system’s design primarily focuses on direct GNSS signals when applying these levels and thresholds to GNSS-IR. While the receiver’s high dynamic range allows for capturing both direct and reflected signals, the current interference detection mechanisms are optimized for direct signal characteristics. Further research is needed to investigate the specific requirements for GNSS-IR signal monitoring and whether separate thresholds or algorithms are necessary to account for the unique properties of reflected signals.

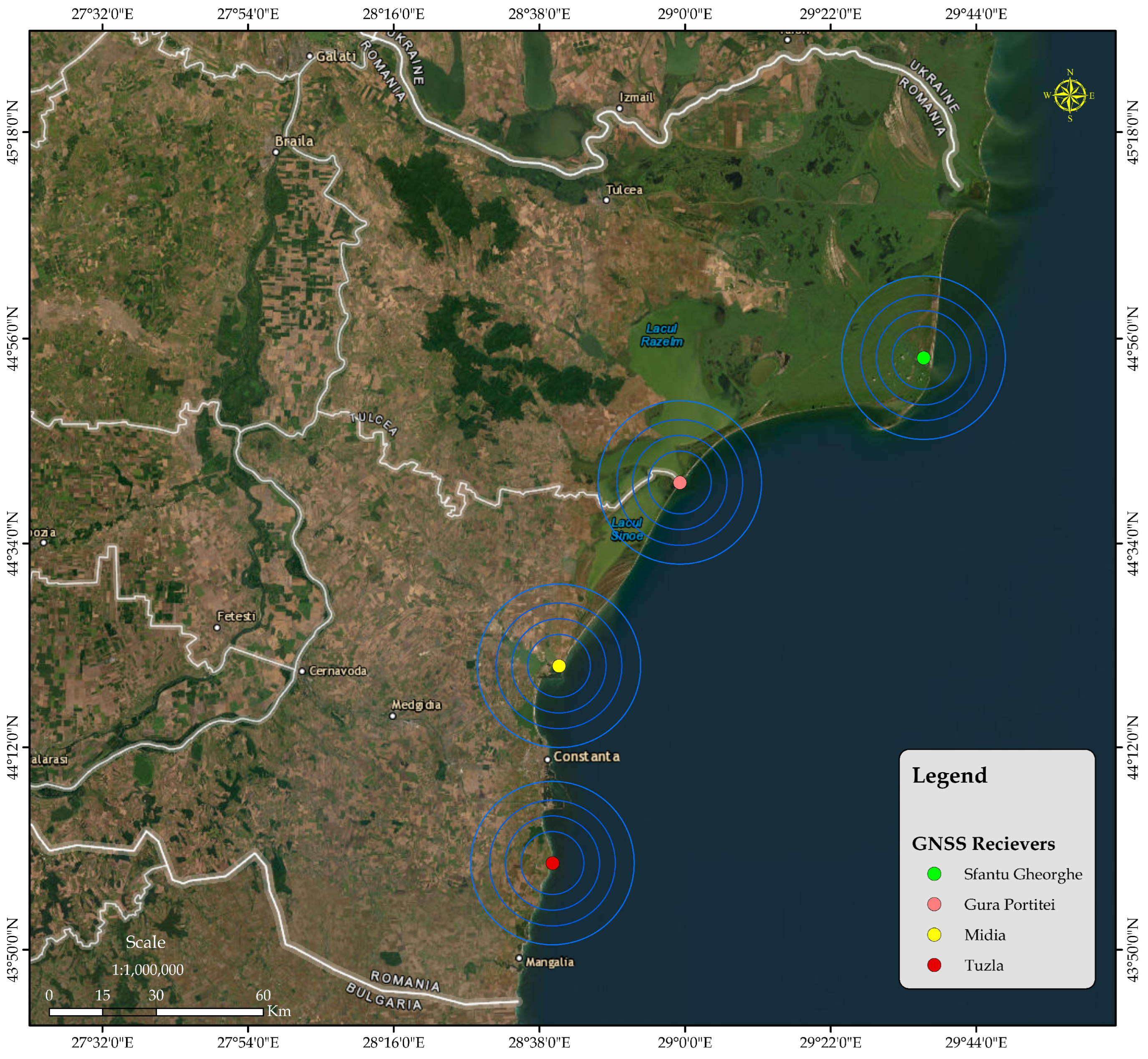

The Maritime Hydrographic Directorate (DHM) [25] currently operates four permanent stations that provide DGPS and RTK corrections, located near the lighthouses of Sfântu Gheorghe (DHMS), Gura Portiței (DHMG), Midia (DHMM), and Tuzla (DHMT). Figure 2 presents the positioning of GNSS receivers within the monitoring system. The primary role of these permanent stations is to transmit RTK (Real-Time Kinematics) corrections via UHF to offshore vessels, enabling them to reduce positioning errors to less than 10 cm.
In addition to this capability, the permanent stations are equipped with state-of-the-art Septentrio (Leuven, Belgium) PolaRx5e GNSS receivers, which integrate a spectrum analyzer and can store raw data for post-processing. This allows for recalculating positioning solutions using different combinations of GNSS constellations and frequencies. Additionally, these stations enable the determination of key performance parameters of global positioning systems, such as availability, continuity, and accuracy.

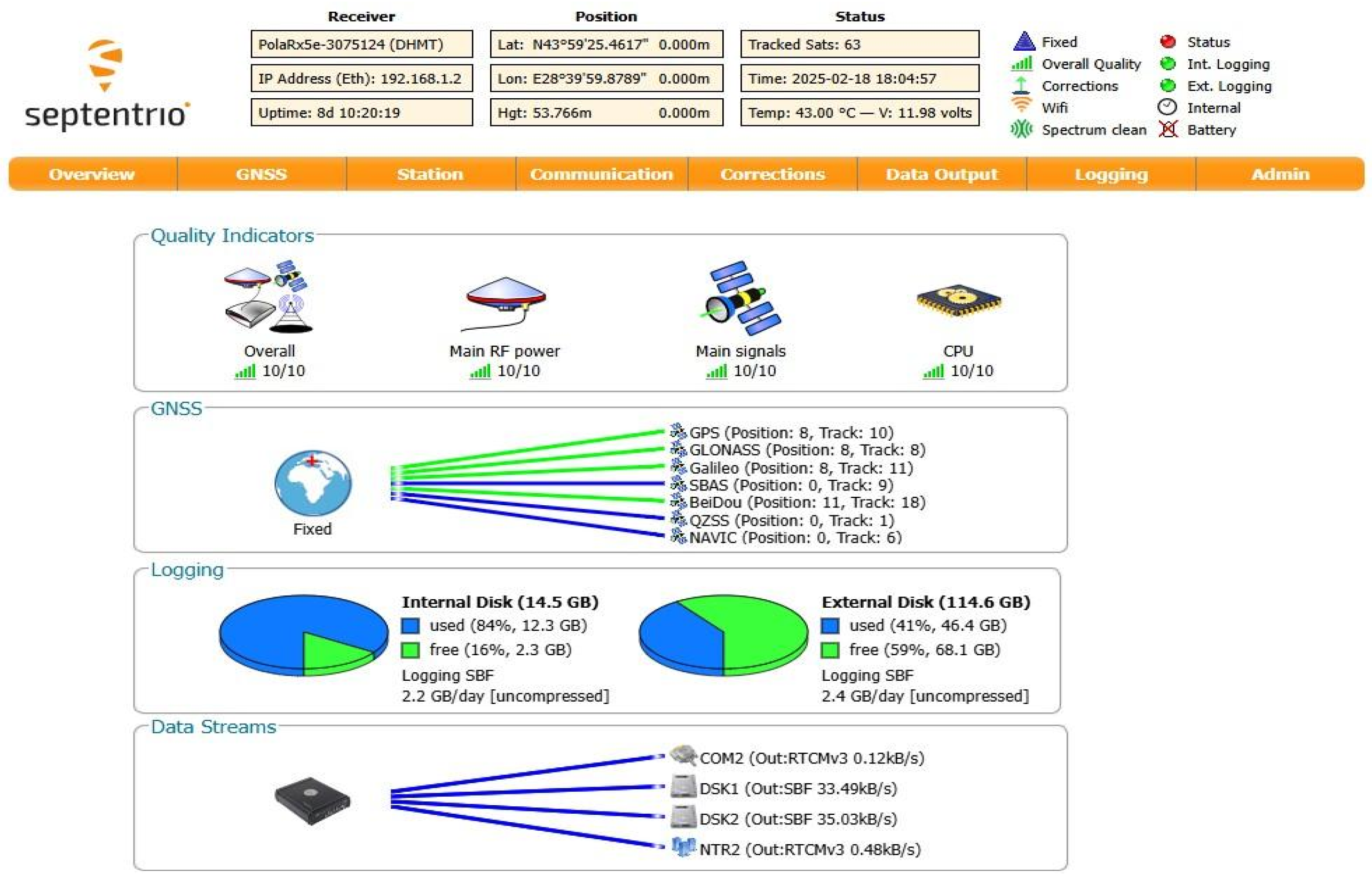

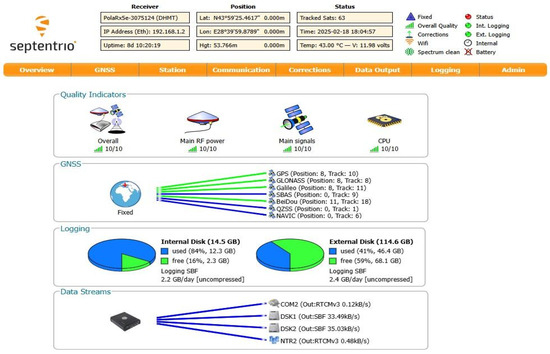

Figure 3 shows the receiver’s web interface, which provides information on receiver status, satellite tracking, and logging. The system is configured to log raw data for post-processing and real-time interference analysis.
Regarding interference detection and mitigation, Septentrio PolaRx5e receivers are equipped with an Advanced RF Interference Monitoring and Mitigation system (AIM+). Narrowband interference effects are mitigated using three-notch filters (band-rejection filter), which can be configured in either automatic or manual mode. These notch filters effectively remove a narrow portion of the RF spectrum around the interference signal. The L2 band, being open for amateur radio use, is particularly vulnerable to this type of interference. Both intentional and unintentional wideband interference effects can be mitigated by enabling the WBI (wideband interference) mitigation system. The WBI system also reduces the effects of pulsed interference more effectively than traditional PB (Pulse-Blanking) methods.

2.3. Data Analysis Methods

The signal processing techniques employed in the system extract relevant information from the raw GNSS signals to ensure accurate interference detection and signal quality assessment.
GNSS signal data collected from the Sfântu Gheorghe (DHMS), Midia (DHMM), and Tuzla (DHMT) stations, located along the North-Western Black Sea coast (Figure 2) and observed between 5 April and 12 April 2025, were used to evaluate the system’s interference detection capabilities. This dataset was used to estimate the performance of the GNSS interference detection system in the Black Sea region.

2.3.1. Raw Data Acquisition

Operating across L1, L2, L5, E5a, E5b, and E6 frequency bands, Septentrio PolaRx5e GNSS receivers acquire high-rate raw signal data from GPS, GLONASS, Galileo, and BeiDou. These data are sampled at a high rate to ensure precise analysis and are recorded in a standardized SBF format.

2.3.2. Interference Detection

The system employs various algorithms to detect and classify different types of GNSS interference.
  • Power Monitoring: The received signal power is continuously monitored across different frequency bands. Any significant deviation from the expected power levels, either an increase or decrease, can indicate the presence of interference.
  • Spectral Analysis: The system performs spectral analysis to identify unusual patterns in the frequency domain. Narrowband interference, such as jamming signals, appears as distinct peaks in the spectrum. Wideband interference may manifest as a general rise in the noise floor across a wider frequency range.
  • Signal-to-Noise Ratio (SNR) Analysis: The SNR of the received signals is continuously monitored. A rapid drop in SNR can indicate the presence of interference, as the interfering signal masks the authentic GNSS signals.
By combining these techniques, the system detects and classifies various types of interference.
To assess signal quality, the system employs specific algorithms and metrics to detect and characterize ionospheric scintillation. This phenomenon, indicative of irregularities in ionospheric electron density, manifests as rapid fluctuations in both the amplitude and phase of GNSS signals. The detection process leverages the high-rate raw signal data the Septentrio PolaRx5e GNSS receivers acquired across L1, L2, L5, E5a, E5b, and E6 frequency bands. Amplitude fluctuations are quantified by calculating the rate of change in signal power over short time intervals, often expressed as the S4 index, which represents the normalized standard deviation of the received signal power. Phase fluctuations are assessed by computing the standard deviation of the detrended transporter phase. Scintillation events are flagged when these metrics exceed predefined thresholds, empirically determined based on established signal processing techniques and receiver specifications. It is important to emphasize that this scintillation analysis is performed independently of the positional data processing that produces latitude, longitude, and height information.

2.3.3. Signal Quality Assessment

The system utilizes several metrics to assess the quality of the received GNSS signals:
  • Carrier-to-Noise Ratio (C/N0): C/N0 is a fundamental measure of signal quality, representing the ratio of the carrier signal power to the noise power. Higher C/N0 values indicate stronger and more reliable signals.
  • Pseudorange Accuracy: The accuracy of the pseudorange measurements, which are the estimated distances between the receiver and the satellites, is a key indicator of signal quality. Errors in pseudorange measurements can be caused by various factors, including interference, atmospheric effects, and multipath.
  • Doppler Shift: The Doppler shift in the received signals is analyzed to assess the relative motion between the receiver and the satellites. Unusual Doppler shifts can indicate interference or other signal anomalies.

3. Results

This section presents the results of the GNSS signal monitoring system, focusing on its capabilities and the preliminary data analysis conducted during its implementation. The initial subsections describe the system’s features and data visualization tools, while subsequent subsections will present a more detailed analysis of observed GNSS signal characteristics and interference events.
The integration of data from receivers into the GNSS signal monitoring system considered their capability to detect and mitigate “jamming” and “spoofing” attacks, with their history archived in a log file. Thus, data regarding the detection time, central frequency, and bandwidth of the disturbing signal can be stored.
For preliminary analysis during the implementation process of the monitoring application, data sources from the GNSS receivers were integrated. The data included information regarding the monitored frequency spectra, which will be analyzed within the application’s modules to issue alerts in specific jamming cases.
Preliminary data can be visualized graphically for each receiver (for example: signal power at the receiver, spectrum processing histogram, etc.) based on the signal bands emitted by the GNSSs.
In histogram analysis, GNSS signals are typically represented in the complex domain (I/Q) to allow for more efficient processing, including demodulation and Doppler effect correction. The I (in-phase) component represents the signal’s real part, while the Q (quadrature-phase) component represents the imaginary part of the signal.

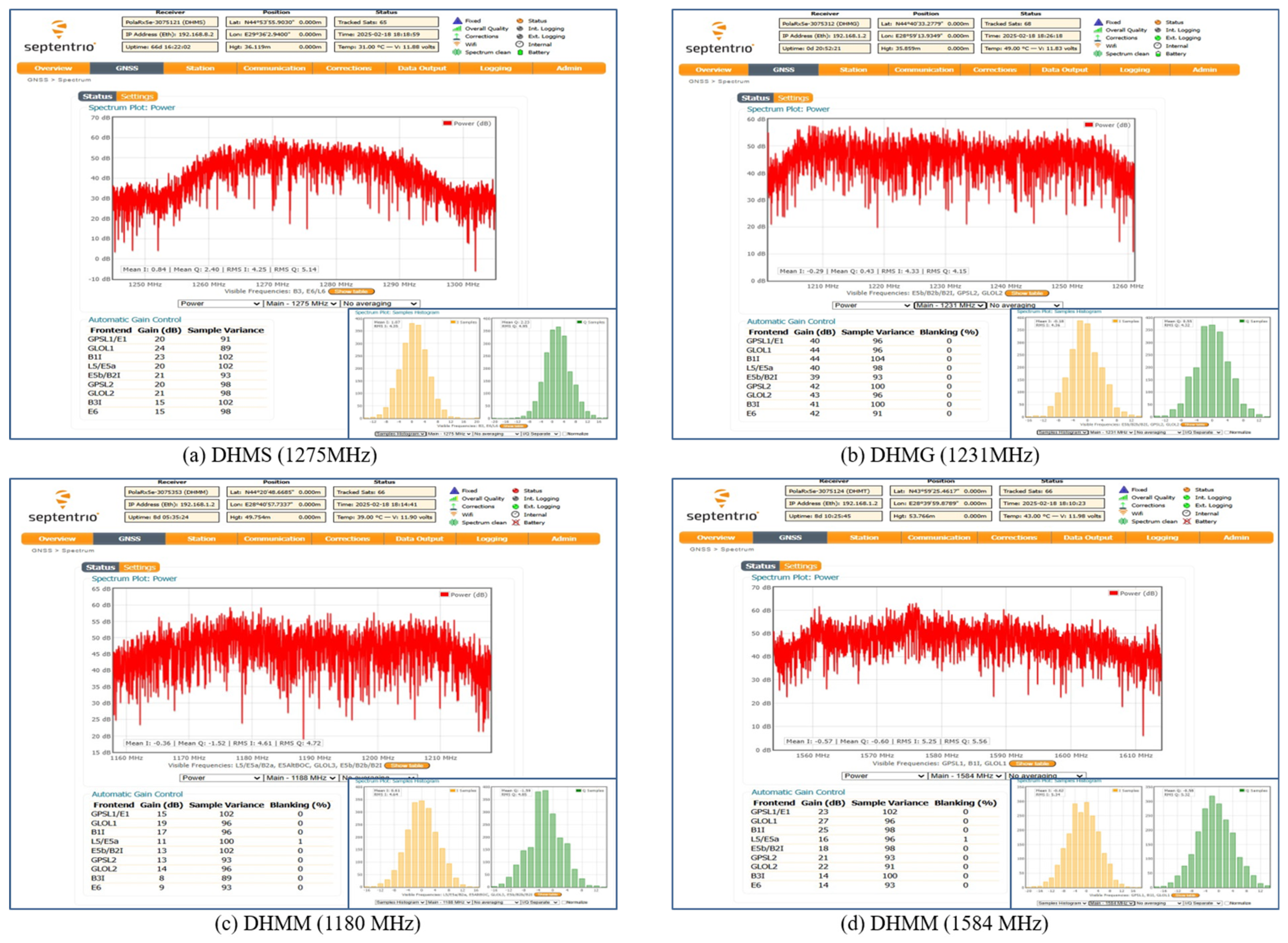

For example, in Figure 4, at the Sf. Gheorghe station, the distribution shapes are approximately Gaussian, which is normal for an AWGN (Additive White Gaussian Noise) signal. The I component has a mean of −0.18, which means the values are slightly shifted toward the negative, and the Q component has a mean of 0.55, suggesting a slight asymmetry and a possible bias error (DC component). The RMS (Root Mean Square) values for I and Q are close (4.36 for I and 4.32 for Q), indicating a balanced energy distribution between the two components. The histogram shape suggests that the received signal is well-distributed and has normal statistical characteristics for a valid GNSS signal.
The subsequent analysis, facilitated by dedicated RxTools v24.0.0 GNSS interference monitoring software provides a more detailed examination of the system’s capabilities and the nature of observed interference events.
Regarding the values in the tables below the graphs, the specific parameters are as follows:
  • Gain (dB) (automatic gain) ensures automatic gain control, adjusting the signal amplification to maintain levels within the optimal range for processing. Therefore, the amplification values in the table range from 15 dB to 24 dB, which is normal for a GNSS receiver. The specific GLO L1 signal shows higher amplification (24 dB), indicating that its received signal was weaker, while for B3I and E6 signals, lower amplifications (around 15 dB) suggest that these signals were stronger at reception.
  • Sample Variance shows how much the signals vary for each monitored frequency spectrum. Relative to the amplification values, lower variance values can be observed for weaker signals at reception.
Following this, an additional analysis of these data is performed using a GNSS interference monitoring software, which provides the following capabilities:

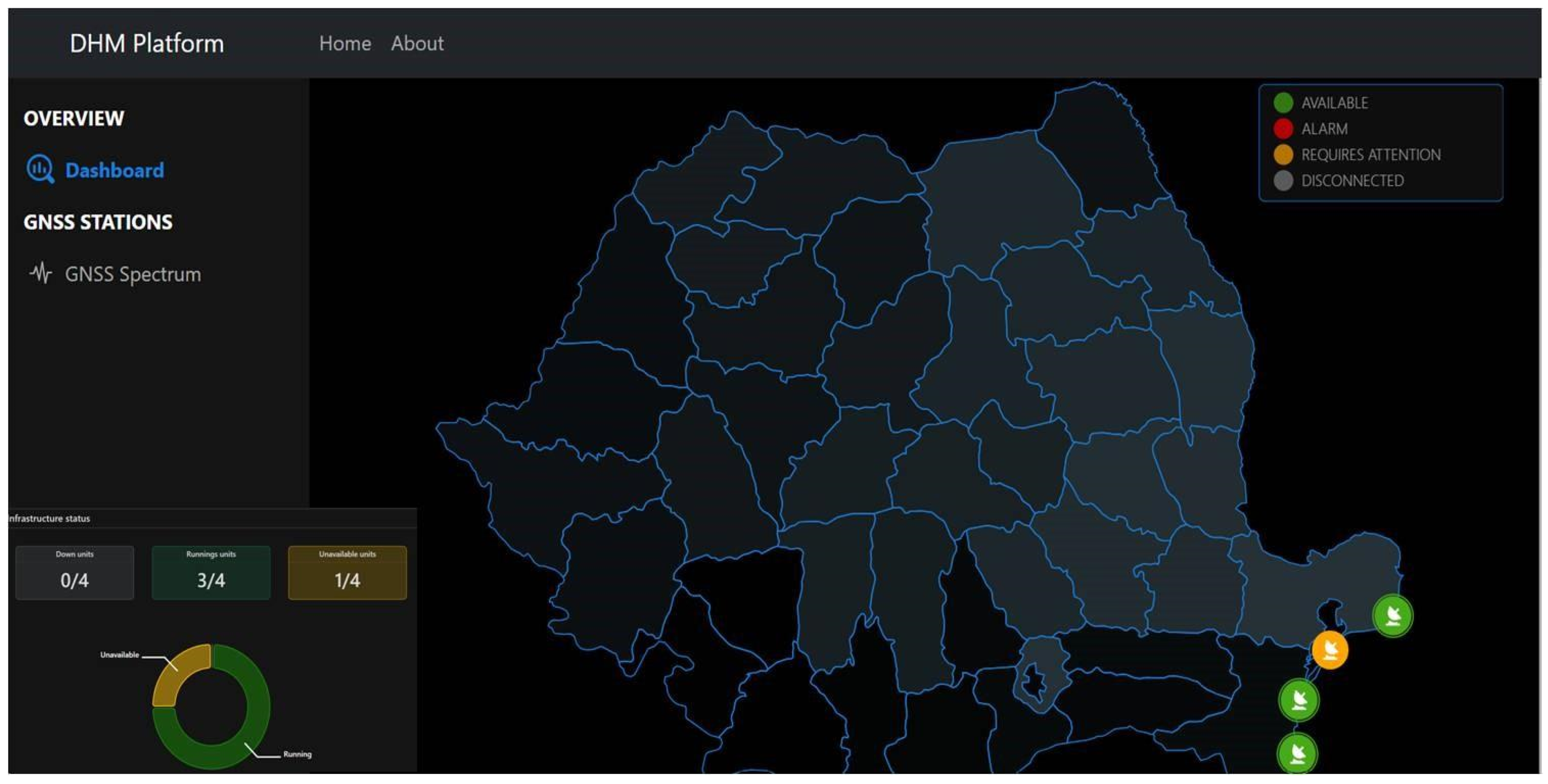

  • A map, in Figure 5, showing the layout of the four receivers that provide data on the quality of GNSS signals at their respective locations (Figure 2), along with their status, as follows:
    • Green indicates the absence of interference;
    • Red indicates the presence of interference;
    • Orange indicates a lack of connection with the GNSS receiver;
    • Grey means that the station is not generating data or is not communicating with the GNSS orchestrator.
Figure 6 presents the time series analysis of GNSS positional divergences at the Sfântu Gheorghe (DHMS), Midia (DHMM), and Tuzla (DHMT) stations from 5 April to 12 April 2025. The y-axis represents the differences in latitude (Lat Diff), longitude (Long Diff), and height (Height Diff) in metres, while the x-axis shows the time in UTC. It is important to note that this figure displays the positional variations over a relatively short observation period of seven days, focusing on a period proposed to show the system’s stability under typical operating conditions. The analysis highlights that within this specific timeframe, the offsets in each coordinate component show minimal temporal variation, suggesting the presence of systematic rather than dynamic errors. These systematic errors are attributed to inaccuracies in the reference coordinates for calculating positional differences, internal receiver calibration errors, or unmodeled local effects that constantly distort signal reception. It is crucial to emphasize that while Figure 6 illustrates the stability of positional measurements over this short period, it does not depict the system’s ability to detect transient interference phenomena, such as jamming. Jamming events, which induce increased variability or noise in the measurements, are detected through separate analyses using spectral analysis and SNR monitoring techniques, as detailed in Section 2.3.2.
The time series analysis presented in Figure 6 highlights a key characteristic: the near-constant nature of deviations in latitude, longitude, and height during the seven-day observation period. As shown, the offsets in each coordinate component display minimal temporal variation within this time frame, further supporting the interpretation that predominantly systematic errors occurred during this interval. This observation indicates that the discrepancies detailed in Figure 6 do not indicate transient interference phenomena such as jamming, which would typically manifest as increased signal variability or noise. Instead, these persistent biases likely originate from factors affecting the inherent accuracy of the GNSS solutions.
Several potential sources may contribute to the systematic errors identified within the GNSS data. These sources include, but are not limited to, the above-mentioned inaccuracies in reference coordinates, internal calibration errors within the GNSS receivers, and unmodeled local effects that constantly distort signal reception. For example, if not adequately corrected, multipath propagation or atmospheric refraction can introduce dependable offsets in the computed positions. Such systematic errors highlight the importance of implementing calibration procedures and applying appropriate error correction methodologies to ensure the reliability of GNSS-derived positioning within the Black Sea monitoring network.
The consequences of these findings extend to the overall accuracy of GNSS-based applications within the region. While the system demonstrates the capacity to acquire GNSS signals, as illustrated in Figure 6, uncorrected systematic biases can compromise the integrity of positional data utilized for critical applications such as maritime navigation, hydrographic surveying, and sea-level monitoring. Consequently, these errors necessitate mitigation through differential GNSS (DGNSS) methodologies or other suitable correction models. Further investigation into the precise origins of these biases is necessary to refine error strategies and enhance the accuracy of GNSS positioning along the Black Sea coast.

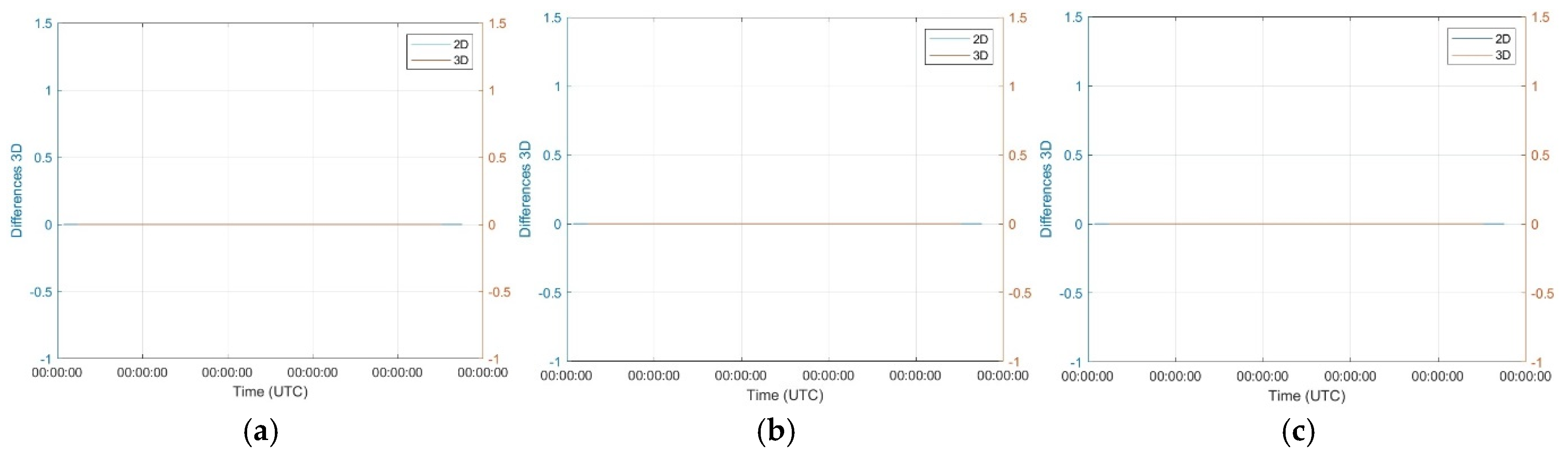

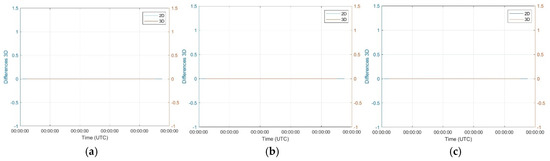

Figure 7a–c illustrates the temporal variation in 2D and 3D differences from the mean value for the GNSS measurements at the specified stations. A consistent observation across all three stations is the absence of any deviation from the mean for both 2D and 3D representations. Throughout the observed time span, both the 2D and 3D difference values remain precisely at zero, indicating that the measurements exhibit no displacement or offset from the calculated average. This suggests high stability and agreement with the mean value in the data’s horizontal and three-dimensional components.
The time series plots further reveal the time-invariant nature of the observed differences. The lack of fluctuation or trend in the 2D and 3D differences signifies that this precise agreement with the mean is maintained consistently over the measurement period. Moreover, the perfect overlap of the 2D and 3D difference lines in each subplot emphasizes that both representations’ deviations from the mean are identical. This concordance between 2D and 3D results implies that the vertical component of the measurements does not introduce any additional variability or displacement relative to the mean value, at least within the resolution of this analysis.
The finding of zero deviation from the mean in both 2D and 3D measurements carries significant implications for the accuracy and stability of the GNSS data at these stations. It suggests that the factors influencing the measurements, such as atmospheric effects or multipath interference, are either negligible or effectively mitigated by the processing techniques. However, it is crucial to acknowledge that this analysis reflects deviations from the mean and does not preclude the presence of systematic errors that might shift the mean itself. Further investigation, potentially involving comparison with independent reference data, would be necessary to assess the absolute accuracy of the GNSS positioning fully.

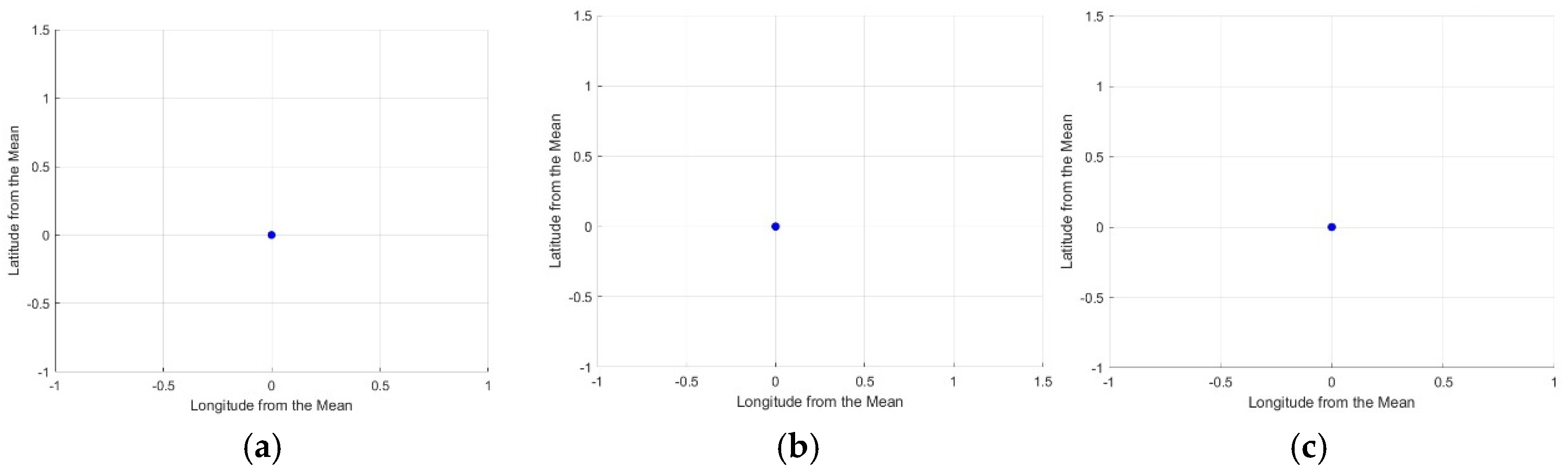

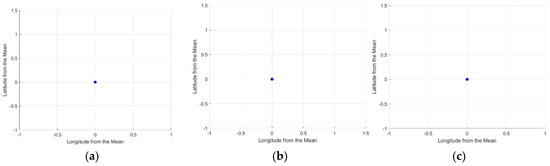

Figure 8 presents the deviations in latitude and longitude from their respective mean values for the GNSS measurements. A striking consistency is observed across all three subplots (Figure 8a–c): the data points are concentrated precisely at the origin of the coordinate system. This indicates that the measured values exhibit no displacement from the calculated average for latitude and longitude. In other words, within the resolution of this analysis, the GNSS positions align perfectly with the mean position over the observation period at each station.
The spatial representation of the latitude and longitude differences further underscores the stability of the GNSS measurements. The absence of a scatter or dispersion of data points around the origin suggests minimal variability in the positional data relative to the mean. This lack of fluctuation implies that the factors influencing the measurements, such as noise or short-term disturbances, do not introduce any significant deviations in the horizontal coordinates. The consistent clustering at the origin reinforces the observation that the GNSS positions are highly stable with respect to their average values.
The finding of zero deviation from the mean for both latitude and longitude has essential implications for the positional accuracy of the GNSS. It suggests that the system can provide highly consistent horizontal positioning, at least in terms of repeatability relative to the mean. However, it is crucial to recognize that this analysis focuses on deviations from the mean and does not address potential systematic errors that could shift the entire cluster of measurements away from the true position.

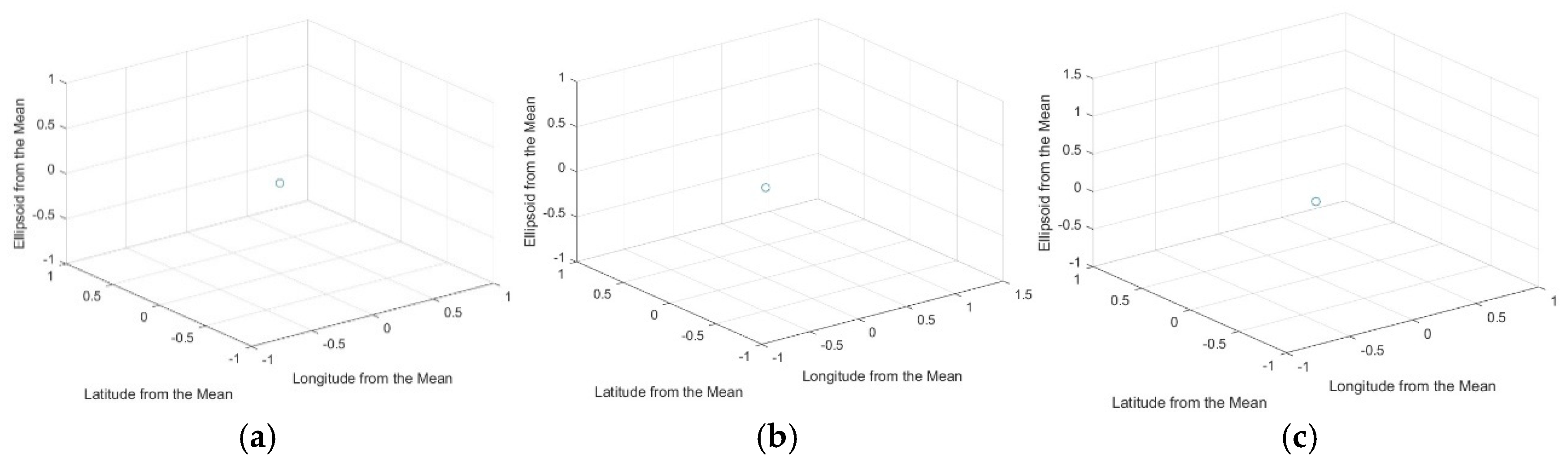

Figure 9 exemplifies latitude, longitude, and ellipsoid height deviations from their mean values. A consistent pattern emerges across all three subplots (Figure 9a–c): the data points are closely grouped at the origin (0, 0, 0) of the 3D coordinate space. This indicates that the measured positions exhibit minimal displacement from the calculated average position in all three spatial dimensions. The absence of any substantial offset from the origin suggests a strong agreement between individual GNSS measurements and the mean position, reflecting a high degree of consistency in the data.
The 3D representation of the data further emphasizes the stability of the GNSS measurements. The lack of any significant spread or dispersion of data points away from the origin in any subplot signifies minimal variability in latitude, longitude, or ellipsoid height relative to their respective mean values. This absence of fluctuation in the 3D space implies that the factors influencing the measurements do not introduce substantial deviations in positional components. The consistent clustering at the origin across all three stations or measurement scenarios reinforces the conclusion that the GNSS positions are highly stable and repeatable concerning their calculated averages.
The observation of minimal deviations from the mean in latitude, longitude, and ellipsoid height has important implications for the accuracy of the 3D positioning provided by the GNSS. It suggests the system can deliver reliable and repeatable positional information in all three spatial dimensions. However, it is essential to reiterate that this analysis is based on deviations from the mean position. While it demonstrates precision (repeatability) around the average, it does not exclude the possibility of systematic errors that could bias the entire 3D position.
Figure 6, Figure 7, Figure 8 and Figure 9 analyze GNSS positional discrepancies observed at the DHMS, DHMM, and DHMT stations over the seven-day period from 5 April to 12 April 2025. Their primary function is to illustrate the stability of the GNSS positioning system and to characterize systematic errors in the positional data. Specifically, Figure 6 shows time series of latitude, longitude, and height deviations, highlighting minimal variations indicative of consistent biases. Figure 7, Figure 8 and Figure 9 further demonstrate the stability of the measurements around their mean values in 2D and 3D representations. While these figures might appear to depict instantaneous measurements, they represent data collected continuously, as emphasized by the UTC time scale on the x-axes. Consequently, they do not focus on capturing the full spectrum of GNSS signal dynamics, which includes rapid fluctuations and noise, nor do they depict the system’s capabilities for detecting dynamic interference events such as jamming or spoofing. Such events are identified through separate signal processing techniques (spectral analysis and SNR monitoring), as detailed in Section 2.3.2. The presentation of the data involves an inherent averaging effect designed to highlight persistent biases over short-term variations, and the scale of the analysis is selected to emphasize overall trends in positional deviations. Therefore, Figure 6, Figure 7, Figure 8 and Figure 9 complement the broader results by establishing a baseline of system performance, isolating systematic errors, and providing context for interpreting interference detection results. The system employs complementary analytical techniques, such as spectral analysis and SNR monitoring (detailed in Section 2.3.2), to capture and analyze natural noise and rapid signal variations.

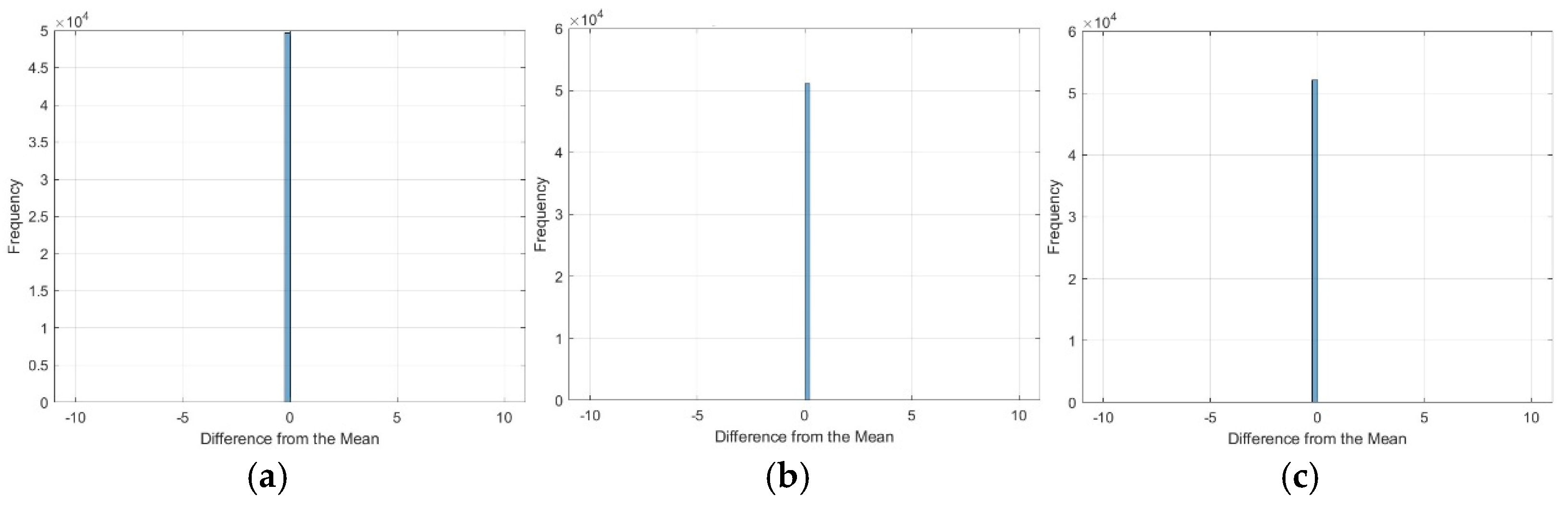

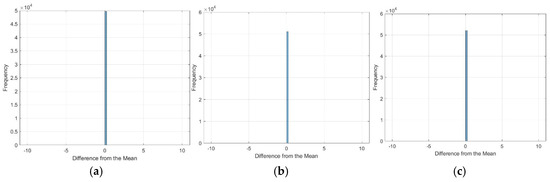

Figure 10 presents the frequency distribution of latitude differences from the mean for the GNSS measurements. A consistent pattern is evident across all three subplots (Figure 10a–c): the distributions exhibit a sharp, high-frequency peak precisely at a latitude difference of 0. This indicates that most latitude measurements align exactly with the calculated mean latitude. The pronounced peak at zero signifies that the occurrence of measurements coinciding with the average value is highly frequent, demonstrating a strong central tendency in the data.
The distributions are characterized by a distinguished lack of spread or dispersion away from the zero-deviation point. This absence of variability suggests that the measured latitude values are closely concentrated around the mean, with very few instances of significant deviations. As we move away from zero, the sharp peak and the rapid decrease in frequency emphasize the stability and consistency of the latitude measurements. This pattern implies that the factors influencing the measurements do not introduce substantial fluctuations or errors in the latitude component.
The observed frequency distribution, with its sharp peak at zero deviation, has important implications for the precision of the latitude measurements. It suggests that the GNSS provides highly repeatable latitude determinations with a strong tendency to converge on the mean value. However, it is key to highlight that this analysis focuses on the distribution of differences from the mean and does not address the absolute accuracy of the measurements.

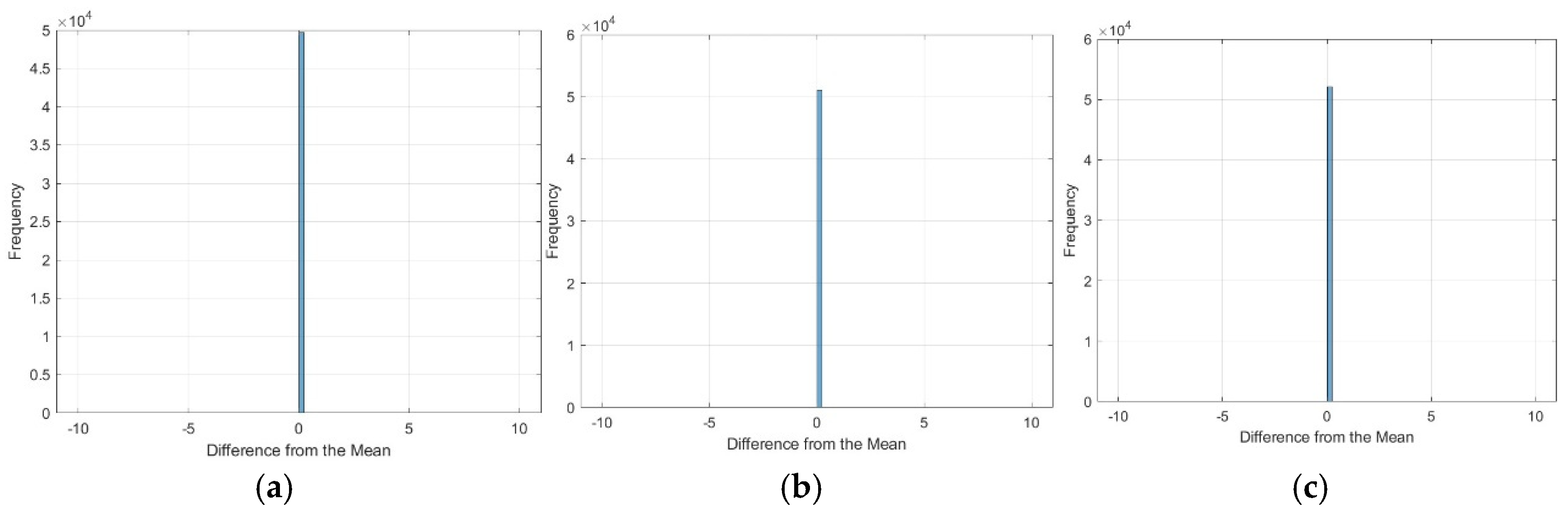

Figure 11 presents the frequency distribution of longitude deviations from the mean for the GNSS measurements. Similarly to the latitude distributions, the plots reveal a distinct, high-frequency peak at a longitude difference of 0 across all three subplots (Figure 11a–c). This indicates a strong tendency for longitude measurements to align precisely with the calculated mean longitude.

4. Discussion

This section interprets the study’s findings, focusing on the GNSS signal characteristics observed by the monitoring system and their implications for the Black Sea region. The analysis connects the system’s performance to the expected influences of atmospheric and oceanographic factors and potential interference sources, revealing both anticipated and unexpected trends in GNSS signal behaviour.
The results of this study corroborate the initial hypothesis that a dedicated GNSS signal monitoring system can effectively enhance navigation safety and security in the Black Sea region. The system’s high detection rate and low false alarm rate for various interference events demonstrate its ability to identify and assess potential threats to GNSS signals. This aligns with findings from previous studies on GNSS monitoring systems in other regions. Moreover, the oceanographic factors influencing GNSS signal reception in the Black Sea, including sea surface multipath, coastal refraction, and salinity and temperature gradients, present significant challenges for accurate positioning and navigation.
Furthermore, the study’s findings contribute to a deeper understanding of the GNSS interference landscape in the Black Sea region. The analysis of interference events provides valuable insights into the types, characteristics, and potential sources of interference, which can inform the development of targeted mitigation strategies and international collaborations to address this growing concern.

4.1. Atmospheric Effects on GNSS Signal Propagation

Atmospheric conditions, including ionospheric scintillation and tropospheric delays, influence GNSS signal quality, and their impact is key to accurate maritime navigation. Our monitoring system, equipped to measure signal amplitude and phase fluctuations, detected only sporadic instances of ionospheric scintillation. This observation is somewhat unexpected, given the Black Sea’s geographical position and reported occurrences of ionospheric disturbances. However, the limited scintillation may be attributed to the specific period of observation, which may have been characterized by lower solar activity. Further long-term monitoring is required to establish a more definitive correlation.
Studies have shown that these disturbances can be particularly pronounced during periods of high solar activity, which can lead to increased total electron content (TEC) in the ionosphere [26]. In addition to ionospheric effects, tropospheric delays play a crucial role in GNSS signal propagation. The troposphere, which consists of the lower layers of the Earth’s atmosphere, can introduce delays in GNSS signals due to variations in temperature, pressure, and humidity [27]. The Black Sea region is characterized by a complex interplay of meteorological conditions, including frequent storms and varying humidity levels, which can lead to significant tropospheric delays. Research indicates that higher elevation angles of GNSS satellites are less affected by these delays; however, practical applications often require signals from lower elevation angles, which are more susceptible to atmospheric interference [27].
Weather patterns in the Black Sea region can further complicate GNSS signal propagation. The area is known for its dynamic weather systems, including cyclones and anticyclones, which can lead to rapid changes in atmospheric pressure and humidity [8]. These weather patterns can affect the refractivity of the atmosphere, thereby altering the path of GNSS signals. For instance, heavy precipitation can increase signal attenuation, while strong winds can create turbulence that affects signal stability [27].
The dynamic weather patterns, including storms and seasonal variations, can further complicate GNSS signal reception. These conditions can lead to changes in atmospheric pressure, humidity, and temperature, all of which can introduce additional delays in GNSS signals [28]. For example, heavy precipitation can increase signal attenuation, while strong winds can create turbulence affecting signal stability [8]. The interaction between these weather systems and GNSS signals necessitates continuous monitoring and modelling to mitigate potential disruptions in signal quality. Research has shown that integrating GNSS data with meteorological observations can enhance the understanding of how weather patterns influence signal propagation [29].
The seasonal variation in weather conditions in the North-Western Black Sea is linked to atmospheric circulation patterns. During winter, the region is predominantly influenced by the Siberian anticyclone, which brings cold, dry air and stable atmospheric conditions. This can lead to reduced cloud cover and lower humidity levels, which may enhance GNSS signal quality by minimizing tropospheric delays [30]. Conversely, the summer months are characterized by the influence of the subtropical Azores High, resulting in warmer temperatures and increased humidity. This seasonal shift can lead to enhanced atmospheric turbulence and increased potential for ionospheric scintillation, particularly during periods of high solar activity [31].
Research indicates that the transition between these two dominant atmospheric patterns can lead to significant fluctuations in sea level pressure, affecting local weather conditions, including wind patterns and precipitation [30]. Such changes can introduce variability in GNSS signal reception, as atmospheric pressure variations can influence the refractive index of the atmosphere, leading to potential delays in signal propagation.
On an annual scale, the Black Sea experiences interannual variability in atmospheric conditions that can impact GNSS performance. For instance, studies have shown that the annual mean sea level pressure field over the Black Sea exhibits long-term trends, with implications for regional climate patterns and weather extremes [30]. These trends can affect the frequency and intensity of storms, which are critical factors influencing GNSS signal quality. Increased storm activity can lead to heightened atmospheric turbulence and precipitation, resulting in more significant signal attenuation and multipath effects. Moreover, the annual cycle of sea surface temperature (SST) in the Black Sea is influenced by atmospheric conditions, with warmer SSTs observed during the summer months [32]. This seasonal warming can enhance evaporation rates, leading to increased humidity and potential changes in atmospheric stability, which may further complicate GNSS signal propagation [33].
Environmental factors such as atmospheric conditions and multipath effects, including varying salinity and temperature gradients, can also affect signal propagation and lead to inaccuracies in GNSS measurements [34]. The presence of coastal structures and the dynamic nature of the sea surface can further complicate signal reception, as reflected signals may interfere with direct signals, resulting in multipath errors [35].

4.2. Oceanographic Factors Influence GNSS Signal Reception

The Black Sea’s unique oceanographic characteristics significantly influence GNSS signal reception, primarily through phenomena such as sea surface multipath, coastal refraction, and the effects of salinity and temperature gradients on signal propagation.

4.2.1. Sea Surface Multipath Effects

Moreover, the Black Sea’s geographical features, such as its relatively shallow waters and coastal topography, can contribute to multipath effects, where GNSS signals reflect off surfaces before reaching the receiver. This phenomenon can lead to inaccuracies in positioning data, particularly in coastal areas where the interaction between the sea surface and the atmosphere is pronounced [13]. The Black Sea’s relatively shallow waters and dynamic surface conditions intensify multipath effects, resulting in significant errors in positioning and timing data [36]. Research indicates that the roughness of the sea surface, influenced by wind speed and wave height, can further complicate multipath scenarios [37]. For instance, studies have shown that higher wind speeds can increase surface roughness, leading to more pronounced multipath effects, which can degrade the quality of GNSS measurements [38]. Furthermore, Chupin et al. (2020) highlighted that the presence of waves and surface currents can alter the reflection characteristics of the sea surface, resulting in varying multipath delays that complicate signal interpretation [36]. The study also noted that the use of advanced GNSS instruments, such as those mounted on Unmanned Surface Vehicles (USVs), can help mitigate these effects by providing more accurate measurements of sea surface height and improving the overall reliability of GNSS applications in coastal environments.
GNSS Interferometric Reflectometry (GNSS-IR) techniques have been proposed to leverage multipath signals for sea level monitoring. This method utilizes the interference between direct and reflected signals to estimate sea surface height [21]. However, the effectiveness of GNSS-IR in the Black Sea context is dependent upon understanding the multipath characteristics specific to the region. For example, coastal structures and varying sea surface conditions can introduce additional complexities in signal interpretation [39]. Therefore, ongoing research is necessary to develop models that accurately account for these multipath effects in GNSS applications.

4.2.2. Coastal Refraction

Coastal refraction is another significant factor affecting GNSS signal propagation in the Black Sea. As GNSS signals travel through the atmosphere and interact with the sea surface, they can bend due to changes in the refractive index caused by temperature, salinity, and atmospheric pressure [40]. Studies have shown that temperature and salinity gradients can create layers within the water column [32] that affect signal propagation [41,42], leading to inaccuracies in positioning data [43].
Research has highlighted the importance of understanding these coastal refraction effects in the context of GNSS applications. Comprehensive models that incorporate local oceanographic conditions are needed to improve the accuracy of GNSS measurements in coastal environments [44].

4.2.3. Salinity and Temperature Gradients

Studies have shown that temperature inversions can create layers in the water column that significantly impact signal reception, particularly in shallow coastal areas [18]. Research has also explored the implications of these gradients for GNSS applications, emphasizing the need for the real-time monitoring of oceanographic conditions to enhance signal accuracy [44].

4.3. Regional Interference Sources

The monitoring system was designed to detect unintentional and intentional interference sources in the Black Sea region, a zone characterized by dense maritime traffic and geopolitical tensions. While the system effectively identified instances of potential jamming (as shown in Figure 1 and detailed in Section 2.1), the data analysis revealed that these events, although present, did not consistently correlate with periods of heightened military activity reported in open sources. This suggests that the jamming events have other sources (e.g., localized, low-power jamming), or that their impact on GNSS signals is more localized than initially anticipated. Further investigation is needed to differentiate the sources of the jamming.

4.3.1. Unintentional Interference Sources

Unintentional interference in the Black Sea can arise from various maritime activities, particularly commercial shipping and fishing vessels. The region’s dense maritime traffic, including cargo ships, tankers, and fishing boats, can generate significant radio frequency interference (RFI) that disrupts GNSS signals. For instance, the electromagnetic emissions from onboard electronic systems can accidentally interfere with GNSS receivers, leading to degraded signal quality and positioning accuracy [45,46]. Studies have shown that the proximity of GNSS receivers to such vessels can intensify these interference effects, particularly in overcrowded shipping lanes [45].

4.3.2. Intentional Interference Sources

Intentional interference, particularly jamming and spoofing, significantly threatens GNSS operations in the Black Sea. Jamming involves the deliberate transmission of signals on the same frequency as GNSS signals, overpowering them and rendering GNSS receivers unable to acquire satellite signals [45,46]. The potential for jamming in the Black Sea is heightened by the region’s geopolitical tensions, particularly involving military activities from various nations. Military vessels and operations may employ jamming techniques to disrupt GNSS signals for strategic purposes, affecting civilian and military navigation systems [47,48].
Spoofing, another form of intentional interference, involves the transmission of counterfeit GNSS signals to mislead receivers into calculating incorrect positions. This interference can have severe implications for maritime safety and security, particularly in a region where navigation is critical for commercial shipping and military operations [49,50]. The open nature of GNSS signals makes them particularly vulnerable to spoofing attacks, as the necessary information to replicate these signals is publicly available [51].

4.3.3. Impact of Fishing Vessels and Commercial Shipping

Fishing vessels, prevalent in the Black Sea, can also contribute to unintentional and intentional interference. Electronic fishing gear and communication systems can generate RFI that interferes with GNSS signals. Moreover, the potential for intentional jamming by fishing vessels to disrupt competitors or evade detection by authorities adds another layer of complexity to the interference landscape [52,53].
Commercial shipping, particularly in busy ports and shipping lanes, presents a significant challenge for GNSS signal integrity. The high density of vessels can lead to increased RFI, while the operational practises of these ships, such as the use of powerful radar and communication systems, can further exacerbate interference issues [53,54].

5. Conclusions

In summary, this study demonstrates the successful implementation of a GNSS signal quality monitoring system, providing valuable insights into the challenges and potential solutions for ensuring reliable GNSS-based maritime navigation.
Permanent GNSS stations can detect and report interference events, featuring multi-band capabilities and jamming and spoofing detection without being significantly affected by interference.
By implementing software components for DHM stations (receivers), the GNSS spectra recorded at their locations can be monitored in real-time, with alarm notifications sent to the user. Thus, the GNSS signal monitoring application can detect real-time interference in the following frequency bands with a bandwidth of 60 MHz: L5—1188 MHz, L2—1231 MHz, E6—1275 MHz, L1—1584 MHz.
In the graphical interface of the software product—a core component of the monitoring system—the following elements are displayed and transmitted for each station: station location, signal spectrum for each monitored band, occurrence of interference events in each monitored band, and alerts regarding interference events.
The findings of this study significantly enhance the existing body of knowledge on GNSS signal quality monitoring and interference mitigation, particularly within the understudied Black Sea region. The system’s ability to continuously monitor GNSS signals and analyze signal power and spectral characteristics reveal a complex interplay of potential interference sources and atmospheric effects. Specifically, the data analysis indicates that while jamming events are present, their occurrence does not always correlate with heightened military activity, suggesting the influence of other localized interference sources. Additionally, the system’s measurements showed only sporadic ionospheric scintillation, which is unexpected for the region and warrants further investigation.
Implementing a real-time monitoring system at the MHD addresses a critical need for improved navigation safety and security in an area increasingly susceptible to various forms of GNSS interference. The system’s real-time capabilities enable the continuous monitoring of the GNSS spectra and prompt the detection of interference events, which allows for the quick identification and mitigation of the interference’s impact. The system’s high detection rate and low false alarm rate highlight the effectiveness of the employed signal processing and statistical analysis techniques. These results are consistent with previous studies demonstrating the capabilities of similar monitoring systems in diverse geographical contexts [55]. The accurate localization of interference sources further enhances the system’s value, enabling targeted mitigation efforts and contributing to a more secure and reliable navigation environment [56].
The development of the monitoring system on a Docker-based platform reflects a growing trend towards utilizing transport technologies for increased flexibility, scalability, and maintainability [57]. This approach aligns with the broader shift towards cloud-based GNSS monitoring and analysis solutions, offering advantages. The use of such modern technologies not only streamlines operations but also facilitates the integration of additional data sources, enhancing the overall effectiveness of the monitoring system.
Implementing the GNSS signal quality monitoring system aims to extract the necessary information to support decision making. Through the real-time analysis of signal parameters received from different GNSS systems (particularly GPS and Galileo), alerts are issued in critical situations, and specific statistics and reports can be generated. This improves the quality of command, control, communications, and intelligence decisions for planning and execution.
The study’s focus on the Black Sea region highlights the unique challenges and vulnerabilities associated with this semi-enclosed body of water. The findings contribute to a better understanding of the GNSS interference landscape in the region. Moreover, the system’s potential to support decision-making processes related to command, control, communications, and intelligence underscores its broader implications for maritime safety and security [58].
A future development stage of this system could involve installing dedicated stations for locating interference sources, given that the system already provides indications about the affected area. Future research directions may include integrating additional data sources, such as meteorological data and ship tracking information, to further enhance the system’s capabilities. Investigating the potential of artificial intelligence and machine learning for automated interference classification and source identification could also lead to significant advancements in GNSS signal monitoring.

Author Contributions

Conceptualization, P.P., M.E.M., L.D. and D.A.; Formal analysis, P.P., M.E.M., L.D. and D.A.; Investigation, P.P., M.E.M., L.D. and D.A.; Methodology, P.P., M.E.M., L.D. and D.A.; Resources, P.P., L.D. and D.A.; Software, P.P., L.D. and D.A.; Validation, P.P., L.D. and D.A.; Writing—original draft, P.P., M.E.M., L.D. and D.A.; Writing—review and editing, M.E.M.; Final Review, M.E.M. All authors have read and agreed to the published version of the manuscript.

Funding

The presented results of M.E.M., P.P., D.A. and L.D. were collected with financial support from the Sectorial Research–Development Plan of the Romanian Ministry of National Defence, PSCD 2021—2024 Project (097/2021, 092/2022, 097/2023, 097/2024): “Development of an integrated monitoring system to increase the quality of hydro-oceanographic data in the area of responsibility of the Romanian Naval Forces”. The research of the P.P., L.D., D.A. and M.E.M. was conducted as part of the SOL18–MONITA—“Detectare și atenuare a interferențelor GNSS emise în mod intenționat” through the National Research Development and Innovation Programme PNCDI IV project no. PN-IV-P6-6.3-SOL-2024-2-0206 contract 18Sol(T18)/2024.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available on request from the main author, Popov Petrica, due to privacy.

Acknowledgments

The authors would like to thank the anonymous reviewers and members of the editorial team for their comments and contributions.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Botton, S.; Duquenne, F.; Egels, Y.; Even, M.; Willis, P. GPS. Localisation et Navigation. (Global Positioning System); Hermès: Paris, France, 1997; p. 159. [Google Scholar]
  2. Radoš, K.; Brkić, M.; Begušić, D. Recent Advances on Jamming and Spoofing Detection in GNSS. Sensors 2024, 24, 4210. [Google Scholar] [CrossRef] [PubMed]
  3. Mistrapau, F.; Clopot, R.M.; Circu, C.V.; Olteanu, V.G.; Stefanescu, I.B.; Bivolaru, M.; Dumitrache, L.; Popov, P. Resilient PNT for the Black Sea and Danube Region. In Proceedings of the 36th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS+ 2023), Denver, CO, USA, 11–15 September 2023; pp. 647–663. [Google Scholar] [CrossRef]
  4. Hexagon NovAtel’s. GNSS Jamming and Spoofing White Paper. Available online: https://novatel.com/tech-talk/papers/gnss-jamming-and-spoofing (accessed on 27 February 2025).
  5. Ruegamer, A.; Kowalewski, D. Jamming and Spoofing of GNSS Signals—An Underestimated Risk?! In Proceedings of the FIG Working Week 2015 From the Wisdom of the Ages to the Challenges of the Modern World, Sofia, Bulgaria, 17–21 May 2015; Available online: https://www.fig.net/resources/proceedings/fig_proceedings/fig2015/papers/ts05g/TS05G_ruegamer_kowalewski_7486.pdf (accessed on 27 February 2025).
  6. Jin, S.; Wang, Q.; Dardanelli, G. A Review on Multi-GNSS for Earth Observation and Emerging Applications. Remote Sens. 2022, 14, 3930. [Google Scholar] [CrossRef]
  7. Bramanto, B.; Gumilar, I.; Taufik, M.; Hermawan, I. Long-range single baseline RTK GNSS positioning for land cadastral survey mapping. E3S Web Conf. 2019, 94, 01022. [Google Scholar] [CrossRef]
  8. Avşar, N.B.; Kutoğlu, Ş.H. Recent Sea Level Change in the Black Sea from Satellite Altimetry and Tide Gauge Observations. ISPRS Int. J. Geo-Inf. 2020, 9, 185. [Google Scholar] [CrossRef]
  9. Peng, D.; Hill, E.; Li, L.; Switzer, A.; Larson, K. Application of GNSS interferometric reflectometry for detecting storm surges. GPS Solut. 2019, 23. [Google Scholar] [CrossRef]
  10. Larson, M.H.; Gilbert, L.A.; Wang, X.; Lim, W.A.; Weissman, J.S.; Qi, L.S. CRISPR interference (CRISPRi) for sequence-specific control of gene expression. Nat. Protoc. 2013, 8, 2180–2196. [Google Scholar] [CrossRef]
  11. Park, H.; Valencia, E.; Camps, A.; Rius, A.; Ribó, S.; Martín-Neira, M. Delay tracking in spaceborne gnss-r ocean altimetry. IEEE Geosci. Remote Sens. Lett. 2013, 10, 57–61. [Google Scholar] [CrossRef]
  12. Dorofeyev, V.; Sukhikh, L. Long-term evolution of the Black Sea dynamics derived from modelling. J. Shipp. Ocean. Eng. 2017, 7, 35–42. [Google Scholar] [CrossRef]
  13. Wang, N.; Xu, T.; Gao, F.; Xu, G. Sea Level Estimation Based on GNSS Dual-Frequency Carrier Phase Linear Combinations and SNR. Remote Sens. 2018, 10, 470. [Google Scholar] [CrossRef]
  14. Rusu, L. Assessment of the Wave Energy in the Black Sea Based on a 15-Year Hindcast with Data Assimilation. Energies 2015, 8, 10370–10388. [Google Scholar] [CrossRef]
  15. Melet, A.; van de Wal, R.; Amores, A.; Arns, A.; Chaigneau, A.A.; Dinu, I.; Haigh, I.D.; Hermans, T.H.J.; Lionello, P.; Marcos, M.; et al. Sea Level Rise in Europe: Chapter 4—Observations and projections. In Sea Level Rise in Europe: 1st Assessment Report of the Knowledge Hub on Sea Level Rise (SLRE1); van den Bart, H., Nadia, P., Thorsten, K., Kate, L., Petra, M., Kristin, R., Eds.; Copernicus Publications: Göttingen, Germany, 2024; Volume 3-slre1, p. 4. [Google Scholar] [CrossRef]
  16. Sreeja, V. Impact and mitigation of space weather effects on GNSS receiver performance. Geosci. Lett. 2016, 3, 24. [Google Scholar] [CrossRef]
  17. Wang, C.; Yu, K.; Qu, F.; Bu, J.; Han, S.; Zhang, K. Spaceborne GNSS-R Wind Speed Retrieval Using Machine Learning Methods. Remote Sens. 2022, 14, 3507. [Google Scholar] [CrossRef]
  18. Williams, P.S.D.; Nievinski, F.G. Tropospheric delays in ground-based GNSS multipath reflectometry—Experimental evidence from coastal sites. J. Geophys. Res. Solid Earth 2017, 122, 2310–2327. [Google Scholar] [CrossRef]
  19. Marcos, M.; Wöppelmann, G.; Matthews, A.; Ponte, R.; Birol, F.; Ardhuin, F.; Coco, G.; Santamaría-Gómez, A.; Ballu, V.; Testut, L.; et al. Coastal sea level and related fields from existing observing systems. Surv. Geophys. 2019, 40, 1293–1317. [Google Scholar] [CrossRef]
  20. Kim, S.-K.; Lee, E.; Park, J.; Shin, S. Feasibility Analysis of GNSS-Reflectometry for Monitoring Coastal Hazards. Remote Sens. 2021, 13, 976. [Google Scholar] [CrossRef]
  21. Peng, D.; Feng, L.; Larson, K.M.; Hill, E.M. Measuring Coastal Absolute Sea-Level Changes Using GNSS Interferometric Reflectometry. Remote Sens. 2021, 13, 4319. [Google Scholar] [CrossRef]
  22. Peng, D.; Soon, K.Y.; Khoo, V.H.; Mulder, E.; Wong, P.W.; Hill, E.M. Tidal asymmetry and transition in the Singapore Strait revealed by GNSS interferometric reflectometry. Geosci. Lett. 2023, 10, 39. [Google Scholar] [CrossRef]
  23. Egido, A.; Caparrini, M.; Ruffini, G.; Paloscia, S.; Santi, E.; Guerriero, L.; Pierdicca, N.; Floury, N. Global Navigation Satellite Systems Reflectometry as a Remote Sensing Tool for Agriculture. Remote Sens. 2012, 4, 2356–2372. [Google Scholar] [CrossRef]
  24. Daily maps of GPS interference. Available online: https://gpsjam.org/ (accessed on 13 March 2025).
  25. Maritime Hydrographic Directorate “Captain Alexandru Cătuneanu”. Available online: https://www.dhmfn.ro/en/activitatea_dhm.shtml (accessed on 25 February 2025).
  26. Shanmugam, S.; MacLeod, R. GNSS ionospheric scintillation and TEC monitoring using GPStation-6. In Proceedings of the 2013 IEEE International Conference on Space Science and Communication (IconSpace), Melaka, Malaysia, 1–3 July 2013; pp. 207–212. [Google Scholar] [CrossRef]
  27. Feng, P.; Haas, R.; Elgered, G. A Novel Tropospheric Error Formula for Ground-Based GNSS Interferometric Reflectometry. IEEE Trans. Geosci. Remote Sens. 2023, 61, 5802918. [Google Scholar] [CrossRef]
  28. Sizov, A.A.; Chekhlan, A.E. Anomalies of hydrometeorological fields in the Black Sea area associated with sea surface temperature gradients in the North Atlantic. Russ. Meteorol. Hydrol. 2010, 35, 476–482. [Google Scholar] [CrossRef]
  29. Zhu, Y.; Tao, T.; Yu, K.; Li, Z.; Qu, X.; Ye, Z.; Geng, J.; Zou, J.; Semmling, M.; Wickert, J. Sensing Sea Ice Based on Doppler Spread Analysis of Spaceborne GNSS-R Data. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2020, 13, 217–226. [Google Scholar] [CrossRef]
  30. Islek, F.; Yüksel, Y.; Şahin, C. Long-term variability of the mean sea level pressure field over the Black Sea. Aquat. Ecosyst. Health Manag. 2020, 23, 453–464. [Google Scholar] [CrossRef]
  31. Yun, J.; Jeong, S.; Gruber, N.; Gregor, L.; Ho, C.-H.; Piao, S.; Ciais, P.; Schimel, D.; Kwon, E.Y. Enhance seasonal amplitude of atmospheric CO2 by the changing Southern Ocean carbon sink. Sci. Adv. 2022, 8, eabq0220. [Google Scholar] [CrossRef]
  32. Mihailov, M.E.; Tomescu-Chivu, M.I.; Dima, V. Black Sea water dynamics on the Romanian littoral–case study: The upwelling phenomena. Rom. J. Phys. 2010, 64, 232–245. [Google Scholar]
  33. Goosse, H.; Allende Contador, S.; Bitz, C.M.; Blanchard-Wrigglesworth, E.; Eayrs, C.; Fichefet, T.; Himmich, K.; Huot, P.-V.; Klein, F.; Marchi, S.; et al. Modulation of the seasonal cycle of the Antarctic sea ice extent by sea ice processes and feedbacks with the ocean and the atmosphere. Cryosphere 2023, 17, 407–425. [Google Scholar] [CrossRef]
  34. Munoz-Martin, J.F.; Perez, A.; Camps, A.; Ribó, S.; Cardellach, E.; Stroeve, J.; Nandan, V.; Itkin, P.; Tonboe, R.; Hendricks, S.; et al. Snow and Ice Thickness Retrievals Using GNSS-R: Preliminary Results of the MOSAiC Experiment. Remote Sens. 2020, 12, 4038. [Google Scholar] [CrossRef]
  35. Pardhasaradhi, B.; Srinath, G.; Vandana, G.S.; Srihari, P.; Aparna, P. GNSS Spoofing Detection and Mitigation in Multireceiver Configuration via Tracklets and Spoofer Localization. IEEE Access 2022, 10, 42014–42028. [Google Scholar] [CrossRef]
  36. Chupin, C.; Ballu, V.; Testut, L.; Tranchant, Y.-T.; Calzas, M.; Poirier, E.; Coulombier, T.; Laurain, O.; Bonnefond, P.; FOAM Project, T. Mapping Sea Surface Height Using New Concepts of Kinematic GNSS Instruments. Remote Sens. 2020, 12, 2656. [Google Scholar] [CrossRef]
  37. Dahl-Jensen, T.S.; Andersen, O.B.; Williams, S.D.P.; Helm, V.; Khan, S.A. GNSS-IR Measurements of Inter Annual Sea Level Variations in Thule, Greenland from 2008–2019. Remote Sens. 2021, 13, 5077. [Google Scholar] [CrossRef]
  38. Penna, N.T.; Morales Maqueda, M.A.; Martin, I.; Guo, J.; Foden, P.R. Sea Surface Height Measurement Using a GNSS Wave Glider. Geophys. Res. Lett. 2018, 45, 5609–5616. [Google Scholar] [CrossRef]
  39. Idris, A.; Sulaiman, S.; Tahar, K.; Natnan, S.; Satirapod, C. Determination of optimum parameters for measuring sea level using GNSS Interferometric Reflectometry: A Case study of Port Klang, Malaysia. In Proceedings of the IOP Conference Series Earth and Environmental Science of the 9th International Conference on Geomatics and Geospatial Technology 2023 (GGT2023), Kuala Lumpur, Malaysia, 22–25 May 2023; Volume 1240, p. 012007. [Google Scholar] [CrossRef]
  40. Tomita, F. Enhanced GNSS-acoustic positioning method implementing with constraints on underwater sound speed structure. Earth Planets Space 2024, 76, 178. [Google Scholar] [CrossRef]
  41. Mihailov, M.E. Sound speed characteristics and impulsive noise hotspots assessment in the North-Western Black Sea. Rom. Rep. Phys. 2020, 72, 703. [Google Scholar]
  42. Mihailov, M.E.; Chirosca, G.; Chirosca, A.V. Underwater Noise Assessment in the Romanian Black Sea Waters. Environments 2024, 11, 262. [Google Scholar] [CrossRef]
  43. Jin, S.; Camps, A.; Jia, Y.; Wang, F.; Huang, F.; Yan, Q.; Zhang, S.; Li, Z.; Edokossi, K.; Yang, D.; et al. Remote sensing and its applications using GNSS reflected signals: Advances and prospects. Satell. Navig. 2024, 5, 19. [Google Scholar] [CrossRef]
  44. Liibusk, A.; Ellmann, A. Validation of Marine Geoid Models by Profile-wise GNSS Measurements on Ice Surface. Mar. Geod. 2015, 38, 314–326. [Google Scholar] [CrossRef]
  45. Qin, W.; Dovis, F.; Gamba, M.T.; Falletti, E. A Comparison of Optimised Mitigation Techniques for Swept-frequency Jammers. In Proceedings of the 2019 International Technical Meeting of The Institute of Navigation, Reston, VA, USA, 28–31 January 2019; pp. 233–247. [Google Scholar] [CrossRef]
  46. Khezzar, Z.A.; Benzid, R.; Saidi, L. New thresholding technique in DCT domain for interference mitigation in GNSS receivers. Trait. Du Signal 2020, 37, 169–180. [Google Scholar] [CrossRef]
  47. Saretzki, J.; Pretsch, J.; Obertaxer, G.; Lesjak, R. Security that Matters: General Knowledge and Correlations in the Context of Applied Satellite Navigation, Specific Interference-Events and the Use of the GNSS-Technology. Eur. J. Soc. Sci. 2022, 5, 27–45. [Google Scholar] [CrossRef]
  48. Novák, A.; Kováčiková, K.; Kandera, B.; Sedláčková, A.N. Global Navigation Satellite Systems Signal Vulnerabilities in Unmanned Aerial Vehicle Operations: Impact of Affordable Software-Defined Radio. Drones 2024, 8, 109. [Google Scholar] [CrossRef]
  49. Wildemeersch, M.; Slump, C.; Rabbachin, A. Acquisition of GNSS signals in urban interference environment. IEEE Trans. Aerosp. Electron. Syst. 2014, 50, 1078–1091. [Google Scholar] [CrossRef]
  50. Wang, S.; Liu, J.; Cai, B.; Wang, J.; Lu, D. Model-based GNSS spoofing detection using a hybrid convolutional autoencoder method. Eng. Res. Express 2024, 6, 045363. [Google Scholar] [CrossRef]
  51. Ren, H.; Wang, Y.; Jiang, L.; Wu, S. CW interference mitigation in GNSS receiver based on frequency-locked loop. Sci. China Inf. Sci. 2016, 59, 082201. [Google Scholar] [CrossRef]
  52. Fernández-Hernández, I.; Châtre, E.; Chiara, A.D.; Broi, G.D.; Pozzobon, O.; Fidalgo, J.; Odriozola, M.; Moreno, G.; Sturaro, S.; Caparra, G.; et al. Impact analysis of SBAS authentication. Navigation 2018, 65, 517–532. [Google Scholar] [CrossRef]
  53. Ronen, R.; Ben-Moshe, B. Cyberattack on Flight Safety: Detection and Mitigation Using LoRa. Sensors 2021, 21, 4610. [Google Scholar] [CrossRef] [PubMed]
  54. van der Merwe, J.R.; Contreras Franco, D.; Hansen, J.; Brieger, T.; Feigl, T.; Ott, F.; Jdidi, D.; Rügamer, A.; Felber, W. Low-Cost COTS GNSS Interference Monitoring, Detection, and Classification System. Sensors 2023, 23, 3452. [Google Scholar] [CrossRef]
  55. Luo, X.; Mayer, M.; Heck, B. On the probability distribution of GNSS carrier phase observations. GPS Solut. 2011, 15, 369–379. [Google Scholar] [CrossRef]
  56. Ansari, K.; Bae, S. Wavelet and power spectrum analysis of global navigation satellite system multipath error modeling and mitigation. Int. J. Satell. Commun. 2021, 39, 626–644. [Google Scholar] [CrossRef]
  57. Zhang, Q.; Zhang, L.; Sun, A.; Meng, X.; Zhao, D.; Hancock, C. GNSS Carrier-Phase Multipath Modeling and Correction: A Review and Prospect of Data Processing Methods. Remote Sens. 2024, 16, 189. [Google Scholar] [CrossRef]
  58. Gao, Y.; Yao, Z.; Cui, X.; Lu, M. Analyzing the orbit influence on multipath fading in global navigation satellite systems. IET Radar Sonar Navig. 2014, 8, 65–70. [Google Scholar] [CrossRef]
Figure 1. Jamming situation by month (2024), GNSS L1/E1 bands [24].
Figure 1. Jamming situation by month (2024), GNSS L1/E1 bands [24].
Atmosphere 16 00500 g001
Figure 2. Positioning of GNSS receivers within the monitoring system along the North-Western Black Sea coast.
Figure 2. Positioning of GNSS receivers within the monitoring system along the North-Western Black Sea coast.
Atmosphere 16 00500 g002
Figure 3. Overview of the web interface with the GNSS receiver.
Figure 3. Overview of the web interface with the GNSS receiver.
Atmosphere 16 00500 g003
Figure 4. Signal strength at the receiver and spectrum histogram at stations within the system: (a) Sfântu Gheorghe (DHMS), (b) Gura Portitei (DHMG), (c) Midia (DHMM), and (d)Tuzla (DHMT).
Figure 4. Signal strength at the receiver and spectrum histogram at stations within the system: (a) Sfântu Gheorghe (DHMS), (b) Gura Portitei (DHMG), (c) Midia (DHMM), and (d)Tuzla (DHMT).
Atmosphere 16 00500 g004
Figure 5. Station layout (locations as in highlited in Figure 2), with general system information.
Figure 5. Station layout (locations as in highlited in Figure 2), with general system information.
Atmosphere 16 00500 g005
Figure 6. Time series and values of the discrepancies of latitude, longitude, and height in GNSS jamming levels for three stations along the Western Black Sea by static GNSS receivers: (a) Sfântu Gheorghe (DHMS), (b) Midia (DHMM), and (c) Tuzla (DHMT) stations.
Figure 6. Time series and values of the discrepancies of latitude, longitude, and height in GNSS jamming levels for three stations along the Western Black Sea by static GNSS receivers: (a) Sfântu Gheorghe (DHMS), (b) Midia (DHMM), and (c) Tuzla (DHMT) stations.
Atmosphere 16 00500 g006
Figure 7. Distances from the mean value in a time series for: (a) DHMS, (b) DHMM, and (c) DHMT stations.
Figure 7. Distances from the mean value in a time series for: (a) DHMS, (b) DHMM, and (c) DHMT stations.
Atmosphere 16 00500 g007
Figure 8. Differences from the mean value for the latitude and longitude: (a) DHMS, (b) DHMM, and (c) DHMT stations.
Figure 8. Differences from the mean value for the latitude and longitude: (a) DHMS, (b) DHMM, and (c) DHMT stations.
Atmosphere 16 00500 g008
Figure 9. Differences from the mean value for latitude, longitude, and ellipsoid height for (a) DHMS, (b) DHMM, and (c) DHMT stations.
Figure 9. Differences from the mean value for latitude, longitude, and ellipsoid height for (a) DHMS, (b) DHMM, and (c) DHMT stations.
Atmosphere 16 00500 g009
Figure 10. The frequency distribution of latitude differences from the mean for (a) DHMS, (b) DHMM, and (c) DHMT stations.
Figure 10. The frequency distribution of latitude differences from the mean for (a) DHMS, (b) DHMM, and (c) DHMT stations.
Atmosphere 16 00500 g010
Figure 11. The frequency distribution of longitude differences from the mean for (a) DHMS, (b) DHMM, and (c) DHMT stations.
Figure 11. The frequency distribution of longitude differences from the mean for (a) DHMS, (b) DHMM, and (c) DHMT stations.
Atmosphere 16 00500 g011
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Popov, P.; Mihailov, M.E.; Dutu, L.; Andrescu, D. Enhancing Maritime Navigation: A Global Navigation Satellite System (GNSS) Signal Quality Monitoring System for the North-Western Black Sea. Atmosphere 2025, 16, 500. https://doi.org/10.3390/atmos16050500

AMA Style

Popov P, Mihailov ME, Dutu L, Andrescu D. Enhancing Maritime Navigation: A Global Navigation Satellite System (GNSS) Signal Quality Monitoring System for the North-Western Black Sea. Atmosphere. 2025; 16(5):500. https://doi.org/10.3390/atmos16050500

Chicago/Turabian Style

Popov, Petrica, Maria Emanuela Mihailov, Lucian Dutu, and Dumitru Andrescu. 2025. "Enhancing Maritime Navigation: A Global Navigation Satellite System (GNSS) Signal Quality Monitoring System for the North-Western Black Sea" Atmosphere 16, no. 5: 500. https://doi.org/10.3390/atmos16050500

APA Style

Popov, P., Mihailov, M. E., Dutu, L., & Andrescu, D. (2025). Enhancing Maritime Navigation: A Global Navigation Satellite System (GNSS) Signal Quality Monitoring System for the North-Western Black Sea. Atmosphere, 16(5), 500. https://doi.org/10.3390/atmos16050500

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
