Article

Gaseous and Particulate Pollution in the Wu-Chang-Shi Urban  Agglomeration on the Northern Slope of Tianshan Mountains from 2017 to 2021

1
College of Sciences, Shihezi University, Shihezi 832000, China
2
Key Laboratory of Oasis Town and Mountain-Basin System Ecology, Xinjiang Production and Construction Corps, Xinjiang 832000, China
3
State Key Laboratory of Cryospheric Science/Tian Shan Glaciological Station, Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou 730000, China
4
Key Laboratory of Western China’s Environmental Systems (Ministry of Education), College of Earth and Environmental Sciences, Lanzhou University, Lanzhou 730000, China
*
Authors to whom correspondence should be addressed.
Atmosphere 2023, 14(1), 91; https://doi.org/10.3390/atmos14010091
Submission received: 7 November 2022 / Revised: 25 December 2022 / Accepted: 27 December 2022 / Published: 31 December 2022
(This article belongs to the Special Issue Light-Absorbing Particles in Snow and Ice)

Abstract

:
Rapid social development has led to serious air pollution problems in cities, and air pollutants, including gaseous pollutants and particulate matter, have an important impact on climate, the environment, and human health. This study analyzed the characteristics, potential sources, and causes of air pollution in the Wu-Chang-Shi urban cluster. The results showed that NO2, CO, SO2, PM10, and PM2.5 had a tendency to decrease, while O3 showed an increasing trend. The concentrations of SO2, NO2, CO, PM2.5, and PM10 showed the highest values in winter and the lowest values in summer, with similar seasonal variations. However, the concentration of O3 was highest in the summer and lowest in the winter. Compared with the pollutant concentrations in other Chinese cities, PM2.5, PM10, and NO2 are more polluted in the Wu-Chang-Shi urban. Meteorological factors have a greater impact on pollutant concentrations, with higher concentrations of major pollutants observed when wind speeds are low and specific wind directions are observed, and higher secondary pollutant O3 concentrations observed when wind speeds are low and specific wind directions are observed. The backward trajectory and concentration weighting analysis show that the particulate pollutants in the Wu-Chang-Shi urban in winter mainly come from Central Asia and surrounding cities. O3 showed an increasing trend before and after the novel coronavirus outbreak, which may be related to changes in NOX, volatile organic compounds, and solar radiation intensity, and the concentrations of SO2, NO2, CO, PM10, and PM2.5 showed an overall decreasing trend after the outbreak and was smaller than before the outbreak, which is related to the reduction of industrial and anthropogenic source emissions during the outbreak.

1. Introduction

Global urbanization and industrialization are accelerating, resulting in increased energy consumption and air pollutant emissions. Air pollution events are frequent and expanding in scope, seriously affecting regional air quality and the global climate [1,2]. Many countries are facing serious environmental problems, and air pollution is causing great harm to the health of the inhabitants, which has received widespread attention from all sectors of society and the public [3,4,5]. The World Health Organization (WHO) air quality guidelines show that 92% of the global population lives in urbans that do not meet the guidelines [6]. The Asian Development Bank study shows that 7 of the top 10 polluted cities in the world were in China, and only 5 of the 7 cities met WHO air quality standards [7]. In the whole of China, air pollution is characterized by a combination of local and regional factors and the cross-coupling of various pollutants [8,9]. Air pollution has caused serious damage to the health of Chinese residents. In 2013, a large area of moderate to severe haze occurred in east-central China, covering 2.07 million square kilometers and affecting 11 provinces (municipalities and districts), and In 2015, air pollution has caused 1.6 million deaths in China, and the effects are widespread and persistent [10,11]. Air pollutants mainly come from human activities, such as industrial production, transportation, etc, and some come from natural emissions, such as crustal movement, forest fires, etc [12,13]. At the moment, the atmospheric environment of China’s urbans is primarily polluted by SO2, NOx, O3, and PM [14].
Air pollution research in China began about 20 years later than in Europe and the U. S. [15]. In 1972, China held its first national conference on environmental protection after participating in the United Nations Conference on the Human Environment, which pioneered the control of air pollution in China by eliminating smoke and dust and controlling point source pollution in the atmosphere. In 1974, a serious photochemical pollution incident occurred in Xigu District, Lanzhou City, Gansu Province, and this photochemical pollution incident sounded an alarm to us. As a result, fixed-point monitoring of nitrogen oxides, ozone, and atmospheric particulate matter was carried out for the first time in Lanzhou City. China’s rapid industrialization and urbanization have been accompanied by high-intensity air pollution emissions since the reform and opening up [16]. Large-scale regional heavy haze pollution events have occurred in economically developed areas of east-central and southern China. Particulate matter prevention and control efforts are planned in key urbans [17]. Therefore, in China, air pollution is of increasingly widespread concern to the government, the public, and researchers [18]. In particular, the sudden outbreak of new coronary pneumonia (COVID-19) at the end of 2019 has caused widespread global concern [19,20]. While we took strict preventive and control measures after the outbreak, air quality conditions during the outbreak became a major concern [21]. In general, air quality in China improved after the emergence of the COVID-19 outbreak, but air pollution events still occurred due to harsh climatic conditions in northwest China [22,23]. Many scholars have studied the spatial and temporal distribution characteristics, source analysis and causes of pollutants, and health effects of air pollution in major cities in China (Beijing-Tianjin-Hebei region, Fenwei Plain, Yangtze River Delta region, Pearl River Delta region, Sichuan Basin, etc.), and many research results have been obtained [24]. However, these studies have mainly focused on the economically developed and densely populated southeast region of China, and fewer studies have been conducted on the northwest region.
The Wu-Chang-Shi urban is located on the northern slope of the Tianshan Mountains. The core urban for the construction of the “Silk Road Economic Belt” is home to 31% of Xinjiang’s industrial enterprises. In 2016, coal consumption was nearly 65 million tons, and soot emissions, sulfur dioxide emissions, and nitrogen oxide emissions accounted for 25%, 38.4%, and 45.3% of the total in Xinjiang, respectively. For this reason, Xinjiang has made the Wu-Chang-Shi urban a key urban for air quality monitoring in Xinjiang. The monitoring results show that the ambient air quality in the Wu-Chang-Shi urban is not optimistic. From November 2018 to March 2019 alone, the Xinjiang Uygur Autonomous Region Heavy Pollution Weather Emergency Response Command Office launched five heavy pollution weather attacks in the Wu-Chang-Shi urban, a yellow weather warning. It can be seen that the air quality changes in the Wu-Chang-Shi urban need to be studied in depth.
As the core area of the economic zone on the northern slope of Tianshan Mountain and an important node of the “Belt and Road”, it is significant to study and control the air pollution in the Wu-Chang-Shi urban. At present, the studies conducted for the Wu-Chang-Shi urban are limited to single pollutants and lack continuity; there is a lack of studies on multiple pollutants, and the regional air quality is still unsatisfactory, especially in winter when particulate matter pollution is the most serious, and heavy pollution weather often occurs [25,26]. Therefore, in this study, we analyzed the pollution characteristics of six criteria air pollutants (SO2, NO2, CO, O3, PM10, and PM2.5) in Wu-Chang-Shi urban from 2017 to 2021 and compared them with those in other Chinese cities, as well as investigating the characteristics of changes before and after the COVID-19 outbreak. Based on the latest air pollution dataset, we also investigated potential sources of particulate pollutants in winter. This study provides some scientific basis for the prevention and control of atmospheric compound pollution in the Wu-Chang-Shi urban.

2. Data and Methods

2.1. Studying urban

The Wu-Changji-Shi region is located at the northern edge of the Tianshan Mountains and the southern edge of the Junggar Basin (42°52′-45°28′N, 88°40′-91°33′E), with a long and narrow topography and the city located in the pre-mountain basin. Its geographical location is shown in Figure 1. The population is 5.46 million (3.51 million in Urumqi, 1.61 million in Changji, and 346,400 in Shihezi). As an important part and center of the economic belt on the northern slope of Tianshan Mountain, there are about 3200 industrial enterprises in Wu-Chang-Shi urban. In 2016, coal consumption in the region was 65 million tons; emissions were 263,000 tons and NOx emissions were 323,000 tons. Due to the low average temperature and long heating period, the annual heating period is up to 6 months, from October of the previous year to April of the following year. With socioeconomic development, emissions in urbans have continued to rise in recent years. The Wu-Chang-Shi urban has a typical temperate continental climate with noticeable seasonal temperature changes and an average temperature ranging from −13.2 °C to 26.5 °C. The average annual precipitation is about 256 mm, mainly concentrated in spring and summer, followed by autumn, and the average annual wind speed is 1.5 m s−1.

2.2. Data Collection and Data Analyses

2.2.1. Data Collection

In this paper, we selected 24-h data and daily average data of air pollutants concentrations of six air pollutants (SO2, NO2, CO, O3, PM2.5, and PM10) and data from AQI in Wu-Chang-Shi urban from 2017 to 2021, which were obtained from China General Environmental Monitoring (http://113.108.142.147:20035/emcpublish/ accessed on 1 March 2022). We also compared the air pollution concentration data of the Wu-Chang-Shi urban in 2017 with the air pollution concentration monitoring data of 168 key cities in China. The air pollutants concentration data of 168 key cities were obtained from the National Bureau of Statistics of China (http://www.stats.gov.cn/ accessed on 1 March 2022). The information used in the backward trajectory model is the Global Data Assimilation System (GDAS) data for 2017–2021 provided by the National Centers for Environmental Prediction (NCEP). The meteorological information was obtained from the National Meteorological Science Data Sharing Service Platform ( http://data.Cma.cn/ accessed on 5 March 2022). The statistical summary of the six criteria pollutants and air quality index for 2017–2021 is shown in Table 1.
First, we checked the data to control the quantity and quality of pollutant data according to the National Environmental Protection Standards of the People’s Republic of China (HJ630-2011) and the National Ambient Air Quality Standards of the People’s Republic of China (GB3095-2012) to ensure that no data were missing and that the data were complete. In addition, we also processed the published pollution data as a way to assess the pollution status [27]. We analyzed the data for independence, normality, and reliability using the run test and the Kolmogorov-Smirnov test, which showed a Cronbach’s alpha of 0.866 (>0.6), which confirmed the quality of the data and that the data characteristics were favorable. Statistical methods have also been used in previous studies to confirm the reliability of the data [28,29,30].

2.2.2. Data Analyses

We use MeteoInfo software and its Trajstat plug-in to implement the calculation of the backward trajectory model, HYSPLIT is the model for calculating trajectories in TrajStat. The HYSPLIT model is relatively mature and has been commonly used in studies related to the sources and transport paths of atmospheric pollutants [31,32,33,34]. Meteoinfo software has powerful data processing capabilities, developed by Chinese meteorologists, and the HYSPLIT model is an integrated model system jointly developed by the United States and Australia [35]. Compared to HYSPLIT, the Trajstat plug-in has the advantage of an intuitive display of air mass trajectories and facilitates subsequent work (trajectory clustering, PSCF, CWT, etc.) to be performed [36]. As a result, we use the HYSPLIT and NCEP/NCARGDAS datasets in this paper to calculate the backward air mass trajectories of winter air masses arriving at the Wu-Chang-Shi urban to determine potential long-range transport paths. We determined the potential source areas of the transported airflow by potential source contribution function (PSCF) and concentration-weighted trajectory (CWT) analysis calculations.

HYSPLIT Model and Backward Trajectory

The HYSPLIT model is a hybrid Eulerian and Lagrangian diffusion model with more complete motion, diffusion, and deposition processes [37,38]. It is now commonly used for the analysis of air pollutants’ transport pathways and sources [31,39]. In this paper, the Wu-Chang-Shi urban is used as the simulated reception point, the starting altitude of the trajectory is 500 m above the ground, and the GDAS meteorological data is used to calculate the backward airflow trajectory for 72 h (4-time points of 00:00, 06:00, 12:00, 18:00 (Beijing time) per day) when arriving at the Wu-Chang-Shi urban. For the calculation time of the backward trajectory, we choose a backward trajectory length of 72 h considering that the airflow transport is usually within 1 km at the boundary layer and the particulate matter lasts about 2–3 days at the regional scale or mesoscale [40].

Cluster Analysis

One method of multivariate statistical techniques is cluster analysis, which mathematically classifies them into progressive typological categories. HYSPLIT is to group and cluster all trajectories according to the spatial similarity, transmission speed, and direction of air mass trajectories, calculate the Spatial heterogeneity (SPVAR) and total spatial heterogeneity (TSV) of each trajectory combination, and determine the number of clusters by the relationship between TSV and n. There are 2 clustering methods in TrajStat software, namely Euclidean distance, and angular distance, and this paper focuses on the airflow trajectory direction that reaches the receiving point. In this paper, the latter method is used. The study urban is gridded into a horizontal grid of 0.25° × 0.25°, and the TrajStat software is used to cluster the PSCF and CWT analysis of the Wu-Chang-Shi urban to obtain the different types of transport airflow and potential source urbans in winter.

Potential Source Contribution Function

The PSCF method is a conditional probability function that indicates the pollution contribution of a grid to a recipient point by the ratio of pollution trajectories to the residence time of all trajectories passing through a grid, and it defines that the value of an element corresponding to the arrival of an air mass passing through a region at a recipient point exceeds a set threshold (the thresholds for PM2.5 and PM10 in this paper are 75 μg m−3 and 150 μg m−3, respectively), and calculates the element value of each trajectory within the grid [41,42]. The element value of each trajectory within the grid range is calculated, and if the element value is higher than the set threshold, the trajectory is considered a polluted trajectory, where mij is the number of polluted trajectories passing through the grid (i, j) in the study urban, nij is the number of all trajectories in the grid (i, j), and wij is the weighting factor, and the weighting function is determined by referring to the research results of Zeng et al. and Tian et al. [43,44,45,46]. namely:
PSCF ij = m ij n ij
W P S C F = W ij P S C F
Wij is defined as follows:
W ij = 1.008 n i j 0.7020 < n i j 80 0.4210 < n i j 20 0.05 < n i j 10

Concentration Weighted Trajectory Analysis

The PSCF algorithm cannot distinguish the magnitude of the contribution of grids with the same PSCF value to the pollutant concentration at the recipient point, i. e., the range of the extent to which the elemental value of the trajectory within the grid is above the set threshold, so we introduce the CWT method to reflect the degree of pollution contribution of different grid urbans to the study urban [47]. The specific method is as follows:
C i j = 1 l = 1 M τ i j l l = 1 M C l τ i j l
where Cij is the average weight concentration of grid (i, j), l is the trajectory, M is the number of trajectories in the grid (i, j), Cl is the mass concentration of the pollutant at the receiving point corresponding to trajectory l when it passes through the grid (i, j), and τijl is the time trajectory l stays in the grid (i, j) [48], adopts the same weight factor Wij as PSCF to reduce the uncertainty of Cij [49], namely:
WCWT   =   C i j × W i j

3. Results and Discussions

3.1. Urban Gaseous and Particulate Pollutants Profiles

Based on all measurements, the average concentrations of air pollutants in the three cities over the entire study period (2017–2021) are shown in Table 2 below. Through comparative analysis, we found that the concentration values of AQI and O3 were Shihezi > Changji > Urumqi, the highest concentration values of SO2 and CO were found in Changji, the highest concentration values of NO2 were found in Urumqi, followed by Changji and Shihezi, the highest value of PM10 was found in Changji among the three cities, and the highest value of PM2.5 was found in Shihezi. Compared to the other two cities, Shihezi needs to pay more attention to air quality changes.
Figure 2 shows the inter-annual concentration change trends of six major atmospheric pollutants and AQI in three cities from 2017 to 2021 in the past five years. Its changing trends are different. SO2, NO2, and CO in Changji City had a tendency of first decreasing and then increasing, but an overall trend of decrease. SO2, NO2, and CO all showed their lowest values in 2020 (8.48 μg m−3, 32.61 μg m−3, and 0.93 μg m−3), PM2.5 and PM10 are on a downward trend with the lowest values in 2021 (51.75 μg m−3, 114.52 μg m−3). Among the six air pollutants in Shihezi, SO2, PM10 and PM2.5 showed a decreasing trend, and CO and NO2 showed a decreasing and then increasing trend, all reaching their lowest values in 2020 (0.85 μg m−3, 32.87 μg m−3). Among the 6 air pollutants in Urumqi, SO2, CO, PM10, and PM2.5 trended to decrease, and the values reached the lowest in 2021 (7.21 μg m−3, 0.81 μg m−3, 71.87 μg m−3, 39.74 μg m−3), NO2 showed it first decreased and then increased, and the value reached the lowest value in 2020 (35.52 μg m−3), but an overall trend of decrease. O3 showed an upward trend in all three cities. From Figure 2 and Table 2, we can see that the five-year AQI averages of the three cities are 99.60, 102.62, and 93.08, respectively. The AQI value in Shihezi exceeded the national secondary standard, but did not exceed the national tertiary standard, being the largest among the three cities. This indicates that the air quality in Shihezi is in a lightly polluted state, while the air quality in the other two cities is in a good state. In terms of changing trends, the AQI in all three cities showed a decreasing trend, indicating that air quality is gradually improving.

3.2. Seasonal Variation

The seasonal changes of air pollutants in the Wu-Chang-Shi region from 2017 to 2021 are shown in Figure 3 (Figure 3 is for Changji City, Supplementary Figures S1 and S2 are for Shihezi and Urumqi). The characteristics of the six air pollutants in each of the four seasons are shown below.
The concentrations of SO2, CO, and NO2 in the cities of Changji, Shihezi, and Urumqi all reached their maximum in winter. In Changji, the lowest concentrations of SO2 and CO were in summer, at 8.14 μg m−3 and 0.63 μg m−3, respectively; spring and summer were the seasons with the lowest concentrations of NO2 (30.95 μg m−3). In Shihezi, SO2 and NO2 concentrations were lowest in summer with 8.14 μg m−3 and 0.63 μg m−3, respectively, while CO (30.95 μg m−3) was lowest in spring and summer. In Urumqi, the concentrations of SO2 (8.14 μg m−3), CO (30.95 μg m−3), and NO2 (0.63 μg m−3) were the lowest in summer. The seasonal variations of SO2, NO2, and CO in all three cities showed a “U” shape, with concentrations in winter (December to February) > autumn (September to November) > spring (March to May) > summer (June to August). PM2.5 and PM10 concentrations in Changji, Shihezi, and Urumqi all show a winter > spring > autumn > summer pattern, and all showed “U”-shaped changes.
NO2 is photochemically active and reacts chemically with other precursors to produce O3 in the presence of sunlight, so the concentration of NO2 is lower in spring and summer. On the contrary, the maximum O3 concentration appeared in summer, and the average O3 concentrations in Changji, Shihezi, and Urumqi were 75.47 μg m−3, 108.79 μg m−3, and 74.91 μg m−3, respectively. The seasonal variation of O3, in contrast to other primary pollutants, is due to the high temperatures and intense solar radiation in summer that favor the formation of O3.
The above findings are related to primary emissions from household heating and unfavorable dispersion conditions in the Wu-Chang-Shi urban. Household heating in the Wu-Chang-Shi urban usually starts in October this year and lasts until April of the following year, which requires the burning of large amounts of fossil fuels during the heating period, while a large number of family visits and tourists increases during the Spring Festival, leading to a sharp increase in traffic emissions, which, together with unfavorable diffusion conditions in winter, leads to higher air pollutant concentrations in the urban [50]. However, the cessation of heating in summer reduces the burning of fossil fuels and reduces anthropogenic emission sources, which, together with abundant precipitation and enhanced atmospheric convective activity in summer, results in faster diffusion and lower concentrations of pollutants. Frequent sandstorms and dust in spring also increase PM2.5 and PM10 concentrations [4].

3.3. Influence of Meteorological Factor on Pollutants Concentration

A growing number of studies show that pollutants are closely related to meteorological elements and that local emissions and meteorological factors affect pollutants concentrations [51,52]. Previous research has shown that meteorological factors can cause changes in atmospheric pollutant concentrations even when local emissions are relatively stable. To further study the meteorological factors that affect air pollutants, we have studied wind speed and direction, which affect the speed and direction of atmospheric transport.
This paper presents a comprehensive and comparative analysis of wind speed, wind direction, and concentrations of six atmospheric pollutants, to visualize the relationship between atmospheric pollutants and meteorological factors. The results are shown in Figure 4 below (Figure 4 below shows the city of Changji, Supplementary Figures S3 and S4 is for Shihezi and Urumqi). The results of the study showed that the highest concentrations of SO2, NO2, and CO were found in Changji when the wind direction was southwest and the wind speed was less than 1.5 m s−1. This may be related to the fact that the wind brings emissions from industrial areas and also increases volatiles, causing O3 photochemical pollution. This was followed by the southeast wind when the wind speed was greater than 1.5 m s−1. The high concentrations of SO2, NO2, and CO were always associated with the southwest and southeast winds. This result also indicates that winds from specific wind directions have a greater influence on atmospheric pollutants. The consistency of PM2.5 and PM10 concentrations is highest with the southwest wind, when the wind speed is less than 1.5 m s−1 and PM2.5 and PM10 concentrations will increase. When the wind speed is greater than 2.5 m s−1, the southwesterly wind causes the maximum O3 concentration, and the O3 concentration increases from east to west until it reaches the maximum value. The trend of higher O3 concentration in the west and lower in the east may be related to the fact that more cities are clustered in the west of Changji and fewer cities in the east of Changji.
In Shihezi, the elevated SO2, NO2, and CO concentrations are caused by southwesterly winds and wind speeds less than 1.0 m s−1. lower wind speeds allow pollutants from industrial urbans and other cities to be deposited in the city, resulting in elevated pollutant concentrations. elevated SO2, NO2, and CO concentrations are also associated with southeasterly winds. The southwest and southeast winds cause higher concentrations of PM2.5 and PM10 and show maximum concentrations when the wind speed is less than 1.5 m s−1, which may be related to the fact that there are more industrial urbans and farmland to the west and south of Shihezi city. However, O3 concentrations reach a maximum in southeast and southwest winds with wind speeds greater than 2.0 m s−1. High values of SO2, NO2, and CO occur in Urumqi during southeasterly winds, and wind speeds are less than 2.0 m s−1. This may be due to the fact that a large number of industrial and commercial urbans are distributed in the south and east of Urumqi, and winds bring more pollutants from this area. Secondly, the southwest wind increases the concentration of SO2, NO2, and CO. Southeast winds increase PM2.5 and PM10 concentrations, with maximum concentrations occurring at wind speeds less than 2.0 m s−1, which may be related to the more open topography and more wasteland and desert in eastern Urumqi. O3 concentrations are mainly influenced by southwest and southeast winds, with the highest O3 concentrations occurring at wind speeds greater than 2.0 m s−1.
The above results suggest that pollutant concentrations may be mainly influenced by local emissions and transport. On the one hand, when the wind speed is less than 2.0 m s−1, local and local emissions have the greatest influence on pollutant concentrations. Increased human activity and consequently increased emissions lead to higher pollutant concentrations. Air pollutants are affected more by certain wind directions than others for several reasons. On the one hand, the migration and transport of pollutants are higher in the upwind urban in specific directions. On the other hand, the wind speed in a particular direction is low, causing the accumulation of air pollutants, and the long-term transport of dust aerosols may be related to the wind speed in specific directions being higher than that in other directions.

3.4. Backward Trajectory Clustering Analysis during Winter

Combining the literature research and the results of the above study, trajectories in winter were clustered into 4 or 5 classes using TrajStat software (as shown in Figure 5), and the effects of various trajectories on atmospheric particulate matter in the Wu-Chang-Shi urban were quantified by combining backward trajectory analysis and particulate matter concentration data from the Wu-Chang-Shi urban (as shown in Table 3).
In winter in Changji, airflow is predominantly west and northwest, followed by southwest airflow. The west and northwest airflow (tracks 1, 2, and 3 from southeastern Kazakhstan, north-central Bortala Mongol and Yili Kazakh Autonomous Prefecture, Kuitun and Shihezi urbans) account for the highest proportion of the total winter airflow tracks, 98.88%. The south-westerly flow from the eastern part of the Ili Kazakh Autonomous Prefecture, the border of the Ili Kazakh Autonomous Prefecture and Changji City, the southern part of Changji City, and the western part of Turpan (track 4) accounted for 1.12% of the season. The highest concentrations of particulate matter were carried by the western and southwestern airflow in winter, with trajectories 1 and 4 corresponding to PM10 concentrations of 226.06 μg m−3 and 304.90 μg m−3, respectively, and PM2.5 concentrations of 170.32 μg m−3 and 176.44 μg m−3, respectively. It is indicated that the west and southwest airflow from the north-central and east of Ili Kazakh Autonomous Prefecture, the border between Ili Kazakh Autonomous Prefecture and Changji City, south of Changji City, and west of Turpan City are the main transport paths affecting the atmospheric particulate matter concentration in winter in Changji City.
Shihezi is mainly influenced by airflow from westward and northwestward directions in winter, with track 2 accounting for the highest percentage of 36.01%, which shows the characteristics of long transport distance and strong force, originating from southeastern Kazakhstan, passing through the northeastern part of Ili Kazakh Autonomous Prefecture and eastern Shihezi, and arriving at Shihezi; track 1 is second with 21.08%, passing through southeastern Ili Kazakh Autonomous Prefecture, and is Trajectory 3, 4 and 5 are smaller and relatively uniform, mainly influenced by southeastern Kazakhstan and Tianshan Mountains, passing through the northern part of Bortala Mongol Autonomous Prefecture, Tacheng area, southern Karamay, central Tianshan Mountains and southern Shawan to reach Shihezi. The highest concentrations of particulate matter were carried by the westward airflow in winter, with trajectories 2 and 4 corresponding to PM10 concentrations of 227.07 μg m−3 and 319.90 μg m−3, respectively, and PM2.5 concentrations of 194.81 μg m−3 and 140.50 μg m−3, respectively, with trajectory 3 corresponding to the next highest PM2.5 concentration of 180.11 μg m−3. It can be seen that the most important transport path affecting the winter particulate concentration in Shihezi is the westward airflow trajectory.
Compared with Shihezi, Urumqi is mainly influenced by a westerly flow originating in the southeast of neighboring Kazakhstan and northeast of Uzbekistan in winter, with track 1 accounting for the highest share (38.62%) and tracks 2 and 4 accounting for a smaller share, which passes through the southeast of Kazakhstan and the north-central part of Ili Kazakh Autonomous Prefecture to reach Urumqi. The second is influenced by a provincial westward airflow (track 3, accounting for 33.40%), which originates in the south of Ili Kazakh Autonomous Prefecture and reaches Urumqi via the southwest of Urumqi. The highest concentrations of particulate matter were carried by the westward airflow in winter, with trajectories 1 and 3 corresponding to PM10 concentrations of 157.40 μg m−3 and 157.33 μg m−3, respectively, and PM2.5 concentrations of 38.62 μg m−3 and 33.40 μg m−3. This suggests that there may be regional transport of particulate matter from southeastern and southern Kazakhstan, southern Ili Kazakh Autonomous Prefecture, and southwestern Urumqi to the city of Urumqi.
In summary, the west and north-west flow originates from the south and south-east Kazakhstan, north-east Uzbekistan, the Turpan Basin, north-central Ili Kazakh Autonomous Prefecture, and other regions, while the south-west flows originate from north-east Ili Kazakh Autonomous Prefecture, north-central Tianshan and the junction of Ili Kazakh Autonomous Prefecture and Changji City and south of Shihezi and Changji, making them the most important transport pathways affecting atmospheric particulate matter concentrations in winter in the Wu-Chang-Shi region.

3.5. Potential Source Area Analysis

The source direction and spatial distribution of air mass trajectories affecting the Wu-Changji-Shi urban can be determined by HYSPLIT, but the potential sources and contributions affecting PM cannot be determined. Therefore, we determined the potential sources and contributions of PM in the Wu-Changji-Shi urban in winter by PSCF and CWT analysis.

3.5.1. PSCF Analysis

The potential winter WPSCF results for particulate matter in the Wu-Chang-Shi urban from 2017 to 2021 are shown in Figure 6 below. The larger the WPSCF value, the higher the percentage of pollution trajectories in the grid area. The distribution of PM10 potential contributing source areas in winter in Changji is similar to that of PM2.5, with a large and concentrated range of potential contributing source areas, but the range of PM10 high-value areas is larger than that of PM2.5, and the high-value areas of WPSCF (WPSCF > 0.9) are mainly concentrated in Changji and the neighboring cities of Urumqi, Wujiaqu, Shihezi, and Turpan. Under the influence of westerly winds, a potential contributing source area with wide coverage from west to east (0.6 < WPSCF < 0.8) exists from southeastern Kazakhstan via north-central Ili Kazakh Autonomous Prefecture to Changji, which contributes significantly to the mass concentration of PM10. The high WPSCF values (WPSCF > 0.8) of PM2.5 in winter are mainly distributed in Changji city and adjacent areas, and the areas with high WPSCF values also have a trend of distribution from west to east, similar to PM10 overall.
The distribution of potential contributing source areas for winter particulate matter in Shihezi is similar to that in Changji, but the overall extent is smaller. The distribution of high-value areas of potential contributing source areas for PM10 and PM2.5 in Shihezi is almost the same, with both WPSCF values reaching above 0.8, which are mainly influenced by the western part of Ili Kazakh Autonomous Prefecture and surrounding areas. Also, the areas with high WPSCF values are influenced by westward and northwestward airflow, and the overall distribution range is similar to that of Changji. The distribution of the potential contributing source areas of PM in winter in Urumqi is more obvious compared with Changji and Shihezi. the areas with high values of PM10 and PM2.5 show a zonal distribution from the western region of Yili Kazakh Autonomous Prefecture through Shihezi and other places to Urumqi, and the WPSCF values also both reach above 0.8. Under the influence of westerly winds, there is a southwest-northeast trending potential contributing source area zone (0.2 < WPSCF < 0.7) covering a wide area from southeastern Uzbekistan through southeastern Kazakhstan and areas such as Aksu and Bortala Mongol Autonomous Prefecture to the receiving point Urumqi, which contributes more to the mass concentrations of PM10 and PM2.5.
In summary, the WPSCF winter distribution characteristics of PM2.5 and PM10 in the Wu-Chang-Shi region are relatively similar, with a relatively concentrated range of potential contributing source urbans in the surrounding cities. The range of high WPSCF urbans is mostly greater for PM2.5 than PM10, with PM10 greater than PM2.5 in Changji City, and there are 1, 2, and 3 potential source urban contributing bands, whose WPSCF values Part of the range of the urban covered is the main source of sand and dust storms in China, and some of the urbans (e. g. Aksu region, Karamay city, and Turpan) are relatively polluted urbans in China, and therefore they can be considered the main potential source urbans in winter.

3.5.2. CWT Analyse

The WPSCF analysis method can help us determine the potential source urban, but it has limitations and does not accurately reflect the pollution level of the pollution trajectory. Therefore, according to the CWT analysis method, weighting the concentration of pollutants on the source grid to reflect the pollution level of the pollution trajectory (As shown in Figure 7 below). From the resulting map, it can be seen that the WCWT in the Wu-Chang-Shi urban has a good agreement relative to the WPSCF results, but the potential source area is more widely distributed, except for Shihezi.
The high-value area (WCWT > 80 μg m−3) of the potential contributing source area of PM2.5 in winter in Changji is much more widely distributed than PM10, mainly in the local and surrounding areas of Changji, such as Urumqi, Turpan, Shihezi, Kuitun, Ili Kazakh Autonomous Prefecture, and northern Aksu region, with some scattered distribution in southeastern Kazakhstan, northeastern Kyrgyzstan, eastern Uzbekistan, Karamay City and the southern part of Tacheng region also have some sporadic distribution. Compared with PM2.5, the high WCWT of PM10 (WCWT > 170 μg m−3) is mainly scattered in the areas around Changji city and the central and western parts of Ili Kazakh Autonomous Prefecture. This is related to the winter heating and the intensity of air pollutant emissions in the region. In addition, cold air is frequently active in the west, northwest, and southwest directions in winter, forming three corridors of transport source areas from west to east, northwest, and southwest.
The spatial distribution of potential contributing source areas with low WCWT values for PM2.5 and PM10 in winter in Shihezi is similar, and overall the WCWT values for PM2.5 are lower than those for PM10, with significant differences in distribution ranges compared to the WPSCF analysis. This may be related to the locally adopted industrial emission limits. high WCWT values of PM2.5 are sporadically distributed in local areas of Shihezi city, with WCWT values reaching more than 180 μg m−3. PM10 is mainly influenced by the areas around Shihezi, such as Changji, Urumqi, Shawan, and Kuitun, as well as the northern part of Aksu, the central and western part of Ili Kazakh Autonomous Prefecture, and the sporadic area in southeastern Kazakhstan of the city, the WCWT values reached above 160 μg m−3, indicating that these areas contributed more to the PM10 pollution concentration in Shihezi. In addition, lower WCWT values of PM10 (WCWT < 60 μg m−3) are sporadically distributed in southeastern Kazakhstan and northern Xinjiang.
The high values of WCWT of PM2.5 and PM10 in winter in Urumqi are both greater than 90 μg m−3, and the distribution of the potential contributing source areas of both is very similar, but the coverage of the latter is slightly larger than that of the former, and the high WCWT areas of PM2.5 and PM10 show a band distribution from southeastern Kazakhstan through the central and western regions of Ili Kazakh Autonomous Prefecture to the receiving point Urumqi. This is related to winter heating and the intensity of air pollutant emissions in the region. In addition, similar to Changji city, a source pathway is formed from southwest to northeast transport due to the frequent activity of cold air in the west in winter, which is also consistent with the above analysis of WPSCF.
In summary, the distribution characteristics of WCWT high-value areas of PM2.5 and PM10 in the Wu-Chang-Shi urban in winter are relatively similar. The urbans with high WCWT values for PM2.5 and PM10 are relatively concentrated, including Wu-Chang-Shi locality and neighboring cities and counties, Ili Kazakh autonomous prefecture, Bortala Mongolian Autonomous Prefecture, southeastern Kazakhstan, northern Aksu, and the junction of Kazakhstan and Kyrgyzstan. This is the most important potential source of particulate matter.

3.6. Comparisons with Other Chinese Cities

Since studying the concentration of air pollutants in only one region and not comparing it with other cities does not reflect the level of pollution in the region, we compared the Wu-Chang-Shi region with 168 cities monitored by the Chinese in 2017. (As shown in Figure 8 below).
Nationally, pollution is more severe in cities in north-central China and less severe in cities in southern China [24]. The main pollutants commonly found in China are PM2.5, followed by PM10 and O3 [39]. The annual average concentrations of PM10 (67.29 μg m−3, 61.87 μg m−3, 70.31 μg m−3) and PM2.5 (98.49 μg m−3, 102.14 μg m−3, 115.05 μg m−3) in Changji, Shihezi, and Urumqi were higher, but in moderate pollution. 91. 07% and 81.55% of the cities for PM2.5 and PM10 exceeded the CAAQS secondary standard, respectively. The annual average concentration of O3 ranges from 72.39 μg m−3 (Changji) to 124.47 μg m−3 (Tangshan). Among the 168 cities, no city exceeded the O3 secondary standard, but 54.17% of the cities exceeded the primary standard. The SO2 concentrations in Changji City, Shihezi City, and Urumqi City were 72.39 μg m−3, 73.13 μg m−3, and 86. 90 μg m−3 respectively. No city exceeded the Class I standard and was within the range of moderate pollution levels. For SO2, only three cities in China, Linfen, Lvliang, and Jinzhong exceeded the secondary standard, with the lowest (6.45 μg m−3) and highest (83.44 μgm−3) annual average SO2 concentrations being in Fuzhou and Jinzhong respectively. The concentrations of SO2 in Changji City, Shihezi City, and Urumqi City were 18.09 μg m−3, 15.25 μg m−3, and 13.52 μg m−3 respectively, which belonged to low pollution levels. None of the cities exceeded the first-grade carbon monoxide standard, and the annual average CO concentrations (1.33 μg m−3, 1.15 μg m−3, 1.40 μg m−3) in Changji, Shihezi, and Urumqi were in the lightest pollution level. In terms of NO2, 40% of cities exceed secondary standards. The NO2 concentrations in Changji City, Shihezi City, and Urumqi City were 45.24 μg m−3, 42.80 μg m−3, and 49.64 μg m−3 respectively, which belonged to the moderate pollution level. By comparing Changji, Shihezi, and Urumqi with the 168 cities mentioned above, we can see that the pollution of PM2.5 and PM10 is more serious in Wu-Chang-Shi, while NO2 and O3 are relatively light, and SO2 and CO are the least polluted. As a result, improving air quality in Changji, Shihezi, and Urumqi should be based on PM2.5 and PM10 control and management, addressing traffic sources, reducing primary pollutants and NO2 pollutants emissions, and reducing dust entrainment in the desert’s surrounding urbans. Volatile organic compound emissions should be controlled by prioritizing NOx control to prevent increases in O3 pollution.

3.7. Characteristics of Changes in Air Pollutant Concentrations before and after the New Coronary Pneumonia Outbreak

As the novel coronavirus became a pandemic in China in late 2019 or early 2020, the Chinese government then adopted a series of containment policies to control its rapid spread [53]. It is due to these containment policies that the atmospheric pollutant concentrations have changed [54], we compared pollutant concentration data for the year before and for the entire year following the national outbreak of New Crown pneumonia in early 2020 and the adoption of containment. The time period for the comparative analysis is taken from January to July before the dotted line in the chart below (Months in which pollutant concentrations were affected by the outbreak).
CO is mainly from incomplete combustion of fossil fuels and biomass (burning of crop residues in open urbans). As can be seen in Figure 9 below, CO in the Wu-Chang-Shi urban showed a decreasing trend from January to July after the outbreak, and the concentration values after the outbreak were all smaller than those before the outbreak, decreasing by 0.3 μg m−3 (Urumqi), 0.14 μg m−3 (Changji), and 0.15 μg m−3 (Shihezi). The variation over a whole year shows that the concentration values after the outbreak are also smaller than those before the outbreak. This indicates that the national closure policy adopted after the outbreak has to some extent reduced CO emissions from industrial and domestic fuels and domestic coal combustion to a certain extent, and the effect is relatively obvious. The combustion of sulfur-containing fuel combustion (oil, coal) increases the concentration of SO2 in the atmosphere, indicating that it is the main source [55,56]. Overall SO2 emissions in the Wu-Chang-Shi region improved after the epidemic; average SO2 concentrations in Changji, Shihezi, and Urumqi decreased by 3.97 μg m−3, 2.95 μg m−3, and 2.17 μg m−3, respectively, from January to July, compared to the same period before the outbreak; however, emissions after the epidemic were smaller than those before the epidemic in spring and summer and larger than those before the epidemic in autumn and winter. On the one hand, because of the strong ecological protection policies implemented by the government in recent years, the upgrading of key industries (electricity and iron and steel), the extensive use of new energy sources, and the obvious effect of energy conservation and emission reduction, the concentration of air pollutants were reduced. On the other hand, many coal-fired industries could not be shut down after the epidemic, especially in the autumn and winter seasons when a large amount of coal is burned for urban heating, leading to an increase in SO2 emissions.
The main sources of gaseous NO2 are fossil fuel combustion, coal and oil combustion, etc. After the outbreak, NO2 in the Uchang region showed an overall decreasing trend from January to July, decreasing by 6.69 μg m−3 (Urumqi), 7.44 μg m−3 (Changji), and 1.44 μg m−3 (Shihezi), respectively, year-on-year. The lowest NO2 concentrations before and after the epidemic occur in summer, which is due to the strong photochemical reactions in summer that consume NOx However, the post-epidemic concentrations were greater than the pre-epidemic values in winter, which were mainly influenced by winter heating in the Northwest. Gaseous O3 is mainly emitted from the combustion of fossil fuels and exhaust gases from industrial production, and vehicle exhaust from transport. We found that the average O3 concentrations in Changji, Shihezi, and Urumqi were greater from January to July after the outbreak than in the same period before the outbreak, and increased by 12.47 μg m−3 and 0.16 μg m−3 and 2.56 μg m−3, respectively, showing an increasing trend after the outbreak. As both NO2 and NO emissions decreased during the epidemic, which suppressed O3 production and reduced O3 consumption, the compensating effect of NO2 on O3 exceeded the depleting effect of NO, and O3 concentrations increased. The change in the ratio of NOx to VOCs may also lead to an increase in O3 production, while the decrease in particulate matter concentration during the epidemic may lead to an increase in light radiation, which may also lead to an increase in O3 content.
The sources of PM2.5 and PM10 can be divided into natural and anthropogenic sources, such as ultrafine particulate matter emitted directly from various industrial processes, such as coal combustion, metallurgy, chemicals, and internal combustion engines, and ultrafine particulate matter formed secondarily in the atmosphere with aerosols. Through the study, we found that PM2.5 and PM10 concentrations in the Uchang Shi area were lower than the pre-epidemic values from January to July of the outbreak, and showed a decreasing trend due to the reduction of industrial and domestic emissions after the outbreak, Comparing other periods of the year, we found that the values after the outbreak were also lower than those before the outbreak. However, in individual places in spring, PM10 concentration values after the outbreak were greater than those before the outbreak, which may be related to the frequent dusty weather in northwest China in spring. As a whole, the concentrations of all air pollutants except O3 are lower after the epidemic than before it, due to the national policy of closure and control after the epidemic, which banned people’s living activities and thus reduced some industrial and domestic emissions, as well as the significant effectiveness of pollution control in recent years.

4. Conclusions

The main conclusions from the comprehensive analysis of the pollution characteristics and potential sources of air pollutants in the Wu-Chang-Shi urban from 2017 to 2021 are as follows:
NO2, CO, SO2, PM10, and PM2.5 had a tendency to decrease, while O3 trended to increase during this period. The concentrations of pollutants were significantly higher in winter than in other seasons, but O3 instead had the highest concentrations in summer. Due to the influence of seasonal and domestic heating emissions, the concentrations of PM10 and PM2.5 showed characteristics of high winter and low summer. Compared with the pollutant concentrations in other cities in China, the pollution of PM2.5, PM10, and NO2 in the Wu-Chang-Shi urban was relatively serious. By studying the relationship between atmospheric pollutants and meteorological factors, we could conclude that the wind speed and direction of the north, northwest, and southwest winds were associated with lower concentrations of primary pollutants, while temperature increases were associated with higher concentrations of secondary pollutants (O3).
Backward trajectory cluster analysis shows that in winter, the Wu-Chang-Shi urban is dominated by west and northwest airflow (98.88% in Changji, 78.92% in Shihezi, and 66.60% in Urumqi), followed by southwest airflow (1.12% in Changji, 21.08% in Shihezi, and 33.40% in Urumqi), the west and northwest airflows come from the south and southeast of Kazakhstan, the northeast of Uzbekistan, the Turpan Basin, the central and northern parts of Ili Kazakh Autonomous Prefecture, and the southwest airflow comes from the northeast of Ili Kazakh Autonomous Prefecture, the central and northern Tianshan Mountains, Ili Kazakh Autonomous Prefecture and Changji City The long-distance transport of dust in the junction and the south of Shihezi and Changji, Central Asia and adjacent urbans makes them the most important transport paths affecting the concentration of atmospheric particulate matter in the Wu-Chang-Shi urban in winter. WPSCF and WCWT analysis showed that the distribution characteristics of PM2.5 and PM10 in the Wu-Chang-Shi urban were similar in winter. The urbans with high values for PM2.5 and PM10 were relatively concentrated, including the Wu-Chang-Shi locality and neighboring cities and counties, Ili Kazakh Autonomous Prefecture, Bortala Mongolian Autonomous Prefecture, southeastern Kazakhstan, northern Aksu, and the junction of Kazakhstan and Kyrgyzstan. This distribution feature was directly related to the emission of pollutants in local and adjacent urbans due to meteorological factors (wind speed, wind direction), seasonal factors, etc. Also, the potential source areas mentioned above have a common feature of colder winters and larger emissions from central heating. Some areas have more petrochemical companies, which can also cause elevated particulate matter concentrations.
After COVID-19, air quality in the Wu-Chang-Shi urban improved significantly, with a decreasing trend in the concentrations of air pollutants except for O3, due to the epidemic limiting people’s productive activities. The increase in O3 concentration might be related to the changes in NO2 and VOCs, and the response mechanisms should be combined with meteorological factors and further investigated for photochemical mechanisms. Air pollution is a complex issue that is related to many factors. Reducing pollutant emissions will improve air quality, but to develop scientific pollution prevention strategies, we need to conduct a more in-depth study of secondary pollutant generation mechanisms. The temporal distribution of meteorological factors affecting pollutants in the Wu-Chang-Shi urban is largely unknown, and therefore further research is needed.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/atmos14010091/s1, Figure S1: Shihezi time-dependent distribution of gas concentrations (a SO2, b O3, c NO2 and e CO) and particulate matter (d PM2.5 and f PM10) (filled colours); Figure S2: Urumqi time-dependent distribution of gas concentrations (a SO2, b O3, c NO2 and e CO) and particulate matter (d PM2.5 and f PM10) (filled colours); Figure S3: Polar plots of SO2, NO2, CO, O3, PM2.5 and PM10 concentrations in the Shihezi. a SO2. b O3. c NO2. d PM2.5. e CO.f PM10; Figure S4: Polar plots of SO2, NO2, CO, O3, PM2.5 and PM10 concentrations in the Urumqi. a SO2. b O3. c NO2. d PM2.5. e CO. f PM10.

Author Contributions

Data collection, X.Z. (Xi Zhou) and Y.L.; formal analysis, Z.C.; funding acquisition, Z.L.; investigation, F.W.; software, Z.C.; writing—original draft, Z.C.; methodology, X.Z. (Xin Zhang); writing—science advising, review, L.X. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Third Xinjiang Scientific Expedition (TXSE) program (2022xjkk0101; 2021xjkk1401), the Second Tibetan Plateau Scientific Expedition and Research (2019QZKK0201), the Strategic Priority Research Program of Chinese Academy of Sciences (Class A) (XDA20060201; XDA20020102), the SKLCS founding (SKLCS-ZZ-2022), and the National Natural Science Foundation of China (41471058).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank the staff working in the Tianshan Glaciological Station for helping collect data. We also gratefully thank the reviewers for their constructive comments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Han, R.; Wang, S.; Shen, W.; Wang, J.; Wu, K.; Ren, Z.; Feng, M. Spatial and temporal variation of haze in China from 1961 to 2012. Environ. Sci. 2016, 46, 134–146. [Google Scholar] [CrossRef] [PubMed]
  2. Song, M.-Y.; Li, Z.-Q.; Xia, D.-S.; Jin, S.; Zhang, X. Isotopic evidence for the moisture origin and influencing factors at Urumqi Glacier No.1 in upstream Urumqi River Basin, eastern Tianshan Mountains. J. Mt. Sci. 2019, 16, 1802–1815. [Google Scholar] [CrossRef]
  3. IPCC. Climate Change: The Physical Science Basis. Contribution of Workinggroup I to the Fourth Assessment Report of the Intergovernmental Panel Onclimate Change. Master’s Thesis, Cambridge University, Cambridge, UK, University Press, Cambridge, UK, 2007. [Google Scholar]
  4. Wang, Y.; Ying, Q.; Hu, J.; Zhang, H. Spatial and temporal variations of six criteria air pollutants in 31 provincial capital cities in China during 2013–2014. Environ. Int. 2014, 73, 413–422. [Google Scholar] [CrossRef] [PubMed]
  5. Lim, S.S.; Vos, T.; Flaxman, A.D.; Danaei, G.; Shibuya, K.; Adair-Rohani, H.; AlMazroa, M.A.; Amann, M.; Anderson, H.R.; Andrews, K.G.; et al. A comparative risk assessment of burden of disease and injuryattributable to 67 risk factors and risk factor clusters in 21 regions, 1990–2010: A systematic analysis for the global burden of disease study2010. Lancet 2013, 380, 2224–2260. [Google Scholar] [CrossRef] [Green Version]
  6. WHO. Public Health, Environmental and Social Determinants of Health (PHE). 2016. Available online: http://www.who.int/phe/health_topics/outdoorair/databases/en, (accessed on 5 April 2022).
  7. Zhang, Q.; Crooks, R. Toward an Environmentally Sustainable Future: Country Environmental Analysis of the People’s Republic of China. Adb Reports. 2014. Available online: http://www.adb.org/sites/default/files/pub/2012/toward-environmentally-sustainable-future-prc.pdf (accessed on 5 April 2022).
  8. Yu, X.; Lü, R.; Liu, C.; Yuan, L.; Shao, Y.; Zhu, B.; Lei, L. Seasonal variation of columnar aerosol optical properties and radiative forcing over Beijing, China. Atmos. Environ. 2017, 166, 340–350. [Google Scholar] [CrossRef]
  9. Zhao, S.; Yu, Y.; Yin, D.; Qin, D.; He, J.; Dong, L. Spatial patterns and temporal variations of six criteria air pollutants during 2015 to 2017 in the city clusters of Sichuan Basin, China. Sci. Total Environ. 2018, 624, 540–557. [Google Scholar] [CrossRef]
  10. Forouzanfar, M.H.; Afshin, A.; Alexander, L.T.; Anderson, H.R.; Bhutta, Z.A.; Biryukov, S.; Brauer, M.; Burnett, R.; Cercy, K.; Charlson, F.J.; et al. Global, regional, and national comparative risk assessment of 79 behavioural, environmental and occupational, and metabolic risks or clusters of risks, 1990–2015: A systematic analysis for the global burden of disease Study 2015. Lancet 2016, 388, 1659–1724. [Google Scholar] [CrossRef] [Green Version]
  11. Landrigan, P.J. Air pollution and health. Lancet Public Health 2016, 2, e4–e5. [Google Scholar] [CrossRef] [Green Version]
  12. Kumar, P.; Morawska, L.; Birmiliw, W.; Paasonen, P.; Hu, M.; Kulmala, M.; Harrison, R.M.; Norford, L.; Britter, R. Ultrafine particles in cities. Environ. Int. 2014, 66, 1–10. [Google Scholar] [CrossRef] [Green Version]
  13. Chai, F.; Gao, J.; Chen, Z.; Wang, S.; Zhang, Y.; Zhang, J.; Zhang, H.; Yun, Y.; Ren, C. Spatial and temporal variation of particulate matter and gaseous pollutants in 26 cities in China. J. Environ. Sci. 2014, 26, 75–82. [Google Scholar] [CrossRef]
  14. Zhang, Y.H.; Hu, M.; Zhong, L.J.; Wiedensohler, A.; Liu, S.C.; Andreae, M.O.; Wang, W.; Fan, S. Regional integrated experiments on air quality over Pearl RiverDelta 2004 (PRIDE-PRD2004): Overview. Atmos. Environ. 2008, 42, 6157–6173. [Google Scholar] [CrossRef]
  15. Wang, H.; An, J.; Cheng, M.; Shen, L.; Zhu, B.; Li, Y.; Wang, Y.; Duan, Q.; Sullivan, A.; Xia, L. One year online measurements of water-soluble ions at the industrially polluted town of Nanjing, China: Sources, seasonal and diurnal variations. Chemosphere 2016, 148, 526–536. [Google Scholar] [CrossRef] [PubMed]
  16. Liao, T.; Wang, S.; Ai, J.; Gui, K.; Duan, B.; Zhao, Q.; Zhang, X.; Jiang, W.; Sun, Y. Heavy pollution episodes, transport pathways and potential sources of PM2.5, during the winter of 2013 in Chengdu (China). Sci. Total Environ. 2017, 584–585, 1056–1065. [Google Scholar] [CrossRef] [PubMed]
  17. Mao, M.; Zhang, X.; Yin, Y. Particulate matter and gaseous pollutions in three metropolises along the Chinese Yangtze River: Situation and implications. Int. J. Environ. Res. Public Health 2018, 15, 1102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Ta, W.; Wang, T.; Xiao, H.; Zhu, X.; Xiao, Z. Gaseous and particulateair pollution in the Lanzhou Valley, China. Sci. Total Environ. 2004, 320, 163–176. [Google Scholar] [CrossRef] [PubMed]
  19. Zheng, H.; Kong, S.; Chen, N.; Yan, Y.; Liu, D.; Zhu, B.; Xu, K.; Cao, W.; Ding, Q.; Lan, B.; et al. Significant changes in the chemical compositions and sources of PM2.5 inWuhan since the city lockdown as COVID-19. Sci. Total Environ. 2020, 739, 140000. [Google Scholar] [CrossRef]
  20. Faridi, S.; Yousefian, F.; Niazi, S.; Ghalhari, M.R.; Hassanvand, M.S.; Naddafi, K. Impact of SARS-CoV-2 on ambient air particulate matter in Tehran. Aerosol Air Qual. Res. 2020, 20. [Google Scholar] [CrossRef]
  21. Wang, C.; Horby, P.W.; Hayden, F.G.; Gao, G.F. A novel coronavirus outbreak of global health concern. Lancet 2020, 395, 470–473. [Google Scholar] [CrossRef] [Green Version]
  22. Chu, B.; Zhang, S.; Liu, J.; Ma, Q.; He, H. Significant concurrent decrease in PM2.5 and NO2 concentrations in China during COVID-19 epidemic. J. Environ. Sci. 2020, 99, 346–353. [Google Scholar] [CrossRef]
  23. Wang, S.; Zhang, Y.; Ma, J.; Zhu, S.; Shen, J.; Wang, P.; Zhang, H. Responses of decline in air pollution and recovery associated with COVID-19 lockdown in the Pearl River Delta. Sci. Total Environ. 2021, 756, 143868. [Google Scholar] [CrossRef]
  24. Shen, F.; Zhang, L.; Jiang, L.; Tang, M.; Gai, X.; Chen, M.; Ge, X. Temporal variations of six ambient criteria air pollutants from 2015 to 2018, their spatial distributions, health risks and relationships with socioeconomic factors during 2018 in China. Environ. Int. 2020, 137, 105556. [Google Scholar] [CrossRef]
  25. Rupakheti, D.; Yin, X.; Rupakheti, M.; Zhang, Q.; Li, P.; Rai, M.; Kang, S. Spatio-temporal characteristics of air pollutants over Xinjiang, northwestern China. Environ. Pollut. 2021, 268, 115907. [Google Scholar] [CrossRef] [PubMed]
  26. Shen, Y.; Zhang, L.; Fang, X.; Ji, H.; Li, X.; Zhao, Z. Spatiotemporal patterns of recent PM2.5 concentrations over typical urban agglomerations in China. Sci. Total Environ. 2019, 655, 13–26. [Google Scholar] [CrossRef] [PubMed]
  27. Zhou, T.C.; Sun, J.; Yu, H. Temporal and spatial patterns of China’s main air pollutants: Years 2014 and 2015. Atmosphere 2017, 8, 137. [Google Scholar] [CrossRef] [Green Version]
  28. Xie, Y.; Zhao, B.; Zhang, L.; Luo, R. Spatiotemporal variations of PM2.5 and PM10 concentrations between 31 Chinese cities and their relationships with SO2, NO2, CO, and O3. Particuology 2015, 20, 141–149. [Google Scholar] [CrossRef]
  29. Zhao, S.; Yu, Y.; Yin, D.; He, J.; Liu, N.; Qu, J.; Xiao, J. Annual and diurnal variations of gaseous and particulate pollutants in 31 provincial capital cities based on in situ air quality monitoring data from China National Environmental Monitoring Center. Environ. Int. 2016, 86, 92–106. [Google Scholar] [CrossRef]
  30. Zhou, X.; Zhang, T.; Li, Z.; Tao, Y.; Wang, F.; Zhang, X.; Xu, C.; Ma, S.; Huang, J. Particulate and gaseous pollutants in a petrochemical industrialized valley city, Western China during 2013–2016. Environ. Sci. Pollut. Res. 2018, 25, 15174–15190. [Google Scholar] [CrossRef]
  31. Draxler, R.R.; Stunder, B.; Rolph, G.; Stein, A.; Taylor, A.; Zinn, S.; Loughner, C.; Crawford, A. HYSPLIT 4 Users Guide [EB/OL]. [23-05-2018]. NOAA Tech Mem Air Resources Laboratory, 2018–02. Available online: https://www.arl.noaa.gov/documents/reports/hysplit_user_guide.pdf (accessed on 3 December 2022).
  32. Bagheri, R.; Bagheri, F.; Karami, G.H.; Jafari, H. Chemo-isotopes (18O&2H) signatures and HYSPLIT model application: Clues to the atmospheric moisture and air mass origins. Atmos. Environ. 2019, 215, 116892. [Google Scholar]
  33. Ahmad, P.; Zahra, K.; Peyman, D. Atmospheric dispersion assessment of radioactive materials during severe accident conditions for Bushehr nuclear power plant using HYSPLIT code. Prog. Nucl. Energy 2018, 108, 169–178. [Google Scholar]
  34. Bilinska, D.; Skjoth, C.; Werner, M.; Kryza, M.; Malkiewicz, M.; Krynicka, J.; Drzeniecka-Osiadacz, A. Source regions of ragweed pollen arriving in south-western Poland and the influence of meteorological data on the HYSPLIT model results. Aerobiologia 2017, 33, 315–326. [Google Scholar] [CrossRef] [Green Version]
  35. Wang, Y.Q. MeteoInfo: GIS software for meteorological data visualization and analysis. Meteorol. Appl. 2014, 21, 360–368. [Google Scholar] [CrossRef]
  36. Wang, Y.Q.; Zhang, X.Y.; Draxler, R.R. TrajStat: GIS-based software that uses various trajectory statistical analysis methods to identify potential sources from long-term air pollution measurement Data. Environ. Model. Softw. 2009, 24, 938–939. [Google Scholar] [CrossRef]
  37. Draxler, R.R.; Hess, G.D. An overview of the hysplit-4 modeling system for trajectories. Aust. Meteorol. Mag. 1998, 47, 295–308. [Google Scholar]
  38. Stein, A.F.; Draxler, R.R.; Rolph, G.D.; Stunder, B.J.B.; Cohen, M.D.; Ngan, F. NOAA’s HYSPLIT atmospheric transport and dispersion modeling system. Bull. Am. Meteorol. Soc. 2015, 96, 2059–2077. [Google Scholar] [CrossRef]
  39. Borge, R.; Lumbreras, J.; Vardoulakis, S.; Kassomenos, P.; Rodrigues, E. Analysis of long-range transport influences on urban PM10 using two-stage atmospheric trajectory clusters. Atmos. Environ. 2007, 41, 4434–4450. [Google Scholar] [CrossRef]
  40. Li, M.; Huang, X.; Zhu, L.; Li, J.; Song, Y.; Cai, X.; Xie, S. Analysis of the transport pathways and potential sources of PM10 in Shanghai based on three methods. Sci. Total Environ. 2012, 414, 525e534. [Google Scholar] [CrossRef]
  41. Begum, B.A.; Kim, E.; Jeong, C.H.; Lee, D.-W.; Hopke, P.K. Evaluation of the potential source contribution function using the 2002 Quebec forest fire episode. Atmos. Environ. 2005, 39, 3719–3724. [Google Scholar] [CrossRef]
  42. Salvador, P.; Artinano, B.; Alonso, D.G.; Querol, X.; Alastuey, A. Identification and characterization of sources of PM10 in Madrid (Spain) by statistical methods. Atmos. Environ. 2004, 38, 435–447. [Google Scholar] [CrossRef]
  43. Tian, M.; Wang, H.; Chen, Y.; Yang, F.M.; Zhang, X.H.; Zou, Q.; Zhang, R.Q.; Ma, Y.L.; He, K.B. Characteristics of aerosol pollution during heavy haze events in Suzhou, China. Atmos. Phys. 2016, 16, 7357–7371. [Google Scholar] [CrossRef] [Green Version]
  44. Zeng, Y.; Hopke, P. A study of the sources of acid precipitation in Ontario, Canada. Atmos. Environ. 1989, 23, 1499–1509. [Google Scholar] [CrossRef]
  45. Xu, X.; Akhtar, U.S. Identification of potential regional sources of atmospheric total gaseous mercury in Windsor, Ontario, Canada using hybrid receptor modeling. Atmos. Chem. Phys. 2010, 10, 7073–7083. [Google Scholar] [CrossRef] [Green Version]
  46. Polissara, V.; Hopke, P.K.; Harris, J.M. Source regions for atmospheric aerosol measured at Barrow, Alaska. Environ. Sci. Technol. 2001, 35, 4214–4226. [Google Scholar] [CrossRef] [PubMed]
  47. Liu, N.; Ye, Y.; He, J.J.; Zhao, S. Integrated modeling of urban-scale pollutant transport: Application in a Semi-arid urban Valley, Northwestern China. Atmos. Pollut. Res. 2013, 4, 306–314. [Google Scholar] [CrossRef]
  48. Seibert, P.; Kromp-Kolb, H.; Baltensperger, U.; Jost, D.T.; Schwikowski, M.; Kasper, A.; Puxbaum, H. Trajectory analysis of aerosol measurements at high alpine sites. Acad. Publ. 1994, 15, 689–693. [Google Scholar]
  49. Stohl, A. Trajectory statistics: A new method to establish source-receptor relationships of air pollutants and its application to the transport of particulate sulfate in Europe. Atmos. Environ. 1996, 30, 579–587. [Google Scholar] [CrossRef]
  50. Liu, Z.; Hu, B.; Wang, L.; Wu, F.; Gao, W.; Wang, Y. Seasonal and diurnal variation in particulate matter (PM10 and PM2.5) at an urban site of Beijing: Analyses from a 9-year study. Environ. Sci. Pollut. Res. Int. 2015, 22, 627–642. [Google Scholar] [CrossRef]
  51. Wang, F.; Li, Z.; Wang, F.; You, X.; Xia, D.; Zhang, X.; Zhou, X. Air Pollution in a Low-Industry City in China’s Silk Road Economic Belt: Characteristics and Potential Sources. Front. Earth Sci. 2021, 9, 527475. [Google Scholar] [CrossRef]
  52. Jianjun, H.; Sunling, G.; Ye, Y.; Lijuan, Y.; Lin, W.; Hongjun, M.; Congbo, S.; Suping, Z.; Hongli, L.; Xiaoyu, L.; et al. Air pollution characteristics and their relation to meteorological conditions during 2014–2015 in major Chinese cities. Environ. Pollut. 2017, 223, 484–496. [Google Scholar]
  53. Wang, P.F.; Chen, K.Y.; Zhu, S.Q.; Wang, P.; Zhang, H.L. Severe air pollutionevents not avoided by reduced anthropogenic activities during COVID-19 outbreak. Resour. Conserv. Recycl. 2020, 158, 104814. [Google Scholar] [CrossRef]
  54. Venter Zander, S.; Aunan, K.; Chowdhury, S.; Lelieveld, J. COVID-19 lockdowns cause global air pollution declines. Proc. Natl. Acad. Sci. USA 2020, 117, 18984–18990. [Google Scholar] [CrossRef]
  55. Huang, Q.; Cheng, S.; Perozzi, R.E. Use of a MM5–CAMx–PSAT Modeling System to Study SO2 Source Apportionment in the Beijing Metropolitan Region. Environ. Model. Assess. 2012, 17, 527–538. [Google Scholar] [CrossRef]
  56. Zhang, R.X.; Zhang, Y.Z.; Lin, H.P.; Feng, X.; Fu, T.M.; Wang, Y.H. NOx emissionreduction and recovery during COVID-19 in East China. Atmosphere 2020, 11, 433. [Google Scholar] [CrossRef]

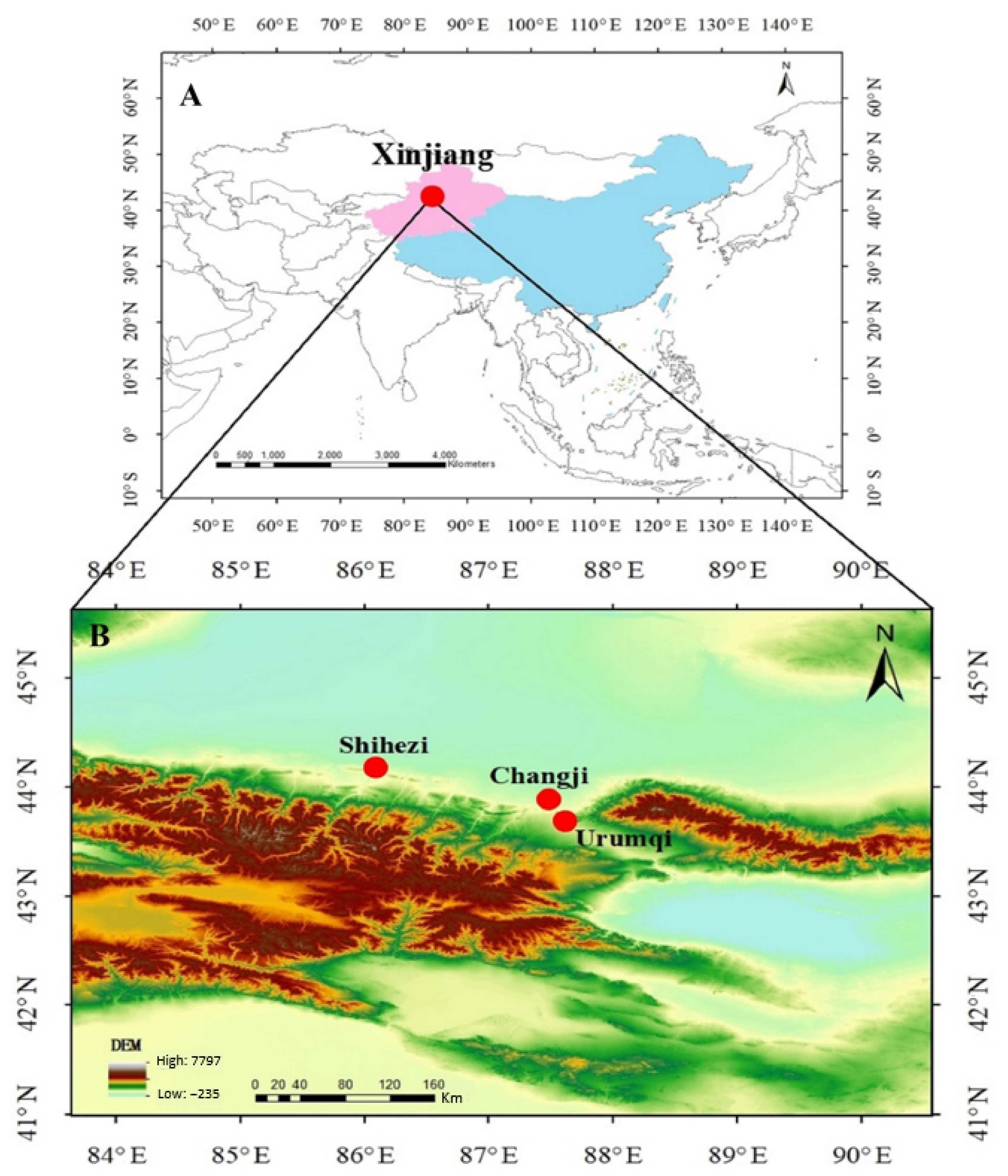

Figure 1. Wu-Chang-Shi urban. (A) Geography, (B) Topography.
Figure 1. Wu-Chang-Shi urban. (A) Geography, (B) Topography.
Atmosphere 14 00091 g001

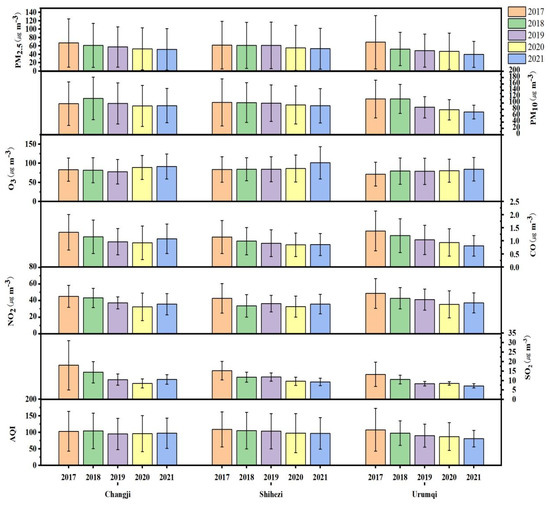

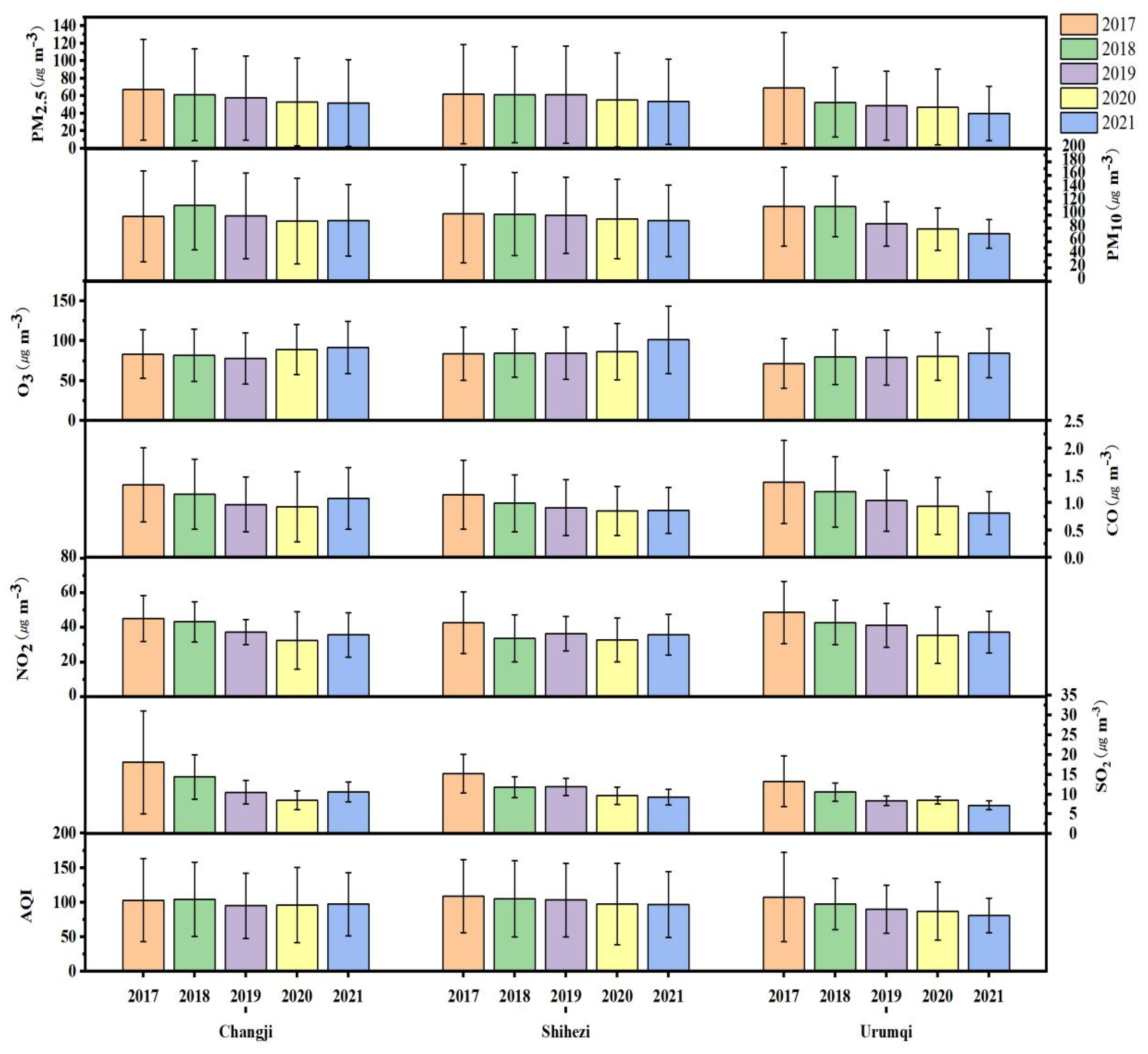

Figure 2. Comparison of the AQI and annual average concentrations of air pollutants in the Wu-Chang-Shi urban for 2017–2021. (μg m−3).
Figure 2. Comparison of the AQI and annual average concentrations of air pollutants in the Wu-Chang-Shi urban for 2017–2021. (μg m−3).
Atmosphere 14 00091 g002

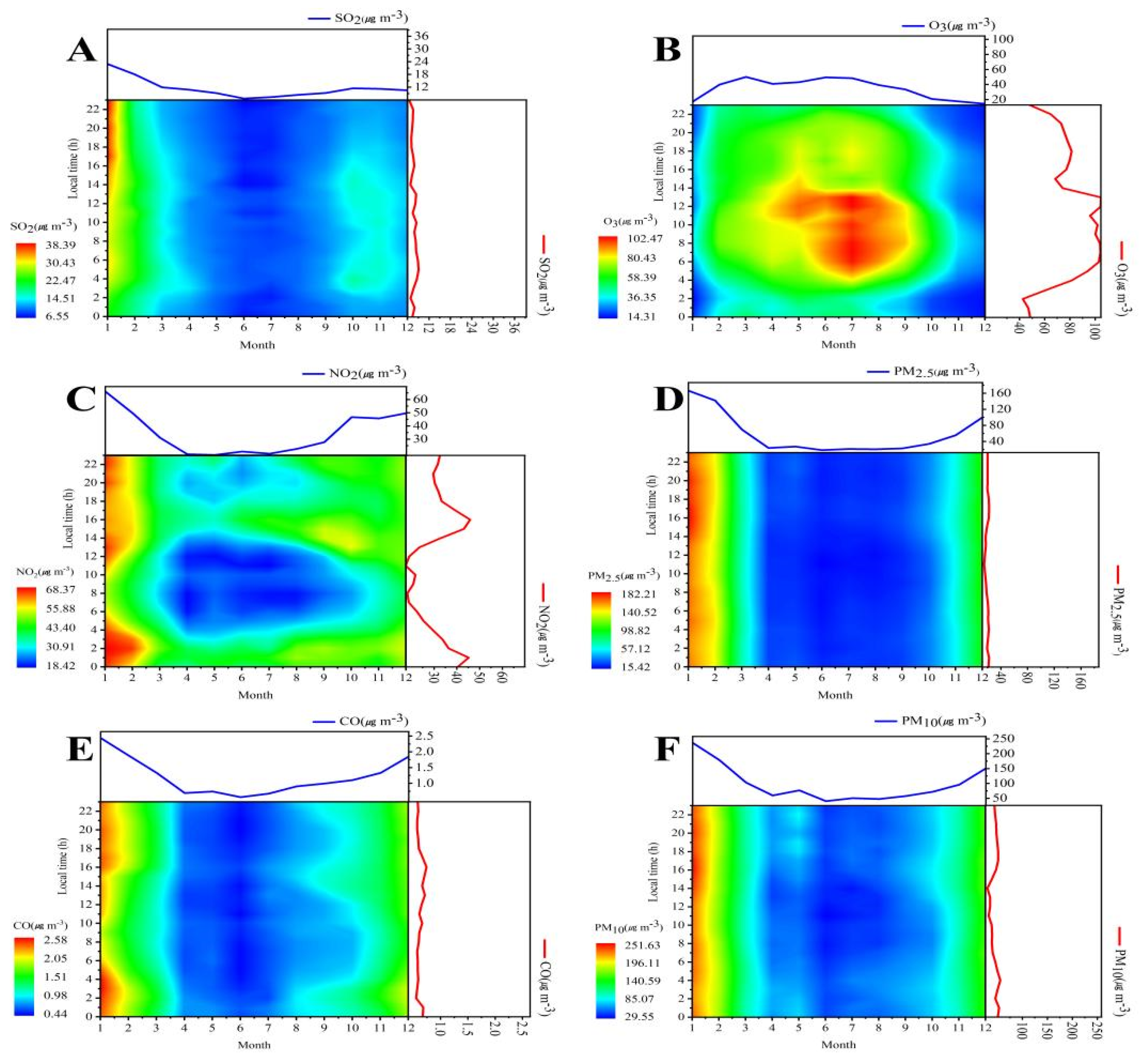

Figure 3. Changji time-dependent distribution of gas concentrations (A) SO2, (B) O3, (C) NO2, and (E) CO) and particulate matter (D) PM2.5 and (F) PM10). (μg m−3).
Figure 3. Changji time-dependent distribution of gas concentrations (A) SO2, (B) O3, (C) NO2, and (E) CO) and particulate matter (D) PM2.5 and (F) PM10). (μg m−3).
Atmosphere 14 00091 g003

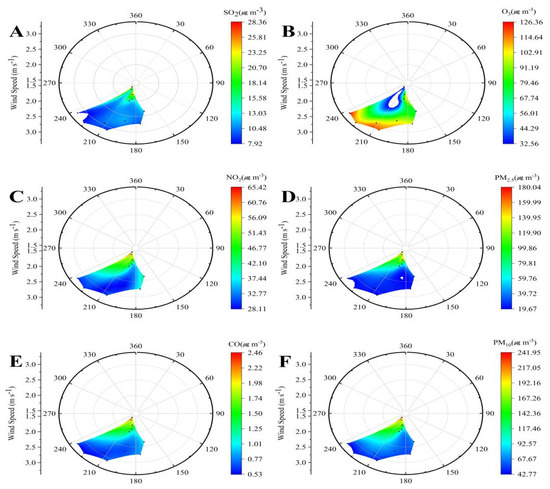

Figure 4. Polar plots of SO2, NO2, CO, O3, PM2.5, and PM10 concentrations in the Changji. (A) SO2. (B) O3. (C) NO2. (D) PM2.5. (E) CO. (F) PM10.
Figure 4. Polar plots of SO2, NO2, CO, O3, PM2.5, and PM10 concentrations in the Changji. (A) SO2. (B) O3. (C) NO2. (D) PM2.5. (E) CO. (F) PM10.
Atmosphere 14 00091 g004

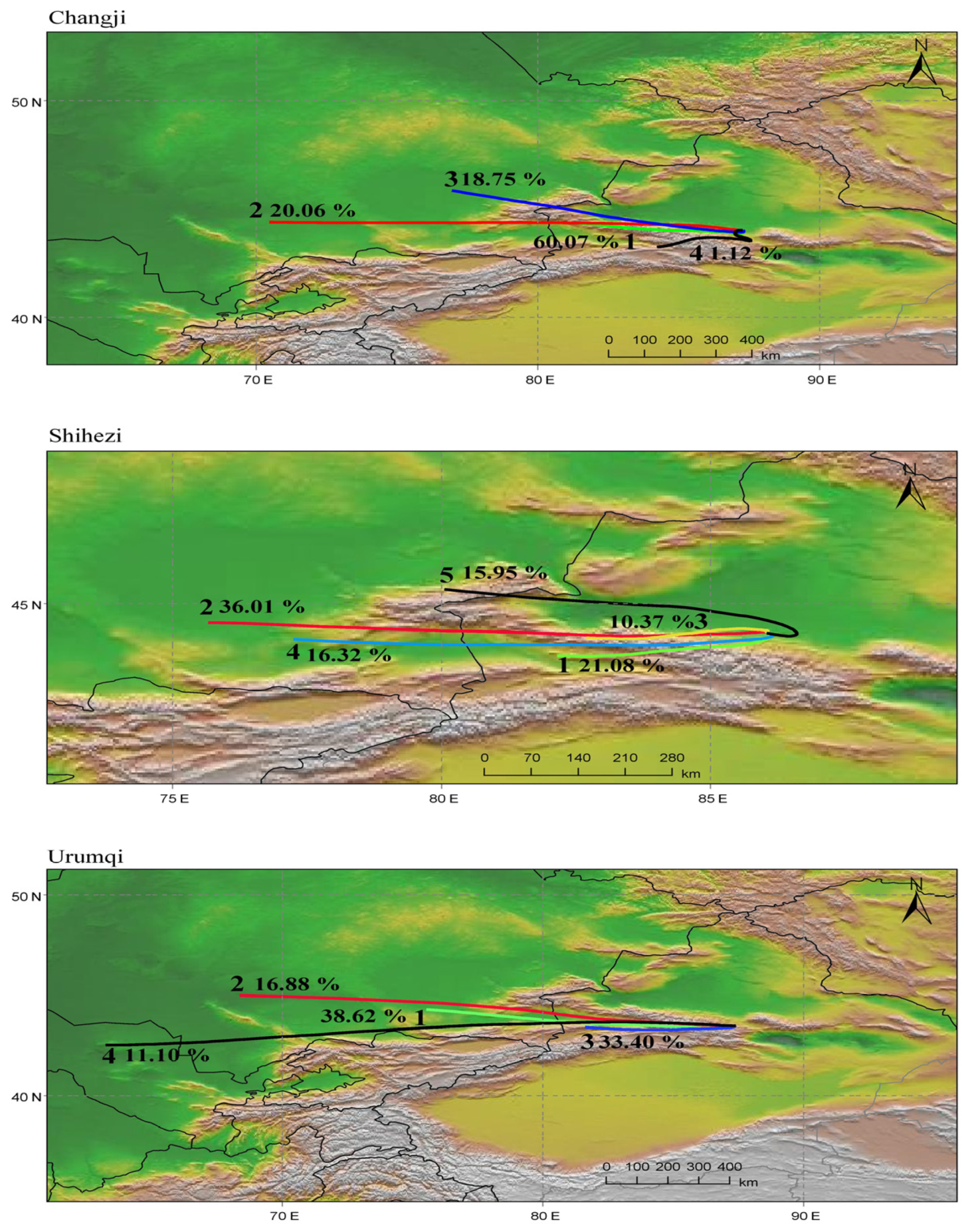

Figure 5. Clustering of backward trajectories of airflow in the Wu-Chang-Shi region during winter 2017–2021.
Figure 5. Clustering of backward trajectories of airflow in the Wu-Chang-Shi region during winter 2017–2021.
Atmosphere 14 00091 g005

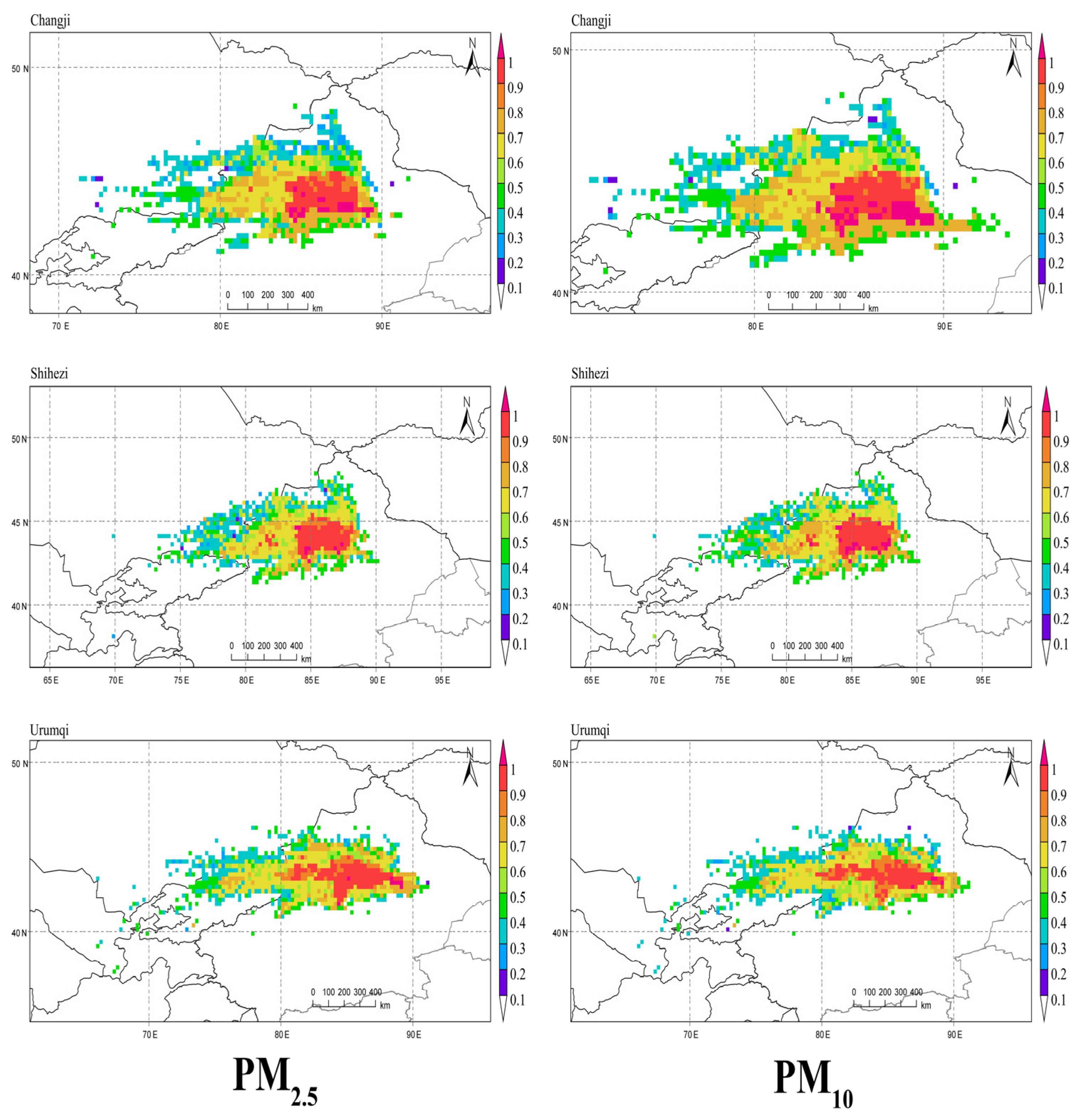

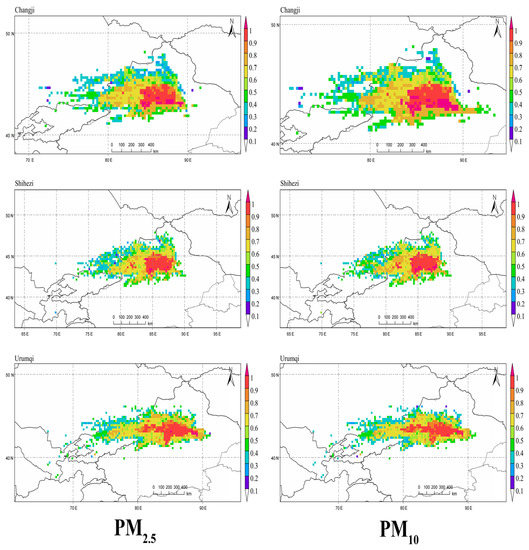

Figure 6. PSCF distribution of winter particulate matter in the Wu-Chang-Shi urban.
Figure 6. PSCF distribution of winter particulate matter in the Wu-Chang-Shi urban.
Atmosphere 14 00091 g006

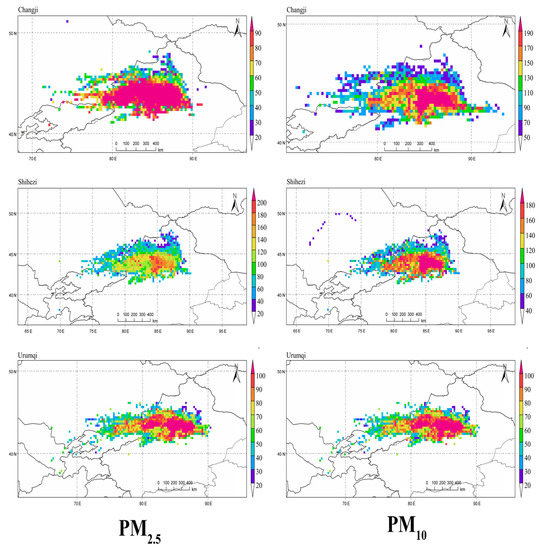

Figure 7. CWT distribution of winter particulate matter in the Wu-Chang-Shi urban. (μg m−3).
Figure 7. CWT distribution of winter particulate matter in the Wu-Chang-Shi urban. (μg m−3).
Atmosphere 14 00091 g007

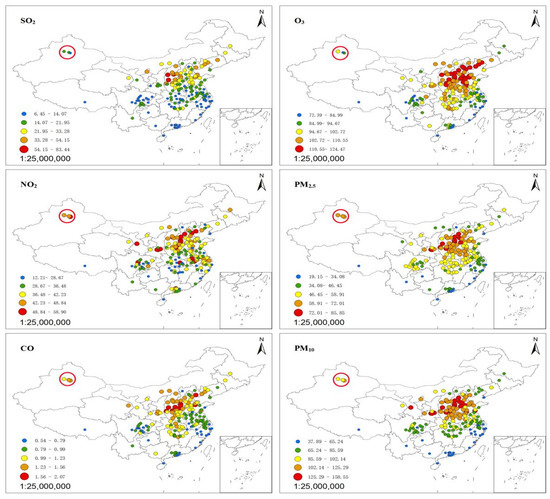

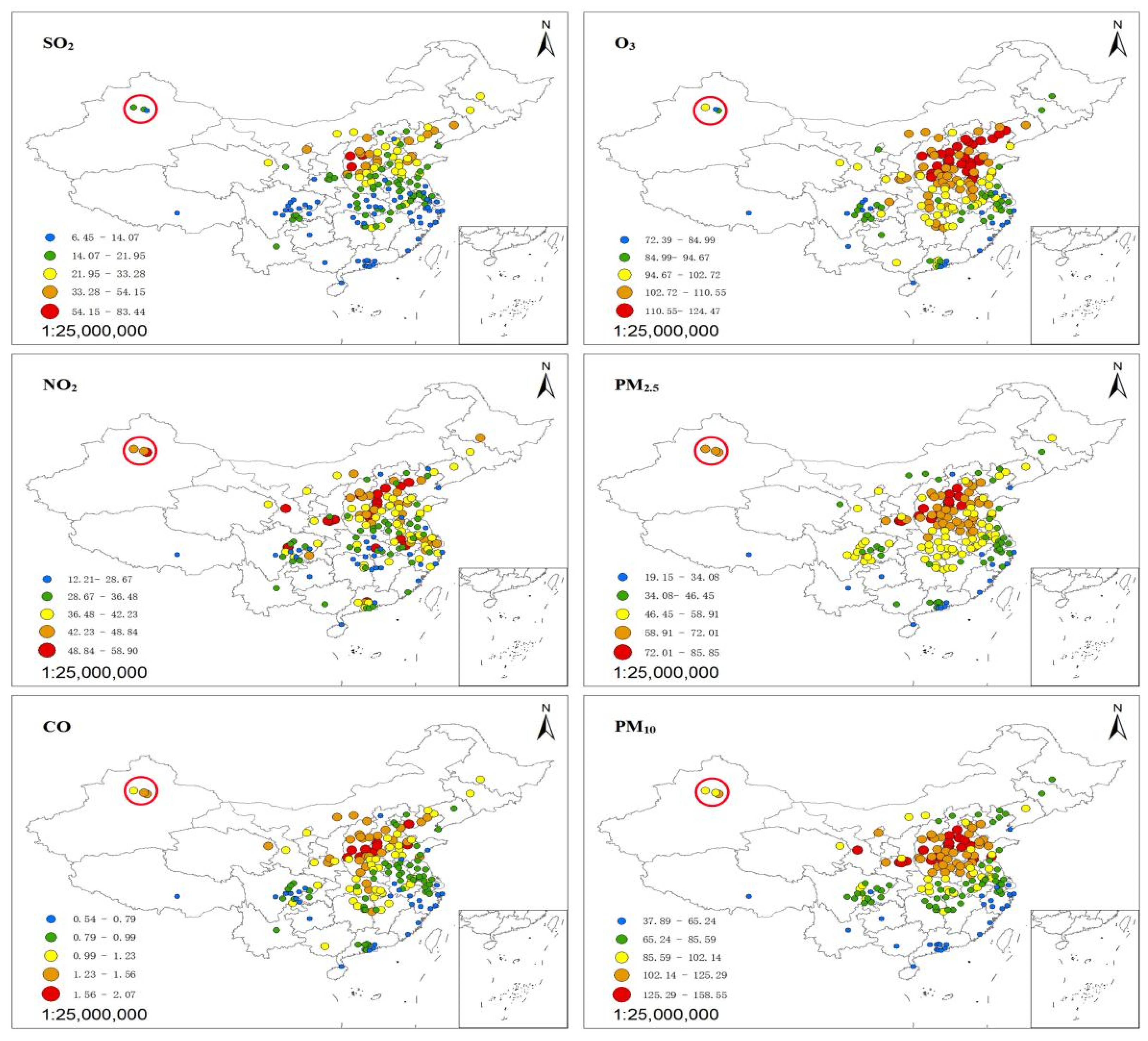

Figure 8. Comparison of annual average concentrations of six air pollutants in 168 major cities in 2017 (μg m−3). The red circles represent the Wu-Chang-Shi urban.
Figure 8. Comparison of annual average concentrations of six air pollutants in 168 major cities in 2017 (μg m−3). The red circles represent the Wu-Chang-Shi urban.
Atmosphere 14 00091 g008

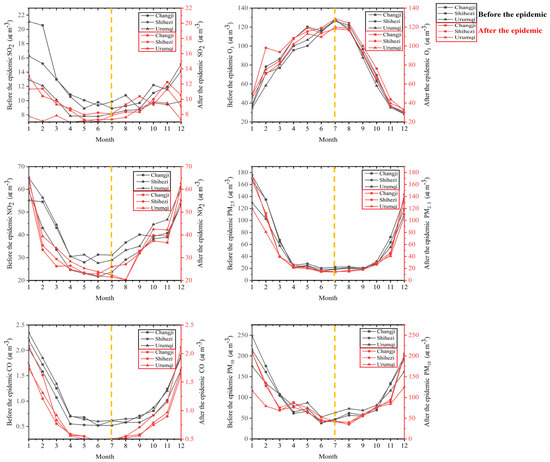

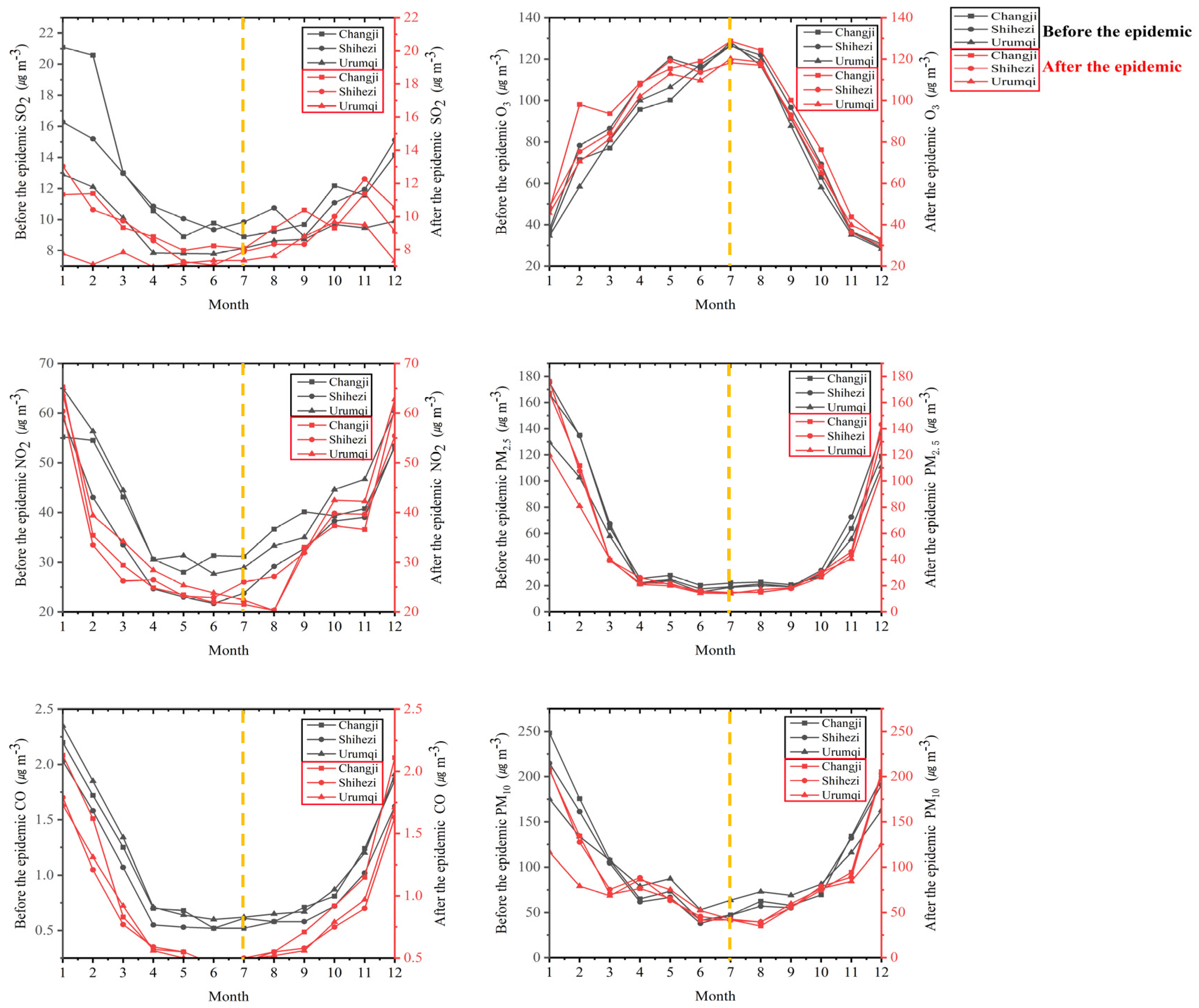

Figure 9. Average air pollutants concentrations in the Wu-Chang-Shi urban before and after the COVID-19 outbreak. (μg m−3).
Figure 9. Average air pollutants concentrations in the Wu-Chang-Shi urban before and after the COVID-19 outbreak. (μg m−3).
Atmosphere 14 00091 g009
Table 1. Summary statistics for the six criteria pollutants and AQI in the Wu-chang-shi urban for 2017–2021. (μg m−3).
Table 1. Summary statistics for the six criteria pollutants and AQI in the Wu-chang-shi urban for 2017–2021. (μg m−3).
CityPollutants Species20172018201920202021
Mean ± SDMean ± SDMean ± SDMean ± SDMean ± SD
ChangjiAQI103.52 ± 60.30105.03 ± 53.8195.28 ± 47.2996.52 ± 54.4997.66 ± 45.90
SO218.09 ± 12.9814.41 ± 5.6310.52 ± 3.018.48 ± 2.3910.60 ± 2.47
NO245.24 ± 13.2743.29 ± 11.6737.36 ± 7.2332.61 ± 16.5635.72 ± 12.83
CO1.33 ± 0.681.16 ± 0.640.97 ± 0.500.93 ± 0.641.08 ± 0.56
O383.43 ± 30.3882.03 ± 32.7777.85 ± 32.0689.28 ± 31.3991.86 ± 32.58
PM1098.49 ± 68.39114.52 ± 67.0798.87 ± 64.6691.45 ± 64.5392.19 ± 53.93
PM2.567.29 ± 57.6261.45 ± 52. 4857.66 ± 48.0052.79 ± 55.2251.75 ± 49.60
ShiheziAQI109.27 ± 53.17105.32 ± 55.21103.73 ± 53.3197.82 ± 59.0296.97 ± 47.57
SO215.25 ± 4.8611.84 ± 2.6411.88 ± 2.219.63 ± 2.209.25 ± 1.98
NO242.80 ± 17.7133.71 ± 13.6236.53 ± 9.9432.87 ± 12.7235.88 ± 11.87
CO1.15 ± 0.630.99 ± 0.520.91 ± 0.510.85 ± 0.450.86 ± 0.42
O3101.39 ± 42.0486.78 ± 35.3184.50 ± 32.9484.40 ± 30.0684.07 ± 33.25
PM10102.14 ± 74.29101.42 ± 62.5999.87 ± 57.7994.29 ± 59.8891.72 ± 53.78
PM2.561.87 ± 56.7161.23 ± 55.0061.44 ± 55.8155.44 ± 59.0653.43 ± 48.88
UrumqiAQI108.14 ± 64.9797.98 ± 36.8590.03 ± 34. 8287.68 ± 41.9881.59 ± 24.97
SO213.26 ± 6.4210.54 ± 2.318.31 ± 1.178.52 ± 0.917.21 ± 1.08
NO248.69 ± 17.8342.83 ± 12.8041.22 ± 12.6535.52 ± 16.3737.34 ± 12.11
CO1.38 ± 0.761.20 ± 0.641.04 ± 0.560.94 ± 0.520.81 ± 0.39
O371.77 ± 30.8279.70 ± 34. 2879.09 ± 34.2380.45 ± 30.0584.58 ± 30.83
PM10112.80 ± 59.41113.37 ± 45.7686.87 ± 33.6579.00 ± 31.8171.87 ± 21.90
PM2.568.99 ± 63.5452.65 ± 39.9249.01 ± 39.3847.34 ± 43.3039.74 ± 30.98
Table 2. AQI and concentration levels of major air pollutants in Wu-Chang-Shi urban, 2017–2021. (μg m−3).
Table 2. AQI and concentration levels of major air pollutants in Wu-Chang-Shi urban, 2017–2021. (μg m−3).
CityPollutant Species (Annually Average ± SD)
AQISO2NO2COO3PM10PM2.5
Changji99.60 ± 52.7612.42 ± 7.4838.48 ± 13.531.09 ± 0.6284.89 ± 32.2599.10 ± 64.4658.19 ± 53.01
Shihezi102.62 ± 53.9811.57 ± 3.6636.36 ± 13.870.95 ± 0.5288.23 ± 35.6397.89 ± 62.1458.68 ± 55.31
Urumqi93.08 ± 43.289.57 ± 3.8141.12 ± 15.251.07 ± 0.6279.12 ± 32.3692.78 ± 44.1251.55 ± 45.79
Table 3. Statistical results of the mass concentration of all kinds of airflow in the four seasons of the Wu-Chang-Shi urban.
Table 3. Statistical results of the mass concentration of all kinds of airflow in the four seasons of the Wu-Chang-Shi urban.
CityAir Mass TypeFrequency%ρ */(μg m−3)ρ */(μg m−3)
PM2.5StdevNumPM10StdevNum
Changji160.07170.3264.41499226.0694.38554
220.06155.6766.86144193.839395168
318.75161.5366.05158201.8390.61175
41.12176.4462.729304.90273.3310
Shihezi121.08176.9468.44285210.8889.74304
236.01194.8179.43210227.07106.04230
310.73180.1178.6598212.57109.79106
416.23140.5055648319.90334.5210
515.95172.7165.78224201.3784.85252
Urumqi138.62152.3751.75301157.4057.31305
216.88131.8440.17104137.0343.2598
333.40136.0442.42247156.3359.53260
411.10145.8953.7666153.9473.1366
* An asterisk indicates the concentration of pollutants in the table.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Chen, Z.; Li, Z.; Xu, L.; Zhou, X.; Zhang, X.; Wang, F.; Luo, Y. Gaseous and Particulate Pollution in the Wu-Chang-Shi Urban  Agglomeration on the Northern Slope of Tianshan Mountains from 2017 to 2021. Atmosphere 2023, 14, 91. https://doi.org/10.3390/atmos14010091

AMA Style

Chen Z, Li Z, Xu L, Zhou X, Zhang X, Wang F, Luo Y. Gaseous and Particulate Pollution in the Wu-Chang-Shi Urban  Agglomeration on the Northern Slope of Tianshan Mountains from 2017 to 2021. Atmosphere. 2023; 14(1):91. https://doi.org/10.3390/atmos14010091

Chicago/Turabian Style

Chen, Zhi, Zhongqin Li, Liping Xu, Xi Zhou, Xin Zhang, Fanglong Wang, and Yutian Luo. 2023. "Gaseous and Particulate Pollution in the Wu-Chang-Shi Urban  Agglomeration on the Northern Slope of Tianshan Mountains from 2017 to 2021" Atmosphere 14, no. 1: 91. https://doi.org/10.3390/atmos14010091

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
