Article

Heavy Metal Content in the Soil along the Road No. 7 near Chyżne

by
Joanna Korzeniowska
Faculty of Sciences and Natural Sciences, University of Krakow, ul. Podchorążych 2, 30-084 Kraków, Poland
Atmosphere 2023, 14(1), 2; https://doi.org/10.3390/atmos14010002
Submission received: 22 November 2022 / Revised: 14 December 2022 / Accepted: 15 December 2022 / Published: 20 December 2022
(This article belongs to the Special Issue Vehicle Emissions: New Challenges and Potential Solutions)

Abstract

:
The aim of the study was to determine the content of heavy metals (Cr, Cu, Ni, Pb, and Zn) in the soil near Road No. 7, near Chyżne. Soil samples were collected in 12 transects (locations) on the east (downwind) and west (upwind) sides of the road. The samples were taken at a distance of: 5, 50, 100, 300, 500, and 600 m from the edge of the road. Six transects were located in the open area, and another six in the forest. The zinc content in the soil was the highest while that of copper was the lowest. Cr, Cu, Ni, Pb, and Zn concentrations decreased with increasing distance from the road. Differences in the concentration of metals in the soil on the upwind and downwind sides were found. The contents of all tested metals in the soil were higher on the downwind side of the road compared to the concentrations of metals on the upwind side.

1. Introduction

The role of transport in Poland is systematically growing. Road, rail, and air transport are the most important, while water transport is the least important. Road transport has a negative impact on the natural environment as it contributes to the emission of dangerous and toxic substances [1,2,3,4,5,6,7]. Owing to the imperfection of the combustion process and the properties of the fuels used, toxic substances are produced during engine operation, which are then emitted to the environment along with exhaust gases [8]. These substances can be divided into three groups:
  • products of imperfect and incomplete combustion: hydrocarbons, carbon mon-oxide, aldehydes;
  • nitrogen products from oxidation of the air—NOx;
  • products of combusting admixtures and pollutants and other compounds (dust and heavy metals: Cd, Cr, Cu, Pb, Ni, and Zn).
The share of road traffic in total emissions from all sources of atmospheric emissions is approximately thirty percent for carbon monoxide, nitrogen oxides, and aromatic hydrocarbons.
Road traffic also contributes to the emission of metals during: the process of abrasion of tires [8,9,10]; the wear of catalytic converters and brake linings [4,6,11]; and the use of oils and greases [5,12]. Moreover, the chemical composition of the road surface and the fuel used affect the presence of metals in the roadside environment [7,13].
The content of heavy metals in the soil depends on a number of environmental factors, the most important of which are: distance from the road [14,15,16]; traffic intensity [2,16]; vehicle speed [6]; altitude and land cover [17,18,19,20]; and meteorological conditions, including mainly: prevailing wind direction; air turbulence; and the amount of precipitation [7,17,21]. These factors are very complex and are based on a number of variable parameters. It was found that the distance from the road had the greatest impact on the content of metals in the soil [7]. Metal concentrations in the soil decrease with the increasing distance from the road [1,2,16], and the impact range of road traffic is estimated at several hundred meters [1,22,23]. Vehicle traffic contributes to the high accumulation of metals in near road soils, which is even several times higher than in unpolluted areas [1,2,17,24,25].
A very important factor affecting the spread of metals in the environment is the dominant wind direction. The literature data shows that the location of the road in relation to the prevailing wind direction has an impact on the propagation of traffic pollution, which is particularly important for exposed road sections running through convex landforms, such as mountain ridges and in valleys, where the wind direction coincides with the direction of the valleys [26,27].
Bakirdere and Yaman [7], Viard et al. [17], and Masoudi et al. [21] found higher metal contents in the soil on the upwind side compared to the downwind side. On the other hand, in the opinion of Zechmeister et al. [1], wind may be responsible for the low and significantly diversified concentration of metals in plants within the studied sites. However, in mountain areas with complex landform, the analyses of the directions of the dominant winds are difficult to define owing to the diversity and number of factors affecting the accumulation of heavy metals in the soil [27].
In the scientific literature, there are few studies on the influence of the dominant wind direction on the accumulation of heavy metals in soils. Therefore, this work will contribute to a better understanding of the subject. The aim of the study was to determine the content of Cr, Cu, Ni, Pb, and Zn in the soil along the upwind and downwind sides of Road No. 7, near Chyzne.

2. Materials and Methods

2.1. Study Area

The study area was situated along the state Road No. E77 (national road DK7) be-tween the villages Jablonka and Chyzne, county Nowy Targ in Sothern Poland, and in the vicinity of the border crossing to Slovakia. Geographical coordinates: the latitude and longitude and elevation are 49°43′ N, 19°67′ E and 649 m above sea level. According to Koppen classification, the area is by temperate continental climate (Dfb). The data for the average annual precipitation, temperature, and wind speed are about 115 mm, 7.5 °C and 10 km/h, respectively [28]. The dominant wind directions are S (1319 h per year), SSW (956 h per year) and W (759 h per year) for the analyzed area [29,30]. The simulated meteorological data are available for the Jabłonka, Chyzne, and Czarny Dunajec locations [31].
Road No. E77 plays an important role in the transit traffic towards southern Europe. The traffic density on the road section between Jablonka and the state border was about 5000 vehicles per day in 2015 and the speed limit was 90 km per hour [32,33].

2.2. Sampling

The samples were collected in 12 transects near the Slovak state border. The transects were located perpendicularly to the road, on the eastern and western side of the road, in the open area: meadows and pastures, as well as in the woodland.
With respect to the prevailing wind direction, the transects were located upwind “non-road emission source” (E transects) and downwind “from road emission source” (W transects) relative to the road (Figure 1). Each transect included six sampling sites at the following distances from the edge of the road: 5, 50, 100, 300, 500, 600 m (Figure 2). In order to avoid the influence of local pollution sources sampling sites were situated at least 500 m from housing estates. The reference area was situated south of Chyzne village in the Jelesnia stream valley, at the minimal distance of about 5 km from roads and individual houses.

2.3. Material

In all, 72 soil samples from a depth of 0–10 cm were taken for the study. The sampling sites were located on both sides of Road No. 7 near Chyzne. One side of the road was the downwind side and the other side upwind. Samples of the soil were taken within six transects located in the open area and also six transects in the woodlands (Figure 1). The samples were taken in September 2021. The material was placed in polyethylene bags.

2.4. Methods

2.4.1. Chemical Analysis

In order to determine the content of heavy metals (Cd, Cr, Cu, Ni, Pb, and Zn) in the sampled soil material (top soil, up to 10 cm), the following laboratory work was carried out, in accordance with the methodology used for collecting and preparing samples for chemical analyses [34,35]:
  • Manually cleaning the collected samples by removing foreign material (dry leaves, twigs, grass, etc.);
  • Drying the samples at 70 °C;
  • Grinding soil samples in a ceramic mortar and sieving through a sieve with a mesh diameter of 2 mm;
  • Mineralization, which is performed to completely break down soil samples into simple, solid compounds—1 g of the dried sample material was digested with a modified Aqua Regia solution of equal parts concentrated HCl, HNO3, and DIH2O for one hour in a heating block or hot water bath. The resulting solution was filtered and stored in sealed polyethylene containers until sent for spectrometric analysis;
  • The determination of the total content of heavy metals using the inductively coupled plasma mass spectrometry (ICP-MS) method in the Bureau Veritas laboratory. The use of the Bureau Veritas methodology made it possible to accurately determine the metal content in the soil material, with the following detection limits (mg kg−1) for Cd: 0.01, Cr: 0.5, Cu: 0.01, Ni: 0.1, Pb: 0.01 and Zn: 0.1. The STD DS11 and STD OREAS262 standards were used as reference materials.

2.4.2. Statistical Analysis of the Data

To describe precisely the investigated data, we used the following descriptive measures: mean, median, standard deviation (SD), and the difference between first and third quartile (Interquartile Range—IQR) and min-max. To describe precisely the investigated data I used the following descriptive measures: mean, median, standard deviation (SD), lower (Q1) and upper (Q3) quartile and min-max. The normality of the distribution of consecutive variables was checked using the Shapiro-Wilk test. If normality can be assumed, then I have compared mean values using the Student’s t-test for two independent variables, or ANOVA for more than two such variables. In the opposite case, I used non-parametric tests, i.e., U Mann-Whitney’s test for two independent variables. Here, I assume the significance level p = 0.05; however, I also highlight statistically significant results for p = 0.01 and p = 0.001, respectively. p-values corresponding to significant results were marked in bold. In the case of p < 0.001 we always denote p = 0.001. All calculations and graphs were carried out using the R (version 4.0.2, Vienna, Austria).
The number of the samples taken for the calculations is presented in Table 1.
To investigate the existence of monotonic relationships between two variables, Spearman’s correlation coefficient was used. This coefficient takes values from −1 to 1. The statistically significant result concerning Spearman’s correlation coefficient proves the existence of monotonic dependencies between the variables. If the coefficient becomes positive, it means that as one variable grows, the value of the other variable grows as well. However, if the correlation is negative, it means that as the value of one parameter increases, the value of the other parameter decreases as well. The correlation can be low, moderate, high, or very high. It may also not be present. The following classification of the correlation strength was used:
  • |r| = 0—no correlation,
  • 0 < |r| ≤ 0.3—very weak correlation,
  • 0.3 < |r| ≤ 0.5—weak correlation,
  • 0.5 < |r| ≤ 0.7—moderate correlation,
  • 0.7 < |r| ≤ 0.9—high correlation,
  • 0.9 < |r| < 1.0—very high correlation,
  • |r| = 1—full correlation.
In the study, soil samples from places near the road were collected, and then concentrations of Cr, Cu, Ni, Pb, and Zn in them, respectively, were analyzed. There were 12 transects; half came from the forest (N = 36) and the other half from the open area. Similarly, the division of wind directions was half-and-half (upwind and downwind). Samples were taken at distances of 5, 50, 100, 300, 500, and 600 m, respectively. At each distance of 5, 50, 100, 300, 500, and 600 m, 12 samples (16.7%) were taken.

3. Results

The average concentration of Cr was 47.41 (±13.53; standard deviation), in the case of Cu 19.53 (±6.4), in the case of Ni 27.39 (±8.72), in the case of Pb 34.93 (±13.09), and, finally, in the case of Zn 62.35 (±20.49) (mg kg−1). These results are presented in Table 2.

3.1. Relationship with Land Cover

Statistically significant differences between types of the land cover for Cu concentration (p < 0.05, U Mann-Whitney test) and Ni concentration (mg kg−1) (p < 0.05, U Mann-Whitney test), respectively, were obtained. We can observe that greater concentration of these metals occurred in the open area. These results are presented in the Figure 3.

3.2. Relationship with Wind Direction

Statistically significant differences between the wind direction category for every element have been found using the U Mann-Whitney test (p < 0.05). We can observe that greater concentration of these elements occurred in downwind sides (Figure 4).

3.3. Relationship with Distance

Statistically significant differences between shorter (smaller or equal than 100) and longer distance for every element were obtained (p < 0.01). We can observe that greater concentration of elements occurred closer to the road. These results for selected metals are presented in Figure 5.
Concentrations of all samples taken only from the forest were significantly lower among greater distances (p < 0.001). These results (mean values and SD) are presented in the Table 3.

3.4. Relationship with Distance—Land Cover (Open Area) Only for Chemical Elements from the Open Area

Statistically significant differences between shorter and longer distance (m) for concentration of samples taken only from the open area were proved to be significant (p < 0.001) in each case. We can observe that for distances which were closer to the road, concentrations of elements were greater as well. These results (mean values and SD) are presented in the Table 4.

3.5. Relationshipdistance—Wind Direction (Upwind)

It was proved that there is a statistically significant difference between shorter and longer distance (m) for concentration of every chemical element from places with the upwind direction (p < 0.001). Greater concentration of these elements occurs closer to the road. The average concentrations of metals in the soil (calculated for N = 18) were almost twice as high at distances up to 100 m (for 5, 50, and 100 m from the road) than at distances greater than 100 m, i.e., for 300, 500, and 600 m from the road (Figure 6).

3.6. Relationship Distance—Wind Direction (Downwind)

We can observe that greater concentration of all elements from sides with a downwind direction occurs closer to the road (p < 0.001). The average concentrations of metals in the soil (calculated for N = 18) were higher at a distance up to 100 m (for 5, 50, and 100 m from the road) than at distances greater than 100 m, i.e., for 300, 500, and 600 m from the road (Figure 7).
The values of the average concentrations of all tested metals in the soil were higher on the downwind side of the road compared to the values of the contents of metals in the soil collected on the upwind side of the road.

3.7. Spearman’s Correlation Coefficients

Spearman’s correlation coefficients between the concentration of the tested metal in the soil and the distance from the road have been calculated. The data are presented in Table 5.
All of the above Spearman correlations between metal concentrations in soil samples and distance from the road were, independently of land cover or wind direction, negative and high or very high. It means that as distance from a road increased metal concentration in the soil samples decreased.

4. Discussion

The road has a negative effect on nearby soils. It contributes to their significant contamination, including with heavy metals. Road traffic results in higher pollutant concentrations in the environmental components in the direct proximity to the road. Metal concentrations in soils and plants decrease with distance from the road to reach a background level at a distance ranging widely according to the various authors up to several hundred meters [1,2,36].
In the presented study, metal concentrations in soil samples were significantly correlated with the distance to the road. Data showed considerably higher Cr, Pb, and Zn concentrations in the direct proximity to the road, when compared to the figures reported by Kováčik et al. [37] for the vicinity of traffic roads in Košice, and by Giacomino et al. [38] for the Italian province of Cuneo. The data referring to the distance of 300–600 m matched the data reported by Kabata-Pendias and Dudka [39] for Poland, Marr et al. [40] for Montreal, Diatta et al. [41] for Poznań, Czarnowska and Milewska [42] for Warsaw, and Ligocki et al. [43] for Szczecin.
The existing literature finds differences between upwind and downwind concentrations of particle matter PM [44,45,46,47], metal contents in the roadside soils [7,17,21] and in roadside plants [1,17]. However, the results are mixed. Hagler et al. [46] find significant differences in ultrafine particle UFP concentrations between the upwind and downwind sides of the road with the higher amounts of UFP being observed downwind from the road. However, the results in Garcia et al. [44] concerning particle matter PM concentrations near highways show no evidence of a significant upwind source influence. Roorda-Knape et al. [44] and McGee et al. [47] report no correlation between PM concentrations and down/upwind road locations.
Bakirdere and Yaman [7], Viard et al. [17], and Masoudi et al. [21], find Cu, Pb, and Zn in different concentrations in the soils at the upwind and downwind locations from the road at the same distance. The higher pollutant concentrations are usually observed at the downwind side of the road, towards the prevailing wind direction.
Among very few studies on the influence of wind direction on metal concentrations in roadside plants, those performed by Zechmeister et al. [1] and Viard et al. [17] show the differences of some heavy metal contents in plants collected from two sides of the road. The authors conclude that higher values are found downwind from the road.
The prevailing wind direction, across our study area, is a southern one (1319 h per year). Eastern winds are four times less frequent (190 h per year) than Western winds (759 h per year). The differences in prevalence of Western and Eastern winds may explain higher metal pollution on the downwind, eastern side of the southbound road.
Our study revealed statistically significant differences between metal concentrations in the soil at the two sides of the road. The concentrations were higher on the west side (downwind from traffic emission sources). Plant cover influences, to some extent, pollutant dispersion in the vicinity to the road. The samples of the soil were collected in the open area and in the forest. The forest trees may have played the role of natural screen, trapping dust particles, causing disturbances of wind stream, and thus hindering road pollutant propagation. This conclusion is in line with the work of Sucharowa and Suchara [48] who reported the dependence of the metal content in mosses on land cover: open area and woodland. Concentrations decreased with increasing tree density and canopy density. Higher concentrations of all tested metals in the soil were observed in the samples collected in open areas compared to the concentration of metals in the forest.

5. Conclusions

A statistically significant negative correlation was found between the concentrations of heavy metals in the soil and the distance from the road.
The dominant wind direction in the study area was the south-west, which affected the amount of metal accumulation in the described roadside soils. The influence of the dominant wind direction on the concentration of Cr, Cu, Ni, Pb, and Zn was found for a distance greater than 100 m from the road.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Zechmeister, H.; Hohenwallner, D.; Riss, A.; Hanus-Illnar, A. Estimation of element deposition derived from road traffic sources by using mosses. Environ. Pollut. 2005, 138, 238–249. [Google Scholar] [CrossRef] [PubMed]
  2. Zechmeister, H.; Hagendorfer, H.; Hohenwallner, D.; Hanus-Illnar, A.; Riss, A. Analyses of platinum group elements in mosses as indicators of road traffic emissions in Austria. Atmos. Environ. 2006, 40, 7720–7732. [Google Scholar] [CrossRef]
  3. Wessolek, G.; Kluge, B.; Toland, A.; Nehls, T.; Klingelmann, E.; Rim, Y.N.; Mekiffer, B.; Trinks, S. Urban soils in the vadose zone. In Perspectives in Urban Ecology; Endlicher, W., Ed.; Springer: Berlin, Germany, 2011; pp. 89–133. [Google Scholar]
  4. Ely, J.; Neal, C.; Kulpa, C.; Schneegurt, M.; Seidler, J. Implications of platinum-group element accumulation along US roads from catalytic-converter attrition. Environ. Sci. Technol. 2001, 35, 3816–3822. [Google Scholar] [CrossRef] [PubMed]
  5. Laschober, C.H.; Limbeck, A.; Rendl, J.; Puxbaum, H. Particulate emissions from on-road vehicles in the Kaisermühlen-tunnel (Vienna, Austria). Atmos. Environ. 2004, 38, 2187–2195. [Google Scholar] [CrossRef]
  6. Hjortenkrans, D.; Bergbäck, B.; Häggerud, A. New metal emission patterns in road traffic environments. Environ. Monit. Assess. 2006, 117, 85–98. [Google Scholar] [CrossRef] [PubMed]
  7. Bakirdere, S.; Yaman, M. Determination of lead, cadmium and copper in roadside soil and plants in Elazig, Turkey. Environ. Monit. Assess. 2008, 136, 401–410. [Google Scholar] [CrossRef]
  8. Harrison, R.M.; Tilling, R.; Romero, M.; Harrad, S.; Jarvis, K. A study of trace metals and polycyclic aromatic hydrocarbons in the roadside environment. Atmos. Environ. 2003, 37, 2391–2402. [Google Scholar] [CrossRef]
  9. Monaci, F.; Moni, F.; Lanciotti, E.; Grechi, D.; Bargagli, R. Biomonitoring of airborne metals in urban environments: New tracers of vehicle emission, in place of lead. Environ. Pollut. 2000, 107, 321–327. [Google Scholar] [CrossRef]
  10. Djingova, R.; Kovacheva, P.; Wagner, G.; Markert, B. Distribution of platinum group elements and other traffic related elements among different plants along some highways in Germany. Sci. Total Environ. 2003, 308, 235–246. [Google Scholar] [CrossRef]
  11. Whiteley, J.; Murray, F. Autocatalyst-derived platinum, palladium and rhodium (PGE) in infiltration basin and wetland sediments receiving urban runoff. Sci. Total Environ. 2005, 317, 121–135. [Google Scholar] [CrossRef]
  12. DeMiguel, E.; Llamas, J.; Chacon, E.; Berg, T.; Larssen, S.; Royset, O.; Vadset, M. Origin and patterns of distribution of trace elements in street dust: Unleaded petrol and urban lead. Atmos. Environ. 1997, 31, 2733–2740. [Google Scholar]
  13. Lindgren, Ǻ. Asphalt wear and pollution transport. Sci. Total Approx. 1996, 189–190, 281–286. [Google Scholar] [CrossRef]
  14. Czarnowska, K.; Chlibiuk, M.; Kozanecka, T. Pierwiastki śladowe w glebach uprawnych przy drogach wokół Warszawy [Trace elements in arable soils at the roads around Warsaw]. Rocz. Glebozn. 2002, LIII, 67–74. [Google Scholar]
  15. Fakayode, S.; Olu-Owolabi, B. Heavy metal contamination of roadside top soil in Osogbo, Nigeria; Its relationship to traffic density and proximity to highways. J. Environ. Geol. 2003, 44, 150–157. [Google Scholar] [CrossRef]
  16. Schröder, W.; Pesch, R.; Englert, C.; Harmens, H.; Suchara, I.; Zechmeister, H.; Thöni, L.; Maňkovská, B.; Jeran, Z.; Grodzinska, K.; et al. Metal accumulation in mosses across national boundaries: Uncovering and ranking causes of spatial variation. Environ. Pollut. 2008, 151, 377–388. [Google Scholar] [CrossRef] [Green Version]
  17. Viard, B.; Pihan, F.; Promeyrat, S.; Pihan, J.-C. Integrated assessment of heavy metal (Pb, Zn, Cd) highway pollution: Bioaccumulation in soil, Graminaceae and land snails. Chemosphere 2004, 55, 1349–1359. [Google Scholar] [CrossRef]
  18. Turer, D. Effect of non-vehicular sources on heavy metal concentrations of roadside soils. Water Air Soil Pollut. 2005, 166, 251–264. [Google Scholar] [CrossRef]
  19. Saeedi, M.; Hosseinzadeh, M.; Jamshidi, A.; Pajooheshfar, S.P. Assessment of heavy metal concentration and leaching characteristics in highway side soils, Iran. Envion. Prompt. Assess. 2009, 151, 231–241. [Google Scholar]
  20. Zehetner, F.; Rosenfellner, U.; Mentler, A.; Gerzabek, M.H. Distribution of road salt residues, heavy metals and polycyclic aromatic hydrocarbons accross a highway-forest interface. Water Air Soil Pollut. 2009, 198, 125–132. [Google Scholar] [CrossRef]
  21. Masoudi, S.N.; Ghajar Sepanlou, M.; Bahmanyar, M.A. Distribution of lead, cadmium, copper and zinc in roadside soil of Sari-Ghaemshahr road, Iran. Afr. J. Agric. Res. 2002, 7, 198–204. [Google Scholar]
  22. Klimowicz, Z.; Melke, J. Zawartość Metali Ciężkich w Glebach w Sąsiedztwie Szlaków Komunikacyjnych na Przykładzie Wybranych Tras [The Content of Heavy Metals in Soils in the Vicinity of Communication Routes on the Example of Selected Routes]. Rocz. Glebozn. 2000, LI, 37–46. [Google Scholar]
  23. Kaniuczak, J.; Trąba, C.; Godzisz, J. Zawartość ołowiu i kadmu w glebach i roślinach przy wybranych szlakach komunikacyjnych regionu Zamojskiego [Lead and cadmium content in the soils and plants along selected communication routes of the Zamość region]. Zesz. Prob. PNR 2003, 493, 133–138. [Google Scholar]
  24. Korzeniowska, J.; Panek, E. Trace metal concentrations in Pleurozium schreberi and Taraxacum officinale along the road no. 7. Ecol. Chem. Eng. S 2019, 26, 651–663. [Google Scholar] [CrossRef] [Green Version]
  25. Ćwiąkała, M.; Korzeniowska, J.; Kraszewski, C.; Rafalski, L. Testing the concentration of trace metals in soils near roads with varied traffic intensity. Roads and Bridges. Drog. Mosty 2019, 18, 127–134. [Google Scholar]
  26. Watson, J.; Chow, J.; Pace, T. Fugitive dust emissions. In Air Pollution Engineering Manual; Wiley: New York, NY, USA, 2000; pp. 117–135. [Google Scholar]
  27. Piron-Frenet, M.; Bureau, F.; Pineau, A. Lead accumulation in surface roadside soil. Its relationship to traffic density and meteorological parameters. Sci. Total Environ. 1994, 144, 297–304. [Google Scholar] [CrossRef]
  28. Lorenc, H. Atlas klimatu Polski [The Climate Atlas of Poland]; Institute of Meteorology and Water Management: Warsaw, Poland, 2005. [Google Scholar]
  29. Beck, H.; Zimmermann, N.; McVicar, T.; Vergopolan, N.; Berg, A.; Wood, E. Present and future Köppen-Geiger climate classification maps at 1-km resolution. Sci. Data 2018, 5, 180214. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Kundzewicz, Z.; Jania, J. Extreme Meteorological and Hydrological Events in Poland. Geogr. Pol. 2007, 80, 1–196. Available online: http://rcin.org.pl/igipz/Content/107/GP_80_2_cala.pdf (accessed on 1 February 2022).
  31. Weather. Available online: https://www.meteoblue.com/pl. (accessed on 8 October 2021).
  32. Dijkstra, L.; Poelman, H.; Ackermans, L. Road Transport Performance in Europe; European Commission: Luxembourg, 2019; ISBN 9789276098072. [Google Scholar] [CrossRef]
  33. GPR. Available online: http://www.gddkia.gov.pl/pl/2551/GPR-2015. (accessed on 14 September 2020).
  34. Gajec, M.; King, A.; Kukulska-Zająac, E.; Mostowska-Stąsiek, J. Pobieranie próbek gleby w kontekście prowadzenia oceny zanieczyszczenia powierzchni ziemi [Soil sampling in the context of soil pollution assessment]. Nafta-Gas 2018, 3, 215–225. [Google Scholar] [CrossRef]
  35. Namieśnik, J.; Łukasiak, J.; Jamrógiewicz, Z. Pobieranie Próbek Środowiskowych do Analizy [Collecting Environmental Samples for Analysis]; Wydawnictwo Naukowe PWN: Warsaw, Poland, 1995; pp. 67–96. [Google Scholar]
  36. Viskari, E.; Rekilä, R.; Roy, S.; Lehto, O.; Ruuskanen, J.; Kärenlampi, L. Airborne pollutants along a roadside: Assessment using snow analyses and moss bags. Environ. Pollut. 1997, 97, 153–160. [Google Scholar] [CrossRef]
  37. Kováčik, J.; Dudáš, M.; Hedbavny, J.; Mártonfi, P. Dandelion Taraxacum linearisquameum does not reflect soil metal content in urban localities. Environ. Pollut. 2016, 218, 160–167. [Google Scholar] [CrossRef]
  38. Giacomino, A.; Malandrino, M.; Colombo, M.L.; Miaglia, S.; Maimone, P.; Blancato, S.; Conca, E.; Abollino, O. Metal content in dandelion (Taraxacum officinale) leaves: Influence of vehicular traffic and safety upon consumption as food. J. Chem. 2016, 2016, 9842987. [Google Scholar] [CrossRef] [Green Version]
  39. Kabata-Pendias, A.; Dudka, S. Trace metal contents of Taraxacum officinale (dandelion) as a convenient environmental indicator. Environ. Geochem. Health 1991, 13, 108–112. [Google Scholar] [CrossRef] [PubMed]
  40. Marr, K.; Fyles, H.; Hendershot, W. Trace metals in Montreal urban soils and the leaves of Taraxacum officinale. Can. J. Soil Sci. 1999, 79, 385–387. [Google Scholar] [CrossRef] [Green Version]
  41. Diatta, J.B.; Grzebisz, W.; Apolinarska, K. A study of soil pollution by heavy metals in the city of Poznań (Poland) using dandelion (Taraxacum officinale WEB.) as a bioindicator. Electron. J. Pol. Agric. Univ. Environ. Dev. 2003, 6. Available online: http://www.ejpau.media.pl/volume6/issue2/environment/art-01.html (accessed on 1 January 2022).
  42. Czarnowska, K.; Milewska, A. The content of heavy metals in an indicator plant (Taraxacum officinale) in Warsaw. Pol. J. Environ. Stud. 2000, 9, 125–128. [Google Scholar]
  43. Ligocki, M.; Tarasewicz, Z.; Zygmunt, A.; Aniśko, M. The common dandelion (Taraxacum officinale) as an indicator of anthropogenic toxic metal pollution of environment. Acta Sci. Pol. Zootech. 2011, 10, 73–82. [Google Scholar]
  44. Roorda-Knape, M.C.; Janssen, N.A.; De Hartog, J.J.; Van Vliet, P.H.; Harssema, H.; Brunekreef, B. Air pollution from traffic in city districts near major motorway. Atmos. Environ. 1998, 32, 1921–1930. [Google Scholar] [CrossRef]
  45. Garcia, R.; Hart, J.E.; Davis, M.E.; Reaser, P.; Natkin, J.; Laden, F.; Garshick, E.; Smith, T.J. Effects of Wind on Background Particle Concentrations at Truck Freight Terminals. J. Occup. Environ. Hyg. 2007, 4, 36–48. [Google Scholar] [CrossRef]
  46. Hagler, G.S.; Baldauf, R.W.; Thoma, E.D.; Long, T.R. Ultrafine particles near a major roadway in Raleigh, North Carolina: Downwind attenuation and correlation with traffic-related pollutants. Atmos. Environ. 2009, 43, 1229–1234. [Google Scholar] [CrossRef]
  47. McGee, M.A.; Kamal, A.S.; McGee, J.K.; Wood, C.E.; Dye, J.A.; Krantz, Q.T.; Landis, M.S.; Gilmour, M.I.; Gavett, S.H. Differential effects of particulate matter upwind and downwind of an urban freeway in an allergic mouse model. Environ. Sci. Technol. 2015, 49, 3930–3939. [Google Scholar] [CrossRef]
  48. Sucharová, J.; Suchara, I. Bio-monitoring the atmospheric deposition of elements and their compounds using moss analysis in the Czech Republic. Results of the international bio-monitoring programme UNECE ICP-Vegetation 2000. Part I Elements required for the bio-monitoring programme. Acta Pruhonicina 2004, 77, 1–135. [Google Scholar]

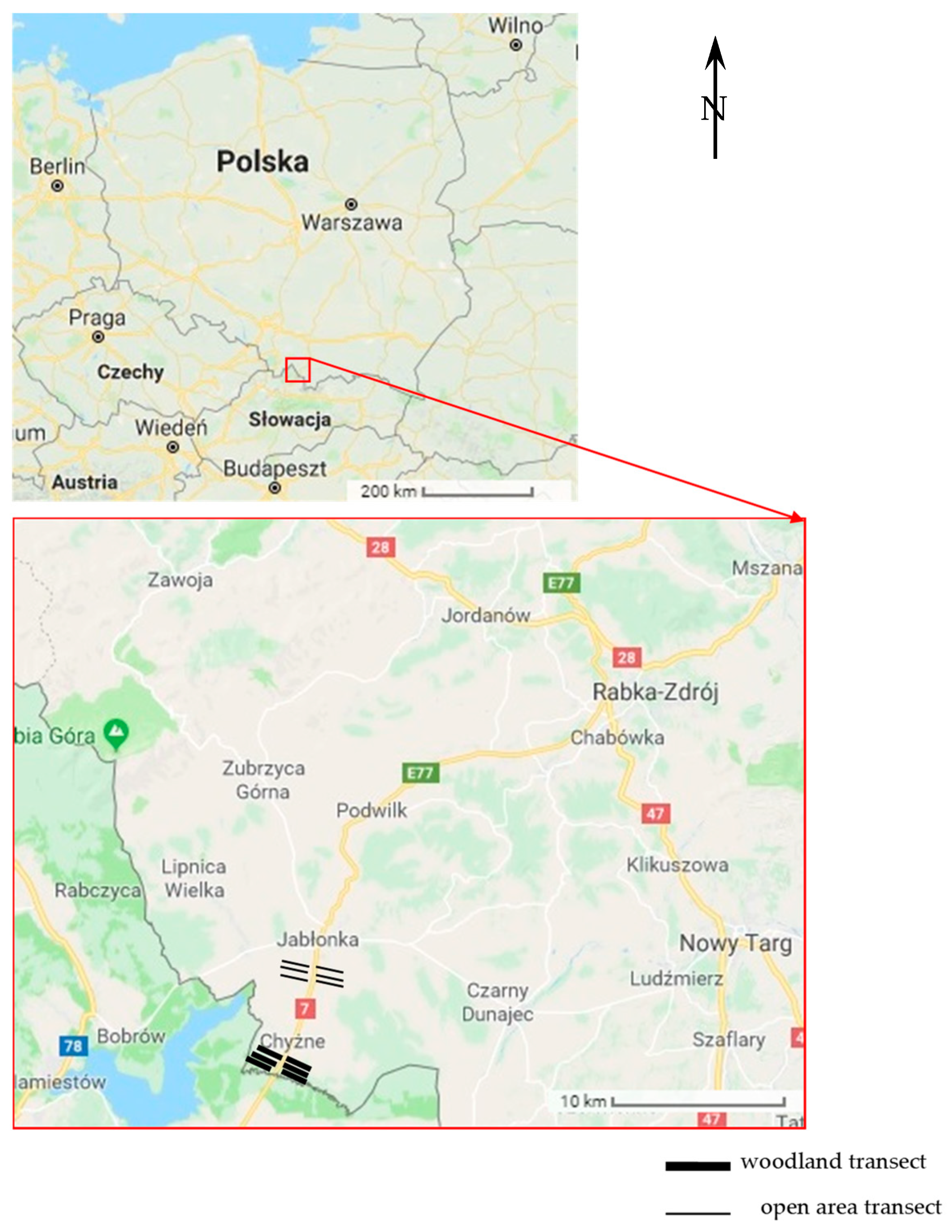

Figure 1. Location of sampling sites.
Figure 1. Location of sampling sites.
Atmosphere 14 00002 g001

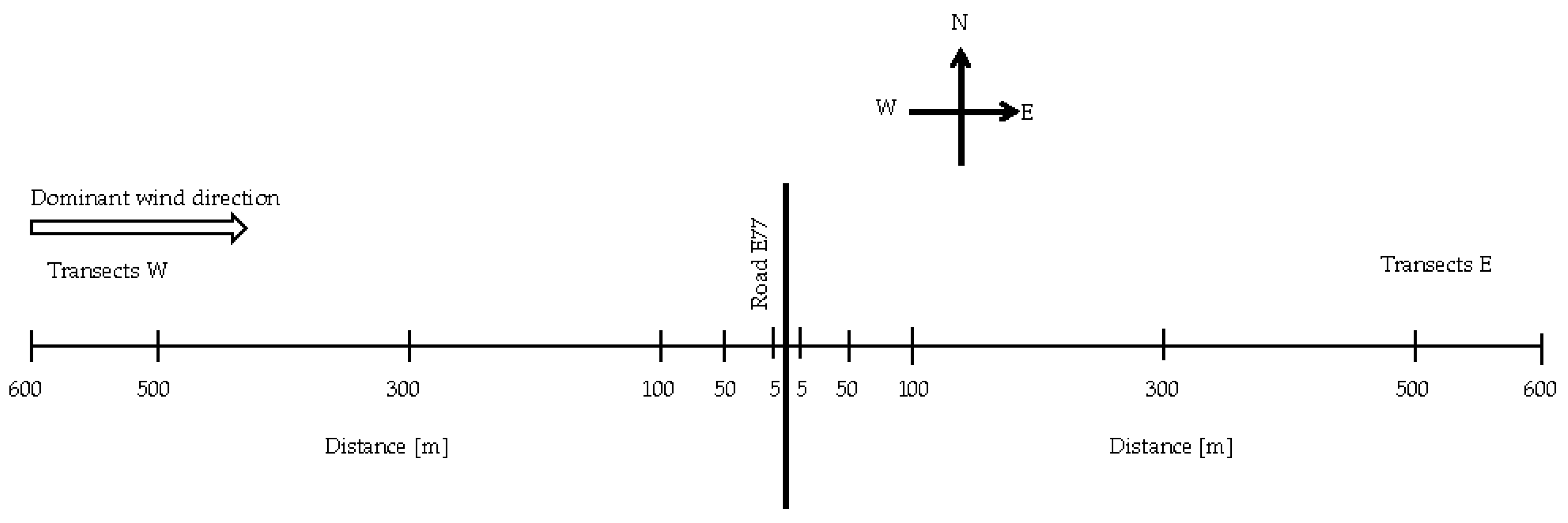

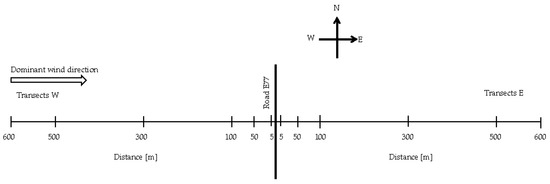

Figure 2. Scheme of sampling transect.
Figure 2. Scheme of sampling transect.
Atmosphere 14 00002 g002
Figure 3. Comparison of mean element concentration against land cover. Bars marked with the same letters within one element indicate no difference according to U Mann−Whitney test (n = 36).
Figure 3. Comparison of mean element concentration against land cover. Bars marked with the same letters within one element indicate no difference according to U Mann−Whitney test (n = 36).
Atmosphere 14 00002 g003

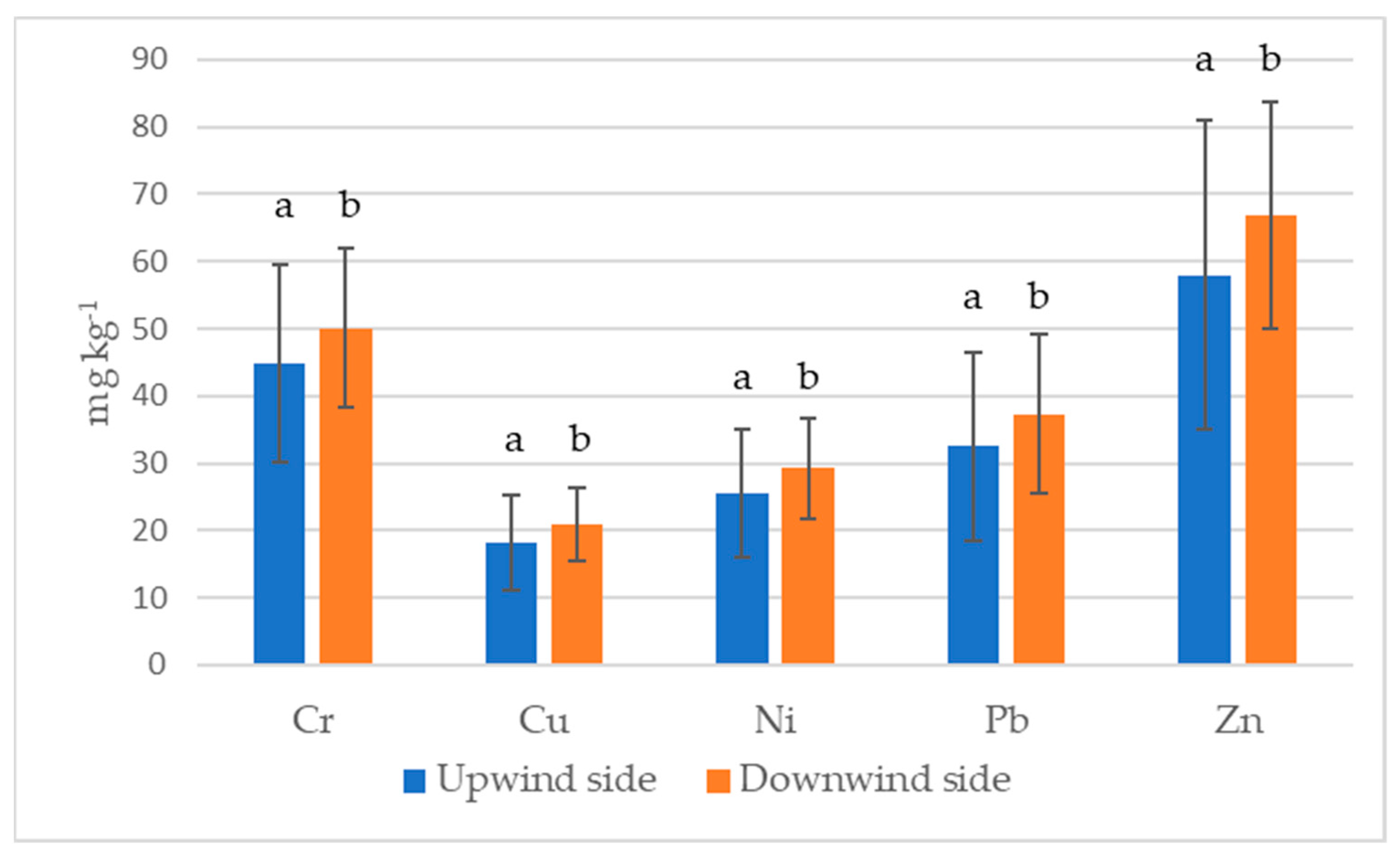

Figure 4. Comparison of mean element concentration against wind direction. Bars marked with the same letters within one element indicate no difference according to U Mann−Whitney test (n = 36).
Figure 4. Comparison of mean element concentration against wind direction. Bars marked with the same letters within one element indicate no difference according to U Mann−Whitney test (n = 36).
Atmosphere 14 00002 g004

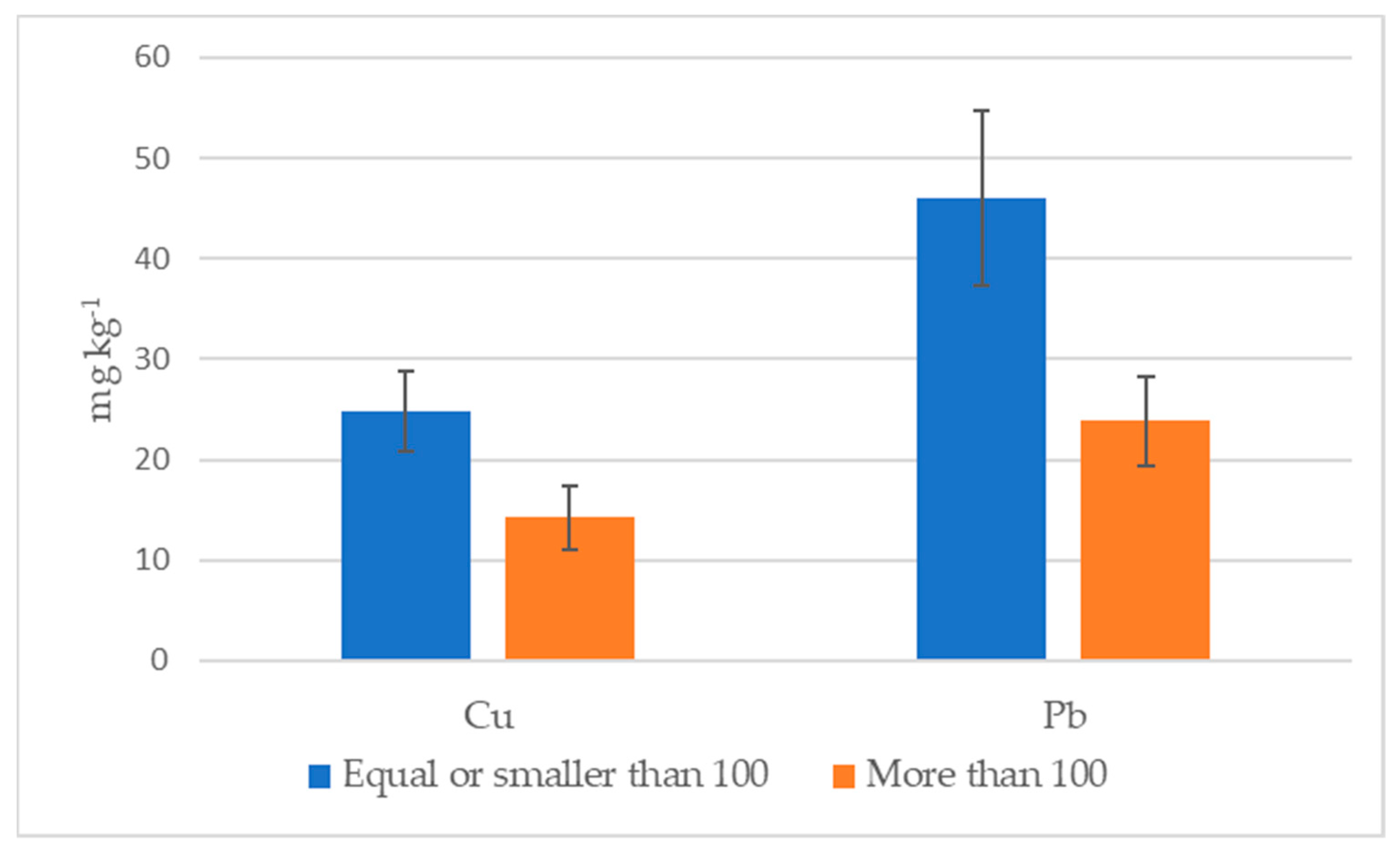

Figure 5. Comparison of Cu and Pb concentration against distance. Relationship distance—land cover (forest).
Figure 5. Comparison of Cu and Pb concentration against distance. Relationship distance—land cover (forest).
Atmosphere 14 00002 g005

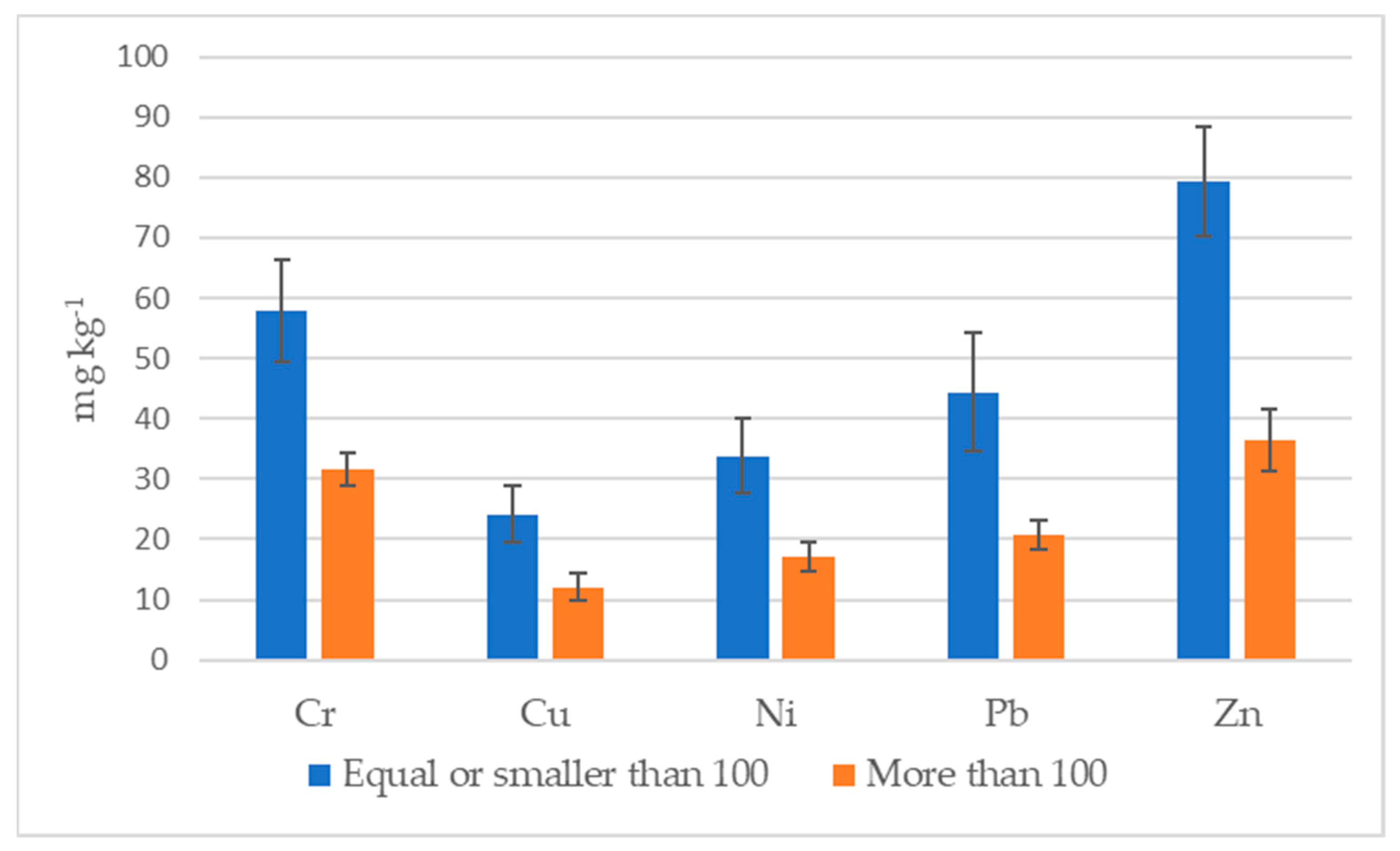

Figure 6. Comparison of mean element concentration against distance—for metals from the sides with the upwind direction.
Figure 6. Comparison of mean element concentration against distance—for metals from the sides with the upwind direction.
Atmosphere 14 00002 g006

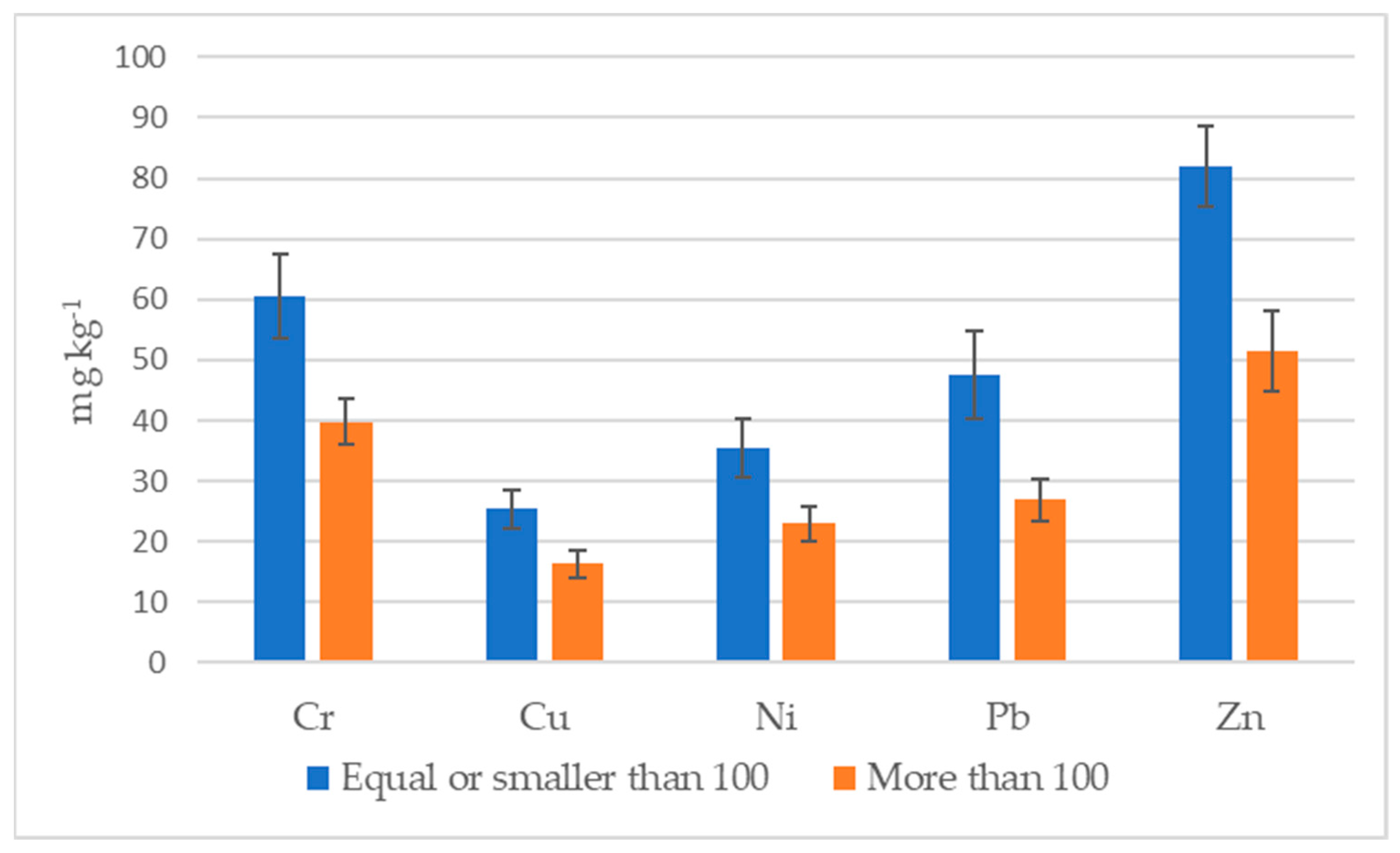

Figure 7. Comparison of mean element concentration against distance−for metals from sides with a downwind direction.
Figure 7. Comparison of mean element concentration against distance−for metals from sides with a downwind direction.
Atmosphere 14 00002 g007
Table 1. Characteristics of calculation parameters.
Table 1. Characteristics of calculation parameters.
VariableParameterTotal (N = 72)
Transect12 (6 in the forest and in the open area, and 6 on the upwind and downwind sides)N = 6 for each transect
Land coverForest50% (N = 36)
Open area50% (N = 36)
Wind directionUpwind50% (N = 36)
Downwind50% (N = 36)
Distance (m)516.7% (N = 12)
5016.7% (N = 12)
10016.7% (N = 12)
30016.7% (N = 12)
50016.7% (N = 12)
60016.7% (N = 12)
Distance (m) dividedEqual or smaller than 10050% (N = 36)
More than 10050% (N = 36)
Table 2. Mean concentrations, standard deviations, median (Q1–Q3) and min-max of heavy metals in the soils in mg kg−1; n = 72.
Table 2. Mean concentrations, standard deviations, median (Q1–Q3) and min-max of heavy metals in the soils in mg kg−1; n = 72.
MetalParametersConcentration
(mg kg−1)
CrMean (SD)47.4 (13.5)
Median (Q1–Q3)43.7 (35.5–59.8)
Min-Max28.0–72.1
CuMean (SD)19.5 (6.4)
Median (Q1–Q3)18.6 (14.1–27.0)
Min-Max9.6–28.9
NiMean (SD)27.4 (8.7)
Median (Q1–Q3)25.8 (19.8–37.5)
Min-Max14.0–40.8
PbMean (SD)34.9 (13.1)
Median (Q1–Q3)30.6 (23.7–49.7)
Min-Max18.4–56.1
ZnMean (SD)62.4 (20.5)
Median (Q1–Q3)60.6 (43.2–83.5)
Min-Max30.0–90.2
Table 3. Comparison of elements from the forest against distance.
Table 3. Comparison of elements from the forest against distance.
MetalParameterConcentration (mg kg−1)p-Value
Equal or Smaller than 100 m (N = 18)More than 100 m (N = 18)
CrMean (SD)57.2 (8.7)33.4 (3.8)<0.001
CuMean (SD)24.2 (4.4)12.1 (2.3)<0.001
NiMean (SD)33.1 (6.5)17.7 (2.9)<0.001
PbMean (SD)44.4 (9.9)21.8 (3.0)<0.001
ZnMean (SD)78.4 (9.6)39.0 (7.8)<0.001
Table 4. Comparison of elements from the open area against distance.
Table 4. Comparison of elements from the open area against distance.
MetalParameterConcentration [mg kg−1]p-Value
Equal or Smaller than 100 m (N = 18)More than 100 m
(N = 18)
CrMean (SD)61.1 (6.3)37.9 (5.7)<0.001
CuMean (SD)25.5 (3.4)16.4 (2.2)<0.001
NiMean (SD)36.2 (3.8)22.6 (3.3)<0.001
PbMean (SD)47.7 (7.1)25.9 (4.6)<0.001
ZnMean (SD)83.1 (5.1)48.9 (8.8)<0.001
Table 5. Spearman correlation coefficient (p-Value) N = 36.
Table 5. Spearman correlation coefficient (p-Value) N = 36.
Metal
(mg kg−1)
Distance (m)
OverallForestOpen AreaUpwindDownwind
Cr−0.891 (<0.001)−0.898 (<0.001)−0.913 (<0.001)−0.930 (<0.001)−0.908 (<0.001)
Cu−0.861 (<0.001)−0.905 (<0.001)−0.882 (<0.001)−0.903 (<0.001)−0.888 (<0.001)
Ni−0.858 (<0.001)−0.892 (<0.001)−0.913 (<0.001)−0.901 (<0.001)−0.879 (<0.001)
Pb−0.879 (<0.001)−0.891 (<0.001)−0.911 (<0.001)−0.910 (<0.001)−0.911 (<0.001)
Zn−0.895 (<0.001)−0.918 (<0.001)−0.912 (<0.001)−0.915 (<0.001)−0.919 (<0.001)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Korzeniowska, J. Heavy Metal Content in the Soil along the Road No. 7 near Chyżne. Atmosphere 2023, 14, 2. https://doi.org/10.3390/atmos14010002

AMA Style

Korzeniowska J. Heavy Metal Content in the Soil along the Road No. 7 near Chyżne. Atmosphere. 2023; 14(1):2. https://doi.org/10.3390/atmos14010002

Chicago/Turabian Style

Korzeniowska, Joanna. 2023. "Heavy Metal Content in the Soil along the Road No. 7 near Chyżne" Atmosphere 14, no. 1: 2. https://doi.org/10.3390/atmos14010002

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
