Life Cycle Assessment of Battery Electric and Internal Combustion Engine Vehicles Considering the Impact of Electricity Generation Mix: A Case Study in China
Abstract
:1. Introduction
2. Relevant Data and Policy of EVs in China

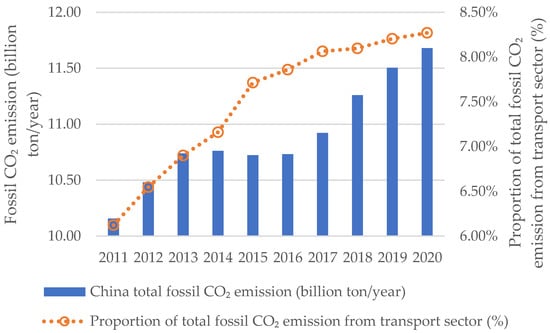

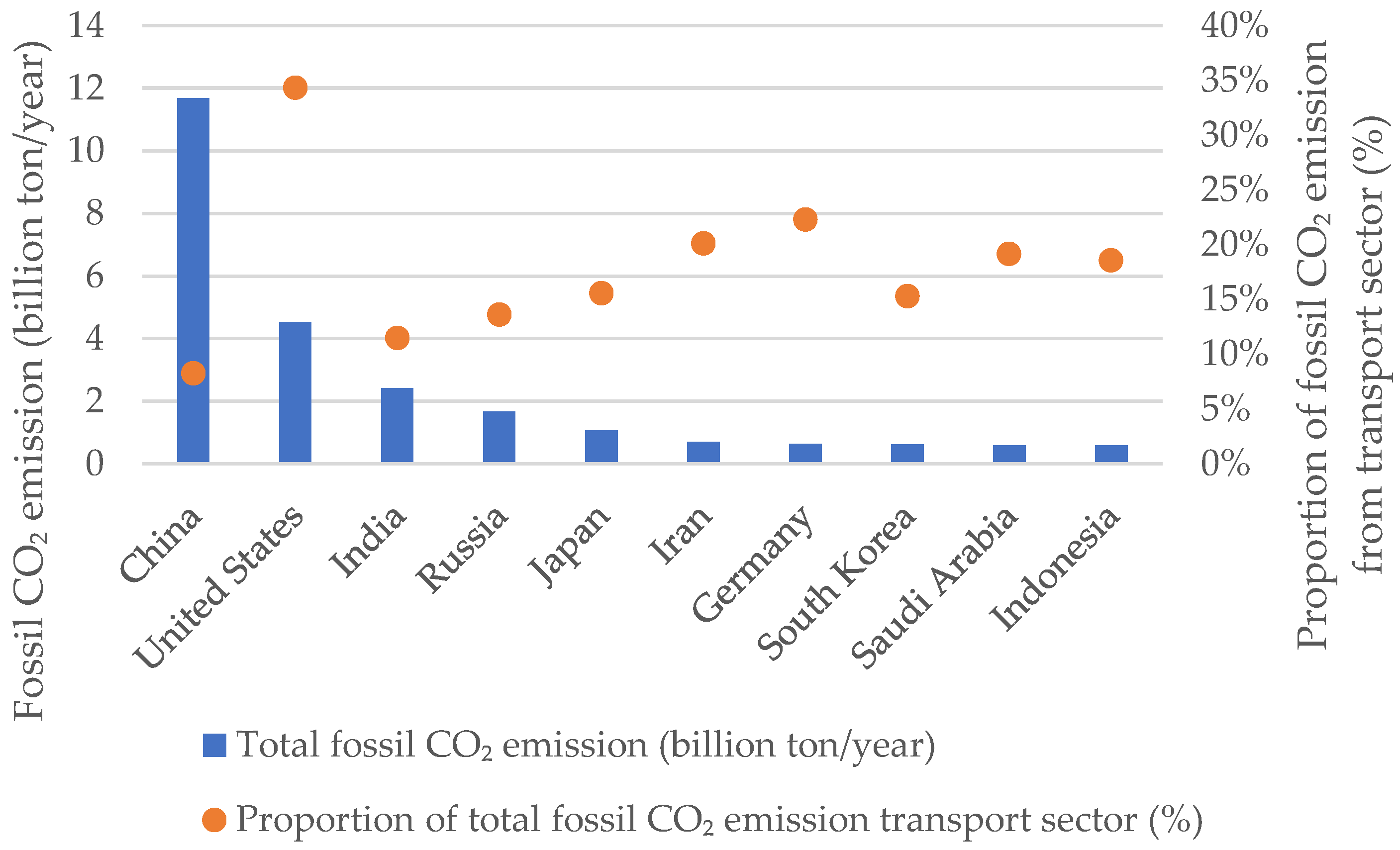

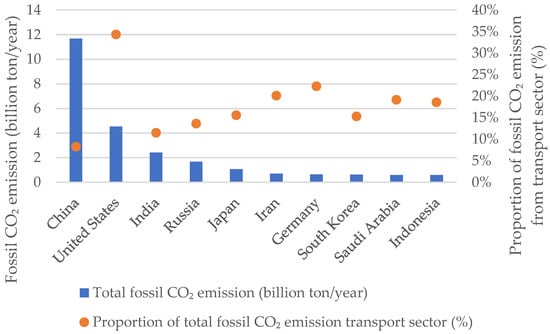

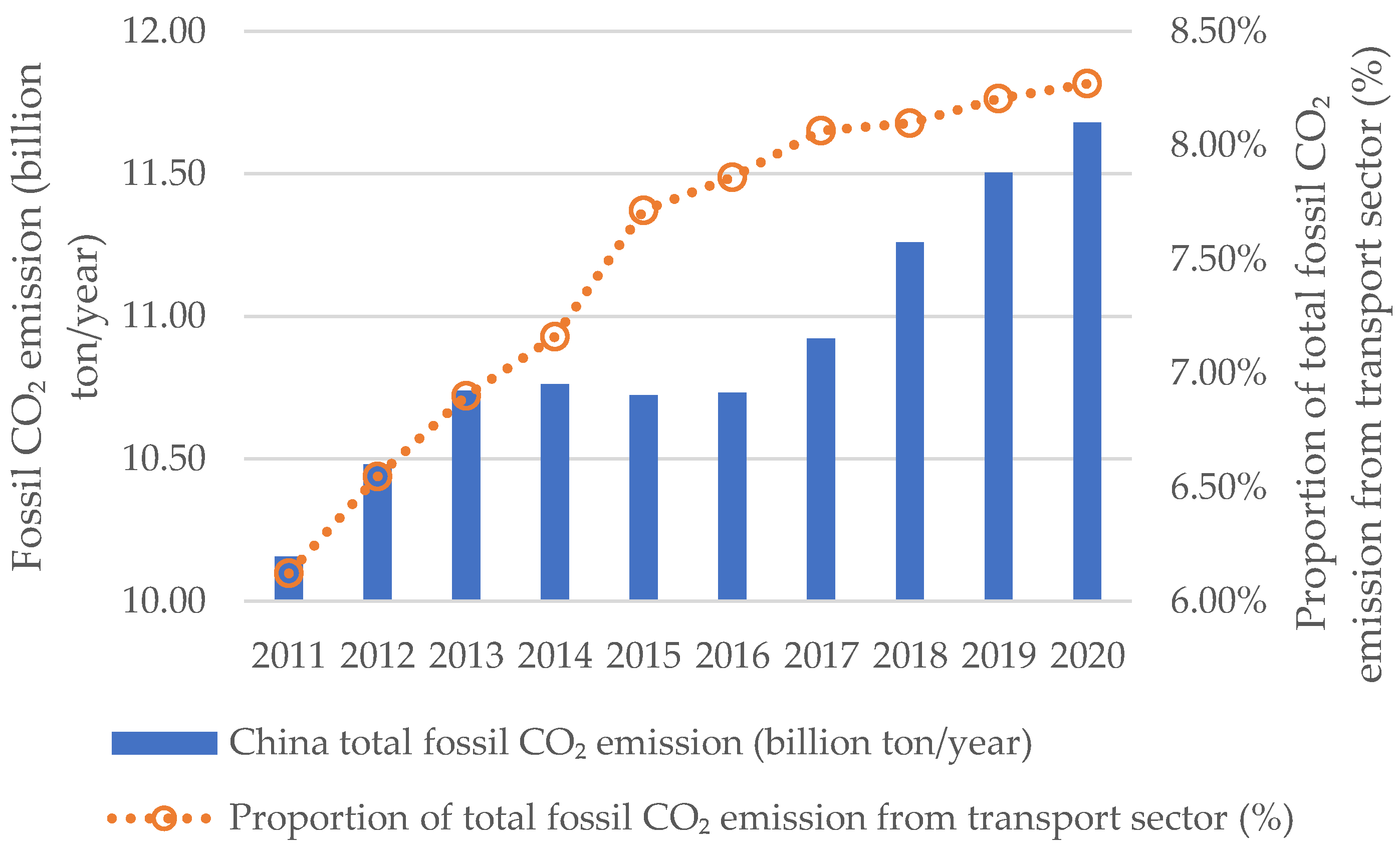

2.1. Urgent Demand for Energy Conversion in the Transport Sector
2.2. Latest EV Policies in China
3. Methods and Data

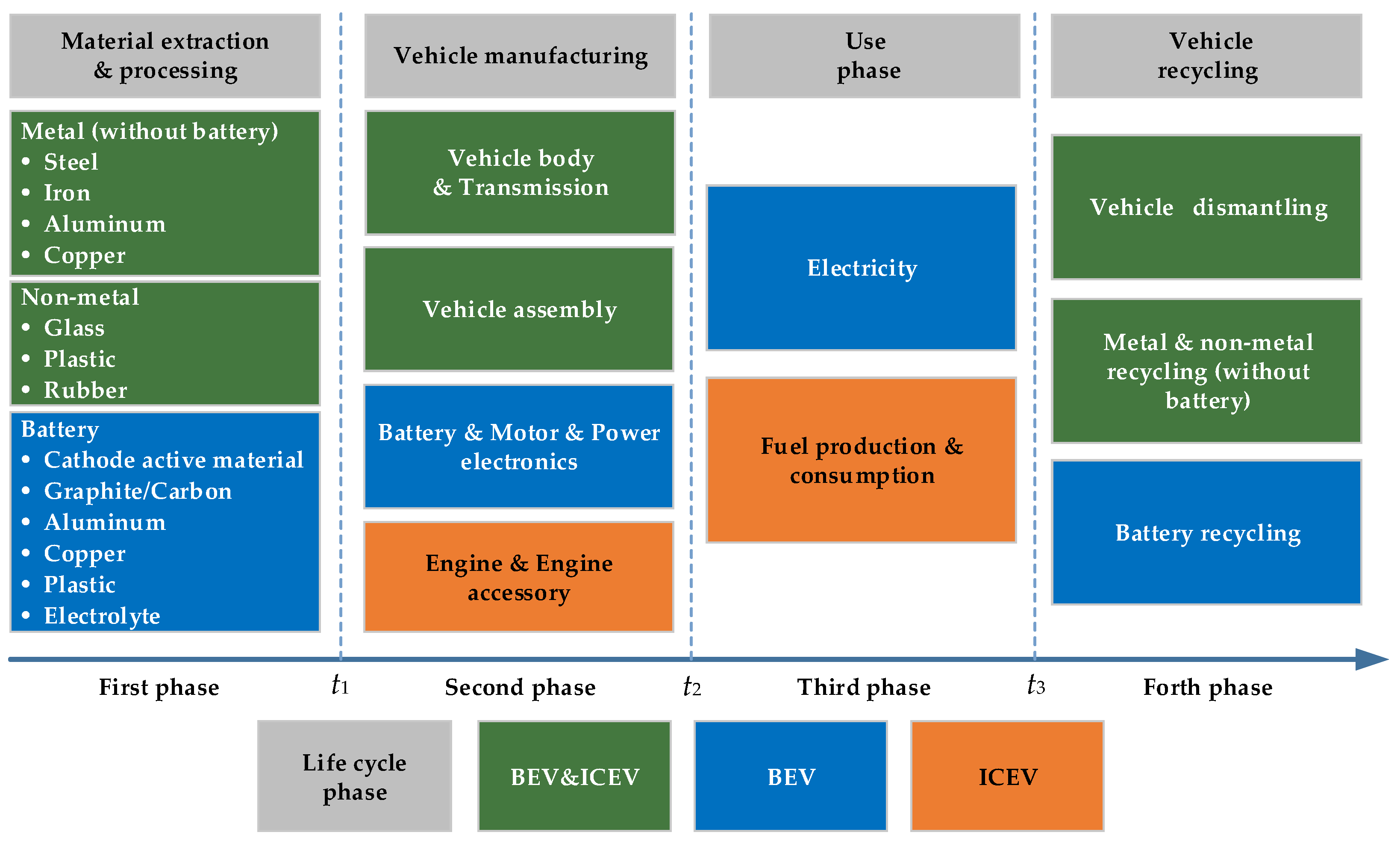

3.1. Goal and Scope Definition
3.2. Vehicle Model
3.3. Functional Unit
3.4. Calculation Model
3.4.1. Electricity Carbon Intensity
3.4.2. Life Cycle Carbon Emission of the Vehicle
3.5. Life Cycle Inventory
3.5.1. Material Extraction and Processing
3.5.2. Vehicle Manufacturing
3.5.3. Vehicle Use
3.5.4. Vehicle Recycling
4. Results and Discussion

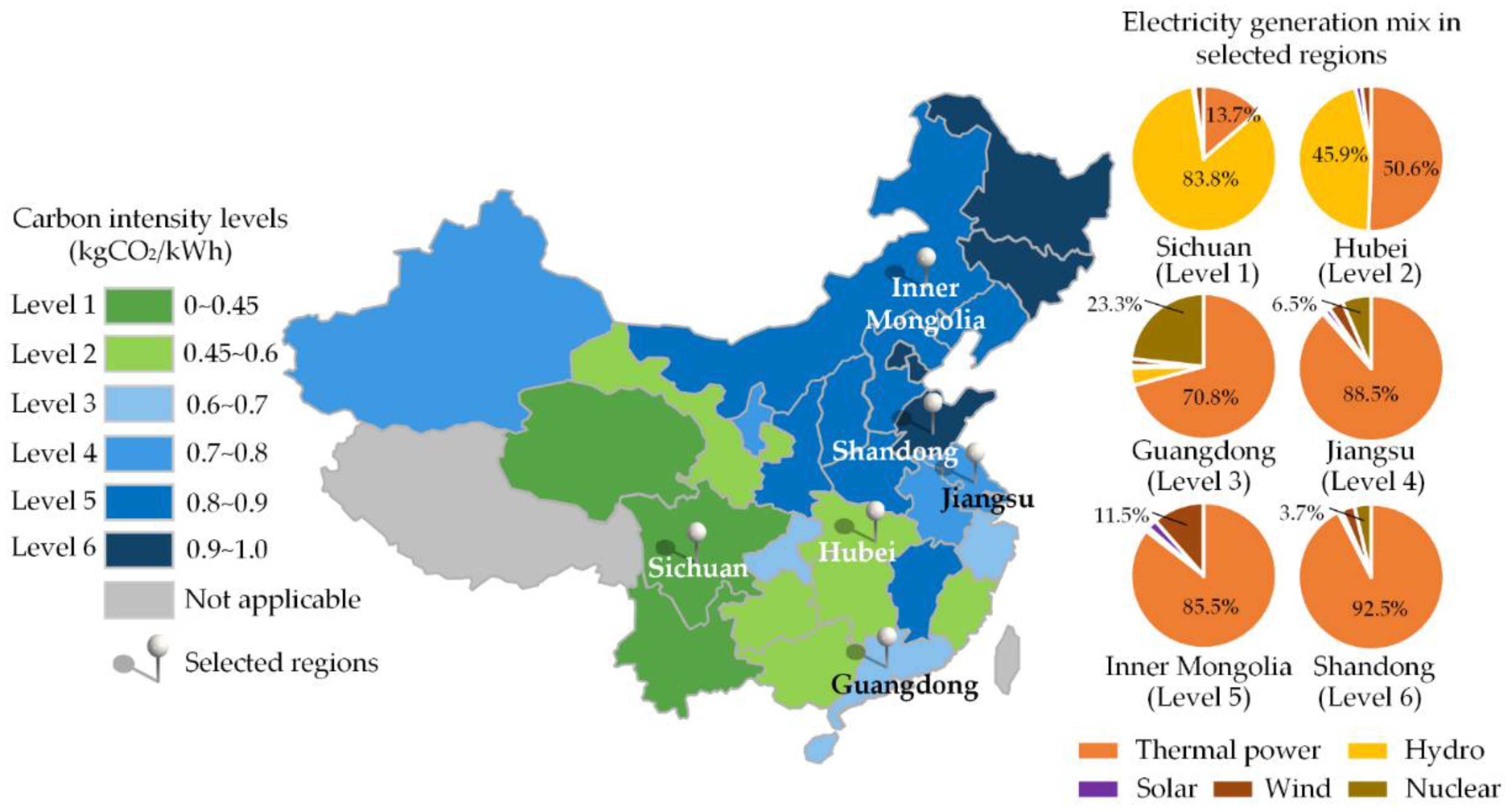

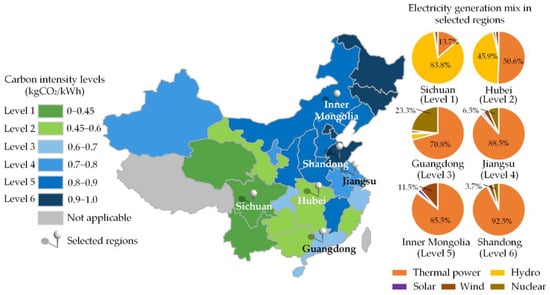

4.1. Regional Electricity Carbon Intensity

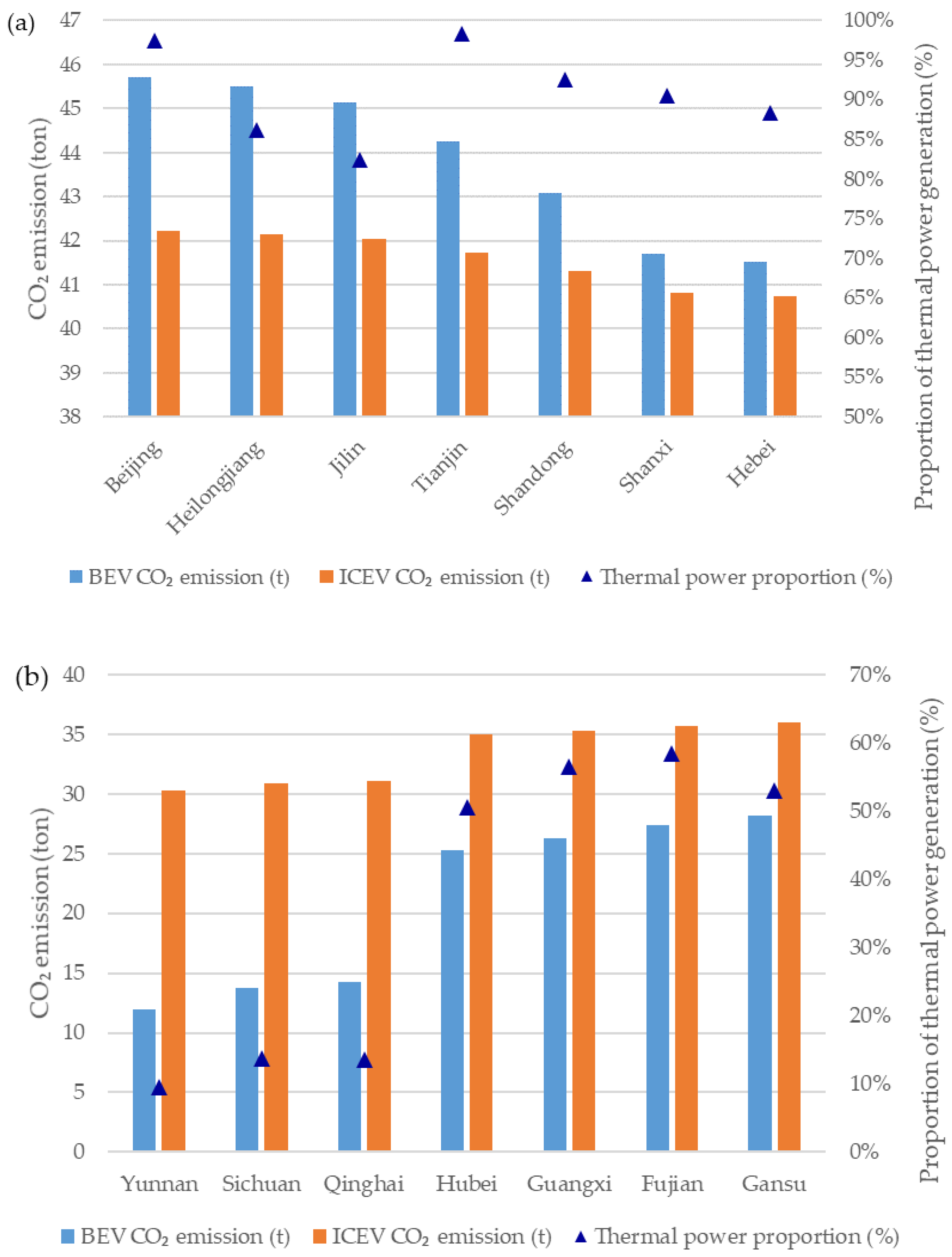

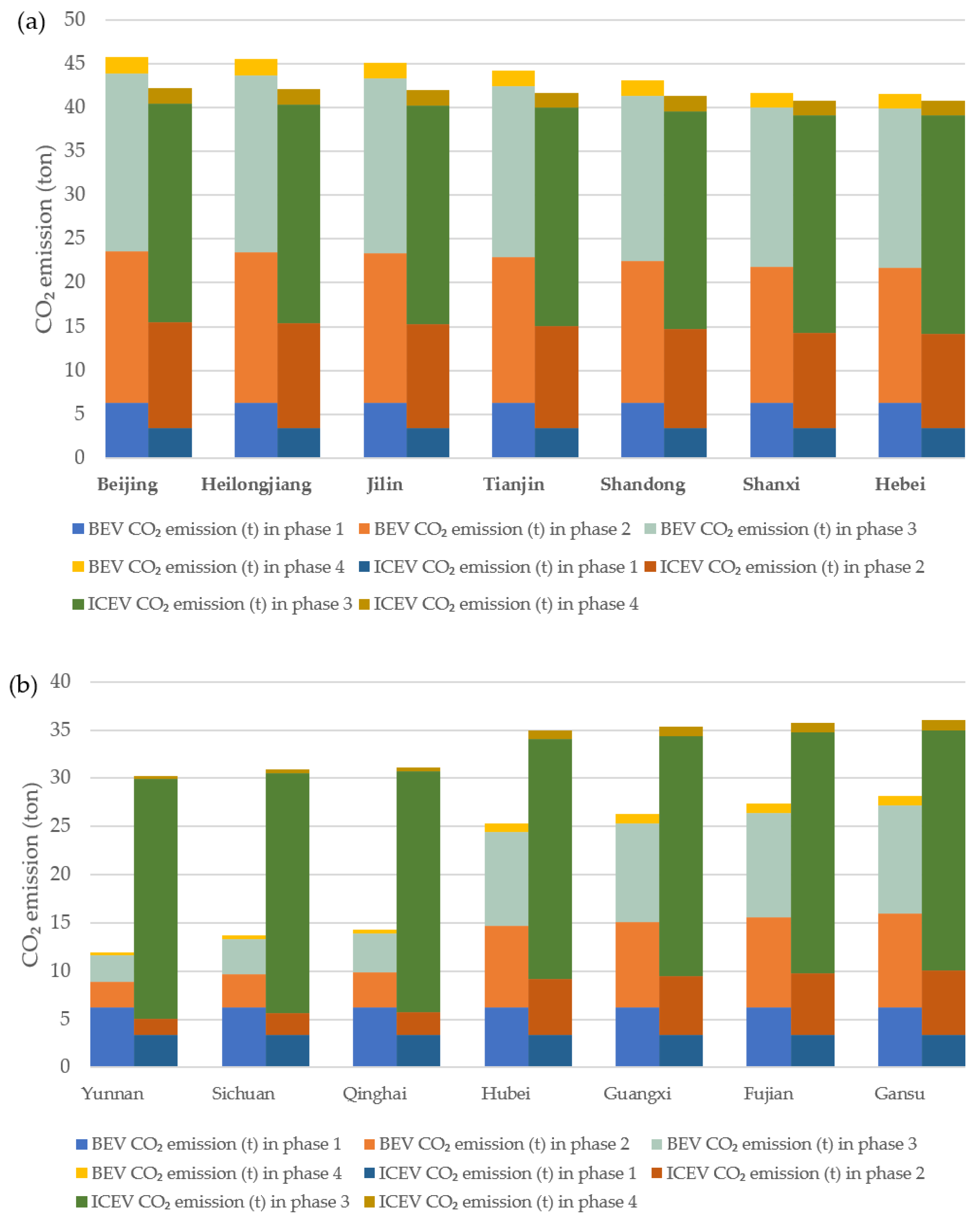

4.2. Life Cycle Carbon Emission of Vehicles
4.3. Policy Recommendation
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Appendix A
Materials | BEV | ICEV |
---|---|---|
Vehicle Body | ||
Steel | 477.97 | 459.11 |
Iron | 4.92 | 9.84 |
Aluminum | 4.92 | 7.87 |
Copper | 13.36 | 7.21 |
Glass | 45.69 | 45.91 |
Plastic | 127.22 | 104.94 |
Rubber | 3.51 | 7.21 |
Others | 25.30 | 13.77 |
Chassis | ||
Steel | 303.19 | 353.45 |
Iron | 23.18 | 28.50 |
Aluminum | 3.31 | 4.25 |
Copper | 8.46 | 9.36 |
Plastic | 12.14 | 7.66 |
Rubber | 15.45 | 18.71 |
Others | 2.21 | 3.40 |
Transmission | ||
Steel | 23.76 | 25.47 |
Iron | 3.17 | 4.03 |
Aluminum | 12.67 | 11.58 |
Motor | ||
Steel | 22.39 | — |
Aliminum | 25.10 | — |
Copper | 10.55 | — |
Others | 6.31 | — |
Power electronics | ||
Steel | 3.38 | — |
Aluminum | 31.73 | — |
Copper | 5.55 | — |
Plastic | 16.10 | — |
Rubber | 2.50 | — |
Others | 8.39 | — |
LFP Battery | ||
LiFePO4 | 89.66 | — |
Graphite | 40.76 | — |
Steel | 4.08 | — |
Aluminum | 134.49 | — |
Copper | 36.68 | — |
Plastic | 28.53 | — |
Electrolyte | 40.76 | — |
Others | 32.60 | — |
Engine | ||
Steel | — | 13.44 |
Iron | — | 12.97 |
Aluminum | — | 79.84 |
Copper | — | 1.53 |
Plastic | — | 3.77 |
Rubber | — | 3.77 |
Others | — | 2.59 |
Engine Accessory | ||
Steel | — | 37.06 |
Iron | — | 10.60 |
Aluminum | — | 9.84 |
Copper | — | 0.68 |
Plastic | — | 22.39 |
Others | — | 4.24 |
Material | Energy Consumption (MJ/t) | Carbon Emission Factor (CO2 kg/kg) | ||||
---|---|---|---|---|---|---|
Coal | Crude Oil | Natural Gas | Coke | Electricity | ||
Steel | 21,000 | 1125 | 9378 | 11,118 | 2234 | 2.148 |
Iron | 296 | 1801 | 4216 | 2871 | 873 | 0.90 |
Aluminum | 57,404 | 3429 | 6088 | 0 | 31,946 | 6.536 |
Copper | 3702 | 7378 | 1294 | 559 | 3881 | 2.20 |
Glass | 5270 | 0 | 18,972 | 0 | 778 | 1.67 |
Plastic | 739 | 3796 | 17,392 | 0 | 2238 | 3.19 |
Rubber | 979 | 13,662 | 27,002 | 0 | 624 | 3.70 |
Others | 15,940 | 3602 | 10,655 | 1845 | 5175 | 2.70 |
Fuel | Lower Heat Value | Carbon Emission Factor (kg CO2/kJ) |
---|---|---|
Coal | 20.908 MJ/kg | 87.3 |
Coke | 28.435 MJ/kg | 95.7 |
Coke oven gas | 16.726 MJ/m3 | 37.3 |
Crude oil | 41.816 MJ/kg | 71.1 |
Gasoline | 43.070 MJ/kg | 67.5 |
Diesel | 42.652 MJ/kg | 72.6 |
Fuel oil | 41.816 MJ/kg | 75.5 |
Natural gas | 38.931 MJ/m3 | 54.3 |
Components | BEV | ICEV | ||||
---|---|---|---|---|---|---|
Electricity (kWh) | Natural Gas (MJ) | Diesel (kg) | Electricity (kWh) | Natural Gas (MJ) | Diesel (kg) | |
Body and chassis | 9305.7 | — | — | 8809.5 | ||
Motor | 188.7 | 147.43 | 0.47 | — | — | — |
Power electronics | 60 | — | — | — | ||
Engine | — | — | — | 429.2 | ||
Engine accessory | 109.4 | |||||
Transmission | 98.25 | 162.96 | 0.09 | 197.1 | 423.3 | 0.21 |
Vehicle assembly | 3038.8 | 2671.7 |
Component | Energy Consumption (MJ/kWh) | |||
---|---|---|---|---|
Electricity | Coal | Crude Oil | Natural Gas | |
Cathode | 0.02 | 0.14 | 0.02 | 0.44 |
Anode | 0 | 0.10 | 0.02 | 0.54 |
Separator | 0 | 0.02 | 0 | 0.02 |
Electrolyte | 112.34 | 0 | 0 | 0 |
Packaging | 2.4 | 23.4 | 0.56 | 33.2 |
BMS | 5.74 | 0 | 0 | 0 |
Battery package | 147 | 0 | 0 | 0 |
Power Grid Division | Region (Province and City) | Carbon Emission Factor of Thermal Power (kg CO2/kWh) |
---|---|---|
Western power grid | Beijing, Tianjin, Hebei, Shanxi, Shandong, Inner Mongolia | 0.9419 |
Northeastern power grid | Liaoning, Jilin, Heilongjiang | 1.0826 |
Eastern power grid | Shanghai, Jiangsu, Zhejiang, Anhui, Fujian | 0.7921 |
Central power grid | Henan, Hubei, Hunan, Jiangxi, Sichuan, Chongqing | 0.8587 |
Northwestern power grid | Shaanxi, Gansu, Qinghai, Ningxia, Xinjiang | 0.8922 |
Southern power grid | Guangdong, Guangxi, Yunnan, Guizhou, Hainan | 0.8042 |
Electricity Generation Types | Carbon Emission Factor (kg CO2/kWh) |
---|---|
Hydropower | 0.061 |
Solar power | 0.089 |
Wind power | 0.011 |
Nuclear | 0.078 |
Phases | BEV | ICEV | ||||
---|---|---|---|---|---|---|
Electricity (kWh) | Natural Gas (m3) | Coal (kg) | Electricity (kWh) | Natural Gas (m3) | Coal (kg) | |
Vehicle assembly | 627.3 | 618.08 | ||||
Non-battery parts | 1114 | 9.13 | 9.79 | 1170.8 | 11.19 | 20.64 |
LFP battery | 62.26 | 1.33 | — | — | — |
References
- State Council of China. Notice on Issuing the Action Plan of Achieving Carbon Emission to a Peak before 2030. Beijing, 2021. Available online: http://www.gov.cn/zhengce/content/2021-10/26/content_5644984.htm (accessed on 19 December 2021).
- State Council of China. Opinions on Fully, Accurately and Comprehensively Implementing the New Development Concept to Achieve Carbon Peak and Carbon Neutral Work. Beijing, 2021. Available online: http://www.gov.cn/gongbao/content/2021/content_5649728.htm (accessed on 19 December 2021).
- Young, D.; Bistline, J. The costs and value of renewable portfolio standards in meeting decarbonization goals. Energy Econ. 2018, 73, 337–351. [Google Scholar] [CrossRef]
- US EPA. Regulatory Impact Analysis for the Clean Power Plan Final Rule; U.S. Environmental Protection Agency, Office of Air and Radiation, Office of Air Quality Planning and Standards: Research Triangle Park, NC, USA, 2015.
- Ministry for the Environment. Greenhouse Gas Emissions Targets and Reporting. Wellington, New Zealand, 2021. Available online: https://environment.govt.nz/what-government-is-doing/areas-of-work/climate-change/emissions-reduction-targets/greenhouse-gas-emissions-targets-and-reporting/ (accessed on 19 December 2021).
- Department of the Prime Minister and Cabinet. Fact Sheet—Australia’s 2030 Climate Change Target. Canberra, Australia, 2015. Available online: https://pmc.gov.au/resource-centre/domestic-policy/fact-sheet-australia%E2%80%99s-2030-climate-change-target (accessed on 19 December 2021).
- Shafique, M.; Azam, A.; Rafiq, M.; Luo, X. Evaluating the Relationship between Freight Transport, Economic Prosperity, Urbanization, and CO2 Emissions: Evidence from Hong Kong, Singapore, and South Korea. Sustainability 2020, 12, 10664. [Google Scholar] [CrossRef]
- Shafique, M.; Azam, A.; Rafiq, M.; Luo, X. Investigating the nexus among transport, economic growth and environmental degradation: Evidence from panel ARDL approach. Transp. Policy 2021, 109, 61–71. [Google Scholar] [CrossRef]
- U.S. Energy Information Administration. International Energy Outlook 2021. Available online: https://www.eia.gov/outlooks/ieo/ (accessed on 19 December 2021).
- European Commission. Vehicle Categories 2020. Available online: https://ec.europa.eu/growth/sectors/automotive/vehicle-categories_en (accessed on 19 December 2021).
- Teixeira, A.C.R.; Sodre, J.R. Simulation of the impacts on carbon dioxide emissions from replacement of a conventional Brazilian taxi fleet by electric vehicles. Energy 2016, 115, 1617–1622. [Google Scholar] [CrossRef]
- Wang, H.; Zhang, X.; Ouyang, M. Energy consumption of electric vehicles based on real-world driving patterns: A case study of Beijing. Appl. Energy 2015, 157, 710–719. [Google Scholar] [CrossRef]
- Hooftman, N.; Messagie, M.; Mierlo, J.V.; Coosemans, T. A review of the European passenger car regulations—Real driving emissions vs local air quality. Renew. Sustain. Energy Rev. 2018, 86, 1–21. [Google Scholar] [CrossRef]
- Monninghoff, M.S.; Bey, N.; Nørregaard, P.U.; Niero, M. Integration of energy flow modelling in life cycle assessment of electric vehicle battery repurposing: Evaluation of multi-use cases and comparison of circular business models. Resour. Conserv. Recycl. 2021, 174, 105773. [Google Scholar] [CrossRef]
- Lajunen, A.; Lipman, T. Life cycle cost assessment and carbon dioxide emissions of diesel, natural gas, hybrid electric, fuel cell hybrid and electric transit buses. Energy 2016, 106, 329–342. [Google Scholar] [CrossRef]
- Shafique, M.; Luo, X. Environmental life cycle assessment of battery electric vehicles from the current and future energy mix perspective. J. Environ. Manag. 2022, 303, 114050. [Google Scholar] [CrossRef]
- Shafique, M.; Azam, A.; Rafiq, M.; Luo, X. Life cycle assessment of electric vehicles and internal combustion engine vehicles: A case study of Hong Kong. Res. Transp. Econ. 2021, 101112. Available online: https://www.sciencedirect.com/science/article/pii/S0739885921000846 (accessed on 19 December 2021).
- International Energy Agency. Global EV Outlook 2021. Available online: https://www.iea.org/reports/global-ev-outlook-2021 (accessed on 19 December 2021).
- Shi, S.; Zhang, H.; Yang, W.; Zhang, Q.; Wang, X. A life-cycle assessment of battery electric and internal combustion engine vehicles: A case in Hebei Province, China. J. Clean Prod. 2019, 228, 606–618. [Google Scholar] [CrossRef]
- Zhou, B.; Wu, Y.; Zhou, B.; Wang, R.; Ke, W.; Zhang, S.; Hao, J. Real-world performance of battery electric buses and their life-cycle benefits with respect to energy consumption and carbon dioxide emissions. Energy 2016, 96, 603–613. [Google Scholar] [CrossRef]
- Gong, H.; Zou, Y.; Yang, Q.; Fan, J.; Sun, F.; Goehlich, D. Generation of a driving cycle for battery electric vehicles: A case study of Beijing. Energy 2018, 150, 901–912. [Google Scholar] [CrossRef]
- Wang, H.; Ouyang, M. Transition strategy of the transportation energy and powertrain in China. Energy Policy 2007, 35, 2313–2319. [Google Scholar] [CrossRef]
- Hoque, N.; Biswas, W.; Mazhar, I.; Howard, I. Environmental Life Cycle Assessment of Alternative Fuels for Western Australia’s Transport Sector. Atmosphere 2019, 10, 398. [Google Scholar] [CrossRef] [Green Version]
- Rangaraju, S.; Vroey, L.D.; Messagie, M.; Mertens, J.; Mierlo, J.V. Impacts of electricity mix, charging profile, and driving behavior on the emissions performance of battery electric vehicles: A Belgian case study. Appl. Energy 2015, 148, 496–505. [Google Scholar] [CrossRef]
- Nematchoua, M.K.; Sevin, M.; Reiter, S. Towards Sustainable Neighborhoods in Europe: Mitigating 12 Environmental Impacts by Successively Applying 8 Scenarios. Atmosphere 2020, 11, 603. [Google Scholar] [CrossRef]
- Cox, B.; Mutel, C.L.; Bauer, C.; Beltran, A.M.; Vuuren, D.P. Uncertain Environmental Footprint of Current and Future Battery Electric Vehicles. Environ. Sci. Technol. 2018, 52, 4989–4995. [Google Scholar] [CrossRef]
- Zhao, E.; May, E.; Walker, P.D.; Surawski, N.C. Emissions life cycle assessment of charging infrastructures for electric buses. Sustain. Energy Technol. Assess. 2021, 48, 101605. [Google Scholar] [CrossRef]
- Zeng, J.; Liu, L.; Liang, X.; Chen, S.; Yuan, J. Evaluating fuel consumption factor for energy conservation and carbon neutral on an industrial thermal power unit. Energy 2021, 232, 120887. [Google Scholar] [CrossRef]
- Doucette, R.T.; Mcculloch, M.D. Modeling emissions from battery electric vehicles given the generation mixes of different countries. Energy Policy 2011, 39, 803–811. [Google Scholar] [CrossRef]
- Sheng, M.S.; Sreenivasan, A.V.; Sharp, B.; Du, B. Well-to-wheel analysis of greenhouse gas emissions and energy consumption for electric vehicles: A comparative study in Oceania. Energy Policy 2021, 158, 112552. [Google Scholar] [CrossRef]
- Bauer, C.; Hofer, J.; Althaus, H.; Duce, A.D.; Simons, A. The environmental performance of current and future passenger vehicles: Life cycle assessment based on a novel scenario analysis framework. Appl. Energy 2015, 157, 871–883. [Google Scholar] [CrossRef]
- Tagliaferri, C.; Evangelisti, S.; Acconcia, F.; Domenech, T.; Ekins, P.; Barletta, D.; Lettieri, P. Life cycle assessment of future electric and hybrid vehicles: A cradle-to-grave systems engineering approach. Chem. Eng. Res. Des. 2016, 112, 298–309. [Google Scholar] [CrossRef]
- Sacchi, R.; Bauer, C.; Cox, B.L. Does Size Matter? The Influence of Size, Load Factor, Range Autonomy, and Application Type on the Life Cycle Assessment of Current and Future Medium- and Heavy-Duty Vehicles. Environ. Sci. Technol. 2021, 55, 5224–5235. [Google Scholar] [CrossRef] [PubMed]
- Ang, B.W.; Su, B. Carbon emission intensity in electricity production: A global analysis. Energy Policy 2016, 94, 56–63. [Google Scholar] [CrossRef]
- Ocko, I.B.; Hamburg, S.P. Climate Impacts of Hydropower: Enormous Differences among Facilities and over Time. Environ. Sci. Technol. 2019, 53, 14070–14082. [Google Scholar] [CrossRef]
- State Council of China. Guiding Opinions on Accelerating the Establishment of an Economic System for Green, Low-Carbon and Circular Development. Available online: http://www.gov.cn/zhengce/content/2021-02/22/content_5588274.htm (accessed on 18 December 2021).
- State Council of China. Energy Saving and New Energy Vehicle Industry Development Plan (2012 to 2020). Beijing, 2012. Available online: http://www.nea.gov.cn/2012-07/10/c_131705726.htm (accessed on 18 December 2021).
- State Council of China. Notice on the Issuing of New Energy Vehicle Industry Development Plan (2021–2035). Beijing, 2020. Available online: http://www.gov.cn/zhengce/content/2020-11/02/content_5556716.htm (accessed on 18 December 2021).
- State Council of China. Three-Year Action Plan to Fight Air Pollution. Beijing, 2018. Available online: http://www.gov.cn/zhengce/content/2018-07/03/content_5303158.htm (accessed on 18 December 2021).
- Ministry of Public Security of China. Notice on Further Standardizing and Optimizing City Distribution Vehicle Traffic Management. Beijing, 2018. Available online: https://www.mps.gov.cn/ (accessed on 18 December 2021).
- Ministry of Finance of China; Ministry of Industry and Information Technology of China; Ministry of Transport of China; National Development and Reform Commission of China. Notice on Supporting the Promotion and Application of New Energy Buses. Beijing, 2019. Available online: http://www.gov.cn/xinwen/2019-05/09/content_5389902.htm (accessed on 18 December 2021).
- Ministry of Finance of China; Ministry of Science and Technology of China; Ministry of Industry and Information Technology of China; National Development and Reform Commission of China. Notice on Adjusting Fiscal Subsidy Policies for the Promotion and Application of New Energy Vehicles. Beijing, 2016. Available online: http://www.gov.cn/xinwen/2016-12/30/content_5154971.htm#allContent (accessed on 18 December 2021).
- Ministry of Finance of China; Ministry of Science and Technology of China; Ministry of Industry and Information Technology of China; National Development and Reform Commission of China. Notice on Adjusting and Improving Fiscal Subsidy Policies for the Promotion and Application of New Energy Vehicles. Beijing, 2018. Available online: http://jjs.mof.gov.cn/zhengcefagui/201802/t20180213_2815574.htm (accessed on 18 December 2021).
- Ministry of Finance of China; State Taxation Administration; Ministry of Industry and Information Technology of China; Ministry of Science and Technology of China. Announcement Vehicle Purchase Tax New Energy Automobiles. Beijing, 2017. Available online: http://www.chinatax.gov.cn/n810341/n810755/c2985330/content.html (accessed on 18 December 2021).
- Ministry of Finance of China; Ministry of Industry and Information Technology of China; Ministry of Science and Technology of China; National Development and Reform Commission of China. Notice on Further Improving Fiscal Subsidy Policies for Promotion and Application of New Energy Vehicles. Beijing, 2019. Available online: http://www.gov.cn/xinwen/2019-03/27/content_5377123.htm (accessed on 18 December 2021).
- Ministry of Finance of China; State Taxation Administration; Ministry of Industry and Information Technology of China; Ministry of Transport of China. Notice on the Preferential Policy of Vehicle Tax for New Energy Vehicles and Vessels Energy-Saving. Beijing, 2018. Available online: http://www.gov.cn/xinwen/2018-08/04/content_5311722.htm (accessed on 18 December 2021).
- Ministry of Finance of China; Ministry of Industry and Information Technology of China; Ministry of Science and Technology of China; National Development and Reform Commission of China. Notice on Improving Fiscal Subsidy Policies for the Promotion and Application of New Energy Vehicles. Beijing, 2020. Available online: http://www.gov.cn/zhengce/zhengceku/2020-04/23/content_5505502.htm (accessed on 18 December 2021).
- Ministry of Finance of China; Ministry of Industry and Information Technology of China; Ministry of Science and Technology of China; National Development and Reform Commission of China. Notice on Further Improving Fiscal Subsidy Policies for the Promotion and Application of New Energy Vehicles. Beijing, 2020. Available online: http://www.gov.cn/zhengce/zhengceku/2020-12/31/content_5575906.htm (accessed on 18 December 2021).
- National Development and Reform Commission of China; National Energy Administration; Ministry of Industry and Information Technology of China; Ministry of Housing and Urban-Rural Development of China. Guide on Electric Vehicle Charging Infrastructure Development (2015–2020). Beijing, 2015. Available online: http://www.gov.cn/zhengce/2015-10/09/content_5076250.htm (accessed on 18 December 2021).
- National Energy Administration. Notice on the Issuance of Guidelines on Energy Work in 2021. Beijing, 2021. Available online: http://www.nea.gov.cn/2021-04/22/c_139898478.htm (accessed on 18 December 2021).
- National Development and Reform Commission of China. Notice on Issues Related to Electricity Pricing Policy for Electric Vehicles. Beijing, 2014. Available online: http://www.gov.cn/xinwen/2014-07/30/content_2726804.htm (accessed on 18 December 2021).
- Ministry of Industry and Information Technology of China. New Energy Vehicle Production Enterprises and Products Access Management Regulations. Beijing, 2017. Available online: http://www.gov.cn/gongbao/content/2017/content_5216432.htm (accessed on 18 December 2021).
- Ministry of Industry and Information Technology of China. Decision on Amending the New Energy Vehicle Production Enterprises and Products Access Management Regulations. Beijing, 2020. Available online: http://www.gov.cn/gongbao/content/2020/content_5541490.htm (accessed on 18 December 2021).
- National Development and Reform Commission of China. Notice on the Issuance of Intelligent Vehicle Innovation and Development Strategy. Beijing, 2020. Available online: http://www.gov.cn/zhengce/zhengceku/2020-02/24/content_5482655.htm (accessed on 18 December 2021).
- Ministry of Industry and Information Technology of China. Key Points of Automobile Standardization Work in 2021. Beijing, 2021. Available online: https://www.miit.gov.cn/xwdt/gxdt/sjdt/art/2021/art_a4eea45dca0249438746b284bb91cf6b.html (accessed on 18 December 2021).
- Ministry of Industry and Information Technology of China. Parallel Management Method of Average Fuel Consumption and New Energy Vehicle Credits of Passenger Car Enterprises. Beijing, 2017. Available online: http://www.gov.cn/xinwen/2017-09/28/content_5228217.htm (accessed on 18 December 2021).
- Ministry of Industry and Information Technology of China. Decision on Amending the Parallel Management Method of Average Fuel Consumption and New Energy Vehicle Credits of Passenger Vehicle Enterprises. Beijing, 2020. Available online: http://www.gov.cn/zhengce/zhengceku/2020-06/22/content_5521144.htm (accessed on 18 December 2021).
- National Bureau of Statistics of China. China Statistical Yearbook 2021; China Statistics Press: Beijing, China, 2021. Available online: http://www--stats--gov--cn.proxy.www.stats.gov.cn/tjsj/ndsj/2021/indexch.htm (accessed on 19 December 2021).
- National Passenger Car Information Exchange Association of China. Retail Sales Ranking in December 2021. Shanghai, 2022. Available online: http://www.cpcaauto.com/newslist.php?types=csjd&id=2658 (accessed on 19 December 2021).
- Ministry of Industry and Information Technology of China. The Seventh Batch of Recommended Models for Promotion and Application of New Energy Vehicles. Beijing, 2020. Available online: https://www.miit.gov.cn/jgsj/zbys/gzdt/art/2020/art_f6623e4f324a475db55430111788e3f6.html (accessed on 17 December 2021).
- Official Website of BYD Auto. Byd Auto Model Overview. Available online: https://www.bydauto.com.cn/auto/AllVehicleModel/CarOverview.html (accessed on 17 December 2021).
- Ministry of Industry and Information Technology of China. China Automotive Energy Consumption Query Platform. Beijing, 2021. Available online: https://yhgscx.miit.gov.cn/fuel-consumption-web/mainPage (accessed on 19 December 2021).
- Automotive Battery Innovation Alliance of China. Monthly Power Battery Data for December 2021. Beijing, 2022. Available online: https://mp.weixin.qq.com/s/MVU_F-xFdyR-Ipt4yt1Ygg (accessed on 19 December 2021).
- Liu, W.; Liu, H.; Liu, W.; Cui, Z. Life Cycle Assessment of Power Batteries Used in Electric Bicycles in China. Renew. Sust. Energ. Rev. 2021, 139, 110596. [Google Scholar] [CrossRef]
- Qiao, Q.; Zhao, F.; Liu, Z.; He, X.; Hao, H. Life cycle greenhouse gas emissions of Electric Vehicles in China: Combining the vehicle cycle and fuel cycle. Energy 2019, 177, 222–233. [Google Scholar] [CrossRef]
- Yang, L.; Yu, B.; Yang, B.; Chen, H.; Malima, G.; Wei, Y. Life cycle environmental assessment of electric and internal combustion engine vehicles in China. J. Clean. Prod. 2021, 285, 124899. [Google Scholar] [CrossRef]
- Argonne National Laboratory (ANL). The Greenhouse Gases, Regulated Emissions, and Energy Use in Transportation Model; Argonne National Laboratory: Argonne, IL, USA, 2020.
- Qiao, Q.; Zhao, F.; Liu, Z.; Jiang, S.; Hao, H. Cradle-to-gate greenhouse gas emissions of battery electric and internal combustion engine vehicles in China. Appl. Energy 2017, 204, 1399–1411. [Google Scholar] [CrossRef]
- Zackrisson, M.; Avellán, L.; Orlenius, J. Life cycle assessment of lithium-ion batteries for plug-in hybrid electric vehicles—Critical issues. J. Clean Prod. 2010, 18, 1519–1529. [Google Scholar] [CrossRef]
- Hasanbeigia, A.; Arensb, M.; Cardenasa, J.C.R.; Pricea, L.; Triolo, R. Comparison of carbon dioxide emissions intensity of steel production in China, Germany, Mexico, and the United States. Resour. Conserv. Recycl. 2016, 113, 127–139. [Google Scholar] [CrossRef] [Green Version]
- Kuckshinrichs, W.; Zappa, P.; Poganietz, W.R. CO2 emissions of global metal-industries: The case of copper. Appl. Energy 2007, 84, 842–852. [Google Scholar] [CrossRef]
- National Bureau of Statistics of China. China Statistical Yearbook 2019; China Statistics Press: Beijing, China, 2020. Available online: http://www--stats--gov--cn.proxy.www.stats.gov.cn/tjsj/ndsj/2019/indexch.htm (accessed on 19 December 2021).
- Garg, A.; Pulles, T. 2006 IPCC Guidelines for National Greenhouse Gas Inventories; Volume 2 Energy; Eggleston, H.S., Buendia, L., Miwa, K., Ngara, T., Tanabe, K., Eds.; IGES: Kanagawa, Japan, 2006. [Google Scholar]
- Dunn, J.B.; Gaines, L.; Barnes, M.; Sullivan, J.; Wang, M. Material and Energy Flows in the Materials Production, Assembly, and End-of-Life Stages of the Automotive Lithium-Ion Battery Life Cycle; U.S. Department of Energy, Office of Scientific and Technical information: Oak Ridge, TN, USA, 2012.
- National Bureau of Statistics of China. Annual Output of Major Energy Products of Provinces, 2019. Beijing, 2020. Available online: http://data.stats.gov.cn/easyquery.htm (accessed on 18 December 2021).
- Ministry of Ecology and Environment of China. Grid Baseline Emission Factor of Emission Reduction Project in China in 2019. Beijing, 2020. Available online: https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/202012/t20201229_815386.shtml (accessed on 18 December 2021).
- Jacobson, M.Z. Evaluation of Nuclear Power as a Proposed solution to global warming, air pollution and energy security. In 100% Clean, Renewable Energy and Storage for Everything; Cambridge University Press: New York, NY, USA, 2020; p. 427. [Google Scholar]
- Li, W.; Bai, H.; Yin, J.; Xu, H. Life cycle assessment of end-of-life vehicle recycling processes in China-take Corolla taxis for example. J. Clean. Prod. 2016, 117, 176–187. [Google Scholar] [CrossRef]
- World Nuclear Association. Comparison of Lifecycle Greenhouse Gas Emissions of Various Electricity Generation Sources, 2011. Available online: http://www.world-nuclear.org/our-association/publications/online-reports/lifecycle-ghg-emissions-of-electricity-generation.aspx/ (accessed on 19 December 2021).
- National Development and Reform Commission of China and National Energy Administration of China. Green Electricity Trading Pilot Work Plan. Beijing, 2021. Available online: https://www.ndrc.gov.cn/fggz/fgzy/xmtjd/202109/t20210927_1297840.html?code=&state=123 (accessed on 19 December 2021).
Policy Classification | Document | Policy Interpretation |
---|---|---|
Promotion | [39,40,41] |
|
Fiscal support | [42,43,44,45,46,47,48] |
|
Infrastructure support | [49,50] |
|
Charging price | [51] |
|
Technology support | [52,53,54,55] |
|
Vehicle score system | [56,57] |
|
BEV | ICEV | |
---|---|---|
Length (mm) | 4765 | 4675 |
Width (mm) | 1837 | 1770 |
Height (mm) | 1515 | 1480 |
Curb weight (kg) | 1650 | 1325 |
Electricity/Oil consumption per 100 km | 12.3 kWh | 6.2 L |
Engine displacement (L) | — | 1.5 |
Tank capacity (L) | — | 50 |
Max. engine power (kW) | — | 80 |
Max. motor power (kW) | 100 | — |
Battery type | LFP | — |
Battery capacity (kWh) | 57 | — |
Cruising range of battery (km) | 500 | — |
Charging efficiency | 90% | — |
Life Cycle Phases | Process | Data Sources |
---|---|---|
Material Extraction and Processing | Material composition | GREET model [65] |
Energy consumption of material production | GREET model [66,68,69] | |
Carbon emission factor of material production | GREET model [66,70,71] | |
Carbon emission factor of different types of energy | GREET model [72,73] | |
Vehicle Manufacturing | Energy consumption for the non-battery parts | GREET model |
Energy consumption for the battery | GREET model, Gabi database [74] | |
Vehicle Use | Regional electricity generation mix | [58,75] |
Carbon emission factor of different power sources | [24,58,76,77] | |
Carbon emission factor of fuel production | GREET model | |
Vehicle Recycling | Energy consumption for the non-battery parts | GREET model, Gabi database |
Energy consumption for the battery | GREET model, Gabi database [64,78] |
Region | Thermal Power | Hydropower | Solar Power | Wind Power | Nuclear | Electricity Generation (GWh) | Line Loss Rate | Reference |
---|---|---|---|---|---|---|---|---|
Beijing | 97.5% | 2.3% | 0.2% | 0 | 0 | 46,409 | 7.10% | National Bureau of Statistics [58,75] |
Heilongjiang | 86.2% | 2% | 0.6% | 11.2% | 0 | 111,191 | 4.92% | |
Jilin | 82.5% | 5.7% | 1.3% | 10.5% | 0 | 94,638 | 7.88% | |
Tianjin | 98.4% | 0 | 0.4% | 1.2% | 0 | 73,298 | 2.73% | |
Shandong | 92.5% | 0.1% | 0.8% | 2.9% | 3.7% | 589,722 | 5.27% | |
Shanxi | 90.5% | 1.7% | 2.0% | 5.8% | 0 | 336,167 | 3.68% | |
Hebei | 88.4% | 0.2% | 2.5% | 8.9% | 0 | 329,766 | 5.45% | |
Jiangxi | 88.2% | 6.5% | 2.7% | 2.6% | 0 | 13,759 | 9.73% | |
Liaoning | 73.8% | 1.4% | 0.7% | 7.7% | 16.4% | 207,294 | 3.72% | |
Inner Mongolia | 85.5% | 0.9% | 2.1% | 11.5% | 0 | 549,508 | 3.06% | |
Henan | 91.5% | 5.1% | 1.6% | 1.8% | 0 | 288,831 | 4.24% | |
Shaanxi | 87.8% | 6.5% | 2.4% | 3.3% | 0 | 21,932 | 3.40% | |
Shanghai | 98.8% | 0 | 0.1% | 1.1% | 0 | 82,213 | 3.58% | |
Anhui | 95.2% | 1.0% | 2.2% | 1.6% | 0 | 288,667 | 4.06% | |
Ningxia | 83.4% | 1.3% | 5.1% | 10.2% | 0 | 176,597 | 3.86% | |
Xinjiang | 79.2% | 7.0% | 2.8% | 11.0% | 0 | 367,049 | 2.89% | |
Jiangsu | 88.5% | 0.6% | 1.2% | 3.2% | 6.5% | 516,643 | 2.92% | |
Chongqing | 72.5% | 26% | 0.4% | 1.1% | 0 | 81,155 | 6.14% | |
Zhejiang | 74.4% | 4.8% | 1.2% | 0.8% | 18.8% | 353,765 | 5.28% | |
Guangdong | 70.8% | 3.9% | 0.5% | 1.5% | 23.3% | 505,102 | 6.43% | |
Hainan | 65.8% | 1.8% | 0.7% | 1.3% | 30.4% | 34,568 | 7.76% | |
Guizhou | 63.6% | 32% | 0.8% | 3.6% | 0 | 220,655 | 4.54% | |
Hunan | 60% | 35.1% | 0.6% | 4.3% | 0 | 155,942 | 3.46% | |
Gansu | 53.1% | 25.5% | 6.1% | 15.3% | 0 | 16,305 | 9.25% | |
Fujian | 58.4% | 12.3% | 0.1% | 3.3% | 25.9% | 257,796 | 6.65% | |
Guangxi | 56.5% | 30.4% | 0.4% | 3.1% | 9.6% | 184,627 | 3.52% | |
Hubei | 50.6% | 45.9% | 1.4% | 2.1% | 0 | 295,750 | 2.07% | |
Qinghai | 13.5% | 65.8% | 14.2% | 6.5% | 0 | 88,614 | 10.82% | |
Sichuan | 13.7% | 83.8% | 0.5% | 2.0% | 0 | 392,388 | 6.45% | |
Yunnan | 9.5% | 82% | 1% | 7.5% | 0 | 346,563 | 6.17% |
Region | Regional Electricity Carbon Intensity (kgCO2/kWh) | Region | Regional Electricity Carbon Intensity (kgCO2/kWh) | Region | Regional Electricity Carbon Intensity (kgCO2/kWh) |
---|---|---|---|---|---|
Beijing | 0.9902 | Henan | 0.8254 | Hainan | 0.6014 |
Heilongjiang | 0.9846 | Shaanxi | 0.8176 | Guizhou | 0.5574 |
Jilin | 0.9758 | Shanghai | 0.8119 | Hunan | 0.5569 |
Tianjin | 0.9533 | Anhui | 0.7888 | Gansu | 0.5470 |
Shandong | 0.9239 | Ningxia | 0.7806 | Fujian | 0.5257 |
Shanxi | 0.8886 | Xinjiang | 0.7359 | Guangxi | 0.4987 |
Hebei | 0.8842 | Jiangsu | 0.7292 | Hubei | 0.4738 |
Jiangxi | 0.8463 | Chongqing | 0.6807 | Qinghai | 0.1950 |
Liaoning | 0.8456 | Zhejiang | 0.6420 | Sichuan | 0.1811 |
Inner Mongolia | 0.8345 | Guangdong | 0.6311 | Yunnan | 0.1365 |
Region | CO2 Emission (t) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Material Extraction and Processing | Vehicle Manufacturing | Using Phase | Recycling | Total | ||||||
BEV | ICEV | BEV | ICEV | BEV | ICEV | BEV | ICEV | BEV | ICEV | |
Beijing | 6.281 | 3.380 | 17.308 | 12.121 | 20.299 | 24.903 | 1.826 | 1.833 | 45.714 | 42.237 |
Heilongjiang | 17.212 | 12.052 | 20.184 | 1.816 | 1.823 | 45.493 | 42.158 | |||
Jilin | 17.060 | 11.945 | 20.004 | 1.800 | 1.807 | 45.145 | 42.035 | |||
Tianjin | 16.673 | 11.670 | 19.543 | 1.759 | 1.767 | 44.256 | 41.720 | |||
Shandong | 16.166 | 11.311 | 18.940 | 1.706 | 1.714 | 43.093 | 41.308 | |||
Shanxi | 15.558 | 10.880 | 18.216 | 1.643 | 1.651 | 41.698 | 40.814 | |||
Hebei | 15.482 | 10.826 | 18.126 | 1.635 | 1.643 | 41.524 | 40.752 | |||
Jiangxi | 14.829 | 10.363 | 17.349 | 1.566 | 1.575 | 40.025 | 40.221 | |||
Liaoning | 14.817 | 10.354 | 17.335 | 1.565 | 1.574 | 39.998 | 40.211 | |||
Inner Mongolia | 14.625 | 10.219 | 17.107 | 1.545 | 1.554 | 39.558 | 40.056 | |||
Henan | 14.469 | 10.107 | 16.921 | 1.529 | 1.538 | 39.200 | 39.928 | |||
Shaanxi | 14.334 | 10.012 | 16.761 | 1.515 | 1.524 | 38.891 | 39.819 | |||
Shanghai | 14.236 | 9.943 | 16.644 | 1.504 | 1.514 | 38.665 | 39.740 | |||
Anhui | 13.838 | 9.660 | 16.170 | 1.463 | 1.472 | 37.752 | 39.415 | |||
Ningxia | 13.696 | 9.560 | 16.002 | 1.448 | 1.458 | 37.427 | 39.301 | |||
Xinjiang | 12.926 | 9.014 | 15.086 | 1.367 | 1.378 | 35.660 | 38.675 | |||
Jiangsu | 12.811 | 8.932 | 14.949 | 1.355 | 1.366 | 35.396 | 38.581 | |||
Chongqing | 11.975 | 8.340 | 13.954 | 1.268 | 1.279 | 33.478 | 37.902 | |||
Zhejiang | 11.308 | 7.867 | 13.161 | 1.198 | 1.210 | 31.948 | 37.360 | |||
Guangdong | 11.120 | 7.734 | 12.938 | 1.178 | 1.190 | 31.517 | 37.207 | |||
Hainan | 10.608 | 7.371 | 12.329 | 1.125 | 1.137 | 30.343 | 36.791 | |||
Guizhou | 9.850 | 6.833 | 11.427 | 1.045 | 1.058 | 28.603 | 36.174 | |||
Hunan | 9.842 | 6.827 | 11.416 | 1.044 | 1.058 | 28.583 | 36.168 | |||
Gansu | 9.671 | 6.706 | 11.214 | 1.027 | 1.040 | 28.193 | 36.029 | |||
Fujian | 9.304 | 6.446 | 10.777 | 0.988 | 1.002 | 27.350 | 35.731 | |||
Guangxi | 8.839 | 6.116 | 10.223 | 0.939 | 0.953 | 26.282 | 35.352 | |||
Hubei | 8.409 | 5.812 | 9.713 | 0.895 | 0.909 | 25.298 | 35.004 | |||
Qinghai | 3.605 | 2.406 | 3.998 | 0.392 | 0.410 | 14.276 | 31.099 | |||
Sichuan | 3.365 | 2.236 | 3.713 | 0.367 | 0.385 | 13.726 | 30.904 | |||
Yunnan | 2.597 | 1.691 | 2.798 | 0.286 | 0.306 | 11.962 | 30.280 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Tang, B.; Xu, Y.; Wang, M. Life Cycle Assessment of Battery Electric and Internal Combustion Engine Vehicles Considering the Impact of Electricity Generation Mix: A Case Study in China. Atmosphere 2022, 13, 252. https://doi.org/10.3390/atmos13020252
Tang B, Xu Y, Wang M. Life Cycle Assessment of Battery Electric and Internal Combustion Engine Vehicles Considering the Impact of Electricity Generation Mix: A Case Study in China. Atmosphere. 2022; 13(2):252. https://doi.org/10.3390/atmos13020252
Chicago/Turabian StyleTang, Bowen, Yi Xu, and Mingyang Wang. 2022. "Life Cycle Assessment of Battery Electric and Internal Combustion Engine Vehicles Considering the Impact of Electricity Generation Mix: A Case Study in China" Atmosphere 13, no. 2: 252. https://doi.org/10.3390/atmos13020252
APA StyleTang, B., Xu, Y., & Wang, M. (2022). Life Cycle Assessment of Battery Electric and Internal Combustion Engine Vehicles Considering the Impact of Electricity Generation Mix: A Case Study in China. Atmosphere, 13(2), 252. https://doi.org/10.3390/atmos13020252
