Concentration, Source, and Health Risk Assessment of Polycyclic Aromatic Hydrocarbons: A Pilot Study in the Xuanwei Lung Cancer Epidemic Area, Yunnan Province, China

by
Mengyuan Zhang
1,
Longyi Shao
1,*,
Timothy P. Jones
2,
Xiaolei Feng
1,
Jürgen Schnelle-Kreis
3,
Yaxin Cao
1 and
Kelly A. BéruBé
4
1
State Key Laboratory of Coal Resources and Safe Mining, College of Geoscience and Survey Engineering, China University of Mining and Technology (Beijing), Beijing 100083, China
2
School of Earth and Environmental Sciences, Cardiff University, Park Place, Cardiff CF10 3YE, UK
3
Joint Mass Spectrometry Centre, Cooperation Group Comprehensive Molecular Analytics, Helmholtz Zentrum München, 85764 Neuherberg, Germany
4
School of Biosciences, Cardiff University, Museum Avenue, Cardiff CF10 3AX, UK
*
Author to whom correspondence should be addressed.
Atmosphere 2022, 13(10), 1732; https://doi.org/10.3390/atmos13101732
Submission received: 19 September 2022 / Revised: 12 October 2022 / Accepted: 18 October 2022 / Published: 21 October 2022
(This article belongs to the Section Aerosols)
Browse Figures
Versions Notes

Abstract

:
Polycyclic aromatic hydrocarbons (PAHs) are toxic and hazardous volatile environmental pollutants that have been studied as possible major causative agents of lung cancer in Xuanwei. In this paper, indoor and outdoor PM2.5 samples were collected from two homes at different time periods in Hutou, the lung cancer epidemic area in Xuanwei. The results showed that PAH pollution levels from coal combustion in Xuanwei lung cancer epidemic area were significant. The mass concentrations of total PAHs, major carcinogenic compounds, and benzo[a]pyrene-based equivalent concentration (BaPeq) were significantly higher in the coal-using home than in the electricity-using home. For the coal-using home, the PAHs were mainly derived from coal combustion. For the electricity-using home, the PAHs might have been a combination of traffic and coal combustion sources. The human health risk due to inhalation exposure to the PAHs was represented by the incremental lifetime cancer risk (ILCR) of the inhalation exposure. The results showed that the indoor cancer risk for the coal-using home in Xuanwei is higher than that of the electricity-using home and much higher than that of Chinese megacities such as Beijing and Tianjin. Long-term exposure to indoor coal-burning environments containing high levels of PAHs may be one of the main reasons for the high incidence of lung cancer in Xuanwei.

1. Introduction

Polycyclic aromatic hydrocarbons (PAHs) are organic contaminants produced by the incomplete combustion of carbonaceous materials that occur in the atmosphere [1,2]. PAHs in the air, both gaseous and particle phases, have been found to have direct effects on human health [3,4]. PM2.5 refers to particulate matter in the ambient air that has an aerodynamic equivalent diameter of less than or equal to 2.5 μm, which can enter the human lungs [5]. PM2.5 is of more concern due to its large specific surface area and strong adsorption capacity [6]. PM2.5-bound PAHs can easily enter the respiratory system and cause lung cells to mutate, leading to lung cancer [7,8]. Due to the high toxicity, mutagenicity and carcinogenicity of PAHs, 16 PAHs are regarded as priority pollutants by the United States Environmental Protection Agency (USEPA) [9], in which benzo[a]pyrene (BaP), benz[a]anthracene (BaA), benzo[b]fluoranthene (BbF), benzo[k]fluoranthene (BkF), chrysene (Chr), dibenz[a,h]anthracene (DahA) and indeno [1,2,3-cd]pyrene (IcdP) have been classified as probable human carcinogens [10]. BaP has been listed as the control pollutant of the Ambient Air Quality Standards of China (GB 3095–2012). Therefore, the health risk assessment of exposure to PAHs in the environment has become a major concern all over the world.
Xuanwei, located in the northeast of Yunnan Province in China, has one of the highest morbidity and mortality rates due to lung cancer in the world [11]. Especially in Laibin, a lung cancer epidemic area of Xuanwei, the mortality from lung cancer exceeds 160/105 [12]. The main energy source for residents in Xuanwei is the local C1 coal, which is situated stratigraphically at the onset of the End-Permian mass extinction [13,14,15]. The coal is characterized by medium to high ash yields (average 31.0%), low to medium volatile contents (average 20.0%), low sulfur contents (averaged 0.17%), and mid-range vitrinite reflectance from 1.19% to 1.37% [13]. The combustion of C1 coal releases a large quantity of toxic particles, including PAHs, SiO2, and heavy metals [16,17,18,19]. A number of studies have indicated that long-term exposure to high concentrations of toxic particles in the indoor coal-burning environment may be the main reason for the high incidence of lung cancer in Xuanwei [20,21,22]. He et al. suggested that the large quantity of PAHs emitted from indoor coal combustion in Xuanwei may be a major risk factor for the high incidence of lung cancer [23]. Tian et al. suggested that the high incidence of lung cancer in Xuanwei may be related to the presence of microcrystalline SiO2 in the C1 coal [24]. Large et al. suggested that the combined effect of SiO2 and the volatile fraction in the coals at the uppermost Permian may be the geological cause of the high incidence of lung cancer in Xuanwei [20]. Shao et al. have carried out a toxicological study of respirable particulate matter and have shown that the particles emitted from the indoor coal combustion in the Xuanwei lung cancer epidemic area had a significantly higher oxidative damage capacity than in the control area, and that this oxidative capacity was closely related to the higher concentrations of heavy metals in the particulate matter [25].
Clearly, the high incidence of lung cancer in Xuanwei may be the result of a complex synergistic effect of multiple factors. However, PAHs are recognized as the most significant correlated factor with the mortality of Xuanwei lung cancer among several carcinogenic factors [26]. When compared to other samples, the expression of PAH-DNA adduct in the lung tissue of Xuanwei females were higher than those found in Xuanwei males and non-Xuanwei females [27]. Similarly, the female users of bituminous coal in Xuanwei had significantly higher average urinary mutagenicity levels than those anthracite coal users [28]. At present, studies of PAH pollution in the Xuanwei area are mainly focused on the average pollution levels and exposure risks of PAHs in household air, lacking the quantitative assessment of health effects, especially cancer risk due to PAH exposure [16,29,30]. The incremental lifetime cancer risk (ILCR) proposed by the USEPA is widely used for the quantitative characterization of human health risks. However, there are no studies showing that ILCR levels in lung cancer epidemic areas of Xuanwei at present. Therefore, a comprehensive and systematic characterization of indoor and outdoor pollution levels and health risks of PAHs in different homes of lung cancer epidemic areas in Xuanwei is needed.
In this study, PM2.5 samples were collected from two homes in the Xuanwei lung cancer epidemic area (Hutou village of the Laibin town) to characterize the pollution levels, sources, and health risk related to PM2.5-bound PAHs. We hoped to gain understanding of the air pollution with potential carcinogens in the area and provide a basis for exploration of the synergistic effects of multiple factors in the future.

2. Materials and Methods

2.1. Sampling

This pilot study was carried out in the Hutou, a village of the Laibin town, which is a high lung cancer mortality area in Xuanwei, Yunnan Province, China (Figure 1). Local farmers mainly use coal as a domestic fuel, while some have changed to use electricity. In order to investigate the impact of different fuel types on local air pollution, a total of 22 samples were collected from two typical homes—coal-using and electricity-using—from 28 February to 6 March 2019. In the coal-using home, indoor PM2.5 samples were collected in the kitchen, in which bituminous coal is used in a ventilated fixed stove for cooking, while in the electricity-using home, indoor PM2.5 samples were also collected in the kitchen, in which induction stoves are mainly used for cooking. The corresponding outdoor PM2.5 samples were also collected in the yards of the sampling homes (10 m from chimney). The stoves were not in use at night.
A TSP-PM10-PM2.5 sampler (KB-120E, Qingdao, China) and quartz microfiber filters (90 mm, Whatman, China) were used to collect PM2.5 at a flow rate of 100 L/min. The sampling points were at the average breathing height (1.5 m above the floor). A pocket weather tracker (Kestrel 5500 Weather LiNK, USA) was used to record meteorological data during sampling. Before sampling, the quartz fiber filters were heated at 450 °C for 4 h and placed in a constant temperature and humidity chamber (Hitachi, Japan; temperature 20 °C ± 5 °C, relative humidity 45% ± 5%). Due to the volatility of PAHs, samples were stored in a refrigerator (Haier, China; temperature −20 °C) after collection. Detailed sample information and the meteorological conditions during the sampling period are shown in Table 1.

2.2. Quantification of PAHs

Determination of PAHs was carried out by Zhongkebaice company following the standard of the Ministry of Ecology and Environment of Peoples Republic of China (HJ 646-2013). Briefly, each sample was processed with rapid solvent extraction (Labtech, HPSE) with a mixture of hexane and diethyl ether (V:V = 9:1) for approximately 5 min under 100℃, then washed through a 60% leaching tank, purged with nitrogen for 60 s, and the extraction repeated twice. After that, the extracts were concentrated to 10 mL with a rotary evaporator (Labtech, MultiVap-8) followed by evaporation under purified nitrogen to 1 mL.
PAHs were determined using a gas chromatograph coupled with a mass spectrometer (GC-MS, Shimadzu QP2010 ultra, China) equipped with an DB-5MS capillary column (Agilent, J&W Scientific, 30 m × 0.25 mm × 0.25 μm) in the electron ionization (EI) mode. The carrier gas was high-purity helium at a flow rate of 1 mL/min. The column oven temperature program was started at 70 °C (held for 2 min) and increased by 10 °C/min to 320 °C (held for 5 min). Injector, interface, and ion source temperatures were 280 °C, 250 °C, and 230 °C, respectively. The target compounds were identified based on retention times and standard ions in the selected ion monitoring (SIM) mode. The resulting concentrations were calculated based on the peak area ratios and response factors relative to the corresponding internal standard. The field and procedural blanks were measured and subtracted from the final results of the samples. A replicate was conducted for every 10 actual samples. The method detection limits (MDLs) of PAHs were estimated from a signal-to-noise ratio of 3 and MDLs of target PAHs ranged from 0.01 to 0.08 ng/m3.

2.3. Cancer Risk Estimates

The USEPA BaP-based equivalent concentration (BaPeq, ng/m3) was used for the overall toxicity analysis (USEPA, 2010). It is calculated as follows:
B a P e q = ∑ i = 1 n C i × T E F i
where Ci and TEFi are the mass concentrations (ng/m3) and the toxic equivalent factor (TEF) of the ith species, respectively. The relevant TEF values were tabulated in Table 2.
The human health risk due to inhalation exposure to the PAHs was represented by the incremental lifetime cancer risk (ILCR) of inhalation exposure [32]. The ILCR was characterized by the following formula:
ILCR = B a P e q × I R × E F × S F × C F B W × A T
where IR represents inhalation rate (m3/h), EF represents exposure frequency (day/year), SF represents the cancer slope factor for BaP inhalation exposure [30], BW represents body weight (kg), AT represents average life span for carcinogens [33], and CF represents conversion factor (mg/ng). Due to the possible uncertainties in BaPeq concentrations, inhalation rates, and body weights, Monte Carlo simulation was conducted to characterize uncertainties in calculation by generating distribution of ILCR with MATLAB 10,000 times. Detailed information on the cancer risk calculation is shown in Table 3.

2.4. Source Apportionment

The diagnostic ratio method was used to identify the major sources of pollution based on the distinction between different source components [34]. These diagnostic ratios suggest an inter-source similarity, but intra-source variability [35]. In this study, the BaP/BghiP ratios were used to determine the sources of PAHs [36], with the values ranging from 0.3 to 0.44 for traffic sources, 0.9 to 6.6 for coal combustion sources, and values in between indicating a mixture of coal combustion and traffic sources.

3. Results

3.1. Mass Concentrations of PM2.5

The indoor and outdoor PM2.5 mass concentrations in Xuanwei are shown in Figure 2. The highest PM2.5 mass concentration was found in the indoors of the coal-using home during the day at 149 ± 13 μg/m3 and the lowest value was found in the outdoors of the coal-using home at night at 58 ± 15 μg/m3. The average indoor PM2.5 mass concentration in Xuanwei was 98 ± 10 μg/m3, which exceeded the secondary standard limit (75 μg/m3) of the Ambient Air Quality Standards of China (GB3095-2012).
The ratios of indoor and outdoor PM2.5 mass concentrations, i.e., I/O ratios, are often used to assess the relationships between indoor air and outdoor air [25]. An I/O ratio higher than 1 indicates that the indoor PM2.5 is mainly sourced indoors, while lower than 1 indicates that the indoor PM2.5 is mainly sourced outdoors. The I/O ratios for the coal-using home were higher than 1, ranging from 1.1 to 2.1, which indicated that indoor activities were the major source of the indoor particles. However, the I/O ratios for the electricity-using home were very close to 1. In other words, the indoor PM2.5 mass concentrations were almost equal to that outdoors, since the electricity-using home has better ventilation and particulate matter cannot be present indoors for long.
There were also differences in PM2.5 concentrations between daytime and nighttime. Under the same conditions, PM2.5 concentrations were always higher during the daytime than during the nighttime, which is due to the fact that the sampling sites were located inside and outside the kitchens, which are used significantly more frequently during the day. This indicated that human activities (coal burning and kitchen fumes) were the main cause of significantly higher concentrations of PM2.5. However, as there were no significant differences in PM2.5 mass concentrations between the different homes (p = 0.683 > 0.05), it is difficult to determine the main causal factors of indoor PM2.5 pollution in Xuanwei by concentrations alone. Therefore, further analysis of the chemical composition of the samples is required.

3.2. Mass Concentrations of PAHs

A total of eight samples were tested for the PAHs classified as priority pollutants by the USEPA using GC-MS, and their mass concentrations in air were calculated. The results are shown in Table 4. A total of 15 PAHs compounds in the Xuanwei PM2.5 samples were detected, including naphthalene (NAP), acenaphthylene (ACY), acenaphthene (ACP), fluorene (FLR), phenanthrene (PHE), anthracene (ANT), fluoranthene (FLT), pyrene (PYR), benz[a]anthracene (BaA), chrysene (CHR), benzo[b]fluoranthene (BbF), benzo[k]fluoranthene (BkF), benzo[a]pyrene (BaP), indeno[1,2,3-cd]pyrene (IcP), and benzo[g,h,i]perylene (BgP). However, as two- and three-ring PAHs are mainly present in the gas phase under the sampling conditions, the concentrations of NAP, ACY, ACP, FLR, PHE, and ANT are not discussed in this paper.
The sum of the above PAH compounds was expressed in terms of ∑PAHs. The concentrations of ∑PAHs ranged from 185 to 1762 ng/m3 with an average of 686 ± 520 ng/m3. Among them, BaA was the compound with the highest concentration (average concentration of 413 ± 248 ng/m3 for the coal-using home and 87 ± 39 ng/m3 for the electricity-using home), followed by BbF and BaP. FLT was the compound with the lowest concentration for the coal-using home, accounting for 53 ± 21 ng/m3, and CHR was the compound with the lowest concentration for the electricity-using home.

4. Discussion

4.1. Distribution of PAHs

The concentrations of ∑PAHs ranged from 185 to 1762 ng/m3 with an average of 686 ± 520 ng/m3. The ∑PAHs concentrations measured in this study were significantly lower than in a previous study [9] in Xuanwei (mean 1716 ng/m3), which may be caused by the increasing number of households that choose to replace traditional coal cookers with induction cookers and the addition of indoor ventilation facilities in recent years. This proves that improving ventilation and replacing traditional energy sources can indeed be effective in reducing indoor environmental pollution [16]. However, indoor air concentrations of ∑PAHs in Xuanwei are still much higher than in other cities of China, such as Hangzhou (10 ng/m3) [37], Beijing (20 ng/m3) [38], and Taipei (238 ng/m3) [39].
As shown in Figure 3, the PAH concentrations were higher in the coal-using home than in the electricity-using home, which indicates that indoor coal burning is the main source of PAH pollution. In addition, the PAH concentration was higher in the daytime than in the nighttime, which is consistent with the results of Downward et al. [40]. The daytime peak was attributed to coal combustion and oil-smoke emissions during cooking. It can be found that the difference in PAH concentrations between daytime and nighttime in the coal-using home was much greater than that in the electricity-using home, indicating that coal combustion contributes more to indoor PAH pollution than oil-smoke emissions.

4.2. Source Assessment of PAHs

The PAH diagnostic ratios have been used as tracers to distinguish between various source characteristics of PAHs, such as diesel and gasoline exhausts, biomass and wood burning [34]. These diagnostic ratios suggest an inter-source similarity, but intra-source variability [35]. In this study, the BaP/BghiP ratios were used to determine the sources of PAHs [36], with the values ranging from 0.3 to 0.44 for traffic sources, 0.9 to 6.6 for coal combustion sources, and values in between indicating a mixture of coal combustion and traffic sources. As shown in Figure 4, the BaP/BghiP ratios of the coal-using home are almost all above 0.9, indicating that the PAHs are mainly emitted from coal combustion. The BaP/BghiP ratios for the electricity-using home range from 0.44 to 0.9, indicating that the PAHs have been mainly influenced by nearby road traffic sources. It is worth noting that the BaP is less stable in the presence of sunlight, and the BaP/BghiP ratio might be influenced by the length of time in the air. Especially for the samples collected outdoors during the day (i.e., XW08), the actual BaP/BghiP ratio should be slightly higher than that shown in Figure 4.

4.3. Distribution of BaPeq

Of all PAH compounds, BaP has been extensively studied for its significant and direct carcinogenicity and is commonly found attached to the surface of particles [41,42,43]. The measured BaP concentrations in this study ranged from 14 to 142 ng/m3 with an average of 56 ± 45 ng/m3, which is significantly higher than the standard limit (1 ng/m3) of the Ambient Air Quality Standard of People’s Republic of China (GB3095-2012).
To characterize the lung cancer risk of indoor PAHs in Xuanwei, the BaP was used as a representative carcinogen, and the toxic equivalents of other compounds equivalent to BaP were calculated by formula 1 to obtain the BaP-based equivalent concentration (BaPeq) of samples.
As shown in Figure 5, the concentration of BaPeq was higher in the daytime than in the nighttime, higher indoors than outdoors, and higher in the coal-using home than in the electricity-using home. The concentrations of BaPeq ranged from 26 to 276 ng/m3, with the average of 164 ng/m3 in the coal-using home and 46 ng/m3 in the electricity-using home. In comparison to other studies, the BaPeq in Xuanwei was found to be much higher than those in the megacities such as Beijing (43.67 ng/m3), Shanghai (14.82 ng/m3), and Guangzhou (9.74 ng/m3) [44]. In addition, the BaPeq in Xuanwei was about eightfold that in rural northeast China where coal is also the main domestic fuel [45].

4.4. Lung Cancer Risk Assessment

The ILCR was calculated by formula 2 to characterize the human health risk due to inhalation exposure to the PAHs in the high lung cancer incidence area of Xuanwei. The ILCR was 48.21 × 10−6 indoors for the coal-using home and 9.33 × 10−6 indoors for the electricity-using home. According to the USEPA (2010), one in a million chance of additional human cancer over a 70-year lifetime (ILCR = 1 × 10−6) is the level of risk considered acceptable or inconsequential [46]. It is seen that the ILCR in Xuanwei is much higher than the international standard of 1 × 10−6.
As shown in Table 5, the ILCR of the coal-using home was much higher than the electricity-using home, suggesting that indoor coal burning poses a higher lung cancer risk. The type of coal is an important factor influencing local cancer risk [47]. The ILCR indoors in Xuanwei is about threefold that of Shanxi [48,49]. This result is consistent with Liu (2009), who characterized the PAHs from combustion of different residential coals in north China and demonstrated that indoor exposure to PAHs from bituminous coals was sevenfold that of anthracite coals [50]. Compared to other urban areas, the ILCR of Xuanwei is much higher, for example the megacities like Beijing and Tianjin, where bulk coal burning is banned [51,52,53]. Overall, the cancer risk in coal-burning areas is much higher than non-coal-burning areas, strongly supporting the view that indoor coal burning is a cause of the high incidence of lung cancer.

5. Perspectives

In this study, the PM2.5 samples were collected from two homes in the Xuanwei lung cancer epidemic area to characterize the pollution levels, sources and health risk related to PM2.5-bound PAHs. In order to better highlight the impact of coal combustion on indoor PAH pollution, farmers using a single fuel (coal or electricity) were selected for this study. Some households in Xuanwei use both coal and electricity or even biomass as domestic fuels. Therefore, the homes selected for sampling in this study only reflect a typical local living condition, and may not fully represent the pollution situation of the whole region. The exposure risk of PAHs in more households and areas of Xuanwei should be further investigated.

6. Conclusions

  • The average indoor PM2.5 mass concentration in Xuanwei was 97.6 ± 9.8 μg/m3, and generally showed a pattern of being higher indoors than outdoors and higher in the daytime than in the nighttime.
  • The concentration of total PAHs in the Xuanwei lung cancer epidemic area was 686 ± 520 ng/m3, significantly lower than in other cities of China.
  • The concentrations of total PAHs, major carcinogenic compounds, and benzo[a]pyrene-based equivalent concentration (BaPeq) were significantly higher in the coal-using home than in the electricity-using home, indicating that indoor coal combustion may be the main source of PAH pollution in Xuanwei.
  • The ILCR was 48.21 × 10−6 indoors for the coal-using home and 9.33 × 10−6 indoors for the electricity-using home, which is much higher than the international standard of 1 × 10−6.
  • The indoor cancer risk for the coal-using home is higher than that for the electricity-using home and much higher than that of Chinese megacities such as Beijing and Tianjin. Long-term exposure to indoor coal-burning environments containing high levels of PAHs may be one of the main reasons for the high incidence of lung cancer in Xuanwei.

Author Contributions

Conceptualization, L.S.; Data curation, X.F.; Formal analysis, M.Z.; Investigation, Y.C.; Methodology, L.S.; Supervision, L.S.; Writing—original draft, M.Z.; Writing—review & editing, T.P.J., J.S.-K. and K.A.B. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Natural Science Foundation of China (42075107, 41572090) and the Fundamental Research Funds for the Central Universities (2022YJSDC05).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ma, W.L.; Liu, L.Y.; Jia, H.L.; Yang, M.; Li, Y.F. PAHs in Chinese atmosphere Part I: Concentration, source and temperature dependence. Atmos. Environ. 2018, 173, 330–337. [Google Scholar] [CrossRef]
  2. Zhang, J.M.; Yang, L.X.; Ledoux, F.; Courcot, D.; Mellouki, A.; Gao, Y.; Jiang, P.; Li, Y.Y.; Wang, W.X. PM2.5-bound polycyclic aromatic hydrocarbons (PAHs) and nitrated PAHs (NPAHs) in rural and suburban areas in Shandong and Henan Provinces during the 2016 Chinese New Year’s holiday. Environ. Pollut. 2019, 250, 782–791. [Google Scholar] [CrossRef] [PubMed]
  3. Ma, W.L.; Zhu, F.J.; Liu, L.Y.; Jia, H.L.; Yang, M.; Li, Y.F. PAHs in Chinese atmosphere Part II: Health risk assessment. Ecotoxicol. Environ. Saf. 2020, 200, 9. [Google Scholar] [CrossRef] [PubMed]
  4. Ren, Y.Q.; Wang, G.H.; Li, H. Spatial and seasonal variations of primary and secondary organic aerosols at urban areas and continental background site of China: Ambient levels, size distribution, and sources. Gondwana Res. 2022, 110, 319–329. [Google Scholar] [CrossRef]
  5. Dai, H.B.; Huang, G.Q.; Wang, J.J.; Zeng, H.B.; Zhou, F.Y. Prediction of air pollutant concentration based on one-dimensional multi-scale CNN-LSTM considering spatial-temporal characteristics: A case study of Xi’an, China. Atmosphere 2021, 12, 1626. [Google Scholar] [CrossRef]
  6. Dai, H.B.; Huang, G.Q.; Zeng, H.B.; Zhou, F.Y. PM2.5 volatility prediction by XGBoost-MLP based on GARCH models. J. Clean. Prod. 2022, 356, 131898. [Google Scholar] [CrossRef]
  7. Ho, K.F.; Chang, C.C.; Tian, L.W.; Chan, C.S.; Bandowe, B.A.M.; Lui, K.H.; Lee, K.Y.; Chuang, K.J.; Liu, C.Y.; Ning, Z.; et al. Effects of polycyclic aromatic compounds in fine particulate matter generated from household coal combustion on response to EGFR mutations in vitro. Environ. Pollut. 2016, 218, 1262–1269. [Google Scholar] [CrossRef] [Green Version]
  8. Zheng, F.; Dong, F.Q.; Zhou, L.; Chen, Y.Z.; Yu, J.Y.; Luo, X.J.; Zhang, X.Y.; Lv, Z.Z.; Xia, X.; Xue, J.Y. Research Progress on Heterogeneous Reactions of Pollutant Gases on the Surface of Atmospheric Mineral Particulate Matter in China. Atmosphere 2022, 13, 1283. [Google Scholar] [CrossRef]
  9. Lv, J.; Xu, R.; Wu, G.P.; Zhang, Q.H.; Li, Y.M.; Wang, P.; Liao, C.Y.; Liu, J.Y.; Jiang, G.B.; Wei, F.S. Indoor and outdoor air pollution of polycyclic aromatic hydrocarbons (PAHs) in Xuanwei and Fuyuan, China. J. Environ. Monit. 2009, 11, 1368–1374. [Google Scholar] [CrossRef] [PubMed]
  10. United States Environmental Protection Agency (USEPA). Development of a Relative Potency Factor (RPF) Approach for Polycyclic Aromatic Hydrocarbon (PAH) Mixtures. 2010. Available online: http://cfpub.epa.gov/ncea/cfm/recordisplay.cfmdeid194584 (accessed on 21 January 2020).
  11. Mumford, J.L.; He, X.Z.; Chapman, R.S.; Cao, S.R.; Harris, D.B.; Li, X.M.; Xian, Y.L.; Jiang, W.Z.; Xu, C.W.; Chuang, J.C. Lung cancer and indoor air pollution in Xuan Wei, China. Science 1987, 235, 217–220. [Google Scholar] [CrossRef] [PubMed]
  12. Chen, G.B.; Sun, X.; Ren, H.Y.; Wan, X.; Huang, H.C.; Ma, X.Y.; Ning, B.F.; Zou, X.N.; Hu, W.J.; Yang, G.H. The mortality patterns of lung cancer between 1990 and 2013 in Xuanwei, China. Lung Cancer 2015, 90, 155–160. [Google Scholar] [CrossRef] [PubMed]
  13. Shao, L.Y.; Wang, J.; Hou, H.H.; Zhang, M.Q.; Wang, H.; Spiro, B.; Large, D.; Zhou, Y.P. Geochemistry of the C1coal of the latest Permian during mass extinction in Xuanwei, Yunnan. Acta Geol. Sin. 2015, 89, 163–179, (In Chinese with English abstract). [Google Scholar]
  14. Wang, J.; Shao, L.Y.; Wang, H.; Spiro, B.; Large, D.J. SHRIMP zircon U-Pb ages from coal beds across the PermianeTriassic boundary, eastern Yunnan, southwestern China. J. Palaeogeogr. 2018, 7, 117–129. [Google Scholar] [CrossRef]
  15. Yan, Z.M.; Shao, L.Y.; Glasspool, I.J.; Wang, J.; Wang, X.T.; Wang, H. Frequent and intense fires in the final coals of the Paleozoic indicate elevated atmospheric oxygen levels at the onset of the End-Permian Mass Extinction Event. International J. Coal Geol. 2019, 207, 75–83. [Google Scholar] [CrossRef]
  16. Downward, G.S.; Hu, W.; Rothman, N.; Reiss, B.; Wu, G.; Wei, F.; Chapman, R.S.; Portengen, L.; Qing, L.; Vermeulen, R. Polycyclic Aromatic Hydrocarbon Exposure in Household Air Pollution from Solid Fuel Combustion among the Female Population of Xuanwei and Fuyuan Counties, China. Environ. Sci. Technol. 2014, 48, 14632–14641. [Google Scholar] [CrossRef] [Green Version]
  17. Downward, G.S.; Hu, W.; Rothman, N.; Reiss, B.; Tromp, P.; Wu, G.; Wei, F.; Xu, J.; Seow, W.J.; Chapman, R.S.; et al. Quartz in ash, and air in a high lung cancer incidence area in China. Environ. Pollut. 2017, 221, 318–325. [Google Scholar] [CrossRef] [Green Version]
  18. Lu, S.; Hao, X.; Liu, D.; Wang, Q.; Zhang, W.; Liu, P.; Zhang, R.; Yu, S.; Pan, R.; Wu, M.; et al. Mineralogical characterization of ambient fine/ultrafine particles emitted from Xuanwei C1 coal combustion. Atmos. Res. 2016, 169, 17–23. [Google Scholar] [CrossRef]
  19. Tan, Z.; Lu, S.; Hui, Z.; Xiao, K.; Peng, J.; Win, M.S.; Shang, Y.; Yonemochi, S.; Wang, Q. Magnetic, geochemical characterization and health risk assessment of road dust in Xuanwei and Fuyuan, China. Environ. Geochem. Health 2018, 40, 1541–1555. [Google Scholar] [CrossRef]
  20. Large, D.J.; Kelly, S.; Spiro, B.; Tian, L.W.; Shao, L.Y.; Finkelman, R.B.; Zhang, M.Q.; Somerfield, C.; Plint, S.; Ali, Y.; et al. Silica-volatile interaction and the geological cause of the Xuanwei lung cancer epidemic. Environ. Sci. Technol. 2009, 43, 9016–9021. [Google Scholar] [CrossRef] [PubMed]
  21. Li, J.H.; Ran, J.J.; Chen, L.C.; Costa, M.; Huang, Y.C.; Chen, X.; Tian, L.W. Bituminous coal combustion and Xuan Wei Lung cancer: A review of the epidemiology, intervention, carcinogens, and carcinogenesis. Arch. Toxicol. 2019, 93, 573–583. [Google Scholar] [CrossRef]
  22. Feng, X.L.; Shao, L.Y.; Xi, C.X.; Jones, T.; Zhang, D.; BeruBe, K. Particle-induced oxidative damage by indoor size-segregated particulate matter from coal-burning homes in the Xuanwei lung cancer epidemic area, Yunnan Province, China. Chemosphere 2020, 256, 127058. [Google Scholar] [CrossRef] [PubMed]
  23. He, X.Z.; Chen, W.; Liu, Z.Y.; Chapman, R.S. An epidemiological study of lung cancer in Xuan Wei County, China: Current progress. Case-control study on lung cancer and cooking fuel. Environ. Health Perspect. 1991, 94, 9–13. [Google Scholar] [PubMed]
  24. Tian, L.W.; Dai, S.F.; Wang, J.F.; Huang, Y.C.; Ho, S.C.; Zhou, Y.P.; Lucas, D.; Koshland, C.P. Nanoquartz in Late Permian C1 coal and the high incidence of female lung cancer in the Pearl River Origin area: A retrospective cohort study. BMC Public Health 2008, 8, 398. [Google Scholar] [CrossRef] [PubMed]
  25. Shao, L.Y.; Hu, Y.; Wang, J.; Hou, C.; Yang, Y.; Wu, M. Particle-induced oxidative damage of indoor PM10 from coal burning homes in the lung cancer area of Xuan Wei, China. Atmos. Environ. 2013, 77, 959–967. [Google Scholar] [CrossRef]
  26. Vermeulen, R.; Downward, G.S.; Zhang, J.M.; Hu, W.; Portengen, L.; Bassig, B.A.; Hammond, S.K.; Wong, J.Y.Y.; Li, J.H.; Reiss, B.; et al. Constituents of household air pollution and risk of lung cancer among never-smoking women in Xuanwei and Fuyuan, China. Environ. Health Perspect. 2019, 127, 12. [Google Scholar] [CrossRef]
  27. Yang, K.; Huang, Y.; Zhao, G.; Lei, Y.; Wang, K. Expression of PAH-DNA adducts in lung tissues of Xuanwei female lung cancer patients. Zhongguo Fei Ai Za Zhi Chin. J. Lung Cancer 2010, 13, 517–521. [Google Scholar] [CrossRef] [PubMed]
  28. Wong, J.Y.Y.; Vermeulen, R.; Dai, Y.; Hu, W.; Martin, W.K.; Warren, S.H.; Liberatore, H.K.; Ren, D.; Duan, H.; Niu, Y.; et al. Elevated urinary mutagenicity among those exposed to bituminous coal combustion emissions or diesel engine exhaust. Environ. Mol. Mutagen. 2021, 62, 458–470. [Google Scholar] [CrossRef] [PubMed]
  29. Lan, Q.; He, X.Z.; Shen, M.; Tian, L.W.; Liu, L.Z.; Lai, H.; Chen, W.; Berndt, S.I.; Hosgood, H.D.; Lee, K.M.; et al. Variation in lung cancer risk by smoky coal subtype in Xuanwei, China. Int. J. Cancer 2008, 123, 2164–2169. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Lui, K.H.; Bandowe, B.A.M.; Tian, L.W.; Chan, C.S.; Cao, J.J.; Ning, Z.; Lee, S.C.; Ho, K.F. Cancer risk from polycyclic aromatic compounds in fine particulate matter generated from household coal combustion in Xuanwei, China. Chemosphere 2017, 169, 660–668. [Google Scholar] [CrossRef]
  31. Liu, X.Y.; Liu, L.Q.; Zou, X.N.; Ma, X.Y.; Ning, B.F.; Ning, Y.F.; Wan, X. Epidemiological features of lung cancer mortality between 1990 and 2016 in Xuanwei city, Yunnan province. Acta Acad. Med. Sin. 2019, 41, 338–343, (In Chinese with English abstract). [Google Scholar]
  32. Liu, W.J.; Xu, Y.S.; Zhao, Y.Z.; Liu, Q.Y.; Yu, S.Y.; Liu, Y.; Wang, X.; Liu, Y.; Tao, S.; Liu, W.X. Occurrence, source, and risk assessment of atmospheric parent polycyclic aromatic hydrocarbons in the coastal cities of the Bohai and Yellow Seas, China. Environ. Pollut. 2019, 254, 10. [Google Scholar] [CrossRef] [PubMed]
  33. Hoddinott, K.B.; Lee, A.P. The use of environmental risk assessment methodologies for an indoor air quality investigation. Chemosphere 2000, 41, 77–84. [Google Scholar] [CrossRef]
  34. Kulshrestha, M.J.; Singh, R.; Ojha, V.N. Trends and source attribution of PAHs in fine particulate matter at an urban and a rural site in Indo-Gangetic plain. Urban Clim. 2019, 29, 14. [Google Scholar] [CrossRef]
  35. Alsbou, E.; Zaitoun, M.A.; Alasoufi, A.M.; Al Shra’ah, A. Concentration and Source Assessment of Polycyclic Aromatic Hydrocarbons in the Street Soil of Ma’an City, Jordan. Arch. Environ. Contam. Toxicol. 2019, 77, 619–630. [Google Scholar] [CrossRef] [PubMed]
  36. Sawicki, E. Analysis for airborne particulate hydrocarbons: Their relative proportions as affected by different types of pollution. Natl. Cancer Inst. Monogr. 1962, 9, 201–220. [Google Scholar]
  37. Liu, Y.J.; Zhu, L.Z.; Shen, X.Y. Polycyclic aromatic hydrocarbons (PAHs) in indoor and outdoor air of Hangzhou, China. Environ. Sci. Technol. 2001, 35, 840–844. [Google Scholar] [CrossRef]
  38. Yin, H.; Xu, L.Y. Comparative study of PM10/PM2.5-bound PAHs in downtown Beijing, China: Concentrations, sources, and health risks. J. Clean. Prod. 2018, 177, 674–683. [Google Scholar] [CrossRef]
  39. Li, C.S.; Ro, Y.S. Indoor characteristics of polycyclic aromatic hydrocarbons in the urban atmosphere of Taipei. Atmos. Environ. 2000, 34, 611–620. [Google Scholar] [CrossRef]
  40. Downward, G.S.; Hu, W.; Rothman, N.; Reiss, B.; Wu, G.; Wei, F.; Xu, J.; Seow, W.J.; Brunekreef, B.; Chapman, R.S.; et al. Outdoor, indoor, and personal black carbon exposure from cookstoves burning solid fuels. Indoor Air 2016, 26, 784–795. [Google Scholar] [CrossRef] [Green Version]
  41. Pankow, J.F. Review and comparative analysis of the theories on partitioning between the gas and aerosol particulate phases in the atmosphere. Atmos. Environ. 1987, 21, 2275–2283. [Google Scholar]
  42. Crawford, F.G.; Mayer, J.; Santella, R.M.; Cooper, T.B.; Ottman, R.; Tsai, W.Y.; Simon-Cereijido, G.; Wang, M.; Tang, D.; Perera, F.P. Biomarkers of environmental tobacco smoke in preschool children and their mothers. J. Natl. Cancer Inst. 1994, 86, 1398–1402. [Google Scholar] [CrossRef]
  43. Wang, X.L.; Tao, S.; Xu, F.L.; Dawson, R.W.; Cao, J.; Li, B.G.; Fang, J.Y. Modeling the fate of benzo a pyrene in the wastewater-irrigated areas of Tianjin with a fugacity model. J. Environ. Qual. 2002, 31, 896–903. [Google Scholar] [PubMed]
  44. Wang, Y.H.; Hu, L.F.; Lu, G.H. Health risk analysis of atmospheric polycyclic aromatic hydrocarbons in big cities of China. Ecotoxicology 2014, 23, 584–588. [Google Scholar] [CrossRef] [PubMed]
  45. Deziel, N.C.; Wei, W.Q.; Abnet, C.C.; Qiao, Y.L.; Sunderland, D.; Ren, J.S.; Schantz, M.M.; Zhang, Y.; Strickland, P.T.; Abubaker, S.; et al. A multi-day environmental study of polycyclic aromatic hydrocarbon exposure in a high-risk region for esophageal cancer in China. J. Expo. Sci. Environ. Epidemiol. 2013, 23, 52–59. [Google Scholar] [CrossRef] [PubMed]
  46. Asante-Duah, K. Public Health Risk Assessment for Human Exposure to Chemicals; Kluwer: London, UK, 2002. [Google Scholar]
  47. Wu, Z.X.; Hu, T.F.; Hu, W.; Shao, L.Y.; Sun, Y.Z.; Xue, F.L.; Niu, H.Y. Evolution in physicochemical properties of fine particles emitted from residential coal combustion based on chamber experiment. Gondwana Res. 2022, 110, 252–263. [Google Scholar] [CrossRef]
  48. Chen, Y.; Shen, G.; Huang, Y.; Zhang, Y.; Han, Y.; Wang, R.; Shen, H.; Su, S.; Lin, N.; Zhu, D.; et al. Household air pollution and personal exposure risk of polycyclic aromatic hydrocarbons among rural residents in Shanxi, China. Indoor Air 2016, 26, 246–258. [Google Scholar] [CrossRef]
  49. Xia, Z.H.; Duan, X.L.; Tao, S.; Qiu, W.X.; Liu, D.; Wang, Y.L.; Wei, S.Y.; Wang, B.; Jiang, Q.J.; Lu, B.; et al. Pollution level, inhalation exposure and lung cancer risk of ambient atmospheric polycyclic aromatic hydrocarbons (PAHs) in Taiyuan, China. Environ. Pollut. 2013, 173, 150–156. [Google Scholar] [CrossRef]
  50. Liu, W.X.; Dou, H.; Wei, Z.C.; Chang, B.; Qiu, W.X.; Liu, Y.; Tao, S. Emission characteristics of polycyclic aromatic hydrocarbons from combustion of different residential coals in North China. Sci. Total Environ. 2009, 407, 1436–1446. [Google Scholar] [CrossRef]
  51. Xu, L.Y.; Shu, X. Aggregate human health risk assessment from dust of daily life in the urban environment of Beijing. Risk Anal. 2014, 34, 670–682. [Google Scholar] [CrossRef]
  52. Bai, Z.P.; Hu, Y.D.; Yu, H.; Wu, N.; You, Y. Quantitative Health Risk Assessment of Inhalation Exposure to Polycyclic Aromatic Hydrocarbons on Citizens in Tianjin, China. Bull. Environ. Contam. Toxicol. 2009, 83, 151–154. [Google Scholar] [CrossRef]
  53. Li, W.J.; Shao, L.Y.; Wang, W.H.; Li, H.; Wang, X.M.; Li, Y.W.; Li, W.J.; Jones, T.P.; Zhang, D.Z. Air quality improvement in response to intensified control strategies in Beijing during 2013–2019. Sci. Total Environ. 2020, 744, 140776. [Google Scholar] [CrossRef] [PubMed]
Atmosphere 13 01732 g001 550
Figure 1. Map of Xuanwei showing the county-specific annual lung cancer mortality rates in 2014–2016. Raw data from Liu et al. [31].
Figure 1. Map of Xuanwei showing the county-specific annual lung cancer mortality rates in 2014–2016. Raw data from Liu et al. [31].
Atmosphere 13 01732 g001
Atmosphere 13 01732 g002 550

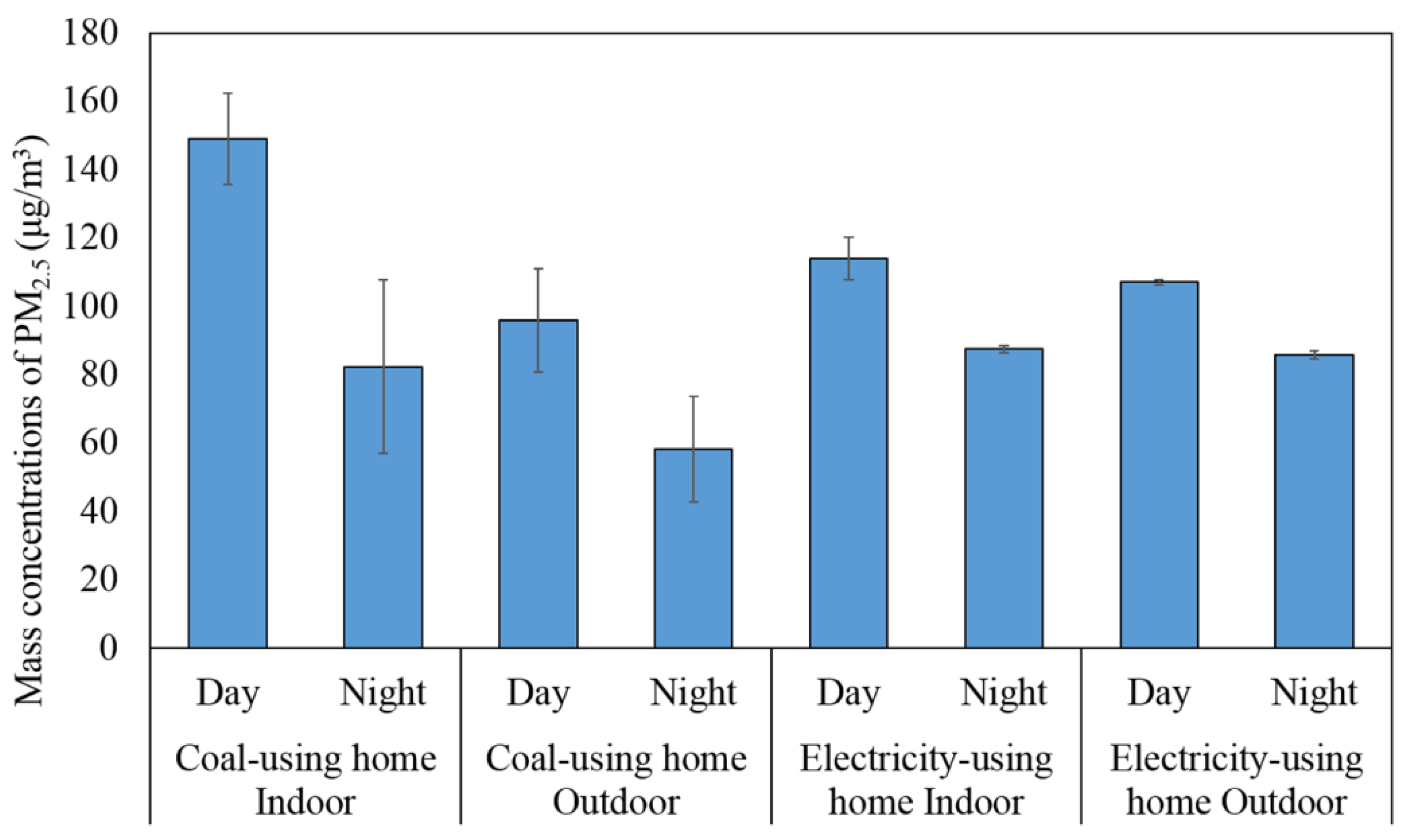

Figure 2. Average mass concentrations and standard deviation of PM2.5 collected inside and outside the homes in the Hutou village of the Laibin town, Xuanwei city.
Figure 2. Average mass concentrations and standard deviation of PM2.5 collected inside and outside the homes in the Hutou village of the Laibin town, Xuanwei city.
Atmosphere 13 01732 g002
Atmosphere 13 01732 g003 550

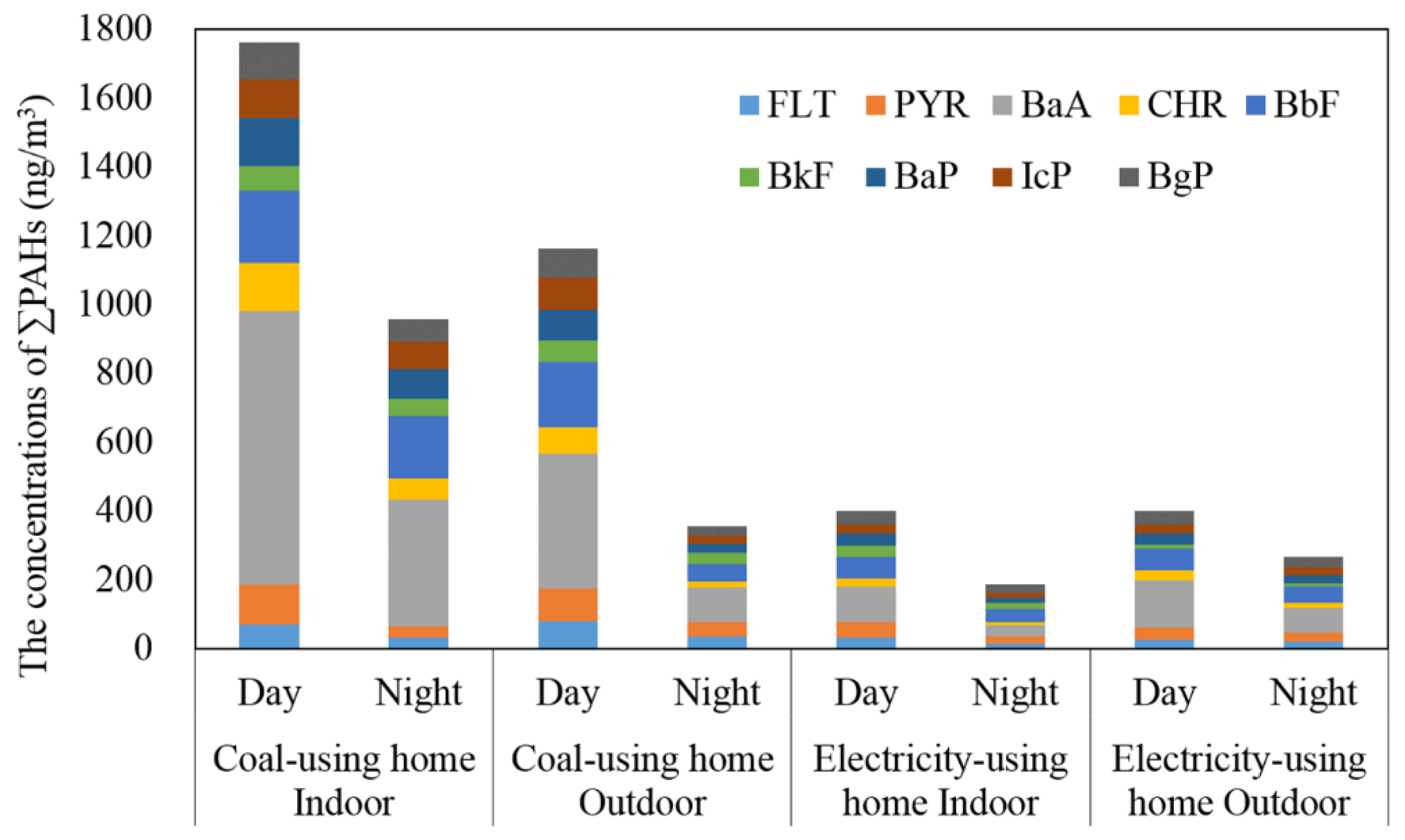

Figure 3. Mass concentration distribution of PAHs in PM2.5 samples from the homes in the Hutou village of the Laibin town, Xuanwei city.
Figure 3. Mass concentration distribution of PAHs in PM2.5 samples from the homes in the Hutou village of the Laibin town, Xuanwei city.
Atmosphere 13 01732 g003
Atmosphere 13 01732 g004 550

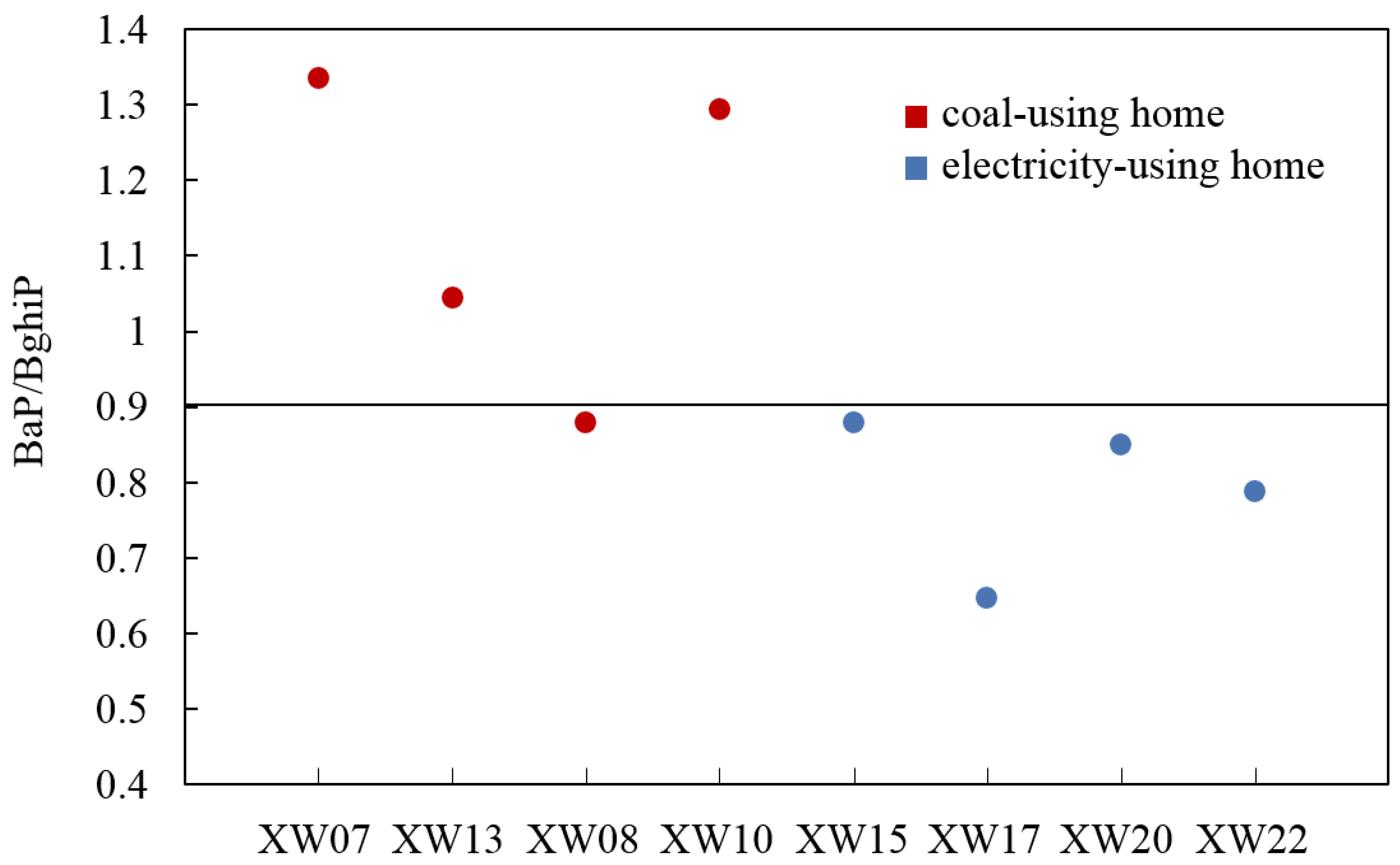

Figure 4. The BaP/BghiP ratios of samples collected from the homes in the Hutou village of the Laibin town, Xuanwei city.
Figure 4. The BaP/BghiP ratios of samples collected from the homes in the Hutou village of the Laibin town, Xuanwei city.
Atmosphere 13 01732 g004
Atmosphere 13 01732 g005 550

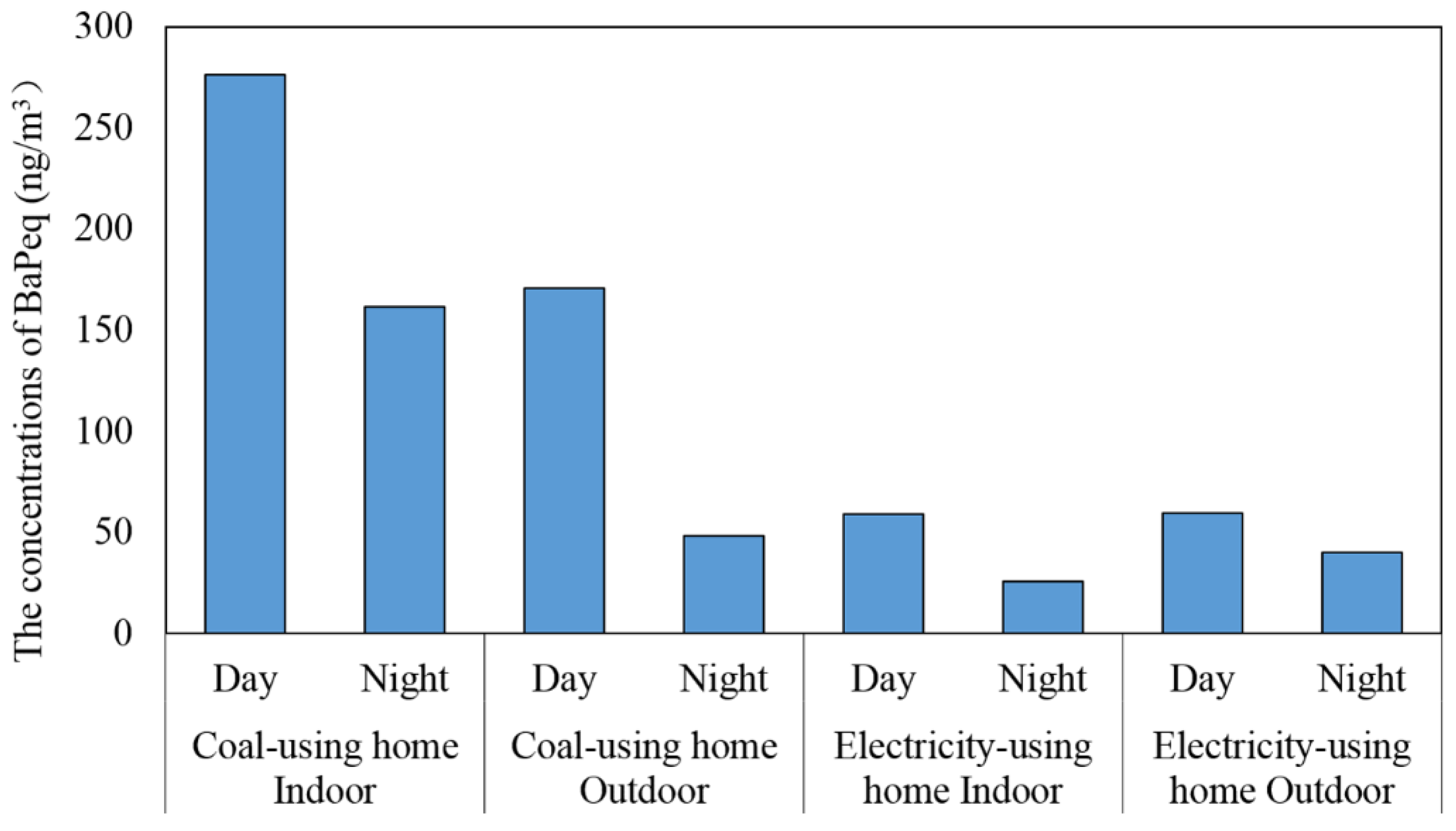

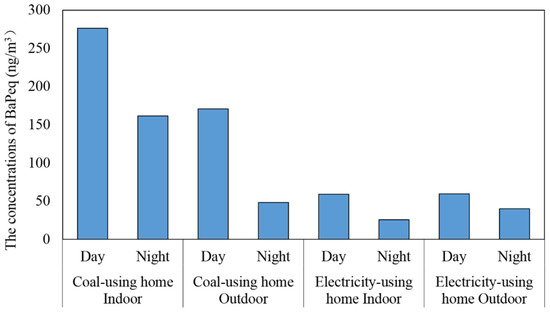

Figure 5. Distribution of BaPeq in the homes in the Hutou village of the Laibin town, Xuanwei city.
Figure 5. Distribution of BaPeq in the homes in the Hutou village of the Laibin town, Xuanwei city.
Atmosphere 13 01732 g005
Table
Table 1. Sampling information and meteorological conditions during the sampling periods in the two homes of the Hutou village of the Laibin town, Xuanwei city.
Table 1. Sampling information and meteorological conditions during the sampling periods in the two homes of the Hutou village of the Laibin town, Xuanwei city.
Sample NumberSampling DateSampling SiteIndoor/OutdoorDay/NightAverage Temperature (°C)Relative Humidity (%)Average Pressure (kpa)
XW012019.02.28coal-using homeIndoorNight17.463.2900.6
XW022019.02.28OutdoorNight16.867.6799.9
XW032019.03.01IndoorDay1460.4801.2
XW042019.03.01OutdoorDay11.865.9800.5
XW052019.03.02IndoorNight16.943.3799.7
XW062019.03.02OutdoorNight6.554.2801.5
XW072019.03.03IndoorDay12.450.8802.2
XW082019.03.03OutdoorDay5.456.1802.2
XW092019.03.03IndoorNight13.362.4798.6
XW102019.03.03OutdoorNight20.625.5797.6
XW112019.03.04IndoorDay13.558798.5
XW122019.03.04OutdoorDay12.343.3797.3
XW132019.03.04IndoorNight16.957.3796.2
XW142019.03.04OutdoorNight18.434.7795
XW152019.03.05electricity-using homeIndoorDay14.949.2799.2
XW162019.03.05OutdoorDay16.343.1798.5
XW172019.03.05IndoorNight15.654.3802
XW182019.03.05OutdoorNight10.664.5800.9
XW192019.03.06IndoorDay13.555803.8
XW202019.03.06OutdoorDay9.281.7799.4
XW212019.03.06IndoorNight12.962.6801.5
XW222019.03.06OutdoorNight8.880.8799.5
Table
Table 2. Toxic equivalent factors (TEFs) of individual PAHs (USEPA, 2010).
Table 2. Toxic equivalent factors (TEFs) of individual PAHs (USEPA, 2010).
SpeciesBaP-Based TEF
FLT0.001
PYR0.001
BaA0.1
CHR0.1
BbF0.1
BkF0.1
BaP1
IcP0.1
BgP0.01
Table
Table 3. Detailed information on incremental lifetime cancer risk (ILCR) [30,33].
Table 3. Detailed information on incremental lifetime cancer risk (ILCR) [30,33].
FactorUnitValue
IRm3/h0.83
EFh153,300
SFmg/kg.day3.1
BWkg70
ATday25,550
CF-10−6
Table
Table 4. Average mass concentrations (ng/m3) of PAHs in the PM2.5 samples from homes in the Hutou village of the Xuanwei city.
Table 4. Average mass concentrations (ng/m3) of PAHs in the PM2.5 samples from homes in the Hutou village of the Xuanwei city.
SamplesXW07XW08XW10XW13XW15XW17XW20XW22
Species
FLT7178343032152720
PYR11796433443203427
BaA7943921003671063213873
CHR1407919632292912
BbF2101885118264386349
BkF7063334934171210
BaP14288258733143223
IcP11295248028162723
BgP106 84 29 67 38 22 38 29
∑PAHs1762 1162 356 959 399 185 399 265
Table
Table 5. Estimated incremental lifetime cancer risk (ILCR) in different locations.
Table 5. Estimated incremental lifetime cancer risk (ILCR) in different locations.
LocationMain FuelILCR (×10−6)Reference
XuanweiCoal48.21This study
XuanweiElectricity9.33This study
ShanxiCoal17.00[48]
TaiyuanCoal and electricity15.00[49]
BeijingElectricity1.00[51]
TianjinElectricity0.02[52]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, M.; Shao, L.; Jones, T.P.; Feng, X.; Schnelle-Kreis, J.; Cao, Y.; BéruBé, K.A. Concentration, Source, and Health Risk Assessment of Polycyclic Aromatic Hydrocarbons: A Pilot Study in the Xuanwei Lung Cancer Epidemic Area, Yunnan Province, China. Atmosphere 2022, 13, 1732. https://doi.org/10.3390/atmos13101732

AMA Style

Zhang M, Shao L, Jones TP, Feng X, Schnelle-Kreis J, Cao Y, BéruBé KA. Concentration, Source, and Health Risk Assessment of Polycyclic Aromatic Hydrocarbons: A Pilot Study in the Xuanwei Lung Cancer Epidemic Area, Yunnan Province, China. Atmosphere. 2022; 13(10):1732. https://doi.org/10.3390/atmos13101732

Chicago/Turabian Style

Zhang, Mengyuan, Longyi Shao, Timothy P. Jones, Xiaolei Feng, Jürgen Schnelle-Kreis, Yaxin Cao, and Kelly A. BéruBé. 2022. "Concentration, Source, and Health Risk Assessment of Polycyclic Aromatic Hydrocarbons: A Pilot Study in the Xuanwei Lung Cancer Epidemic Area, Yunnan Province, China" Atmosphere 13, no. 10: 1732. https://doi.org/10.3390/atmos13101732

APA Style

Zhang, M., Shao, L., Jones, T. P., Feng, X., Schnelle-Kreis, J., Cao, Y., & BéruBé, K. A. (2022). Concentration, Source, and Health Risk Assessment of Polycyclic Aromatic Hydrocarbons: A Pilot Study in the Xuanwei Lung Cancer Epidemic Area, Yunnan Province, China. Atmosphere, 13(10), 1732. https://doi.org/10.3390/atmos13101732

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
