Reexamining the Impact of Industrial Structure on Haze Pollution Based on the Yangtze River Delta

Abstract

In this study, the static and dynamic spatial Durbin model between industrial structure and haze pollution in Yangtze River Delta is constructed. Later, the spatial spillover effect and time lag effect of haze pollution in Yangtze River Delta are analyzed. The impact of rationalization and upgrading of industrial structure on haze pollution and its spatial spillover effect are discussed. The results show that: (i) PM2.5 has a significant positive spatial spillover effect and time lag effect; (ii) in the short run, the rationalization and upgrading of industrial structure has no inhibitory effect on haze pollution, while the rationalization and upgrading of industrial structure of surrounding cities has an inhibitory effect on local haze pollution; (iii) in the long run, the rationalization and upgrading of industrial structure of surrounding cities have an inhibitory effect on local haze pollution; (iv) economic growth, FDI, the number of Industrial Enterprises above Designated Size, and population density also have spatial spillover effects on haze pollution. Therefore, considering the spatial spillover effect of haze pollution from the perspective of urban agglomeration and long-term, strengthening the joint prevention and control and comprehensive treatment among cities, further promoting the rationalization and upgrading of industrial structure is conducive to reducing haze pollution.

1. Introduction

With the development of China’s economy, environmental pollution is aggravating, especially haze pollution in China [1]. Haze pollution in China has increased the incidence of carcinogenesis, pathogenicity, and premature death [2]. Today’s overcapacity and haze pollution is due to China’s industrial structure, overemphasized heavy industry in the past 40 years [3]. The emergence of haze has a great relationship with people’s production, especially the industrial structure is the source of haze [4]. As an important link between human economic activities and air quality, industrial structure is the key factor in resolving the contradiction between economic development and the environment [5].

Recently, the relationship between industrial structure and haze pollution has attracted the attention of academic circles. However, it has not been widely studied. There was a positive correlation between industrial structure and haze pollution, the increase of industrial proportion in Gross Domestic Product (GDP) would aggravate the degree of haze pollution [6]. According to Panel Vector Autoregression (PVAR) model, the industrial structure of 18 prefecture level cities in Henan Province aggravated haze pollution as a whole [7]. Wang [8] obtained the relationship between the industrial structure and haze pollution composite index in Anhui Province. The proportion of secondary and tertiary industries in GDP was usually used as a measure of industrial structure. The dynamic threshold panel model showed that the increase of the proportion of the secondary industry and the decrease of the proportion of the tertiary industry aggravated the environmental pollution [9]. Zhan [10] also found that the relationship between haze pollution and the proportion of tertiary industry output value in GDP is not significant. Furthermore, Zheng [5] analyzed and discussed the impact of industrial transformation on air pollution and the evolution of provincial heterogeneity. Zhu [11] found that improving the rationalization of industrial structure in Shanxi Province can promote the improvement of air quality. In addition, the upgrading of industrial structure was conducive to the improvement of air quality [12]. The above research on the relationship between industrial structure and haze pollution are mostly based on the Vector Autoregression (VAR) model, threshold regression model and so on.

Previous scholars used the traditional non-spatial regression model to study the impact of industrial structure on haze pollution. Considering the existence of the spatial correlation, traditional non-spatial regression methods may lead to errors [13]. Spatial regression models were widely used to identify spatial dependence by distinguishing the exogenous and endogenous interactions [14]. Wang [15] chose the generalized moment estimation method of the dynamic Spatial Lag Model (SLM) to study the influencing factors of haze pollution.Through SLM and Spatial Error Model (SEM), it was found that there are spatial dependence and positive spatial spillover effects in China’s provincial environmental pollution. There was a significant positive correlation between industrial structure and environmental pollution [16]. Based on the Spatial Dubin Model (SDM), Wang [17] found that the industrial structure aggravated haze pollution, and Hui [18] also found that haze pollution in the Hebei Province has an obvious spatial spillover effect, and has certain continuity and “warning effect”. Compared with SLM and SEM, SDM could estimate the influence of covariates on response variables based on the weighted average of neighborhood observations [19]. The spatial city model (SDM) of spatial effects was used to evaluate the spatial effects of haze pollution, and a coefficient of 0.416 was obtained, which indicates that the haze of adjacent cities affects each other and had significant spillover [20]. The previous studies, methods, and results are listed in

Table 1. Summary of previous research methods and results.

Previous Studies	Method Types	Methods	Results
[6]	Non-spatial regression models	Regression analysis of fixed effect model	The relationship between industry structure and haze pollution was positively correlated.
[7]		Panel vector autoregression	The industrial structure of 18 prefecture level cities in Henan Province has intensified the whole haze pollution.
[8]		Linear regression	An inverted U relationship between haze pollution and industrial structure in Anhui Province.
[9]		Dynamic panel threshold model	The increase of the proportion of the secondary industry and the decrease of the proportion of the tertiary industry aggravate the environmental pollution.
[10]		Generalized method of moments	The relationship between haze pollution and the proportion of tertiary industry output value in GDP is not significant.
[5]		Panel threshold model	The impact mechanism of industrial structure on PM2.5 is three levels.
[11]		Panel threshold model	Improving the rationalization of Shanxi industrial structure can promote the improvement of air quality.
[12]		Regression analysis; Correlation analysis	PM2.5 pollution in China’s five typical economic cities is affected by three industries.
[15]	Spatial regression models	Spatial lag model	Haze pollution has spatial spillover effect and time lag effect.
[16]		Spatial lag model; Spatial error model	China’s provincial environmental pollution has a positive spatial spillover effect, and the optimization and adjustment of industrial structure is helpful to reduce environmental pollution.
[18]		Spatial Dubin model	Haze pollution in Hebei Province has an obvious spatial spillover effect.
[17]		Spatial Dubin model	Industrial structure will aggravate haze pollution
[20]		Spatial Dubin model	The haze of neighboring cities has a significant spillover effect

.

PM2.5 is usually used as an important indicator of haze pollution [21]. Compared with PM10, PM2.5 has smaller particle size, larger specific surface area, stronger activity, more easily attached toxic and harmful substances (such as heavy metals, microorganisms), longer residence time in the atmosphere, long transportation distance, and greater harm to human health [22]. Specifically, the areas of high-frequency haze pollution in China are mainly distributed in the economic concentration regions, such as the Yangtze River Delta [23]. As shown in Figure 1, 2013 was the most serious year of haze pollution in the Yangtze River Delta region. Only five cities had low PM2.5 concentration, and most cities had serious haze pollution and regional concentration. Therefore, this study selects the average annual PM2.5 data of 41 cities in the Yangtze River Delta from 2002 to 2016, and uses a spatial Durbin model (SDM) to analyze the impact of industrial structure on haze pollution.

In this paper, we analyzed the impact of industrial structure adjustment on haze pollution from the regional perspective firstly. Secondly, based on the Yangtze River Delta haze area, we analyzed the spillover effect of haze pollution between cities and the spatial spillover effect of industrial structure on haze pollution from the static and dynamic perspectives, and reexamined the impact of industrial structure on haze pollution. In addition, on the basis of the research results of other scholars, this paper selected the rationalization of industrial structure and the upgrading of industrial structure as the indicators of industrial structure, which can more comprehensively analyze the impact of industrial structure on haze pollution. Finally, based on the estimation of model parameters, the model effect is estimated, and the spatial direct effect and spatial spillover effect of industrial structure on haze pollution are further analyzed.

This paper is organized as follows: the Introduction is presented in Section 1; Section 2 presents the research methods, variable description and data sources; Section 3 includes the empirical analysis and robustness test; and Section 4 presents the conclusions, policy implications, and research prospects, followed by references.

2. Methodology and Variables

2.1. Spatial Correlation Test

Global Moran’s I was used to describe the spatial characteristics of PM2.5 concentration in the whole region.The range of Moran’s I index I is [−1,1]. The larger the absolute value of I, the higher the degree of spatial correlation. I > 0 indicates that there is spatial positive correlation for PM2.5 concentration in each region, I < 0 indicates that there is a spatial negative correlation for PM2.5 concentration in each region, and I = 0 indicates that there is no spatial correlation for PM2.5 concentration in each region. Moran’s I is calculated as follows:

$$I=\left[\sum _{i=1}^n\sum _{j=1}^n{W}_{ij}(x_i-\overline{x})(x_j-\overline{x})\right]/\left[s^2\sum _{i=1}^n\sum _{j=1}^n{W}_{ij}\right]$$

(1)

$$s^2=(1/n)\sum _{i=1}^n{(x_i-\overline{x})}^2,\overline{x}=(1/n)\sum _{i=1}^n{x}_i$$

(2)

where x_i is the annual average PM2.5 concentration of the city i, n is the number of cities, $W_{ij}$ is a weighting matrix representing the spatial weight of cities i and j.

Although the global Moran’s I can test the overall characteristics and trends of spatial correlation of air pollution, there are still some defects. If there is a positive correlation in some cities and negative correlation in other cities, the positive and negative effects will be offset, and the conclusion is that there is no spatial correlation in the air pollution of urban agglomeration. Therefore, it is necessary to further test whether there is local spatial concentration of air pollution through Moran’s I scatterplot. There are four quadrants in Moran’s I scatterplot, the points in the first quadrant (HH) and the third quadrant (LL) represent positive spatial correlation, and the fourth (HL) and second (LH) quadrants represent negative spatial correlation.

2.2. Model Setting

Based on Elhorst [14], this paper established the following spatial Dubin model:

$$Y_{it}=\rho W{Y}_{it}+\beta X_{it}+\theta W{X}_{it}+{\mu }_i+{\lambda }_t+{\epsilon }_{it}$$

(3)

$$Y_{it}=\rho W{Y}_{it}+\tau Y_{i,t-1}+\beta X_{it}+\theta W{X}_{it}+{\mu }_i+{\lambda }_t+{\epsilon }_{it}$$

(4)

$$Y_{it}=lnP{M}_{it}$$

(5)

$$X_{it}=[R{S}_{it},U{S}_{it},lnGD{P}_{it},lnGDP{2}_{it},lnFD{I}_{it},lnSIZ{E}_{it},lnP{U}_{it}]$$

(6)

Equation (3) is the form of the static spatial Durbin model. On the basis of Equation (3), the time lag term is introduced to construct dynamic spatial Durbin model Equation (4), where $Y_{it}$ is the dependent variable in city i at time t, $\rho$ is the spatial lag coefficient of the dependent variable, $\tau$ is the time lag coefficient of the dependent variable, $X_{it}$ is the independent variable in city at time t, $\beta$ is the direct coefficient of the independent variable, and $\theta$ is the spatial lag coefficient of the independent variable, W is the spatial weight matrix, ${\mu }_i$ is the spatial effect, ${\lambda }_t$ is the time fixed effect, and ${\epsilon }_{it}$ is the random error vector.When $\tau =0$, the dynamic spatial Durbin model degenerates to the static spatial Durbin model. In order to further measure the spatial effect of haze pollution, the dependent variable term on the right side of the equal sign is moved to the left side of the equal sign, and Equation (4) is rewritten as follows:

$$(I-\rho W)Y_{it}=\tau Y_{i,t-1}+\beta X_{it}+\theta W{X}_{it}+{\mu }_i+{\lambda }_t+{\epsilon }_{it}$$

(7)

$$Y_{it}={(I-\rho W)}^{-1}\tau Y_{i,t-1}+{(I-\rho W)}^{-1}(\beta X_{it}+\theta W{X}_{it})+{(I-\rho W)}^{-1}({\mu }_i+{\lambda }_t+{\epsilon }_{it})$$

(8)

The matrixes of the partial derivative of the expected value of $Y_{it}$ relative to the kth independent variable of $X_{it}$ with unit 1 to 41 at specific points in the short-term scale and long-term scale can be regarded as the following equations:

$$\left[\frac{\partial E\left(Y_{1t}\right)}{\partial X_{1k}}\cdots \frac{\partial E\left(Y_{41t}\right)}{\partial X_{41k}}\right]={(I-\rho W)}^{-1}*\left[\begin{array}{cccc}{\theta }_k& W_{12}{\theta }_k& \cdots & W_{1,41}{\theta }_k\\ W_{21}{\theta }_k& {\theta }_k& \cdots & W_{2,41}{\theta }_k\\ ⋮& ⋮& \ddots & ⋮\\ W_{41,1}{\theta }_k& W_{41,2}{\theta }_k& \cdots & {\theta }_k\end{array}\right]$$

(9)

$$\left[\frac{\partial E\left(Y_{1t}\right)}{\partial X_{1k}}\cdots \frac{\partial E\left(Y_{41t}\right)}{\partial X_{41k}}\right]={(I-\rho W-\tau I)}^{-1}ast\left[\begin{array}{cccc}{\theta }_k& W_{12}{\theta }_k& \cdots & W_{1,41}{\theta }_k\\ W_{21}{\theta }_k& {\theta }_k& \cdots & W_{2,41}{\theta }_k\\ ⋮& ⋮& \ddots & ⋮\\ W_{41,1}{\theta }_k& W_{41,2}{\theta }_k& \cdots & {\theta }_k\end{array}\right]$$

(10)

In the partial derivative matrix (9), the mean value of diagonal elements represents the short-term spatial direct effect, and the mean value of the sum of rows or columns of non diagonal elements represents the short-term spatial spillover effect.

In the partial derivative matrix (10), the mean value of diagonal elements represents the long-term spatial direct effect, and the mean value of the row sum or column sum of non diagonal elements represents the long-term spatial spillover effect.

2.3. Spatial Weight Matrix

The spatial weight matrix reflects the geographical position of each region. Most spatial econometric models at home and abroad use the adjacency matrix, inverse distance matrix, and economic weight matrix, which only consider the differences of geographical or economic factors. In order to comprehensively consider the spatial geographical distance characteristics and economic related attributes, the nested matrix and the spatial weight matrix of economic geographical distance are selected as follows:

$$W_g=W_{ij}=\left\{\begin{array}{cc}0& i=j\\ \frac{1}{{d_{ij}}^2}& i\ne j\end{array}\right.$$

(11)

$$W_e=M_{ij}=\left\{\begin{array}{cc}0& i=j\\ \frac{1}{\left|\overline{X_i}-\overline{X_j}\right|}& i\ne j\end{array}\right.$$

(12)

$$W_{\alpha }=W_g\ast diag(\frac{{\overline{X}}_1}{\overline{X}},\frac{{\overline{X}}_2}{\overline{X}},\dots ,\frac{{\overline{X}}_N}{\overline{X}}),W_{\xi }=W_g\ast W_e$$

(13)

$${\overline{X}}_i=\frac{1}{T}\sum _{t=1}^T{x}_{it},\overline{X}=\frac{1}{N\ast T}\sum _{i=1}^N\sum _{t=1}^T{x}_{it}$$

(14)

where $W_g$ is the inverse distance weight matrix, $W_e$ is the economic distance matrix, $W_{\alpha }$ is the nested matrix, $W_{\xi }$ is the economic geographical distance spatial weight matrix, and $d_{ij}$ is the geographical distance calculated according to the longitude and latitude of the cities, $X_{it}$ is the GDP per capita of city i in year t, ${\overline{X}}_i$ is the GDP per capita of city i in T years, $\overline{X}$ is the per capita GDP of all sample cities in T years.

2.4. Data Sources

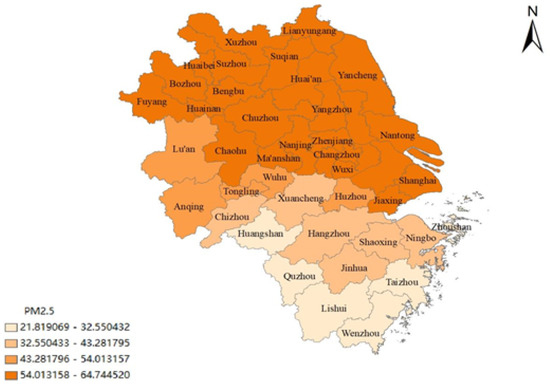

China’s atmospheric environment monitoring system only included PM2.5 concentration into the monitoring index system in 2012, and only a few key cities were involved. Compared with ground monitoring data, satellite monitoring data can provide PM2.5 concentration with larger scope, wider coverage and higher spatial resolution. The PM2.5 data used in this study is from the center for socio economic data and applications at Columbia University (SEDAC) [24]. Through the transformation of satellite remote sensing technology and the geochemical transmission model, as well as the prediction and adjustment of geographically weighted regression model, the global PM2.5 grid data are formed. Furthermore, taking the vector boundaries of the administrative divisions of the Yangtze River Delta region as the mask, the grid data are counted and extracted using spatial analyst tool in ArcGIS 10.2 software, and the PM2.5 concentration data of 41 cities in Yangtze River Delta from 2002 to 2016 is obtained. Other data of the Yangtze River Delta from 2002 to 2016 are from the Anhui statistical yearbook, Jiangsu statistical yearbook, Zhejiang statistical yearbook, and Shanghai Statistical Yearbook. The descriptive statistics of the variables are shown in

Table 2. Variable description.

Variable Type	Variable Name	Variable Indicator	Shorthand	Mean	Std. Dev.
Explained variable	Haze pollution	PM2.5 annual average concentration (ug/m3)	lnPM	3.833186	0.3026283
Explanatory variables	Industrial structure	Rationalization of industrial structure	RS	23.7826	87.38896
		Upgrading of industrial structure	US	0.8320701	0.2545545
Control variables	Economic development	Per capita GDP (yuan)	lnGDP	10.2616	0.8637546
		The second term of per capita GDP (yuan)	lnGDP2	106.0454	17.43869
	Open level	Foreign direct investment (ten thousand dollars)	lnFDI	10.33189	1.736633
	Scale of industrial enterprises	Number of enterprises meeting certain scale requirements	lnSIZE	7.290136	1.17125
	Population density	Population per unit area of land (person/km2)	lnPU	6.363183	0.5582924

. The variable average data of per cities in the Yangtze River Delta are listed in

Table 3. Mean value of each city variable.

City	lnPM	RS	US	lnGDP	lnGDP2	lnFDI	lnSIZE	lnPU
Anqing	3.7700	5.1282	0.7336	9.5542	91.7117	9.2619	6.9135	5.9885
Bengbu	4.0162	4.7769	0.8549	9.7128	94.7579	10.0866	6.1461	6.4041
Bozhou	4.0568	8.2720	1.1570	9.0816	82.8415	8.9537	5.8054	6.5535
Changzhou	4.0699	22.4795	0.7585	10.9792	120.8114	11.8807	8.3157	6.7266
Chizhou	3.6374	5.3553	0.9012	9.6482	93.6631	8.9501	5.6644	5.2568
Chuzhou	4.0181	6.7548	0.6823	9.6226	92.9290	9.4798	6.6843	5.7958
Fuyang	4.0187	13.9474	1.0196	8.8770	79.2527	8.2815	6.3172	6.9194
Hangzhou	3.5940	22.1826	1.0607	11.0328	121.9363	12.6291	8.8117	6.0206
Hefei	4.0014	6.4460	0.8274	10.4171	108.9888	11.1493	7.1684	6.4683
Huzhou	3.8638	41.6321	0.7155	10.5363	111.2869	11.2786	7.7483	6.1022
Huaian	4.0058	8.6792	0.8233	9.9992	100.5083	10.3285	7.3279	6.2761
Huaibei	4.0584	6.1430	0.5806	9.7568	95.5747	9.1950	5.8471	6.6605
Huainan	4.0000	10.2288	0.6700	9.8404	97.1124	9.2089	5.7274	6.8291
Huangshan	3.4528	8.1822	1.2131	9.8432	97.2488	8.9353	5.8422	5.0159
Jiaxing	3.9831	54.5819	0.6645	10.7353	115.4242	11.8991	8.4146	6.7634
Jinhua	3.4665	8.5982	0.8736	10.5407	111.3854	10.3804	8.1834	6.0504
Lishui	3.1084	4.2123	0.9040	10.1402	103.1881	8.4393	6.8617	5.0012
Lianyungang	3.9678	9.7658	0.8345	9.9045	98.5809	10.2947	7.0195	6.4764
Luan	3.8459	4.8052	0.9004	9.1355	83.9171	8.9771	6.4631	5.9557
Maanshan	4.0267	6.0734	0.5103	10.6045	112.7148	10.4615	6.2798	6.5060
Nanjing	4.0468	16.8192	1.1255	11.0049	121.3710	12.4296	7.8200	6.8633
Nantong	4.0131	14.8040	0.7238	10.5015	110.7457	11.0212	8.3911	6.8090
Ningbo	3.4869	306.0934	0.7724	10.9993	121.1781	12.4683	8.9658	6.3784
Quzhou	3.4135	4.0869	0.8190	10.0900	102.1869	8.3636	6.7687	5.6455
Shanghai	3.9525	35.9339	1.4590	11.1314	124.0371	13.8528	9.3955	8.1229
Shaoxing	3.5789	19.3106	0.6880	10.8069	117.0363	11.3077	8.2781	6.2736
Suzhou	4.0816	35.5714	0.7139	11.3853	129.7791	12.7183	9.0465	6.6389
Suqian	3.2433	13.4251	0.8537	10.4459	109.3402	10.0959	8.3007	6.4181
Suzhou	4.0969	9.4963	0.7087	10.3999	108.6636	10.4425	7.7557	6.7642
Taizhou	3.8665	4.0216	0.4725	10.6788	114.4385	8.9778	5.3656	6.4581
Taihzhou	3.1395	14.4825	0.9192	10.3850	108.0573	10.1691	8.5686	6.4877
Tongling	4.0871	30.2167	0.7945	11.3462	128.8997	12.1771	8.5413	6.9122
Wenzhou	3.8994	4.0065	0.5580	10.4085	108.7155	10.7613	6.9925	6.5036
Wuxi	4.0081	13.7081	0.7615	9.6919	94.5560	8.4426	7.2200	6.4492
Wuhu	4.0521	9.9851	1.0687	9.2046	85.1331	9.0715	6.2650	6.4520
Xuzhou	4.0698	5.9016	0.8142	10.1708	103.9113	10.6744	7.5981	6.7331
Xuancheng	3.6874	5.0992	0.8115	9.7760	95.9344	9.5110	6.6633	5.4145
Yancheng	3.9661	12.3192	0.7931	10.1049	102.5694	9.9702	7.8490	6.1886
Yangzhou	4.0698	27.4899	0.7258	10.5605	111.9754	11.2172	7.8098	6.5354
Zhenjiang	4.0900	14.3255	0.7229	10.9103	119.3356	10.9785	7.7095	6.5642
Zhoushan	3.3498	119.7451	1.1240	10.7612	116.1625	8.8861	6.0493	6.5074

.

2.5. Index Selection

2.5.1. Explained Variable

Haze pollution(lnPM): Research shows that the main particulate matter causing haze pollution is PM2.5 [21]. Therefore, PM2.5 is used as the explained variable to measure the haze pollution.

2.5.2. Explanatory Variables

Rationalization of industrial structure (RS): RS is used to measure the coupling degree of factor input structure and output structure. The larger the RS value is, the better the coupling degree is and the more reasonable the industrial structure is; otherwise, the coupling degree is poor and the industrial structure is unreasonable. RS is calculated according to the following equation:

$$RS=\frac{1}{{\sum }_{i=1}^3\left(\frac{Y_i}{Y}\right)ln(\frac{Y_i}{Y}/\frac{L_i}{L})}$$

(15)

where Y is the output value, L is the employment, $Y_i$ is the i industry Value (i = 1, 2, 3), and $L_i$ is the number of employment in the i industry.

Upgrading of industrial structure (US): US is calculated by the ratio of the output value of the tertiary industry and the secondary industry. With the increase of US value, the industrial structure gradually develops to the direction of low pollution service.

2.5.3. Control Variables

Economic development (lnGDP,lnGDP2): Urban per capita GDP is used as a measure of economic development and compared with the total GDP of each region used in other literature. The GDP per capita represents the level of local economic development more accurately while considering the population factor [3,25]. The LnGDP2 is a square of LnGDP. The addition of the square of per capita real GDP in the econometric model is to test the Environmental Kuznets Curve hypothesis [26].

Open level (lnFDI): The foreign direct investment of the city is selected as the open level. There are two hypotheses about the impact of FDI on environmental pollution, but scholars have not reached a consensus. The pollution haven hypothesis is that the entry of foreign capital effectively increases the productivity of domestic enterprises through spillover effects [27] and promotes the efficiency of environmental resources usage, and thereby effectively reduces environmental pollution. Pollution haven mainly refers to the fact that developed countries can transfer their high pollution industries to developing countries, thus worsening the environmental quality of the host countries.

Scale of industrial enterprises (lnSIZE): The number of industrial enterprises above scale is selected to measure the scale of industrial enterprises. Industry is the main source of air pollution. The more large-scale industrial enterprises are, the more likely it is to aggravate urban air pollution.

Population density (lnPU): Population per unit area of land represents the clustering degree of urban population. The higher the population density, the more frequent social and economic exchanges, such as public transportation and freight transportation of urban population, and the higher the likelihood of urban air pollution [28].

3. Empirical Analysis

3.1. Unit Root Test

In order to avoid the false regression of empirical results, the LLC and ADF unit root tests are conducted on the panel data. The results in

Table 4. Unit root test.

Variables	LLC Test	ADF Test
lnPM2.5	−18.2351 ***	114.9152 ***
RS	−8.0235 ***	356.9565 ***
US	−6.7316 ***	108.1569 **
lnGDP	−4.4381 ***	182.6425 ***
lnGDP2	−4.1316 ***	134.0043 ***
lnFDI	−3.3055 ***	158.0533 ***
lnSIZE	−12.5218 ***	122.8403 ***
lnPU	−5.3043 ***	112.3907 **

Note: *** p < 0.01; ** p < 0.05.

show that all variable data pass the unit root test and are stable.

3.2. Spatial Correlation Test of Haze Pollution

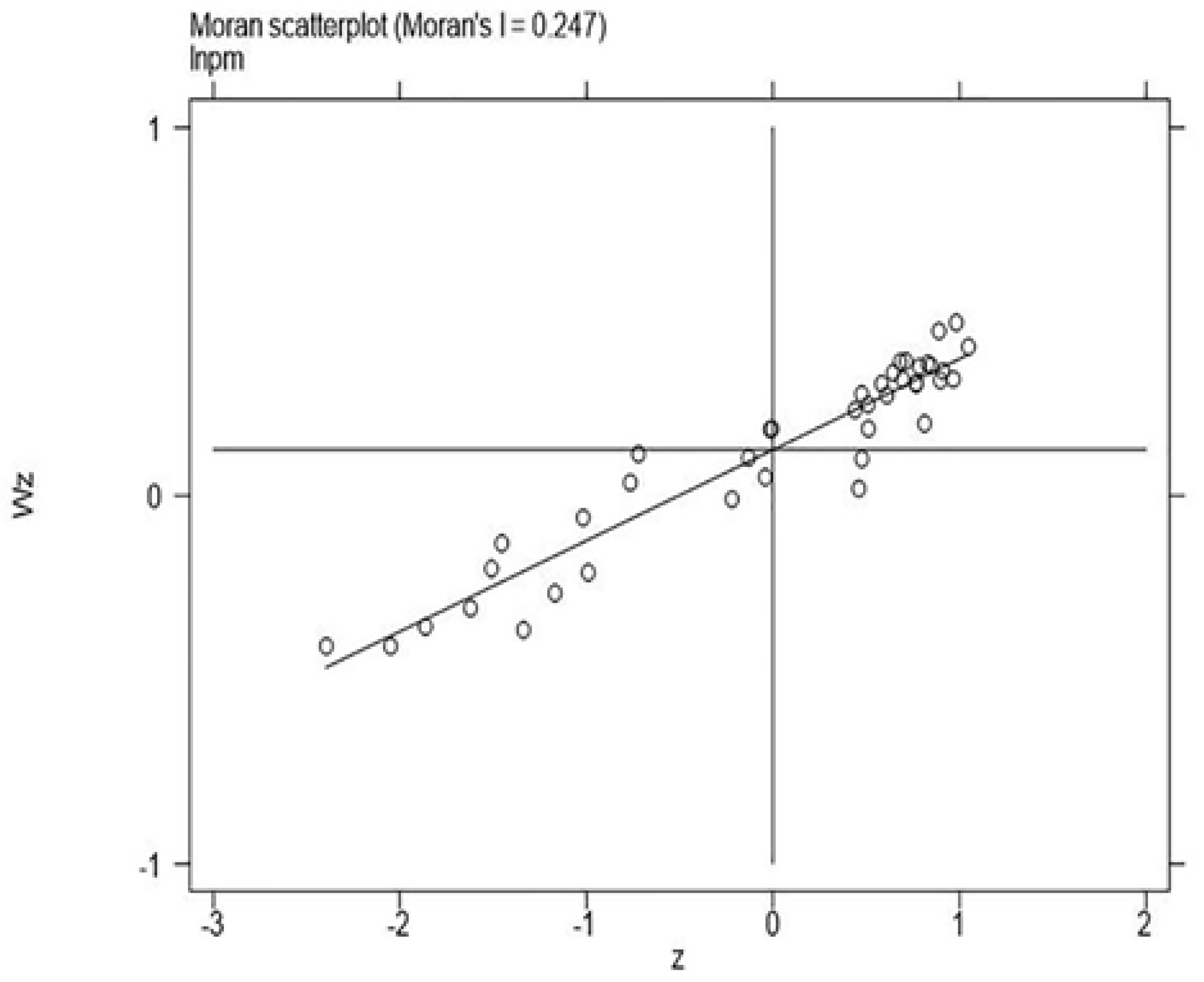

The spatial spillover effect of haze pollution is judged by global and local correlation tests. The global Moran’s I test results of PM2.5 concentration from 2002 to 2016 are shown in

Table 5. Moran’s I value with spatial correlation estimation.

Variables	Moran’s I Value
PM2.5_2002	0.228 ***
PM2.5_2003	0.221 ***
PM2.5_2004	0.234 ***
PM2.5_2005	0.230 ***
PM2.5_2006	0.244 ***
PM2.5_2007	0.225 ***
PM2.5_2008	0.227 ***
PM2.5_2009	0.243 ***
PM2.5_2010	0.240 ***
PM2.5_2011	0.248 ***
PM2.5_2012	0.225 ***
PM2.5_2013	0.236 ***
PM2.5_2014	0.253 ***
PM2.5_2015	0.252 ***
PM2.5_2016	0.247 ***

Note: *** p < 0.01.

, all Moran’s I values are greater than 0.2, and for the hypothesis test of Moran’s I, the p-values are smaller than 0.01, which shows a significant spatial correlation of haze pollution in Yangtze River Delta urban agglomeration. In addition, in the 2016 local Moran’s I scatter diagram, as shown in Figure 2, we find that most cities are concentrated in the first and third quadrants, which is consistent with the global Moran’s I test results, further supporting the spatial spillover effect of haze pollution in the Yangtze River Delta. Therefore, there is a spatial spillover effect of haze pollution in Yangtze River Delta urban agglomeration. Regional governments should strengthen the joint prevention and control of haze pollution, and cities with high PM2.5 value should become the key areas of regional joint prevention and control of haze pollution.

3.3. Spatial Econometric Model Selection Test

On the basis of Moran’s I test, this paper further tests whether the spatial econometric model can be used in empirical research. The test results are shown in

Table 6. Spatial econometric model selection test.

Tests	Statistical Values
LM_spatial_error	780.303 ***
robust LM_spatial_error	49.867 ***
LM_ spatial_lag	828.391 ***
robust LM_ spatial_lag	97.955 ***
Wald_spatial_lag	406.70 ***
Wald_spatial_error	658.25 ***
LR_spatial_lag	459.20 ***
LR_spatial_error	557.13 ***
Hausman test	55.72 ***

Note: *** p < 0.01

. The LM Test in Table 6 shows that LM lag, robust LM lag, LM error, and robust LM error of the two matrices are significant at a 1% level, so it is reasonable to choose the spatial Durbin model. Secondly, the Wald test and LR test show that, at the level of 1%, the Wald value and LR value hypothesis of SAR and SEM models are significantly rejected. Therefore, SDM cannot be degraded to the SAR or SEM model. Finally, the Hausman test shows that the fixed effect is better than the random effect. To sum up, SDM is a more suitable spatial spillover effect model, and we choose SDM with the fixed effect.

3.4. SDM Parameter Estimation

The parameters of static and dynamic Durbin models are estimated, and the results are shown in

Table 7. SDM parameter estimation.

Variables	Static	Dynamic
RS	−0.0002 ***	0.0000206
US	−0.1459 ***	0.0374 **
lnGDP	−0.4801 ***	−0.2947 ***
lnGDP2	0.0225 ***	0.0148 ***
lnSIZE	−0.009	−0.0013
lnFDI	0.0305 ***	0.002
lnPU	0.1258 ***	0.0131
lnPM(−1)		0.7601 ***
WRS	−0.0012 ***	0.0002
WUS	−1.1276 ***	1.4844 ***
WlnGDP	−5.0719 ***	7.2598 ***
WlnGDP2	0.2193 ***	−0.3407 ***
WlnSIZE	−0.5456 ***	0.0795 *
WlnFDI	0.4911 ***	−0.1206 ***
WlnPU	1.3076 ***	−0.5152 ***
Spatial rho	0.6880 ***	1.9393 ***
sigma2_e	0.0122 ***	0.0040 ***

Note: *** p < 0.01; ** p < 0.05; * p < 0.1.

. The results show that the spatial correlation coefficients of the two models are both positive at the significance level of 1%, which indicates that the haze pollution of adjacent cities will also aggravate the local haze pollution, and there is a spatial spillover effect of haze. In these two models, the coefficient of per capita GDP and the quadratic term pass the test at the significance level of 1%. The GDP coefficient is negative and the quadratic coefficient is positive. This shows that there is no “inverted U” EKC curve between haze pollution and per capita GDP, but there is a positive “U” curve, that is, with economic growth, environmental pollution first decreases and then increases. The coefficient of the number of Industrial Enterprises above the designated size is negative, which has an inhibitory effect on haze pollution, but not a significant one. The coefficients of FDI and population density are positive, but not significant in the dynamic model, which can promote the haze pollution. In the dynamic model, the first-order lag coefficient of PM2.5 concentration is positive at the significance level of 1%, which indicates that urban PM2.5 has a significant dynamic effect.

In addition, we find that, in the static model, the rationalization and upgrading of industrial structure are all at a 1% significant level, which can inhibit the haze pollution. It shows that, with the optimization of industrial structure, the haze pollution will be reduced, and the factors in the rationalization process will flow into the modern industry and service industry with higher production return rate, which can promote the development of emerging industries, reduce the haze emissions and accelerate the production speed. The growth rate tends to equilibrium. However, in the dynamic model, the rationalization and upgrading of industrial structure have no inhibitory effect on haze pollution, which is completely opposite to the static model. It may be that the dynamic effect of PM2.5 is added into the dynamic model, which leads to the difference of parameter estimation results between the two models. Finally, we find that the spatial spillover effects of variables in the two models are the opposite. This interferes with our research on the spatial spillover effect of industrial structure optimization on haze pollution.

3.5. SDM Effect Estimation

In order to more accurately analyze the spatial spillover effect of rationalization and upgrading of industrial structure on haze pollution, we will estimate the direct effect and spatial spillover effect of SDM model from static and dynamic perspectives. Lesage and Pace [19] believe that, due to the existence of the feedback effect, it may be wrong to use point estimation results to directly explain the spatial spillover effect, and proposed an effect measurement method based on the partial differential.

3.5.1. Spatial Direct Effect

The spatial direct effects of SDM include the long-term direct effects of the static model and the long-term and short-term direct effects of the dynamic model, the results are shown in

Table 8. Spatial direct effect.

Variables	Static Long-Term	Dynamic Long-Term	Dynamic Short-Term
RS	−0.0003 ***	$7.95\times {10}^{-6}$	0.0000162
US	−0.2278 ***	−0.2355	0.0169
lnGDP	−0.8293 ***	−2.3112 ***	−0.3871 ***
lnGDP2	0.0376 ***	0.1107 ***	0.0191 ***
lnSIZE	−0.0454 ***	−0.0184	−0.0019
lnFDI	0.0648 ***	0.0306	0.0034
lnPU	0.2187 ***	0.1439 ***	0.0195 **

Note: *** p < 0.01; ** p < 0.05.

. In the static and dynamic models, the long-term and short-term direct effects of GDP per capita, quadratic term of GDP per capita, number of Industrial Enterprises above Designated Size, FDI, and population density on haze pollution are basically consistent with the parameters in SDM.

In the static model, the rationalization and upgrading of industrial structure have a long-term negative spatial direct impact on haze pollution at the 1% significant level. In the long-term, the rationalization and upgrading of industrial structure are conducive to haze emission reduction. The upgrading of industrial structure has reduced the proportion of heavy industry, eliminated high pollution enterprises, developed the industry into a low pollution service industry, and effectively reduced PM2.5 emissions. The reasonable development of industrial structure can realize the reasonable allocation of production factors, make the coordinated development of various industries, and effectively reduce the phenomenon of overcapacity, so as to reduce haze pollution. In the dynamic model, industrial structure upgrading also has a long-term negative spatial direct effect on haze pollution, and industrial structure upgrading can inhibit haze pollution. However, the rationalization of industrial structure has no long-term negative space direct impact on haze pollution, and has no inhibitory effect on haze pollution. It may be that the industrial structure of the Yangtze River Delta region is unreasonable, the allocation of production factors is unreasonable, the development of industrial structure rationalization is not paid attention to while the economic growth, and the rationalization of industrial structure does not give full play to the role of economic growth in restraining haze pollution. In the short run, the rationalization and upgrading of industrial structure have no direct negative impact on haze pollution, and has no inhibitory effect on haze pollution. This may be due to the dynamic effect of PM2.5 and the time needed to optimize and upgrade the industrial structure. In a short time, the rationalization and upgrading of industrial structure can not achieve haze emission reduction. The rationalization coefficient of industrial structure of the two models is far less than the rationalization coefficient of industrial structure upgrading, which indicates that the advantages of industrial structure upgrading on enterprises and haze control in the Yangtze River Delta region have been initially revealed, and the rationalization of industrial structure is not enough. We should further adjust the industrial structure, realize the rational allocation of production factors, and give full play to the role of restraining haze pollution through the rational utilization of industrial structure.

In addition, we find that the long-term spatial direct effect is greater than the short-term spatial direct effect in the dynamic model, which is consistent with the cumulative effect in economy. When the regional haze pollution is significantly reduced, people’s expectation of haze pollution will increase and put forward higher requirements, which will lead to the government to take more large-scale measures to control the above factors in the next few years. Therefore, the local government should formulate haze control policies with a long-term perspective, select model cities for haze control, form a positive learning and imitation atmosphere, and reduce urban haze pollution.

3.5.2. Spatial Spillover Effects

The spatial spillover effects of SDM include the long-term spillover effects of static model and the long-term and short-term spillover effects of dynamic model. The results are shown in

Table 9. Spatial spillover effects.

Variables	Static Long-Term	Dynamic Long-Term	Dynamic Short-Term
RS	−0.0044 ***	−0.0001	−0.0002
US	−3.9964 ***	−0.6665 ***	−1.6586 ***
lnGDP	−17.8266 ***	−1.7999 ***	−7.1088 ***
lnGDP2	0.7738 ***	0.0816 ***	0.3316 ***
lnSIZE	−1.7990 ***	−0.0248	−0.0768 *
lnFDI	1.6800 ***	0.0377 *	0.1211 ***
lnPU	4.5951 ***	0.1542 ***	0.5217 ***

Note: *** p < 0.01; * p < 0.1.

. In the two models, the per capita GDP of surrounding cities has long-term and short-term spatial spillover effects on local haze pollution at the significant level of 1%, which is a positive “U” curve because the economic growth of surrounding cities also drives local economic growth through regional economic ties; The number of Industrial Enterprises above designated size has long-term and short-term negative spatial spillover effects on haze pollution, that is, the number of Industrial Enterprises above Designated Size in adjacent cities has an inhibitory effect on local haze pollution. Due to the development of science and technology, enterprises in adjacent cities are more efficient and green in dealing with pollutants, and this technology and enterprise mode are more likely to be “imitated” and “learned” by local enterprises. FDI and population density have long-term and short-term positive spatial spillover effects on haze pollution at 1% and 10% significant levels, that is, FDI and population density of adjacent cities can promote local haze pollution because local governments are willing to imitate surrounding cities, reduce regional environmental regulations and standards, and attract foreign investment. Developed countries will transfer high polluting enterprises to local areas, which will aggravate the local haze pollution. Meanwhile, affected by the economic ties between regions, the local economic level will also be improved, and the population will choose to gather in the local areas, which will lead to more frequent traffic, production, and living activities in local cities, bring pressure to the urban environment, and also more likely aggravate the local haze pollution.

In the static model, the rationalization and upgrading of industrial structure has a long-term negative spatial spillover effect on haze pollution at a 1% significant level. In the long-term, the rationalization and upgrading of industrial structure of adjacent cities can inhibit local haze pollution. Through the exchange, cooperation, and learning between local enterprises and enterprises in neighboring cities, the technology of local enterprises has been innovated and developed, a new mode of production and service integration has been formed, a more reasonable and advanced industrial structure has been formed, and the local haze pollution has been reduced. In the dynamic model, the rationalization of industrial structure has long-term and short-term negative spatial spillover effects on haze pollution, but they are not significant. The upgrading of industrial structure has long-term and short-term negative spatial spillover effects on haze pollution at a 1% significant level. In a word, the rationalization and upgrading of the industrial structure of the surrounding cities can restrain the local haze pollution from the long-term or short-term perspective. Considering that the rationalization of industrial structure of adjacent cities has no significant impact on local haze emission reduction, this may be because the industrial structure of adjacent cities is not very reasonable, and the radiation effect on the rationalization of local industrial structure is not obvious. Combined with the results of spatial direct effect, the Yangtze River delta needs to build a more reasonable regional industrial structure, strengthen the upgrading of traditional enterprises, improve the level of industrial technology, promote the upgrading of industrial structure, and give full play to the role of restraining haze pollution through the rationalization and upgrading of industrial structure.

In addition, we find that, in the dynamic model, the long-term spatial spillover effect is smaller than the short-term spatial spillover effect, which indicates that, in the short-term, the impact of resource transfer, industrial transfer, and economic flow between adjacent regions on local haze pollution is more significant, but, in the long run, this impact can not fundamentally improve local air quality. Therefore, in the long run, in order to reduce regional haze pollution and improve air quality, local governments should focus on controlling local factors affecting haze pollution and strengthen joint prevention and control combined with inter city factors.

3.6. Robustness Check

The spatial economic geography nested matrix in model (3) and (4) is replaced by the geo economic distance matrix, and the robustness test is conducted to verify our findings. The test results are shown in

Table 10. SDM parameter estimation.

Variables	Static	Dynamic
RS	−0.0002 ***	0.0028 ***
US	−0.1657 ***	1.2873 ***
lnGDP	−0.5568 ***	−0.6564 ***
lnGDP2	0.0277 ***	0.0219 ***
lnSIZE	−0.0031	0.1592 ***
lnFDI	0.0276 ***	−0.0429 ***
lnPU	0.1085 ***	−0.6131 ***
lnPM(−1)		0.7959 ***
WRS	−0.0015 ***	0.0156 ***
WUS	−0.9241 ***	27.4241 ***
WlnGDP	−5.0893 ***	88.0768 ***
WlnGDP2	0.2360 ***	−4.0326 ***
WlnSIZE	−0.6415 ***	8.0867 ***
WlnFDI	0.5355 ***	−5.9126 ***
WlnPU	0.7918 ***	−21.9354 ***
Spatial rho	0.8544 ***	44.7580 ***
sigma2_e	0.0110 ***	−0.0263 ***

Note: *** p < 0.01.

,

Table 11. Spatial direct effect.

Variables	Static Long-Term	Dynamic Long-Term	Dynamic Short-Term
RS	−0.0004 ***	−0.0001 ***	0.0002 ***
US	−0.3411 ***	−0.4677 ***	−0.2843 ***
lnGDP	−1.4626 ***	−1.9936 ***	−1.7407 ***
lnGDP2	0.0699 ***	0.0904 ***	0.0783 ***
lnSIZE	−0.1087 ***	−0.1604 ***	−0.1218 ***
lnFDI	0.1196 ***	0.1248 ***	0.1018 ***
lnPU	0.2548 ***	0.4169 ***	0.2994 ***

Note: *** p < 0.01.

and

Table 12. Spatial spillover effects.

Variables	Static Long-Term	Dynamic Long-Term	Dynamic Short-Term
RS	−0.0114 ***	−0.0004 ***	−0.0006 ***
US	−7.4585 ***	−0.1769 ***	−0.3720 ***
lnGDP	−39.2270 ***	0.0314 **	−0.2573 ***
lnGDP2	1.8297 ***	−0.0004	0.0134 ***
lnSIZE	−4.5143 ***	−0.0246 ***	−0.0665 ***
lnFDI	3.9269 ***	0.0088 ***	0.0343 ***
lnPU	6.2595 ***	0.0893 ***	0.2159 ***

Note: *** p < 0.01; ** p < 0.05.

. Table 10 is the parameter estimation of SDM. The results show that the rationalization and upgrading coefficient of industrial structure in the static model are significantly negative at the level of 1%, while it is significantly positive at the level of 1% in the dynamic model. Table 11 is the direct effect estimation of SDM. In the long-term direct effect estimation results, the rationalization and upgrading coefficients of industrial structure in both models are significantly negative at the level of 1%. In the short-term direct effect estimation results, the rationalization coefficient of industrial structure is significantly positive at the level of 1%, and the upgrading coefficient of industrial structure is significantly negative at the level of 1%. Table 12 is the estimation of spatial spillover effect of SDM. No matter from the long-term or short-term perspective, the rationalization and upgrading coefficient of industrial structure in the two models are significantly negative at the level of 1%. We find that the robustness test results are similar to the above empirical results. Therefore, it can be considered that the model selected in this paper is robust.

4. Discussion

Compared with previous studies, the index of industrial structure selected in this study is rationalization and upgrading of industrial structure. Previous studies mostly selected the proportion of secondary industry in GDP as the index of industrial structure [5,9]. Although the index is different, the result is similar to those of previous studies [29]. They all show that industrial structure is related to haze pollution. Furthermore, we find that rationalization and upgrading of industrial structure have a negative correlation with haze pollution. Therefore, when the rationalization and upgrading of industrial structure is used as the measurement index, the analysis of the impact of industrial structure on haze pollution could be more comprehensive.

Compared with the previous study [11,30], this study uses the SDM method to consider the impact of industrial structure on haze pollution from the perspective of space. Although the research methods and perspectives are different, the results are not completely consistent [31]. Not only do the rationalization and upgrading of industrial structure have an inhibitory effect on local haze pollution, but also the industrial structure has a negative spatial spillover effect on haze pollution. The industrial structure of adjacent areas has an inhibitory effect on local haze pollution. Therefore, when considering the impact of industrial structure on haze pollution, we can not ignore the spatial spillover effect of industrial structure.

Compared with the short term and long term, this study finds that the effects of rationalization and upgrading of industrial structure on haze pollution are different. The negative spatial spillover effect of rationalization and upgrading of industrial structure on haze pollution is more significant in the long term. Therefore, in the treatment of haze pollution, according to the actual needs of different regions, different strategies are selected.

5. Conclusions and Suggestions

Based on the panel data of 41 cities in the Yangtze River Delta from 2002 to 2016, the spatial effects of industrial structure optimization on haze pollution were analyzed from static and dynamic perspectives using SDM. This study finds that haze pollution in Yangtze River Delta has a significant positive spatial spillover effect and time lag effect; Rationalization and upgrading of industrial structure have long-term and short-term direct effects and spatial spillover effects on haze pollution. In static and dynamic models, they have significant negative spatial spillover effects on haze pollution. There is a positive “U” curve relationship between economic growth and haze pollution; FDI and population density have a positive direct effect and spatial spillover effect on haze pollution; the number of Industrial Enterprises above a designated size has a negative direct effect and spatial spillover effect on haze pollution.

These findings indicate that the haze pollution in the surrounding cities is serious, and it could be serious in some areas, or the haze pollution in a city last year is serious, and it could be serious in the next few years, such as Nantong, Lianyungang, and other cities; recently, the haze level is still light pollution. In the long run, the rationalization and upgrading of industrial structure is conducive to the suppression of haze pollution in local and adjacent areas; excessive pursuit of economic growth aggravates haze pollution; and the increase of FDI and population density could promote the haze pollution in local and adjacent areas, such as Nanjing, Changzhou, Wuxi, and other cities with high FDI and population density, and the Urban Haze pollution could be more serious; the increase in the number of Industrial Enterprises above designated size could help to reduce haze pollution.

Based on the above conclusions, in order to reduce the urban haze pollution, some suggestions are given as follows:

Enhancing people’s understanding of environmental protection and urging people to protect the environment will help to reduce emissions. In rural areas, publicity and education prohibit burning straw and other environmental pollution behavior. At the same time, local governments could also actively communicate, strengthen cooperation, increase investment in haze control, timely monitor and control haze, and strengthen joint prevention and control of haze pollution among cities, which could reduce the impact of current haze on future urban air quality. Finally, the construction of green buffer zones around cities with serious haze pollution, such as Wuxi, Xuancheng, Huzhou, and Jiaxing, is conducive to reducing PM2.5 spillover to surrounding cities.

Further optimization and upgrading of industrial structure in the Yangtze River Delta region could help to reduce haze pollution. The government’s reasonable guidance of national industrial policies, adjustment of unreasonable industrial structure, promotion of rational allocation of production factors, coordinated development of various industries, and avoidance of overcapacity are conducive to control the rationalization of industrial structure, so as to reduce haze pollution. In terms of upgrading the industrial structure, on the one hand, we could decrease the proportion of the secondary industry. Encouraging enterprises to actively eliminate backward production capacity, upgrading technology and equipment, and rewarding some ultra-low emission enterprises could help to reduce the proportion of the secondary industry. These methods could be used in cities such as Ma’anshan and Huainan and other cities. On the other hand, we could increase the proportion of the tertiary industry. Expanding the emerging producer services market could help reduce haze pollution.

Maintaining high-quality economic development and reducing the dependence of the Yangtze River Delta on high pollution heavy industry could help to reduce haze pollution. Supporting and encouraging the development of digital economy could also be conducive to the control of haze pollution. For foreign direct investment, the government could raise the standards of environmental protection regulations and refuse high polluting foreign enterprises to enter, which could also help to reduce haze pollution. Strengthening the control of population density in the Yangtze River Delta could encourage the population of Shanghai, Hangzhou, Nanjing, and other cities to migrate to the surrounding cities, which could help to reduce haze pollution. Giving subsidies to large industrial enterprises such as demonstration enterprises, encouraging enterprises to continuously innovate, and developing high and new technologies could reduce haze pollution.

These suggestions can be summarized in

Table 13. Suggestions.

Factors	Suggestions
PM2.5	Enhance people’s awareness of environmental protection, urge people to protect the environment Strengthen the joint prevention and control of haze pollution among cities Establish green buffer zones around cities with serious haze pollution
Rationalization of industrial structure	Guide the national industrial policy reasonably and adjust the unreasonable industrial structure
Upgrading of industrial structure	Decrease the secondary industry Increase the tertiary industry
GDP	Maintain high-quality economic development
Foreign direct investment	Improve the standards of environmental regulations
Industrial enterprises meeting the requirements of a certain scale	Encourage large-scale enterprises to continuously innovate and develop high and new technologies
Population density	Strengthen the control of population density in the Yangtze River Delta

.
