Article

O3 Sensitivity and Contributions of Different NMHC Sources in O3 Formation at Urban and Suburban Sites in Shanghai

by
Haotian Lin
1,
Ming Wang
1,*,
Yusen Duan
2,*,
Qingyan Fu
2,
Wenhao Ji
3,
Huxiong Cui
2,
Dan Jin
2,
Yanfen Lin
2 and
Kun Hu
1
1
Collaborative Innovation Center of Atmospheric Environment and Equipment Technology, Jiangsu Key Laboratory of Atmospheric Environment Monitoring and Pollution Control, School of Environmental Science and Engineering, Nanjing University of Information Science & Technology, Nanjing 210044, China
2
Shanghai Environmental Monitoring Center, Shanghai 200235, China
3
Nanjing Intelligent Environmental Science and Technology Co., Ltd., Nanjing 211800, China
*
Authors to whom correspondence should be addressed.
Atmosphere 2020, 11(3), 295; https://doi.org/10.3390/atmos11030295
Submission received: 30 January 2020 / Revised: 13 March 2020 / Accepted: 15 March 2020 / Published: 17 March 2020
(This article belongs to the Special Issue Emissions, Transport and Fate of Pollutants in the Atmosphere)
Browse Figures
Versions Notes

Abstract

:
Ground-level ozone (O3) pollution is still one of the priorities and challenges for air pollution control in the Yangtze River Delta (YRD) region of China. Understanding the relationship of O3 with its precursors and contributions of different sources in O3 formation is essential for the development of an O3 control strategy. This study analyzed O3 sensitivity to its precursors using a box model based on online observations of O3, non-methane hydrocarbons (NMHCs), nitrogen oxides (NOx), and carbon monoxide (CO) at an urban site and a suburban site in Shanghai in July 2017. Anthropogenic sources of NMHCs were identified using the positive matrix factorization (PMF) receptor model, and then contributions of different sources in O3 formation were estimated by the observation-based model (OBM). The relative incremental reactivity (RIR) values calculated by the OBM suggest that O3 formation at the urban site was in the NMHC-limited regime, while O3 formation at the suburban site tended between the transition regime and the NMHC-limited regime. Vehicular emission and liquefied petrochemical gas (LPG) use or aged air mass were found to be the two largest contributors at the urban and suburban sites in July, followed by paint and solvent use, and the petrochemical industry. However, from the perspective of O3 formation, vehicular emission and paint and solvent use were the largest two contributors at two sites due to the higher RIR values for paint and solvent use. In addition, the influence of transport on O3 sensitivity was identified by comparing O3 sensitivity at the suburban site across two days with different air mass paths. The result revealed that O3 formation in Shanghai is not only related to local emissions but also influenced by emissions from neighboring provinces. These findings on O3–NMHC–NOX sensitivity, contributions of different sources in O3 formation, and influence of transport could be useful for O3 pollution control in the YRD region. Nevertheless, more quantitative analyses on transport and further evaluation of the uncertainty of the OBM are still needed in future.

1. Introduction

Ground-level ozone (O3) pollution in China is becoming of increasing concern in recent years. The China Environment Report [1] showed that the 90th percentile for the daily maximum 8-h moving average (DMA-8h) O3 concentration for 74 major cities in China increased from 139 µg/m3 to 169 µg/m3 during 2013–2017 (http://datacenter.mee.gov.cn). The Beijing–Tianjin–Hebei (BTH) region, the Yangtze River Delta (YRD), and the Pearl River Delta (PRD) are the most severe O3 pollution areas in China, with respective 90th percentile DMA-8h O3 concentrations of 193 µg/m3, 170 µg/m3, and 165 µg/m3 in 2017 [1]. Additionally, a significant increase in O3 concentrations in these three regions was reported by previous studies [2]. The summer DMA-8h O3 trends for the BTH, YRD, and PRD regions were 3.1 ppbV∙year−1, 2.3 ppbV∙year−1, and 0.56 ppbV∙year−1 during 2013–2017 [1]. Compared with 2016, the 90th percentile of the DMA-8h O3 concentration for Shanghai increased by 10.4% in 2017, which was faster than that for Guangzhou (4.5%) and Beijing (−3%) [1].
In the urban atmosphere, O3 mainly comes from the photochemical production of volatile organic compounds (VOCs) and nitrogen oxygen (NOx) [3]. Understanding the relationship of O3 formation with VOCs and NOx is essential for O3 control. Until now, several methods were developed to investigate O3–VOC–NOx sensitivity, such as VOCs/NOx [4], a linear regression analysis of O3 with its precursors [5], air quality model based on emissions (EBM) [6], and a box model based on observations (OBM) [7]. Since O3-related chemical reactions are highly simplified in the VOCs/NOx and linear regression methods, these two methods are usually used to preliminarily identify O3 sensitivity. Large uncertainties of emission inventories for O3 precursors (especially VOCs) in China were reported by several studies [8,9]. Considering that inaccurate emission data of VOCs and NOx would bias O3–VOC–NOx sensitivity results, many studies in China applied the OBM to investigate the relationship of O3 with its precursors [10,11].
Ambient VOCs can be emitted into the atmosphere from anthropogenic and biogenic sources, such as vehicular exhaust, fuel evaporation, coal burning, biomass burning, building painting, asphalt application, the petrochemical industry, and so on [12]. Understanding the sources of VOCs is a basic step toward developing control measures for VOC reduction and O3 control strategies in those regions where O3 formation is controlled by VOCs. Some O3 sensitivity and VOC source analysis studies based on measurements were conducted in the YRD region. Two studies used VOCs/NOx measured at urban sites in Shanghai to analyze O3 sensitivity, and they suggested that O3 formation was mainly controlled by VOCs (i.e., a VOC-limited regime) [13,14]. The OBM study by Tan et al. [15] also suggested that O3 formation at an urban site in Shanghai was in a VOC-limited regime. The VOCs source apportionment studies by receptor models suggested that vehicular emission and industrial emissions were important sources for VOC mixing ratios at an urban site in Shanghai [16,17]. However, few studies combining VOC source apportionment with O3 sensitivity results were conducted in Shanghai to estimate the contribution of different VOC sources to O3 formation.
In this study, O3 sensitivity to its precursors was analyzed using an OBM based on online measurements of O3, non-methane hydrocarbons (NMHCs), NOx, and CO at an urban and a suburban site in Shanghai in July 2017. Anthropogenic NMHC sources at these sites were apportioned using the positive matrix factorization (PMF) model. Contributions of different PMF-resolved NMHC sources in O3 formation were then estimated using the OBM combined with PMF results. Furthermore, trajectory analysis was conducted to evaluate the influence of transport in a case study.

2. Methodology

2.1. Measurements

The measurements of O3, NOx, and non-methane hydrocarbons (NMHCs) were conducted at the Pudong site (121.53° north (N), 31.23° east (E)) (PD) and the Dianshanhu site (120.98° N, 31.09° E) (DSH) from 1 July to 31 July. The locations of these two sites are shown in Figure 1. The PD site is located in the Pudong environmental monitoring station in the urban area of Shanghai. Two main roads, the Yanggao Middle Road and Century Avenue, are located about 300 m southwest and southeast of this site. The largest coastal port (Shanghai Port) in Shanghai is located about 19 km east of the PD site; meanwhile, the largest petrochemical complex zone (Jinshan) is located about 50 km southwest of the PD site. The DSH site is situated in the west suburban area of Shanghai, about 55 km west of the PD site. A highway (G50) is located in this area, 500 m southwest of the DSH site.
The ambient measurement data of O3, NOx, and CO were provided by the Shanghai Environmental Monitoring Center. Briefly, ambient O3 was determined using a commercial ultraviolet absorption spectrometer (Model 49i, Thermo Fisher Scientific Inc., Waltham, MA, USA). Ambient NOx and CO were detected using a chemiluminescence system (Model 42i-TL, Thermo Fisher Scientific Inc., Waltham, MA, USA) and infrared absorption spectrometry (Model 48i, Thermo Fisher Scientific Inc., Waltham, MA, USA), respectively. The meteorological data, including temperature, wind direction and speed, relative humidity, and pressure, were provided by the Shanghai Meteorological Bureau.
Ambient levels of 56 C2–C12 non-methane hydrocarbons (NMHCs) at the PD and DSH sites were measured online using commercial gas chromatography (GC) systems. The principles of NMHC sampling, pre-concentration, and detection for these two GC systems were similar. Firstly, ambient air was sampled in the analysis system using a Teflon tube, while target compounds were enriched through an adsorbent tube at room temperature or at low temperature. After sampling, the adsorbent tube was rapidly heated, and the concentrated NMHCs were desorbed and injected into GC for separation and detection.
A GC-955 611/811 series was used to measure the NMHCs at the PD site (Synspec Inc., Groningen, Netherlands). The enrichment temperature was set as −5 °C The 611 series was designed to measure C6–C12 NMHCs. A photo ionization detector (PID) and flame ionization detector (FID) were used to quantify the NMHCs. The 811 series was used for monitoring C2–C5 NMHCs, with a PID and FID dual detector. The resolution of the 611 series and 811 series monitoring time was 0.5 h. A more detailed description of this system can be found in the Reference [18].
The ambient NMHCs at the DSH site were also measured using an online GC system (GC-866, Chromatotec Inc., Saint-Antoine, France), with a time resolution of 0.5 h. The instrument consists of two independent sampling and analysis systems: one is a low-boiling-point NMHC sampling system (C2–C5), and the other is a high-boiling-point NMHC sampling system (C6–C12).The pre-concentration temperature for the low-carbon analyzer was set as −10 °C, while the pre-concentration system for the high-carbon analyzer was at room temperature. The detectors for the low-carbon and high-carbons analyzers were FIDs.
Quality assurance and quality control (QA/QC) procedures were carried out to ensure the quality of the NMHC data. Firstly, before monitoring, we used US Environmental Protection Agency (U.S. EPA) approved standard gas for calibration and the five-point calibration method to calibrate and check the instrument; the correlation coefficients were above 0.99. Secondly, we performed daily maintenance, single-point calibration and peak-window drift calibration, and data correction every week. Thirdly, the GC-866 was calibrated daily with butane, hexane, and benzene. The deviation of the calibration point did not exceed 10%.

2.2. Positive Matrix Factorization Model

The positive matrix factorization (PMF) model uses mathematical methods to decompose a concentration matrix x into two matrices, g and f, and a residual matrix, e (Equation (1)) [19,20].
x i j = ∑ k = 1 p g i k f k j + e i j
where p is the number of pollution sources, xij represents the concentration of the j component in the i sample, gik represents the contribution of the k source to the i sample, fkj is the content of the j component in the k source, and eij is the residual for each species.

2.3. Observation-Based Model

An observation-based model (OBM) coupled with a Carbon-Bond IV mechanism developed by Cardelino and Chameides [21] was used to simulate the atmospheric chemical process under the constraint of the hourly measured concentrations of NO, NMHCs, and CO. The integral of the O3 production rate over time during the daytime (7:00 a.m.–7:00 p.m.) was calculated as the O3 formation potential (PO3). Since O3 can react with NO quickly to produce NO2 in an urban atmosphere and NO2 can then produce O3 by photolysis, the total amounts of PO3 and NO consumption (PO3-NO) were applied to discussions on O3 sensitivity. More detailed descriptions on the OBM model can be found in the Supplementary Materials.
This model also calculated the sensitivity of PO3−NO to changes in the concentration of each precursor (Equation (2)), i.e., the relative incremental reactivity (RIR).
R I R i X = ( P O 3 − N O i X − P O 3 − N O i X − ∆ X ) / P O 3 − N O i X ∆ S X / S X
where S(X) represents the concentration of precursor X emitted or transported to the measurement site, ∆X is the change in X concentration caused by a hypothetical change in S(X), and superscript i is used to denote the specific site where the measurements were made. PiO3-NO(X) represents the O3 formation potential for the i measurement, which is the net O3 production plus NO consumed during the evaluation period.
Relative contributions of each PMF-resolved source (Fi) to O3 formation were calculated using Equation (3) [7].
R e l a t i v e   c o n t r i b u t i o n F i = R I R F i × C o n c e n t r a t i o n F i ∑ i = 1 N R I R F i × C o n c e n t r a t i o n F i × %
where Concentration(Fi) means the summed concentration of fitting species in the i-th PMF-resolved factor, RIR(Fi) represents the relative increment of PO3−NO when concentrations of all fitting species in the i-th PMF-resolved factor were reduced by 10%, and N means the total number of PMF-resolved factors.

3. Results and Discussion

3.1. O3 Pollution Characteristics

The hourly average O3 (1h O3) concentrations during 1–31 July 2017 at the PD site and the DSH site were in the range of 0.9–169.4 ppbV and 0.5–167.5 ppbV, respectively (Figure 2). The DMA-1h O3 concentration at the PD site and the DSH site ranged from 30.3 ppbV to 167.5 ppbV and from 35.9 ppbV to 169.4 ppbV, respectively. The DMA-8h O3 concentrations at the PD site ranged from 28 ppbV to 131 ppbV, while the DMA-8h O3 concentrations for the DSH site ranged from 30 ppbV to 140 ppbV. There were 18 days at the PD site and 19 days at the DSH site exceeding the national grade II ambient air quality standard (93.3 ppbV for DMA-1h O3 and 74.7 ppbV for DMA-8h O3).
The diurnal variation patterns of 1-h O3 concentrations at the PD site and the DSH site were similar (Figure 3a), with maximum values occurring from 12:00–1:00 p.m. and the minimum value appearing at 5:00 a.m. Since Shanghai is a coastal city where meteorological conditions are complicated, high-level ozone on some days is not from local photochemical formation but transport [22,23]. This suggests that O3 formation occurred mainly due to photochemical production during July 2017. In contrast with O3, anthropogenic NMHCs and NOx showed higher concentrations at night and during the morning (Figure 3b,c). The maximum diurnal variation patterns of hourly averaged anthropogenic NMHCs and NOx concentrations occurred at 5:00–8:00 a.m., and the minimum value appeared at 11:00 a.m.–2:00 p.m. The NOx concentrations were in the range of 3.9–104.2 ppbV and 1.9–113.9 ppbV at the DSH site and the PD site, respectively. The anthropogenic NMHCs concentration ranged from 2.1 ppbV to 80.1 ppbV at the DSH site, while it ranged from 4.1 ppbV to 130.7 ppbV at the PD site. The average mixing ratios of anthropogenic NMHCs and NOX at the PD sites and DSH sites were 22.7 ppbV and 18.5 ppbV, and 17.6 ppbV and 21.4 ppbV, respectively. The average anthropogenic NMHCs concentration at the PD site was higher than that at the DSH site, while the average NOX concentration was lower than that at the DSH site.

3.2. O3 Formation Sensitivity to Its Precursors during Pollution Episodes

From 1–31 July, there were 17 days with O3 exceeding the national grade II air quality standard at both the PD and the DSH sites. In addition to the 15 days we selected as O3 pollution episodes, O3 concentrations on 5 and 6 July also exceeded the threshold. However, the O3 concentrations at 6:00–7:00 p.m. on 7 July and NMHC concentrations at 4:00 p.m. were missing due to the calibration of measurement instruments; therefore, 15 days (11–16 July and 18–26 July) were selected to analyze O3 sensitivity. From 11–16 July, DMA-8h O3 reached 107–127 ppbV at the DSH site and 102–138 ppbV at the PD site. From 18–26 July, DMA-8h O3 reached 94–169 ppbV at the DSH site and 106–168 ppbV at the PD site. The sensitivity of O3 to NMHCs and NOx during these two episodes was analyzed by the OBM.

3.2.1. Model Performance Evaluation: OH and HO2 Simulation

The OBM-simulated concentrations of OH and HO2 radicals during the pollution period were compared with measurements to evaluate the performance of OBM. Detailed descriptions on OH and HO2 simulation are provided in the Supplementary Materials. As shown in Figure 4, the OBM-modeled OH and HO2 concentrations both displayed a diurnal pattern, with the maximum occurring at about 12:00–1:00 p.m., which is similar to the results in Shanghai [15]. The average daily maximum OBM-modeled OH and HO2 concentrations at these two sites were (2.16–2.52) × 107 molecules∙cm−3 and (2.36–3.37) × 109 molecules∙cm−3, respectively. These results agree well with the OH and HO2 radical concentrations in Shanghai (1.02 × 107 molecules∙cm−3) [24]. Shanghai was reported by previous studies to have respective values of (3–26) × 106 molecules∙cm−3 and (2–25) × 108 molecules∙cm−3 for OBM simulations and field observations [15,24,25,26,27,28].
To further check the simulated OH concentrations by the OBM, the daily average OH was also estimated based on the ratios of two hydrocarbons that have similar emission ratios but different reaction rates [8]. In this study, the ratio of o-xylene to ethylbenzene (X/E) was used to calculate OH. The average diurnal variation patterns of X/E at the DSH and PD from 11–16 July and from July 18–26 in 2017 at the two sites are shown in Figure 3d. It can be seen that X/E showed higher values at night and in the early morning, indicating that the air masses were relatively fresh. From 5:00–6:00 a.m., X/E gradually decreased with photochemical reaction processing, reaching its minimum value at noon.
O H ∆ t = 1 k X − k E × l n X E t = 0 − l n X E
where kX and kE are the reaction rate constants of o-xylene (13.6 × 10−12 cm3∙molecule−1·s−1) and ethylbenzene (7.1 × 10−12 cm3∙molecule−1·s−1), respectively [29]. [X]/[E] t = 0 is the average ratio of [X]/[E] at 5:00 a.m., with respective values of 0.55 ppbV/ppbV and 0.78 ppbV/ppbV at the DSH and PD sites. [X]/[E] is the daily minimum ratio of o-xylene to ethylbenzene, with respective values of 0.30 ppbV/ppbV and 0.65 ppbV/ppbV at the DSH and the PD site, respectively. Since these sites were close to emission sources, the aging of air masses was inevitably influenced by continuous fresh emissions [30]. The air mass ages of Shanghai were calculated based on NOx/NOy measurements and WRF-Chem simulations in the study by Tie et al. that suggested the air mass ages at the PD site ranged from 0–1 h from August–September 2009 [31]. Therefore, the Δt value at the PD site was set as 0.5 h. The DSH site was 55 km away from the PD site; therefore, its average air age was set as 1 h. The daily average OH concentrations were then calculated as 2.54 × 107 molecule∙cm−3 and 1.25 × 107 molecule∙cm−3.

3.2.2. O3–NMHC–NOx Sensitivity at the PD and DSH Sites

Figure 5 shows the average RIR values for NOx, anthropogenic hydrocarbons (AHCs), biogenic hydrocarbon (NHC, isoprene in this study), and CO at the PD and DSH sites during two O3 pollution episodes (11–16 July and 18–26 July) calculated using the OBM. A positive RIR value for a precursor indicates that reducing this compound will lead to a decrease in O3 production, while a negative RIR value for a precursor indicates that reducing this compound will result in an increase in O3 formation [21]. The RIR values for AHC (RIR(AHC)) and NHC (RIR(NHC)) were both positive at these two sites, suggesting that reducing AHC and/or NHC would result in O3 decrease during O3 pollution episodes. The average RIR(AHC) at the DSH site was 0.26%/%, slightly lower than the value of RIR(NHC) (0.30%/%). The RIR(AHC) and RIR(NHC) for the PD site were higher than those for the DSH site, with respective values of 0.44%/% and 0.36%/%. It should be noted that the RIR(NHC) values are comparable with RIR(AHC) at both sites. This implies NHC also played an important role in O3 formation. However, NHC emission is hard to control. The average RIR value for NOx (RIR(NOx)) at the DSH site was 0.07%/%, which means that reducing NOx would be beneficial for O3 control. Considering that the average RIR(AHC) and RIR(NOx) at the DSH site were both positive, O3 formation during pollution episodes at this site was controlled by both AHC and NOx, i.e., in the transition regime. Unlike the DSH site, the average RIR(NOx) at the PD site was negative, with a value of −0.11%/%. This means that reducing NOx would result in an O3 increase; therefore, O3 formation at this site is in an NOx-titration regime, i.e., NMHC-limited regime.
Figure 6 shows the temporal variations of RIR values for each precursor at the DSH site and the PD site from 11–26 July. At the DSH site, the RIR(AHC) ranged from 0.62%/% to 0.83%/% from 11–14 July; meanwhile, the RIR (NOx) was in the range of −0.53%/% to −0.14%/%. This suggests that the O3 formation during this period was in a highly NMHC-limited regime (i.e., an NO titration regime). However, from 15–20 July, the RIR(AHC) dropped to 0.04%/%–0.29%/%, while the RIR(NOx) increased to 0.01%/%–0.31%/%. This means that O3 formation was controlled by both NMHCs and NOx (i.e., in a transition regime). At the PD site, the RIR(AHC) and RIR(NOx) values were in the range of 0.11%/%–0.30%/% and −0.13%/%–0.12%/%, respectively, from 11–16 July. The differences between the maximum and minimum values of RIR(AHC) and RIR(NOx) at the PD site were 0.25%/% and 0.19%/%, respectively, lower than their differences at the DSH site (0.79%/% for RIR(AHC) and 0.53%/% for RIR(NOx)).
We summarized O3 sensitivity studies in Shanghai from 2006 to 2017 (Table 1). In urban regions, O3 sensitivity analyses using OBM [15,32,33], the air quality model based on emissions (EBM) [6,34,35], and VOCs/NOx ratios [13,14] all suggested that O3 formation was in a VOC-limited regime. The O3 formation at the PD site determined by the OBM in this study was also in a VOC-limited regime. It can be found that O3 sensitivity in urban areas of Shanghai agreed well among different studies. However, O3 formation regimes in suburban/rural regions from previous studies disagreed. The OBM study by Xue et al. [36] suggested that O3 formation at a suburban site in May 2005 was in a VOC-limited regime. However, two air quality studies suggested that O3 formation in suburban areas of Shanghai were in a NOx-limited regime during the summers of 2007 and 2010. Unlike previous studies, O3 formation at the suburban site (DSH) determined by the OBM in this study was in a transition regime. The discrepancy in O3 formation regimes in suburban/rural regions among different studies may be related to long-term changes of O3 precursors. Industrial VOC emission increased rapidly during recent years [37]; therefore, VOCs/NOx tended to increase, resulting in O3 formation being more sensitive to NOx [38]. It should be pointed out that there is a large uncertainty in the discussion of long-term temporal variations of O3 sensitivity since these studies used different methods based on measurements at different sites. O3 sensitivity analysis based on long-term measurements at the same site is needed to investigate temporal changes of O3 formation regimes.

3.2.3. Impact of Gaseous Nitrous Acid (HONO) on OBM-Derived O3 Formation Regime

The photolysis of HONO is an important source of OH radicals in the pollutant boundary layer [39]. In this study, HONO measurements were not conducted. Relatively good correlations between HONO and NOx in different field measurements were reported by Elshorbany et al. [40], and the average ratios for HONO versus NOx (HONO/NOx) were 0.017 ± 0.003 ppbV/ppbV and 0.042 ± 0.01 ppb/ppb for measurements campaigns with low HONO/NOx (<0.02 ppbV/ppbV) and high HONO/NOx ratios (>0.02 ppbV/ppbV), respectively. To evaluate the uncertainty of RIR calculation caused by HONO, HONO concentrations were assumed as 1%, 2%, and 4% of the observed NOx concentrations and then applied to constrain the OBM.
As shown in Figure 7, the RIR values for NHC, AHC, and CO tended to decrease with increasing HONO concentrations at both sites. At the DSH site, when the 1% NOx concentration was input to the OBM as the HONO concentration, the RIR(NOx) decreased from 0.069%/% to 0.040%/%. With the rise of assumed HONO concentration from 2% to 4% of NOx concentration, the RIR (NOx) increased from 0.040%/% to 0.048 %%. At the PD site, when the 1% of NOx concentration was used as the HONO concentration, the RIR(NOx) decreased from −0.11%/% to −0.13%/%. Then, with the rise of HONO concentration, RIR(NOx) increased from −0.13%/% to −0.03%/%. Although the O3 formation regimes did not change at both sites, the variations of RIR values with HONO concentrations suggest the important influence of HONO concentration on the calculation of RIR values for O3 precursors by the OBM. Therefore, to reduce the uncertainty of OBM-derived O3 sensitivity, measurements of HONO are needed.

3.2.4. Key Anthropogenic NMHC Species in O3 Formation

To identify key hydrocarbon species in O3 formation at the DSH and PD sites during pollution episodes, the RIR values for individual anthropogenic hydrocarbons were calculated based on measured chemical compositions of NMHCs by the OBM model. Figure 8 shows the top 10 anthropogenic hydrocarbon species with largest RIR values at these two sites. It can be found that the top 10 species were rather consistent at the two sites, even though their ranking showed some differences. Xylenes, propene, trans/cis-butene, propane, ethene, and 1,2,3-trimethylbenene were the most important species in O3 formation. The difference in RIR value ranking for each hydrocarbon between the two sites was possibly related to the difference in levels and chemical compositions of hydrocarbon species between these two sites.

3.3. Contributions from Different Anthropogenic Sources on O3 Formation

3.3.1. Source Apportionment of NMHCs by the PMF Model

Ambient NMHC source apportionments were determined using the PMF model based on 554 samples measured at the DSH site from 1 July to 31 July. Twenty-three species with high mixing ratios and measurement accuracy, as well as large contributions in O3 formation, were selected as input for the PMF model. We tested 3–8 factor resolutions of PMF, and the four-factor result was selected to explain the local NMHC sources. Figure 9a shows the chemical profiles of 23 NMHCs for the four PMF-resolved factors at the DSH site. The bar indicates the percentage of each species in the total mixing ratios of 23 species for this factor. The black-filled diamond indicates the relative contribution of each factor in the measured mixing ratio of individual species.
C7–C8 aromatics were the most abundant species in Factor 1, with 47% of total mixing ratios of 23 NMHCs species. Several studies in China reported that C7–C8 aromatics were the most important compounds in NMHCs emitted from paints and solvent [41,42]; therefore, Factor 1 was considered a source related to paint and solvent use. Factor 2 was characterized by its high relative contributions to ethylene (30%) and propylene (15%). Light alkenes are characteristic species NMHCs from the petrochemical industry [43]; thus, Factor 2 was identified as the petrochemical industry. C4–C5 alkanes and alkenes were the most important species in Factor 3, with 42%. C4–C5 hydrocarbons are major constituents of NMHCs from vehicular exhaust and gasoline evaporation [12,44]; thus, this factor was identified as vehicular emission. The dominant components in Factor 4 were long-lived species (e.g., ethane, propane, acetylene, and benzene); thus, this factor was considered as aged air masses.
NMHC source apportionments at the PD site were determined based on 494 samples measured in July. Nineteen species were input into the PMF model. The factor number was also set as four. Figure 9b shows the chemical profiles of the NMHCs for the four PMF-resolved factors at the PD site. Similar to Factor 1 at the DSH site, the main components in Factor 1 at the PD site were also C7–C8 aromatics; thus, this factor was considered as paint and solvent use. It should be pointed out that Factor 1 at these two sites did not represent a totally identical source, since toluene was the major constitute in Factor 1 at the DSH site, while m,p-xylene was the most important species in Factor 1 at the PD site. To avoid confusion caused by the same name, Factor 1 at the DSH and PD sites was named paint and solvent use-toluene and paint and solvent use-xylene, respectively. Factor 2 at the PD site was characterized by its high contributions to ethylene (23%) and propylene (12%); thus, this factor was identified as the petrochemical industry. Factor 3 was characterized by C4–C5 alkanes and alkenes, which were influenced largely by vehicular emissions in urban areas [12,44]; thus, this factor was recognized as vehicular emissions. Compared with Factor 3 at the DSH site, the percentage of ethane in Factor 3 at the PD site was significantly higher. One possible explanation for this is that a large number of buses and taxis in Shanghai use compressed natural gas (CNG) or liquefied natural gas (LNG) as fuels [45], and ethane is the main component of natural gas [46]; therefore, a part of ethane was attributed to the vehicular emission factor at the PD site. The dominant component in Factor 4 was propane, with 60%. Propane is the most abundant species in liquefied petroleum gasoline (LPG) [47]; thus, Factor 4 was identified as LPG use.
The relative contributions of different sources to total mixing ratios of NMHCs species that were input into PMF are shown in Figure 10. At the DSH site, aged air mass contributed 32% of the NMHC mixing ratios, followed by vehicular emissions (30%), paint and solvent use–toluene (24%), and the petrochemical industry (14%). At the PD site, the largest two contributors to NMHCs were liquefied petroleum gas (LPG) use (33%) and vehicular emissions (30%), followed by paint and solvent use–xylenes (21%) and the petrochemical industry (16%).

3.3.2. Contributions of Anthropogenic NMHCs Sources in O3 Formation

To estimate contributions of different anthropogenic NMHCs sources in O3 photochemical production, the PMF-resolved NMHCs concentrations for different sources were input into the OBM to calculate RIR values for each source. The RIR values for different NMHCs sources at the DSH site and PD site during O3 pollution episodes (11–16 July and 17–26 July) are shown in Figure 11a,b. Among the four sources at the DSH site, the RIR values for paint and solvent use-toluene and vehicular emission were close, with a value of 0.22%/%, slightly higher than that for the petrochemical industry (0.20%/%), and significantly higher than that for aged air mass (0.08%/%). At the PD site, the largest RIR value was from paint and solvent use-xylenes (0.31%/%), followed by the petrochemical industry (0.27%/%), vehicular emission (0.21%/%), and LPG use (0.17%/%).
Relative contributions of different sources to O3 formation were calculated based on NMHC mixing ratios and RIR values (Equation (3)). As shown in Figure 11c, the two sources related to vehicular emission and paint and solvent use were the largest two contributors to O3 formation at the DSH site, with values of 38% and 30%, followed by the petrochemical industry (20%) and aged air mass (12%). At the PD site, the contribution of vehicular emission to O3 formation was 30%, higher than that for the petrochemical industry (20%), paint and solvent use-xylenes (23%), and LPG use (21%). It can be found that contributions of different sources to O3 formation showed significant discrepancy with contributions of individual sources to NMHC mixing ratios (Figure 11c,d). From the perspective of O3 formation, those sources characterized by a high abundance of reactive species, such as the petrochemical industry and paint and solvent use, showed higher contributions. This implied that those sources should be given priority to reduce their emissions to control O3.

3.4. Case Study: Influence of Transport on O3 Sensitivity

The DSH site is located at the junction of the Shanghai, Jiangsu, and Zhejiang provinces, and transport of air masses is a possible influence factor on O3 formation. Two O3 episode days with different O3 formation regimes (11 and 15 July) were selected to compare NMHCs/NOx, air mass paths, and NMHCs sources.
The OH reactivity of NMHCs (LOH) was calculated using the NMHC mixing ratios by multiplying the reaction rate constant with OH radial (kOH) for individual species [29,48]. The daytime average LOH values of NMHCs on 11 and 15 July were 4.85 s−1 and 5.74 s−1, respectively. The daytime average LOH/NOx increased from 0.16 s−1/ppbV on 11 July to 0.21 s−1/ppbV on 15 July. The noteworthy increase in LOH(NMHCs)/NOx is the possible reason for the change in O3 formation regime from an NMHC-limited regime on 11 July to a transition regime on 15 July.
There are no data showing that the local emission intensity of NMHCs and NOx at the DSH site changed in July 2017; thus, the change in LOH(NMHCs)/NOx was possibly related to air mass path changes. The backward trajectory of the air masses from 7:00 a.m.–7:00 p.m. on 11 and 15 July was analyzed using the Meteoinfo model developed by Wang [49]. As shown in Figure 12, the air masses on July 11 were mainly from the south and southwest (red lines in Figure 12), passing through several small industrial zones (A–C), where wooden furniture, machinery equipment, and pesticide manufacturing are the main industries. The air masses on July 15 were mainly from the south (blue lines in Figure 12), passing through one of the largest petrochemical industry zones in the OBM region (D in Figure 12). The main industries in this region are oil refining and ethylene industries and their downstream industries, such as synthetic rubber, synthetic resin, synthetic fibers, and relevant raw materials [50]. Previous studies showed that the NMHC emission intensity in the southwest area of the DSH site is relatively low, while, in the south, the Hangzhou bay region presents a concentrated high NMHC emission intensity [50,51]. Therefore, air masses on 15 July possibly carried more NMHCs than those on 11 July. To check these results from back trajectory analysis, the NMHC source structures on these two days were compared. Relative contributions of paint and solvent use-toluene and the petrochemical industry on 11 July were 30% and 16%, respectively. However, the petrochemical industry was the largest contributor to NMHCs on July 15, with a value of 28%. Meanwhile, the relative contribution of paint and solvent use-toluene decreased to 19%. The changes in NMHC sources during these two episodes were consistent with the results from the air mass transport analysis. It should be noted that, since back trajectory analysis is only a qualitative method to discuss the influence of transport, a more quantitative evaluation on transport can be conducted using an air quality model in further research.

4. Conclusions

To better understand the sensitivity of O3 formation to its precursors and contributions of different sources in O3 formation in the YRD region, online measurements of O3, NOX, NMHCs, and CO were conducted at an urban site (PD) and a suburban site (DSH) in Shanghai from 1–31 July 2017. The DMA-1h O3 concentrations were in the ranges of 30.3 ppbV–167.5 ppbV and 35.9 ppbV–169.4 ppbV at the PD and the DSH sites, respectively. O3 concentrations showed an average diurnal variation pattern with a peak at 12:00–1:00 p.m., while NMHCs and NOx showed higher concentrations at night and in the morning.
The O3 sensitivity to its precursors on 15 O3 pollution episode days (i.e., O3 concentration exceeding national air quality standard) were analyzed using the OBM. The average RIR values for AHC and NHC during O3 pollution episodes at these sites were 0.26–0.44%/% and 0.30–0.36%/%, suggesting that reducing AHC and NHC would result in O3 decrease. The average RIR value for NOX at the DSH site was 0.07%/%; however, that for the PD site was −0.11%/%. This means that reducing NOx at the DSH site would be beneficial for O3 control (i.e., transition regime), but reducing NOx at the PD site could possibly lead to O3 increase (i.e., NMHC-limited regime). The O3 formation regime at the urban site agreed with results from previous studies, while the O3 sensitivity at the suburban site determined by the OBM in this study was different from previous studies. Based on RIR values, xylenes, propene, trans/cis-butene, propane, ethene, and 1,2,3-trimethylbenene were found to be key anthropogenic NMHC species in O3 formation.
Four anthropogenic sources for NMHCs were identified by the PMF model at both sites. At the DSH site, aged air mass was found to be the largest contributor to NMHCs mixing ratios from 1–31 July, with an average value of 32%, followed by vehicular emission (30%), paint and solvent use-toluene (24%), and the petrochemical industry (14%). At the PD site, LPG use and vehicular emission were the largest two contributors to NMHC mixing ratios, with respective values of 33% and 30%, followed by the petrochemical industry (21%) and paint and solvent use-xylenes (16%).
To estimate the relative contributions of different sources in O3 formation, the PMF-resolved NMHC concentrations for different sources were then input into the OBM to calculate RIR values for each source during O3 pollution episodes. Among the four sources at the DSH site, the RIR values for paint and solvent use-toluene and vehicular emission were close, with a value of 0.22%/%, higher than that for the petrochemical industry (0.20%/%) and that for aged air mass (0.08%/%). At the PD site, the largest RIR value was from paint and solvent use-xylenes (0.31%/%), followed by the petrochemical industry (0.27%/%), vehicular emission (0.21%/%), and LPG use (0.17%/%). The two sources related to vehicular emission and paint and solvent use were the largest two contributors to O3 formation at the DSH site, with values of 38% and 30%, followed by the petrochemical industry (20%) and aged air mass (12%). At the PD site, the contribution of vehicular emission to O3 formation was 30%, higher than those for petrochemical industry (20%), paint and solvent use-xylene (23%), and LPG use (21%). The significant difference in source contributions in O3 formation and NMHC mixing ratios implies that NMHC levels and reactivity should both be considered in the development of O3 control measures.
The influence of transport on O3 sensitivity was preliminarily identified by comparing O3 sensitivity at the DHS site between 11 and 15 July. The air masses on 11 July were mainly from the south and southwest, passing through several small industrial zones, while air masses on 15 July were from the south, passing one of largest petrochemical zones in YRD. Consequently, the NMHC/NOx on 15 July was significantly higher than that for 11 July; thus, the O3–NMHC–NOx sensitivity changed from an NMHC-limited regime on 11 July to a transition regime om 15 July. This finding reveals that O3 formation in Shanghai is not only related to local emissions but also influenced by emissions from neighboring provinces.
The findings on O3–NMHC–NOx sensitivity, contributions of different sources in O3 formation, and influence of transport in this study would be useful for policymakers to develop O3 and NMHC control strategies in the YRD and other regions of China. Nevertheless, it should be noted that these results were based on limited measurements for one month and two sites; therefore, their spatial and temporal representativeness should be considered when applying them. In addition, more quantitative analyses on transport and a further evaluation on the uncertainty of OBM are still needed to increase the reliability of these methods.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4433/11/3/295/s1, Table S1. Reactions related to OH radical in the OBM, Table S2. Reactions related to HO2 radical in the OBM.

Author Contributions

All authors have read and agree to the published version of the manuscript. Conceptualization, M.W. and Y.D.; methodology, M.W., W.J., H.C., D.J., and Y.L.; software, W.J.; investigation, Y.D.; resources, Y.D. and Q.F.; data curation, H.L., H.C., D.J., and Y.L.; writing—original draft preparation, H.L.; writing—review and editing, M.W. and K.H.; supervision, Q.F.; funding acquisition, Y.D., Q.F, and M.W.

Funding

This research was funded by the Scientific Research Project of Shanghai Science and Technology Commission (grant number 16DZ1204606), the National Key R&D Program of China (grant number 2016YFC0202200), and the National Natural Science Foundation of China (grant number 41505113).

Acknowledgments

We are grateful for financial support from the Scientific Research Project of Shanghai Science and Technology Commission (grant number 16DZ1204606), the National Key R&D Program of China (grant number 2016YFC0202200), and the National Natural Science Foundation of China (grant number 41505113). And we would like to show deep thankfulness to reviewers and editors who have contributed valuable comments to improve the quality of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. The China Environment Report 2017. Available online: http://datacenter.mee.gov.cn (accessed on 31 May 2018).
  2. Li, K.; Jacob, D.J.; Liao, H.; Shen, L.; Zhang, Q.; Bates, K.H. Anthropogenic drivers of 2013-2017 trends in summer surface ozone in China. Proc. Natl. Acad. Sci. USA 2018, 116, 422–427. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Wang, T.; Xue, L.; Brimblecombe, P.; Lam, Y.F.; Li, L.; Zhang, L. Ozone pollution in China: A review of concentrations, meteorological influences, chemical precursors, and effects. Sci. Total Environ. 2017, 575, 1582–1596. [Google Scholar] [CrossRef] [PubMed]
  4. Sillman, S. Some theoretical results concerning O3-NOx-VOC chemistry and NOx-VOC indicators. J. Geophys. Res. Atmos. 2002, 107, ACH-26. [Google Scholar] [CrossRef] [Green Version]
  5. Ibarra-Berastegi, G.; Elías, A.; Agirre, E.; Uria, J. Short-term, real-time forecasting of hourly ozone, NO 2 and NO levels by means of multiple linear regression modelling. Environ. Sci. Pollut. Res. 2001, 8, 250. [Google Scholar] [CrossRef]
  6. Li, L.; Chen, C.H.; Huang, C.; Huang, H.Y.; Zhang, G.F.; Wang, Y.J.; Wang, H.L.; Lou, S.R.; Qiao, L.P.; Zhou, M.; et al. Process analysis of regional ozone formation over the Yangtze River Delta, China using the Community Multi-scale Air Quality modeling system. Atmos. Chem. Phys. 2012, 12, 10971–10987. [Google Scholar] [CrossRef] [Green Version]
  7. He, Z.; Wang, X.; Ling, Z.; Zhao, J.; Guo, H.; Shao, M.; Wang, Z. Contributions of different anthropogenic volatile organic compound sources to ozone formation at a receptor site in the Pearl River Delta region and its policy implications. Atmos. Chem. Phys. 2019, 19, 8801–8816. [Google Scholar] [CrossRef] [Green Version]
  8. Wang, M.; Shao, M.; Chen, W.; Yuan, B.; Lu, S.; Zhang, Q.; Zeng, L.; Wang, Q. A temporally and spatially resolved validation of emission inventories by measurements of ambient volatile organic compounds in Beijing, China. Atmos. Chem. Phys. 2014, 14, 5871–5891. [Google Scholar] [CrossRef] [Green Version]
  9. Liu, Z.; Wang, Y.; Vrekoussis, M.; Richter, A.; Wittrock, F.; Burrows, J.P.; Shao, M.; Chang, C.C.; Liu, S.C.; Wang, H.L.; et al. Exploring the missing source of glyoxal (CHOCHO) over China. Geophy. Res. Lett. 2012, 39. [Google Scholar] [CrossRef] [Green Version]
  10. Xu, Z.; Huang, X.; Nie, W.; Chi, X.; Xu, Z.; Zheng, L.; Sun, P.; Ding, A. Influence of synoptic condition and holiday effects on VOCs and ozone production in the Yangtze River Delta region, China. Atmos. Environ. 2017, 168, 112–124. [Google Scholar] [CrossRef]
  11. Tan, Z.; Lu, K.; Dong, H.; Hu, M.; Li, X.; Liu, Y.; Lu, S.; Shao, M.; Su, R.; Wang, H.; et al. Explicit diagnosis of the local ozone production rate and the ozone-NOx-VOC sensitivities. Sci. Bull. 2018, 63, 1067–1076. [Google Scholar] [CrossRef] [Green Version]
  12. Liu, Y.; Shao, M.; Fu, L.; Lu, S.; Zeng, L.; Tang, D. Source profiles of volatile organic compounds (VOCs) measured in China: Part I. Atmos. Environ. 2008, 42, 6247–6260. [Google Scholar] [CrossRef]
  13. Tang, W.; Zhao, C.; Geng, F.; Peng, L.; Zhou, G.; Gao, W.; Xu, J.; Tie, X. Study of ozone “weekend effect” in Shanghai. Sci. China Ser. D Earth Sci. 2008, 51, 1354–1360. [Google Scholar] [CrossRef]
  14. Ran, L.; Zhao, C.; Geng, F.; Tie, X.; Tang, X.; Peng, L.; Zhou, G.; Yu, Q.; Xu, J.; Guenther, A. Ozone photochemical production in urban Shanghai, China: Analysis based on ground level observations. J. Geophys. Res. Atmos. 2009, 114. [Google Scholar] [CrossRef] [Green Version]
  15. Tan, Z.; Lu, K.; Jiang, M.; Su, R.; Wang, H.; Lou, S.; Fu, Q.; Zhai, C.; Tan, Q.; Yue, D.; et al. Daytime atmospheric oxidation capacity in four Chinese megacities during the photochemically polluted season: A case study based on box model simulation. Atmos. Chem. Phys. 2019, 19, 3493–3513. [Google Scholar] [CrossRef] [Green Version]
  16. Wang, H.L.; Chen, C.H.; Wang, Q.; Huang, C.; Su, L.Y.; Huang, H.Y.; Lou, S.R.; Zhou, M.; Li, L.; Qiao, L.P.; et al. Chemical loss of volatile organic compounds and its impact on the source analysis through a two-year continuous measurement. Atmos. Environ. 2013, 80, 488–498. [Google Scholar] [CrossRef]
  17. Cai, C.J.; Geng, F.H.; Tie, X.X.; Yu, Q.O.; An, J.L. Characteristics and source apportionment of VOCs measured in Shanghai, China. Atmos. Environ. 2010, 44, 5005–5014. [Google Scholar] [CrossRef]
  18. Song, M.; Liu, X.; Tan, Q.; Feng, M.; Qu, Y.; An, J.; Zhang, Y.J.E.P. Characteristics and formation mechanism of persistent extreme haze pollution events in Chengdu, southwestern China. Environ. Pollut. 2019, 251, 1–12. [Google Scholar] [CrossRef] [PubMed]
  19. Paatero, P.; Tapper, U. Positive matrix factorization: A non-negative factor model with optimal utilization of error estimates of data values. Environmetrics 1994, 5, 111–126. [Google Scholar] [CrossRef]
  20. Paatero, P. Least Squares Formulation of Robust Non-Negative Factor Analysis. Chemom. Intell. Lab. Syst. Chemom. Intell. Lab. Syst. 1997, 37, 23–35. [Google Scholar] [CrossRef]
  21. Cardelino, C.A.; Chameides, W.L. An Observation-Based Model for Analyzing Ozone Precursor Relationships in the Urban Atmosphere. J. Air Waste Manag. Assoc. 1995, 45, 161–180. [Google Scholar] [CrossRef]
  22. Chan, C.Y.; Chan, L.Y. Effect of meteorology and air pollutant transport on ozone episodes at a subtropical coastal Asian city, Hong Kong. J. Geophys. Res. Atmos. 2000, 105, 20707–20724. [Google Scholar] [CrossRef] [Green Version]
  23. Nair, P.R.; Chand, D.; Lal, S. Temporal variations in surface ozone at Thumba (8.6 N, 77 E)-a tropical coastal site in India. Atmos. Environ. 2002, 36, 603–610. [Google Scholar] [CrossRef]
  24. Lu, K.D.; Rohrer, F.; Holland, F.; Fuchs, H.; Bohn, B.; Brauers, T.; Chang, C.C.; Häseler, R.; Hu, M.; Kita, K.; et al. Observation and modelling of OH and HO2 concentrations in the Pearl River Delta 2006: A missing OH source in a VOC rich atmosphere. Atmos. Chem. Phys. 2012, 12, 1541–1569. [Google Scholar] [CrossRef] [Green Version]
  25. Lu, K.D.; Hofzumahaus, A.; Holland, F.; Bohn, B.; Brauers, T.; Fuchs, H.; Hu, M.; Häseler, R.; Kita, K.; Kondo, Y. Missing OH source in a suburban environment near Beijing: Observed and modelled OH and HO2 concentrations in summer 2006. Atmos. Chem. Phys. 2013, 13, 1057–1080. [Google Scholar] [CrossRef] [Green Version]
  26. Wang, Y.; Guo, H.; Zou, S.; Lyu, X.; Ling, Z.; Cheng, H.; Zeren, Y. Surface O3 photochemistry over the South China Sea: Application of a near-explicit chemical mechanism box model. Environ. Pollut. 2018, 234, 155–166. [Google Scholar] [CrossRef] [PubMed]
  27. Tan, Z.; Fuchs, H.; Lu, K.; Hofzumahaus, A.; Bohn, B.; Broch, S.; Dong, H.; Gomm, S.; Häseler, R.; He, L.; et al. Radical chemistry at a rural site (Wangdu) in the North China Plain: Observation and model calculations of OH, HO2 and RO2 radicals. Atmos. Chem. Phys. 2017, 17, 663–690. [Google Scholar] [CrossRef] [Green Version]
  28. Nan, J.; Wang, S.; Guo, Y.; Xiang, Y.; Zhou, B. Study on the daytime OH radical and implication for its relationship with fine particles over megacity of Shanghai, China. Atmos. Environ. 2017, 154, 167–178. [Google Scholar] [CrossRef]
  29. Atkinson, R.; Baulch, D.L.; Cox, R.A.; Crowley, J.N.; Hampson, R.F.; Hynes, R.G.; Jenkin, M.E.; Rossi, M.J.; Troe, J.; Wallington, T.J. Evaluated kinetic and photochemical data for atmospheric chemistry: Volume IV-gas phase reactions of organic halogen species. Atmos. Chem. Phys. 2008, 8, 4141–4496. [Google Scholar] [CrossRef] [Green Version]
  30. Parrish, D.D.; Stohl, A.; Forster, C.; Atlas, E.L.; Blake, D.R.; Goldan, P.D.; Kuster, W.C.; de Gouw, J.A. Effects of mixing on evolution of hydrocarbon ratios in the troposphere. J. Geophys. Res. Atmos. 2007, 112. [Google Scholar] [CrossRef] [Green Version]
  31. Tie, X.; Geng, F.; Guenther, A.; Cao, J.; Greenberg, J.; Zhang, R.; Apel, E.; Li, G.; Weinheimer, A.; Chen, J.; et al. Megacity impacts on regional ozone formation: Observations and WRF-Chem modeling for the MIRAGE-Shanghai field campaign. Atmos. Chem. Phys. 2013, 13, 5655–5669. [Google Scholar] [CrossRef] [Green Version]
  32. Geng, F.; Tie, X.; Xu, J.; Zhou, G.; Peng, L.; Gao, W.; Tang, X.; Zhao, C. Characterizations of ozone, NOx, and VOCs measured in Shanghai, China. Atmos. Environ. 2008, 42, 6873–6883. [Google Scholar] [CrossRef]
  33. Ran, L.; Zhao, C.S.; Xu, W.Y.; Han, M.; Lu, X.Q.; Han, S.Q.; Lin, W.L.; Xu, X.B.; Gao, W.; Yu, Q. Ozone production in summer in the megacities of Tianjin and Shanghai, China: A comparative study. Atmos. Chem. Phys. 2012, 12, 7531–7542. [Google Scholar] [CrossRef] [Green Version]
  34. Li, L.; Chen, C.; Huang, C.; Huang, H.; Zhang, G.; Wang, Y.; Chen, M.; Wang, H.; Chen, Y.; Streets, D.G.; et al. Ozone sensitivity analysis with the MM5-CMAQ modeling system for Shanghai. J. Environ. Sci. 2011, 23, 1150–1157. [Google Scholar] [CrossRef]
  35. Tie, X.; Geng, F.; Peng, L.; Gao, W.; Zhao, C. Measurement and modeling of O3 variability in Shanghai, China: Application of the WRF-Chem model. Atmos. Environ. 2009, 43, 4289–4302. [Google Scholar] [CrossRef]
  36. Xue, L.; Wang, T.; Gao, J.; Ding, A.; Zhou, X.; Blake, D.; Wang, X.; Saunders, S.; Fan, S.; Zuo, H.; et al. Ground-level ozone in four Chinese cities: Precursors, regional transport and heterogeneous processes. Atmos. Chem. Phys. 2014, 14, 13175–13188. [Google Scholar] [CrossRef] [Green Version]
  37. Zheng, C.; Shen, J.; Zhang, Y.; Huang, W.; Zhu, X.; Wu, X.; Chen, L.; Xiang, G.; Cen, K. Quantitative assessment of industrial VOC emissions in China: Historical trend, spatial distribution, uncertainties, and projection. Atmos. Environ. 2017, 150, 116–125. [Google Scholar] [CrossRef]
  38. Gao, W.; Tie, X.; Xu, J.; Huang, R.; Mao, X.; Zhou, G.; Chang, L. Long-term trend of O3 in a mega City (Shanghai), China: Characteristics, causes, and interactions with precursors. Sci. Total Environ. 2017, 603, 425–433. [Google Scholar] [CrossRef]
  39. Bernard, A.; Frédéric, C.; Sophie, L. Contribution of HONO sources to the NOx/HOx/O3 chemistry in the polluted boundary layer. Atmos. Environ. 2003, 37, 487–498. [Google Scholar]
  40. Elshorbany, Y.F.; Steil, B.; Brühl, C.; Lelieveld, J. Impact of HONO on global atmospheric chemistry calculated with an empirical parameterization in the EMAC model. Atmos. Chem. Phys. 2012, 12, 9977–10000. [Google Scholar] [CrossRef] [Green Version]
  41. Yuan, B.; Shao, M.; Lu, S.H.; Wang, B. Source profiles of volatile organic compounds associated with solvent use in Beijing, China. Atmos. Environ. 2010, 44, 1919–1926. [Google Scholar] [CrossRef]
  42. Zheng, J.; Yu, Y.; Mo, Z.; Zhang, Z.; Wang, X.; Yin, S.; Peng, K.; Yang, Y.; Feng, X.; Cai, H. Industrial sector-based volatile organic compound (VOC) source profiles measured in manufacturing facilities in the Pearl River Delta, China. Sci. Total Environ. 2013, 456, 127–136. [Google Scholar] [CrossRef] [PubMed]
  43. Mo, Z.; Shao, M.; Lu, S.; Qu, H.; Zhou, M.; Sun, J.; Gou, B. Process-specific emission characteristics of volatile organic compounds (VOCs) from petrochemical facilities in the Yangtze River Delta, China. Sci. Total Environ. 2015, 533, 422–431. [Google Scholar] [CrossRef] [PubMed]
  44. Mo, Z.W.; Shao, M.; Lu, S.H. Compilation of a source profile database for hydrocarbon and OVOC emissions in China. Atmos. Environ. 2016, 143, 209–217. [Google Scholar] [CrossRef]
  45. Hao, H.; Liu, Z.; Zhao, F.; Li, W. Natural gas as vehicle fuel in China: A review. Renew. Sustain. Energy Rev. 2016, 62, 521–533. [Google Scholar] [CrossRef]
  46. Katzenstein, A.S.; Doezema, L.A.; Simpson, I.J.; Blake, D.R.; Rowland, F.S. Extensive regional atmospheric hydrocarbon pollution in the southwestern United States. Proc. Natl. Acad. Sci. USA 2003, 100, 11975–11979. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Blake, D.R.; Rowland, F.S. Urban leakage of liquefied petroleum gas and its impact on Mexico City air quality. Science 1995, 269, 953–956. [Google Scholar] [CrossRef] [Green Version]
  48. Praplan, A.P.; Pfannerstill, E.Y.; Williams, J.; Hellén, H. OH reactivity of the urban air in Helsinki, Finland, during winter. Atmos. Environ. 2017, 169, 150–161. [Google Scholar] [CrossRef]
  49. Wang, Y.Q. An Open Source Software Suite for Multi-Dimensional Meteorological Data Computation and Visualisation. J. Open Res. Softw. 2019, 7, 21. [Google Scholar] [CrossRef] [Green Version]
  50. Huang, C.; Chen, C.H.; Li, L.; Cheng, Z.; Wang, H.L.; Huang, H.Y.; Chen, Y.R. Emission inventory of anthropogenic air pollutants and VOC species in the Yangtze River Delta region, China. Atmos. Chem. Phys. 2011, 11, 4105–4120. [Google Scholar] [CrossRef] [Green Version]
  51. Fu, X.; Wang, S.; Zhao, B.; Xing, J.; Cheng, Z.; Liu, H.; Hao, J. Emission inventory of primary pollutants and chemical speciation in 2010 for the Yangtze River Delta region, China. Atmos. Environ. 2013, 70, 39–50. [Google Scholar] [CrossRef]
Atmosphere 11 00295 g001 550

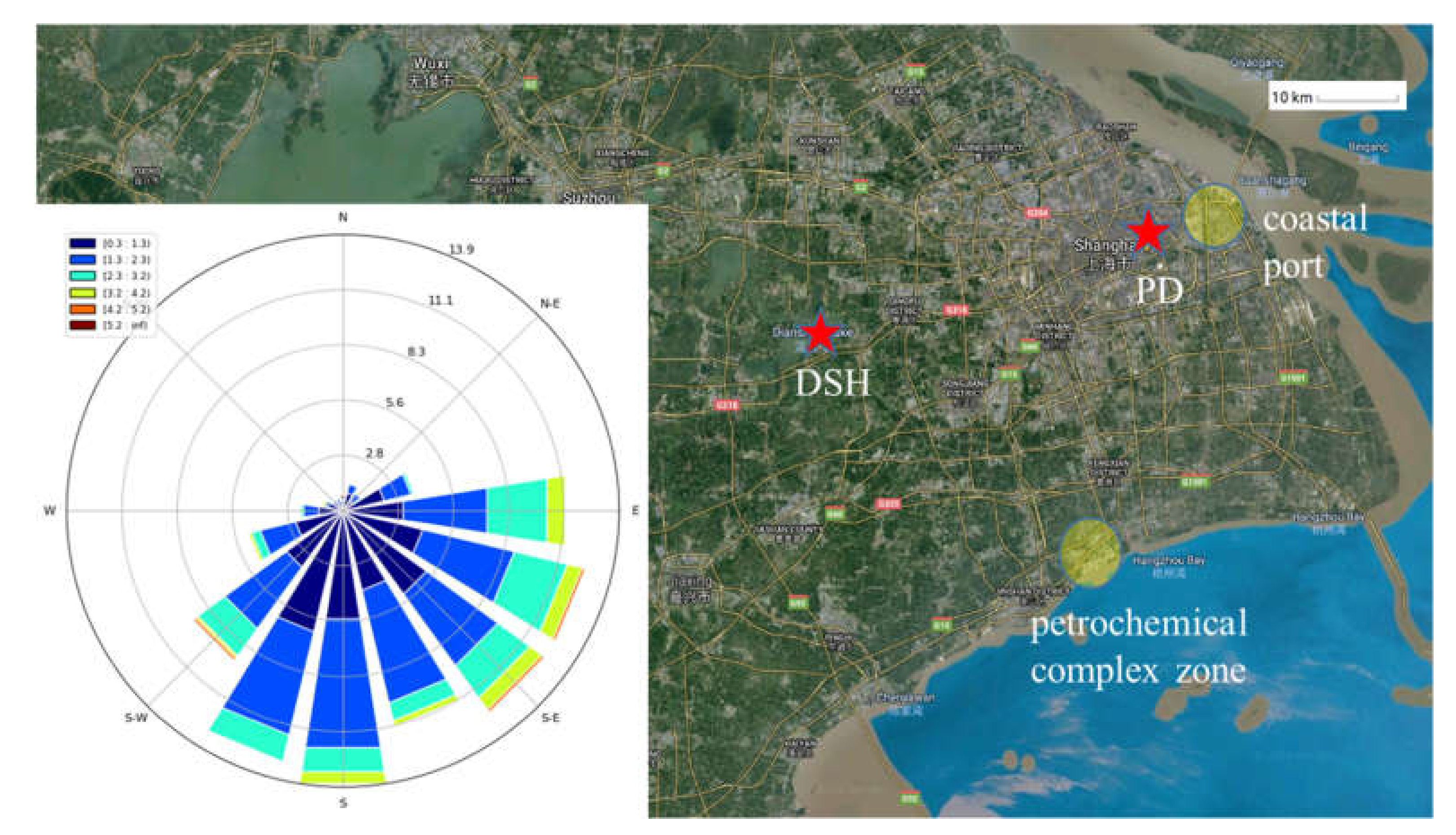

Figure 1. Map of the Pudong (PD) and Dianshanhu (DSH) sites in Shanghai. The wind rose in the bottom left shows the probability of wind speeds and directions in Shanghai from 1–31 July 2017.
Figure 1. Map of the Pudong (PD) and Dianshanhu (DSH) sites in Shanghai. The wind rose in the bottom left shows the probability of wind speeds and directions in Shanghai from 1–31 July 2017.
Atmosphere 11 00295 g001
Atmosphere 11 00295 g002 550

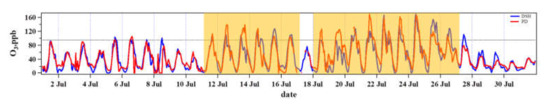

Figure 2. Time series of the hourly average O3 concentrations at the DSH (blue line) and PD (red line) sites from 1–31 July 2017. The horizontal black dotted line means the national grade II standard for daily maximum 1-h moving average (DMA-1h) O3 (200 μg/m3, i.e., 93.3 ppbV). The areas shaded by orange represent two O3 pollution episodes (11–16 and 18–26 July).
Figure 2. Time series of the hourly average O3 concentrations at the DSH (blue line) and PD (red line) sites from 1–31 July 2017. The horizontal black dotted line means the national grade II standard for daily maximum 1-h moving average (DMA-1h) O3 (200 μg/m3, i.e., 93.3 ppbV). The areas shaded by orange represent two O3 pollution episodes (11–16 and 18–26 July).
Atmosphere 11 00295 g002
Atmosphere 11 00295 g003 550

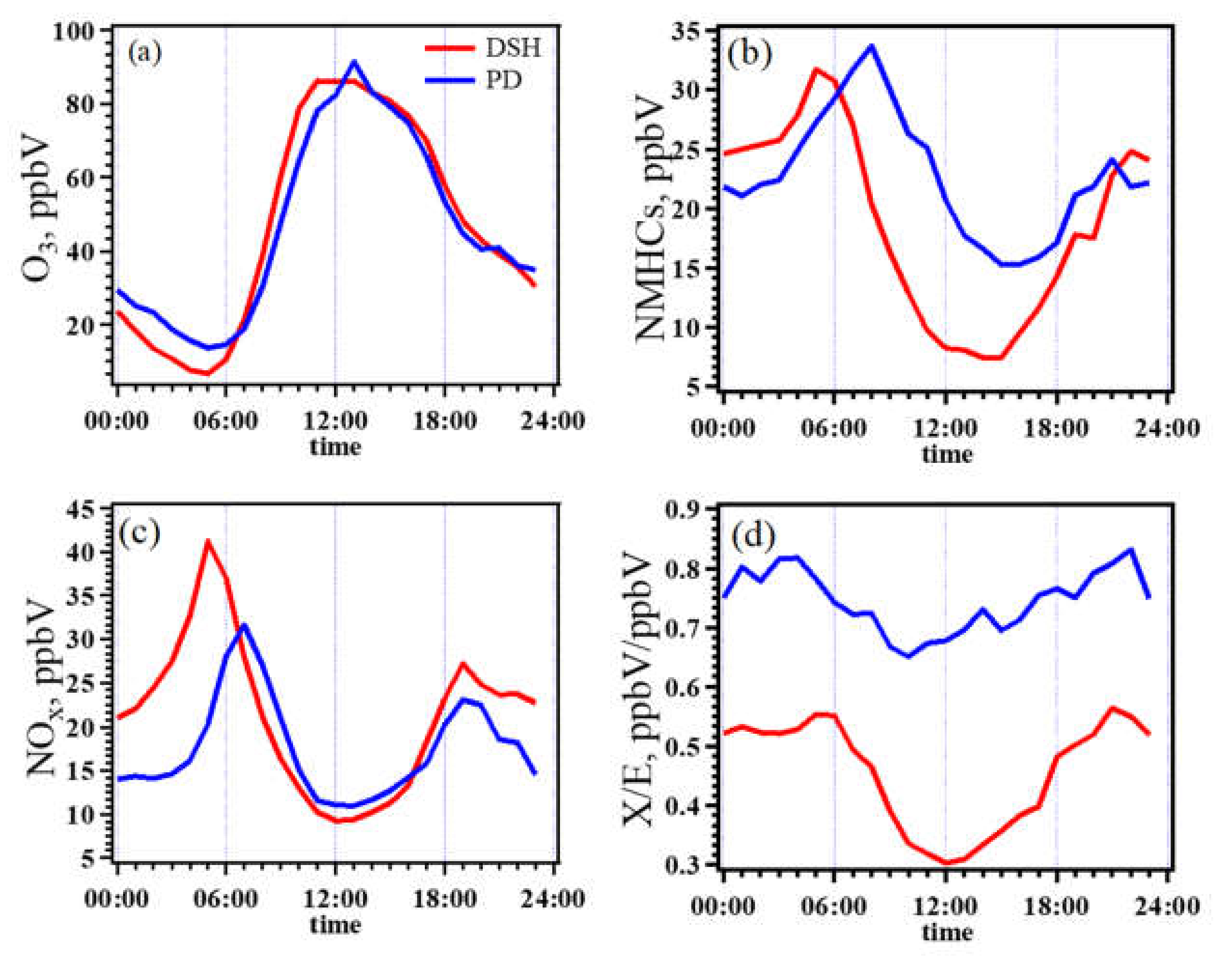

Figure 3. Mean diurnal variations of the measured ambient levels for (a) O3, (b) non-methane hydrocarbons (NMHCs), (c) NOx, and (d) ratios of o-xylene to ethylbenzene (X/E) at the DSH site (red line) and PD site (blue line) from 1–31 July 2017.
Figure 3. Mean diurnal variations of the measured ambient levels for (a) O3, (b) non-methane hydrocarbons (NMHCs), (c) NOx, and (d) ratios of o-xylene to ethylbenzene (X/E) at the DSH site (red line) and PD site (blue line) from 1–31 July 2017.
Atmosphere 11 00295 g003
Atmosphere 11 00295 g004 550

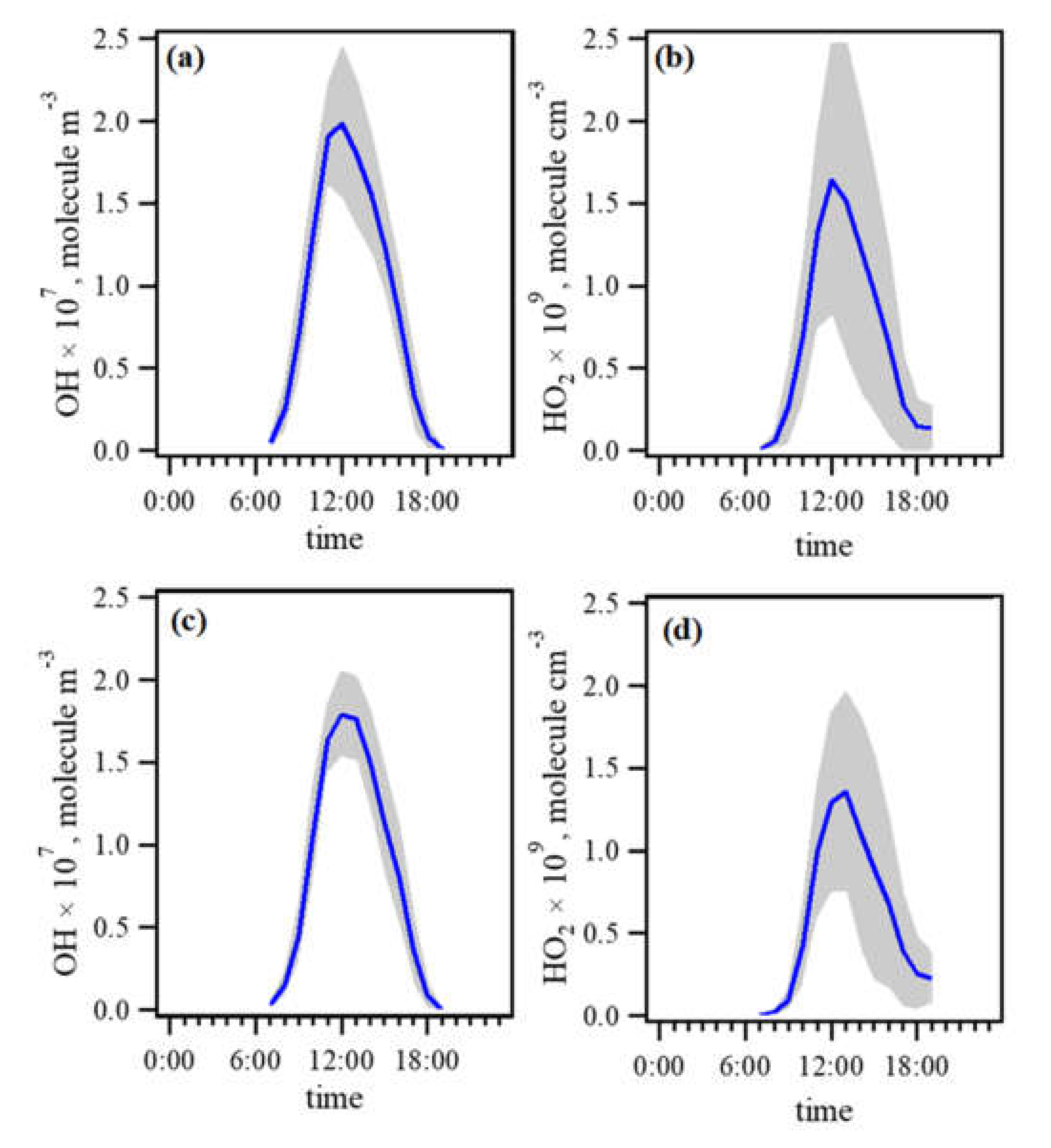

Figure 4. Mean diurnal variations of the OH and HO2 concentrations for (a,b) the DSH site and (c,d) the PD site during pollution episodes (11–16 July and 18–26 July) simulated using the observation-based model (OBM). The shaded gray areas represent the standard deviation of simulated radical concentrations at each hour.
Figure 4. Mean diurnal variations of the OH and HO2 concentrations for (a,b) the DSH site and (c,d) the PD site during pollution episodes (11–16 July and 18–26 July) simulated using the observation-based model (OBM). The shaded gray areas represent the standard deviation of simulated radical concentrations at each hour.
Atmosphere 11 00295 g004

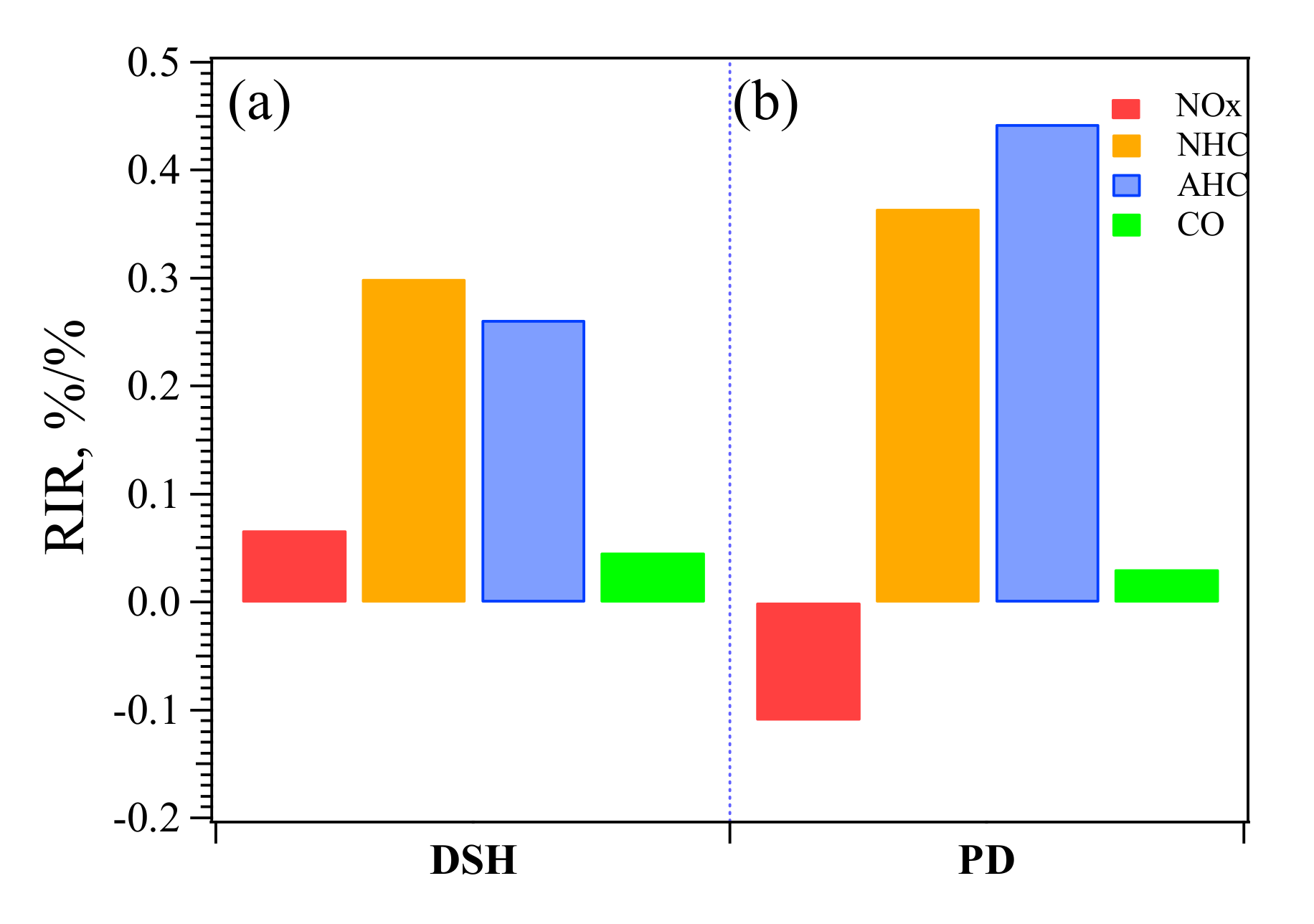

Atmosphere 11 00295 g005 550
Figure 5. Average relative incremental reactivity (RIR) values of the O3 precursors NOX, anthropogenic hydrocarbons (AHCs), biogenic hydrocarbons (NHCs), and CO at (a) the DSH site and (b) the PD site from 11–26 July.
Figure 5. Average relative incremental reactivity (RIR) values of the O3 precursors NOX, anthropogenic hydrocarbons (AHCs), biogenic hydrocarbons (NHCs), and CO at (a) the DSH site and (b) the PD site from 11–26 July.
Atmosphere 11 00295 g005
Atmosphere 11 00295 g006 550

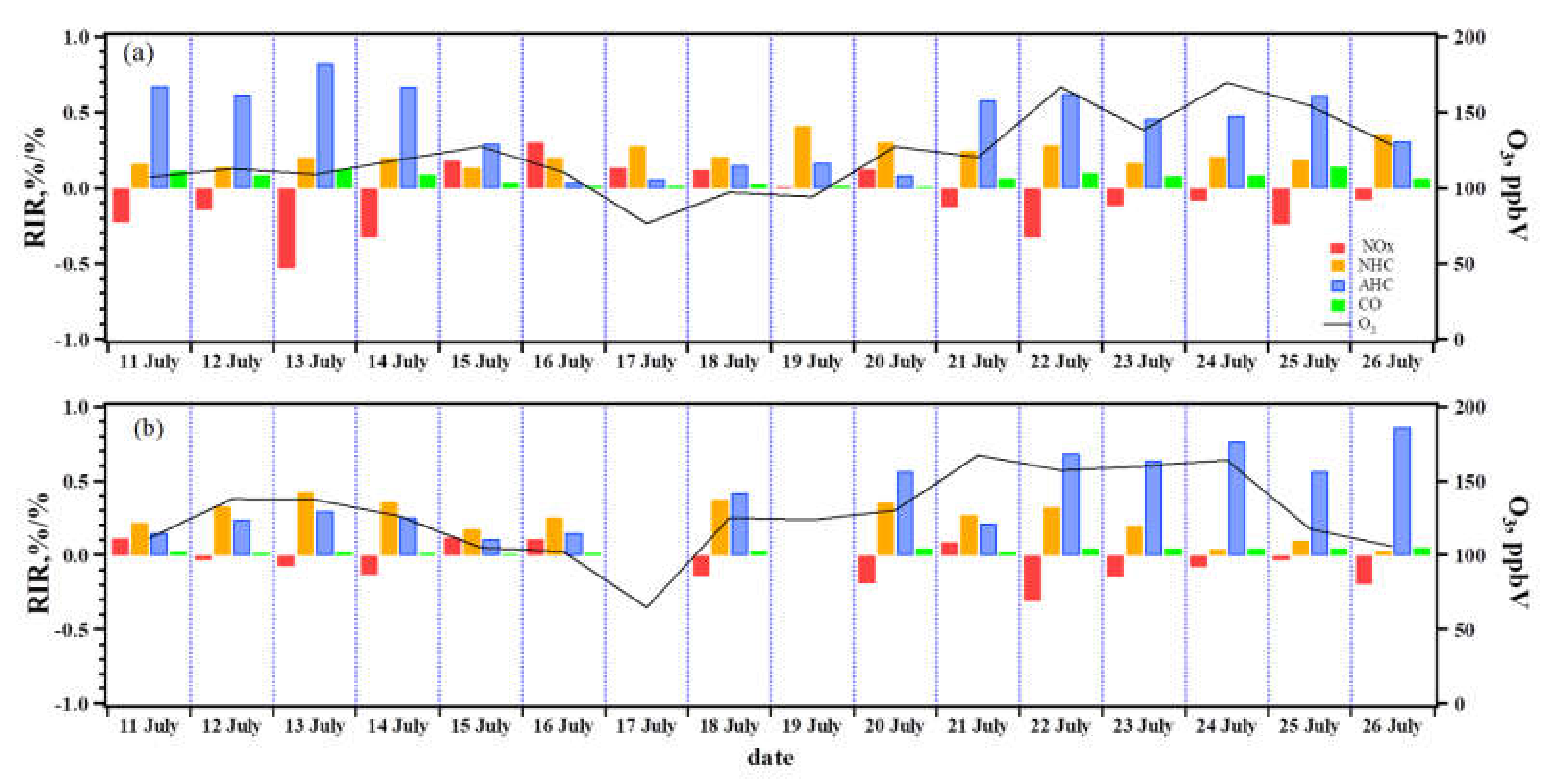

Figure 6. Variations of RIR values for NOX (red bar), NHC (orange bar), AHC (blue bar), and CO (green bar) and DMA-1h O3 levels (black line) at (a) the DSH site and (b) the PD site from 11–26 July 2017.
Figure 6. Variations of RIR values for NOX (red bar), NHC (orange bar), AHC (blue bar), and CO (green bar) and DMA-1h O3 levels (black line) at (a) the DSH site and (b) the PD site from 11–26 July 2017.
Atmosphere 11 00295 g006
Atmosphere 11 00295 g007 550

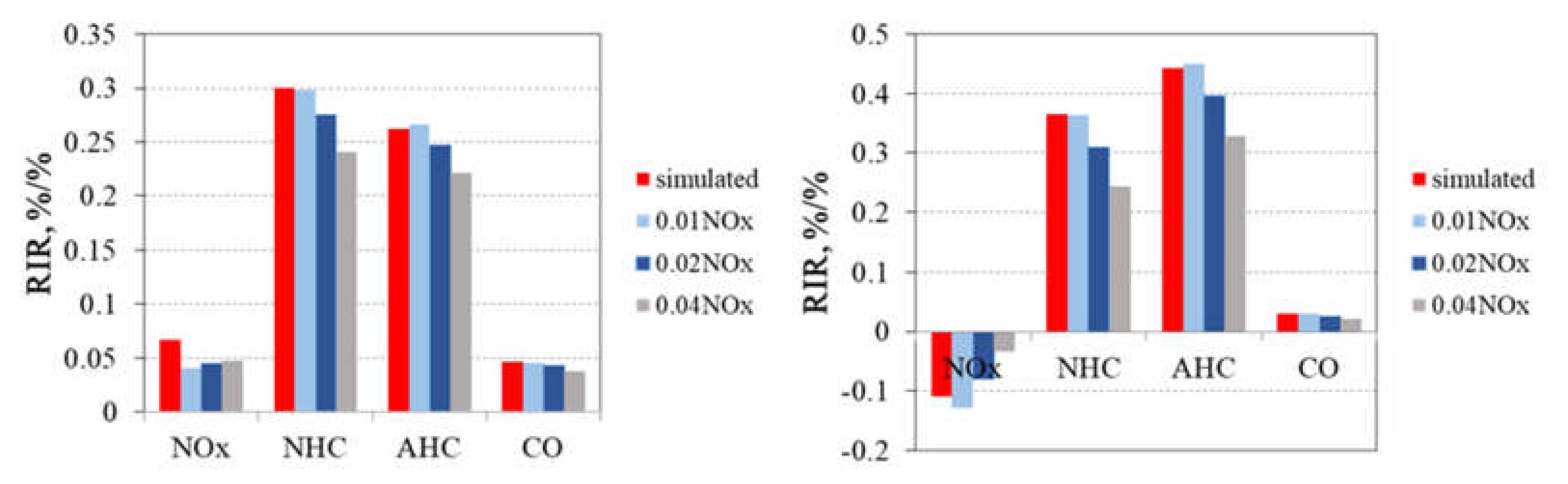

Figure 7. The average RIR values for NOx, NHC, AHC, and CO for simulated gaseous nitrous acid (HONO) (red bar) and HONO concentrations assumed as 1% (pale-blue bar), 2% (dark-blue bar), and 4% (gray bar) of NOX concentrations at the DSH site (left panel) and the PD site (right panel).
Figure 7. The average RIR values for NOx, NHC, AHC, and CO for simulated gaseous nitrous acid (HONO) (red bar) and HONO concentrations assumed as 1% (pale-blue bar), 2% (dark-blue bar), and 4% (gray bar) of NOX concentrations at the DSH site (left panel) and the PD site (right panel).
Atmosphere 11 00295 g007
Atmosphere 11 00295 g008 550

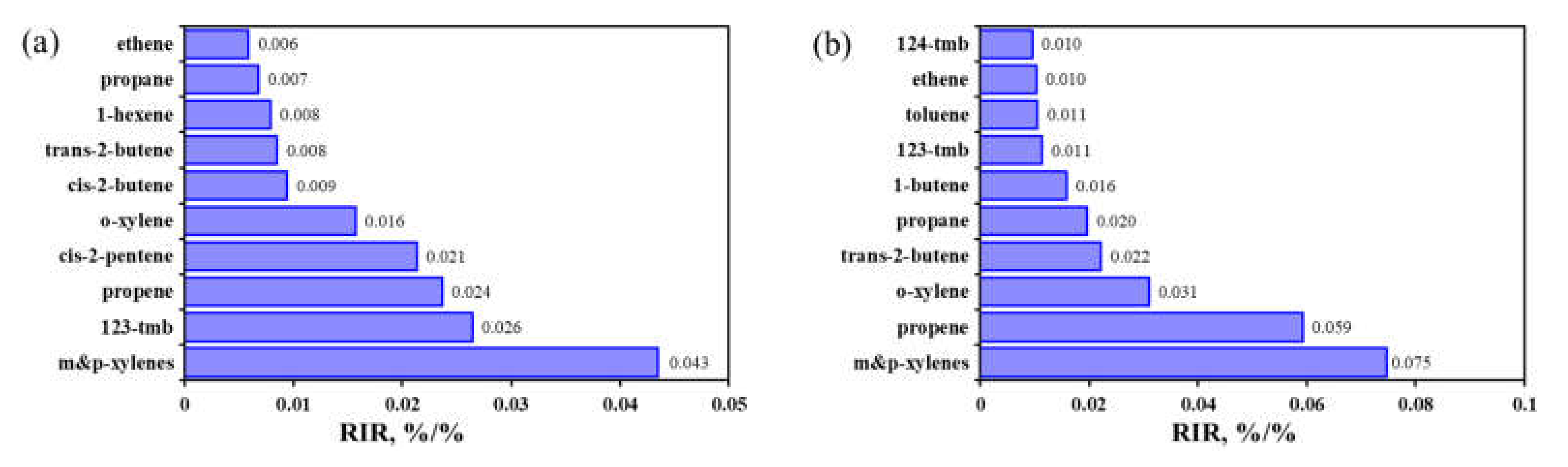

Figure 8. Species with the top ten relative incremental reactivity (RIR) values at the (a) DSH and (b) PD sites.
Figure 8. Species with the top ten relative incremental reactivity (RIR) values at the (a) DSH and (b) PD sites.
Atmosphere 11 00295 g008
Atmosphere 11 00295 g009 550

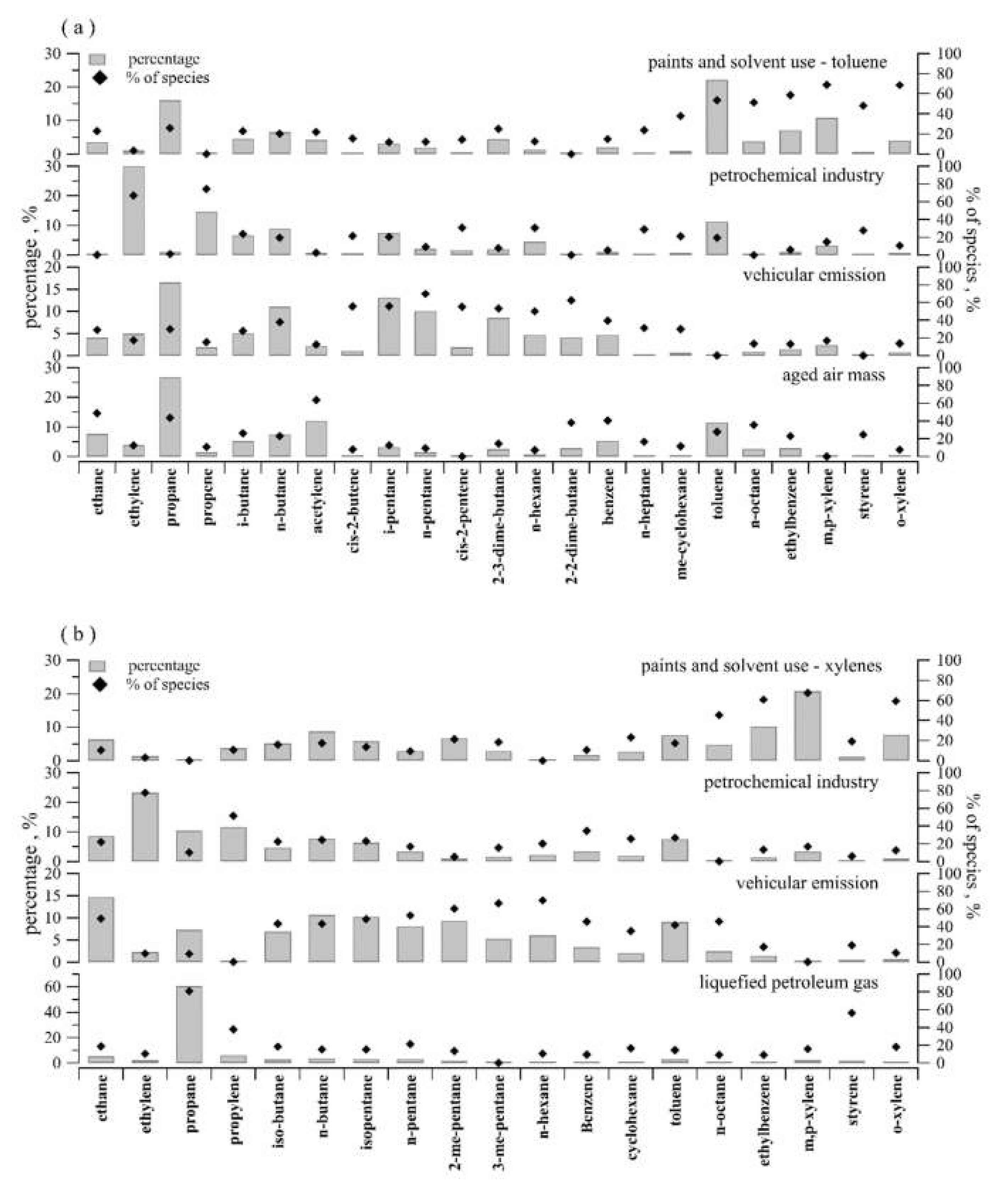

Figure 9. Chemical profiles of NMHCs for individual positive matrix factorization (PMF)-resolved factors at (a) the DSH site and (b) the PD site from 1–31 July 2017. The bar represents the percentage of individual species in the total mixing ratios for all fitting species. The black-filled diamond indicates the relative contribution of each factor in the measured mixing ratio of individual species.
Figure 9. Chemical profiles of NMHCs for individual positive matrix factorization (PMF)-resolved factors at (a) the DSH site and (b) the PD site from 1–31 July 2017. The bar represents the percentage of individual species in the total mixing ratios for all fitting species. The black-filled diamond indicates the relative contribution of each factor in the measured mixing ratio of individual species.
Atmosphere 11 00295 g009
Atmosphere 11 00295 g010 550

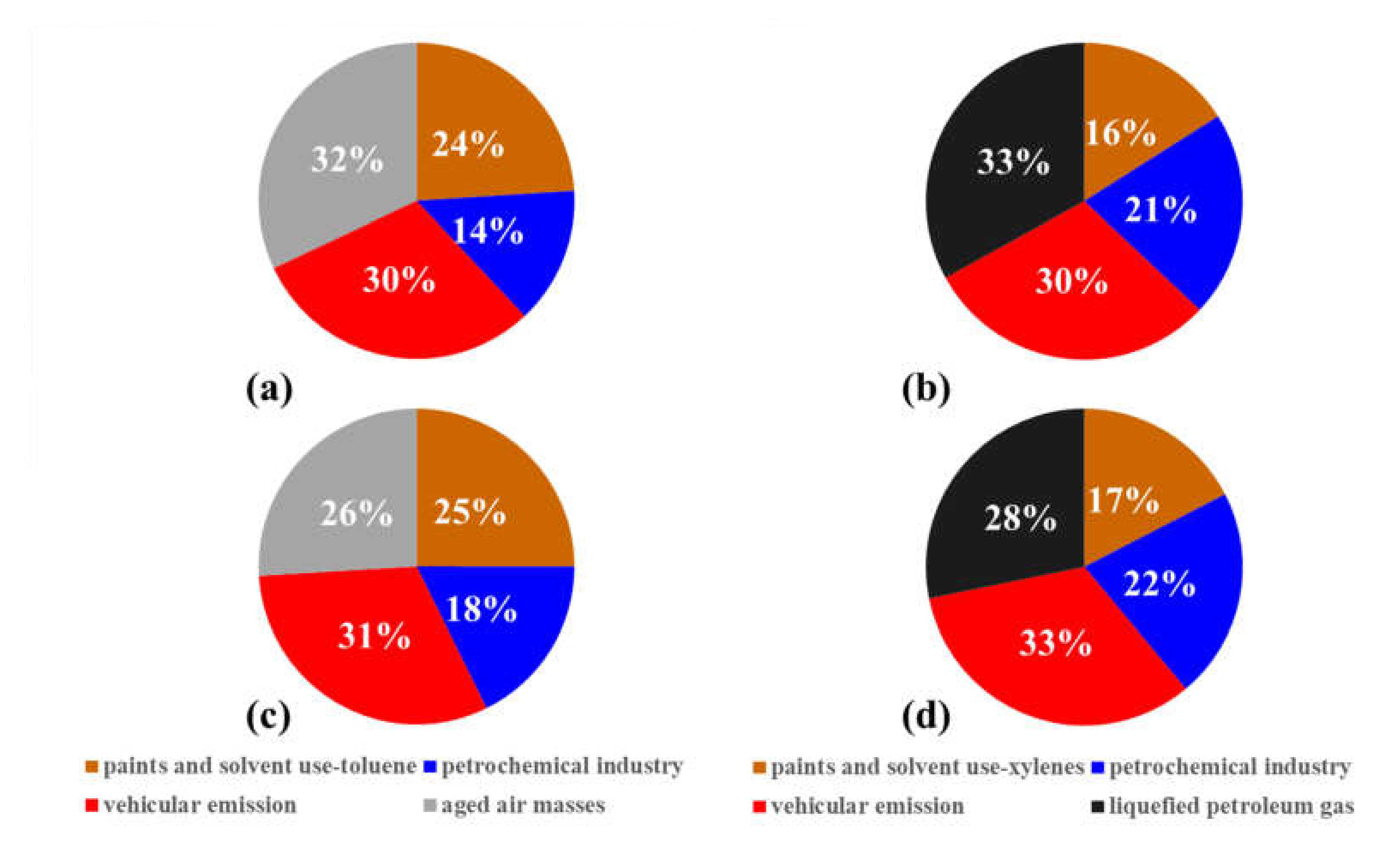

Figure 10. Relative contributions of different sources to NMHCs mixing ratios from (a,b) 1–31 July and (c,d) O3 pollution episodes (a,c) at the DSH site and (b,d) the PD site.
Figure 10. Relative contributions of different sources to NMHCs mixing ratios from (a,b) 1–31 July and (c,d) O3 pollution episodes (a,c) at the DSH site and (b,d) the PD site.
Atmosphere 11 00295 g010
Atmosphere 11 00295 g011 550

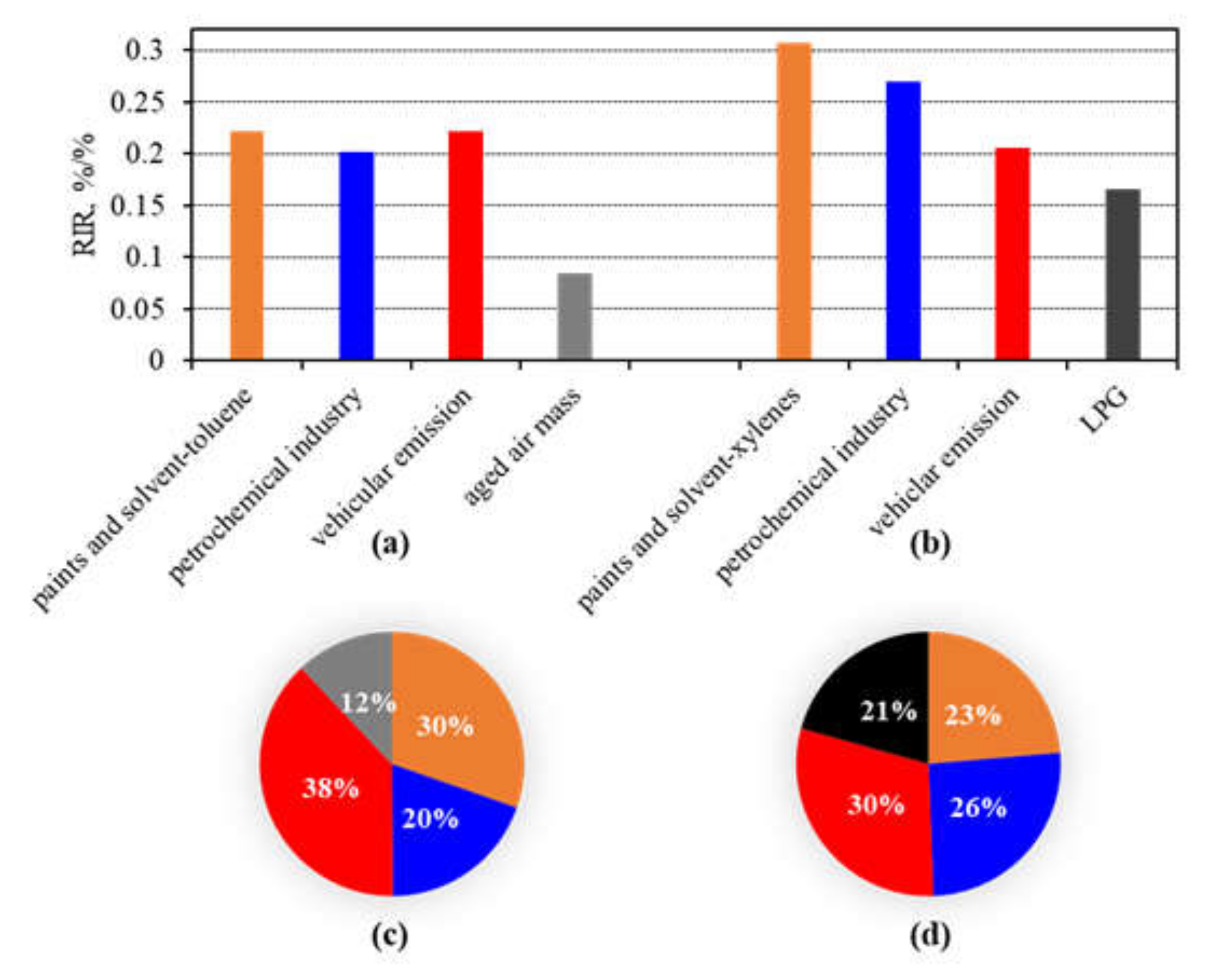

Figure 11. The RIR values for anthropogenic NMHCs from different PMF-resolved sources (a) at the DSH site and (b) the PD site, and relative contributions of different sources to O3 formation (c) at the DSH site and (d) at the PD site during pollution episodes (11–16 July and 18–26 July).
Figure 11. The RIR values for anthropogenic NMHCs from different PMF-resolved sources (a) at the DSH site and (b) the PD site, and relative contributions of different sources to O3 formation (c) at the DSH site and (d) at the PD site during pollution episodes (11–16 July and 18–26 July).
Atmosphere 11 00295 g011
Atmosphere 11 00295 g012 550
Figure 12. Backward trajectories at the DSH site from 7:00 a.m.–7:00 p.m.1 on 11 July (red lines) and 15 July (blue lines) 2017.
Figure 12. Backward trajectories at the DSH site from 7:00 a.m.–7:00 p.m.1 on 11 July (red lines) and 15 July (blue lines) 2017.
Atmosphere 11 00295 g012
Table
Table 1. Summary of the studies of O3 formation regime in Shanghai. VOC—volatile organic carbon.
Table 1. Summary of the studies of O3 formation regime in Shanghai. VOC—volatile organic carbon.
Land-Use FunctionTimeMethodO3 Formation RegimeReference
UrbanJanuary 2006–May 2007OBMVOC-limitedGeng et al., 2008 [32]
15 June 2006–14 June 2007VOC/NOx ratioVOC-limitedRan et al., 2009 [14]
20 July–30 July 2007EBMVOC-limitedLi et al., 2011 [34]
2 August–11 August 2007EBMVOC-limitedTie et al., 2009 [35]
July–August 2009OBMVOC-limitedRan et al., 2012 [33]
November–December 2009VOC/NOx ratioVOC-limitedTang et al., 2008 [13]
5 August–31 August 2010EBMVOC-limitedLi et al., 2012 [6]
21 August–02 Sep 2016OBMVOC-limitedTan et al., 2019 [15]
11 July–26 July 2017OBMVOC-limitedThis study
Suburban4 May–01 June 2005OBMVOC-limitedXue et al., 2014 [36]
20 July–30 July 2007EBMNOx-limitedLi et al., 2011 [34]
5 August–31 August 2010EBMNOx-limitedLi et al., 2012 [6]
11 July–26 July 2017OBMTransition regimeThis study

Share and Cite

MDPI and ACS Style

Lin, H.; Wang, M.; Duan, Y.; Fu, Q.; Ji, W.; Cui, H.; Jin, D.; Lin, Y.; Hu, K. O3 Sensitivity and Contributions of Different NMHC Sources in O3 Formation at Urban and Suburban Sites in Shanghai. Atmosphere 2020, 11, 295. https://doi.org/10.3390/atmos11030295

AMA Style

Lin H, Wang M, Duan Y, Fu Q, Ji W, Cui H, Jin D, Lin Y, Hu K. O3 Sensitivity and Contributions of Different NMHC Sources in O3 Formation at Urban and Suburban Sites in Shanghai. Atmosphere. 2020; 11(3):295. https://doi.org/10.3390/atmos11030295

Chicago/Turabian Style

Lin, Haotian, Ming Wang, Yusen Duan, Qingyan Fu, Wenhao Ji, Huxiong Cui, Dan Jin, Yanfen Lin, and Kun Hu. 2020. "O3 Sensitivity and Contributions of Different NMHC Sources in O3 Formation at Urban and Suburban Sites in Shanghai" Atmosphere 11, no. 3: 295. https://doi.org/10.3390/atmos11030295

APA Style

Lin, H., Wang, M., Duan, Y., Fu, Q., Ji, W., Cui, H., Jin, D., Lin, Y., & Hu, K. (2020). O3 Sensitivity and Contributions of Different NMHC Sources in O3 Formation at Urban and Suburban Sites in Shanghai. Atmosphere, 11(3), 295. https://doi.org/10.3390/atmos11030295

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
