Low-visibility conditions such as fog, dust, smoke, and haze, often create problems for aviation. The occurrence of dense fog often affects flight operations at airports in terms of flight delays, cancellations, and diversions, causing passengers to be severely affected and airlines to bear severe economic losses [1
]. The north and northeast plains of India, especially the Indo-Gangetic plains (IGP) region, are well known for dense fog throughout the winter season. Recent studies on fog in India have highlighted considerable socio-economic concerns due to the alarming increase in fog and pollution and the persistence of fog in winter over the IGP [10
]. Fog in the northern region of India is predominantly formed during the peak winter season over various temporal and spatial scales under a variety of meteorological conditions [11
]. It shows significant variability from year to year depending on a combination of large-scale and meso-scale meteorological conditions [11
]. The other unique characteristic of the fog layer in this region is that, once it is developed, it sometimes persists from a few days to weeks over vast areas, with only a partial lifting in the late afternoon. A stable atmosphere, lower surface temperatures, and calm winds persisting for most of the day or night as well as an ample moisture supply favor the development and persistence of fog in Delhi and the airport area [16
]. Western disturbances (WDs) influence the northern region of India during the winter and advect large amounts of moisture into the lower troposphere. As soon as a lower-level ridge line forms over the northern region, it develops stable and clear atmospheric conditions and lower surface temperatures leading to the formation of strong low-level inversions, which facilitate fog formation and its persistence in Delhi [15
]. In fact, both temporally and spatially, such fog events may be the fastest in formation, largest in area, and longest in duration, compared to fog observed in other parts of the world.
At present, India is the 9th largest aviation market in the world. In the last decade, domestic air traffic has quadrupled (from 13 million passengers to 52 million passengeres). An almost similar increase in international traffic has also been seen during the same period [2
]. Located in the IGP region, Delhi is the one of the largest megacities of South Asia. The Indira Gandhi International (IGI) Airport of Delhi is one of the busiest airports in the country in terms of both passengers and cargo traffic. Delhi IGI Airport was ranked as the 25th busiest airport in the world in 2015 where more than 900 flight operations occur per day. A survey conducted by the National Council of Applied Economic Research suggests that IGI Airport is the one of the highest contributors of the Delhi Gross Development Product (GDP), contributing approximately 0.45% to the national GDP and 13.53% to the Delhi GDP (in 2009–2010 FY) [12
]. Dense fog affects aviation severely at IGI Airport [13
] and flight operations are often hindered due to delays, diversions, or cancellations, causing significant economic losses. Dense fog in the early morning or evening hours creates more loss to the airlines than if it occurs at midnight or in the late morning hours. Recent studies show that there has been an increase in the frequency and intensity of fog over the northern parts of the country during the winter season, and morning poor visibility days have increased significantly during the last five decades [5
]. A new study by Ghude et al. (2017) showed that fog (visibility < 1000 m) and dense fog (visibility < 200 m) days over Delhi have doubled in the past three decades. An increase in dense fog hours at an airport will affect more flight operations and can create more economic losses to the airlines due to the increased diversion, delay, and cancellation of flights. Although it is generally well recognized that fog can cause financial losses to the aviation industry, it is important to undertake a quantitative study of the estimated losses. When fog occurs, (1) air traffic on the ground slows down due to a reduced taxiing speed and (2) runway occupancy time (ROT) increases. Air traffic controllers (ATCs) may have to increase the spacing between each aircraft landing and takeoff to ensure safe operations, which can reduce airport capacity by 40% compared to its normal capacity. Additionally, ATCs must protect landing system signals for an aircraft arrival at two nautical miles from touchdown. For this to occur, previous arrivals and departures must be cleared from these areas. Because of this, a scheduled flight may be held at its origin, diverted back to the other airport, or in the worst-case scenario it may be cancelled. The main aim of this study was to evaluate the impact of dense fog at IGI Airport on economic losses incurred by the airlines due to the delay, diversion, and cancellation of both domestic and international flights during the winter season of 2011–2016.
The Directorate General of Civil Aviation, Government of India (DGCA), the Indian Meteorology Department (IMD), and the Airports Authority of India (AAI) prepared strict guidelines [5
] (better preparedness for landing, technical management, and training for the pilots) in 2014 for all flight landings at IGI Airport during periods of fog. Therefore, we have also explored the impact of those guidelines on the reduction in economic impact on the airlines before and after the 2014 fog period.
2. Data and Methodology
During foggy days, flights can be delayed, diverted, and cancelled due to very low visibility conditions (dense fog) when flight takeoff and landing are very difficult for the pilot. Table 1

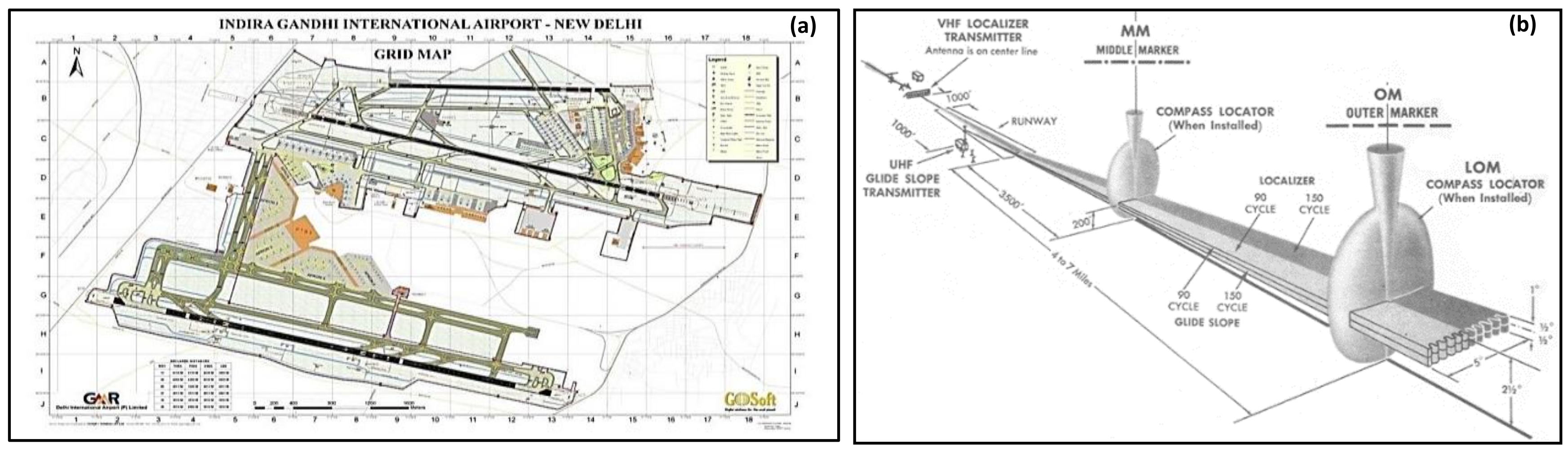

shows the fog-type general visibility range and runway visibility range (RVR) for the various conditions. IGI Airport has a total of three runways (RWYs) (Figure 1
a). Two of its main runways (RWY 29-MID-11 and RWY 28-MID-10) have a landing system with a capability of Category IIIB (CAT IIIB)-compliant flight landing up to an RVR value of 50 m. The third one is a small runway (RWY 27-MID-09) which has a capability of CAT I-compliant flight landing up to a 500 m RVR value. Figure 1
b illustrates the technical aspects of CAT Operations. However, not all aircraft of all airlines are fully equipped with devices matching the CAT IIIB Instrument Landing Systems (ILS) or have trained crew to operate flights in low visibility conditions during fog at IGI Airport. The report prepared by the DGCA [5
] found that, during 2011–2014 fog events, various airlines were unable to operate at IGI Airport due to CAT IIIB non-compliant flights, irrespective of the world-class landing facilities available at IGI Airport.

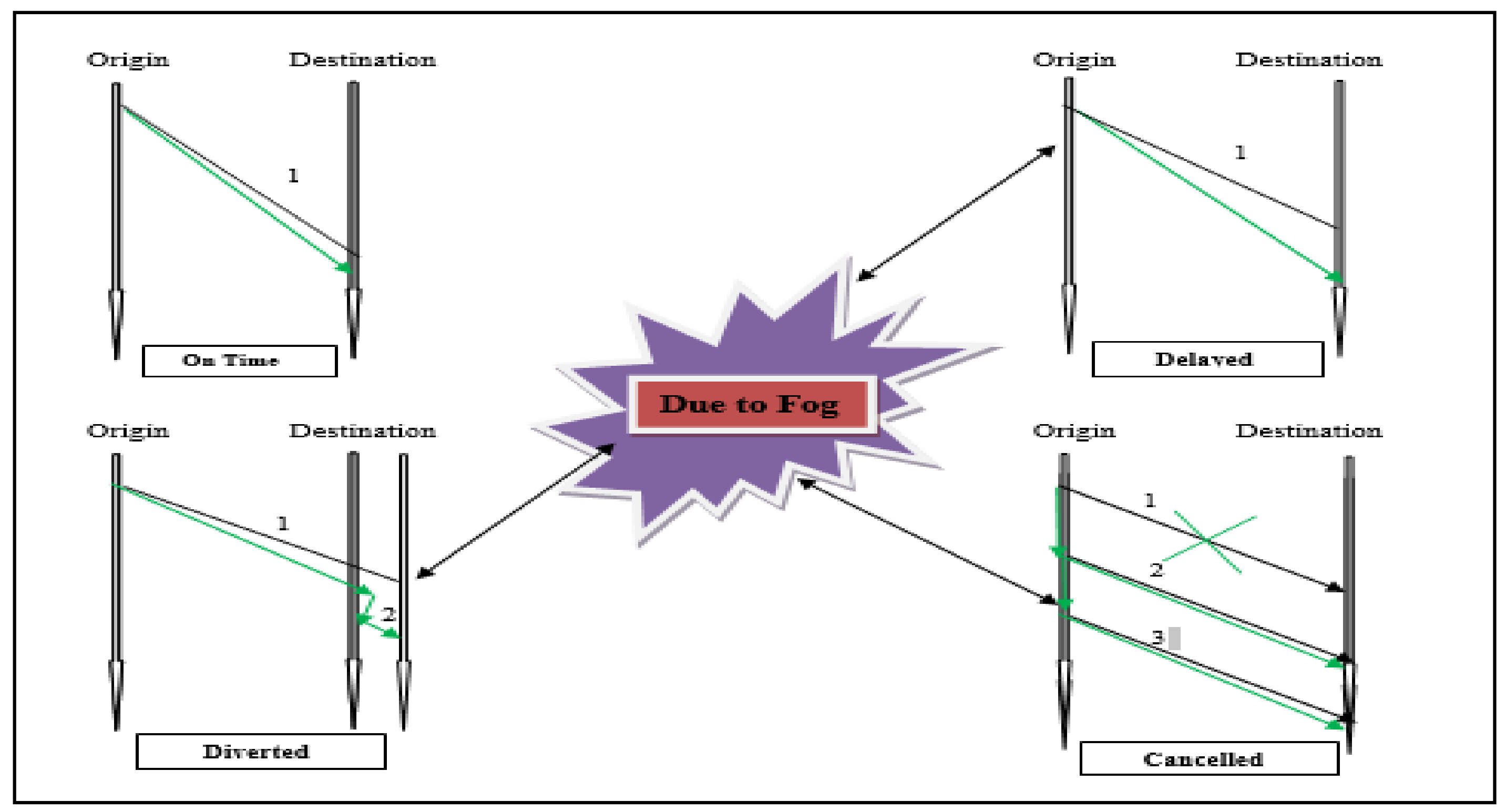

shows a schematic for flight operations during a normal event and a foggy event. During very low visibility conditions, a flight gets delayed, diverted, or cancelled based on the duration of the dense fog event. Subsequently, such an event creates a burden of charges on airlines which they will have to either pay back to the passengers or additional charges which they will have to bear in the form of ground handling and parking, Route Navigation Facilities Charges (RNFCs), extra hold fuel charges, as well as passenger food and accommodation charges for both domestic and international flights.

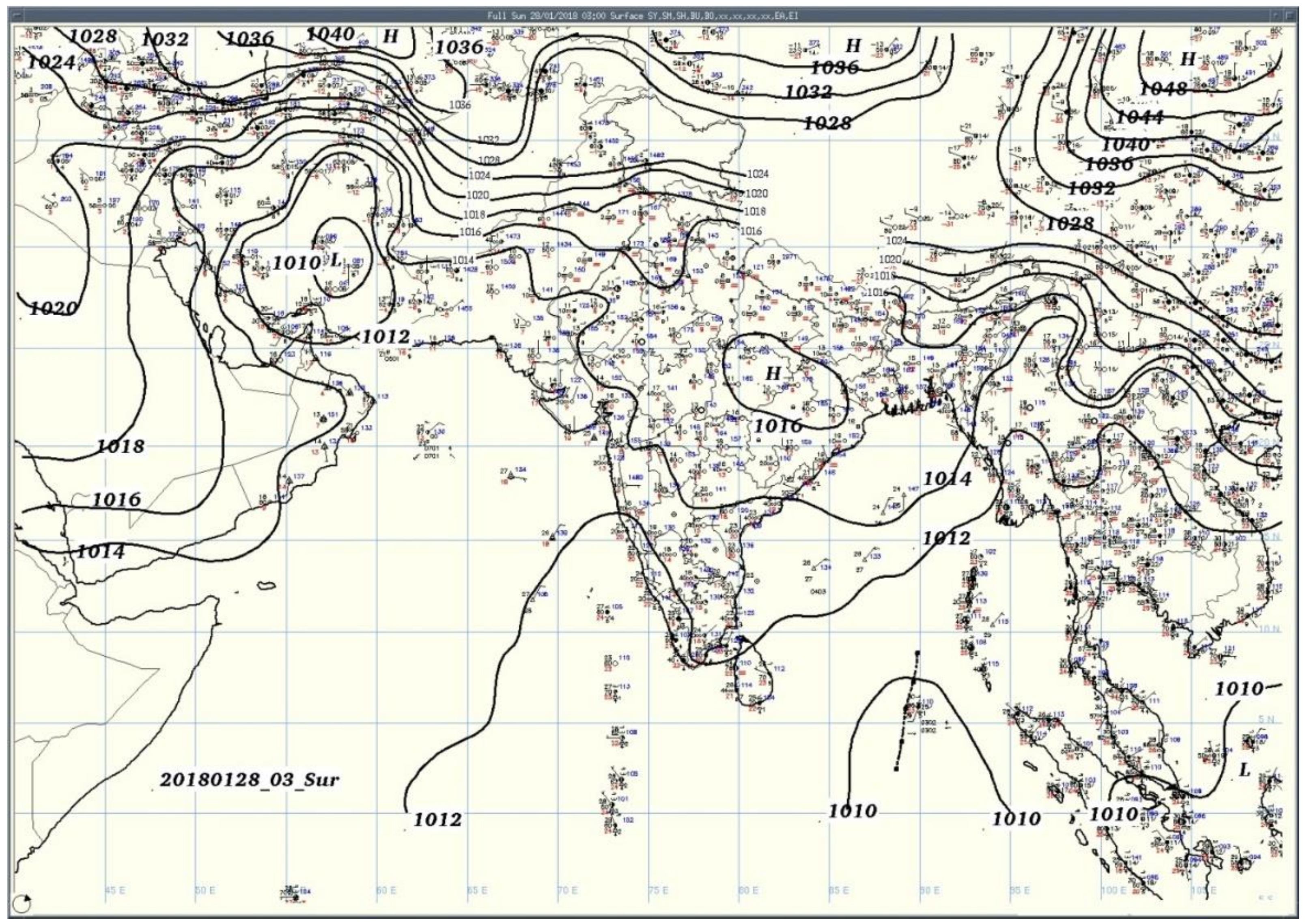

Typical synoptic-scale weather conditions and local meteorological conditions that usually trigger the dense fog at IGI Airport are shown in Figure 3
; Figure 4

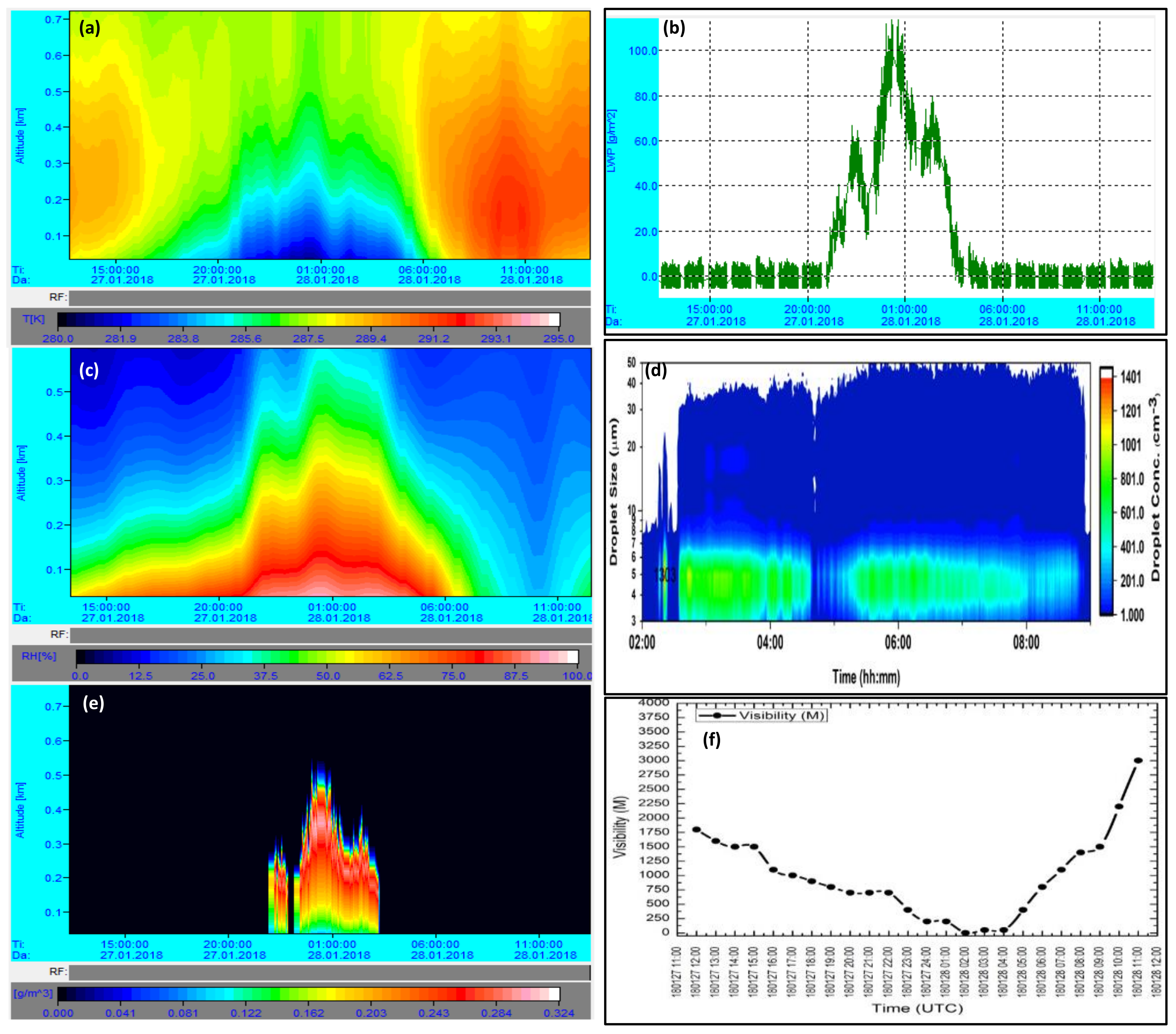

as an example (for the fog event which occurred on 28 January 2018). The surface visibility evolution at IGI Airport for this event indicates that dense fog formation started (visibility < 400 m) on 28 January, 01 UTC (Figure 4
f), and that between 01 UTC and 04 UTC surface visibility reduced to close to a zero value, indicating very dense fog at IGI Airport (dense fog regime). A microwave radiometer (MWR) was installed at IGI Airport to measure the vertical profiles of air temperature, the water vapor mixing ratio, and cloud liquid water, and the fog monitor (FM120) was installed to measure the fog droplet number concentration. The fog layer vertical structure and its associated thermodynamic features can be noted from the microwave radiometer profiler (Figure 4
). During 28 November, the synoptic-scale weather conditions were characterized by low wind speed and persistent subsidence of high pressure over a region with a northerly and northwesterly zonal advection supporting cold air advection (see synoptic charts in Figure 3
) over the airport. The northerly and northwesterly advection affected the whole boundary layer and contributed to a net decrease in the temperature field. As a result, the vertical temperature and the humidity structure at IGI Airport indicated a strong temperature inversion (Figure 4
a) located at 200 m close to the surface with a deep moist layer below that level (Figure 4
c). This layer was persistent throughout the night. The cooling conditions eventually triggered the deep fog layer formation in the early morning of 28 January 2016 as evidenced by the highest liquid water contained near the surface (Figure 4
e) and the increase in the total liquid water path (Figure 4
b). During the dense fog hours (visibility < 200 m), large numbers of fog droplets in the size range of 2–50 µm were observed near the surface (Figure 4
f). This suggested that the very low visibility conditions observed between 01 UTC and 04 UTC were not haze but were caused by fog droplets.
In this study, we focused on the number of flights delayed, diverted, and cancelled from India’s busiest international airport (IGI Airport) in New Delhi during the winter fog season between 2011 and 2016. Diversion data for 2011–2014 were taken from the DGCA report, 2014 [5
], while the same for the period 2014–2016 were taken from Air Traffic Control (ATC) and Delhi International Airport Limited (DIAL), IGI Airport New Delhi. Data on cancellations and delays for 2011–2016 were collected from DIAL. DIAL records flight delays, diversions, and cancellations of flights on a daily basis when the airport encounters the CAT IIIB (visibility < 200 m) fog conditions. The data on the number of dense fog hours estimated from the visibility less than 200 m at IGI Airport were taken from the IMD [15
]. Visibility at each runway at IGI Airport was measured using very accurate “Drishti” indigenious-transmissometer [19
]. More details on the accuracy of the visibility data can be found in Mohan et al., 2015 [19
]. To estimate the economic cost of fog for each delayed, diverted, and cancelled flight at IGI Airport, we used the actual cost of flight operations and its maintenance charges [1
] for both domestic and international flight operations. This estimation is based on the distance between the arrival and departure places, passenger and fuel holding capacity, and weight of the flights. Table 2
; Table 3
represent the breakdown of charges for different segments of flight operations for domestic and international flights, respectively. The breakdown of charges for different segments of flight operations indicates a fixed value for domestic and international as per the Ministry of Civil Aviation and the Center for Asia Pacific Aviation (CAPA) India [2
]. The number of dense fog hours (visibility < 200 m) during each winter season was estimated based on the transmissometer installed at each runway. Visibility data from all the transmissometers were averaged to get overall visibility at IGI Airport. Table 2
and Table 3
illustrate that the economic cost of fog varies significantly and depends on whether flights are delayed, diverted, or cancelled. In this study, for domestic flights, we considered a flight capacity of 150 passengers and an average ticket cost of 52.23 USD (INR 3500)/person. For international flights, we considered a carrying capacity of 350 passengers (e.g., Air India Boeing 777-300 ER from London to Delhi) with an average ticket cost of 1343.28 USD (INR 90,000)/person.
3. Economic Impact

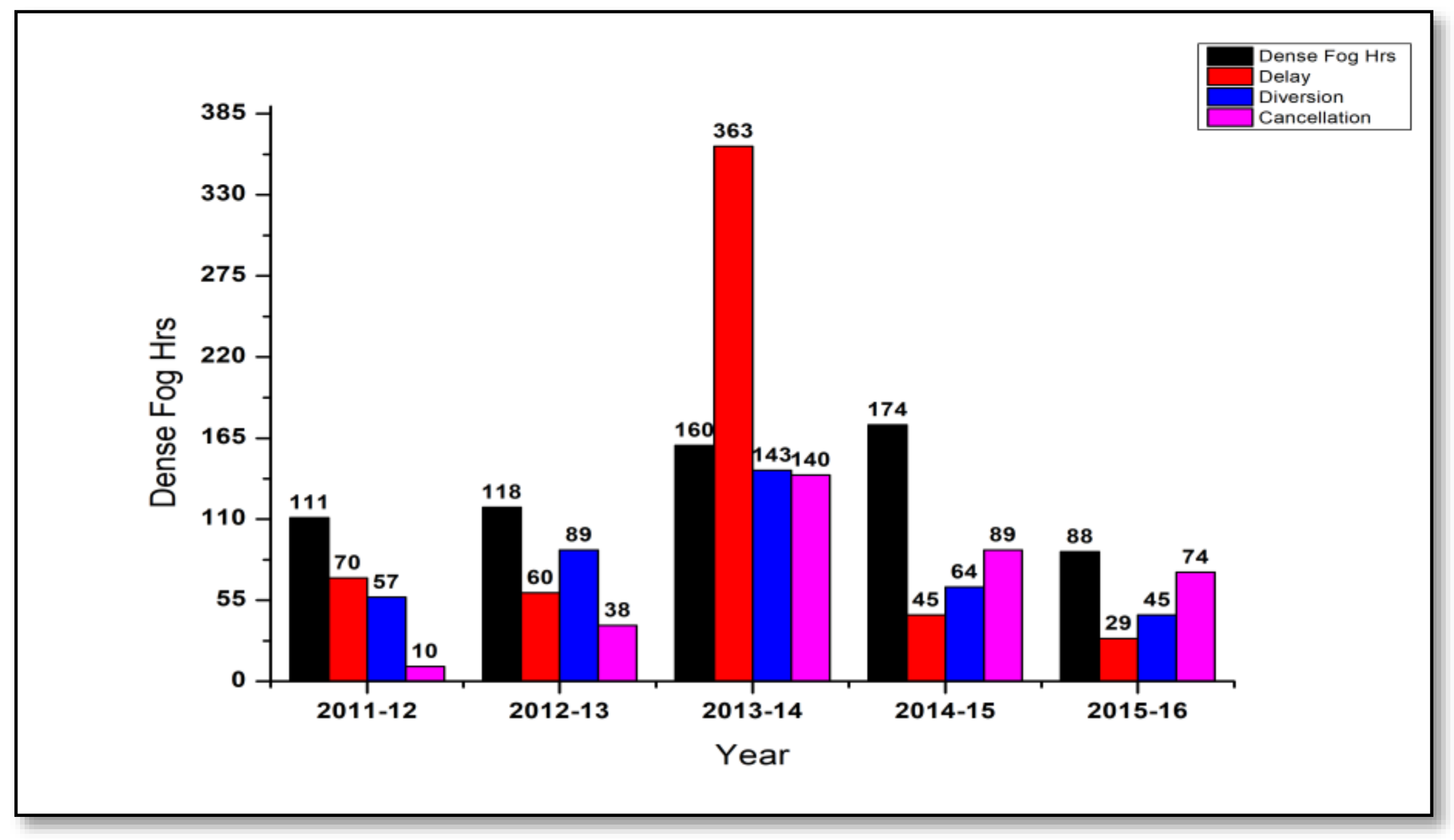

illustrates the number of dense fog hours (for visibility less than 200 m) for each year from 2011 to 2016 and corresponding numbers of delayed, diverted, and cancelled flights from both domestic and international sectors at IGI Airport, New Delhi. It can be seen that flight operations are related to the number of dense fog hours which occurred in each year. During the 2011–2012 and 2012–2013 winter seasons, the numbers of dense fog hours were fewer compared to the winter season of 2013–2014, which resulted in fewer disturbances to flight operations. Based on the breakdown of charges as per the CAPA [2
] and reported values in Table 2
, the estimated costs of delays, diversions, and cancellations are approximately 2681.35 USD, 7456.85 USD, and 8171.64 USD for one domestic flight, and 5665.96 USD, 21,934.53 USD, and 8171.64 USD for one international flight, respectively. Figure 6

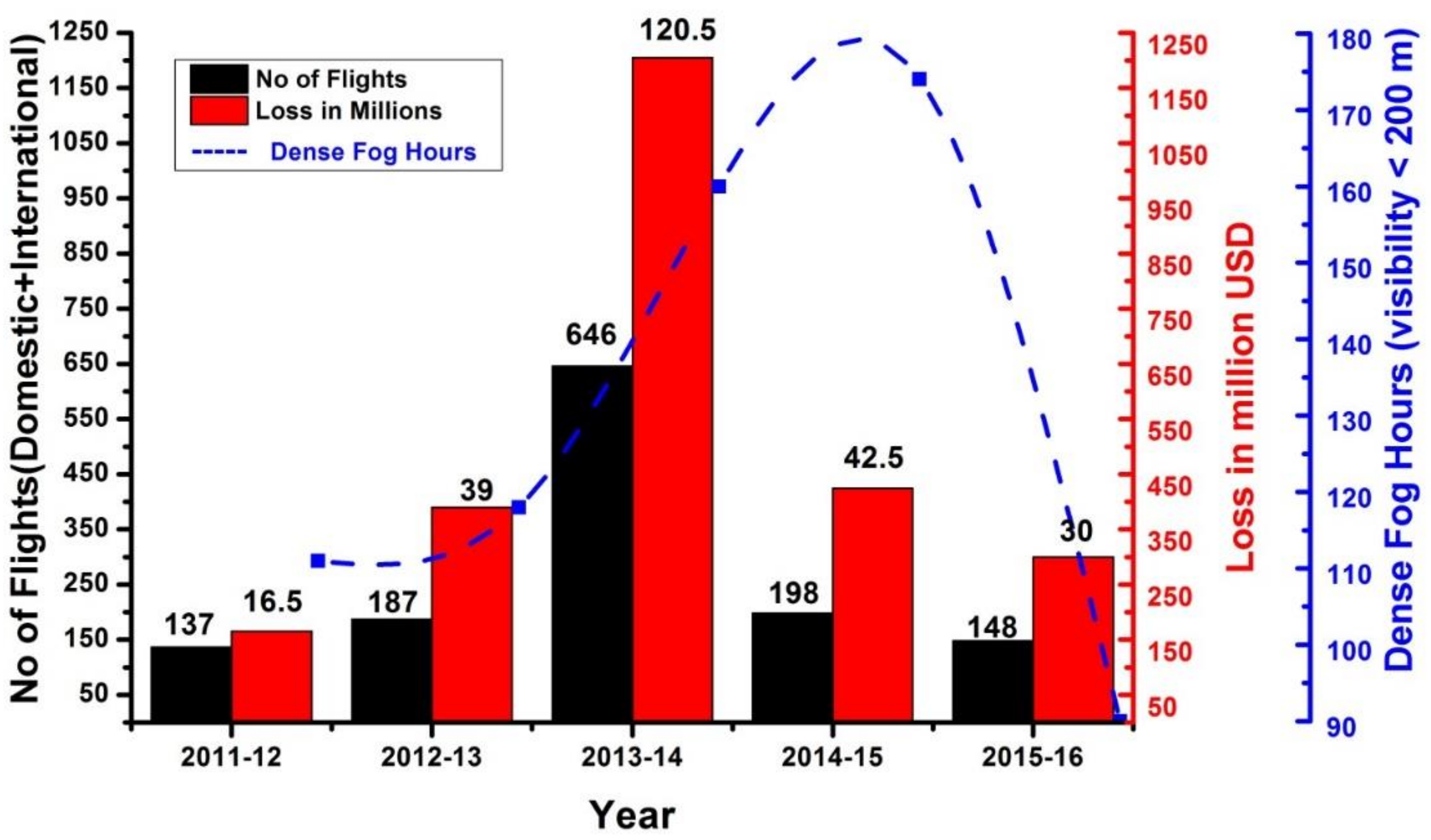

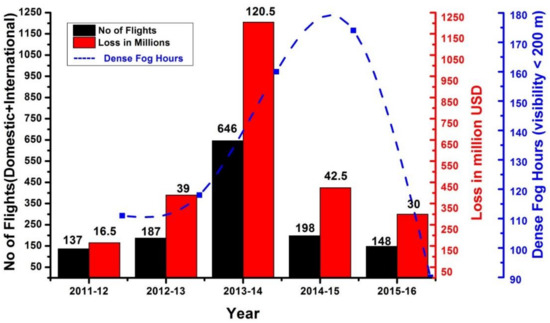

presents the total numbers of flights affected and the respective economic losses for each winter season between 2011 and 2016. The numbers of dense fog hours are also overlaid (blue curve) with the total flights affected during the same period. The total number of flights cancelled, diverted, and delayed during this period was 351, 398, and 567, respectively. This led to a total economic cost of approximately 3.9 million USD (248 million Indian rupees) due to flights affected by heavy fog spells at IGI Airport over five years.
In 2013–2014, dense fog hours were approximately 160 h and most of the events occurred at midnight or in the early morning hours and continued until the next day [5
]. This caused a maximum number of 363 delays (313 domestic and 50 international), 143 diversions (89 domestic and 54 international), and 141 cancellations (110 domestic and 30 international) of flights at IGI Airport. For example, in 2013–2014, due to a very dense fog episode on 5 January 2014, a total of 52 flight diversions occurred on a single day, a record of the highest ever number of flights diverted from Delhi airport in a single night due to unfavorable weather conditions. Compared to dense fog events which occurred between the years 1981–2014, the onset of the dense fog recorded on 5 January 2014 was the earliest. It started at 18:30 IST on 5 January and remained until 08:30 IST on 6 January. RVR data from all runways showed that visibility values were below 150 m between 20:30 IST and 02:30 IST leading to CAT IIIB/C conditions. Since the incoming flights on that date were mostly non-CAT compliant [5
], they were unable to land at IGI Airport, which resulted in more diversions. It was the worst fog event recorded between 2008 and 2016 in terms of duration of a dense fog event. During this fog event, IGI Airport was equipped with a world-class CAT IIIB ILS facility and was fully working. However, the lack of preparedness with respect to trained pilots and CAT III-compliant flights to handle such an event resulted in a large disruption to the flight operations [5
]. This resulted in the largest economic loss of approximately 1.78 million USD (120 million INR) due to the heavy fog spells in the winter of 2013–2014.
In order to avoid such incidents of high disruption and to bring flight diversions to zero, experts from DGCA-IMD-AAI prepared strict guidelines [5
] to implement CAT III ILS effectively for all flight landings at IGI Airport during night–morning operations when the airport is vulnerable to the likely occurrence of fog events as per the IMD meteorological forecast. These guidelines cover all details, such as (1) aircraft should be fitted with devices matching CAT IIIB ILS and (2) airlines should train their pilots and crews to operate flights in low visibility conditions. More details on the guidelines can be found in the DGCA report [5
]. It also describes the role of all stakeholders and the Standard Operating Procedure (SOP) to be followed to reduce diversions and cancellations so that the huge loss which occurred during 2013–2015 fog season can be minimized in the future.
Since the implementation of these guidelines in the winter of 2014–2015, IGI Airport has been better prepared by giving advanced training to pilots and improving their effective utility over the existing landing system to an advanced CAT III landing. As a result, we found drops of approximately 88%, 55%, and 36% in delays, diversions, and cancellations of flights, respectively (Figure 5
), irrespective of a greater number of dense fog hours (~10% higher than the preceding winter season) in the winter of 2014–2015 (Figure 6
). Consequently, a significant reduction in economic losses to the airlines due to dense fog was observed during the winter of 2014–2015 (0.675 million USD). This is approximately a 65% reduction in economic losses compared to the earlier winter season (2013–2014). Figure 6
, overlaid with the duration of dense fog hour data (visibility < 200 m) also shows the relationship between the number of fog hours and economic losses for every year. It shows that the economic cost of fog is directly related to the number of dense fog hours, but that the implementation of the DGCA-IMD-AAI guidelines during 2014–2015 has reduced significantly the cost of fog to the airlines.
